ASTORIA BRAVA DAMPFHAHN WASSERHAHN

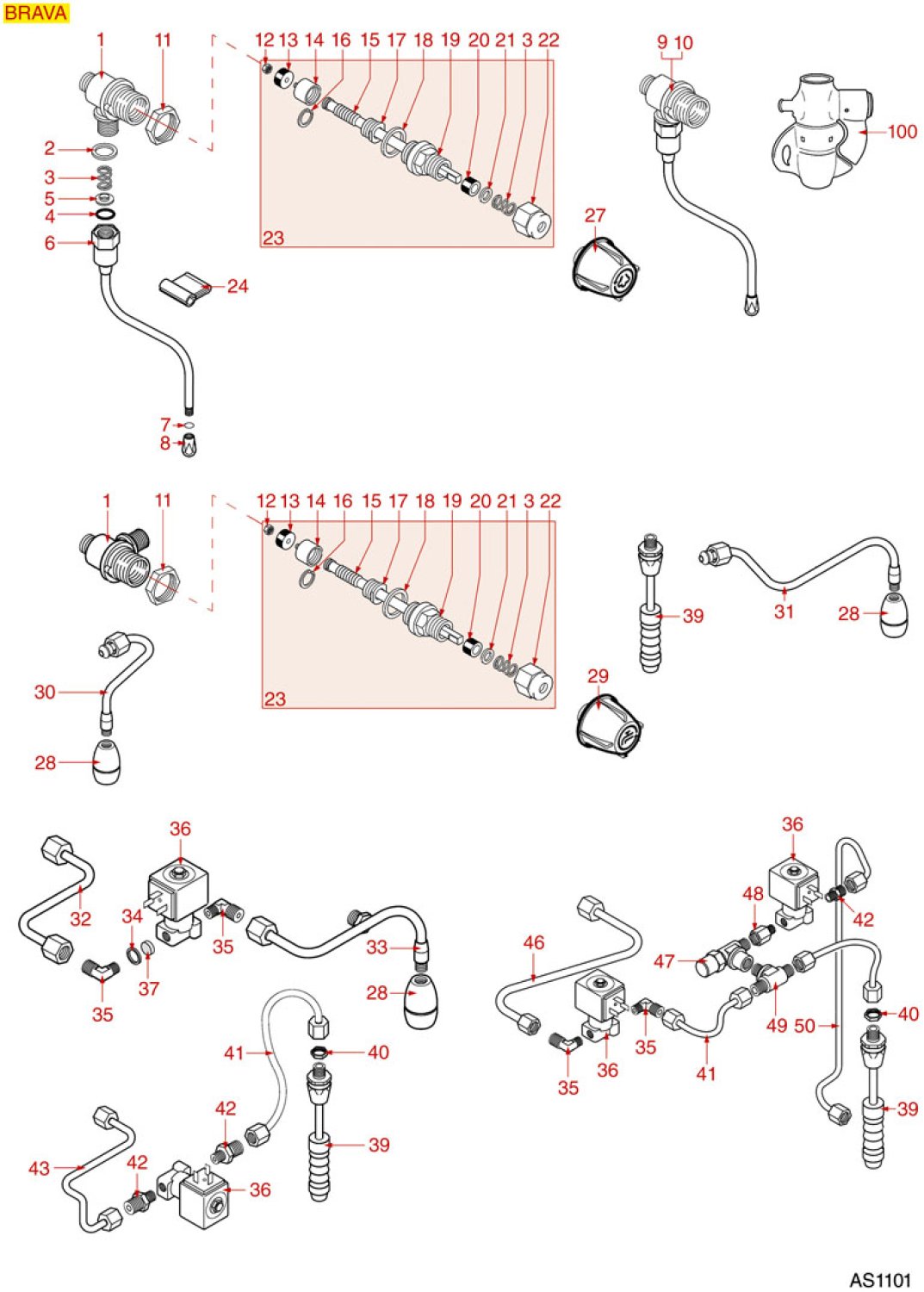

Drawing number 8038584

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.: Image: Description: Qty.:
1steam tap body 8005576
STEAM TAP BODY
22,24 €

excl. Shipping costs

Delivery time
is determined
2ptfe flat gasket 21x16 8x2 mm 8001486
PTFE FLAT GASKET 21x16,8x2 mm
1,37 €

excl. Shipping costs

immediately available
2asbestos free flat gasket o 22x17x2 mm 8001632
ASBESTOS FREE FLAT GASKET ø 22x17x2 mm
1,18 €

excl. Shipping costs

immediately available
3spring o 11 5x16 mm 8003827
Spring ø 11,5x16 mm
1,37 €

excl. Shipping costs

immediately available, 7 available
4o ring 03043 epdm 8001575
O-RING 03043 EPDM
0,89 €

excl. Shipping costs

immediately available
5washer 8001588
WASHER
1,26 €

excl. Shipping costs

immediately available
6chrome hexagonal nut 8006628
CHROME HEXAGONAL NUT
7,54 €

excl. Shipping costs

immediately available, 3 available
7o ring m 0060 10 red silicone 8001766
O-RING M 0060-10 RED SILICONE
2,13 €

excl. Shipping costs

immediately available, 18 available
8stainless steel water sprinkler m8 8006624
STAINLESS STEEL WATER SPRINKLER M8
11,95 €

excl. Shipping costs

immediately available, 1 available
11nut m 26x1 5 8005578
NUT M 26x1.5
6,06 €

excl. Shipping costs

Delivery time
is determined
12hexagonal nut m3 8005446
HEXAGONAL NUT M3
0,55 €

excl. Shipping costs

immediately available
13flat epdm gasket o 15x4x4 mm 80 sh 8001748
Flat EPDM gasket ø 15x4x4 mm 80 SH
1,25 €

excl. Shipping costs

immediately available, 12 available
14tap piston 8005131
TAP PISTON
4,70 €

excl. Shipping costs

immediately available, 9 available

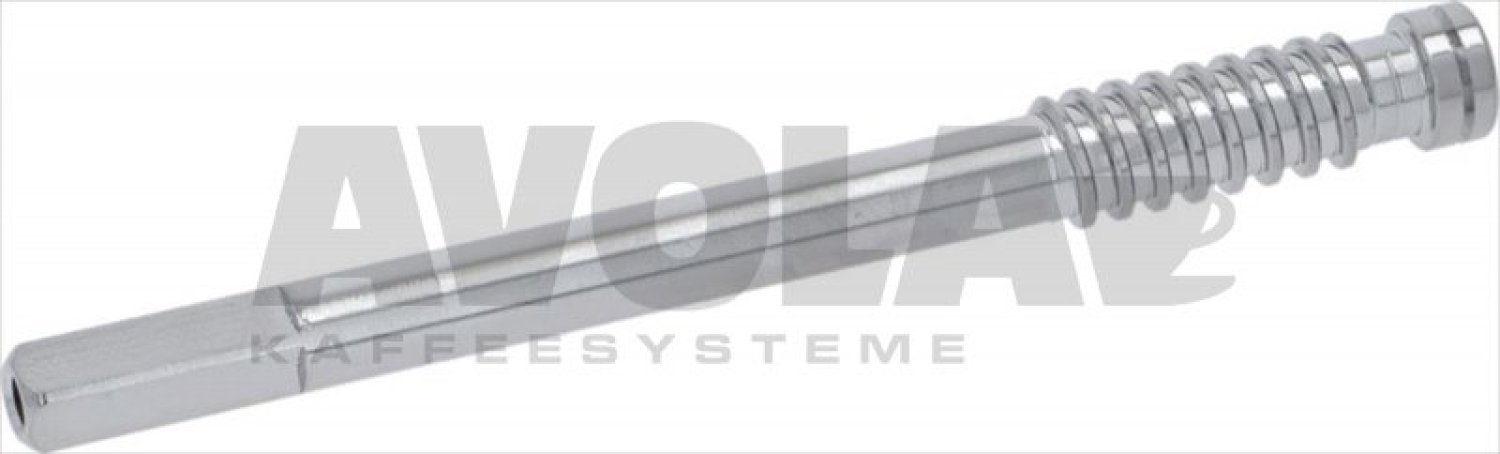

15astoria cma ventilstift verchromt 109mm 8038220
Astoria CMA Ventilstift verchromt 109mm
15,79 €

excl. Shipping costs

immediately available, 2 available
16radial seeger ring 8003728
RADIAL SEEGER RING
0,94 €

excl. Shipping costs

immediately available
17gasket holder 8001617
GASKET HOLDER
2,57 €

excl. Shipping costs

immediately available, 7 available
18flat gasket ptfe o 26x21x2 mm 8001415
Flat gasket PTFE ø 26x21x2 mm
2,32 €

excl. Shipping costs

immediately available
18copper flat gasket o 26x20x2 mm 8001587
COPPER FLAT GASKET ø 26x20x2 mm
1,49 €

excl. Shipping costs

immediately available, 19 available
18asbestos free flat gasket o 26x20x2 mm 8001590
ASBESTOS FREE FLAT GASKET ø 26x20x2 mm
1,00 €

excl. Shipping costs

immediately available, 6 available
19tap coupling 8005838
TAP COUPLING
11,20 €

excl. Shipping costs

Delivery time
is determined
20flat epdm gasket o 12 5x8x9 mm 8001631
FLAT EPDM GASKET ø 12,5x8x9 mm
1,05 €

excl. Shipping costs

immediately available
21brass washer o 12x8x1 mm 8001616
BRASS WASHER ø 12x8x1 mm
0,73 €

excl. Shipping costs

immediately available, 14 available
22tap nut 8005581
TAP NUT
5,60 €

excl. Shipping costs

Delivery time
is determined
23water steam tap pin rod 8005494
WATER/STEAM TAP PIN ROD
34,18 €

excl. Shipping costs

immediately available, 2 available
24burn preventing handgripfor pipe 8006685
BURN PREVENTING HANDGRIPFOR PIPE
3,12 €

excl. Shipping costs

immediately available, 7 available
27knob for steam tap 8003248
KNOB FOR STEAM TAP
7,51 €

excl. Shipping costs

Delivery time 4-6 weeks..
29knob for water tap 8003249
KNOB FOR WATER TAP
7,41 €

excl. Shipping costs

Delivery time
is determined
34copper flat gasket o 8 5x5x1 mm 8001948
COPPER FLAT GASKET ø 8,5x5x1 mm
0,84 €

excl. Shipping costs

immediately available
35l fitting o 1 4 a 1 8 a 8005689
L- FITTING ø 1/4 A-1/8 A
8,25 €

excl. Shipping costs

immediately available, 5 available
362 way solenoid valve parker 230v 50 60hz 8000985
2-WAY SOLENOID VALVE PARKER 230V 50/60Hz
65,72 €
65,72 €

excl. Shipping costs

immediately available, 4 available
37stainless steel water filter 8001124
STAINLESS STEEL WATER FILTER
2,69 €

excl. Shipping costs

immediately available
39 8210964
Astoria K9180-R3 TELESCOPIC WATER SPRAY
175,36 €

excl. Shipping costs

Delivery time 4-6 weeks..
42fitting o 1 8 and o 1 4 8005719
FITTING ø 1/8 and ø 1/4
6,08 €

excl. Shipping costs

immediately available, 15 available
47mixer fitting 8005693
MIXER FITTING
76,85 €

excl. Shipping costs

Delivery time 4-6 weeks..
48fitting 8005743
FITTING
5,25 €

excl. Shipping costs

immediately available, 19 available
49t shaped fitting 8005854
T-SHAPED FITTING
15,11 €

excl. Shipping costs

Delivery time
is determined
100kit cappuccinatore astoria cma 8000351
KIT CAPPUCCINATORE ASTORIA/CMA
Price on request

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
