ASTORIA DIVINA DAMPFHAHN WASSERHAHN

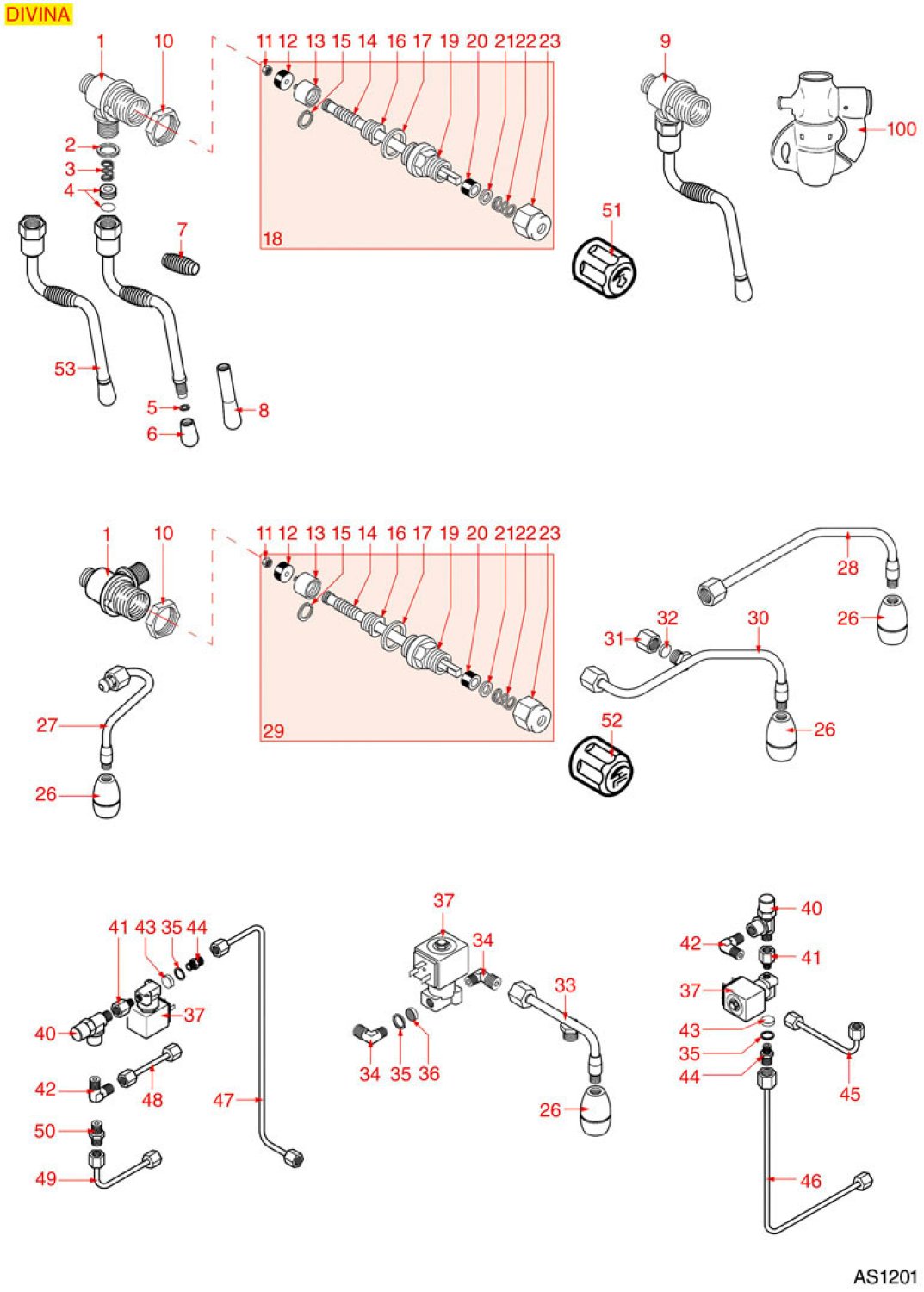

Drawing number 8038593

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.: Image: Description: Qty.:
1steam tap body 8005576
STEAM TAP BODY
22,24 €

excl. Shipping costs

Delivery time
is determined
2ptfe flat gasket 21x16 8x2 mm 8001486
PTFE FLAT GASKET 21x16,8x2 mm
1,37 €

excl. Shipping costs

immediately available
2asbestos free flat gasket o 22x17x2 mm 8001632
ASBESTOS FREE FLAT GASKET ø 22x17x2 mm
1,18 €

excl. Shipping costs

immediately available
3spring o 11 5x16 mm 8003827
Spring ø 11,5x16 mm
1,37 €

excl. Shipping costs

immediately available, 6 available
4conical ptfe seal o 14x7x6 mm 8001618
CONICAL PTFE SEAL ø 14x7x6 mm
3,46 €

excl. Shipping costs

immediately available, 12 available

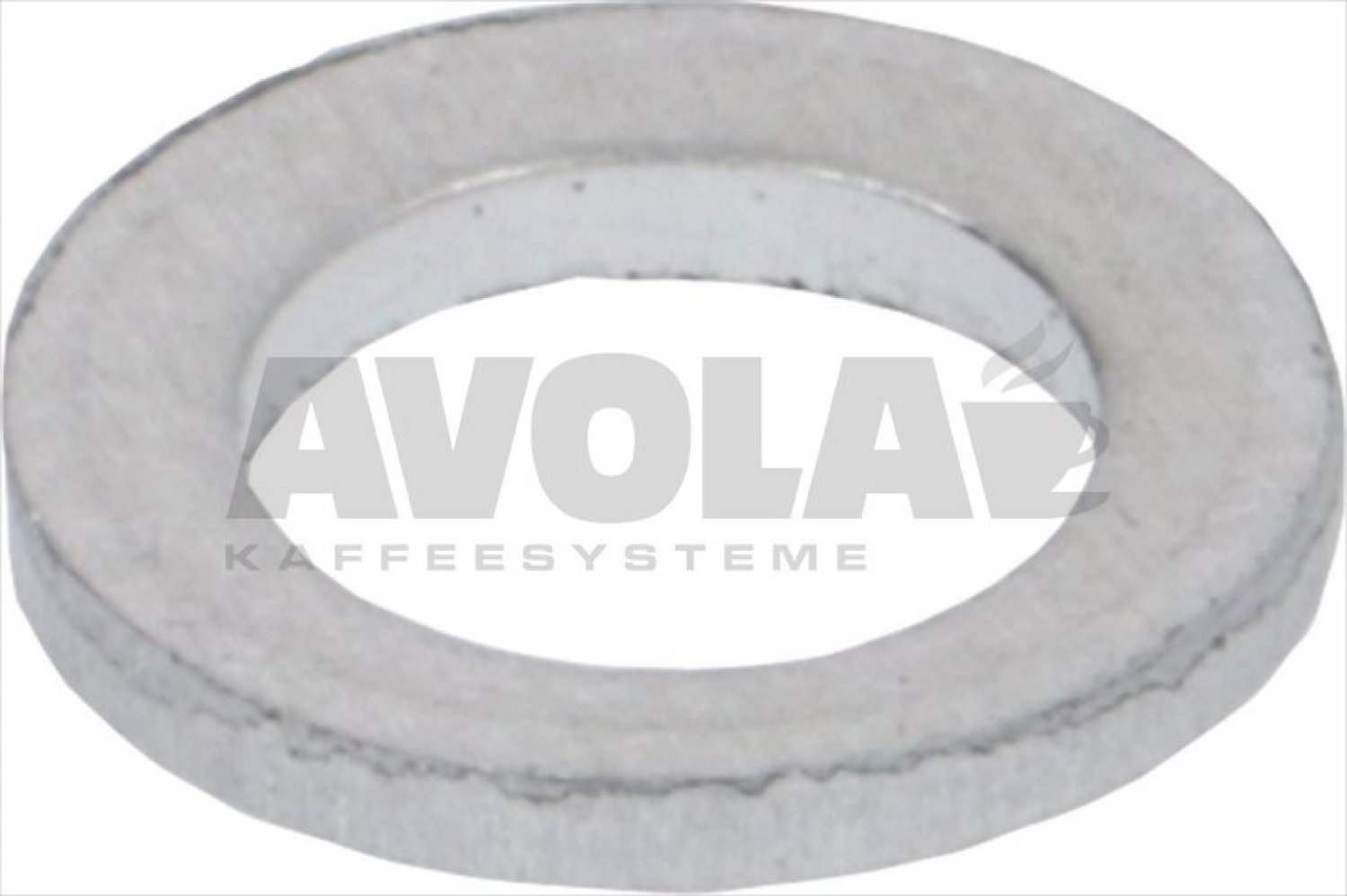

5rondella alluminio o 8x5x1 mm 8146606
RONDELLA ALLUMINIO ø 8x5x1 mm
1,56 €

excl. Shipping costs

Delivery time
is determined

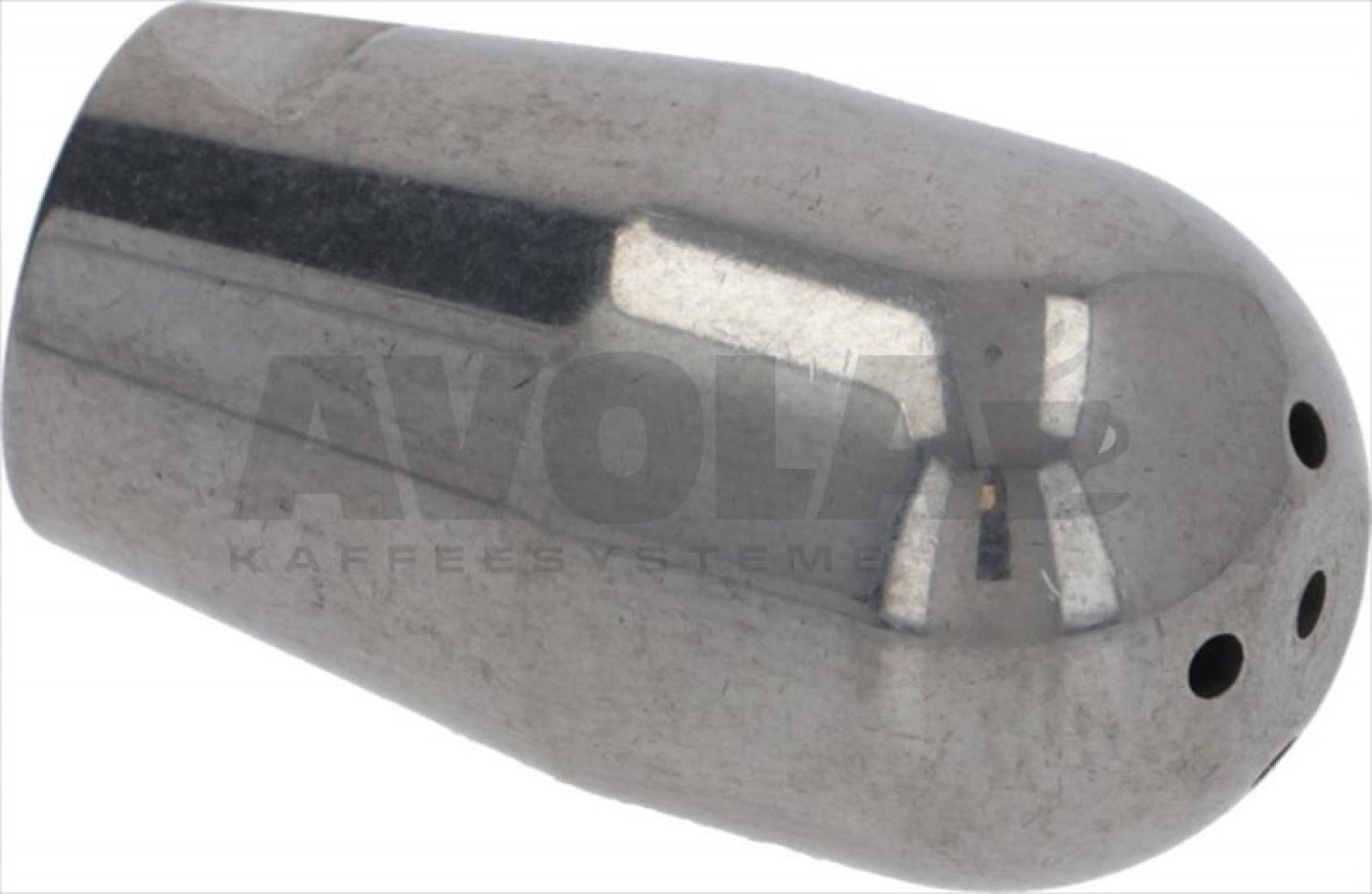

6spruzzatore vapore inox 8146535
SPRUZZATORE VAPORE INOX
26,41 €

excl. Shipping costs

Delivery time
is determined
7burn preventing rubberpiece o 10 mm 8001467
Burn preventing rubberpiece ø 10 mm
2,63 €

excl. Shipping costs

Delivery time
is determined
10nut m 26x1 5 8005578
NUT M 26x1.5
6,06 €

excl. Shipping costs

Delivery time
is determined
11hexagonal nut m3 8005446
HEXAGONAL NUT M3
0,55 €

excl. Shipping costs

immediately available
12flat epdm gasket o 15x4x4 mm 80 sh 8001748
Flat EPDM gasket ø 15x4x4 mm 80 SH
1,25 €

excl. Shipping costs

immediately available, 12 available
13tap piston 8005131
TAP PISTON
4,70 €

excl. Shipping costs

immediately available, 8 available
15radial seeger ring 8003728
RADIAL SEEGER RING
0,94 €

excl. Shipping costs

immediately available
16gasket holder 8001617
GASKET HOLDER
2,57 €

excl. Shipping costs

immediately available, 7 available
17copper flat gasket o 26x20x2 mm 8001587
COPPER FLAT GASKET ø 26x20x2 mm
1,49 €

excl. Shipping costs

immediately available, 19 available
17asbestos free flat gasket o 26x20x2 mm 8001590
ASBESTOS FREE FLAT GASKET ø 26x20x2 mm
1,00 €

excl. Shipping costs

immediately available, 6 available
18water steam tap pin rod 8005494
WATER/STEAM TAP PIN ROD
34,18 €

excl. Shipping costs

immediately available, 2 available
19tap coupling 8005838
TAP COUPLING
11,20 €

excl. Shipping costs

Delivery time
is determined
20flat epdm gasket o 12 5x8x9 mm 8001631
FLAT EPDM GASKET ø 12,5x8x9 mm
1,05 €

excl. Shipping costs

immediately available
21brass washer o 12x8x1 mm 8001616
BRASS WASHER ø 12x8x1 mm
0,73 €

excl. Shipping costs

immediately available, 14 available
22spring o 11 5x16 mm 8003827
Spring ø 11,5x16 mm
1,37 €

excl. Shipping costs

immediately available, 6 available
23tap nut 8005581
TAP NUT
5,60 €

excl. Shipping costs

Delivery time
is determined
29water steam tap pin rod 8005494
WATER/STEAM TAP PIN ROD
34,18 €

excl. Shipping costs

immediately available, 2 available
34l fitting o 1 4 a 1 8 a 8005689
L- FITTING ø 1/4 A-1/8 A
8,25 €

excl. Shipping costs

immediately available, 5 available
35copper flat gasket o 8 5x5x1 mm 8001948
COPPER FLAT GASKET ø 8,5x5x1 mm
0,84 €

excl. Shipping costs

immediately available, 19 available
36stainless steel water filter 8001124
STAINLESS STEEL WATER FILTER
2,69 €

excl. Shipping costs

immediately available
372 way solenoid valve parker 230v 50 60hz 8000985
2-WAY SOLENOID VALVE PARKER 230V 50/60Hz
65,72 €
65,72 €

excl. Shipping costs

immediately available, 2 available
40mixer fitting 8005693
MIXER FITTING
76,85 €

excl. Shipping costs

Delivery time 4-6 weeks..
41fitting 8005743
FITTING
5,25 €

excl. Shipping costs

immediately available, 19 available
42l fitting 8005691
L-FITTING
Price on request
43stainless steel water filter 8001124
STAINLESS STEEL WATER FILTER
2,69 €

excl. Shipping costs

immediately available
44fitting o 1 8 and o 1 4 8005719
FITTING ø 1/8 and ø 1/4
6,08 €

excl. Shipping costs

immediately available, 13 available
50fitting o 1 4 8005710
Fitting ø 1/4
3,64 €

excl. Shipping costs

immediately available, 16 available

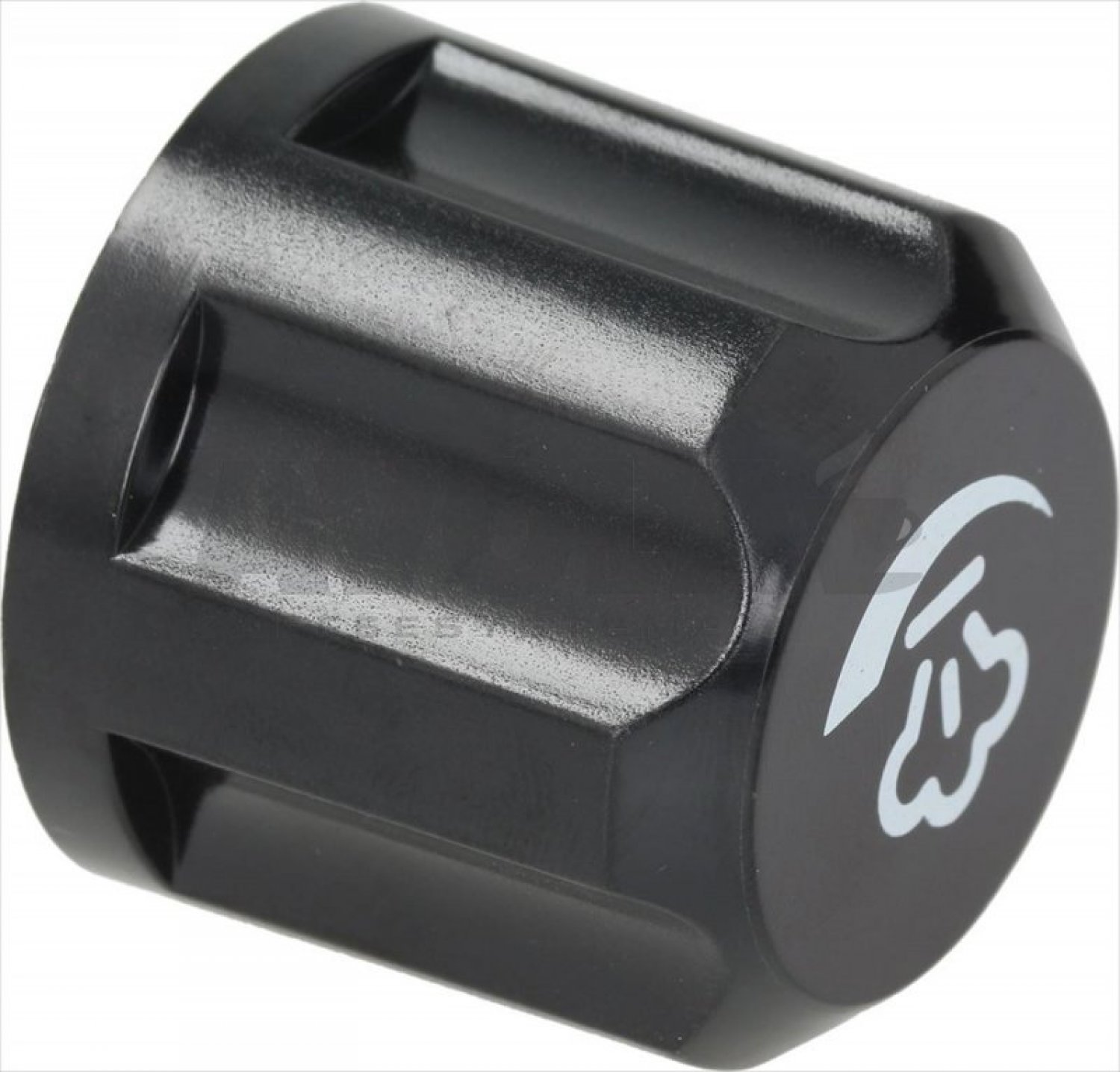

51steam tap knob 8003327
STEAM TAP KNOB
11,98 €

excl. Shipping costs

Delivery time
is determined

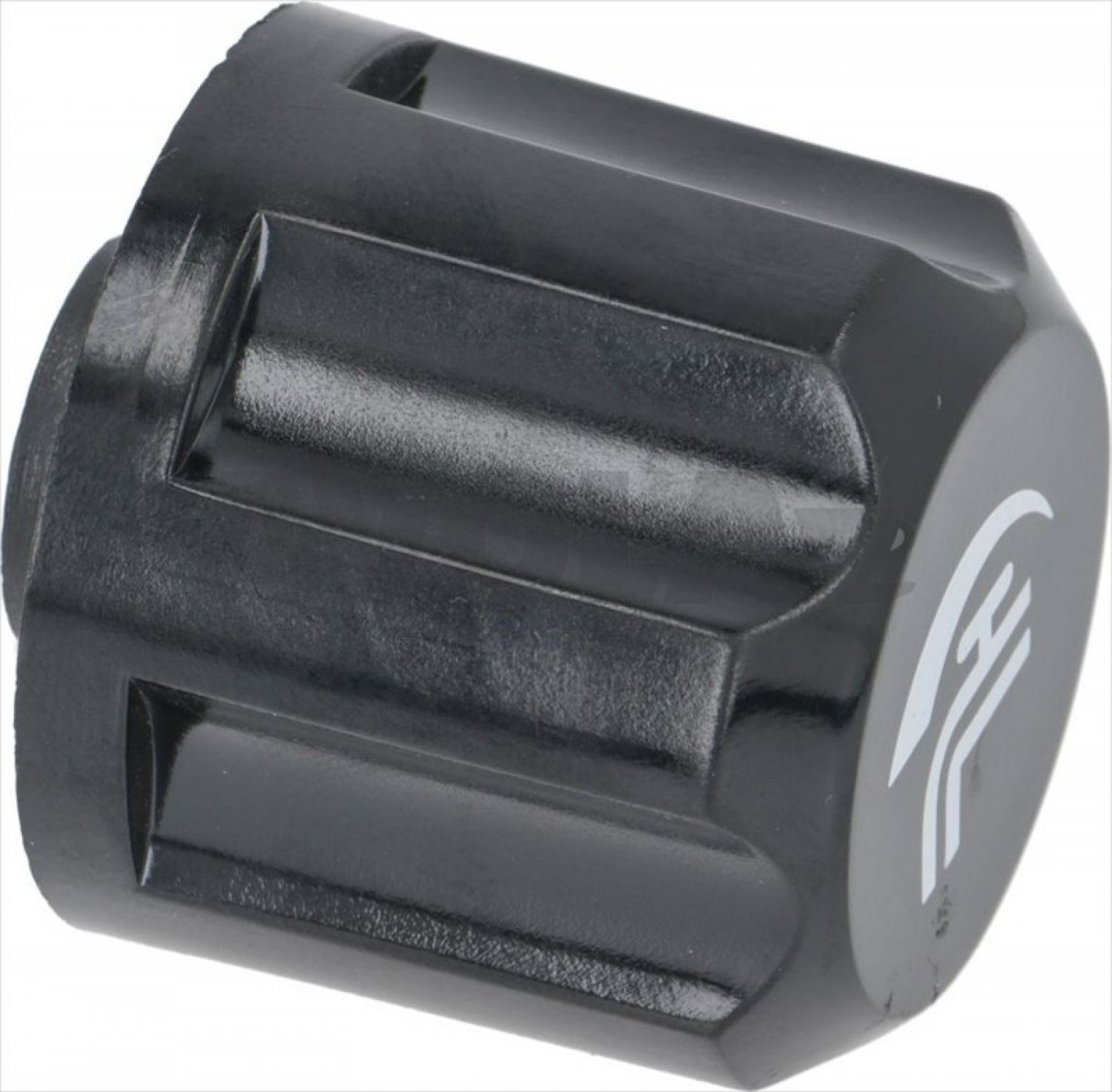

52water tap handle 8003335
WATER TAP HANDLE
10,13 €

excl. Shipping costs

immediately available, 7 available

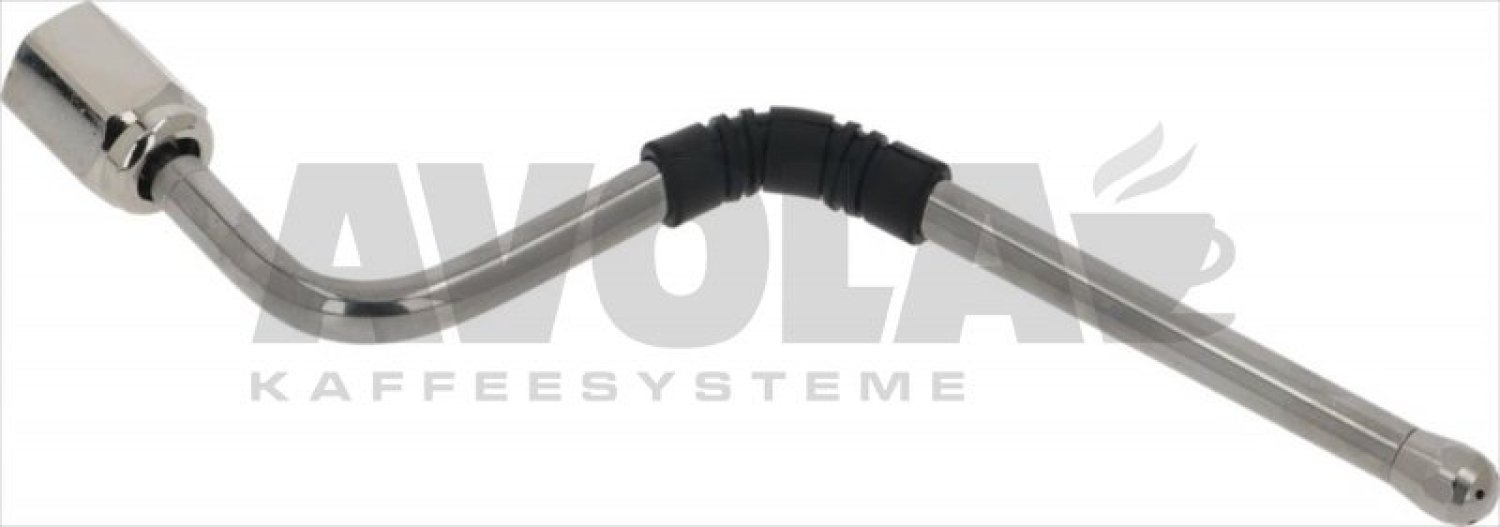

53stainless steel steam pipe complete 8006703
STAINLESS STEEL STEAM PIPE COMPLETE
34,11 €

excl. Shipping costs

Delivery time
is determined
100kit cappuccinatore astoria cma 8000351
KIT CAPPUCCINATORE ASTORIA/CMA
Price on request

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
