Astoria CMA

BOILER 1-2-3 GRUPPEN

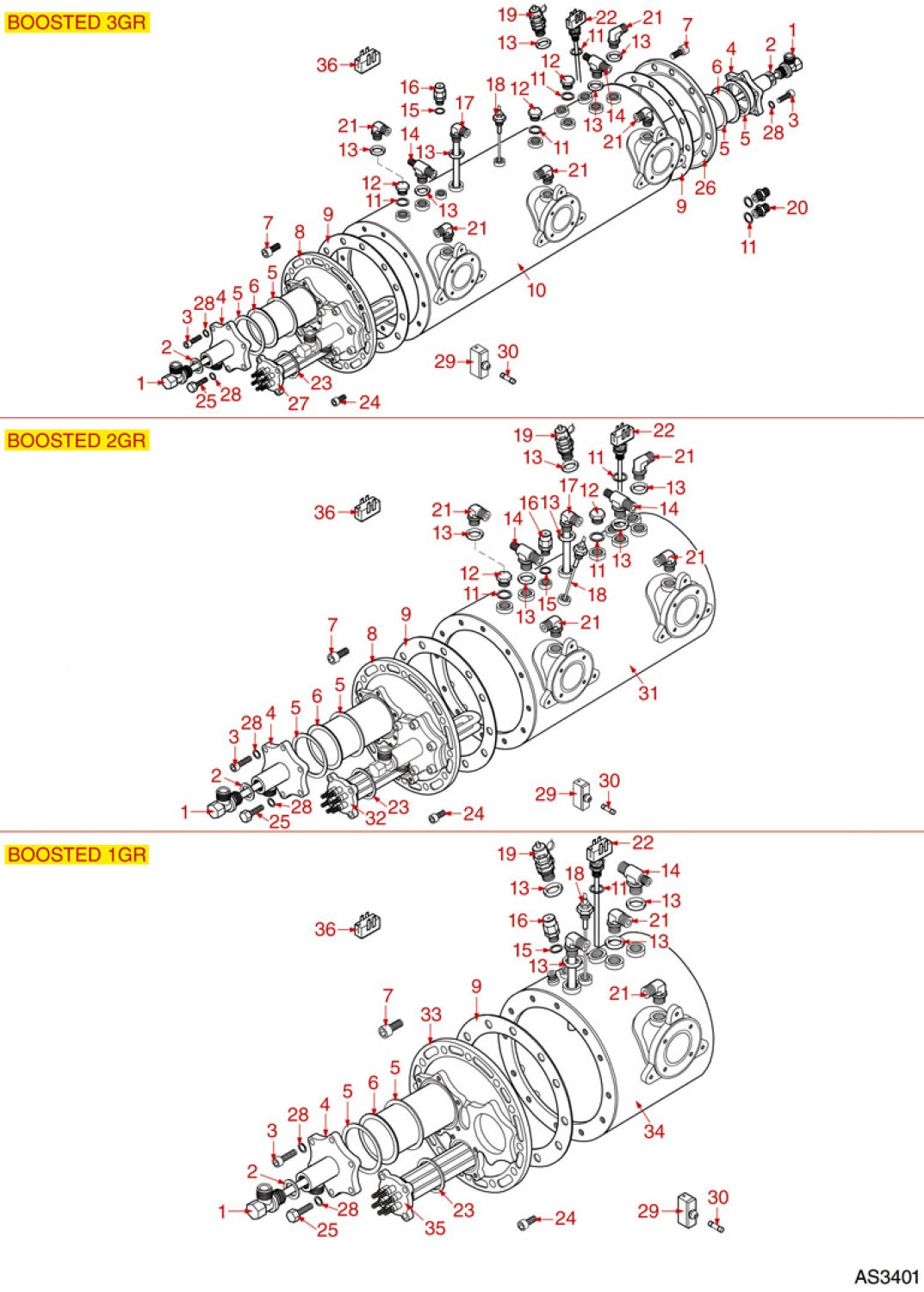

Drawing number 8038604

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.: Image: Description: Qty.:
1rohr o 12 mm laenge 170 mm 8057693
ROHR ø 12 mm LÄNGE : 170 mm
24,03 €

excl. Shipping costs

immediately available, 1 available
2round copper gasket o 26x21 4x2 mm 8001673
ROUND COPPER GASKET ø 26x21,4x2 mm
1,73 €

excl. Shipping costs

immediately available
5flat ptfe gasket 8001474
FLAT PTFE GASKET
6,12 €

excl. Shipping costs

immediately available, 1 available
7s steel screw t c e i m10x20 uni 5931 8007292
S/STEEL SCREW T.C.E.I. M10x20 UNI 5931
1,92 €

excl. Shipping costs

Delivery time
is determined
9boiler gasket o 220x170x2 mm 8001473
BOILER GASKET ø 220x170x2 mm
26,50 €

excl. Shipping costs

Delivery time 4-6 weeks..
11copper flat gasket 22x17x1 5 mm 8001815
COPPER FLAT GASKET 22x17x1,5 mm
1,01 €

excl. Shipping costs

immediately available
12boiler cap 3 8 8006391
BOILER CAP 3/8
3,80 €

excl. Shipping costs

immediately available, 6 available
13round copper gasket o 23x17x3 mm 3 8 zoll 8001472
ROUND COPPER GASKET ø 23x17x3 mm - 3/8 Zoll
1,65 €

excl. Shipping costs

immediately available
14t shaped brass fitting 8005696
T SHAPED BRASS FITTING
26,50 €

excl. Shipping costs

Delivery time
is determined
15copper flat gasket o 18x14x1 5 mm 8001814
COPPER FLAT GASKET ø 18x14x1,5 mm
1,19 €

excl. Shipping costs

immediately available
16o 1 4 rime boiler valve 8007153
ø 1/4″ - BOILER VALVE
7,52 €

excl. Shipping costs

immediately available
16fluid o tech 1 4 quot bsp unterdruckventil antivakuumventil edelstahl 8393315
Fluid-o-tech 1/4" BSP Unterdruckventil Antivakuumventil Edelstahl
34,90 €

excl. Shipping costs

immediately available, 16 available
17injector pipe 8006698
INJECTOR PIPE
33,12 €

excl. Shipping costs

Delivery time 4-6 weeks..
18level probe o 1 4 m 125 mm 8005325
LEVEL PROBE ø 1/4 M-125 mm
16,72 €

excl. Shipping costs

immediately available, 1 available
18level probe o 1 4 m 150 mm 8005326
LEVEL PROBE ø 1/4 M-150 mm
20,83 €

excl. Shipping costs

immediately available, 4 available
19boiler valve 8007105
BOILER VALVE
62,88 €

excl. Shipping costs

immediately available, 3 available
20fitting 8005711
FITTING
3,53 €

excl. Shipping costs

immediately available
21elbow fitting 8005694
ELBOW FITTING
Price on request
22thermostat for heating element 400v 20a 8006505
THERMOSTAT FOR HEATING ELEMENT 400V 20A
This article is no longer available
23ptfe flat gasket 8001806
PTFE FLAT GASKET
2,73 €

excl. Shipping costs

immediately available, 14 available
25hexagon head screw m8x25 8001291
HEXAGON HEAD SCREW M8x25
1,12 €

excl. Shipping costs

immediately available, 18 available
27heating element 6000w 240v 8007610
HEATING ELEMENT 6000W 240V
83,67 €

excl. Shipping costs

Delivery time
is determined
32heating element 6000w 240v 8007611
HEATING ELEMENT 6000W 240V
78,04 €

excl. Shipping costs

Delivery time
is determined
35heating element 2700 2940w 230 240v 8007609
HEATING ELEMENT 2700/2940W 230/240V
66,05 €

excl. Shipping costs

immediately available, 3 available
36thermostat for heating element astoria 8006506
THERMOSTAT FOR HEATING ELEMENT ASTORIA
This article is no longer available

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
