Astoria CMA

HYDRAULISCHE ANLAGE

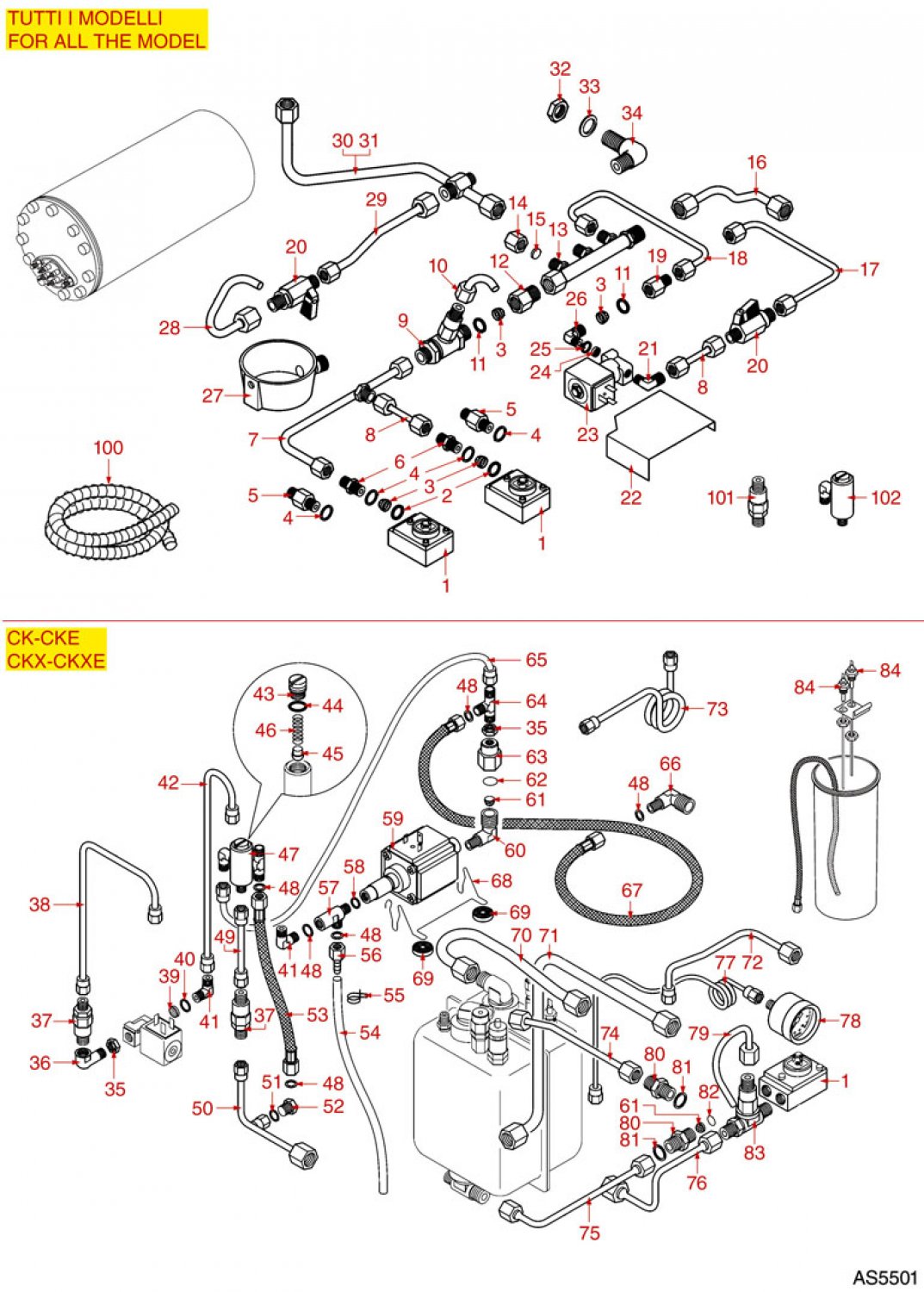

Drawing number 8038611

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.: Image: Description: Qty.:
1gicar volumetric flowmeter 1 4 8006953
GICAR VOLUMETRIC FLOWMETER 1/4
39,51 €

excl. Shipping costs

immediately available, 3 available
1flowmeter durchflussmesser gicar 1 4 8062778
FLOWMETER DURCHFLUSSMESSER GICAR 1/4
This article is no longer available
2o ring 02031 viton 8001897
O-RING 02031 VITON
0,90 €

excl. Shipping costs

immediately available, 12 available
3water filter o 11 mm 8001106
WATER FILTER ø 11 mm
2,11 €

excl. Shipping costs

immediately available
4copper flat gasket o 18x14x1 5 mm 8001814
COPPER FLAT GASKET ø 18x14x1,5 mm
1,19 €

excl. Shipping costs

immediately available
6fitting o 1 4 8005710
Fitting ø 1/4
3,64 €

excl. Shipping costs

immediately available, 18 available

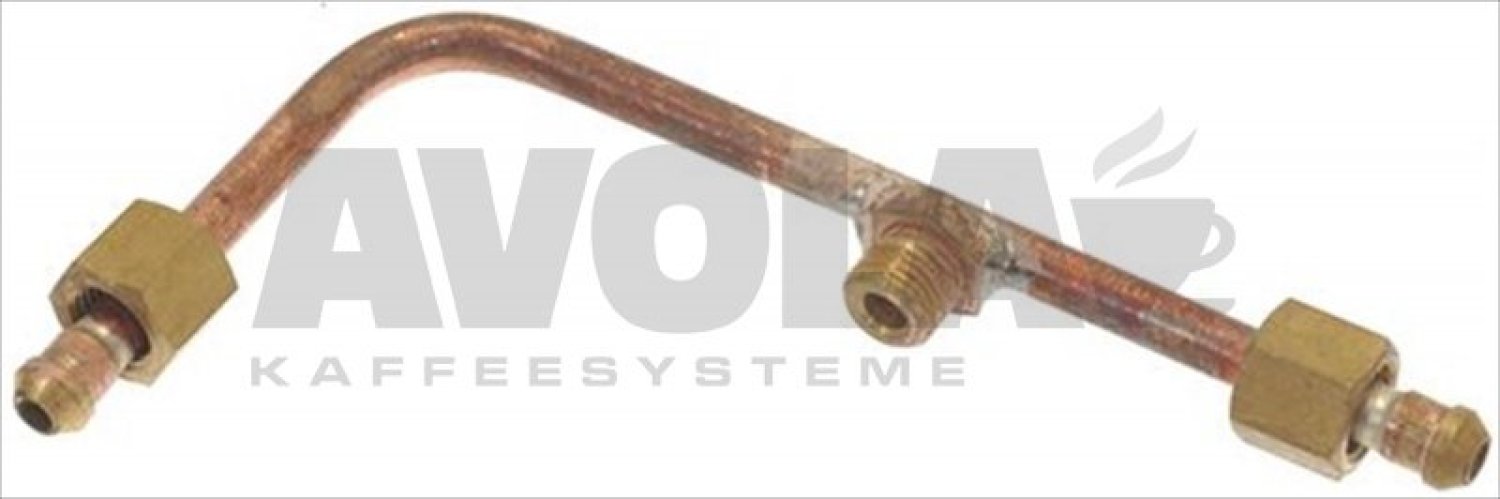

7volumetrische rohrleitungszaehler 8142483
VOLUMETRISCHE ROHRLEITUNGSZÄHLER
70,95 €

excl. Shipping costs

Delivery time 4-6 weeks..
9expansion and non return valve 8007100
EXPANSION AND NON-RETURN VALVE
53,19 €

excl. Shipping costs

immediately available, 3 available
11o ring 0108 epdm 8001655
O-RING 0108 EPDM
0,79 €

excl. Shipping costs

immediately available
21l fitting o 1 4 a 1 8 a 8005689
L- FITTING ø 1/4 A-1/8 A
8,25 €

excl. Shipping costs

immediately available, 5 available
232 way solenoid valve parker 230v 50 60hz 8000985
2-WAY SOLENOID VALVE PARKER 230V 50/60Hz
65,72 €
65,72 €

excl. Shipping costs

immediately available, 2 available
24stainless steel water filter 8001124
STAINLESS STEEL WATER FILTER
2,69 €

excl. Shipping costs

immediately available
25copper flat gasket o 8 5x5x1 mm 8001948
COPPER FLAT GASKET ø 8,5x5x1 mm
0,84 €

excl. Shipping costs

immediately available
27drain tub o 80 mm 8007226
DRAIN TUB ø 80 mm
7,26 €

excl. Shipping costs

immediately available, 2 available
32brass nut o 3 8 8005663
BRASS NUT ø 3/8
2,90 €

excl. Shipping costs

immediately available, 9 available
33brass washer 8001674
BRASS WASHER
1,24 €

excl. Shipping costs

immediately available, 16 available
35nut 1 8 rime 8005454
NUT 1/8″
2,78 €

excl. Shipping costs

immediately available, 9 available
37rueckschlagventil o 1 8 quot m 1 8 m bsp 8280846
Rückschlagventil ø 1/8 " M-1/8 M BSP
11,00 €

excl. Shipping costs

immediately available, 9 available
39stainless steel water filter 8001124
STAINLESS STEEL WATER FILTER
2,69 €

excl. Shipping costs

immediately available
40copper flat gasket o 8 5x5x1 mm 8001948
COPPER FLAT GASKET ø 8,5x5x1 mm
0,84 €

excl. Shipping costs

immediately available

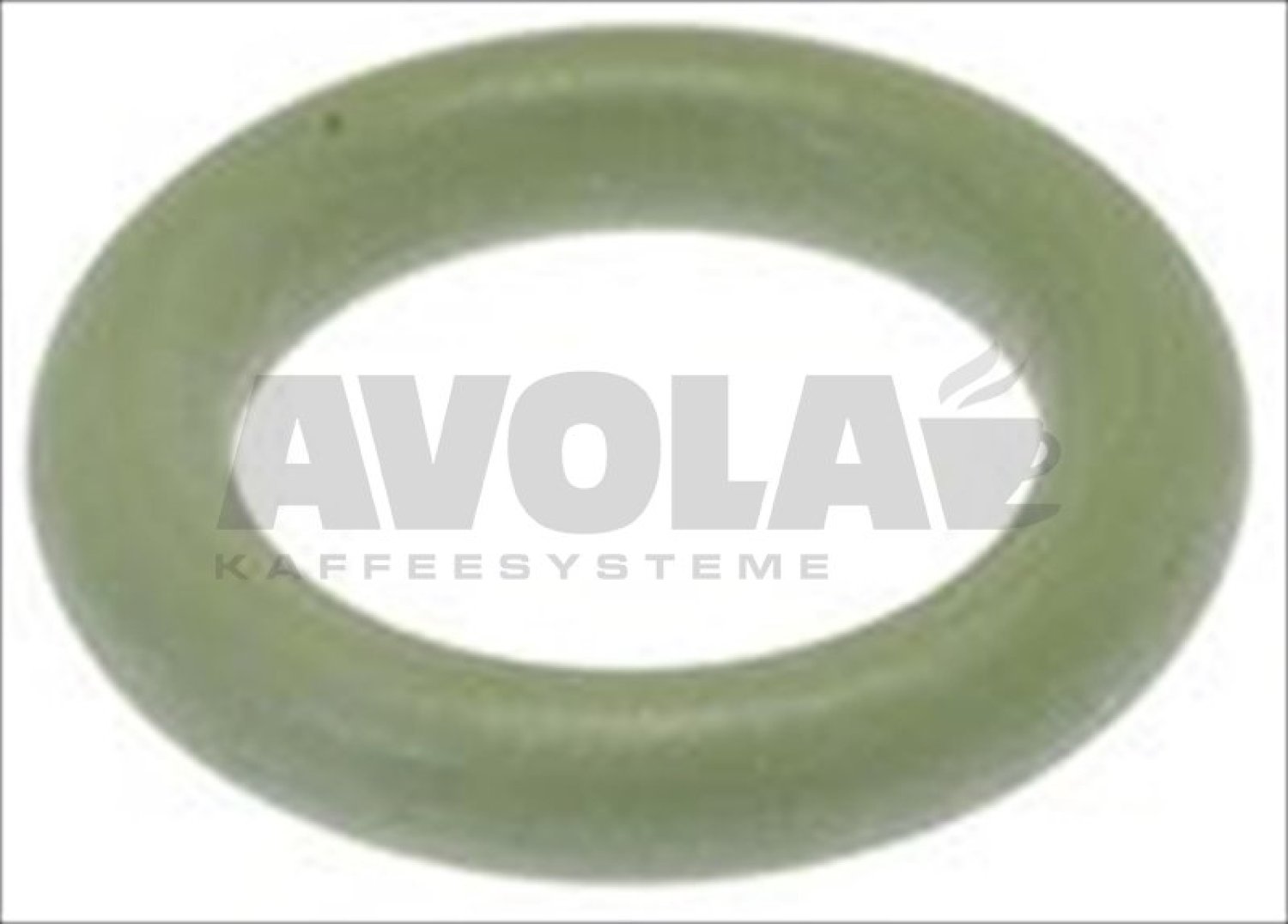

44o ring 0112 viton green 8002043
O-RING 0112 VITON GREEN
1,17 €

excl. Shipping costs

immediately available, 11 available

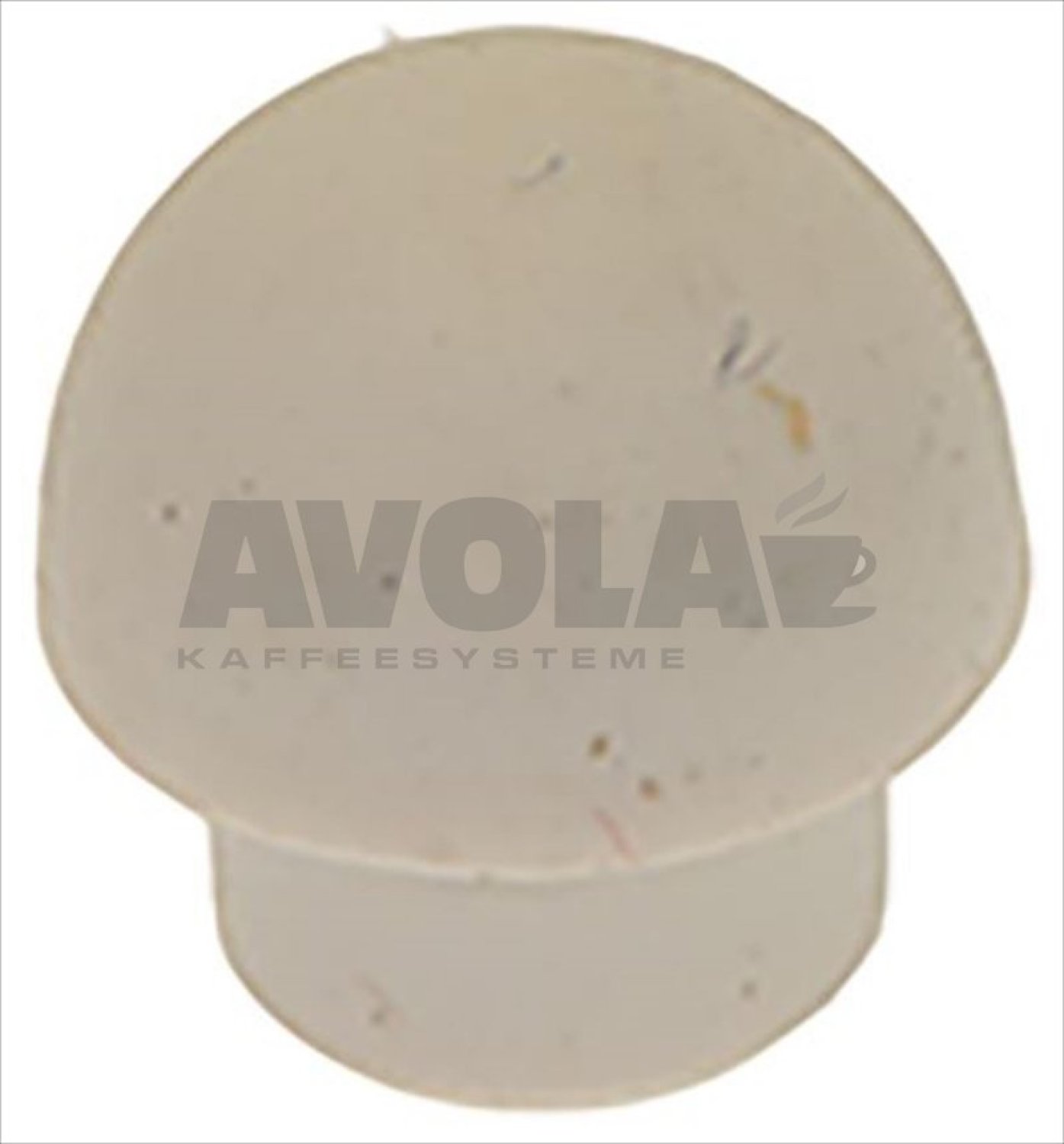

45silicone mushroom gasket 8066892
SILICONE MUSHROOM GASKET
4,78 €

excl. Shipping costs

immediately available, 8 available

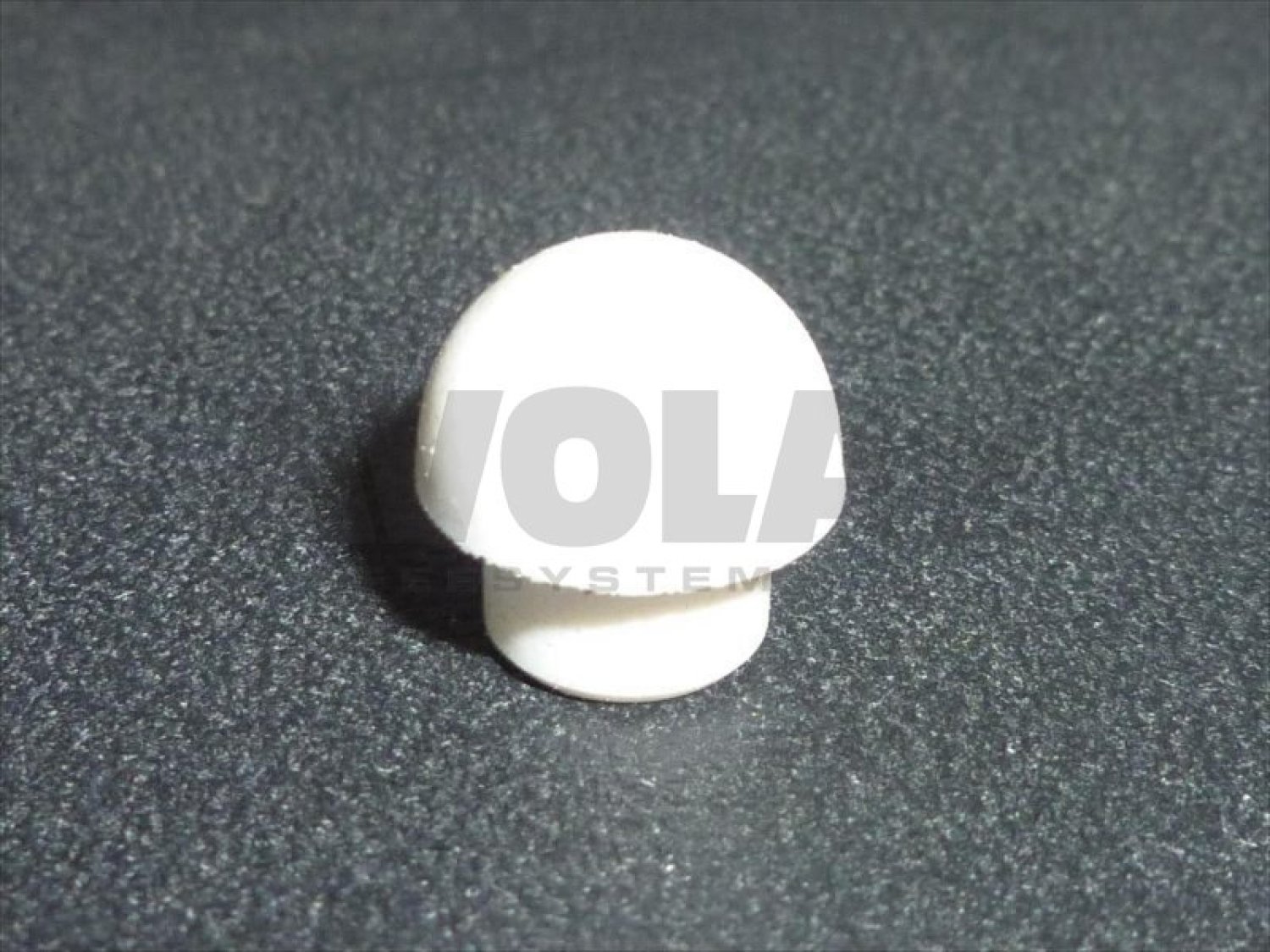

45dichtung fuer expansionsventil 8174950
Dichtung für Expansionsventil
3,57 €

excl. Shipping costs

immediately available, 20 available

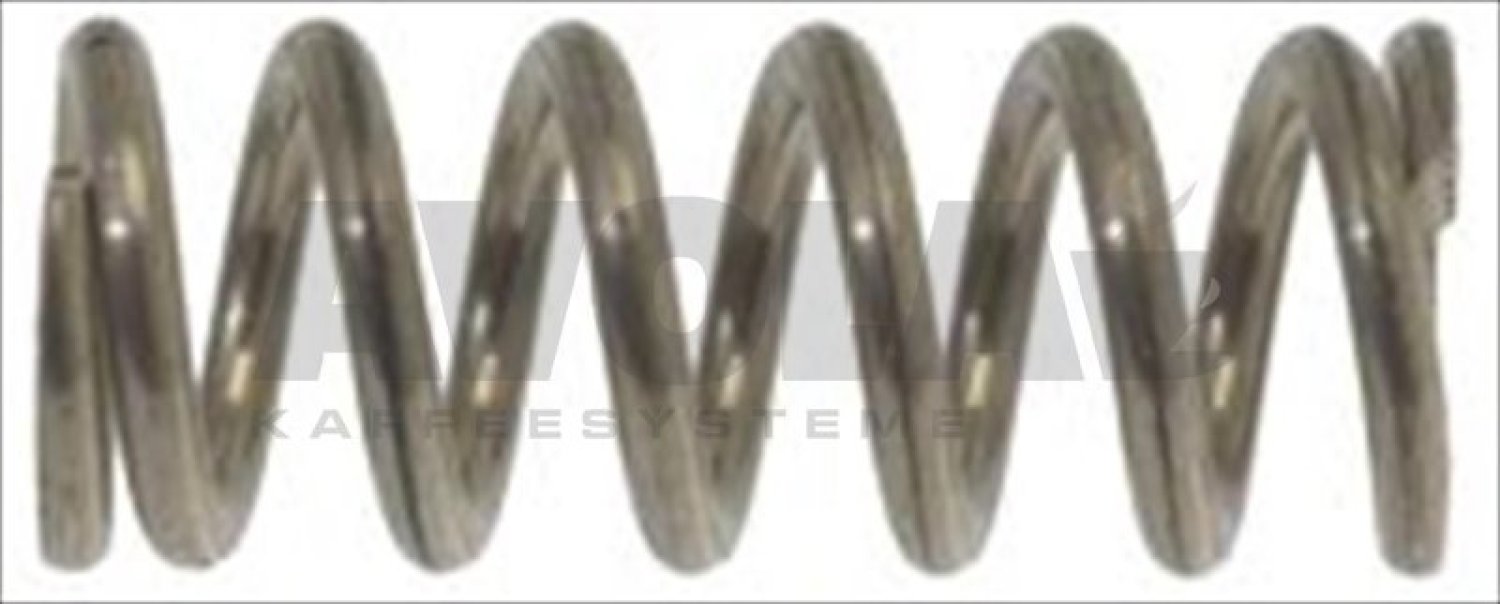

46feder o 8x20 mm 8094930
FEDER ø 8x20 mm
7,53 €

excl. Shipping costs

Delivery time 4-6 weeks..
47expansion valve 8007106
EXPANSION VALVE
183,03 €

excl. Shipping costs

Delivery time 4-6 weeks..
48teflon gasket o 8 5x4x1 5 mm 8036586
Teflon gasket Ø 8,5x4x1,5 mm
0,95 €

excl. Shipping costs

immediately available
57valve s11 b 8061020
VALVE S11/B
13,01 €

excl. Shipping costs

immediately available, 17 available
58o ring 02031 viton 8001897
O-RING 02031 VITON
0,90 €

excl. Shipping costs

immediately available, 12 available

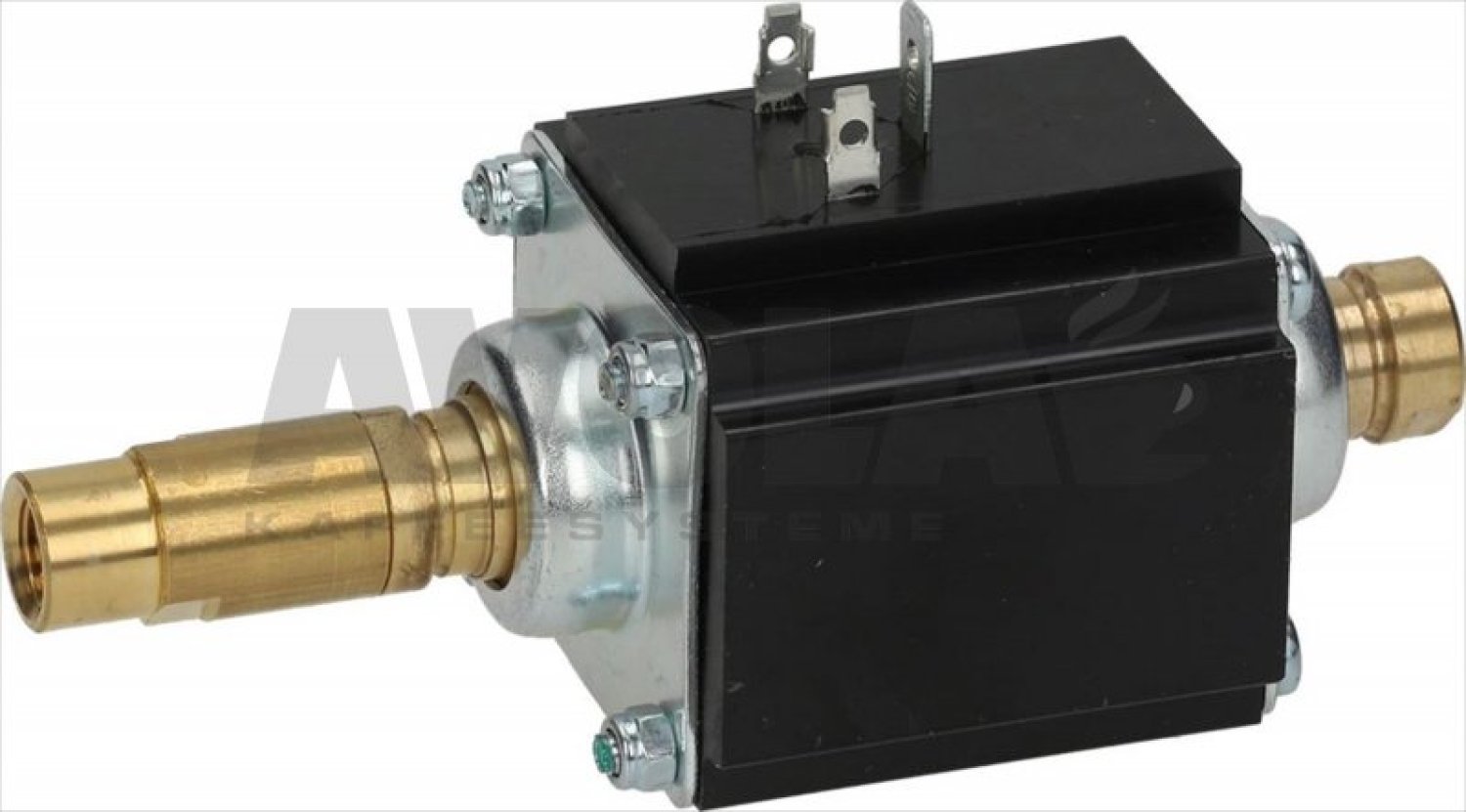

59vibratory pump fluid o tech 50w 240v 8005253
VIBRATORY PUMP FLUID-O-TECH 50W 240V
This article is no longer available
61water filter o 11 mm 8001106
WATER FILTER ø 11 mm
2,11 €

excl. Shipping costs

immediately available
62o ring 0108 epdm 8001655
O-RING 0108 EPDM
0,79 €

excl. Shipping costs

immediately available

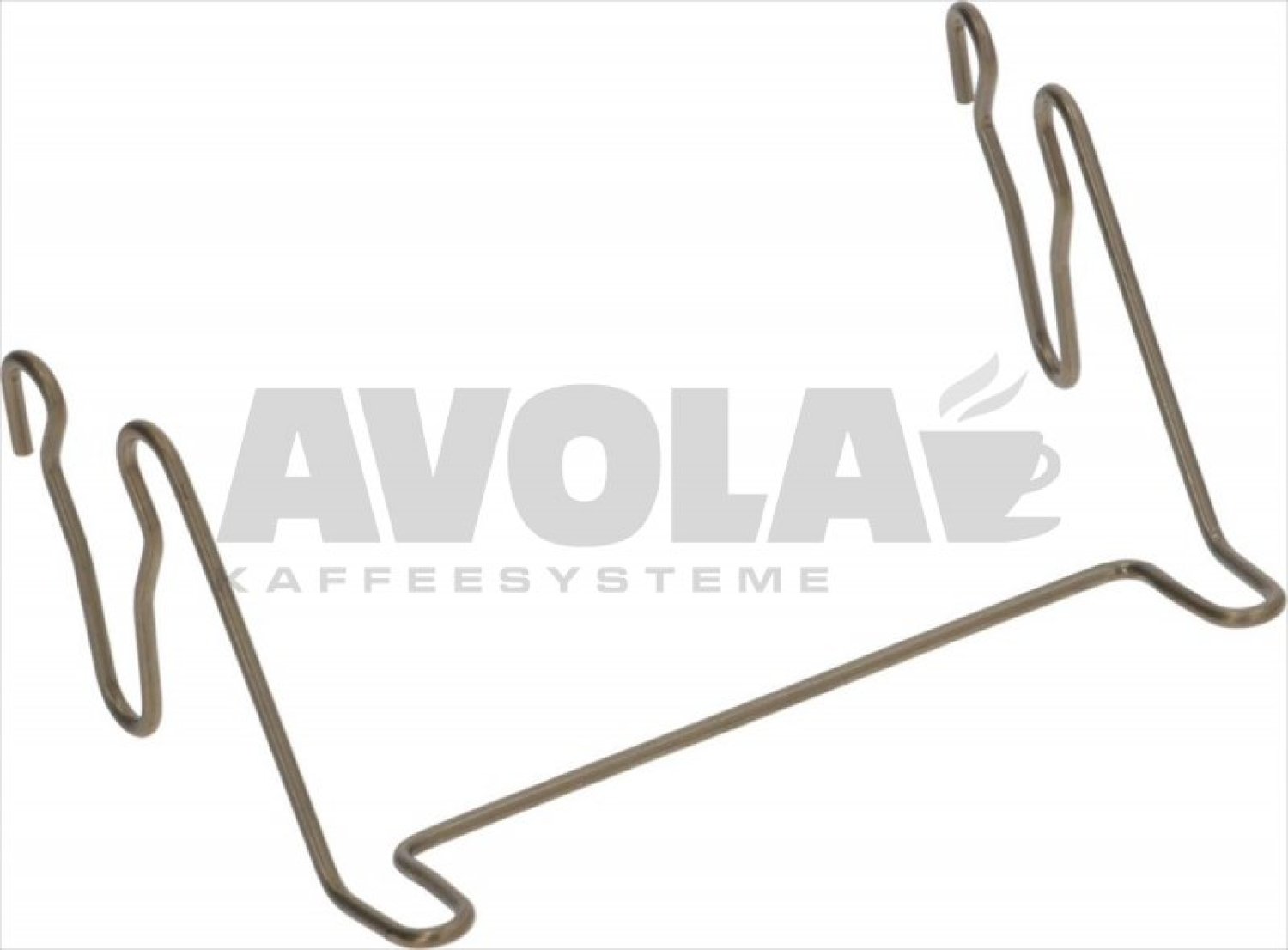

68support 23036 l model 8006323
SUPPORT 23036 L MODEL
4,76 €

excl. Shipping costs

immediately available, 1 available

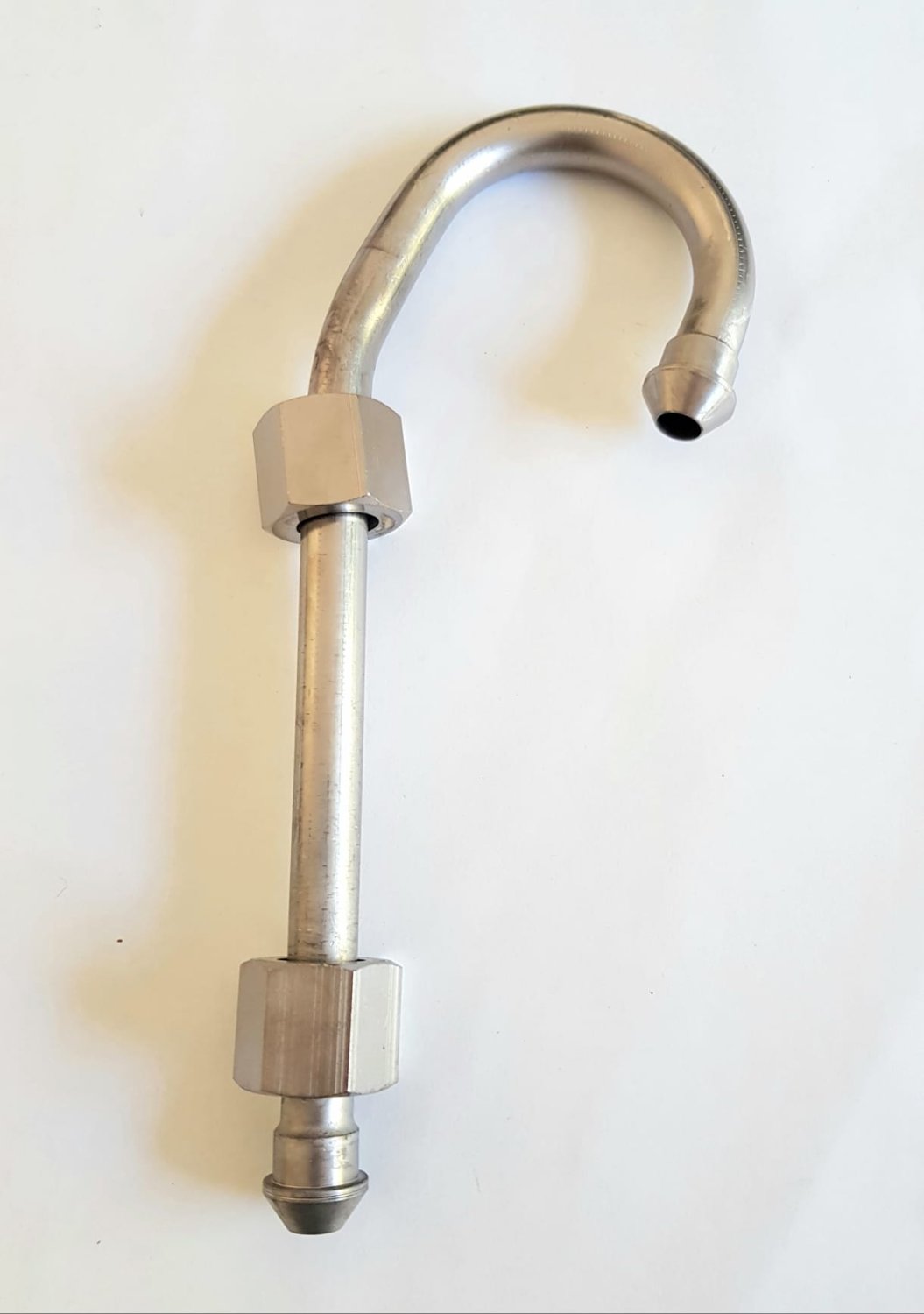

70astoria rohr waermetauscher zur gruppe oben d 10 l 235 compact 96 3 8 quot 8280279
Astoria Rohr Wärmetauscher zur Gruppe oben D-10 L.235 COMPACT 96 3/8"
37,89 €

excl. Shipping costs

Delivery time 4-6 weeks..

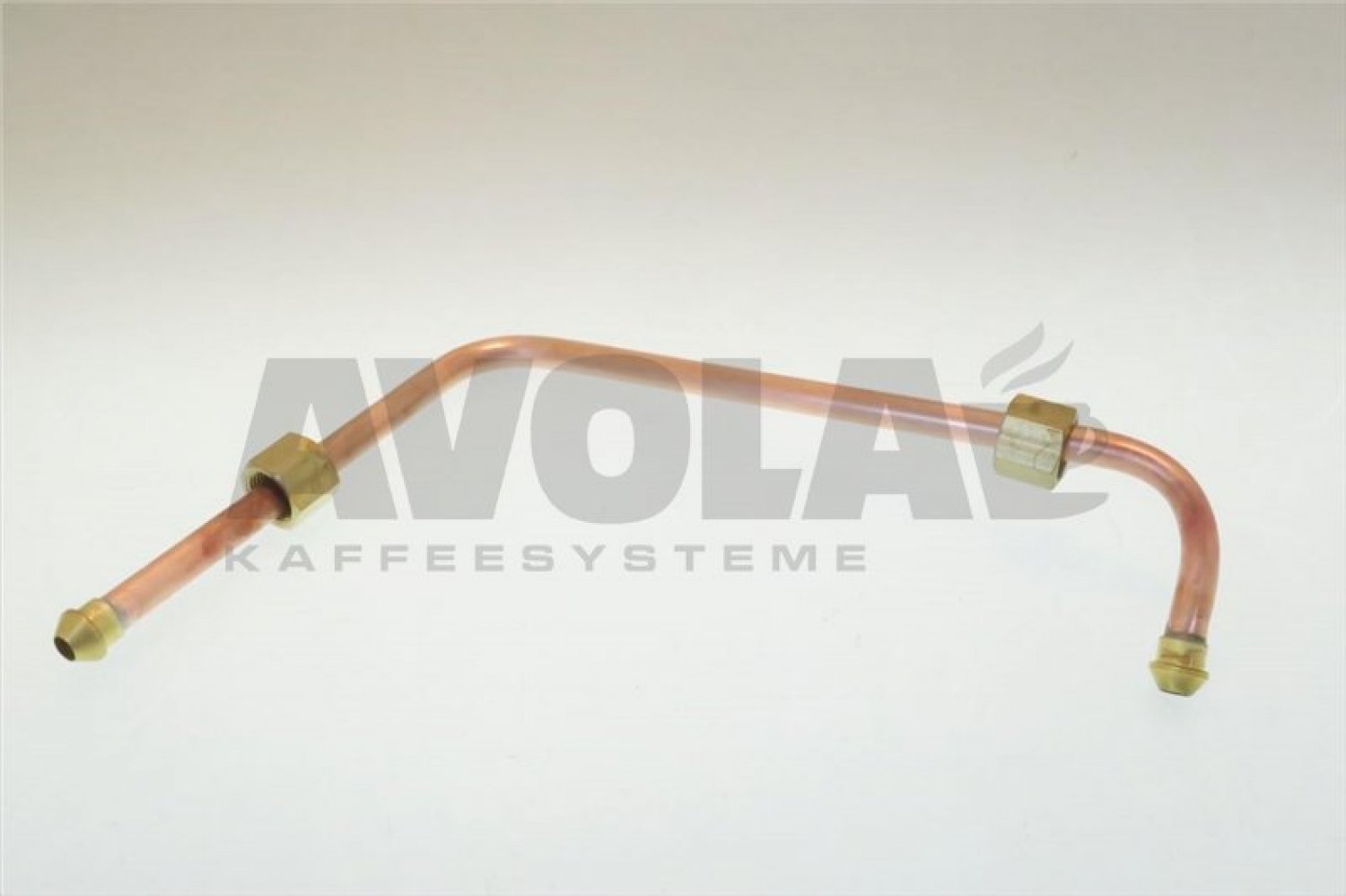

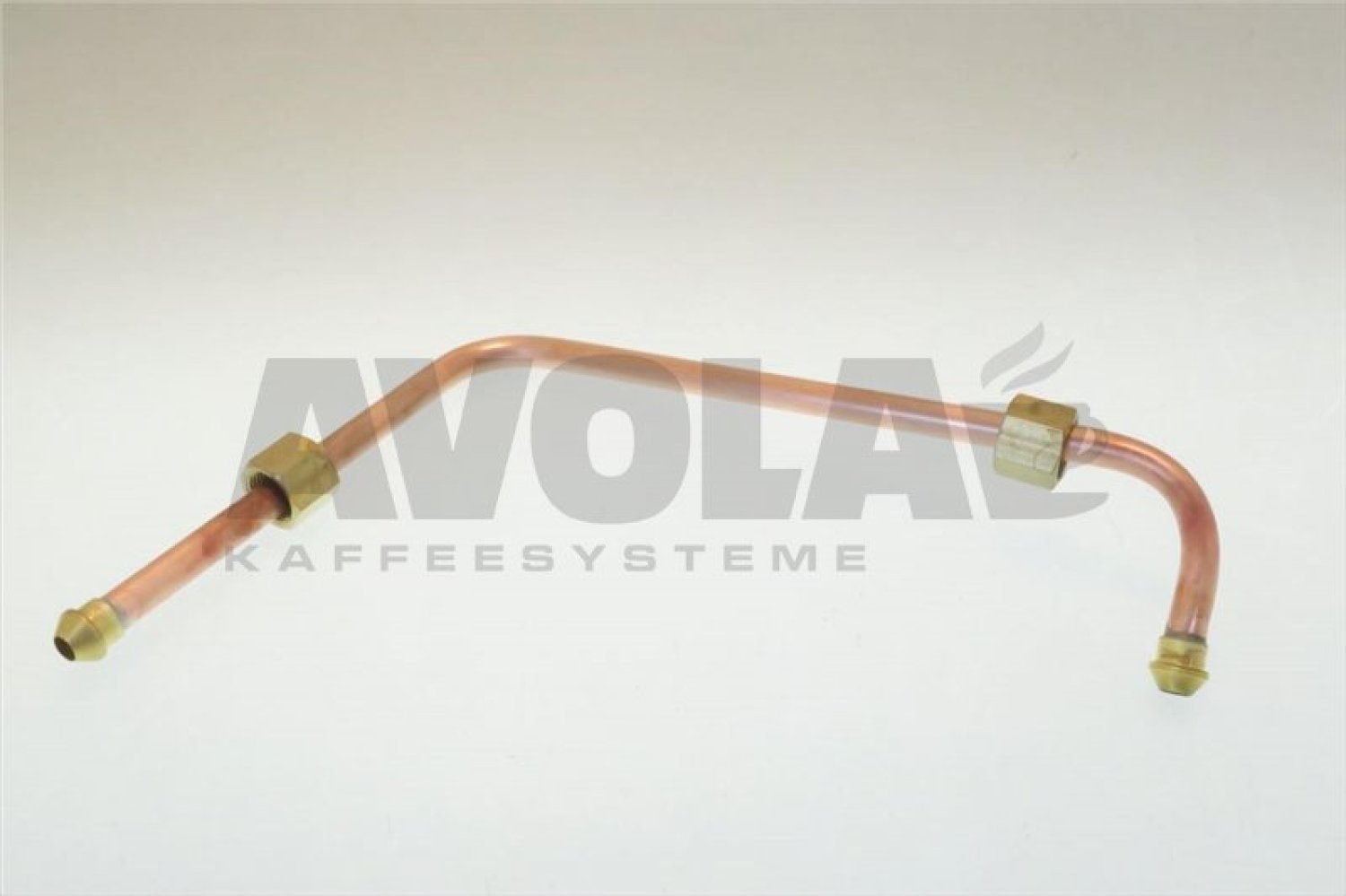

71astoria rohr waermetauscher unten zur gruppe ckx 410mm laenge 8222363
Astoria Rohr Wärmetauscher unten zur Gruppe CKX 410mm Länge
45,30 €

excl. Shipping costs

Delivery time
is determined
73astoria rohr zum pressostat 8352690
Astoria Rohr zum Pressostat
41,65 €

excl. Shipping costs

Delivery time 4-6 weeks..

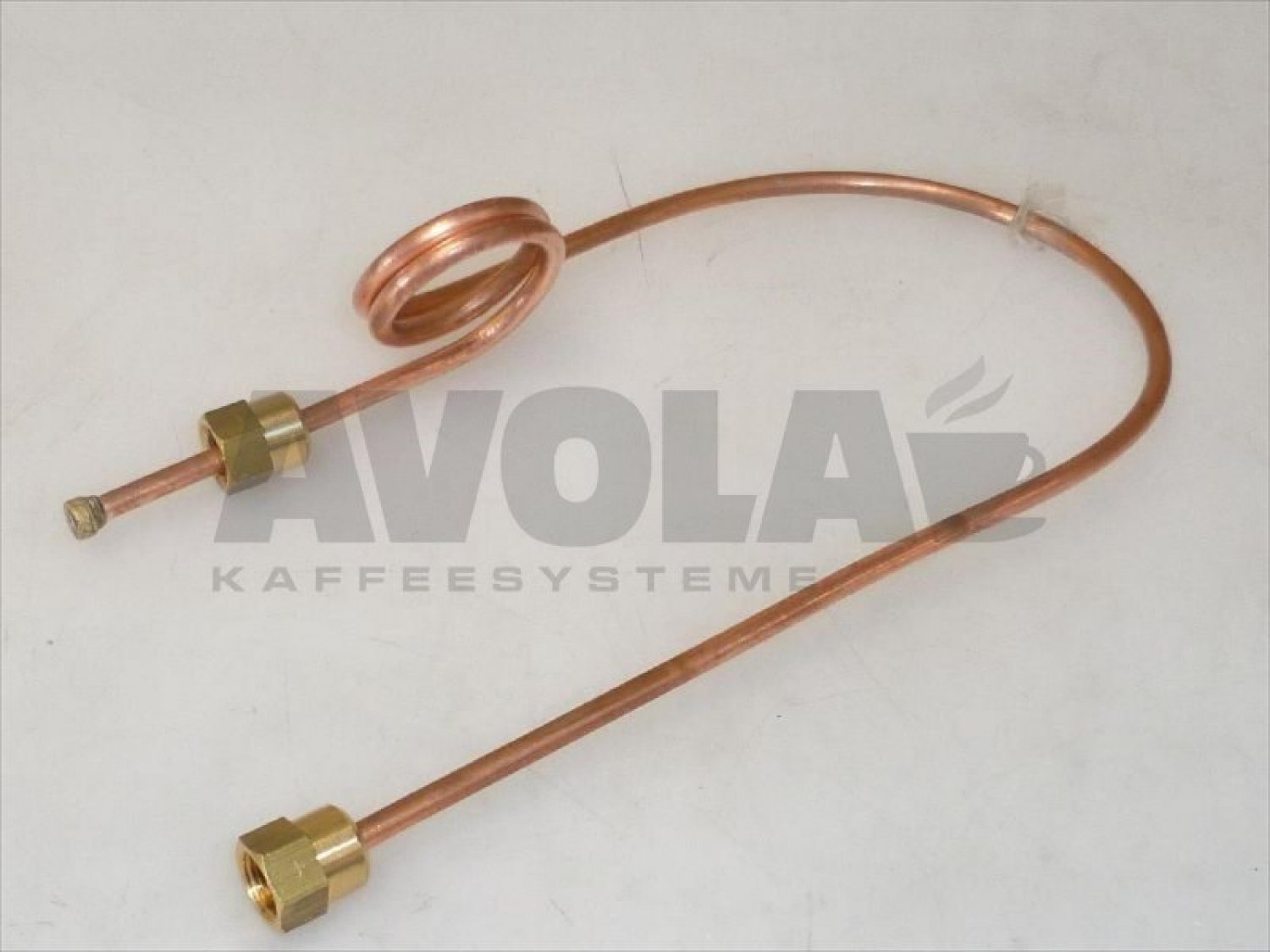

77cma astoria o 4x570 mm kapillarrohr vom kessel zum manometer 8357659
CMA Astoria ø 4x570 mm Kapillarrohr vom Kessel zum Manometer
29,75 €

excl. Shipping costs

Delivery time 4-6 weeks..
78boiler pressure gauge 8003487
BOILER PRESSURE GAUGE
24,38 €

excl. Shipping costs

immediately available, 1 available
80nichel plated fitting 8022415
NICHEL-PLATED FITTING
3,02 €

excl. Shipping costs

immediately available, 5 available
81copper flat gasket o 18x14x1 5 mm 8001814
COPPER FLAT GASKET ø 18x14x1,5 mm
1,19 €

excl. Shipping costs

immediately available
82o ring 02031 viton 8001897
O-RING 02031 VITON
0,90 €

excl. Shipping costs

immediately available, 12 available
84level probe 8005318
LEVEL PROBE
22,41 €

excl. Shipping costs

immediately available, 1 available
100drain pipe elispir o16x23 mm 1 mt 8006711
DRAIN PIPE ELISPIR ø16x23 mm - 1 MT
7,00 €

excl. Shipping costs

immediately available

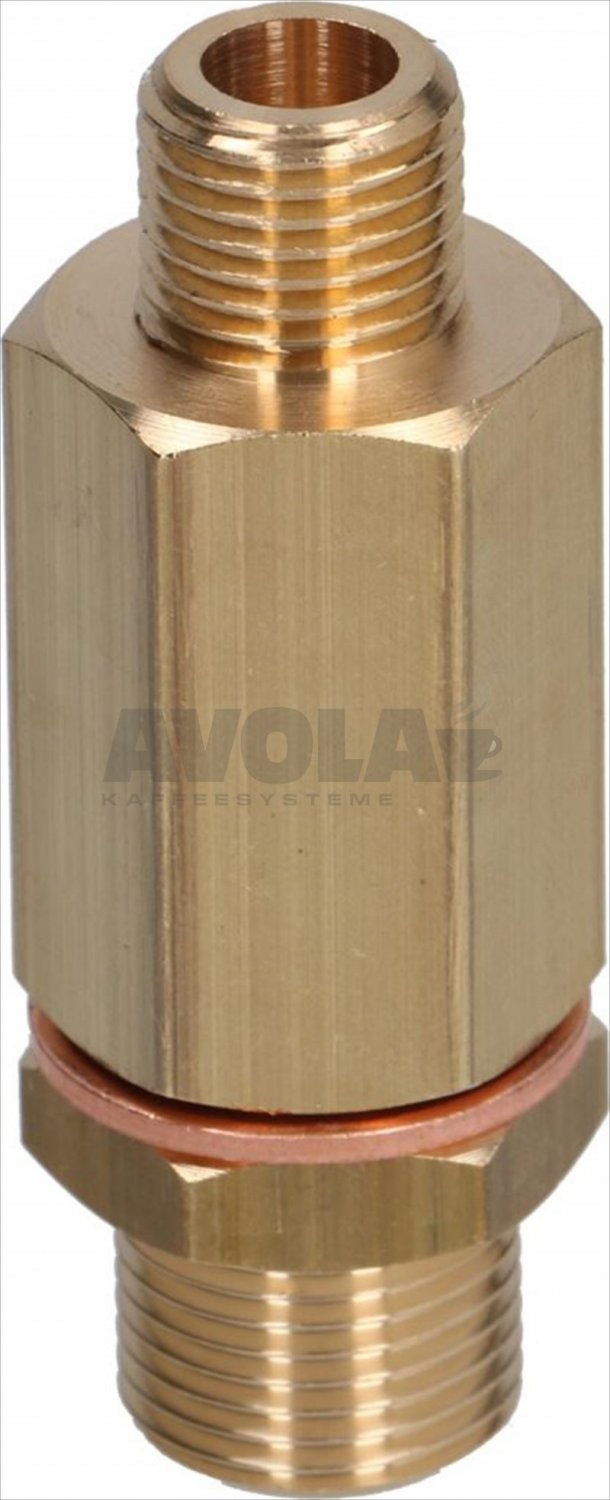

101expansion valve 8007051
EXPANSION VALVE
20,97 €

excl. Shipping costs

Delivery time
is determined
102expansion valve 8007122
EXPANSION VALVE
This article is no longer available

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
