Astoria CMA

SCHAUGLAS

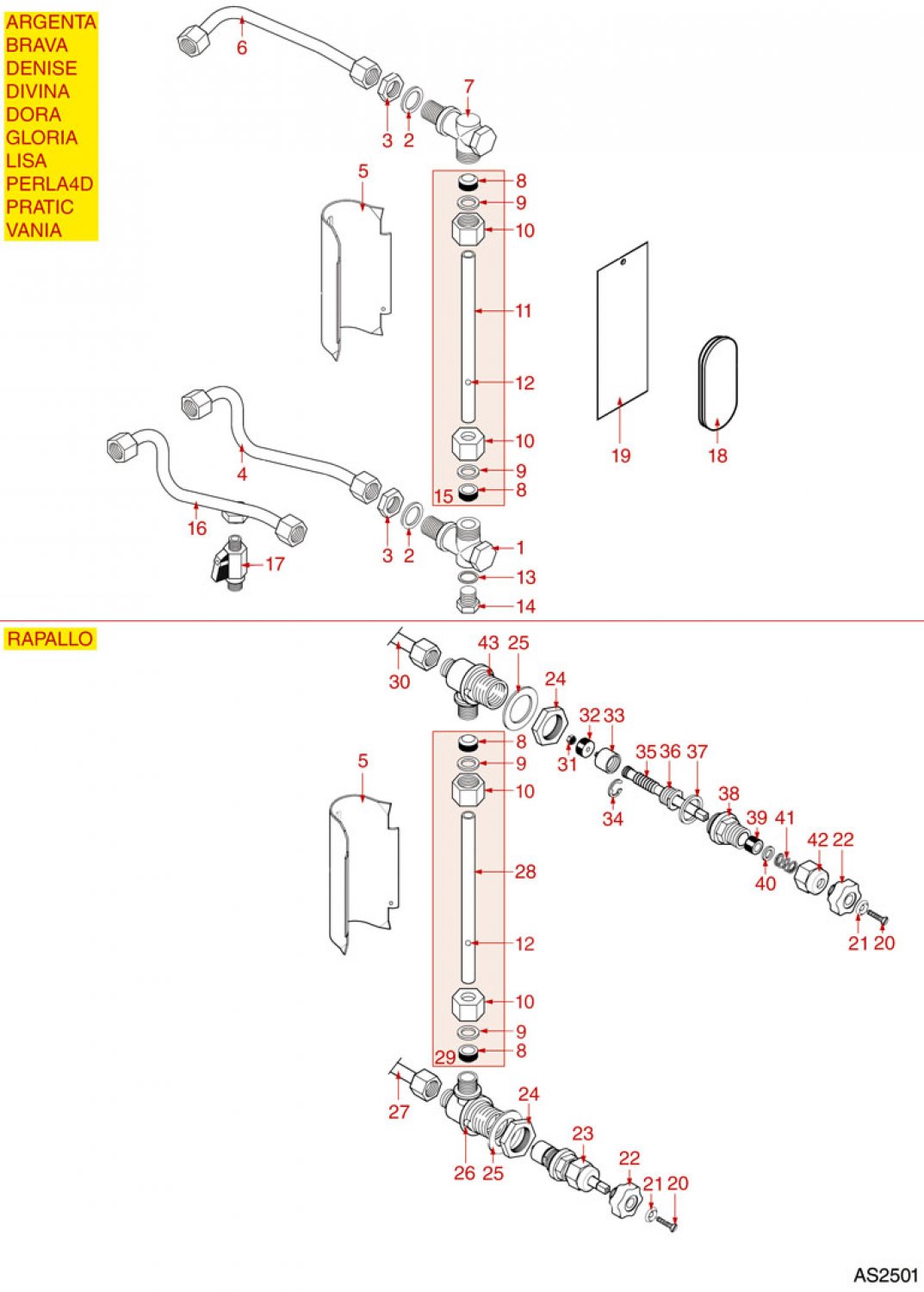

Drawing number 8038599

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.: Image: Description: Qty.:

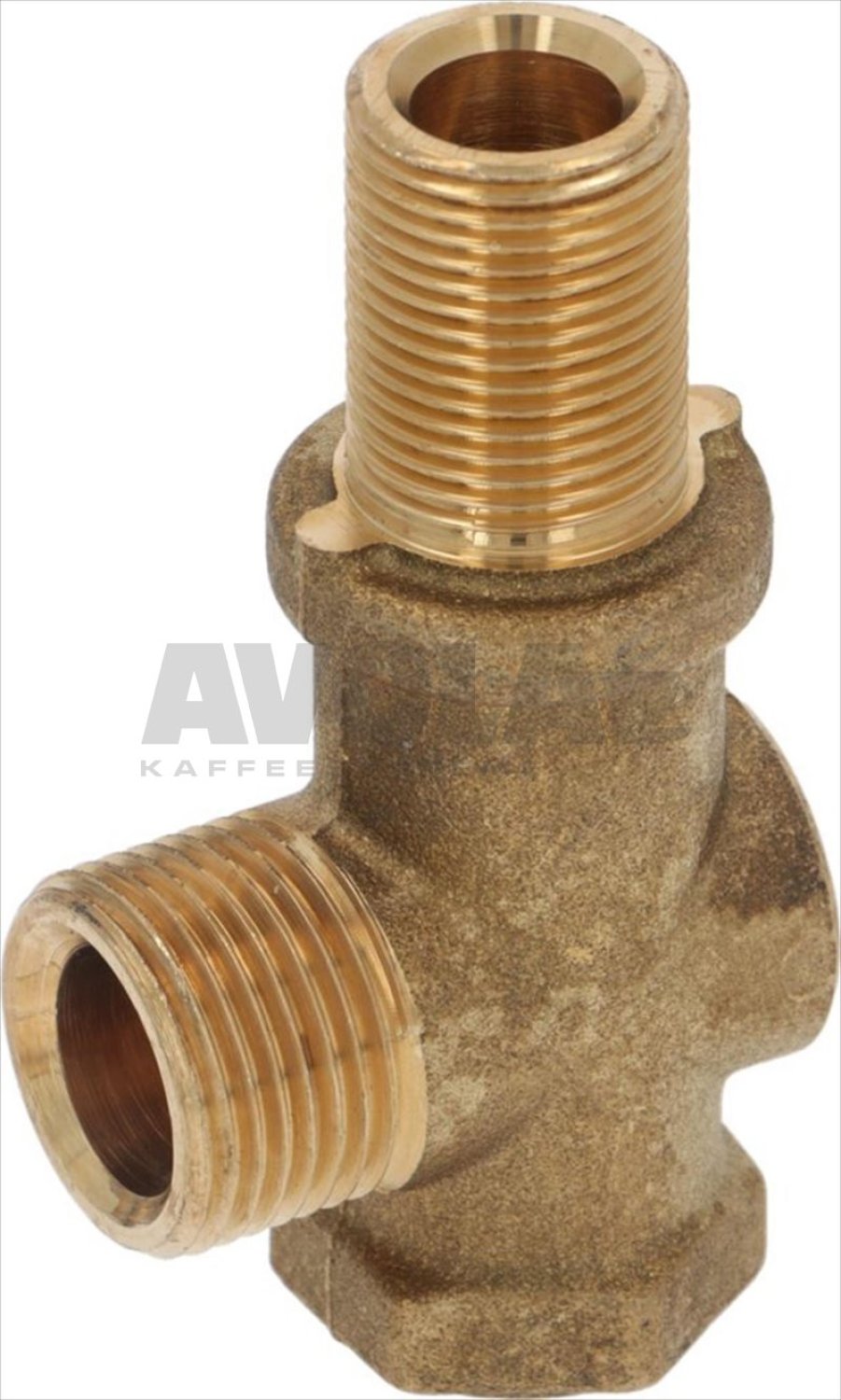

1anschlussfitting fuer wassersstandsglas oben 8167056
Anschlussfitting für Wassersstandsglas oben
29,75 €

excl. Shipping costs

Delivery time 4-6 weeks..
2brass washer 8001674
BRASS WASHER
1,24 €

excl. Shipping costs

immediately available, 16 available
3brass nut o 3 8 8005663
BRASS NUT ø 3/8
2,90 €

excl. Shipping costs

immediately available, 9 available
5sightglass housing 8003443
SIGHTGLASS HOUSING
12,05 €

excl. Shipping costs

Delivery time
is determined
7anschlussfitting fuer wassersstandsglas oben 8167056
Anschlussfitting für Wassersstandsglas oben
29,75 €

excl. Shipping costs

Delivery time 4-6 weeks..
8epdm flat gasket o 16x10x8 mm 8001489
EPDM FLAT GASKET ø 16x10x8 mm
0,93 €

excl. Shipping costs

immediately available
9brass washer 18x12x1 mm 8001351
BRASS WASHER 18x12x1 MM
1,21 €

excl. Shipping costs

immediately available, 6 available
10glass fastening nut o 1 2 8005676
GLASS FASTENING NUT ø 1/2
4,56 €

excl. Shipping costs

immediately available, 5 available
11level glass o 11x170 mm 8007016
LEVEL GLASS ø 11x170 mm
9,02 €

excl. Shipping costs

immediately available, 6 available
12red level ball 8005083
RED LEVEL BALL
1,92 €

excl. Shipping costs

immediately available
13copper flat gasket o 18x14x1 5 mm 8001814
COPPER FLAT GASKET ø 18x14x1,5 mm
1,19 €

excl. Shipping costs

immediately available
14boiler cap 8006407
BOILER CAP
1,83 €

excl. Shipping costs

immediately available, 1 available
18colorless tuvlevel gauge plate 8002646
COLORLESS TUVLEVEL GAUGE PLATE
3,00 €

excl. Shipping costs

immediately available, 8 available
19plexiglass level gauge plate 8002645
PLEXIGLASS LEVEL GAUGE PLATE
9,53 €

excl. Shipping costs

Delivery time 4-6 weeks..
28level glass o 11x154 mm 8007005
LEVEL GLASS ø 11x154 mm
13,57 €

excl. Shipping costs

immediately available, 5 available
31hexagonal nut m3 8005446
HEXAGONAL NUT M3
0,55 €

excl. Shipping costs

immediately available
32flat epdm gasket o 15x4x4 mm 80 sh 8001748
Flat EPDM gasket ø 15x4x4 mm 80 SH
1,25 €

excl. Shipping costs

immediately available, 12 available
33tap piston 8005131
TAP PISTON
4,70 €

excl. Shipping costs

immediately available, 9 available
34radial seeger ring 8003728
RADIAL SEEGER RING
0,94 €

excl. Shipping costs

immediately available
36gasket holder 8001617
GASKET HOLDER
2,57 €

excl. Shipping costs

immediately available, 7 available
37copper flat gasket o 26x20x2 mm 8001587
COPPER FLAT GASKET ø 26x20x2 mm
1,49 €

excl. Shipping costs

immediately available, 19 available
37asbestos free flat gasket o 26x20x2 mm 8001590
ASBESTOS FREE FLAT GASKET ø 26x20x2 mm
1,00 €

excl. Shipping costs

immediately available, 6 available
39flat epdm gasket o 12 5x8x9 mm 8001631
FLAT EPDM GASKET ø 12,5x8x9 mm
1,05 €

excl. Shipping costs

immediately available
40brass washer o 12x8x1 mm 8001616
BRASS WASHER ø 12x8x1 mm
0,73 €

excl. Shipping costs

immediately available, 14 available
41spring o 11 5x16 mm 8003827
Spring ø 11,5x16 mm
1,37 €

excl. Shipping costs

immediately available, 7 available

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
