Astoria CMA

WASSER- DAMPFHÄHNE

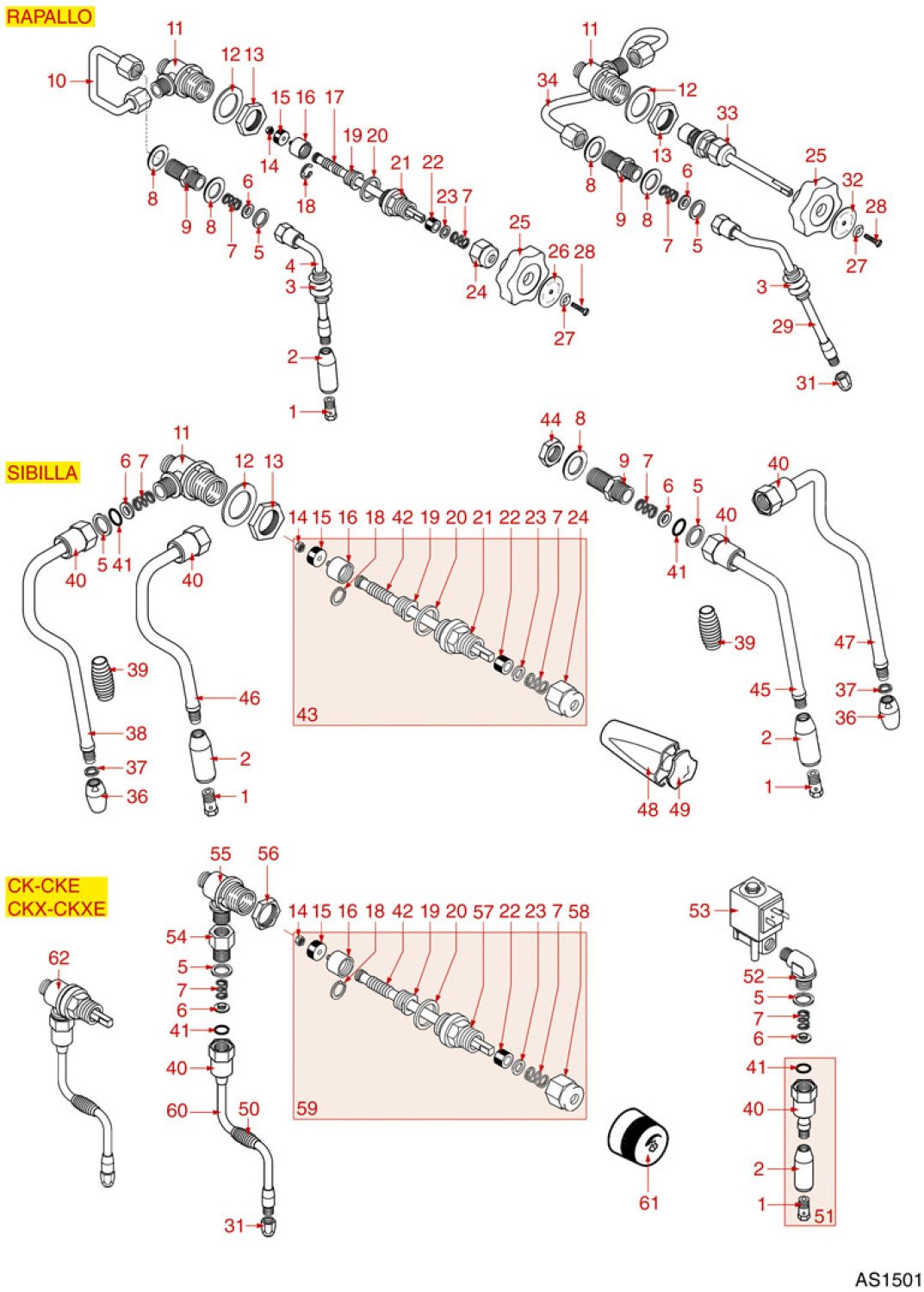

Drawing number 8038597

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.: Image: Description: Qty.:
1water pipe nozzle m10 8006627
WATER PIPE NOZZLE M10
5,46 €

excl. Shipping costs

Delivery time
is determined
2water pipe nozzle m9 8006644
WATER PIPE NOZZLE M9
9,19 €

excl. Shipping costs

Delivery time
is determined
5ptfe flat gasket 21x16 8x2 mm 8001486
PTFE FLAT GASKET 21x16,8x2 mm
1,37 €

excl. Shipping costs

immediately available
5asbestos free flat gasket o 22x17x2 mm 8001632
ASBESTOS FREE FLAT GASKET ø 22x17x2 mm
1,18 €

excl. Shipping costs

immediately available
6washer 8001588
WASHER
1,26 €

excl. Shipping costs

immediately available
7spring o 11 5x16 mm 8003827
Spring ø 11,5x16 mm
1,37 €

excl. Shipping costs

immediately available, 6 available
14hexagonal nut m3 8005446
HEXAGONAL NUT M3
0,55 €

excl. Shipping costs

immediately available
15flat epdm gasket o 15x4x4 mm 80 sh 8001748
Flat EPDM gasket ø 15x4x4 mm 80 SH
1,25 €

excl. Shipping costs

immediately available, 12 available
16tap piston 8005131
TAP PISTON
4,70 €

excl. Shipping costs

immediately available, 8 available
17water steam tap pin 8005146
WATER/STEAM TAP PIN
22,99 €

excl. Shipping costs

Delivery time
is determined
18radial seeger ring 8003728
RADIAL SEEGER RING
0,94 €

excl. Shipping costs

immediately available
19gasket holder 8001617
GASKET HOLDER
2,57 €

excl. Shipping costs

immediately available, 7 available
20copper flat gasket o 26x20x2 mm 8001587
COPPER FLAT GASKET ø 26x20x2 mm
1,49 €

excl. Shipping costs

immediately available, 19 available
20asbestos free flat gasket o 26x20x2 mm 8001590
ASBESTOS FREE FLAT GASKET ø 26x20x2 mm
1,00 €

excl. Shipping costs

immediately available, 6 available
22flat epdm gasket o 12 5x8x9 mm 8001631
FLAT EPDM GASKET ø 12,5x8x9 mm
1,05 €

excl. Shipping costs

immediately available
23brass washer o 12x8x1 mm 8001616
BRASS WASHER ø 12x8x1 mm
0,73 €

excl. Shipping costs

immediately available, 14 available
31chrome water sprinkler m10 8006621
CHROME WATER SPRINKLER M10
11,52 €

excl. Shipping costs

Delivery time
is determined
39burn preventing rubberpiece o 10 mm 8001467
Burn preventing rubberpiece ø 10 mm
2,63 €

excl. Shipping costs

Delivery time
is determined
40chrome hexagonal nut 8006628
CHROME HEXAGONAL NUT
7,54 €

excl. Shipping costs

immediately available, 3 available
41o ring 03043 epdm 8001575
O-RING 03043 EPDM
0,89 €

excl. Shipping costs

immediately available
44brass nut o 3 8 8005663
BRASS NUT ø 3/8
2,90 €

excl. Shipping costs

immediately available, 9 available
48water steam tap knob 8003196
WATER/STEAM TAP KNOB
11,60 €

excl. Shipping costs

Delivery time
is determined
49cap for knob 8003197
CAP FOR KNOB
7,37 €

excl. Shipping costs

Delivery time
is determined
51complete water pipe 8006702
COMPLETE WATER PIPE
56,62 €

excl. Shipping costs

Delivery time
is determined
54fitting o 3 8 o 3 8 zoll 8005742
FITTING ø 3/8 - ø 3/8 Zoll
3,49 €

excl. Shipping costs

immediately available
55steam tap body 8005576
STEAM TAP BODY
22,24 €

excl. Shipping costs

Delivery time
is determined
56nut m 26x1 5 8005578
NUT M 26x1.5
6,06 €

excl. Shipping costs

Delivery time
is determined
57tap coupling 8005838
TAP COUPLING
11,20 €

excl. Shipping costs

Delivery time
is determined
58tap nut 8005581
TAP NUT
5,60 €

excl. Shipping costs

Delivery time
is determined
59water steam tap pin rod 8005494
WATER/STEAM TAP PIN ROD
34,18 €

excl. Shipping costs

immediately available, 2 available
61knob for steam tap 8003247
KNOB FOR STEAM TAP
7,28 €

excl. Shipping costs

Delivery time
is determined
62steam tap assembly 8005545
STEAM TAP ASSEMBLY
This article is no longer available

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
