Bezzera

Bezzera Galatea Domus Ventil Brühgruppe

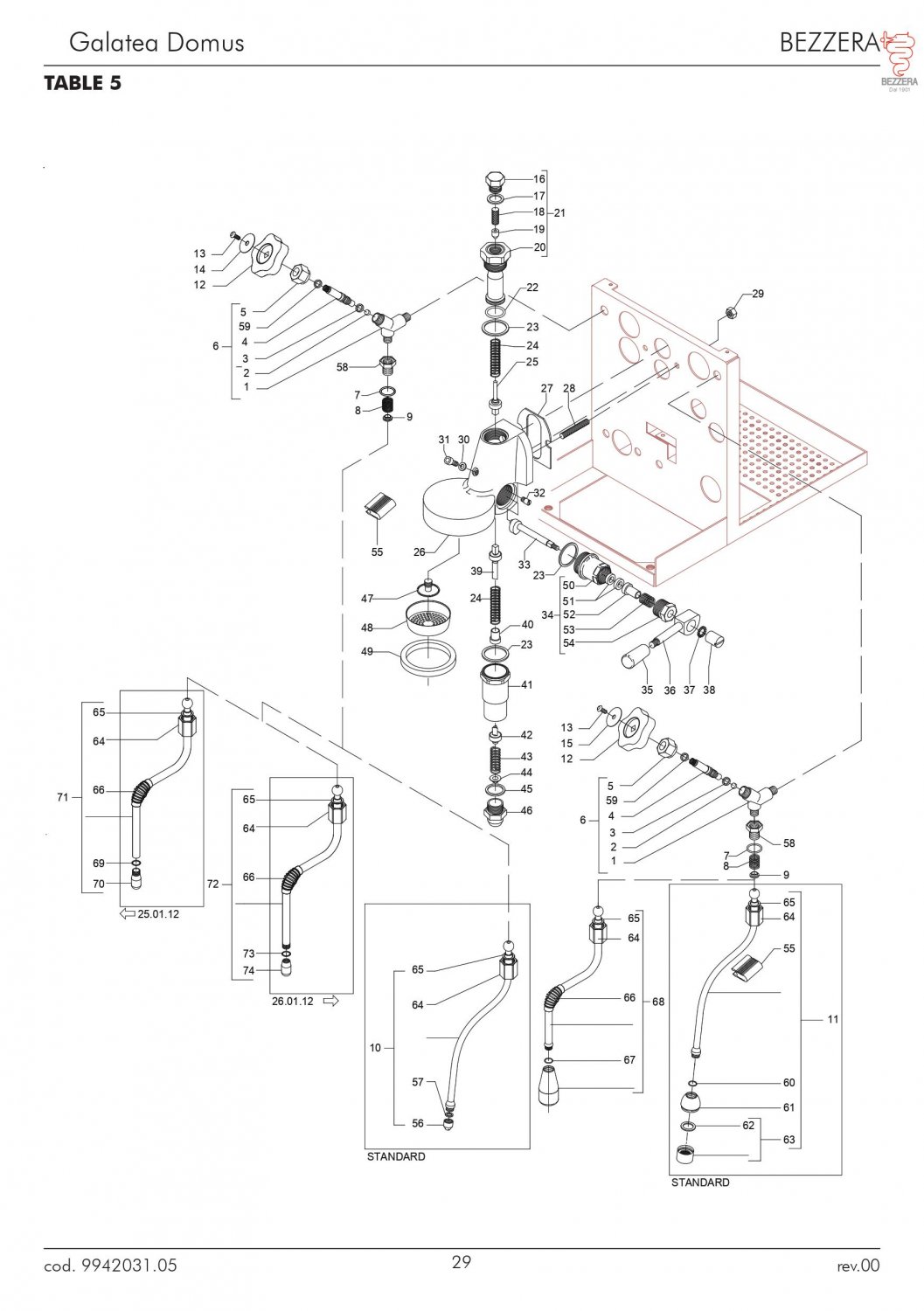

Drawing number 8280381

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.: Image: Description: Qty.:
1 8071656
CORPO RUBINETTO BZ02 EXLUC/CROM
Price on request
2blind gasket 8x4 8001449
BLIND GASKET 8x4
3,47 €

excl. Shipping costs

immediately available
3o ring 03030 epdm 8001600
O-RING 03030 EPDM
0,55 €

excl. Shipping costs

immediately available
5 8071442
Bezzera Überwurfmutter 3/8 G H11.5 F. D12 Messing verchromt
12,50 €

excl. Shipping costs

Delivery time 4-6 weeks..
6 8072359
Bezzera Galatea Domus Ventil Dampfhahn Heisswasserhahn
47,60 €

excl. Shipping costs

Delivery time
is determined
7o ring 0121 epdm 8014882
O-RING 0121 EPDM
1,07 €

excl. Shipping costs

immediately available
8spring o 11 7x16 mm 8069864
SPRING ø 11,7x16 mm
2,11 €

excl. Shipping costs

immediately available, 6 available
10 8072530
Standard Dampflanze Bezzera Galatea Domus
47,60 €

excl. Shipping costs

Delivery time
is determined
11 8072528
ASSY TUBO ACQUA GAL01 (R)
Price on request
12handle tap water steam 8069438
HANDLE TAP WATER/STEAM
12,20 €

excl. Shipping costs

immediately available, 8 available
13 8073467
VITE TEB M5X10 OT LUC+CROM
2,38 €

excl. Shipping costs

immediately available, 3 available
14 8072183
TARGA VAPORE D.28 ALLUM.ITALIANO
Price on request
15 8072184
TARGA ACQUA D.28 ALLUM.ITALIANO
Price on request
16deckel fuer auslaufgruppe o 16 mm 8006373
Deckel für Auslaufgruppe ø 16 mm
8,33 €

excl. Shipping costs

immediately available, 13 available
17ptfe flat gasket o 16x22 5x2 mm 8001581
PTFE FLAT GASKET ø 16x22,5x2 mm
1,65 €

excl. Shipping costs

immediately available
18water filter o 8 5x22 mm 8001115
Water filter ø 8,5x22 mm
1,79 €

excl. Shipping costs

immediately available, 17 available
20chromium plated upper sleeve 8063314
CHROMIUM-PLATED UPPER SLEEVE
39,00 €
39,00 €

excl. Shipping costs

immediately available, 3 available
21injector d 0 7 upper sleeve assy 8072858
INJECTOR D.0.7 UPPER SLEEVE ASSY
71,40 €

excl. Shipping costs

Delivery time
is determined
22o ring 0128 viton 8001794
O-RING 0128 VITON
1,68 €

excl. Shipping costs

immediately available
23ptfe flat gasket o 35x30x2 mm 8001583
PTFE FLAT GASKET ø 35x30x2 mm
1,09 €

excl. Shipping costs

immediately available
24spring o 14x45 mm 8003820
SPRING ø 14x45 mm
1,57 €

excl. Shipping costs

immediately available
25complete spout valve 8007091
COMPLETE SPOUT VALVE
7,90 €

excl. Shipping costs

immediately available
26original bezzera e61 bruehgruppenkorpus 8072859
Original Bezzera E61 Brühgruppenkorpus
205,00 €

excl. Shipping costs

Delivery time 4-6 weeks..
27coffee group gasket 80x70x2 mm 8001624
COFFEE GROUP GASKET 80x70x2 mm
3,51 €

excl. Shipping costs

immediately available, 14 available
28 8071616
TIRANTE M8X31 ASTM A 193 B8 C/1
Price on request
29hexagonal nut m8 medium 8011323
HEXAGONAL NUT M8 MEDIUM
1,04 €

excl. Shipping costs

immediately available, 4 available
30ptfe flat gasket o10x6x1 mm 8001400
PTFE FLAT GASKET ø10x6x1 mm
1,30 €

excl. Shipping costs

immediately available, 16 available
31low cylinder head screw m6x10 uni 9327 8001293
LOW CYLINDER HEAD SCREW M6x10, UNI 9327
2,49 €

excl. Shipping costs

immediately available
32cam locking stainless steel screw m6 8001289
CAM LOCKING STAINLESS STEEL SCREW M6
4,03 €

excl. Shipping costs

immediately available, 12 available
33cam rod for e61 coffee group 8005124
Cam rod for E61 coffee group
11,90 €

excl. Shipping costs

immediately available
34assy flangia porta camme 8072861
ASSY FLANGIA PORTA CAMME
48,79 €

excl. Shipping costs

Delivery time 4-6 weeks..
35knob m8x1 8003294
KNOB M8x1
6,56 €

excl. Shipping costs

immediately available, 3 available
36bezzera e61 bezugshebel ohne knebel 8072857
Bezzera E61 Bezugshebel ohne Knebel
39,00 €

excl. Shipping costs

Delivery time 4-6 weeks
37zahnscheibe 0 8 nockenwelle e61 8073573
Zahnscheibe 0,8 Nockenwelle E61
1,25 €

excl. Shipping costs

immediately available
38chromium plated cap m6 8002794
CHROMIUM-PLATED CAP M6
3,51 €

excl. Shipping costs

immediately available, 5 available
39complete drain valve 8007124
COMPLETE DRAIN VALVE
9,90 €

excl. Shipping costs

immediately available
40spring guide bushing 8001795
SPRING GUIDE BUSHING
4,64 €

excl. Shipping costs

immediately available, 4 available
41outlet chromium plated sleeve 8000146
OUTLET CHROMIUM-PLATED SLEEVE
46,68 €

excl. Shipping costs

immediately available, 1 available
42e61 drain valve with gasket 8007125
E61 drain valve with gasket
5,90 €

excl. Shipping costs

immediately available
43feder o 14 6x34 mm fuer e61 auslassventil verstaerkte variante fuer vibrationspumpenmaschinen 8281551
Feder ø 14,6x34 mm für E61 Auslassventil - verstärkte Variante für Vibrationspumpenmaschinen
2,68 €

excl. Shipping costs

immediately available
44drain jet swirl 8005864
DRAIN JET SWIRL
2,78 €

excl. Shipping costs

immediately available, 11 available
45flat gasket ptfe o 26x21x2 mm 8001415
Flat gasket PTFE ø 26x21x2 mm
2,32 €

excl. Shipping costs

immediately available
46drain chromium plated fitting 8005865
DRAIN CHROMIUM-PLATED FITTING
4,40 €

excl. Shipping costs

immediately available, 3 available
48shower screen fuer e61 brew unit 8000608
Shower screen für E61 brew unit
5,20 €

excl. Shipping costs

immediately available
49cafelat e61 portafilter gasket 73x57x8 mm red 8081202
Cafelat E61 portafilter gasket 73x57x8 mm red
5,95 €

excl. Shipping costs

immediately available
49cafelat e61 siebtraegerdichtung 73x57x8 5 mm blau 8081203
Cafelat E61 Siebträgerdichtung 73x57x8,5 mm blau
5,95 €

excl. Shipping costs

immediately available
49gasket 73x57x8 mm for e61 brew unit 8060996
Gasket 73x57x8 mm - for E61 brew unit
3,90 €

excl. Shipping costs

immediately available
49rubber 73x57x8 5 mm for e61 brew unit 8002056
RUBBER 73x57x8,5 mm - FOR E61 BREW UNIT
3,90 €

excl. Shipping costs

immediately available
51epdm flat gasket 15 5x7 5x4 mm 8001570
EPDM flat gasket 15,5x7,5x4 mm
0,90 €

excl. Shipping costs

immediately available
53spring o 14 6x21 mm 8003547
SPRING ø 14,6x21 mm
6,89 €

excl. Shipping costs

immediately available
60o ring 0108 viton 8066106
O-RING 0108 VITON
1,05 €

excl. Shipping costs

immediately available
63water pipe nozzle 8006554
WATER PIPE NOZZLE
6,57 €

excl. Shipping costs

immediately available, 2 available

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
