BFC

BFC HEBELGRUPPE KAFFEEAUSGABE

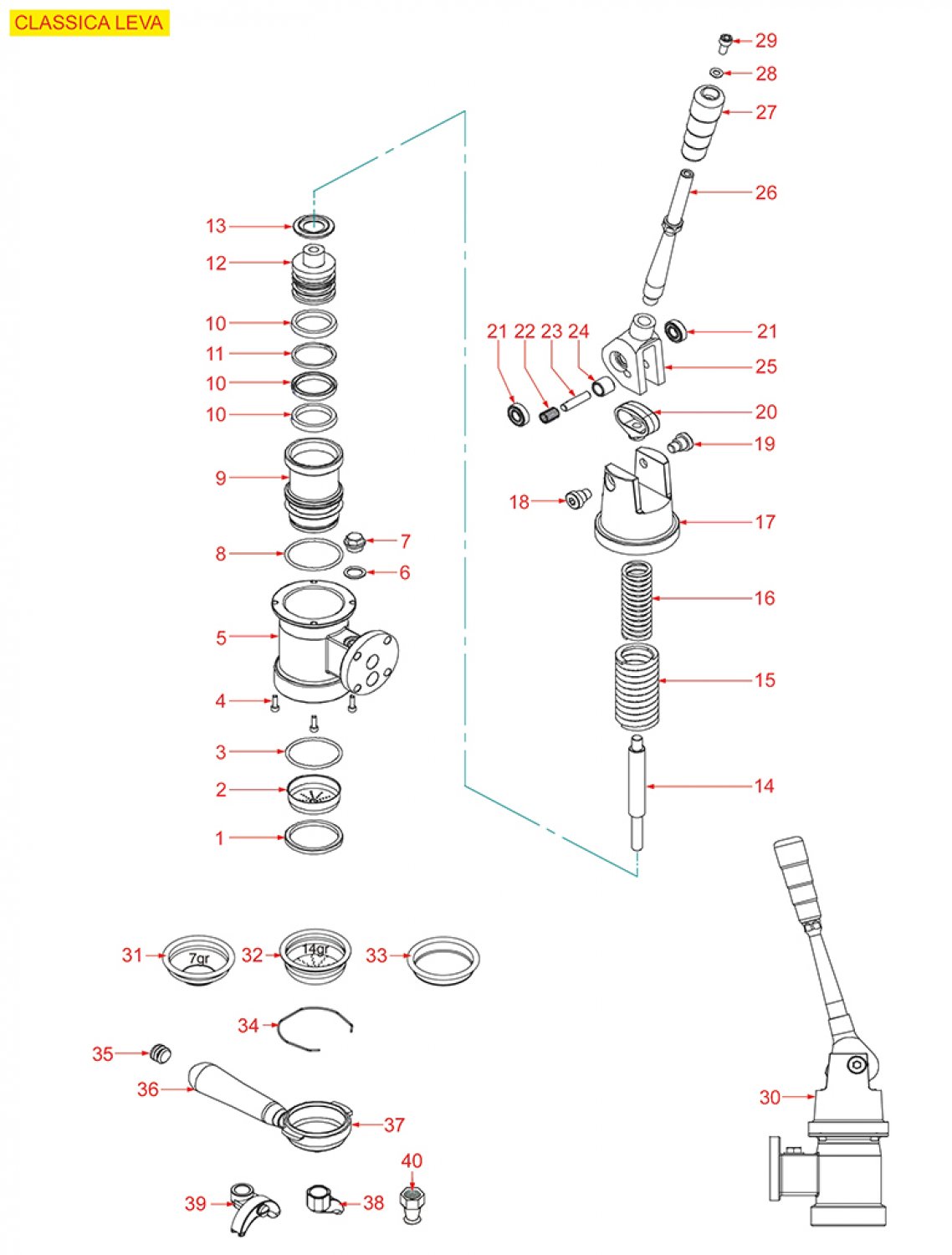

Drawing number 8080864

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.: Image: Description: Qty.:

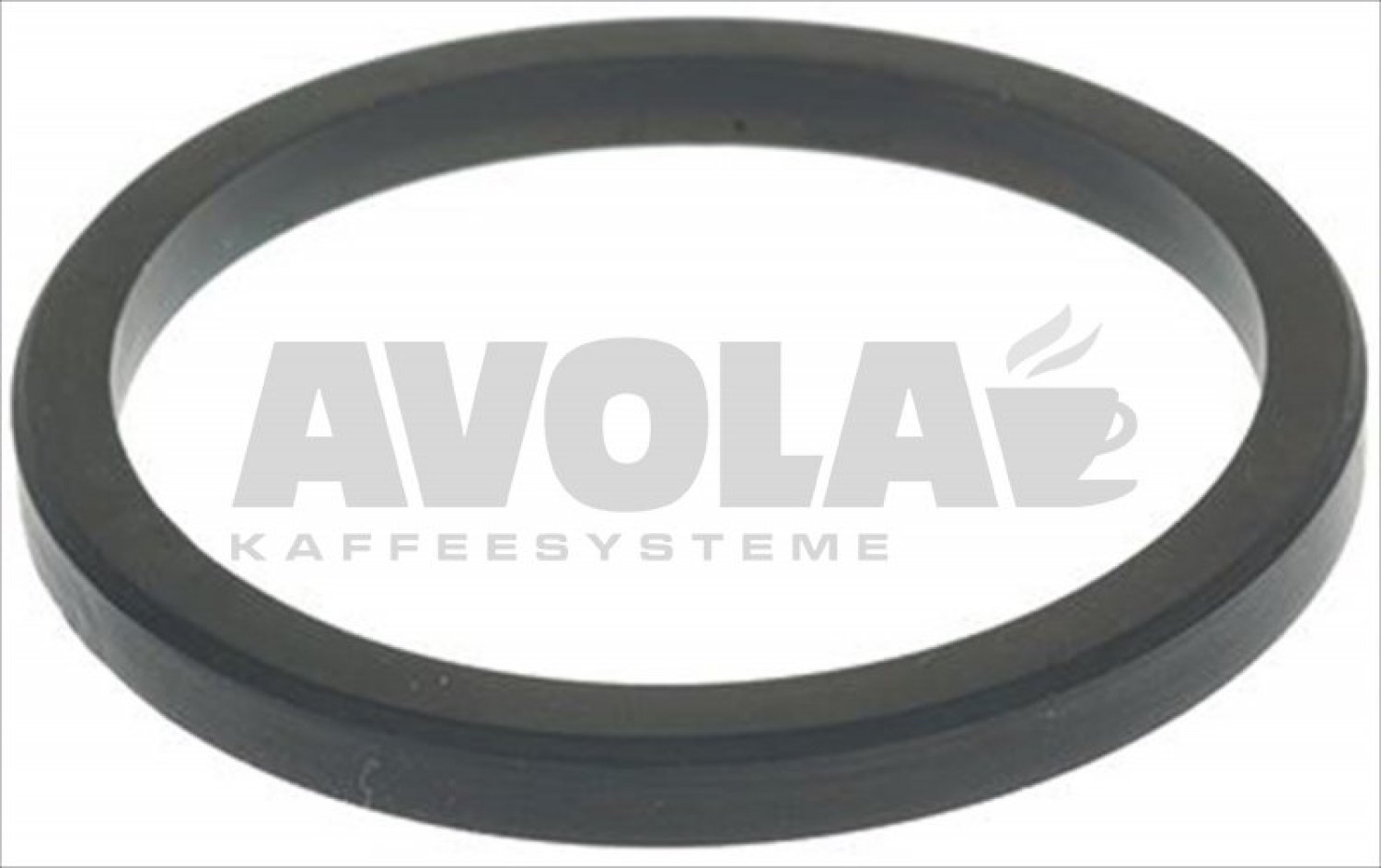

1filter holder gasket o 65 5x55 5x5 5 mm 8069601
FILTER HOLDER GASKET ø 65,5x55,5x5,5 mm
7,52 €

excl. Shipping costs

immediately available, 7 available
2shower screen fuer e61 brew unit 8000608
Shower screen für E61 brew unit
5,20 €

excl. Shipping costs

immediately available
2ims matrix dusche e61 duschsieb 1 stueck 8280721
IMS Matrix Dusche E61 Duschsieb (1 Stück)
27,95 €

excl. Shipping costs

immediately available, 10 available
3o ring 0161 fkm 8064412
O-RING 0161 FKM
8,44 €

excl. Shipping costs

immediately available, 7 available
4cylinder head screw m5x16 8069602
CYLINDER HEAD SCREW M5x16
1,81 €

excl. Shipping costs

immediately available

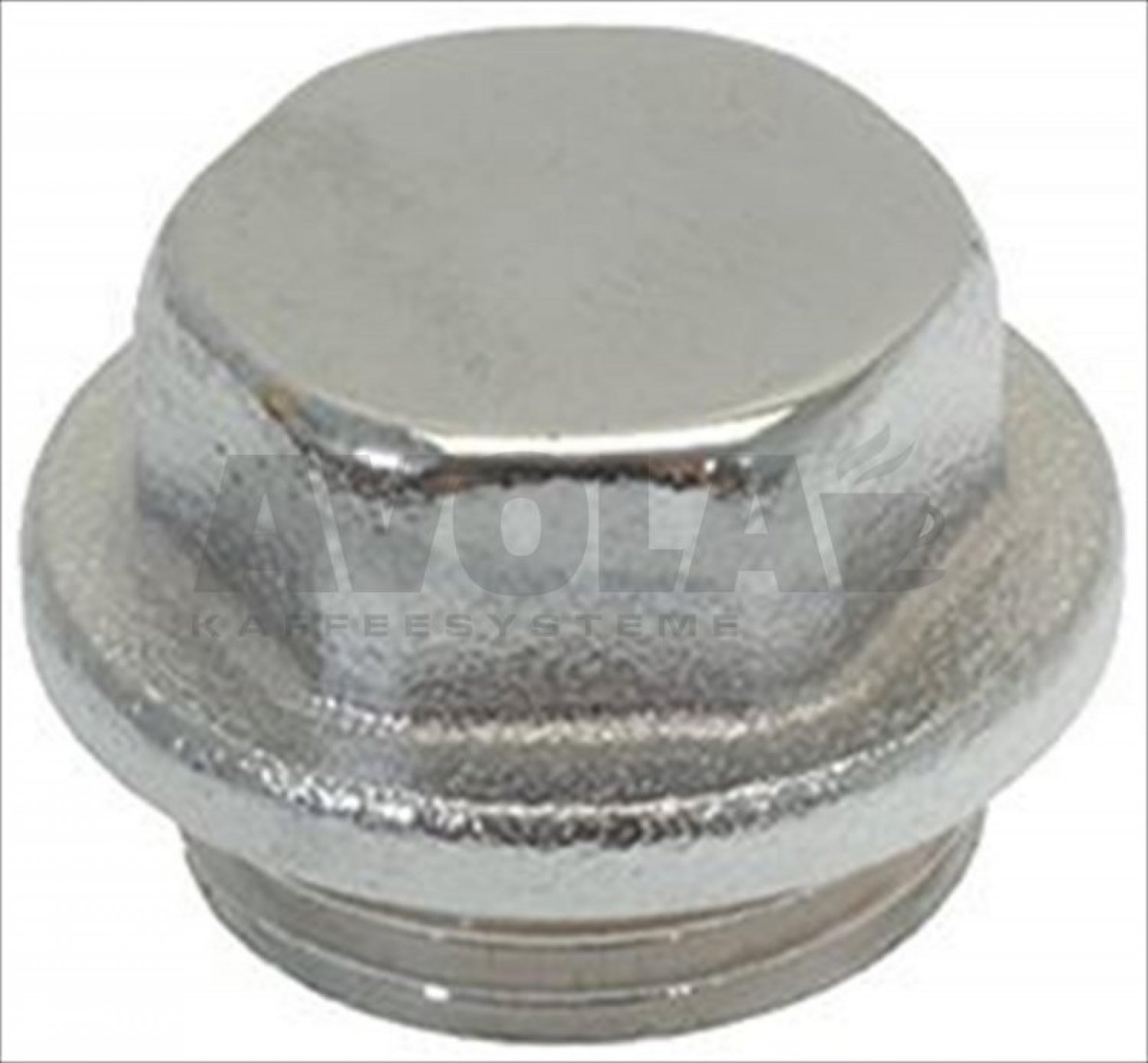

7cap 8006411
CAP
13,02 €

excl. Shipping costs

Delivery time
is determined

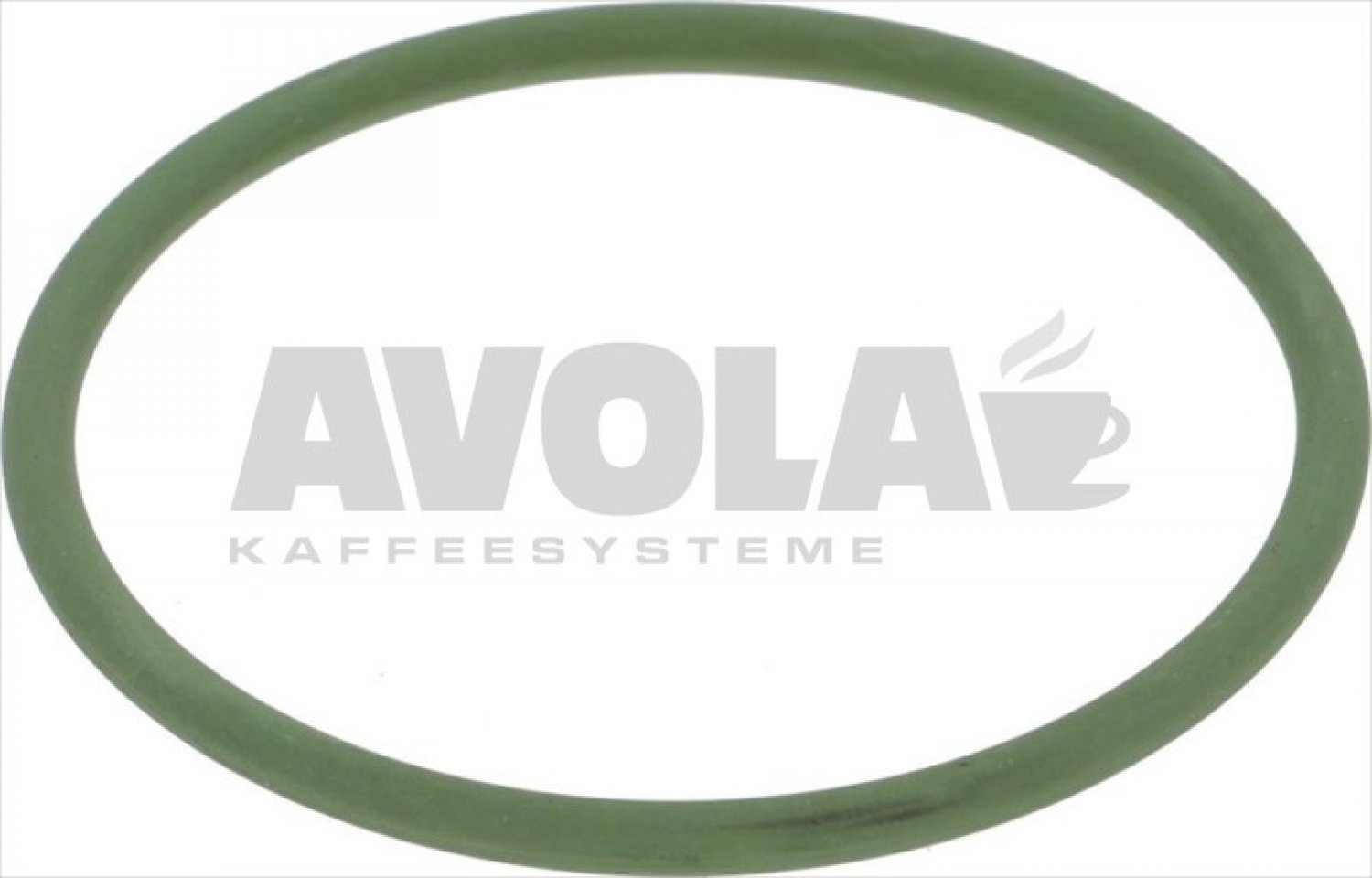

8o ring 0162 fkm green 8064407
O-RING 0162 FKM GREEN
8,96 €

excl. Shipping costs

immediately available, 7 available

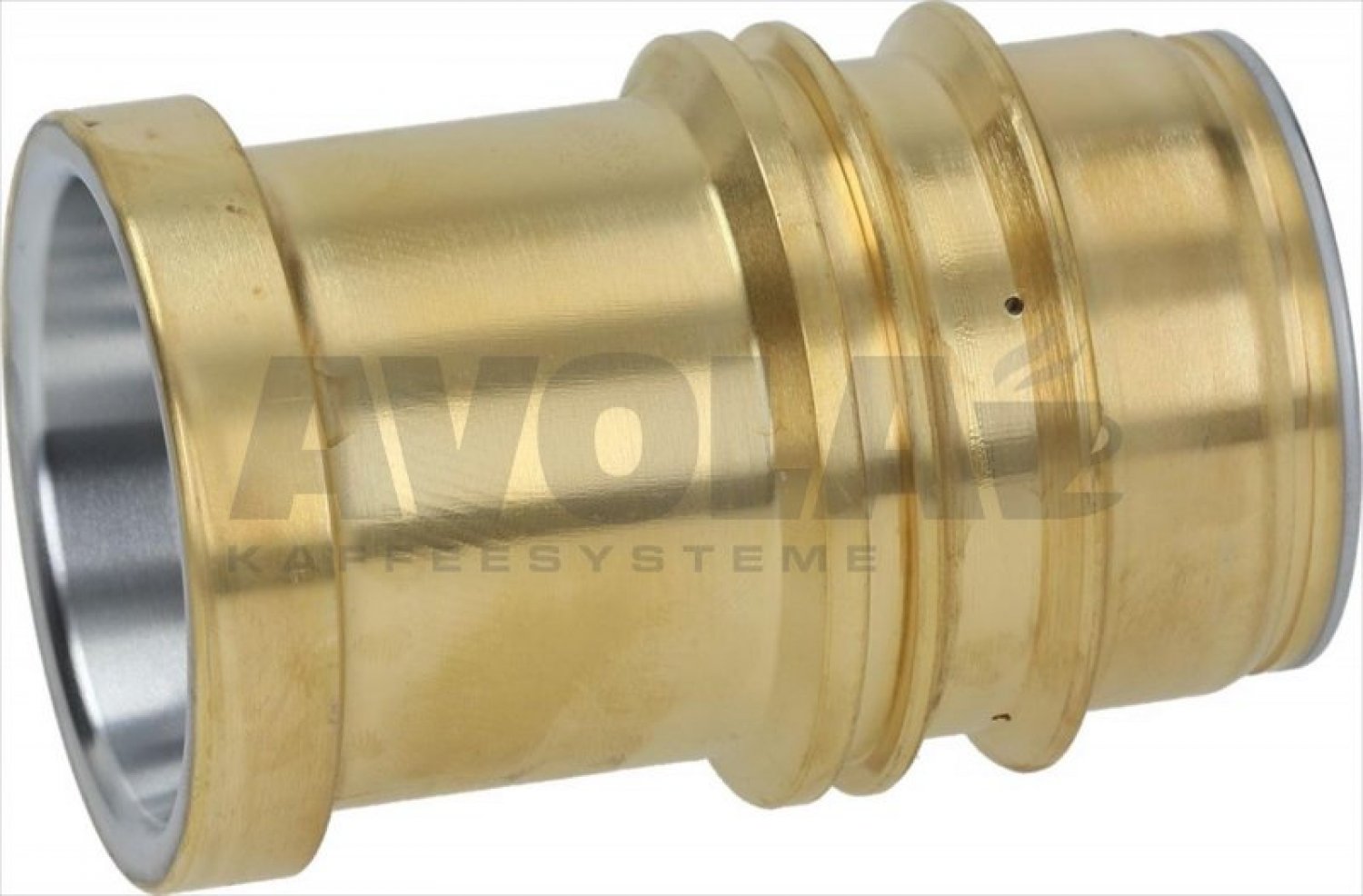

9jacket for lever assembly 8063051
JACKET FOR LEVER ASSEMBLY
115,43 €

excl. Shipping costs

immediately available, 1 available
10lip seal o 52x40x7 mm 8001482
LIP SEAL ø 52x40x7 mm
2,93 €

excl. Shipping costs

immediately available, 10 available
10lippendichtung handhebelgruppe o 52x40x7 mm silikon profitec 8137175
Lippendichtung Handhebelgruppe ø 52x40x7 mm Silikon Profitec
4,50 €

excl. Shipping costs

immediately available
11flat gasket o 50x44x4 mm teflon 8001973
FLAT GASKET ø 50x44x4 mm Teflon
11,36 €

excl. Shipping costs

immediately available

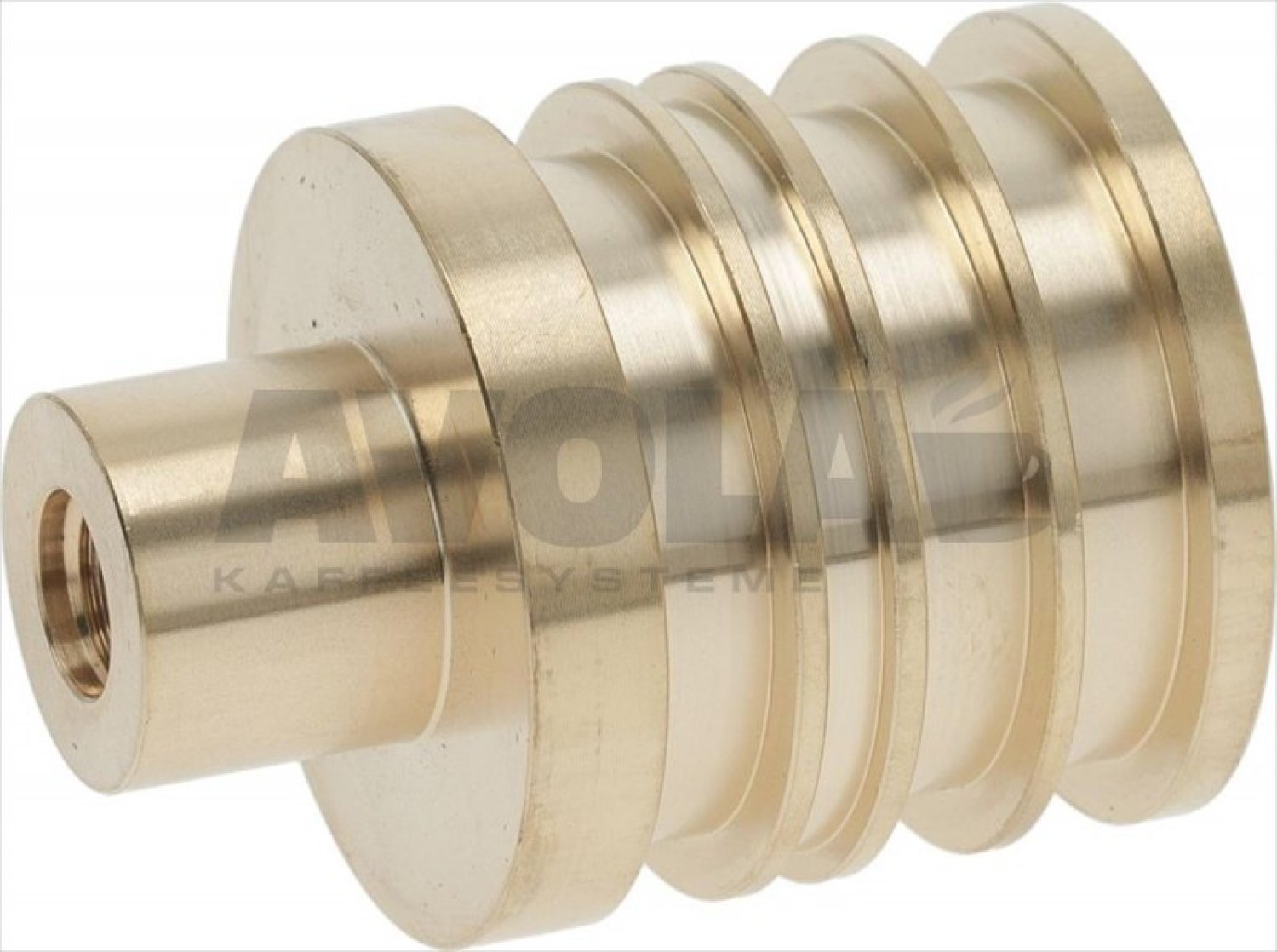

12vibiemme lever group piston 8063547
Vibiemme LEVER GROUP PISTON
71,08 €

excl. Shipping costs

Delivery time
is determined

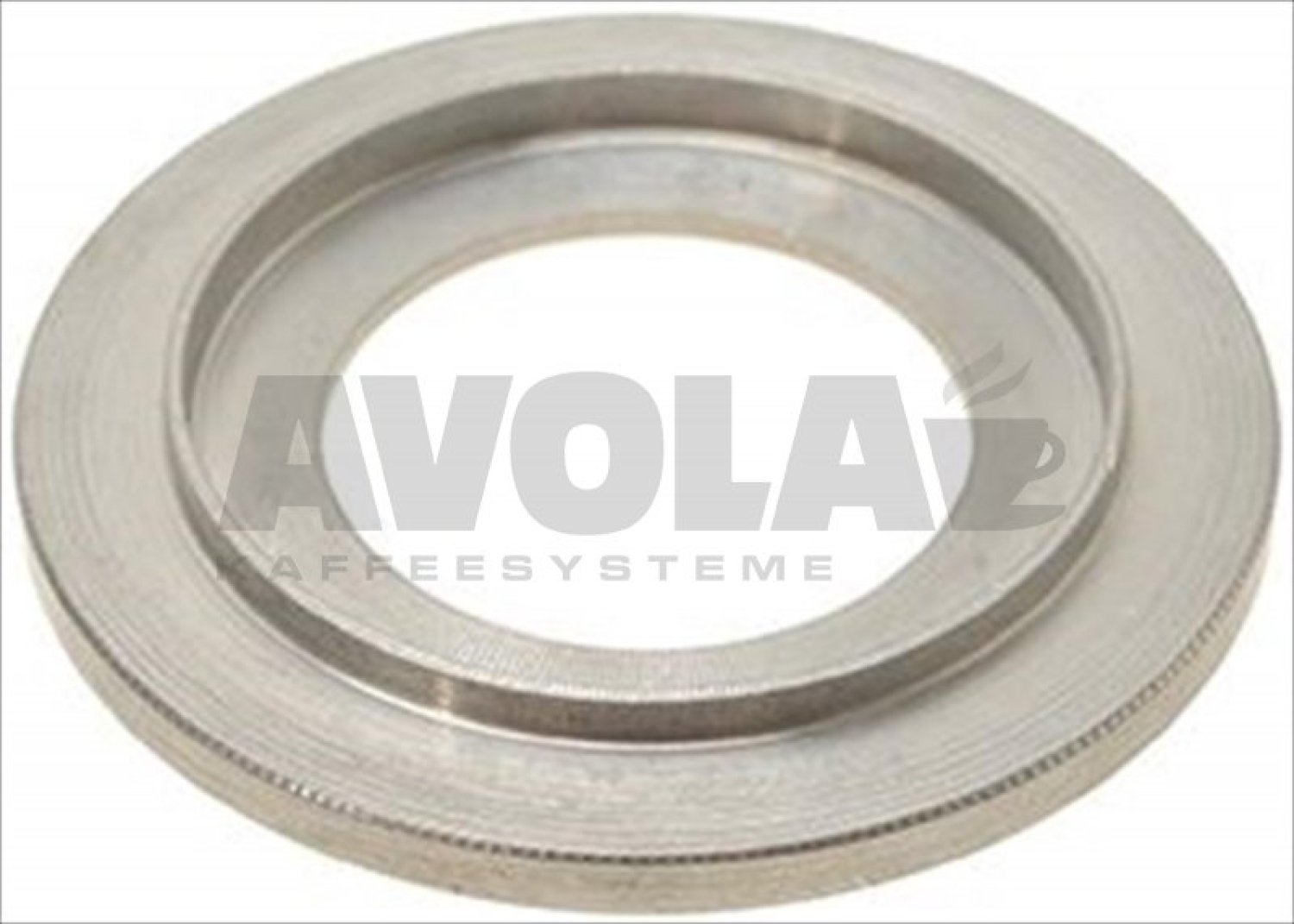

13piston spacer for lever group 8063535
PISTON SPACER FOR LEVER GROUP
20,67 €

excl. Shipping costs

Delivery time 4-6 weeks

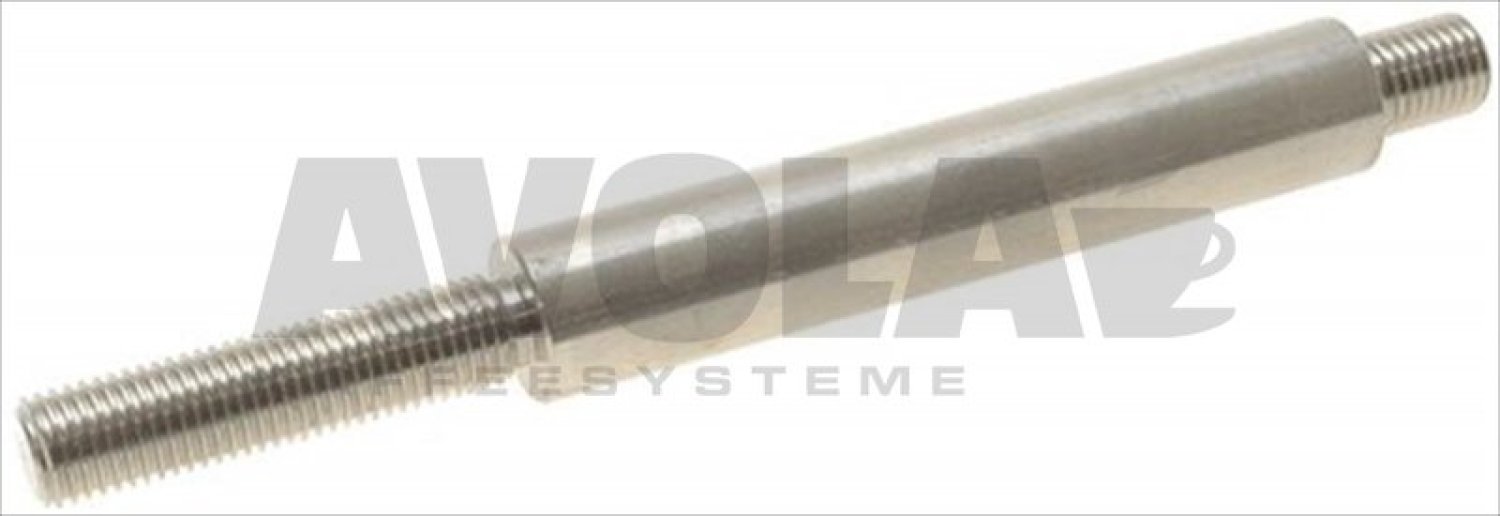

14lever for cooffee group 8063591
LEVER FOR COOFFEE GROUP
38,12 €

excl. Shipping costs

Delivery time 4-6 weeks..

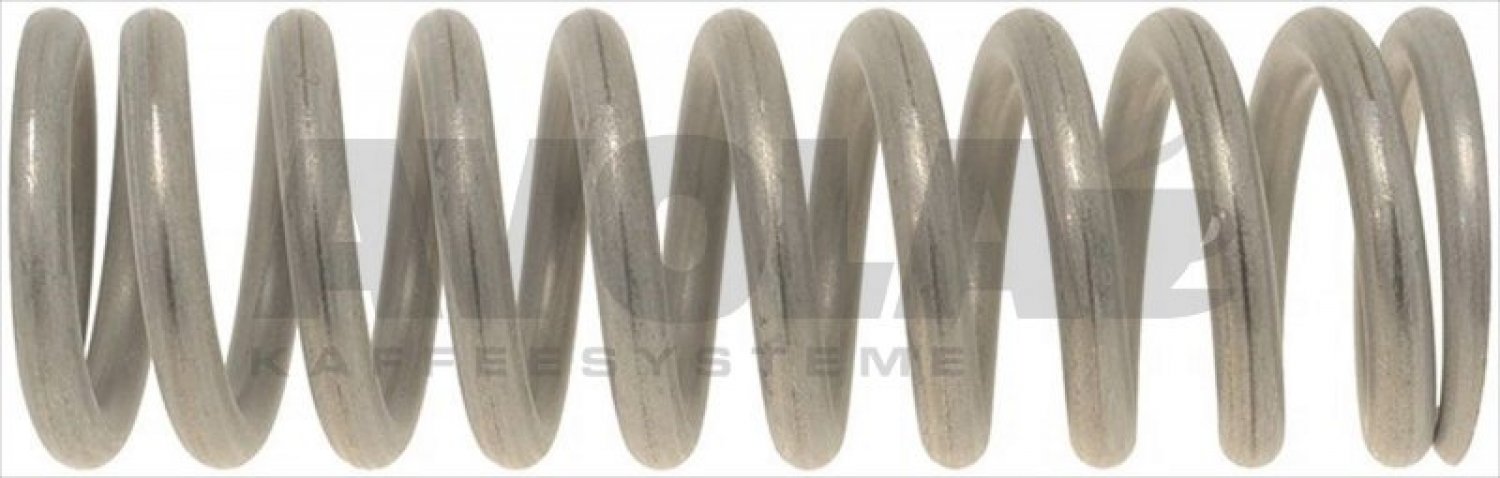

15spring for lever group 8063680
SPRING FOR LEVER GROUP
54,36 €

excl. Shipping costs

Delivery time 4-6 weeks

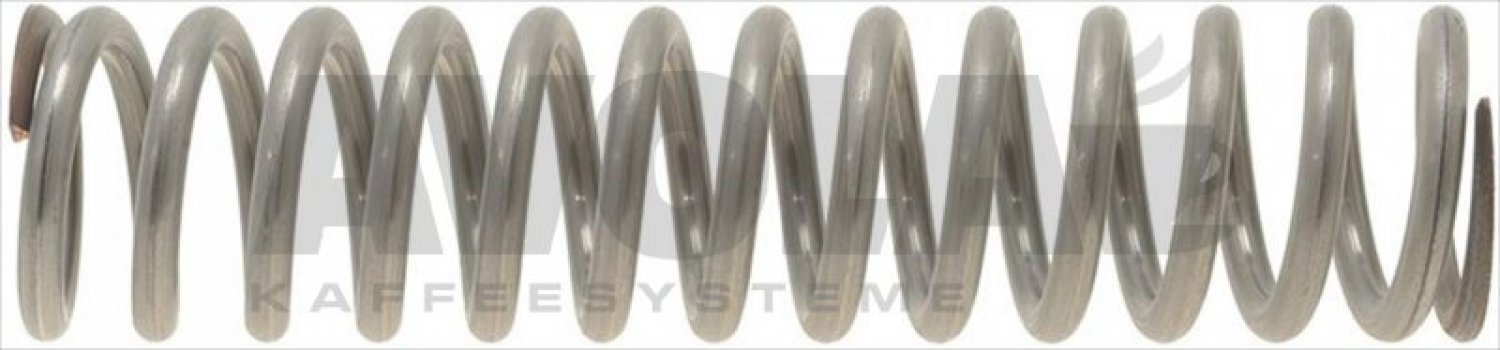

16spring for lever group 8063681
SPRING FOR LEVER GROUP
24,05 €

excl. Shipping costs

Delivery time 4-6 weeks
18left pin for lever group 8063545
LEFT PIN FOR LEVER GROUP
10,16 €

excl. Shipping costs

Delivery time
is determined
19right pin for lever group 8063544
RIGHT PIN FOR LEVER GROUP
10,16 €

excl. Shipping costs

Delivery time 4-6 weeks..
20chrome plated fork for lever group 8063552
CHROME-PLATED FORK FOR LEVER GROUP
46,78 €

excl. Shipping costs

Delivery time 4-6 weeks..
21bearing 6001 zz nsk 8002414
BEARING 6001 ZZ NSK
12,47 €

excl. Shipping costs

Delivery time
is determined

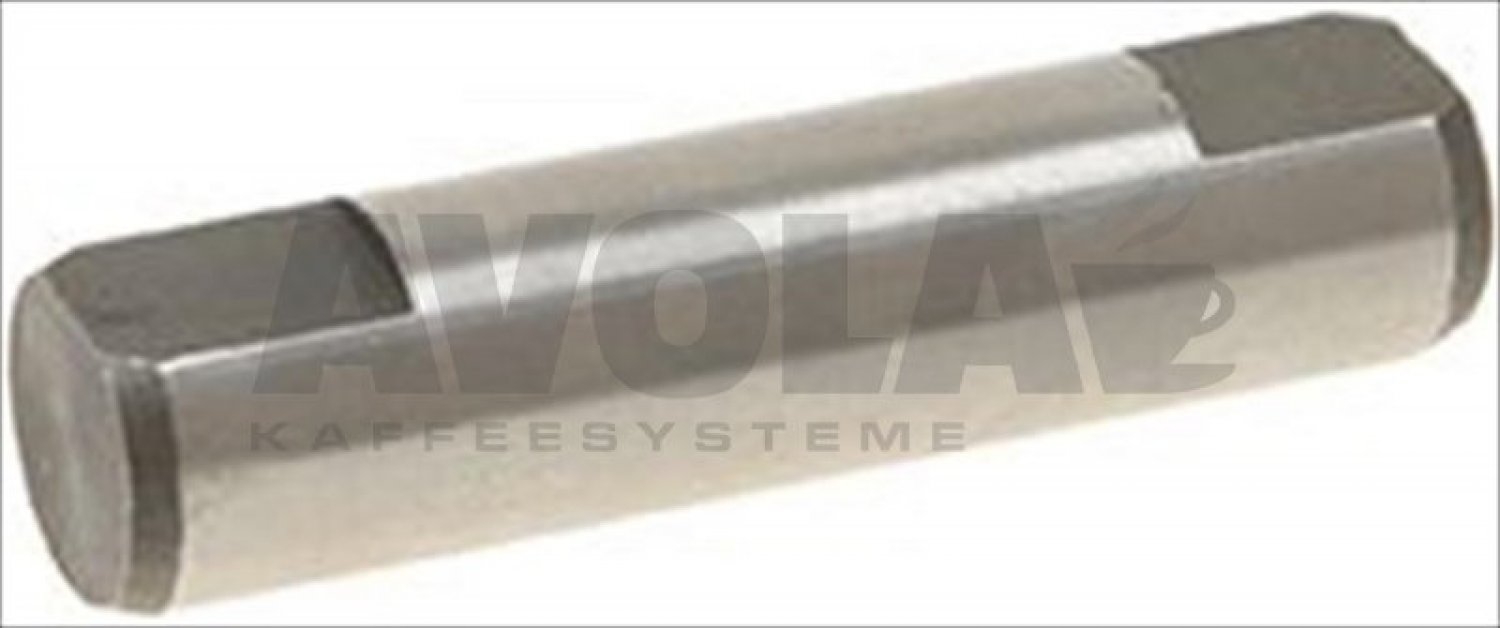

23lever group articulation pin 8063786
LEVER GROUP ARTICULATION PIN
12,92 €

excl. Shipping costs

immediately available, 1 available

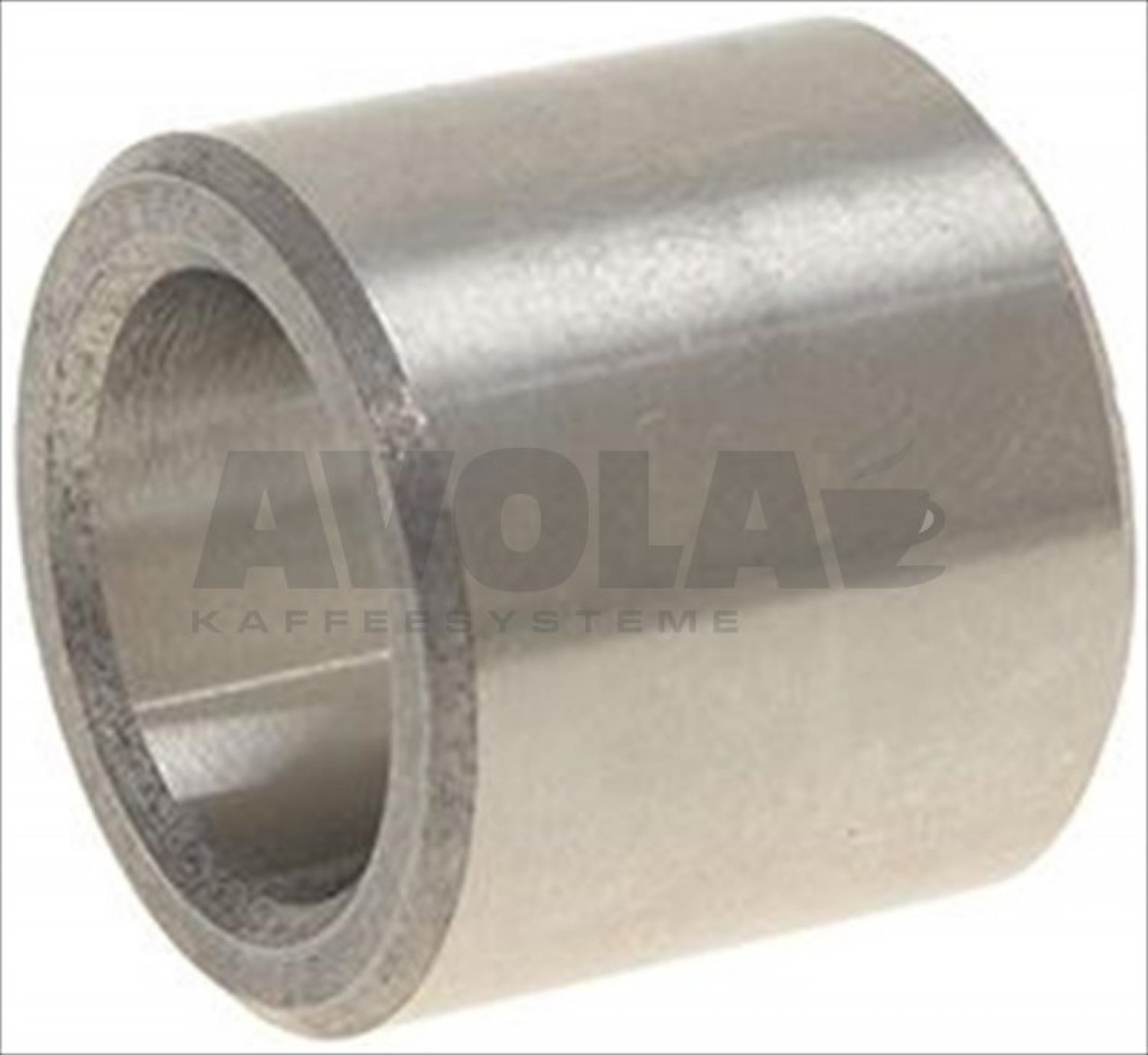

24articulation bushing 8063553
ARTICULATION BUSHING
33,30 €

excl. Shipping costs

Delivery time 4-6 weeks..

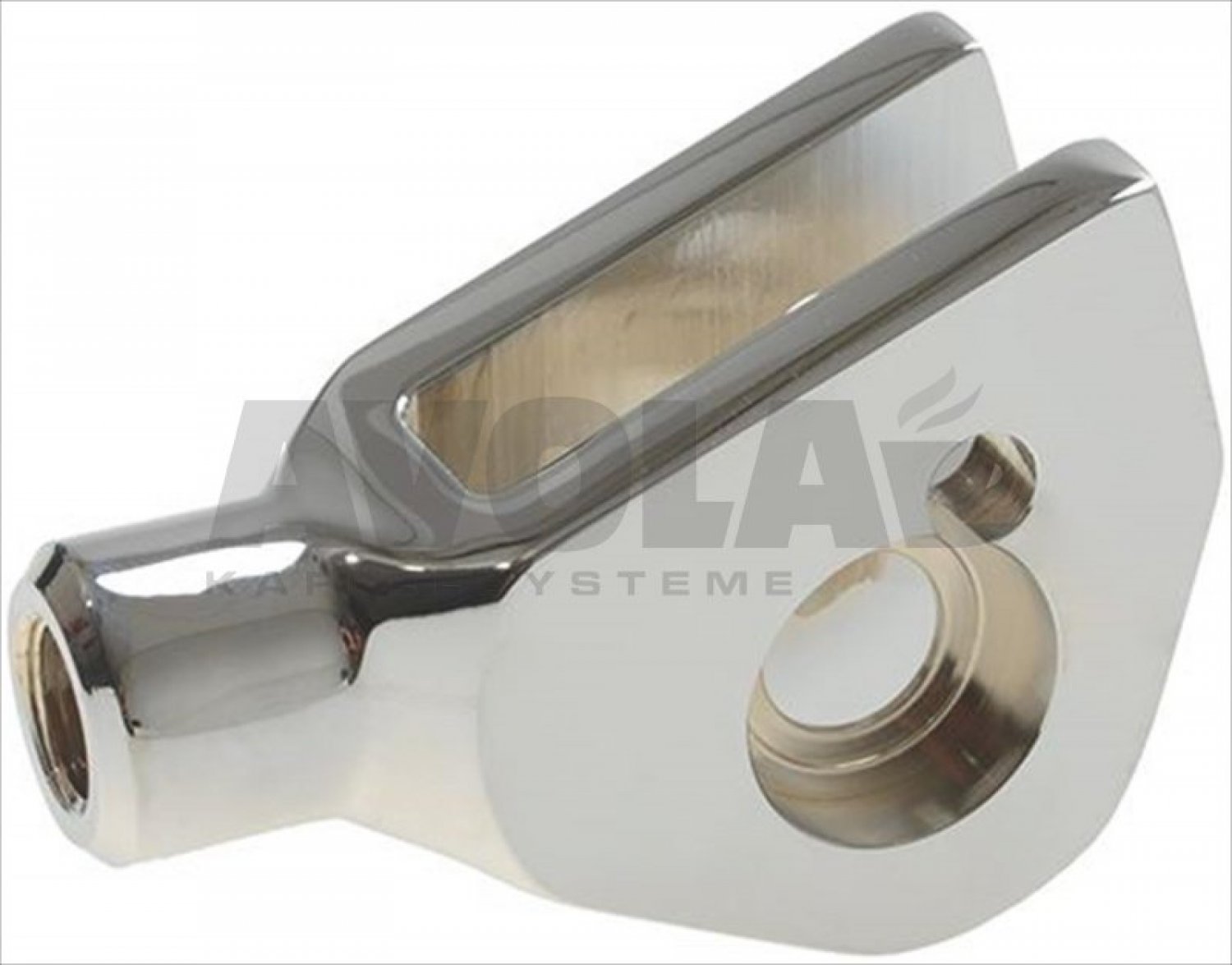

25chrome plated fork for lever group 8063536
CHROME-PLATED FORK FOR LEVER GROUP
99,01 €

excl. Shipping costs

Delivery time
is determined

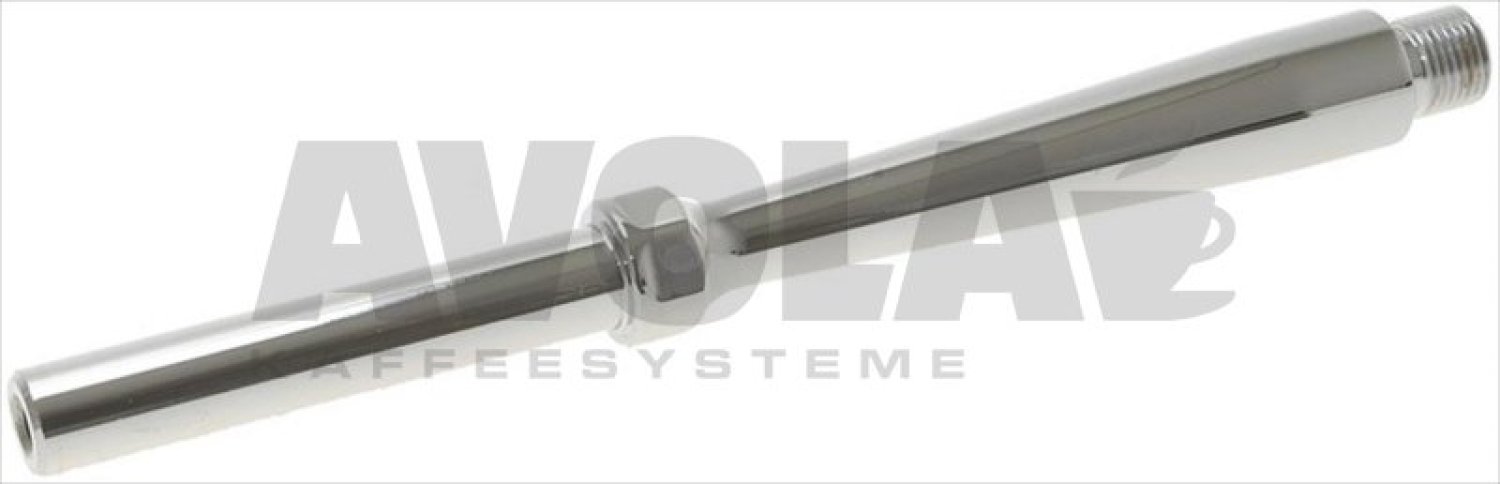

26control lever for delivery group 8063546
CONTROL LEVER FOR DELIVERY GROUP
54,00 €

excl. Shipping costs

Delivery time 4-6 weeks

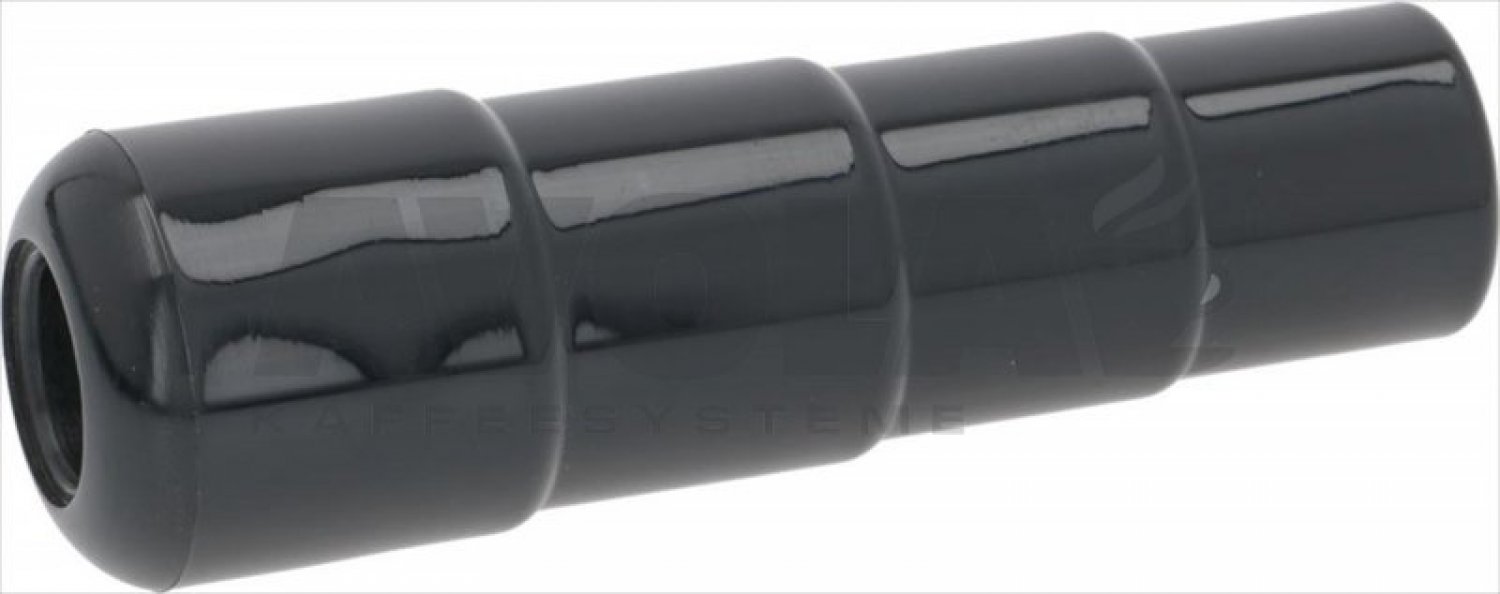

27lever group handle 8003246
LEVER GROUP HANDLE
11,19 €

excl. Shipping costs

Delivery time
is determined
29schraube zylinderkopf innensechskant vollgewinde edelstahl m8x20 a2 70 din 912 8061169
Schraube Zylinderkopf Innensechskant Vollgewinde Edelstahl M8x20 A2-70 Din 912
2,67 €

excl. Shipping costs

immediately available

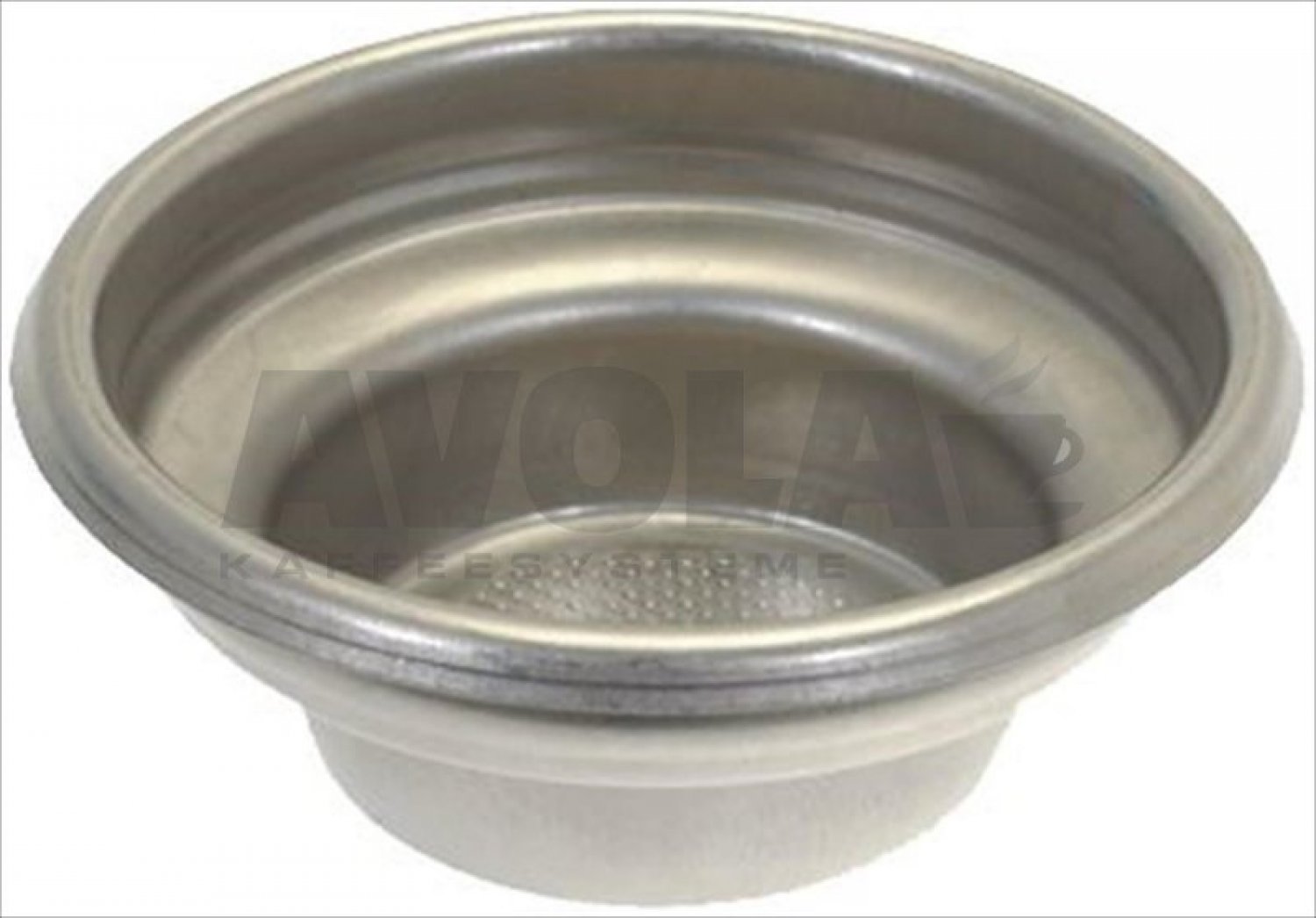

311 cup filter 7 gr 8001041
1 CUP FILTER 7 GR.
5,31 €

excl. Shipping costs

immediately available, 8 available
322 cups filter 18 21gr o 70x28 mm 8001104
2 Cups Filter 18/21gr ø 70x28 mm
4,46 €

excl. Shipping costs

immediately available, 9 available
33blind filter o58mm 8001103
BLIND FILTER Ø58mm
2,56 €

excl. Shipping costs

immediately available
34s steel filter locking spring 8003542
S/STEEL FILTER LOCKING SPRING
1,45 €

excl. Shipping costs

immediately available
35kappe verchromt fuer siebtraegergriff o 18 mm 8036981
Kappe verchromt für Siebträgergriff ø 18 mm
2,24 €

excl. Shipping costs

immediately available, 4 available
37filter holder coffee machines 8001167
FILTER HOLDER COFFEE MACHINES
18,80 €

excl. Shipping costs

immediately available, 2 available
38single spout o 3 8 8000110
SINGLE SPOUT ø 3/8
6,06 €

excl. Shipping costs

immediately available, 14 available

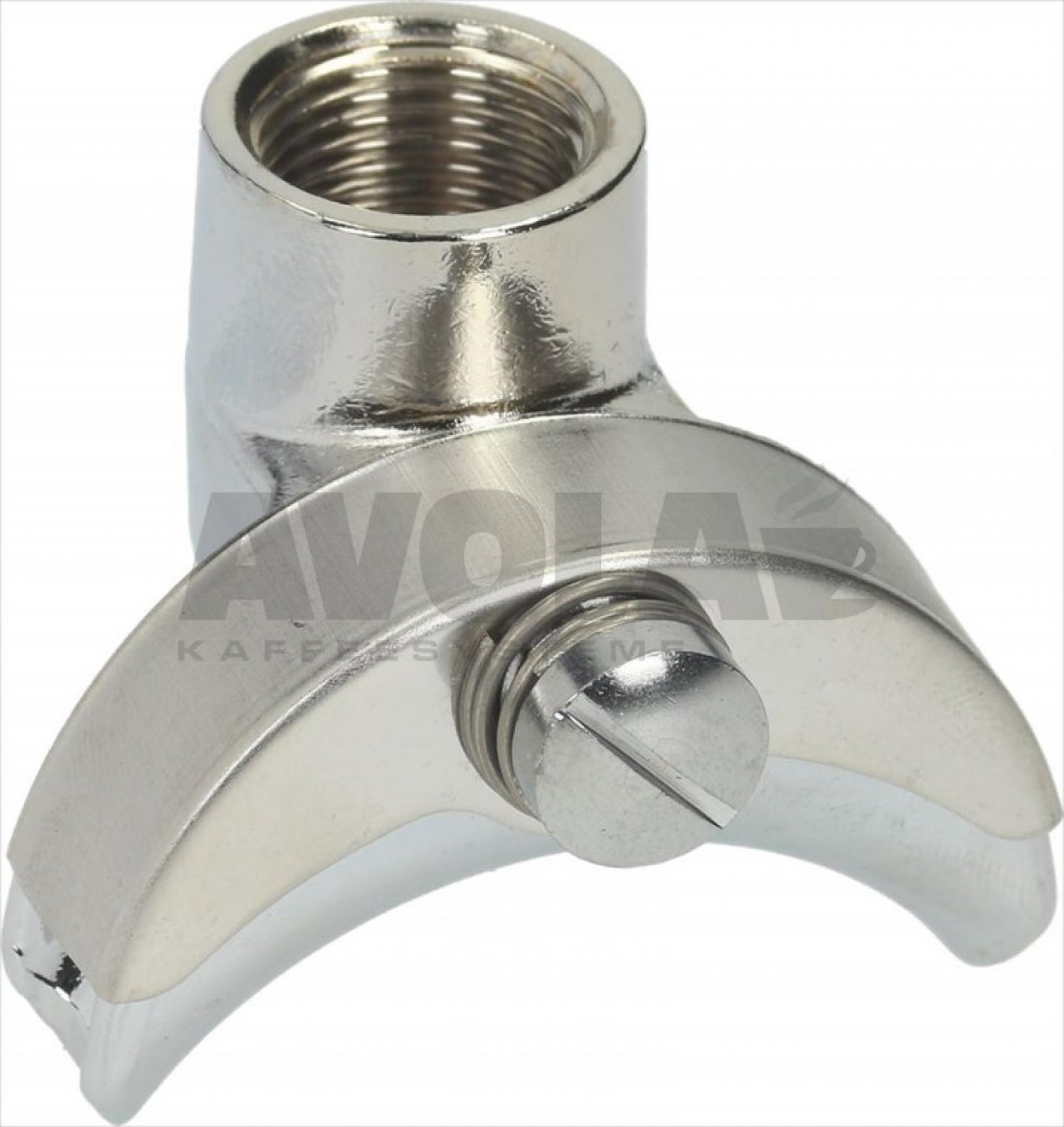

39adjustable long double spout 8000121
ADJUSTABLE LONG DOUBLE SPOUT
10,35 €

excl. Shipping costs

Delivery time
is determined
40straight single spout o 3 8 8000112
STRAIGHT SINGLE SPOUT ø 3/8
4,09 €

excl. Shipping costs

immediately available, 9 available

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
