BFC Junior Plus Levetta Kessel Wasserkreislauf

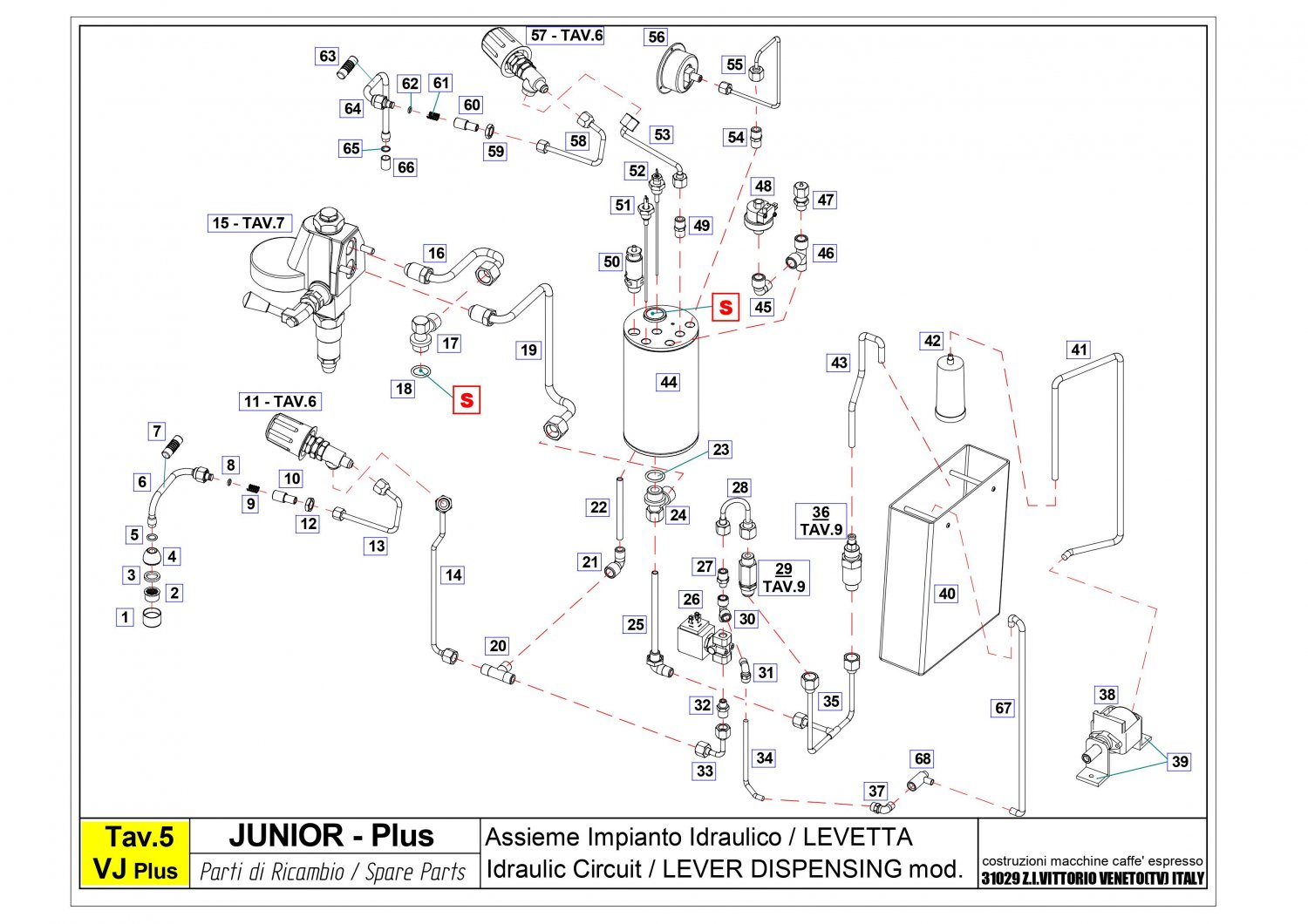

Drawing number 8280777

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.: Image: Description: Qty.:
5rocket teflondichtung 1 8 zoll 8081333
Rocket Teflondichtung 1/8 Zoll
2,58 €

excl. Shipping costs

immediately available, 7 available
8o ring 02025 viton 8001810
O-RING 02025 VITON
0,87 €

excl. Shipping costs

immediately available
9 8352706
BFC Feder Heißwasserrohr d.8,4 x 0,8 L=15 mm
3,81 €

excl. Shipping costs

immediately available, 14 available
10 8281294
BFC Junior Plus Fitting
17,73 €

excl. Shipping costs

immediately available, 15 available
14 8393671
BFC Rohr Kessel zum Heisswasserventil Junior
32,43 €

excl. Shipping costs

immediately available, 5 available

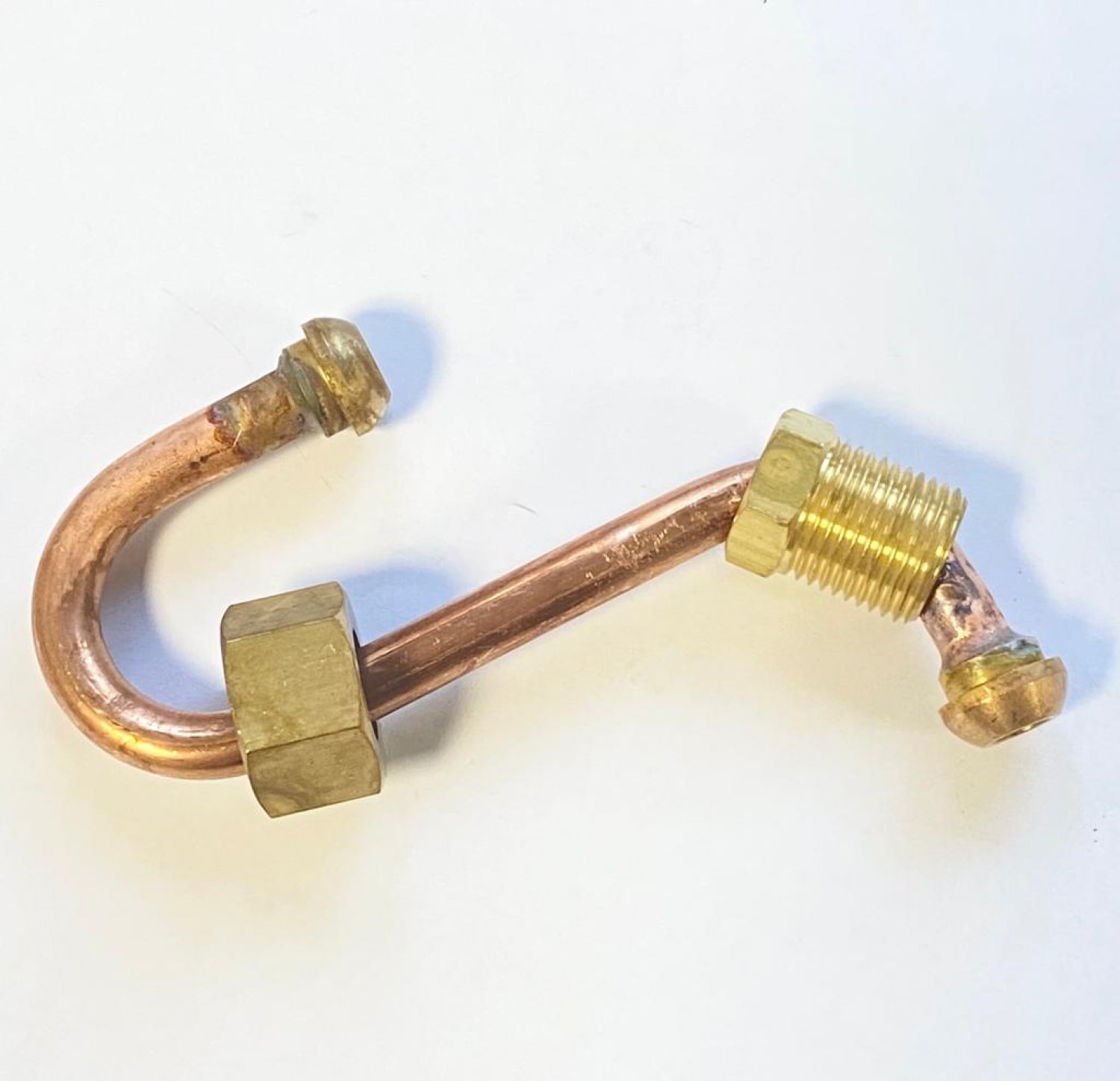

16bfc junior rohr waermetauscher zur gruppe oben 8280960
BFC Junior Rohr Wärmetauscher zur Gruppe oben
23,80 €

excl. Shipping costs

Delivery time
is determined
17boiler fitting 1 2 8005643
BOILER FITTING 1/2
9,95 €

excl. Shipping costs

immediately available, 7 available
18round copper gasket o 26x21 4x2 mm 8001673
ROUND COPPER GASKET ø 26x21,4x2 mm
1,73 €

excl. Shipping costs

immediately available
19bfc junior rohr waermetauscher zur gruppe unten 8280961
BFC Junior Rohr Wärmetauscher zur Gruppe unten
17,85 €

excl. Shipping costs

immediately available, 4 available
19bfc junior rohr waermetauscher zur gruppe unten 8280961
BFC Junior Rohr Wärmetauscher zur Gruppe unten
17,85 €

excl. Shipping costs

immediately available, 4 available
20nichel pl t fitting 8022435
NICHEL-PL.T-FITTING
5,39 €

excl. Shipping costs

immediately available, 8 available
21nichel platedl fitting o 1 4 a 1 4 i 8005886
NICHEL PLATEDL-FITTING ø 1/4 A-1/4 I
7,02 €

excl. Shipping costs

immediately available, 13 available
22bfc injektorrohr kupfer 8x6mm laenge 98mm 8280985
BFC Injektorrohr Kupfer 8x6mm Länge: 98mm
13,09 €

excl. Shipping costs

immediately available, 8 available
23round copper gasket o 26x21 4x2 mm 8001673
ROUND COPPER GASKET ø 26x21,4x2 mm
1,73 €

excl. Shipping costs

immediately available
24kesselfitting t anschluss o 1 2 a 1 2 a 1 4i 8005644
Kesselfitting T-anschluss ø 1/2 A-1/2 A-1/4I
8,15 €

excl. Shipping costs

immediately available, 8 available

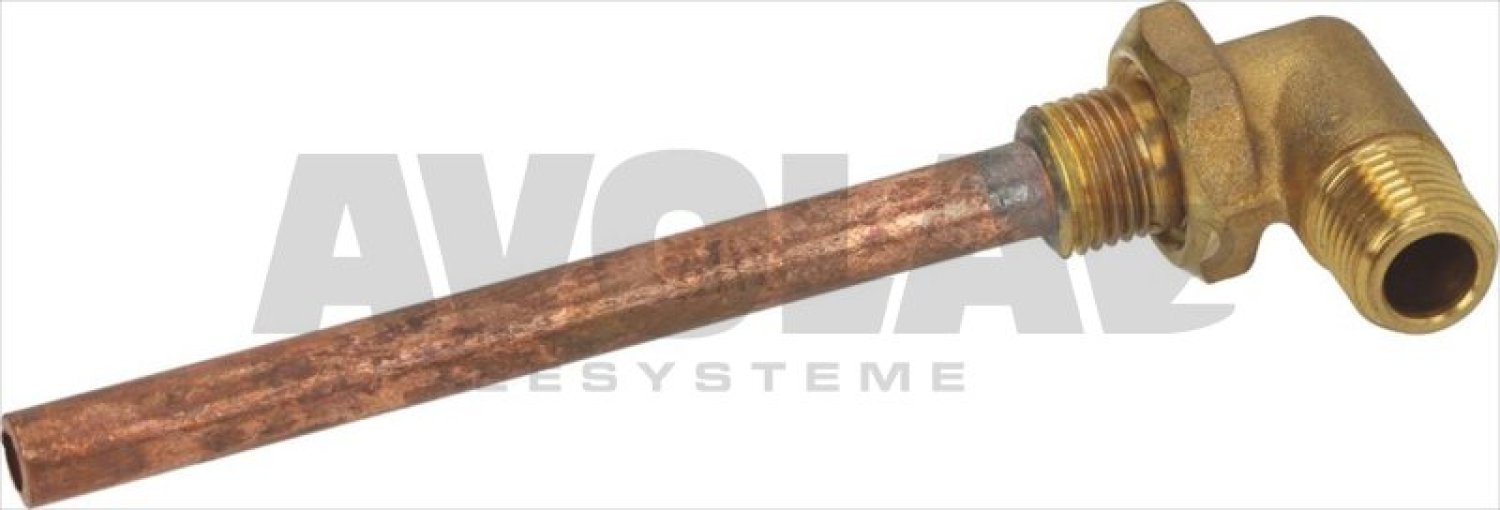

25injektorrohr o 1 4 zoll 8089282
Injektorrohr ø 1/4 Zoll
19,02 €

excl. Shipping costs

immediately available, 3 available
29check valve o 3 8m 3 8m bfc royal 8146590
check valve ø 3/8M-3/8M BFC Royal
30,29 €

excl. Shipping costs

immediately available, 5 available
35bfc rohr verteiler waermetauscher fuellventil 8140654
BFC Rohr Verteiler Wärmetauscher - Füllventil
47,95 €

excl. Shipping costs

Delivery time 4-6 weeks..
36expansion valve o 3 8a 8064178
EXPANSION VALVE ø 3/8A
19,02 €

excl. Shipping costs

immediately available, 2 available
38vibratory pump ulka ex5 48w 230v 50hz 8001016
VIBRATORY PUMP ULKA EX5 48W 230V 50Hz
14,90 €

excl. Shipping costs

immediately available, 16 available
42water softener for ocs nical 125 8008055
WATER SOFTENER FOR OCS NICAL 125
3,95 €

excl. Shipping costs

immediately available
44boiler bfc arte di vittoria 1 3l 8073545
BOILER BFC ARTE DI VITTORIA 1,3l
178,50 €

excl. Shipping costs

immediately available, 2 available
45nichel platedl fitting o 1 4 a 1 4 i 8005886
NICHEL PLATEDL-FITTING ø 1/4 A-1/4 I
7,02 €

excl. Shipping costs

immediately available, 13 available
46t verschraubung o 1 4 quot 1 4 quot 1 4 quot 8062491
T- Verschraubung ø 1/4 " 1/4 " 1/4 "
8,01 €

excl. Shipping costs

immediately available, 4 available
47o 1 4 a unterdruckventil vakuumventil mit schlauchtuelle antivakuumventil 8036989
ø 1/4 A - Unterdruckventil Vakuumventil mit Schlauchtülle Antivakuumventil
7,70 €

excl. Shipping costs

immediately available
47o 1 4 rime boiler valve 8007153
ø 1/4″ - BOILER VALVE
7,52 €

excl. Shipping costs

immediately available
48pressure switch xp110 125 0 5 1 2 bar 1 8005058
PRESSURE SWITCH XP110 125 0.5-1.2 BAR 1/
15,90 €

excl. Shipping costs

immediately available, 1 available
48pressostat campini 16a 250v 1 4 rime 1 1bar 8393841
Pressostat Campini 16A 250V 1/4″ 1,1bar
23,74 €

excl. Shipping costs

immediately available, 6 available
49nichel plated fitting 8022415
NICHEL-PLATED FITTING
3,02 €

excl. Shipping costs

immediately available, 5 available
50boiler valve 8007163
BOILER VALVE
25,98 €

excl. Shipping costs

immediately available, 2 available
51niveausonde o 1 4 quot m 167 mm 8098690
Niveausonde ø 1/4"M-167 mm
14,85 €

excl. Shipping costs

Delivery time
is determined
52niveausonde o 1 4 quot m 167 mm 8098690
Niveausonde ø 1/4"M-167 mm
14,85 €

excl. Shipping costs

Delivery time
is determined

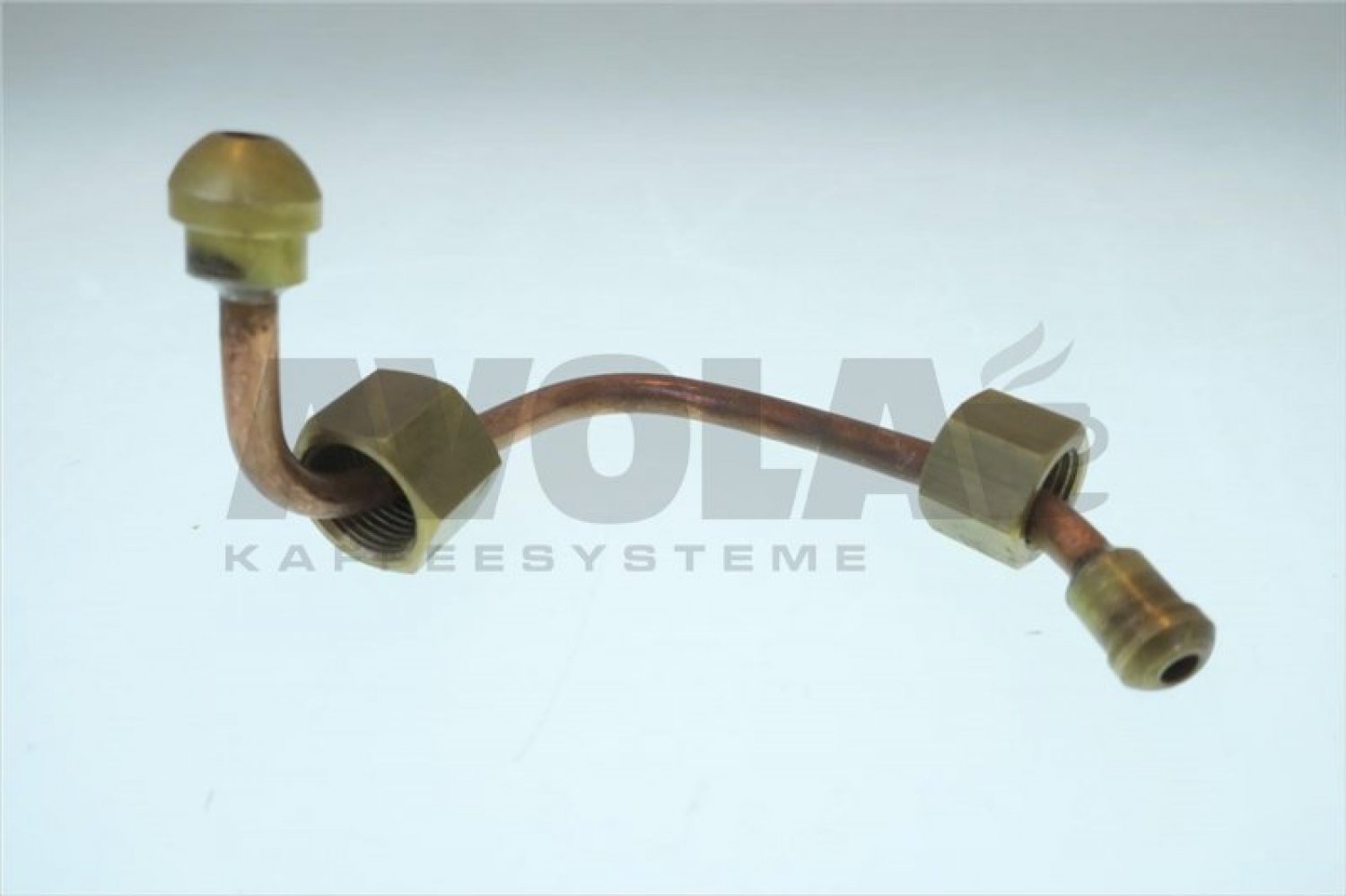

53kupferrohr 6 jun lev kessel zum dampf 8281065
Kupferrohr 6 JUN LEV Kessel zum Dampf
26,58 €

excl. Shipping costs

immediately available, 3 available
54nichel plated fitting 8022415
NICHEL-PLATED FITTING
3,02 €

excl. Shipping costs

immediately available, 5 available
58bfc rohr hahn zum lanzenfitting 8140653
BFC Rohr Hahn zum Lanzenfitting
21,66 €

excl. Shipping costs

Delivery time 4-6 weeks..
59 8280946
BFC Mutter
4,76 €

excl. Shipping costs

Delivery time
is determined
61 8352706
BFC Feder Heißwasserrohr d.8,4 x 0,8 L=15 mm
3,81 €

excl. Shipping costs

immediately available, 14 available
62o ring 02025 epdm 8018566
O-RING 02025 EPDM
1,04 €

excl. Shipping costs

immediately available
65o ring dichtung orm 0060 12 epdm 8140517
O-Ring Dichtung ORM 0060-12 EPDM
1,33 €

excl. Shipping costs

immediately available
65flat gasket 12x10x1 mm 8001374
FLAT GASKET 12x10x1 mm
1,02 €

excl. Shipping costs

immediately available
68pump valve s2 8005269
Pump valve S2
7,94 €
7,50 €

excl. Shipping costs

immediately available, 15 available

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
