BRASILIA FÜLLVENTIL DRITTE UND VIERTE SERIE

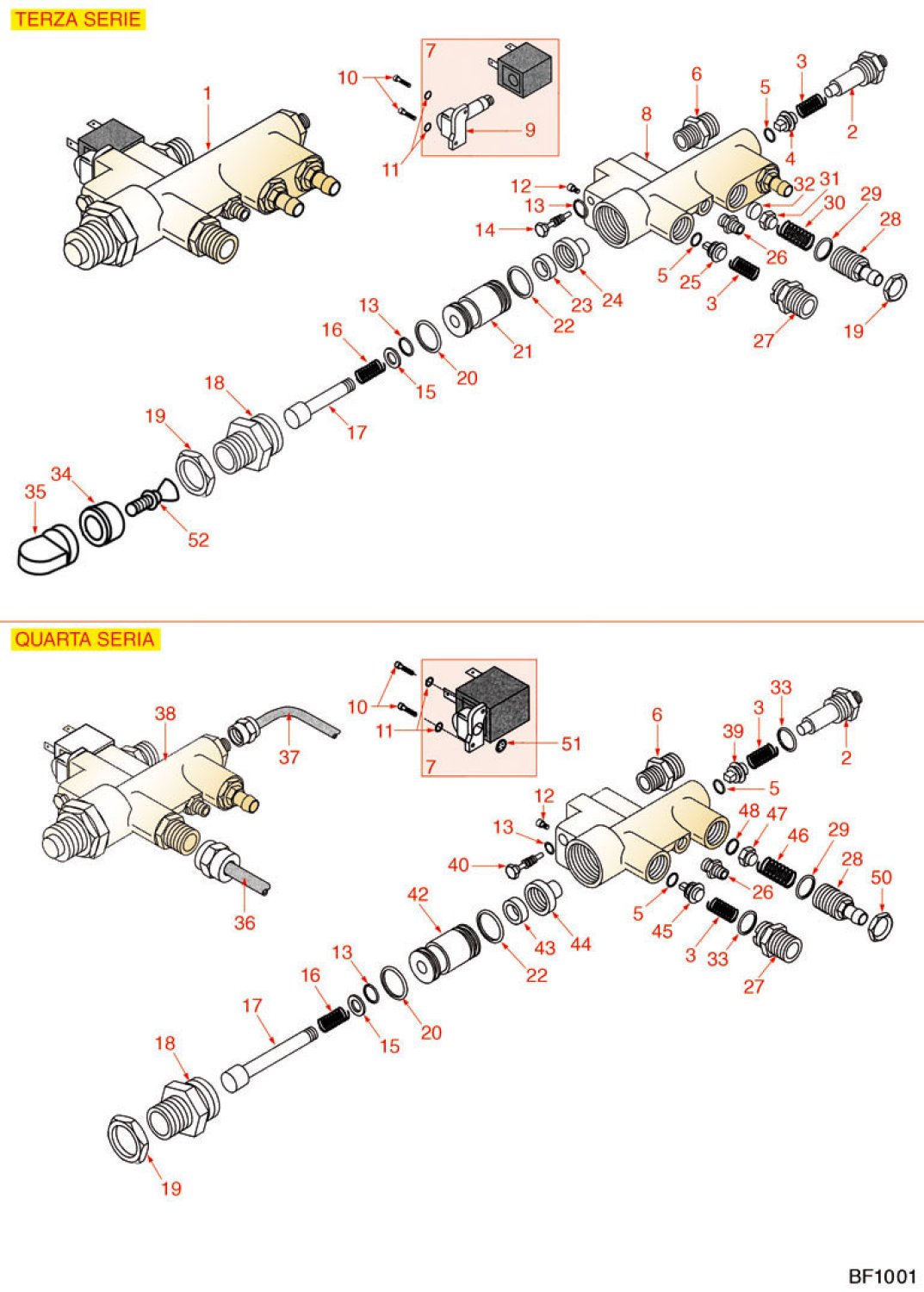

Drawing number 8038650

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.: Image: Description: Qty.:

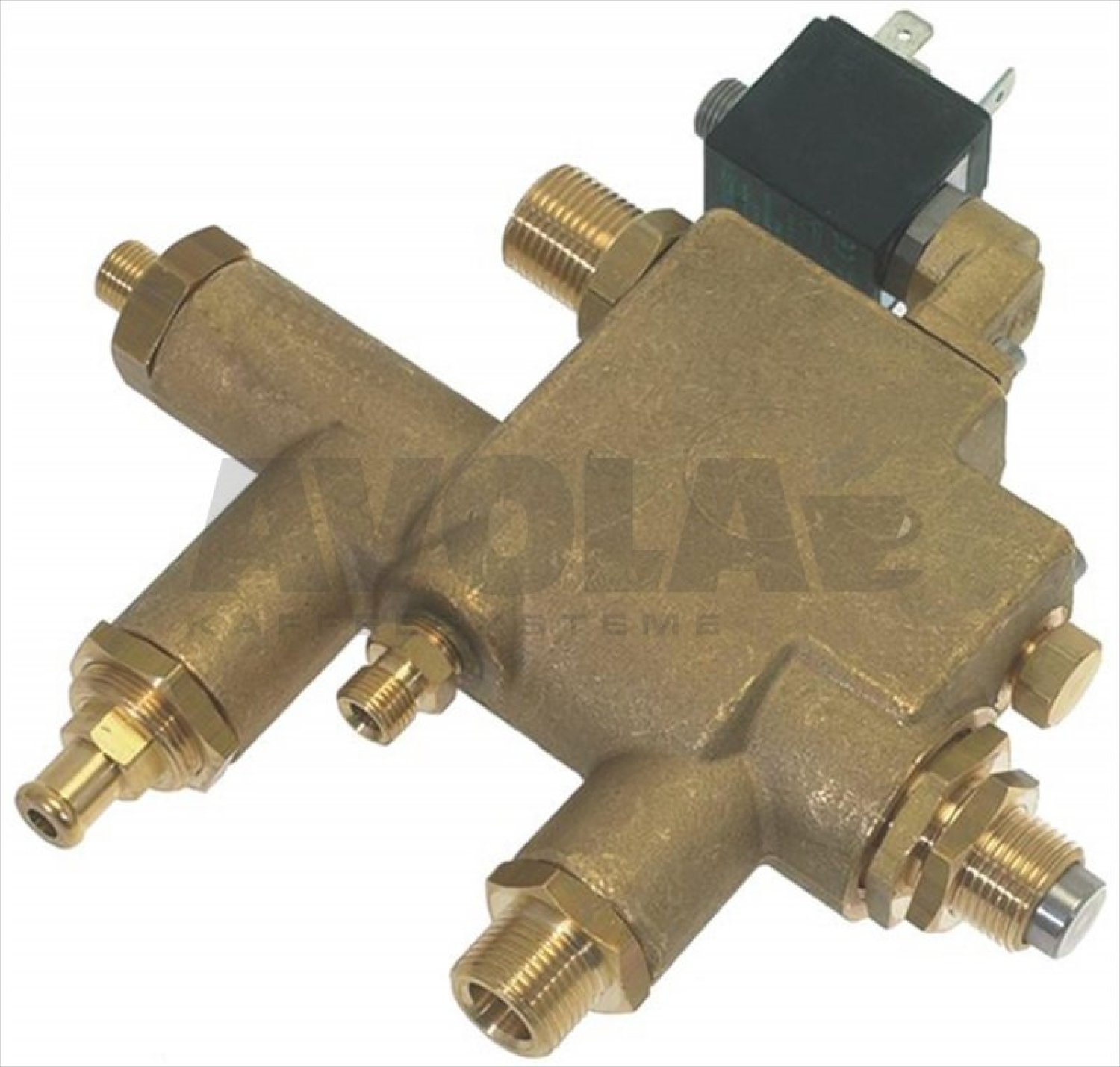

1wassereinlaufhahn gruppe 4 serie nicht mehr lieferbar 8003539
WASSEREINLAUFHAHN GRUPPE 4. SERIE (nicht mehr lieferbar)
This article is no longer available

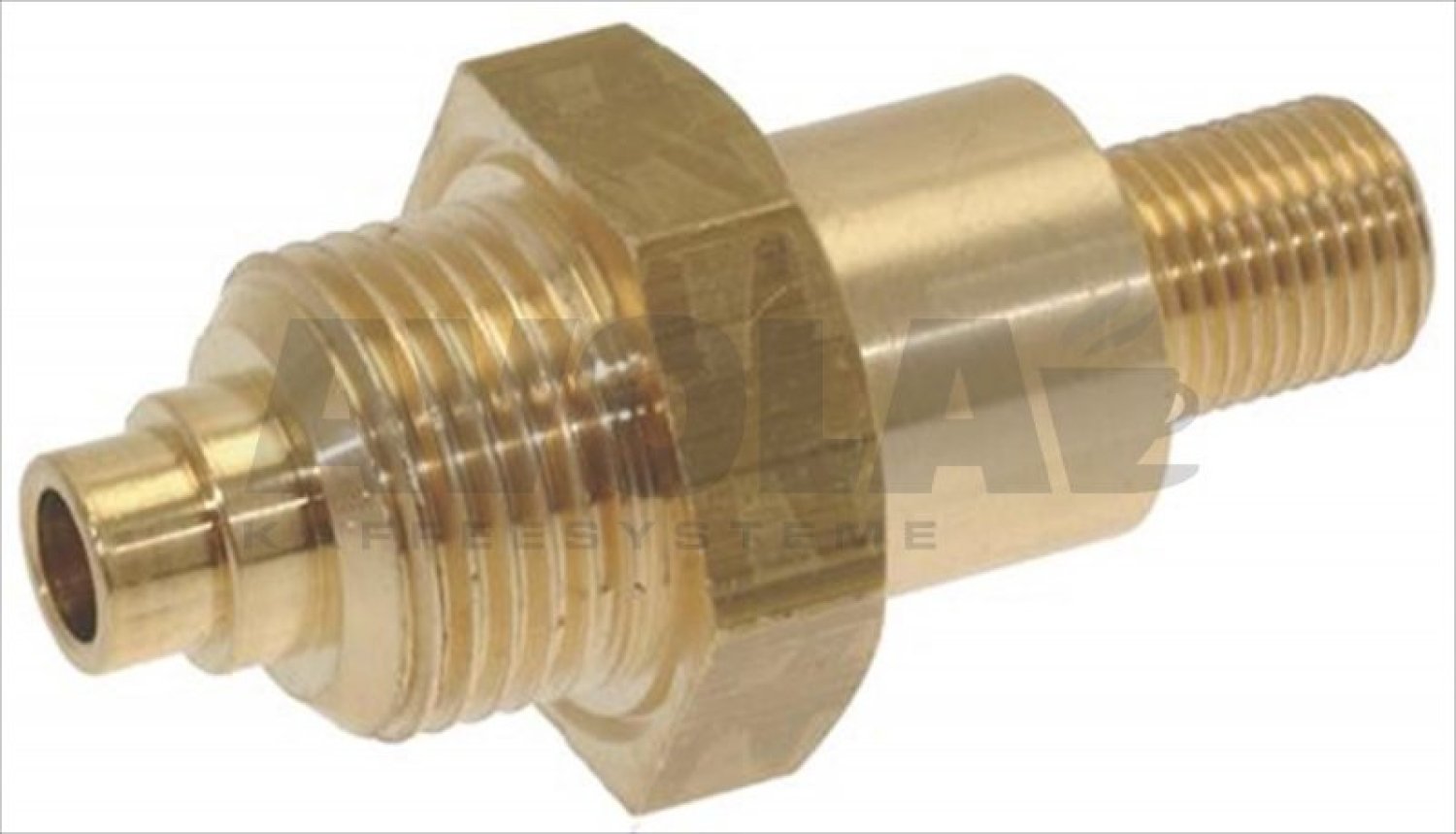

2fitting for tap group assembly 8005640
FITTING FOR TAP GROUP ASSEMBLY
Price on request
3spring 8x30 mm 8003708
SPRING 8x30 mm
1,95 €

excl. Shipping costs

immediately available, 17 available

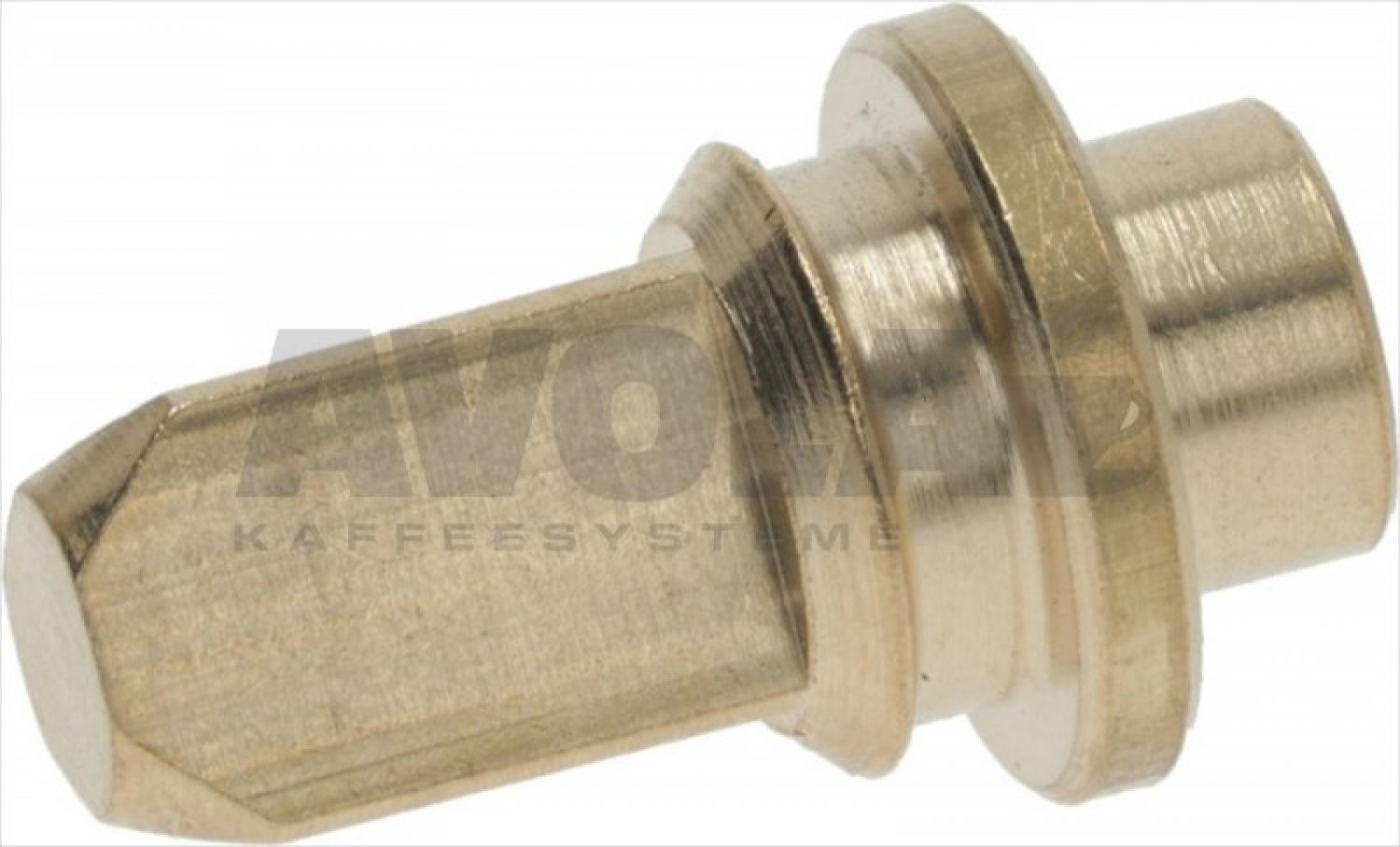

4square non return valve 8007098
SQUARE NON-RETURN VALVE
5,95 €

excl. Shipping costs

immediately available
5o ring 0108 epdm 8001655
O-RING 0108 EPDM
0,79 €

excl. Shipping costs

immediately available
6anschluss gerade 1 4 3 8 8005673
ANSCHLUSS GERADE 1/4 -3/8
Price on request
72 way solenoid valve olab 230v 50hz 8000963
2-WAY SOLENOID VALVE OLAB 230V 50Hz
45,46 €

excl. Shipping costs

immediately available, 3 available
10schraube inox t c c e i m3x10 uni 5931 8003540
SCHRAUBE INOX T.C.C.E.I. M3x10 UNI 5931
1,18 €

excl. Shipping costs

immediately available
11red silicone o ring r5 gasket 8001809
RED SILICONE O-RING R5 GASKET
1,34 €

excl. Shipping costs

immediately available
11o ring 02025 viton 8001810
O-RING 02025 VITON
0,87 €

excl. Shipping costs

immediately available
12schraube zylinderkopf innensechskant vollgewinde edelstahl m4x10 a2 70 din 912 8061180
Schraube Zylinderkopf Innensechskant Vollgewinde Edelstahl M4x10 A2-70 Din 912
0,67 €

excl. Shipping costs

immediately available
13o ring 02018 epdm 8064737
O-RING 02018 EPDM
1,70 €

excl. Shipping costs

immediately available

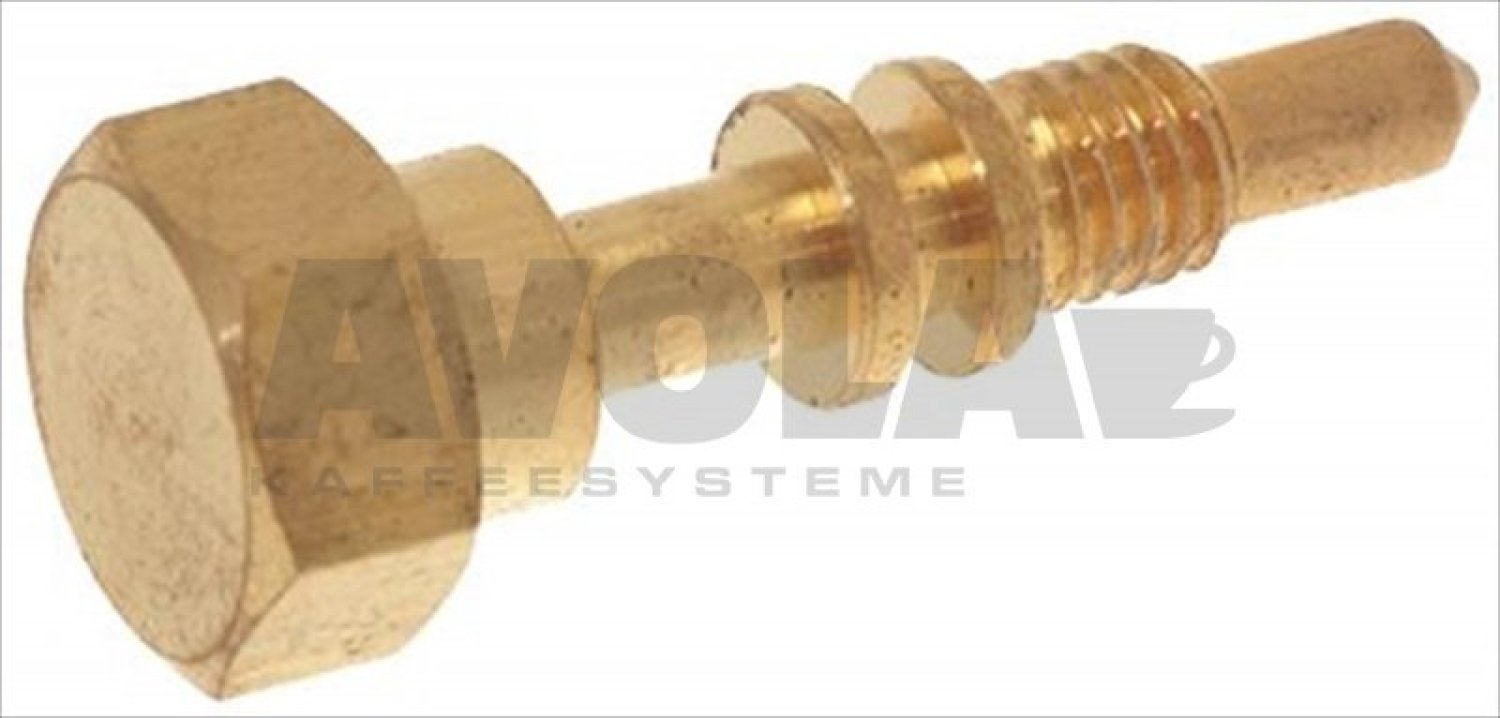

14tap screw 8007273
TAP SCREW
This article is no longer available

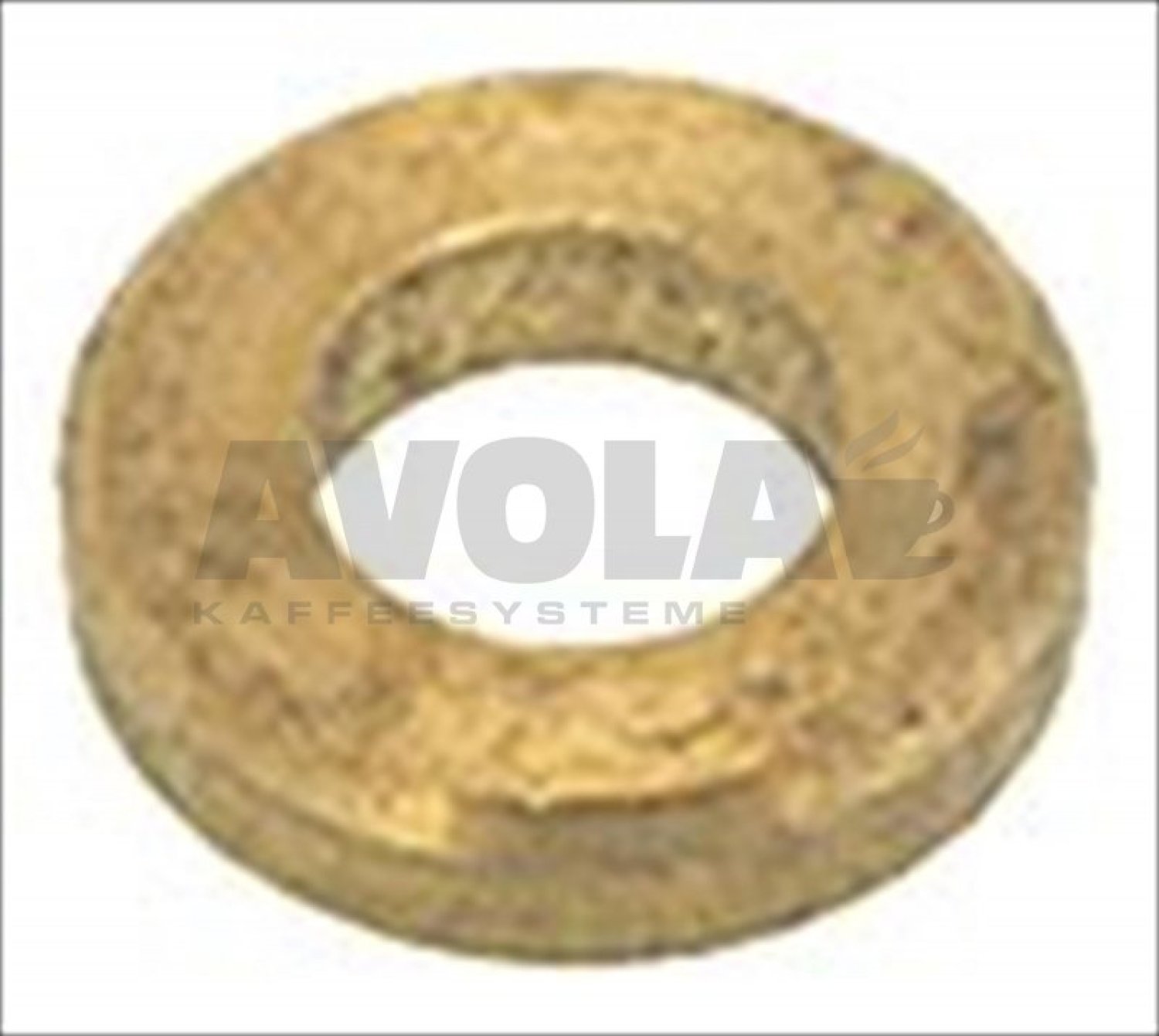

15inlet tap washer 8001658
INLET TAP WASHER
1,25 €

excl. Shipping costs

immediately available, 9 available

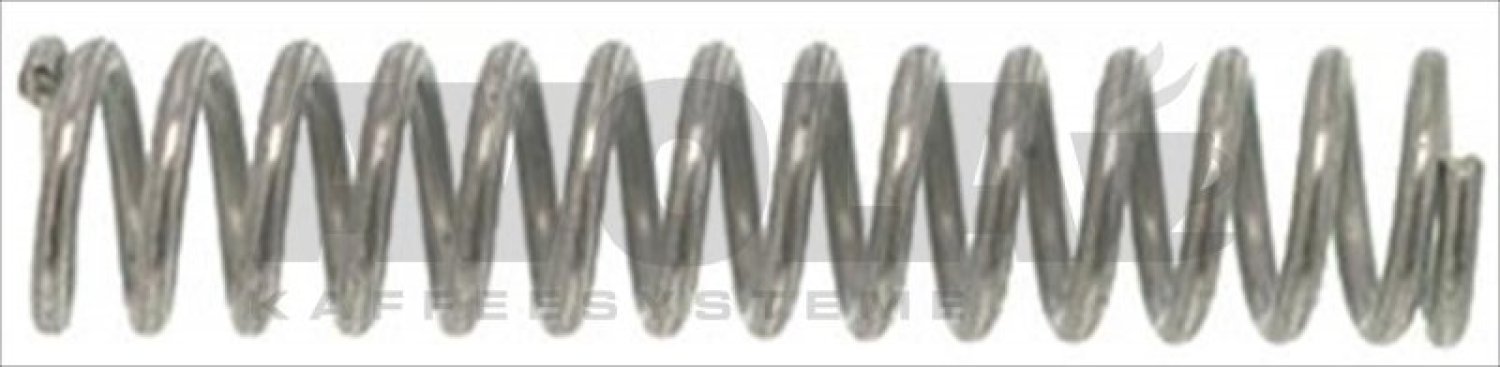

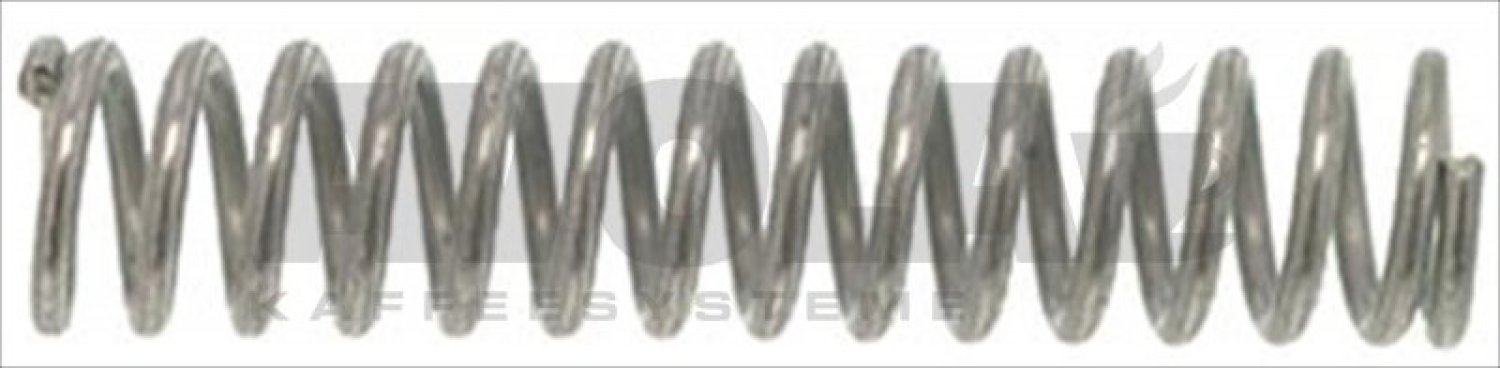

16tap rod spring 8003710
TAP ROD SPRING
1,70 €

excl. Shipping costs

immediately available, 6 available

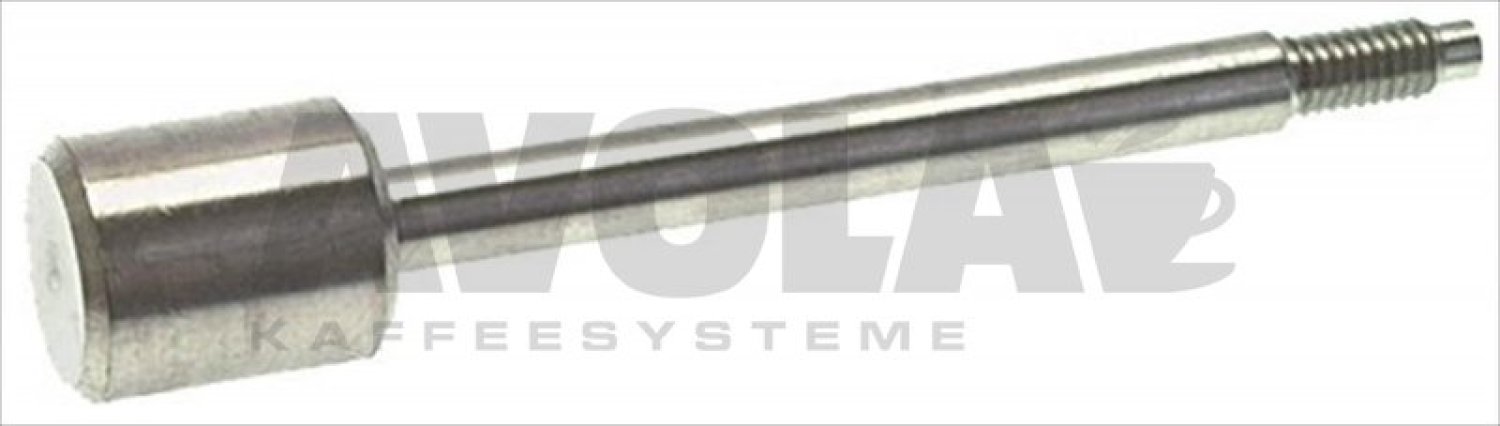

17stift fuer einlaufhahn 8005107
STIFT FÜR EINLAUFHAHN
Price on request

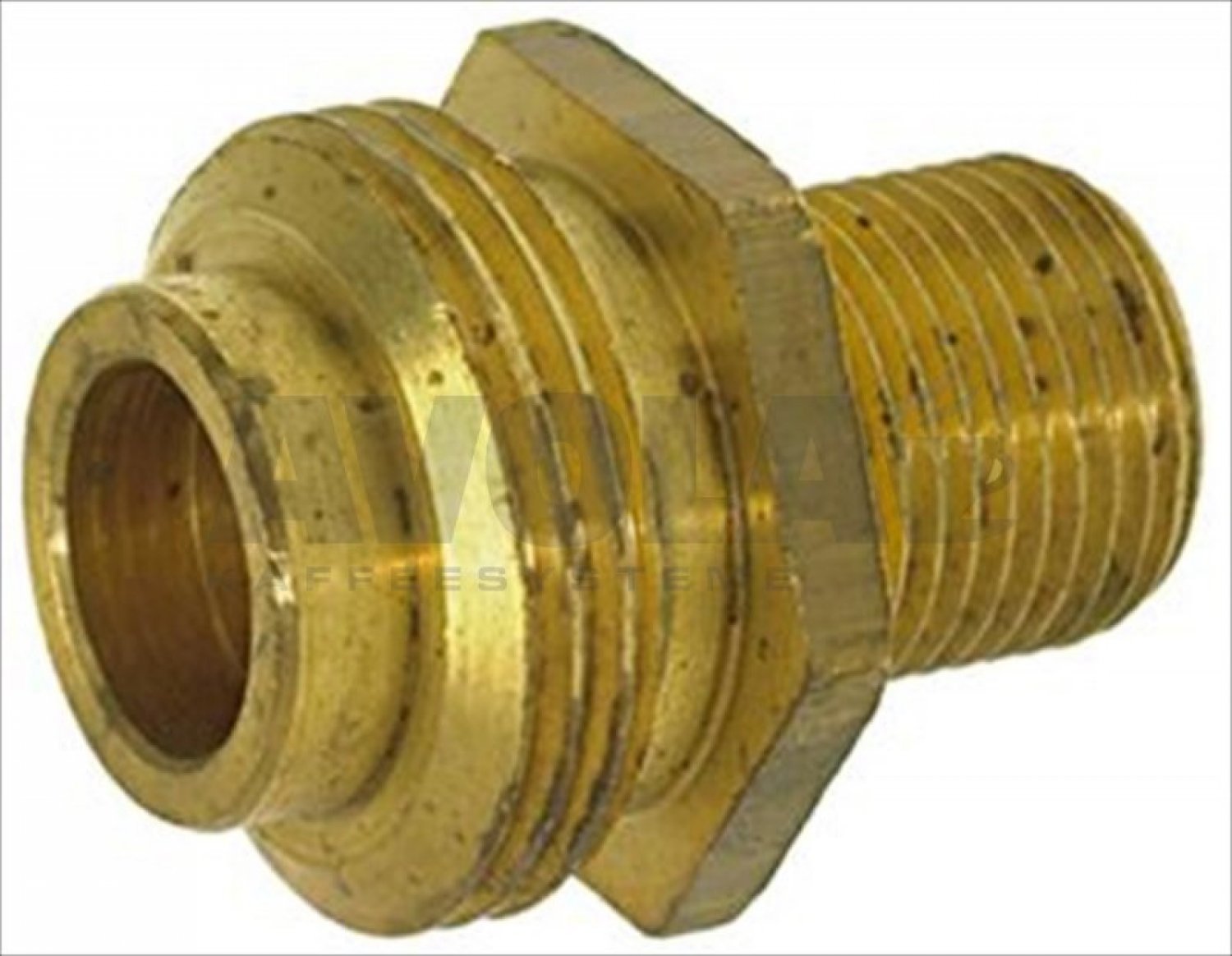

18inlet tap uppe fitting 8005671
INLET TAP UPPE FITTING
Price on request
19expansion valve nut 3 8 quot 8005672
EXPANSION VALVE NUT 3/8"
5,18 €

excl. Shipping costs

Delivery time 4-6 weeks..
20o ring 02056 epdm 8001503
O-RING 02056 EPDM
1,09 €

excl. Shipping costs

immediately available

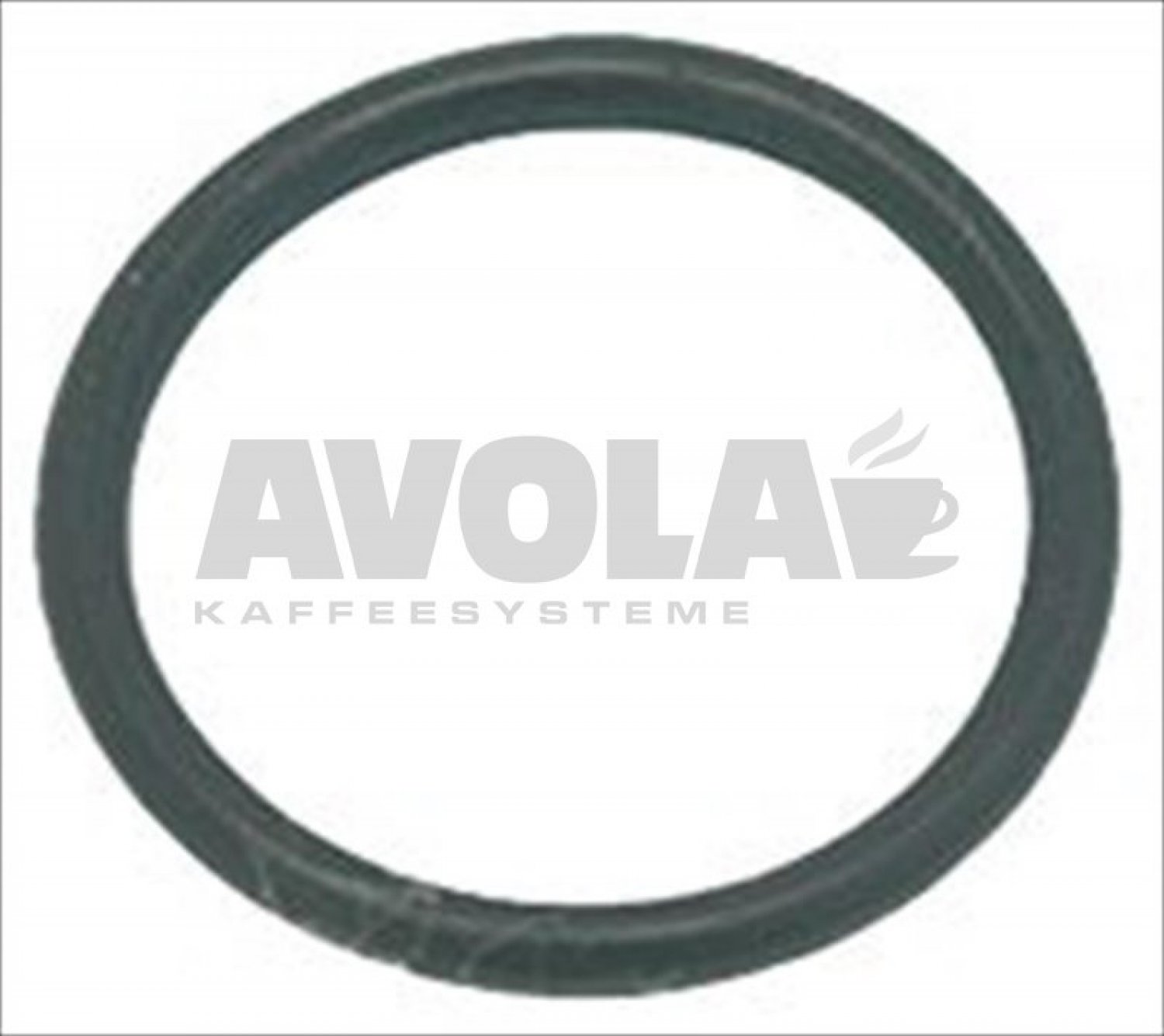

22o ring gasket 02062 epdm 8001657
O-RING GASKET 02062 EPDM
0,69 €

excl. Shipping costs

immediately available, 20 available

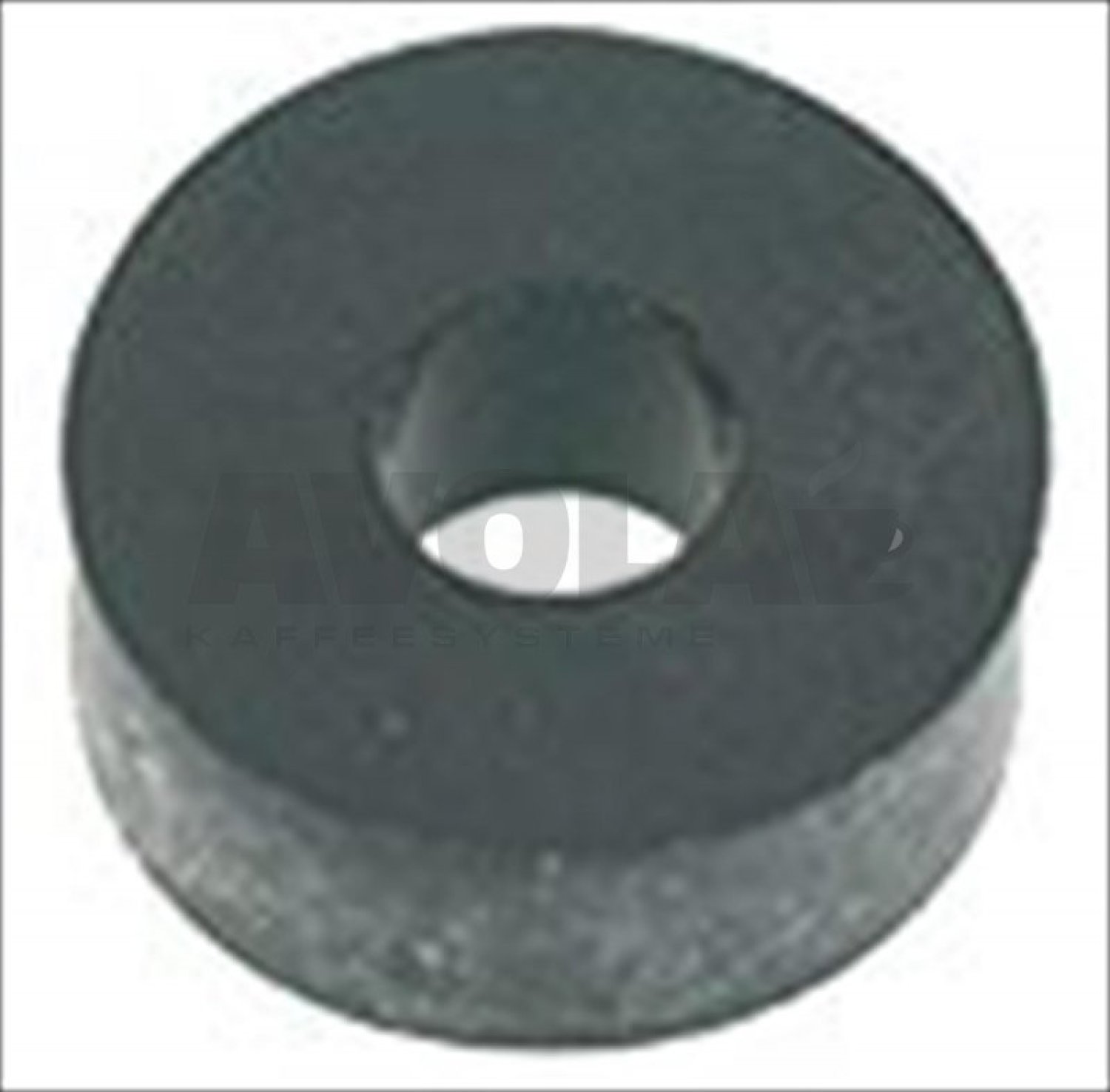

23epdm flat gasket 11x4x4 mm 8001656
EPDM FLAT GASKET 11x4x4 mm
0,55 €

excl. Shipping costs

immediately available

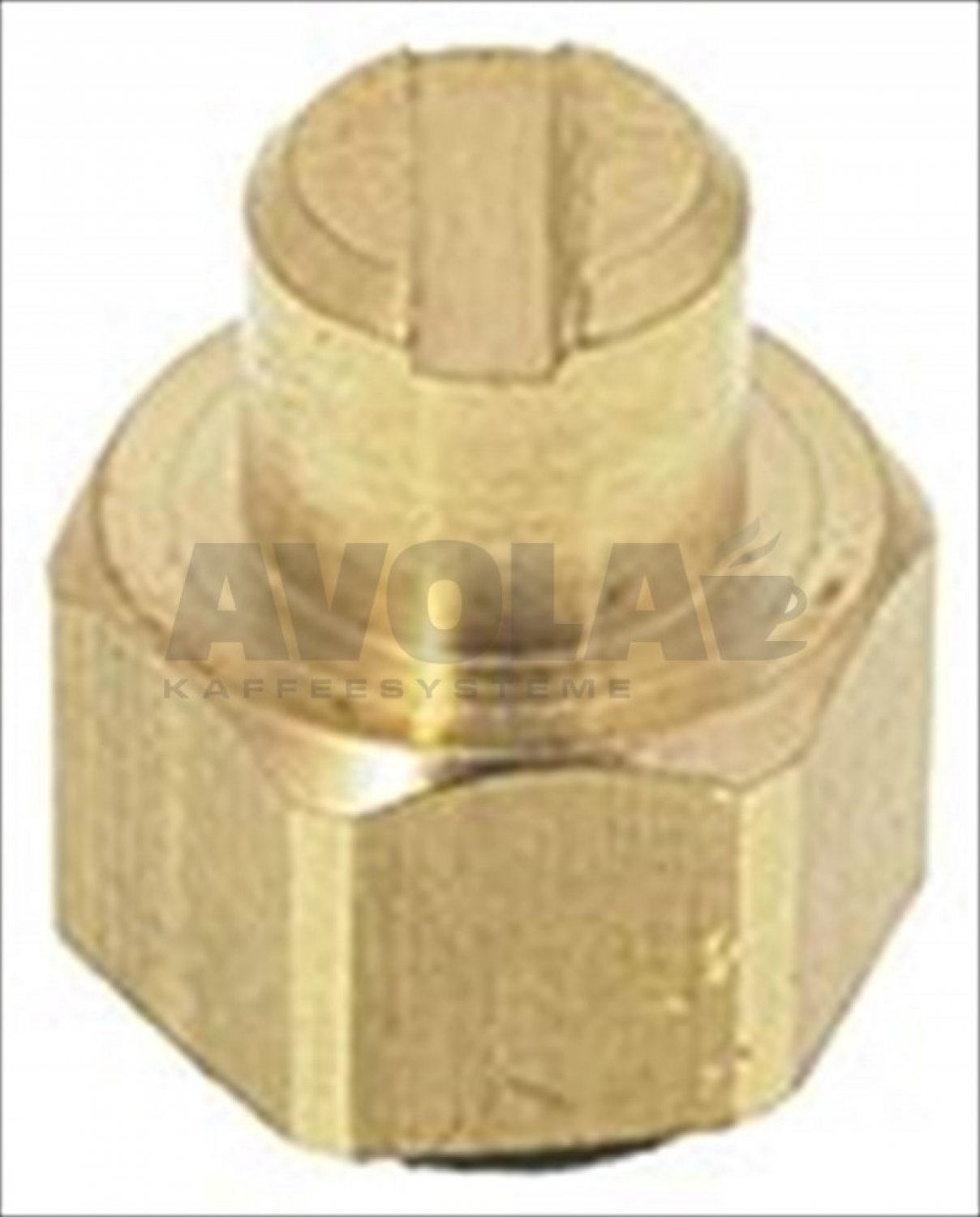

24dichtungstraeger fuer hahn 8005859
DICHTUNGSTRÄGER FÜR HAHN
Price on request
25square non return valve 8007154
SQUARE NON-RETURN VALVE
This article is no longer available
26nichel plated fitting o 1 8 a 1 8 8022414
NICHEL-PLATED FITTING ø 1/8 A-1/8
6,72 €

excl. Shipping costs

immediately available

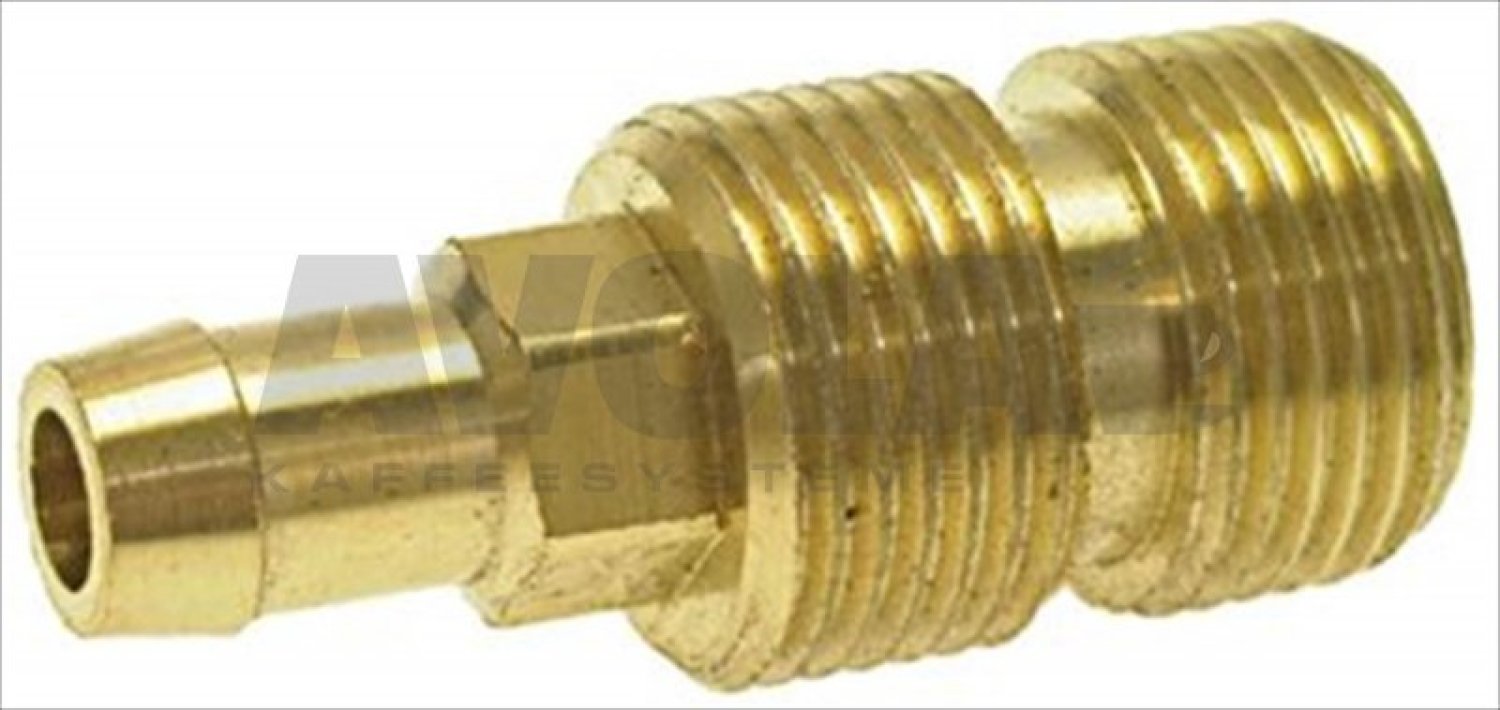

28expansion valve fitting 8005677
EXPANSION VALVE FITTING
This article is no longer available

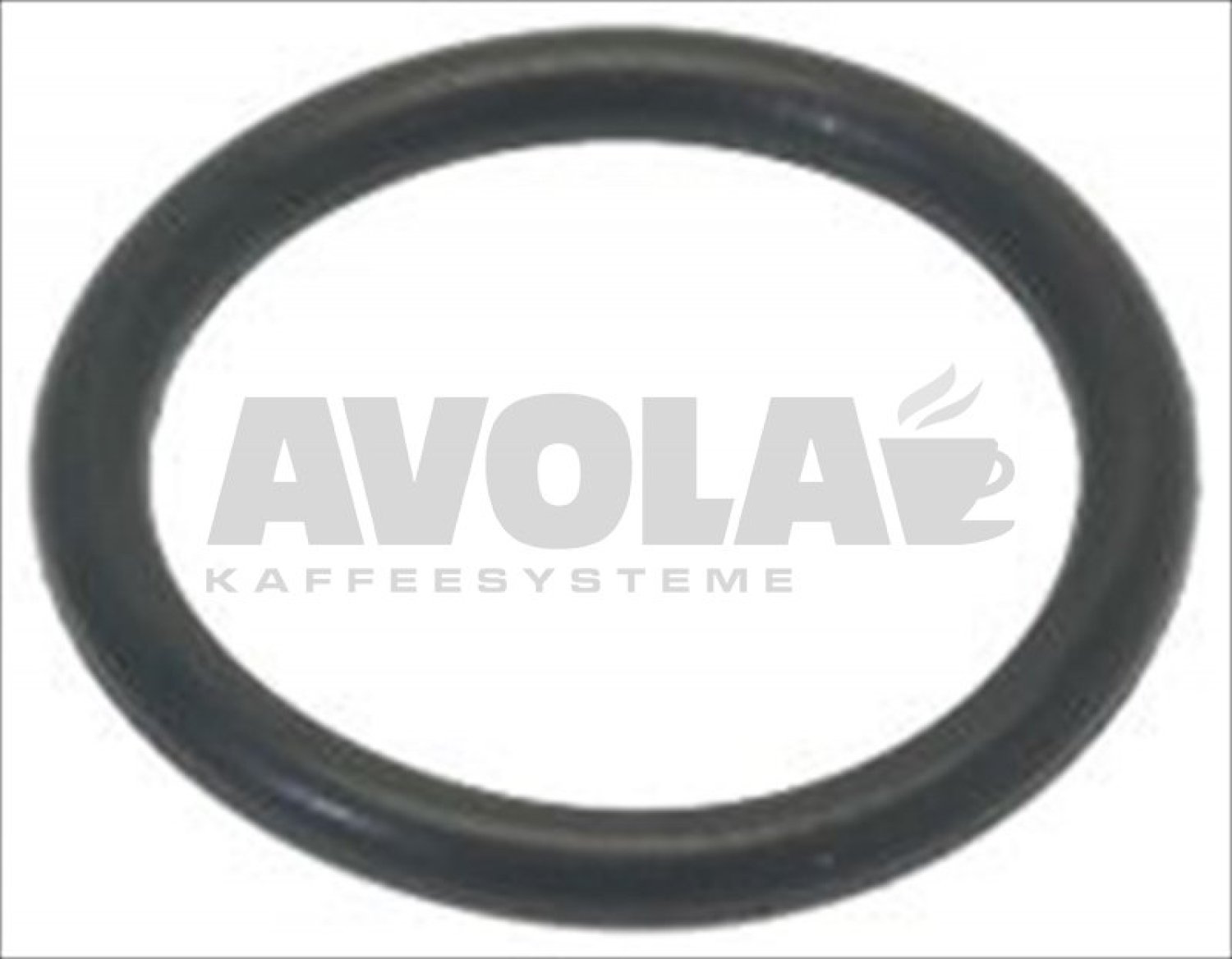

29orm gasket 0140 20 nbr 8001707
ORM GASKET 0140-20 NBR
1,54 €

excl. Shipping costs

immediately available
29o ring o3050 epdm 8011381
O-RING O3050 EPDM
1,09 €

excl. Shipping costs

immediately available

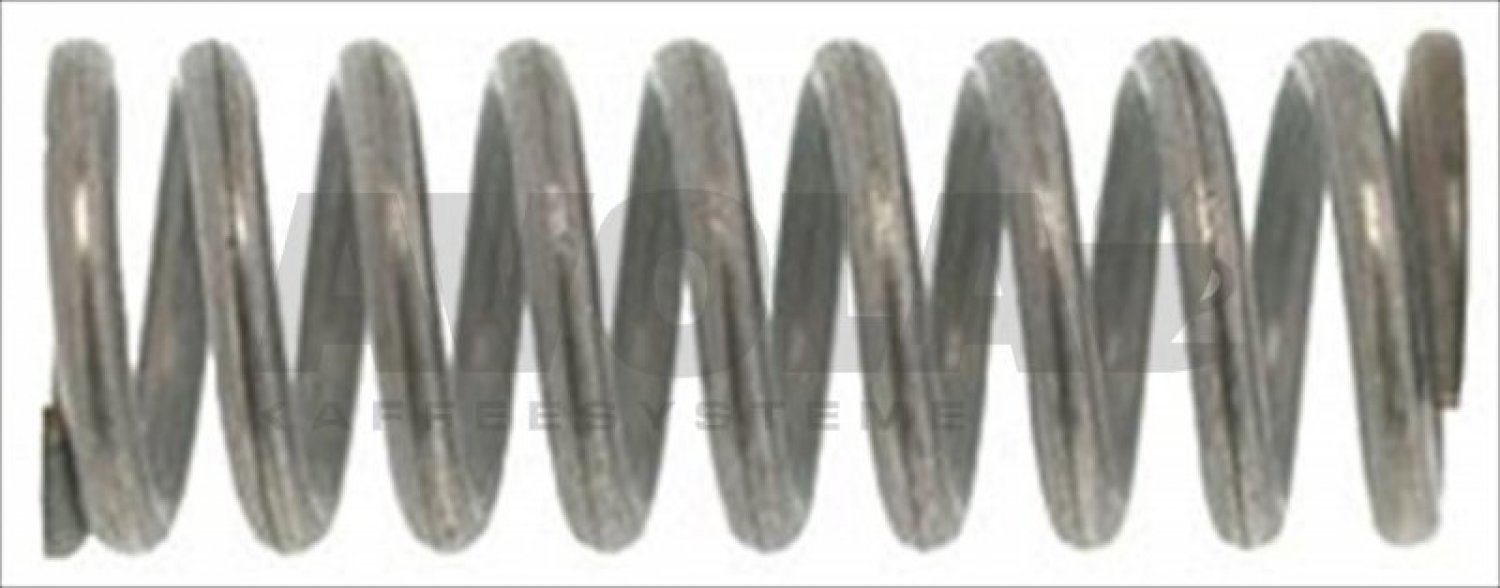

30spring 8003709
SPRING
1,65 €

excl. Shipping costs

immediately available, 11 available

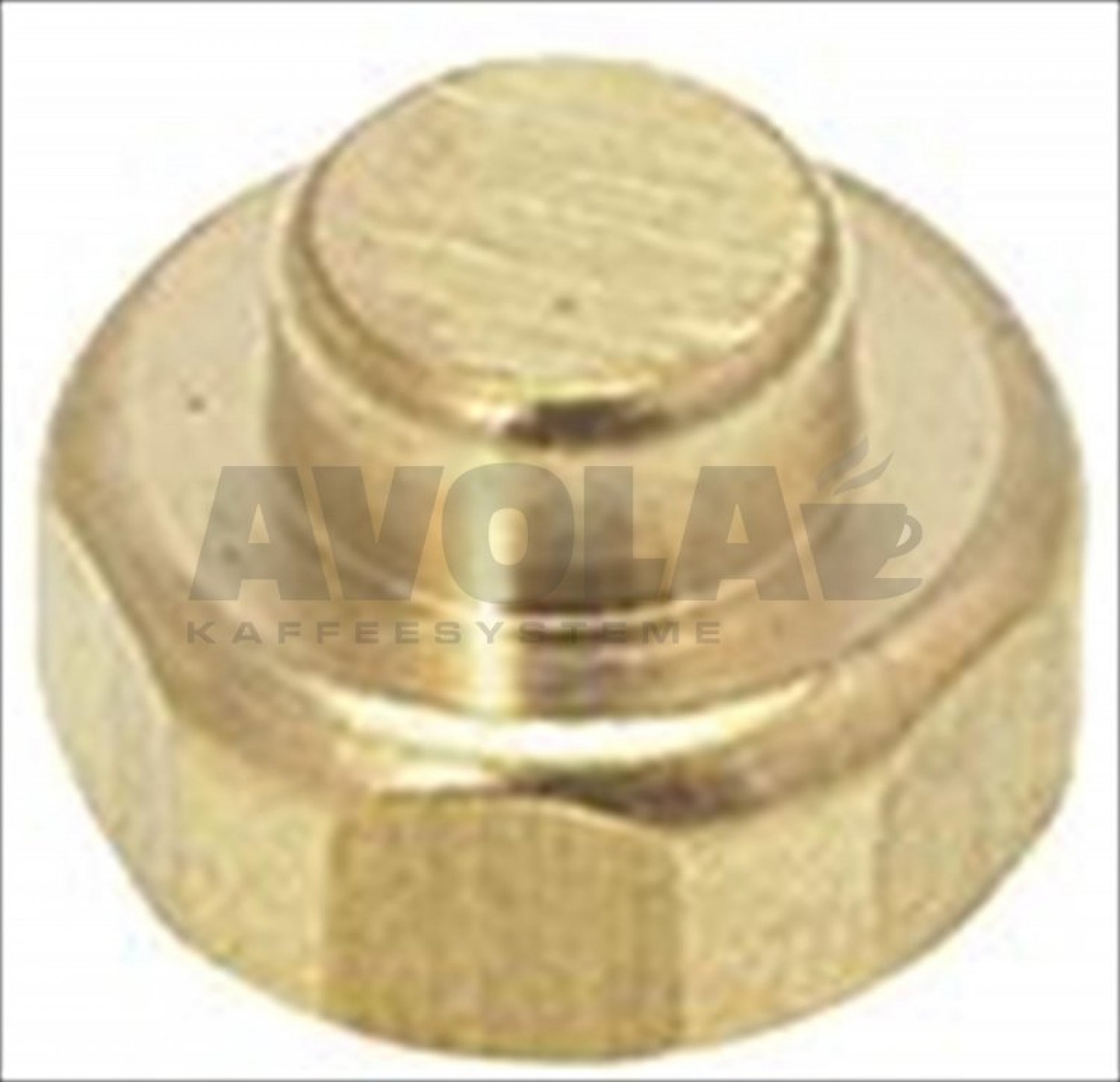

31dichtungstraeger einlaufhahn 8001649
DICHTUNGSTRÄGER EINLAUFHAHN
Price on request
32blind gasket o 11x4 mm 8001648
BLIND GASKET ø 11x4 mm
2,68 €

excl. Shipping costs

immediately available, 15 available

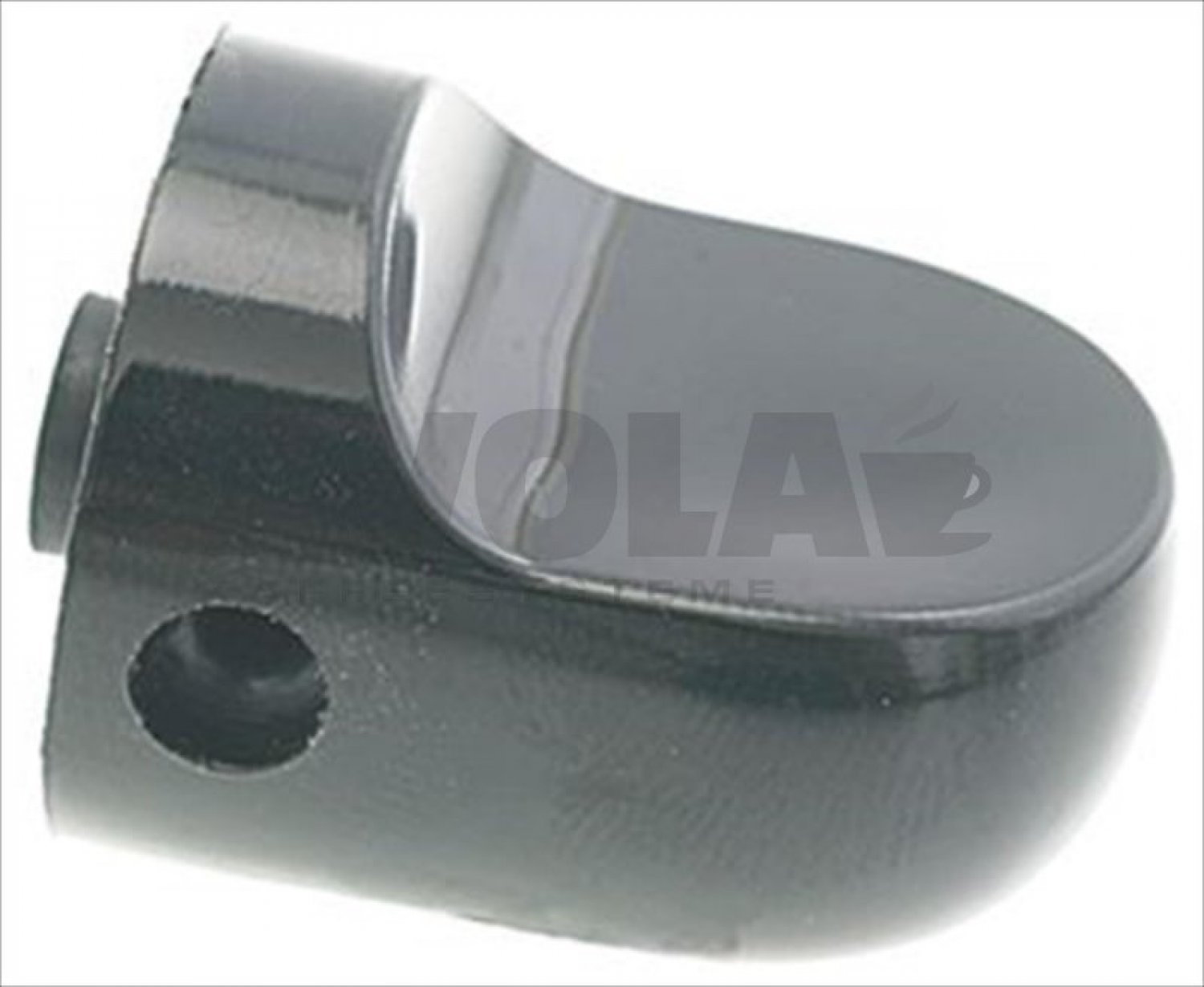

35drehknopf fuer wassereinlaufhahn 8003375
DREHKNOPF FÜR WASSEREINLAUFHAHN
Price on request
38wassereinlaufhahn gruppe 4 serie nicht mehr lieferbar 8003539
WASSEREINLAUFHAHN GRUPPE 4. SERIE (nicht mehr lieferbar)
This article is no longer available

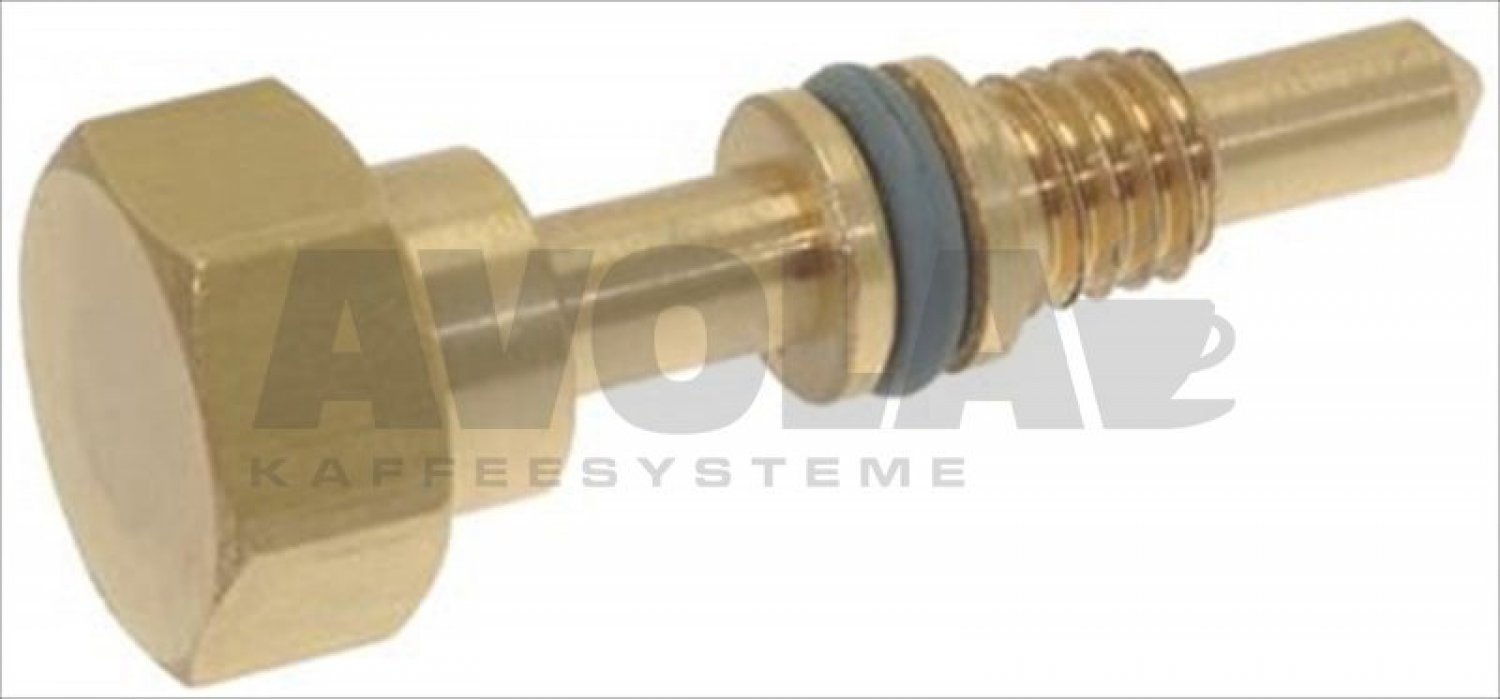

40schraube fuer hahn 8007245
SCHRAUBE FÜR HAHN
Price on request

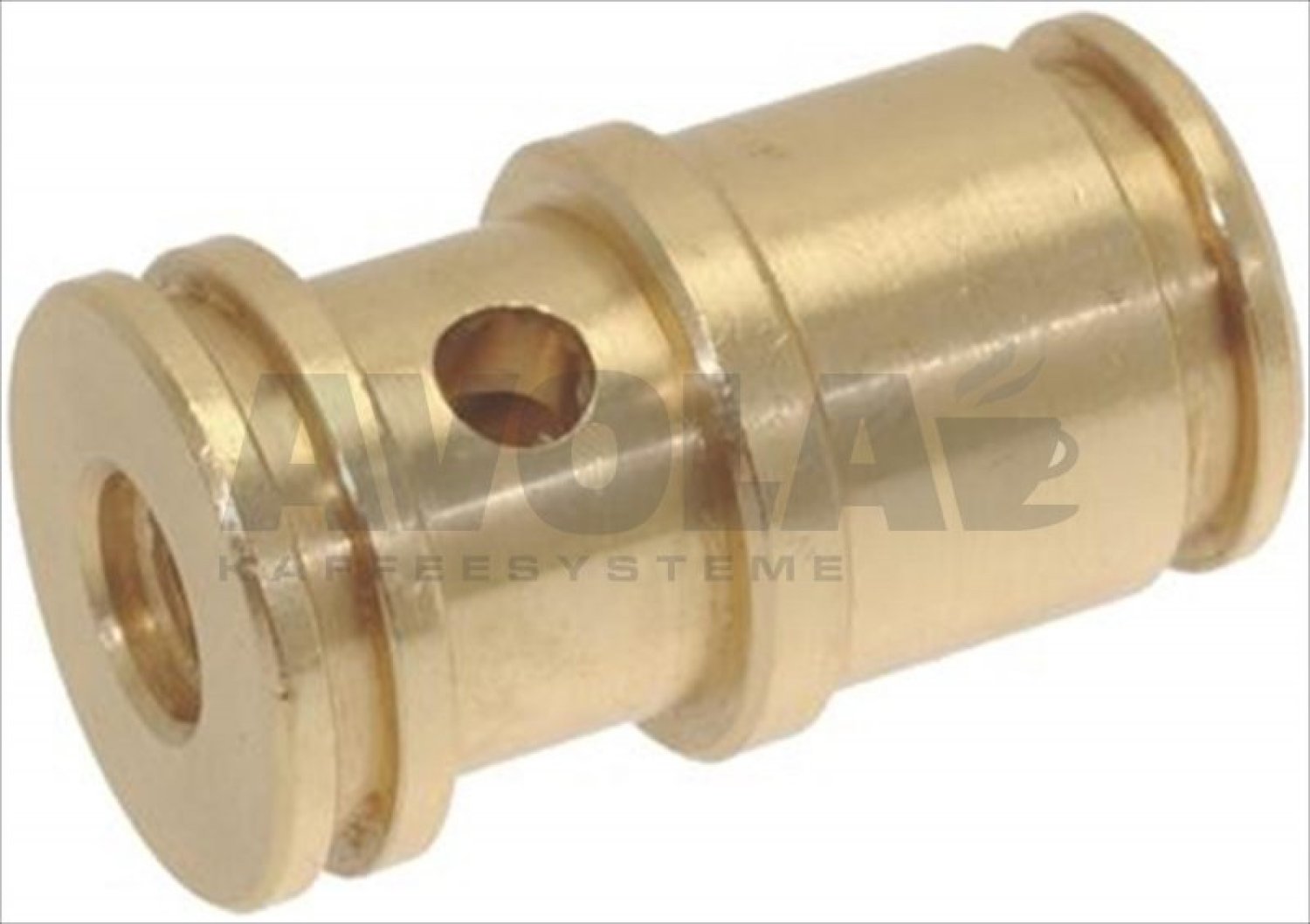

42tap bushing 8001629
TAP BUSHING
This article is no longer available
43epdm flat gasket 11x4x4 mm 8001656
EPDM FLAT GASKET 11x4x4 mm
0,55 €

excl. Shipping costs

immediately available

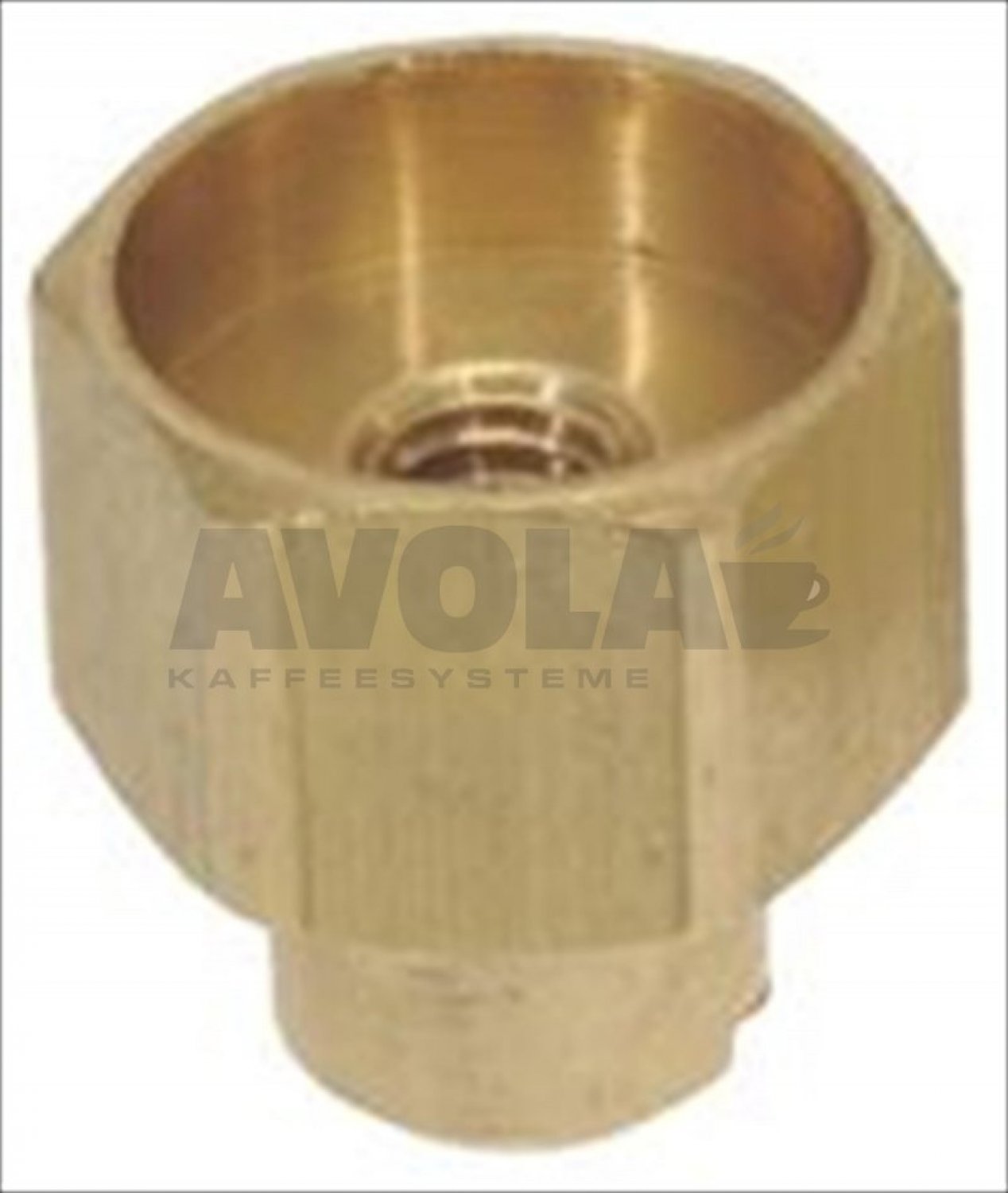

44gasket holder for tap 8005651
GASKET HOLDER FOR TAP
This article is no longer available

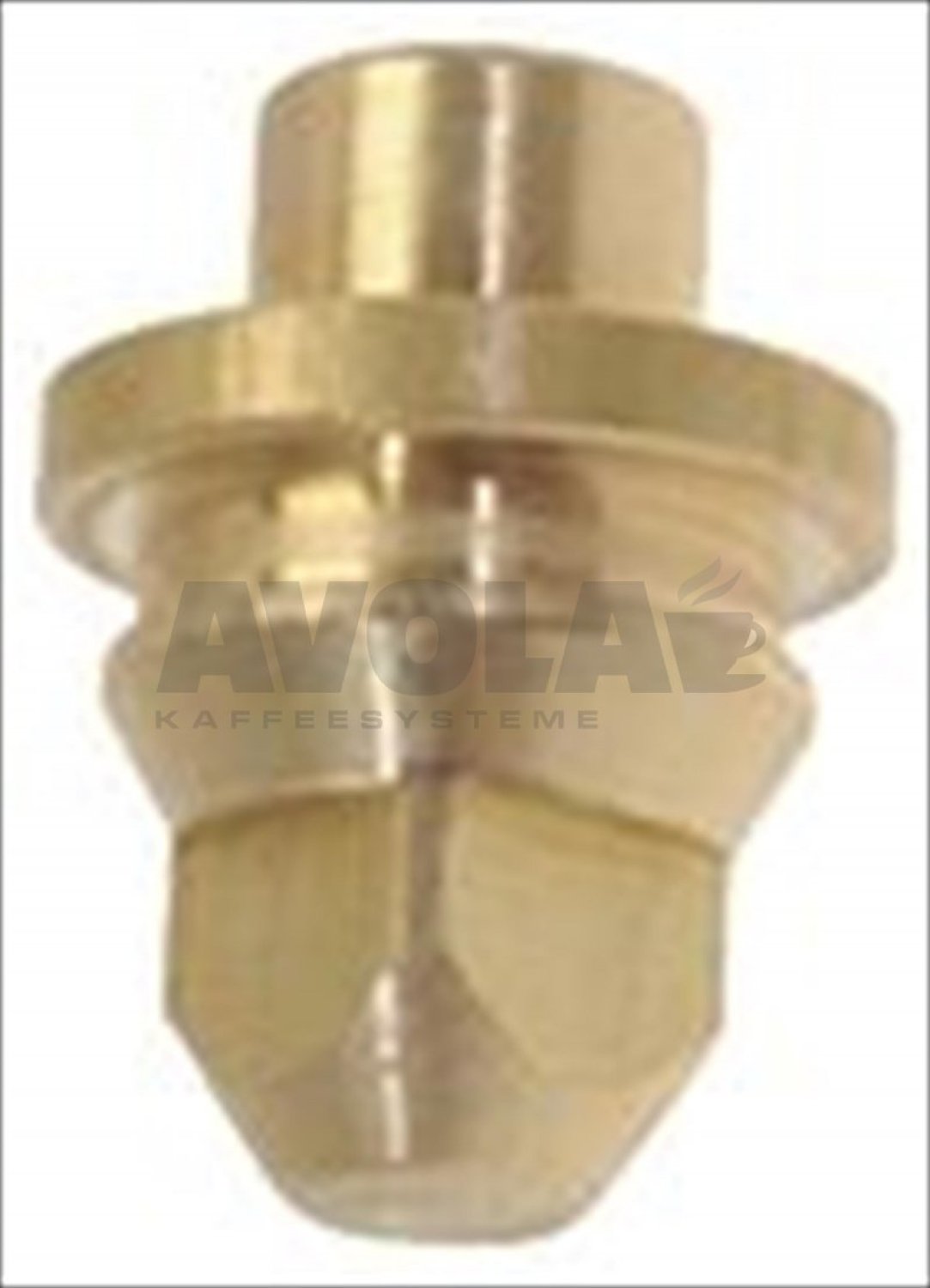

45non return valve 8007045
NON-RETURN VALVE
4,45 €

excl. Shipping costs

Delivery time 4-6 weeks..

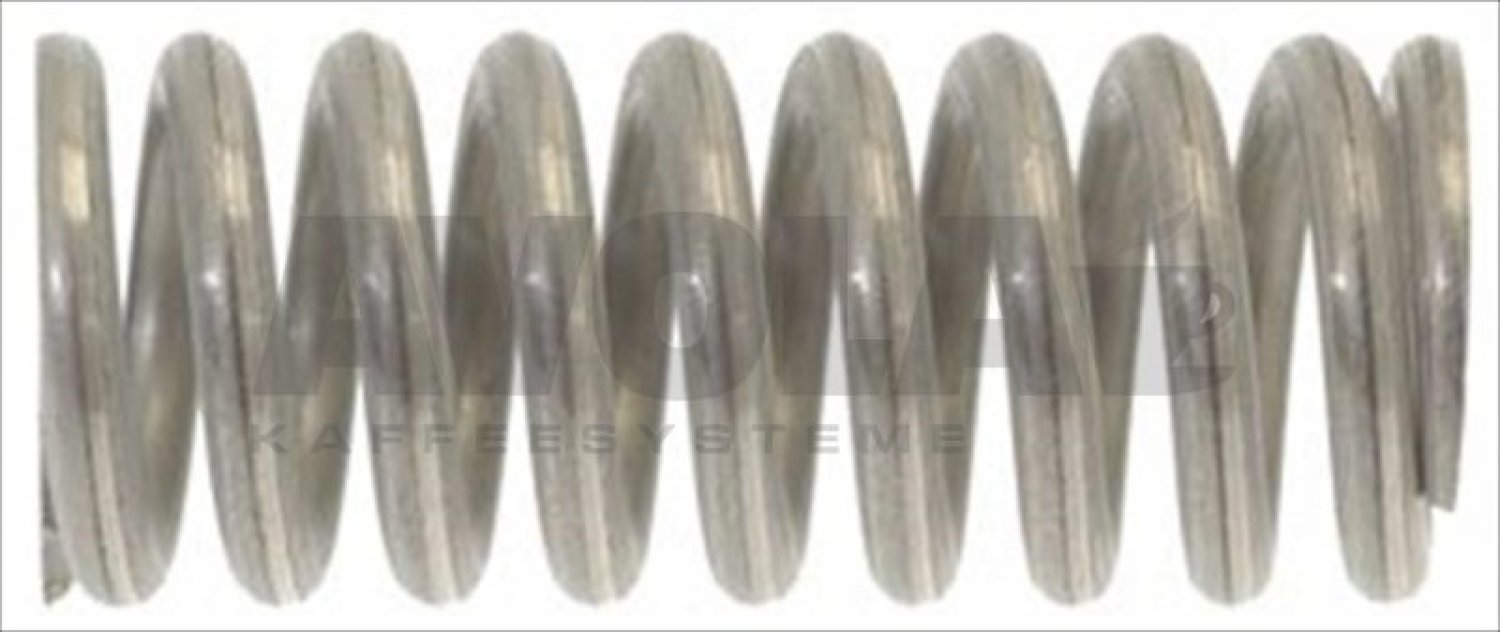

46feder o 12 5x30 mm nicht mehr lieferbar 8003555
FEDER ø 12,5x30 mm nicht mehr lieferbar
This article is no longer available

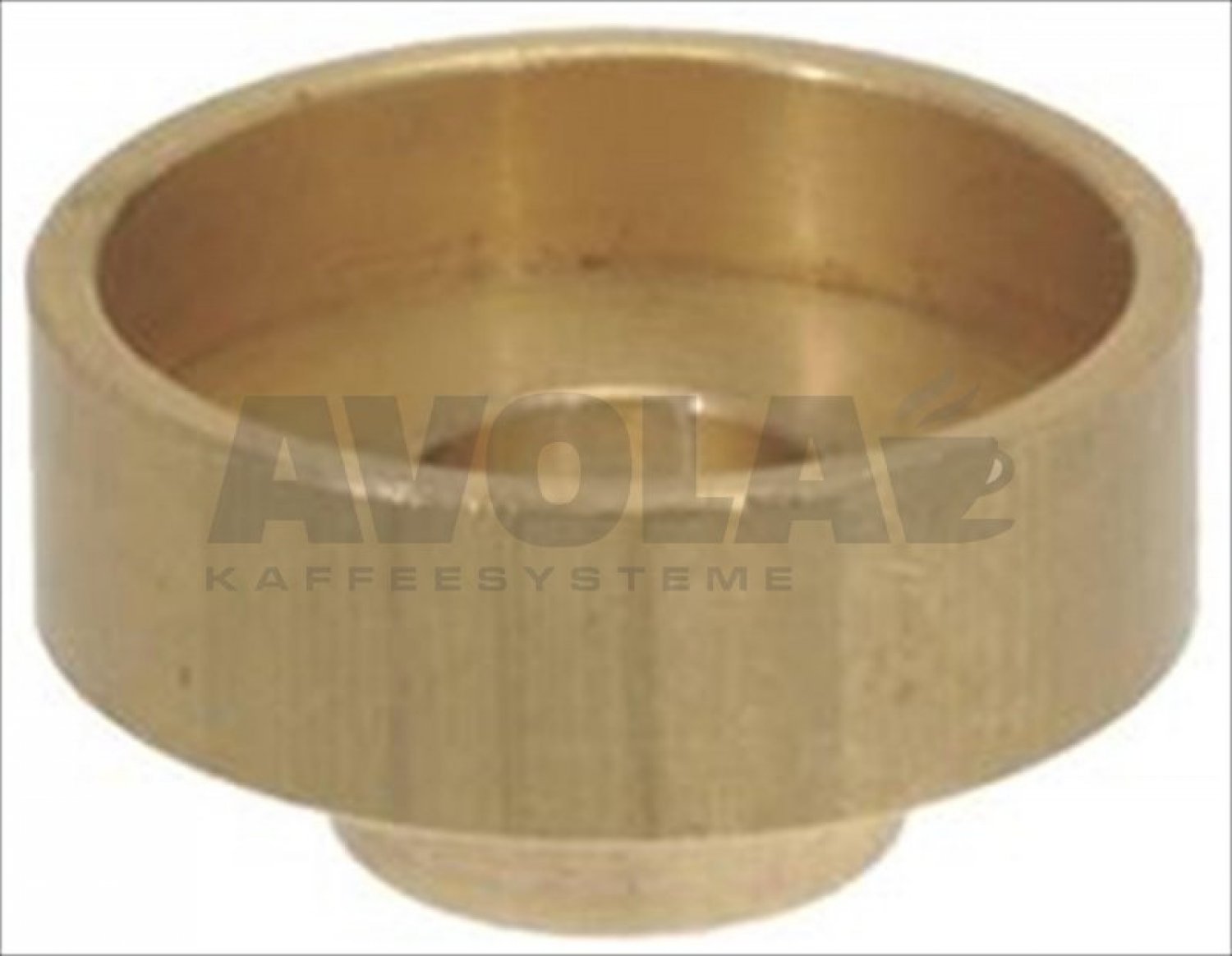

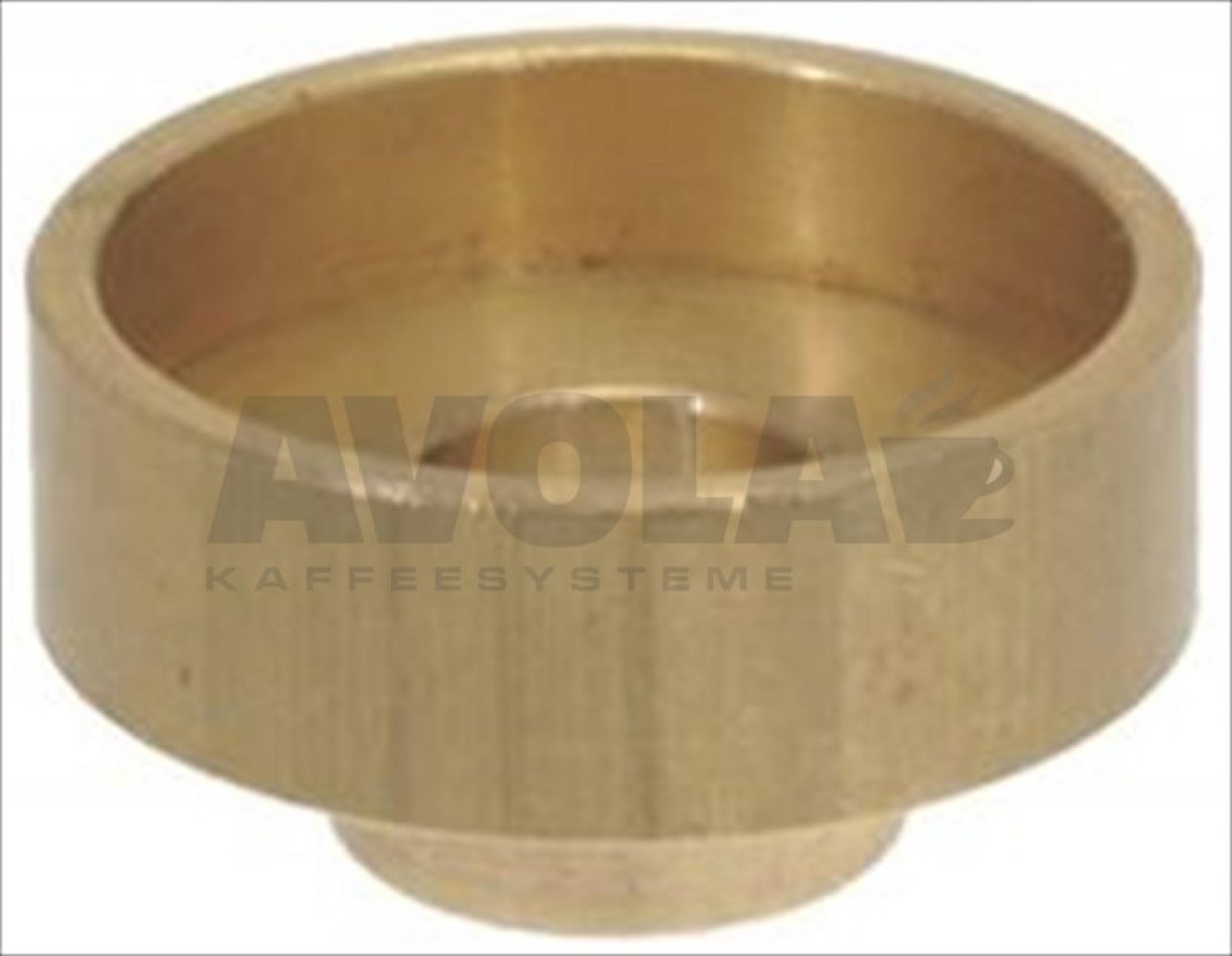

47gasket holder for tap 8001628
GASKET HOLDER FOR TAP
2,40 €

excl. Shipping costs

Delivery time 4-6 weeks..
48flat epdm gasket 8001427
FLAT EPDM GASKET
1,06 €

excl. Shipping costs

immediately available

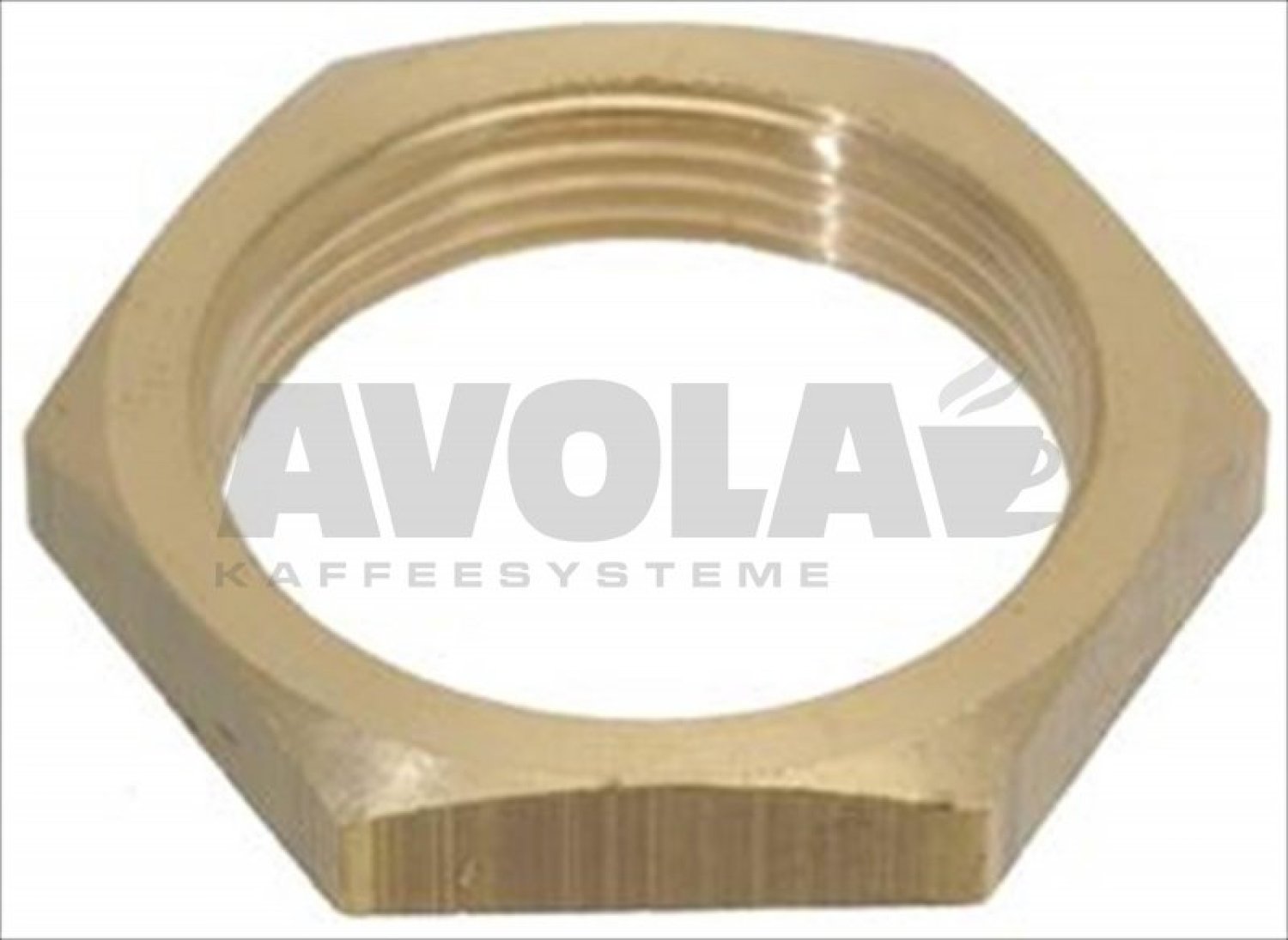

50nut 8063826
NUT
9,42 €

excl. Shipping costs

Delivery time
is determined

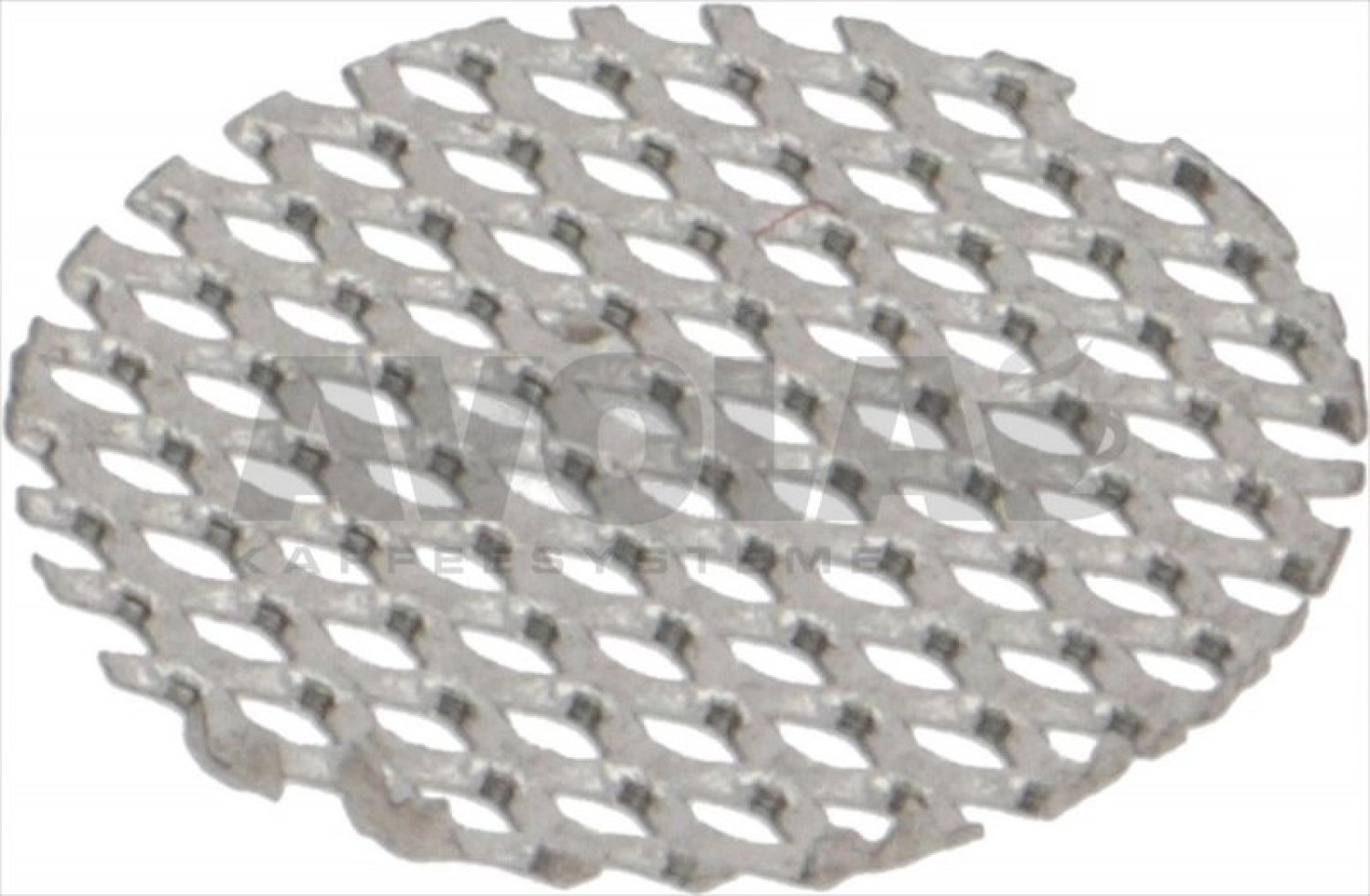

51water filter o 9 mm 8001029
WATER FILTER ø 9 mm
1,43 €

excl. Shipping costs

immediately available

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
