Brasilia

BRASILIA GRUPPE CENTURY-PORTOFINO-GRADISCA

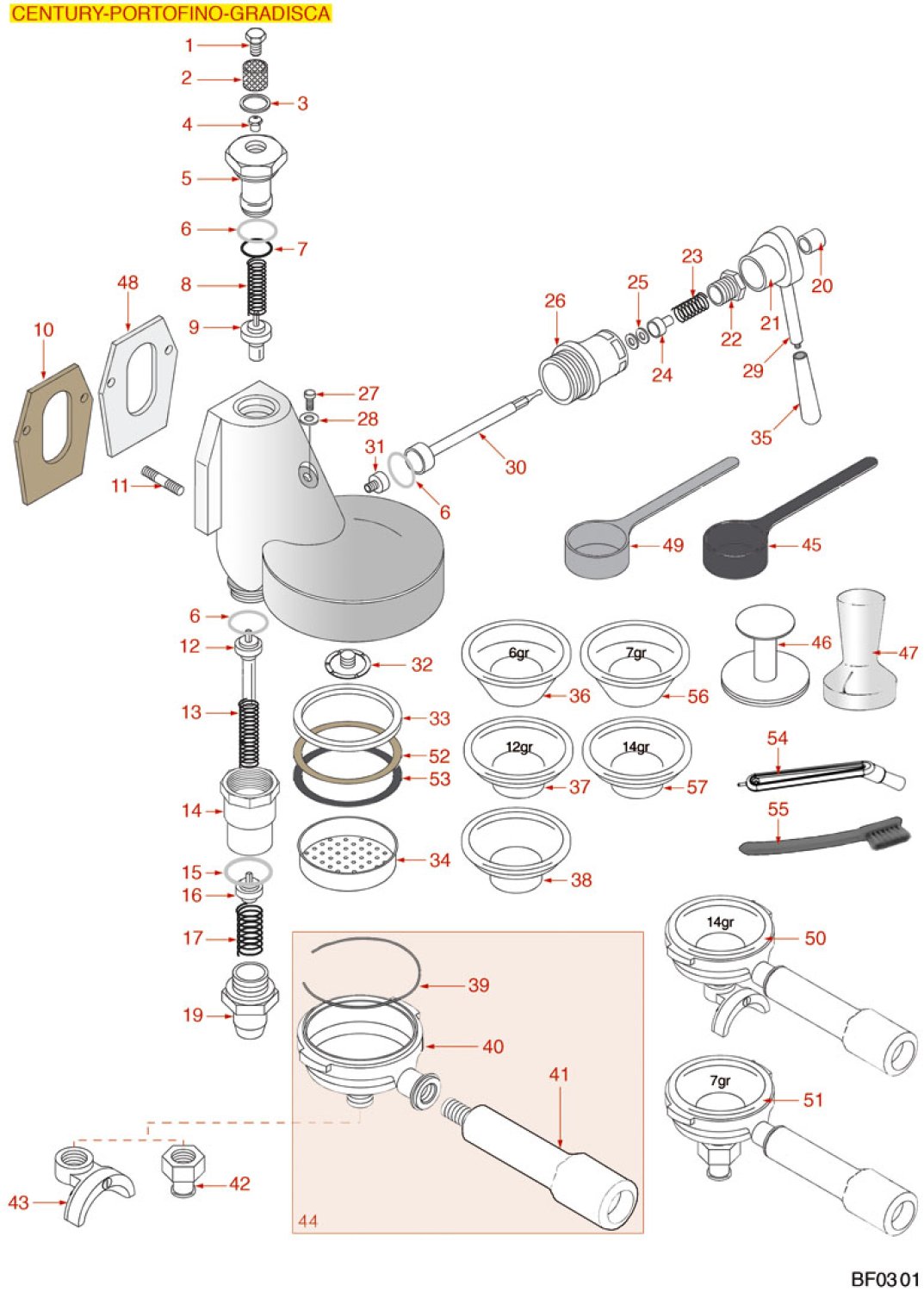

Drawing number 8038643

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.: Image: Description: Qty.:
1deckel fuer auslaufgruppe o 16 mm 8006373
Deckel für Auslaufgruppe ø 16 mm
8,33 €

excl. Shipping costs

immediately available, 13 available
2water filter o 8 5x22 mm 8001115
Water filter ø 8,5x22 mm
1,79 €

excl. Shipping costs

immediately available
3ptfe flat gasket o 16x22 5x2 mm 8001581
PTFE FLAT GASKET ø 16x22,5x2 mm
1,65 €

excl. Shipping costs

immediately available
4nozzle m6x1 hole 8006971
NOZZLE M6x1 HOLE
4,46 €

excl. Shipping costs

immediately available
5chromium plated upper sleeve 8063314
CHROMIUM-PLATED UPPER SLEEVE
39,00 €
39,00 €

excl. Shipping costs

immediately available, 3 available
6ptfe flat gasket o 35x30x2 mm 8001583
PTFE FLAT GASKET ø 35x30x2 mm
1,09 €

excl. Shipping costs

immediately available
7o ring 0128 viton 8001794
O-RING 0128 VITON
1,68 €

excl. Shipping costs

immediately available
8spring o 14x45 mm 8003820
SPRING ø 14x45 mm
1,57 €

excl. Shipping costs

immediately available
9complete spout valve 8007091
COMPLETE SPOUT VALVE
7,90 €

excl. Shipping costs

immediately available
10coffee group gasket 80x70x2 mm 8001624
COFFEE GROUP GASKET 80x70x2 mm
3,51 €

excl. Shipping costs

immediately available, 14 available
11stainless steel m8x25 mm stud 8001292
STAINLESS STEEL M8x25 mm STUD
1,42 €

excl. Shipping costs

immediately available, 5 available
12complete drain valve 8007124
COMPLETE DRAIN VALVE
9,90 €

excl. Shipping costs

immediately available
13spring o 14x45 mm 8003820
SPRING ø 14x45 mm
1,57 €

excl. Shipping costs

immediately available
14outlet chromium plated sleeve 8000146
OUTLET CHROMIUM-PLATED SLEEVE
46,68 €

excl. Shipping costs

immediately available, 1 available
15flat gasket ptfe o 26x21x2 mm 8001415
Flat gasket PTFE ø 26x21x2 mm
2,32 €

excl. Shipping costs

immediately available
16e61 drain valve with gasket 8007125
E61 drain valve with gasket
5,90 €

excl. Shipping costs

immediately available
17feder o 14 6x34 mm fuer e61 auslassventil verstaerkte variante fuer vibrationspumpenmaschinen 8281551
Feder ø 14,6x34 mm für E61 Auslassventil - verstärkte Variante für Vibrationspumpenmaschinen
2,68 €

excl. Shipping costs

immediately available
19drain chromium plated fitting 8005865
DRAIN CHROMIUM-PLATED FITTING
4,40 €

excl. Shipping costs

immediately available, 3 available
20chromium plated cap m6 8002794
CHROMIUM-PLATED CAP M6
3,51 €

excl. Shipping costs

immediately available, 5 available
21chromium plated cam 8002188
CHROMIUM-PLATED CAM
20,22 €

excl. Shipping costs

immediately available, 4 available
22stuffing gland chrome plated fitting 8006414
STUFFING GLAND CHROME-PLATED FITTING
7,87 €

excl. Shipping costs

immediately available, 3 available
23spring o 14 6x21 mm 8003547
SPRING ø 14,6x21 mm
6,89 €

excl. Shipping costs

immediately available
24spring guide bushing 8001795
SPRING GUIDE BUSHING
4,64 €

excl. Shipping costs

immediately available, 5 available
25epdm flat gasket 15 5x7 5x4 mm 8001570
EPDM flat gasket 15,5x7,5x4 mm
0,90 €

excl. Shipping costs

immediately available
26ecm rocket anschluss nockenwelle e61 verchromt hochglanzpoliert 8101292
ECM / Rocket Anschluss Nockenwelle E61 verchromt hochglanzpoliert
19,90 €

excl. Shipping costs

immediately available, 10 available
27low cylinder head screw m6x10 uni 9327 8001293
LOW CYLINDER HEAD SCREW M6x10, UNI 9327
2,49 €

excl. Shipping costs

immediately available
28ptfe flat gasket o10x6x1 mm 8001400
PTFE FLAT GASKET ø10x6x1 mm
1,30 €

excl. Shipping costs

immediately available, 16 available
30cam rod for e61 coffee group 8005124
Cam rod for E61 coffee group
11,90 €

excl. Shipping costs

immediately available
31cam locking stainless steel screw m6 8001289
CAM LOCKING STAINLESS STEEL SCREW M6
4,03 €

excl. Shipping costs

immediately available, 12 available
32group spray nozzle o 30 mm m10x1 e61 8006987
Group spray nozzle ø 30 mm M10x1 - E61
6,14 €

excl. Shipping costs

immediately available
33cafelat e61 portafilter gasket 73x57x8 mm red 8081202
Cafelat E61 portafilter gasket 73x57x8 mm red
5,95 €

excl. Shipping costs

immediately available
33filter holder gasket o 72x56x8 mm 8001817
FILTER HOLDER GASKET ø 72x56x8 mm
3,89 €

excl. Shipping costs

immediately available, 20 available
33gasket 73x57x8 mm for e61 brew unit 8060996
Gasket 73x57x8 mm - for E61 brew unit
3,90 €

excl. Shipping costs

immediately available
33rubber 73x57x8 5 mm for e61 brew unit 8002056
RUBBER 73x57x8,5 mm - FOR E61 BREW UNIT
3,90 €

excl. Shipping costs

immediately available
34shower screen fuer e61 brew unit 8000608
Shower screen für E61 brew unit
5,20 €

excl. Shipping costs

immediately available

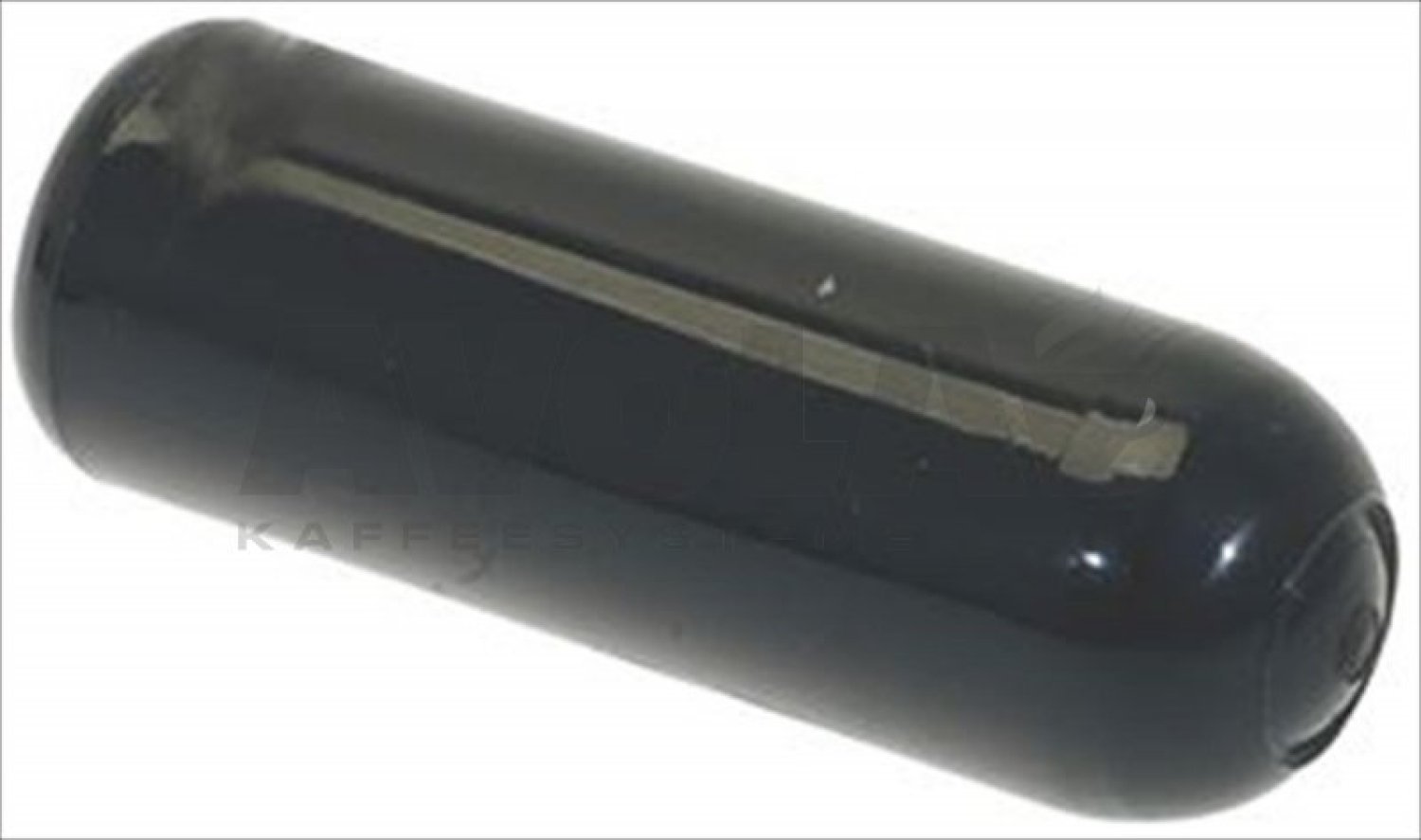

35drehknopf fuer auslaufgruppe 8003119
DREHKNOPF FÜR AUSLAUFGRUPPE
Price on request
361 cup filter 6 g 8001076
1 CUP FILTER 6 g
5,41 €

excl. Shipping costs

immediately available, 13 available
372 cup filter 12 grams 8001077
2-CUP FILTER 12 GRAMS
5,41 €

excl. Shipping costs

immediately available, 7 available
38blind filter o58mm 8001103
BLIND FILTER Ø58mm
2,56 €

excl. Shipping costs

immediately available, 13 available
39filter blocking spring o 1 00 mm 8003622
FILTER BLOCKING SPRING ø 1,00 mm
1,05 €

excl. Shipping costs

immediately available
40filter holder coffee machines 8001183
FILTER HOLDER COFFEE MACHINES
19,99 €

excl. Shipping costs

immediately available, 2 available
41filter knob m12 8003171
FILTER KNOB M12
10,16 €

excl. Shipping costs

Delivery time
is determined
41filter holder handle m12 8003349
FILTER HOLDER HANDLE M12
7,79 €

excl. Shipping costs

immediately available, 4 available
42single spout o 3 8 8000110
SINGLE SPOUT ø 3/8
6,06 €

excl. Shipping costs

immediately available, 13 available
42straight single spout o 3 8 8000112
STRAIGHT SINGLE SPOUT ø 3/8
4,09 €

excl. Shipping costs

immediately available, 9 available
43lelit siebtraegerauslauf 2er o 3 8 quot rund auslauf vorne 8280537
Lelit Siebträgerauslauf 2er ø 3/8" rund Auslauf vorne
This article is no longer available
43double spout o 3 8 8000111
DOUBLE SPOUT ø 3/8
7,27 €

excl. Shipping costs

immediately available, 7 available
44filter holder assembly brasilia 8001164
FILTER HOLDER ASSEMBLY BRASILIA
54,78 €

excl. Shipping costs

Delivery time
is determined
45plastic measuring spoon 20 ml 8000327
PLASTIC MEASURING SPOON 20 ml
1,73 €

excl. Shipping costs

immediately available, 6 available
46nylon coffee tamper 8006165
NYLON COFFEE TAMPER
2,75 €

excl. Shipping costs

immediately available, 5 available
47anodised aluminum tamper o 58 mm 8006191
ANODISED ALUMINUM TAMPER ø 58 mm
36,85 €

excl. Shipping costs

Delivery time
is determined
48coffee group gasket 77x73x2 mm 8001729
COFFEE GROUP GASKET 77x73x2 mm
8,44 €

excl. Shipping costs

immediately available, 7 available
49stainless steel measuring spoon 20 ml 8000328
STAINLESS STEEL MEASURING SPOON 20 ml
4,97 €

excl. Shipping costs

Delivery time
is determined
50siebtraeger komplett 2 tassen brasilia 8001272
SIEBTRÄGER KOMPLETT 2 TASSEN BRASILIA
Price on request
51siebtraeger komplett 1 tasse brasilia nicht mehr lieferbar alternativ artikel 8001271
SIEBTRÄGER KOMPLETT 1 TASSE BRASILIA ***Nicht mehr lieferbar*** Alternativ Artikel
This article is no longer available
52paper shim o 73x59x0 8 mm 8002167
Paper shim ø 73x59x0,8 mm
0,49 €

excl. Shipping costs

immediately available
53rubber shim o 73 5x59x1 mm epdm 8002168
RUBBER SHIM ø 73,5x59x1 mm EPDM
1,05 €

excl. Shipping costs

immediately available
54brush for coffee shower 8006153
BRUSH FOR COFFEE SHOWER
3,92 €

excl. Shipping costs

immediately available
55brush for maintenance 8006154
BRUSH FOR MAINTENANCE
4,52 €

excl. Shipping costs

immediately available, 6 available
561 cup filter 7 g 8001120
1 CUP FILTER 7 g
6,50 €

excl. Shipping costs

immediately available, 17 available
572 cup filter 14 grams 8001101
2-CUP FILTER 14 GRAMS
7,02 €

excl. Shipping costs

immediately available

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
