Brasilia

BRASILIA GRUPPE CENTURY-PORTOFINO-GRADISCA

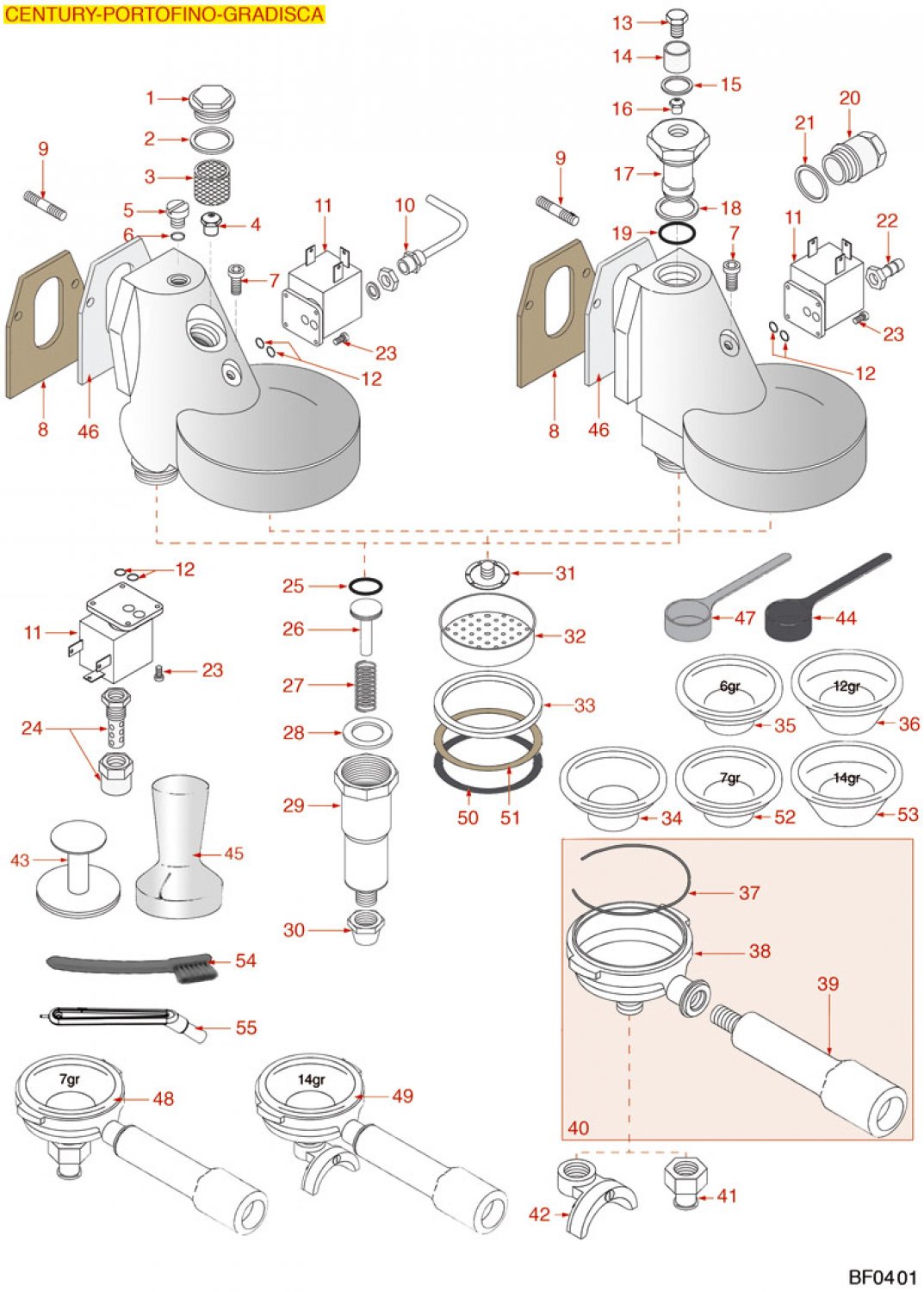

Drawing number 8038644

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.: Image: Description: Qty.:
1cap o 18 mm 8006374
CAP ø 18 mm
7,09 €

excl. Shipping costs

immediately available, 2 available
2o ring 0119 epdm 8001650
O-RING 0119 EPDM
1,06 €

excl. Shipping costs

immediately available
3water filter o 14x10x12 mm 8001107
WATER FILTER ø 14x10x12 mm
2,95 €

excl. Shipping costs

immediately available
4nozzle m5x1 hole 8006966
NOZZLE M5x1 HOLE
1,95 €

excl. Shipping costs

immediately available, 10 available

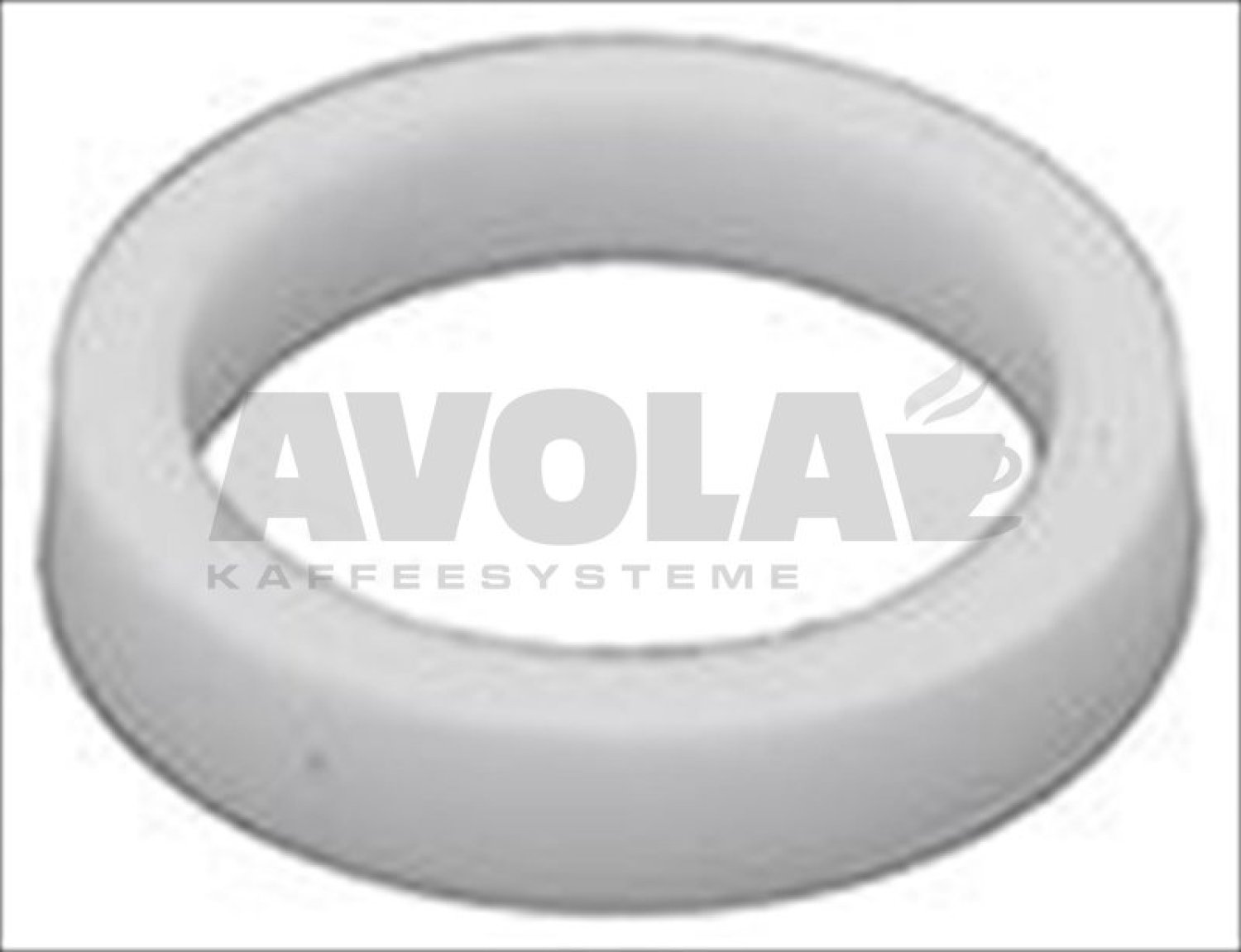

6flat ptfe gasket o 17x13x3 mm 8001386
Flat PTFE gasket ø 17x13x3 mm
1,18 €

excl. Shipping costs

immediately available
7low cylinder head screw m6x10 uni 9327 8001293
LOW CYLINDER HEAD SCREW M6x10, UNI 9327
2,49 €

excl. Shipping costs

immediately available
8coffee group gasket 80x70x2 mm 8001624
COFFEE GROUP GASKET 80x70x2 mm
3,51 €

excl. Shipping costs

immediately available, 14 available
9stainless steel m8x25 mm stud 8001292
STAINLESS STEEL M8x25 mm STUD
1,42 €

excl. Shipping costs

immediately available, 5 available
113 way solenoid valve assy 230v 50h 8000810
3-WAY SOLENOID VALVE ASSY 230V 50H
Price on request
113 way solenoid valve lucifer 240v 50hz 8000955
3-WAY SOLENOID VALVE LUCIFER 240V 50Hz
52,36 €

excl. Shipping costs

immediately available, 8 available
11coil lucifer parker 220 240v 9w 50hz 8000957
COIL LUCIFER/PARKER 220/240V 9W 50Hz
19,92 €

excl. Shipping costs

immediately available, 6 available
113 way mechanical component lucifer 8000959
3-WAY MECHANICAL COMPONENT LUCIFER
39,77 €

excl. Shipping costs

immediately available, 7 available
113 way mechanical component parker 8000962
3-WAY MECHANICAL COMPONENT PARKER
42,72 €

excl. Shipping costs

immediately available, 3 available

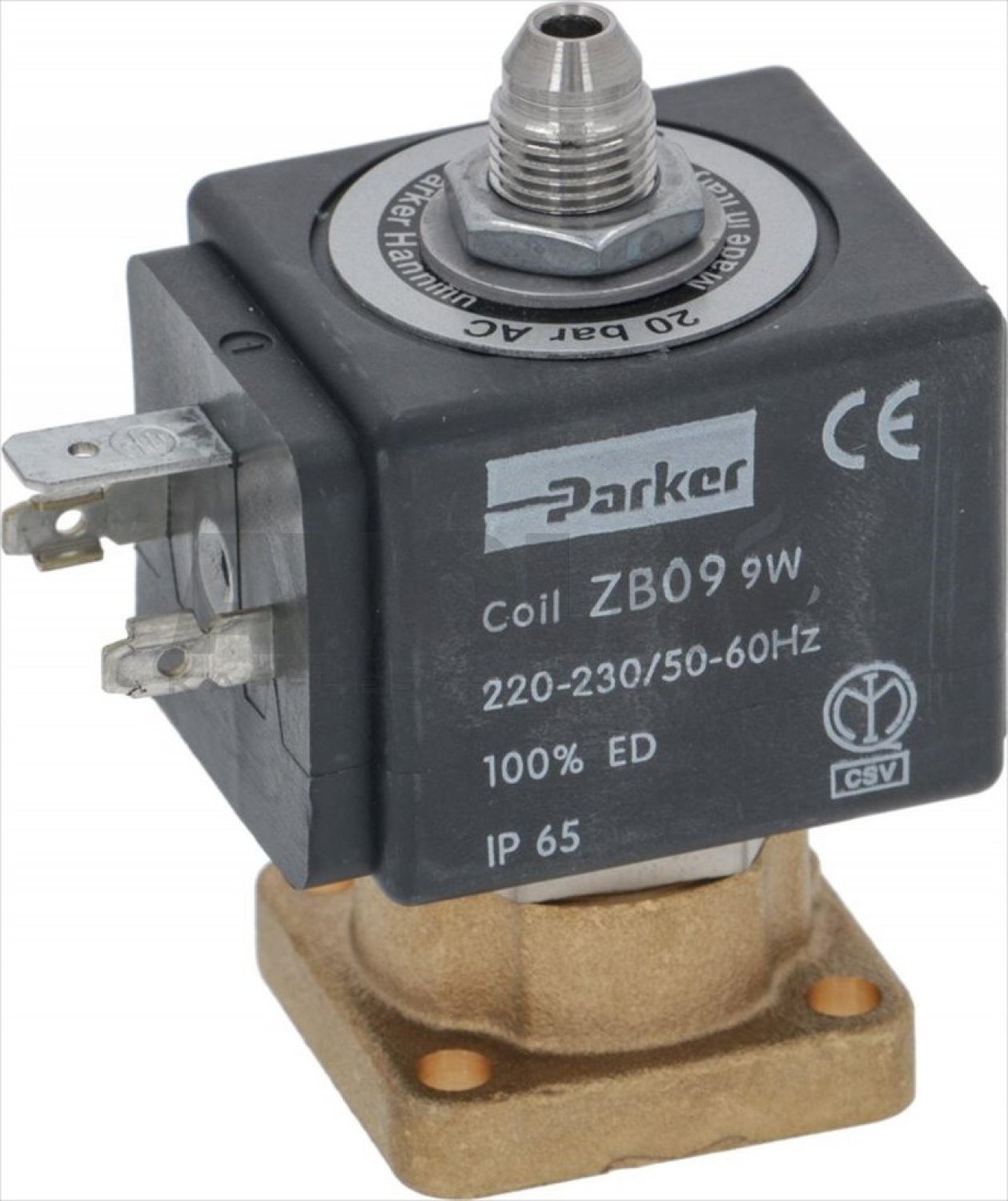

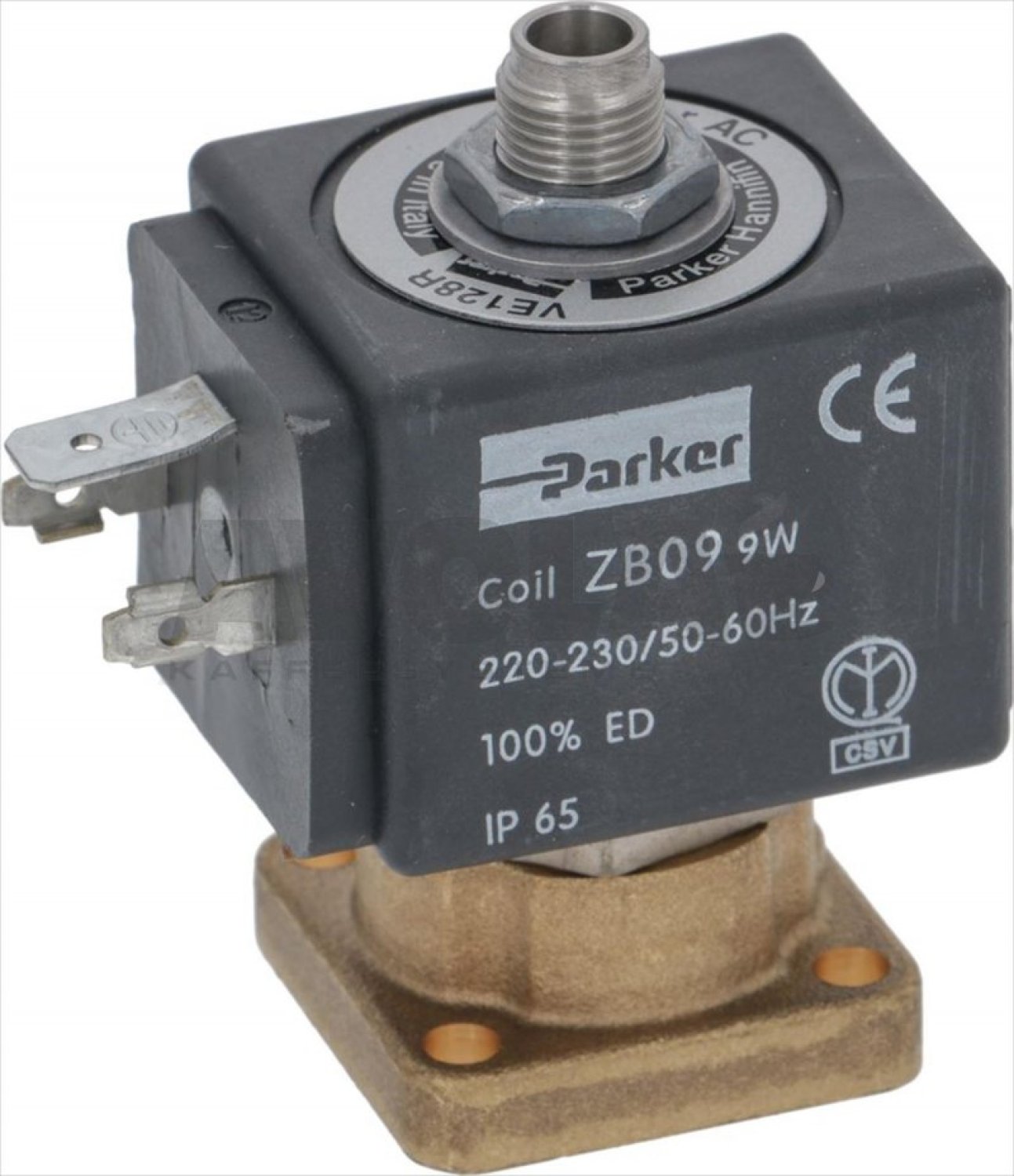

113 way solenoid valve parker 230v 50 60hz 8000967
3-WAY SOLENOID VALVE PARKER 230V 50/60Hz
52,35 €

excl. Shipping costs

immediately available, 13 available
11coil parker zb09 9w 220 240v 50 60hz 8012418
COIL PARKER ZB09 9W 220/240V 50/60Hz
20,74 €

excl. Shipping costs

immediately available, 17 available
12red silicone o ring r5 gasket 8001809
RED SILICONE O-RING R5 GASKET
1,34 €

excl. Shipping costs

immediately available
12o ring 02025 viton 8001810
O-RING 02025 VITON
0,87 €

excl. Shipping costs

immediately available
13deckel fuer auslaufgruppe o 16 mm 8006373
Deckel für Auslaufgruppe ø 16 mm
8,33 €

excl. Shipping costs

immediately available, 13 available
14water filter o 8 5x22 mm 8001115
Water filter ø 8,5x22 mm
1,79 €

excl. Shipping costs

immediately available
15ptfe flat gasket o 16x22 5x2 mm 8001581
PTFE FLAT GASKET ø 16x22,5x2 mm
1,65 €

excl. Shipping costs

immediately available
16nozzle m6x1 hole 8006971
NOZZLE M6x1 HOLE
4,46 €

excl. Shipping costs

immediately available
18ptfe flat gasket o 35x30x2 mm 8001583
PTFE FLAT GASKET ø 35x30x2 mm
1,09 €

excl. Shipping costs

immediately available
19o ring 0128 epdm 8014714
O-RING 0128 EPDM
0,94 €

excl. Shipping costs

immediately available
20chromium plated side cap 8006380
CHROMIUM-PLATED SIDE CAP
14,96 €

excl. Shipping costs

Delivery time
is determined
21ptfe flat gasket o 35x30x2 mm 8001583
PTFE FLAT GASKET ø 35x30x2 mm
1,09 €

excl. Shipping costs

immediately available
22drain fitting o 1 8 i x6 mm 8006757
DRAIN FITTING ø 1/8 I x6 mm
4,62 €

excl. Shipping costs

immediately available, 8 available
23schraube zylinderkopf innensechskant vollgewinde edelstahl m4x10 a2 70 din 912 8061180
Schraube Zylinderkopf Innensechskant Vollgewinde Edelstahl M4x10 A2-70 Din 912
0,67 €

excl. Shipping costs

immediately available
24drain chromium plated fitting 8005636
DRAIN CHROMIUM-PLATED FITTING
17,85 €

excl. Shipping costs

immediately available, 3 available
25o ring 03075 epdm 8001598
O-RING 03075 EPDM
0,77 €

excl. Shipping costs

immediately available
26infuser spindle 8005108
INFUSER SPINDLE
13,44 €

excl. Shipping costs

immediately available, 4 available
27spring o 11x58 mm 8003828
SPRING ø 11x58 mm
2,13 €

excl. Shipping costs

immediately available, 20 available
28ptfe flat gasket o 35x30x2 mm 8001583
PTFE FLAT GASKET ø 35x30x2 mm
1,09 €

excl. Shipping costs

immediately available

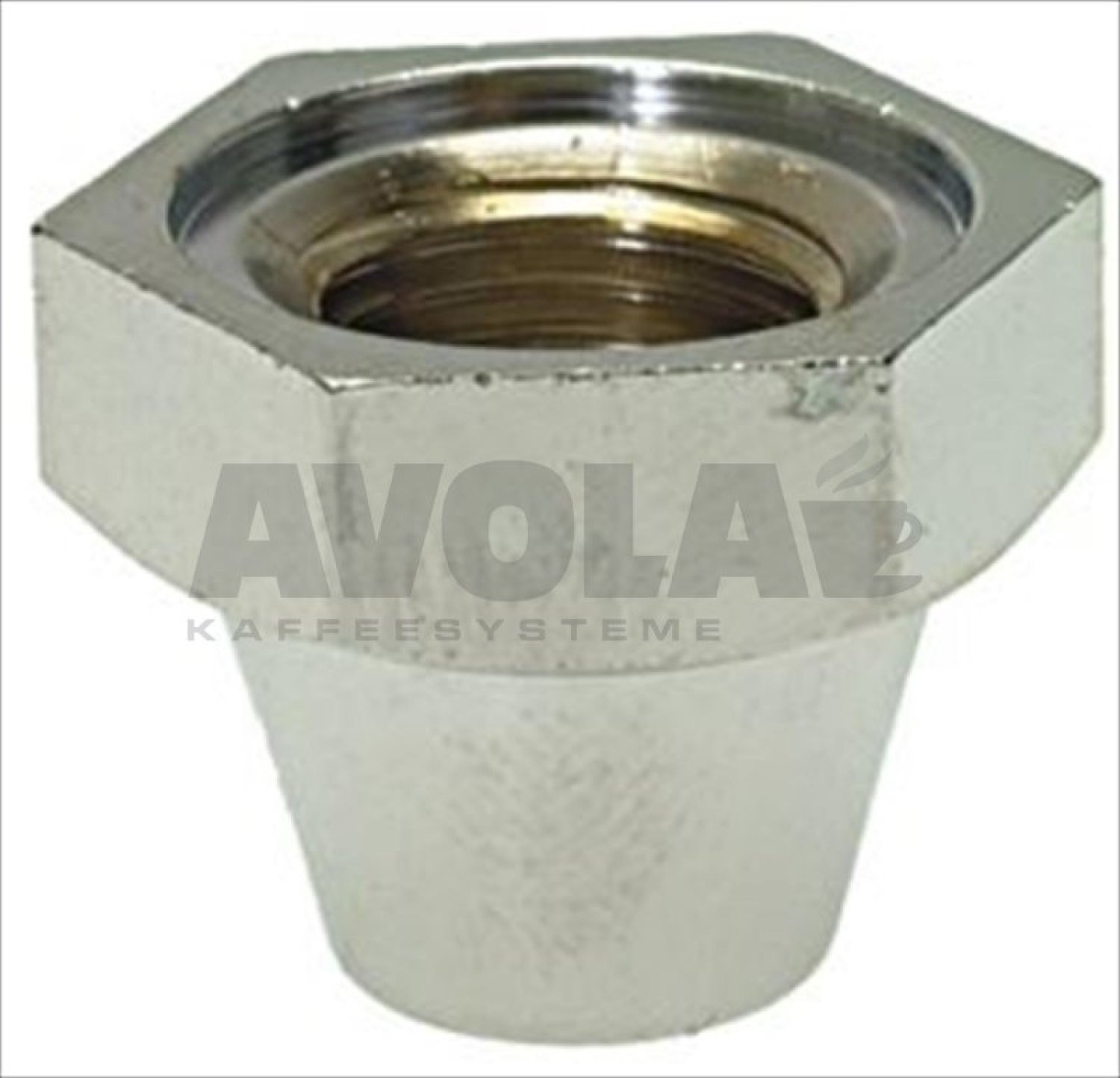

30auslaufanschluss chromiert 8005674
AUSLAUFANSCHLUSS CHROMIERT
2,00 €

excl. Shipping costs

Delivery time 4-6 weeks
31group spray nozzle o 30 mm m10x1 e61 8006987
Group spray nozzle ø 30 mm M10x1 - E61
6,14 €

excl. Shipping costs

immediately available
32shower screen fuer e61 brew unit 8000608
Shower screen für E61 brew unit
5,20 €

excl. Shipping costs

immediately available
33cafelat e61 portafilter gasket 73x57x8 mm red 8081202
Cafelat E61 portafilter gasket 73x57x8 mm red
5,95 €

excl. Shipping costs

immediately available
33filter holder gasket o 72x56x8 mm 8001817
FILTER HOLDER GASKET ø 72x56x8 mm
3,89 €

excl. Shipping costs

immediately available, 20 available
33gasket 73x57x8 mm for e61 brew unit 8060996
Gasket 73x57x8 mm - for E61 brew unit
3,90 €

excl. Shipping costs

immediately available
33rubber 73x57x8 5 mm for e61 brew unit 8002056
RUBBER 73x57x8,5 mm - FOR E61 BREW UNIT
3,90 €

excl. Shipping costs

immediately available
34blind filter o58mm 8001103
BLIND FILTER Ø58mm
2,56 €

excl. Shipping costs

immediately available, 13 available
351 cup filter 6 g 8001076
1 CUP FILTER 6 g
5,41 €

excl. Shipping costs

immediately available, 13 available
362 cup filter 12 grams 8001077
2-CUP FILTER 12 GRAMS
5,41 €

excl. Shipping costs

immediately available, 7 available
37filter blocking spring o 1 00 mm 8003622
FILTER BLOCKING SPRING ø 1,00 mm
1,05 €

excl. Shipping costs

immediately available
38filter holder coffee machines 8001183
FILTER HOLDER COFFEE MACHINES
19,99 €

excl. Shipping costs

immediately available, 2 available
39filter holder handle m12 8003349
FILTER HOLDER HANDLE M12
7,79 €

excl. Shipping costs

immediately available, 4 available
40filter holder assembly brasilia 8001164
FILTER HOLDER ASSEMBLY BRASILIA
54,78 €

excl. Shipping costs

Delivery time
is determined
41single spout o 3 8 8000110
SINGLE SPOUT ø 3/8
6,06 €

excl. Shipping costs

immediately available, 13 available
41straight single spout o 3 8 8000112
STRAIGHT SINGLE SPOUT ø 3/8
4,09 €

excl. Shipping costs

immediately available, 9 available
42lelit siebtraegerauslauf 2er o 3 8 quot rund auslauf vorne 8280537
Lelit Siebträgerauslauf 2er ø 3/8" rund Auslauf vorne
This article is no longer available
42double spout o 3 8 8000111
DOUBLE SPOUT ø 3/8
7,27 €

excl. Shipping costs

immediately available, 7 available
43nylon coffee tamper 8006165
NYLON COFFEE TAMPER
2,75 €

excl. Shipping costs

immediately available, 5 available
44plastic measuring spoon 20 ml 8000327
PLASTIC MEASURING SPOON 20 ml
1,73 €

excl. Shipping costs

immediately available, 6 available
45anodised aluminum tamper o 58 mm 8006191
ANODISED ALUMINUM TAMPER ø 58 mm
36,85 €

excl. Shipping costs

Delivery time
is determined
46coffee group gasket 77x73x2 mm 8001729
COFFEE GROUP GASKET 77x73x2 mm
8,44 €

excl. Shipping costs

immediately available, 7 available
47stainless steel measuring spoon 20 ml 8000328
STAINLESS STEEL MEASURING SPOON 20 ml
4,97 €

excl. Shipping costs

Delivery time
is determined
48siebtraeger komplett 1 tasse brasilia nicht mehr lieferbar alternativ artikel 8001271
SIEBTRÄGER KOMPLETT 1 TASSE BRASILIA ***Nicht mehr lieferbar*** Alternativ Artikel
This article is no longer available

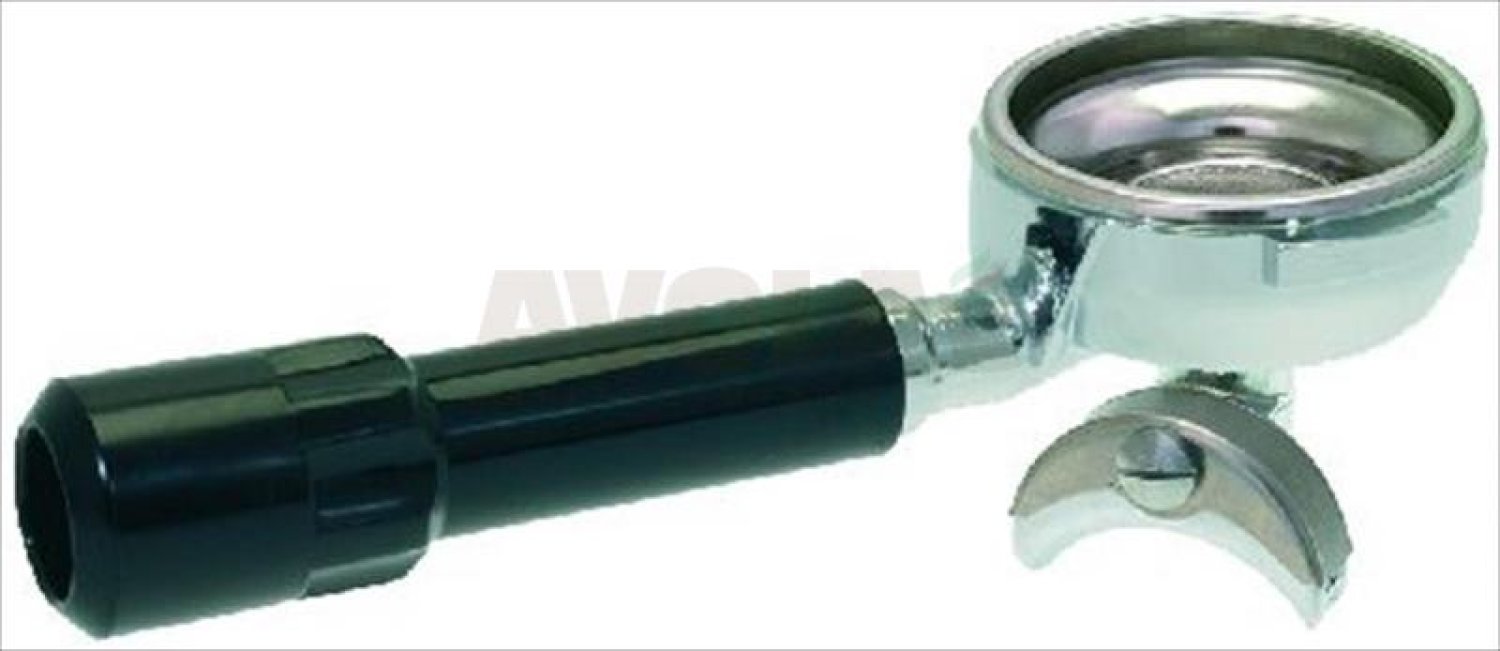

49siebtraeger komplett 2 tassen brasilia 8001272
SIEBTRÄGER KOMPLETT 2 TASSEN BRASILIA
Price on request
50rubber shim o 73 5x59x1 mm epdm 8002168
RUBBER SHIM ø 73,5x59x1 mm EPDM
1,05 €

excl. Shipping costs

immediately available
51paper shim o 73x59x0 8 mm 8002167
Paper shim ø 73x59x0,8 mm
0,49 €

excl. Shipping costs

immediately available
521 cup filter 7 g 8001120
1 CUP FILTER 7 g
6,50 €

excl. Shipping costs

immediately available, 17 available
532 cup filter 14 grams 8001101
2-CUP FILTER 14 GRAMS
7,02 €

excl. Shipping costs

immediately available
54brush for maintenance 8006154
BRUSH FOR MAINTENANCE
4,52 €

excl. Shipping costs

immediately available, 6 available
55brush for coffee shower 8006153
BRUSH FOR COFFEE SHOWER
3,92 €

excl. Shipping costs

immediately available

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
