BRASILIA GRUPPE KAFFEEAUSGABE CENTURY-PORTOFINO

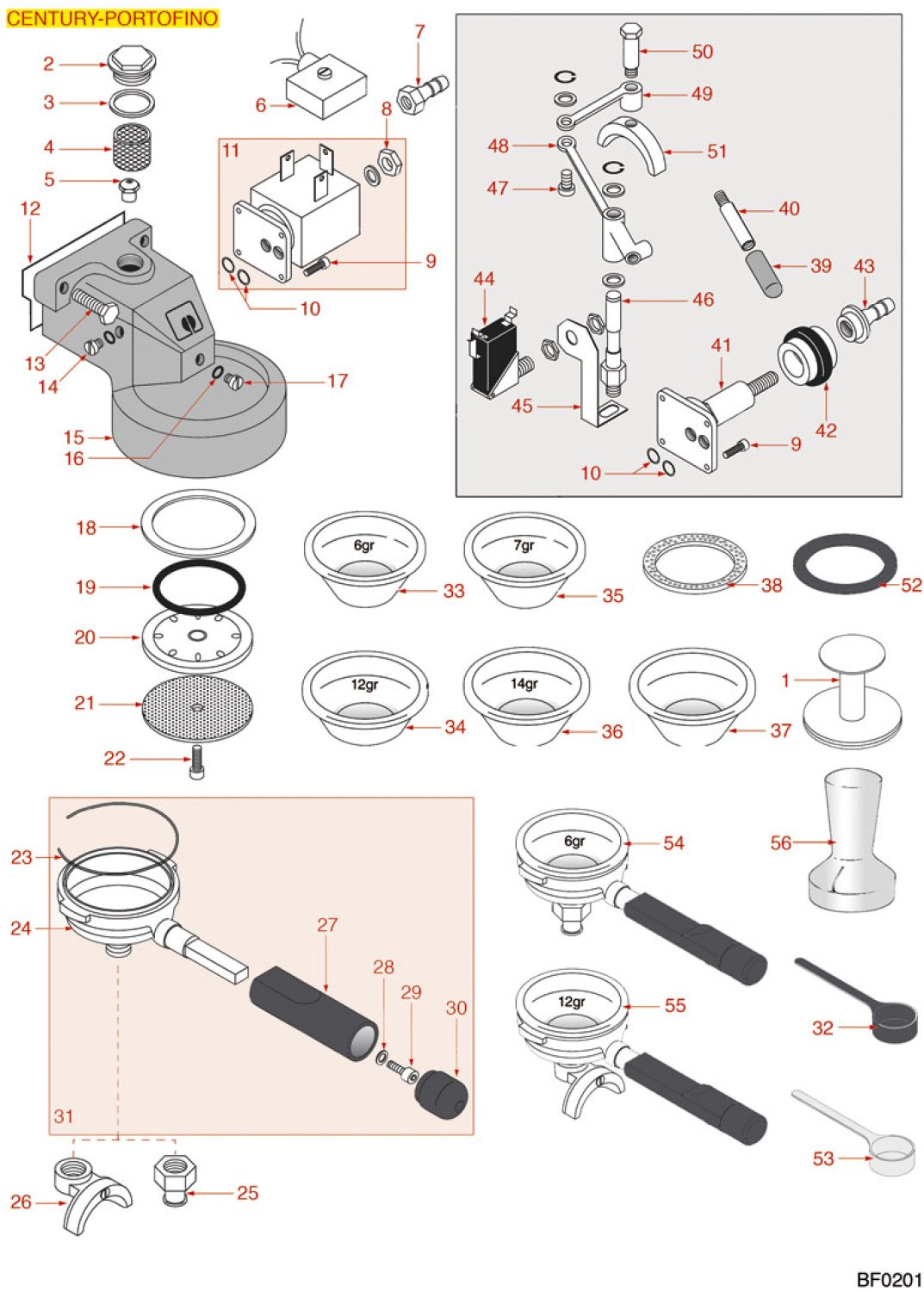

Drawing number 8038642

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.: Image: Description: Qty.:
1nylon coffee tamper 8006165
NYLON COFFEE TAMPER
2,75 €

excl. Shipping costs

immediately available, 5 available
2cap o 18 mm 8006374
CAP ø 18 mm
7,09 €

excl. Shipping costs

immediately available, 2 available
3o ring 0119 epdm 8001650
O-RING 0119 EPDM
1,06 €

excl. Shipping costs

immediately available
4water filter o 14x10x12 mm 8001107
WATER FILTER ø 14x10x12 mm
2,95 €

excl. Shipping costs

immediately available
5nozzle m5x1 hole 8006966
NOZZLE M5x1 HOLE
1,95 €

excl. Shipping costs

immediately available, 10 available
6female large connector 8012420
FEMALE LARGE CONNECTOR
2,94 €

excl. Shipping costs

immediately available, 7 available
7drain fitting o 1 8 i x6 mm 8006757
DRAIN FITTING ø 1/8 I x6 mm
4,62 €

excl. Shipping costs

immediately available, 8 available
8low nut 1 8 8005638
LOW NUT 1/8
1,95 €

excl. Shipping costs

immediately available, 5 available
9schraube zylinderkopf innensechskant vollgewinde edelstahl m4x10 a2 70 din 912 8061180
Schraube Zylinderkopf Innensechskant Vollgewinde Edelstahl M4x10 A2-70 Din 912
0,67 €

excl. Shipping costs

immediately available
10red silicone o ring r5 gasket 8001809
RED SILICONE O-RING R5 GASKET
1,34 €

excl. Shipping costs

immediately available
10o ring 02025 viton 8001810
O-RING 02025 VITON
0,87 €

excl. Shipping costs

immediately available
113 way solenoid valve lucifer 240v 50hz 8000955
3-WAY SOLENOID VALVE LUCIFER 240V 50Hz
52,36 €

excl. Shipping costs

immediately available, 8 available
11coil lucifer parker 220 240v 9w 50hz 8000957
COIL LUCIFER/PARKER 220/240V 9W 50Hz
19,92 €

excl. Shipping costs

immediately available, 6 available
113 way mechanical component lucifer 8000959
3-WAY MECHANICAL COMPONENT LUCIFER
39,77 €

excl. Shipping costs

immediately available, 7 available
113 way solenoid valve parker 230v 50 60hz 8000960
3-WAY SOLENOID VALVE PARKER 230V 50/60Hz
53,55 €

excl. Shipping costs

immediately available, 19 available
113 way mechanical component parker 8000962
3-WAY MECHANICAL COMPONENT PARKER
42,72 €

excl. Shipping costs

immediately available, 3 available
11coil parker zb09 9w 220 240v 50 60hz 8012418
COIL PARKER ZB09 9W 220/240V 50/60Hz
20,74 €

excl. Shipping costs

immediately available, 17 available
12coffee group gasket 77x51x3 mm 8001845
COFFEE GROUP GASKET 77x51x3 mm
4,06 €

excl. Shipping costs

immediately available, 11 available
13hexagon head screw m8x25 8001291
HEXAGON HEAD SCREW M8x25
1,12 €

excl. Shipping costs

immediately available, 18 available

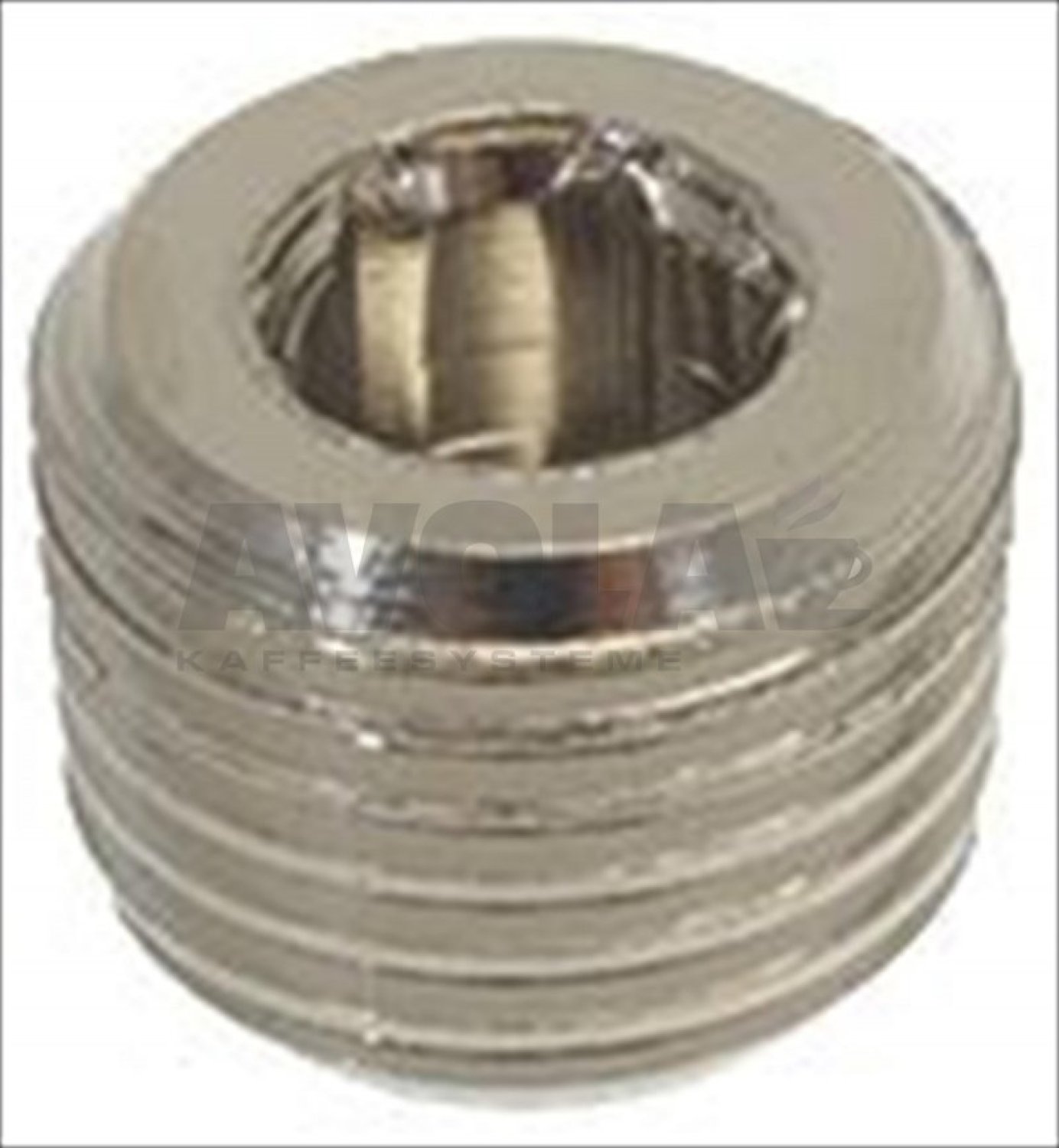

14cap 1 4 8001288
CAP 1/4
5,38 €

excl. Shipping costs

immediately available, 9 available
16o ring 02037 epdm 8001975
O-RING 02037 EPDM
0,76 €

excl. Shipping costs

immediately available

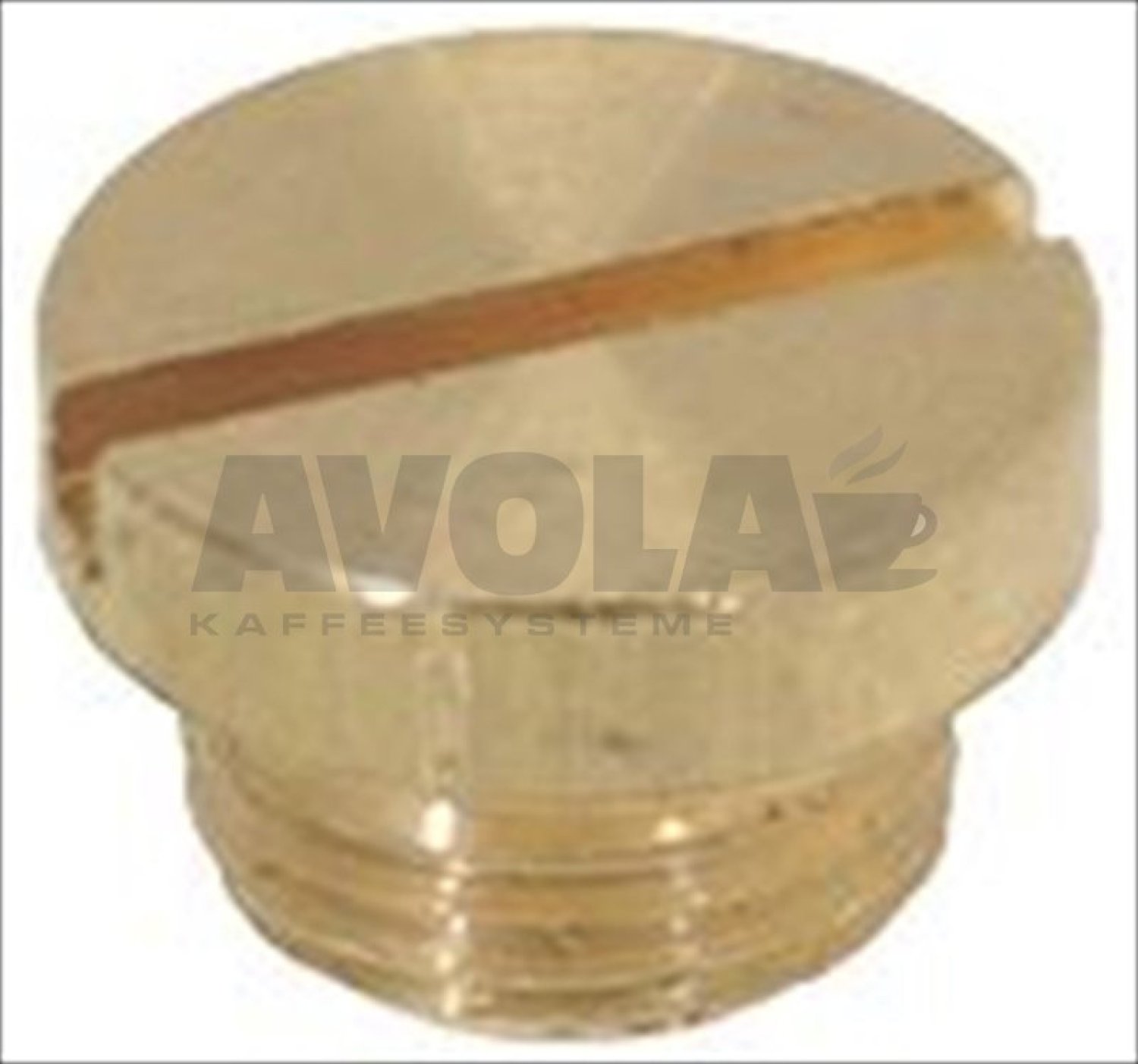

17cap 8001301
CAP
14,23 €

excl. Shipping costs

immediately available, 1 available
18filter holder gasket 8001846
FILTER HOLDER GASKET
5,51 €

excl. Shipping costs

immediately available
19o ring 03187 epdm 8013757
O-RING 03187 EPDM
2,08 €

excl. Shipping costs

immediately available, 18 available
20wasserverteiler fuer duschentraeger 8001302
WASSERVERTEILER FÜR DUSCHENTRÄGER
20,11 €

excl. Shipping costs

immediately available, 1 available
21shower 51 50 mm 8000552
SHOWER 51,50 MM
4,56 €

excl. Shipping costs

immediately available
22countersunk head screws with shell m5x12 8007318
COUNTERSUNK HEAD SCREWS WITH SHELL M5x12
0,62 €

excl. Shipping costs

immediately available
23filter blocking spring o 1 00 mm 8003622
FILTER BLOCKING SPRING ø 1,00 mm
1,05 €

excl. Shipping costs

immediately available
24siebtraeger fuer kaffeemaschinen brasilia nicht mehr lieferbar 8001165
SIEBTRÄGER FÜR KAFFEEMASCHINEN BRASILIA (nicht mehr lieferbar)
This article is no longer available
25single spout o 3 8 8000110
SINGLE SPOUT ø 3/8
6,06 €

excl. Shipping costs

immediately available, 13 available
25straight single spout o 3 8 8000112
STRAIGHT SINGLE SPOUT ø 3/8
4,09 €

excl. Shipping costs

immediately available, 9 available
26lelit siebtraegerauslauf 2er o 3 8 quot rund auslauf vorne 8280537
Lelit Siebträgerauslauf 2er ø 3/8" rund Auslauf vorne
This article is no longer available
26double spout o 3 8 8000111
DOUBLE SPOUT ø 3/8
7,27 €

excl. Shipping costs

immediately available, 7 available
29schraube zylinderkopf innensechskant vollgewinde edelstahl m8x20 a2 70 din 912 8061169
Schraube Zylinderkopf Innensechskant Vollgewinde Edelstahl M8x20 A2-70 Din 912
2,67 €

excl. Shipping costs

immediately available
30deckel fuer siebtraegergriff 8003372
DECKEL FÜR SIEBTRÄGERGRIFF
6,45 €

excl. Shipping costs

immediately available, 1 available
31siebtraeger komplett brasilia nicht mehr lieferbar 8001170
SIEBTRÄGER KOMPLETT BRASILIA (nicht mehr lieferbar)
This article is no longer available
32plastic measuring spoon 20 ml 8000327
PLASTIC MEASURING SPOON 20 ml
1,73 €

excl. Shipping costs

immediately available, 6 available
331 cup filter 6 g 8001076
1 CUP FILTER 6 g
5,41 €

excl. Shipping costs

immediately available, 13 available
342 cup filter 12 grams 8001077
2-CUP FILTER 12 GRAMS
5,41 €

excl. Shipping costs

immediately available, 7 available
351 cup filter 7 g 8001120
1 CUP FILTER 7 g
6,50 €

excl. Shipping costs

immediately available, 17 available
362 cup filter 14 grams 8001101
2-CUP FILTER 14 GRAMS
7,02 €

excl. Shipping costs

immediately available
37blind filter o58mm 8001103
BLIND FILTER Ø58mm
2,56 €

excl. Shipping costs

immediately available, 15 available
38paper shim o 73x59x0 8 mm 8002167
Paper shim ø 73x59x0,8 mm
0,49 €

excl. Shipping costs

immediately available
38paper seal o 70x57x0 8 mm 8002175
PAPER SEAL ø 70x57x0,8 mm
0,39 €

excl. Shipping costs

immediately available

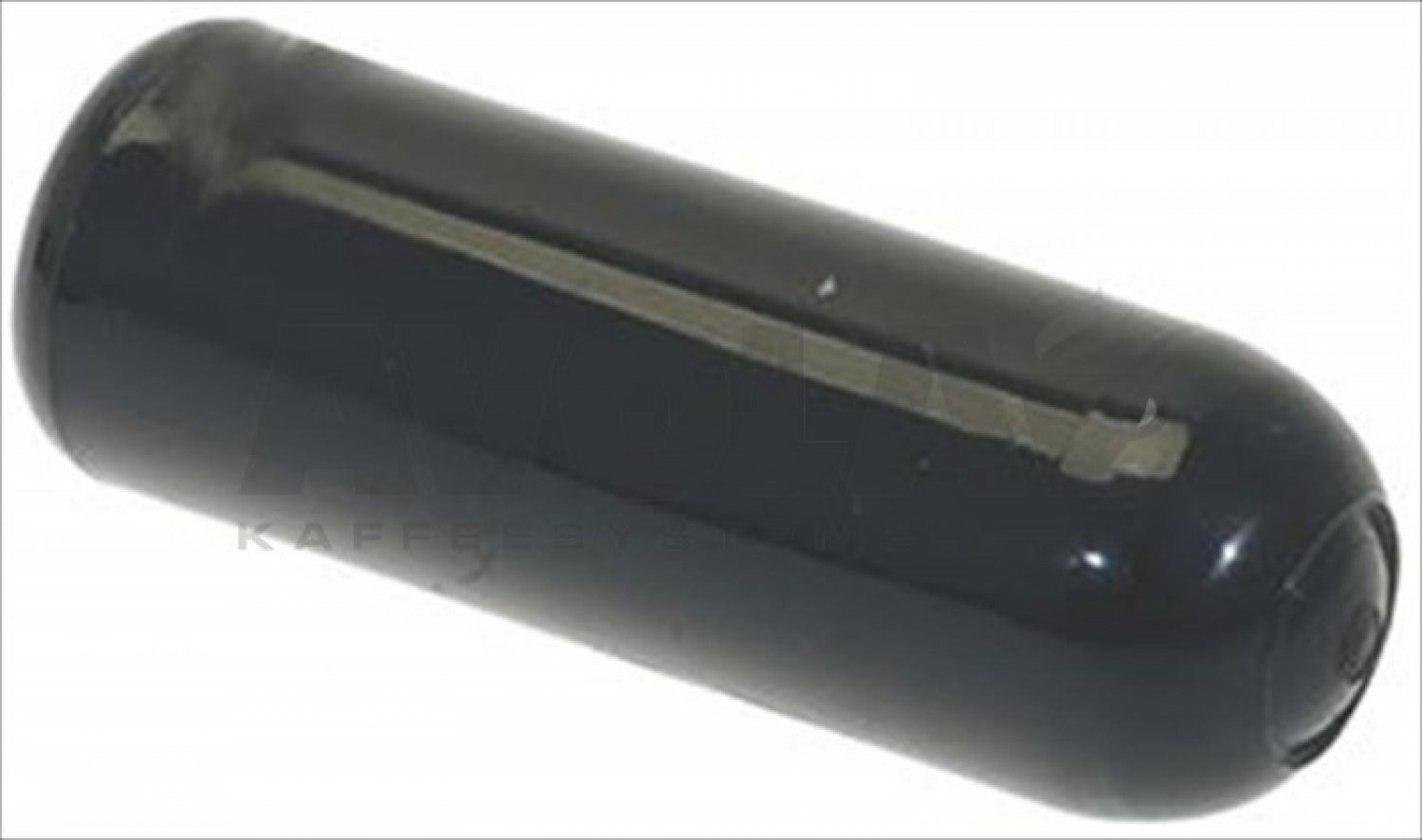

39drehknopf fuer auslaufgruppe 8003119
DREHKNOPF FÜR AUSLAUFGRUPPE
Price on request
42permanent magnet 8003083
PERMANENT MAGNET
20,66 €

excl. Shipping costs

Delivery time 4-6 weeks..

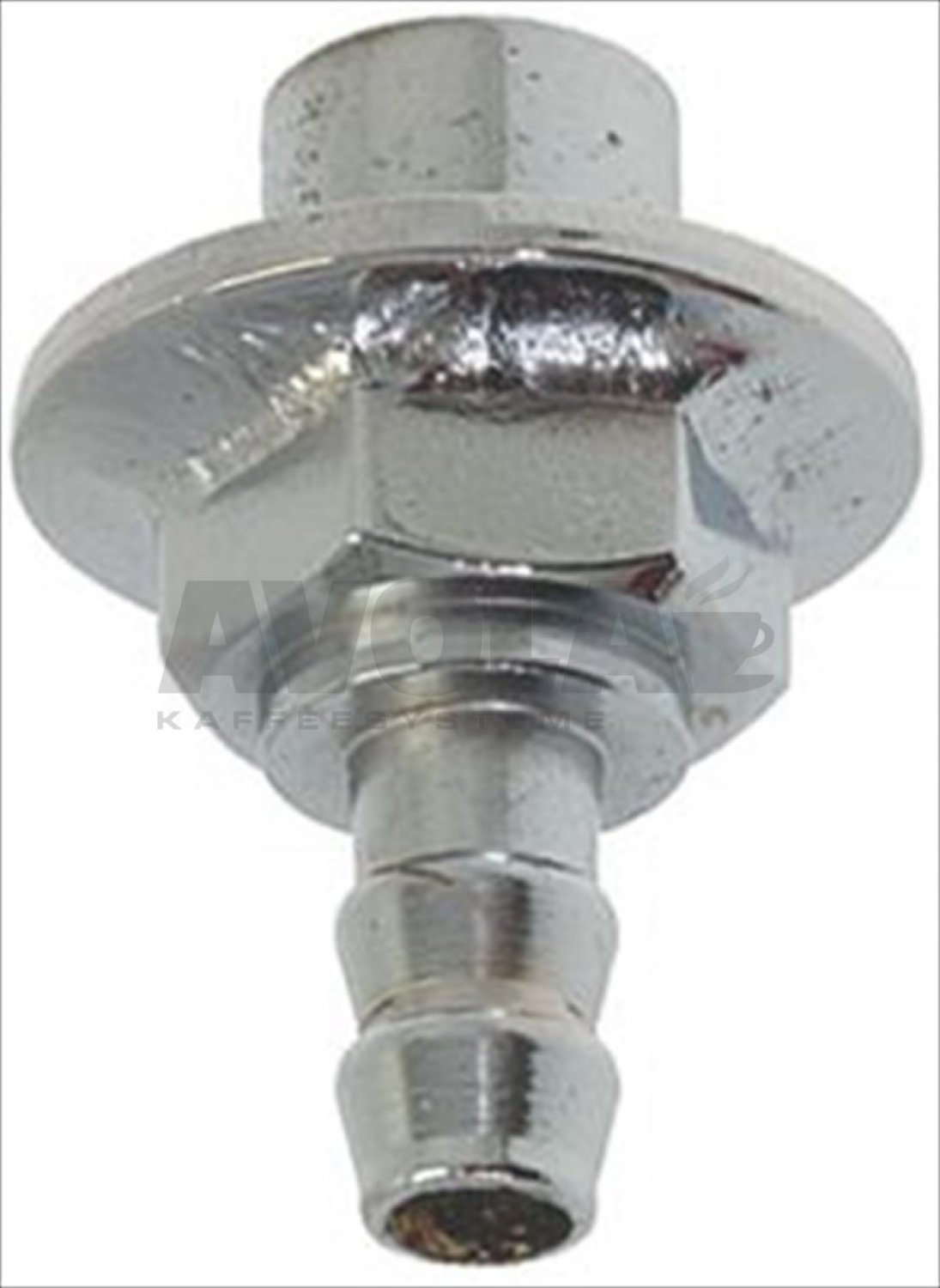

43auslaufanschluss chromiert 8006550
AUSLAUFANSCHLUSS CHROMIERT
7,22 €

excl. Shipping costs

Delivery time 4-6 weeks
44microswitch 16 4 a 250v 8016531
MICROSWITCH 16(4)A 250V
13,95 €

excl. Shipping costs

immediately available, 4 available
52rubber shim o 73 5x59x1 mm epdm 8002168
RUBBER SHIM ø 73,5x59x1 mm EPDM
1,05 €

excl. Shipping costs

immediately available
52rubber shim 8002169
RUBBER SHIM
1,17 €

excl. Shipping costs

immediately available, 12 available
53stainless steel measuring spoon 20 ml 8000328
STAINLESS STEEL MEASURING SPOON 20 ml
4,97 €

excl. Shipping costs

Delivery time
is determined
54filterhalter komplett 1 tasse brasilia 8001269
FILTERHALTER KOMPLETT 1 TASSE BRASILIA
This article is no longer available

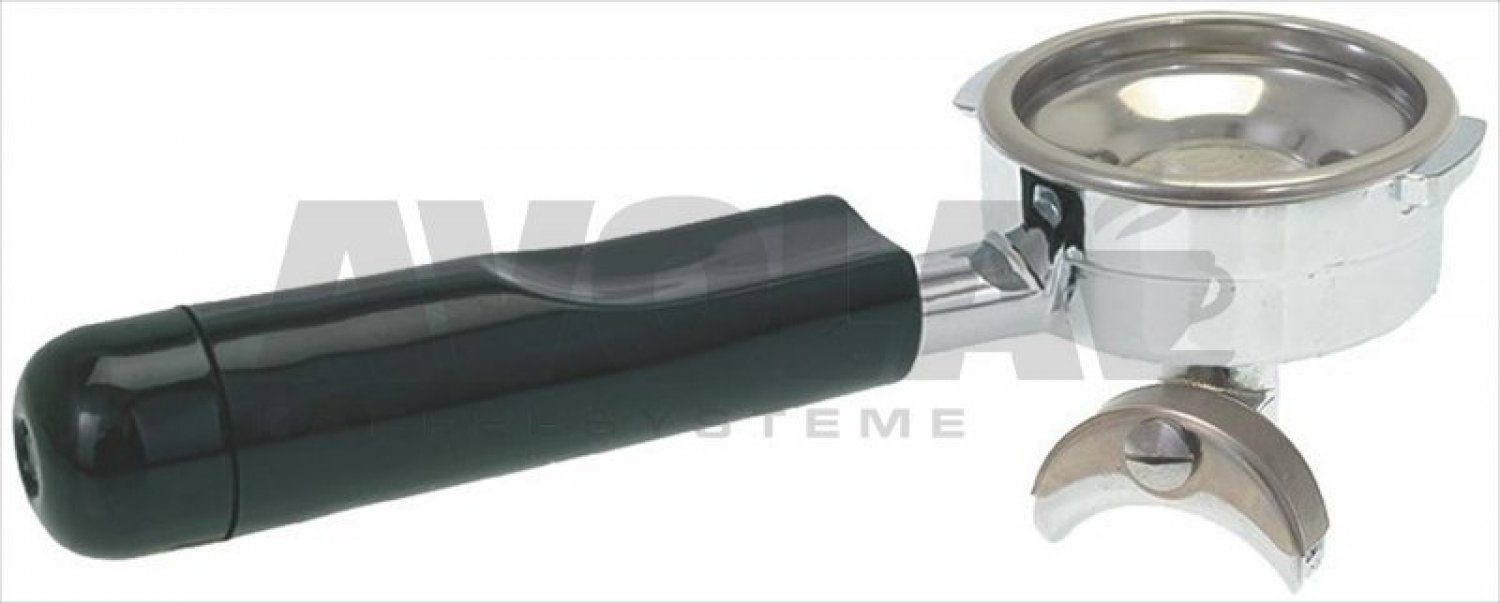

55filterhalter komplett 2 tasse brasilia 8001270
FILTERHALTER KOMPLETT 2 TASSE BRASILIA
This article is no longer available
56anodised aluminum tamper o 58 mm 8006191
ANODISED ALUMINUM TAMPER ø 58 mm
36,85 €

excl. Shipping costs

Delivery time
is determined

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
