Brasilia

BRASILIA GRUPPE KAFFEEAUSGABE CLUB-LADY

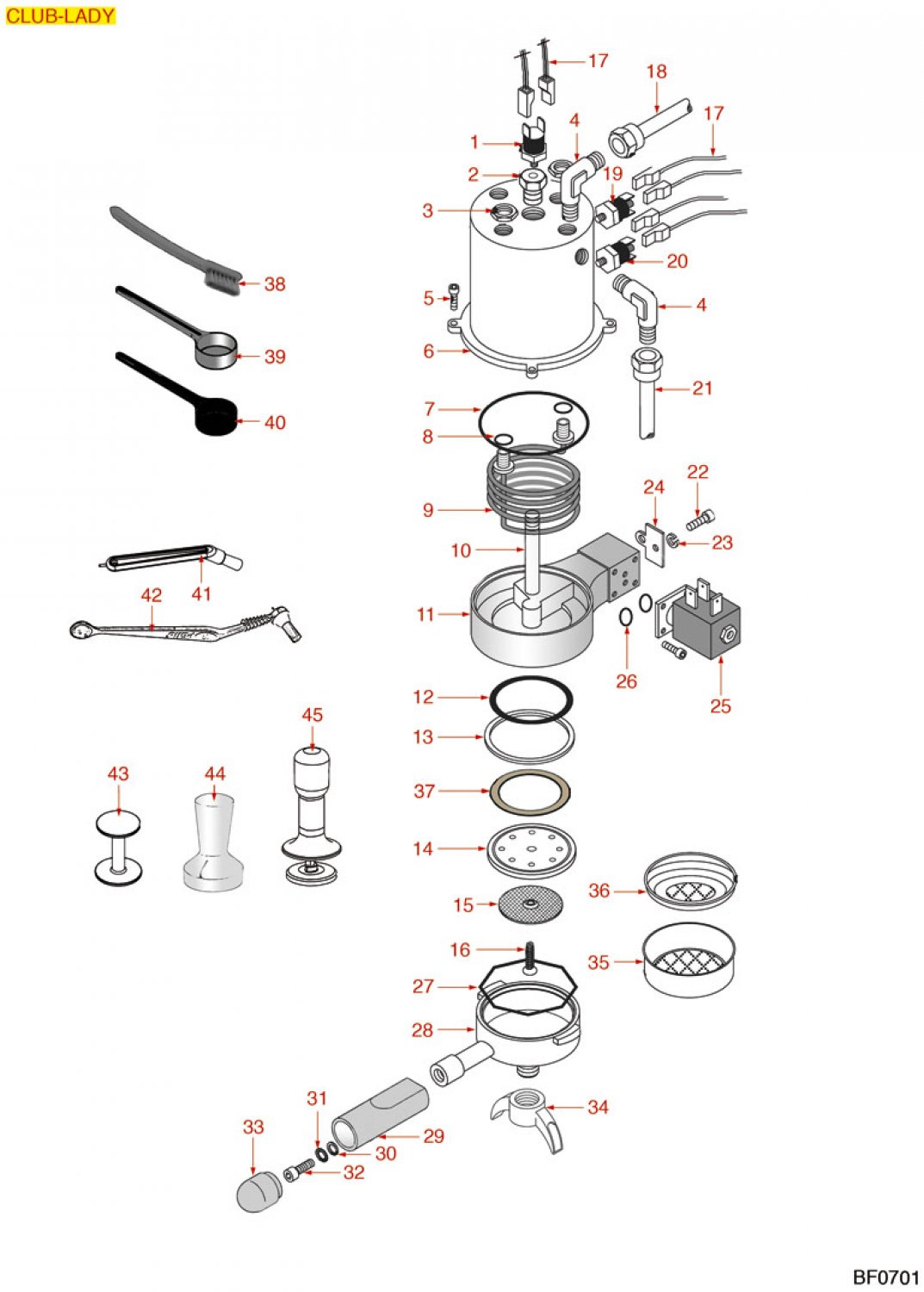

Drawing number 8038647

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.: Image: Description: Qty.:

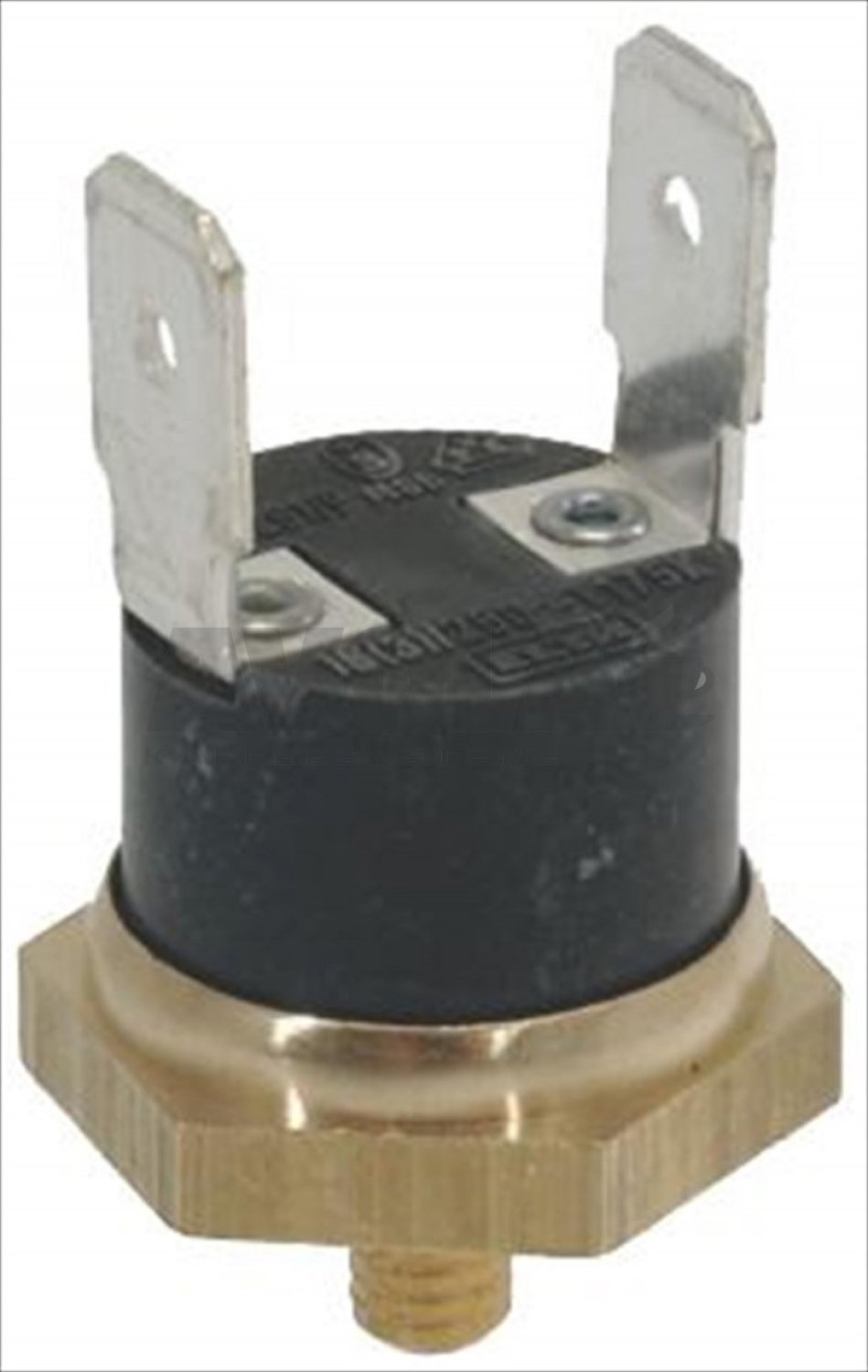

1contact thermostat 98 8006424
CONTACT THERMOSTAT 98
10,06 €

excl. Shipping costs

immediately available, 11 available
1contact thermostat 107 deg c m4 8006456
CONTACT THERMOSTAT 107°C M4
7,97 €

excl. Shipping costs

immediately available, 7 available

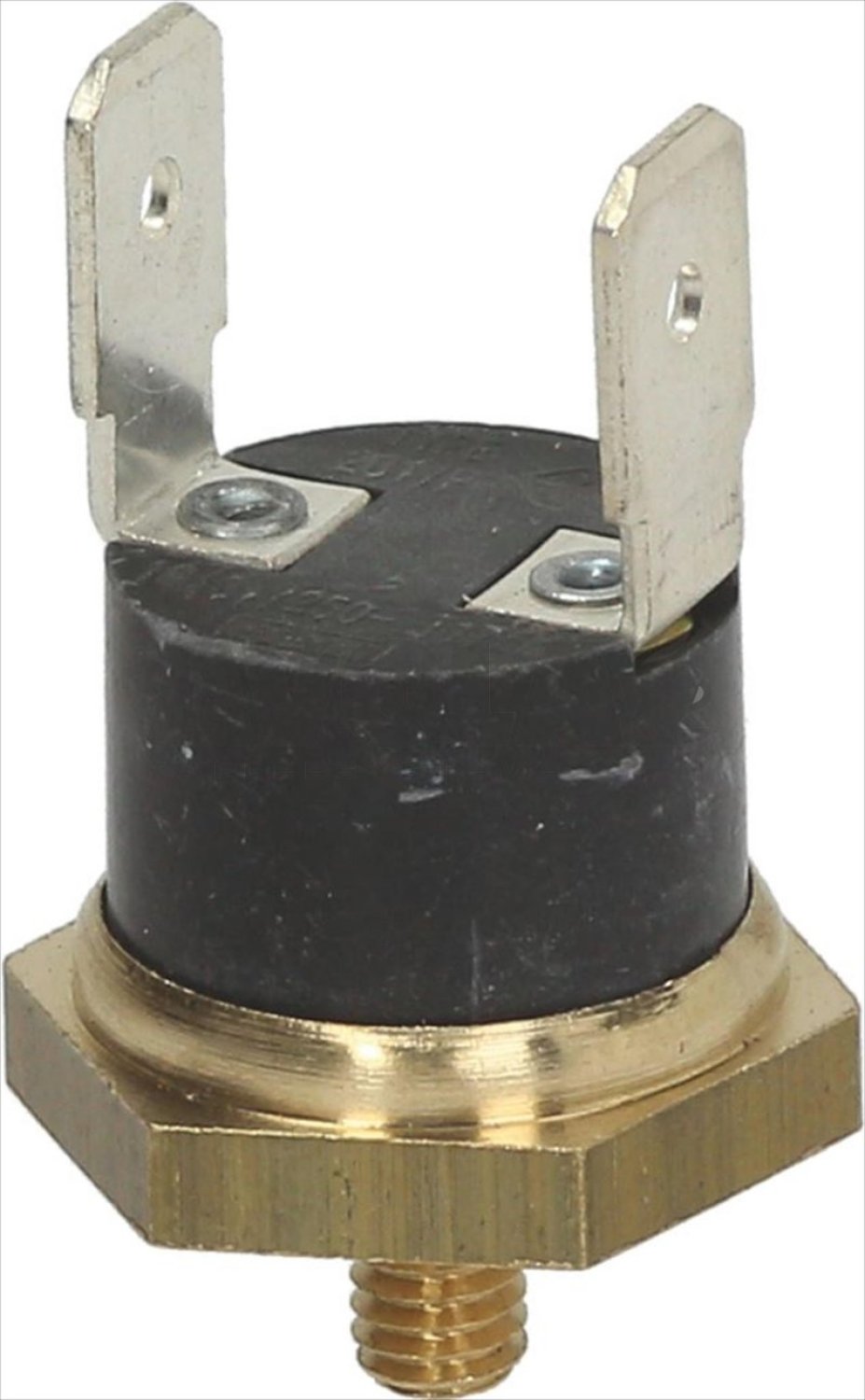

1contact thermostat 110 deg c 16a 250v 8026024
CONTACT THERMOSTAT 110°C 16A 250V
11,22 €

excl. Shipping costs

Delivery time
is determined

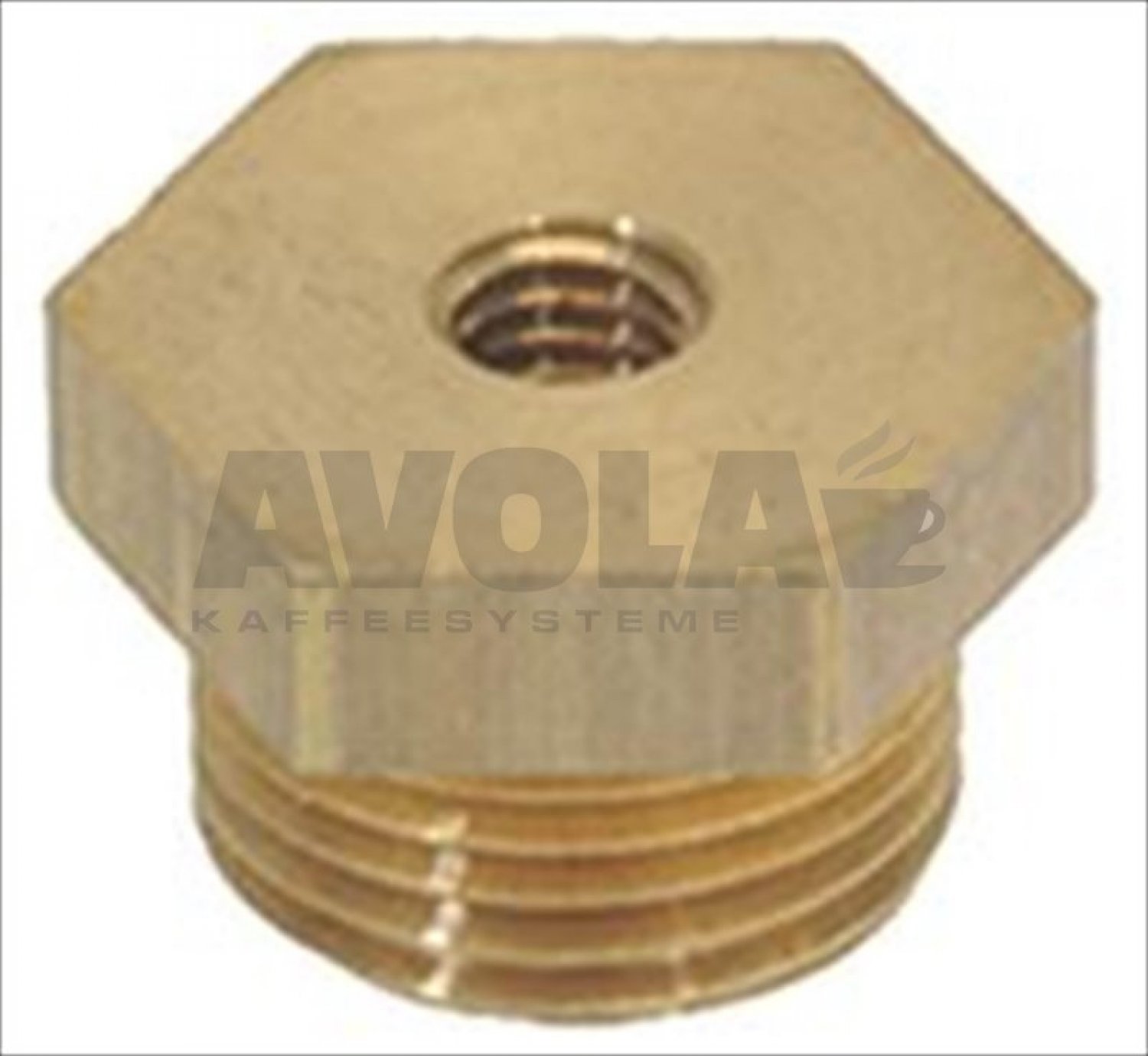

2deckel fuer kessel o 12 mm m4 nicht mehr lieferbar 8006381
DECKEL FÜR KESSEL ø 12 mm-M4 (nicht mehr lieferbar)
This article is no longer available
3lock nut 1 4 8007385
LOCK NUT 1/4
2,40 €

excl. Shipping costs

immediately available, 5 available
4l fitting o 1 8 1 8 8005642
L-FITTING ø 1/8 -1/8
4,49 €

excl. Shipping costs

immediately available, 14 available
5low cylinder head screw m4x12 8001290
LOW CYLINDER HEAD SCREW M4x12
2,24 €

excl. Shipping costs

immediately available
7gasket or 03281 epdm 8001819
GASKET OR 03281 EPDM
3,05 €

excl. Shipping costs

immediately available, 10 available
8o ring o3050 epdm 8011381
O-RING O3050 EPDM
1,09 €

excl. Shipping costs

immediately available
9heating element 1200w 220v 8007586
HEATING ELEMENT 1200W 220V
47,60 €

excl. Shipping costs

immediately available, 3 available

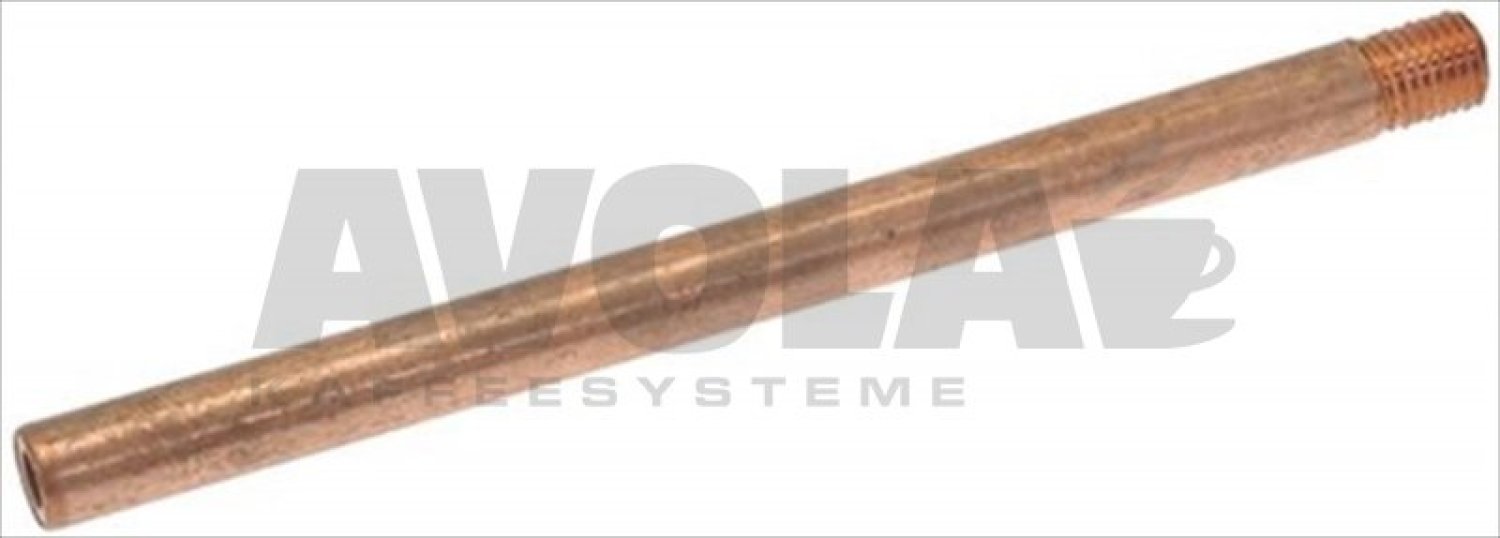

10innenrohr gruppe nicht mehr lieferbar 8015462
INNENROHR GRUPPE (nicht mehr lieferbar)
This article is no longer available
12o ring 03187 epdm 8013757
O-RING 03187 EPDM
2,08 €

excl. Shipping costs

immediately available, 18 available
13brasilia lady filter holder gasket o 64x55x5 mm 8001373
Brasilia Lady filter holder gasket ø 64x55x5 mm
5,27 €

excl. Shipping costs

immediately available, 15 available
13filter holder gasket o 67x56 5x5 3 mm 8014620
FILTER HOLDER GASKET ø 67x56,5x5,3 mm
5,00 €

excl. Shipping costs

immediately available

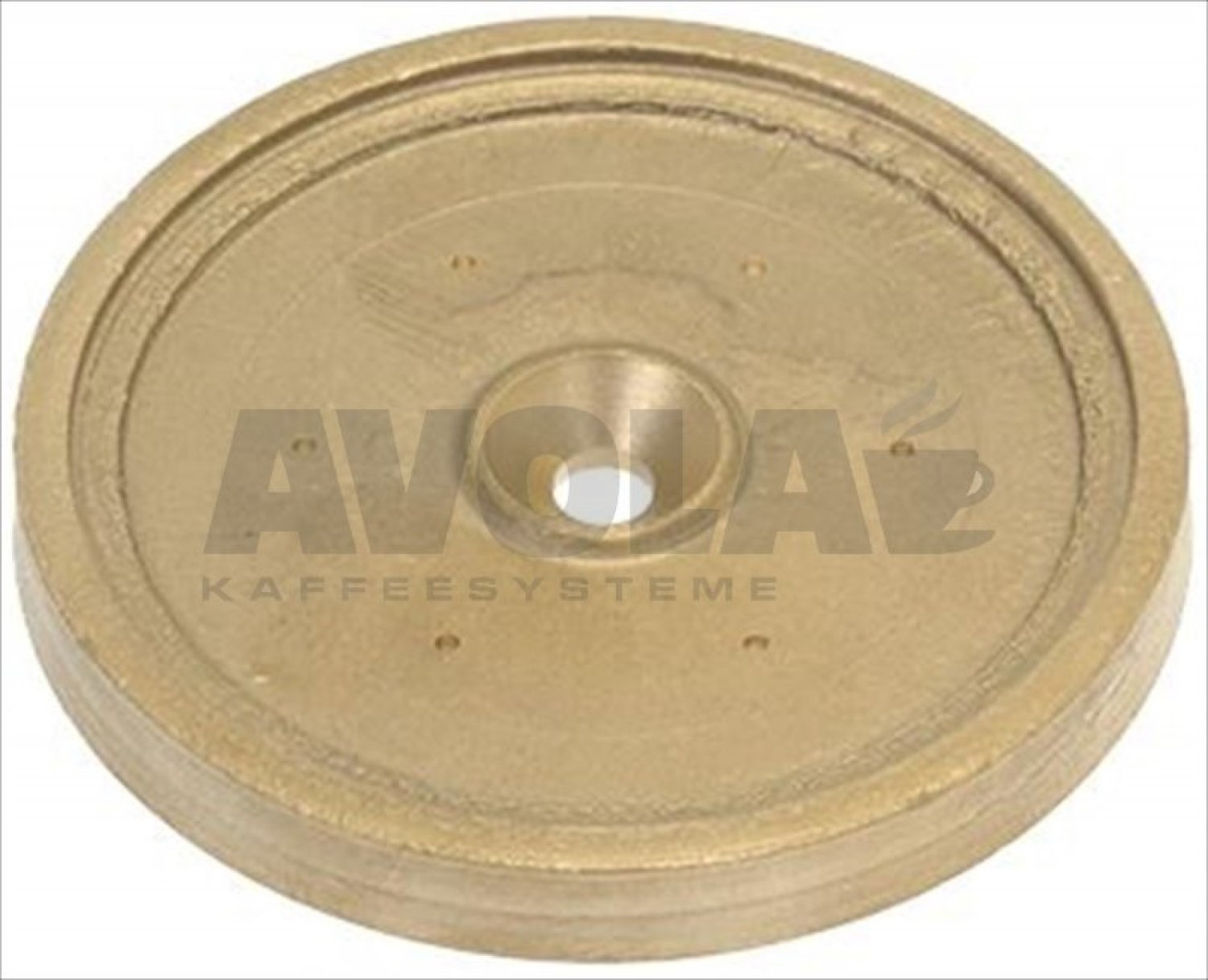

14wasserverteiler fuer duschetraeger nicht mehr lieferbar 8001286
Wasserverteiler für Duscheträger (nicht mehr lieferbar)
This article is no longer available
15shower 51 50 mm 8000552
SHOWER 51,50 MM
4,56 €

excl. Shipping costs

immediately available
16countersunk head screws with shell m5x12 8007318
COUNTERSUNK HEAD SCREWS WITH SHELL M5x12
0,62 €

excl. Shipping costs

immediately available
19contact thermostat 145 8006423
CONTACT THERMOSTAT 145
8,57 €

excl. Shipping costs

immediately available, 10 available
20contact thermostat 165 deg c m4 8006422
CONTACT THERMOSTAT 165°C M4
5,90 €

excl. Shipping costs

immediately available, 13 available

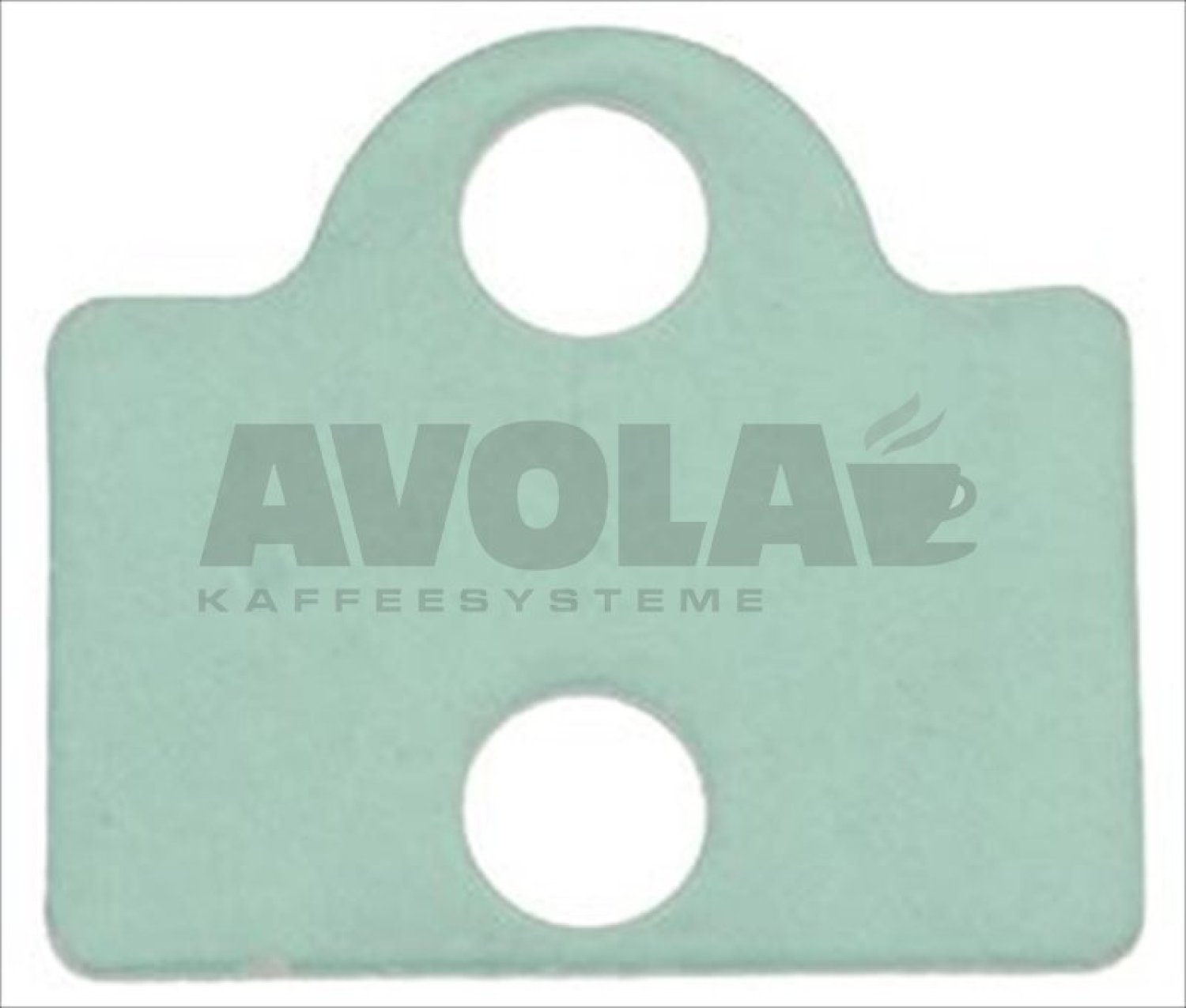

24coffee group gasket 35x32x1 5 mm 8001371
COFFEE GROUP GASKET 35x32x1.5 mm
1,44 €

excl. Shipping costs

Delivery time
is determined

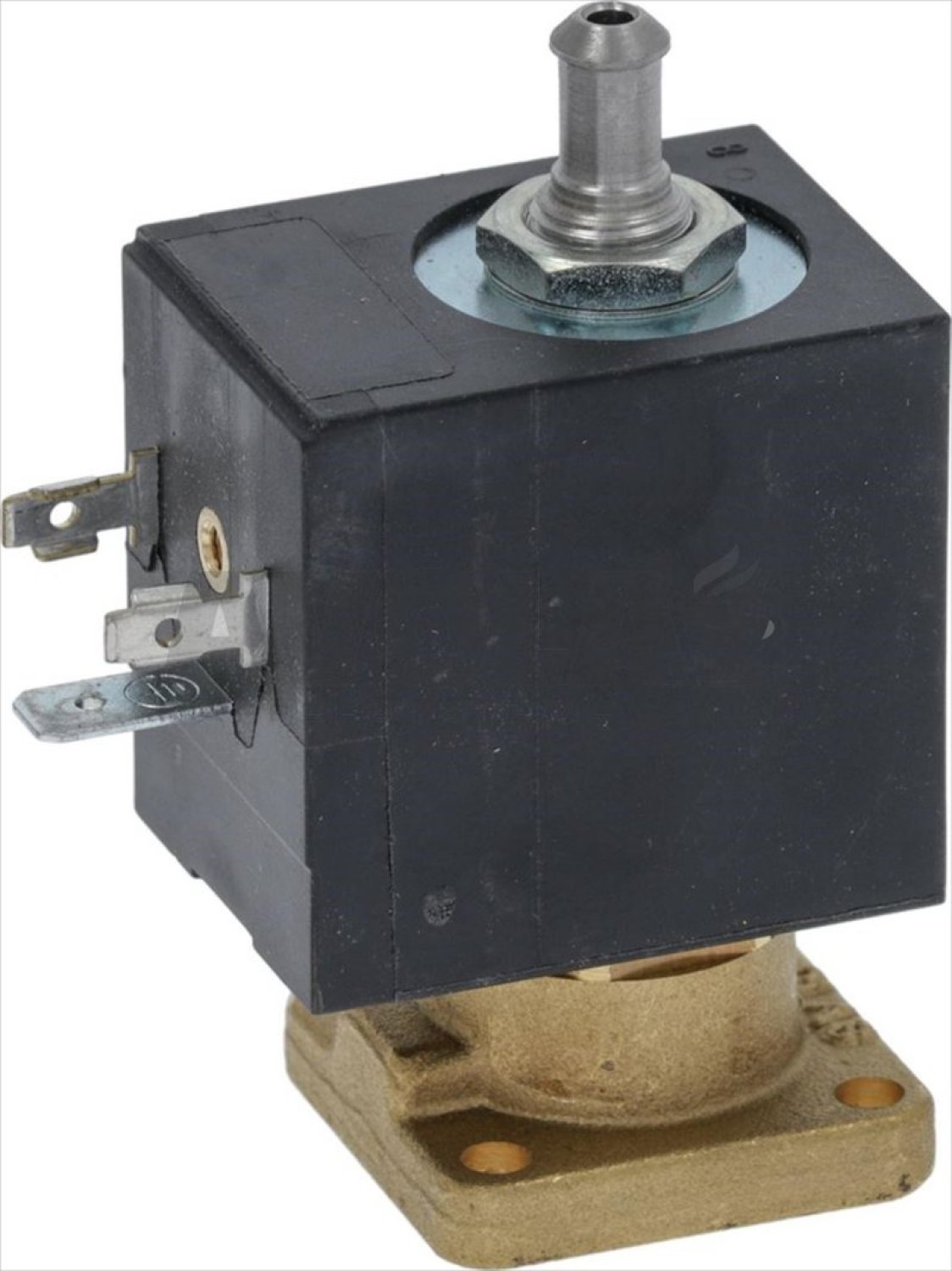

253 way solenoid valve olab 230v 50hz 8000808
3-WAY SOLENOID VALVE OLAB 230V 50Hz
72,11 €

excl. Shipping costs

immediately available, 3 available
26red silicone o ring r5 gasket 8001809
RED SILICONE O-RING R5 GASKET
1,34 €

excl. Shipping costs

immediately available
26o ring 02025 viton 8001810
O-RING 02025 VITON
0,87 €

excl. Shipping costs

immediately available
27filter blocking spring o 1 00 mm 8003622
FILTER BLOCKING SPRING ø 1,00 mm
1,05 €

excl. Shipping costs

immediately available
28siebtraeger fuer kaffeemaschinen brasilia nicht mehr lieferbar 8001165
SIEBTRÄGER FÜR KAFFEEMASCHINEN BRASILIA (nicht mehr lieferbar)
This article is no longer available
31cogged washer external m8 8001370
COGGED WASHER EXTERNAL M8
0,54 €

excl. Shipping costs

immediately available
32schraube zylinderkopf innensechskant vollgewinde edelstahl m8x20 a2 70 din 912 8061169
Schraube Zylinderkopf Innensechskant Vollgewinde Edelstahl M8x20 A2-70 Din 912
2,67 €

excl. Shipping costs

immediately available
33deckel fuer siebtraegergriff 8003372
DECKEL FÜR SIEBTRÄGERGRIFF
6,45 €

excl. Shipping costs

immediately available, 1 available
34double spout o 3 8 25 00mm 8000123
DOUBLE SPOUT ø 3/8 - 25,00mm
7,14 €

excl. Shipping costs

immediately available, 6 available
352 cup filter 14 grams 8001101
2-CUP FILTER 14 GRAMS
7,02 €

excl. Shipping costs

immediately available
36club lady 1 cup pod filter 8001026
CLUB-LADY 1 CUP POD FILTER
This article is no longer available
361 cup filter 6 g 8001076
1 CUP FILTER 6 g
5,41 €

excl. Shipping costs

immediately available, 13 available
37paper seal o 64x53x0 7 mm 8002176
Paper seal ø 64x53x0,7 mm
0,54 €

excl. Shipping costs

immediately available
38brush for maintenance 8006154
BRUSH FOR MAINTENANCE
4,52 €

excl. Shipping costs

immediately available, 6 available
39stainless steel measuring spoon 20 ml 8000328
STAINLESS STEEL MEASURING SPOON 20 ml
4,97 €

excl. Shipping costs

Delivery time
is determined
40plastic measuring spoon 20 ml 8000327
PLASTIC MEASURING SPOON 20 ml
1,73 €

excl. Shipping costs

immediately available, 6 available
41brush for coffee shower 8006153
BRUSH FOR COFFEE SHOWER
3,92 €

excl. Shipping costs

immediately available
42black shower cleaning brush 8006155
BLACK SHOWER CLEANING BRUSH
14,07 €

excl. Shipping costs

immediately available, 6 available
43nylon coffee tamper 8006165
NYLON COFFEE TAMPER
2,75 €

excl. Shipping costs

immediately available, 5 available

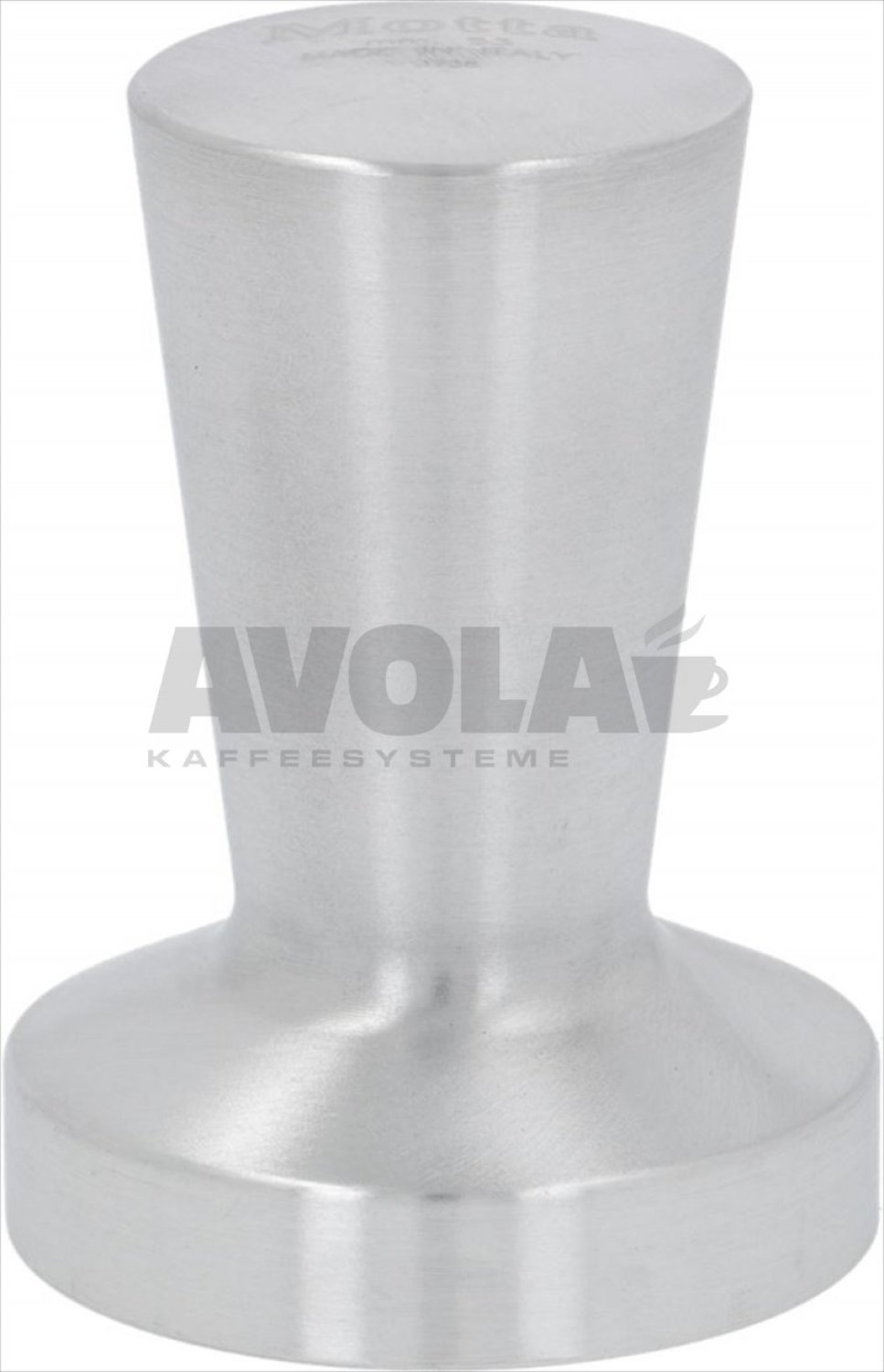

44anodised aluminum tamper o 53 mm 8006192
ANODISED ALUMINUM TAMPER ø 53 mm
30,63 €

excl. Shipping costs

Delivery time
is determined
45dynamometric manual tamper 8006218
DYNAMOMETRIC MANUAL TAMPER
185,74 €

excl. Shipping costs

Delivery time 4-6 weeks..

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
