Brasilia

BRASILIA GRUPPE KAFFEEAUSGABE ERSTE SERIE

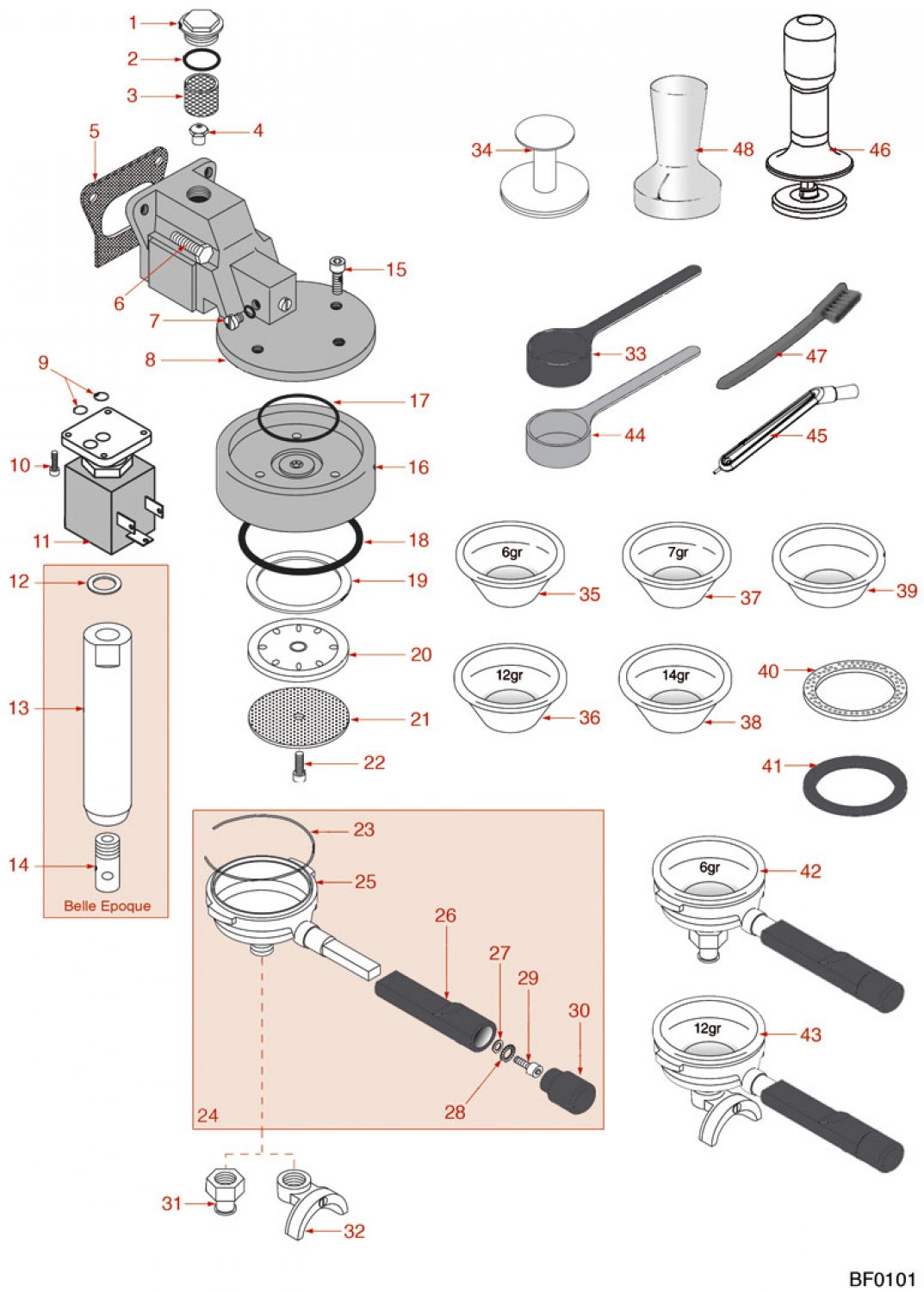

Drawing number 8038641

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.:Image:Description:Qty.:
1cap o 18 mm8006374
CAP ø 18 mm
7,09 €

excl. Shipping costs
immediately available, 2 available
2o ring 0119 epdm8001650
O-RING 0119 EPDM
1,06 €

excl. Shipping costs
immediately available
3water filter o 14x10x12 mm8001107
WATER FILTER ø 14x10x12 mm
2,95 €

excl. Shipping costs
immediately available
4nozzle m5x1 hole8006966
NOZZLE M5x1 HOLE
1,95 €

excl. Shipping costs
immediately available, 11 available
5coffee group gasket 77x51x3 mm8001845
COFFEE GROUP GASKET 77x51x3 mm
4,06 €

excl. Shipping costs
immediately available, 11 available

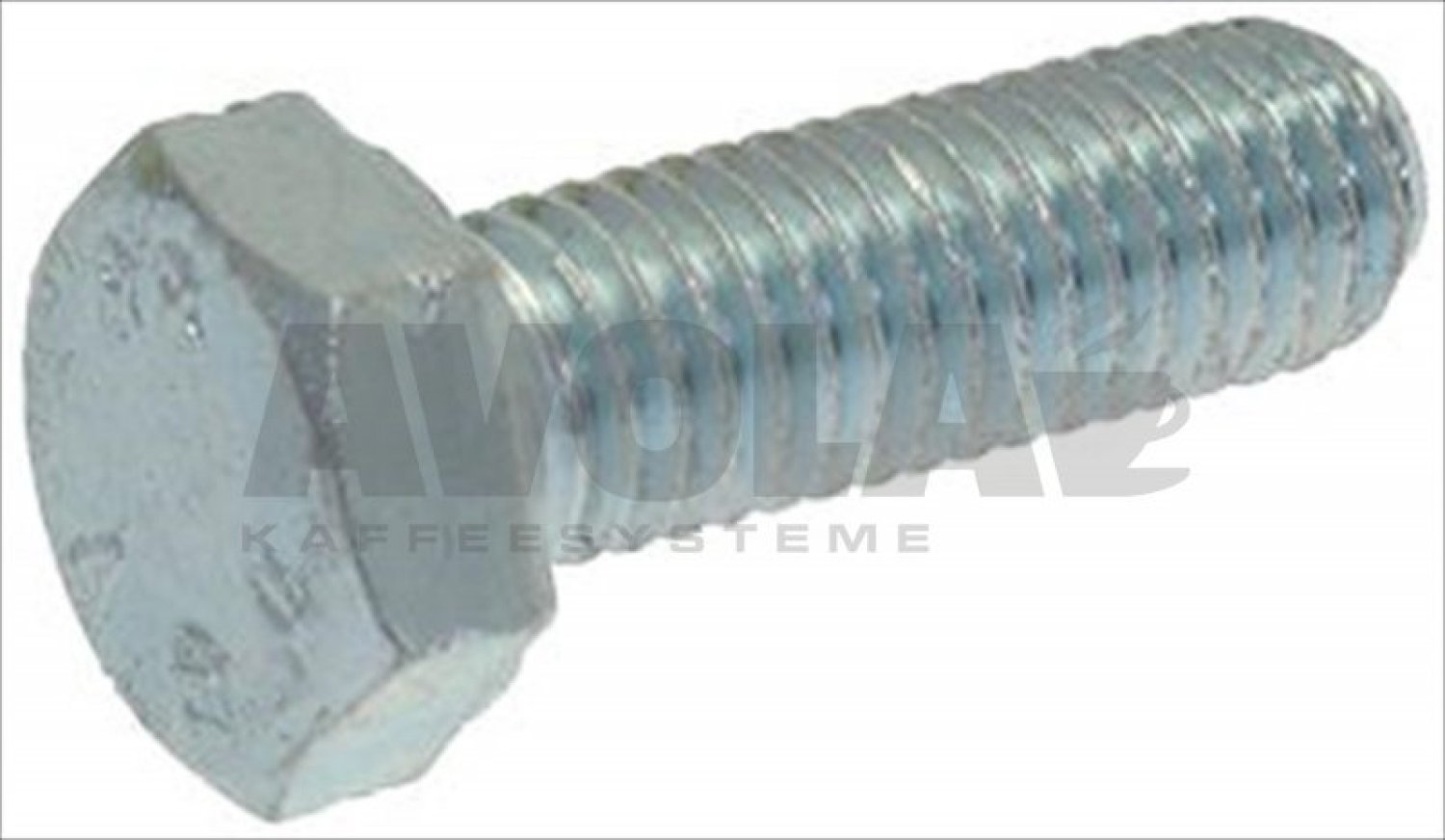

6hexagon head screw m8x258001291
HEXAGON HEAD SCREW M8x25
1,12 €

excl. Shipping costs
immediately available, 18 available
7cap8006969
CAP
4,59 €

excl. Shipping costs
Delivery time 4-6 weeks..
9red silicone o ring r5 gasket8001809
RED SILICONE O-RING R5 GASKET
1,34 €

excl. Shipping costs
immediately available
9o ring 02025 viton8001810
O-RING 02025 VITON
0,87 €

excl. Shipping costs
immediately available
10schraube zylinderkopf innensechskant vollgewinde edelstahl m4x10 a2 70 din 9128061180
Schraube Zylinderkopf Innensechskant Vollgewinde Edelstahl M4x10 A2-70 Din 912
0,67 €

excl. Shipping costs
immediately available
113 way solenoid valve lucifer 240v 50hz8000955
3-WAY SOLENOID VALVE LUCIFER 240V 50Hz
52,36 €

excl. Shipping costs
immediately available, 12 available
113 way solenoid valve parker 230v 50 60hz8000960
3-WAY SOLENOID VALVE PARKER 230V 50/60Hz
53,55 €

excl. Shipping costs
immediately available, 14 available

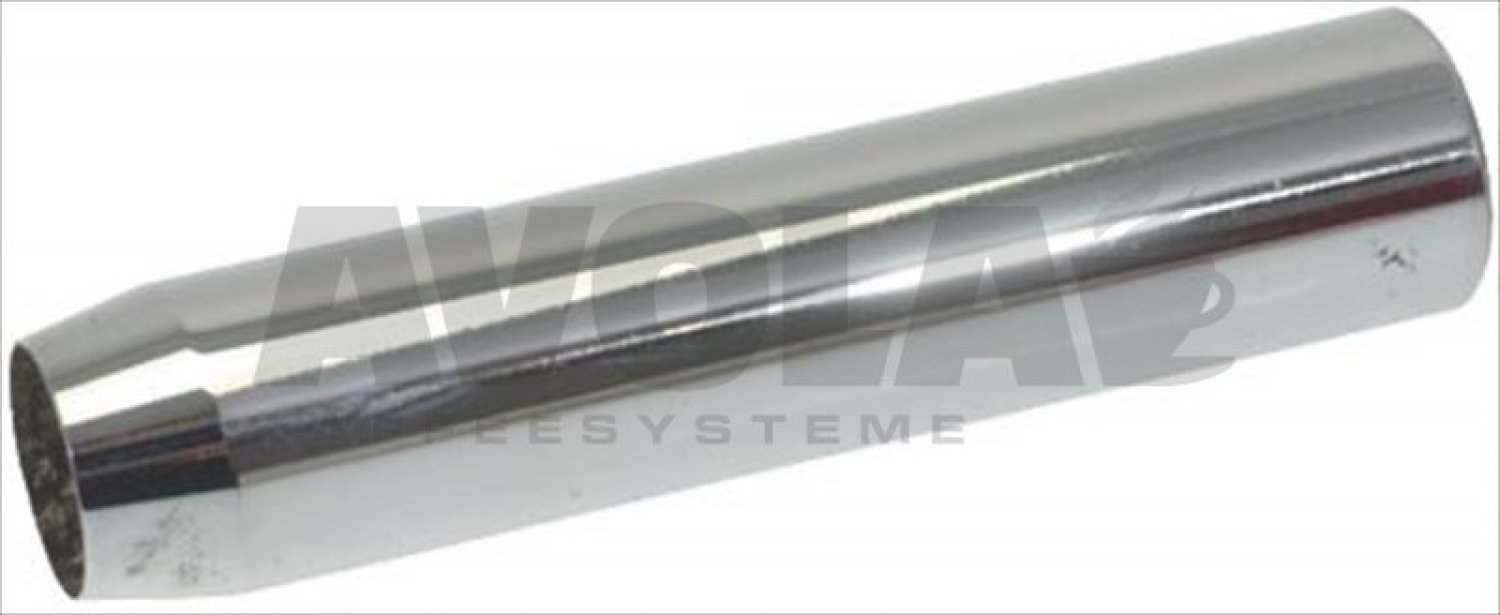

13drain pipe8006560
DRAIN PIPE
This article is no longer available

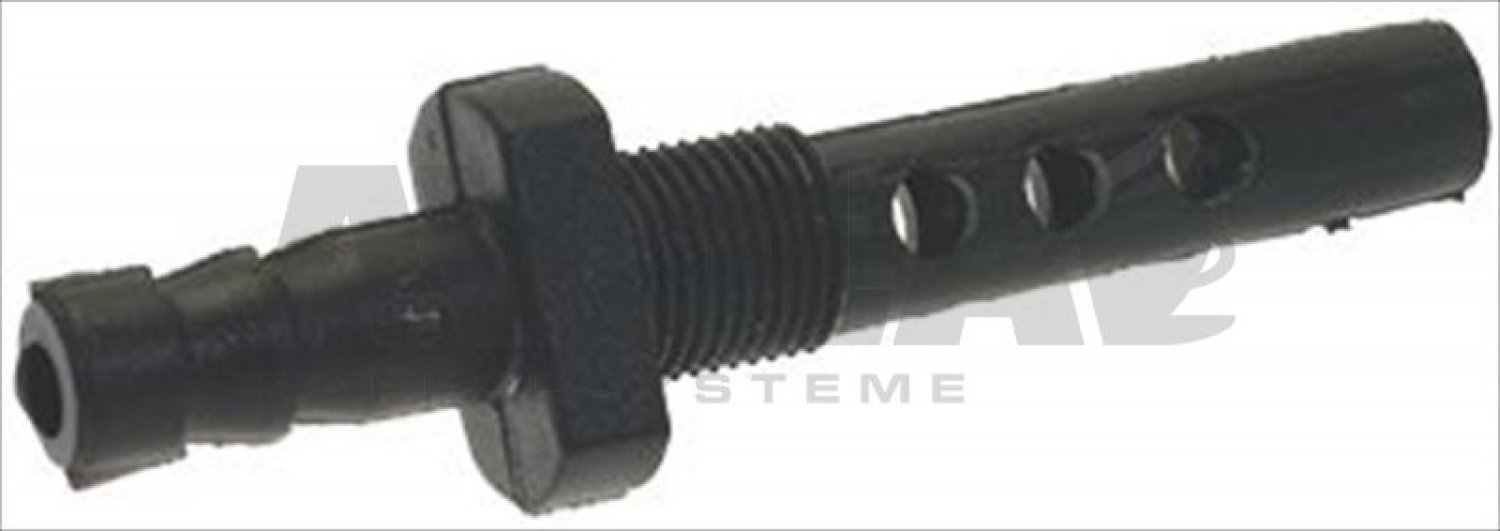

14auslaufverteiler fuer auslaufrohr nicht mehr lieferbar8006556
AUSLAUFVERTEILER FÜR AUSLAUFROHR (nicht mehr lieferbar)
This article is no longer available
15cylinder head screw m5x108001294
CYLINDER HEAD SCREW M5x10
1,01 €

excl. Shipping costs
immediately available

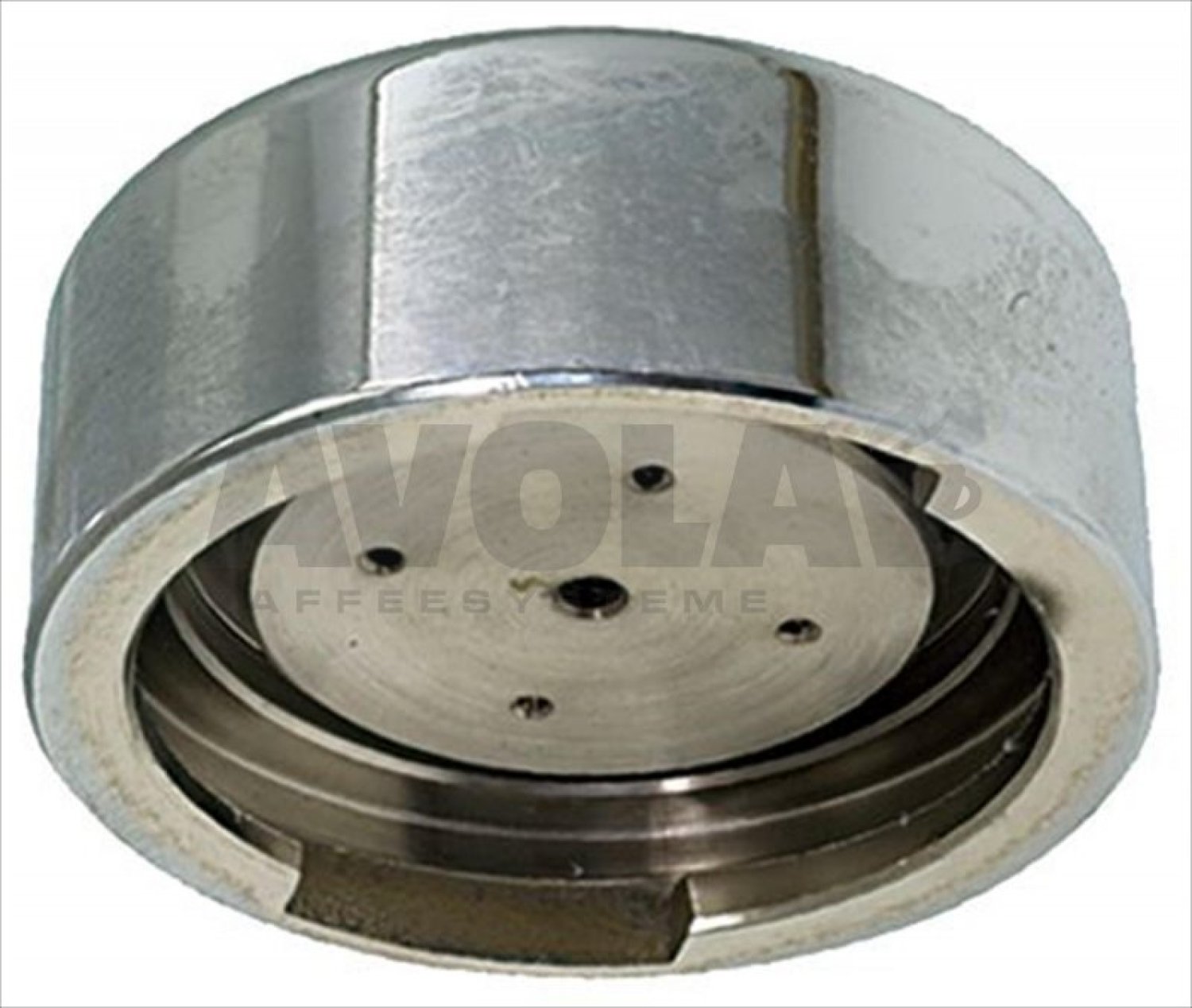

16filter holder coupling8000011
FILTER HOLDER COUPLING
61,80 €

excl. Shipping costs
immediately available, 1 available

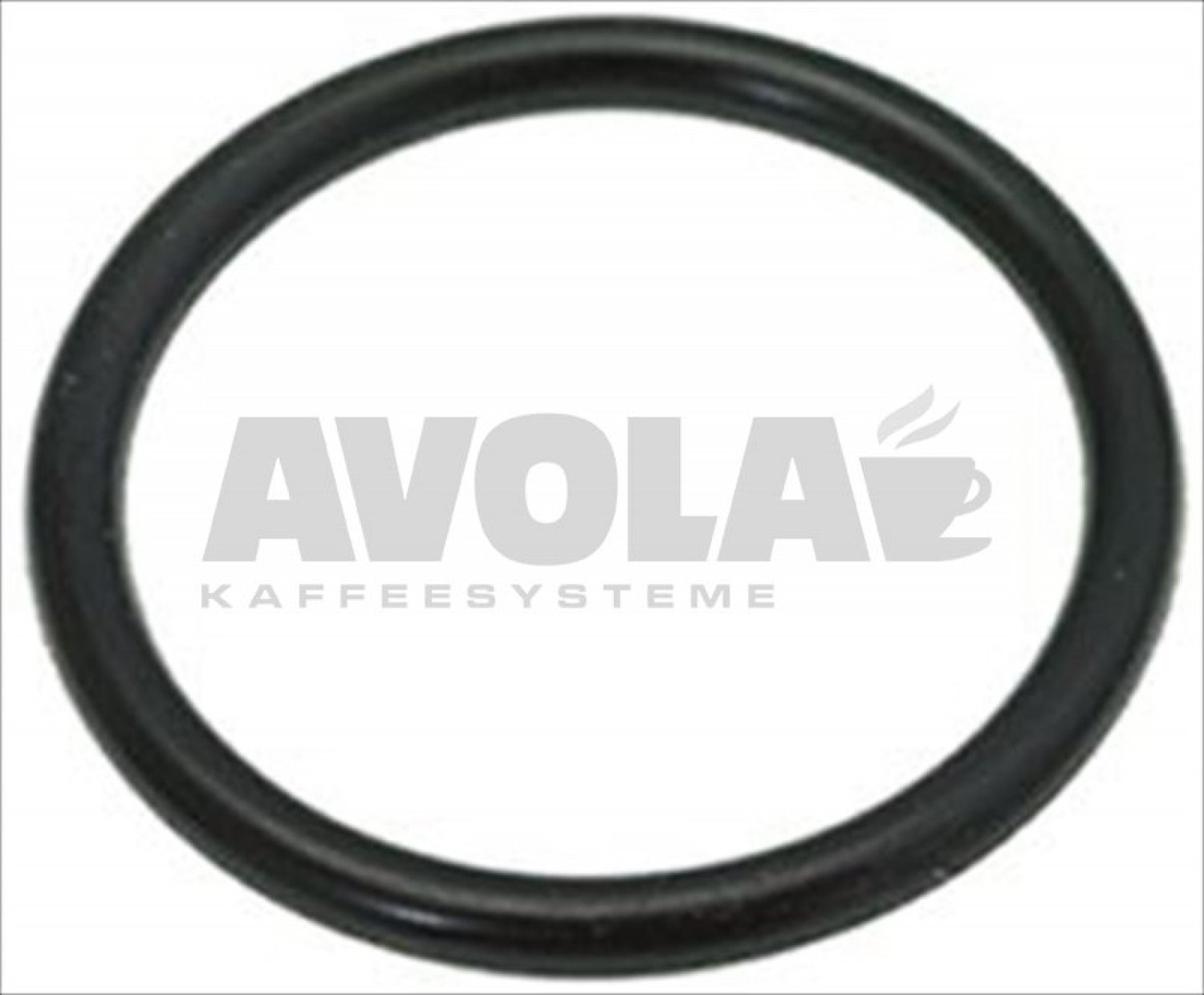

17o ring 04131 epdm o40mm8001847
O-RING 04131 EPDM Ø40mm
1,62 €

excl. Shipping costs
immediately available
17o ring 03187 epdm8013757
O-RING 03187 EPDM
2,08 €

excl. Shipping costs
immediately available, 17 available
18o ring 03187 epdm8013757
O-RING 03187 EPDM
2,08 €

excl. Shipping costs
immediately available, 17 available

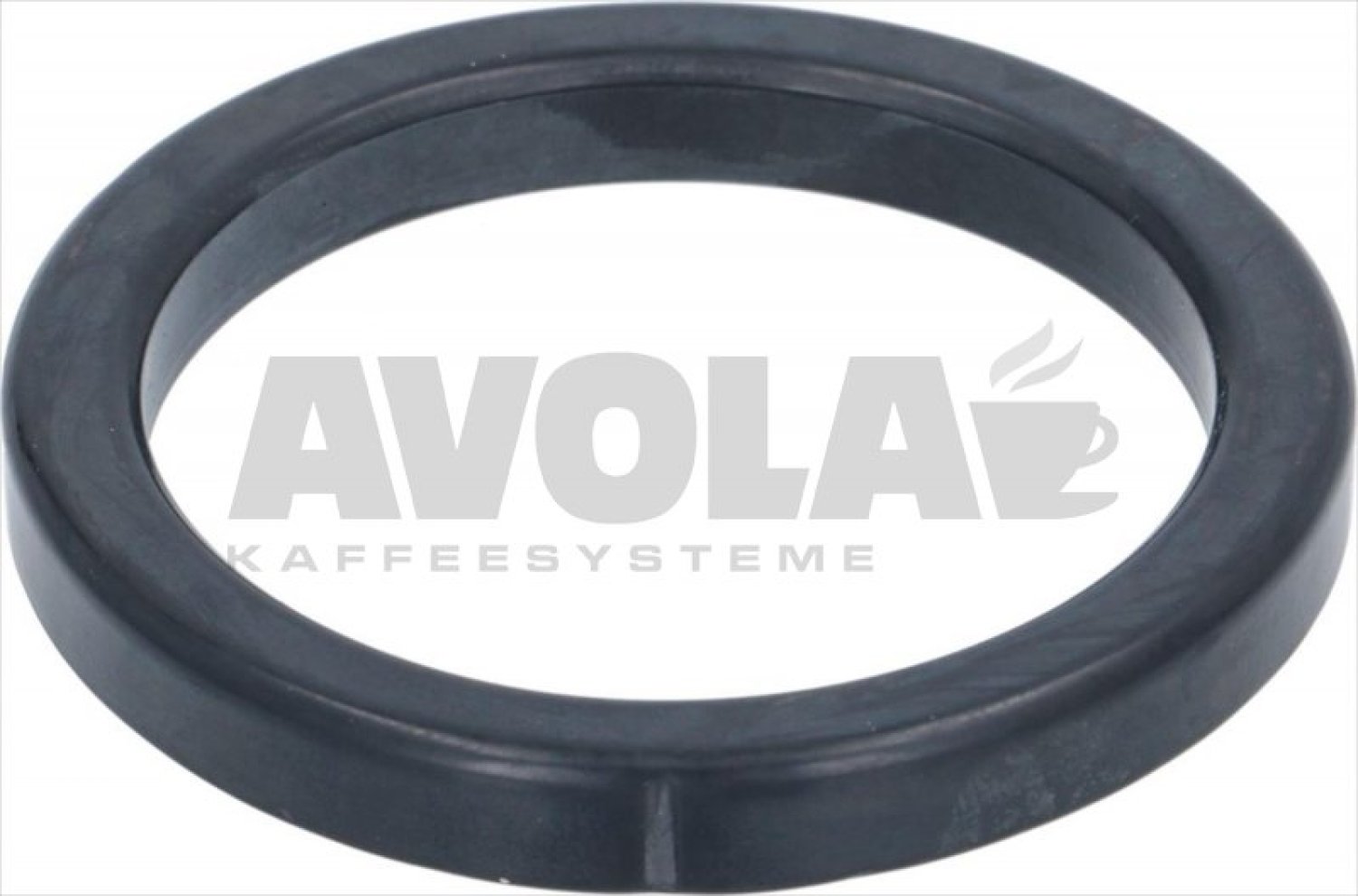

19filter holder gasket8001846
FILTER HOLDER GASKET
5,51 €

excl. Shipping costs
immediately available
19filter holder gasket o 66x56x6 mm8001848
FILTER HOLDER GASKET ø 66x56x6 mm
5,70 €

excl. Shipping costs
immediately available

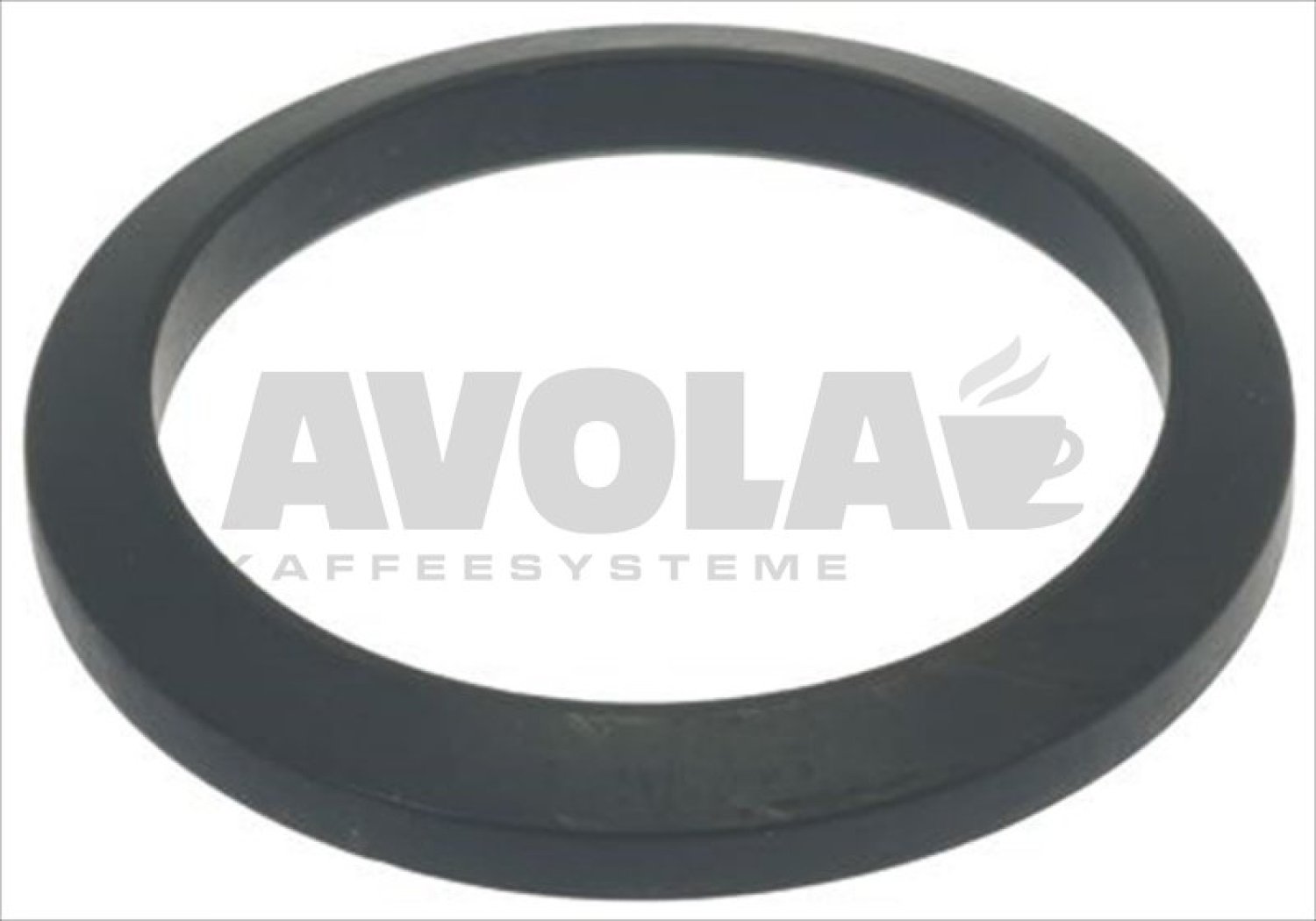

19filter holder gasket8001849
FILTER HOLDER GASKET
5,49 €

excl. Shipping costs
immediately available
19filter holder gasket o 67x56 5x5 3 mm8014620
FILTER HOLDER GASKET ø 67x56,5x5,3 mm
5,00 €

excl. Shipping costs
immediately available, 14 available

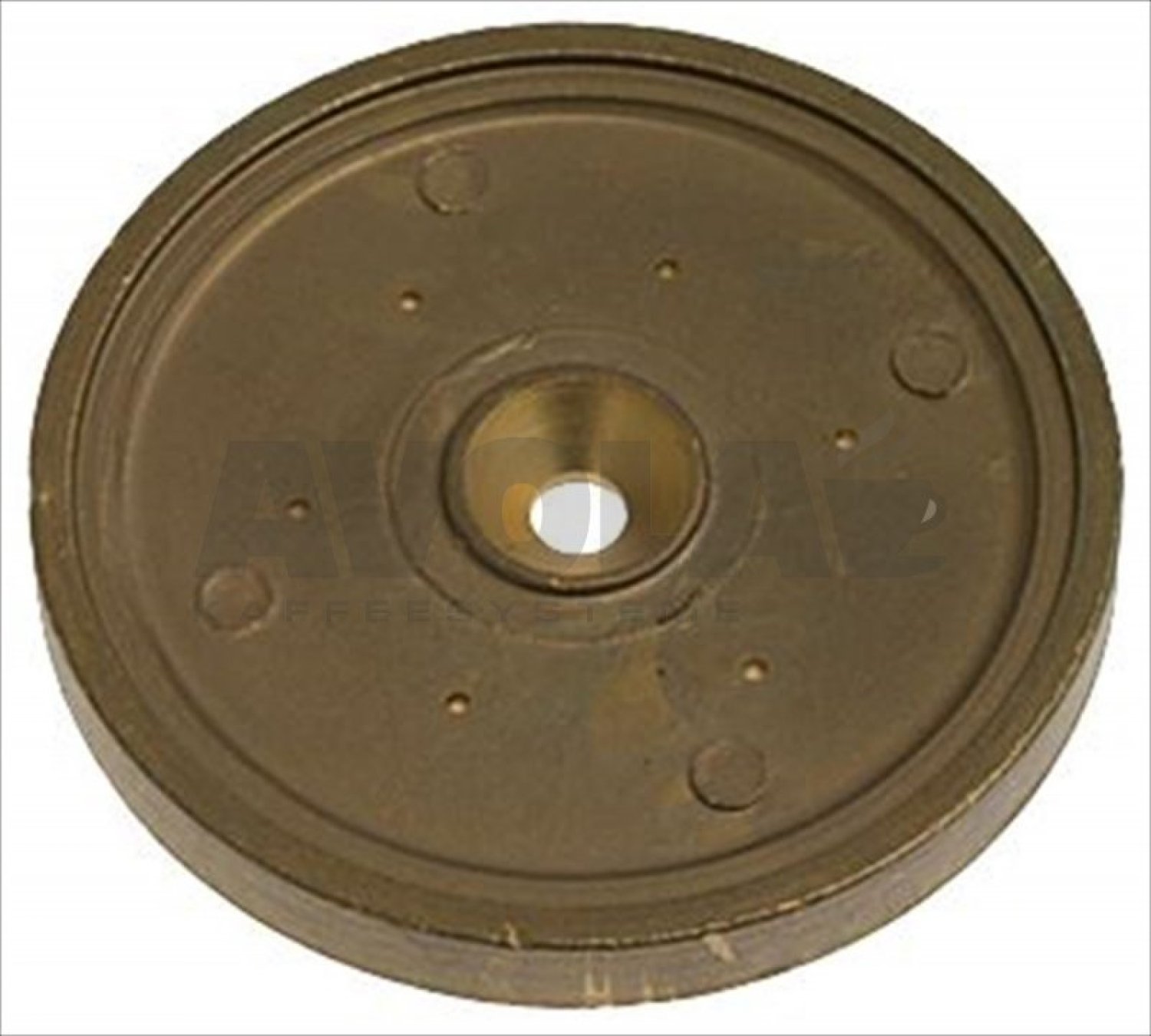

20wasserverteiler fuer duschentraeger8001302
WASSERVERTEILER FÜR DUSCHENTRÄGER
20,11 €

excl. Shipping costs
immediately available, 1 available
21shower 51 50 mm8000552
SHOWER 51,50 MM
4,56 €

excl. Shipping costs
immediately available
22countersunk head screws with shell m5x128007318
COUNTERSUNK HEAD SCREWS WITH SHELL M5x12
0,62 €

excl. Shipping costs
immediately available
23filter blocking spring o 1 00 mm8003622
FILTER BLOCKING SPRING ø 1,00 mm
1,05 €

excl. Shipping costs
immediately available
24siebtraeger komplett brasilia nicht mehr lieferbar8001170
SIEBTRÄGER KOMPLETT BRASILIA (nicht mehr lieferbar)
This article is no longer available
25siebtraeger fuer kaffeemaschinen brasilia nicht mehr lieferbar8001165
SIEBTRÄGER FÜR KAFFEEMASCHINEN BRASILIA (nicht mehr lieferbar)
This article is no longer available
26filter knob m128003171
FILTER KNOB M12
10,16 €

excl. Shipping costs
Delivery time
is determined
26filter holder handle m128003349
FILTER HOLDER HANDLE M12
7,79 €

excl. Shipping costs
immediately available, 4 available
28cogged washer external m88001370
COGGED WASHER EXTERNAL M8
0,54 €

excl. Shipping costs
immediately available
29schraube zylinderkopf innensechskant vollgewinde edelstahl m8x20 a2 70 din 9128061169
Schraube Zylinderkopf Innensechskant Vollgewinde Edelstahl M8x20 A2-70 Din 912
2,67 €

excl. Shipping costs
immediately available

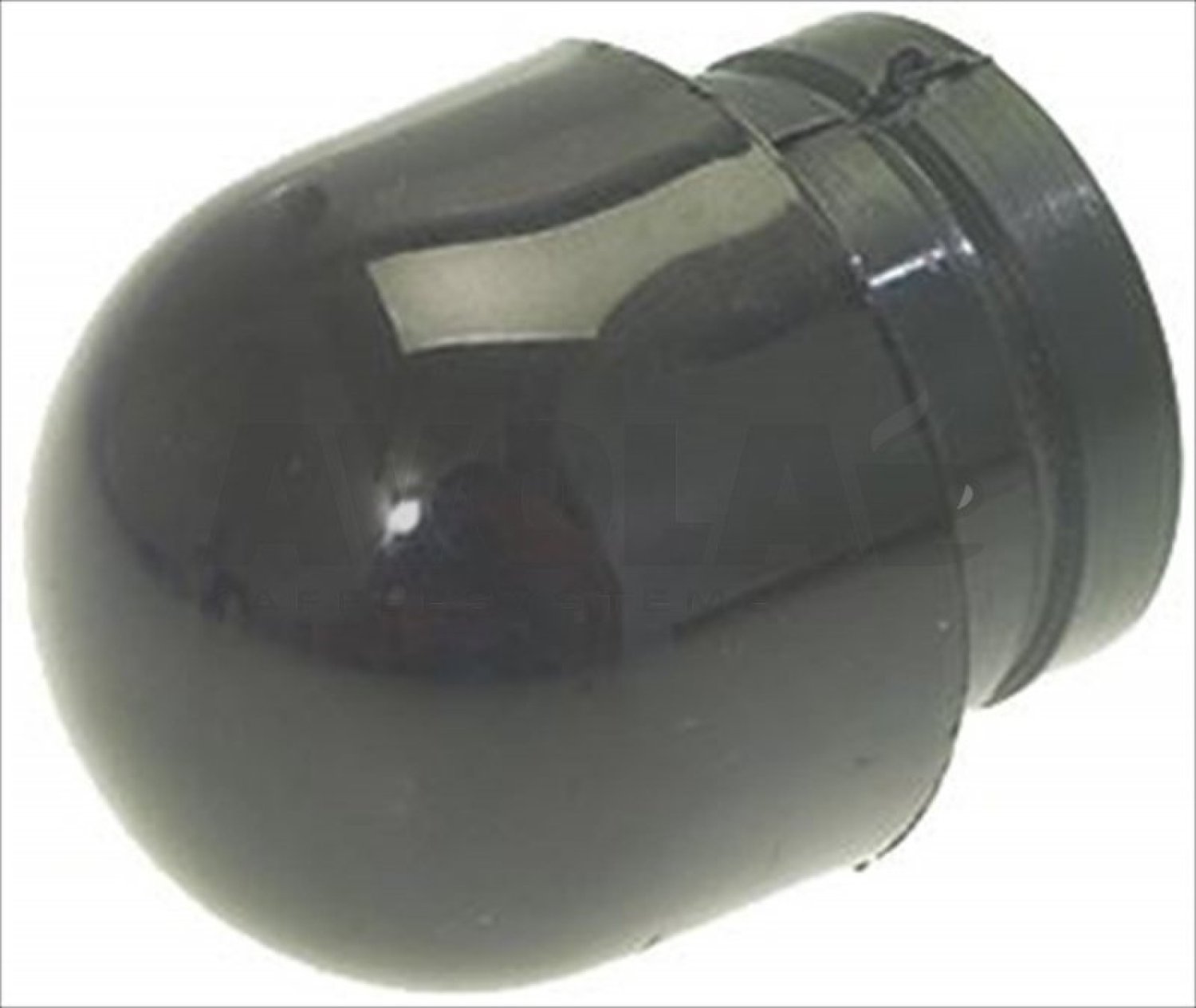

30deckel fuer siebtraegergriff8003372
DECKEL FÜR SIEBTRÄGERGRIFF
6,45 €

excl. Shipping costs
immediately available, 1 available
31single spout o 3 88000110
SINGLE SPOUT ø 3/8
6,06 €

excl. Shipping costs
immediately available, 9 available
31straight single spout o 3 88000112
STRAIGHT SINGLE SPOUT ø 3/8
4,09 €

excl. Shipping costs
immediately available, 5 available
32lelit siebtraegerauslauf 2er o 3 8 quot rund auslauf vorne8280537
Lelit Siebträgerauslauf 2er ø 3/8" rund Auslauf vorne
This article is no longer available
32double spout o 3 88000111
DOUBLE SPOUT ø 3/8
7,27 €

excl. Shipping costs
immediately available, 6 available
33plastic measuring spoon 20 ml8000327
PLASTIC MEASURING SPOON 20 ml
1,73 €

excl. Shipping costs
immediately available, 8 available
34nylon coffee tamper8006165
NYLON COFFEE TAMPER
2,75 €

excl. Shipping costs
immediately available, 7 available
351 cup filter 6 g8001076
1 CUP FILTER 6 g
5,41 €

excl. Shipping costs
immediately available, 9 available
362 cup filter 12 grams8001077
2-CUP FILTER 12 GRAMS
5,41 €

excl. Shipping costs
immediately available, 12 available
371 cup filter 7 g8001120
1 CUP FILTER 7 g
6,50 €

excl. Shipping costs
immediately available, 17 available
382 cup filter 14 grams8001101
2-CUP FILTER 14 GRAMS
7,02 €

excl. Shipping costs
immediately available
39blind filter o58mm8001103
BLIND FILTER Ø58mm
2,56 €

excl. Shipping costs
immediately available
40paper shim o 73x59x0 8 mm8002167
Paper shim ø 73x59x0,8 mm
0,49 €

excl. Shipping costs
immediately available
40paper seal o 66x58x0 8 mm8002174
PAPER SEAL ø 66x58x0,8 mm
0,51 €

excl. Shipping costs
immediately available
41rubber shim o 73 5x59x1 mm epdm8002168
RUBBER SHIM ø 73,5x59x1 mm EPDM
1,05 €

excl. Shipping costs
immediately available

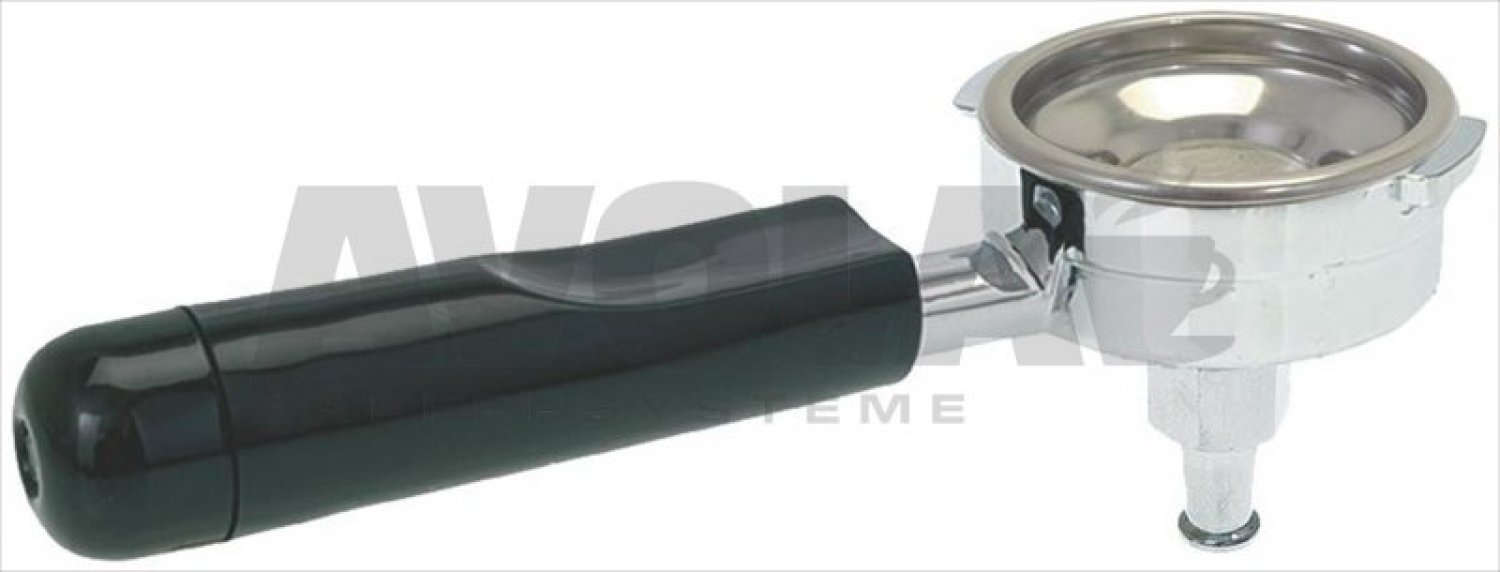

42filterhalter komplett 1 tasse brasilia8001269
FILTERHALTER KOMPLETT 1 TASSE BRASILIA
This article is no longer available
43filterhalter komplett 2 tasse brasilia8001270
FILTERHALTER KOMPLETT 2 TASSE BRASILIA
This article is no longer available
44stainless steel measuring spoon 20 ml8000328
STAINLESS STEEL MEASURING SPOON 20 ml
4,97 €

excl. Shipping costs
Delivery time
is determined
45brush for coffee shower8006153
BRUSH FOR COFFEE SHOWER
3,92 €

excl. Shipping costs
immediately available
46dynamometric manual coffee tamper8006217
DYNAMOMETRIC MANUAL COFFEE TAMPER
194,40 €

excl. Shipping costs
Delivery time
is determined
47brush for maintenance8006154
BRUSH FOR MAINTENANCE
4,52 €

excl. Shipping costs
immediately available, 7 available
48anodised aluminum tamper o 58 mm8006191
ANODISED ALUMINUM TAMPER ø 58 mm
36,85 €

excl. Shipping costs
Delivery time
is determined

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
