Brasilia

BRASILIA HAHN CLUB-LADY-BAR-AMERICA

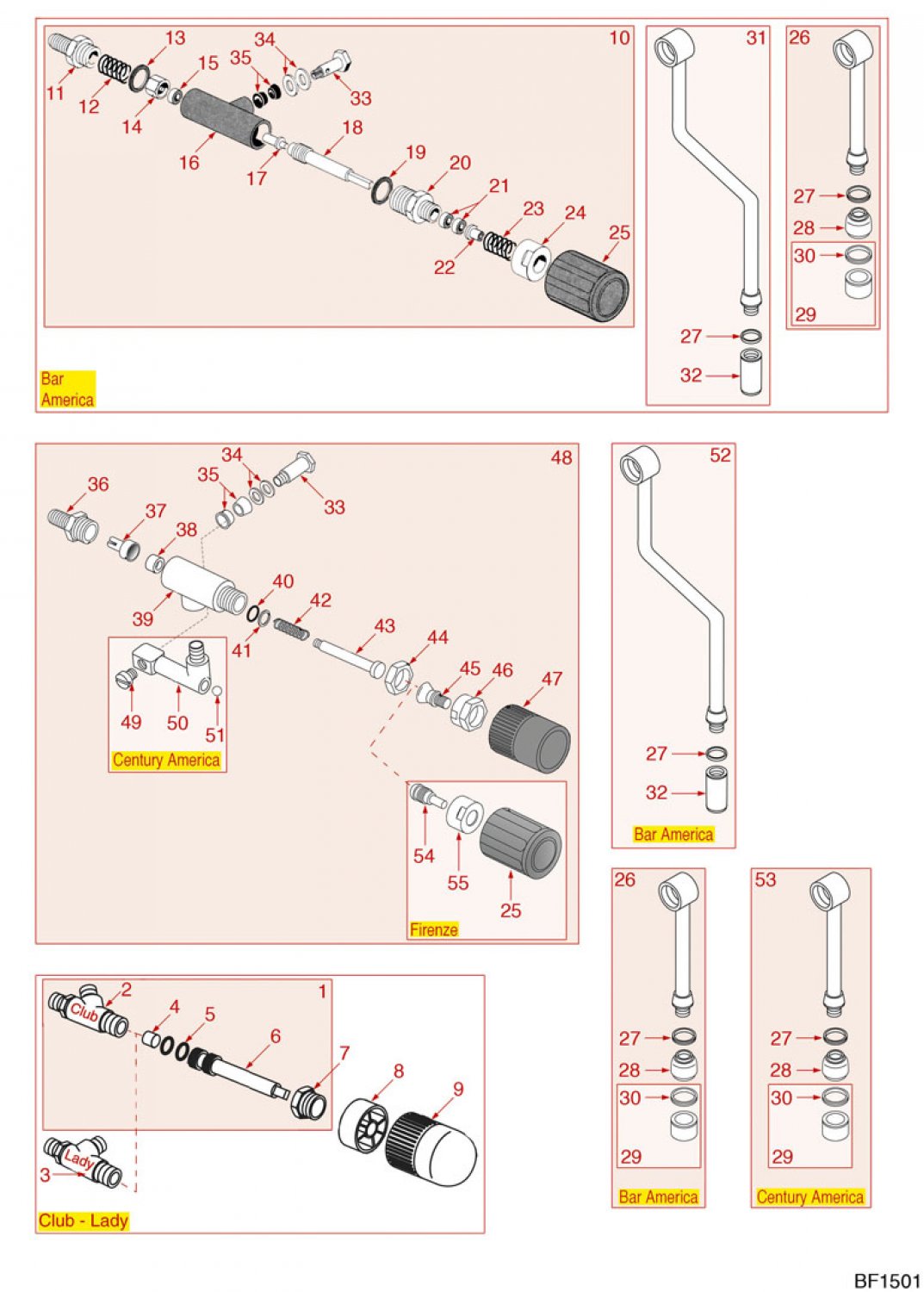

Drawing number 8038654

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.: Image: Description: Qty.:

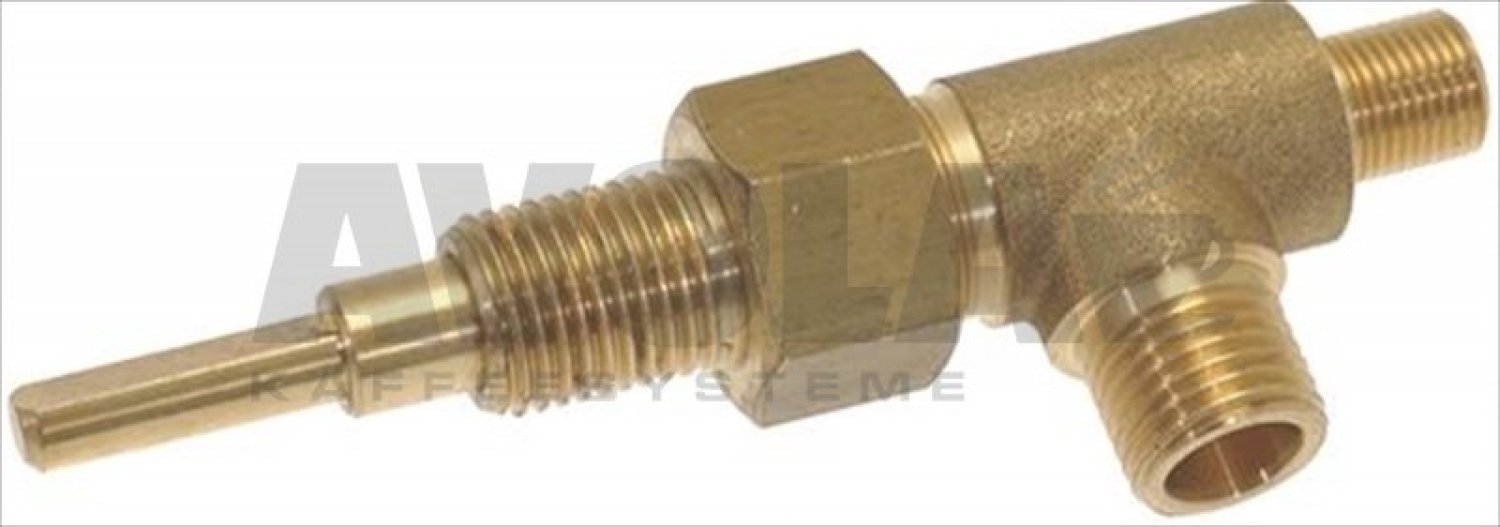

1hahn brasilia club nicht mehr lieferbar 8005557
HAHN BRASILIA CLUB (nicht mehr lieferbar)
This article is no longer available

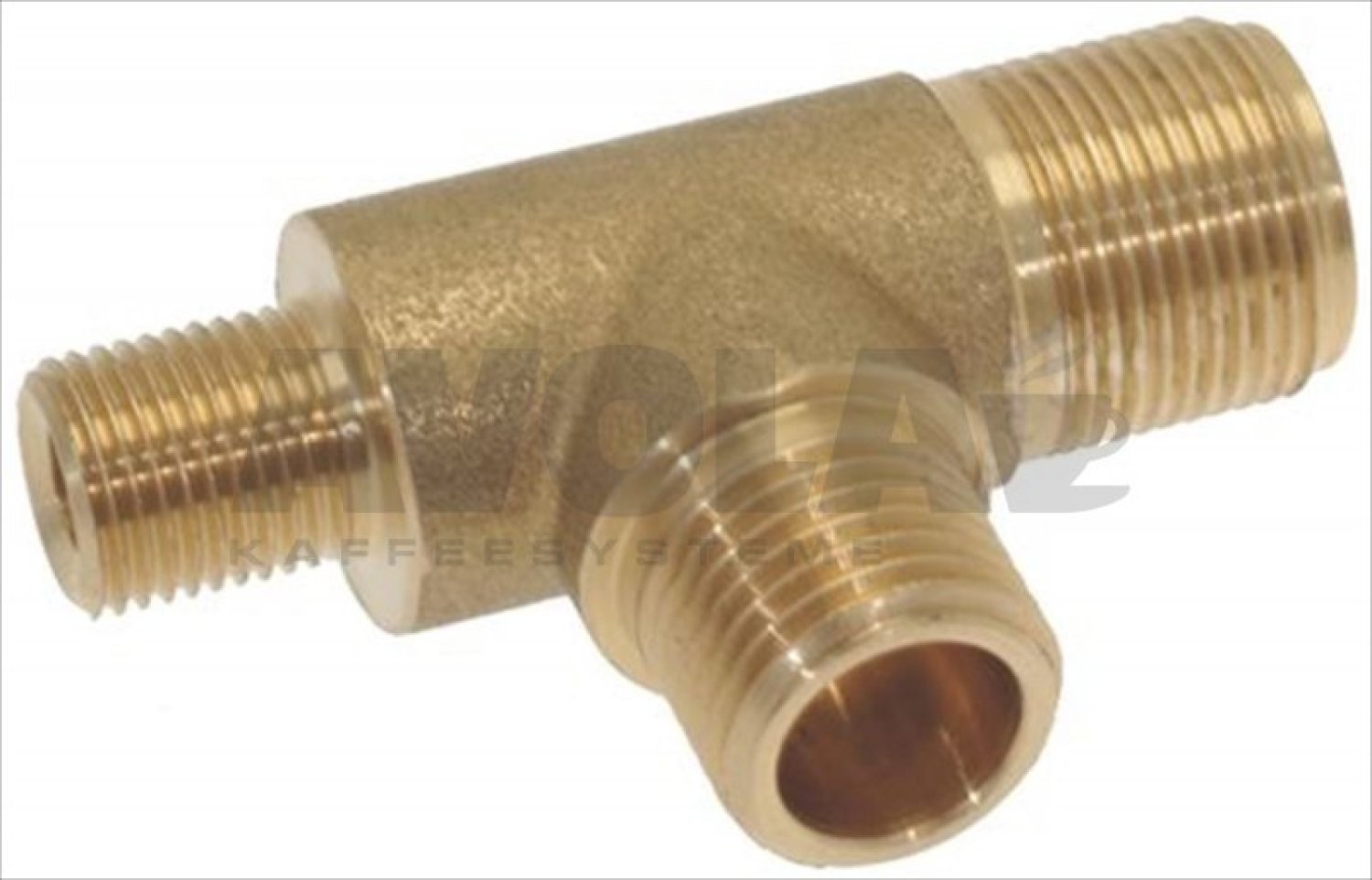

2tap assembly club 8005453
TAP ASSEMBLY CLUB
7,56 €

excl. Shipping costs

Delivery time 4-6 weeks..

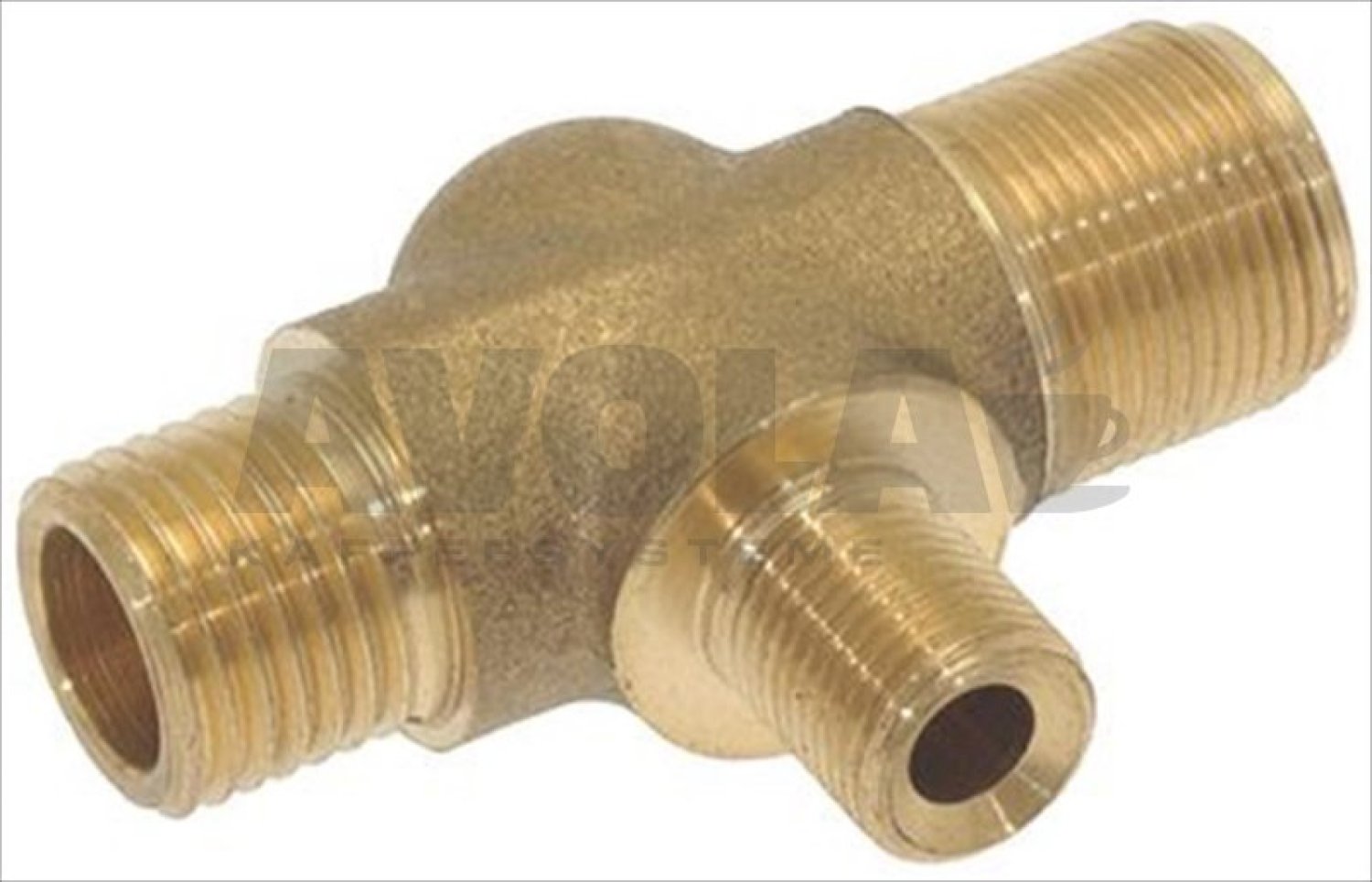

3tap body lady 8005442
TAP BODY LADY
This article is no longer available

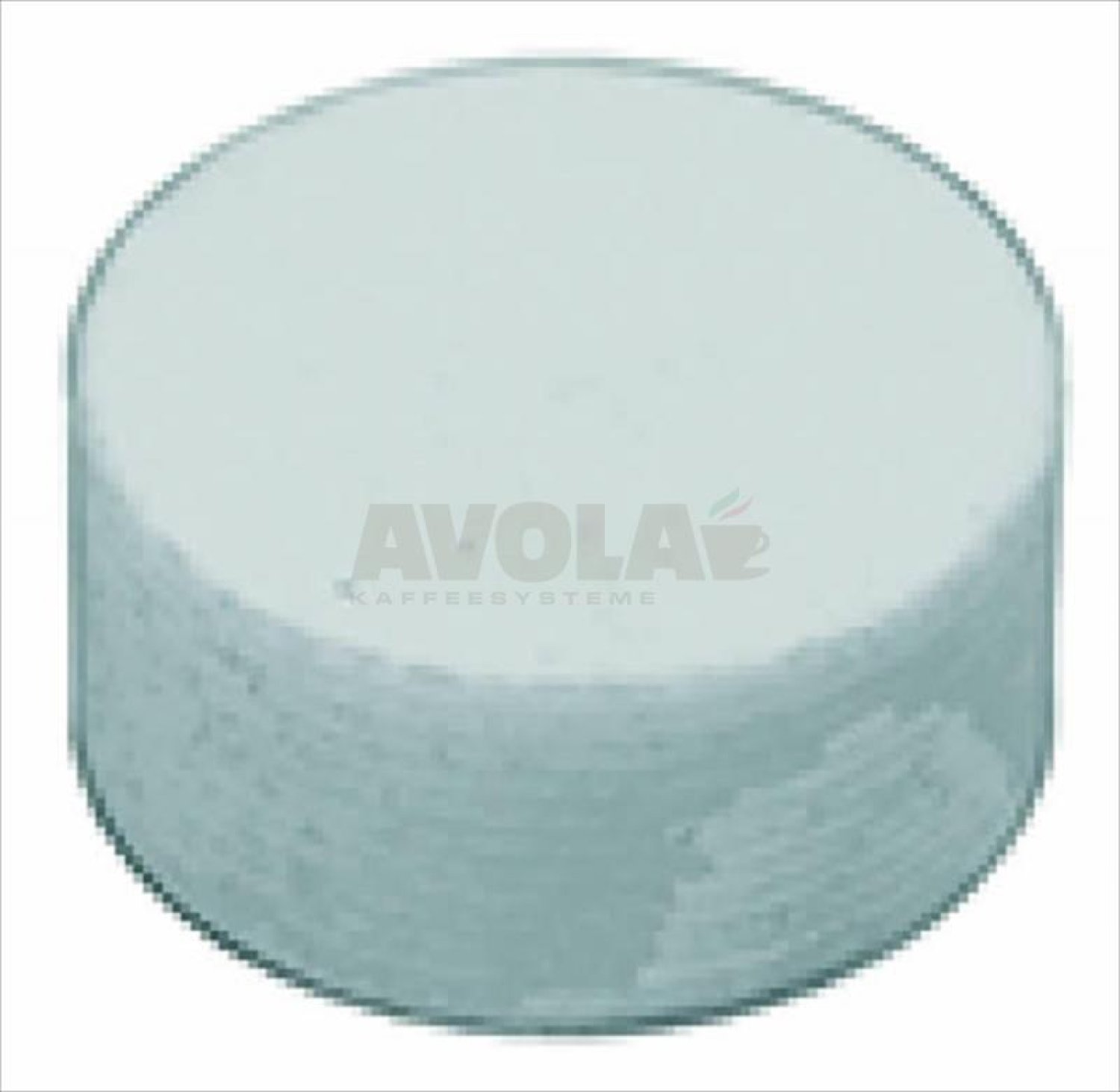

4blinddichtung 6x2 mm 8001368
Blinddichtung 6x2 mm
1,19 €

excl. Shipping costs

immediately available
5o ring 02031 epdm 8001647
O-RING 02031 EPDM
1,18 €

excl. Shipping costs

immediately available

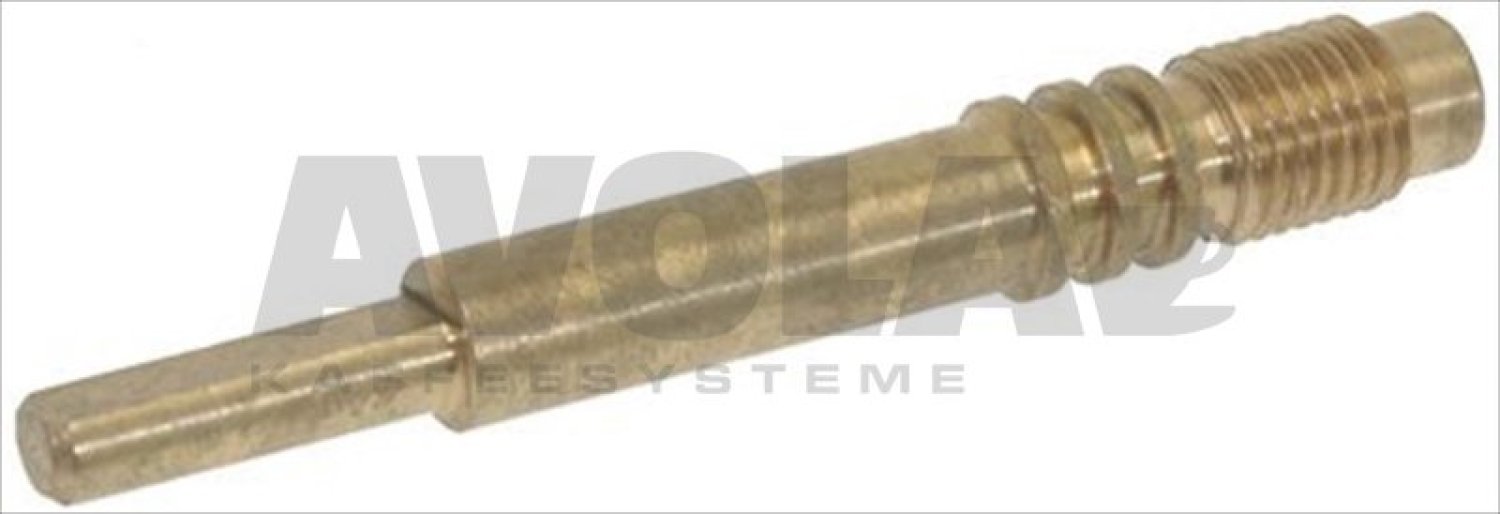

6stift fuer drehknopf nicht mehr lieferbar 8005104
STIFT FÜR DREHKNOPF (nicht mehr lieferbar)
This article is no longer available

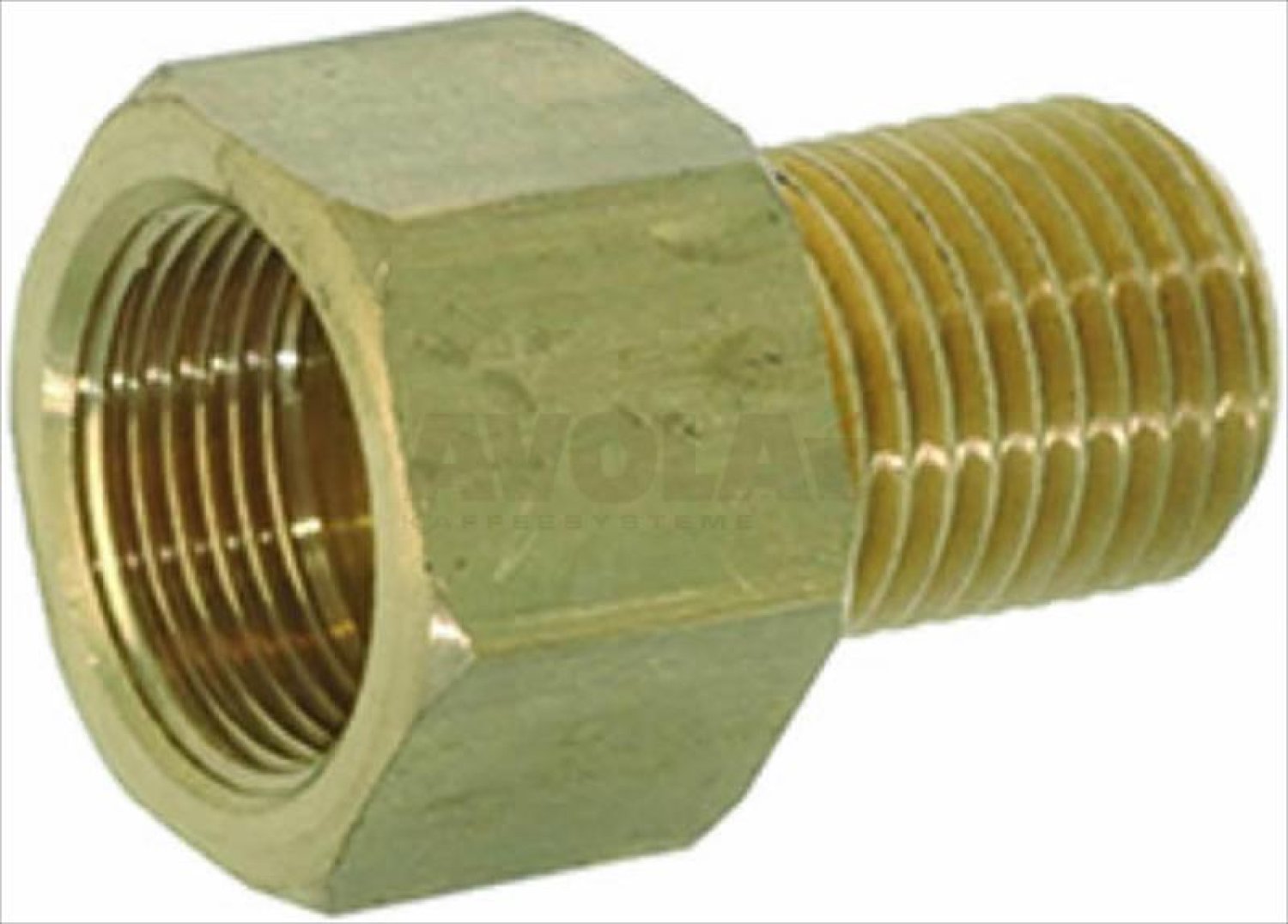

7top fitting 8005445
TOP FITTING
4,00 €

excl. Shipping costs

Delivery time
is determined

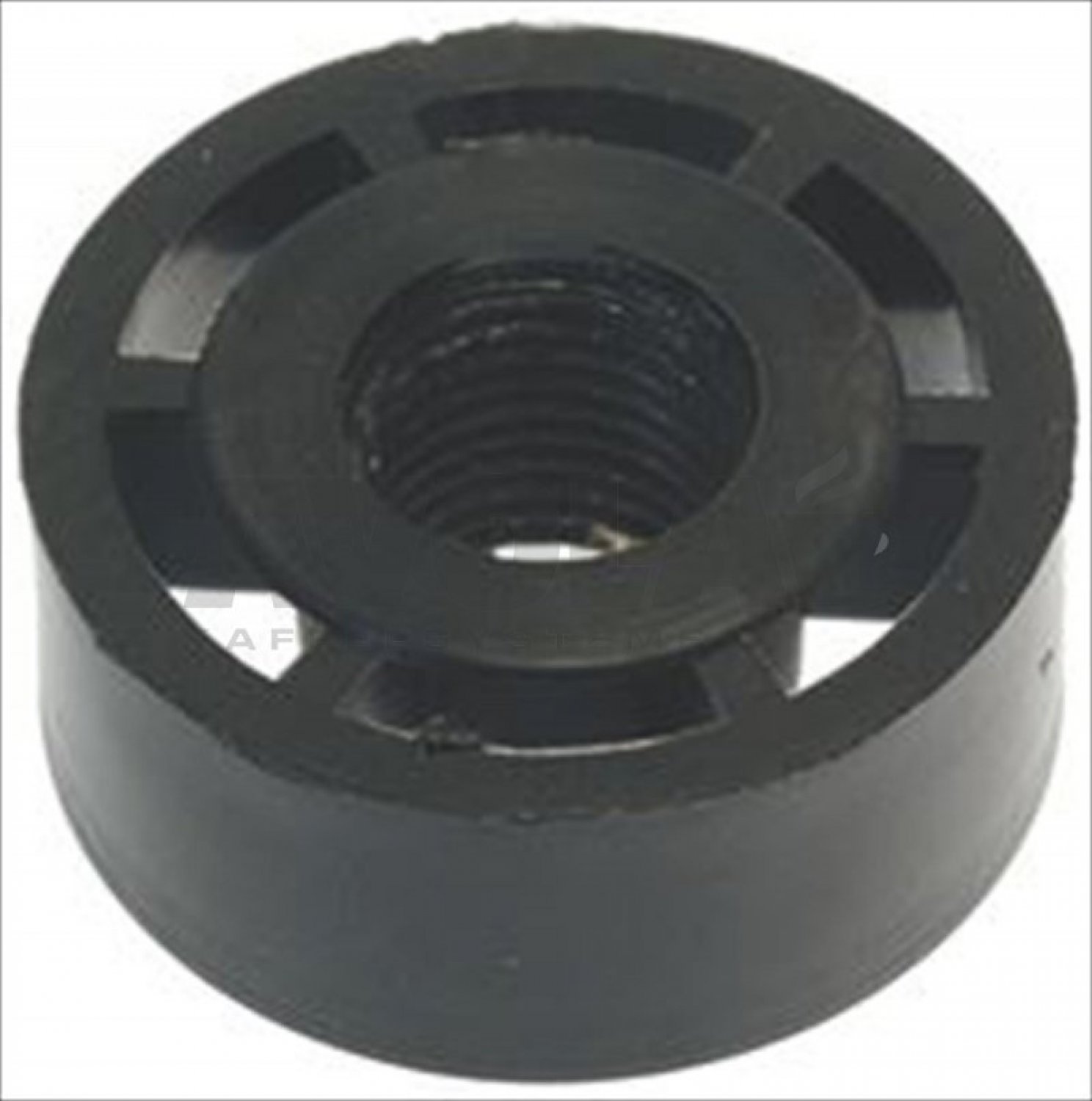

8ring fuer drehknopf nicht mehr lieferbar 8003117
RING FÜR DREHKNOPF (nicht mehr lieferbar)
This article is no longer available

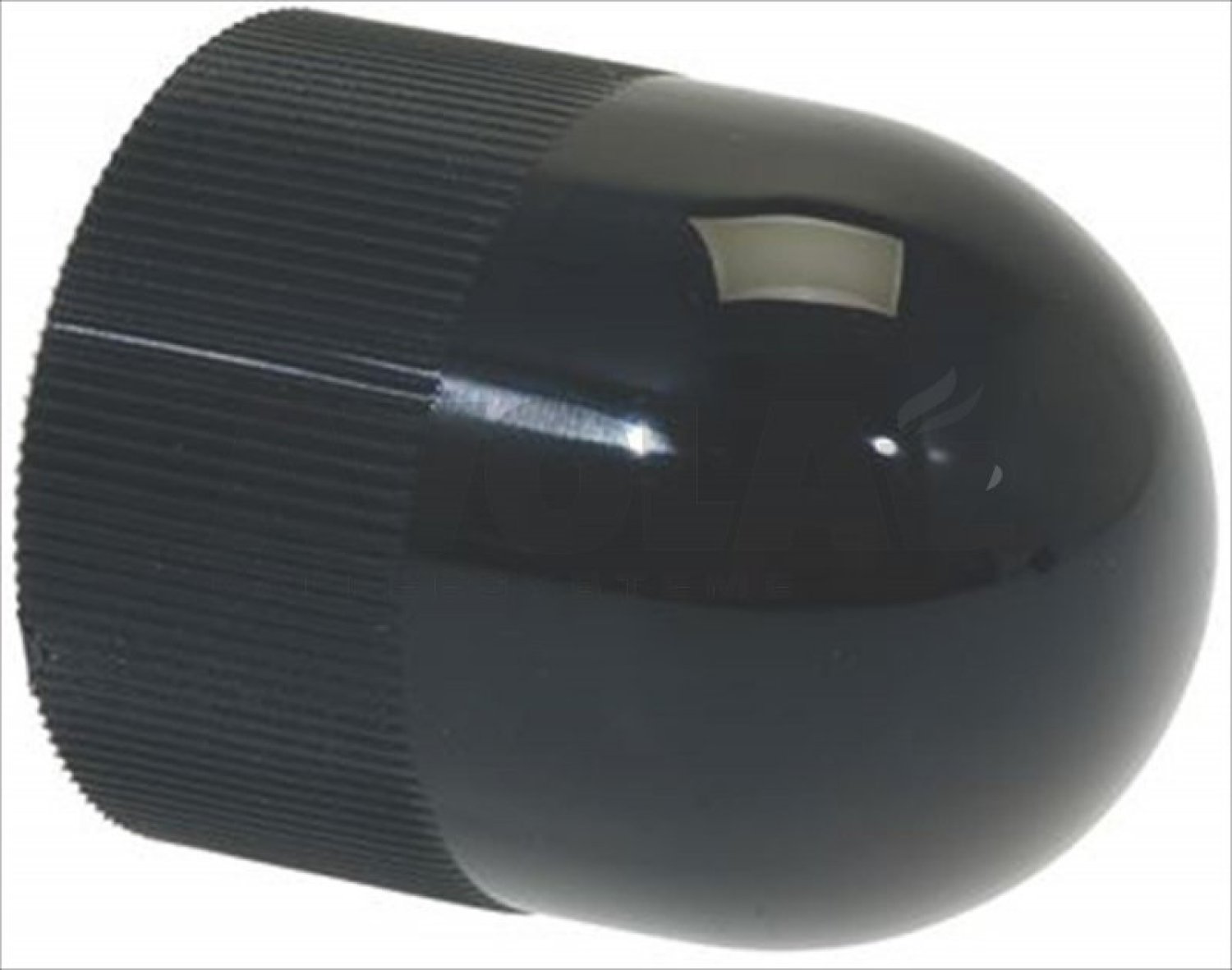

9drehknopf fuer dampfhahn nicht mehr lieferbar 8003373
DREHKNOPF FÜR DAMPFHAHN (nicht mehr lieferbar)
This article is no longer available

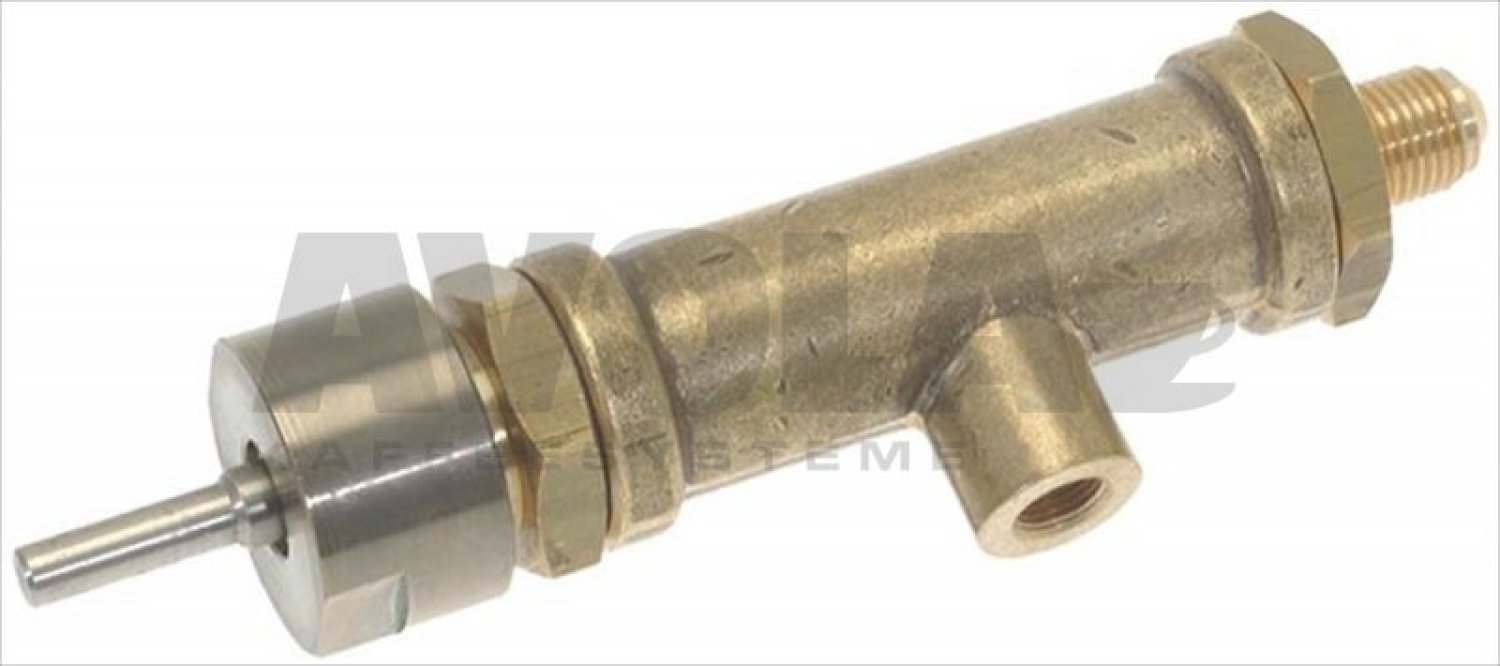

10bar tap assembly 8005550
BAR TAP ASSEMBLY
97,84 €

excl. Shipping costs

immediately available, 4 available

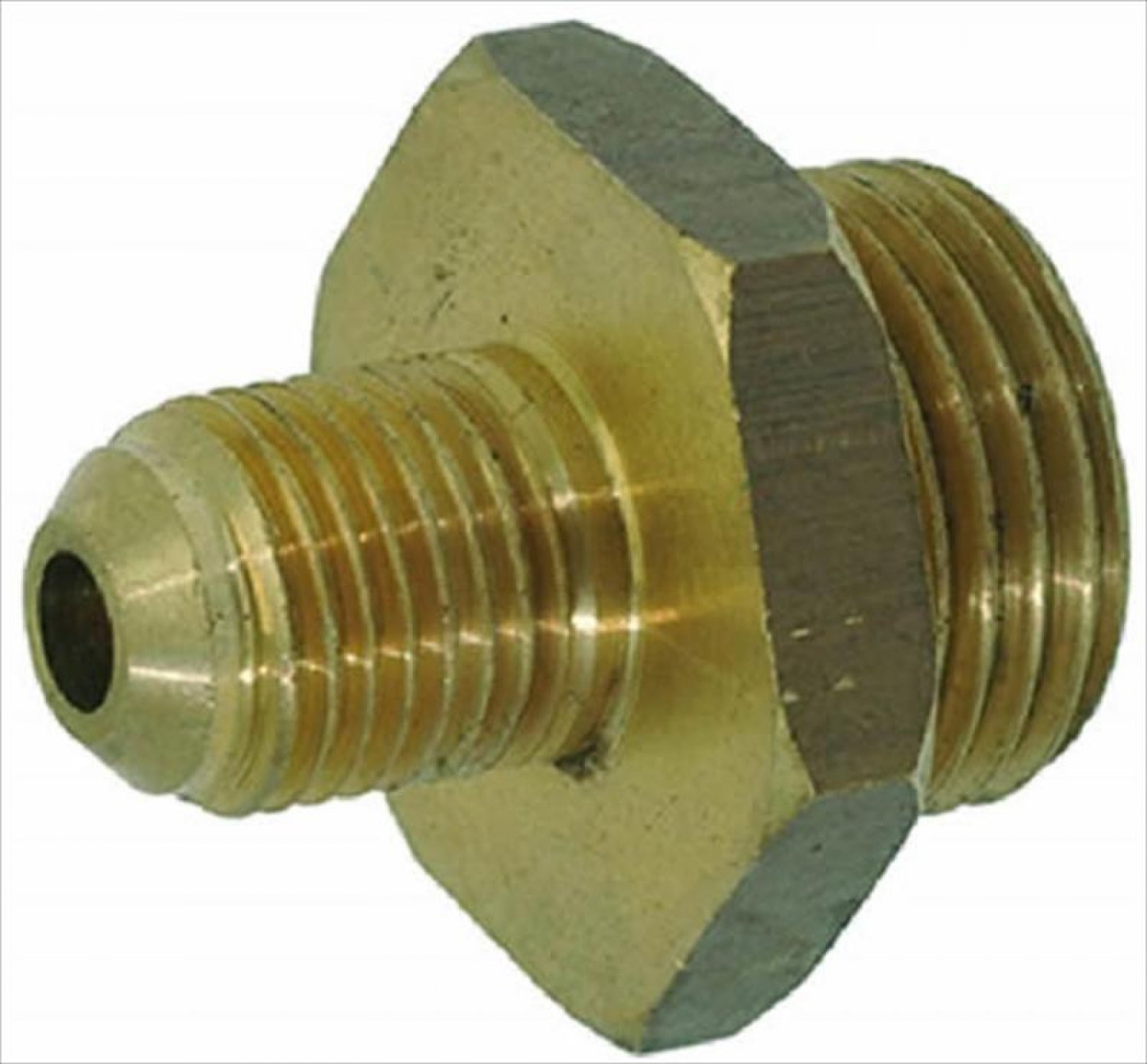

11inlet fitting 8005641
INLET FITTING
7,69 €

excl. Shipping costs

immediately available, 3 available

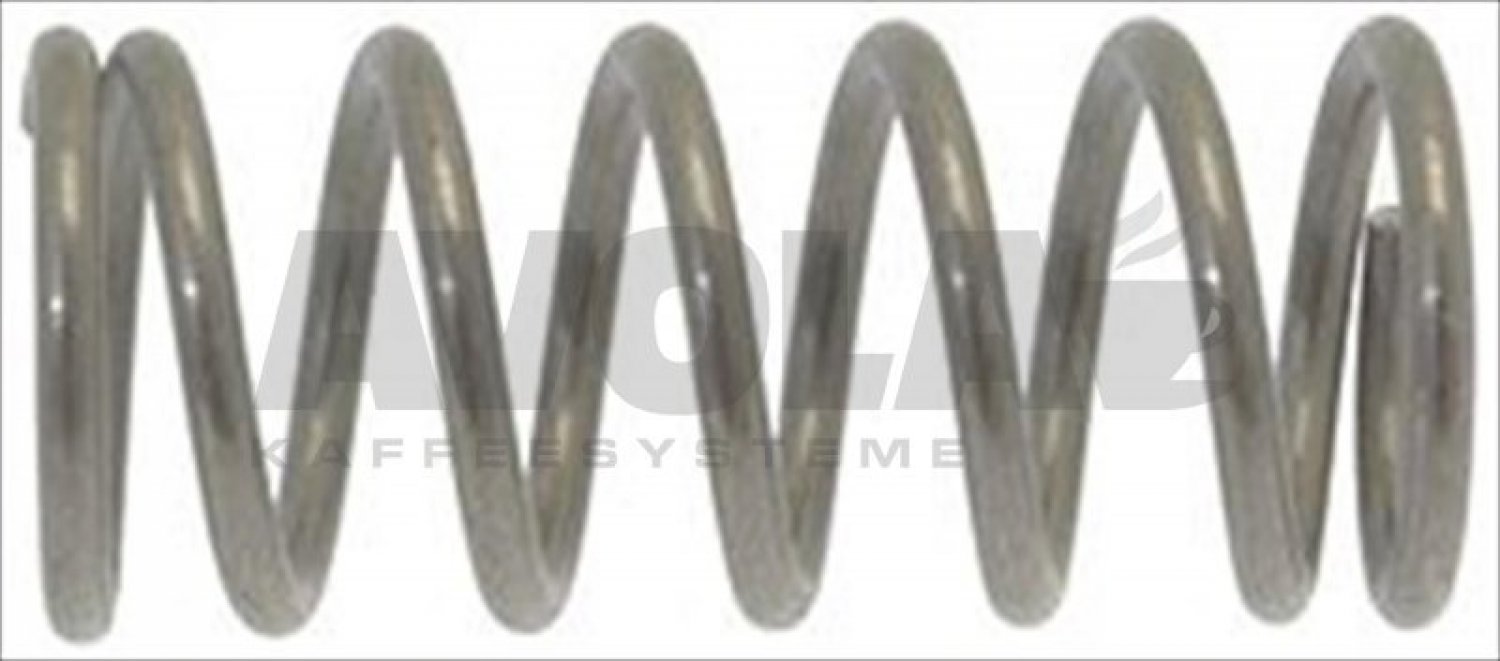

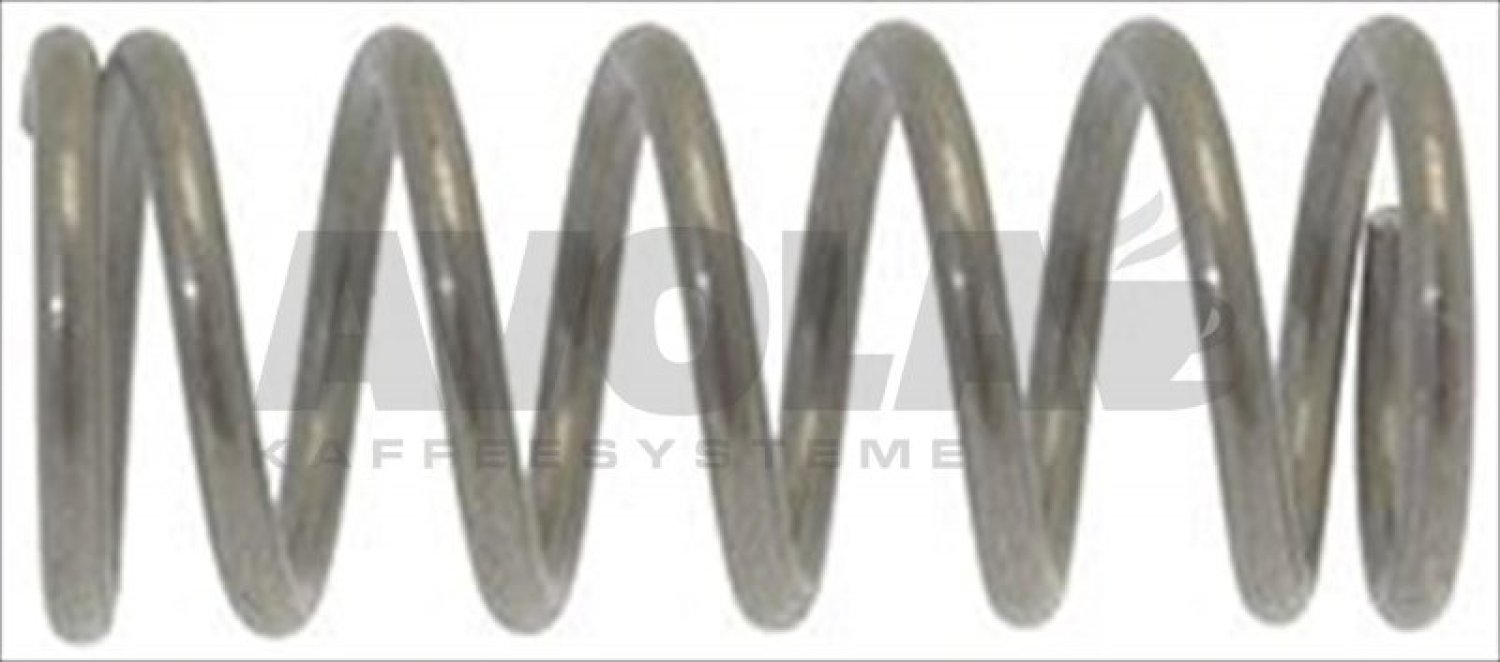

12spring 8003544
SPRING
4,75 €

excl. Shipping costs

immediately available, 13 available
13flat gasket ptfe o 26x21x2 mm 8001415
Flat gasket PTFE ø 26x21x2 mm
2,32 €

excl. Shipping costs

immediately available

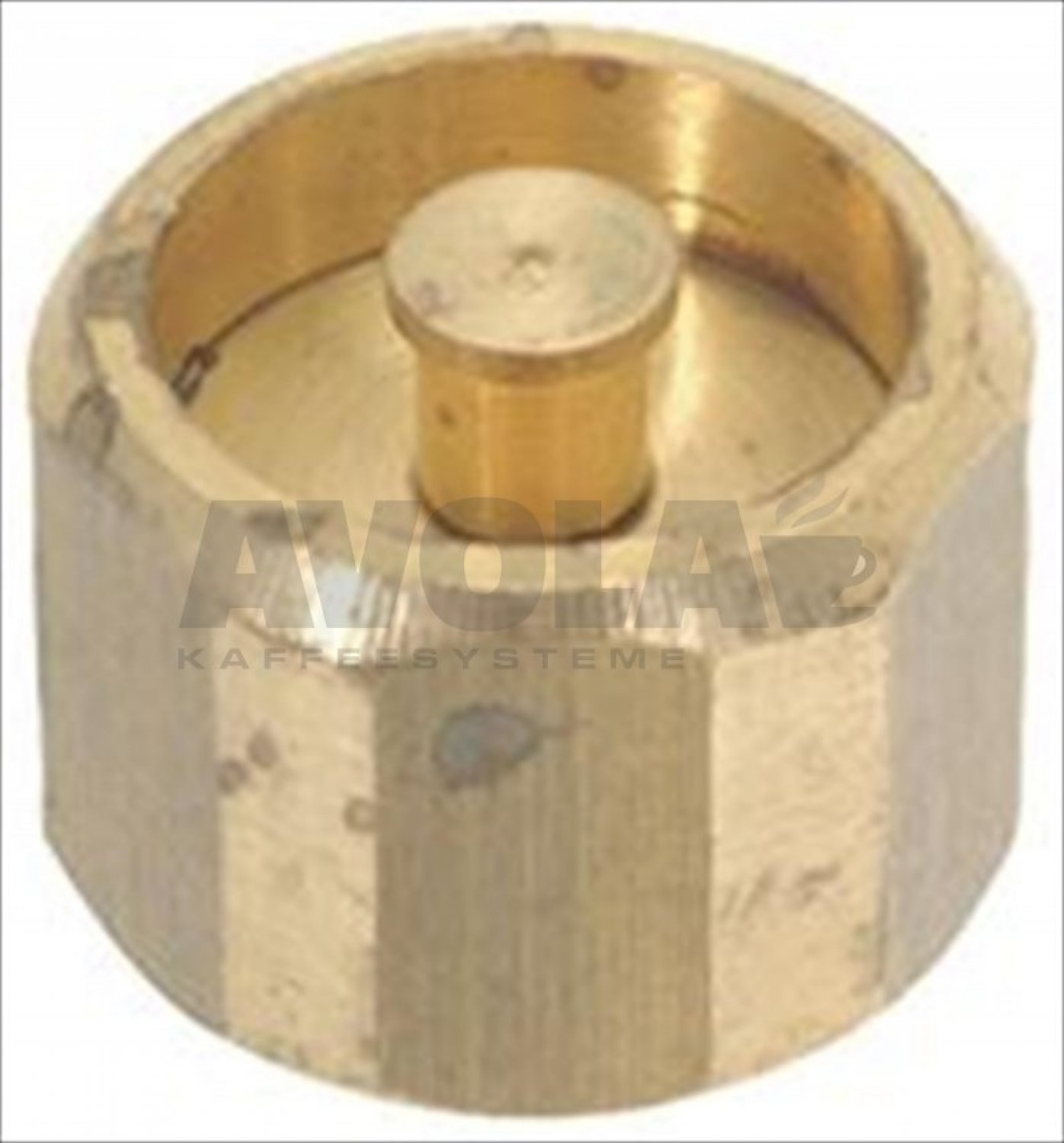

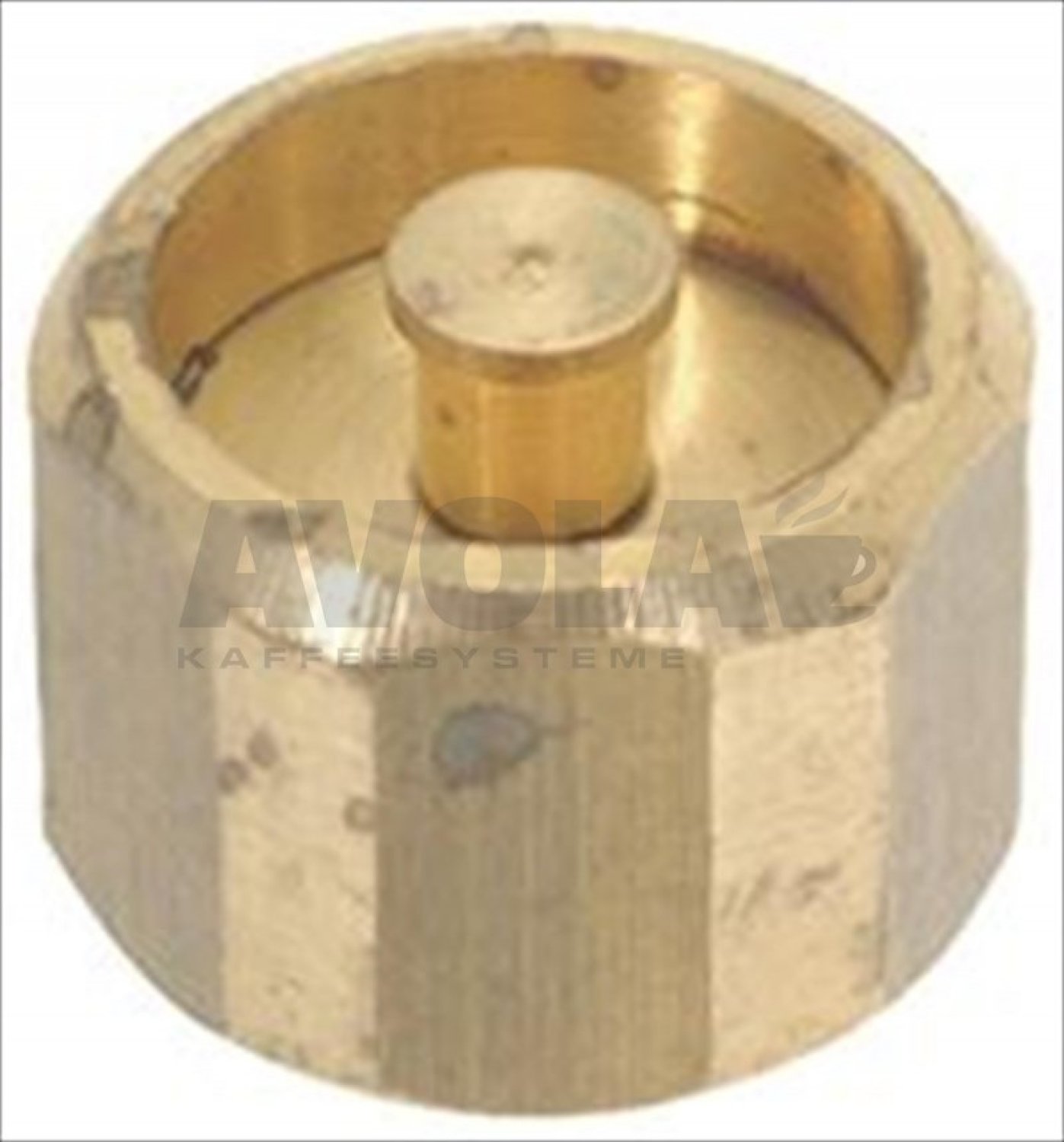

14dichtungsventil 8001360
DICHTUNGSVENTIL
Price on request
15nbr flat gasket o 13x4x4 mm 8001569
NBR FLAT GASKET ø 13x4x4 mm
0,49 €

excl. Shipping costs

immediately available

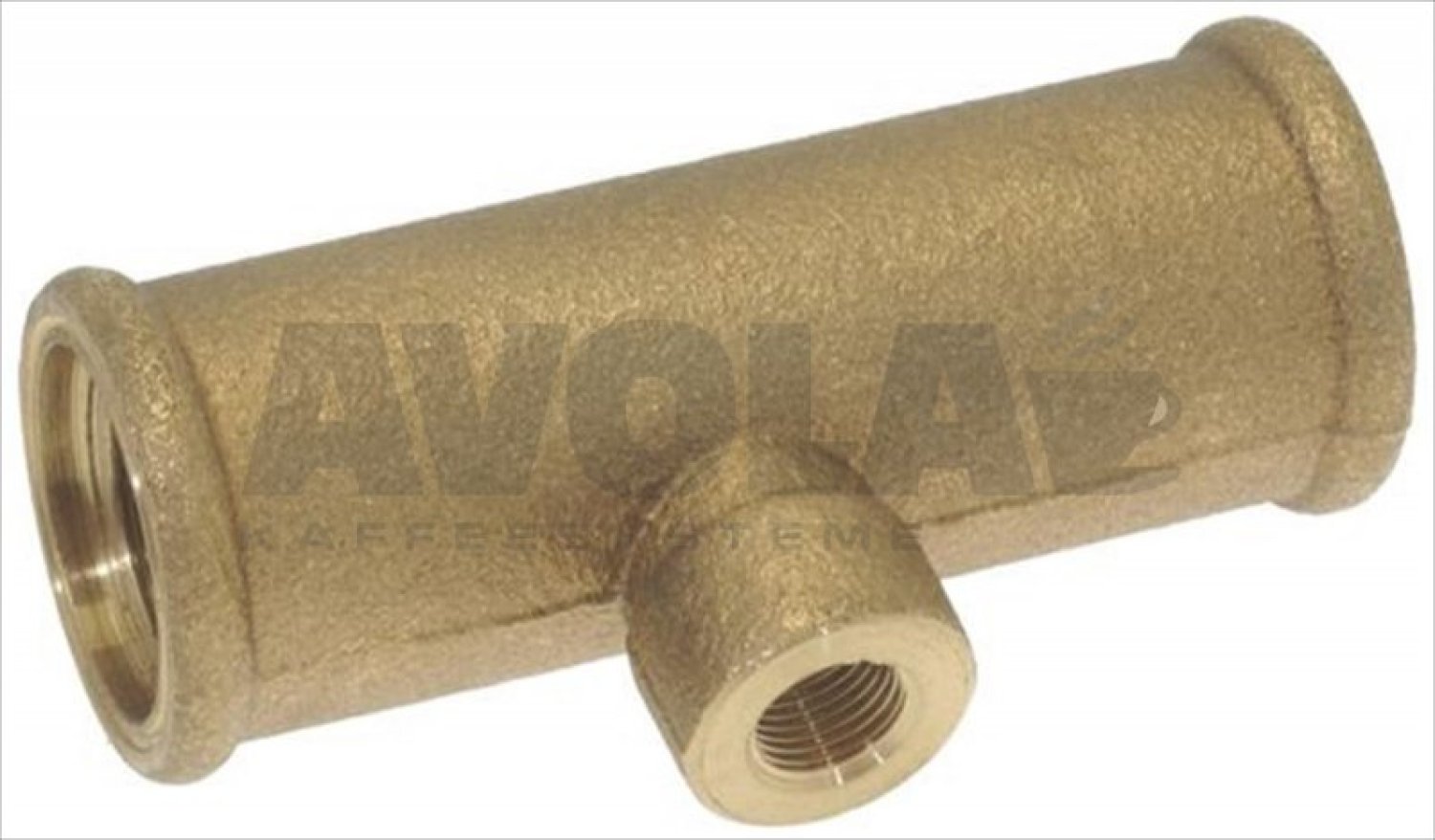

16tap body 8005471
TAP BODY
30,26 €

excl. Shipping costs

Delivery time 4-6 weeks..

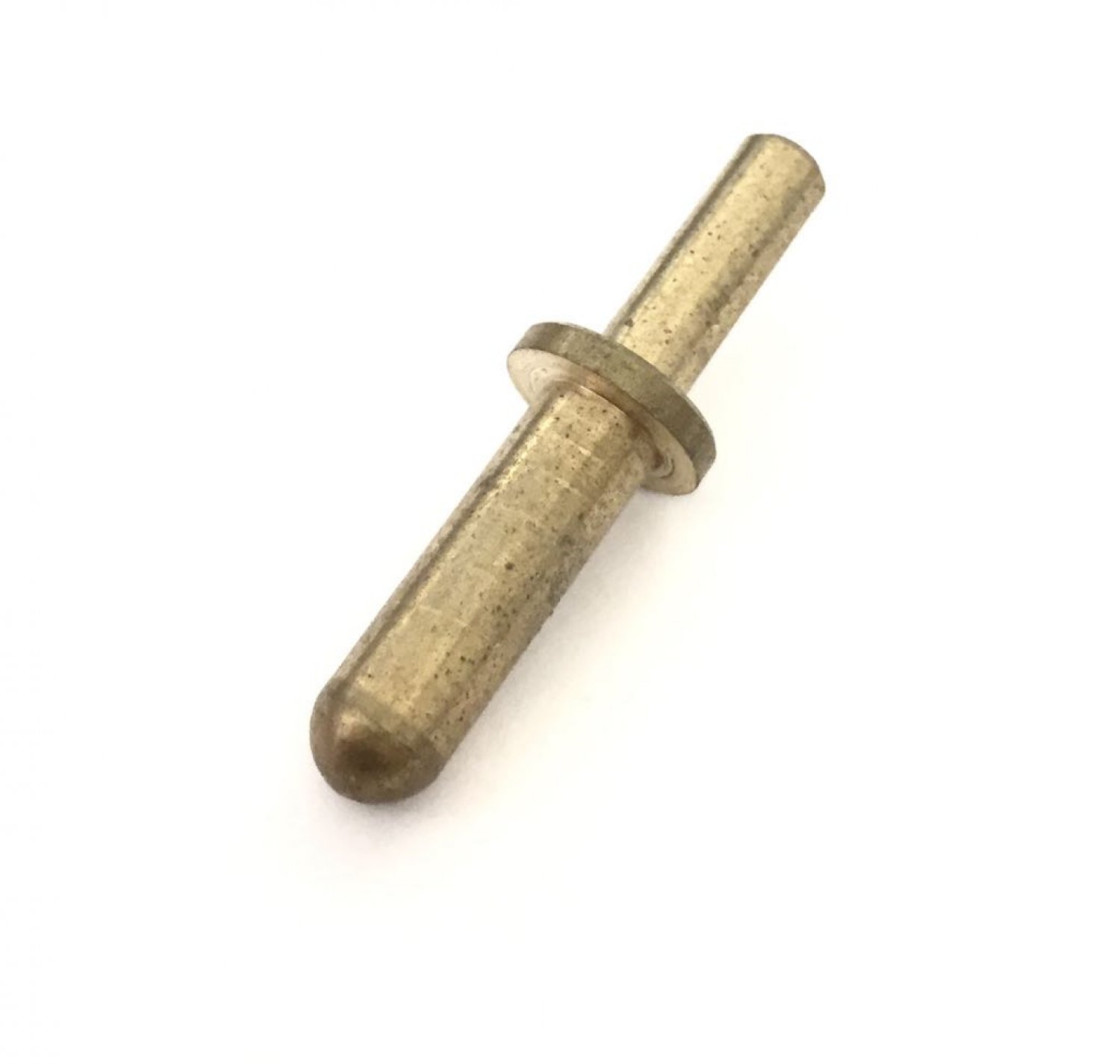

17zapfen fuer dampfhahn brasilia 8036260
ZAPFEN FUER DAMPFHAHN BRASILIA
7,14 €

excl. Shipping costs

immediately available, 9 available
19flat gasket ptfe o 26x21x2 mm 8001415
Flat gasket PTFE ø 26x21x2 mm
2,32 €

excl. Shipping costs

immediately available

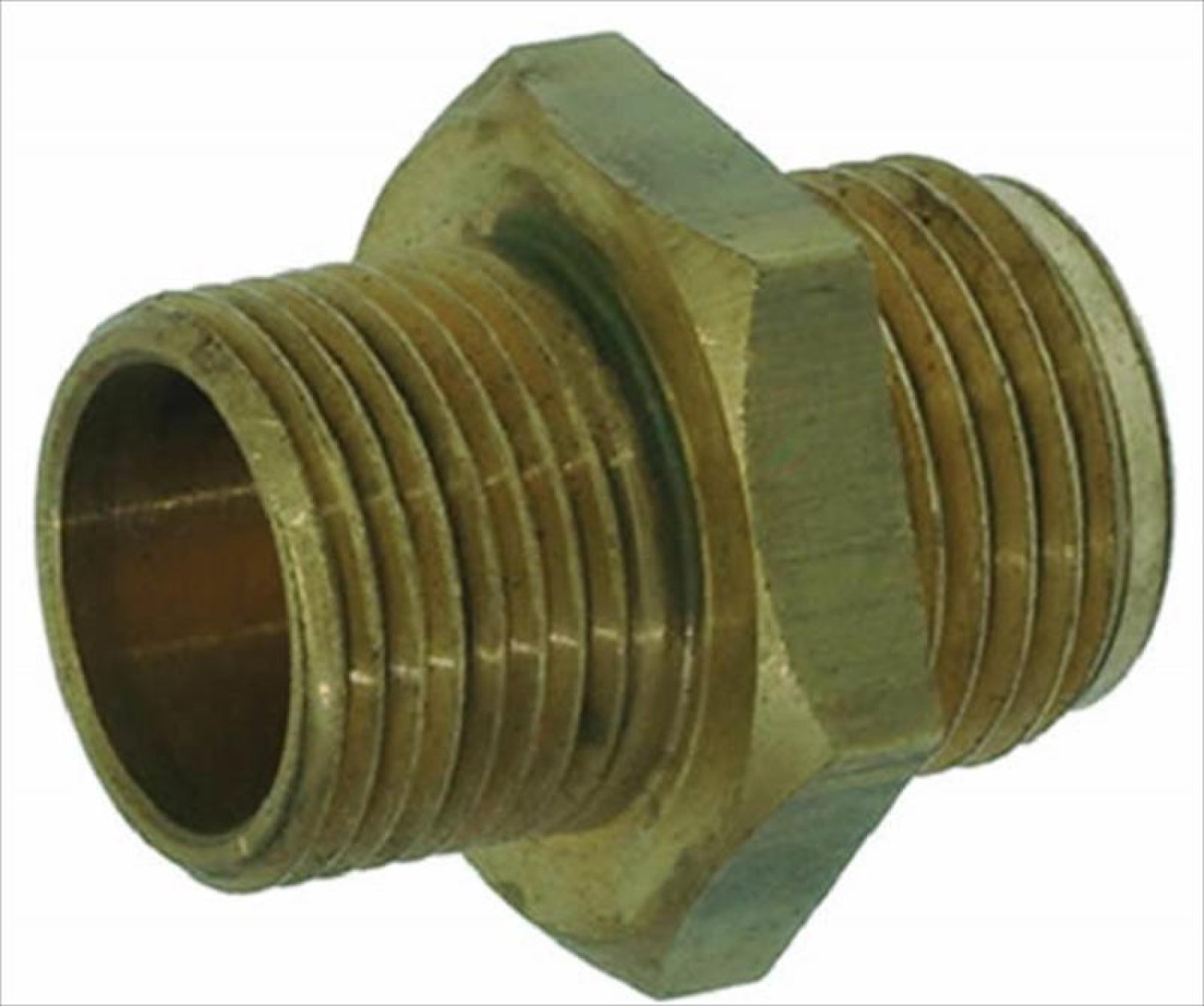

20top fitting 8005635
TOP FITTING
4,44 €

excl. Shipping costs

Delivery time
is determined
21epdm flat gasket 15 5x7 5x4 mm 8001570
EPDM flat gasket 15,5x7,5x4 mm
0,90 €

excl. Shipping costs

immediately available

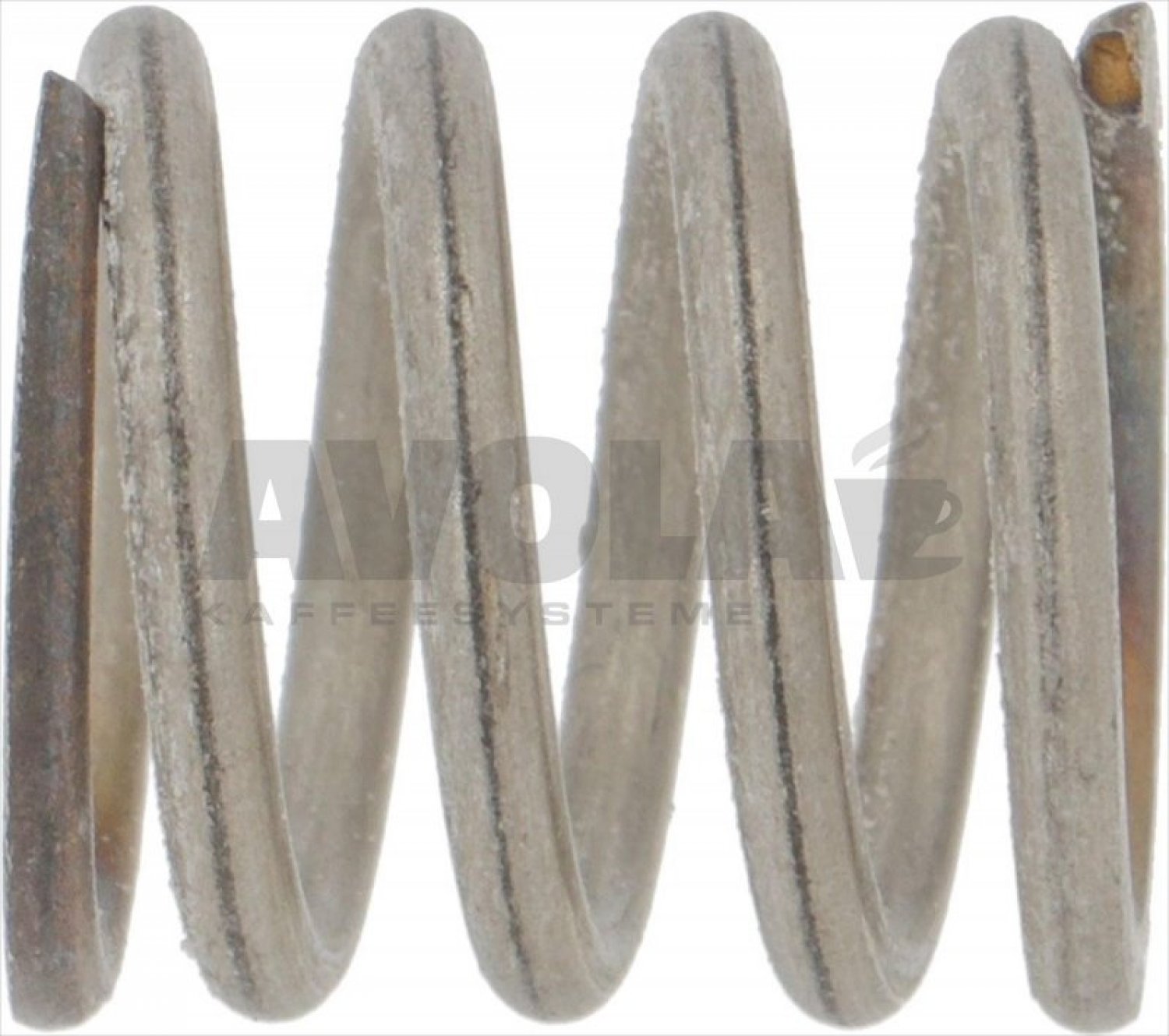

23feder o 15x17 mm fuer anschluss 8003545
FEDER ø 15x17 mm FÜR ANSCHLUSS
Price on request

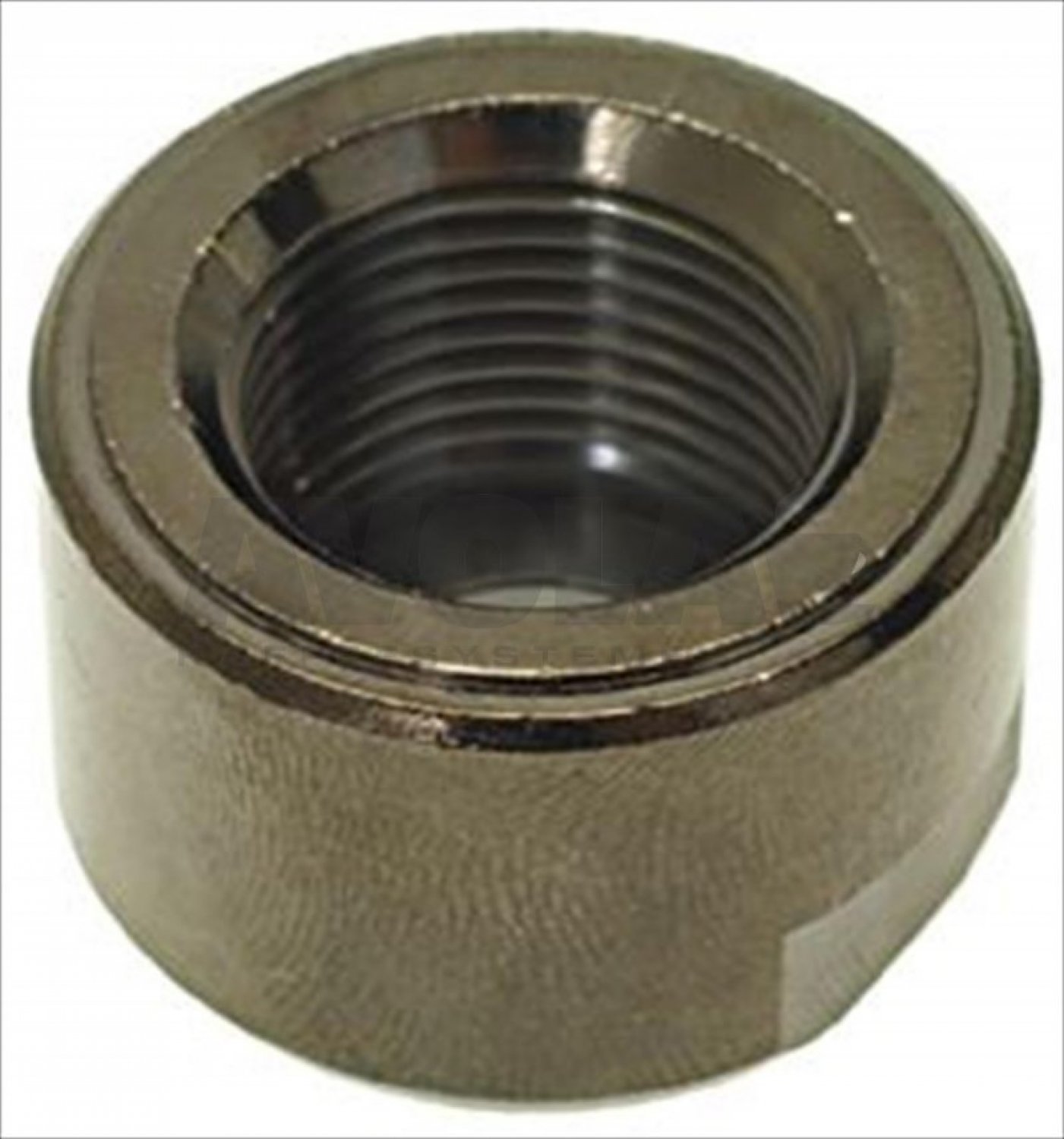

24ring fuer drehknopf 8003220
RING FÜR DREHKNOPF
23,79 €

excl. Shipping costs

immediately available, 7 available

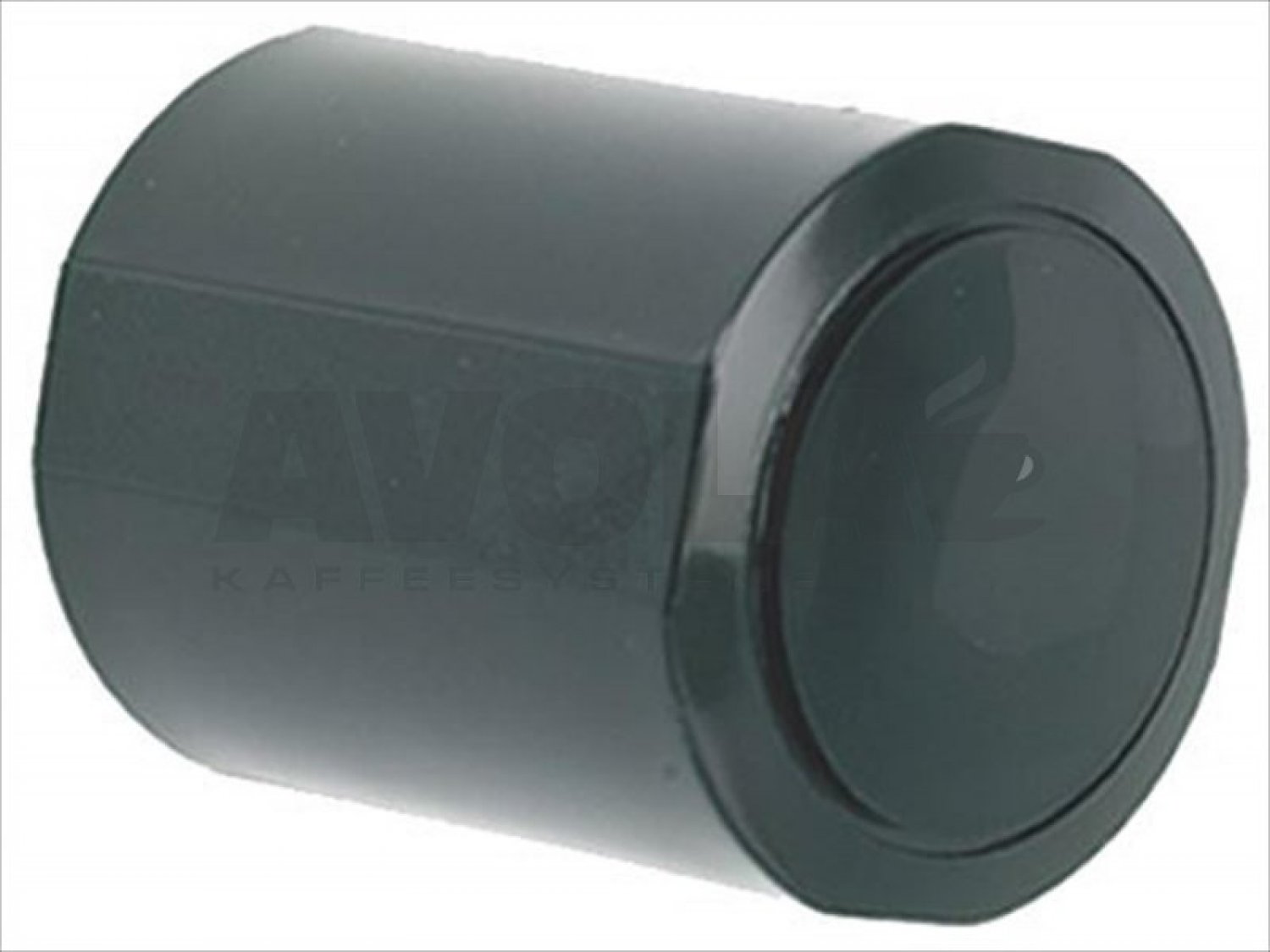

25drehknopf fuer wasser dampfhahn 8003329
DREHKNOPF FÜR WASSER/DAMPFHAHN
9,81 €

excl. Shipping costs

Delivery time 4-6 weeks

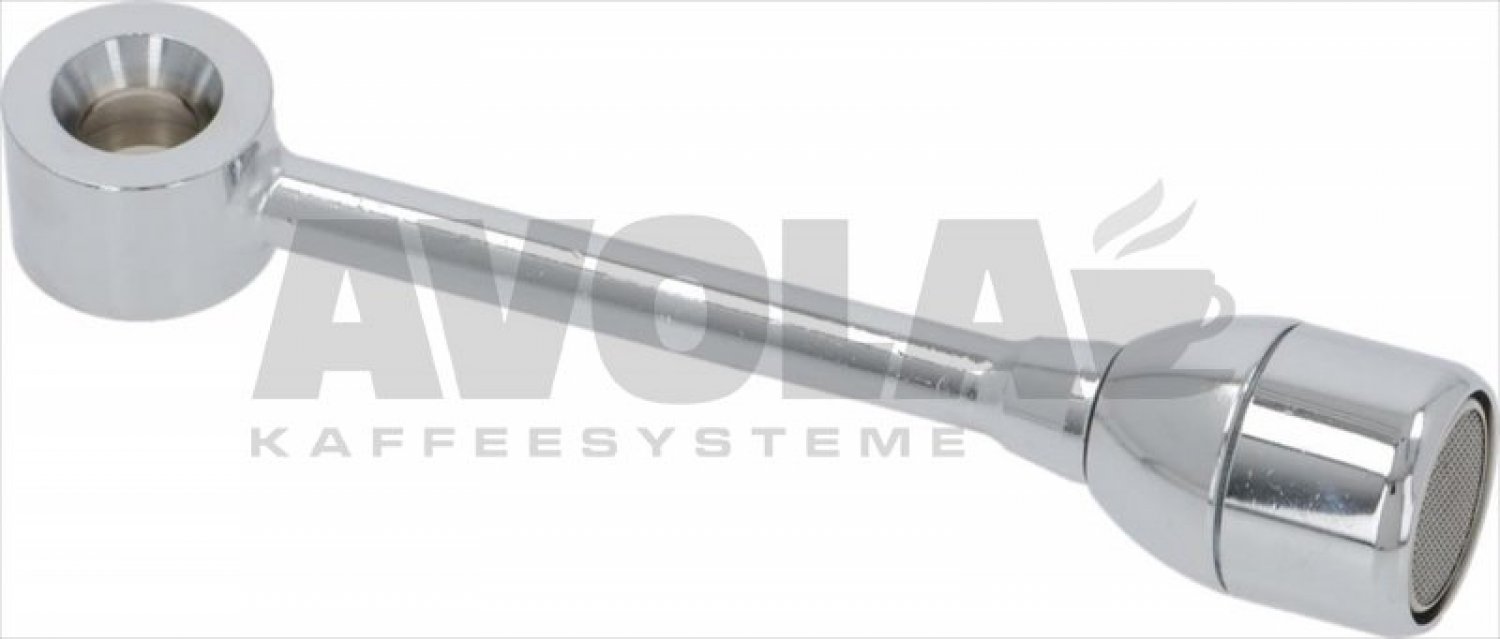

26water pipe 8006743
WATER PIPE
21,28 €

excl. Shipping costs

immediately available, 1 available

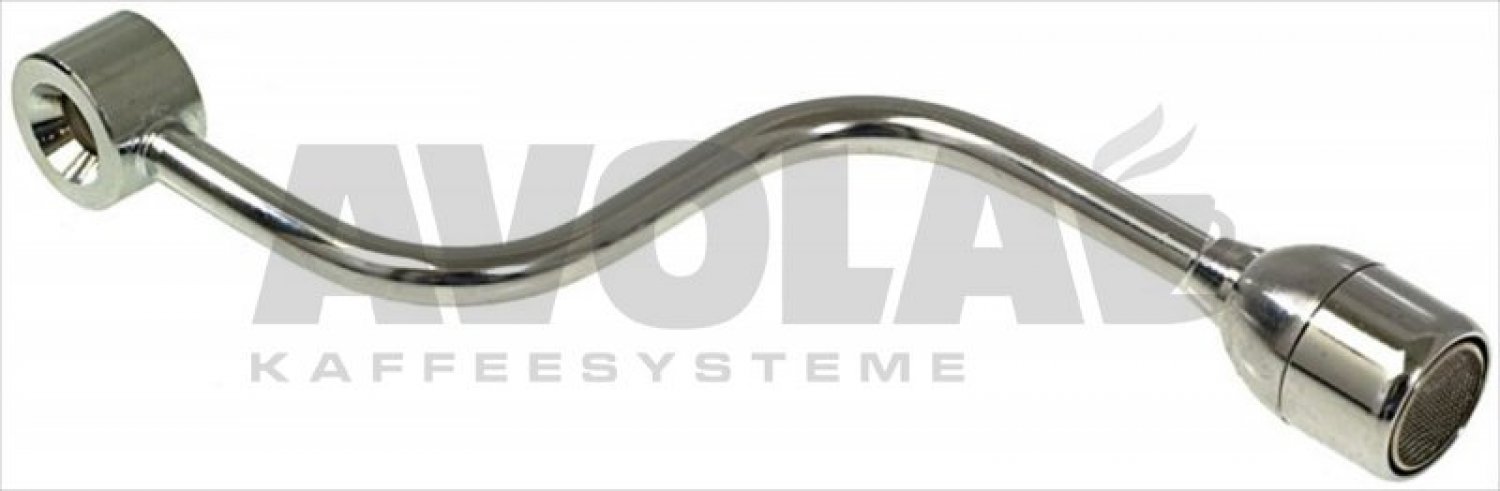

26wasserrohr komplett 8006749
WASSERROHR KOMPLETT
31,19 €

excl. Shipping costs

immediately available, 2 available
27flat gasket 12x10x1 mm 8001374
FLAT GASKET 12x10x1 mm
1,02 €

excl. Shipping costs

immediately available
28water pipe nozzle 1 8 8006744
WATER PIPE NOZZLE 1/8
8,20 €

excl. Shipping costs

immediately available, 7 available
29water pipe nozzle 8006554
WATER PIPE NOZZLE
6,57 €

excl. Shipping costs

immediately available, 1 available

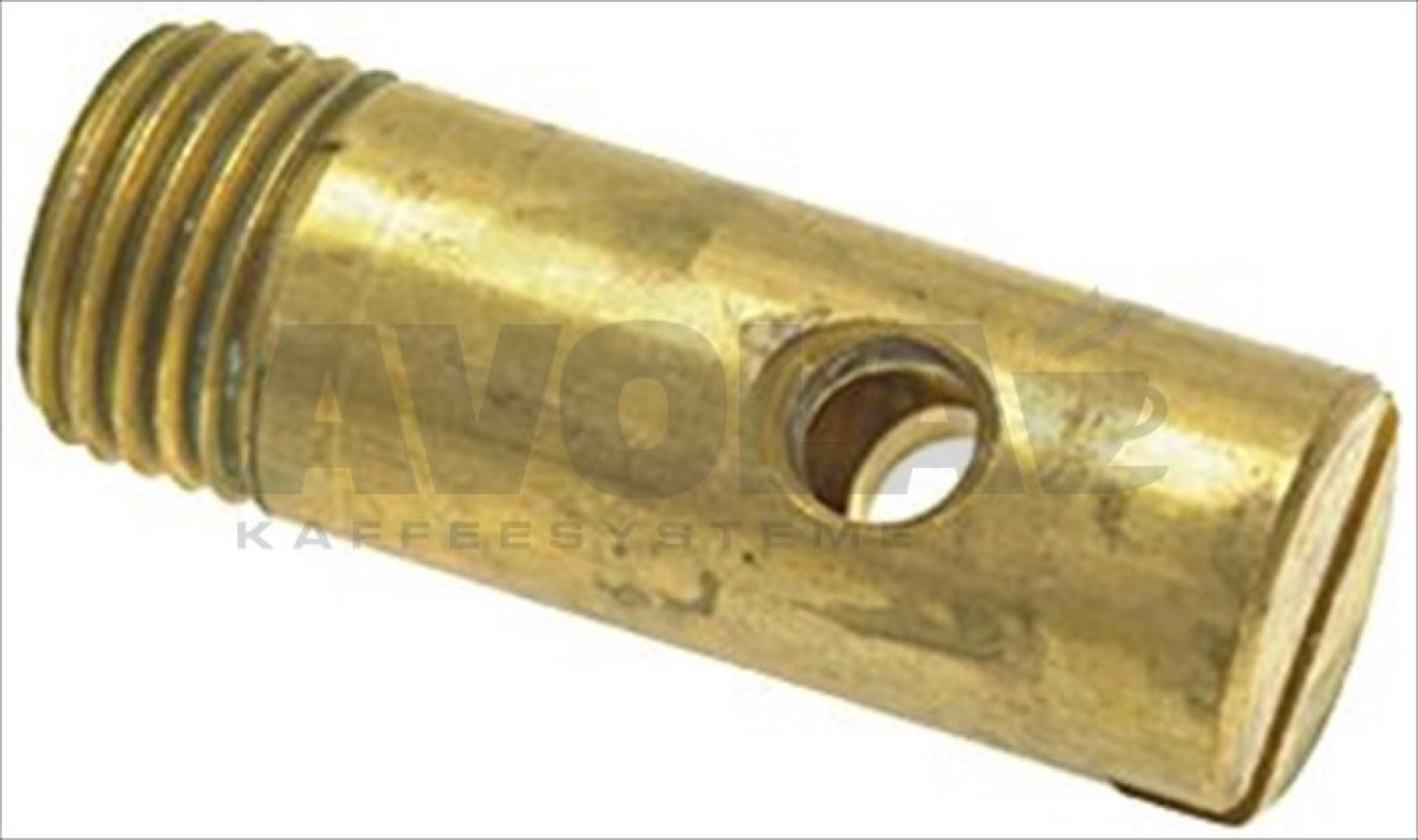

29wasserspritzduese 8006745
WASSERSPRITZDÜSE
Price on request

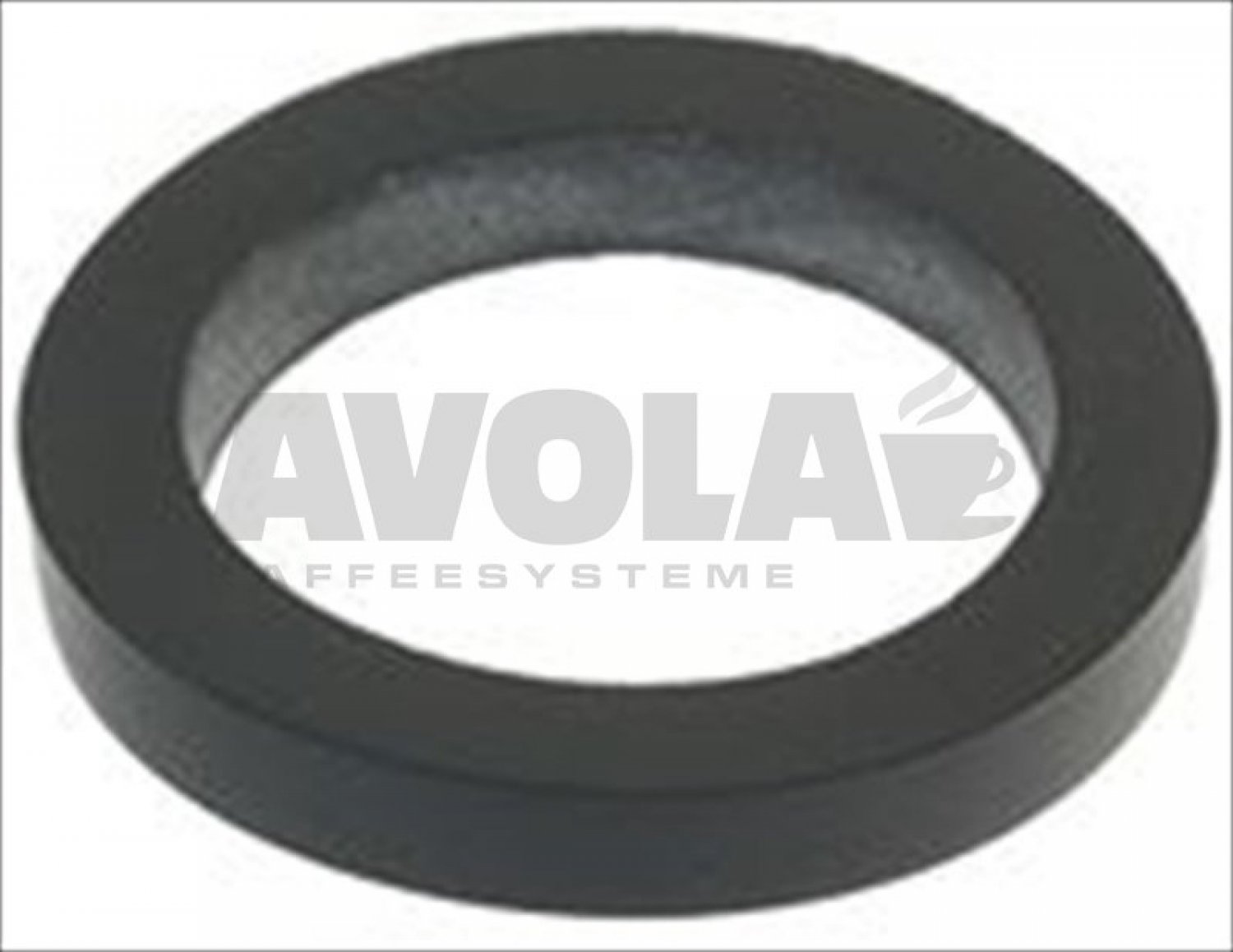

30flat gasket o 21x15x3 mm 8001375
FLAT GASKET ø 21x15x3 mm
1,48 €

excl. Shipping costs

immediately available
31steam pipe complete 8006746
STEAM PIPE COMPLETE
20,10 €

excl. Shipping costs

immediately available, 1 available
32steam sprinkler 8006555
STEAM SPRINKLER
4,38 €

excl. Shipping costs

immediately available, 4 available

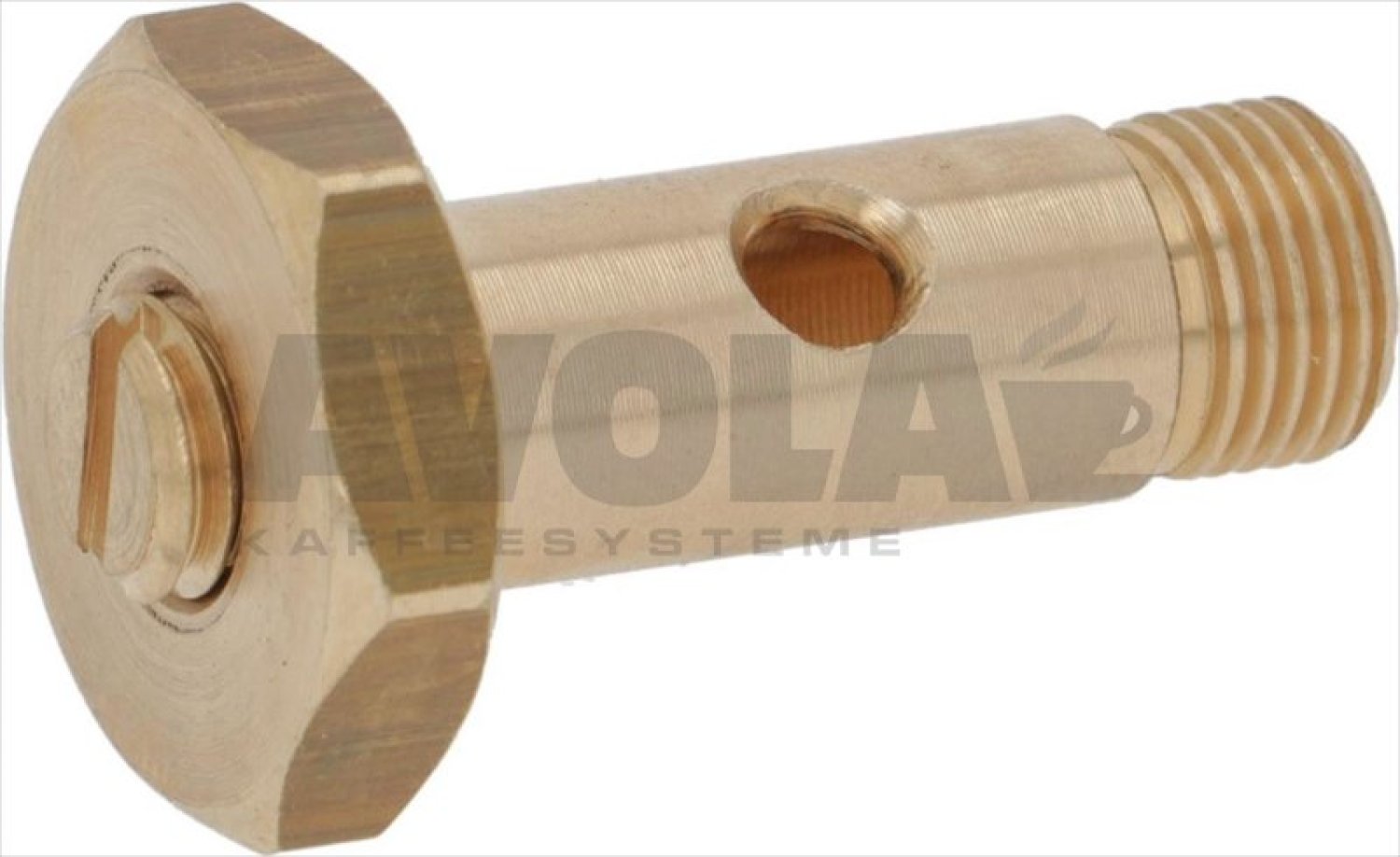

33brasilia articulation screw 8005551
BRASILIA ARTICULATION SCREW
22,78 €

excl. Shipping costs

immediately available, 1 available

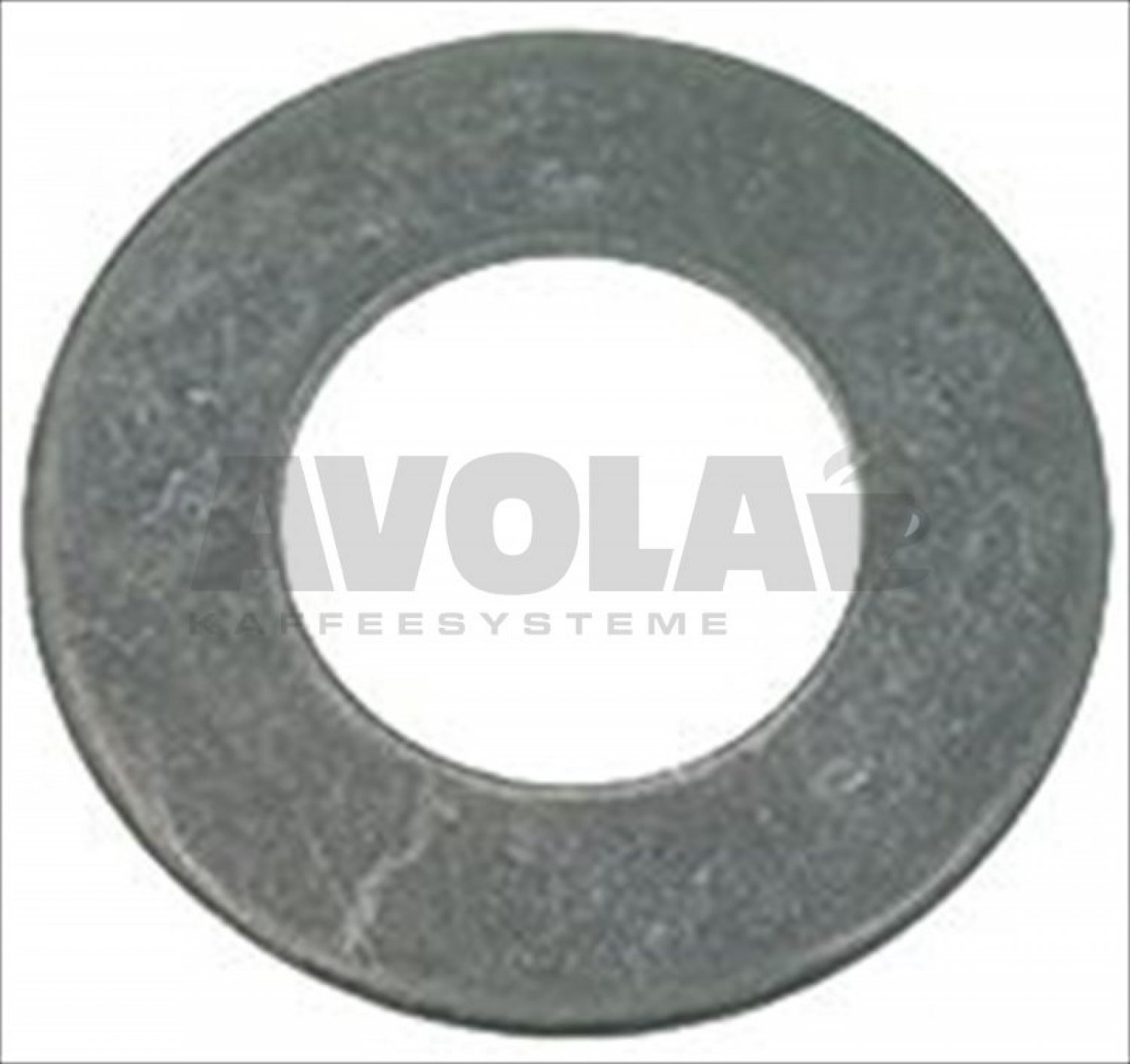

34brasilia elastische scheibe 8001801
BRASILIA ELASTISCHE SCHEIBE
2,11 €

excl. Shipping costs

immediately available

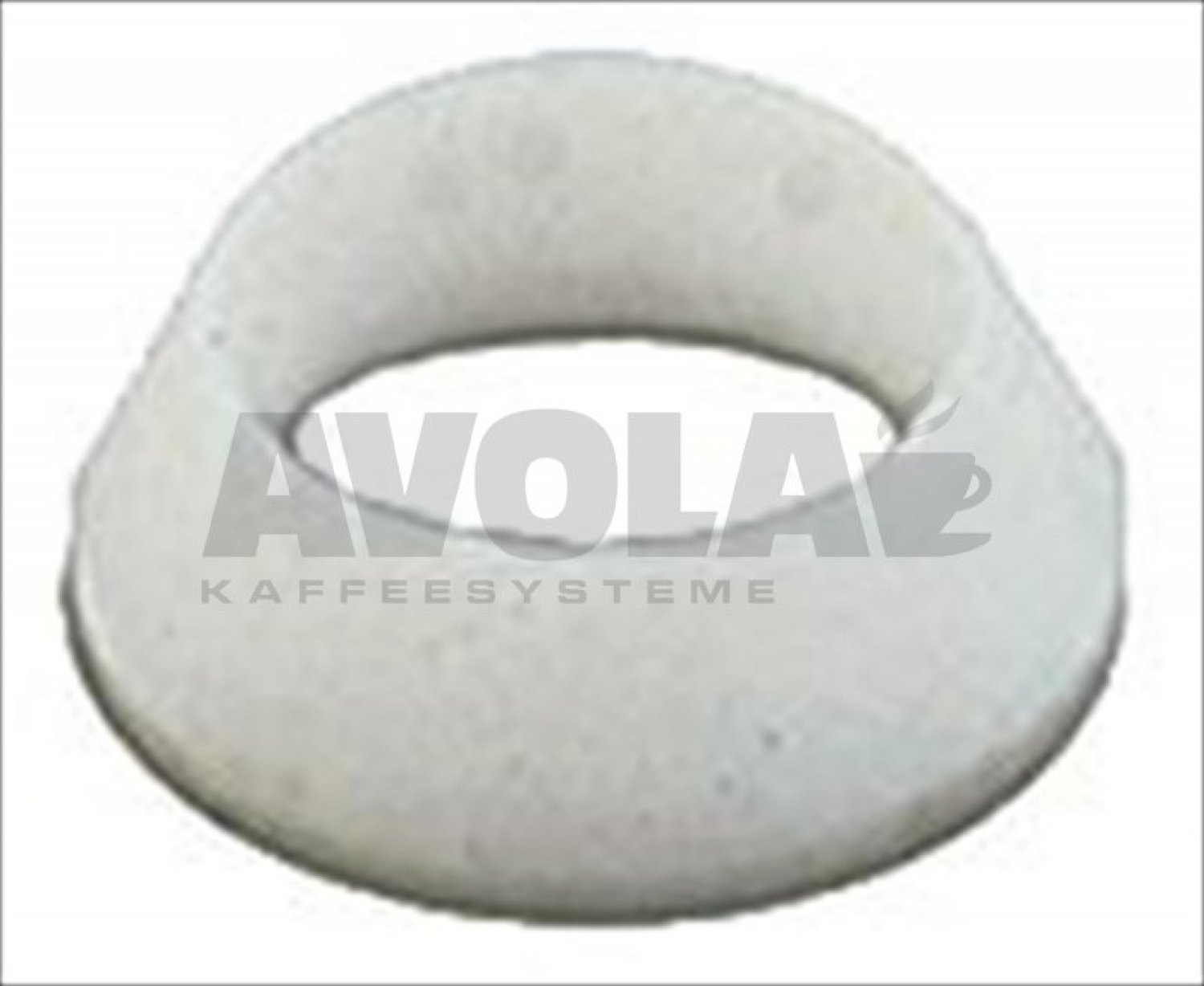

35conical ptfe seal o 14 5x10x5 mm 8001800
CONICAL PTFE SEAL ø 14,5x10x5 mm
1,32 €

excl. Shipping costs

immediately available
37dichtungstraeger fuer hahn 8005859
DICHTUNGSTRÄGER FÜR HAHN
Price on request
38epdm flat gasket 11x4x4 mm 8001656
EPDM FLAT GASKET 11x4x4 mm
0,55 €

excl. Shipping costs

immediately available

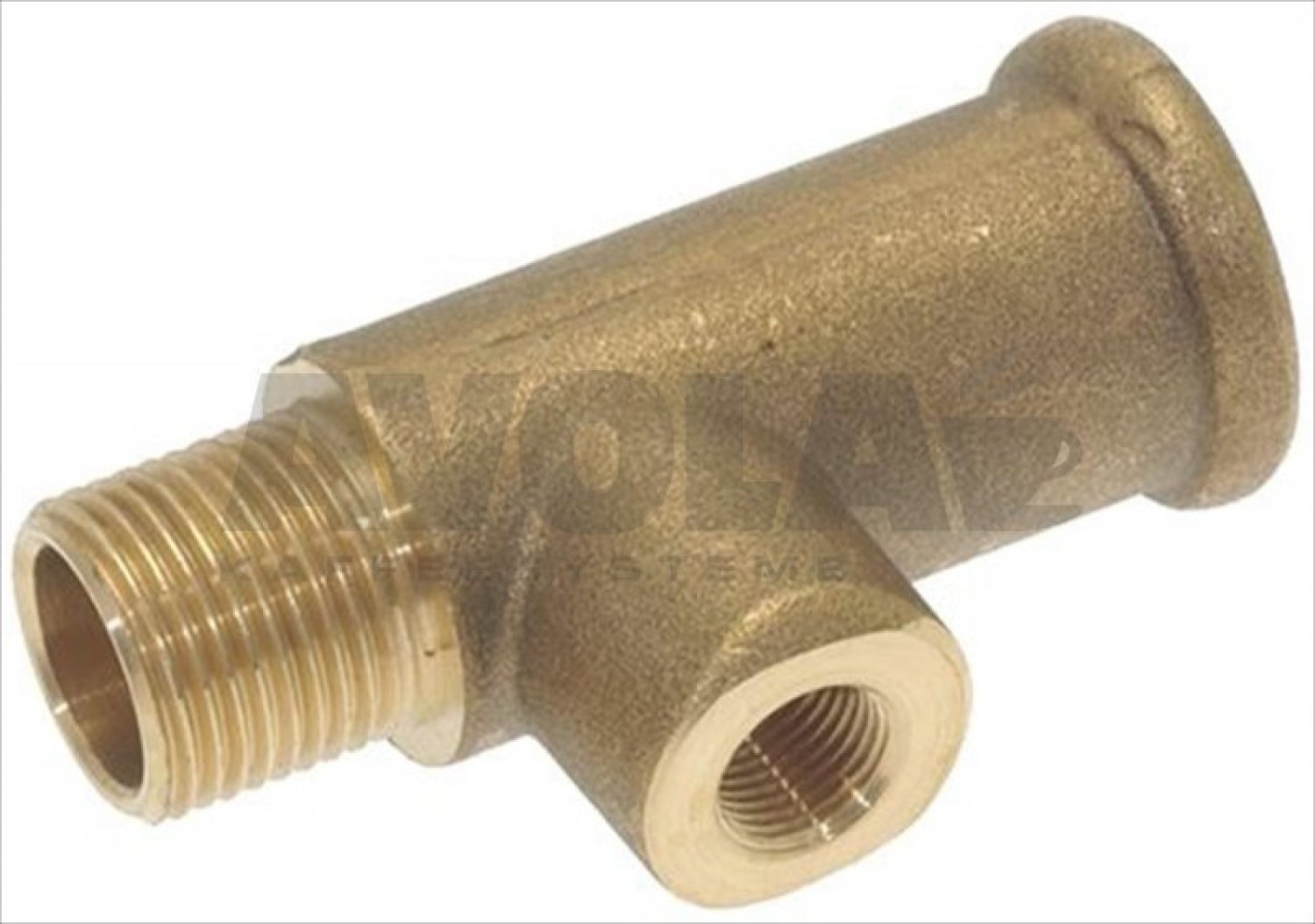

39hahnkoerper 8005441
HAHNKÖRPER
23,04 €

excl. Shipping costs

Delivery time 4-6 weeks..
40o ring 02018 epdm 8064737
O-RING 02018 EPDM
1,70 €

excl. Shipping costs

immediately available
41inlet tap washer 8001658
INLET TAP WASHER
1,25 €

excl. Shipping costs

immediately available, 9 available

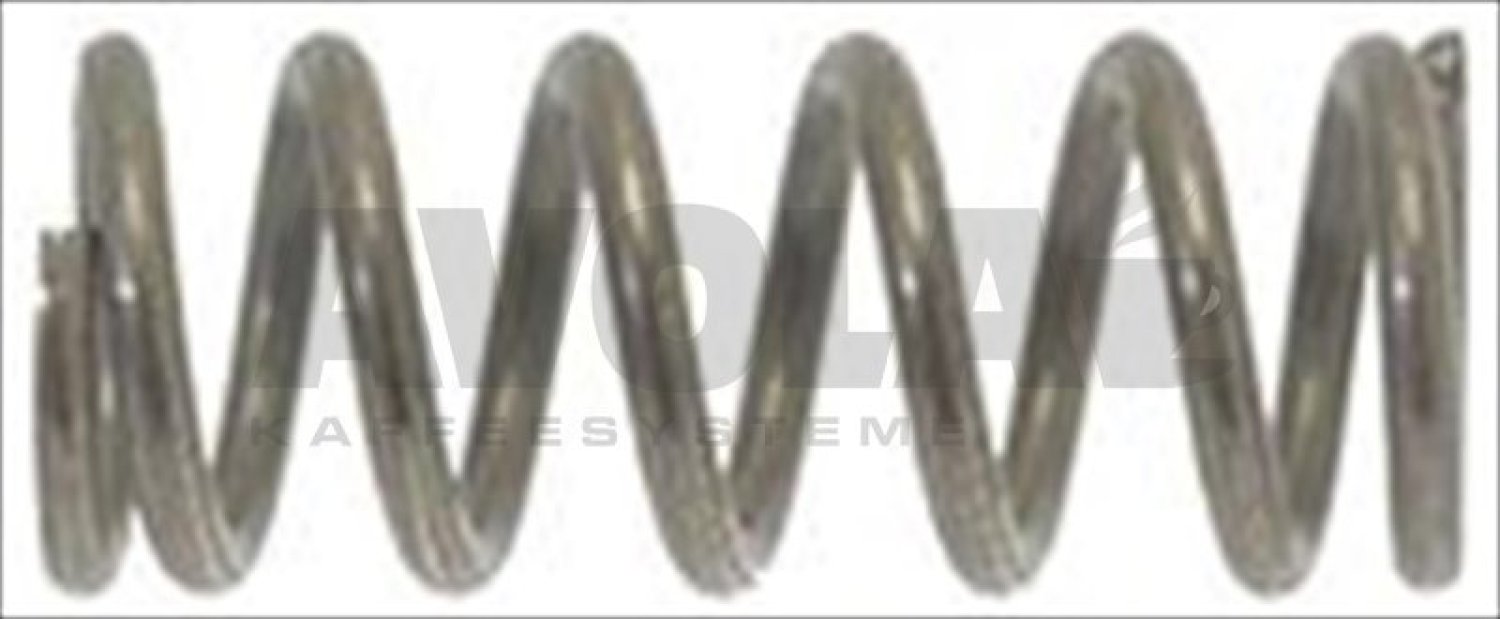

42feder o 7 5x18 mm fuer stift 8003546
FEDER ø 7,5x18 mm FÜR STIFT
1,01 €

excl. Shipping costs

immediately available, 14 available

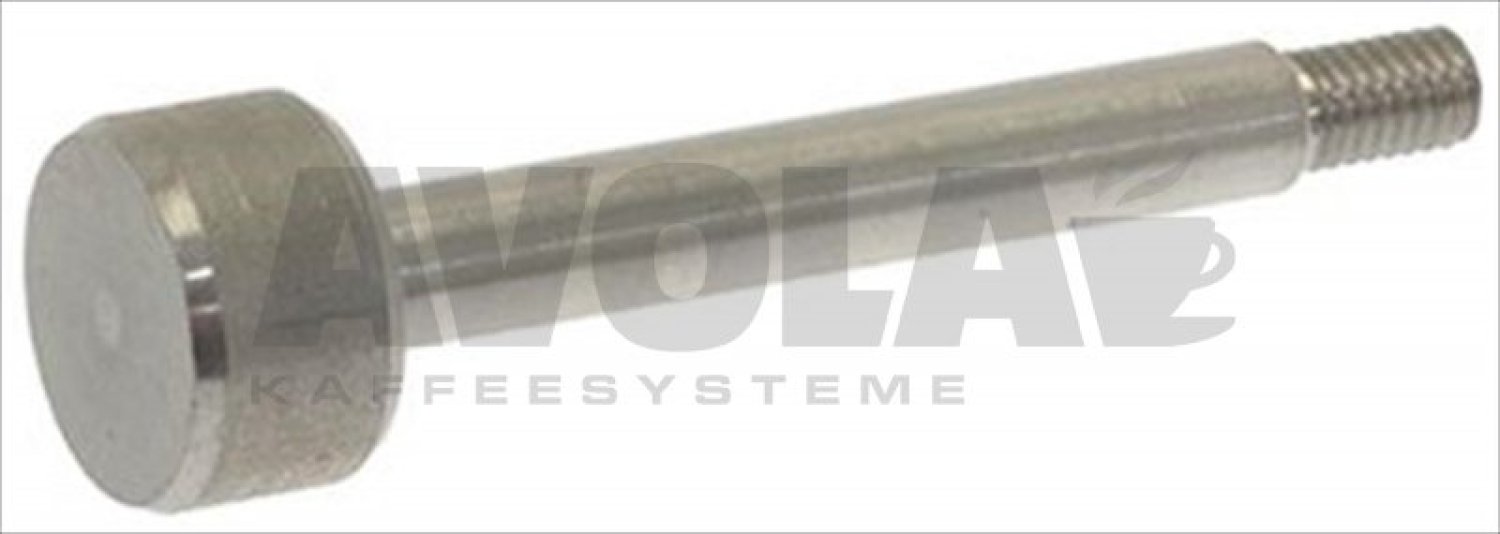

43stift fuer hahn nicht mehr lieferbar 8005117
STIFT FÜR HAHN (nicht mehr lieferbar)
This article is no longer available
44expansion valve nut 3 8 quot 8005672
EXPANSION VALVE NUT 3/8"
5,18 €

excl. Shipping costs

Delivery time 4-6 weeks..

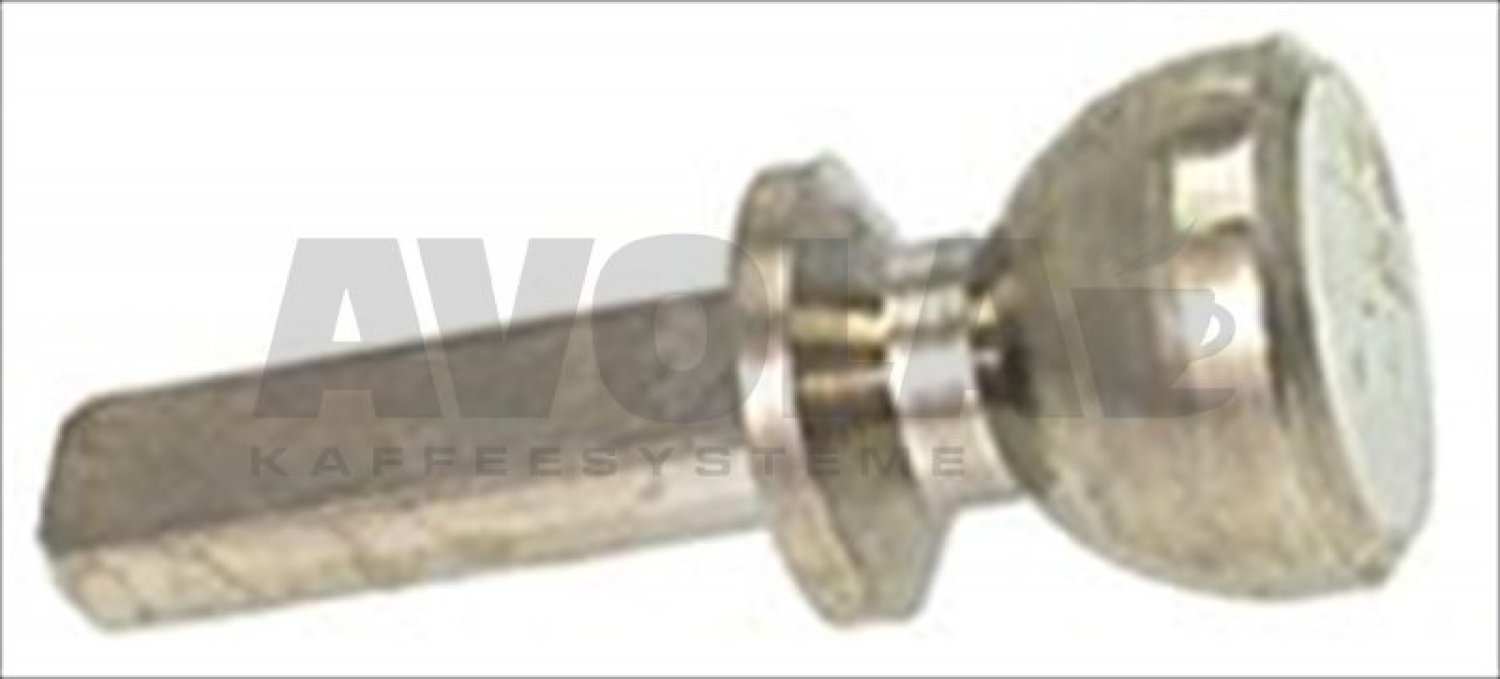

45oeffnungsstift 8005555
ÖFFNUNGSSTIFT
7,91 €

excl. Shipping costs

Delivery time 4-6 weeks..
46chromium plated nut 3 8 8005556
CHROMIUM-PLATED NUT 3/8
12,08 €

excl. Shipping costs

immediately available, 1 available

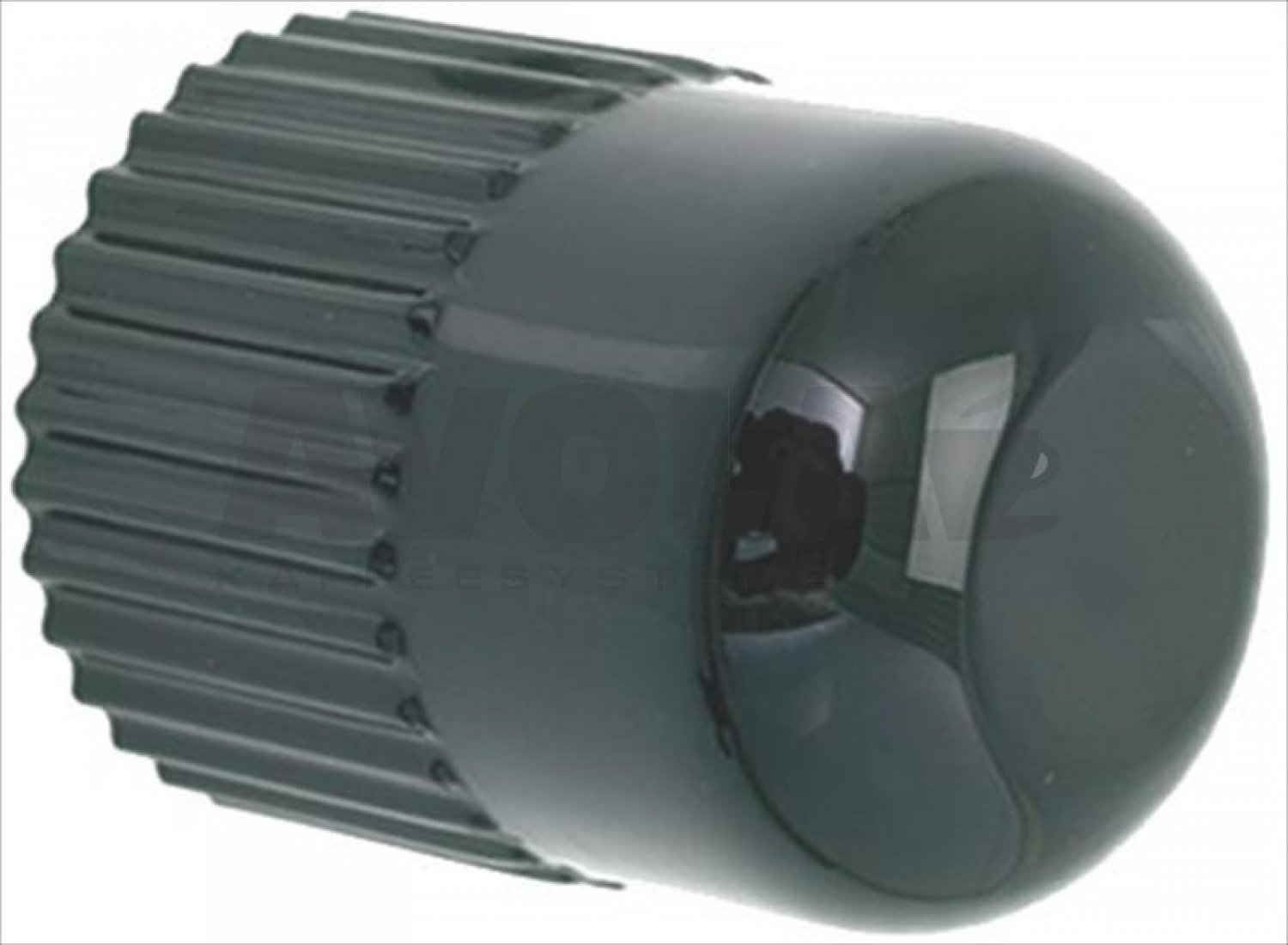

47drehknopf fuer wasser dampfhahn nicht mehr lieferbar 8003374
DREHKNOPF FÜR WASSER/DAMPFHAHN (nicht mehr lieferbar)
This article is no longer available

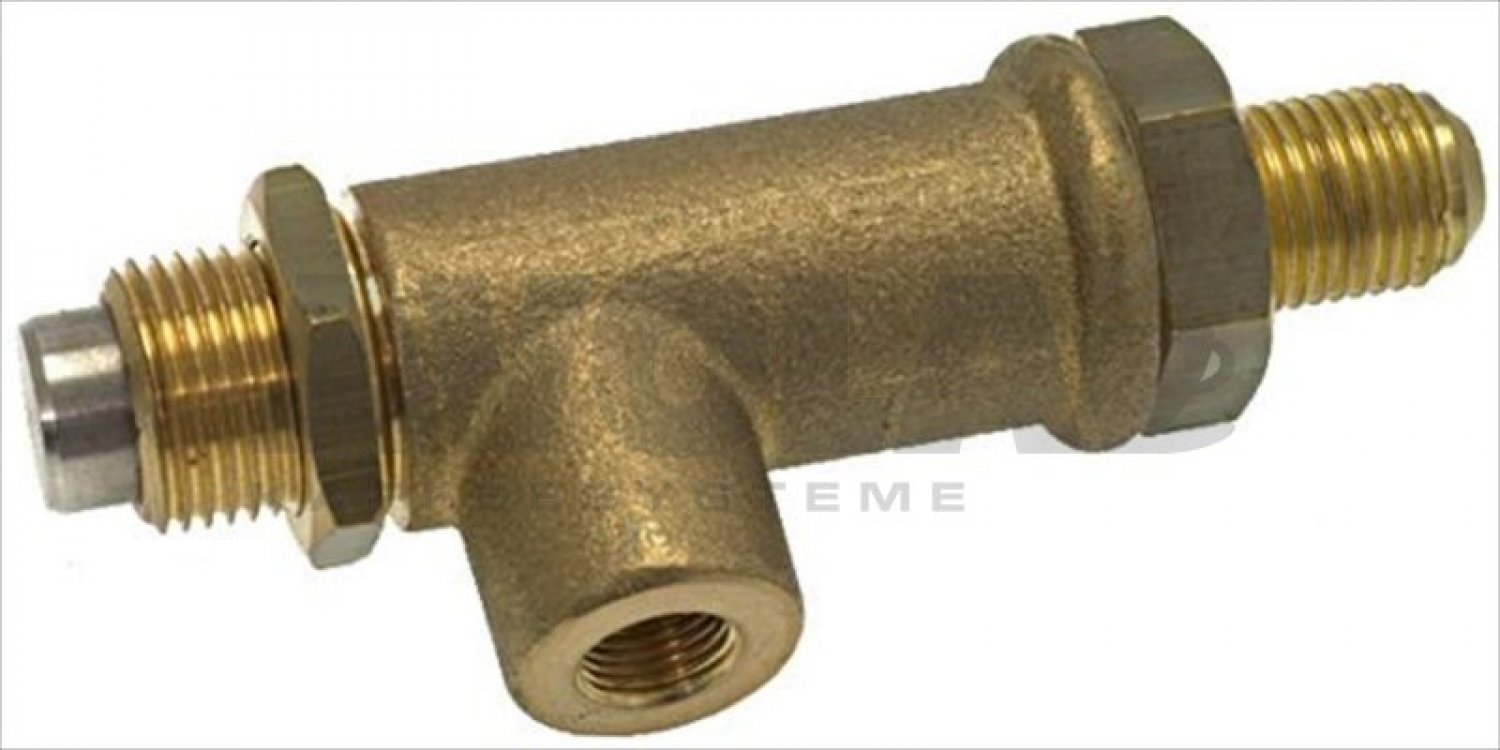

48hahn serie america century 8005554
HAHN SERIE AMERICA CENTURY
83,30 €

excl. Shipping costs

immediately available, 4 available

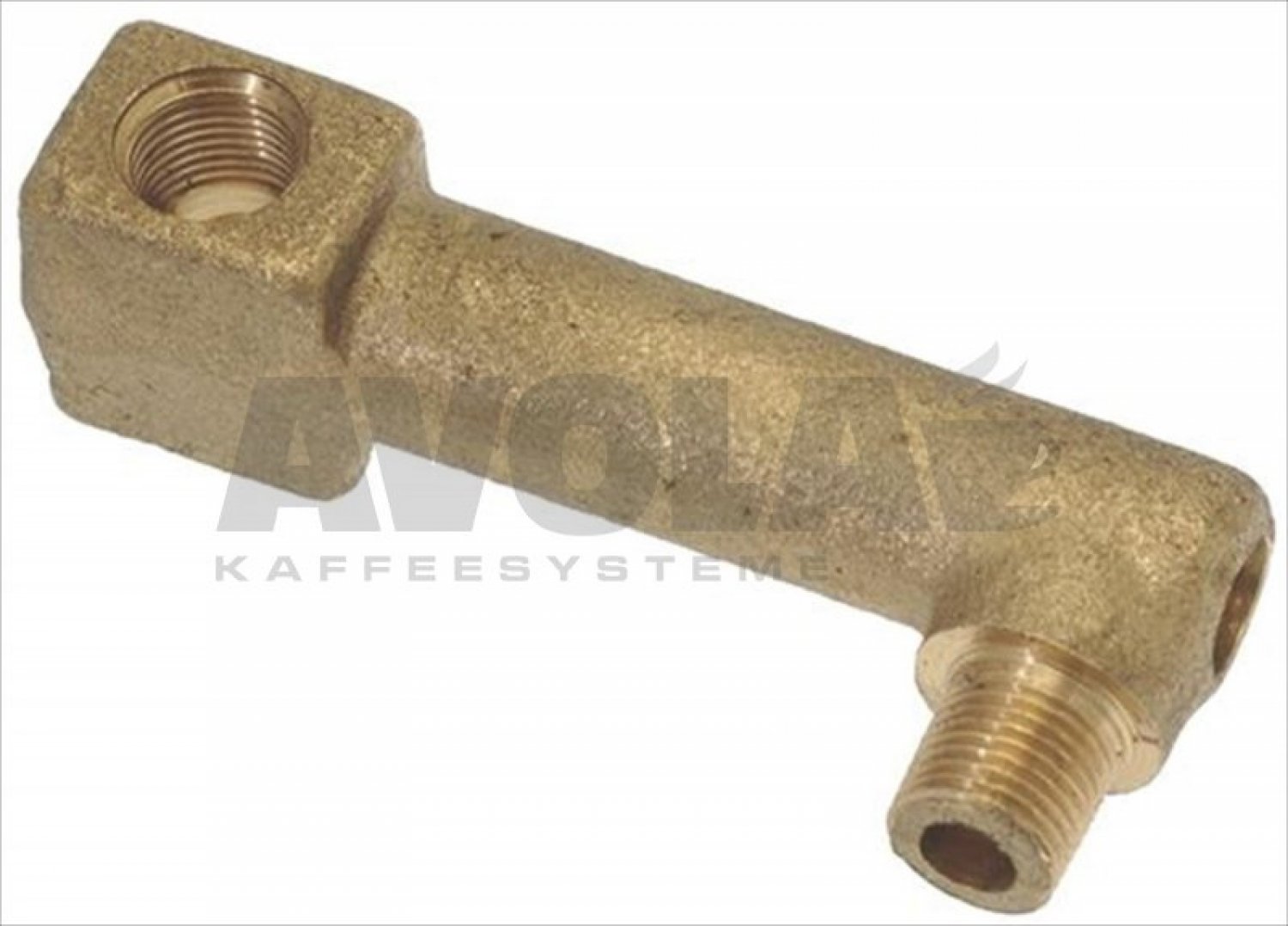

50fitting for extension 8006552
FITTING FOR EXTENSION
26,43 €

excl. Shipping costs

immediately available, 1 available
51stainless steel ball o 8 mm 8005084
STAINLESS STEEL BALL ø 8 mm
2,46 €

excl. Shipping costs

immediately available, 6 available
52steam pipe complete 8006746
STEAM PIPE COMPLETE
20,10 €

excl. Shipping costs

immediately available, 1 available

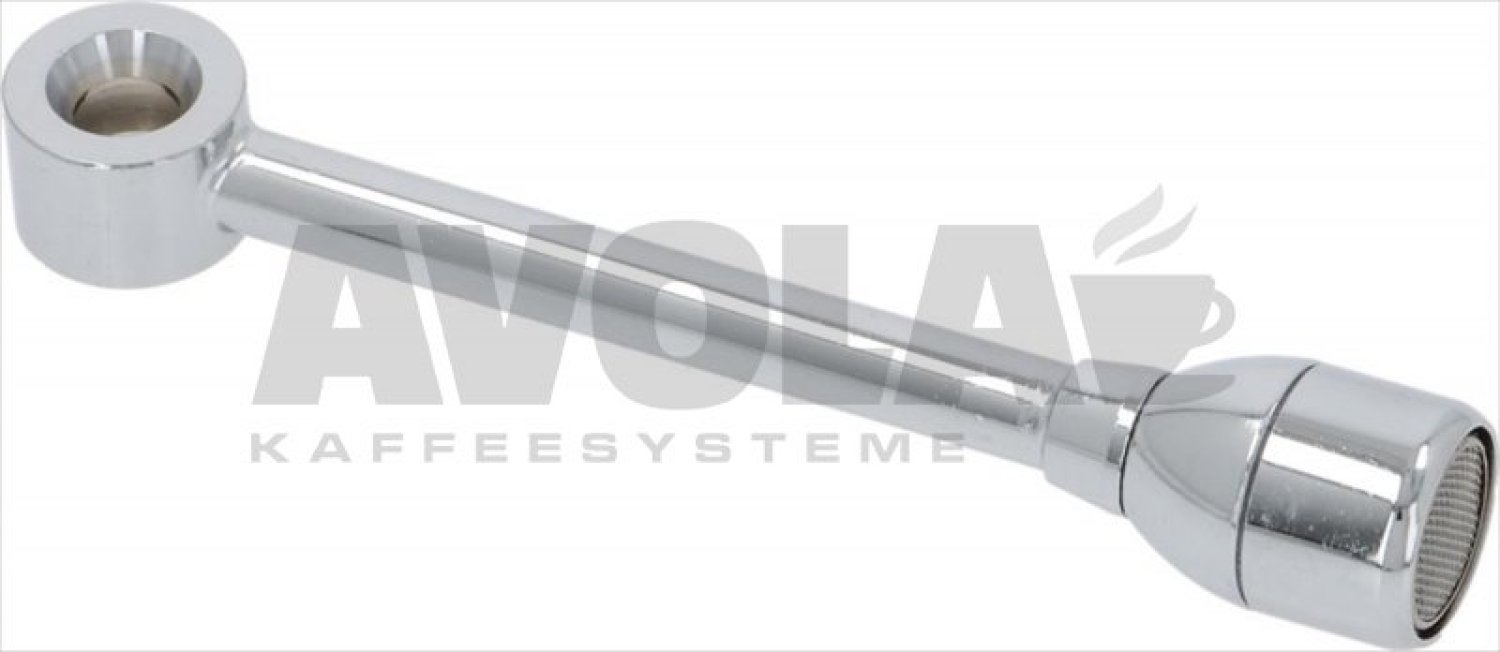

53complete water pipe 8006752
COMPLETE WATER PIPE
26,85 €

excl. Shipping costs

immediately available, 4 available

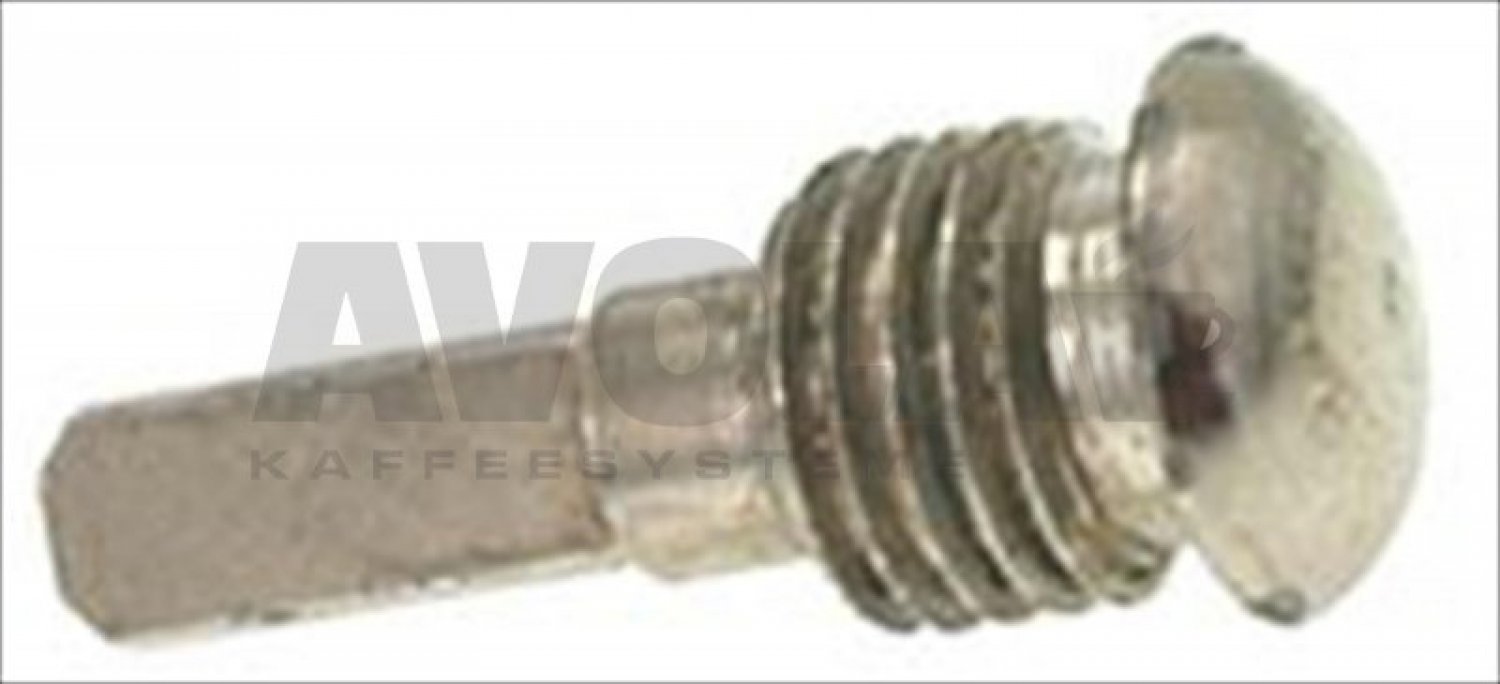

54water steam tap pin 8005558
WATER/STEAM TAP PIN
14,01 €

excl. Shipping costs

immediately available, 1 available

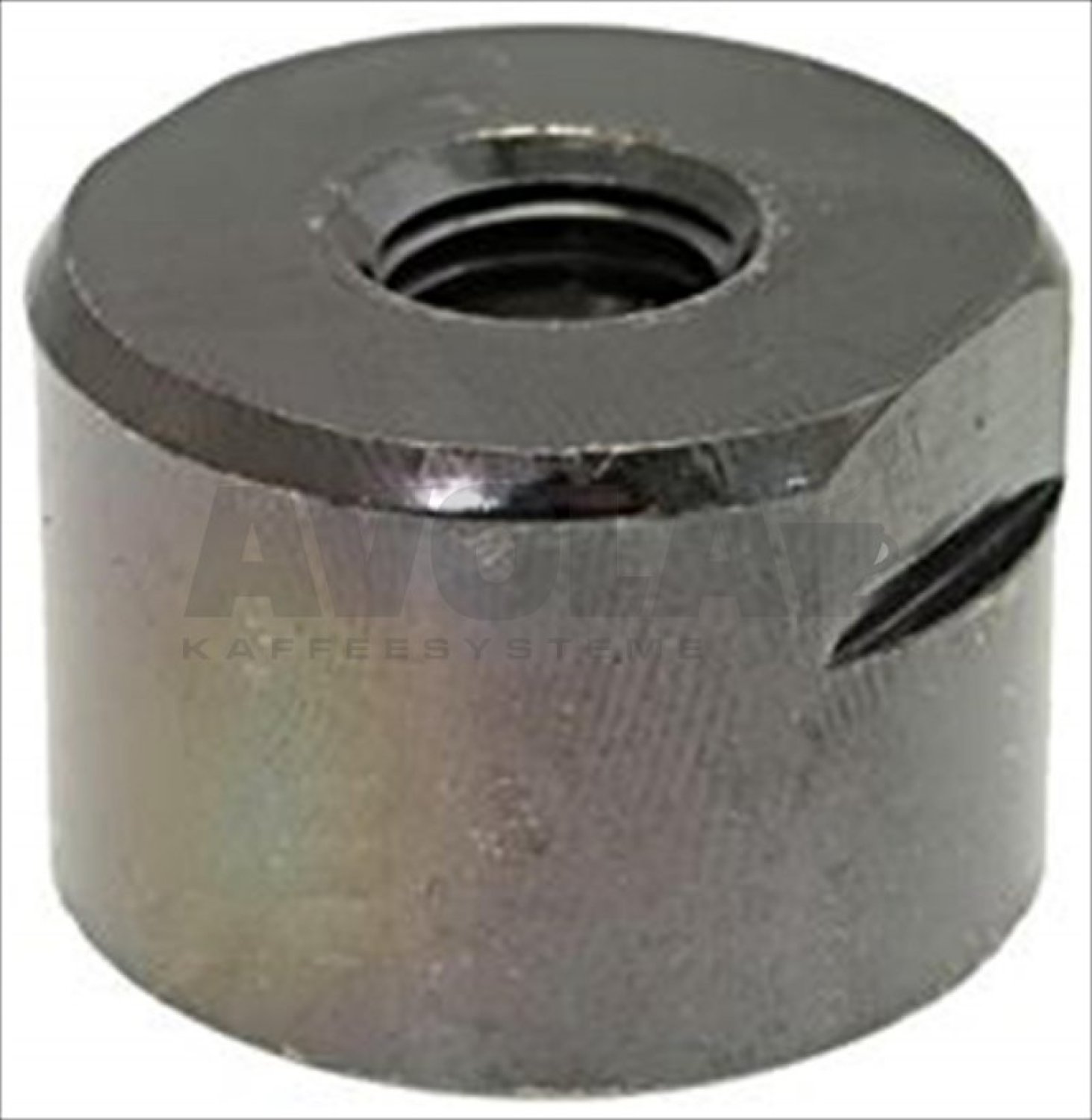

55brasilia nutmutter 3 8 8005590
Brasilia Nutmutter 3/8
9,90 €

excl. Shipping costs

immediately available, 4 available

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
