Brasilia

BRASILIA MINI CLASSIC GRUPPE KAFFEEGRUPPE

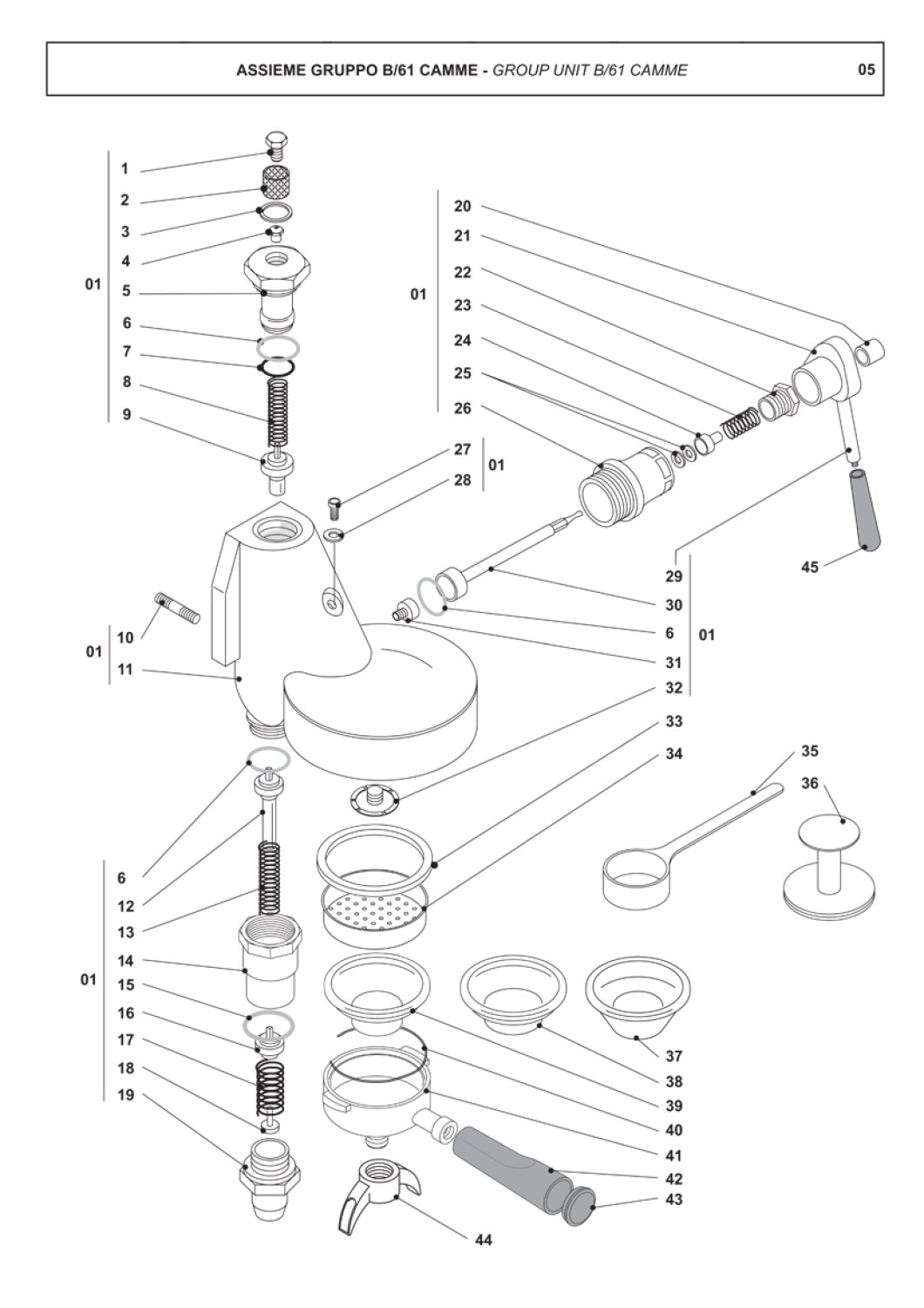

Drawing number 8069056

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.:Image:Description:Qty.:
1deckel fuer auslaufgruppe o 16 mm8006373
Deckel für Auslaufgruppe ø 16 mm
8,33 €

excl. Shipping costs
immediately available, 9 available
2water filter o 8 5x22 mm8001115
Water filter ø 8,5x22 mm
1,79 €

excl. Shipping costs
immediately available
3ptfe flat gasket o 16x22 5x2 mm8001581
PTFE FLAT GASKET ø 16x22,5x2 mm
1,65 €

excl. Shipping costs
immediately available
4nozzle m6x1 hole8006971
NOZZLE M6x1 HOLE
4,46 €

excl. Shipping costs
immediately available
5chromium plated upper sleeve8063314
CHROMIUM-PLATED UPPER SLEEVE
29,00 €
29,00 €

excl. Shipping costs
immediately available, 7 available
6ptfe flat gasket o 35x30x2 mm8001583
PTFE FLAT GASKET ø 35x30x2 mm
1,09 €

excl. Shipping costs
immediately available
7o ring 0128 viton8001794
O-RING 0128 VITON
1,68 €

excl. Shipping costs
immediately available
8spring o 14x45 mm8003820
SPRING ø 14x45 mm
1,57 €

excl. Shipping costs
immediately available
9complete spout valve8007091
COMPLETE SPOUT VALVE
7,90 €

excl. Shipping costs
immediately available
10stainless steel m8x25 mm stud8001292
STAINLESS STEEL M8x25 mm STUD
1,42 €

excl. Shipping costs
immediately available, 5 available
12complete drain valve8007124
COMPLETE DRAIN VALVE
10,50 €

excl. Shipping costs
immediately available
13spring o 14x45 mm8003820
SPRING ø 14x45 mm
1,57 €

excl. Shipping costs
immediately available
14outlet chromium plated sleeve8000146
OUTLET CHROMIUM-PLATED SLEEVE
46,68 €

excl. Shipping costs
Delivery time
is determined
15flat gasket ptfe o 26x21x2 mm8001415
Flat gasket PTFE ø 26x21x2 mm
2,32 €

excl. Shipping costs
immediately available
16e61 drain valve with gasket8007125
E61 drain valve with gasket
5,90 €

excl. Shipping costs
immediately available
17feder o 14 6x34 mm fuer e61 auslassventil verstaerkte variante fuer vibrationspumpenmaschinen8281551
Feder ø 14,6x34 mm für E61 Auslassventil - verstärkte Variante für Vibrationspumpenmaschinen
2,68 €

excl. Shipping costs
immediately available
19drain chromium plated fitting8005865
DRAIN CHROMIUM-PLATED FITTING
4,40 €

excl. Shipping costs
immediately available, 2 available
20chromium plated cap m68002794
CHROMIUM-PLATED CAP M6
3,51 €

excl. Shipping costs
immediately available, 7 available
21chromium plated cam8002188
CHROMIUM-PLATED CAM
20,22 €

excl. Shipping costs
immediately available, 2 available
22stuffing gland chrome plated fitting8006414
STUFFING GLAND CHROME-PLATED FITTING
7,87 €

excl. Shipping costs
immediately available, 5 available
23spring o 14 6x21 mm8003547
SPRING ø 14,6x21 mm
3,55 €

excl. Shipping costs
immediately available
24spring guide bushing8001795
SPRING GUIDE BUSHING
4,64 €

excl. Shipping costs
immediately available, 8 available
25epdm flat gasket 15 5x7 5x4 mm8001570
EPDM flat gasket 15,5x7,5x4 mm
0,90 €

excl. Shipping costs
immediately available
26ecm rocket anschluss nockenwelle e61 verchromt hochglanzpoliert8101292
ECM / Rocket Anschluss Nockenwelle E61 verchromt hochglanzpoliert
19,90 €

excl. Shipping costs
immediately available, 11 available
27low cylinder head screw m6x10 uni 93278001293
LOW CYLINDER HEAD SCREW M6x10, UNI 9327
2,49 €

excl. Shipping costs
immediately available
28ptfe flat gasket o10x6x1 mm8001400
PTFE FLAT GASKET ø10x6x1 mm
1,30 €

excl. Shipping costs
immediately available, 10 available
30cam rod for e61 coffee group8005124
Cam rod for E61 coffee group
11,90 €

excl. Shipping costs
immediately available
32group spray nozzle o 30 mm m10x1 e618006987
Group spray nozzle ø 30 mm M10x1 - E61
6,14 €

excl. Shipping costs
immediately available
33rubber 73x57x8 5 mm for e61 brew unit8002056
RUBBER 73x57x8,5 mm - FOR E61 BREW UNIT
3,90 €

excl. Shipping costs
immediately available
34shower screen fuer e61 brew unit8000608
Shower screen für E61 brew unit
5,20 €

excl. Shipping costs
immediately available
35plastic measuring spoon 20 ml8000327
PLASTIC MEASURING SPOON 20 ml
1,73 €

excl. Shipping costs
immediately available, 9 available
36nylon coffee tamper8006165
NYLON COFFEE TAMPER
2,75 €

excl. Shipping costs
immediately available, 7 available
382 cup filter 14 grams8001101
2-CUP FILTER 14 GRAMS
7,02 €

excl. Shipping costs
immediately available
391 cup filter 7 g8001120
1 CUP FILTER 7 g
6,50 €

excl. Shipping costs
immediately available, 17 available
40s steel filter locking spring8003542
S/STEEL FILTER LOCKING SPRING
1,45 €

excl. Shipping costs
immediately available
41filter holder coffee machines8001183
FILTER HOLDER COFFEE MACHINES
19,99 €

excl. Shipping costs
immediately available, 2 available
42filter holder handle m128003351
FILTER HOLDER HANDLE M12
8,51 €

excl. Shipping costs
immediately available, 3 available
43filter holder knob cap8003118
FILTER HOLDER KNOB CAP
1,59 €

excl. Shipping costs
Delivery time 4-6 weeks
44lelit siebtraegerauslauf 2er o 3 8 quot rund auslauf vorne8280537
Lelit Siebträgerauslauf 2er ø 3/8" rund Auslauf vorne
This article is no longer available
44single spout o 3 8 kurz 24 50mm8000128
SINGLE SPOUT ø 3/8 kurz 24,50mm
5,74 €

excl. Shipping costs
immediately available, 5 available
44double spout o 3 88000111
DOUBLE SPOUT ø 3/8
7,27 €

excl. Shipping costs
immediately available, 7 available
44double spout8000123
DOUBLE SPOUT
7,14 €

excl. Shipping costs
immediately available, 7 available
44single spout o 3 88000110
SINGLE SPOUT ø 3/8
6,06 €

excl. Shipping costs
immediately available, 12 available

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
