Casadio Undici Dampf Wasser Ventil

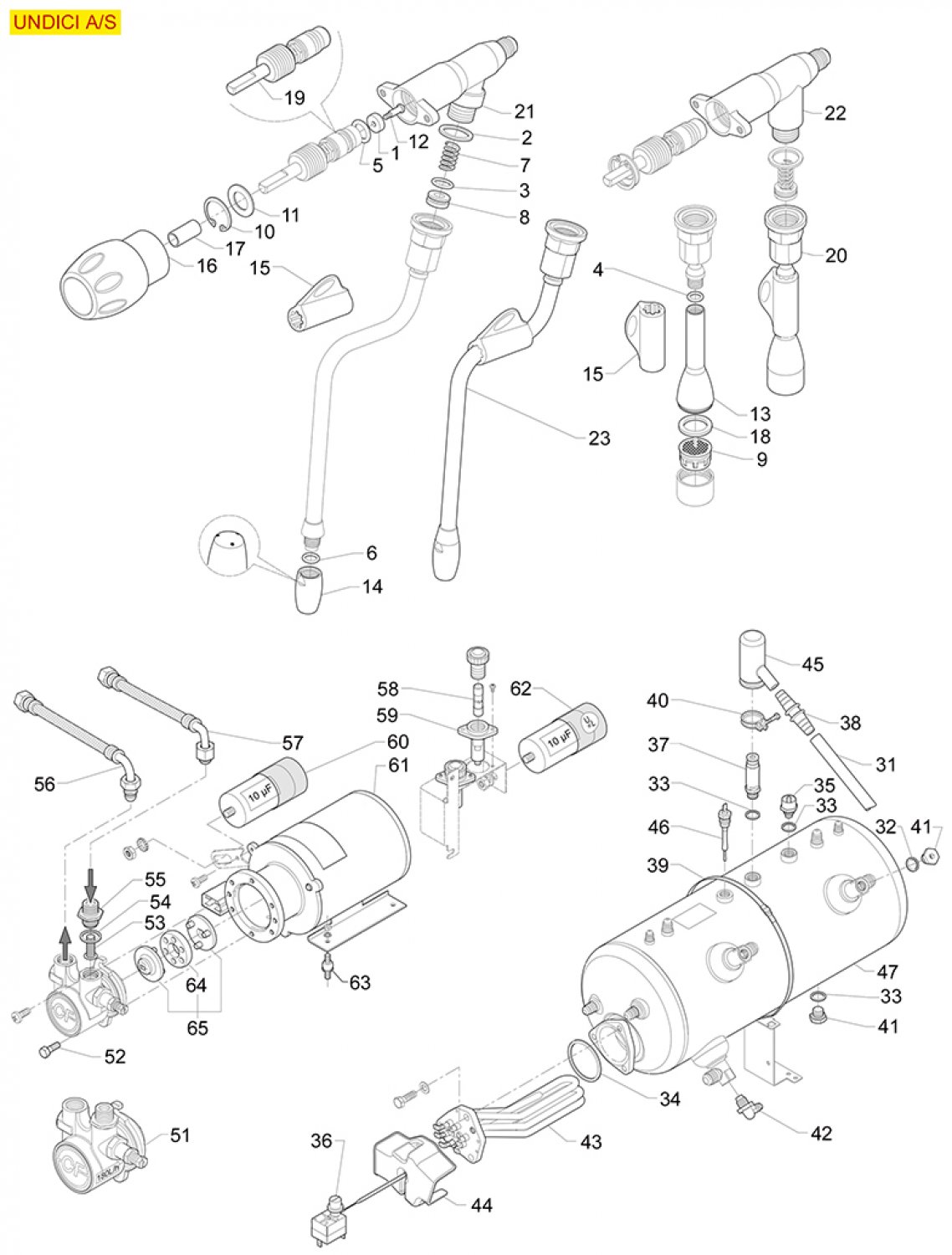

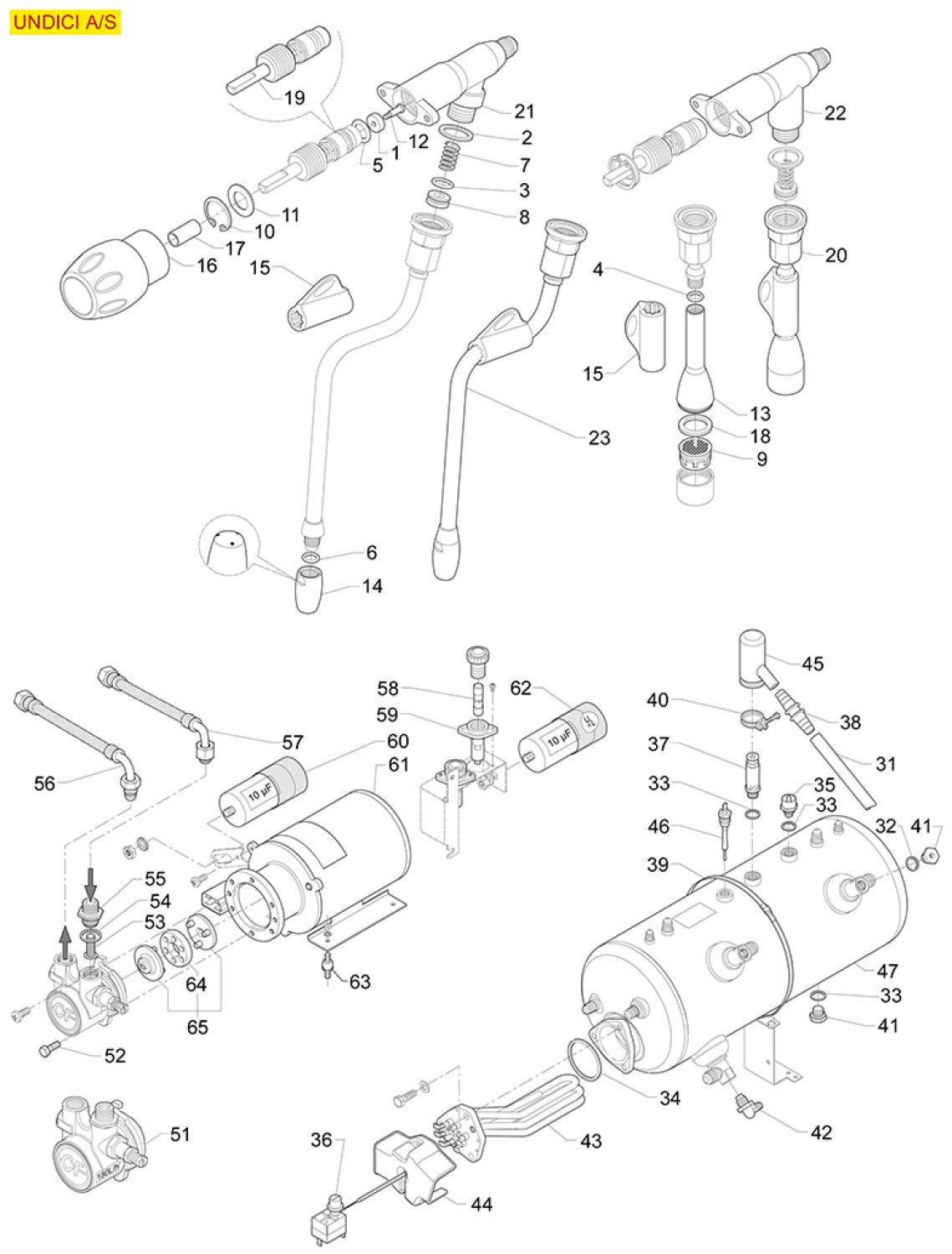

Drawing number 8280806

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.: Image: Description: Qty.:
1flat gasket viton o 12x4x4 mm 8002086
FLAT GASKET VITON ø 12x4x4 mm
3,75 €

excl. Shipping costs

immediately available, 15 available
2flat gasket ptfe o 22x17x1 5 mm 8002114
FLAT GASKET PTFE ø 22x17x1,5 mm
2,83 €

excl. Shipping costs

immediately available
3o ring 02043 epdm 8001593
O-RING 02043 EPDM
0,80 €

excl. Shipping costs

immediately available

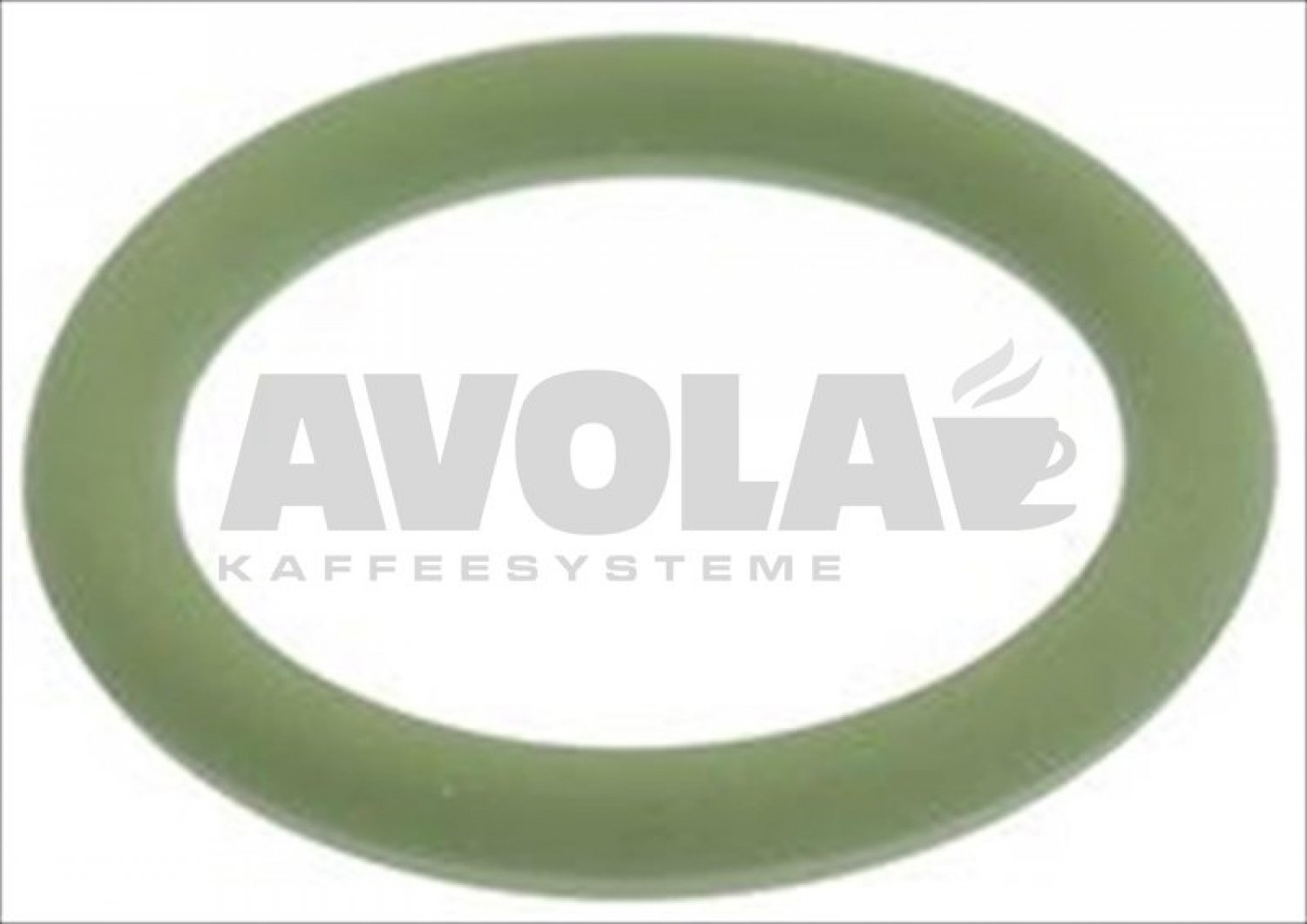

3o ring 02043 viton green 8002108
O-RING 02043 VITON GREEN
1,33 €

excl. Shipping costs

immediately available
4o ring gasket 0106 epdm 8018501
O-RING GASKET 0106 EPDM
1,45 €

excl. Shipping costs

immediately available
5o ring 03043 viton 8001513
O-RING 03043 VITON
1,19 €

excl. Shipping costs

immediately available
6o ring 02031 epdm 8001647
O-RING 02031 EPDM
1,20 €

excl. Shipping costs

immediately available

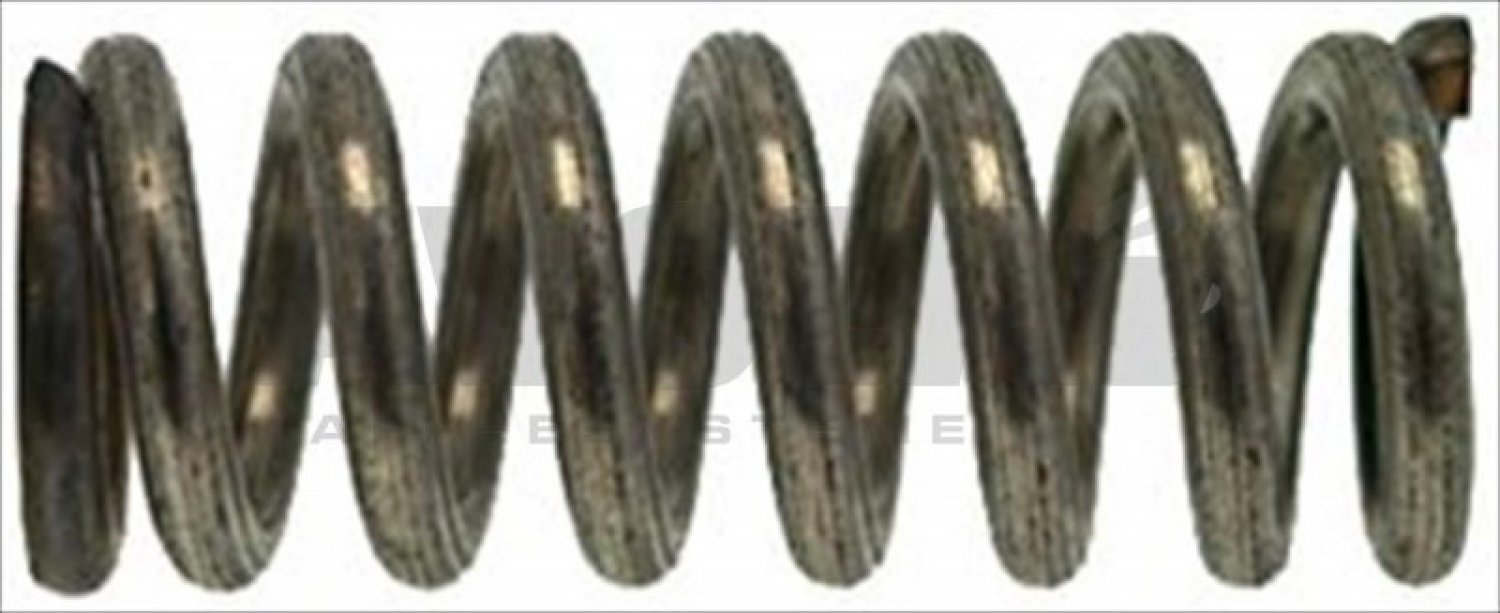

7tap pipe spring o 11x24 8003731
TAP PIPE SPRING ø 11x24
1,95 €

excl. Shipping costs

immediately available, 9 available
8conical ptfe seal o 14 5x7 5x6 mm 8001592
CONICAL PTFE SEAL ø 14,5x7,5x6 mm
1,93 €

excl. Shipping costs

immediately available, 8 available

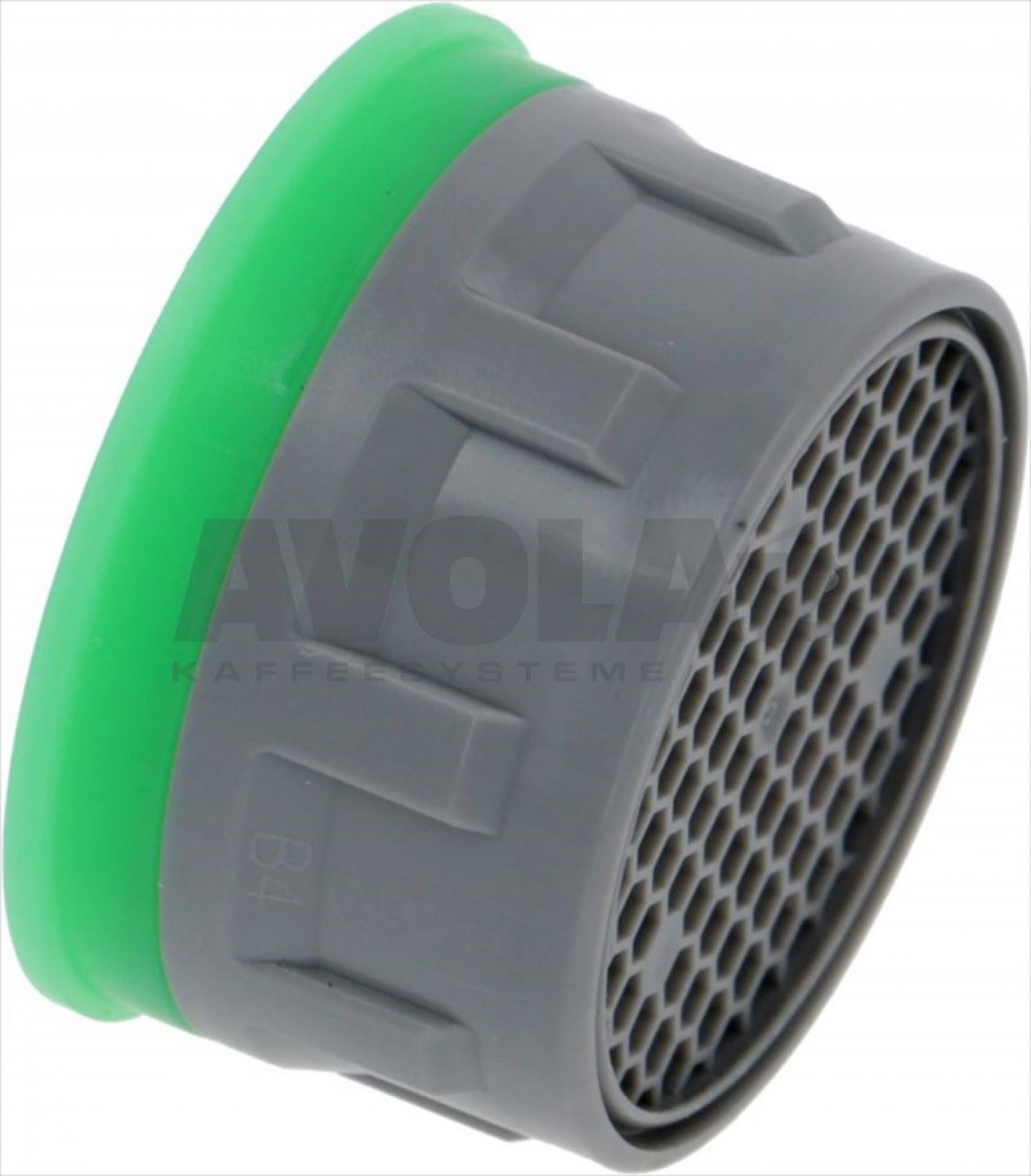

9water sprinkler 8064581
WATER SPRINKLER
4,68 €

excl. Shipping costs

immediately available, 5 available

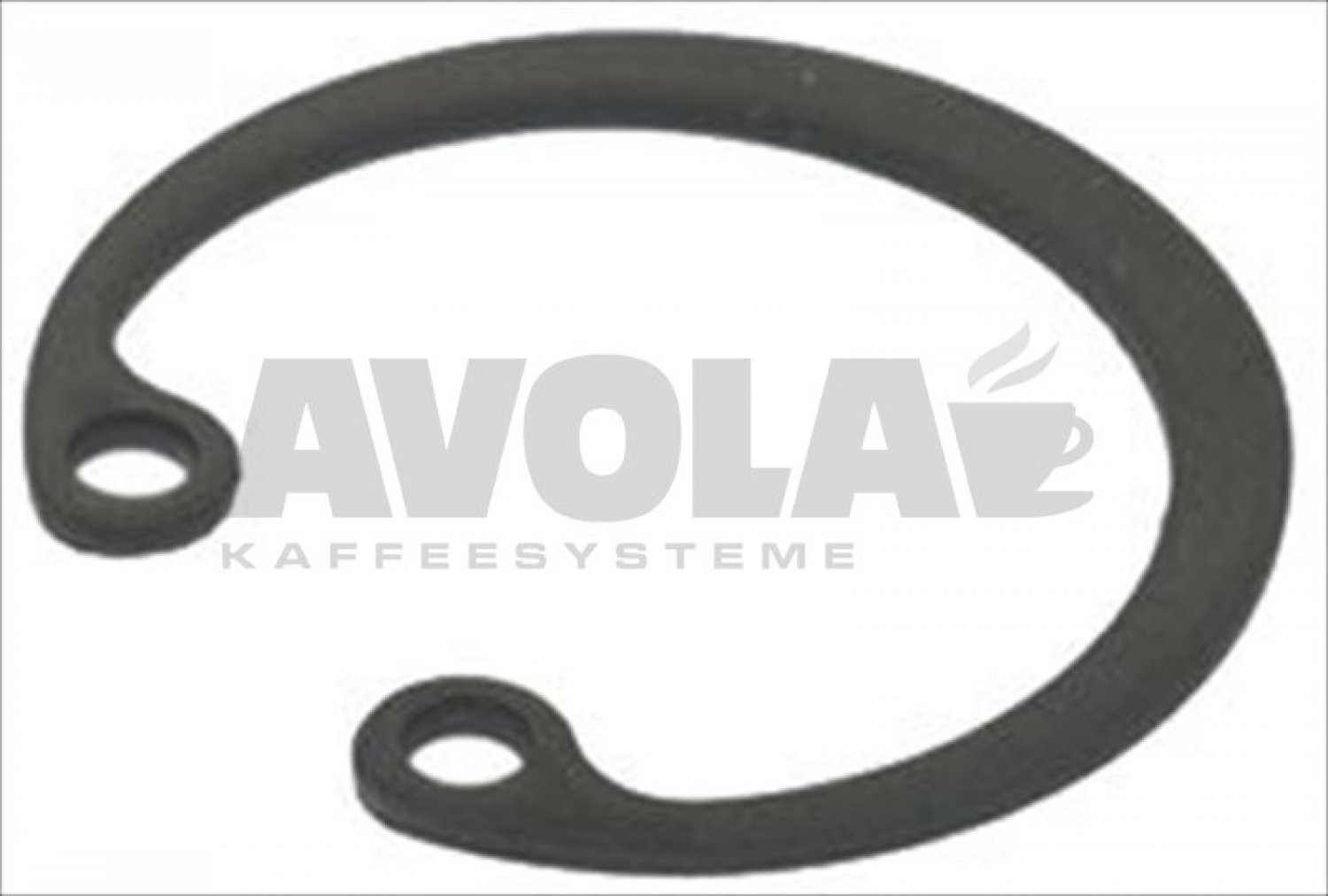

10seeger ring j 19 8005450
SEEGER RING J-19
0,92 €

excl. Shipping costs

immediately available, 15 available

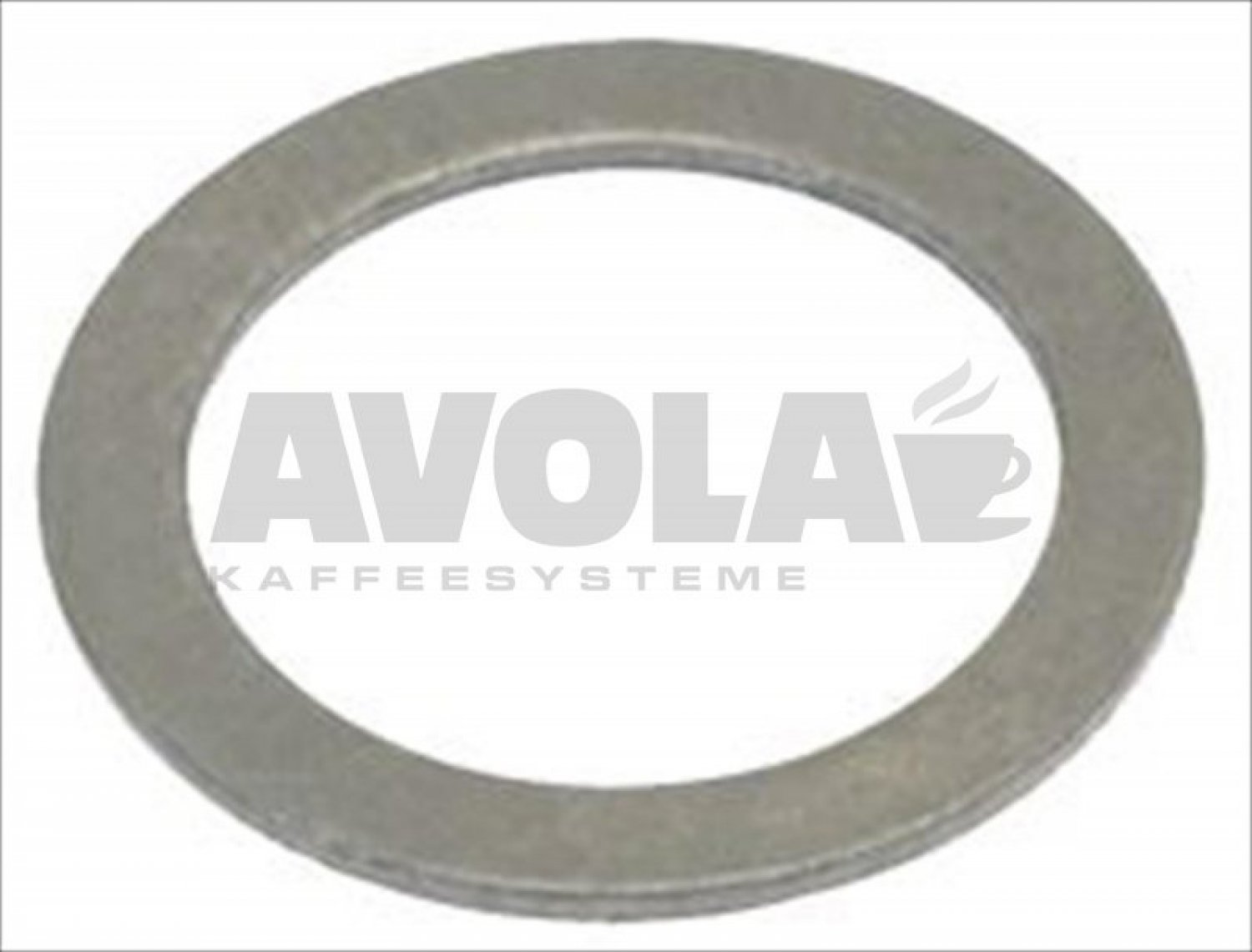

11washer o 22x16x1 mm 8001561
WASHER ø 22x16x1 mm
0,89 €

excl. Shipping costs

immediately available, 7 available

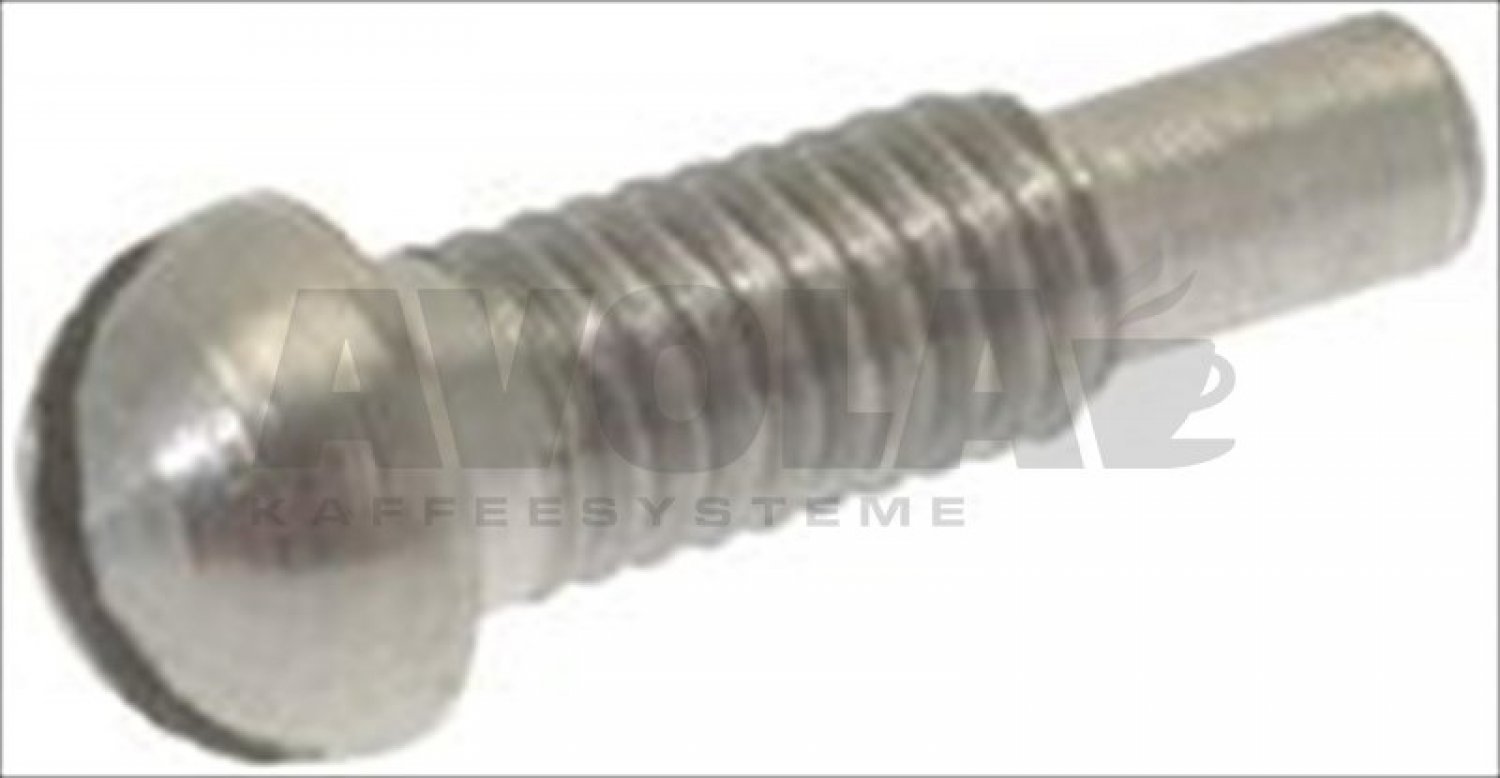

12screw pin for water steam tap 8001300
SCREW PIN FOR WATER/STEAM TAP
11,35 €

excl. Shipping costs

immediately available, 4 available

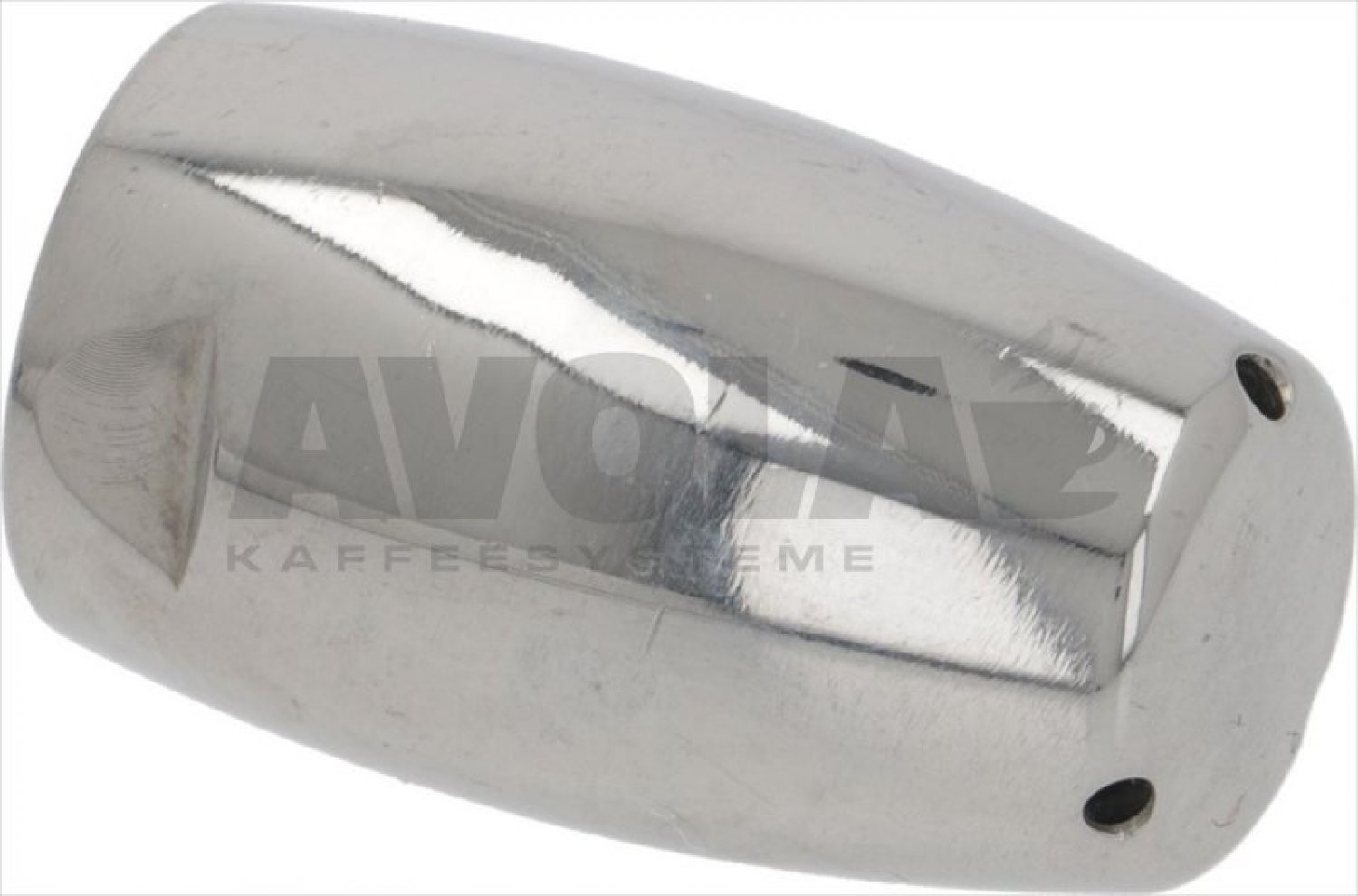

14stainless steel steam sprinkler 8064220
STAINLESS STEEL STEAM SPRINKLER
26,18 €

excl. Shipping costs

Delivery time
is determined

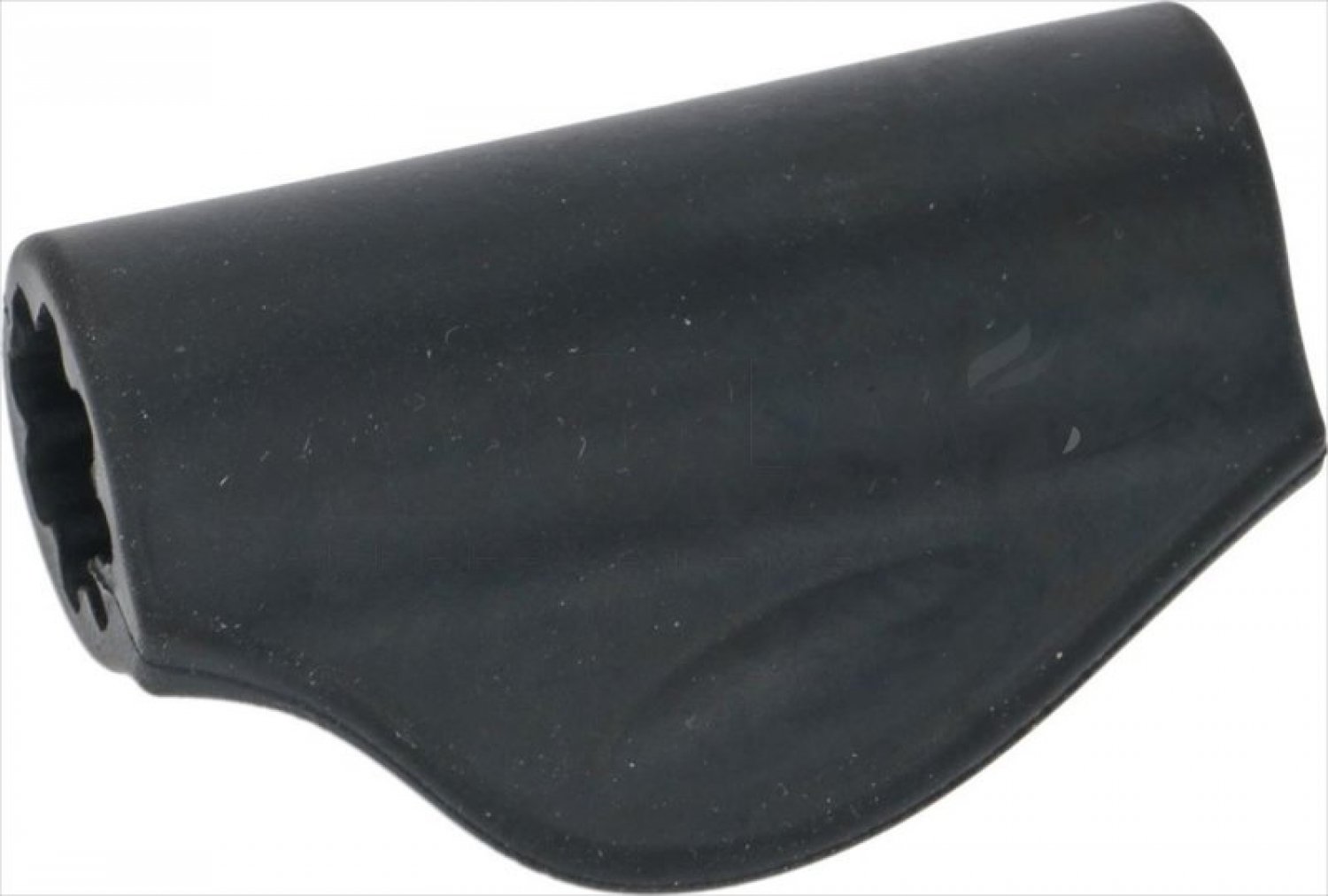

15burn prevent rubberpiece f pipe 8064219
BURN PREVENT.RUBBERPIECE f/PIPE
7,08 €

excl. Shipping costs

immediately available, 8 available

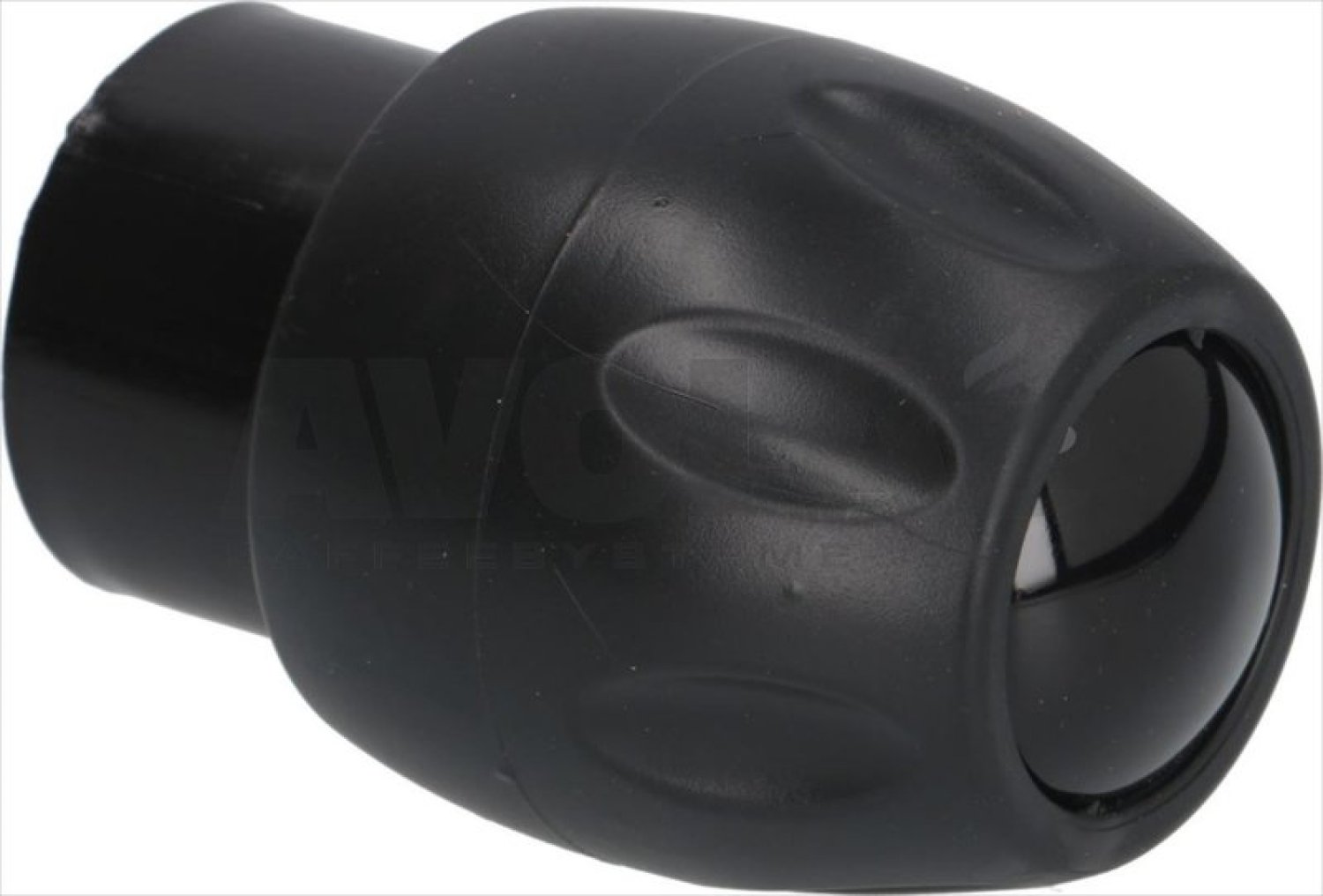

16griff wasser dampfhahn 8088986
GRIFF WASSER/DAMPFHAHN
30,84 €

excl. Shipping costs

Delivery time
is determined
18flat epdm gasket o 20 5x15x2 mm 8002115
FLAT EPDM GASKET ø 20,5x15x2 mm
3,32 €

excl. Shipping costs

immediately available, 15 available
19cimbali faema casadio tap spindle 8005510
Cimbali Faema Casadio TAP SPINDLE
52,12 €

excl. Shipping costs

immediately available, 1 available

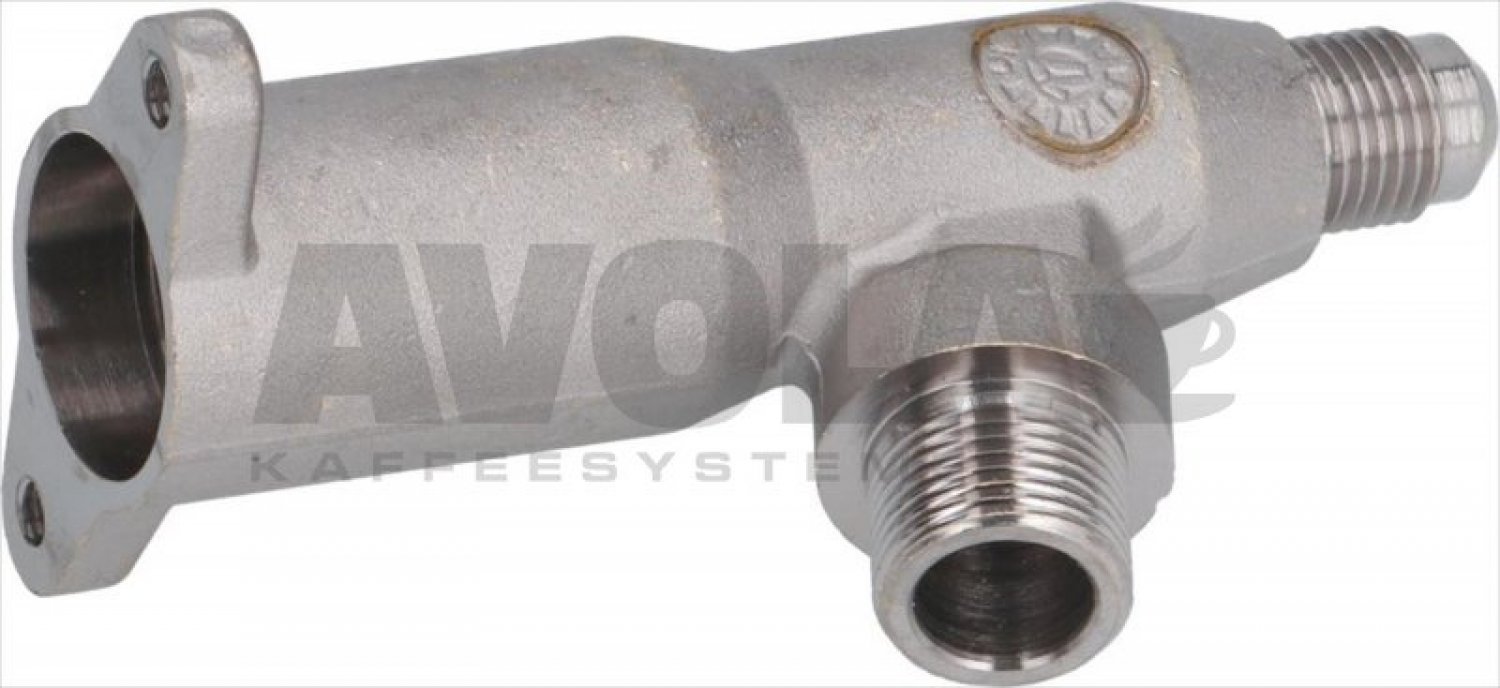

21ventilkoerper dampfhahn anschluss 1 4 quot konisch cimbali casadio faema 8079299
Ventilkörper Dampfhahn Anschluss 1/4" konisch Cimbali Casadio Faema
70,65 €

excl. Shipping costs

Delivery time
is determined

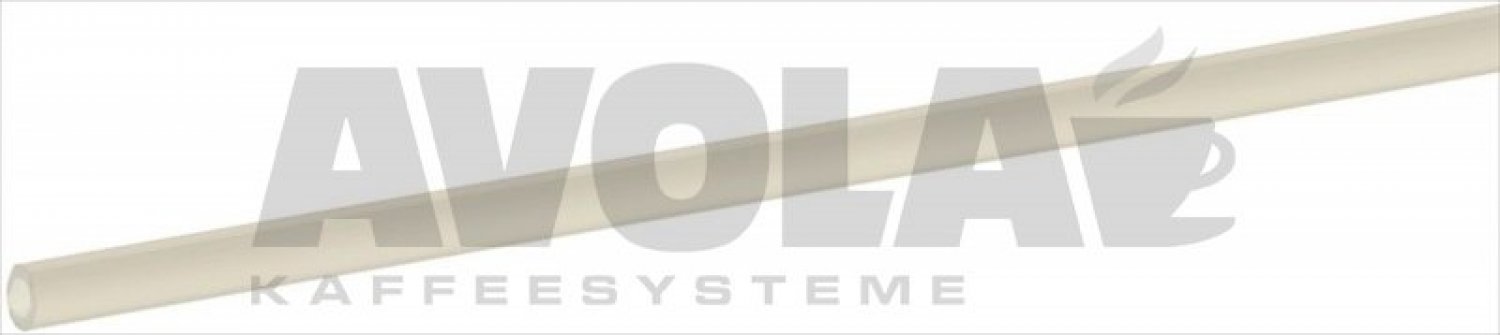

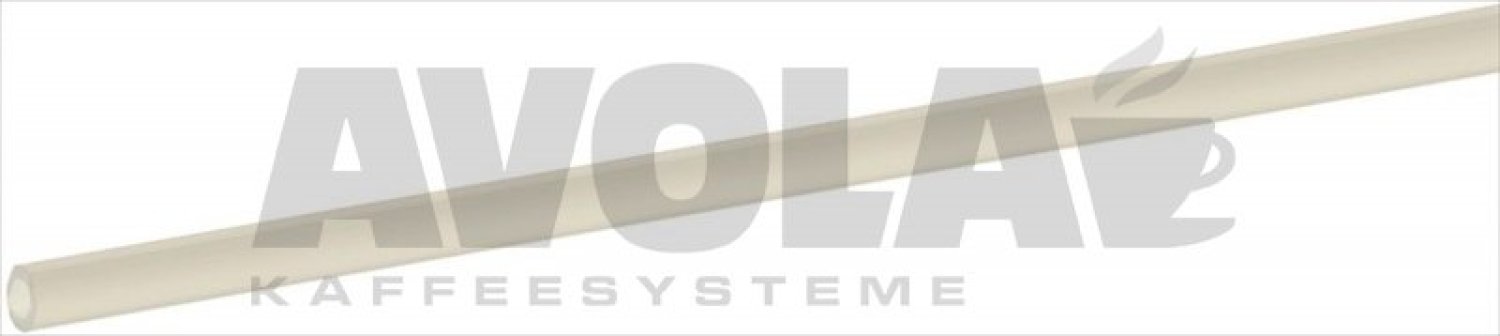

31silikonschlauch o 10x13 shore 60 10 m 8146549
Silikonschlauch ø 10x13 SHORE 60 - 10 m
89,38 €

excl. Shipping costs

Delivery time
is determined
32copper flat gasket o 18x14x1 5 mm 8001814
COPPER FLAT GASKET ø 18x14x1,5 mm
1,20 €

excl. Shipping costs

immediately available
33ptfe flat gasket o 18x14x1 5 mm 8061013
PTFE FLAT GASKET ø 18x14x1,5 mm
1,00 €

excl. Shipping costs

immediately available, 8 available
34flat carbo gasket 8001805
FLAT CARBO GASKET
3,89 €

excl. Shipping costs

immediately available, 14 available
34ptfe flat gasket o 58x51x2 mm 8001807
PTFE FLAT GASKET ø 58x51x2 mm
4,26 €

excl. Shipping costs

immediately available, 12 available
35boiler valve 8064179
BOILER VALVE
19,90 €

excl. Shipping costs

immediately available, 7 available
36single phase thermostat 169 deg c 8064629
SINGLE-PHASE THERMOSTAT 169°C
62,27 €

excl. Shipping costs

immediately available, 5 available
37boiler valve 8064146
BOILER VALVE
27,61 €

excl. Shipping costs

immediately available, 1 available
43heating element 2700w 220v 8064272
HEATING ELEMENT 2700W 220V
69,56 €

excl. Shipping costs

immediately available, 1 available
45faema cimbali casadio schutz abdeckung fuer sicherheitsventil 8101786
Faema Cimbali Casadio Schutz Abdeckung für Sicherheitsventil
14,22 €

excl. Shipping costs

immediately available, 2 available

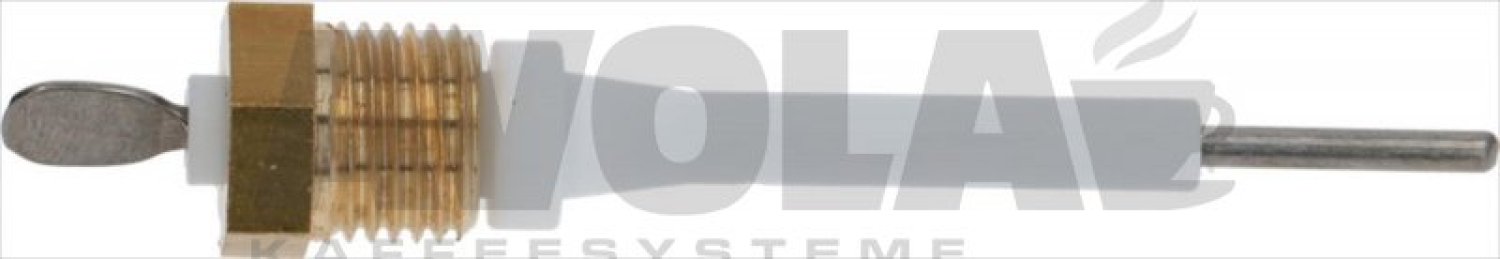

46level probe o 1 4m 113 mm 8063813
LEVEL PROBE ø 1/4M-113 mm
27,06 €

excl. Shipping costs

Delivery time 4-6 weeks..

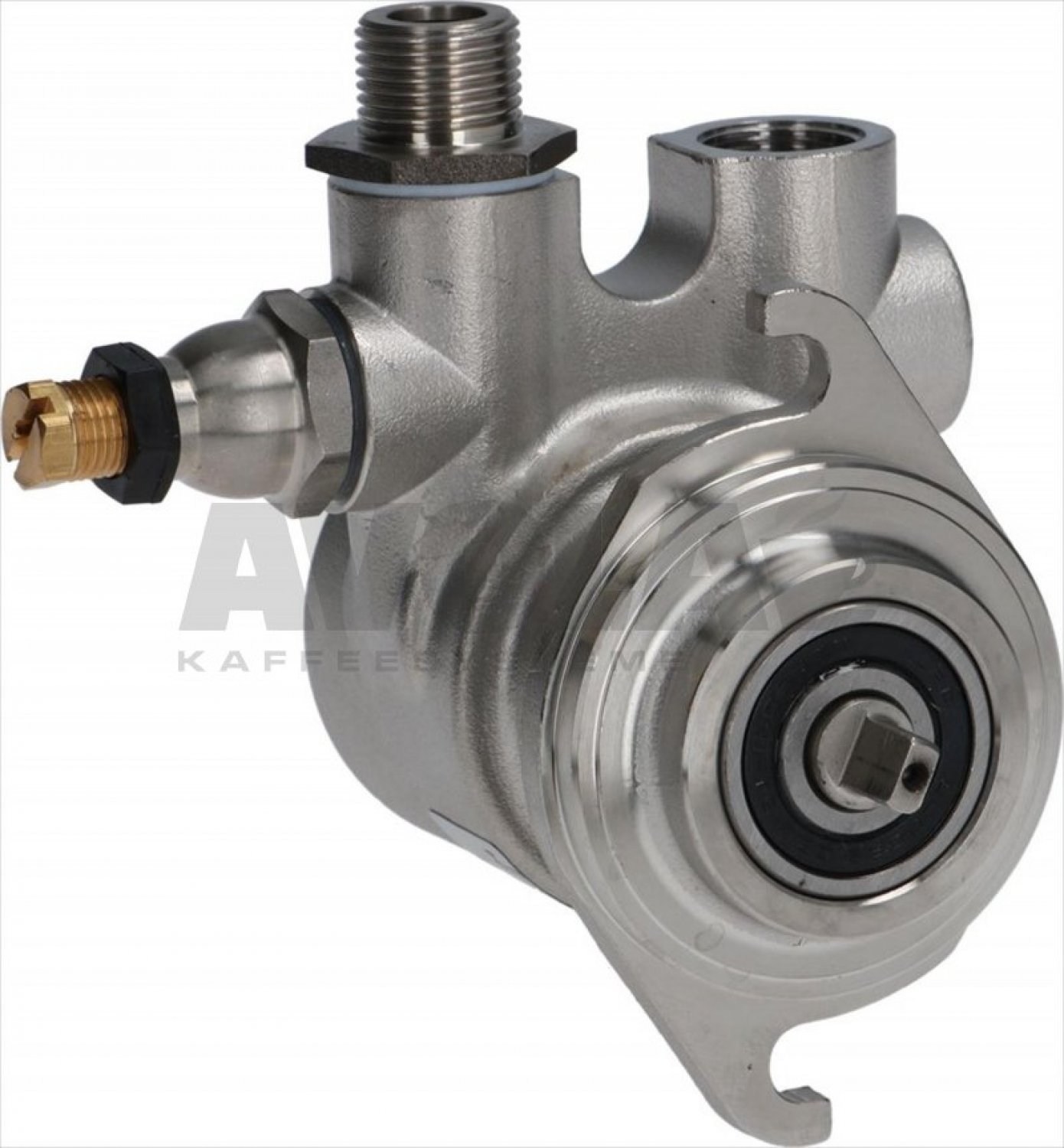

51faema rotationspumpe cimbali o 3 8 bsp 180l h inox 8108254
Faema Rotationspumpe Cimbali ø 3/8 BSP 180l/h Inox
185,89 €

excl. Shipping costs

immediately available, 2 available

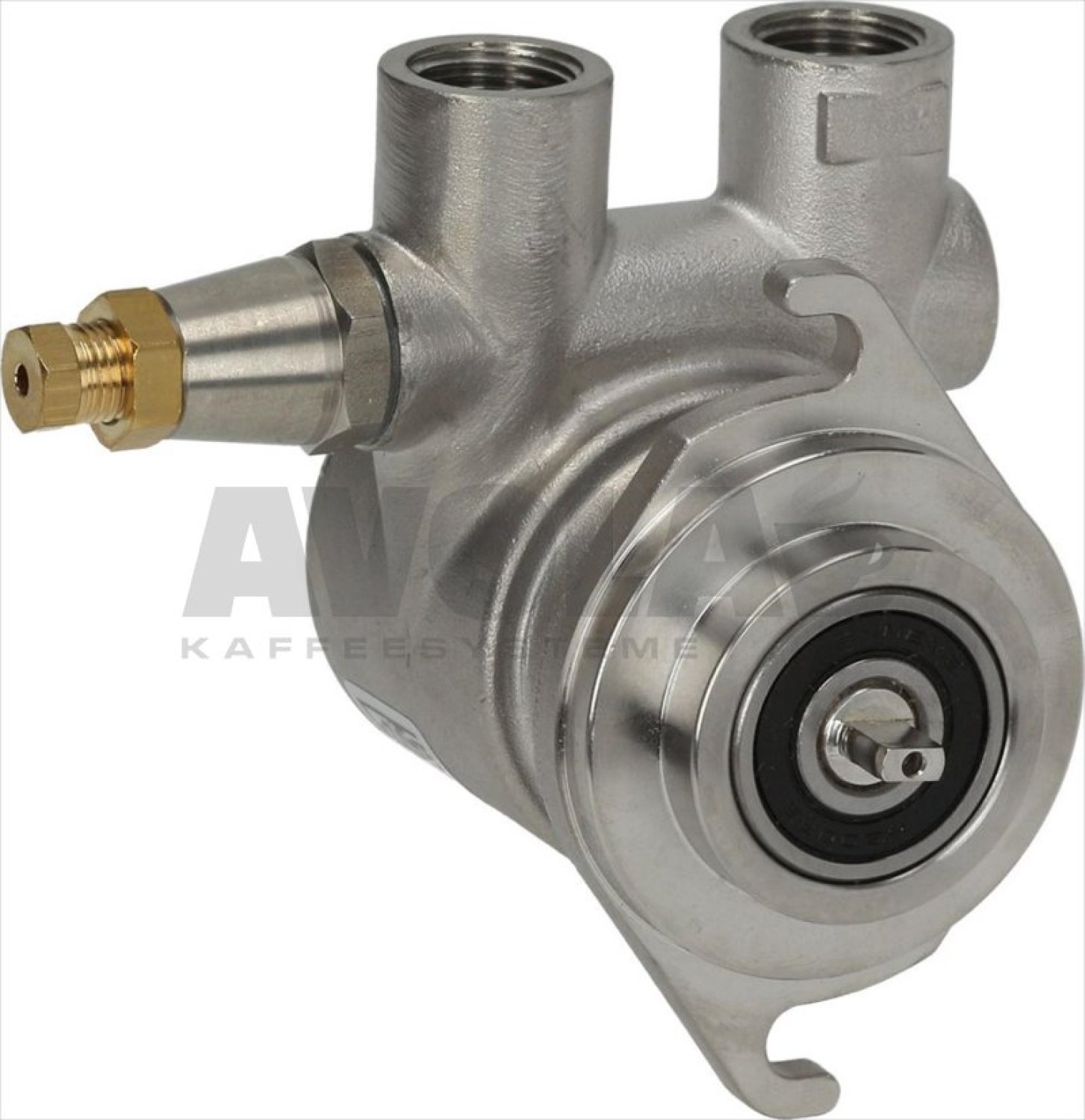

51faema verdraengerpumpe nuert o 3 8 quot 8089083
Faema Verdrängerpumpe Nuert ø 3/8"
116,18 €

excl. Shipping costs

Delivery time
is determined
54flat gasket ptfe o 22x17x1 5 mm 8002114
FLAT GASKET PTFE ø 22x17x1,5 mm
2,83 €

excl. Shipping costs

immediately available

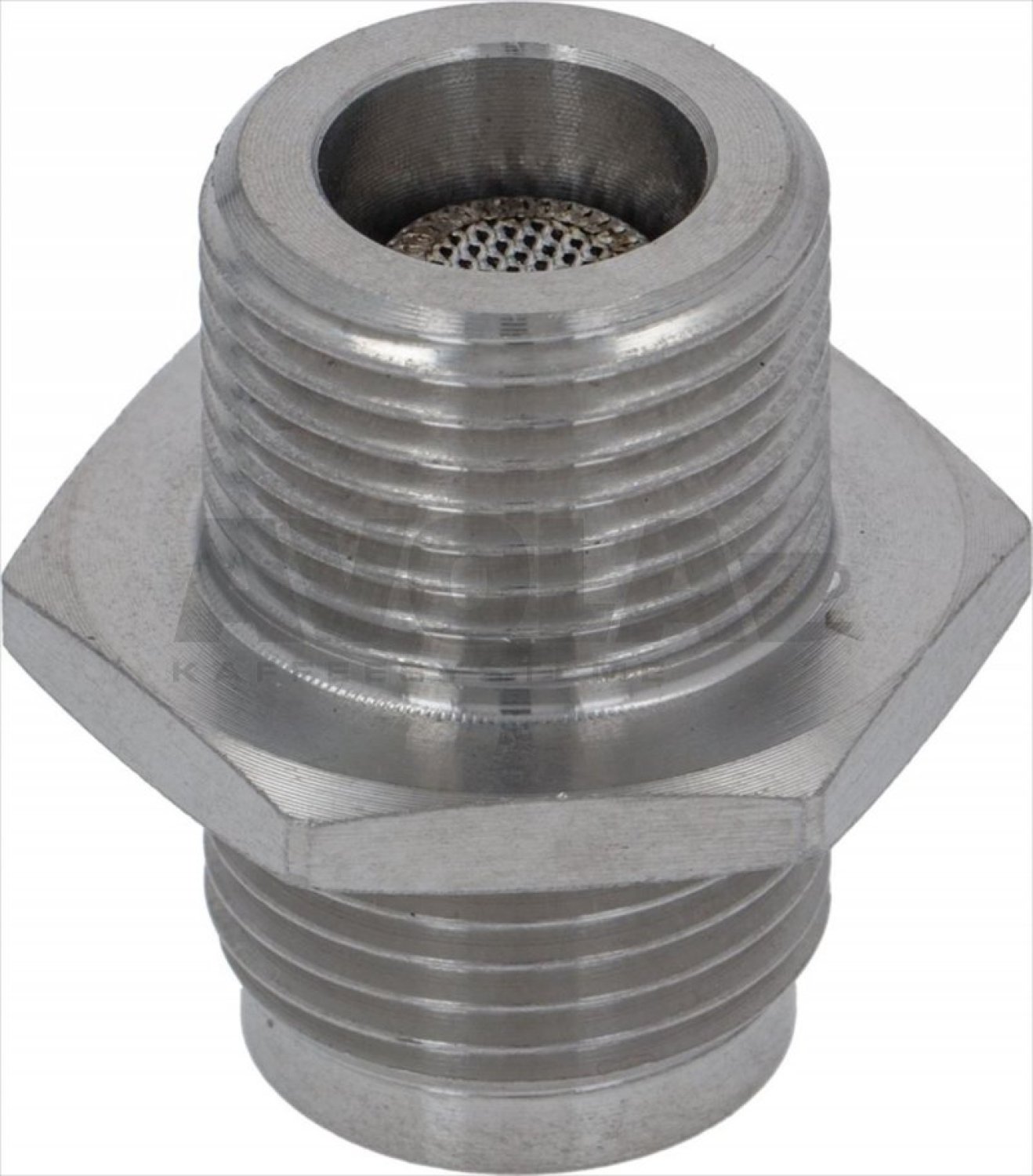

55pump fitting 8063845
PUMP FITTING
19,27 €

excl. Shipping costs

Delivery time
is determined

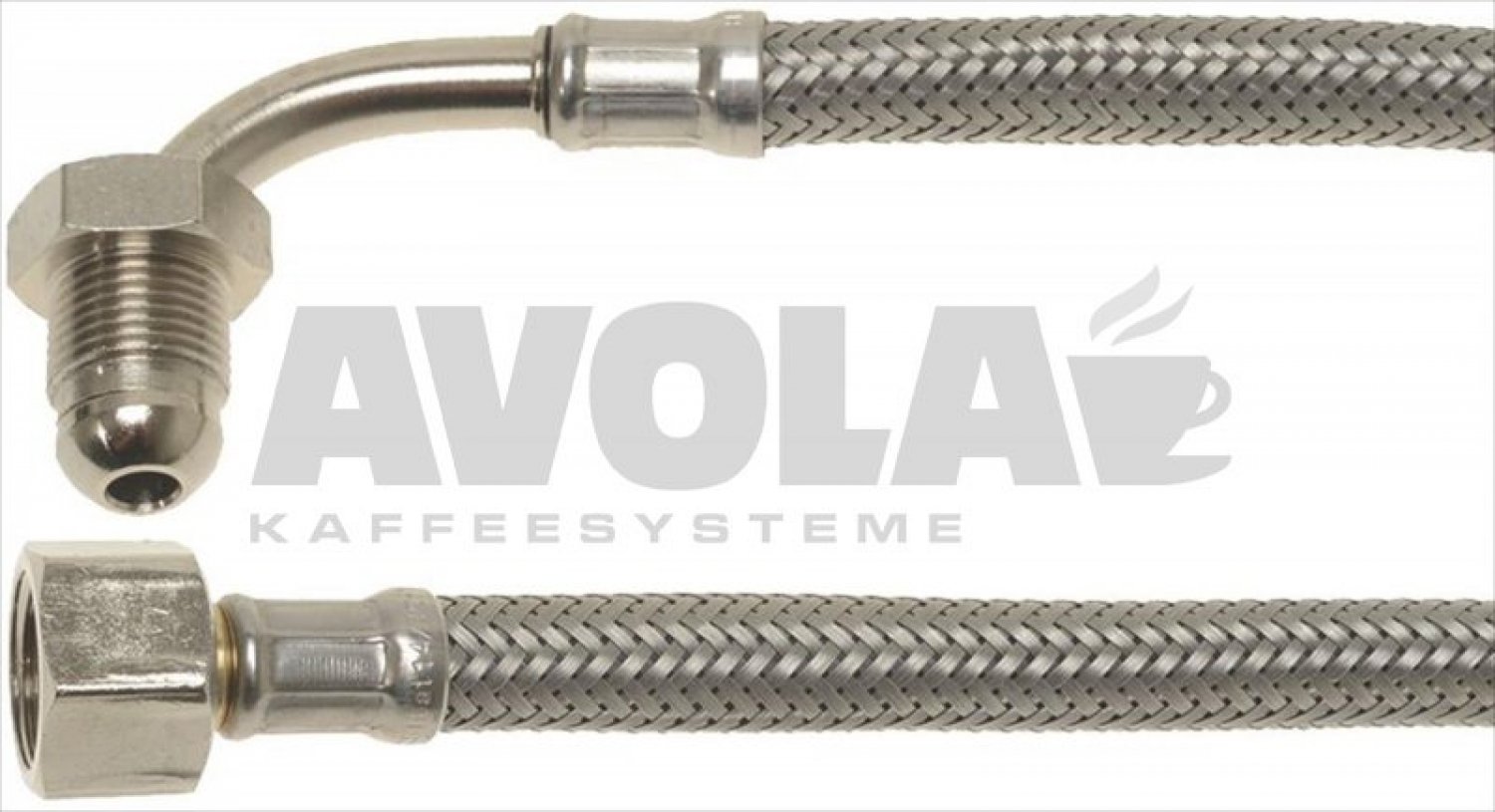

56flexschlauch o 3 frasl 8 f 3 8 m konisch dichtend 90 deg biegung 38cm faema 8036976
Flexschlauch ø 3⁄8 F - 3/8 M konisch dichtend 90° Biegung, 38cm Faema
24,04 €

excl. Shipping costs

immediately available, 2 available
57schlauch flex o 3 8 quot fc x 3 8 quot cfc 2200 mm 8099727
Schlauch Flex ø 3/8"fc x 3/8"cfc 2200 mm
29,79 €

excl. Shipping costs

Delivery time
is determined

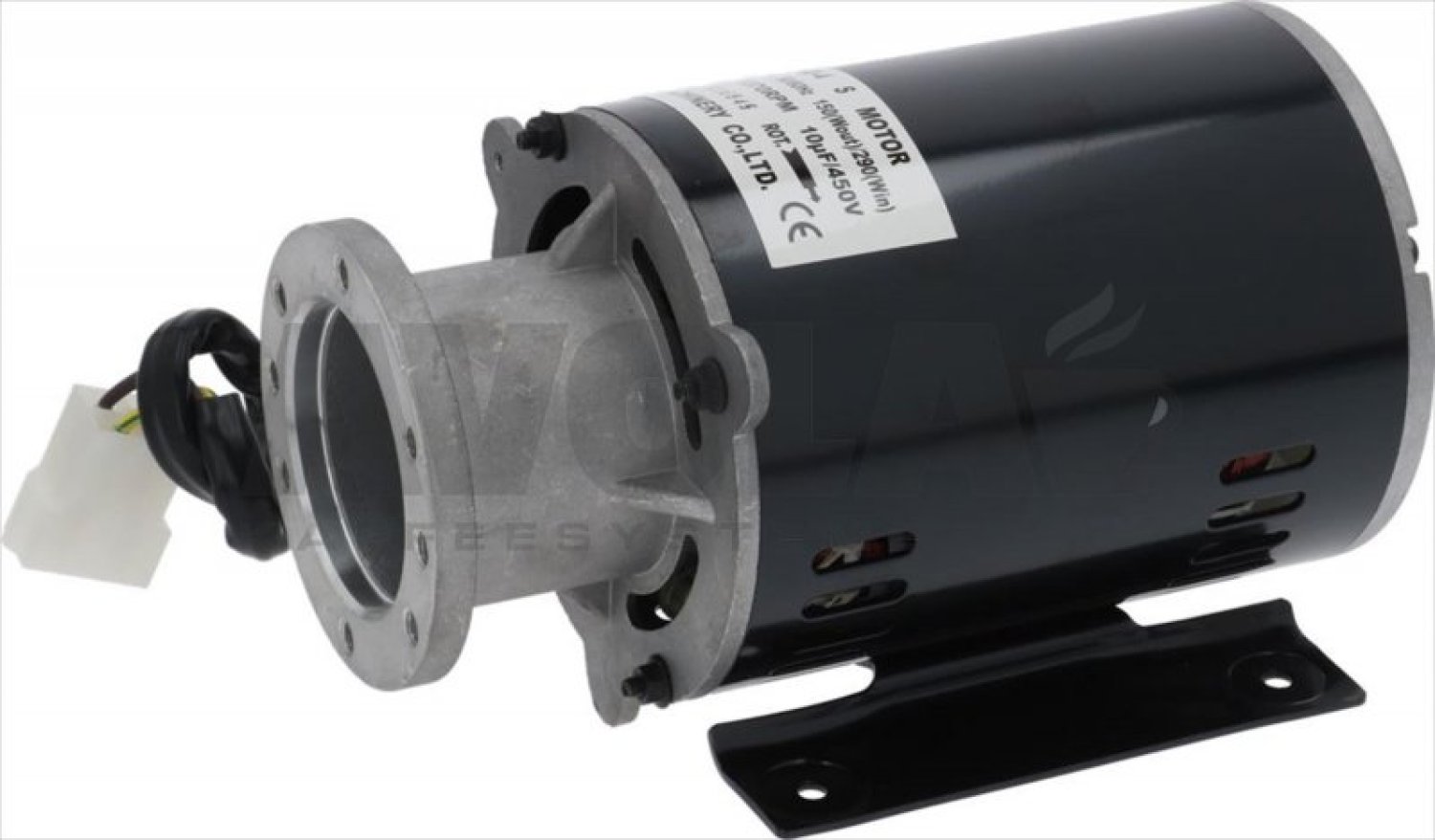

61motor sma with flange 150w ul 8063602
MOTOR SMA WITH FLANGE 150W UL
230,04 €

excl. Shipping costs

Delivery time 4-6 weeks..
61motor sma with flange 150w 8063603
MOTOR SMA WITH FLANGE 150W
386,42 €

excl. Shipping costs

Delivery time 4-6 weeks..
64rubber coupling 8002178
RUBBER COUPLING
Price on request
65complete metal coupling 8002179
COMPLETE METAL COUPLING
10,04 €

excl. Shipping costs

immediately available, 2 available

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
