Casadio

CASADIO - VENTI KESSEL UND MOTOR

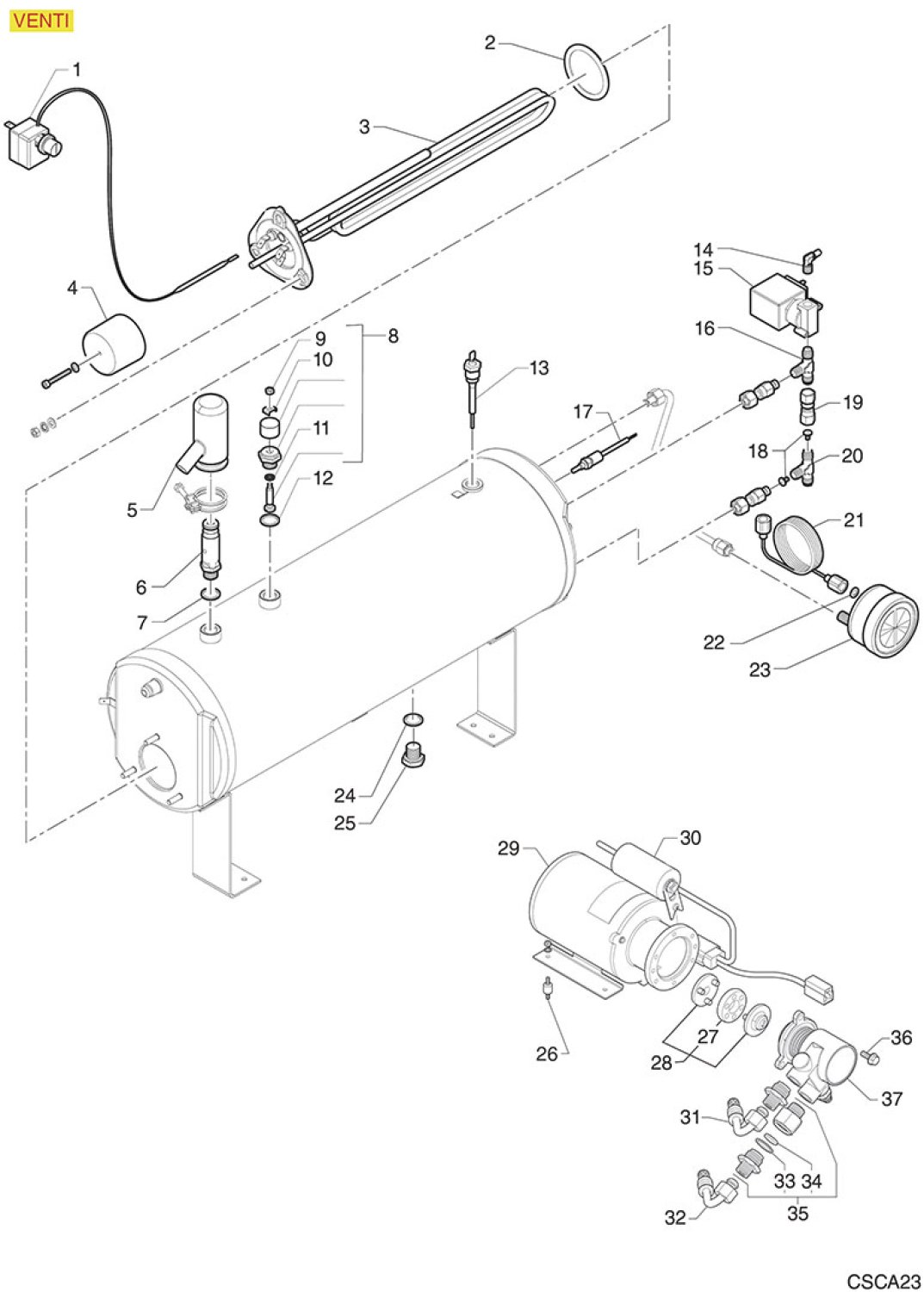

Drawing number 8065487

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.:Image:Description:Qty.:
1single phase thermostat 169 deg c8064629
SINGLE-PHASE THERMOSTAT 169°C
62,08 €

excl. Shipping costs
immediately available, 6 available
2la pavoni siebtraegerdichtung o ring o 57 7x47x5 3 mm8014619
La Pavoni Siebträgerdichtung O-RING ø 57.7x47x5.3 mm
2,50 €

excl. Shipping costs
immediately available, 16 available

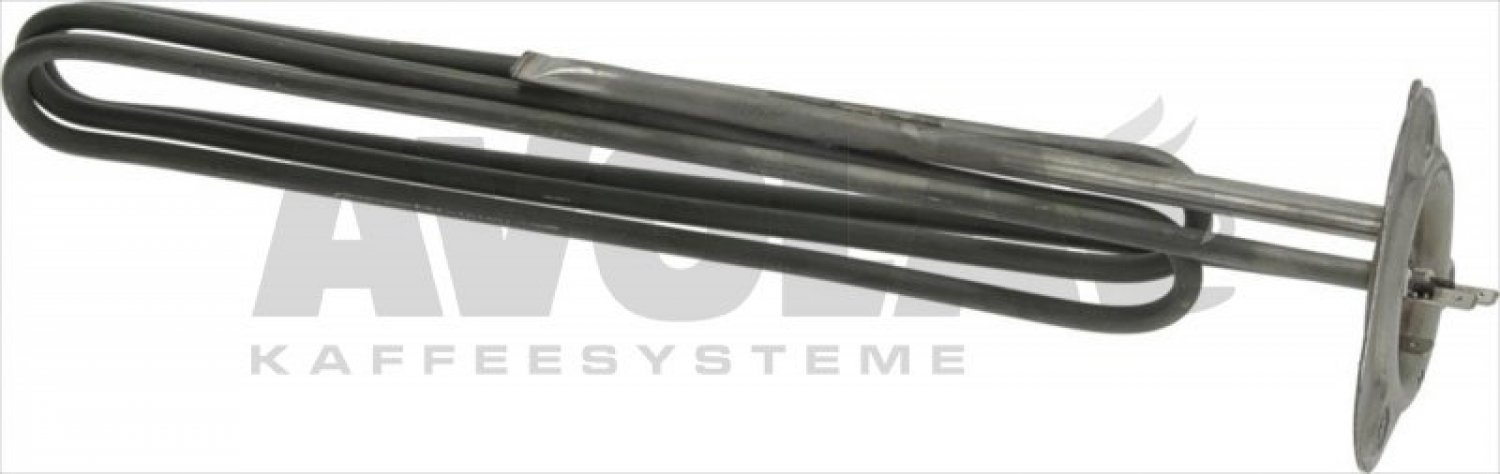

3heating element 2700w 230v8064270
HEATING ELEMENT 2700W 230V
70,13 €

excl. Shipping costs
Delivery time 4-6 weeks
6boiler valve8064146
BOILER VALVE
27,43 €

excl. Shipping costs
immediately available, 1 available
7ptfe flat gasket o 18x14x1 5 mm8061013
PTFE FLAT GASKET ø 18x14x1,5 mm
1,11 €

excl. Shipping costs
immediately available, 7 available
8o 1 4 rime boiler valve8007153
ø 1/4″ - BOILER VALVE
7,52 €

excl. Shipping costs
immediately available
8fluid o tech 1 4 quot bsp unterdruckventil antivakuumventil edelstahl8393315
Fluid-o-tech 1/4" BSP Unterdruckventil Antivakuumventil Edelstahl
34,90 €

excl. Shipping costs
immediately available
9hexagonal nut m4 medium8005615
HEXAGONAL NUT M4 MEDIUM
Price on request
11gasket or 02021 epdm8001604
Gasket OR 02021 EPDM
1,09 €

excl. Shipping costs
immediately available

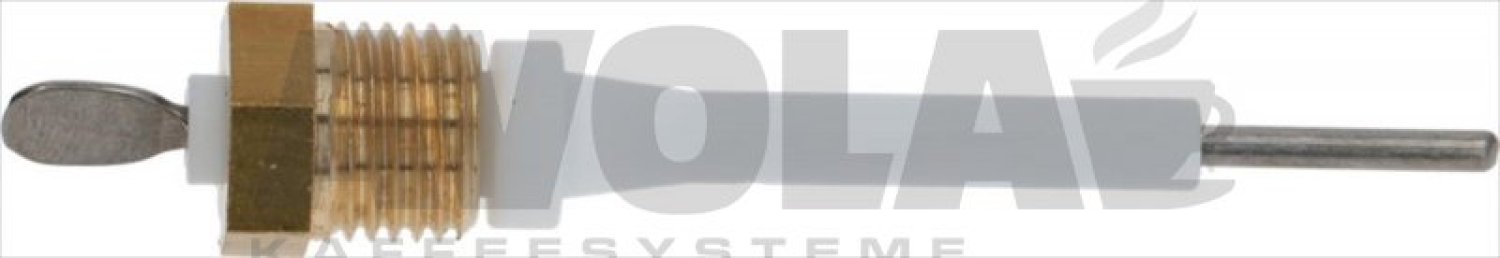

13level probe8063813
LEVEL PROBE
28,74 €

excl. Shipping costs
Delivery time
is determined

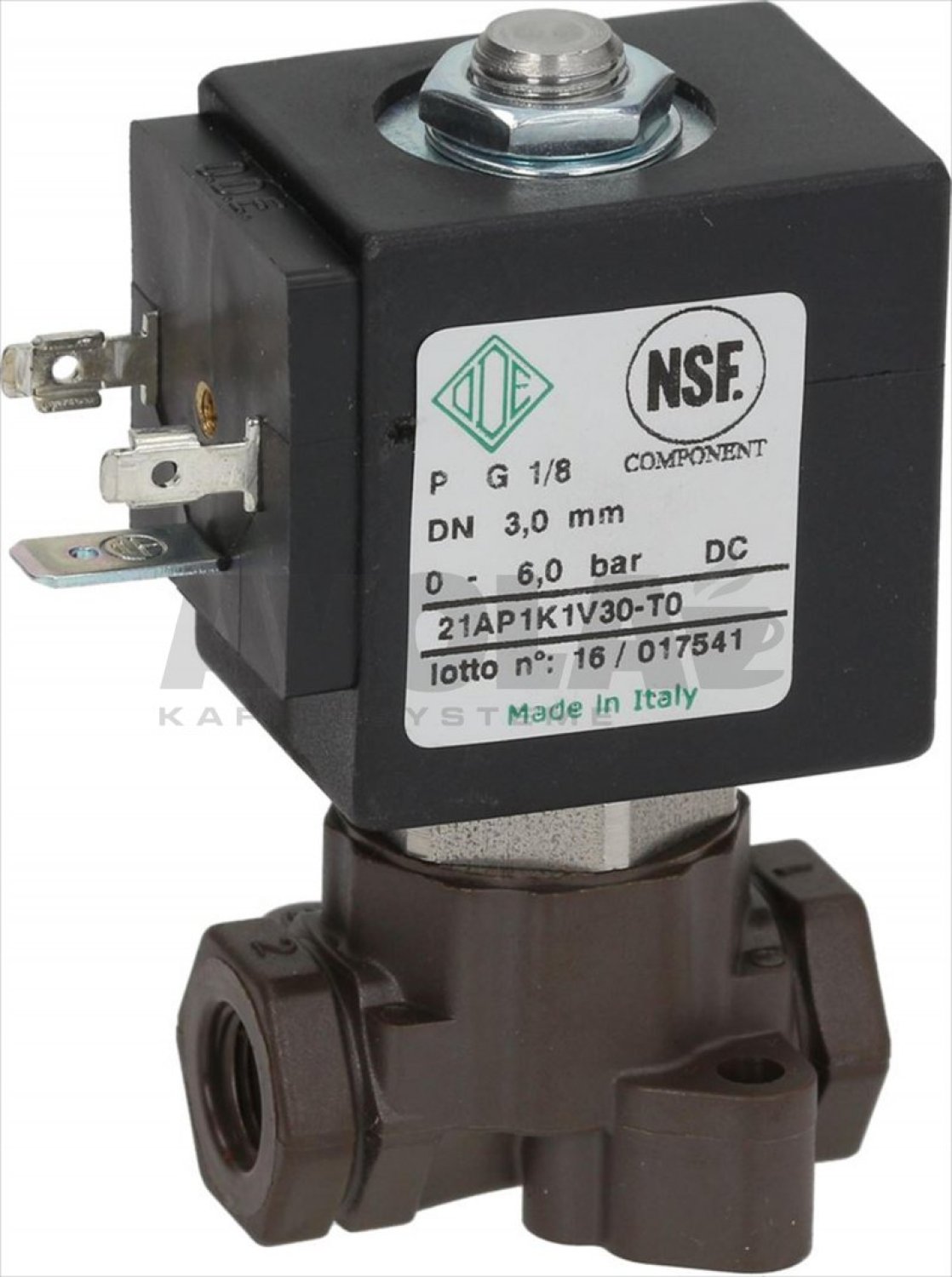

152 way parker solenoid valve8000895
2-WAY PARKER SOLENOID VALVE
109,60 €

excl. Shipping costs
Delivery time 4-6 weeks
16t fitting8005755
T-FITTING
9,14 €

excl. Shipping costs
immediately available, 1 available
17temperature probe8062820
TEMPERATURE PROBE
59,00 €

excl. Shipping costs
Delivery time
is determined
20nichel pl t fitting8022451
NICHEL-PL.T-FITTING
3,47 €

excl. Shipping costs
immediately available, 13 available
22flat ptfe gasket o 8 5x4 5x1 5mm8002131
FLAT PTFE GASKET ø 8,5x4,5x1,5mm
1,18 €

excl. Shipping costs
immediately available, 11 available
23boiler pump pressure gauge8063643
BOILER-PUMP PRESSURE GAUGE
140,66 €

excl. Shipping costs
Delivery time 4-6 weeks
27rubber coupling8002178
RUBBER COUPLING
5,83 €

excl. Shipping costs
Delivery time
is determined
28complete metal coupling8002179
COMPLETE METAL COUPLING
9,95 €

excl. Shipping costs
immediately available, 2 available
29motor sma with flange 150w8063603
MOTOR SMA WITH FLANGE 150W
386,42 €

excl. Shipping costs
Delivery time 4-6 weeks
30capacitor8011680
CAPACITOR
11,07 €

excl. Shipping costs
immediately available, 3 available
33flat gasket ptfe8002126
FLAT GASKET PTFE
3,09 €

excl. Shipping costs
immediately available, 6 available

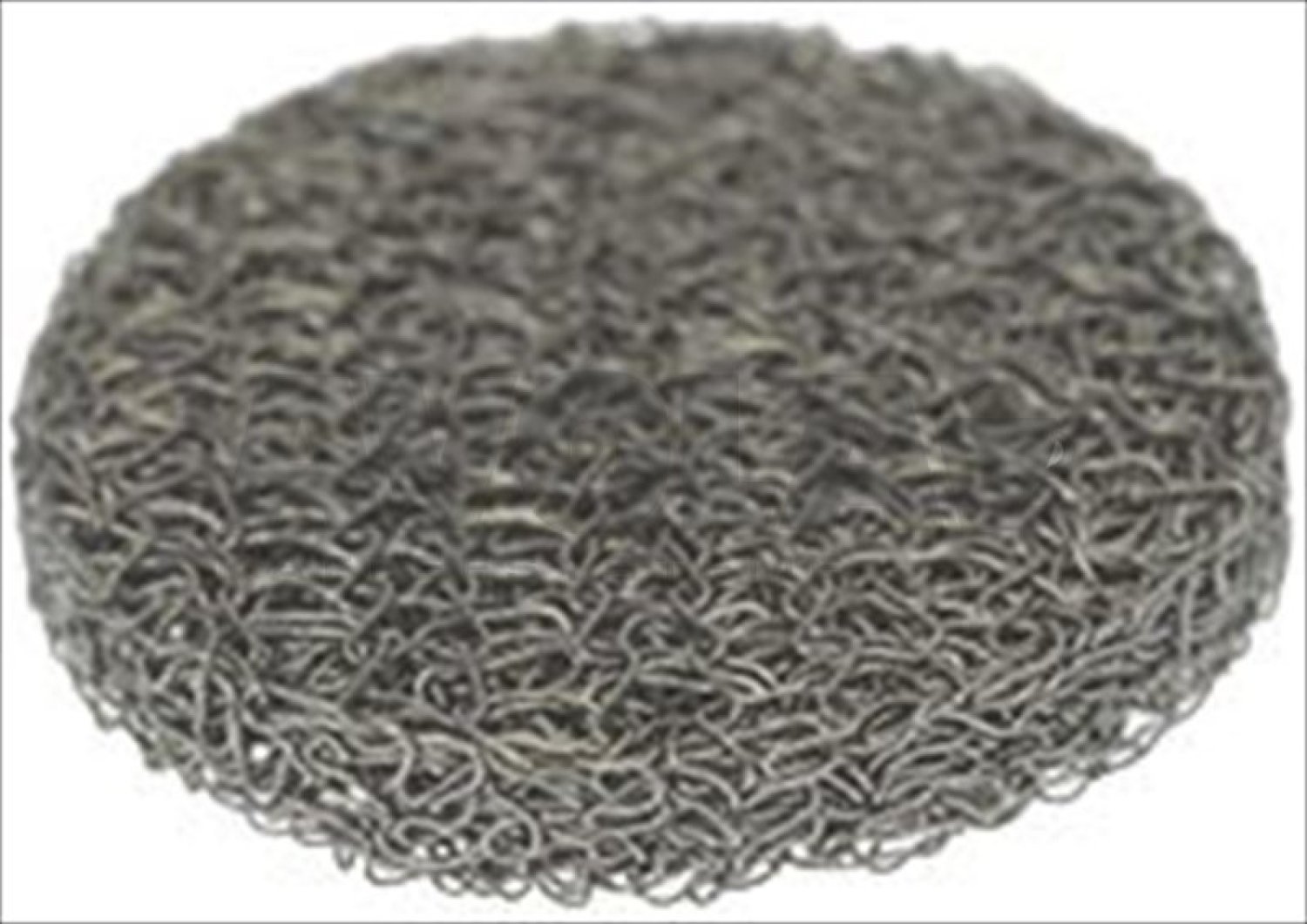

34water filter8063458
WATER FILTER
3,03 €

excl. Shipping costs
Delivery time
is determined
35coupling with filter8001094
COUPLING WITH FILTER
20,55 €

excl. Shipping costs
immediately available, 4 available
36hexagonal head screw m6x168029903
HEXAGONAL HEAD SCREW M6x16
1,44 €

excl. Shipping costs
immediately available
37rotary vane pump procon8005236
ROTARY VANE PUMP PROCON
129,47 €

excl. Shipping costs
Delivery time
is determined

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
