Cimbali Grinder

CIM10 DOSIERMAHLWERK 6S NEW

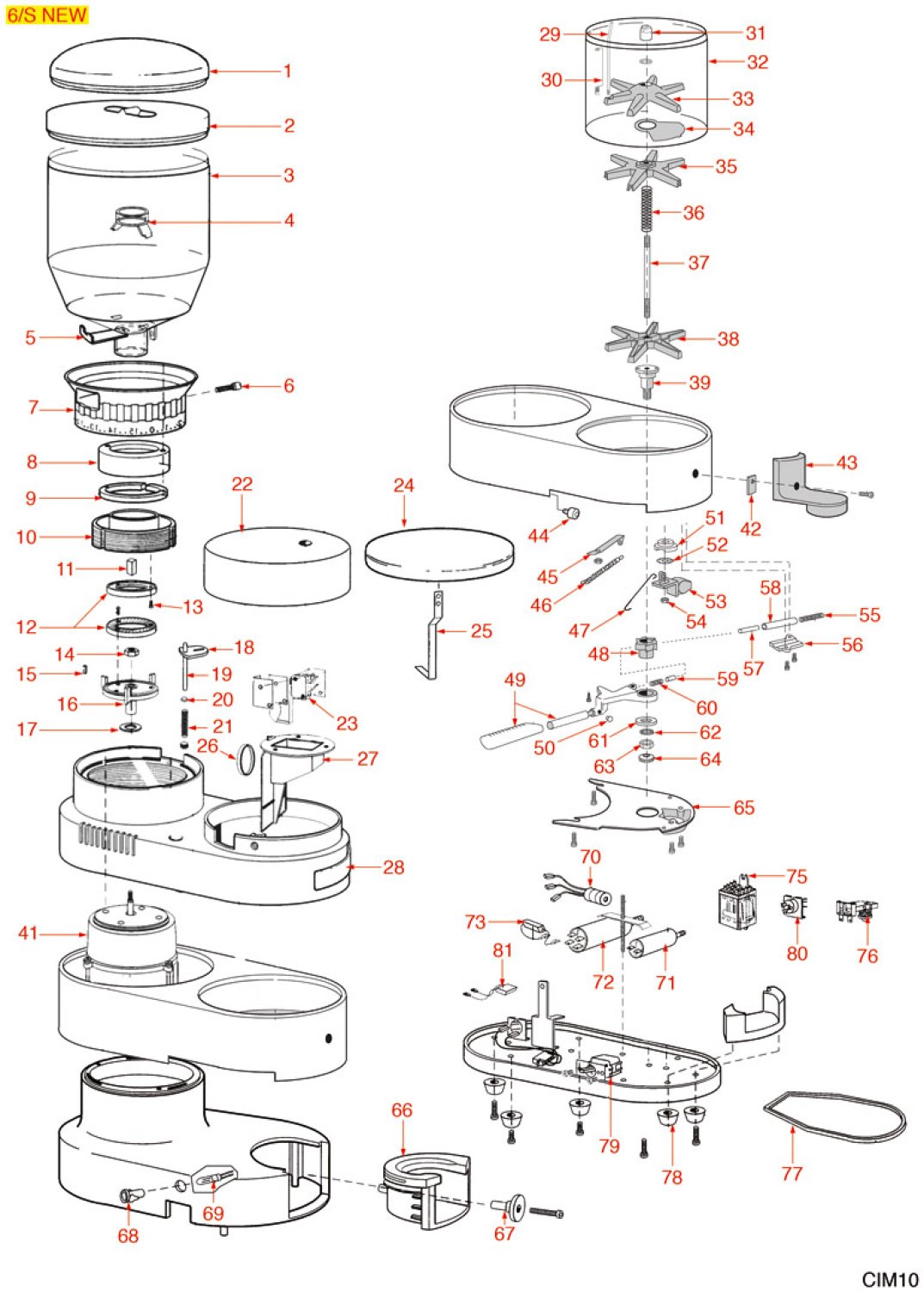

Drawing number 8038713

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.: Image: Description: Qty.:

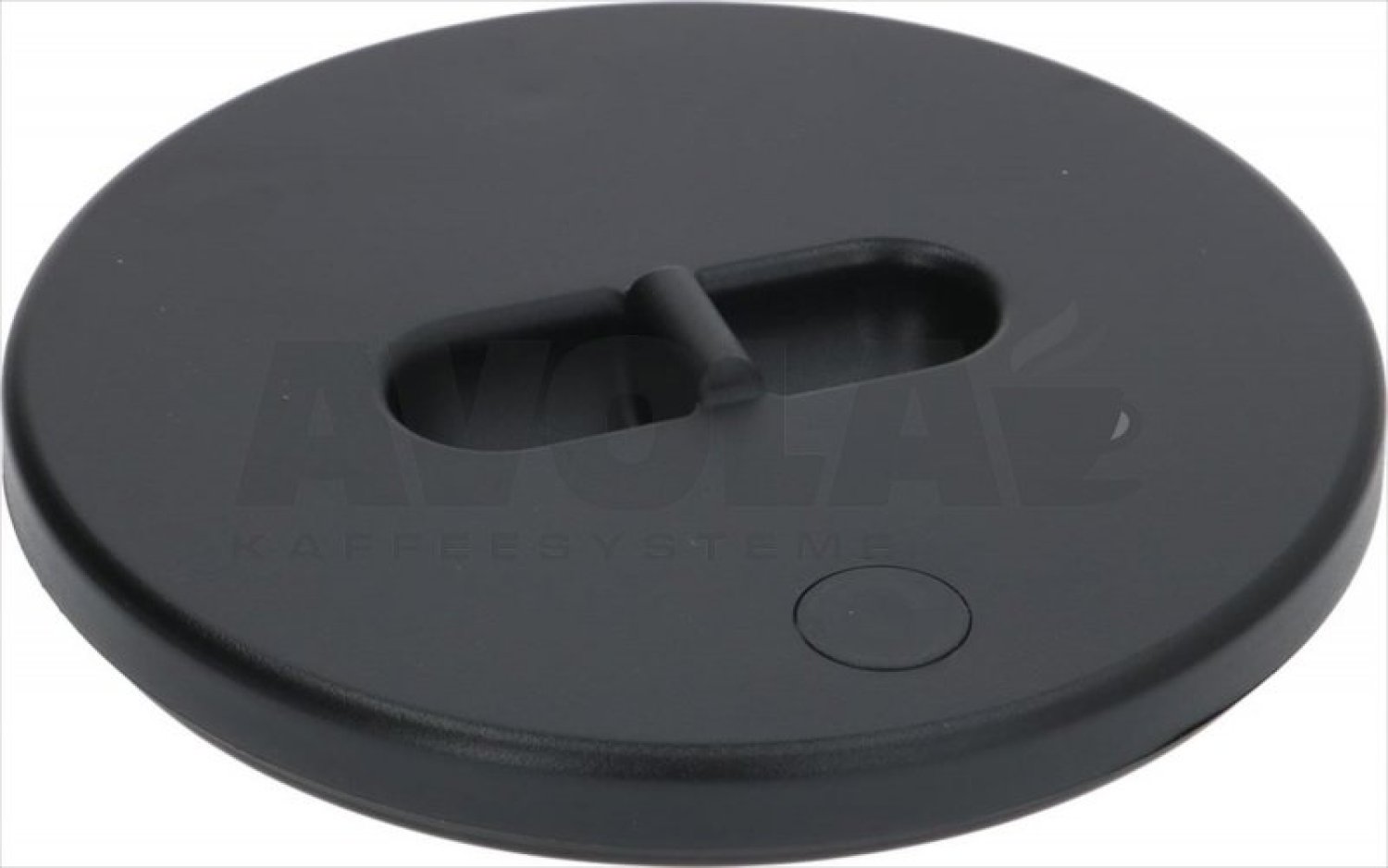

2coffee hopper lid 8004139
COFFEE HOPPER LID
45,05 €

excl. Shipping costs

Delivery time
is determined

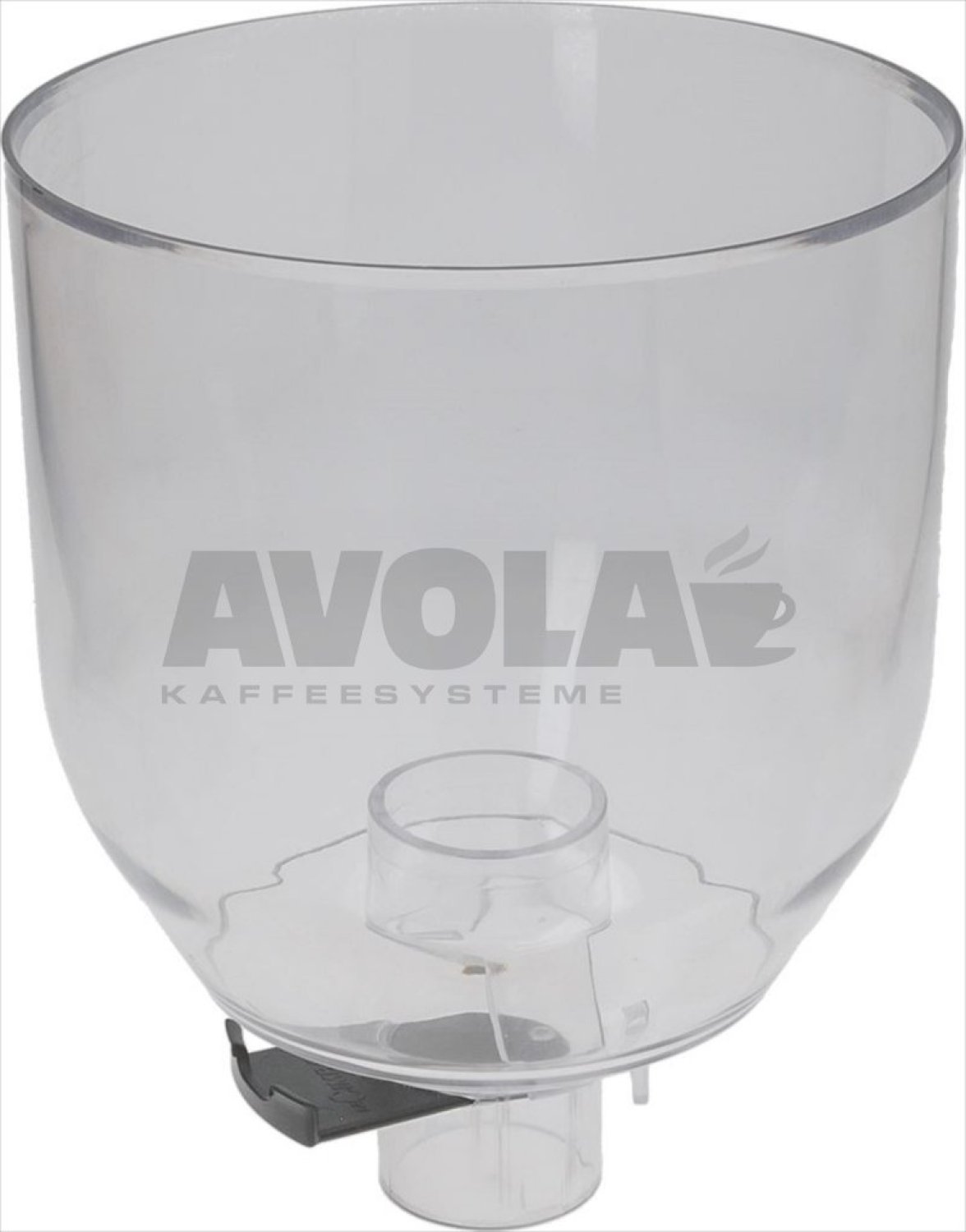

3coffee hopper 8000393
COFFEE HOPPER
77,08 €

excl. Shipping costs

Delivery time
is determined

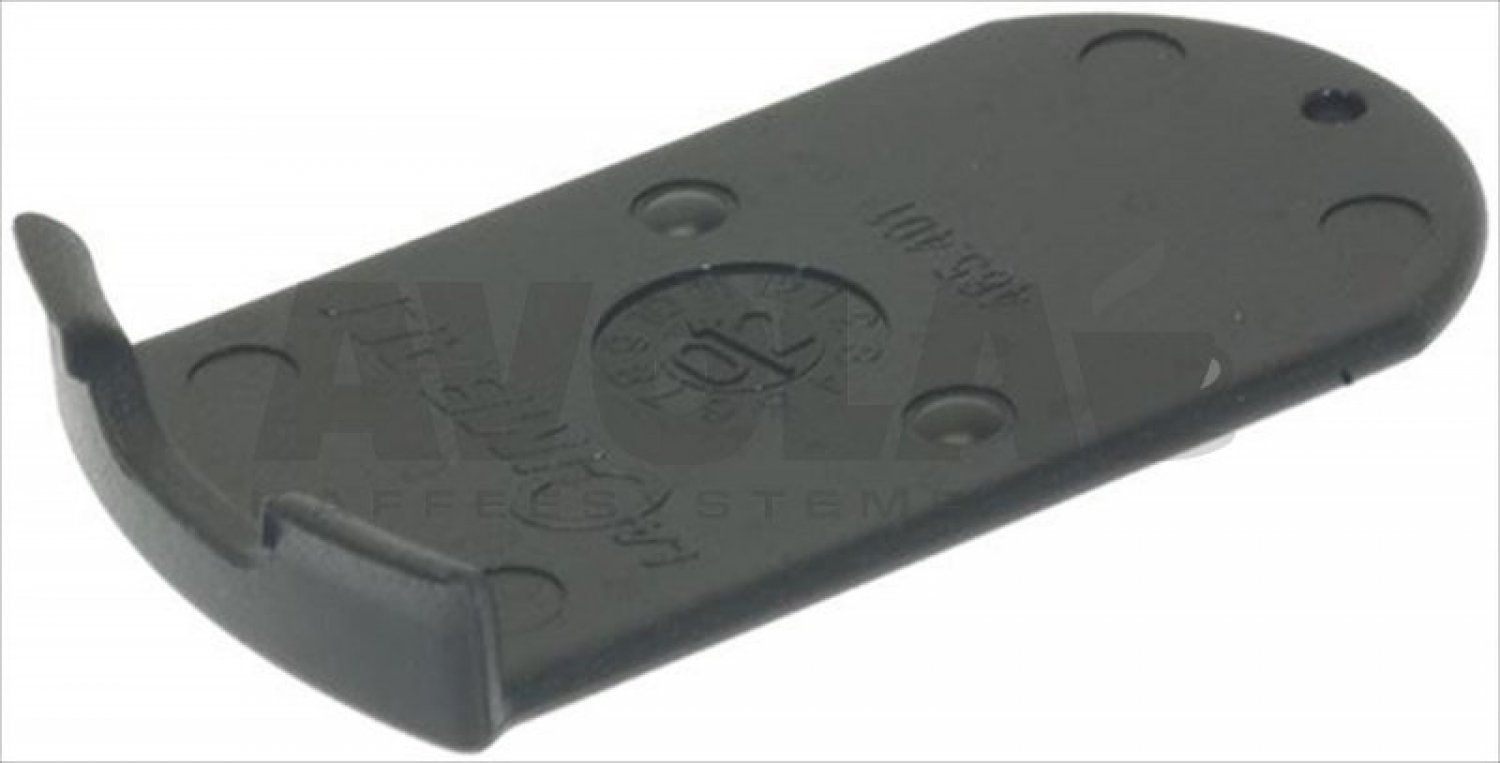

5coffee hopper closing sheet 8004331
COFFEE HOPPER CLOSING SHEET
Price on request

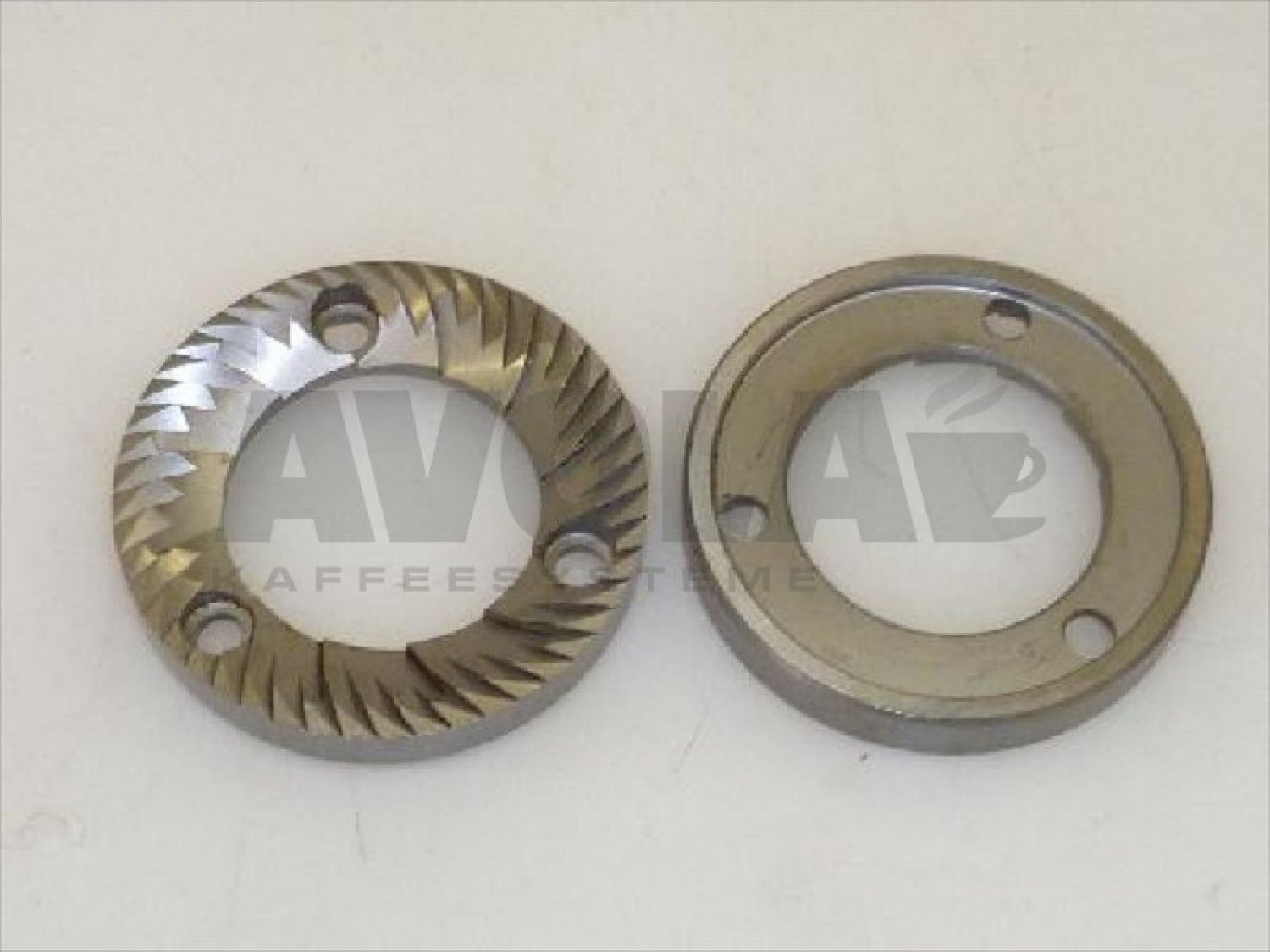

12mahlscheiben paar cimbali o 64 mm 8101612
MAHLSCHEIBEN-PAAR CIMBALI ø 64 mm
171,11 €

excl. Shipping costs

Delivery time 4-6 weeks..

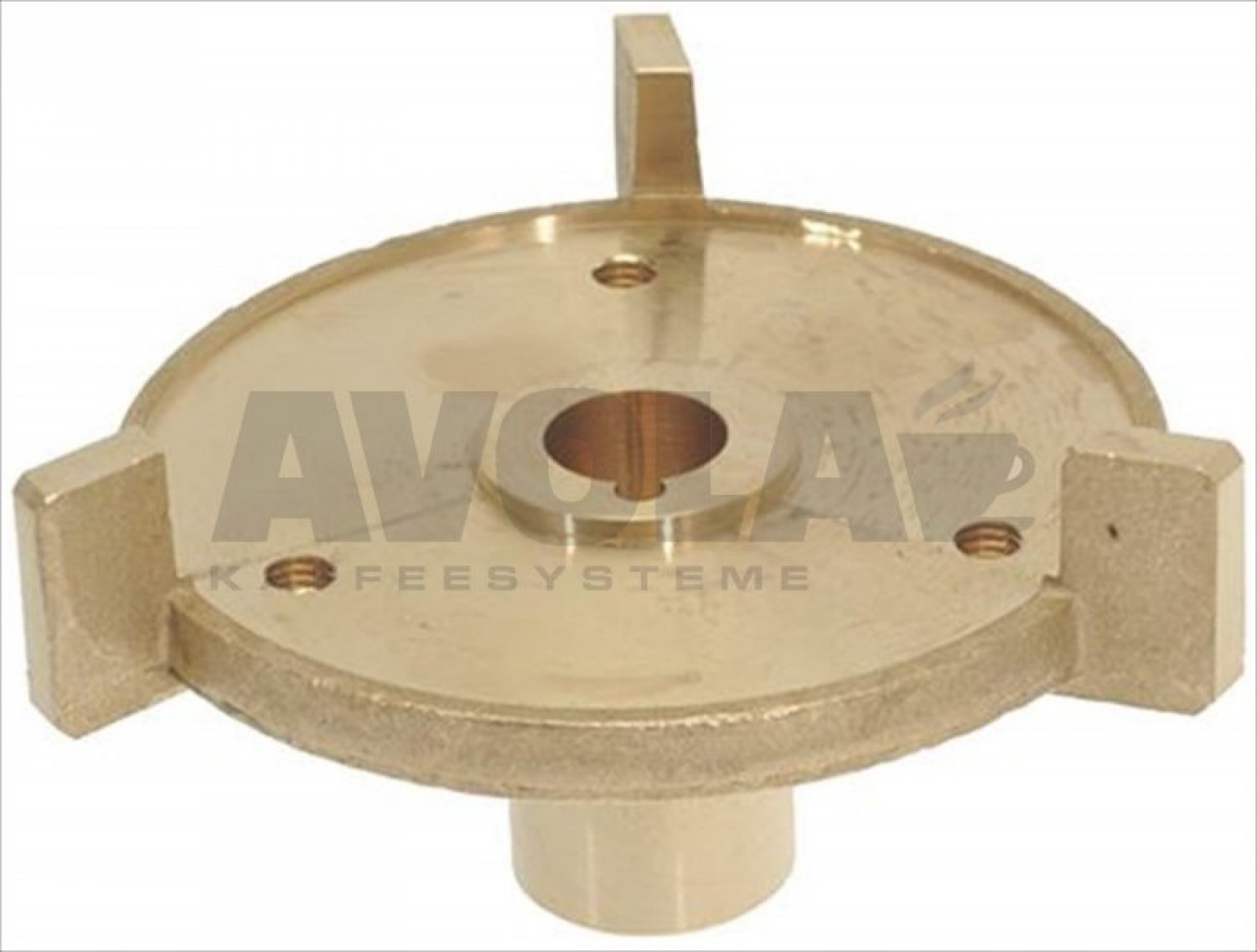

16grinding burrs bottom holder 8003920
GRINDING BURRS BOTTOM HOLDER
80,37 €

excl. Shipping costs

Delivery time 4-6 weeks..

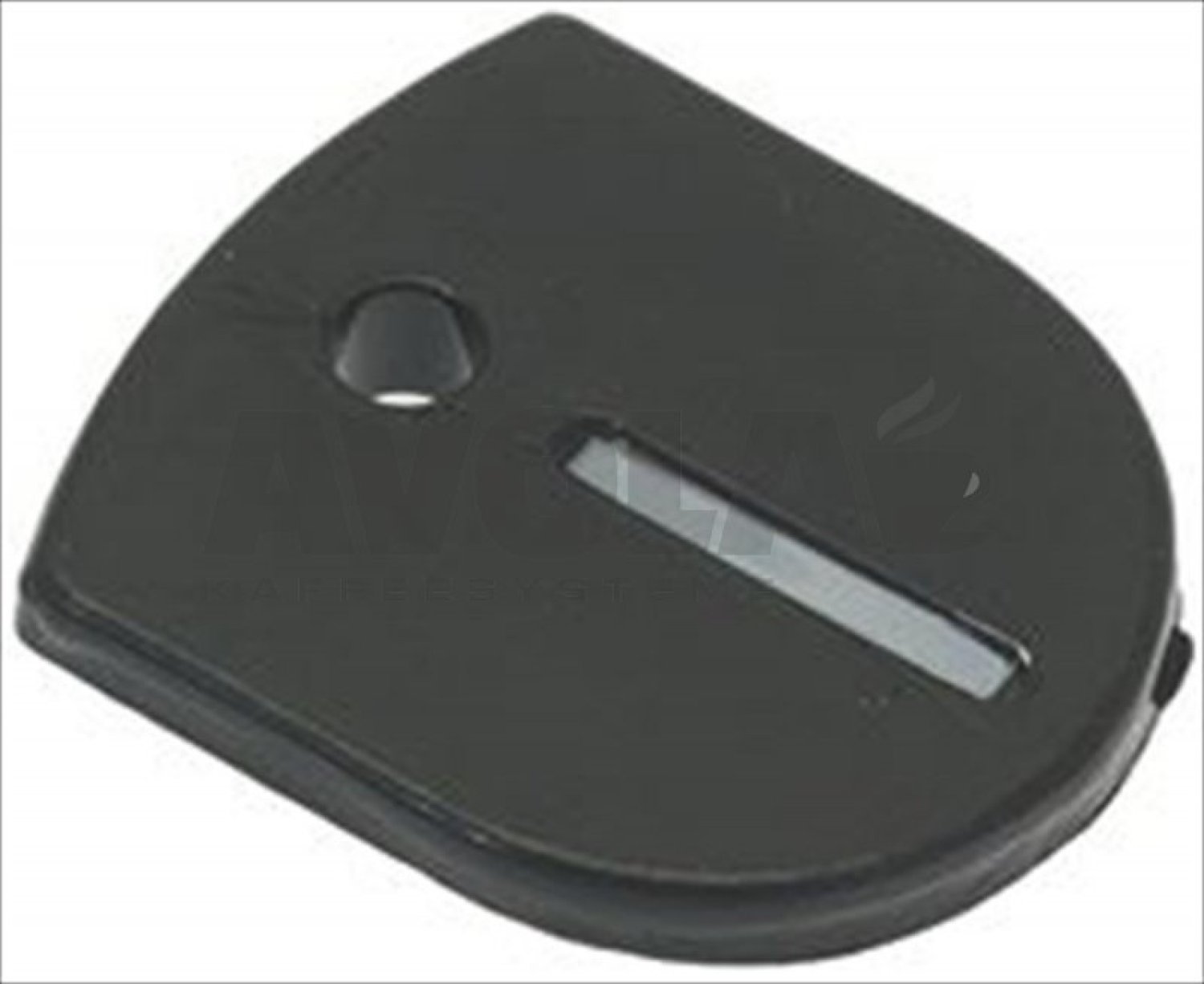

18adjustment button 8004333
ADJUSTMENT BUTTON
4,70 €

excl. Shipping costs

Delivery time
is determined

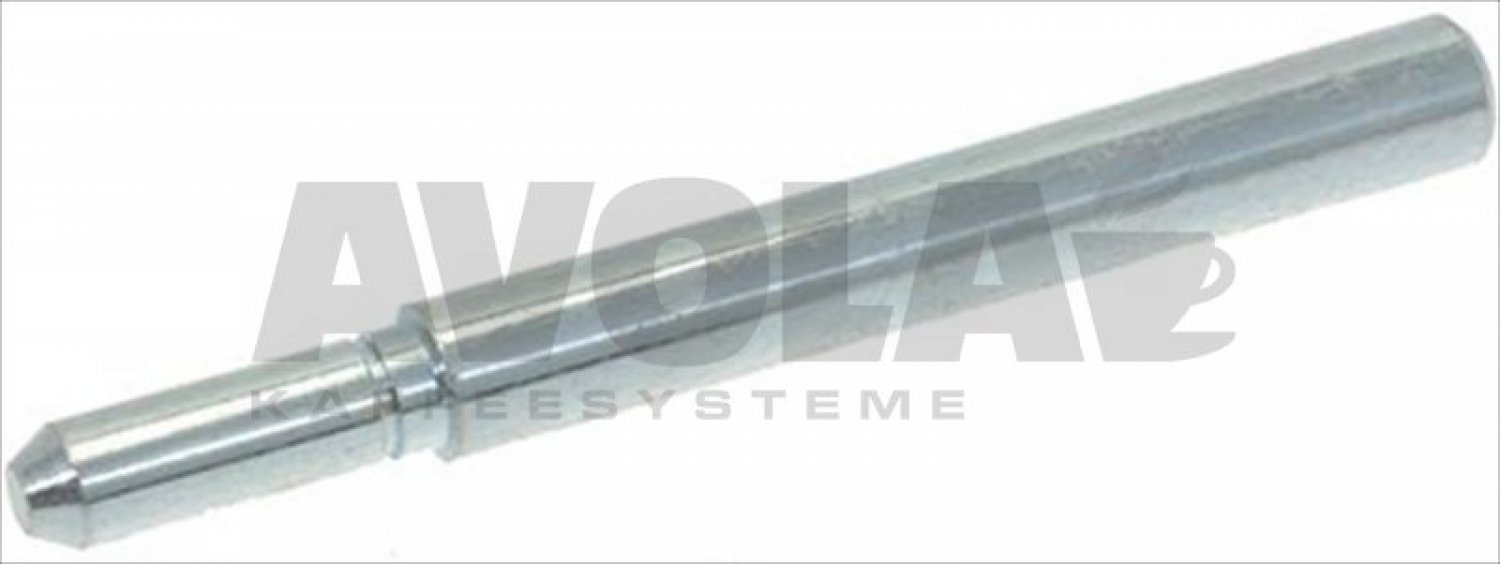

19adjustment pin 8004365
ADJUSTMENT PIN
11,42 €

excl. Shipping costs

Delivery time
is determined

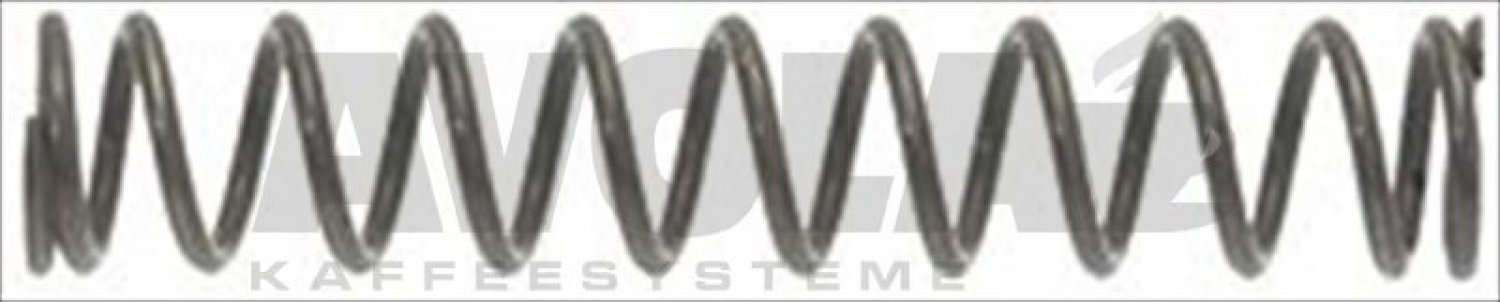

21adjustment rod spring 8003626
ADJUSTMENT ROD SPRING
7,43 €

excl. Shipping costs

Delivery time
is determined

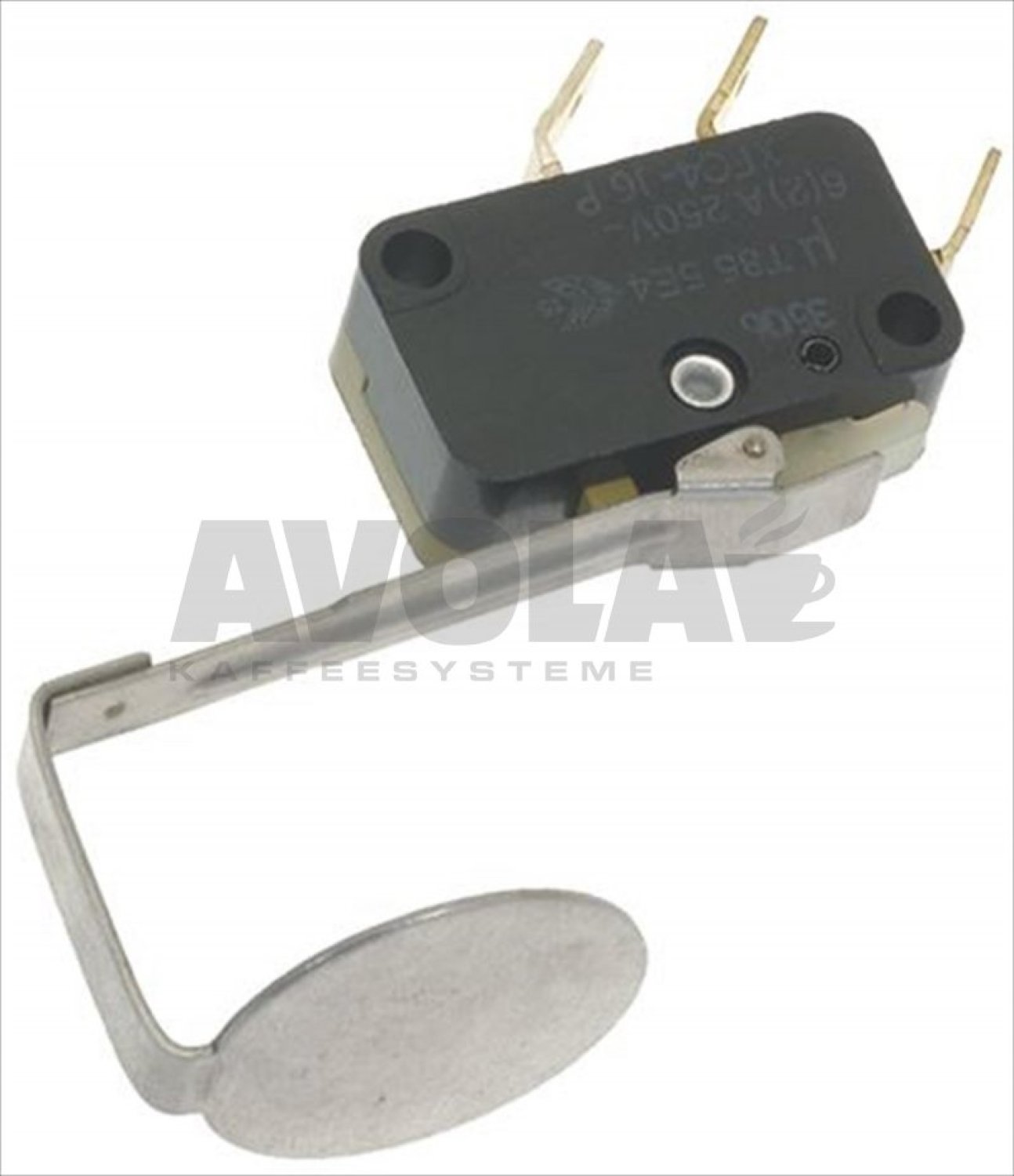

23microswitch 6a 250v 8002877
MICROSWITCH 6A 250V
45,47 €

excl. Shipping costs

Delivery time
is determined

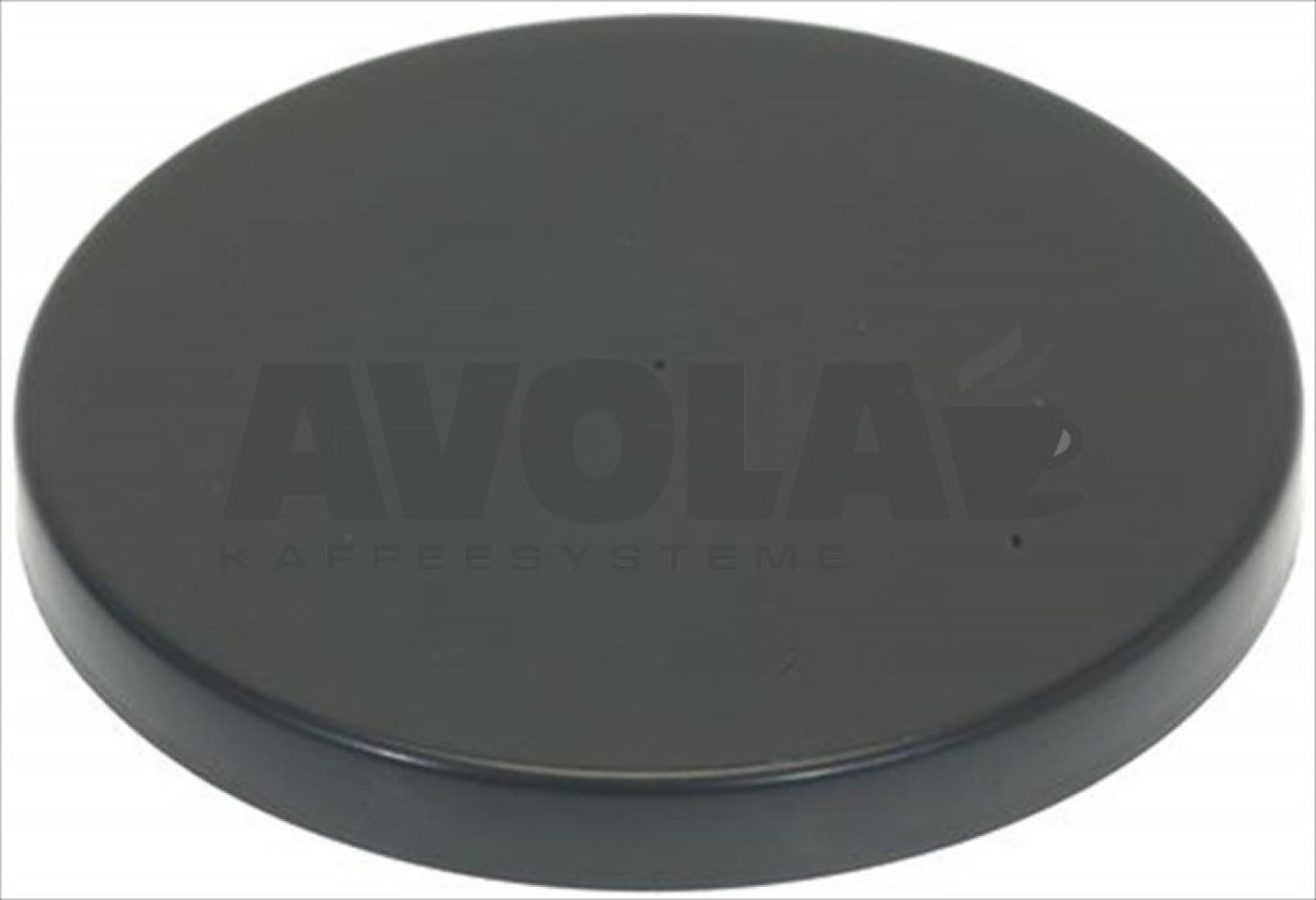

24doser lid 8004276
DOSER LID
7,95 €

excl. Shipping costs

Delivery time
is determined

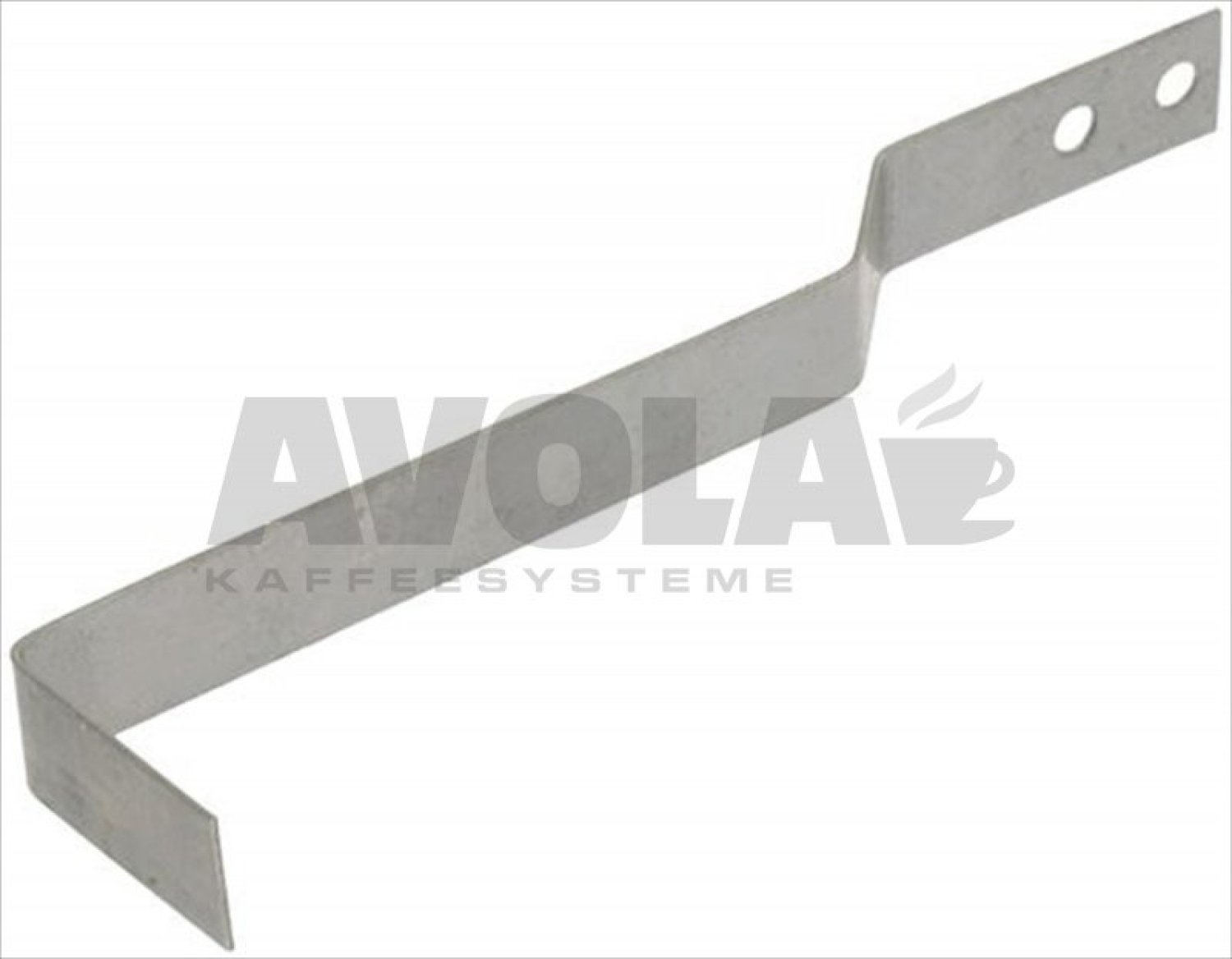

25mixer rod 8004253
MIXER ROD
8,14 €

excl. Shipping costs

Delivery time
is determined

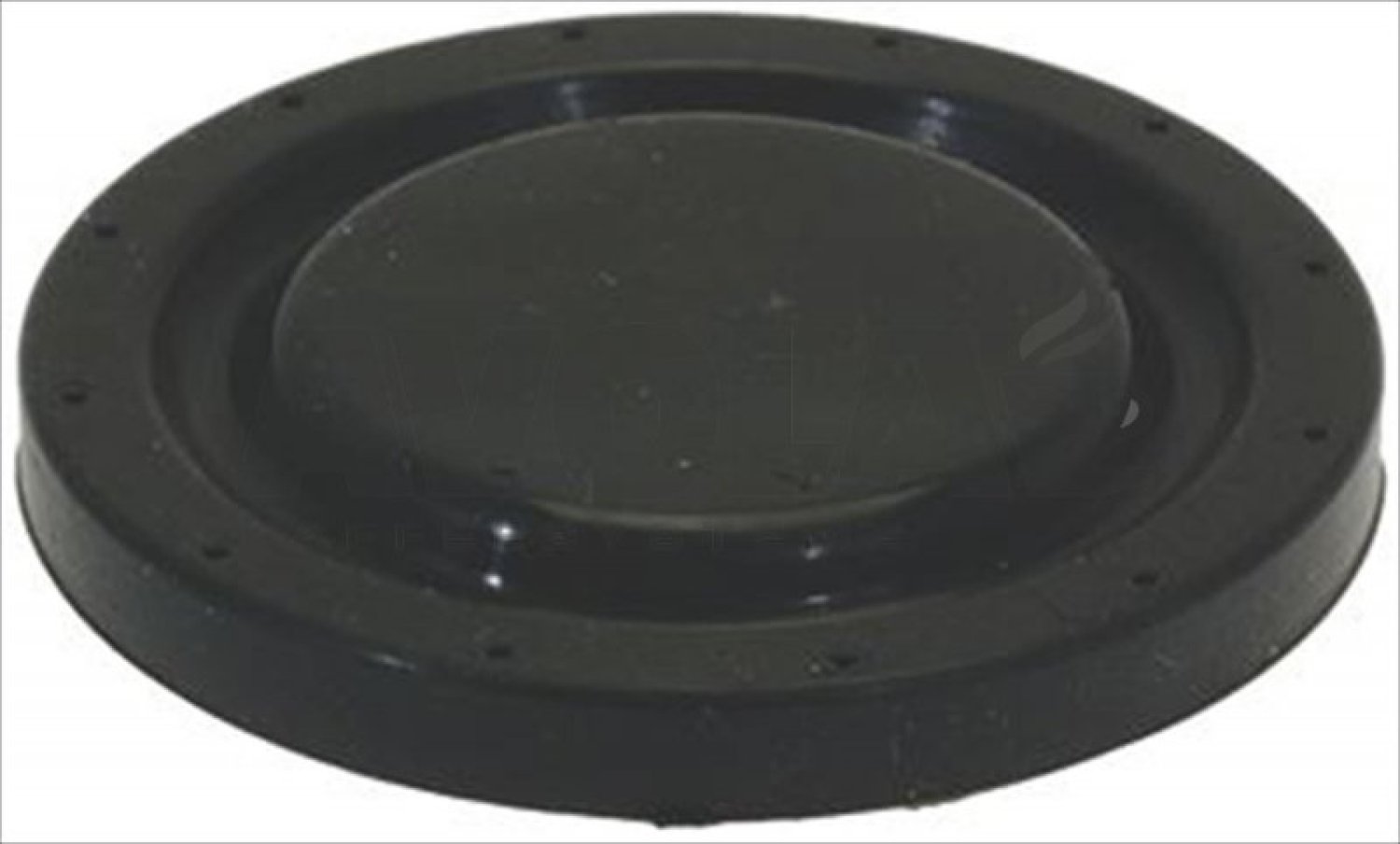

26micro box lid for doser 8004299
MICRO BOX LID FOR DOSER
32,02 €

excl. Shipping costs

Delivery time 4-6 weeks..

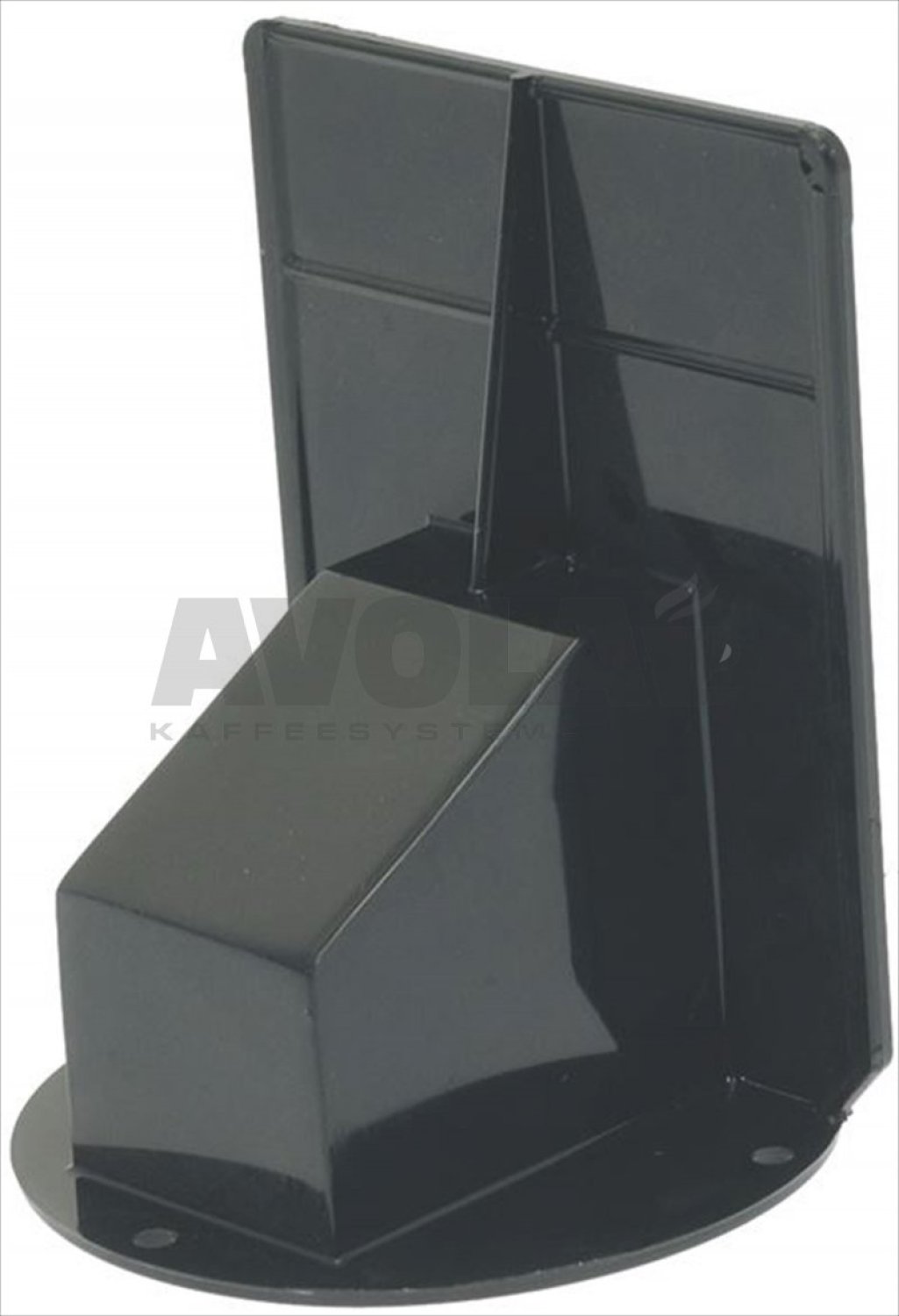

27microswitch box 8004256
MICROSWITCH BOX
10,14 €

excl. Shipping costs

Delivery time 4-6 weeks..

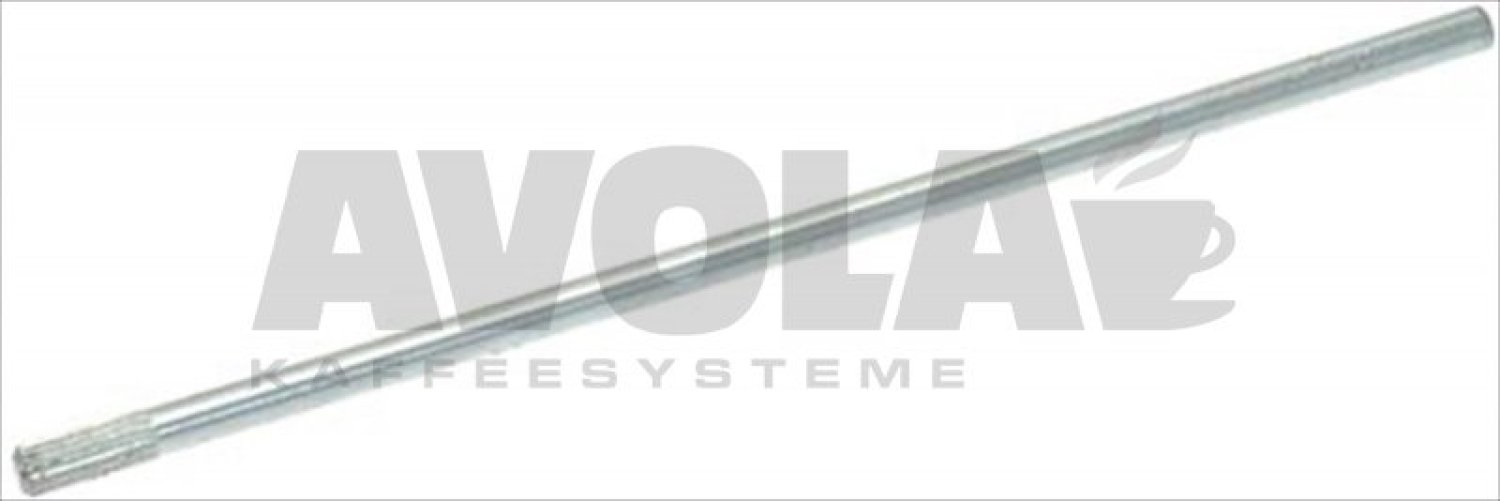

29mixer rod 8004319
MIXER ROD
14,71 €

excl. Shipping costs

Delivery time
is determined

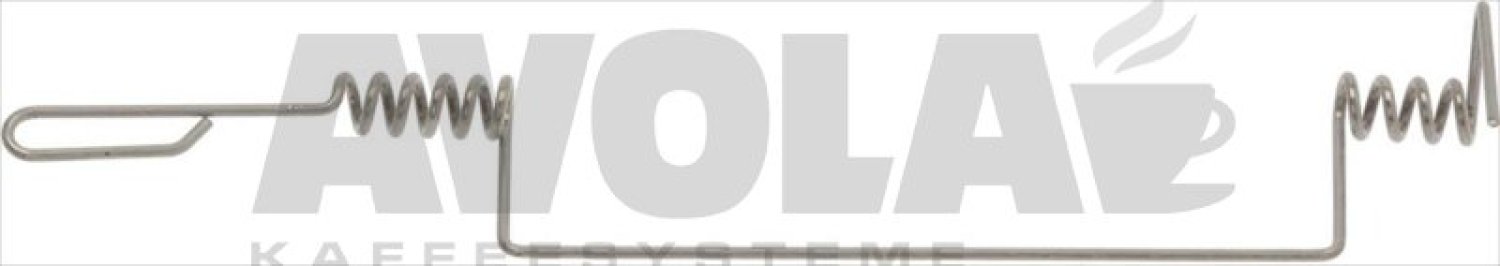

30mixer rod spring 8003634
MIXER ROD SPRING
8,82 €

excl. Shipping costs

Delivery time
is determined

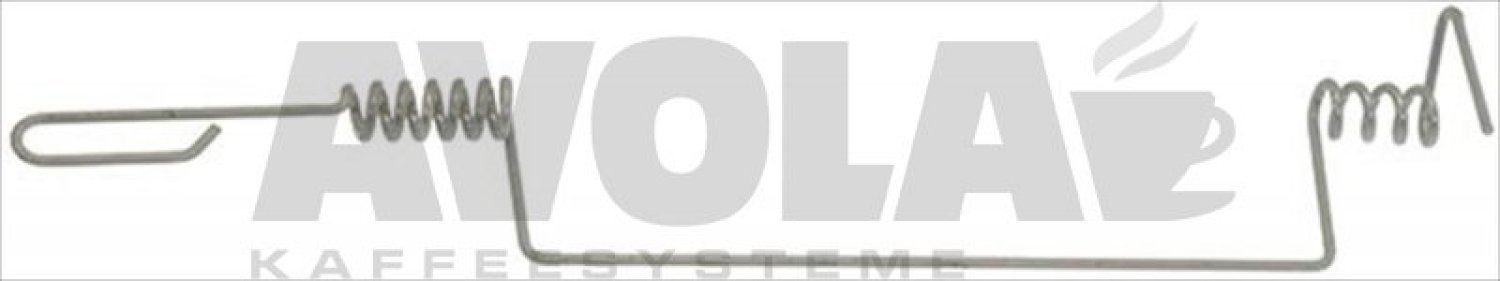

30rod spring 8003637
ROD SPRING
7,57 €

excl. Shipping costs

Delivery time
is determined

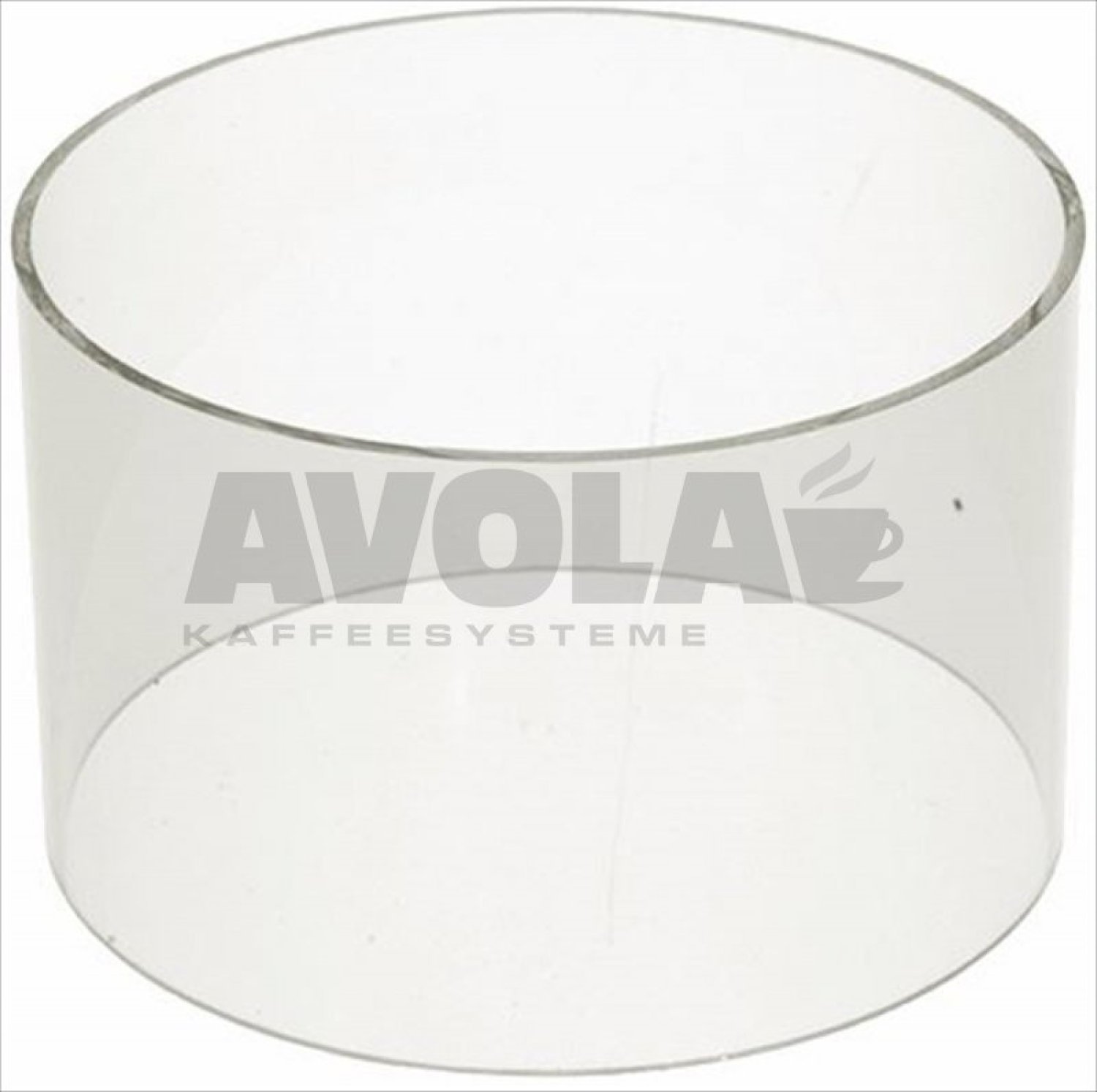

32doser cylinder 8004252
DOSER CYLINDER
11,71 €

excl. Shipping costs

Delivery time 4-6 weeks..

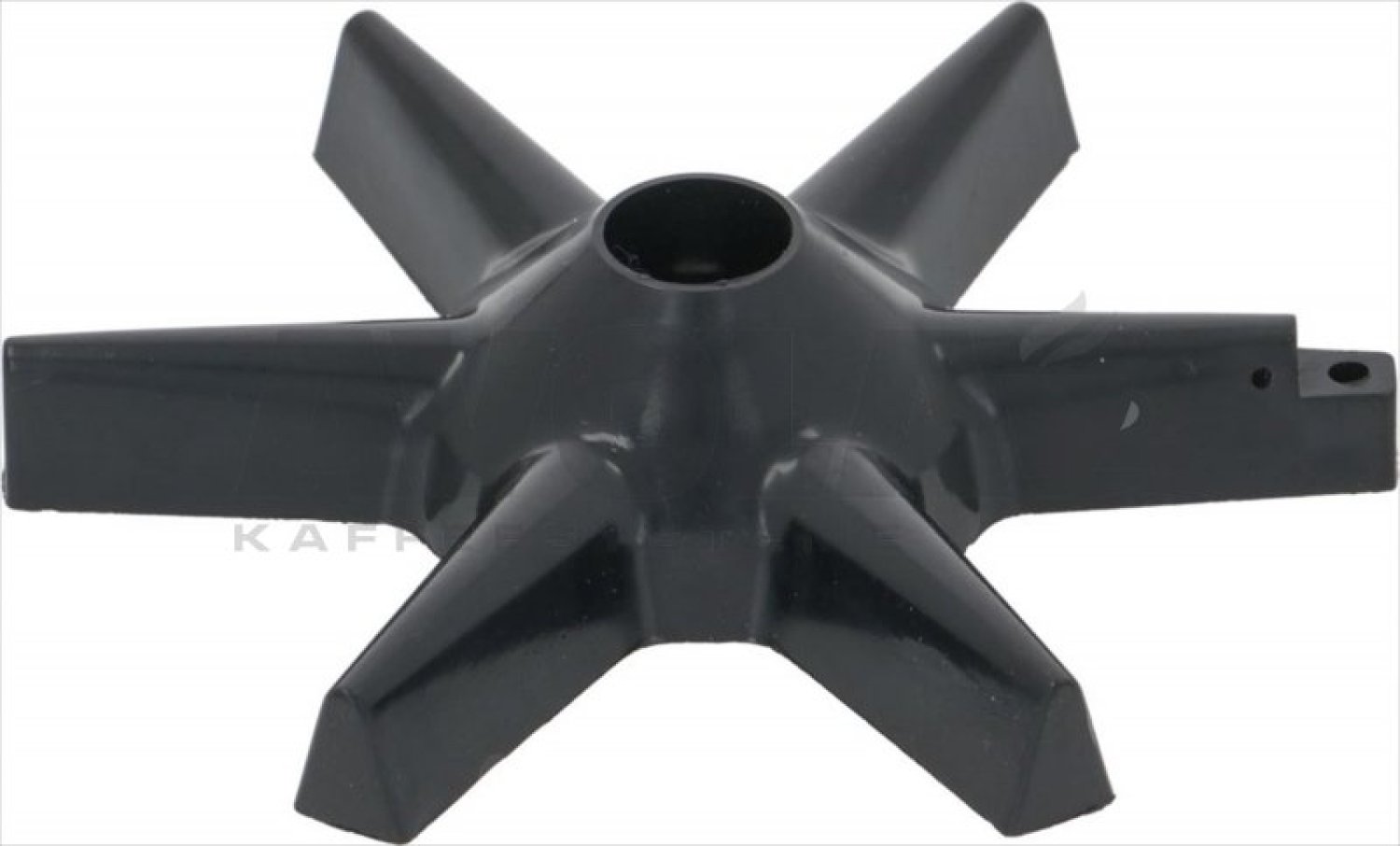

33top star 8005357
TOP STAR
10,53 €

excl. Shipping costs

Delivery time
is determined

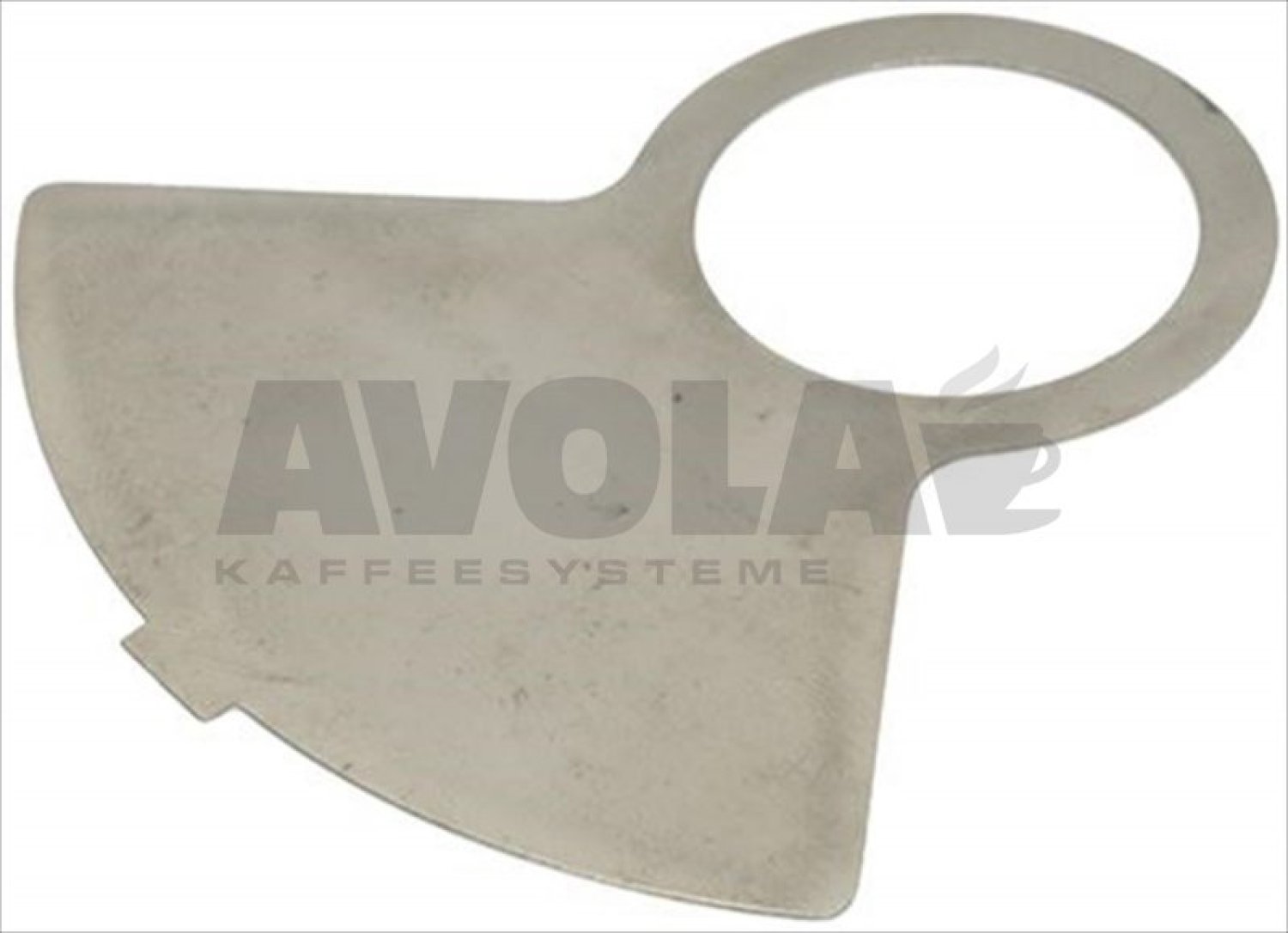

34doser plate 8004366
DOSER PLATE
9,09 €

excl. Shipping costs

Delivery time
is determined

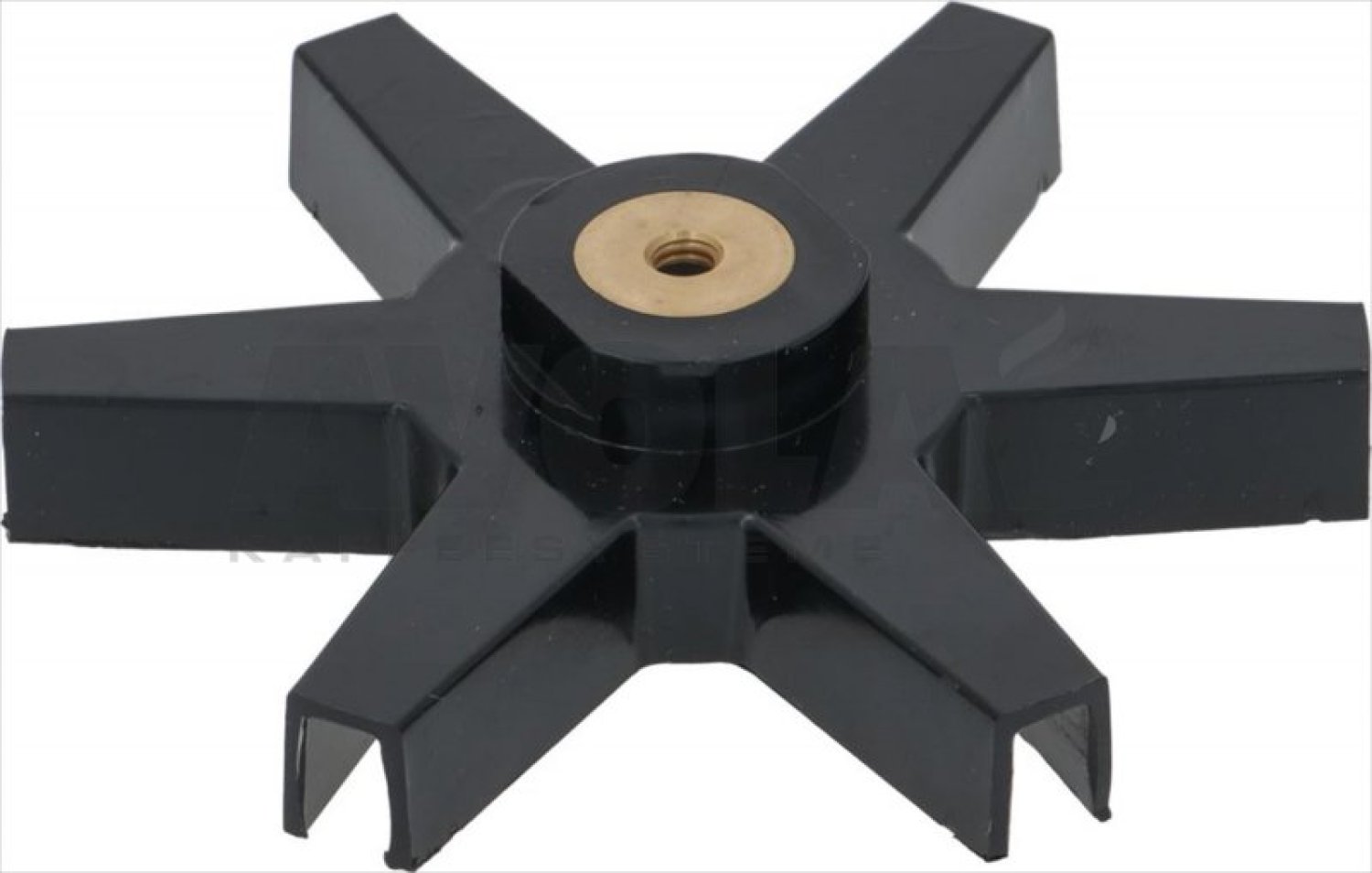

35middle star 8005358
MIDDLE STAR
8,76 €

excl. Shipping costs

Delivery time
is determined

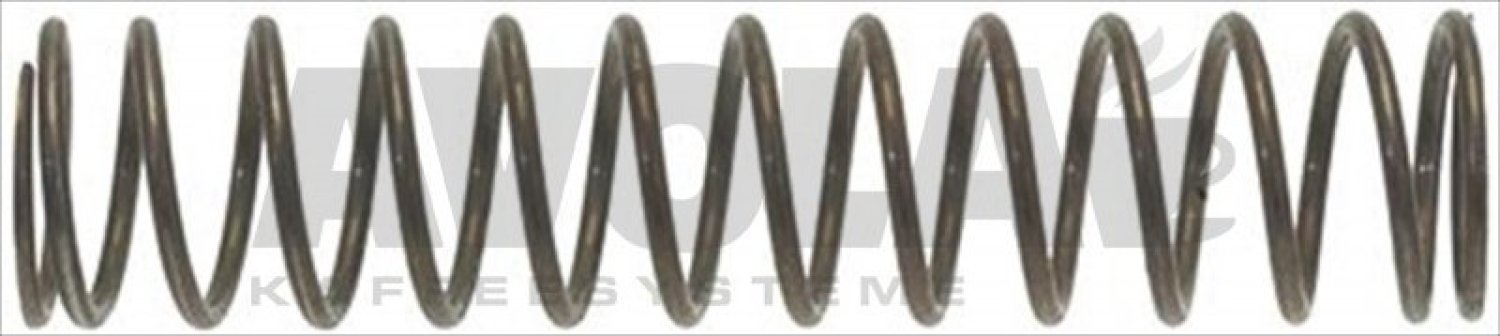

36dose adjustment spring 8003635
DOSE ADJUSTMENT SPRING
5,24 €

excl. Shipping costs

Delivery time
is determined

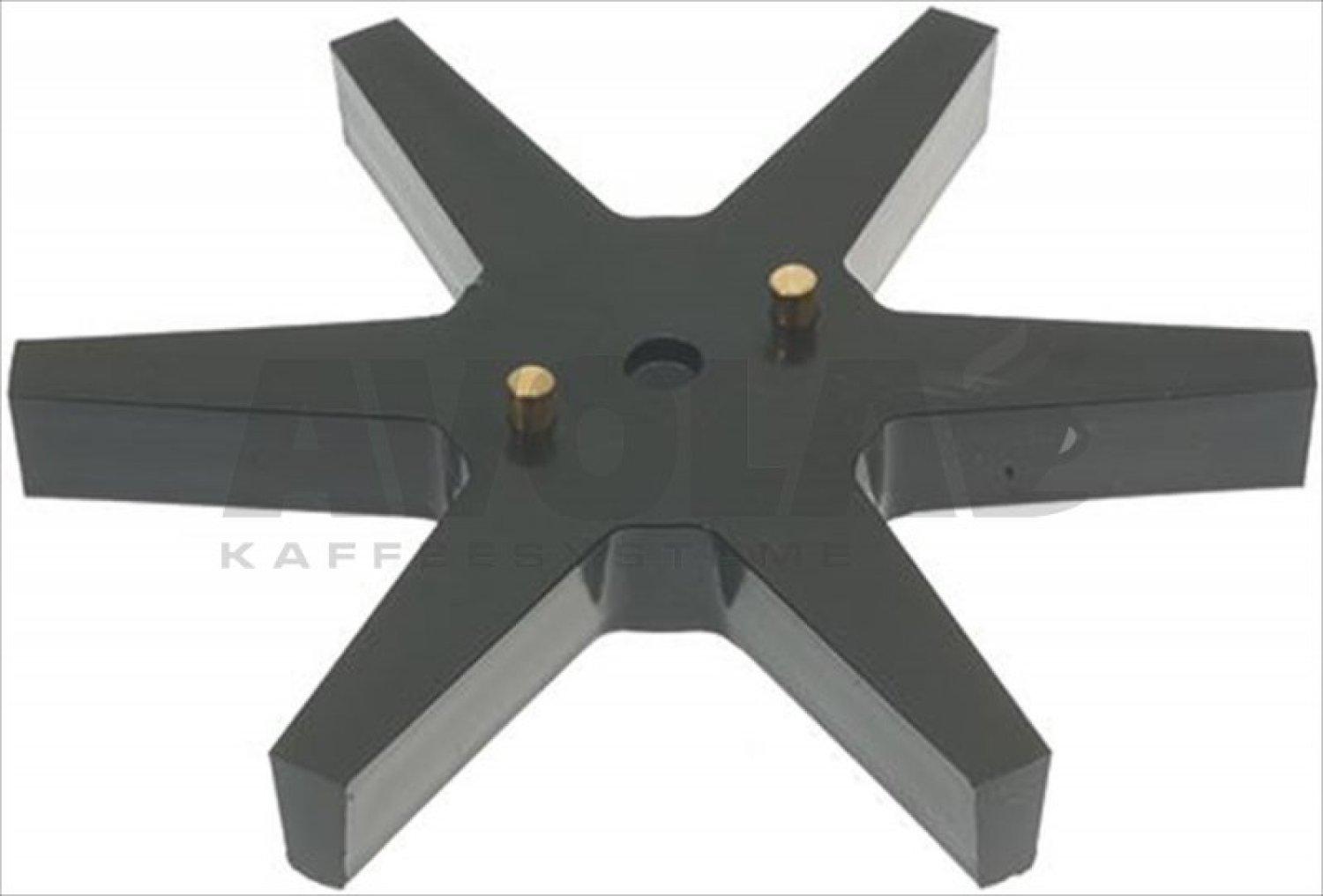

38bottom star 8005352
BOTTOM STAR
8,32 €

excl. Shipping costs

Delivery time 4-6 weeks..

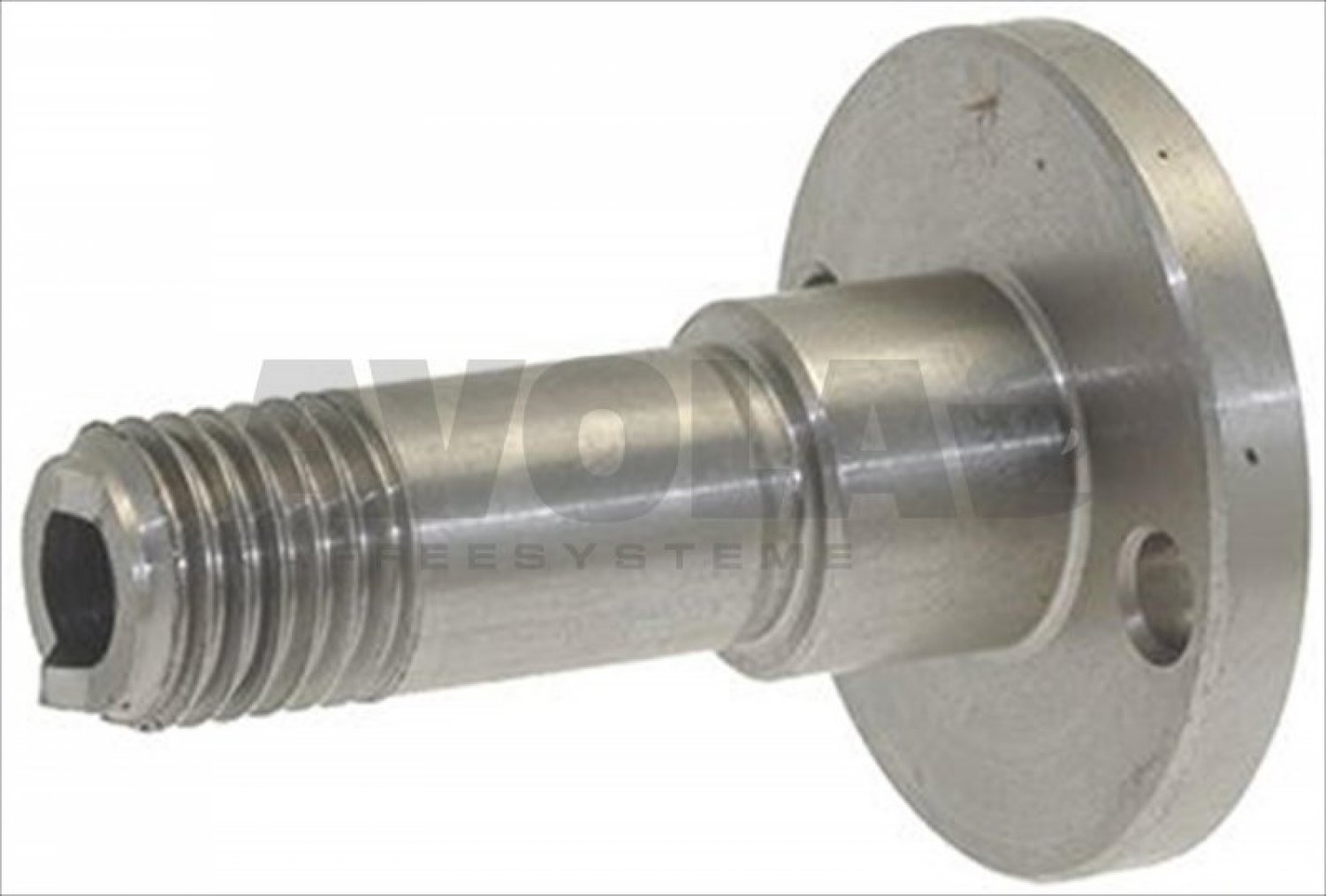

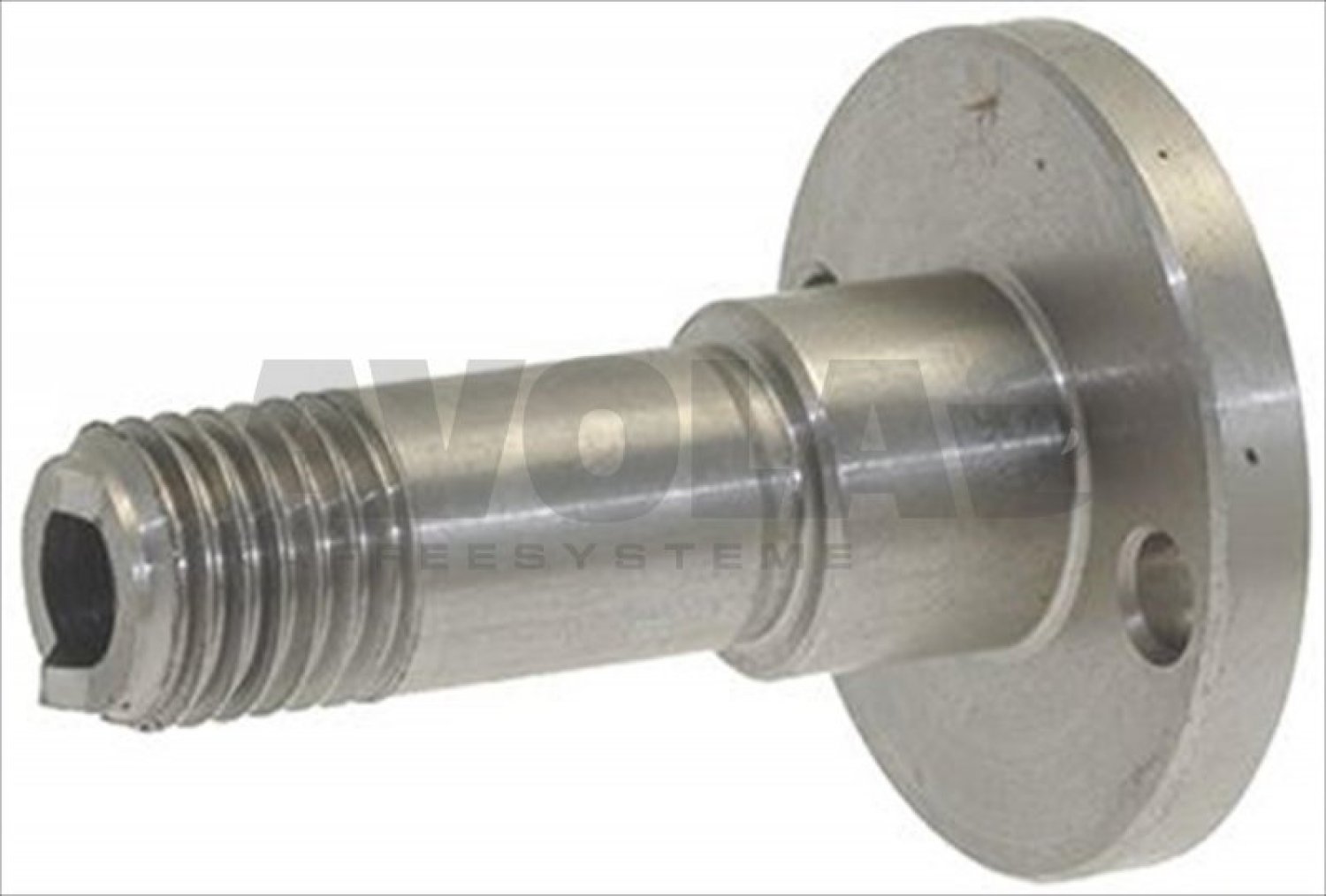

39star conveyor 8004301
STAR CONVEYOR
35,69 €

excl. Shipping costs

Delivery time
is determined

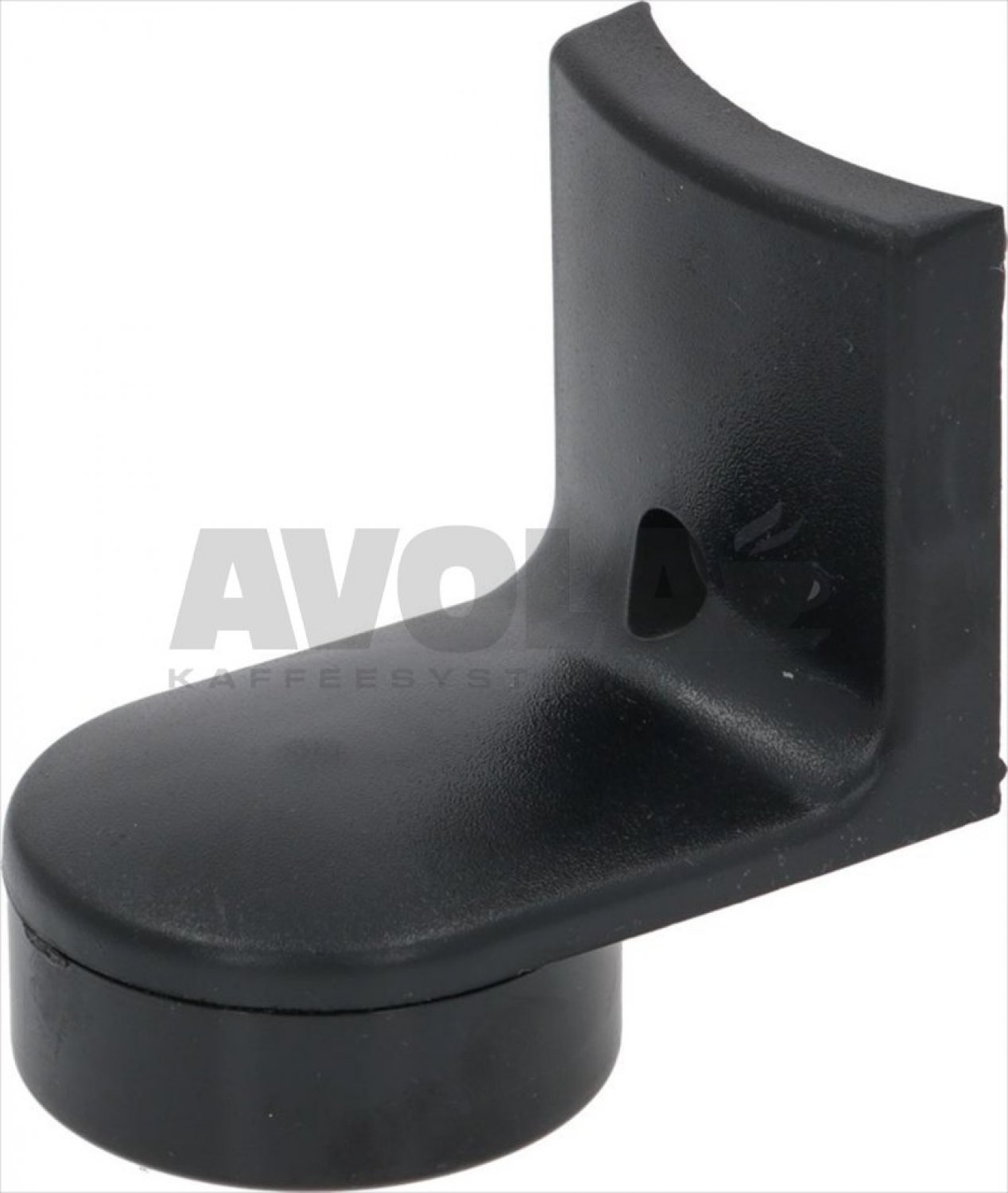

43coffee tamper 8006171
COFFEE TAMPER
39,48 €

excl. Shipping costs

Delivery time
is determined

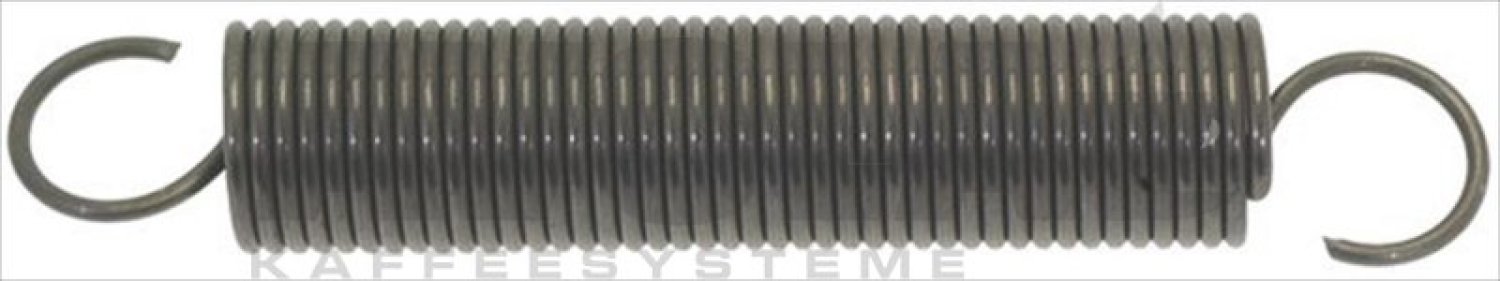

46doser lever return spring 8003636
DOSER LEVER RETURN SPRING
6,05 €

excl. Shipping costs

Delivery time
is determined

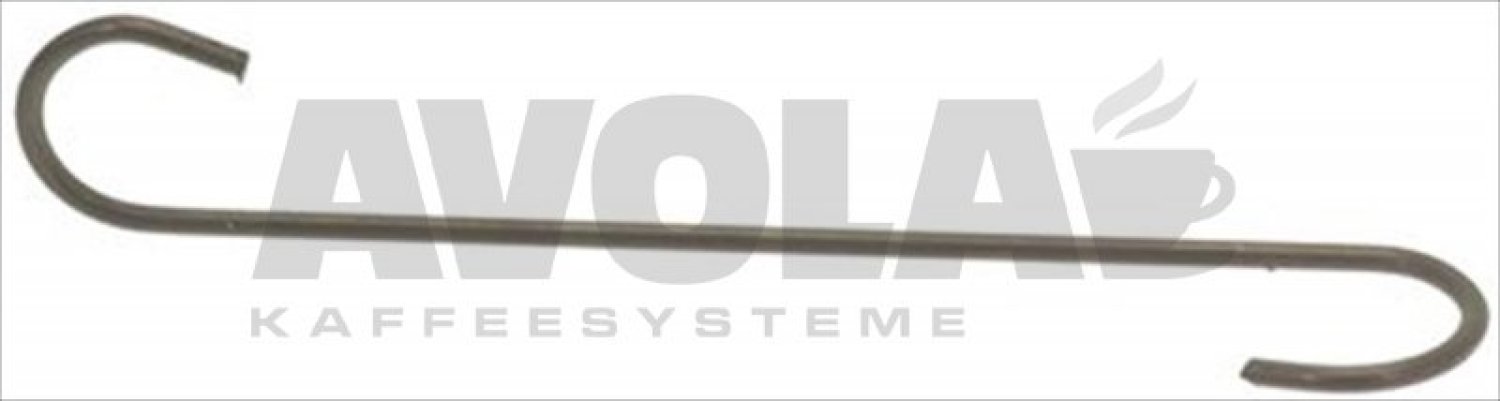

47counter tie rod 8003629
COUNTER TIE-ROD
8,38 €

excl. Shipping costs

Delivery time
is determined
48pawl coffee grinder doser 8004380
PAWL COFFEE GRINDER/DOSER
56,35 €

excl. Shipping costs

Delivery time 4-6 weeks..

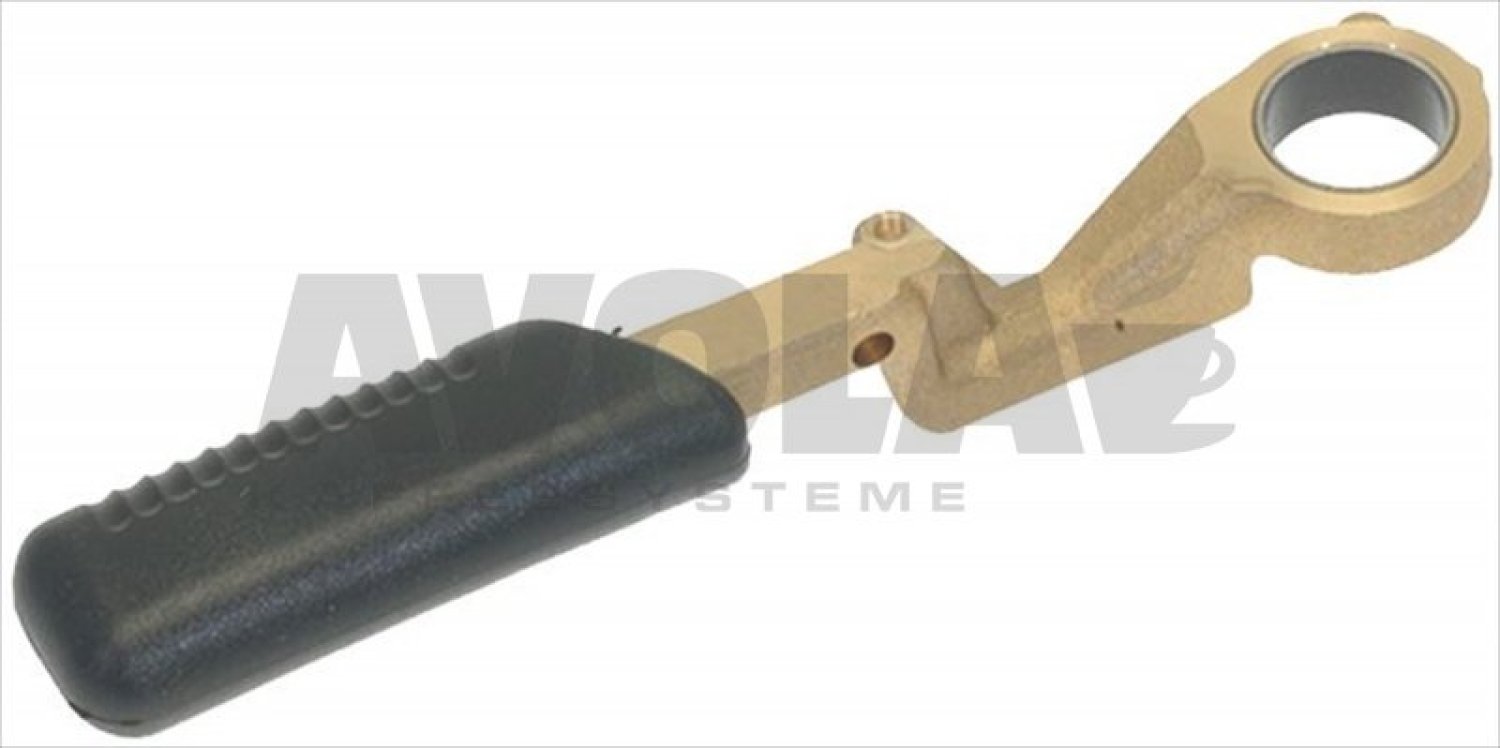

49doser lever 8002805
DOSER LEVER
104,71 €

excl. Shipping costs

Delivery time 4-6 weeks..

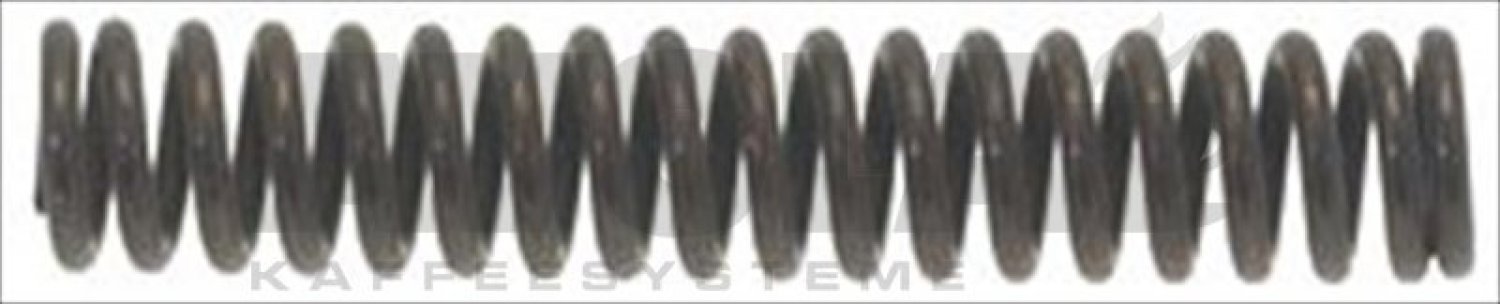

55pin spring 8003627
PIN SPRING
6,22 €

excl. Shipping costs

Delivery time 4-6 weeks..

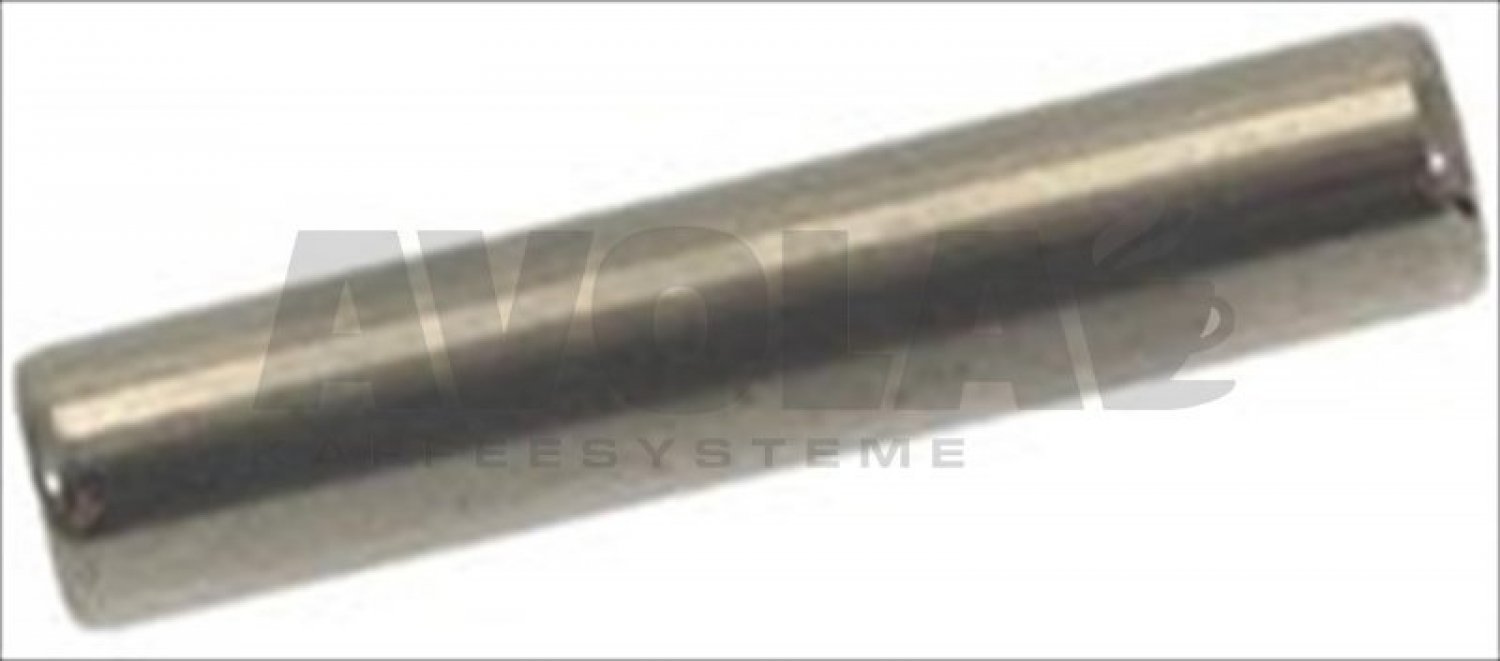

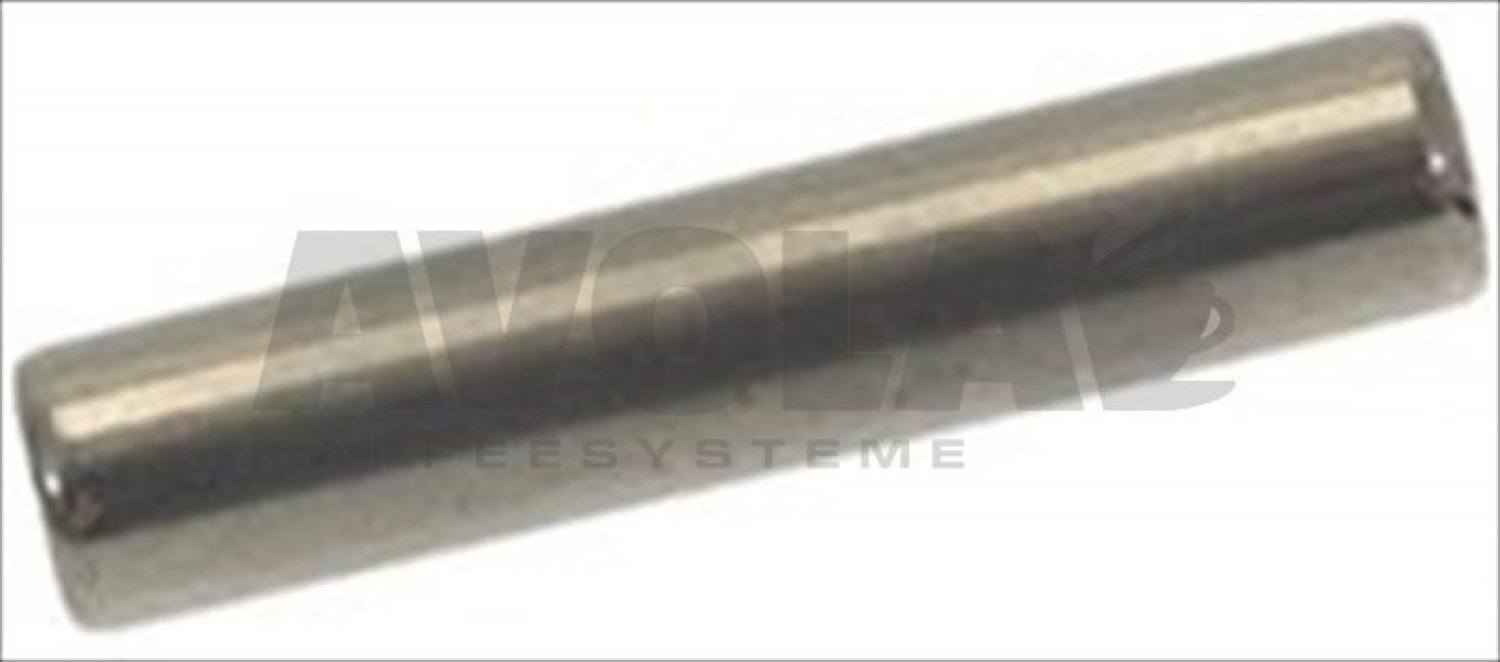

57ratchet plug 8004368
RATCHET PLUG
3,27 €

excl. Shipping costs

Delivery time
is determined
59ratchet plug 8004368
RATCHET PLUG
3,27 €

excl. Shipping costs

Delivery time
is determined
60pin spring 8003627
PIN SPRING
6,22 €

excl. Shipping costs

Delivery time 4-6 weeks..

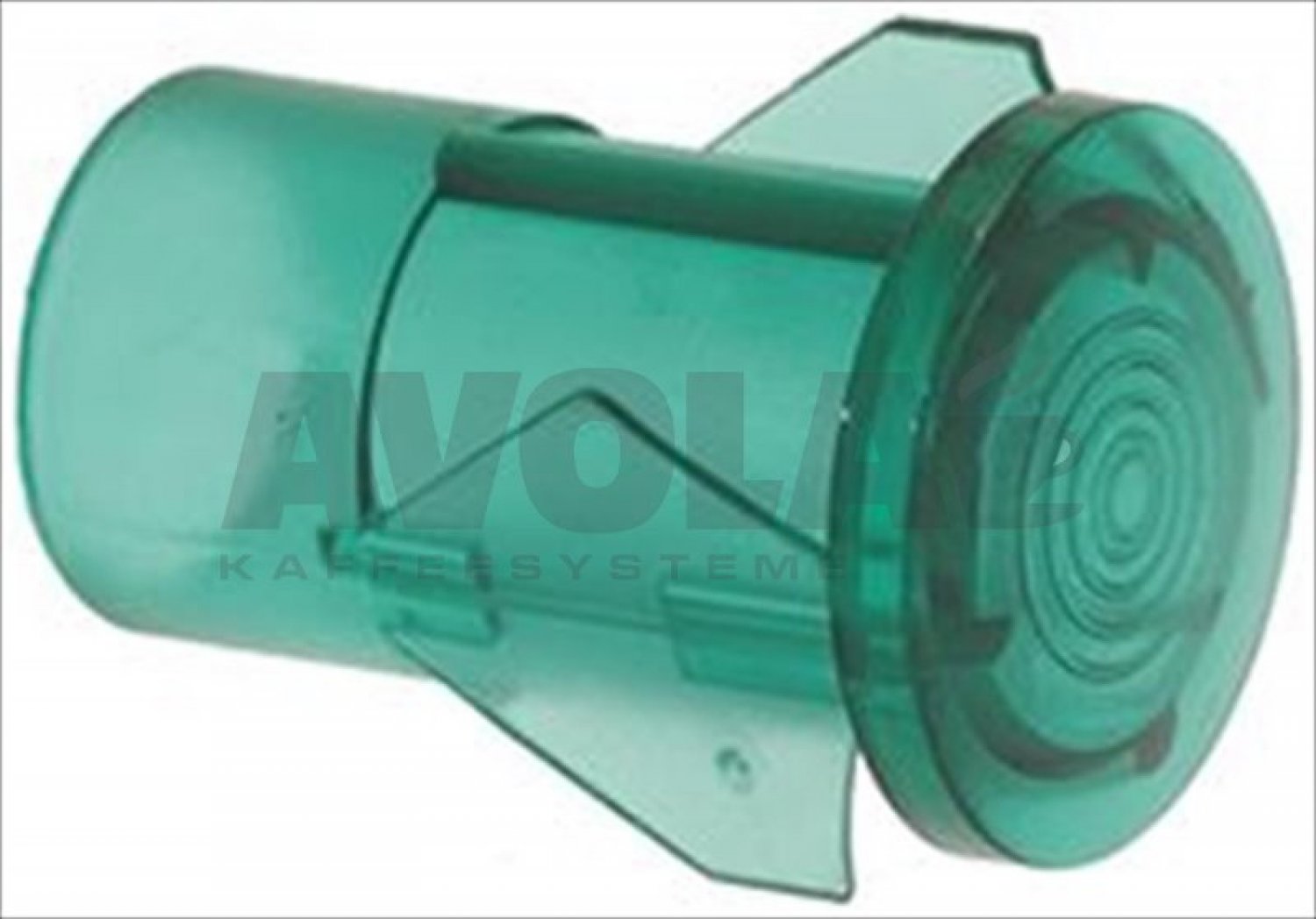

68lamp holder green 8002730
LAMP HOLDER GREEN
Price on request

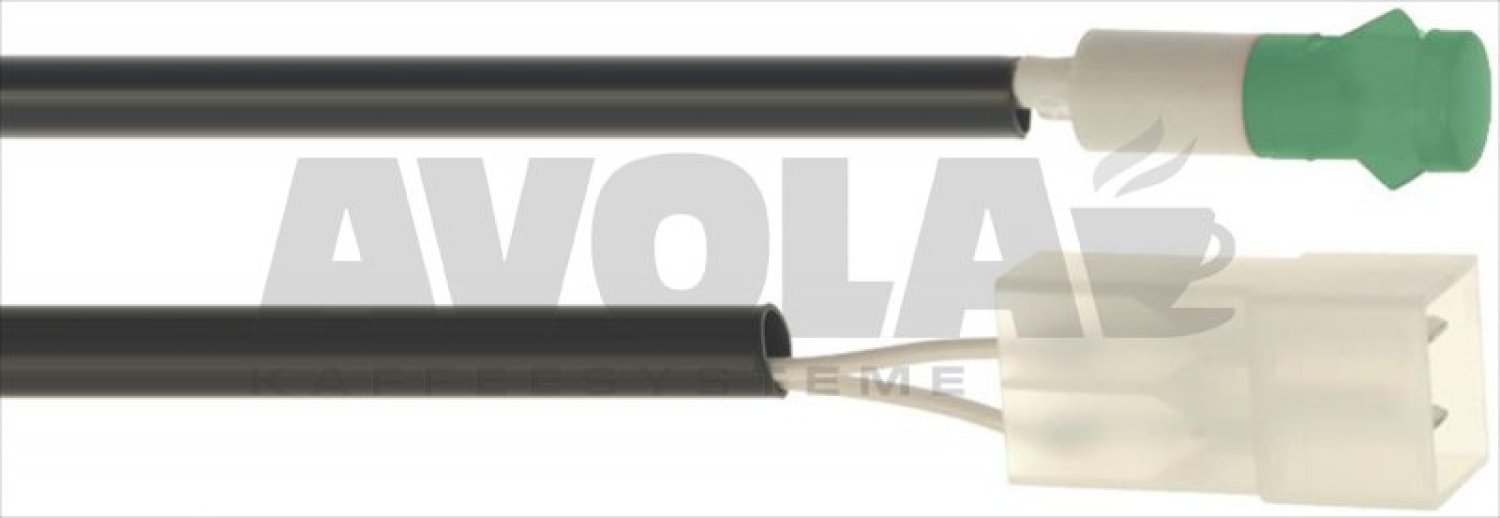

69green indicator lamp 220v 8002724
GREEN INDICATOR LAMP 220V
15,80 €

excl. Shipping costs

Delivery time
is determined
75power relay finder 62 83 8 230 0000 8022754
POWER RELAY FINDER 62.83.8.230.0000
45,71 €

excl. Shipping costs

Delivery time
is determined

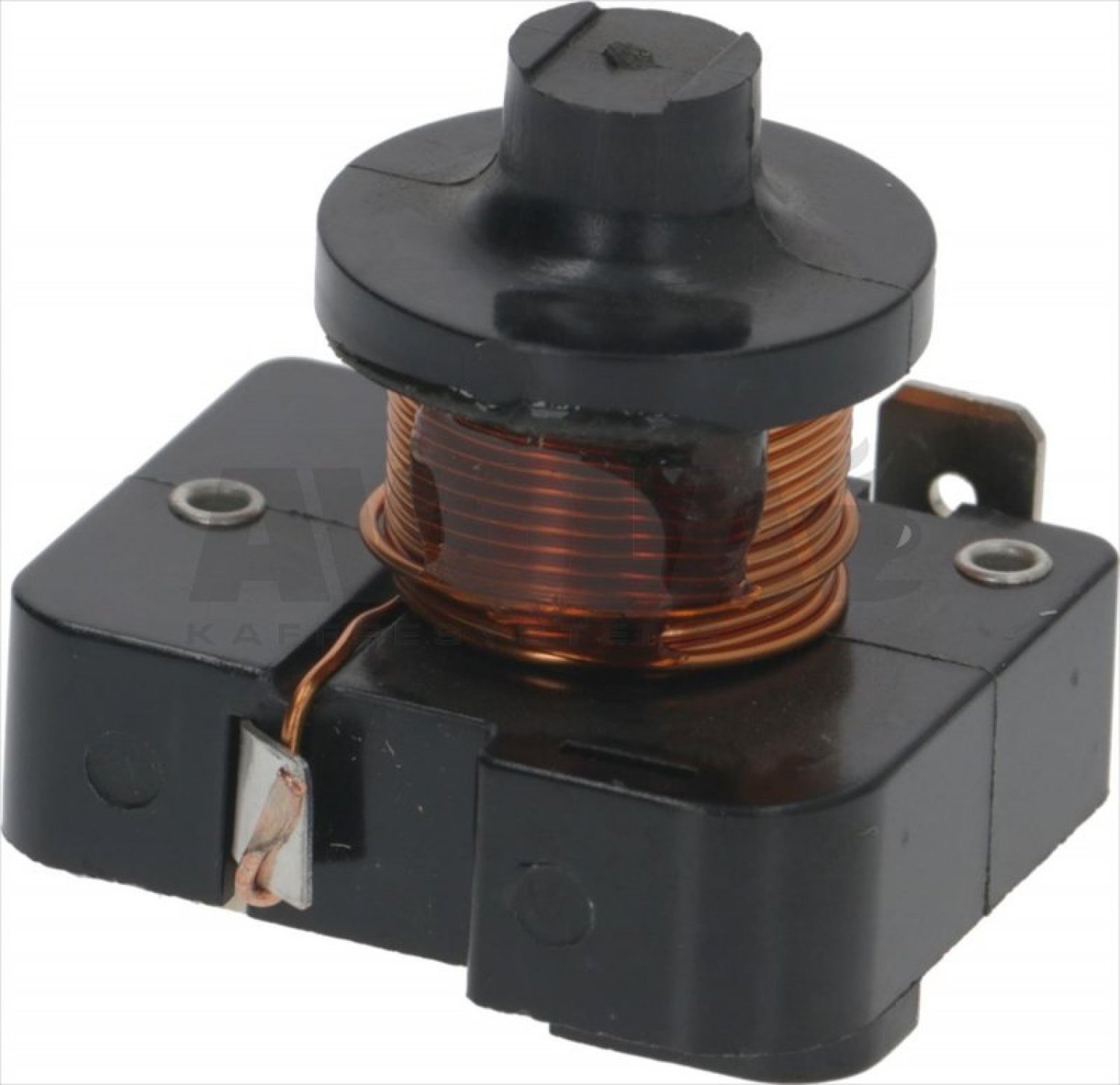

76circuit interrupter md50 4211 new 8004507
CIRCUIT INTERRUPTER MD50 4211 - NEW
27,45 €

excl. Shipping costs

Delivery time 4-6 weeks..

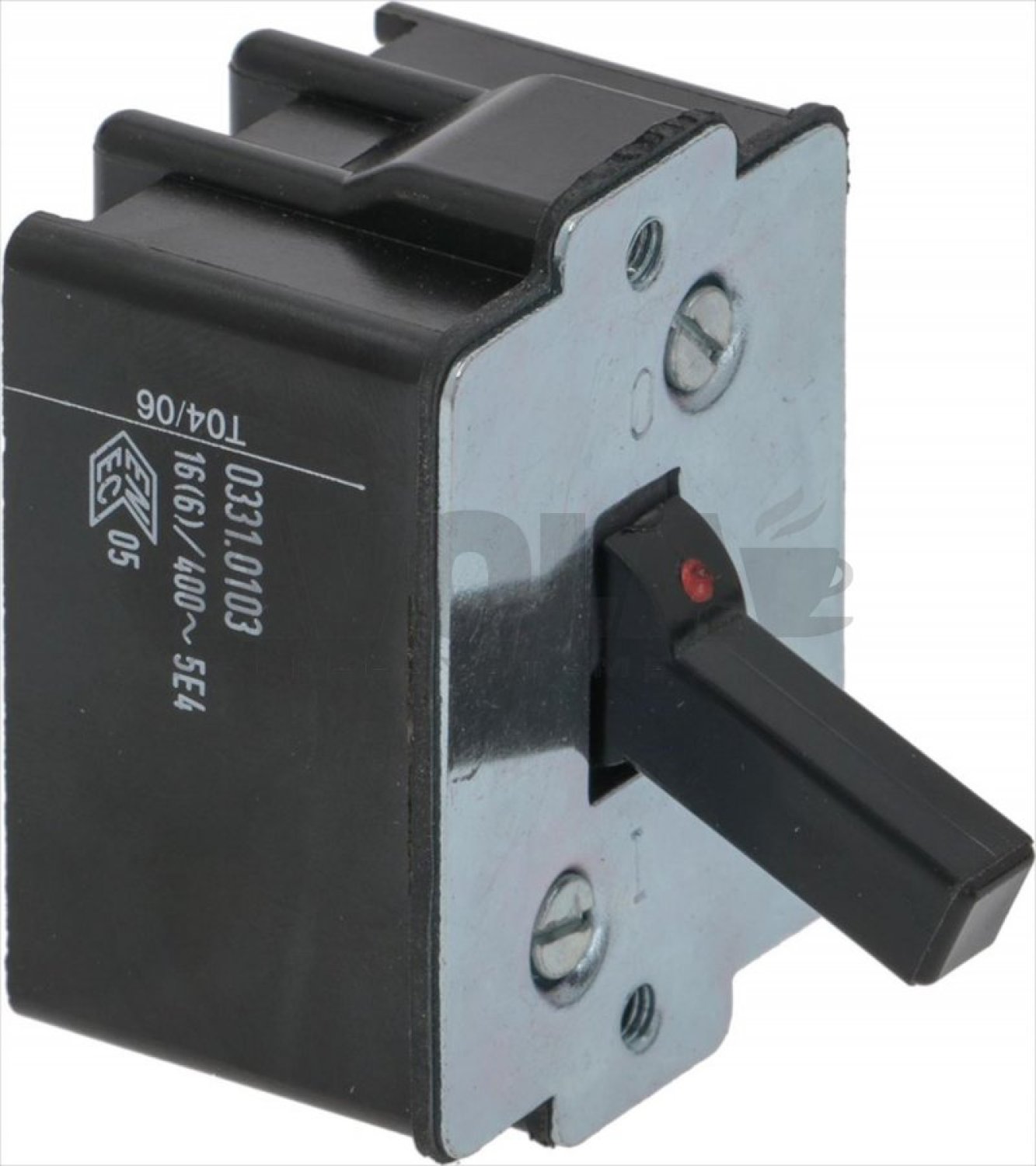

79three pole lever switch 16a 400v 8004782
THREE-POLE LEVER SWITCH 16A 400V
177,23 €

excl. Shipping costs

Delivery time 4-6 weeks..

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
