Cimbali Grinder

CIM04 DOSIERMAHLWERK MAX

Drawing number 8038707

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.:Image:Description:Qty.:
1coffee hopper lid8004249
COFFEE HOPPER LID
29,20 €

excl. Shipping costs
Delivery time
is determined
3coffee hopper closing sheet8004254
COFFEE HOPPER CLOSING SHEET
30,24 €

excl. Shipping costs
Delivery time 4-6 weeks
9coffee tamper8006171
COFFEE TAMPER
40,01 €

excl. Shipping costs
Delivery time 4-6 weeks
10filter holder fork8004298
FILTER HOLDER FORK
59,65 €

excl. Shipping costs
Delivery time
is determined
12green bipolar switch 16a 250v8020342
GREEN BIPOLAR SWITCH 16A 250V
9,67 €

excl. Shipping costs
Delivery time
is determined
13cimbali coffee collection tray8004397
CIMBALI COFFEE COLLECTION TRAY
32,03 €

excl. Shipping costs
Delivery time 4-6 weeks
15doser lid8004257
DOSER LID
72,14 €

excl. Shipping costs
immediately available, 1 available
16lid with pointer8004297
LID WITH POINTER
43,20 €

excl. Shipping costs
Delivery time 4-6 weeks
17microswitch 16a 250v8016308
MICROSWITCH 16A 250V
9,54 €

excl. Shipping costs
immediately available, 3 available
18support for microswitch8004354
SUPPORT FOR MICROSWITCH
114,35 €

excl. Shipping costs
Delivery time 4-6 weeks
19doser cylinder8004180
DOSER CYLINDER
117,83 €

excl. Shipping costs
Delivery time
is determined
20dose adjustment knob8003174
DOSE ADJUSTMENT KNOB
28,54 €

excl. Shipping costs
Delivery time
is determined
21star assembly8005354
STAR ASSEMBLY
70,64 €

excl. Shipping costs
Delivery time 4-6 weeks
22cimbali top star8005355
Cimbali TOP STAR
29,12 €

excl. Shipping costs
Delivery time 4-6 weeks
23doser sheet8004255
DOSER SHEET
18,02 €

excl. Shipping costs
Delivery time 4-6 weeks
24dose adjustment star8005346
DOSE ADJUSTMENT STAR
17,01 €

excl. Shipping costs
Delivery time 4-6 weeks
25dispenser star spring8003614
DISPENSER STAR SPRING
6,53 €

excl. Shipping costs
Delivery time
is determined
26dose conveying star8005347
DOSE CONVEYING STAR
26,19 €

excl. Shipping costs
Delivery time
is determined
27counter for coffee grinder8004332
COUNTER FOR COFFEE GRINDER
49,83 €

excl. Shipping costs
immediately available, 2 available
28stroke counter shaft8004182
STROKE COUNTER SHAFT
15,46 €

excl. Shipping costs
Delivery time
is determined
30doser lever return spring8003615
DOSER LEVER RETURN SPRING
8,44 €

excl. Shipping costs
immediately available, 3 available
34doser lever8004362
DOSER LEVER
100,75 €

excl. Shipping costs
Delivery time 4-6 weeks
35pawl coffee grinder doser8004381
PAWL COFFEE GRINDER/DOSER
46,68 €

excl. Shipping costs
Delivery time 4-6 weeks
38dispenser lower lid8004184
DISPENSER LOWER LID
54,97 €

excl. Shipping costs
Delivery time 4-6 weeks
39capacitor micro f 6 3 450v 50 60hz8011678
CAPACITOR µF 6,3 450v 50/60hz
11,78 €

excl. Shipping costs
immediately available, 6 available
40circuit interrupter md50 4211 new8004507
CIRCUIT INTERRUPTER MD50 4211 - NEW
27,58 €

excl. Shipping costs
Delivery time
is determined
47gasket for coffee outlet opening8001811
GASKET FOR COFFEE OUTLET OPENING
14,71 €

excl. Shipping costs
Delivery time
is determined
53worm screw8007274
WORM SCREW
105,76 €

excl. Shipping costs
Delivery time
is determined
54support for screw8004363
SUPPORT FOR SCREW
29,61 €

excl. Shipping costs
Delivery time 4-6 weeks
55ball for micro regulation group8004316
BALL FOR MICRO REGULATION GROUP
2,76 €

excl. Shipping costs
Delivery time
is determined
56ball spring8003628
BALL SPRING
3,43 €

excl. Shipping costs
Delivery time
is determined

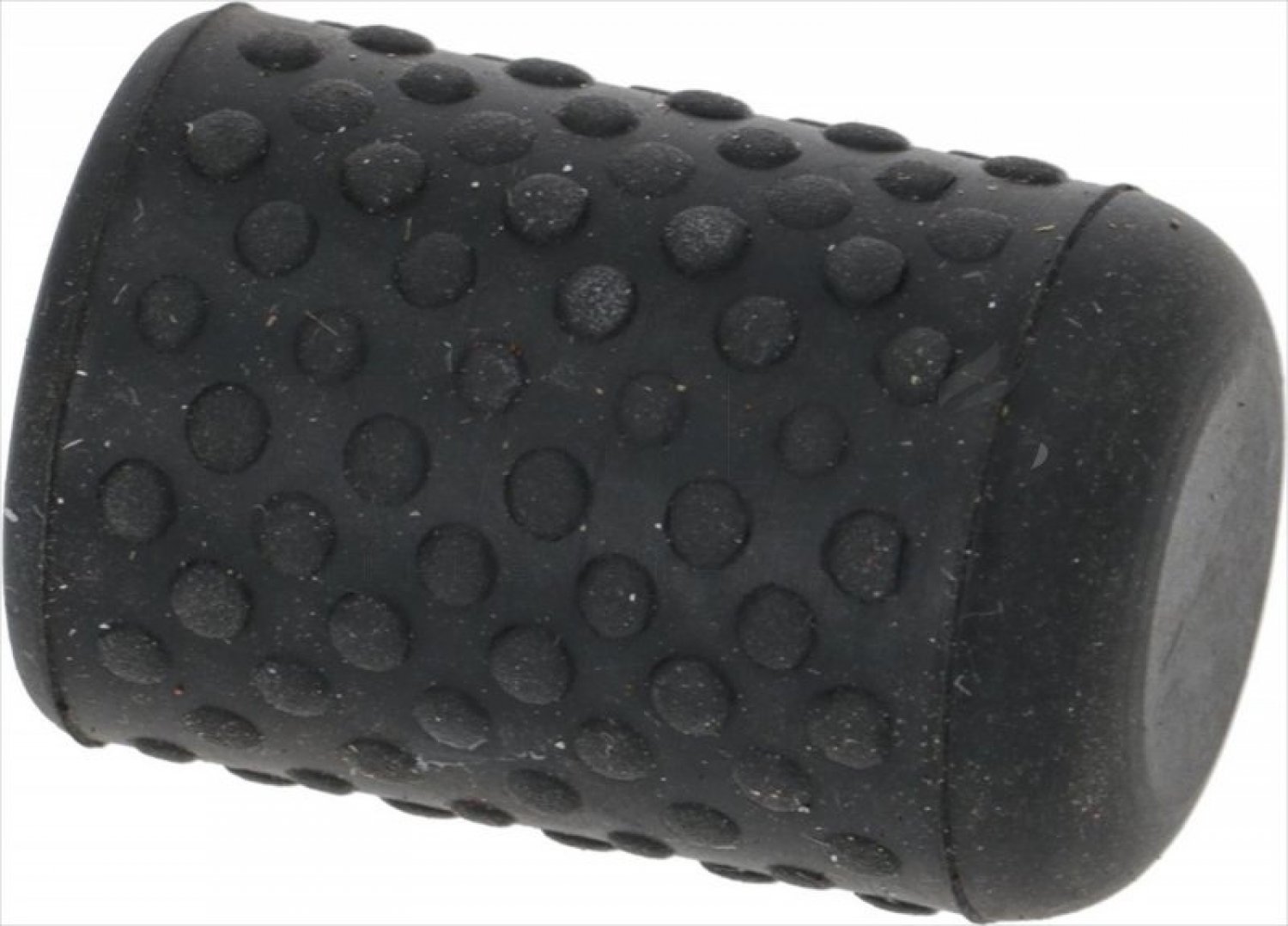

57control knob8003176
CONTROL KNOB
27,74 €

excl. Shipping costs
Delivery time
is determined
59adjustment ring nut8004364
ADJUSTMENT RING NUT
22,81 €

excl. Shipping costs
Delivery time
is determined
61grinding burrs pair cimbali rh8003927
GRINDING BURRS PAIR CIMBALI RH
Price on request
1008079242
CIMBALI MAHLKEGEL KONISCHES MAHLWERK
150,87 €

excl. Shipping costs
Delivery time
is determined

If your article is not listed, please use the following form and enter the desired numbers.
