Cimbali

CIMBALI - GRUPPE M20-M25-M27-M28-M29-M30-M31-M32

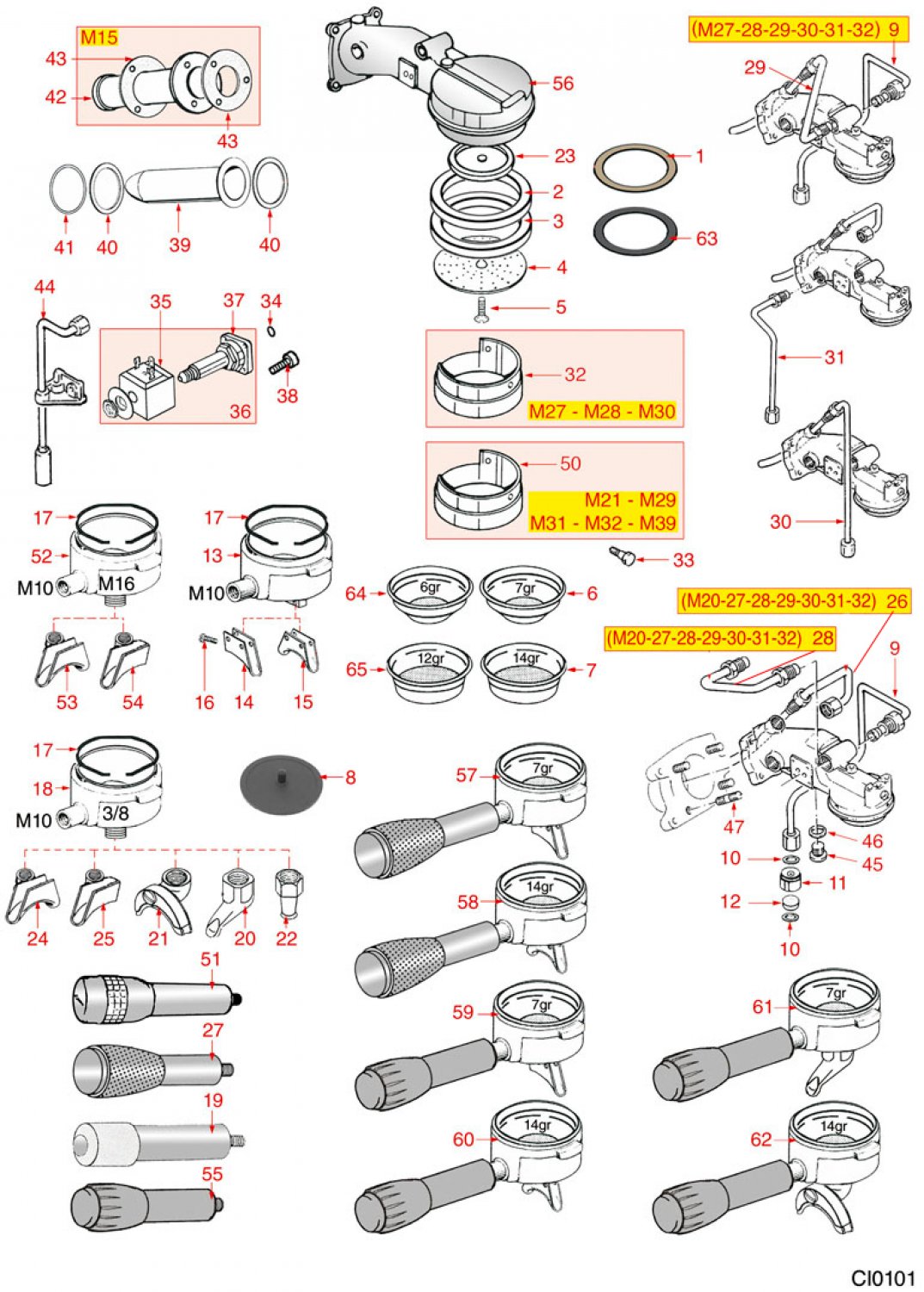

Drawing number 8038695

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.: Image: Description: Qty.:
1paper seal o 70x57x0 8 mm 8002175
PAPER SEAL ø 70x57x0,8 mm
0,39 €

excl. Shipping costs

immediately available
2cimbali filter holder gasket 8001882
Cimbali filter holder gasket
5,47 €

excl. Shipping costs

immediately available

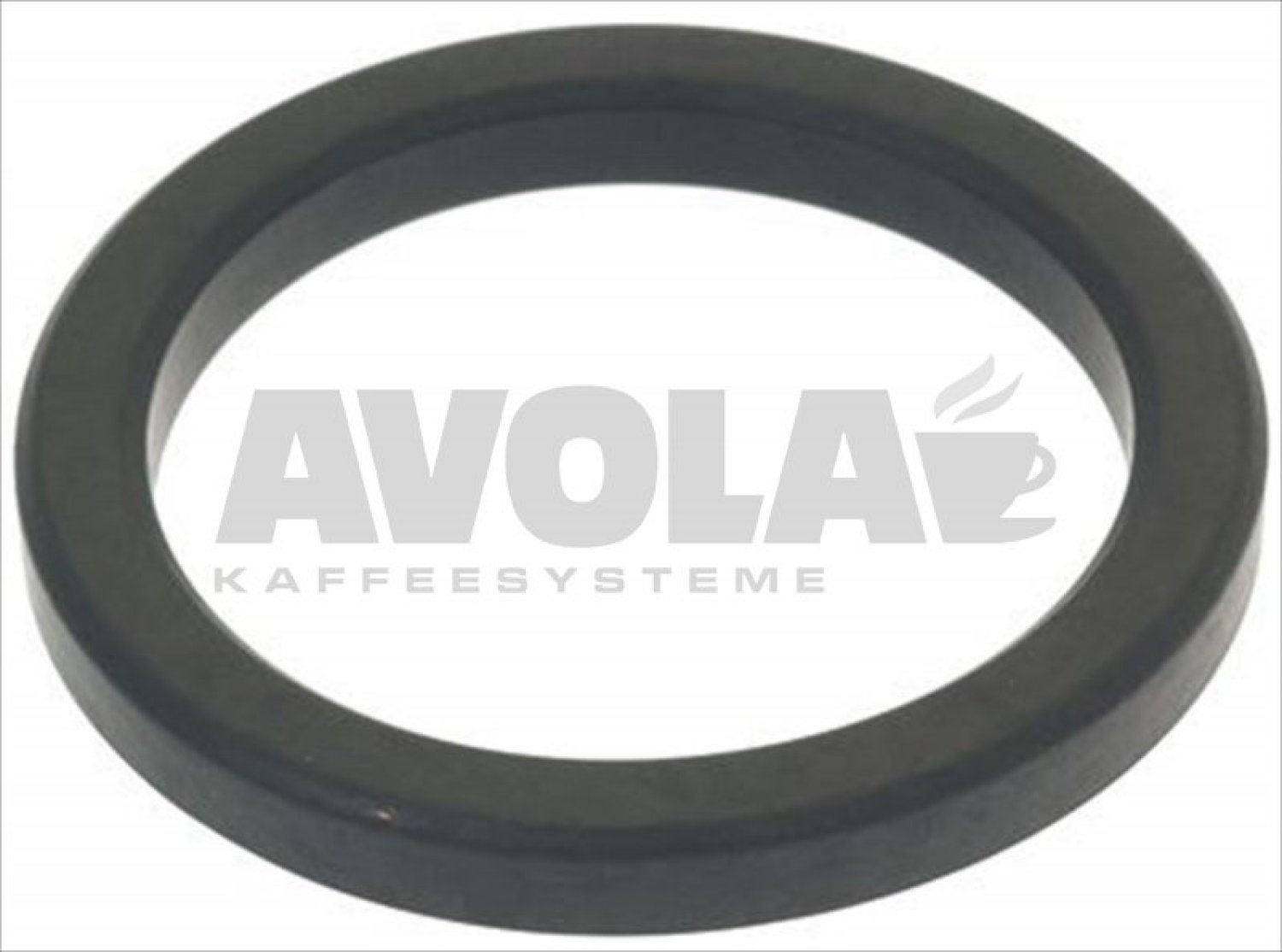

2filter holder gasket o 70x56x8 5 mm 8001883
FILTER HOLDER GASKET ø 70x56x8,5 mm
5,88 €

excl. Shipping costs

immediately available
4shower 51 50 mm 8000552
SHOWER 51,50 MM
4,56 €

excl. Shipping costs

immediately available
5showerscrew m5x20 8007250
SHOWERSCREW M5x20
1,25 €

excl. Shipping costs

immediately available

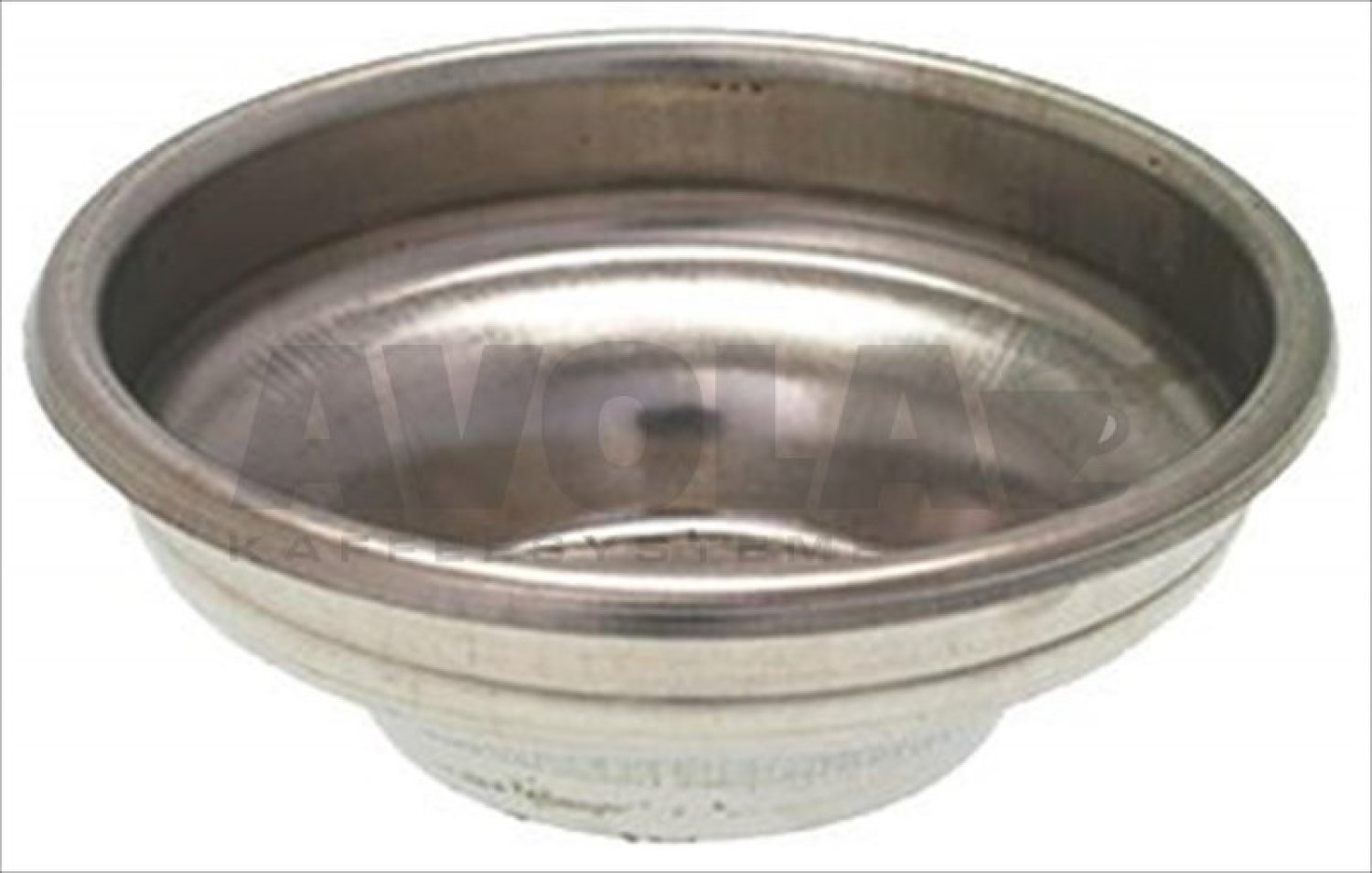

61 cup filter 7 gr 8001080
1 CUP FILTER 7 gr
5,45 €

excl. Shipping costs

immediately available, 12 available

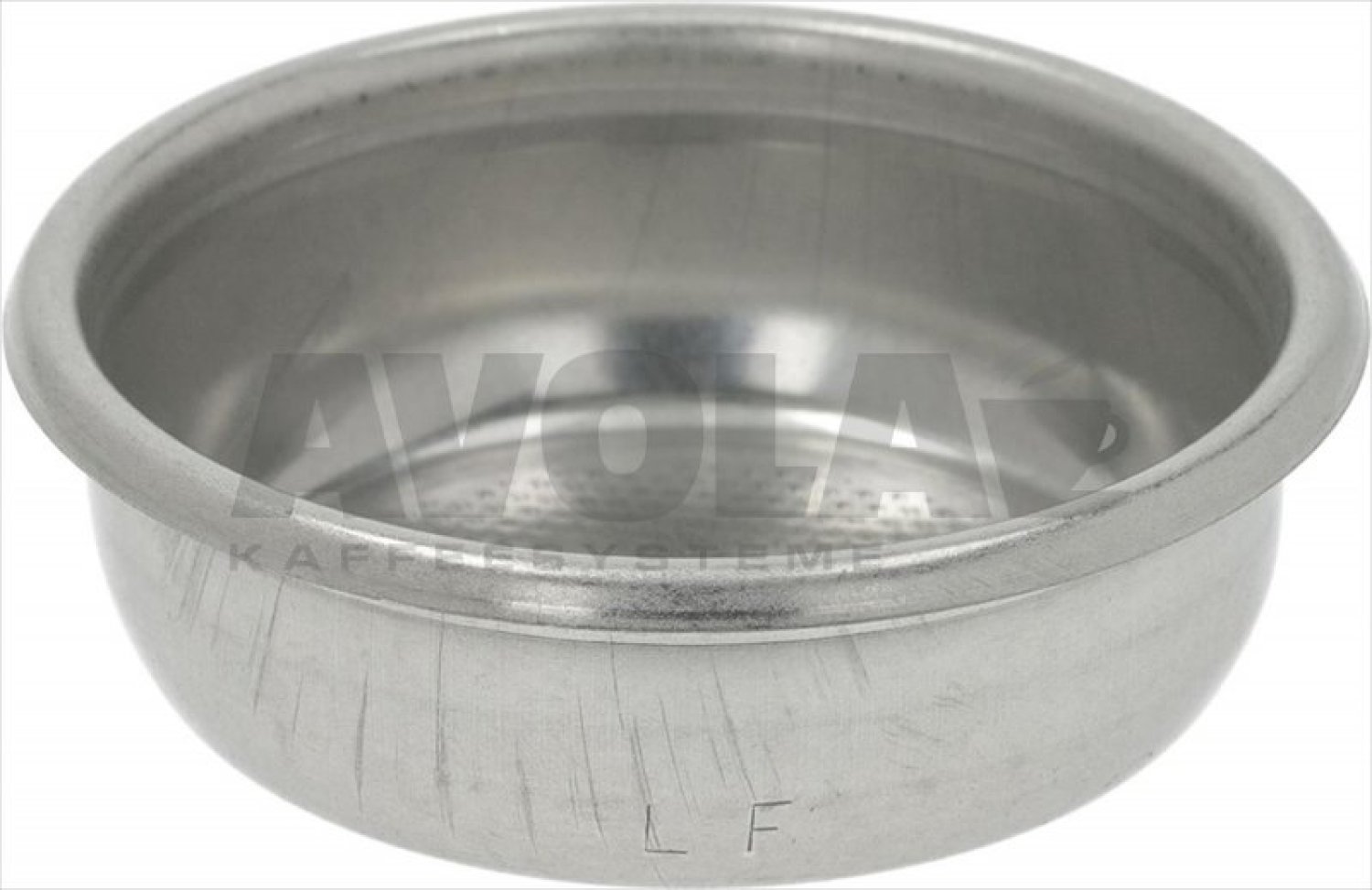

72 cup filter 12 g 8001083
2-CUP FILTER 12 g
5,45 €

excl. Shipping costs

immediately available, 14 available

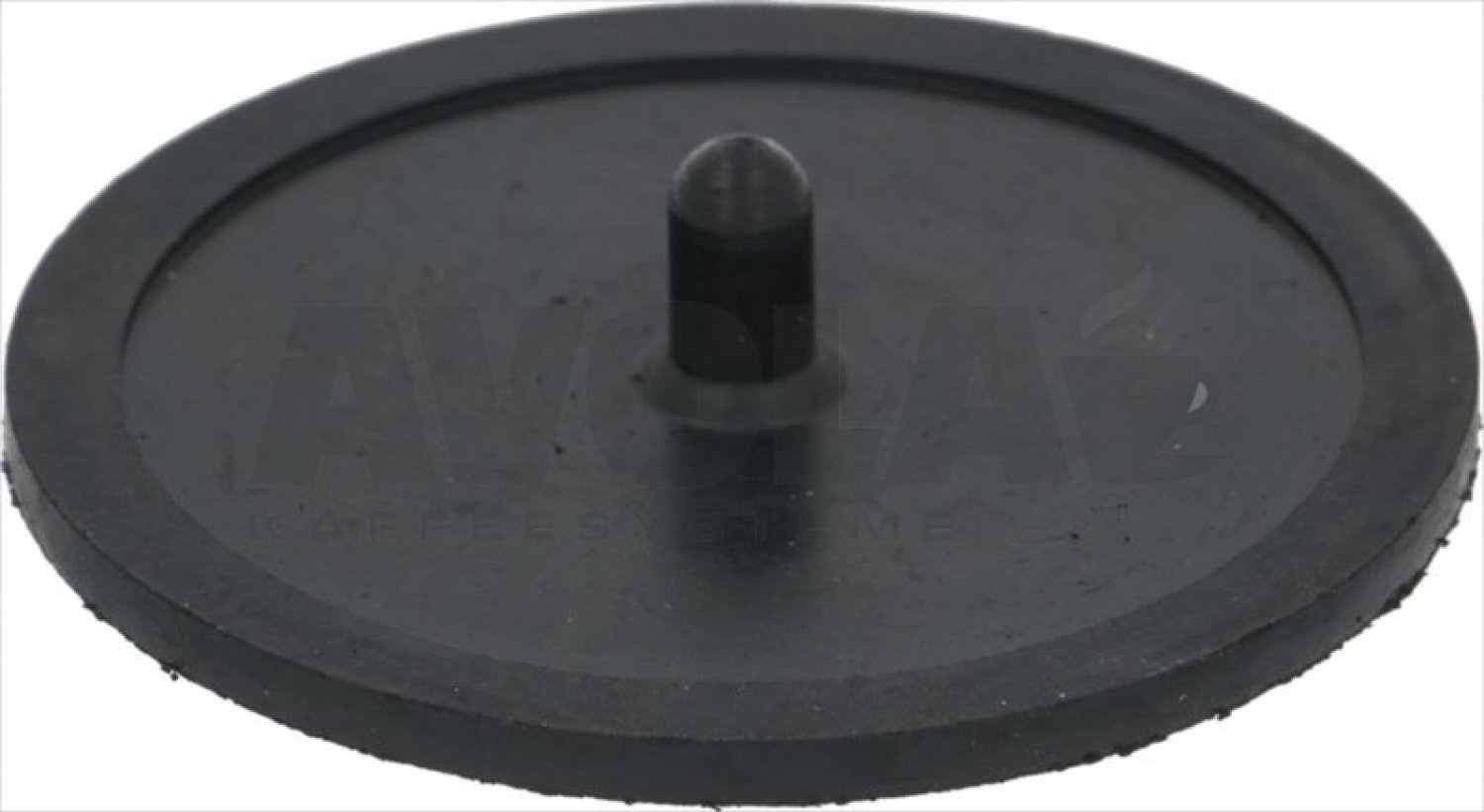

8membrane blind filter o 50 mm 8001097
MEMBRANE BLIND FILTER ø 50 mm
1,14 €

excl. Shipping costs

immediately available

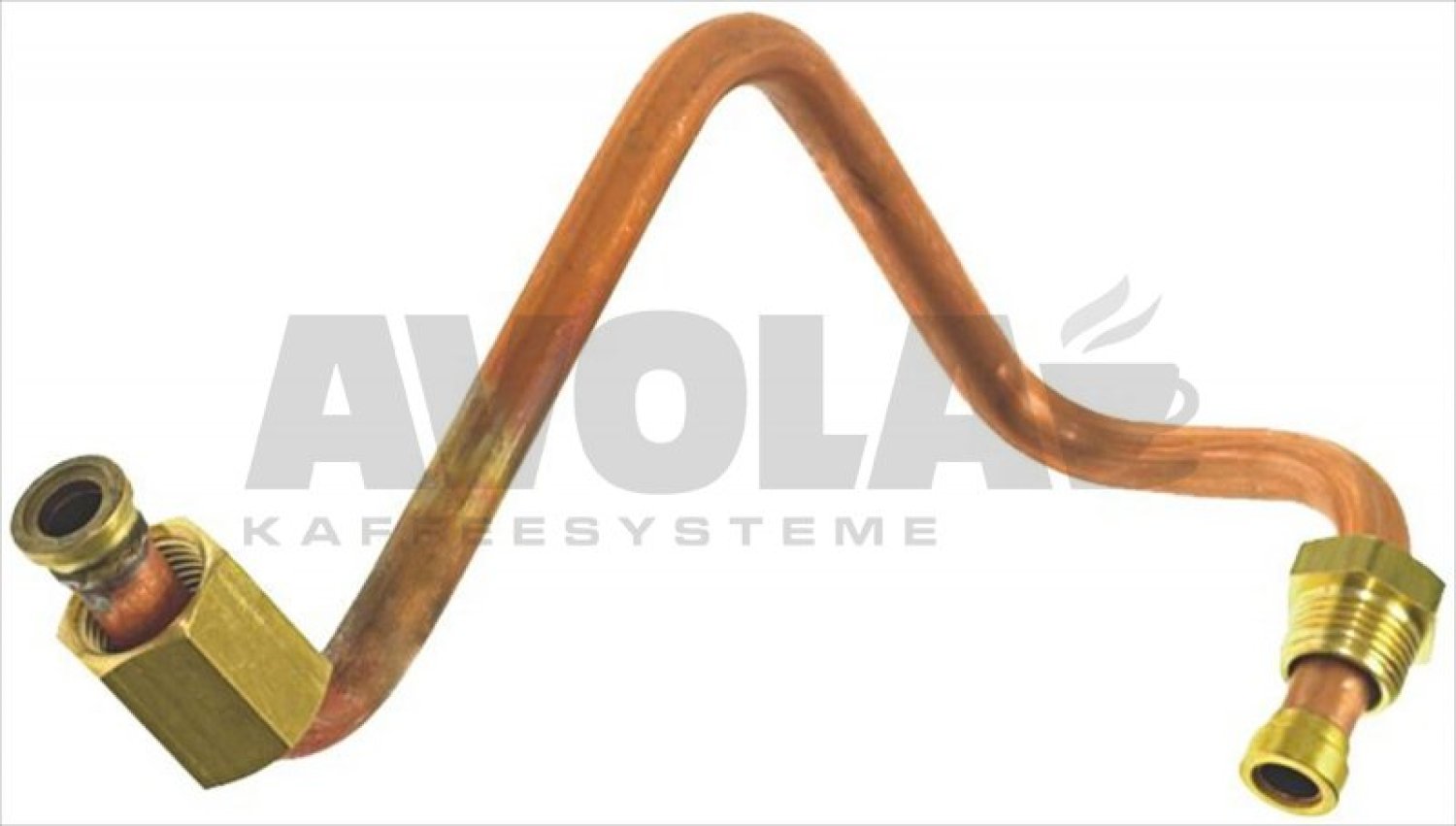

9cimbali brew group inlet pipe 8006561
Cimbali BREW GROUP INLET PIPE
42,35 €

excl. Shipping costs

immediately available, 1 available

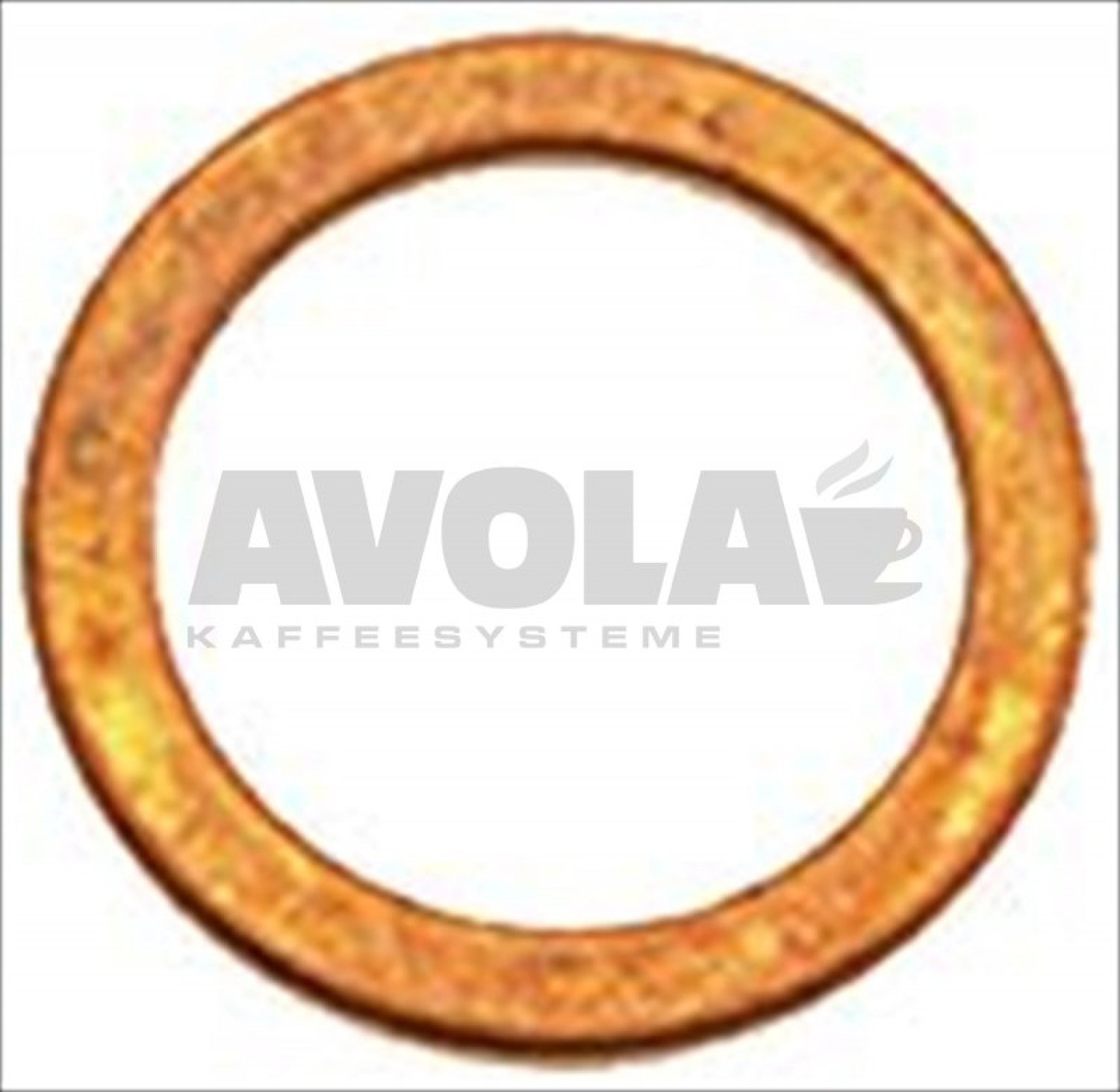

10copper flat gasket o 14x10x1 mm 8001563
COPPER FLAT GASKET ø 14x10x1 mm
1,11 €

excl. Shipping costs

immediately available

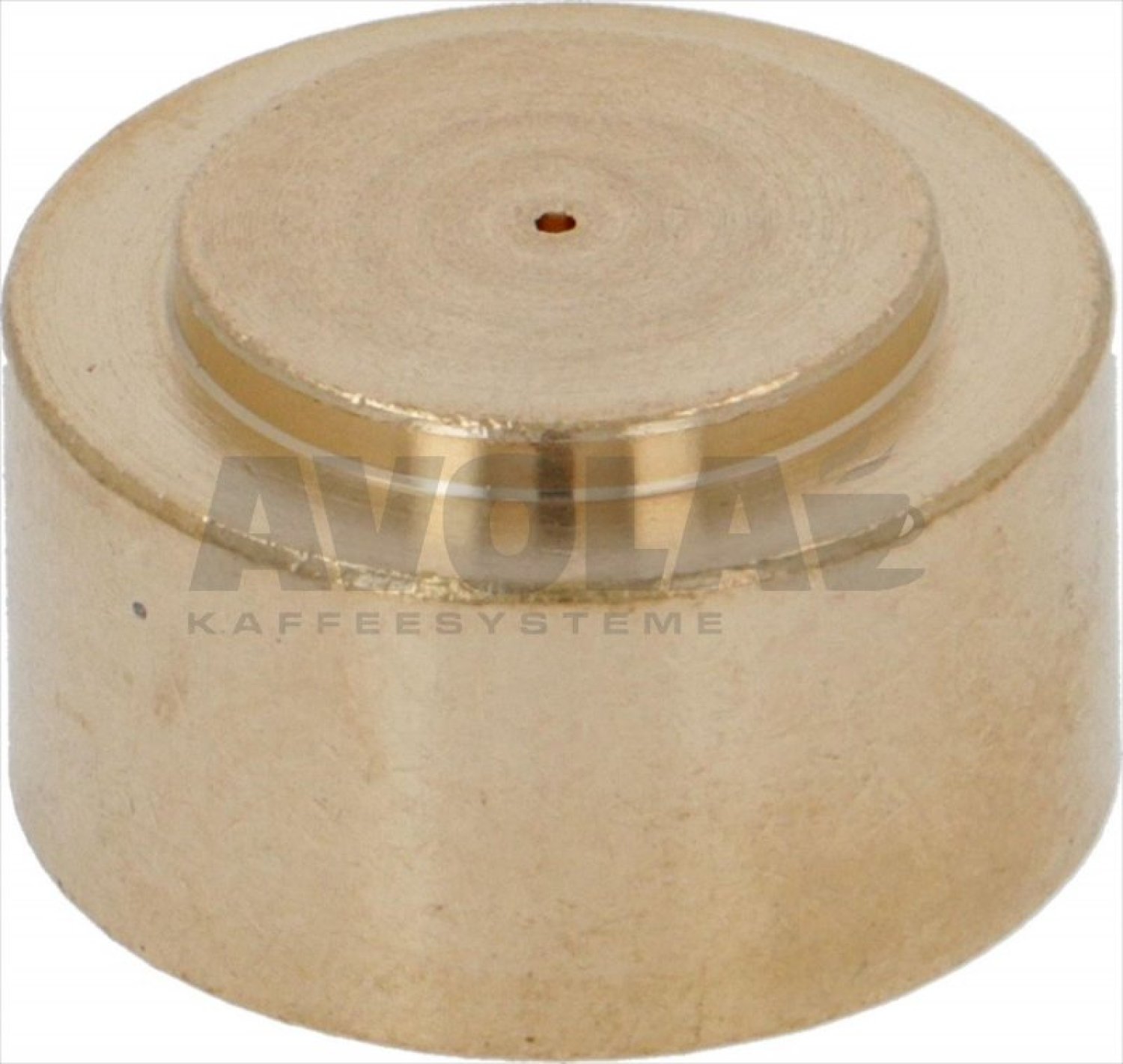

11nozzle 8006985
NOZZLE
3,67 €

excl. Shipping costs

immediately available, 9 available

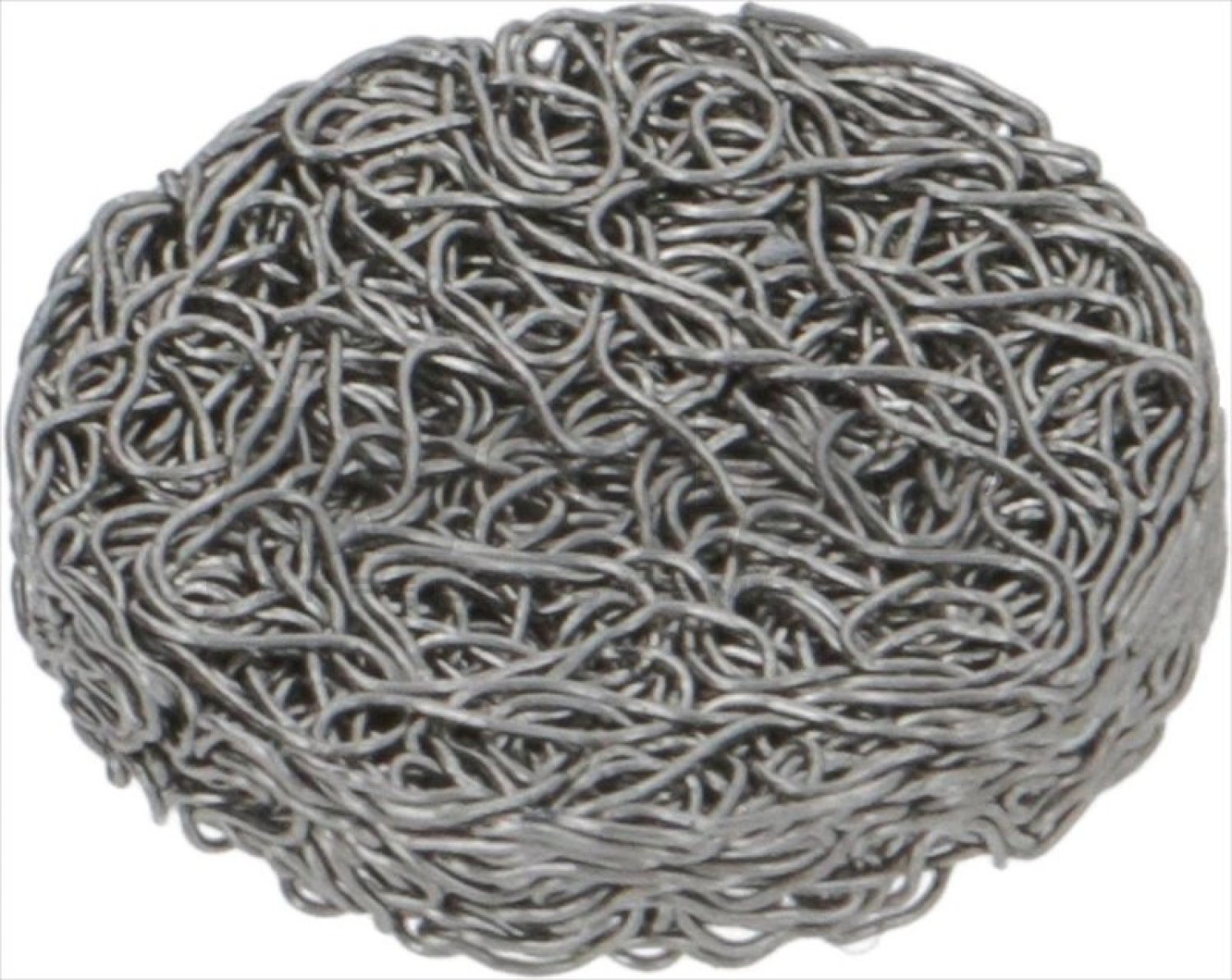

12water filter o 9x1 5 mm 8001112
WATER FILTER ø 9x1,5 mm
1,23 €

excl. Shipping costs

immediately available, 20 available

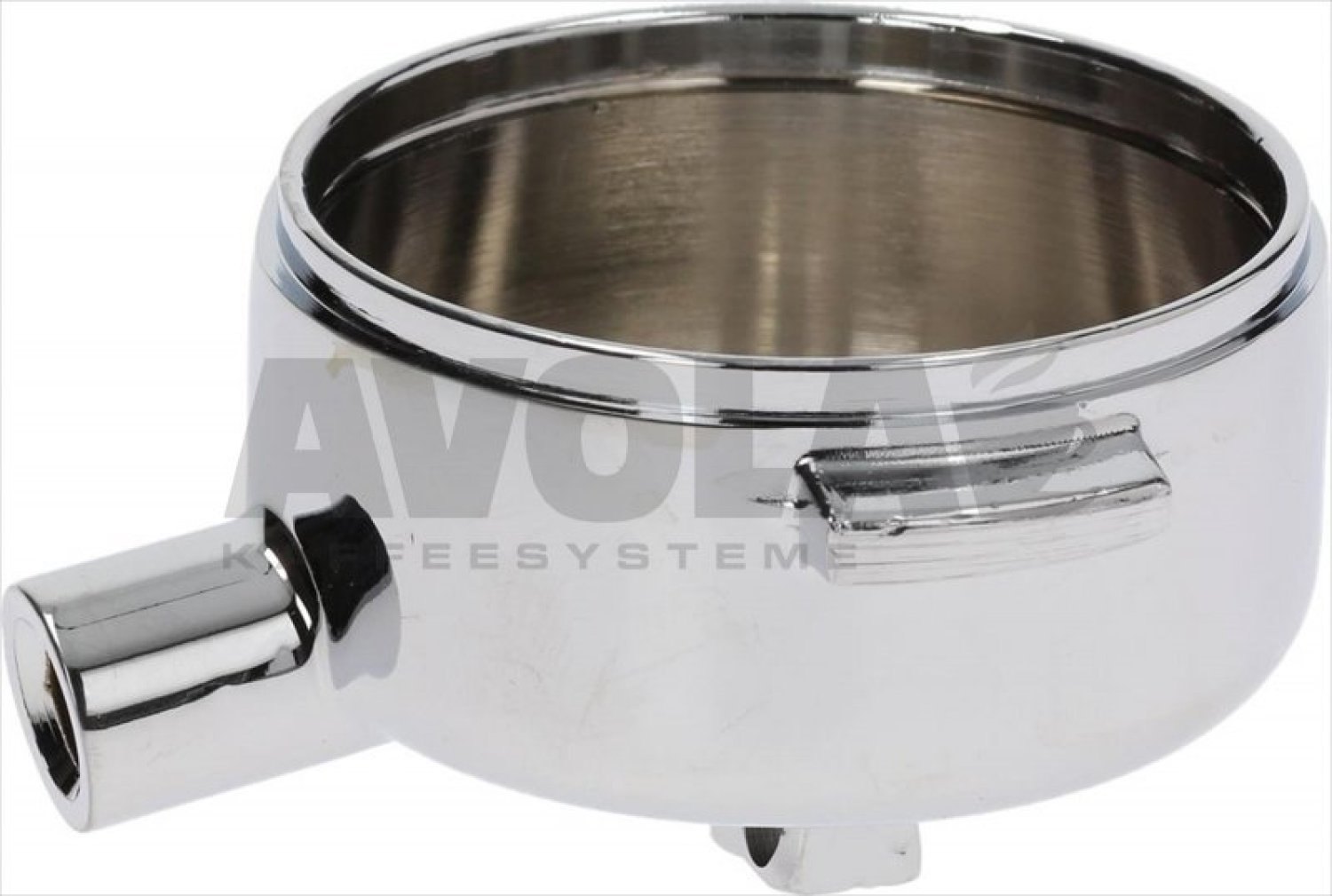

13filter holder cimbali 8001177
FILTER HOLDER CIMBALI
22,69 €

excl. Shipping costs

immediately available, 4 available

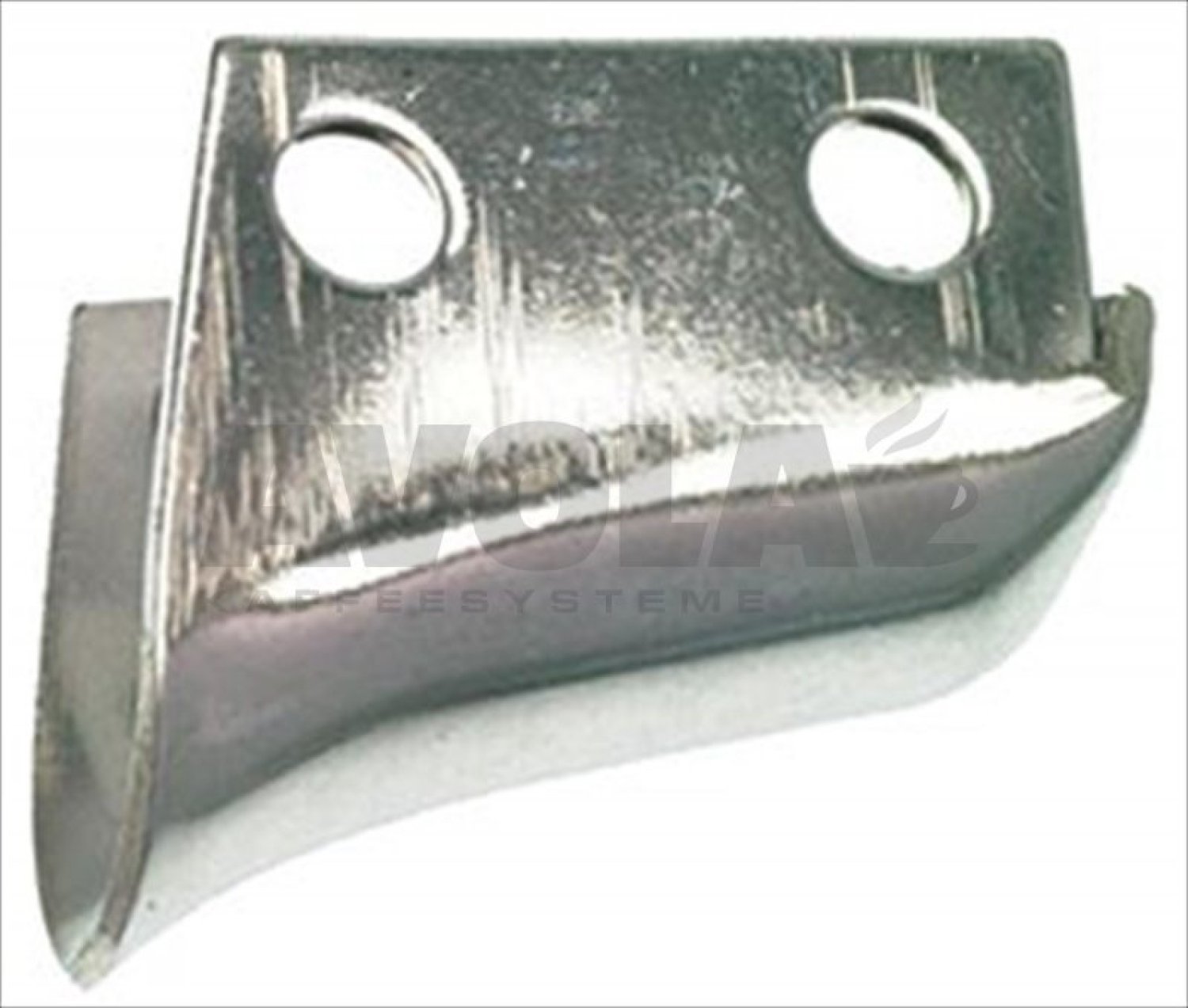

14single spout 8000118
SINGLE SPOUT
5,60 €

excl. Shipping costs

immediately available, 4 available

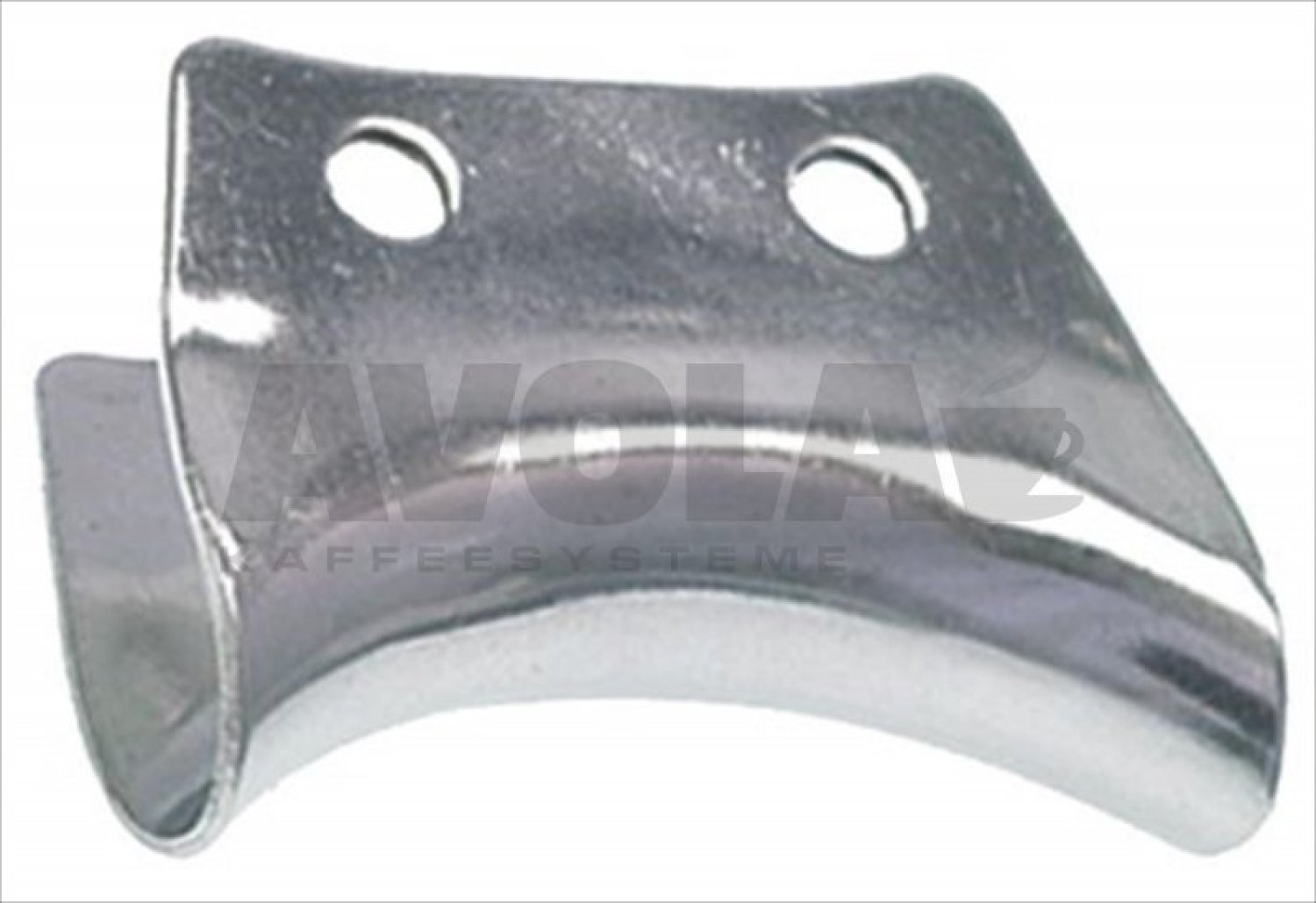

15double spout 8000119
DOUBLE SPOUT
5,49 €
5,49 €

excl. Shipping costs

immediately available, 6 available
16cylinder head screw m5x14 8007251
CYLINDER HEAD SCREW M5x14
1,18 €

excl. Shipping costs

immediately available
17filter blocking spring o 1 00 mm 8003622
FILTER BLOCKING SPRING ø 1,00 mm
1,05 €

excl. Shipping costs

immediately available

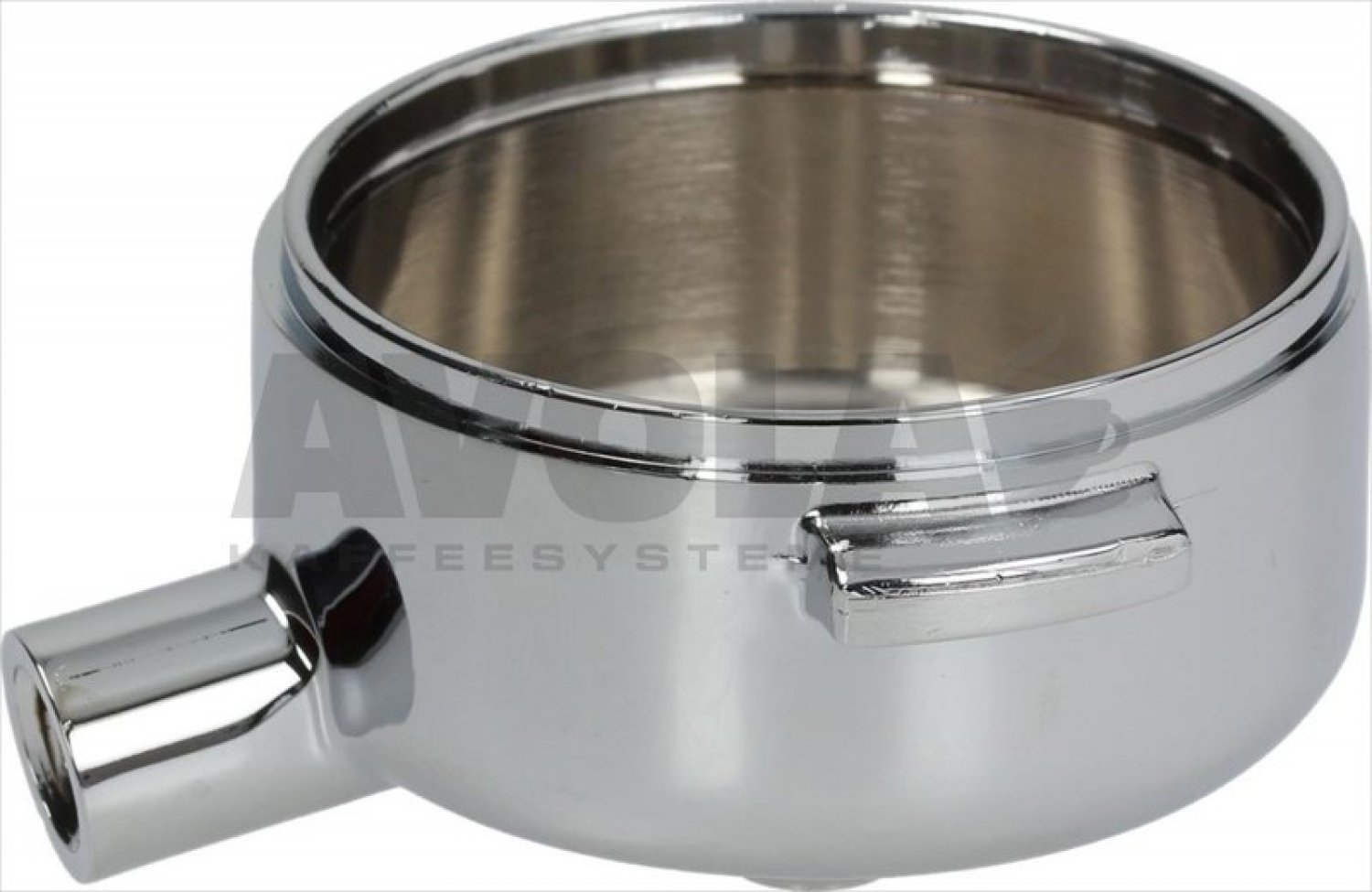

18filter holder cimbali 8001178
FILTER HOLDER CIMBALI
25,50 €

excl. Shipping costs

Delivery time
is determined
19filter holder handle m10 8003350
FILTER HOLDER HANDLE M10
6,55 €

excl. Shipping costs

immediately available, 4 available
20single spout o 3 8 8000110
SINGLE SPOUT ø 3/8
6,06 €

excl. Shipping costs

immediately available, 14 available
21lelit siebtraegerauslauf 2er o 3 8 quot rund auslauf vorne 8280537
Lelit Siebträgerauslauf 2er ø 3/8" rund Auslauf vorne
This article is no longer available
21double spout o 3 8 8000111
DOUBLE SPOUT ø 3/8
7,27 €

excl. Shipping costs

immediately available, 9 available
22straight single spout o 3 8 8000112
STRAIGHT SINGLE SPOUT ø 3/8
4,09 €

excl. Shipping costs

immediately available, 9 available

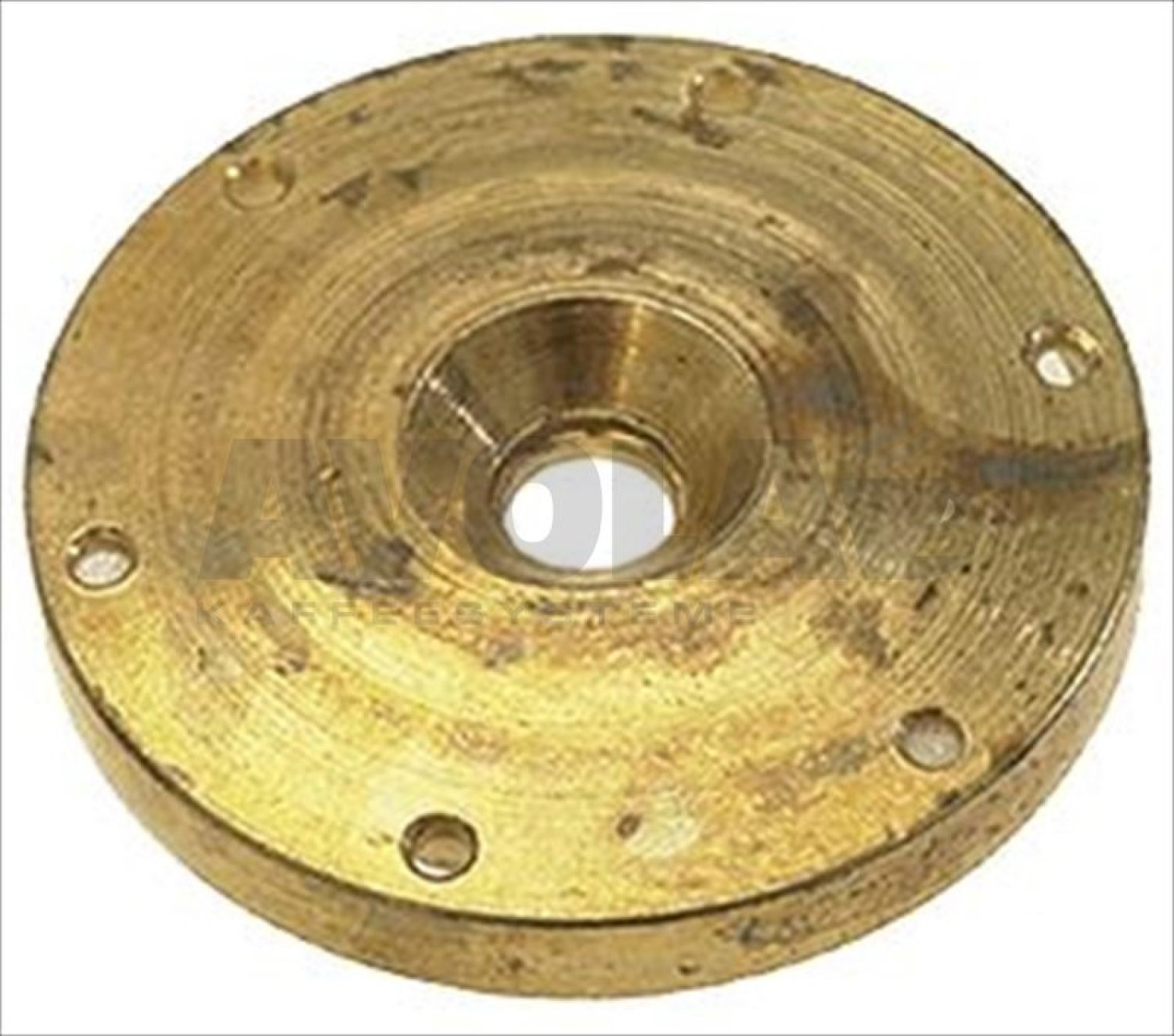

23brew group spray nozzle 8000550
BREW GROUP SPRAY NOZZLE
11,78 €

excl. Shipping costs

immediately available, 6 available

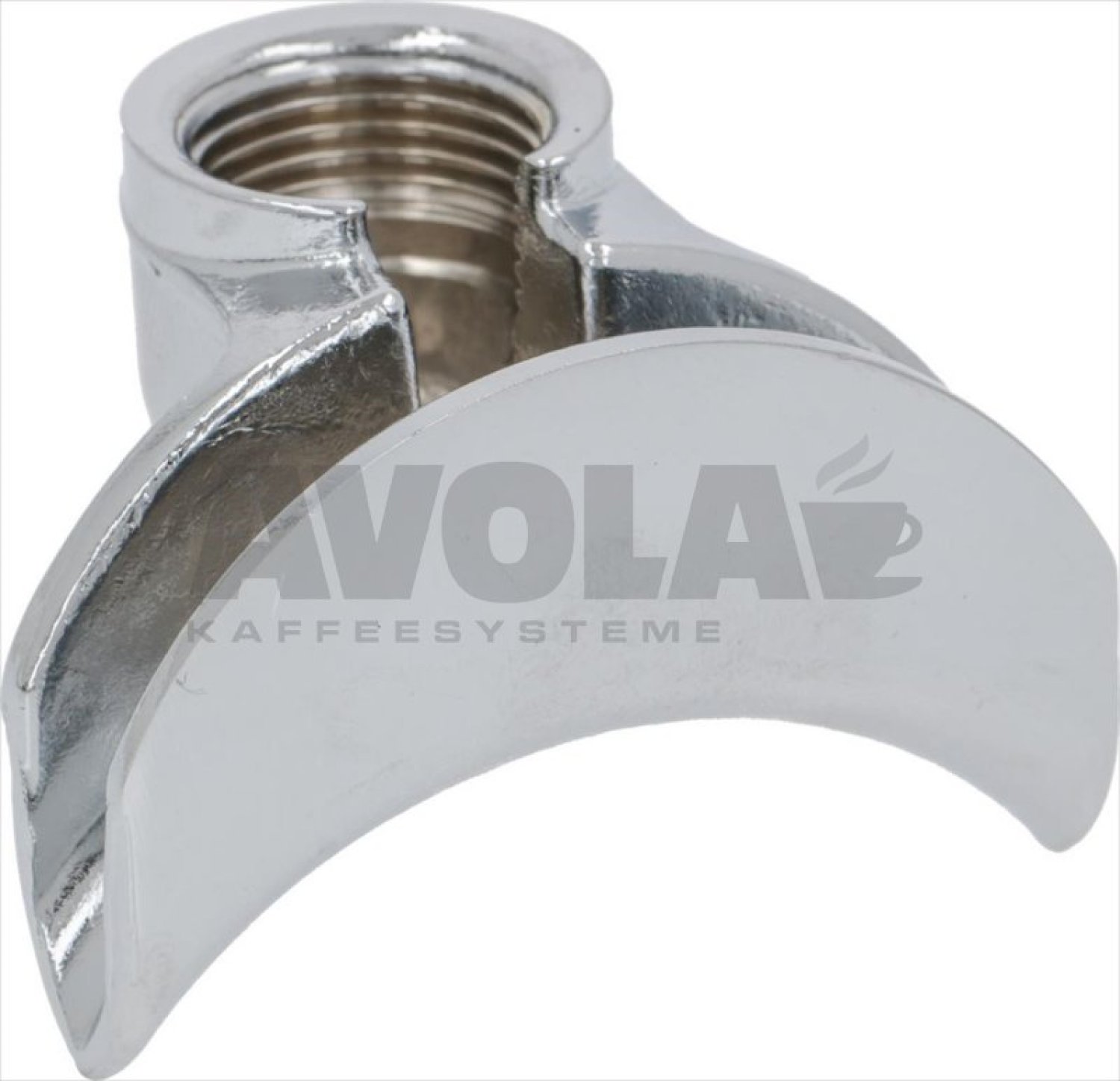

24double spout 8000116
DOUBLE SPOUT
Price on request

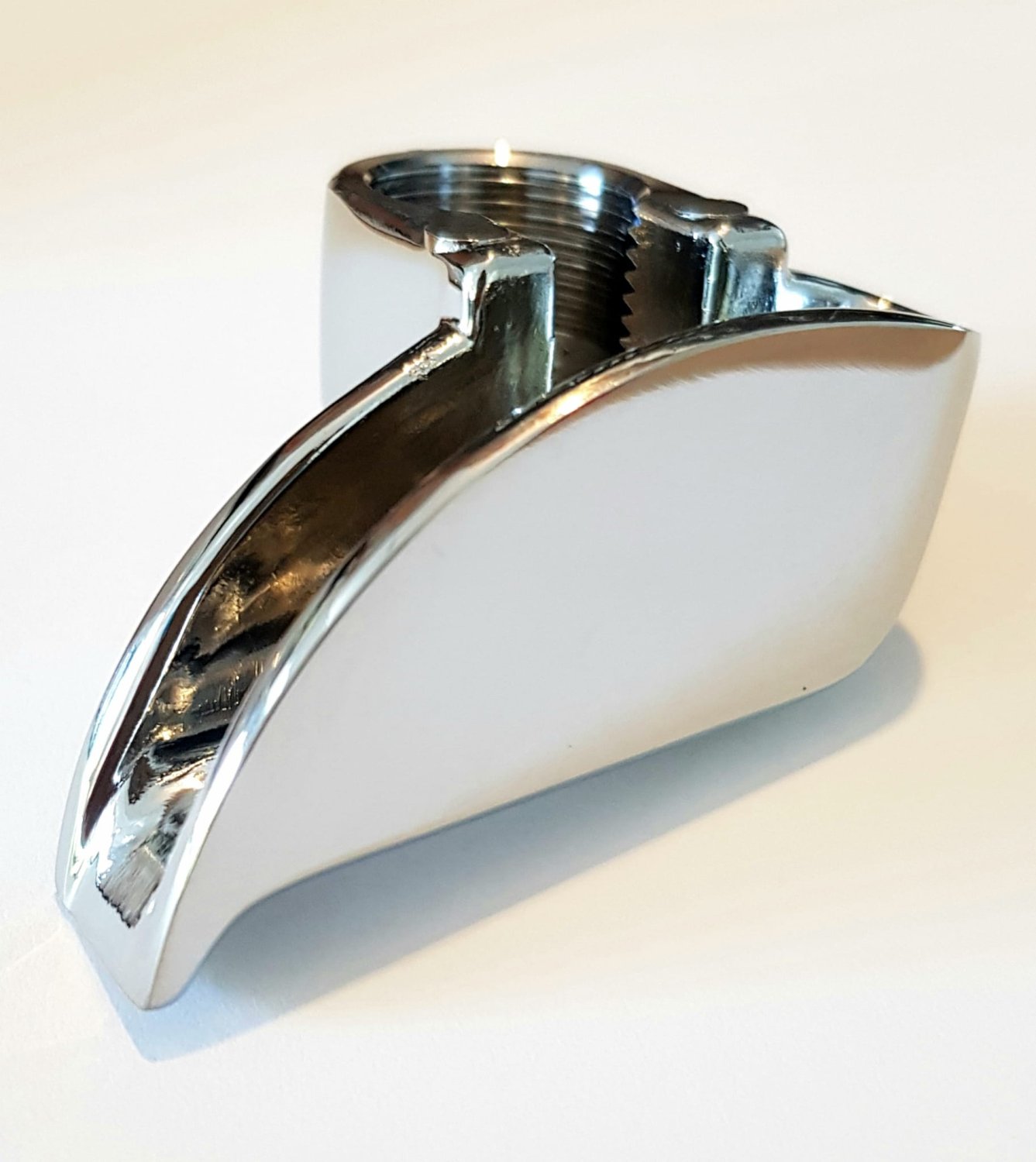

25single spout 8000117
SINGLE SPOUT
24,99 €

excl. Shipping costs

immediately available, 3 available

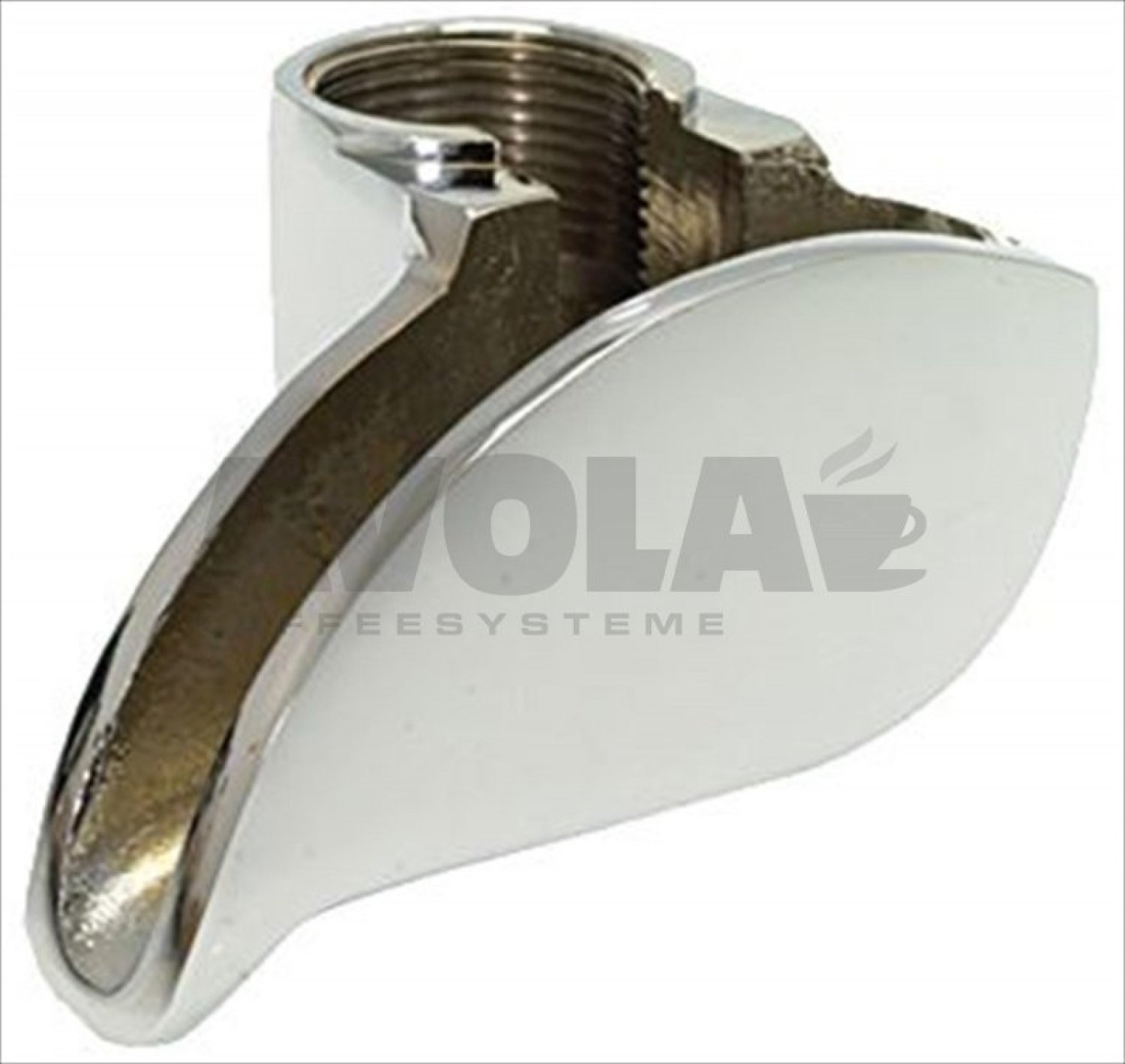

25single spout m16 8000126
SINGLE SPOUT M16
This article is no longer available

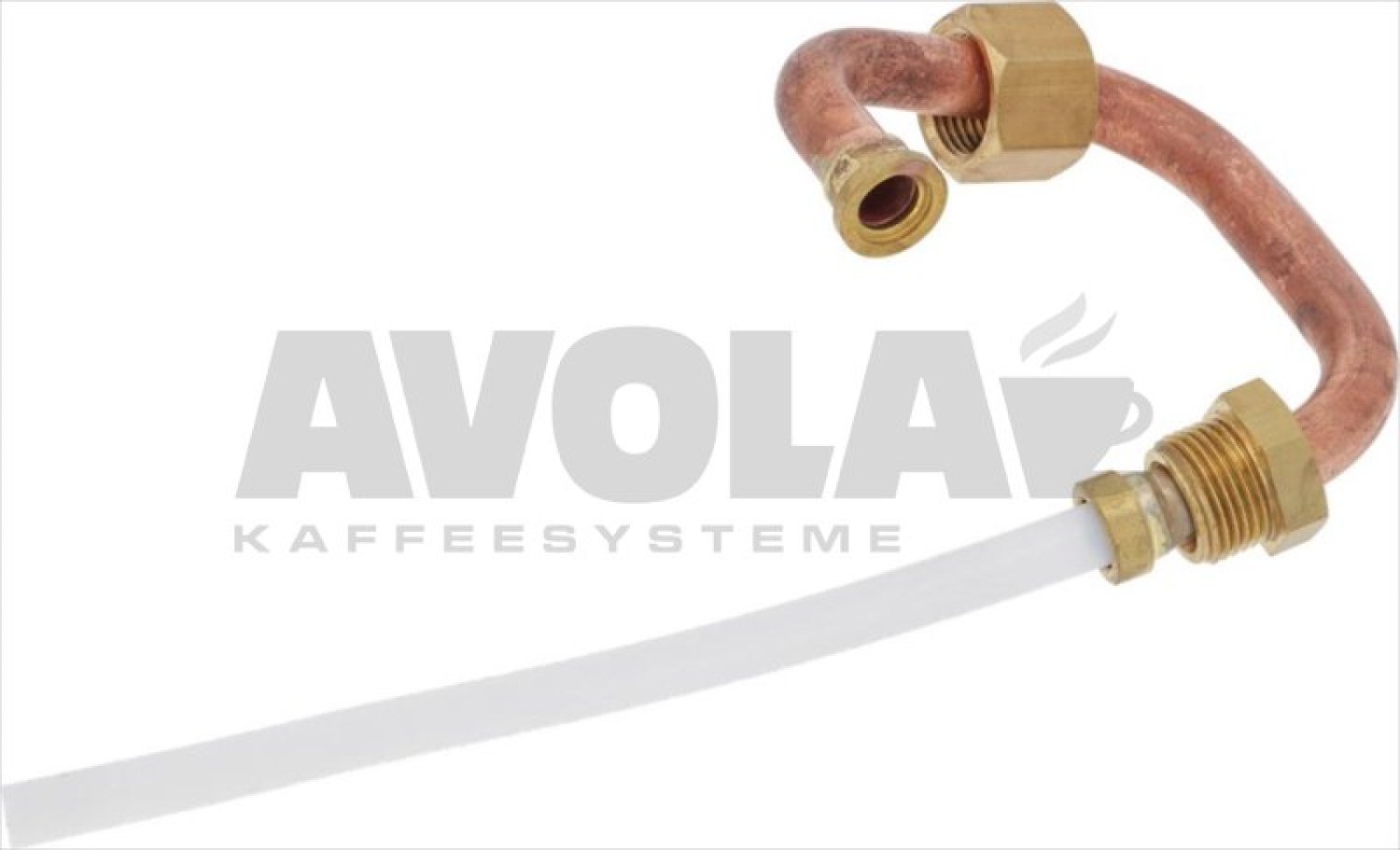

26cimbali group outlet pipe 8006558
Cimbali GROUP OUTLET PIPE
49,93 €

excl. Shipping costs

immediately available, 1 available
26cimbali m20 auslaufrohr fuer gruppe 8037624
CIMBALI M20 AUSLAUFROHR FÜR GRUPPE
42,84 €

excl. Shipping costs

immediately available, 4 available

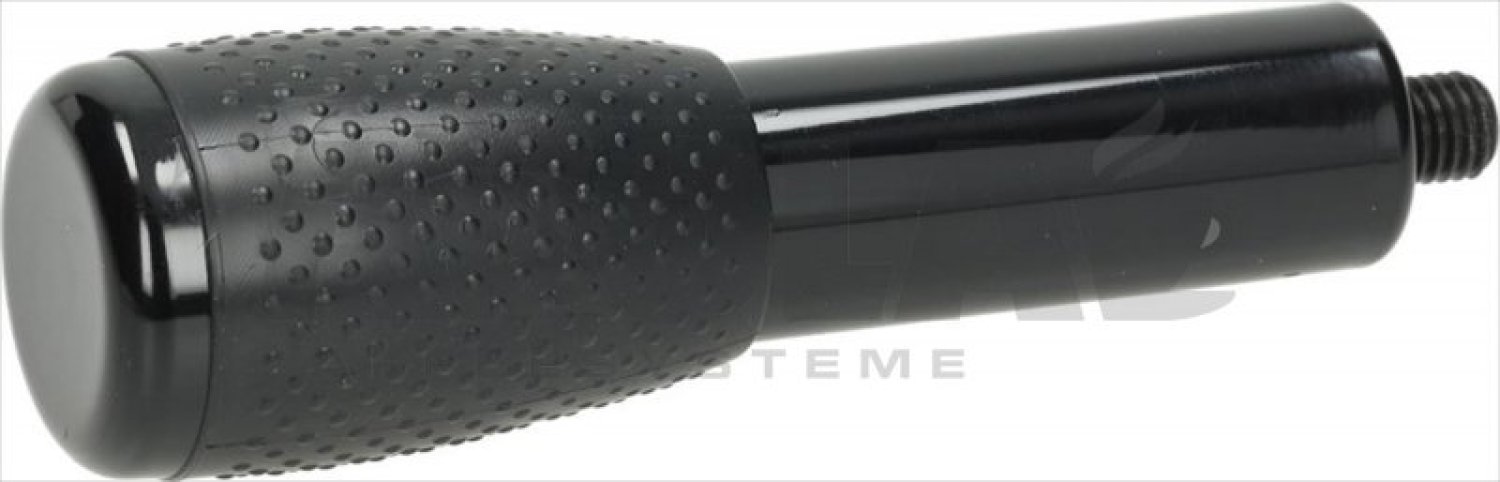

27filter holder handle m10 8003251
FILTER HOLDER HANDLE M10
28,44 €

excl. Shipping costs

Delivery time
is determined

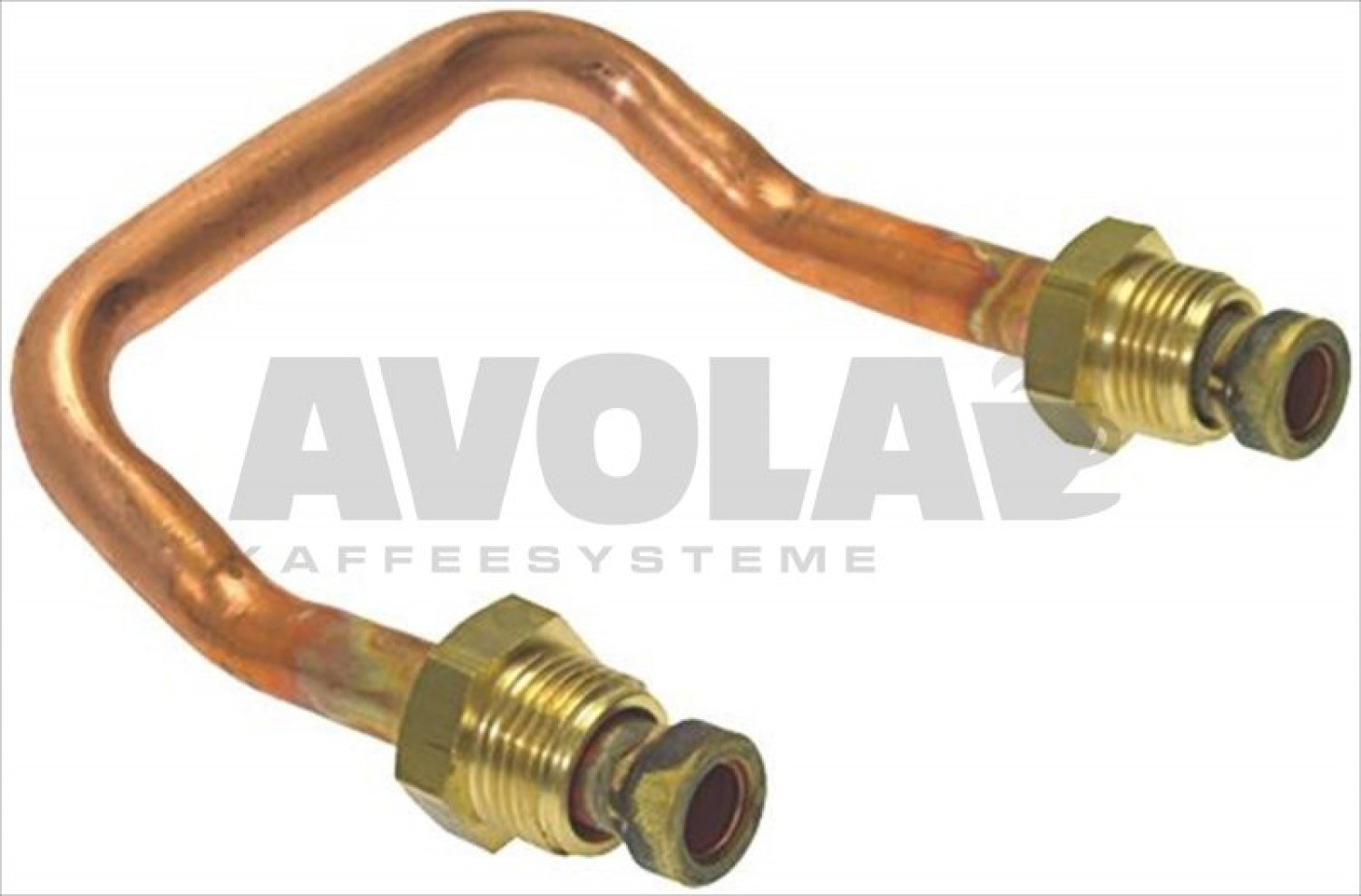

28brew group cooling pipe 8006562
BREW GROUP COOLING PIPE
37,47 €

excl. Shipping costs

immediately available, 2 available

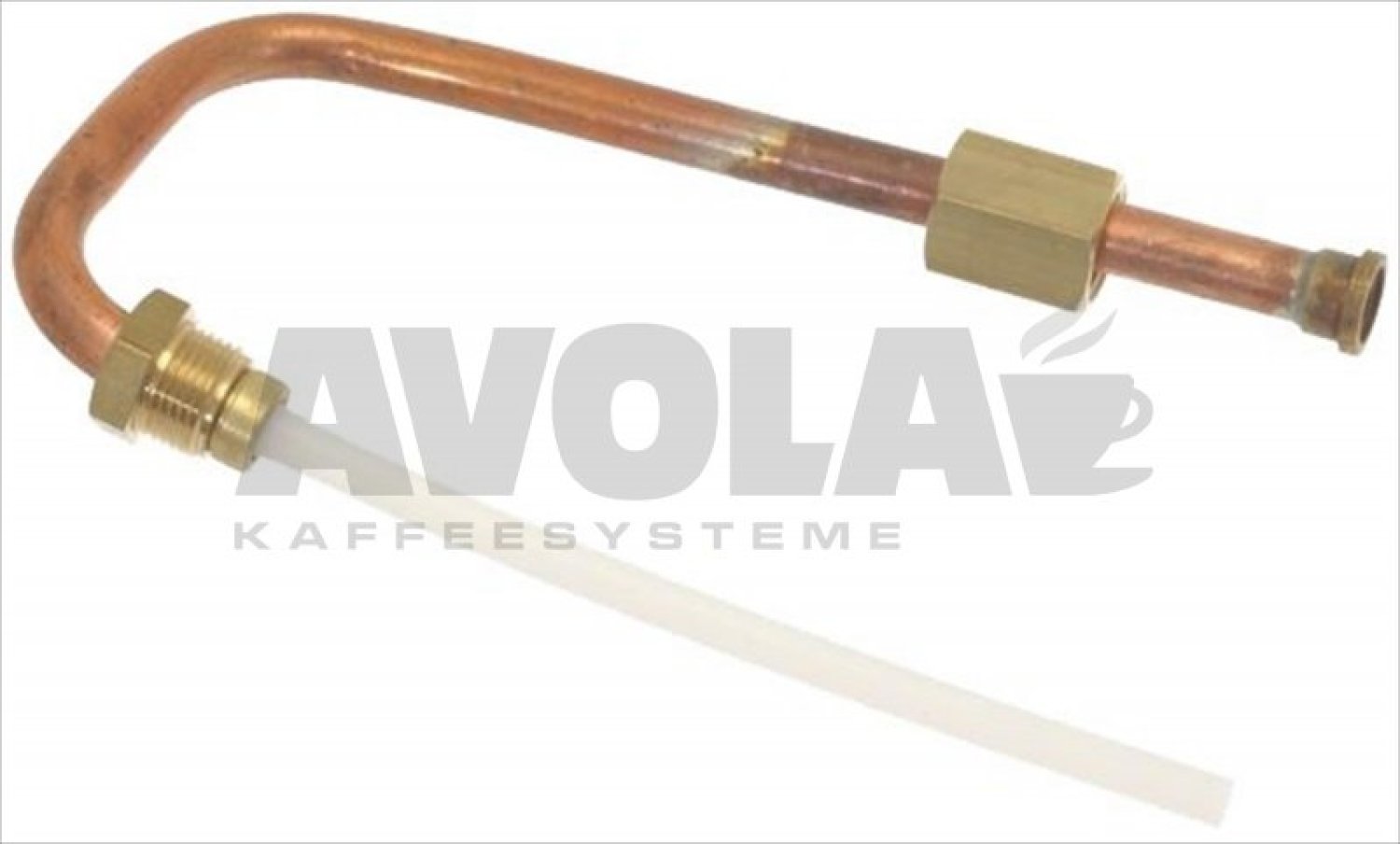

30kartuscheversongunsrohr 8076829
KARTUSCHEVERSONGUNSROHR
49,69 €

excl. Shipping costs

Delivery time
is determined
32kupplungsglocke fuer filterhalter 8000001
KUPPLUNGSGLOCKE FÜR FILTERHALTER
Price on request

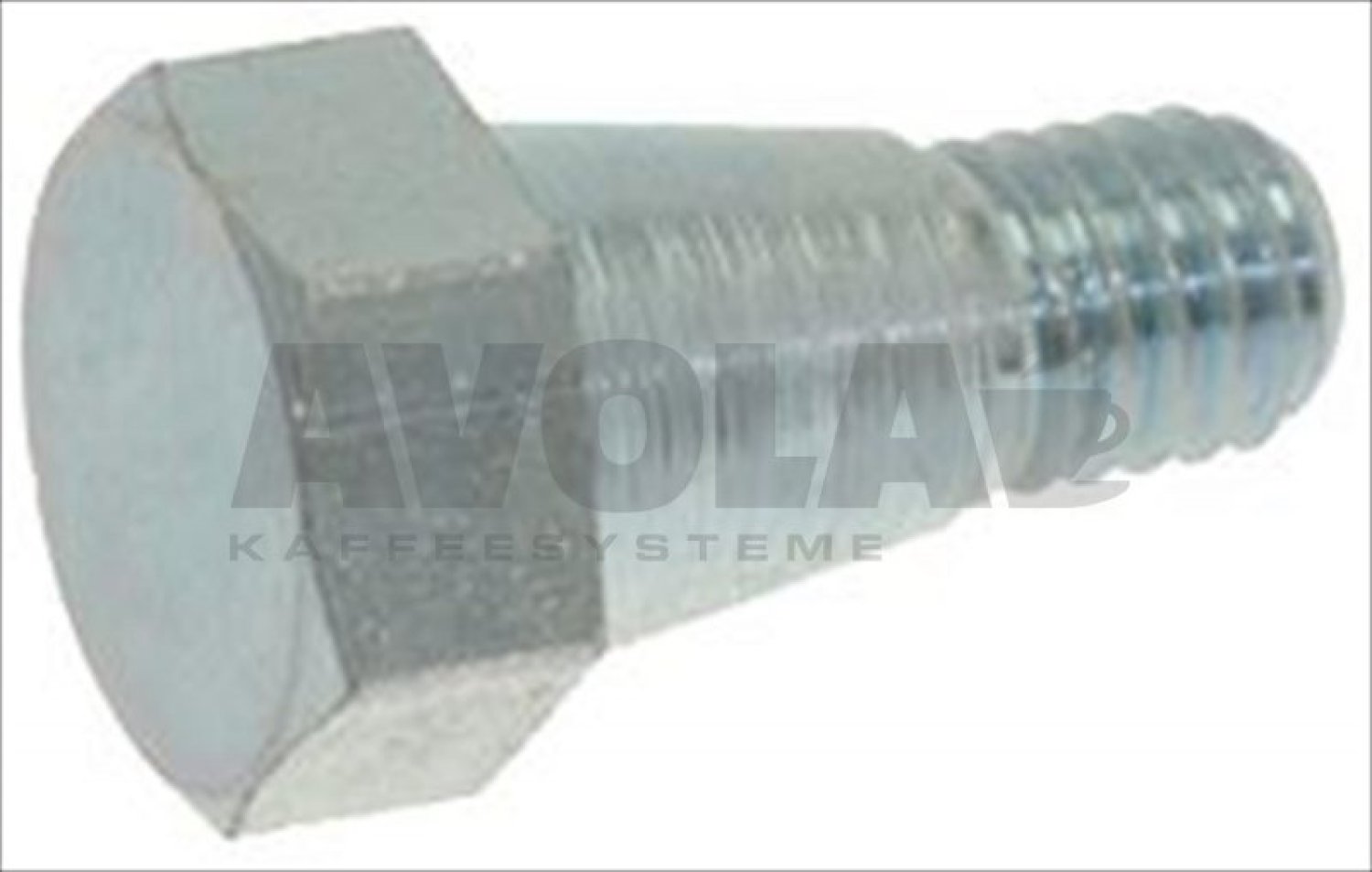

33bell screw m15 20 25 27 28 30 8001297
BELL SCREW M15-20-25-27-28-30
2,59 €

excl. Shipping costs

immediately available

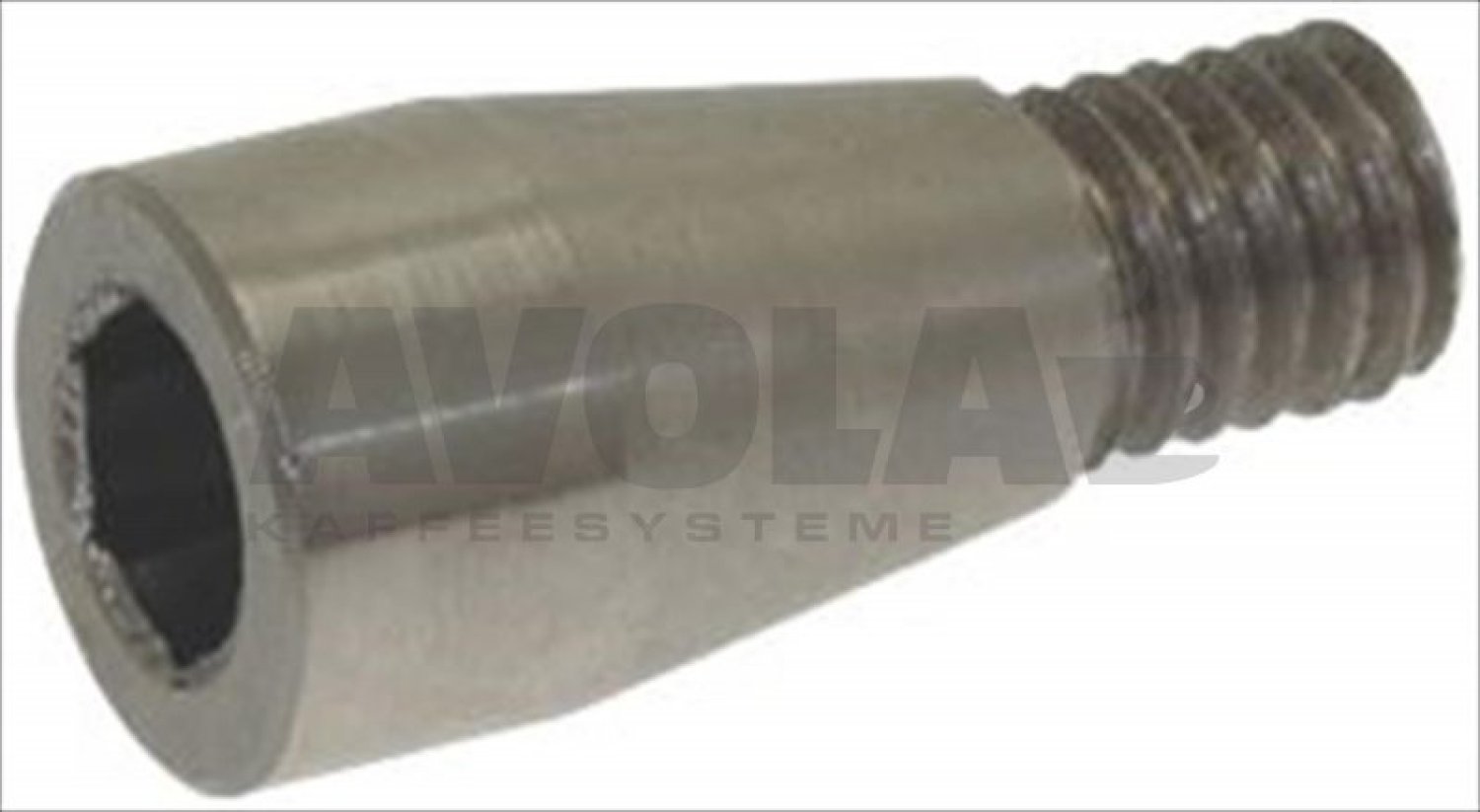

33bell screw m29 31 32 8001298
BELL SCREW M29-31-32
9,42 €

excl. Shipping costs

immediately available, 4 available
33hexagonal screw for bell 8001299
HEXAGONAL SCREW FOR BELL
10,85 €

excl. Shipping costs

immediately available, 8 available
34red silicone o ring r5 gasket 8001809
RED SILICONE O-RING R5 GASKET
1,34 €

excl. Shipping costs

immediately available
34o ring 02025 viton 8001810
O-RING 02025 VITON
0,87 €

excl. Shipping costs

immediately available
35coil lucifer parker 220 240v 9w 50hz 8000957
COIL LUCIFER/PARKER 220/240V 9W 50Hz
19,92 €

excl. Shipping costs

immediately available, 6 available
35coil parker zb09 9w 220 240v 50 60hz 8012418
COIL PARKER ZB09 9W 220/240V 50/60Hz
20,74 €

excl. Shipping costs

immediately available, 17 available
363 way solenoid valve lucifer 240v 50hz 8000955
3-WAY SOLENOID VALVE LUCIFER 240V 50Hz
52,36 €

excl. Shipping costs

immediately available, 9 available
363 way solenoid valve parker 230v 50 60hz 8000960
3-WAY SOLENOID VALVE PARKER 230V 50/60Hz
53,55 €

excl. Shipping costs

immediately available, 20 available
373 way mechanical component lucifer 8000959
3-WAY MECHANICAL COMPONENT LUCIFER
39,77 €

excl. Shipping costs

immediately available, 9 available
373 way mechanical component parker 8000962
3-WAY MECHANICAL COMPONENT PARKER
42,72 €

excl. Shipping costs

immediately available, 3 available
38schraube zylinderkopf innensechskant vollgewinde edelstahl m4x10 a2 70 din 912 8061180
Schraube Zylinderkopf Innensechskant Vollgewinde Edelstahl M4x10 A2-70 Din 912
0,67 €

excl. Shipping costs

immediately available
39cimbali cartridge o 42x150 mm 8001280
Cimbali CARTRIDGE ø 42x150 mm
31,30 €

excl. Shipping costs

immediately available, 1 available
39cimbali cartridge o 42x210 mm 8001281
Cimbali CARTRIDGE ø 42x210 mm
47,80 €

excl. Shipping costs

immediately available, 3 available
40ptfe flat gasket o 58x51x2 mm 8001807
PTFE FLAT GASKET ø 58x51x2 mm
4,22 €

excl. Shipping costs

immediately available, 17 available

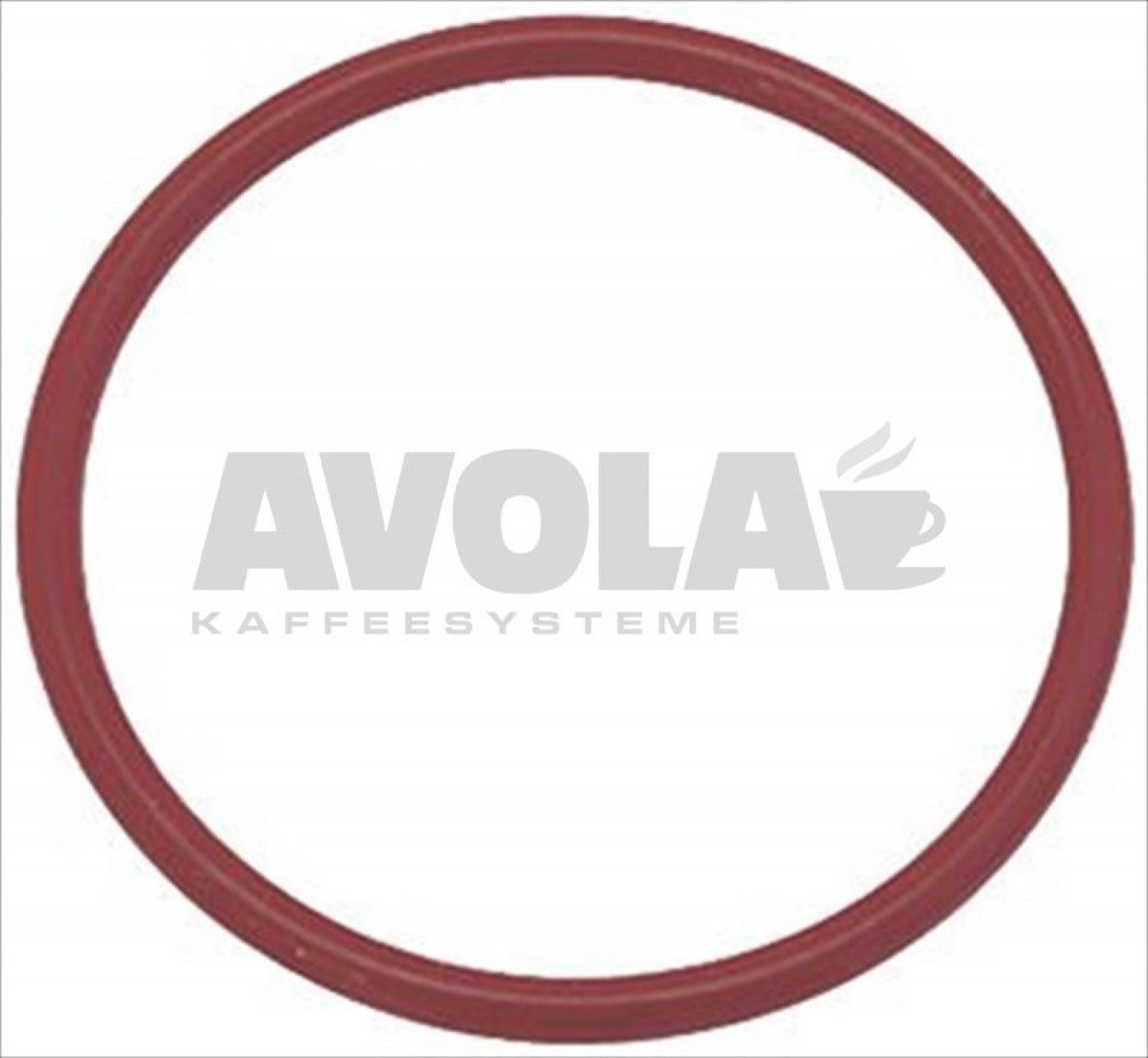

41o ring 0155 red silicone 8001724
O-RING 0155 RED SILICONE
1,50 €

excl. Shipping costs

immediately available

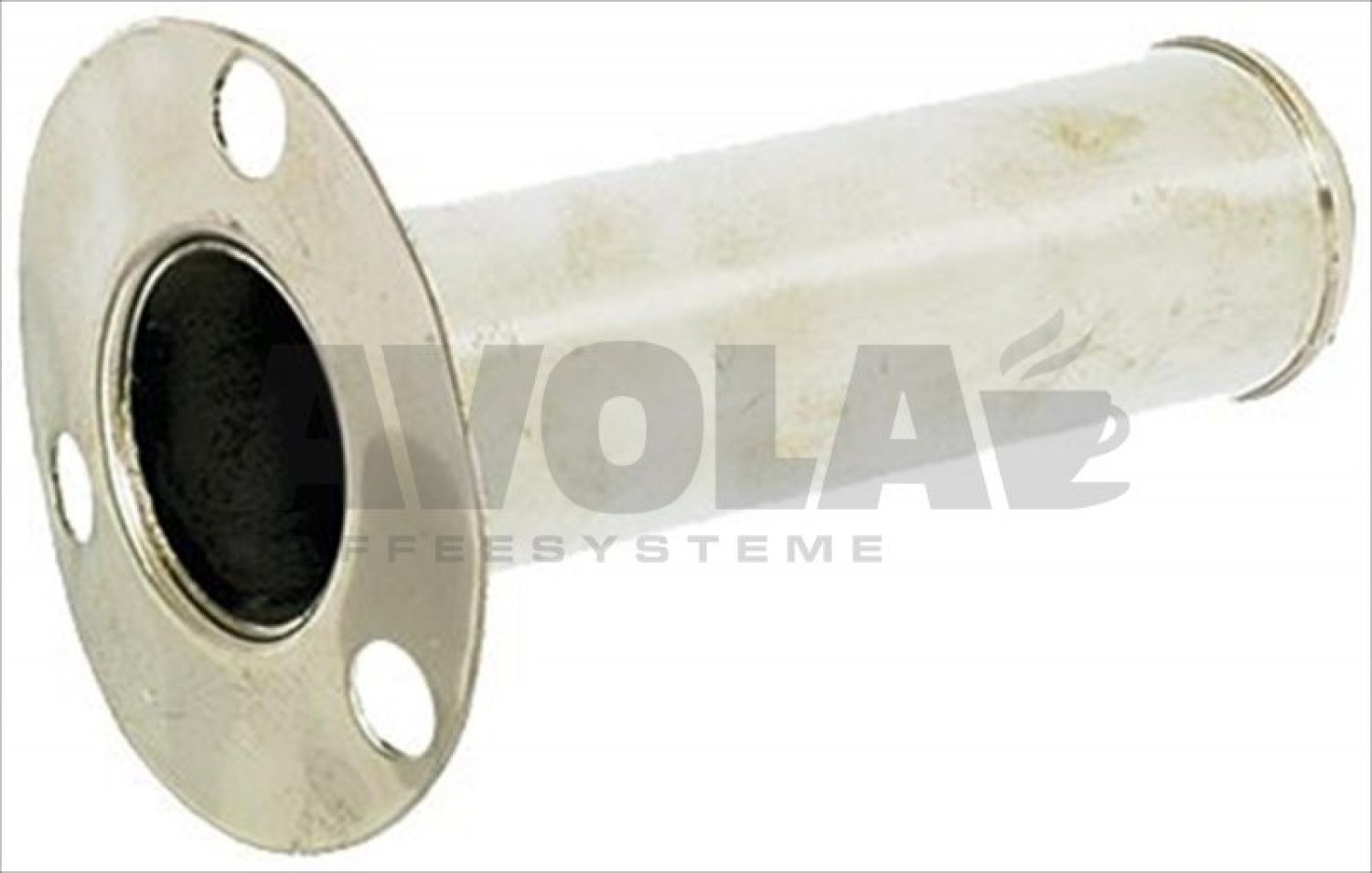

42cartridge m15 8001279
CARTRIDGE M15
74,46 €

excl. Shipping costs

Delivery time 4-6 weeks..
43coffee group gasket o 94x45x2 mm 8001722
COFFEE GROUP GASKET ø 94x45x2 mm
5,24 €

excl. Shipping costs

immediately available, 3 available

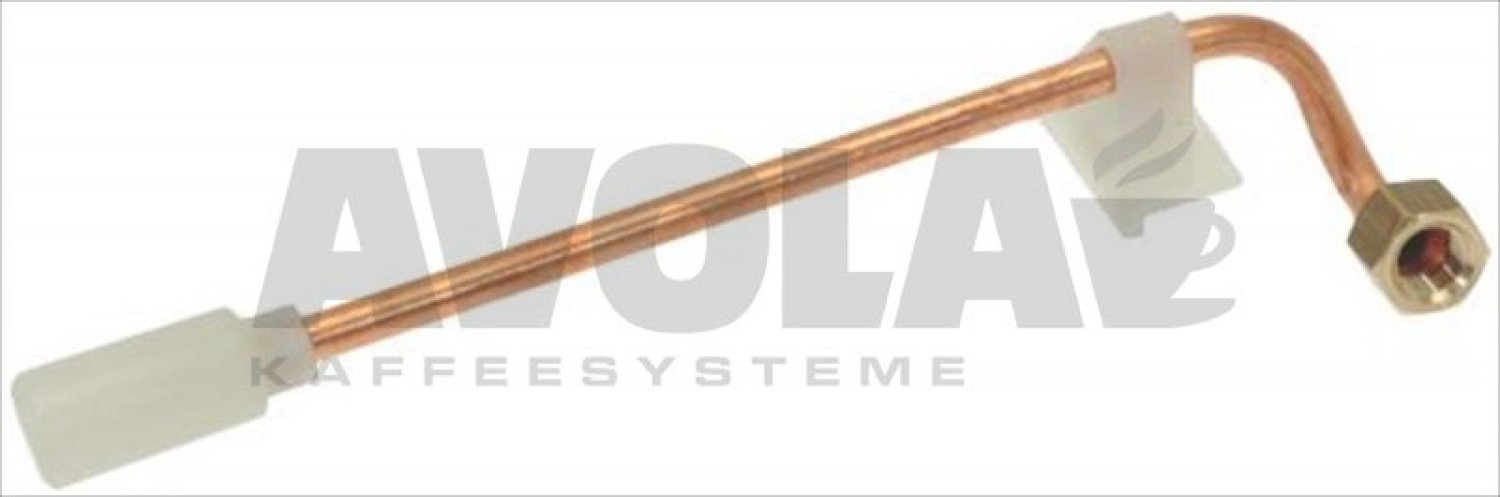

44group drain pipe 8006563
GROUP DRAIN PIPE
29,00 €

excl. Shipping costs

Delivery time
is determined

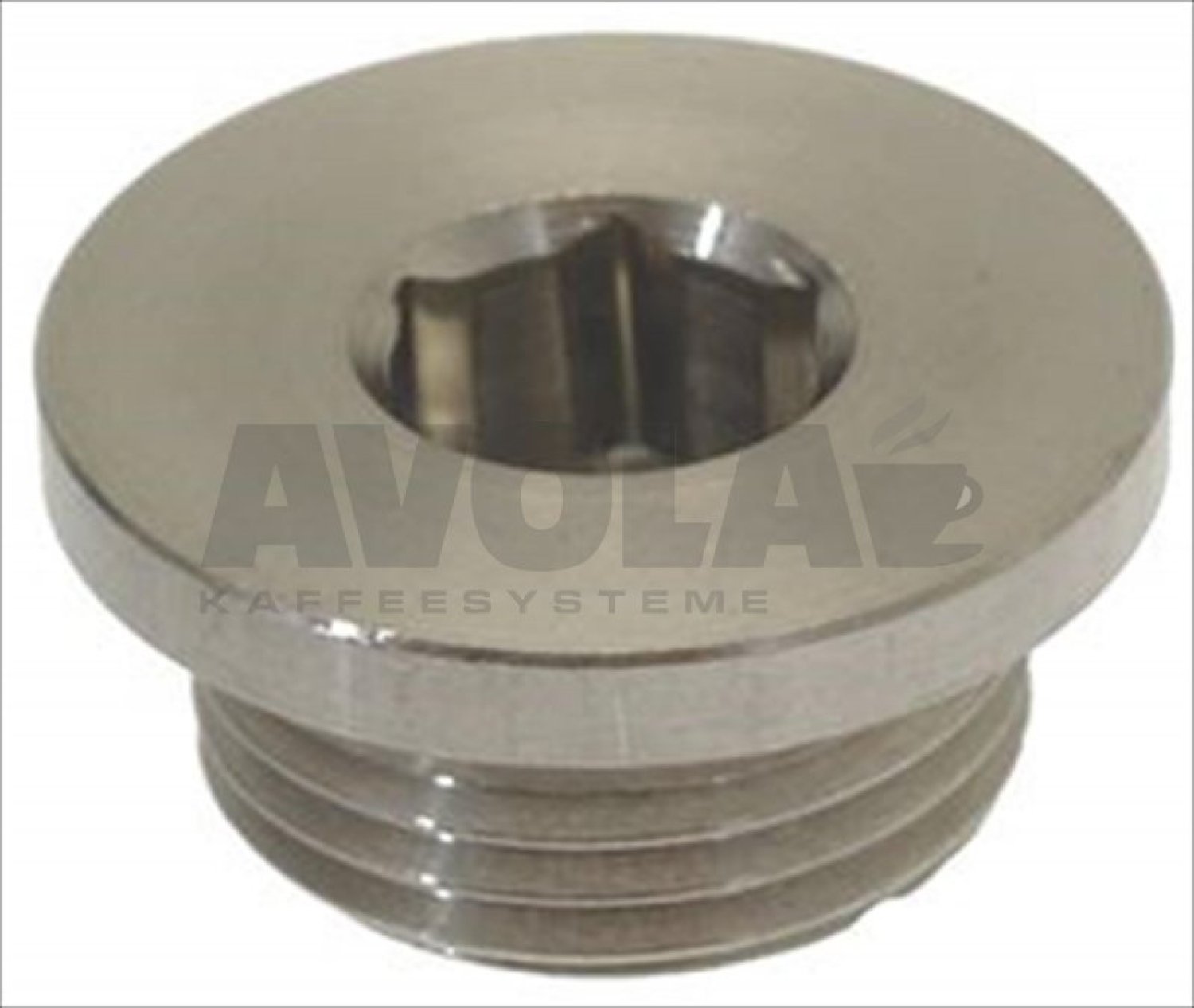

45blindstopfen 3 8 quot edelstahl cimbali 8160826
Blindstopfen 3/8" Edelstahl Cimbali
17,97 €

excl. Shipping costs

Delivery time 4-6 weeks..

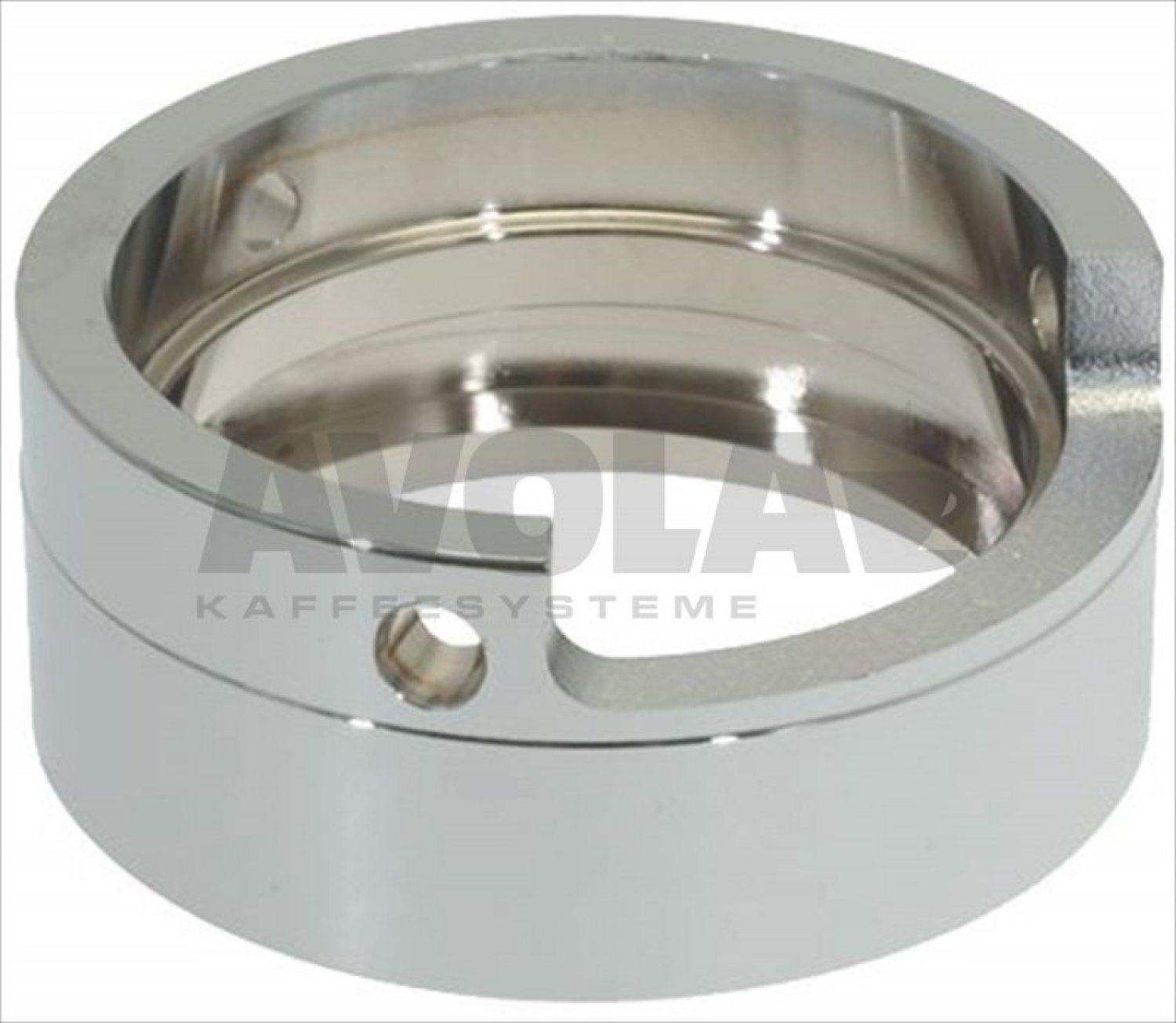

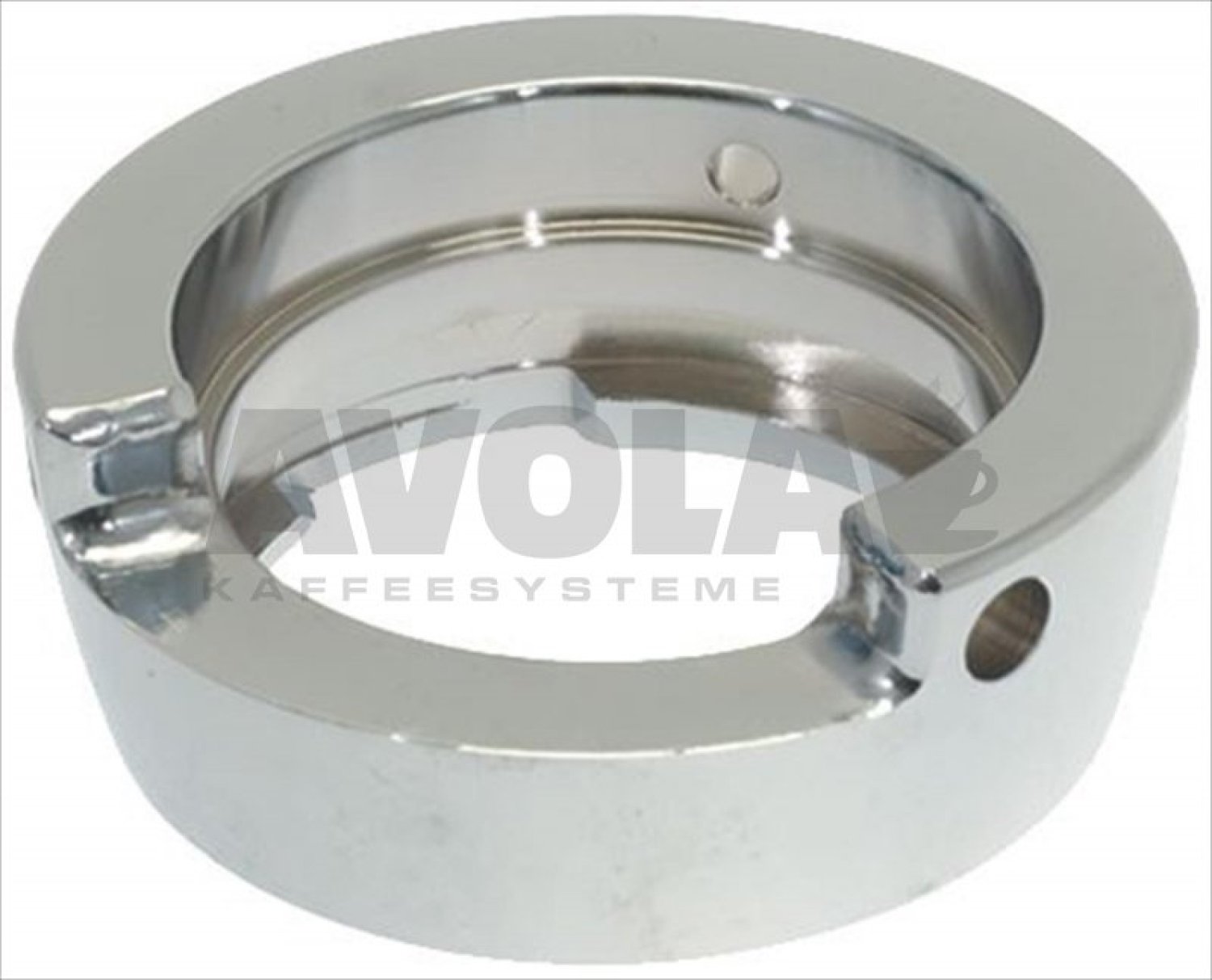

50filter holder coupling 8000005
FILTER HOLDER COUPLING
156,94 €

excl. Shipping costs

Delivery time
is determined

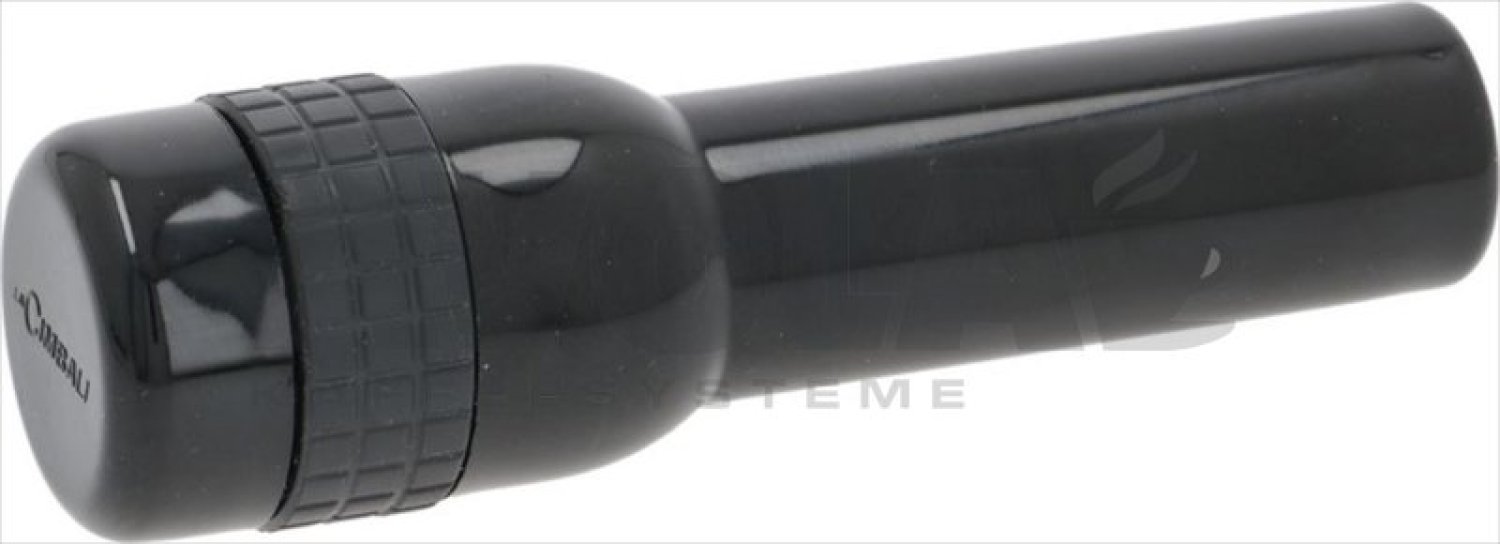

51filter holder handle m10 8003230
FILTER HOLDER HANDLE M10
This article is no longer available

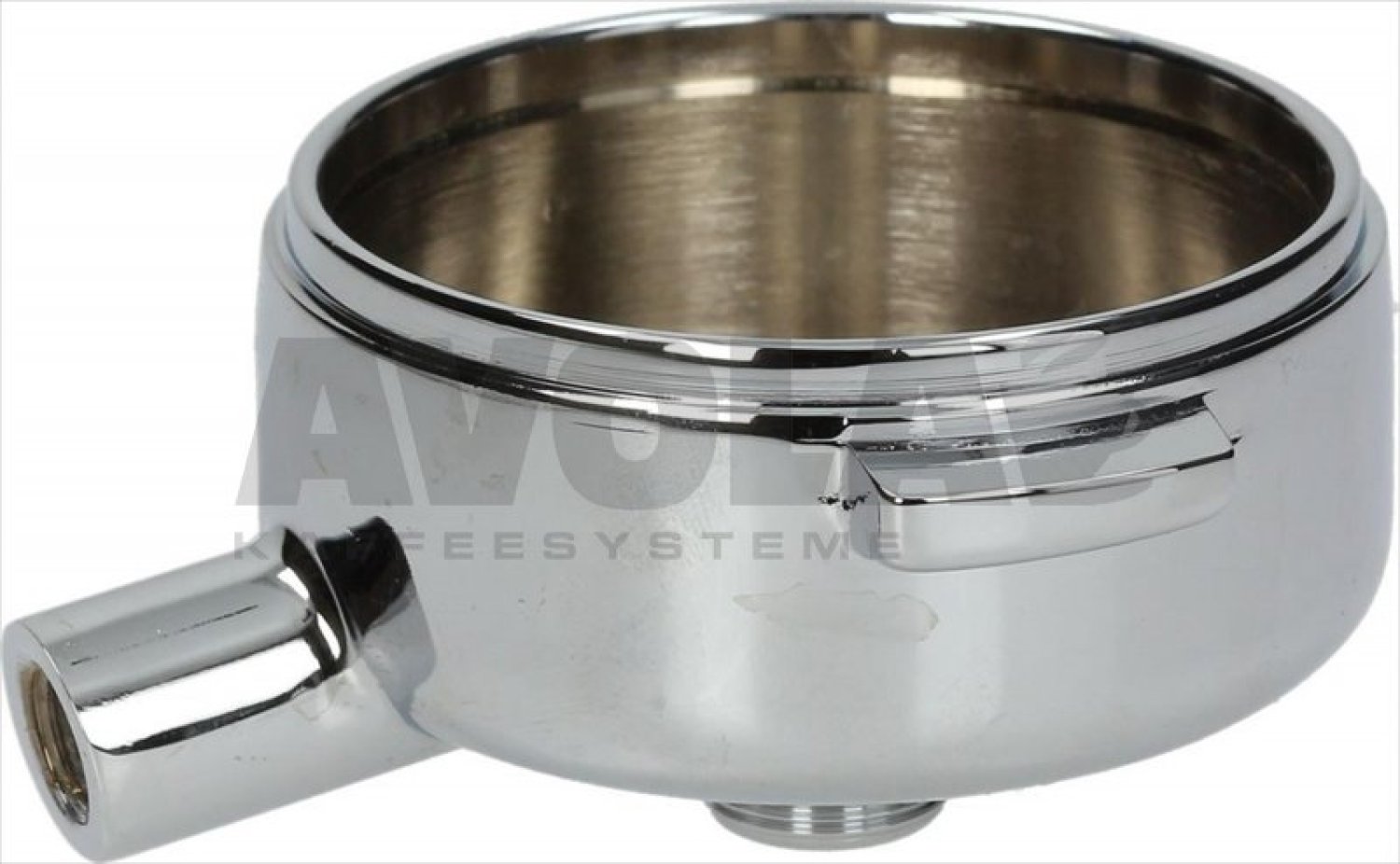

52filter holder cimbali faema 8001219
FILTER HOLDER CIMBALI/FAEMA
22,57 €

excl. Shipping costs

Delivery time
is determined

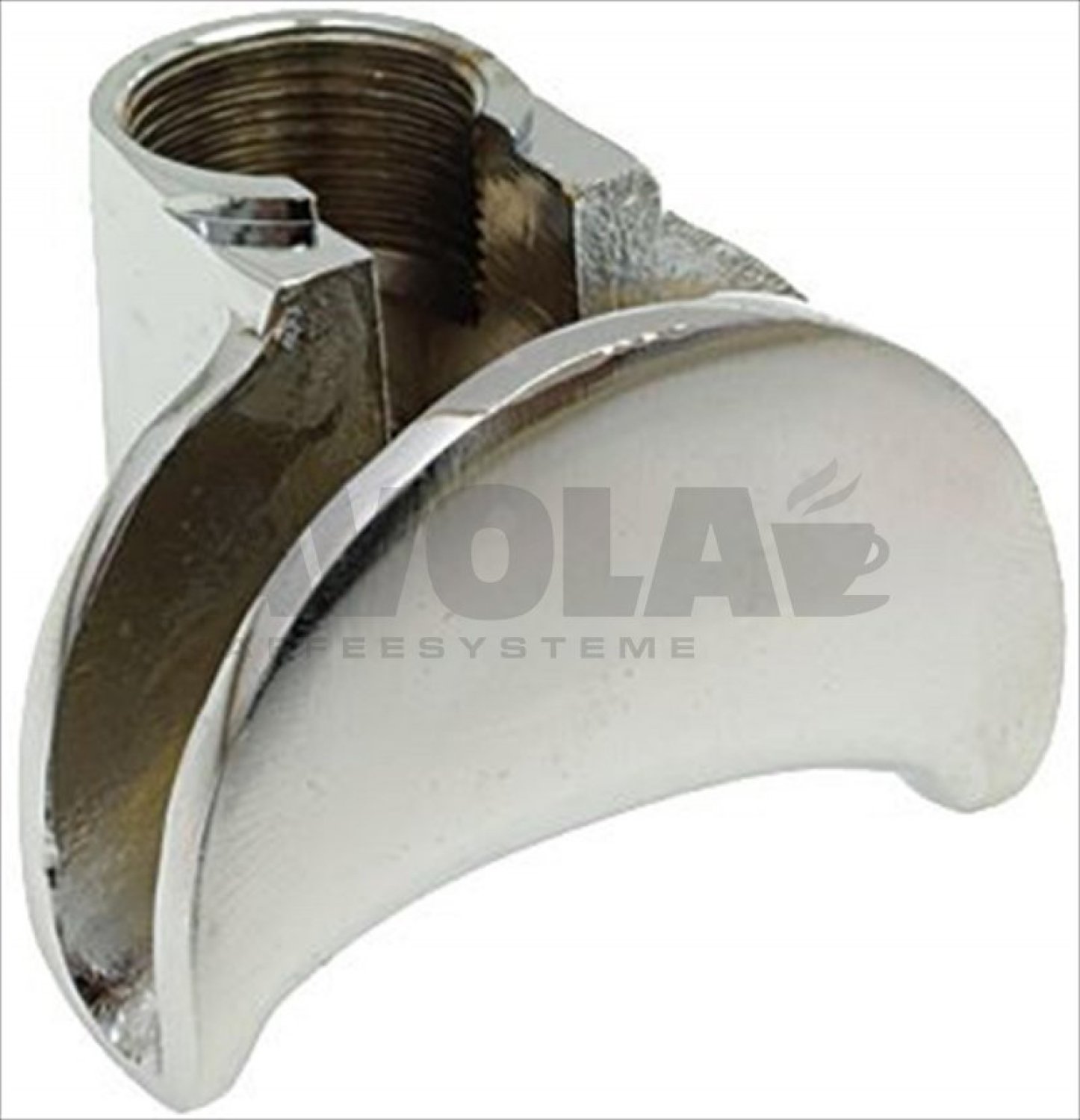

53double spout m16 8000127
DOUBLE SPOUT M16
7,07 €

excl. Shipping costs

Delivery time
is determined
54single spout m16 8000126
SINGLE SPOUT M16
This article is no longer available

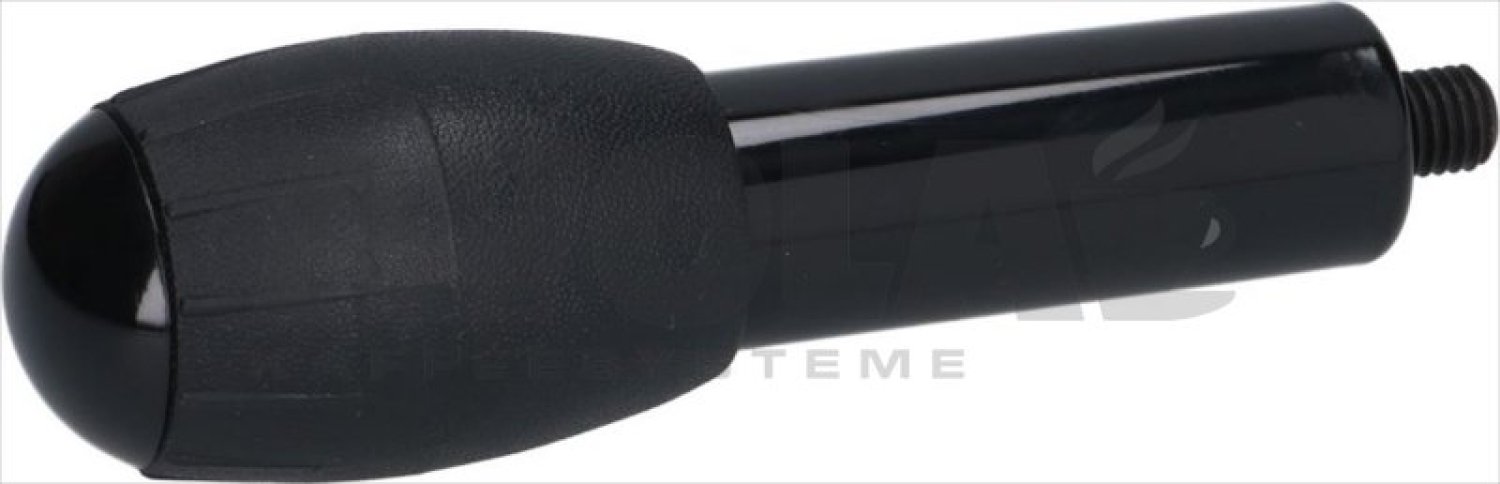

55filter holder handle m10 8003242
FILTER HOLDER HANDLE M10
38,00 €

excl. Shipping costs

Delivery time
is determined
571 cup filter holder assembly cimbali 8001273
1 CUP FILTER HOLDER ASSEMBLY CIMBALI
74,42 €

excl. Shipping costs

immediately available, 1 available

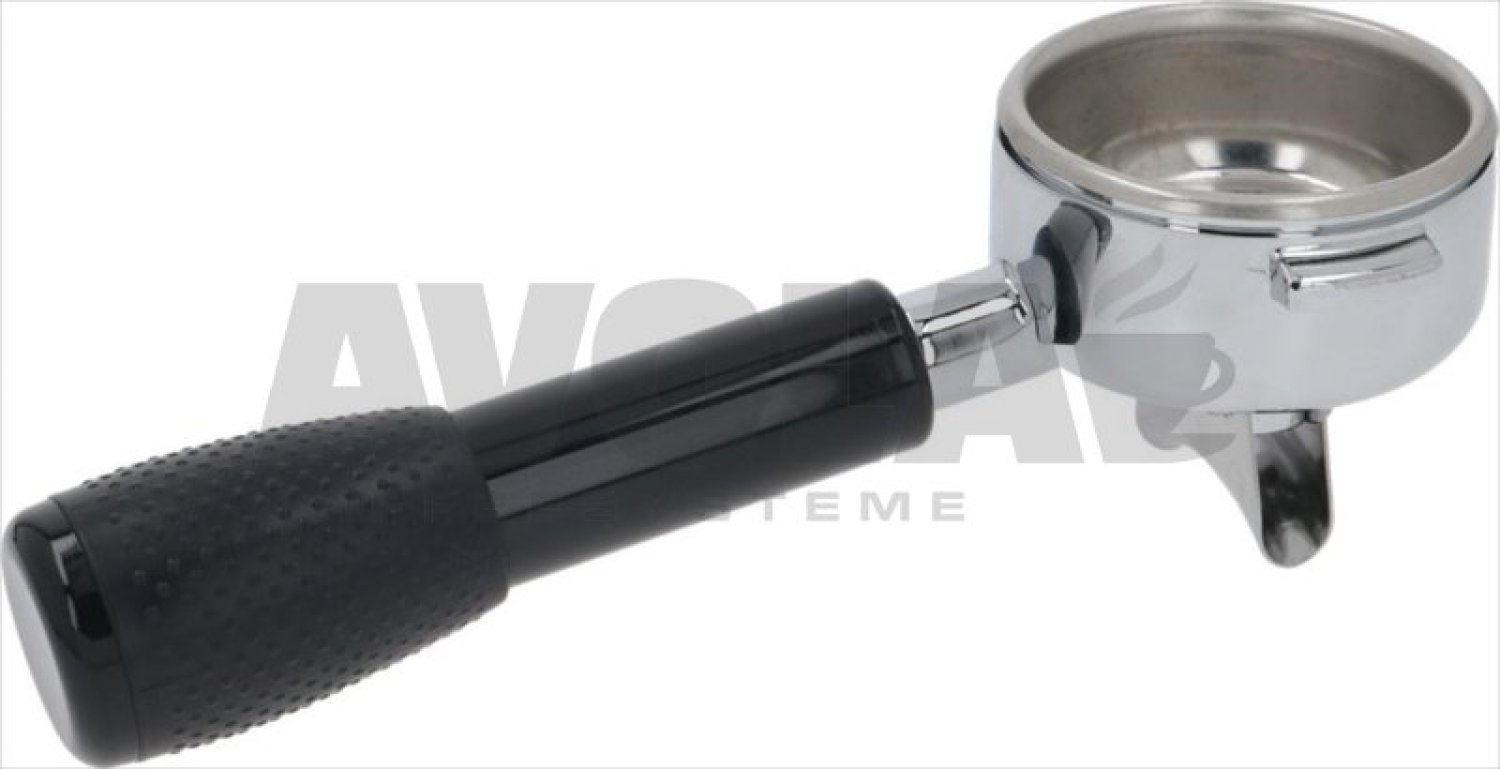

582 cups filter holder assembly cimbali 8001274
2 CUPS FILTER HOLDER ASSEMBLY CIMBALI
71,38 €

excl. Shipping costs

immediately available, 1 available

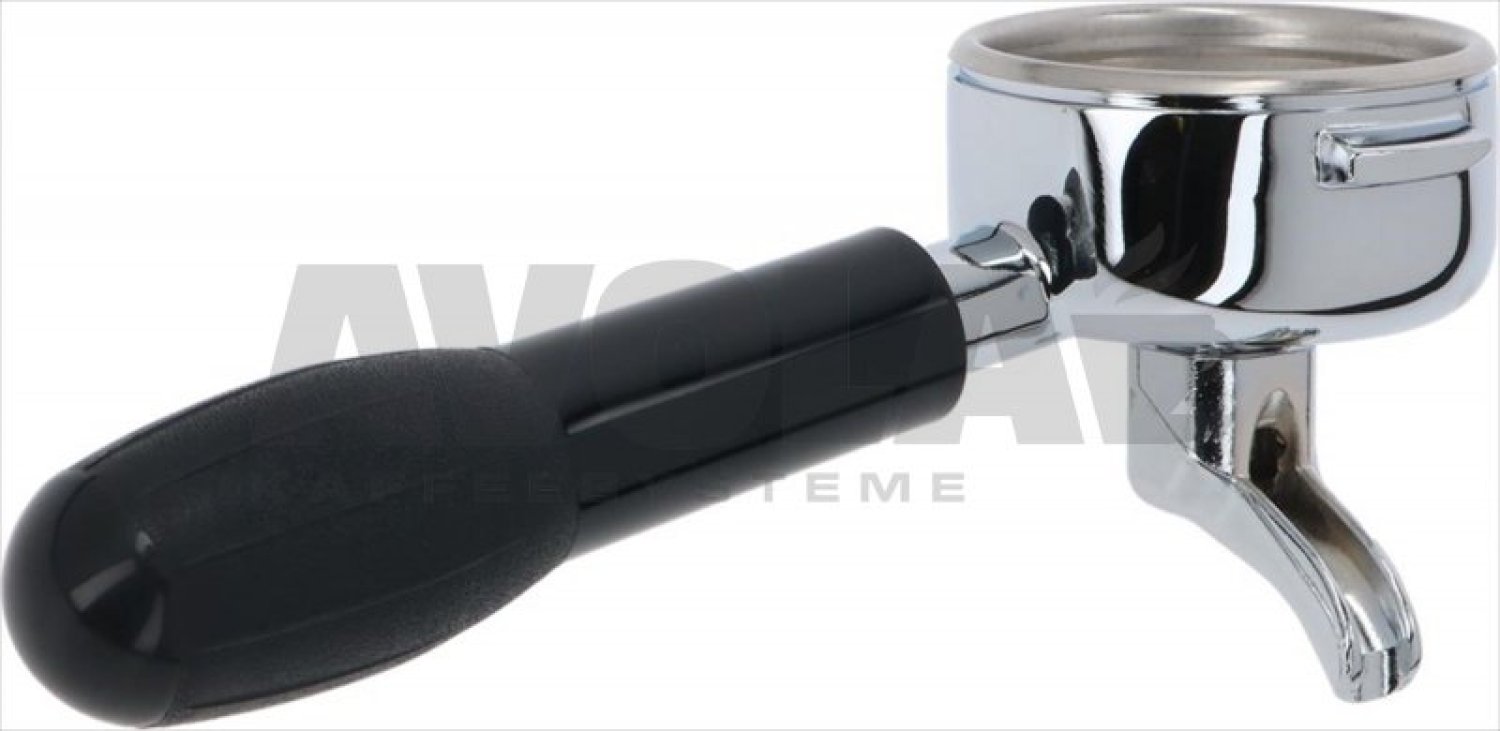

611 cup complete filter holder cimbali 8001275
1 CUP COMPLETE FILTER HOLDER CIMBALI
65,57 €

excl. Shipping costs

immediately available, 1 available

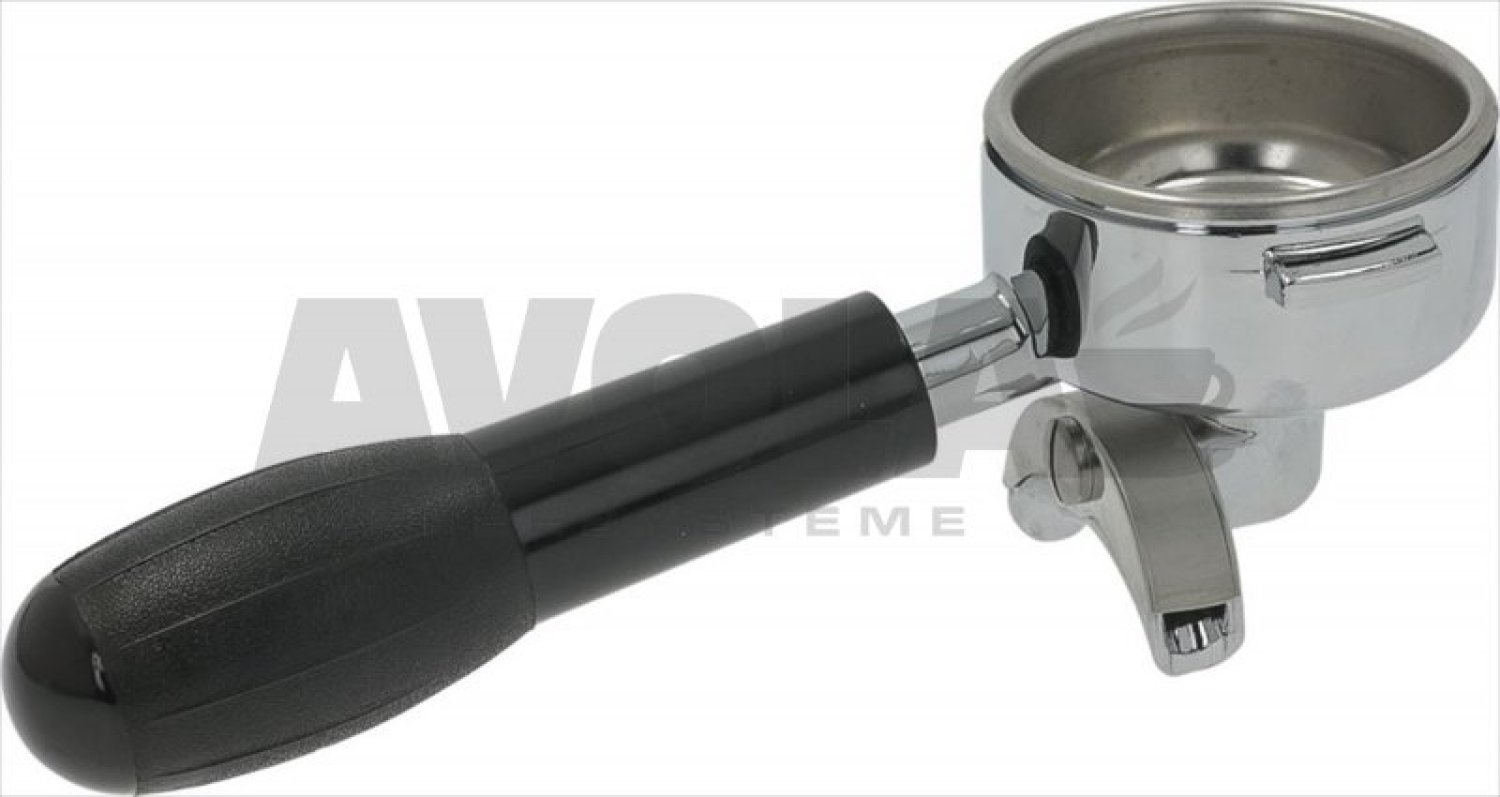

622 cups complete filter holder cimbali 8001276
2 CUPS COMPLETE FILTER HOLDER CIMBALI
57,12 €

excl. Shipping costs

immediately available, 1 available
63rubber shim 8002169
RUBBER SHIM
1,17 €

excl. Shipping costs

immediately available, 18 available
63rubber seal o 71x58x0 6 mm viton cimbali 8002170
RUBBER SEAL ø 71x58x0,6 mm Viton Cimbali
3,08 €

excl. Shipping costs

immediately available, 19 available

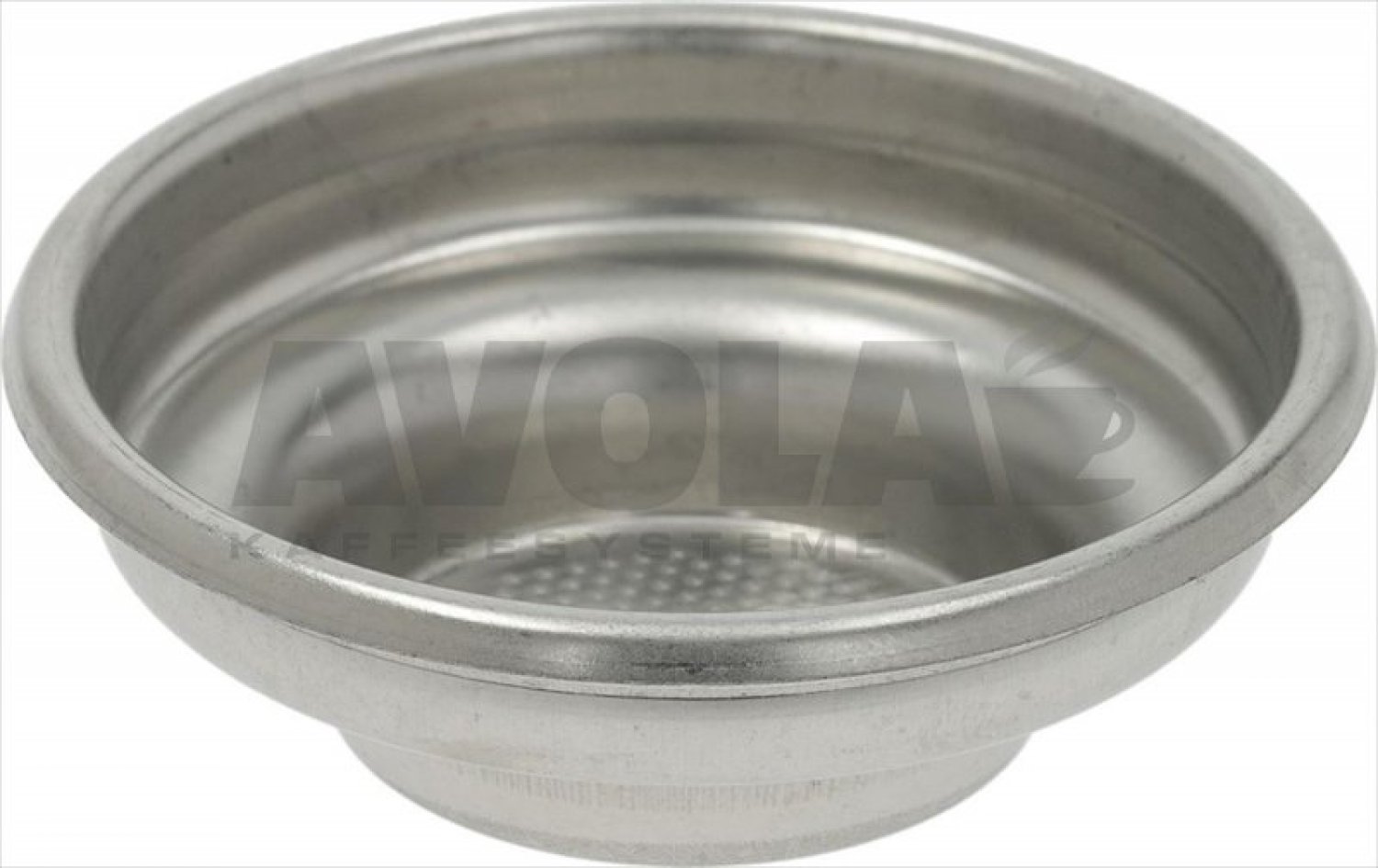

641 cup filter 6 g 8001078
1-CUP FILTER 6 g
5,75 €

excl. Shipping costs

immediately available, 7 available
652 cup filter 12 g 8001083
2-CUP FILTER 12 g
5,45 €

excl. Shipping costs

immediately available, 14 available

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
