Compak Grinder

DOSIERMAHLWERK K8 SILENZIO-K8 SILENZIO T

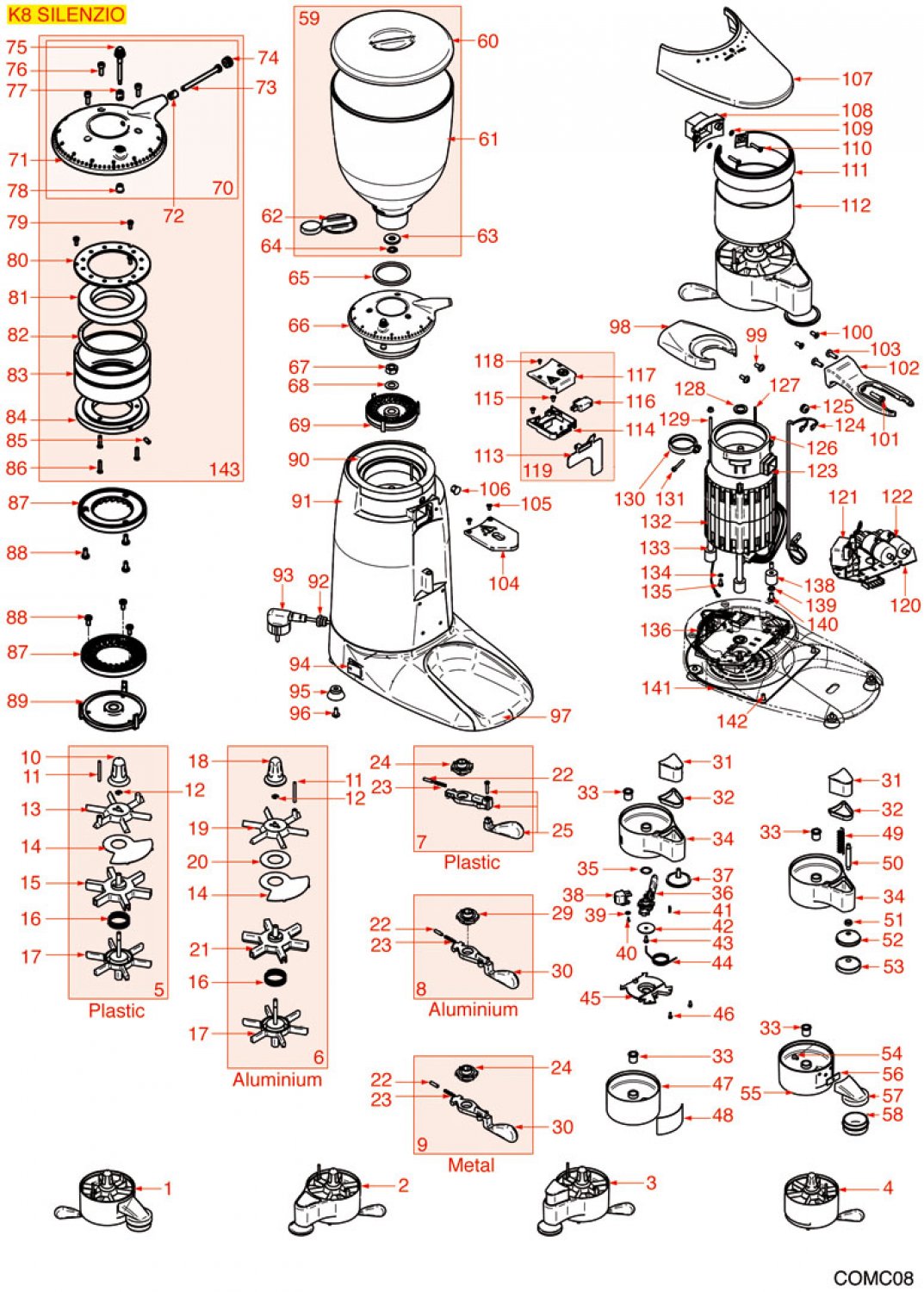

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Pos.:	Item No.:	Image:	Description:	Shipment:	Price (inkl. VAT):	Qty.:
1	8000523		8000523 COMPLETE COFFEE HOPPER	excl. Shipping costs available 3-5 working days after receipt of payment	55,06 €	55,06 € excl. Shipping costs available 3-5 working days after receipt of payment
2	8004383		8004383 COFFEE HOPPER LID	excl. Shipping costs available 3-5 working days after receipt of payment	17,18 €	17,18 € excl. Shipping costs Delivery time is determined
5	8005332		8005332 PLASTIC STAR ASSEMBLY	excl. Shipping costs Delivery time 4-6 weeks..	60,45 €	60,45 € excl. Shipping costs Delivery time 4-6 weeks..
6	8005333		8005333 ALUMINIUM STAR ASSEMBLY	excl. Shipping costs Delivery time 4-6 weeks..	72,97 €	72,97 € excl. Shipping costs Delivery time 4-6 weeks..

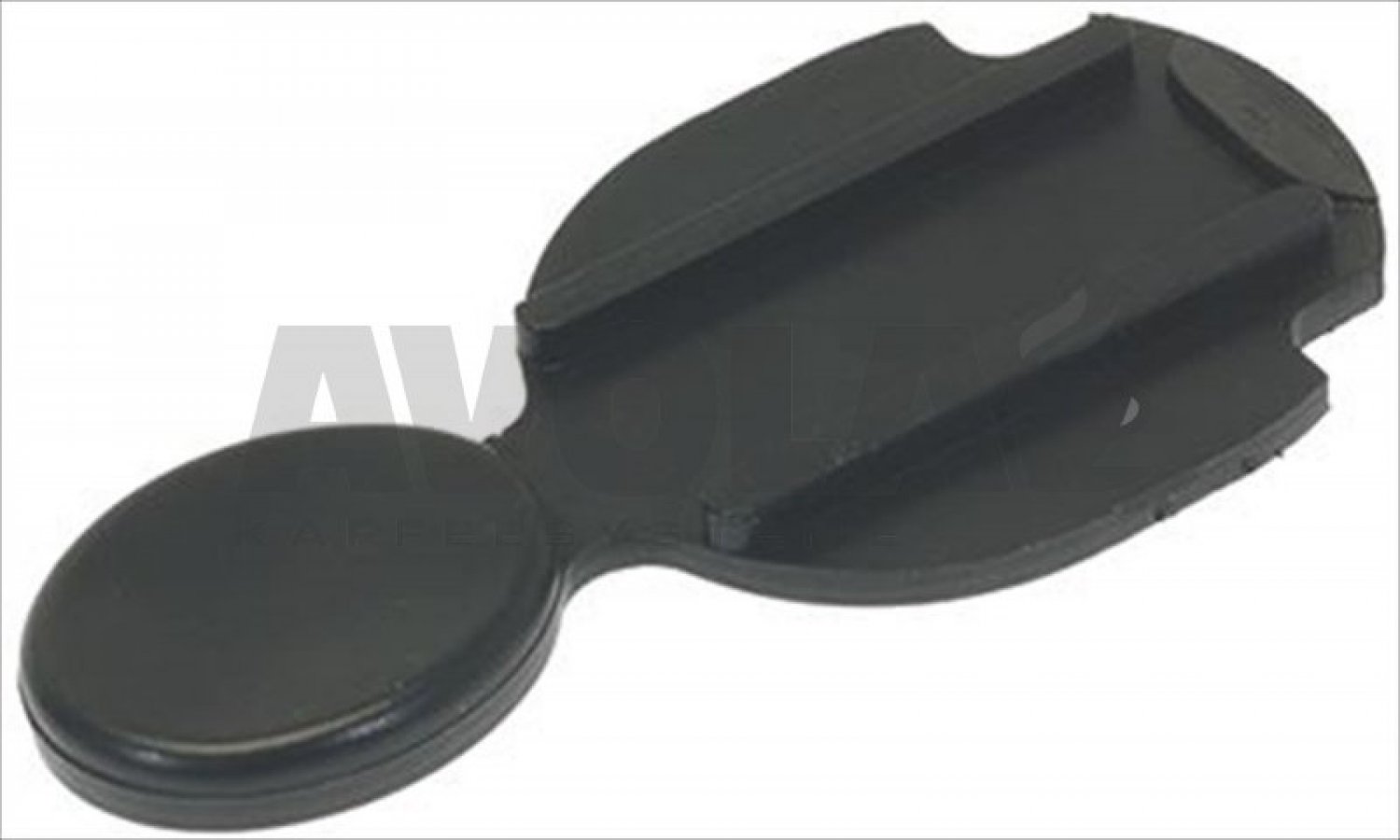

7	8000445		8000445 COFFEE HOPPER CLOSING SHEET	excl. Shipping costs Delivery time 4-6 weeks..	8,82 €	8,82 € excl. Shipping costs Delivery time 4-6 weeks..
10	8003189		8003189 PLASTIC ADJUSTMENT KNOB	excl. Shipping costs Delivery time 4-6 weeks..	6,24 €	6,24 € excl. Shipping costs Delivery time 4-6 weeks..
10	8005895		8005895 DOSING ADJUSTMENT RING			This article is no longer available
11	8000672		8000672 DOSER SCRAPER	excl. Shipping costs Delivery time is determined	2,45 €	2,45 € excl. Shipping costs Delivery time is determined

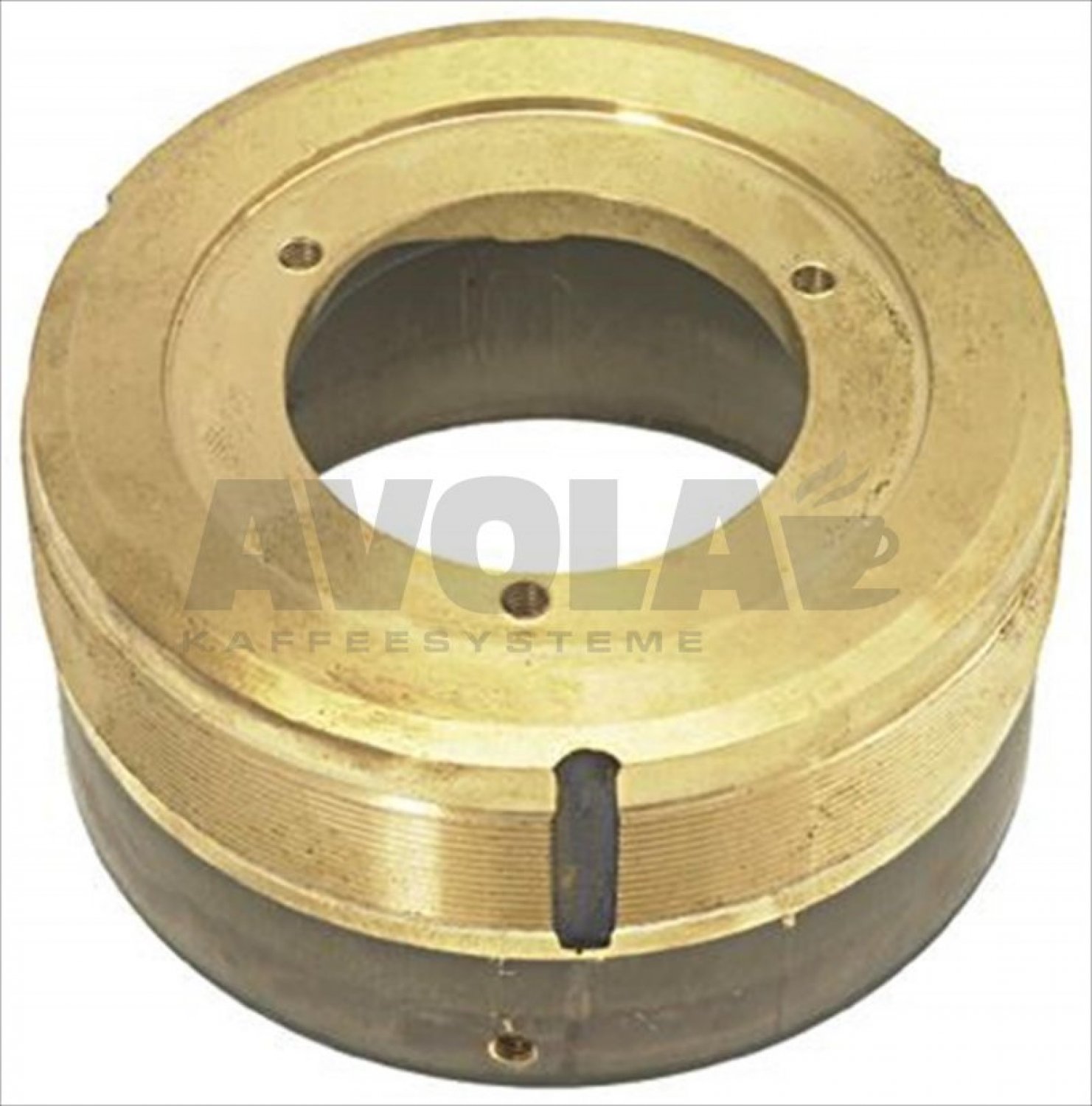

11	8004065		8004065 ADJUSTABLE BURRS HOLDER K-6	excl. Shipping costs Delivery time 4-6 weeks..	69,46 €	69,46 € excl. Shipping costs Delivery time 4-6 weeks..
12	8003966		8003966 GRINDING BURRS WEGA-COMPAK (PAIR) RIGHT	excl. Shipping costs immediately available, 1 available	60,14 €	60,14 € excl. Shipping costs immediately available, 1 available
12	8004057		8004057 GRINDING BURRS PAIR COMPAK RH	excl. Shipping costs Delivery time is determined	34,07 €	34,07 € excl. Shipping costs Delivery time is determined
12	8004059		8004059 GRINDING BURRS PAIR COMPAK-WEGA RH	excl. Shipping costs Delivery time is determined	23,90 €	23,90 € excl. Shipping costs Delivery time is determined
13	8005394		8005394 PLASTIC TOP STAR	excl. Shipping costs Delivery time 4-6 weeks..	8,08 €	8,08 € excl. Shipping costs Delivery time 4-6 weeks..
13	8007327		8007327 COUNTERSUNK FLAT HEAD SCREWS M4x6	excl. Shipping costs immediately available	0,92 €	0,92 € excl. Shipping costs immediately available
14	8005395		8005395 DIVIDING SHEET	excl. Shipping costs Delivery time 4-6 weeks..	6,00 €	6,00 € excl. Shipping costs Delivery time 4-6 weeks..
15	8005396		8005396 PLASTIC MIDDLE STAR	excl. Shipping costs Delivery time 4-6 weeks..	10,85 €	10,85 € excl. Shipping costs Delivery time 4-6 weeks..
16	8003715		8003715 STAR SPRING	excl. Shipping costs Delivery time is determined	5,56 €	5,56 € excl. Shipping costs Delivery time is determined
16	8004062		8004062 GRINDING BURRS BOTTOM HOLDER K-6	excl. Shipping costs Delivery time 4-6 weeks..	41,11 €	41,11 € excl. Shipping costs Delivery time 4-6 weeks..

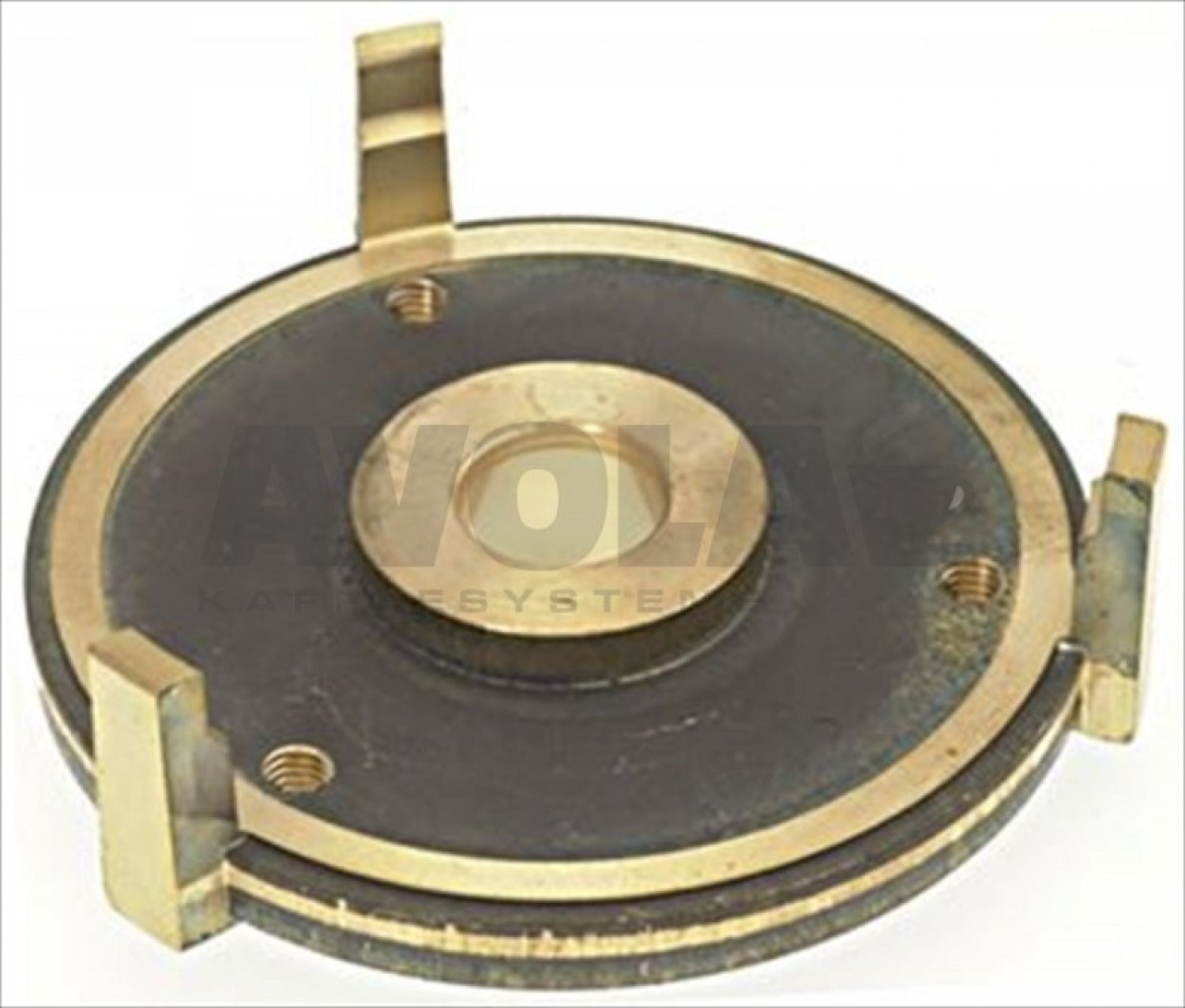

16	8004064		8004064 LOWER BURRS HOLDER K-5	excl. Shipping costs Delivery time 4-6 weeks..	38,06 €	38,06 € excl. Shipping costs Delivery time 4-6 weeks..

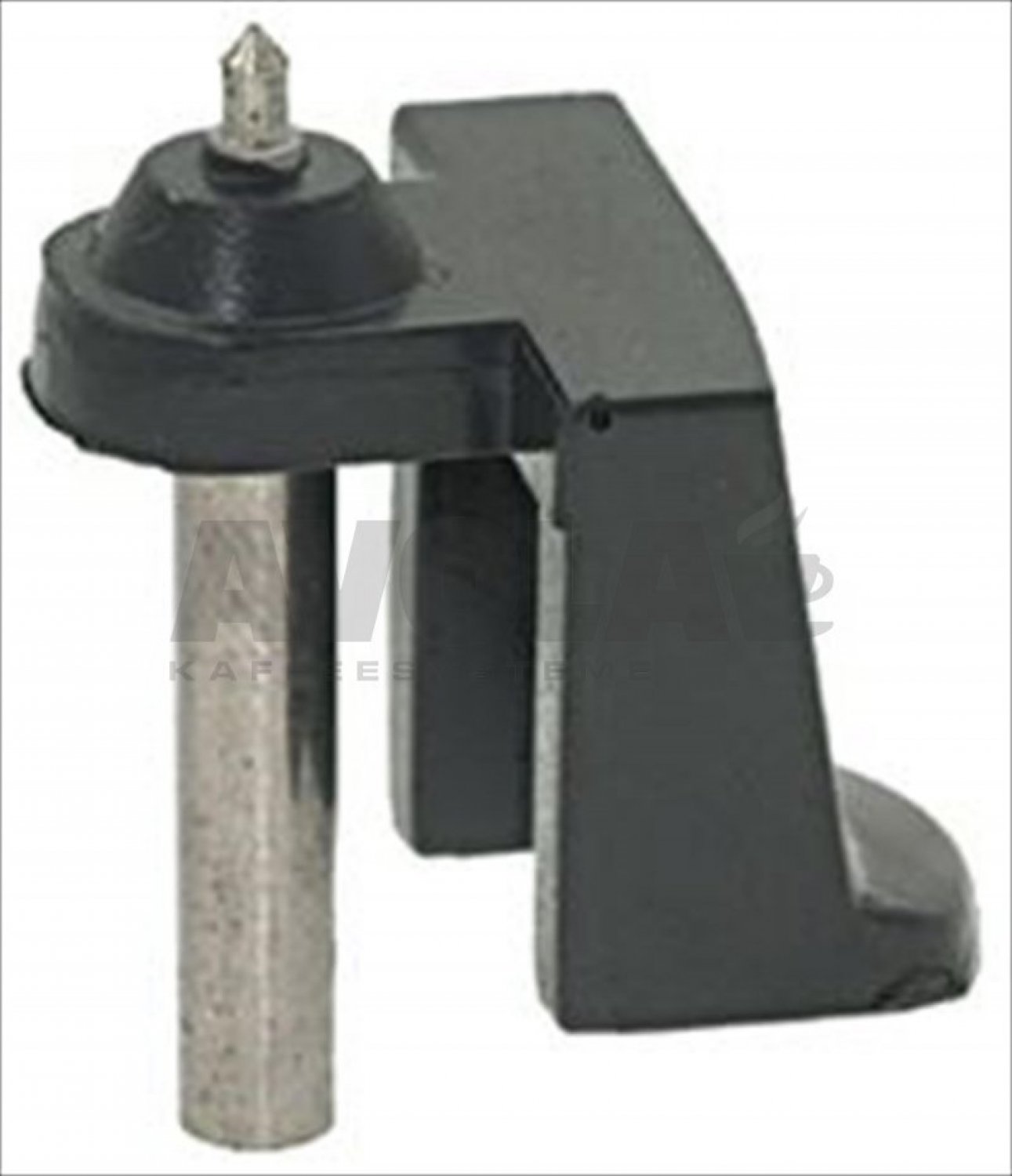

17	8005197		8005197 HOPPER ADAPTER PIN	excl. Shipping costs Delivery time 4-6 weeks	7,25 €	7,25 € excl. Shipping costs Delivery time 4-6 weeks
17	8005397		8005397 ALUMINUM BOTTOM STAR	excl. Shipping costs Delivery time 4-6 weeks..	46,21 €	46,21 € excl. Shipping costs Delivery time 4-6 weeks..
18	8003202		8003202 ALUMINIUM ADJUSTMENT KNOB	excl. Shipping costs Delivery time 4-6 weeks	35,02 €	35,02 € excl. Shipping costs Delivery time 4-6 weeks
18	8061623		8061623 SPRING 5x22 mm	excl. Shipping costs immediately available, 7 available	0,84 €	0,84 € excl. Shipping costs immediately available, 7 available
19	8005398		8005398 ALUMINUM TOP STAR	excl. Shipping costs Delivery time 4-6 weeks..	22,28 €	22,28 € excl. Shipping costs Delivery time 4-6 weeks..
21	8005399		8005399 MITTLERER STERN AUS ALUMINIUM	excl. Shipping costs Delivery time 4-6 weeks..	18,05 €	18,05 € excl. Shipping costs Delivery time 4-6 weeks..

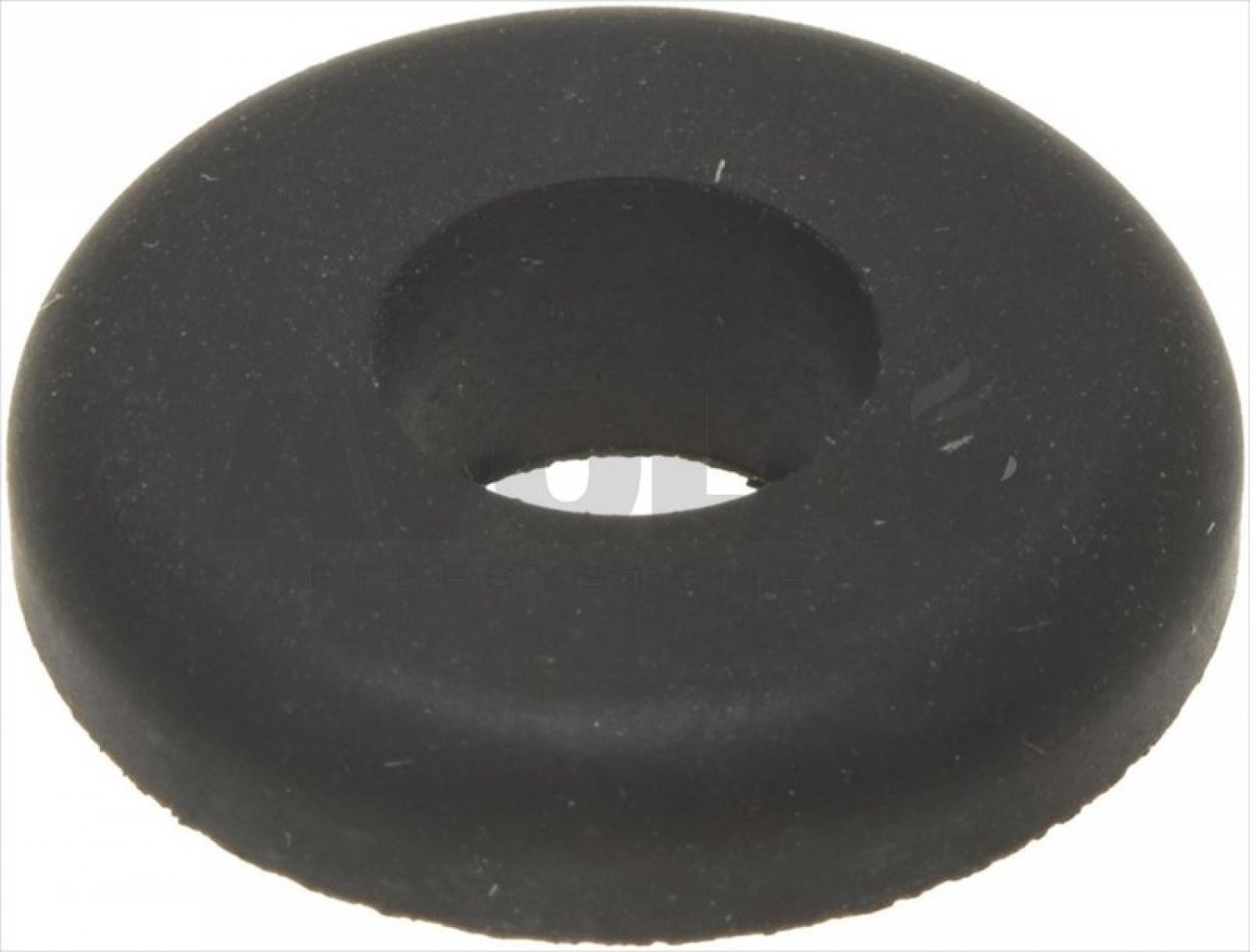

22	8002109		8002109 SHOCK-ABSORBER GASKET	excl. Shipping costs Delivery time 4-6 weeks	2,33 €	2,33 € excl. Shipping costs Delivery time 4-6 weeks
22	8005198		8005198 HANDLE SPINDLE	excl. Shipping costs Delivery time 4-6 weeks..	2,39 €	2,39 € excl. Shipping costs Delivery time 4-6 weeks..
23	8003712		8003712 LEVER PIN SPRING	excl. Shipping costs immediately available, 1 available	0,93 €	0,93 € excl. Shipping costs immediately available, 1 available
24	8002816		8002816 6-TEETH PAWL	excl. Shipping costs Delivery time is determined	5,96 €	5,96 € excl. Shipping costs Delivery time is determined
24	8020355		8020355 ORANGE BIPOLAR SWITCH 16A 250V	excl. Shipping costs Delivery time is determined	6,70 €	6,70 € excl. Shipping costs Delivery time is determined
24	8020540		8020540 BLACK BIPOLAR SWITCH 16A 250V	excl. Shipping costs immediately available, 3 available	5,57 €	5,57 € excl. Shipping costs immediately available, 3 available
24	8020928		8020928 ORANGE BIPOLAR SWITCH 16A 250V	excl. Shipping costs immediately available, 2 available	7,83 €	7,83 € excl. Shipping costs immediately available, 2 available
25	8002817		8002817 PLASTIC DOSER LEVER		Price on request

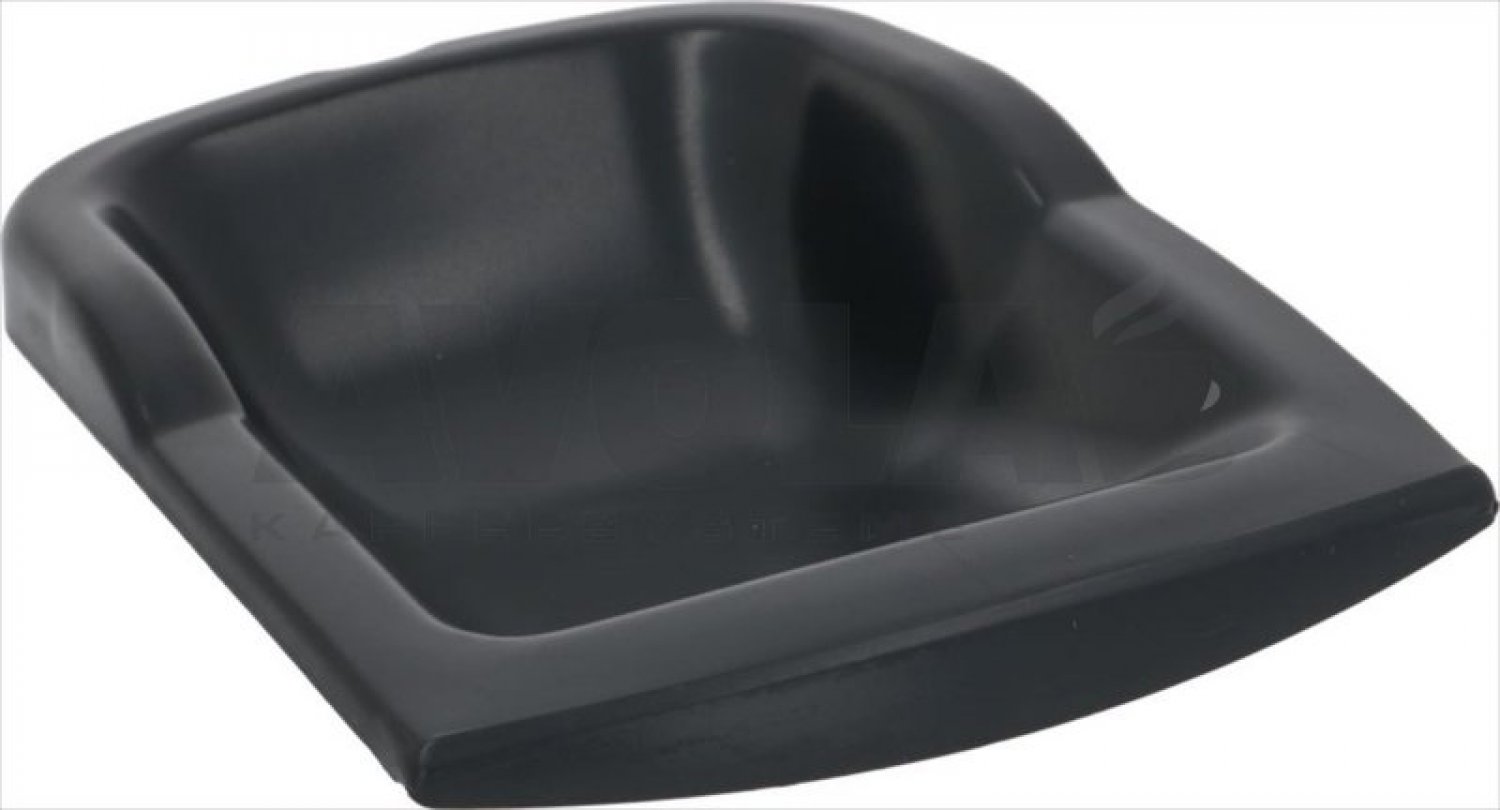

26	8007240		8007240 COFFEE COLLECTION TRAY	excl. Shipping costs Delivery time is determined	36,60 €	36,60 € excl. Shipping costs Delivery time is determined

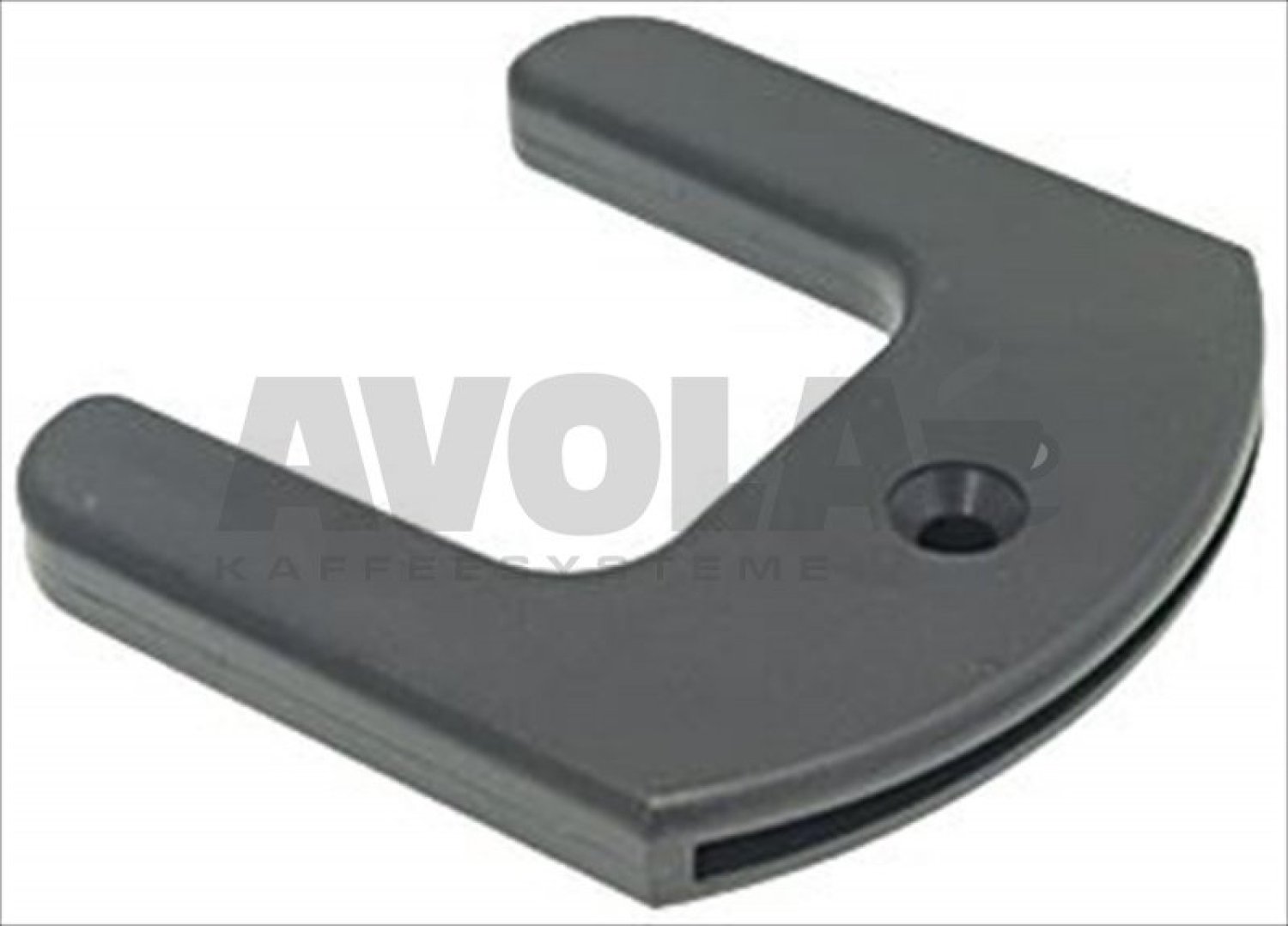

27	8000702		8000702 FORK PROTECTION	excl. Shipping costs Delivery time is determined	3,12 €	3,12 € excl. Shipping costs Delivery time is determined

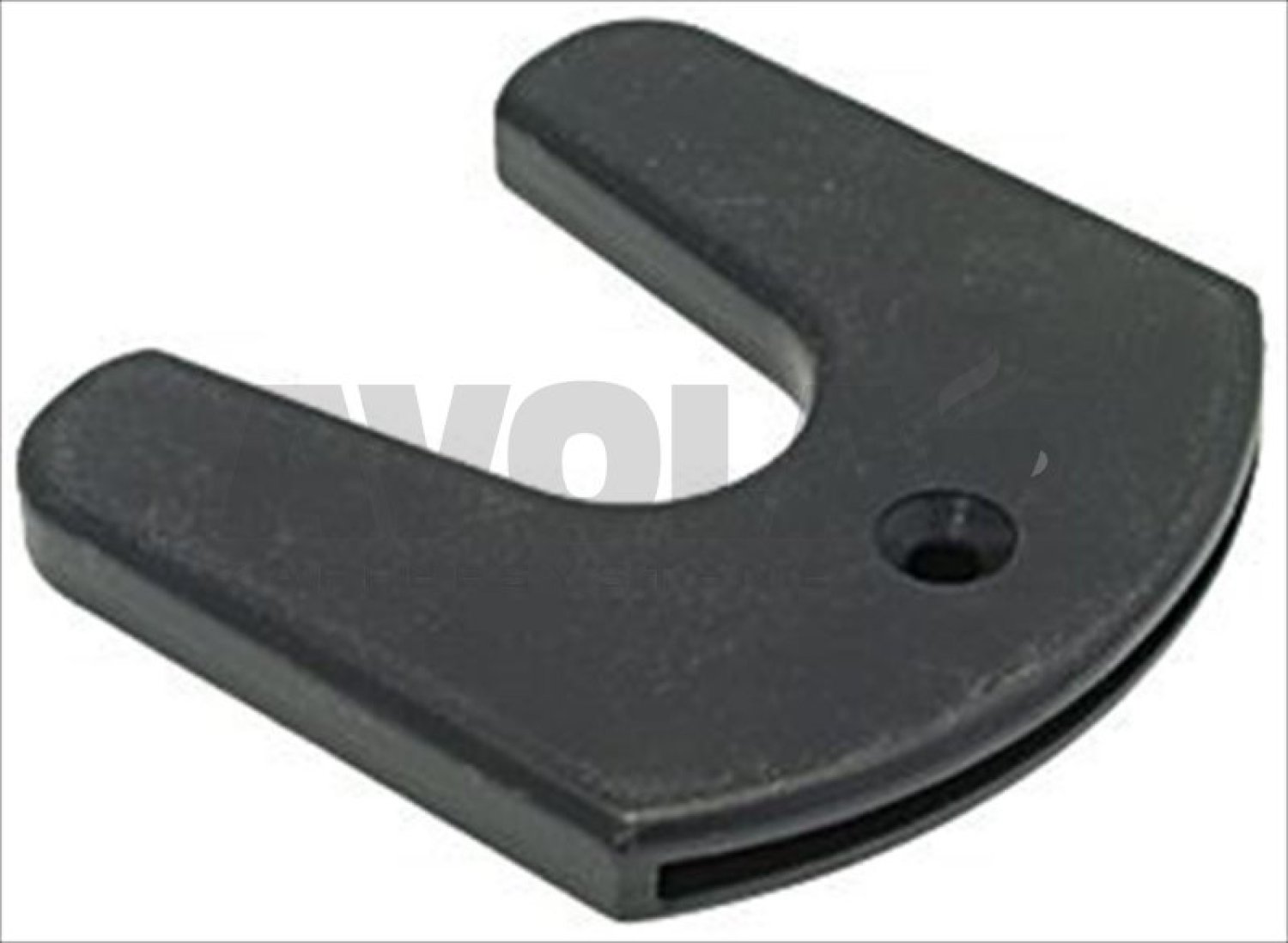

27	8000705		8000705 FORK PROTECTION	excl. Shipping costs Delivery time is determined	4,76 €	4,76 € excl. Shipping costs Delivery time is determined
28	8000698		8000698 FILTER HOLDER FORK	excl. Shipping costs Delivery time 4-6 weeks..	135,12 €	135,12 € excl. Shipping costs Delivery time 4-6 weeks..
29	8002816		8002816 6-TEETH PAWL	excl. Shipping costs Delivery time is determined	5,96 €	5,96 € excl. Shipping costs Delivery time is determined
30	8002818		8002818 METAL DOSER LEVER	excl. Shipping costs Delivery time is determined	34,55 €	34,55 € excl. Shipping costs Delivery time is determined
31	8001160		8001160 FILTER HOLDER FORK	excl. Shipping costs Delivery time 4-6 weeks..	12,63 €	12,63 € excl. Shipping costs Delivery time 4-6 weeks..

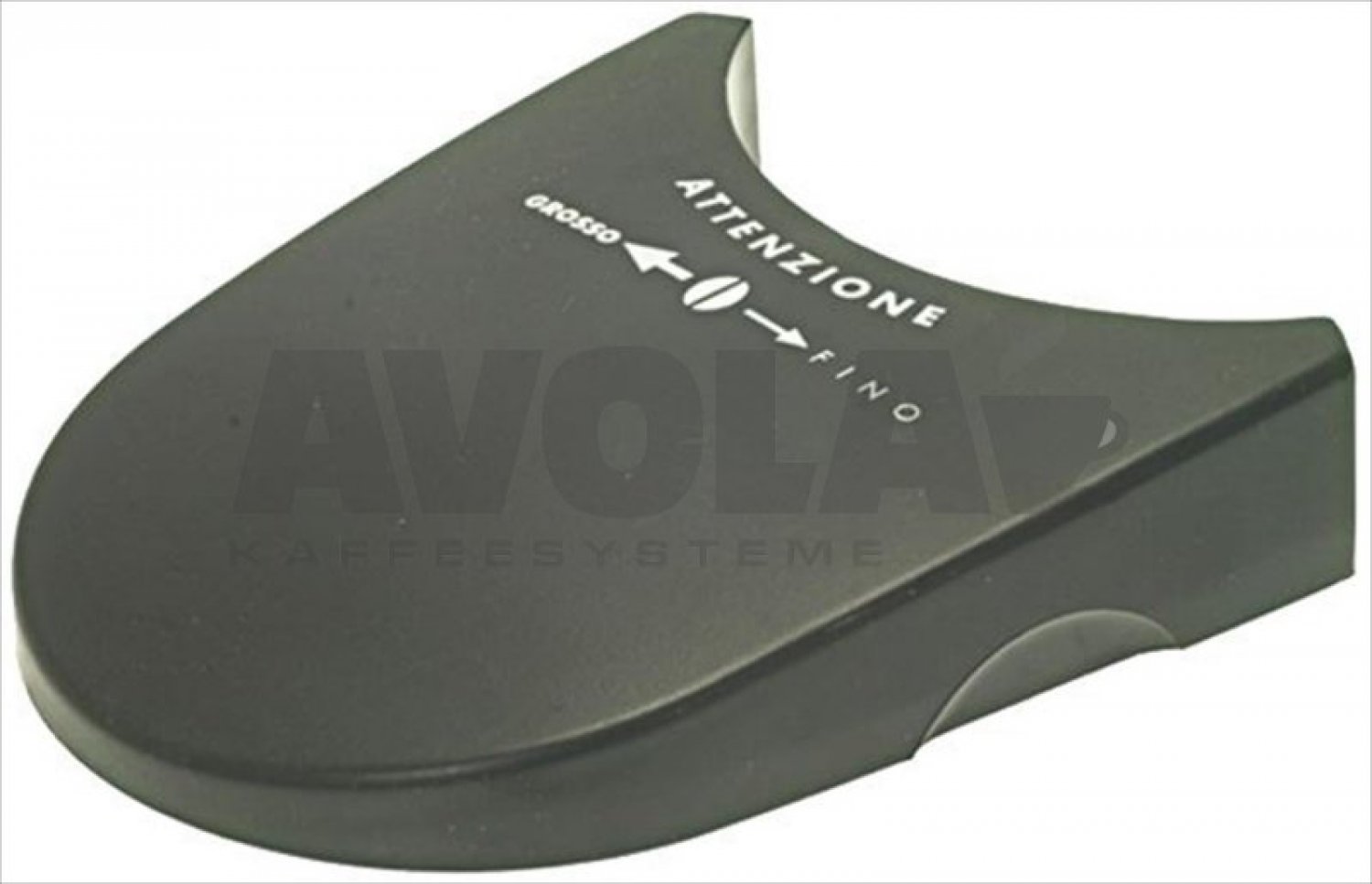

32	8006415		8006415 DISPENSER LID	excl. Shipping costs Delivery time 4-6 weeks..	18,54 €	18,54 € excl. Shipping costs Delivery time 4-6 weeks..
33	8004469		8004469 BUSHING FOR DOSER	excl. Shipping costs Delivery time 4-6 weeks..	11,35 €	11,35 € excl. Shipping costs Delivery time 4-6 weeks..
33	8016308		8016308 MICROSWITCH 16A 250V	excl. Shipping costs immediately available, 3 available	9,54 €	9,54 € excl. Shipping costs immediately available, 3 available
35	8004177		8004177 FLAP WITH MICROSWITCH BOX	excl. Shipping costs Delivery time is determined	22,49 €	22,49 € excl. Shipping costs Delivery time is determined
35	8004471		8004471 WAVE WASHER	excl. Shipping costs Delivery time 4-6 weeks..	6,94 €	6,94 € excl. Shipping costs Delivery time 4-6 weeks..
36	8000012		8000012 CHROMEPLATED DOSER RING	excl. Shipping costs Delivery time is determined	36,28 €	36,28 € excl. Shipping costs Delivery time is determined
36	8000014		8000014 DOSER RING	excl. Shipping costs Delivery time 4-6 weeks..	9,52 €	9,52 € excl. Shipping costs Delivery time 4-6 weeks..
37	8004475		8004475 GASKET FOR COFFEE OUTLET OPENING	excl. Shipping costs immediately available, 1 available	8,28 €	8,28 € excl. Shipping costs immediately available, 1 available
37	8006417		8006417 COFFEE TAMPER LOWER CAP ø 57 mm	excl. Shipping costs immediately available, 1 available	13,34 €	13,34 € excl. Shipping costs immediately available, 1 available
38	8004472		8004472 COUNTER FOR COFFEE GRINDER	excl. Shipping costs Delivery time is determined	59,89 €	59,89 € excl. Shipping costs Delivery time is determined
39	8000703		8000703 DOSER CYLINDER	excl. Shipping costs Delivery time is determined	20,02 €	20,02 € excl. Shipping costs Delivery time is determined
40	8005894		8005894 DOSER ADJUSTMENT KNOB	excl. Shipping costs Delivery time 4-6 weeks..	8,62 €	8,62 € excl. Shipping costs Delivery time 4-6 weeks..
41	8002110		8002110 RUBBER PIECE	excl. Shipping costs Delivery time is determined	1,31 €	1,31 € excl. Shipping costs Delivery time is determined

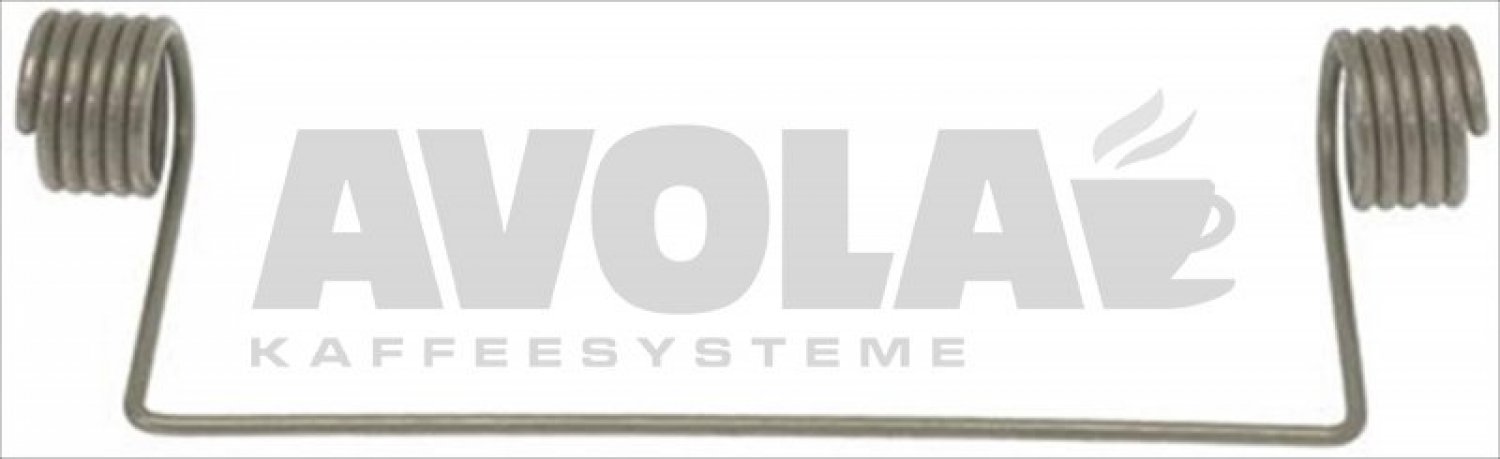

41	8003703		8003703 SCRAPER SPRING	excl. Shipping costs Delivery time 4-6 weeks..	7,82 €	7,82 € excl. Shipping costs Delivery time 4-6 weeks..
42	8002112		8002112 SHAFT WASHER	excl. Shipping costs Delivery time 4-6 weeks..	1,43 €	1,43 € excl. Shipping costs Delivery time 4-6 weeks..
42	8005332		8005332 PLASTIC STAR ASSEMBLY	excl. Shipping costs Delivery time 4-6 weeks..	60,45 €	60,45 € excl. Shipping costs Delivery time 4-6 weeks..
42	8005333		8005333 ALUMINIUM STAR ASSEMBLY	excl. Shipping costs Delivery time 4-6 weeks..	72,97 €	72,97 € excl. Shipping costs Delivery time 4-6 weeks..

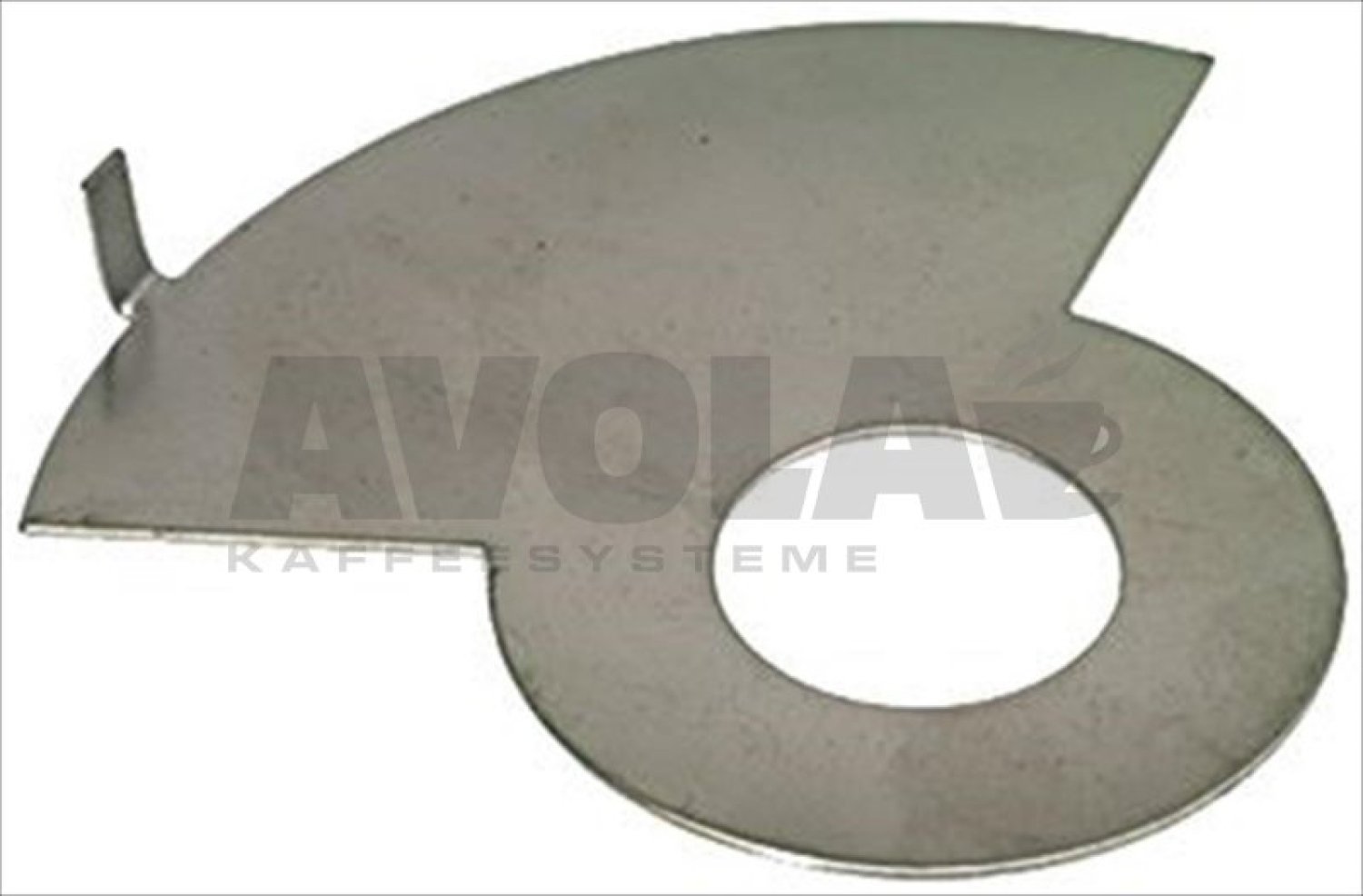

44	8000701		8000701 DOSER SHEET	excl. Shipping costs Delivery time 4-6 weeks..	5,76 €	5,76 € excl. Shipping costs Delivery time 4-6 weeks..
44	8003704		8003704 DOSER LEVER RETURN SPRING LEFTHAND	excl. Shipping costs Delivery time is determined	6,60 €	6,60 € excl. Shipping costs Delivery time is determined
44	8003713		8003713 DOSER LEVER RETURN SPRING RIGHTHAND	excl. Shipping costs Delivery time is determined	2,92 €	2,92 € excl. Shipping costs Delivery time is determined
45	8000699		8000699 DOSER BASE K6/K8	excl. Shipping costs Delivery time is determined	6,34 €	6,34 € excl. Shipping costs Delivery time is determined
45	8003874		8003874 STAR SPRING		Price on request
46	8007325		8007325 HEXAGONAL NUT M8 SHORT M8	excl. Shipping costs immediately available	0,67 €	0,67 € excl. Shipping costs immediately available
47	8000706		8000706 THREADED REINFORCEMENT	excl. Shipping costs Delivery time 4-6 weeks..	1,80 €	1,80 € excl. Shipping costs Delivery time 4-6 weeks..
48	8006206		8006206 STANDARD COFFEE TAMPER	excl. Shipping costs Delivery time 4-6 weeks..	12,42 €	12,42 € excl. Shipping costs Delivery time 4-6 weeks..
49	8003701		8003701 COFFEE TAMPER SPRING ø 15x85 mm	excl. Shipping costs Delivery time is determined	3,74 €	3,74 € excl. Shipping costs Delivery time is determined
49	8006206		8006206 STANDARD COFFEE TAMPER	excl. Shipping costs Delivery time 4-6 weeks..	12,42 €	12,42 € excl. Shipping costs Delivery time 4-6 weeks..
49	8006416		8006416 COFFEE TAMPER CAP		Price on request
50	8004472		8004472 COUNTER FOR COFFEE GRINDER	excl. Shipping costs Delivery time is determined	59,89 €	59,89 € excl. Shipping costs Delivery time is determined

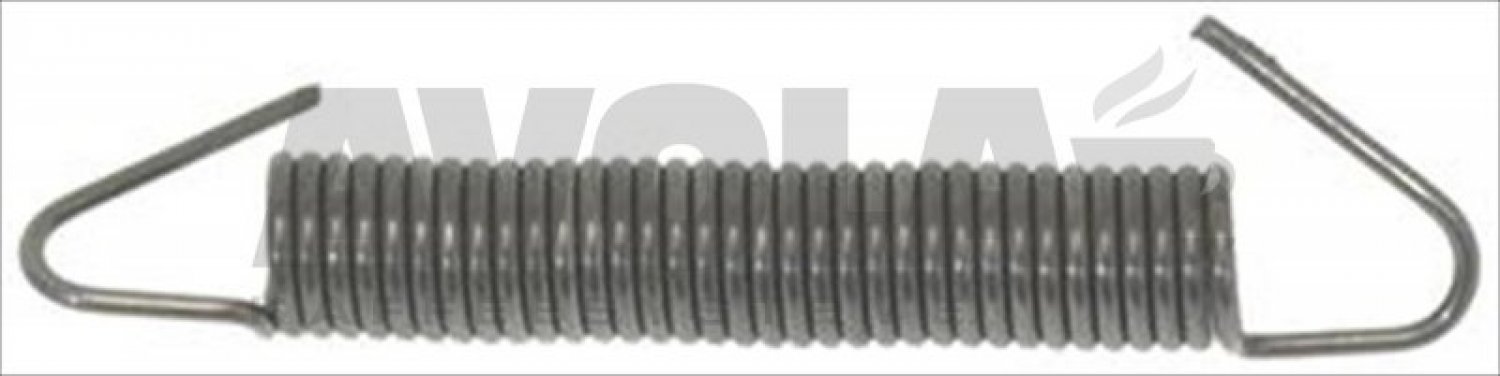

51	8003702		8003702 STROKE COUNTER SPRING	excl. Shipping costs Delivery time is determined	6,60 €	6,60 € excl. Shipping costs Delivery time is determined

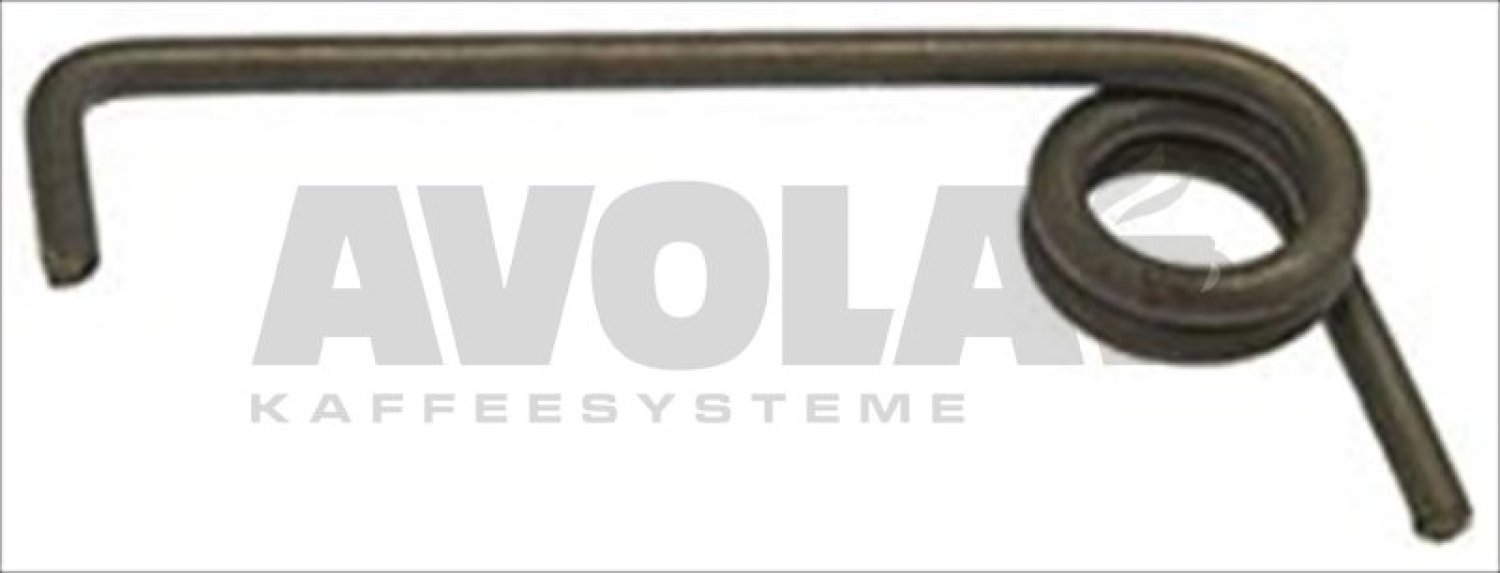

52	8003877		8003877 DOSER LEVER RETURN SPRING	excl. Shipping costs Delivery time is determined	5,65 €	5,65 € excl. Shipping costs Delivery time is determined

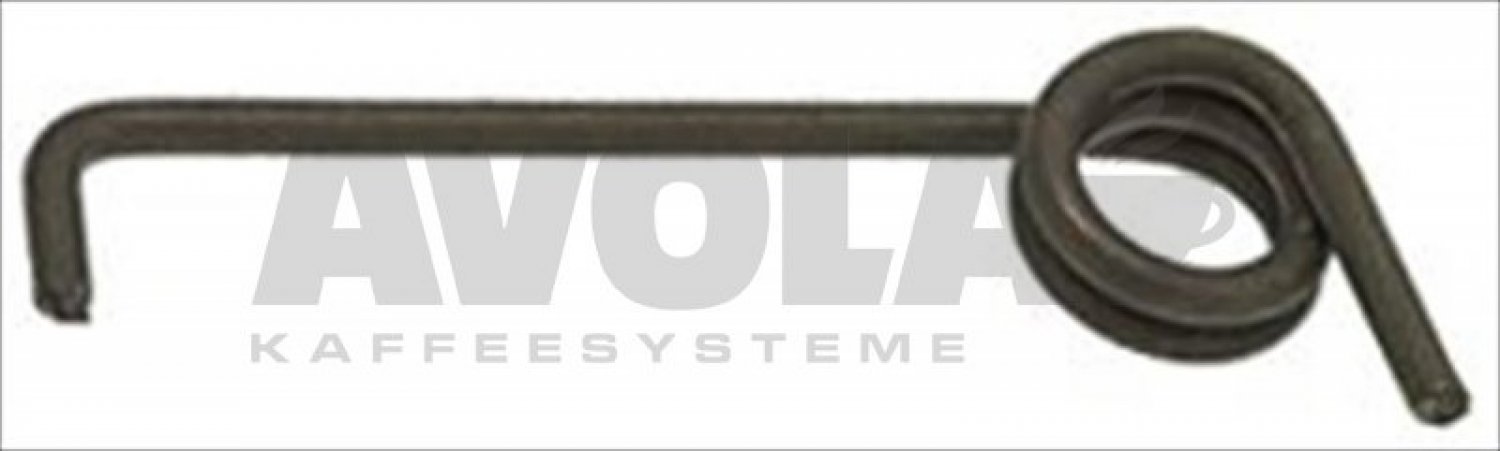

52	8003879		8003879 DOSER LEVER RETURN SPRING	excl. Shipping costs Delivery time 4-6 weeks	2,38 €	2,38 € excl. Shipping costs Delivery time 4-6 weeks

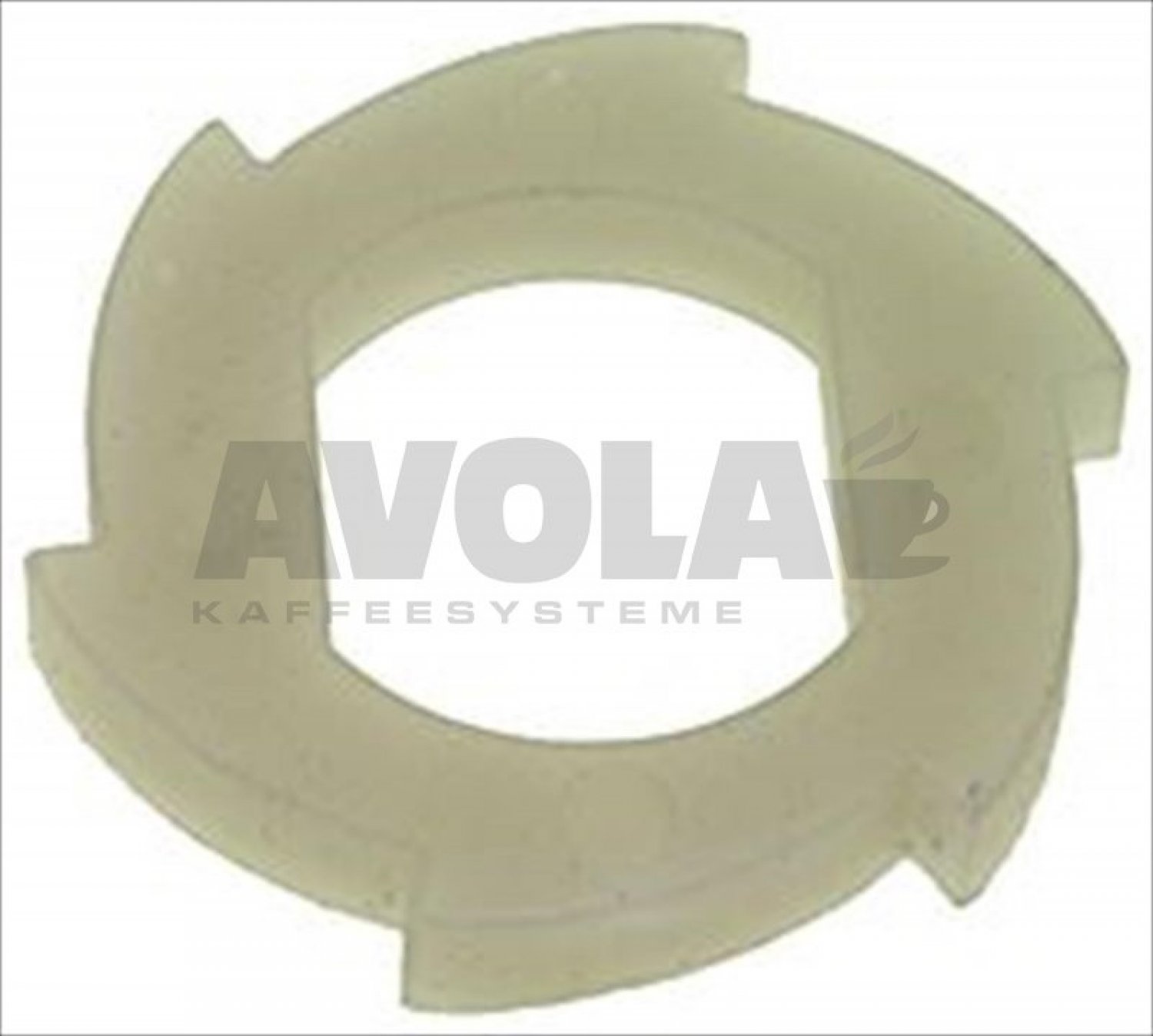

53	8000700		8000700 DOSER PAWL		Price on request
53	8006418		8006418 COFFEE TAMPER CAP	excl. Shipping costs Delivery time 4-6 weeks..	17,21 €	17,21 € excl. Shipping costs Delivery time 4-6 weeks..
54	8003875		8003875 DOSER LEVER RETURN SPRING		Price on request

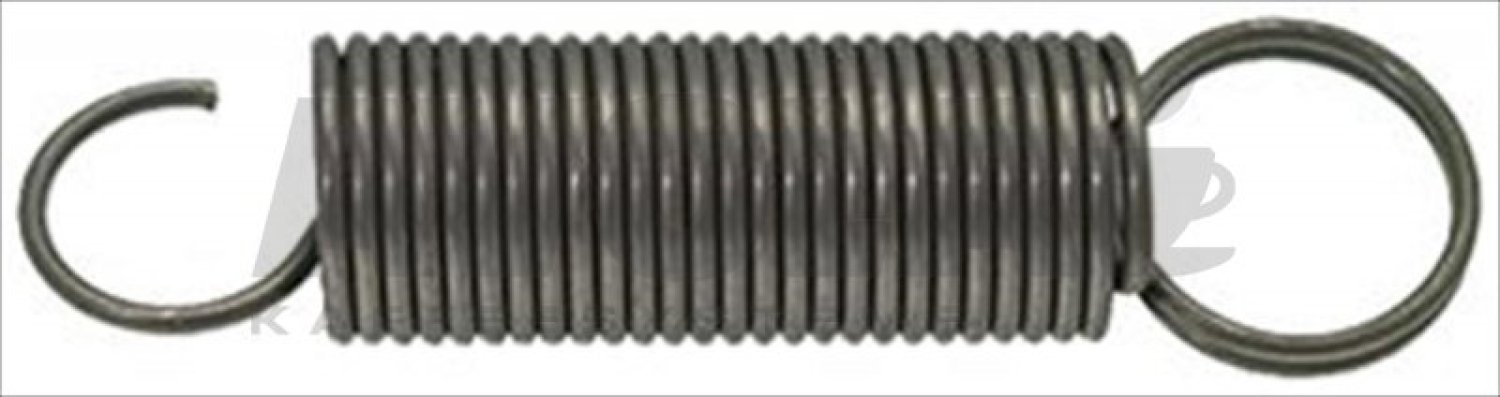

54	8003876		8003876 DOSER LEVER RETURN SPRING	excl. Shipping costs Delivery time is determined	25,04 €	25,04 € excl. Shipping costs Delivery time is determined

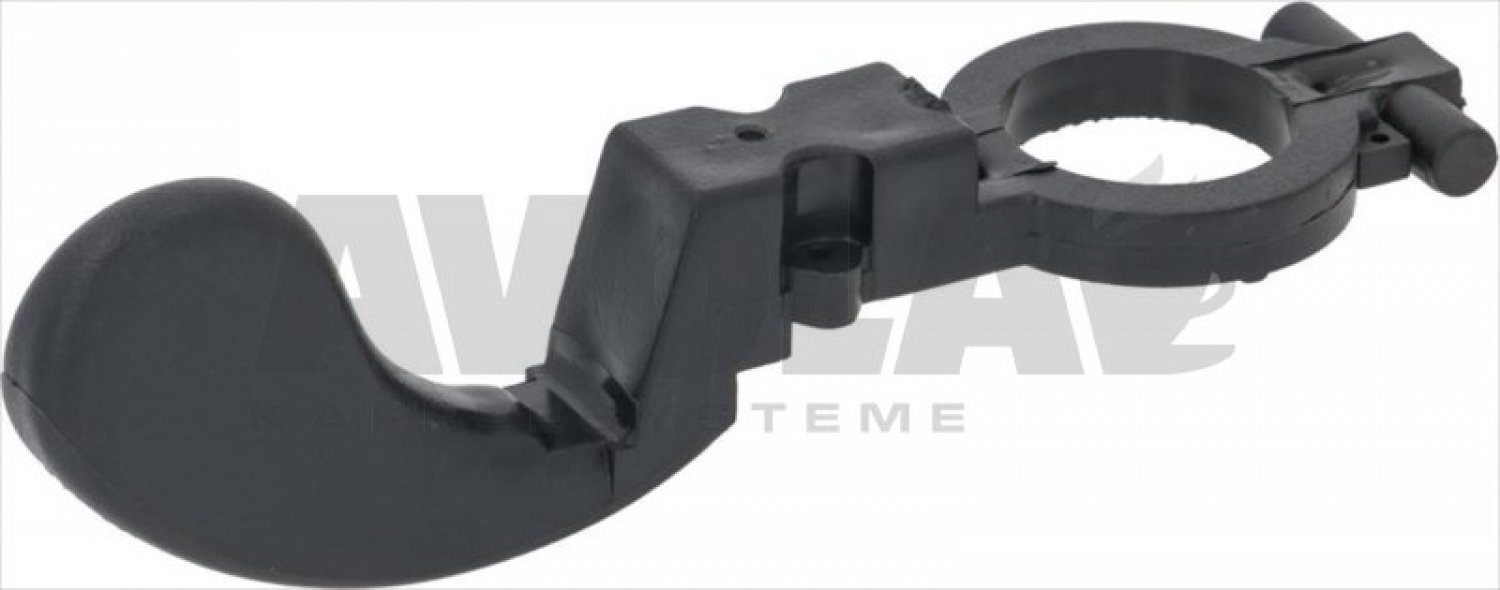

55	8003433		8003433 DOSER LEVER ABS	excl. Shipping costs Delivery time 4-6 weeks..	15,20 €	15,20 € excl. Shipping costs Delivery time 4-6 weeks..

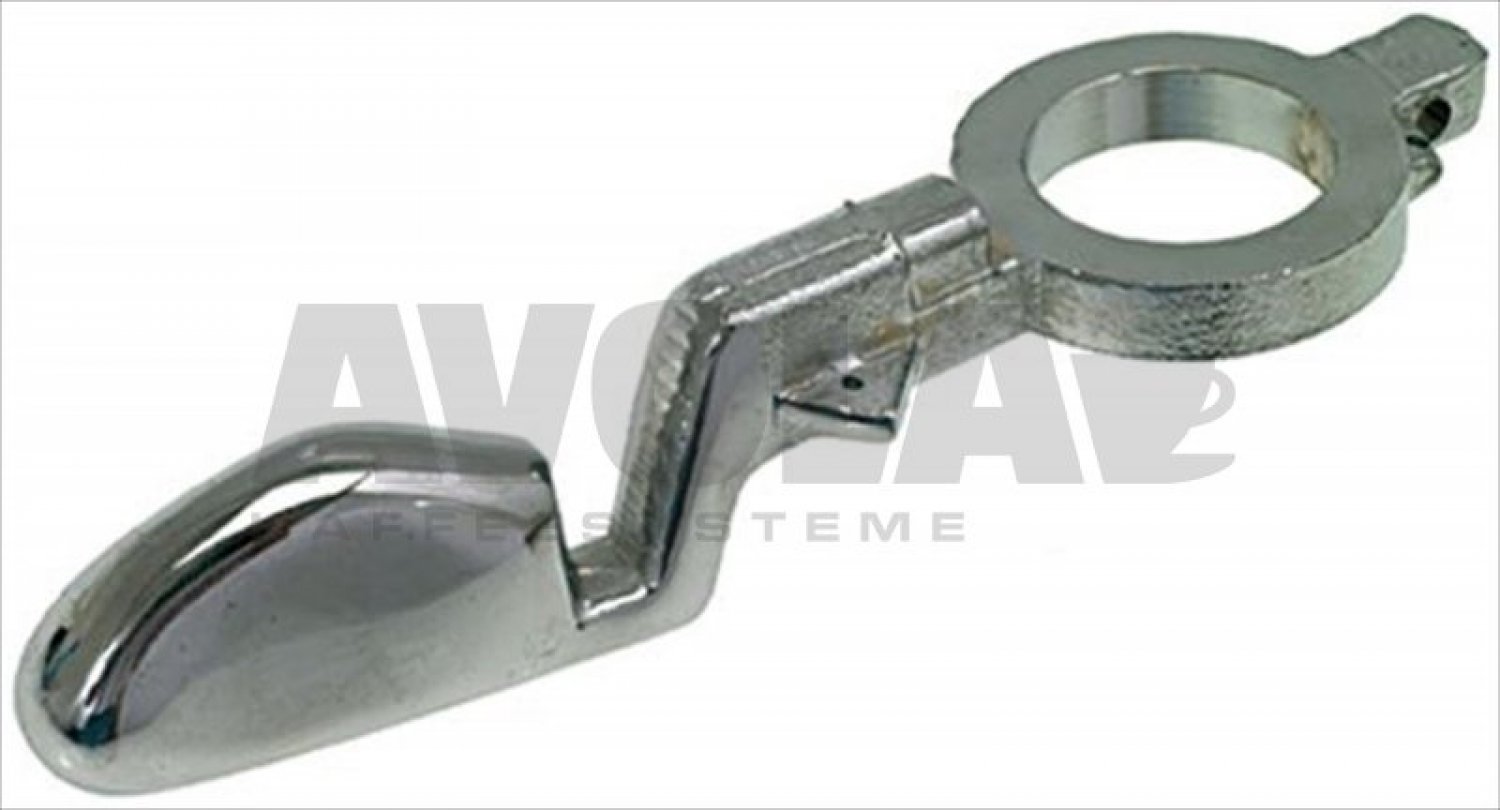

55	8003434		8003434 DOSER LEVER RIGHTHAND	excl. Shipping costs Delivery time 4-6 weeks	116,25 €	116,25 € excl. Shipping costs Delivery time 4-6 weeks
55	8003435		8003435 DOSER LEVER LEFTHAND		Price on request
56	8000706		8000706 THREADED REINFORCEMENT	excl. Shipping costs Delivery time 4-6 weeks..	1,80 €	1,80 € excl. Shipping costs Delivery time 4-6 weeks..

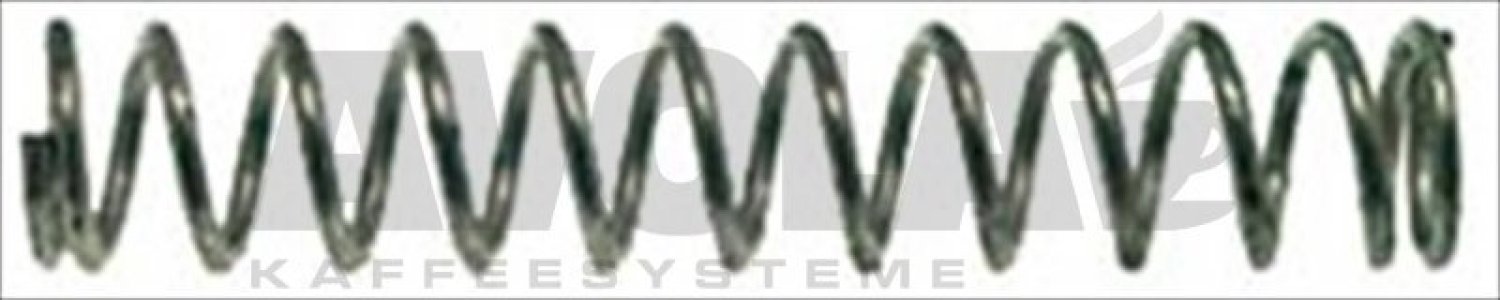

56	8003878		8003878 PIN SPRING	excl. Shipping costs Delivery time 4-6 weeks..	1,65 €	1,65 € excl. Shipping costs Delivery time 4-6 weeks..
57	8005198		8005198 HANDLE SPINDLE	excl. Shipping costs Delivery time 4-6 weeks..	2,39 €	2,39 € excl. Shipping costs Delivery time 4-6 weeks..
57	8006206		8006206 STANDARD COFFEE TAMPER	excl. Shipping costs Delivery time 4-6 weeks..	12,42 €	12,42 € excl. Shipping costs Delivery time 4-6 weeks..
58	8002110		8002110 RUBBER PIECE	excl. Shipping costs Delivery time is determined	1,31 €	1,31 € excl. Shipping costs Delivery time is determined
58	8006206		8006206 STANDARD COFFEE TAMPER	excl. Shipping costs Delivery time 4-6 weeks..	12,42 €	12,42 € excl. Shipping costs Delivery time 4-6 weeks..
58	8006416		8006416 COFFEE TAMPER CAP		Price on request

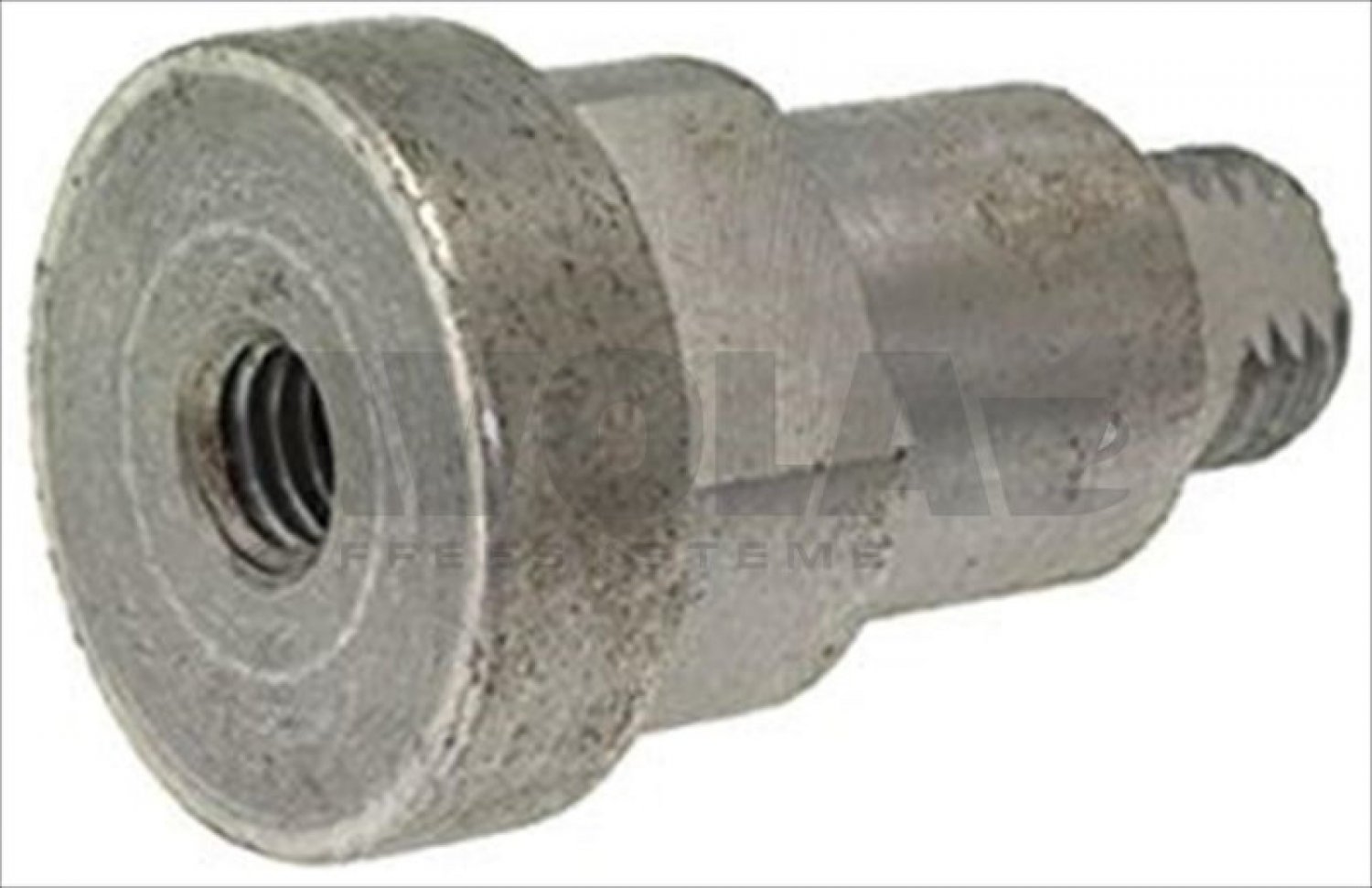

59	8005199		8005199 DOSIERWELLE S2 RECHTS	excl. Shipping costs Delivery time 4-6 weeks	23,18 €	23,18 € excl. Shipping costs Delivery time 4-6 weeks
60	8002112		8002112 SHAFT WASHER	excl. Shipping costs Delivery time 4-6 weeks..	1,43 €	1,43 € excl. Shipping costs Delivery time 4-6 weeks..
60	8004383		8004383 COFFEE HOPPER LID	excl. Shipping costs Delivery time is determined	17,18 €	17,18 € excl. Shipping costs Delivery time is determined
61	8000442		8000442 Compak COFFEE HOPPER	excl. Shipping costs Delivery time is determined	43,08 €	43,08 € excl. Shipping costs Delivery time is determined
62	8000443		8000443 COFFEE HOPPER CLOSING SHEET	excl. Shipping costs immediately available, 1 available	6,52 €	6,52 € excl. Shipping costs immediately available, 1 available
62	8007326		8007326 HEXAGON HEAD SCREW M8x16		Price on request
63	8000699		8000699 DOSER BASE K6/K8	excl. Shipping costs Delivery time is determined	6,34 €	6,34 € excl. Shipping costs Delivery time is determined
63	8000704		8000704 DOSER BASE K5	excl. Shipping costs Delivery time 4-6 weeks..	9,81 €	9,81 € excl. Shipping costs Delivery time 4-6 weeks..
64	8004477		8004477 DOSER LEVER CAP	excl. Shipping costs Delivery time 4-6 weeks..	6,38 €	6,38 € excl. Shipping costs Delivery time 4-6 weeks..
65	8001970		8001970 SPONGE GASKET		Price on request
65	8004618		8004618 SUCTION FOOT	excl. Shipping costs immediately available, 1 available	3,28 €	3,28 € excl. Shipping costs immediately available, 1 available

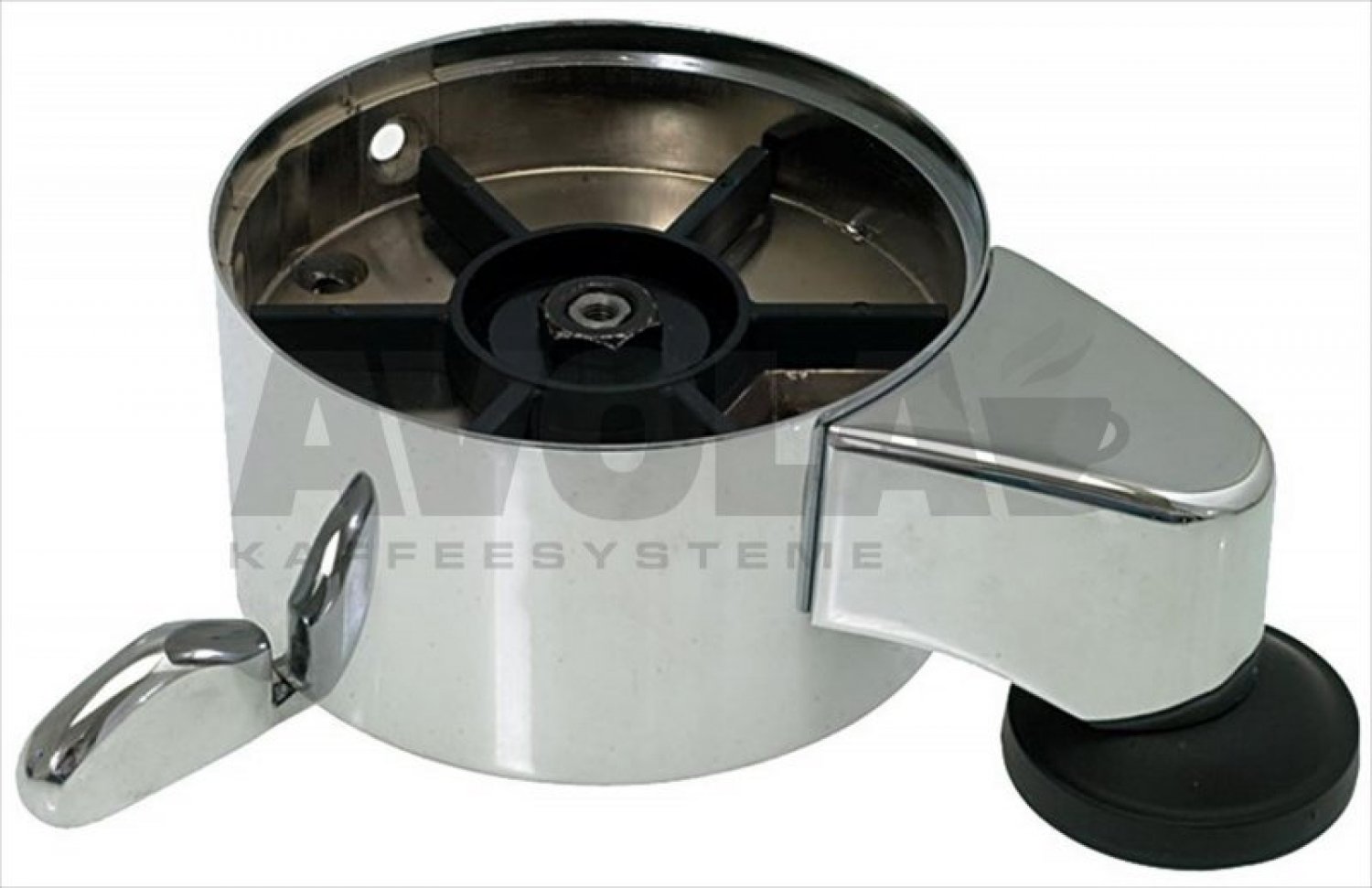

66	8000693		8000693 VERCHROMTES DOSIERGERÄT LINKS	excl. Shipping costs Delivery time 4-6 weeks	136,29 €	136,29 € excl. Shipping costs Delivery time 4-6 weeks

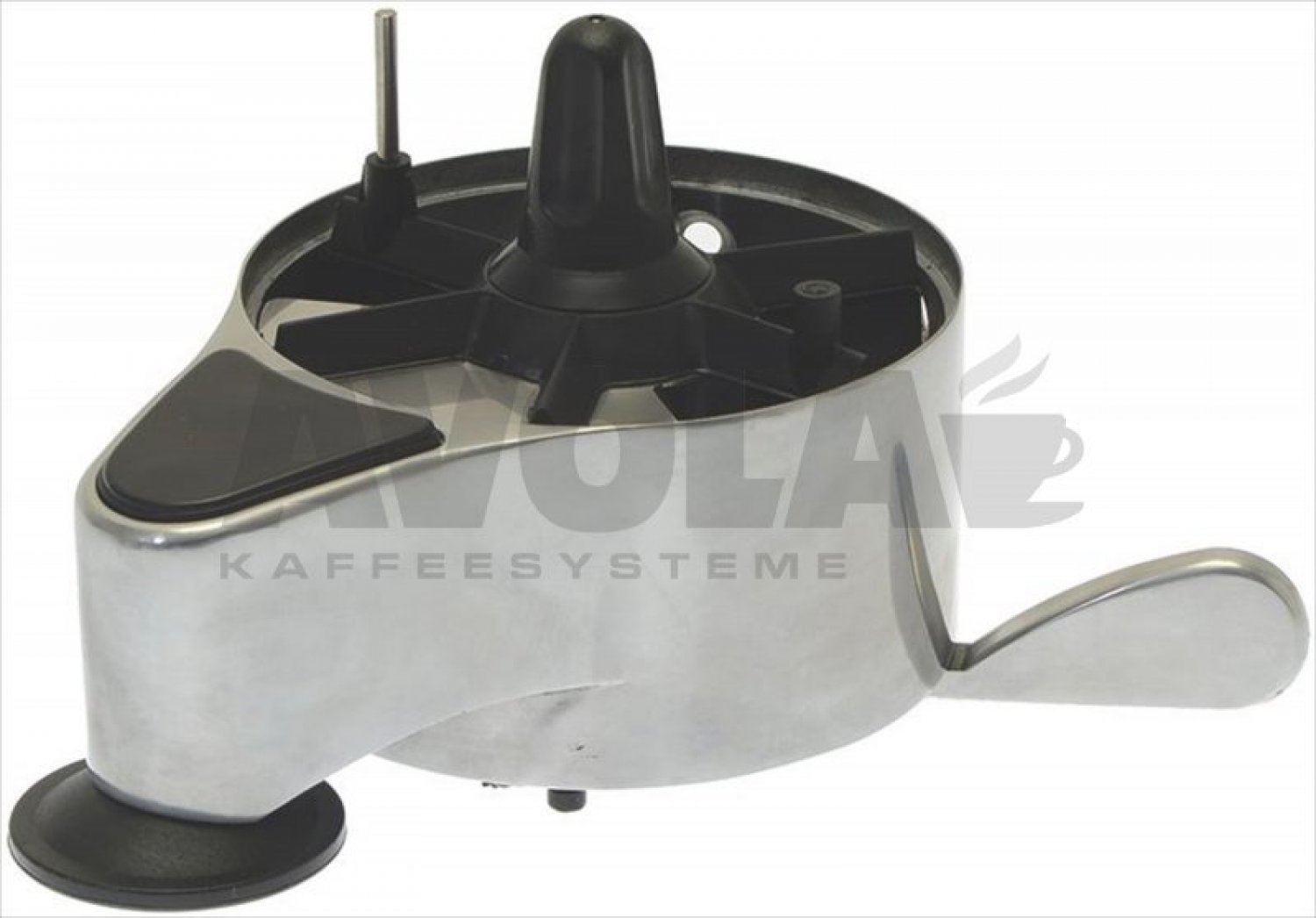

66	8000694		8000694 CHROMIUM-PLATED COFFEE DOSER RH	excl. Shipping costs Delivery time 4-6 weeks..	178,38 €	178,38 € excl. Shipping costs Delivery time 4-6 weeks..

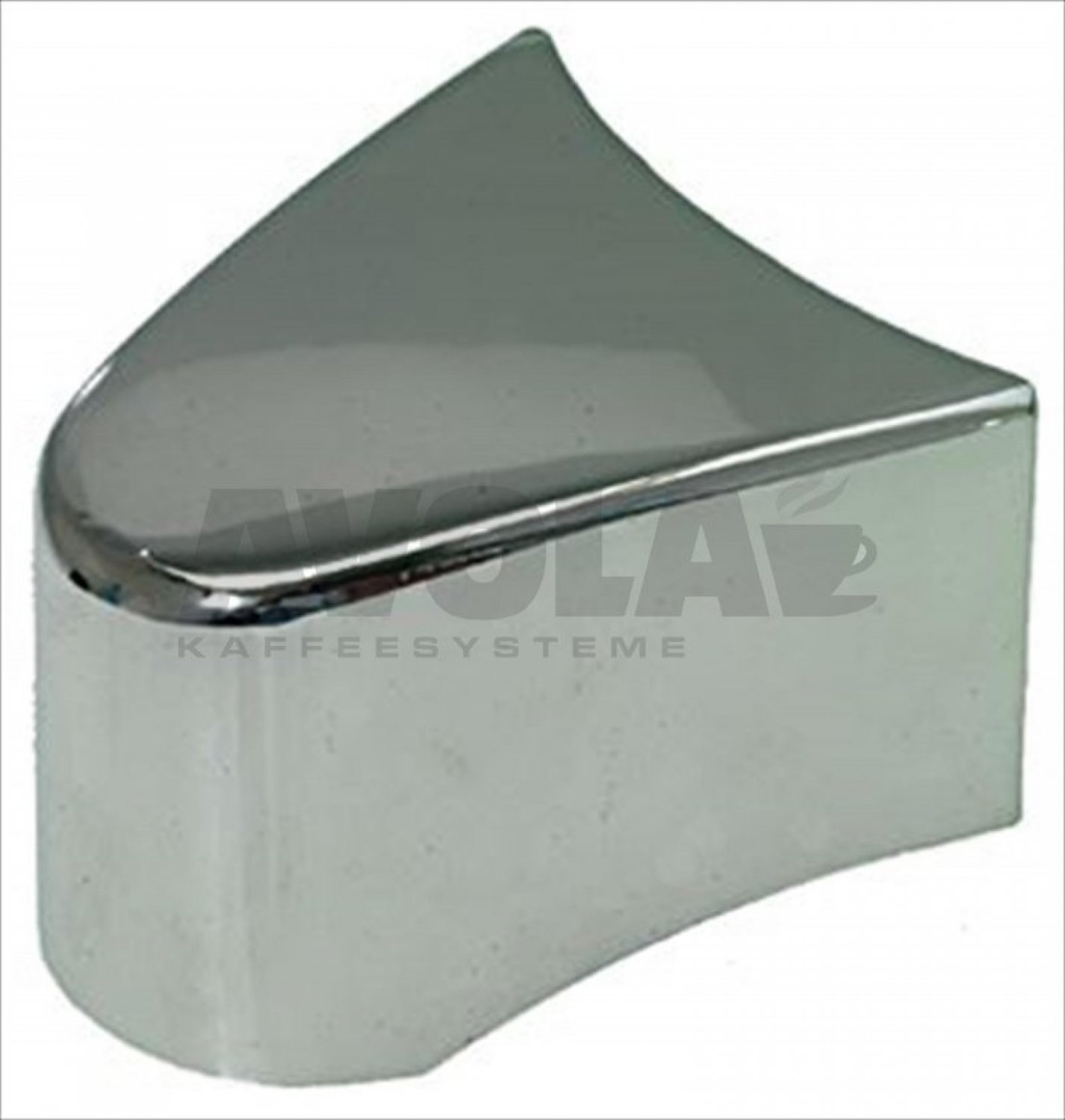

67	8006207		8006207 TAMPERKÖRPER AUS ALUMINIUM	excl. Shipping costs Delivery time 4-6 weeks	68,59 €	68,59 € excl. Shipping costs Delivery time 4-6 weeks
68	8005200		8005200 TAMPER PIN	excl. Shipping costs Delivery time is determined	1,87 €	1,87 € excl. Shipping costs Delivery time is determined
69	8006417		8006417 COFFEE TAMPER LOWER CAP ø 57 mm	excl. Shipping costs immediately available, 1 available	13,34 €	13,34 € excl. Shipping costs immediately available, 1 available
69	8006418		8006418 COFFEE TAMPER CAP	excl. Shipping costs Delivery time 4-6 weeks..	17,21 €	17,21 € excl. Shipping costs Delivery time 4-6 weeks..

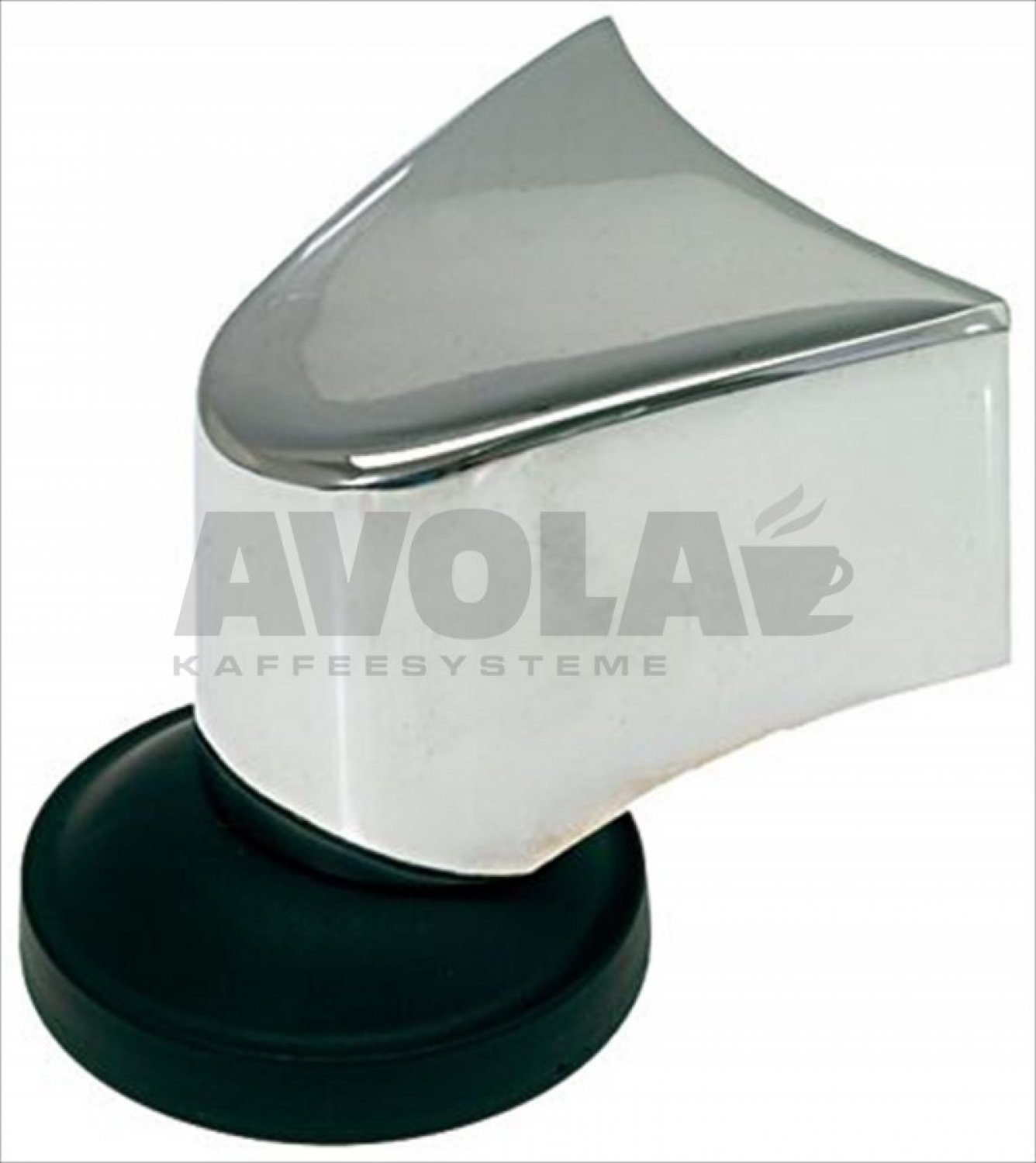

70	8006203		8006203 TAMPER KOMPLETT	excl. Shipping costs Delivery time 4-6 weeks..	54,92 €	54,92 € excl. Shipping costs Delivery time 4-6 weeks..
71	8002111		8002111 RETAINING GASKET	excl. Shipping costs Delivery time is determined	2,39 €	2,39 € excl. Shipping costs Delivery time is determined
71	8004476		8004476 ADJUSTMENT RING NUT	excl. Shipping costs Delivery time is determined	44,63 €	44,63 € excl. Shipping costs Delivery time is determined
72	8000697		8000697 DOSER CONTAINER K6-K8	excl. Shipping costs Delivery time 4-6 weeks..	95,91 €	95,91 € excl. Shipping costs Delivery time 4-6 weeks..
73	8014819		8014819 O-RING 02106 EPDM	excl. Shipping costs immediately available, 4 available	4,17 €	4,17 € excl. Shipping costs immediately available, 4 available
74	8001277		8001277 STAINLESS STEEL CLAMP FOR FLANGE PUMP	excl. Shipping costs immediately available, 8 available	6,90 €	6,90 € excl. Shipping costs immediately available, 8 available
78	8022753		8022753 POWER RELAY FINDER 55.32.8.230.0040	excl. Shipping costs Delivery time is determined	35,56 €	35,56 € excl. Shipping costs Delivery time is determined
79	8027386		8027386 CONTACTOR LOVATO BF0910A	excl. Shipping costs Delivery time is determined	40,07 €	40,07 € excl. Shipping costs Delivery time is determined
80	8027301		8027301 TIMER 5 MINUTES C20	excl. Shipping costs Delivery time is determined	25,26 €	25,26 € excl. Shipping costs Delivery time is determined
87	8004011		8004011 GRINDING BURRS COMPAK (PAIR) RIGHT	excl. Shipping costs Delivery time 4-6 weeks..	91,88 €	91,88 € excl. Shipping costs Delivery time 4-6 weeks..
88	8007244		8007244 COUNTERSUNK FLAT HEAD SCREWS M4x10	excl. Shipping costs immediately available	1,05 €	1,05 € excl. Shipping costs immediately available

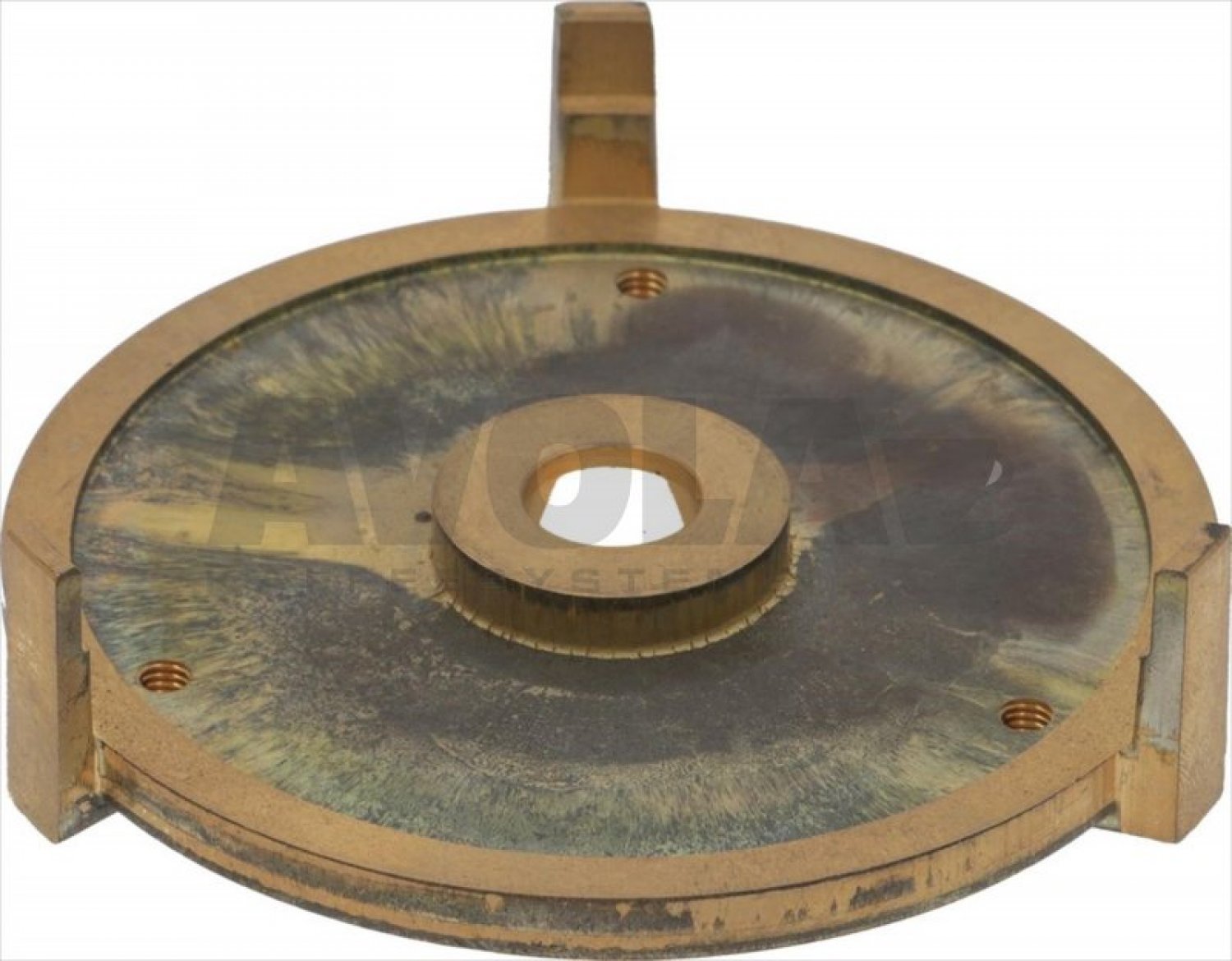

89	8004012		8004012 GRINDING BURRS BOTTOM HOLDER	excl. Shipping costs Delivery time 4-6 weeks..	53,43 €	53,43 € excl. Shipping costs Delivery time 4-6 weeks..
90	8001916		8001916 SPONGE GASKET	excl. Shipping costs Delivery time 4-6 weeks..	5,38 €	5,38 € excl. Shipping costs Delivery time 4-6 weeks..
94	8020540		8020540 BLACK BIPOLAR SWITCH 16A 250V	excl. Shipping costs immediately available, 3 available	5,57 €	5,57 € excl. Shipping costs immediately available, 3 available
95	8004618		8004618 SUCTION FOOT	excl. Shipping costs immediately available, 1 available	3,28 €	3,28 € excl. Shipping costs immediately available, 1 available
97	8004576		8004576 Compak COFFEE COLLECTION TRAY	excl. Shipping costs Delivery time is determined	18,73 €	18,73 € excl. Shipping costs Delivery time is determined
98	8001159		8001159 FILTER HOLDER FORK	excl. Shipping costs Delivery time is determined	6,66 €	6,66 € excl. Shipping costs Delivery time is determined
102	8000698		8000698 FILTER HOLDER FORK	excl. Shipping costs Delivery time 4-6 weeks..	135,12 €	135,12 € excl. Shipping costs Delivery time 4-6 weeks..
107	8000675		8000675 DOSER LID	excl. Shipping costs Delivery time 4-6 weeks..	15,60 €	15,60 € excl. Shipping costs Delivery time 4-6 weeks..
108	8001917		8001917 COFFEE OUTLET GASKET	excl. Shipping costs Delivery time is determined	6,66 €	6,66 € excl. Shipping costs Delivery time is determined
111	8000012		8000012 CHROMEPLATED DOSER RING	excl. Shipping costs Delivery time is determined	36,28 €	36,28 € excl. Shipping costs Delivery time is determined
111	8000014		8000014 DOSER RING	excl. Shipping costs Delivery time 4-6 weeks..	9,52 €	9,52 € excl. Shipping costs Delivery time 4-6 weeks..
112	8000703		8000703 DOSER CYLINDER	excl. Shipping costs Delivery time is determined	20,02 €	20,02 € excl. Shipping costs Delivery time is determined
113	8000676		8000676 DOSER FLAP	excl. Shipping costs Delivery time 4-6 weeks..	9,92 €	9,92 € excl. Shipping costs Delivery time 4-6 weeks..
116	8002899		8002899 MICROSWITCH 21A 250V	excl. Shipping costs Delivery time 4-6 weeks..	9,51 €	9,51 € excl. Shipping costs Delivery time 4-6 weeks..
119	8004177		8004177 FLAP WITH MICROSWITCH BOX	excl. Shipping costs Delivery time is determined	22,49 €	22,49 € excl. Shipping costs Delivery time is determined
123	8014819		8014819 O-RING 02106 EPDM	excl. Shipping costs immediately available, 4 available	4,17 €	4,17 € excl. Shipping costs immediately available, 4 available
128	8002111		8002111 RETAINING GASKET	excl. Shipping costs Delivery time is determined	2,39 €	2,39 € excl. Shipping costs Delivery time is determined

If your article is not listed, please use the following form and enter the desired numbers.
