Compak Grinder

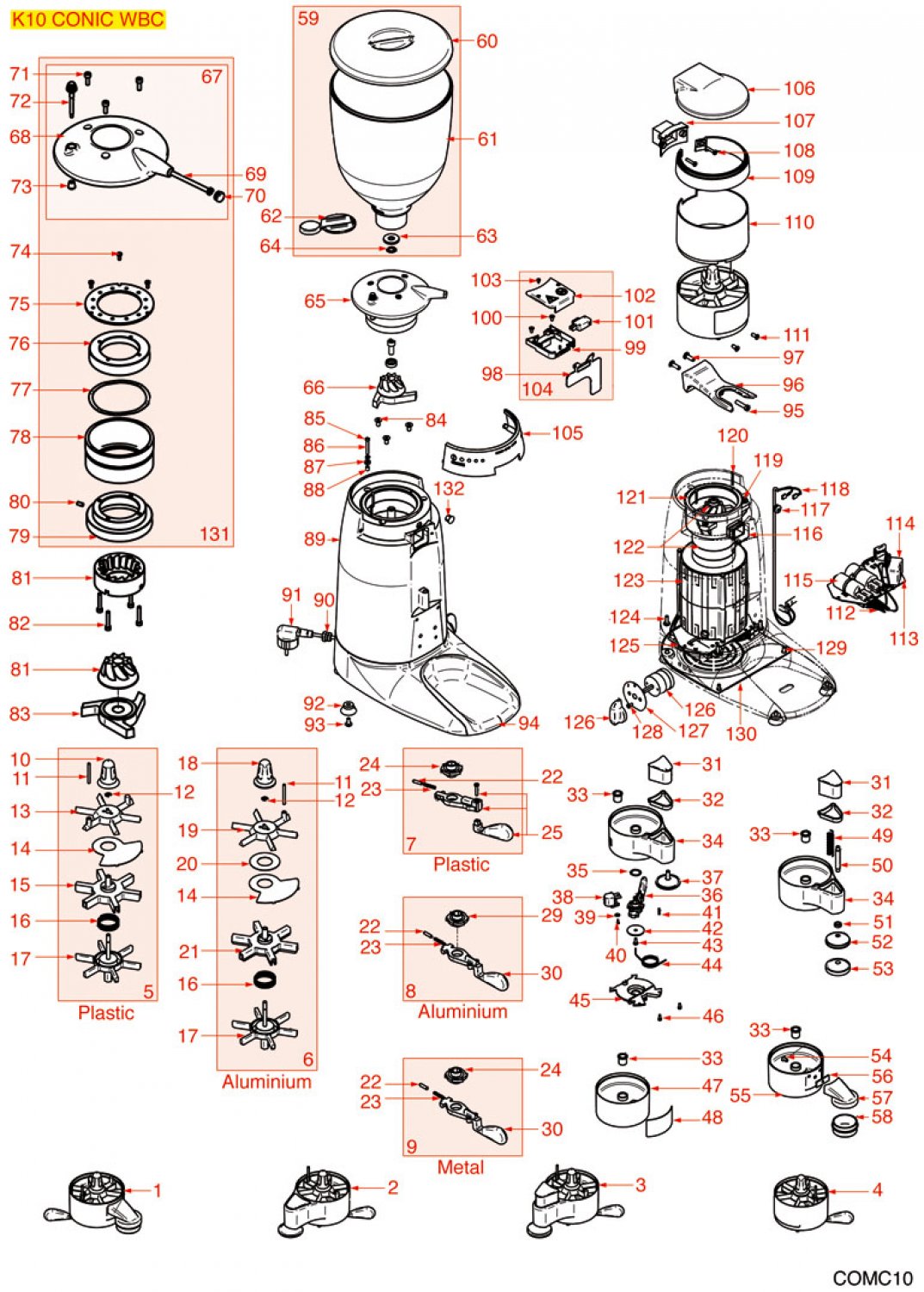

DOSIERMAHLWERK K10 CONIC WBC

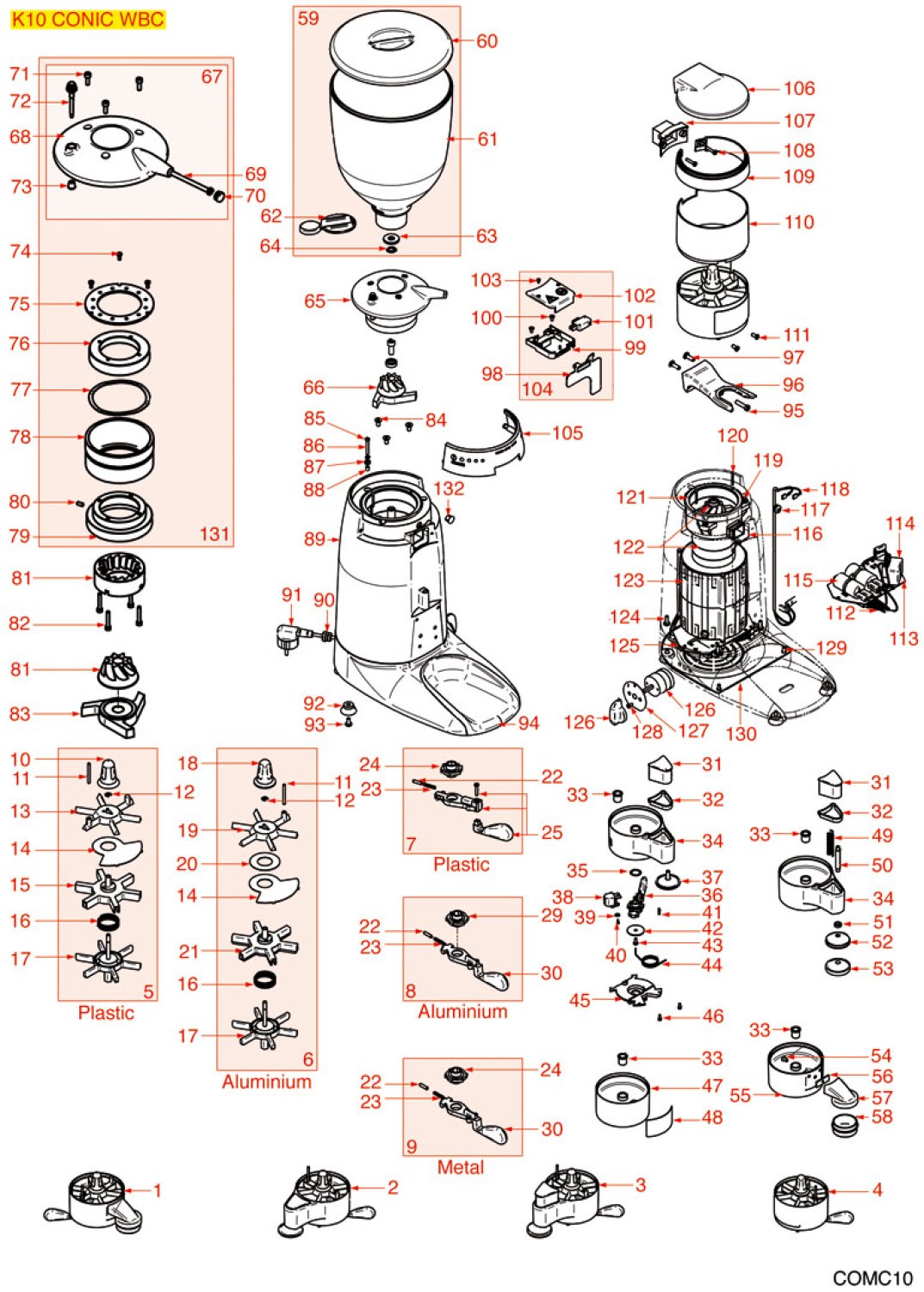

Drawing number 8057584

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.: Image: Description: Qty.:
5plastic star assembly 8005332
PLASTIC STAR ASSEMBLY
60,45 €

excl. Shipping costs

Delivery time 4-6 weeks..
6aluminium star assembly 8005333
ALUMINIUM STAR ASSEMBLY
72,97 €

excl. Shipping costs

Delivery time 4-6 weeks..
10plastic adjustment knob 8003189
PLASTIC ADJUSTMENT KNOB
6,24 €

excl. Shipping costs

Delivery time 4-6 weeks..

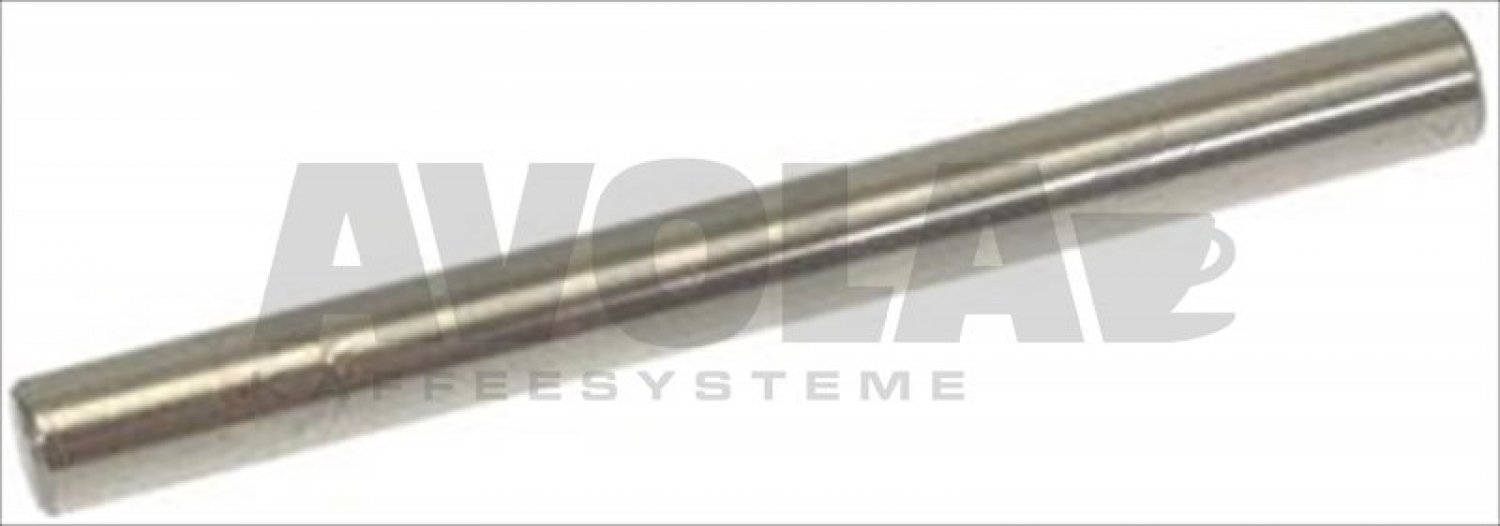

11doser scraper 8000672
DOSER SCRAPER
2,45 €

excl. Shipping costs

Delivery time
is determined

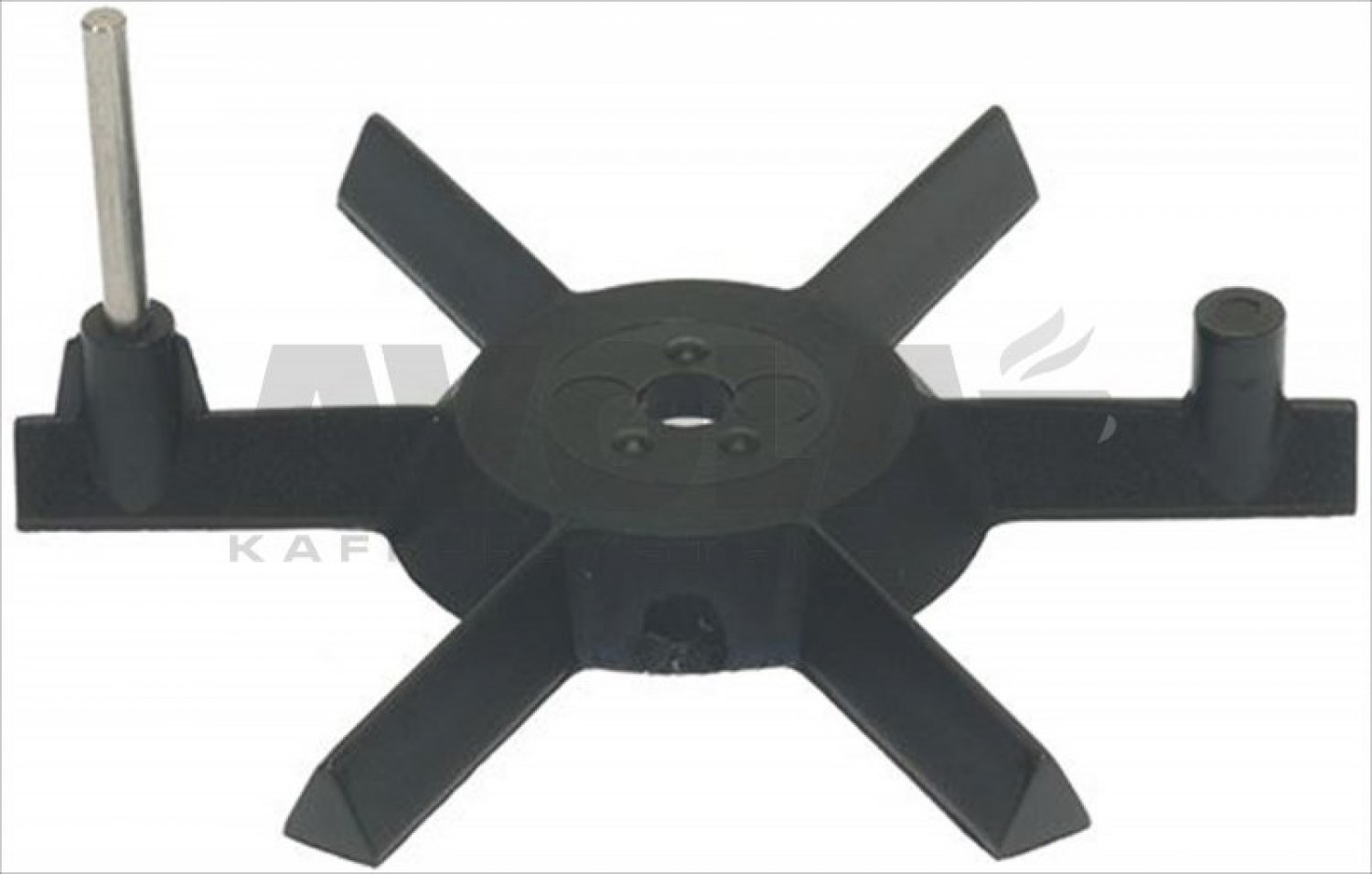

13plastic top star 8005394
PLASTIC TOP STAR
8,08 €

excl. Shipping costs

Delivery time 4-6 weeks..

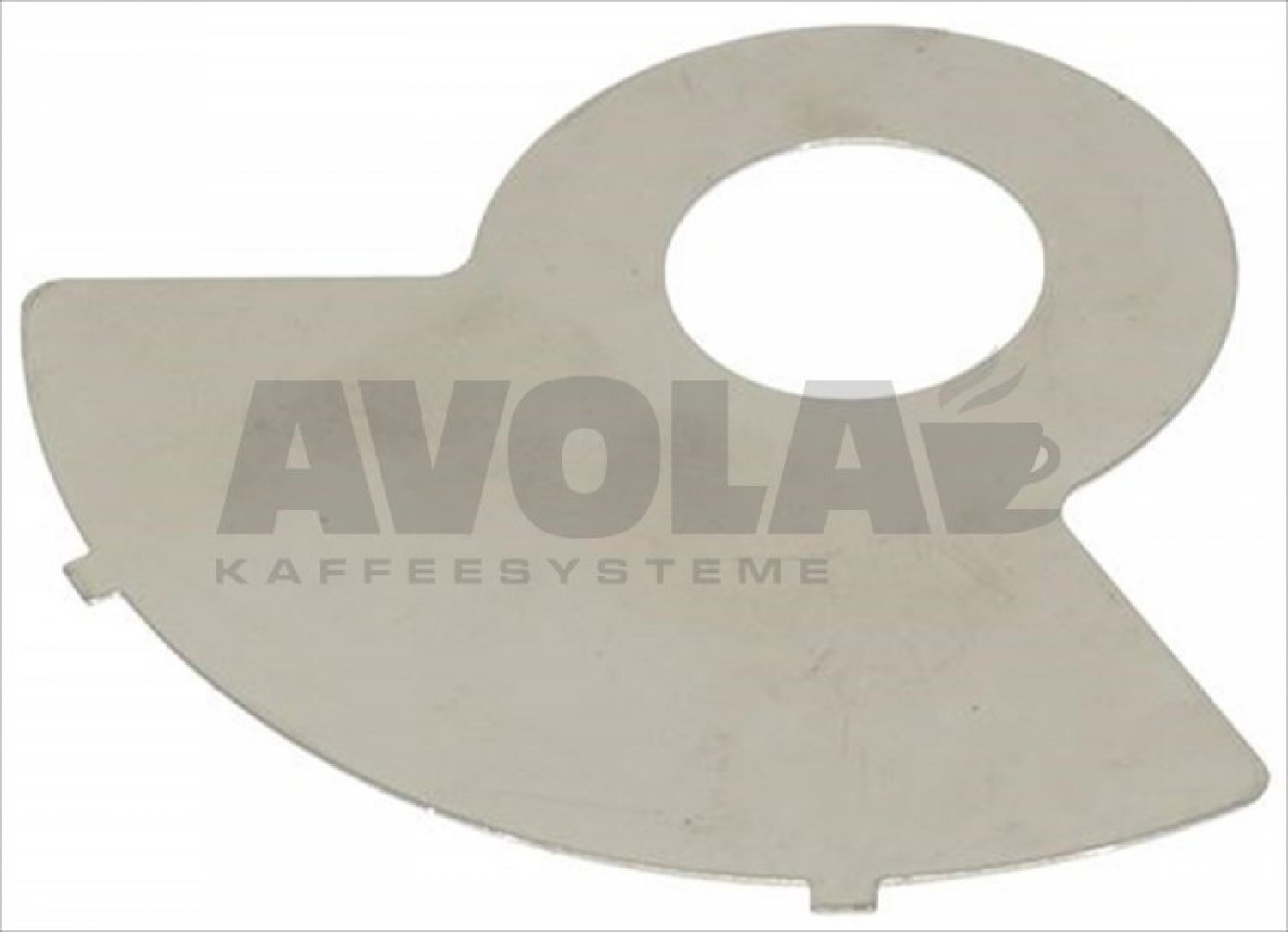

14dividing sheet 8005395
DIVIDING SHEET
6,00 €

excl. Shipping costs

Delivery time 4-6 weeks..

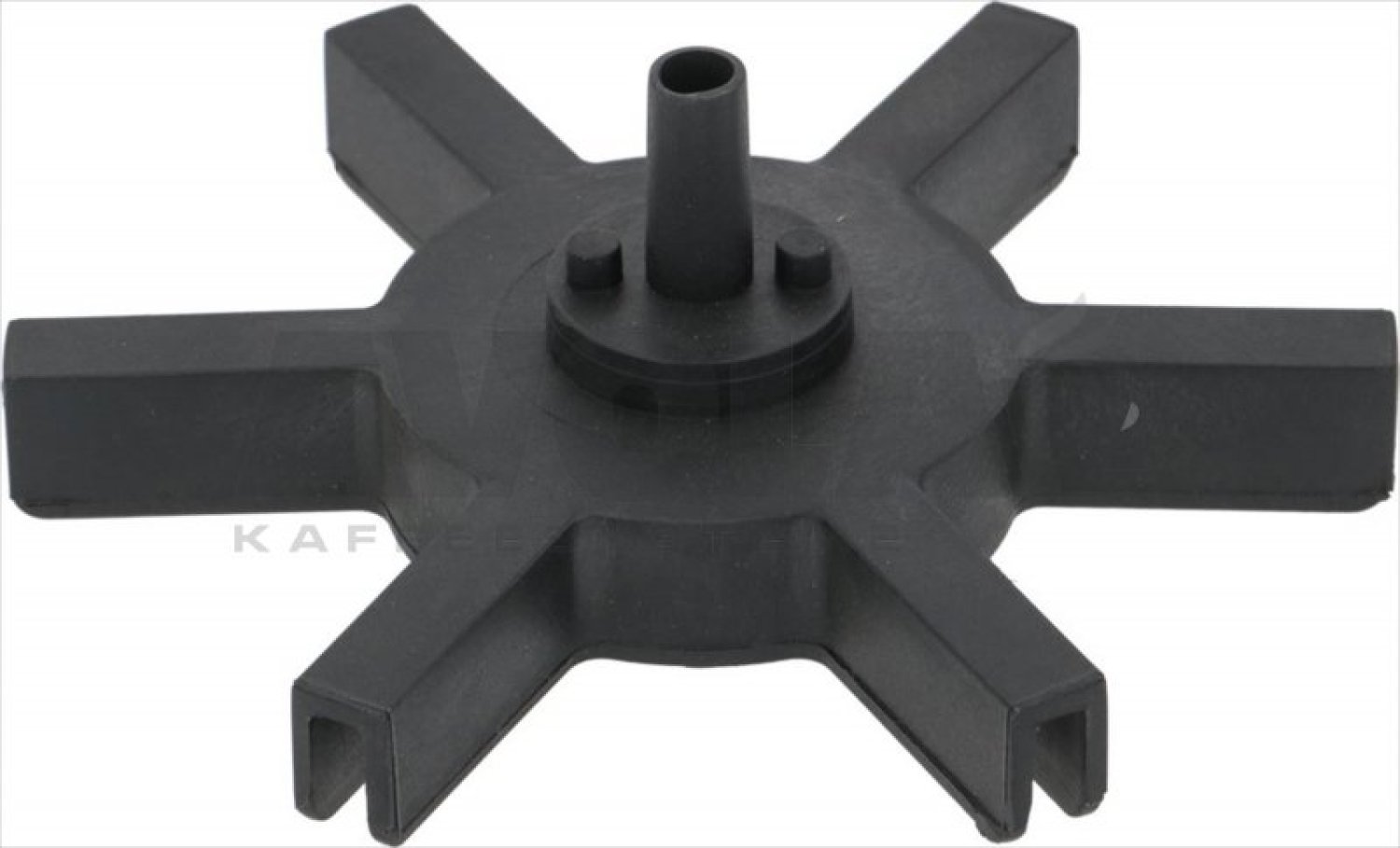

15plastic middle star 8005396
PLASTIC MIDDLE STAR
10,85 €

excl. Shipping costs

Delivery time 4-6 weeks..

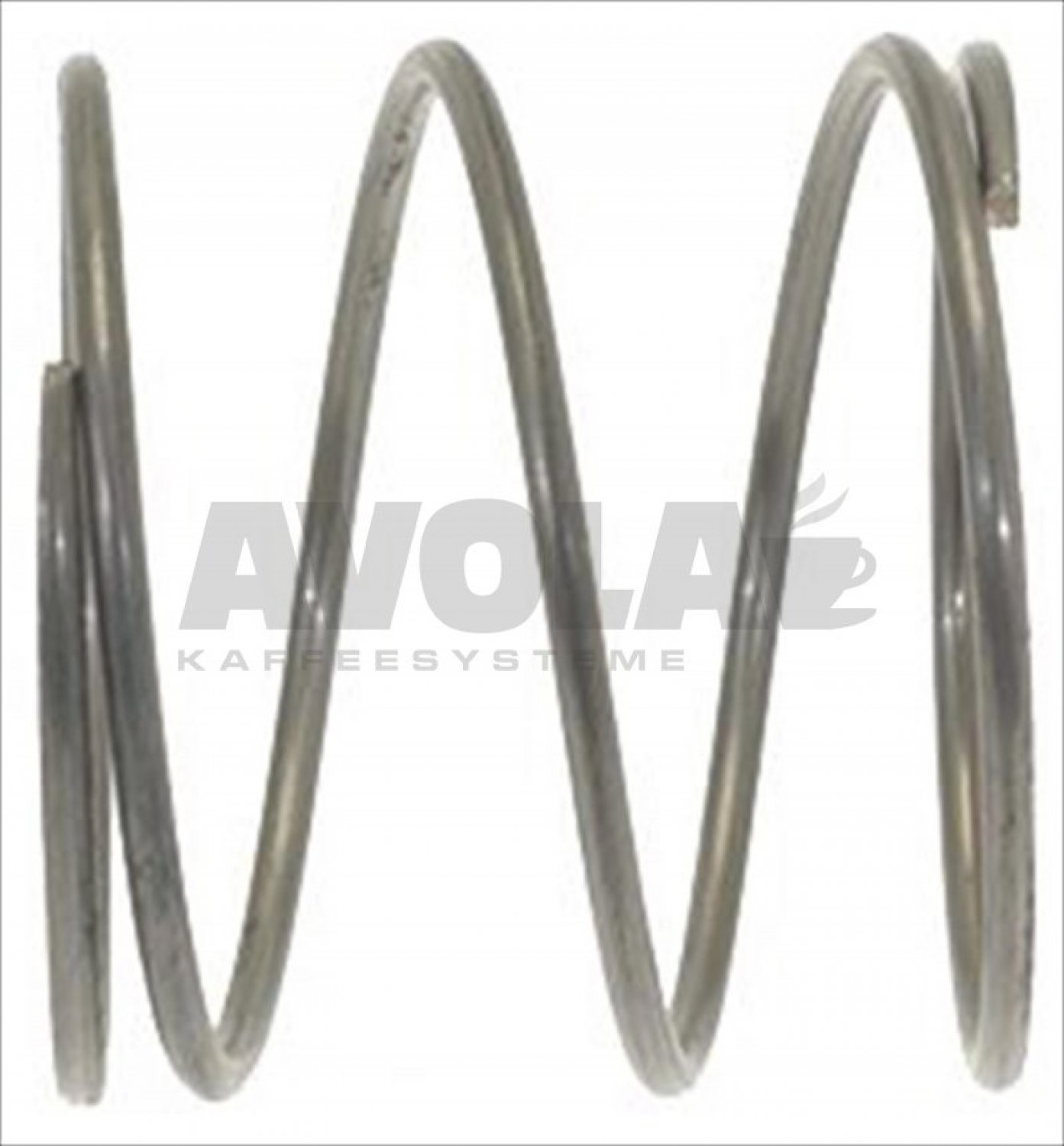

16star spring 8003715
STAR SPRING
5,56 €

excl. Shipping costs

Delivery time
is determined

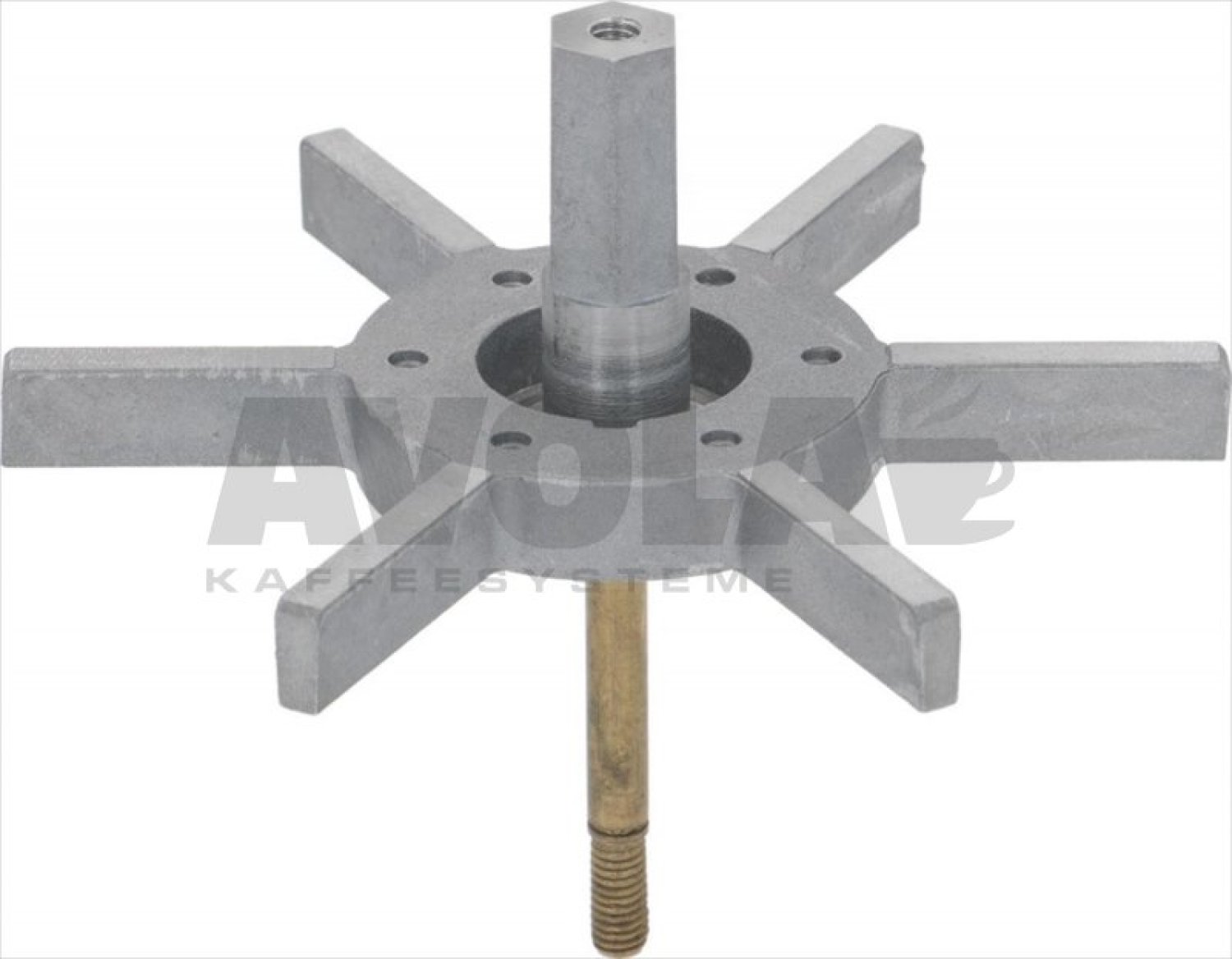

17aluminum bottom star 8005397
ALUMINUM BOTTOM STAR
46,21 €

excl. Shipping costs

Delivery time 4-6 weeks..
18aluminium adjustment knob 8003202
ALUMINIUM ADJUSTMENT KNOB
35,02 €

excl. Shipping costs

Delivery time 4-6 weeks

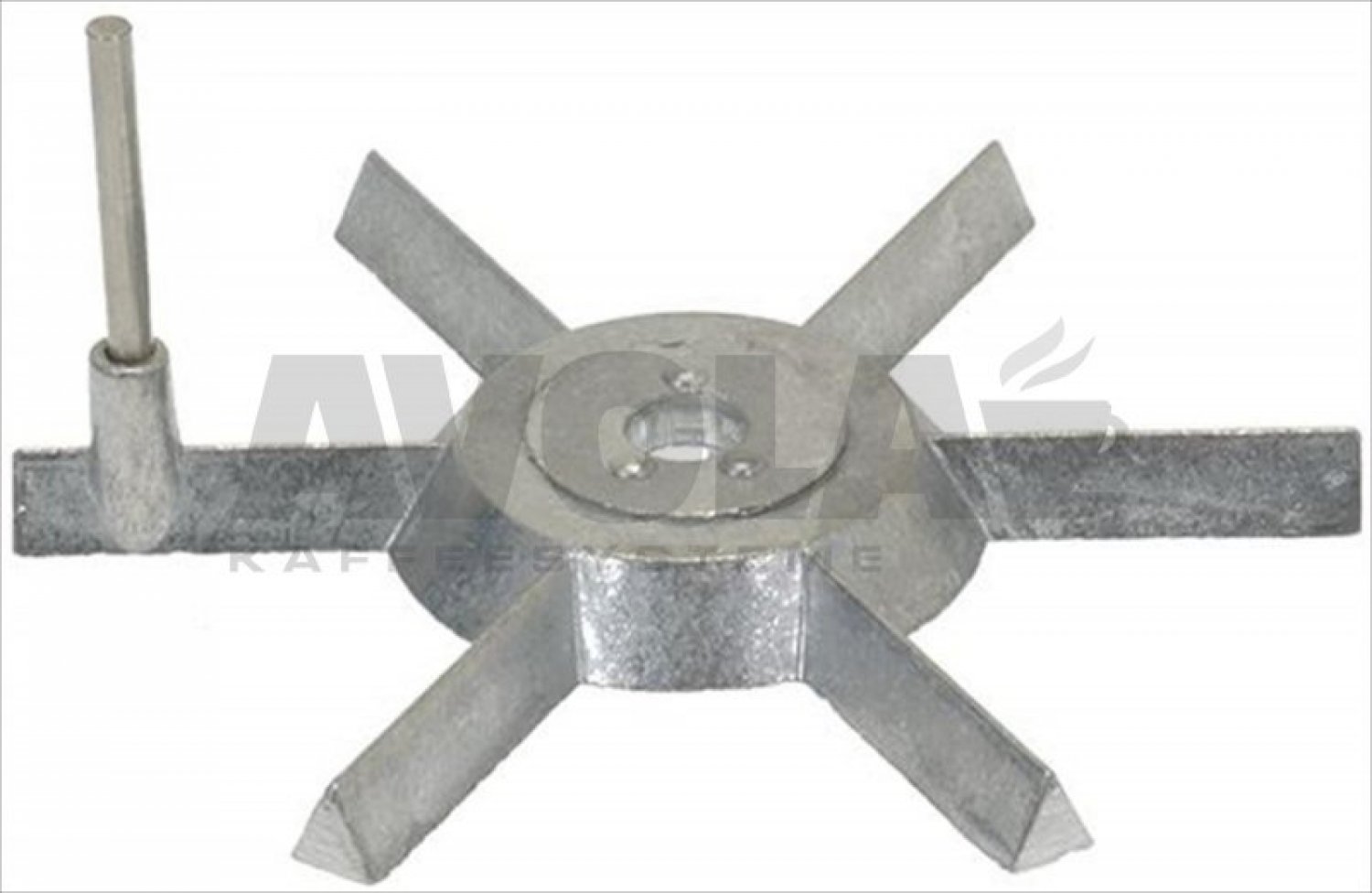

19aluminum top star 8005398
ALUMINUM TOP STAR
22,28 €

excl. Shipping costs

Delivery time 4-6 weeks..

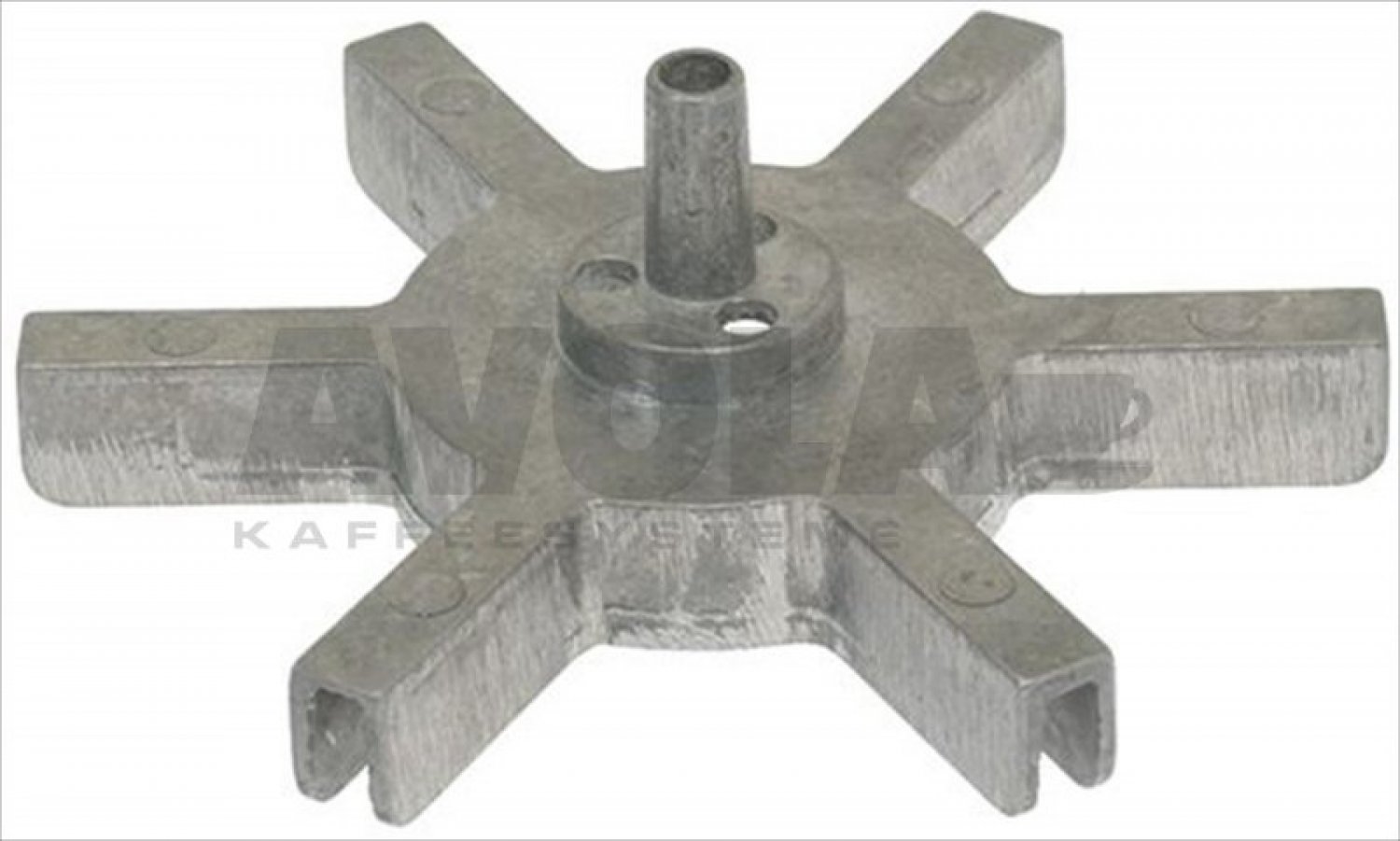

21mittlerer stern aus aluminium 8005399
MITTLERER STERN AUS ALUMINIUM
18,05 €

excl. Shipping costs

Delivery time 4-6 weeks..
22handle spindle 8005198
HANDLE SPINDLE
2,39 €

excl. Shipping costs

Delivery time 4-6 weeks..

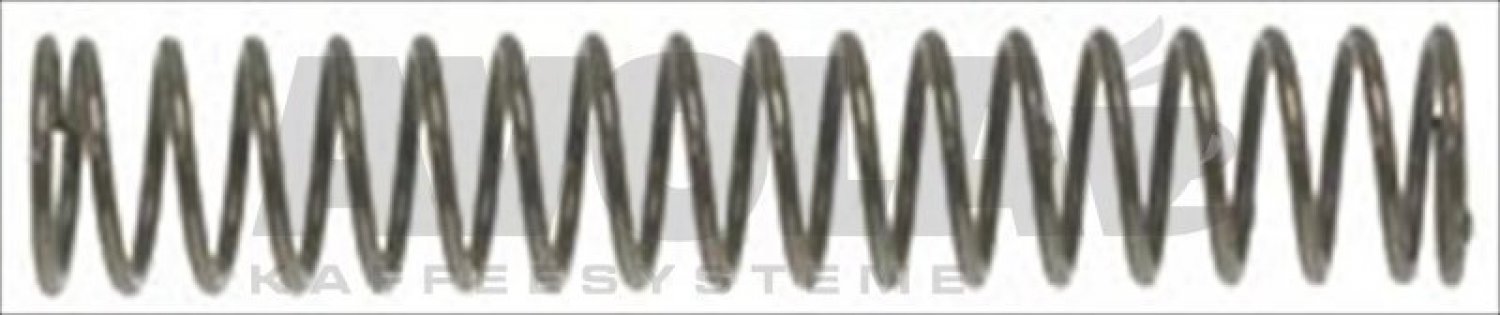

23lever pin spring 8003712
LEVER PIN SPRING
0,93 €

excl. Shipping costs

immediately available, 1 available
246 teeth pawl 8002816
6-TEETH PAWL
5,96 €

excl. Shipping costs

Delivery time
is determined
25plastic doser lever 8002817
PLASTIC DOSER LEVER
Price on request
296 teeth pawl 8002816
6-TEETH PAWL
5,96 €

excl. Shipping costs

Delivery time
is determined
30metal doser lever 8002818
METAL DOSER LEVER
34,55 €

excl. Shipping costs

Delivery time
is determined

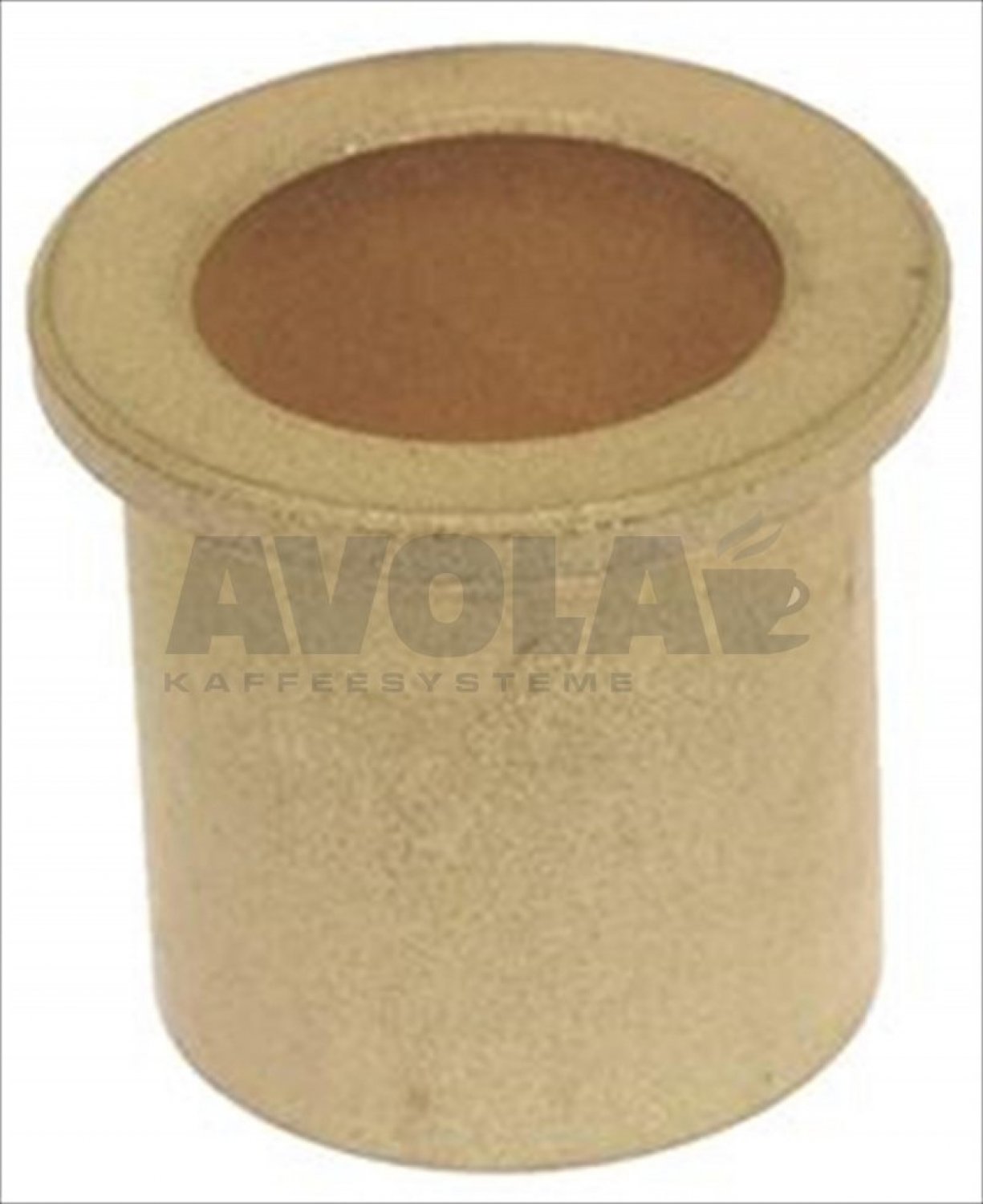

33bushing for doser 8004469
BUSHING FOR DOSER
11,35 €

excl. Shipping costs

Delivery time 4-6 weeks..
35wave washer 8004471
WAVE WASHER
6,94 €

excl. Shipping costs

Delivery time 4-6 weeks..
37coffee tamper lower cap o 57 mm 8006417
COFFEE TAMPER LOWER CAP ø 57 mm
13,34 €

excl. Shipping costs

immediately available, 1 available
38counter for coffee grinder 8004472
COUNTER FOR COFFEE GRINDER
59,89 €

excl. Shipping costs

Delivery time
is determined
41rubber piece 8002110
RUBBER PIECE
1,31 €

excl. Shipping costs

Delivery time
is determined
42shaft washer 8002112
SHAFT WASHER
1,43 €

excl. Shipping costs

Delivery time 4-6 weeks..

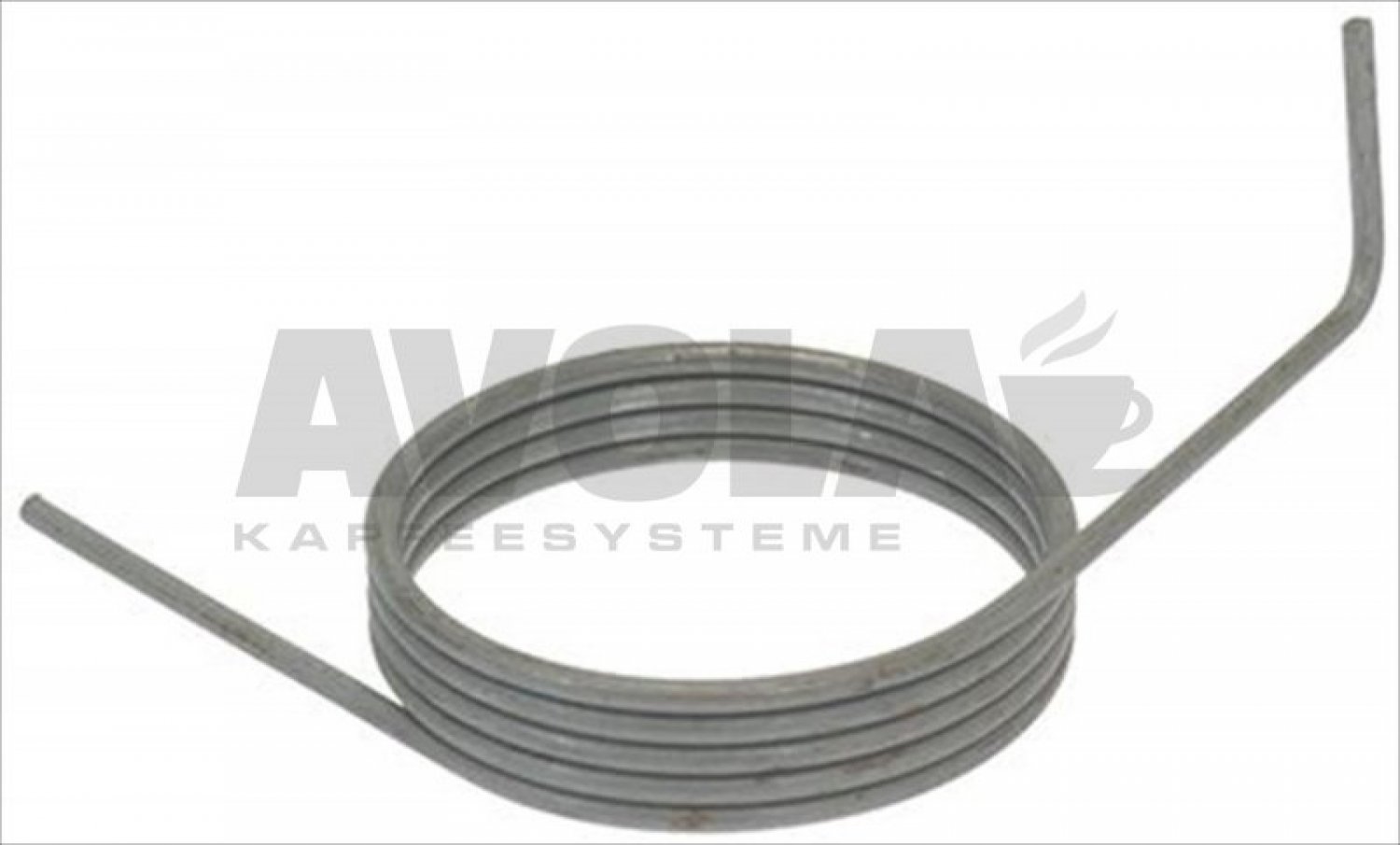

44doser lever return spring lefthand 8003704
DOSER LEVER RETURN SPRING LEFTHAND
6,60 €

excl. Shipping costs

Delivery time
is determined

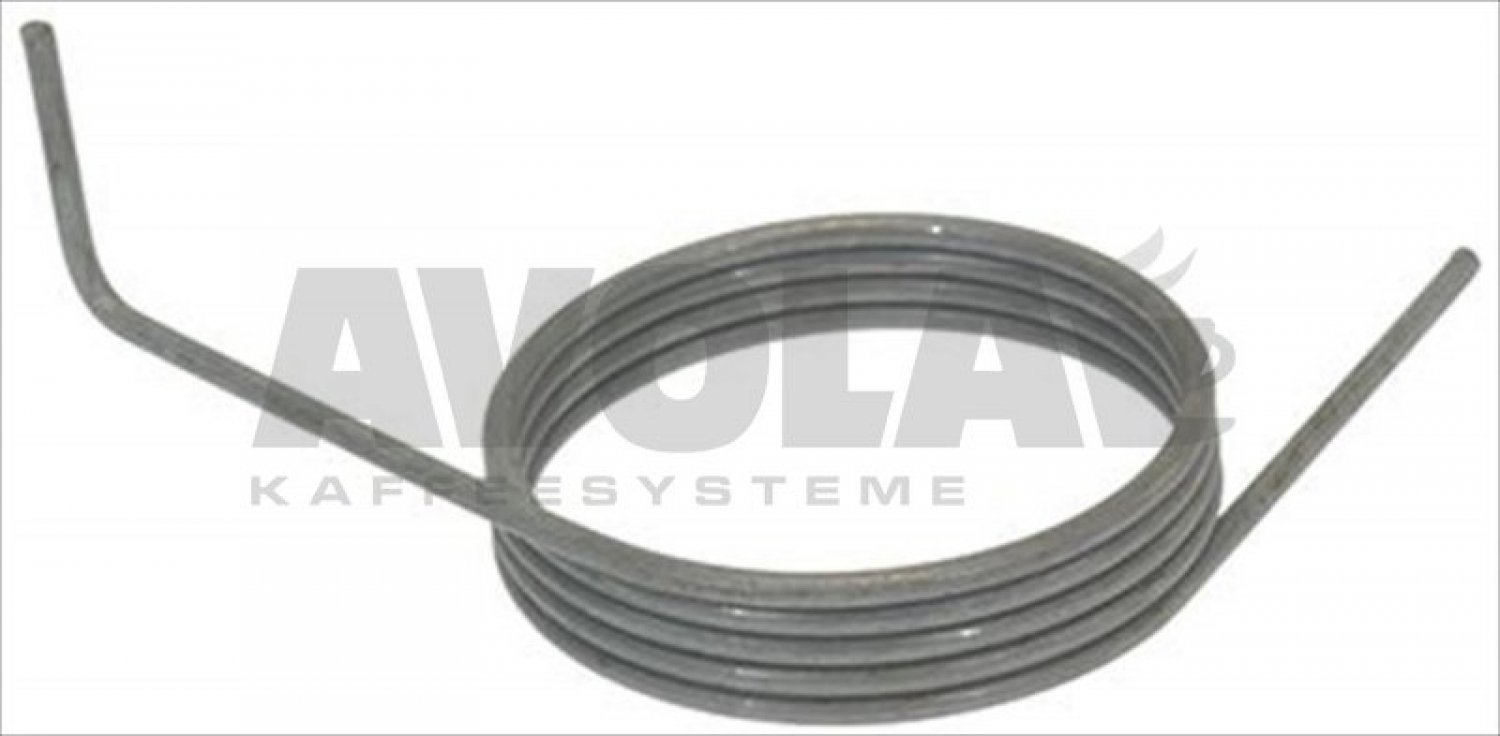

44doser lever return spring righthand 8003713
DOSER LEVER RETURN SPRING RIGHTHAND
2,92 €

excl. Shipping costs

Delivery time
is determined
45doser base k6 k8 8000699
DOSER BASE K6/K8
6,34 €

excl. Shipping costs

Delivery time
is determined
49coffee tamper spring o 15x85 mm 8003701
COFFEE TAMPER SPRING ø 15x85 mm
3,74 €

excl. Shipping costs

Delivery time
is determined
53coffee tamper cap 8006418
COFFEE TAMPER CAP
17,21 €

excl. Shipping costs

Delivery time 4-6 weeks..
56threaded reinforcement 8000706
THREADED REINFORCEMENT
1,80 €

excl. Shipping costs

Delivery time 4-6 weeks..
57standard coffee tamper 8006206
STANDARD COFFEE TAMPER
12,42 €

excl. Shipping costs

Delivery time 4-6 weeks..
58standard coffee tamper 8006206
STANDARD COFFEE TAMPER
12,42 €

excl. Shipping costs

Delivery time 4-6 weeks..

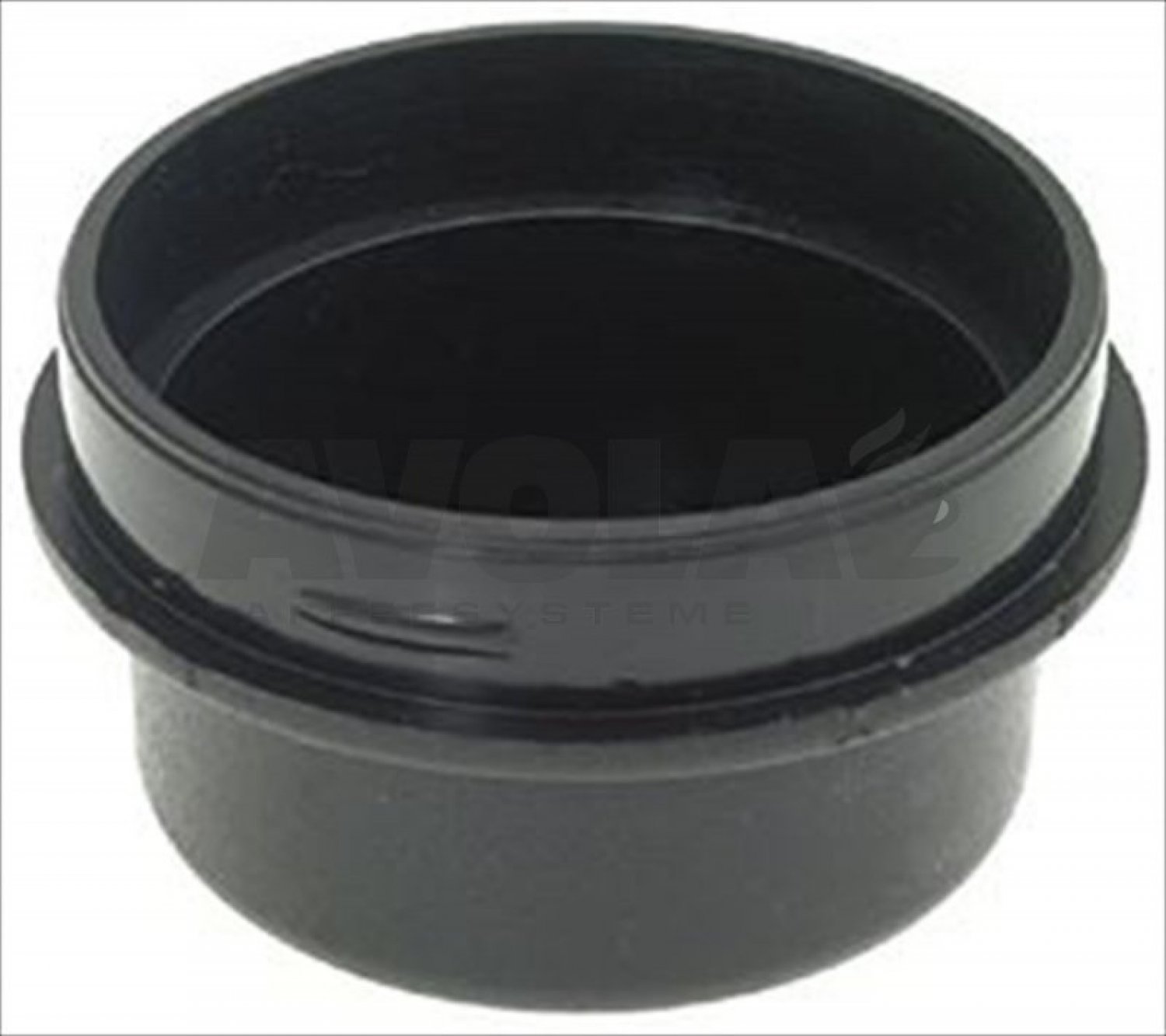

58coffee tamper cap 8006416
COFFEE TAMPER CAP
Price on request
60coffee hopper lid 8004383
COFFEE HOPPER LID
17,18 €

excl. Shipping costs

Delivery time
is determined

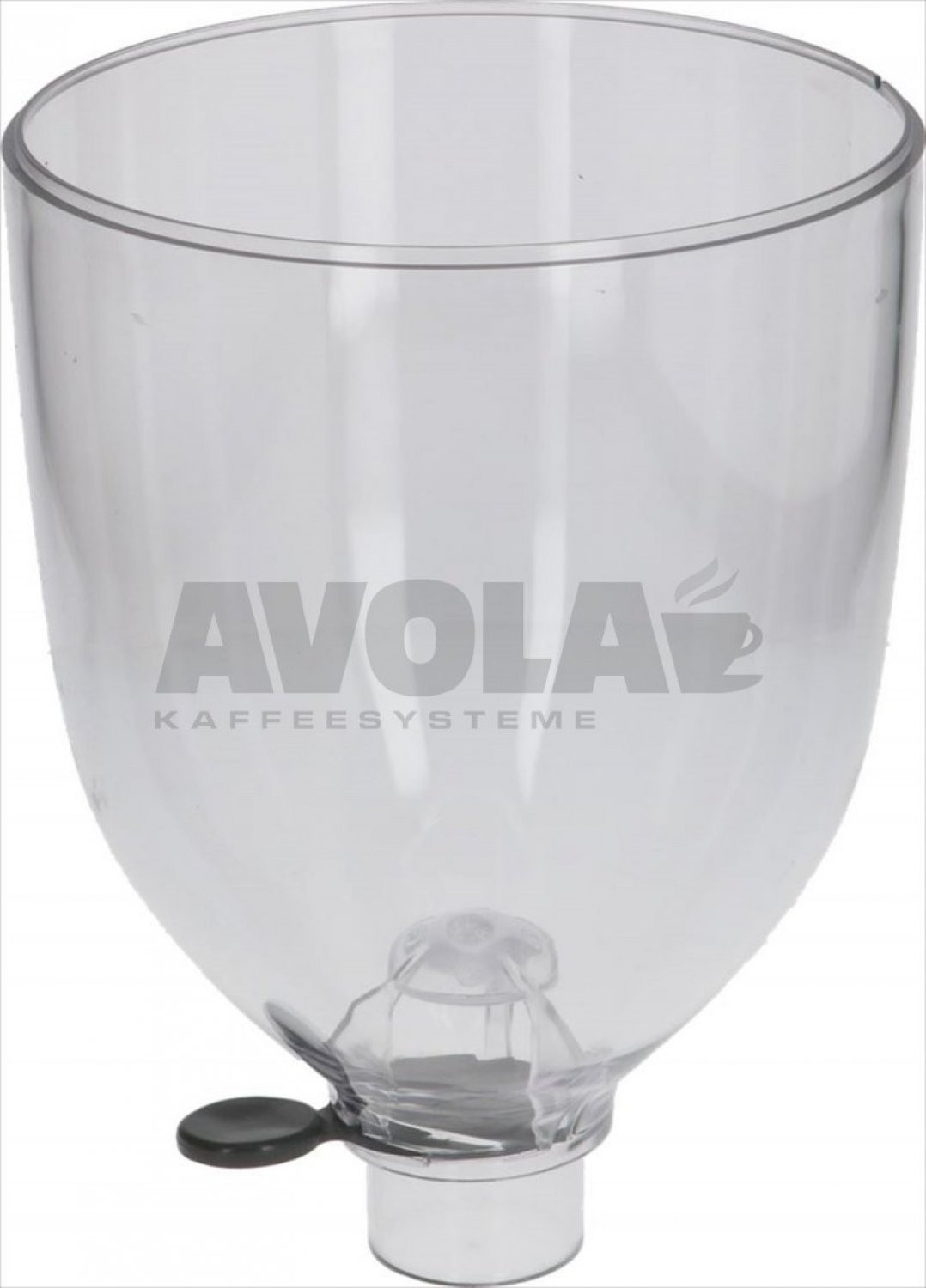

61compak coffee hopper 8000442
Compak COFFEE HOPPER
43,08 €

excl. Shipping costs

Delivery time
is determined

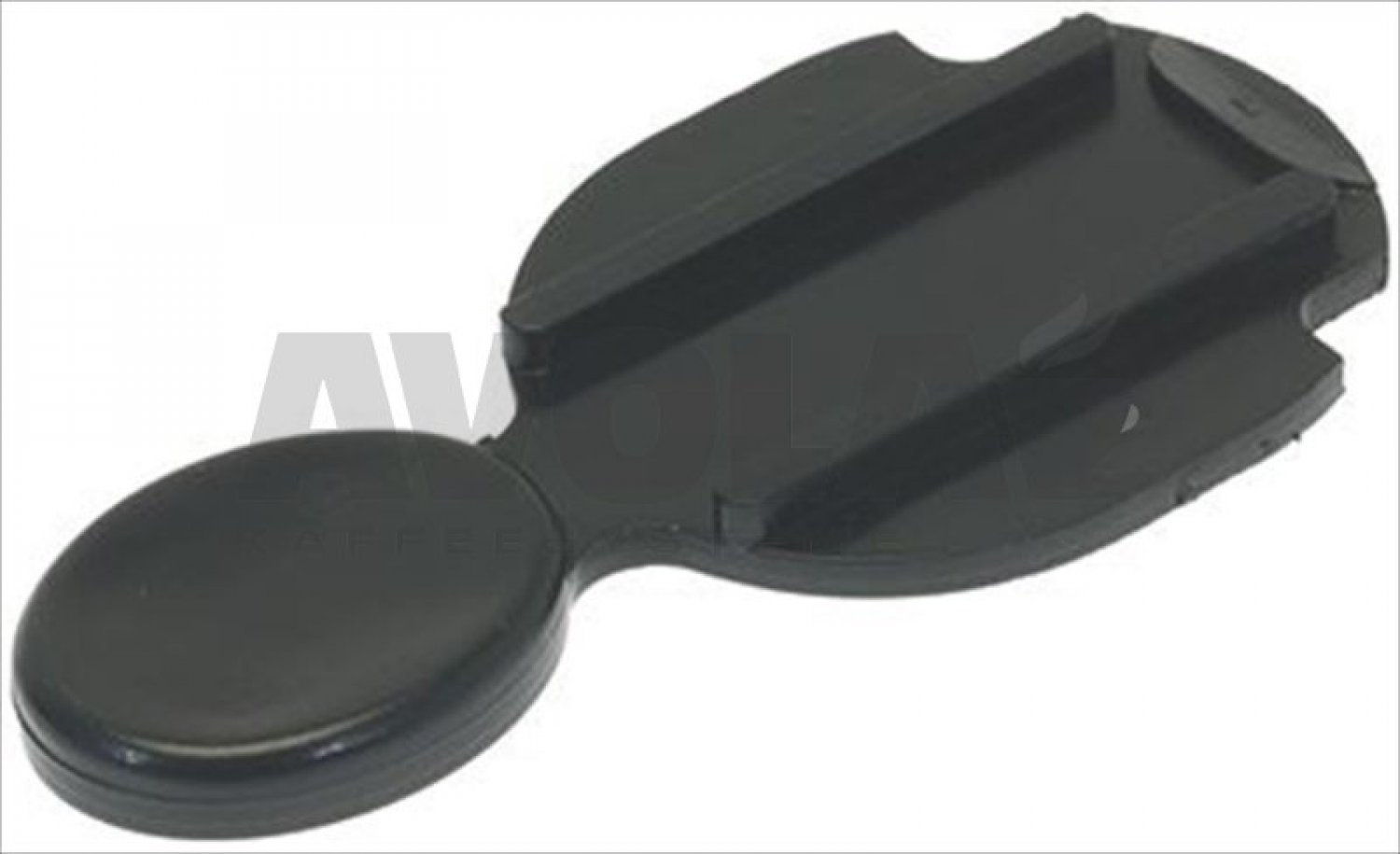

62coffee hopper closing sheet 8000443
COFFEE HOPPER CLOSING SHEET
6,52 €

excl. Shipping costs

immediately available, 1 available

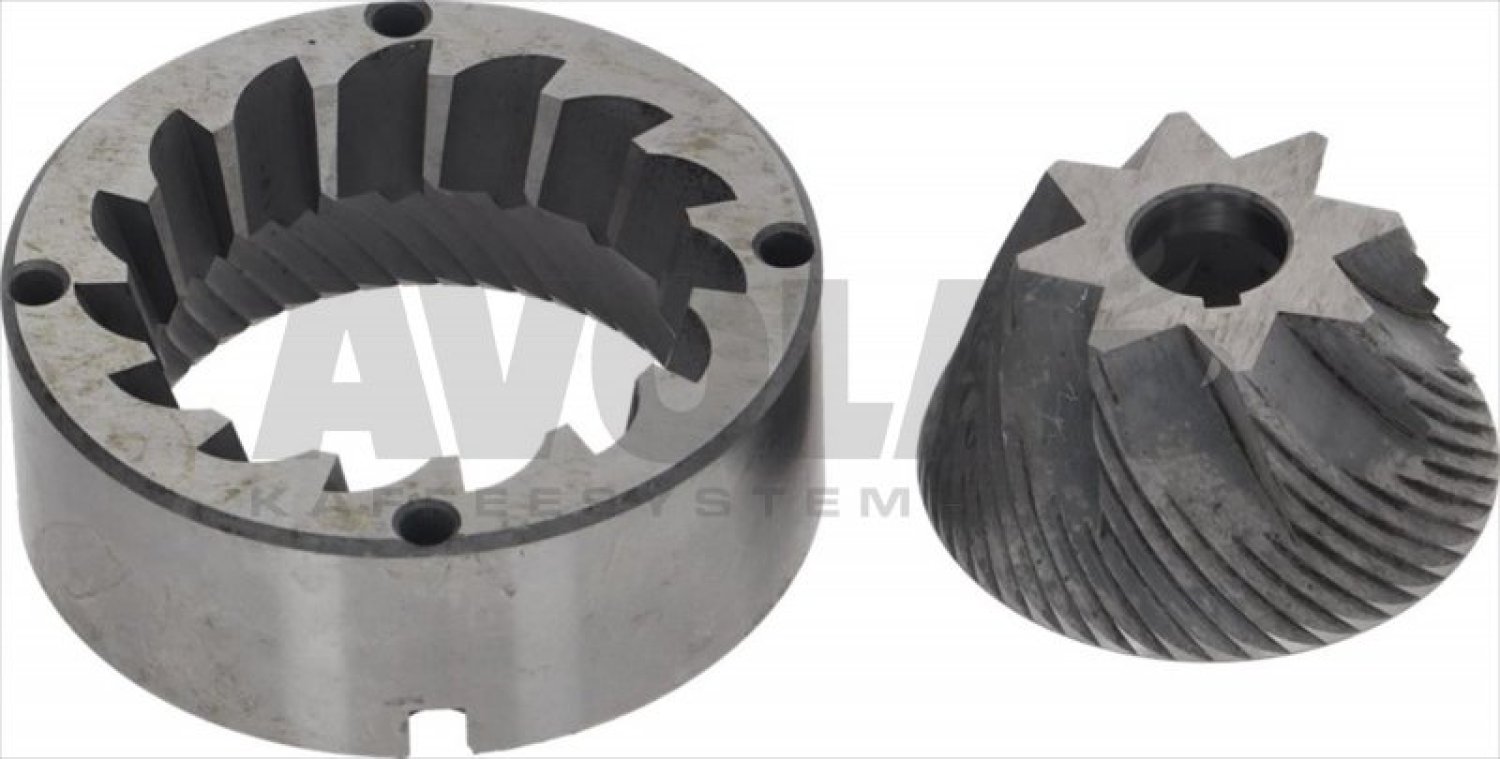

81conical grinding burrs compak pair rh 8004013
CONICAL GRINDING BURRS COMPAK (PAIR) RH
80,31 €

excl. Shipping costs

Delivery time
is determined
82cylinder head screw m4x20 8007287
CYLINDER HEAD SCREW M4x20
Price on request

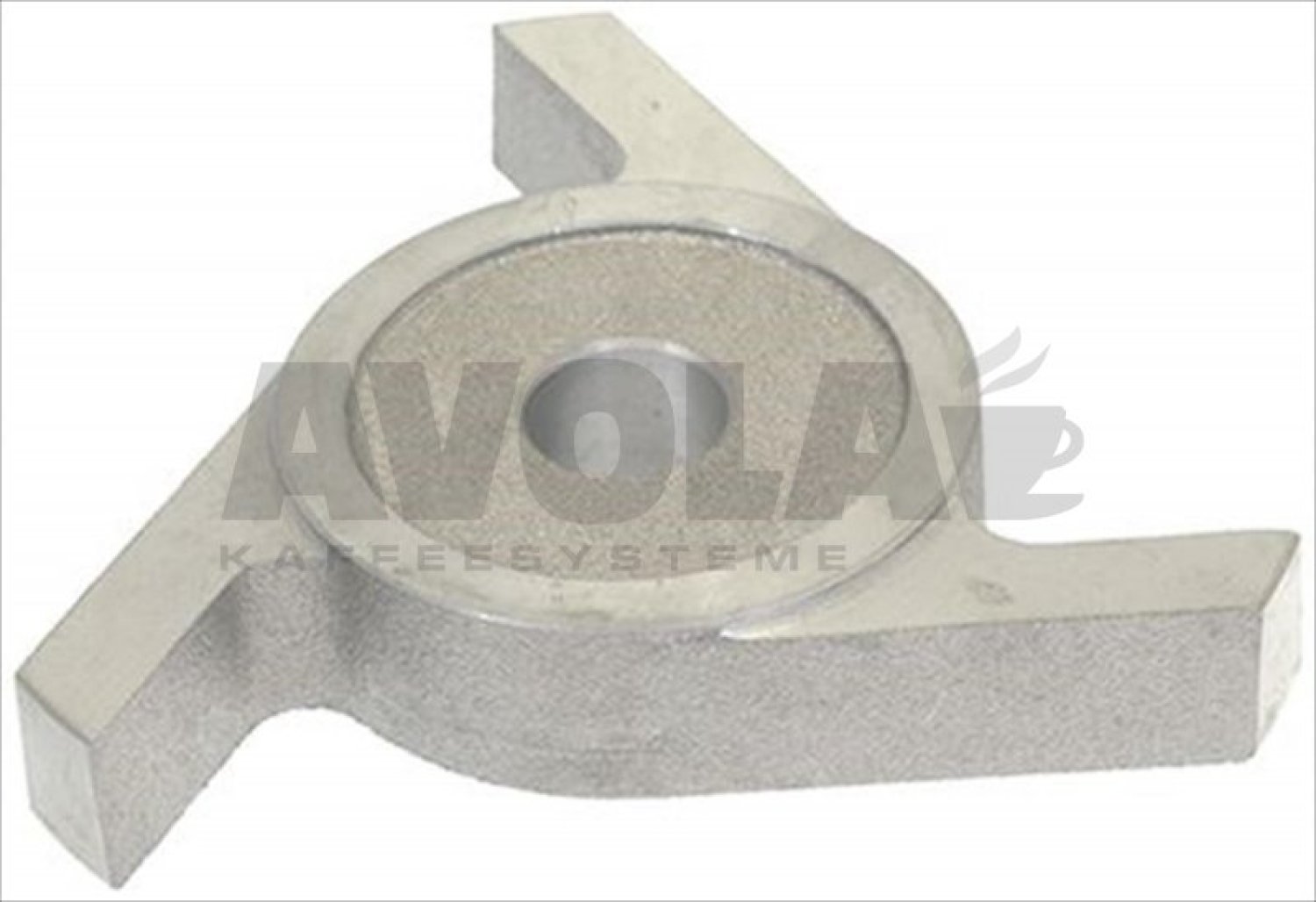

83grinding burrs bottom holder 8004018
GRINDING BURRS BOTTOM HOLDER
60,94 €

excl. Shipping costs

Delivery time 4-6 weeks..
92suction foot 8004618
SUCTION FOOT
3,28 €

excl. Shipping costs

immediately available, 1 available
94compak coffee collection tray 8004576
Compak COFFEE COLLECTION TRAY
18,73 €

excl. Shipping costs

Delivery time
is determined

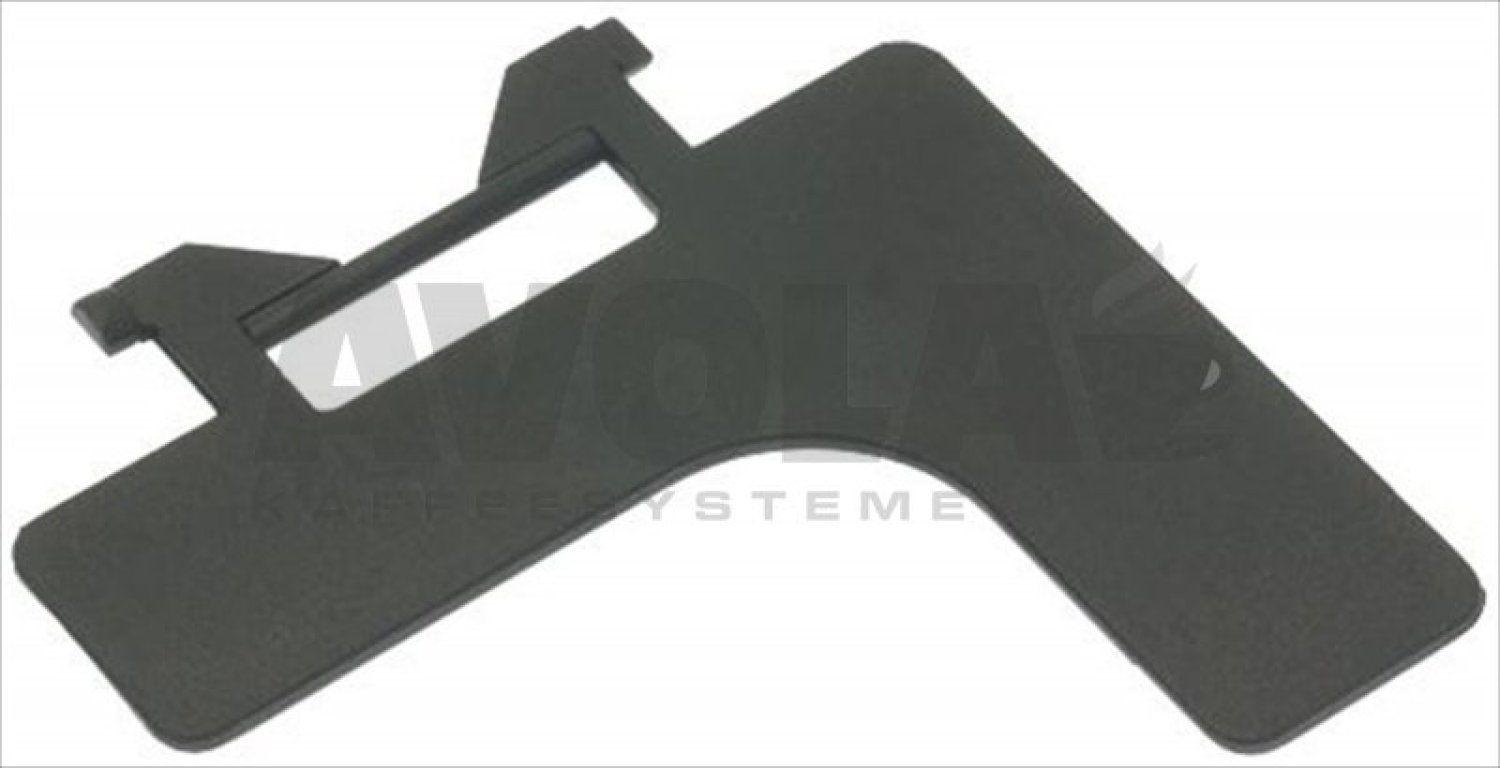

98doser flap 8000676
DOSER FLAP
9,92 €

excl. Shipping costs

Delivery time 4-6 weeks..

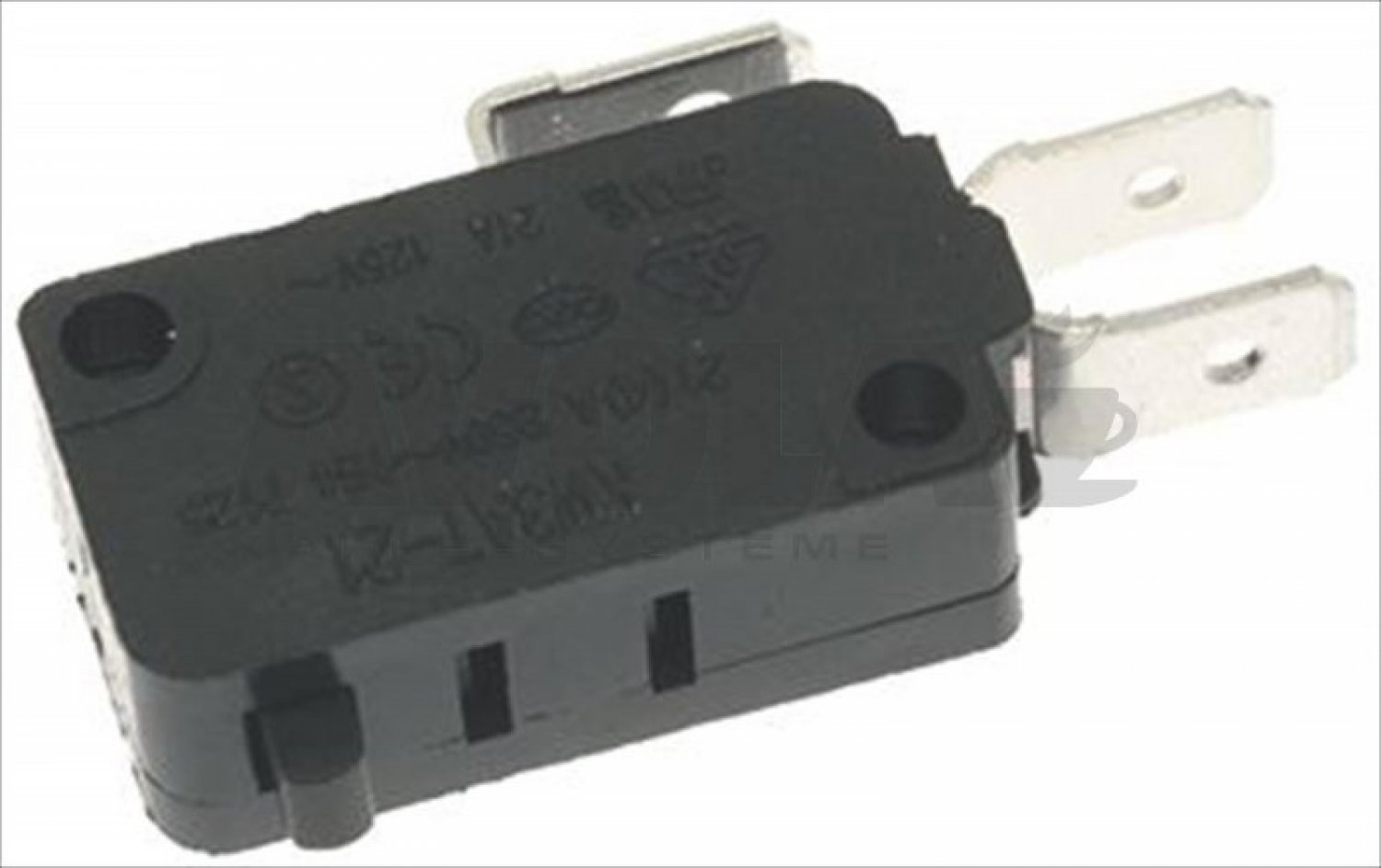

101microswitch 21a 250v 8002899
MICROSWITCH 21A 250V
9,51 €

excl. Shipping costs

Delivery time 4-6 weeks..

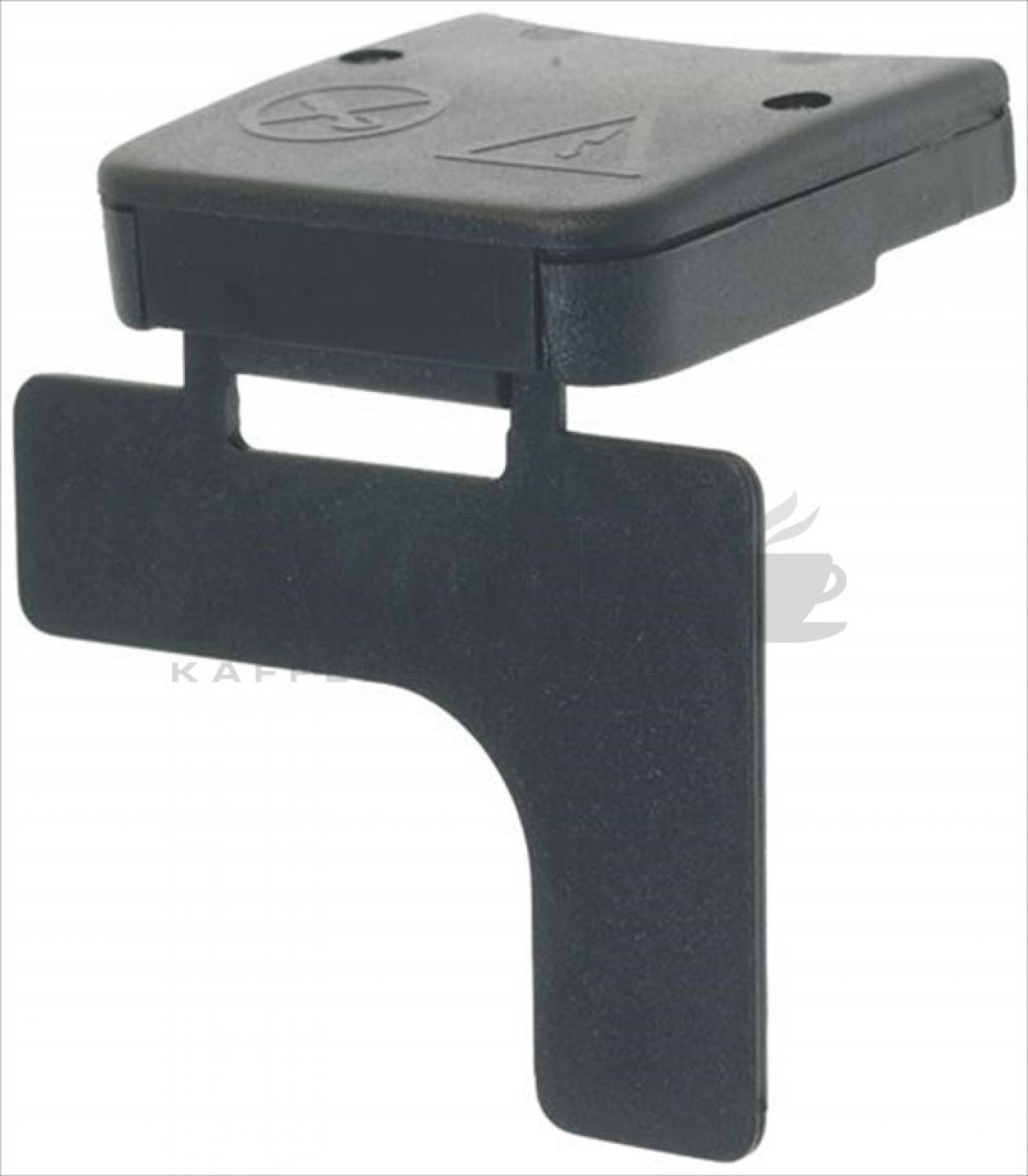

104flap with microswitch box 8004177
FLAP WITH MICROSWITCH BOX
22,49 €

excl. Shipping costs

Delivery time
is determined

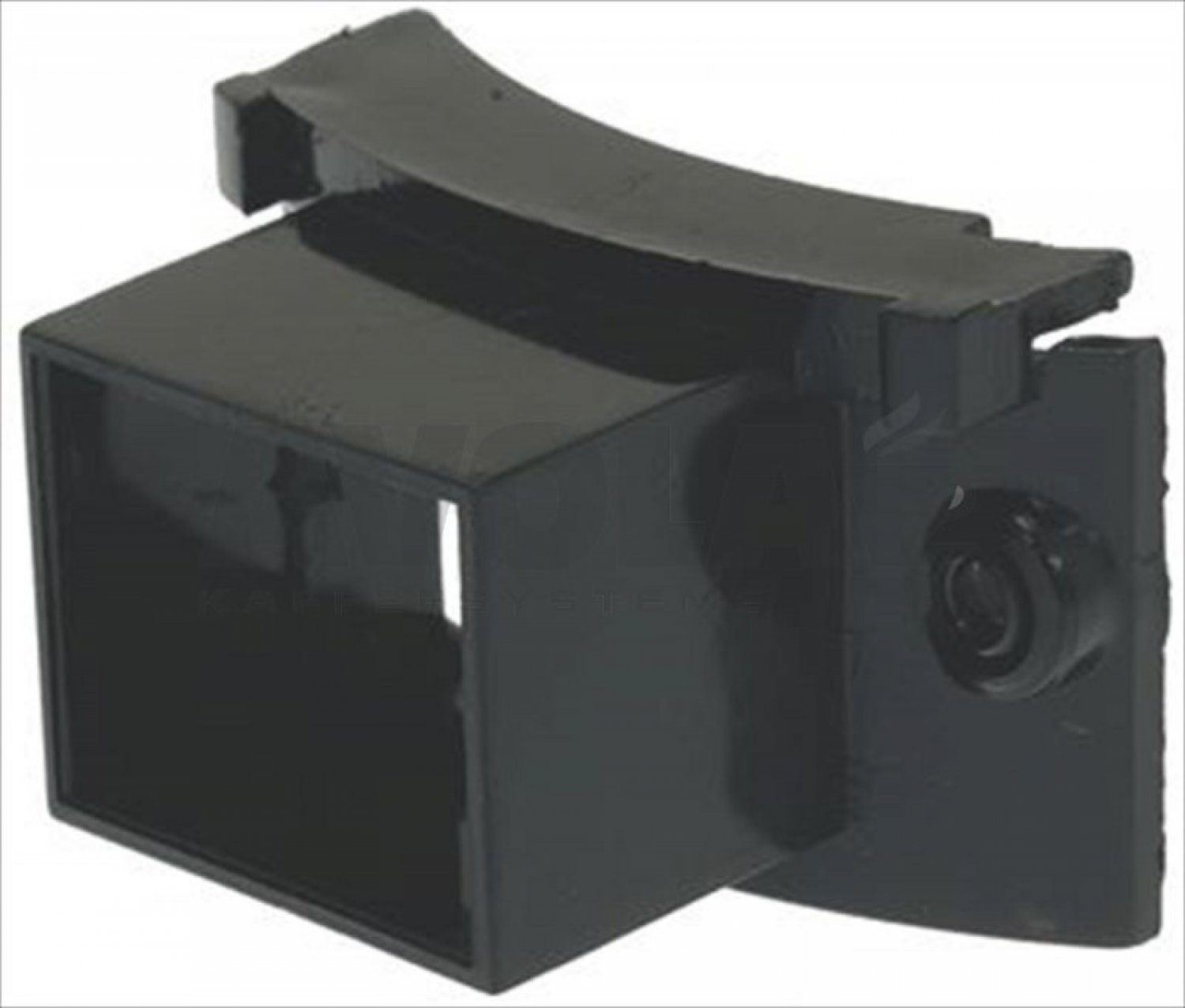

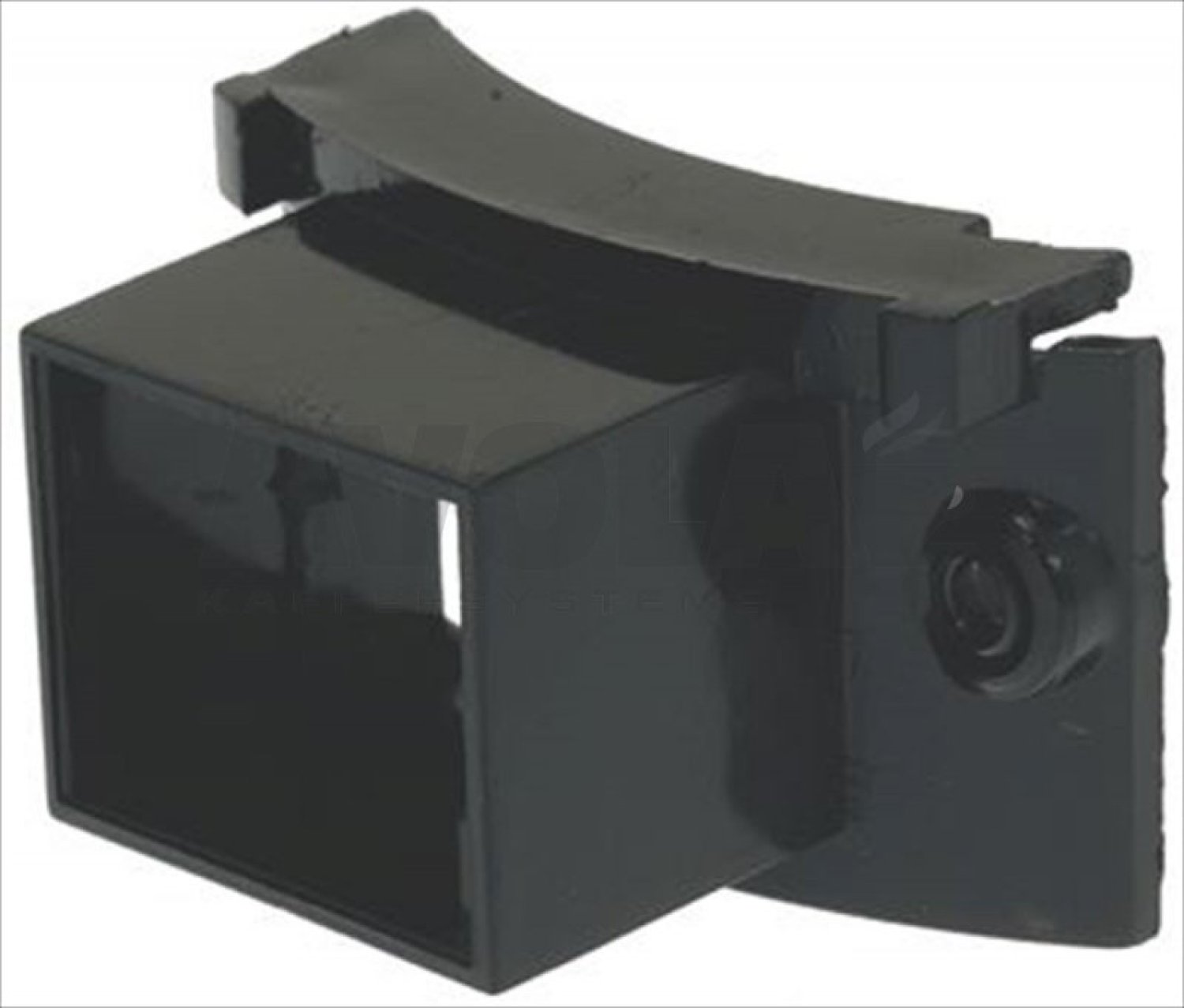

107gasket for coffee outlet opening 8004475
GASKET FOR COFFEE OUTLET OPENING
8,28 €

excl. Shipping costs

immediately available, 1 available
109chromeplated doser ring 8000012
CHROMEPLATED DOSER RING
36,28 €

excl. Shipping costs

Delivery time
is determined

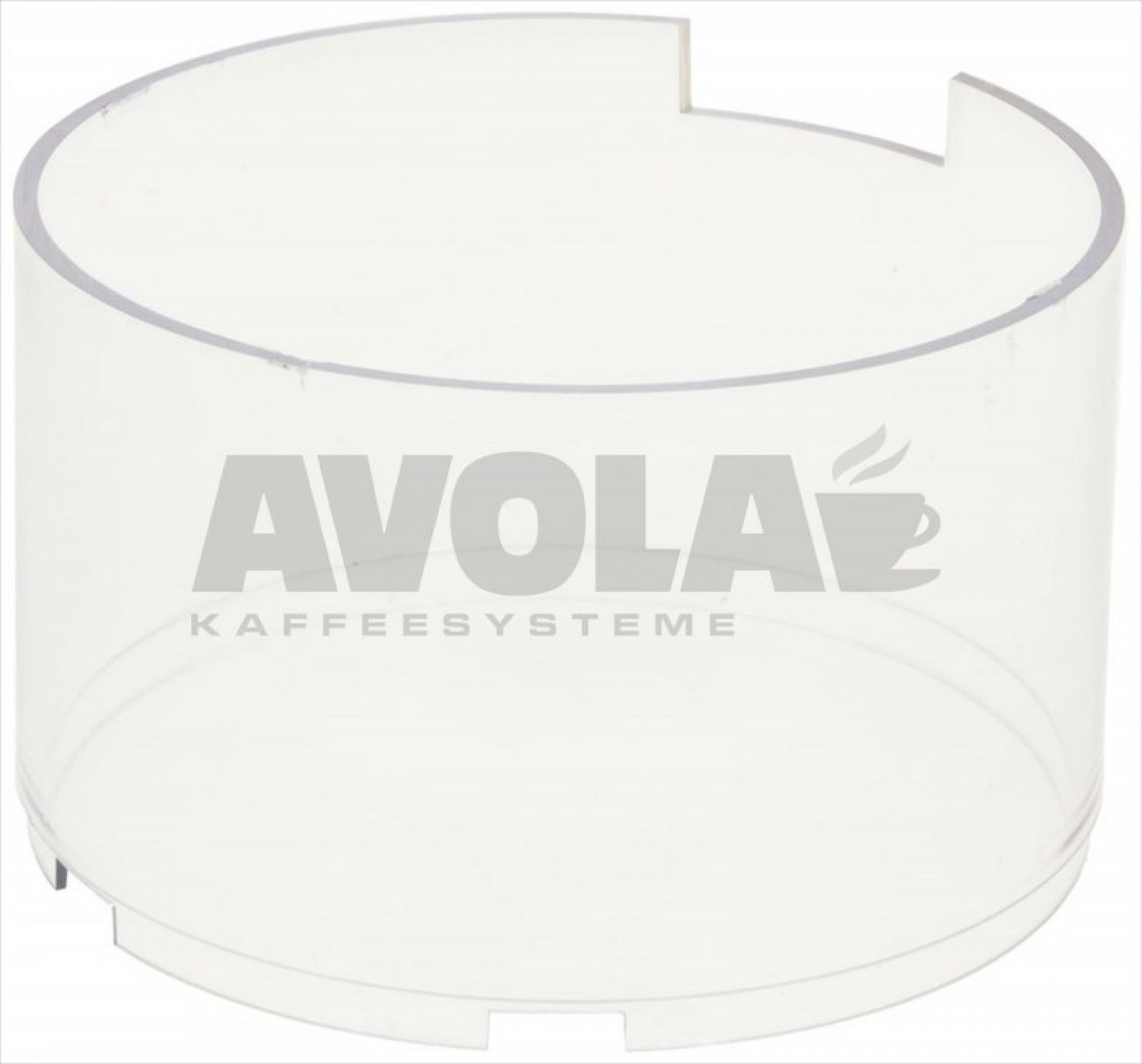

110doser cylinder 8000703
DOSER CYLINDER
20,02 €

excl. Shipping costs

Delivery time
is determined
116o ring 02106 epdm 8014819
O-RING 02106 EPDM
4,17 €

excl. Shipping costs

immediately available, 4 available

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
