Conti

CONTI BRÜHGRUPPE GRUPPE KAFFEEAUSGABE

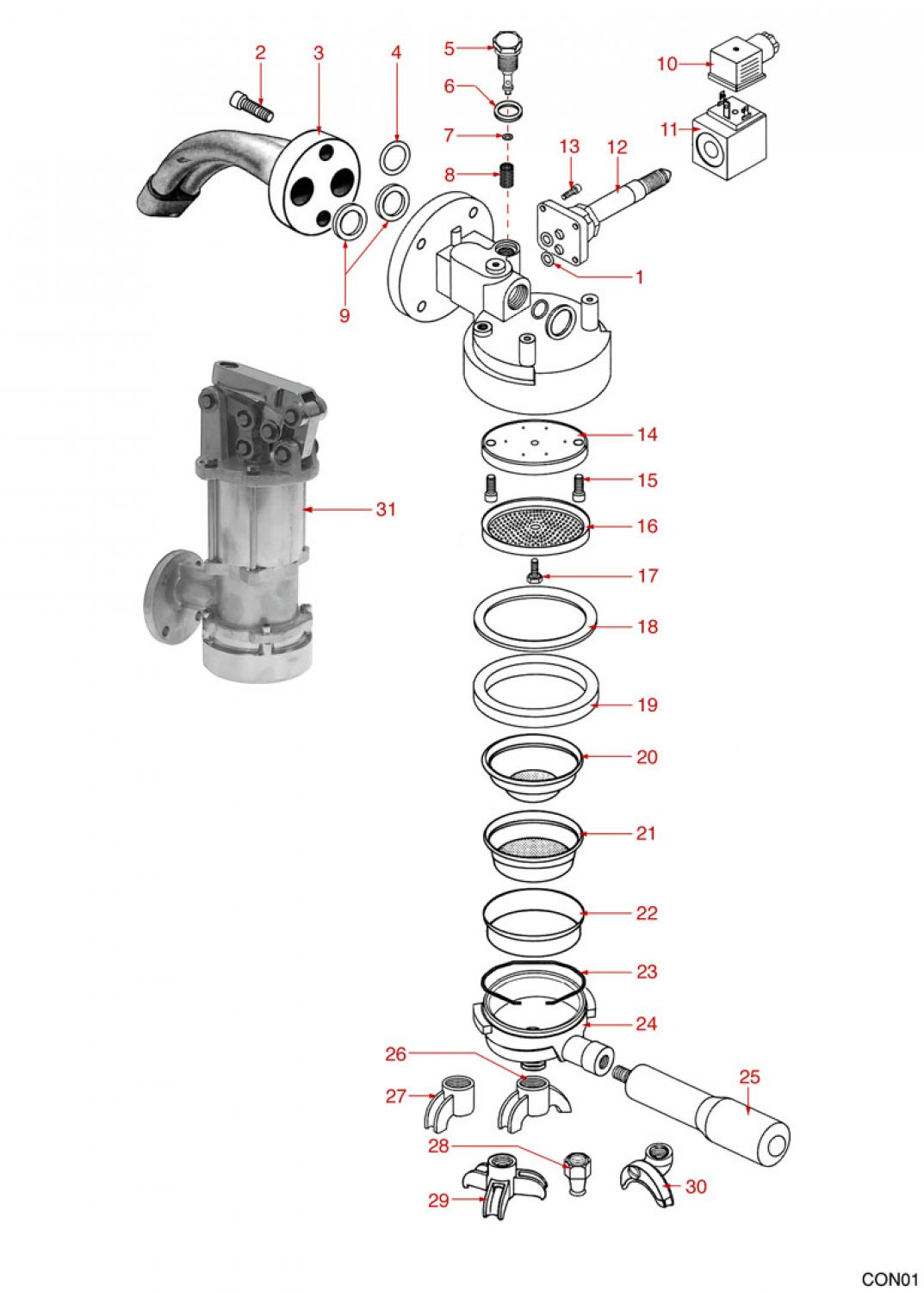

Drawing number 8038714

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.: Image: Description: Qty.:
1o ring 02025 viton 8001810
O-RING 02025 VITON
0,87 €

excl. Shipping costs

immediately available
4o ring 0115 epdm 8001977
O-RING 0115 EPDM
0,93 €

excl. Shipping costs

immediately available
5cap for brew group 8005731
CAP FOR BREW GROUP
13,80 €

excl. Shipping costs

Delivery time
is determined

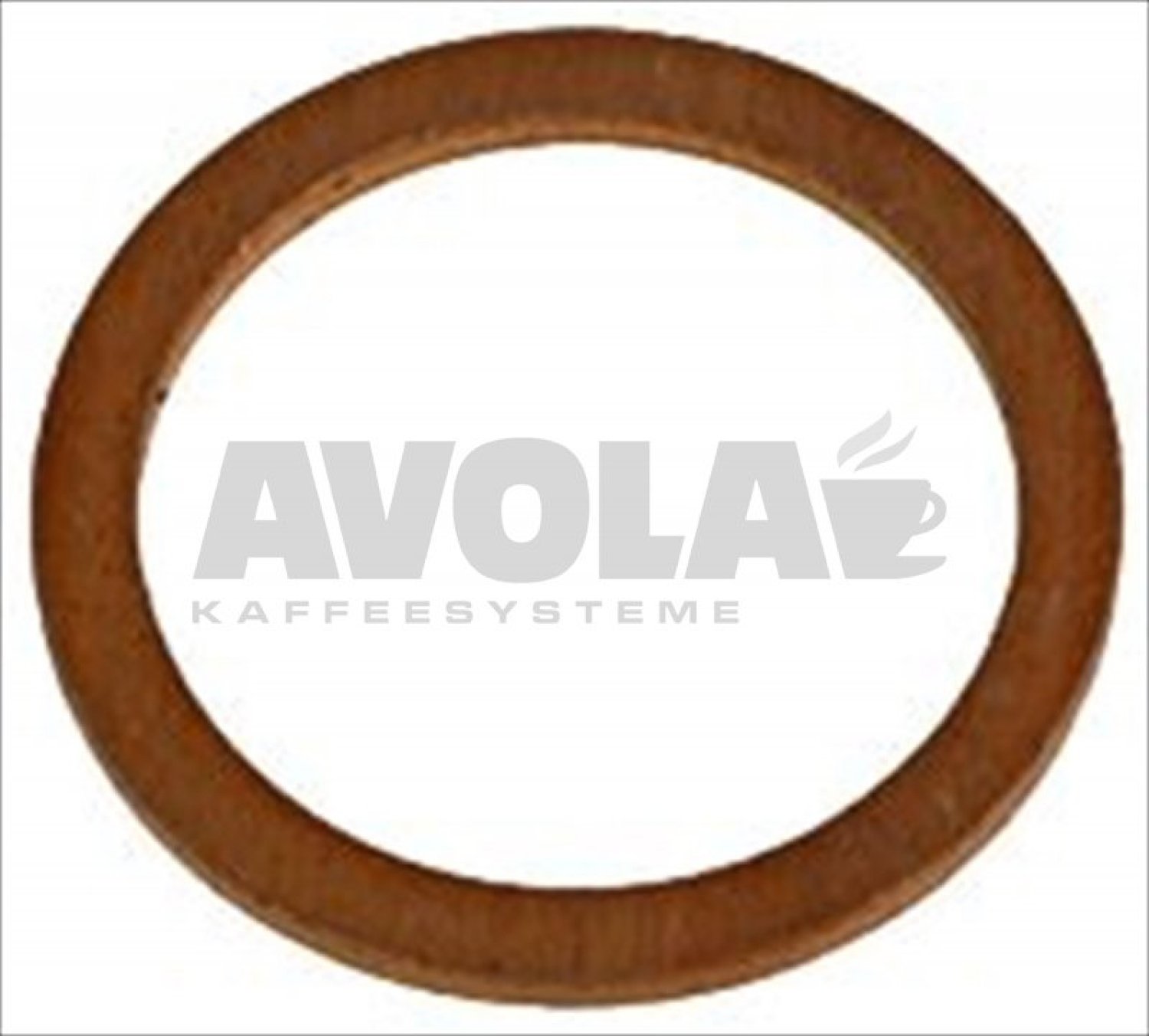

6copper flat gasket o 17x13 1x1 mm 8001414
COPPER FLAT GASKET ø 17x13,1x1 mm
1,25 €

excl. Shipping costs

immediately available

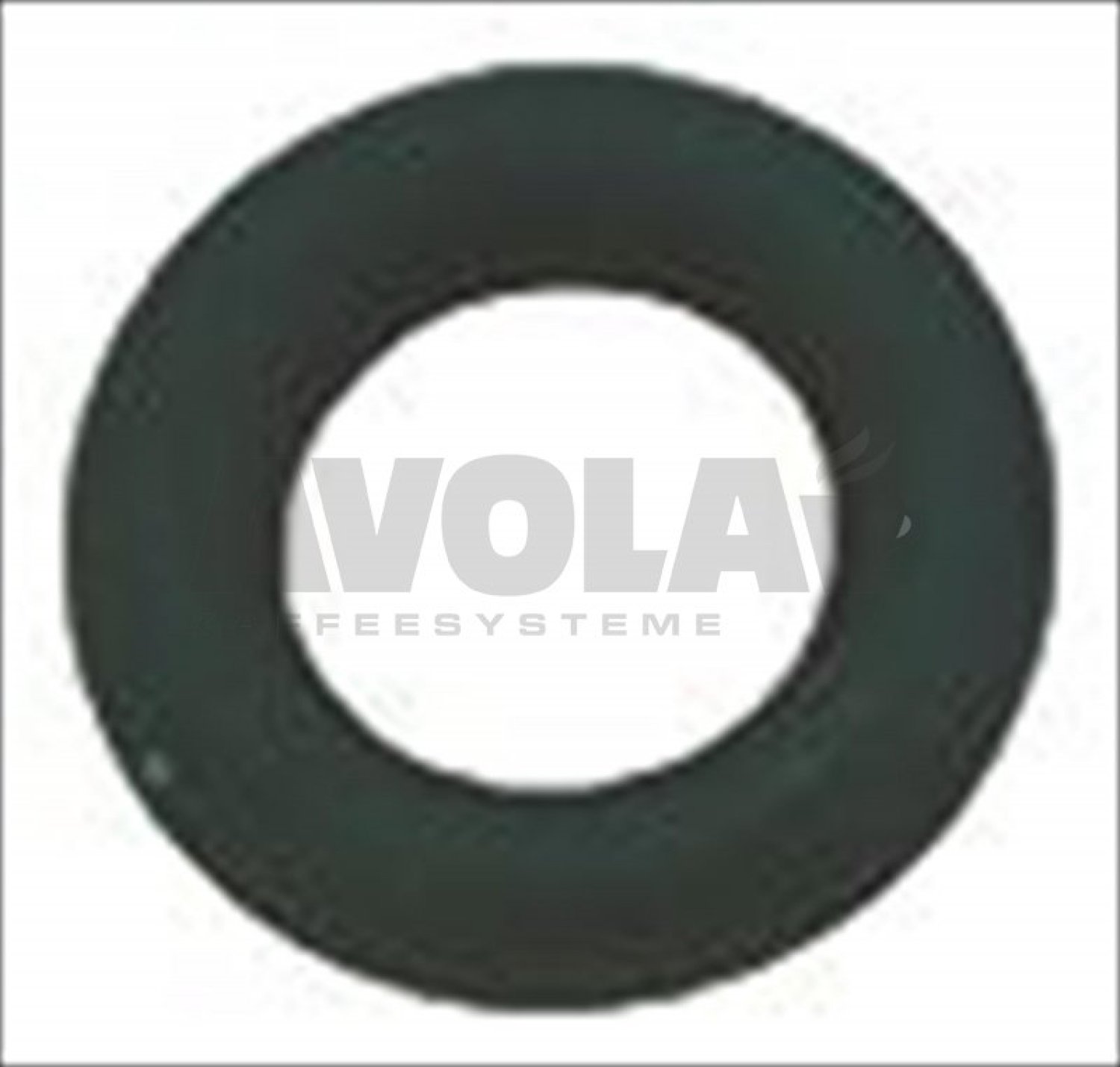

7o ring 0040 20 epdm 8036617
O-RING 0040-20 EPDM
0,84 €

excl. Shipping costs

immediately available

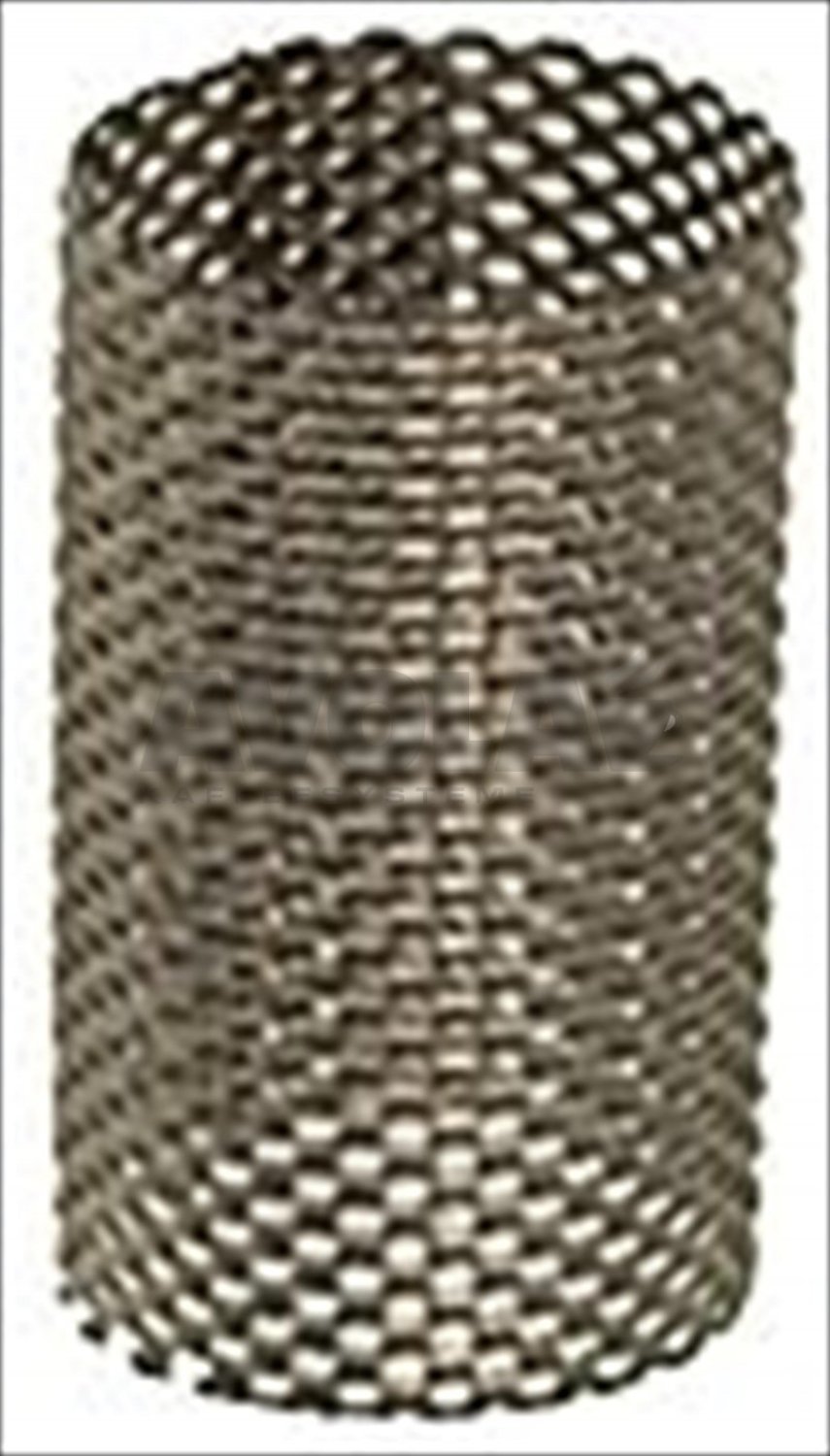

8water filter 8001102
WATER FILTER
2,99 €

excl. Shipping costs

Delivery time
is determined

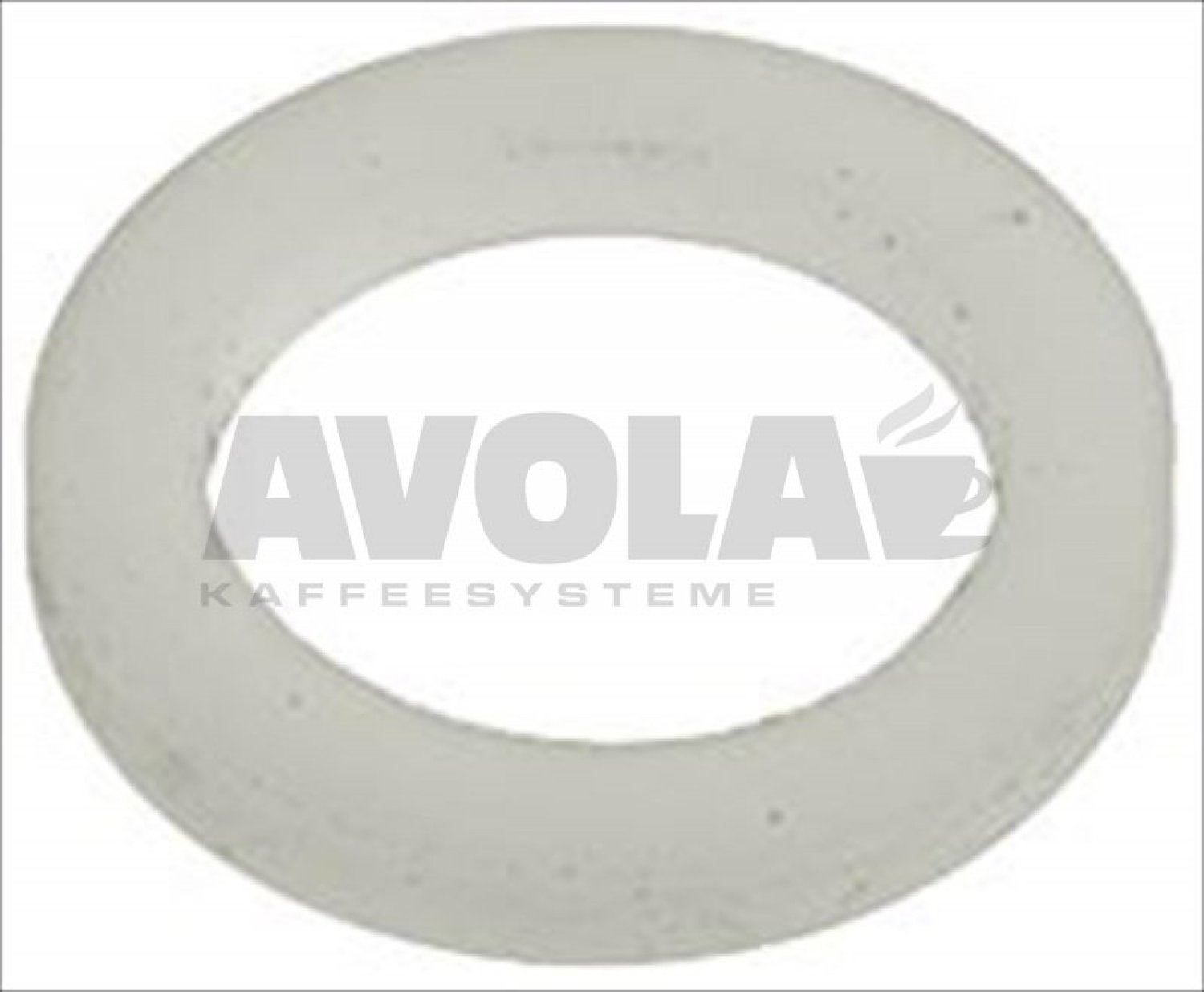

9ptfe flat gasket 8001417
PTFE FLAT GASKET
1,31 €

excl. Shipping costs

immediately available, 7 available
10female large connector 8012420
FEMALE LARGE CONNECTOR
2,94 €

excl. Shipping costs

immediately available, 6 available
11coil parker zb09 9w 220 240v 50 60hz 8012418
COIL PARKER ZB09 9W 220/240V 50/60Hz
20,74 €

excl. Shipping costs

immediately available, 14 available
123 way mechanical component parker 8000962
3-WAY MECHANICAL COMPONENT PARKER
42,72 €

excl. Shipping costs

immediately available, 13 available
13schraube zylinderkopf innensechskant vollgewinde edelstahl m4x10 a2 70 din 912 8061180
Schraube Zylinderkopf Innensechskant Vollgewinde Edelstahl M4x10 A2-70 Din 912
0,67 €

excl. Shipping costs

immediately available

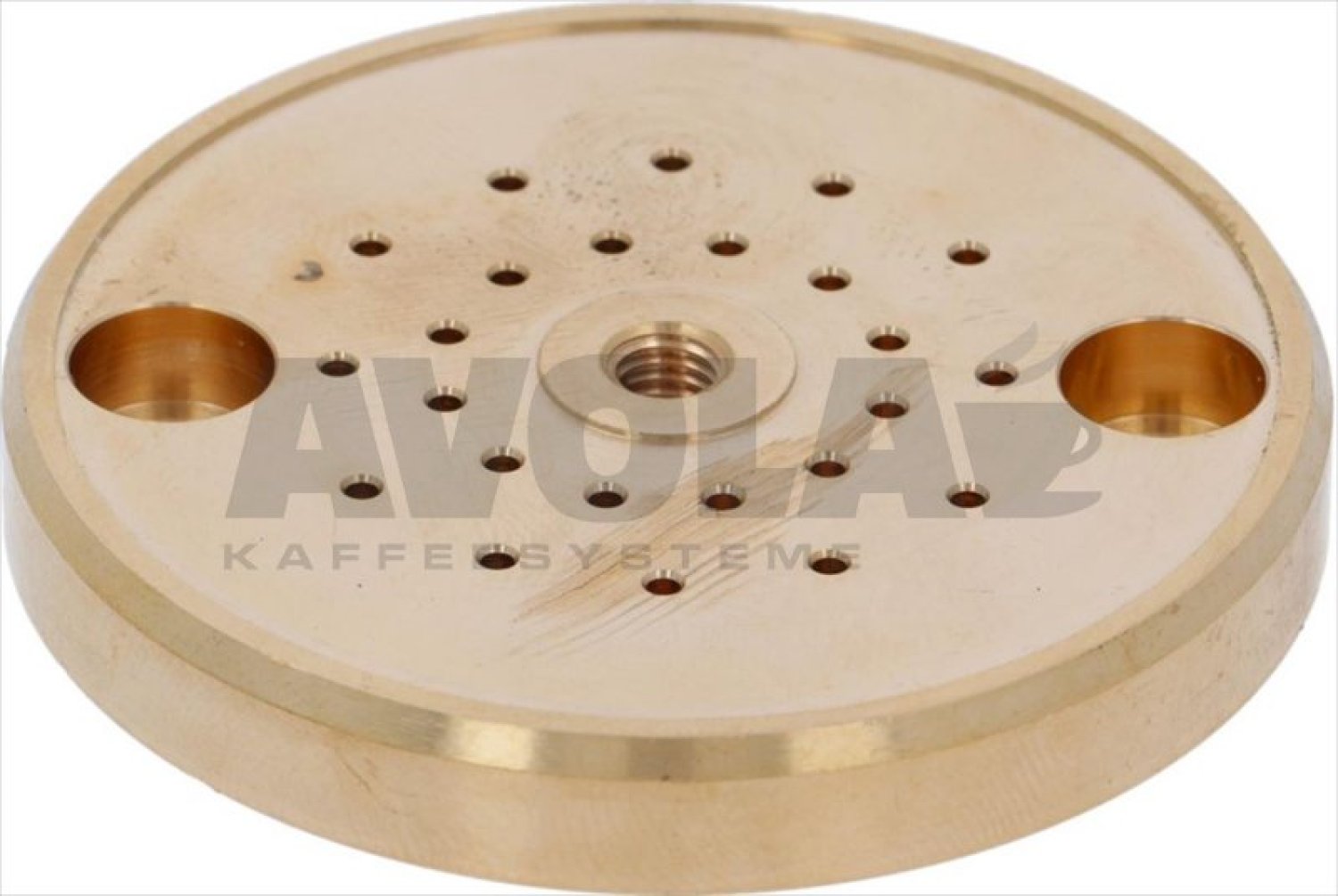

14shower holder diffuser 8000617
SHOWER HOLDER DIFFUSER
38,73 €

excl. Shipping costs

Delivery time 4-6 weeks..
15cylinder head screw m5x10 8001294
CYLINDER HEAD SCREW M5x10
1,01 €

excl. Shipping costs

immediately available
16conti shower screen o 57 50 8000605
CONTI SHOWER SCREEN ø 57,50
4,91 €

excl. Shipping costs

immediately available, 5 available
18paper shim o 73x59x0 8 mm 8002167
Paper shim ø 73x59x0,8 mm
0,49 €

excl. Shipping costs

immediately available

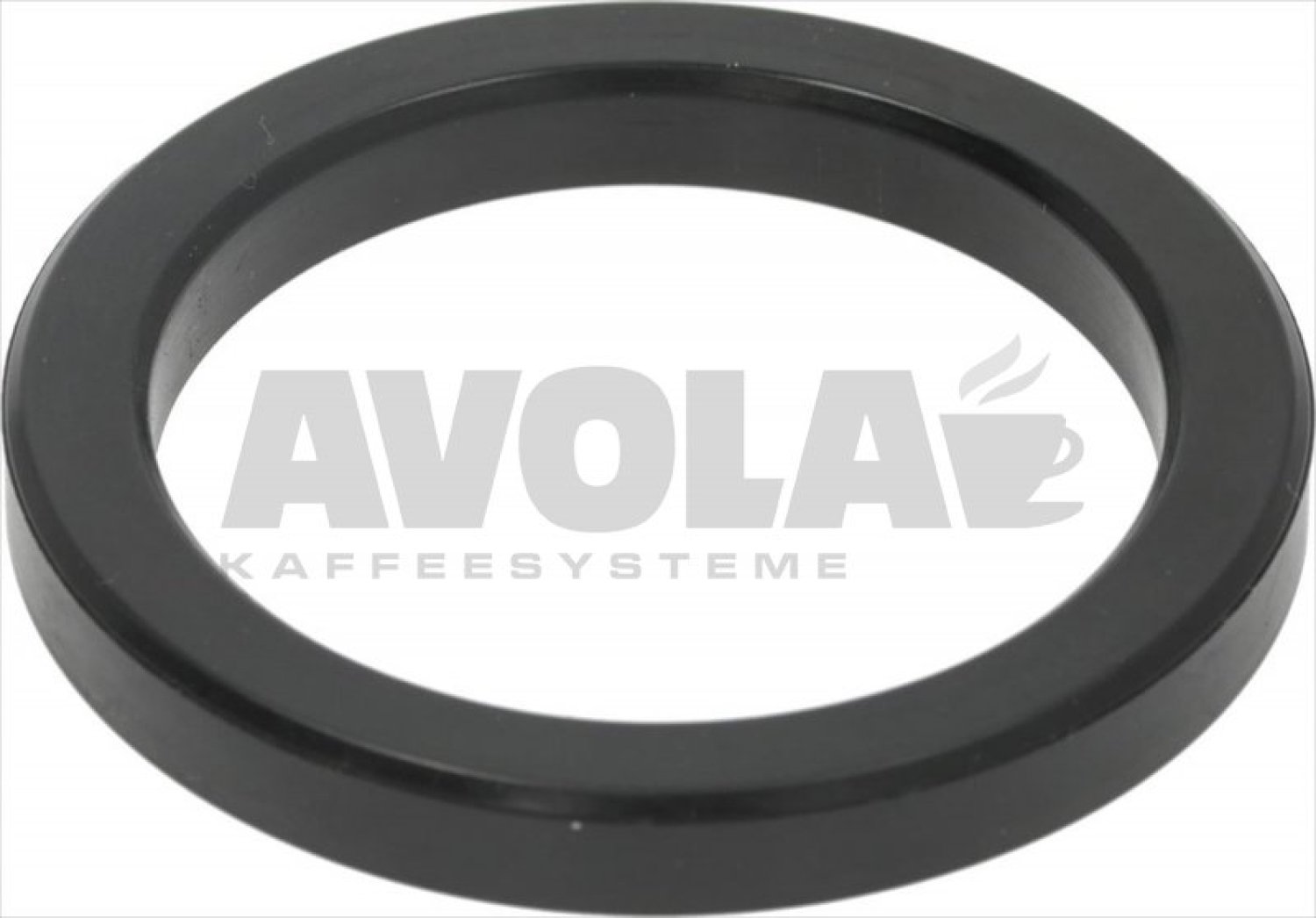

19filter holder gasket o 73x57x8 mm 8001902
FILTER HOLDER GASKET Ø 73x57x8 mm
3,47 €

excl. Shipping costs

immediately available
19filter holder gasket o 73x57x9 mm 8001904
FILTER HOLDER GASKET ø 73x57x9 mm
3,99 €

excl. Shipping costs

immediately available, 19 available
19filter holder gasket 8001903
FILTER HOLDER GASKET
3,00 €

excl. Shipping costs

immediately available
201 cup filter 6 g 8001076
1 CUP FILTER 6 g
5,41 €

excl. Shipping costs

immediately available, 11 available
201 cup filter 7 g 8001120
1 CUP FILTER 7 g
6,50 €

excl. Shipping costs

immediately available, 15 available
212 cup filter 12 grams 8001077
2-CUP FILTER 12 GRAMS
5,41 €

excl. Shipping costs

immediately available, 5 available
212 cup filter 14 grams 8001101
2-CUP FILTER 14 GRAMS
7,02 €

excl. Shipping costs

immediately available
212 cups filter 18 21gr o 70x28 mm 8001104
2 Cups Filter 18/21gr ø 70x28 mm
4,46 €

excl. Shipping costs

immediately available, 5 available
22blind filter o58mm 8001103
BLIND FILTER Ø58mm
2,56 €

excl. Shipping costs

immediately available
23filter blocking spring o 1 00 mm 8003622
FILTER BLOCKING SPRING ø 1,00 mm
1,05 €

excl. Shipping costs

immediately available

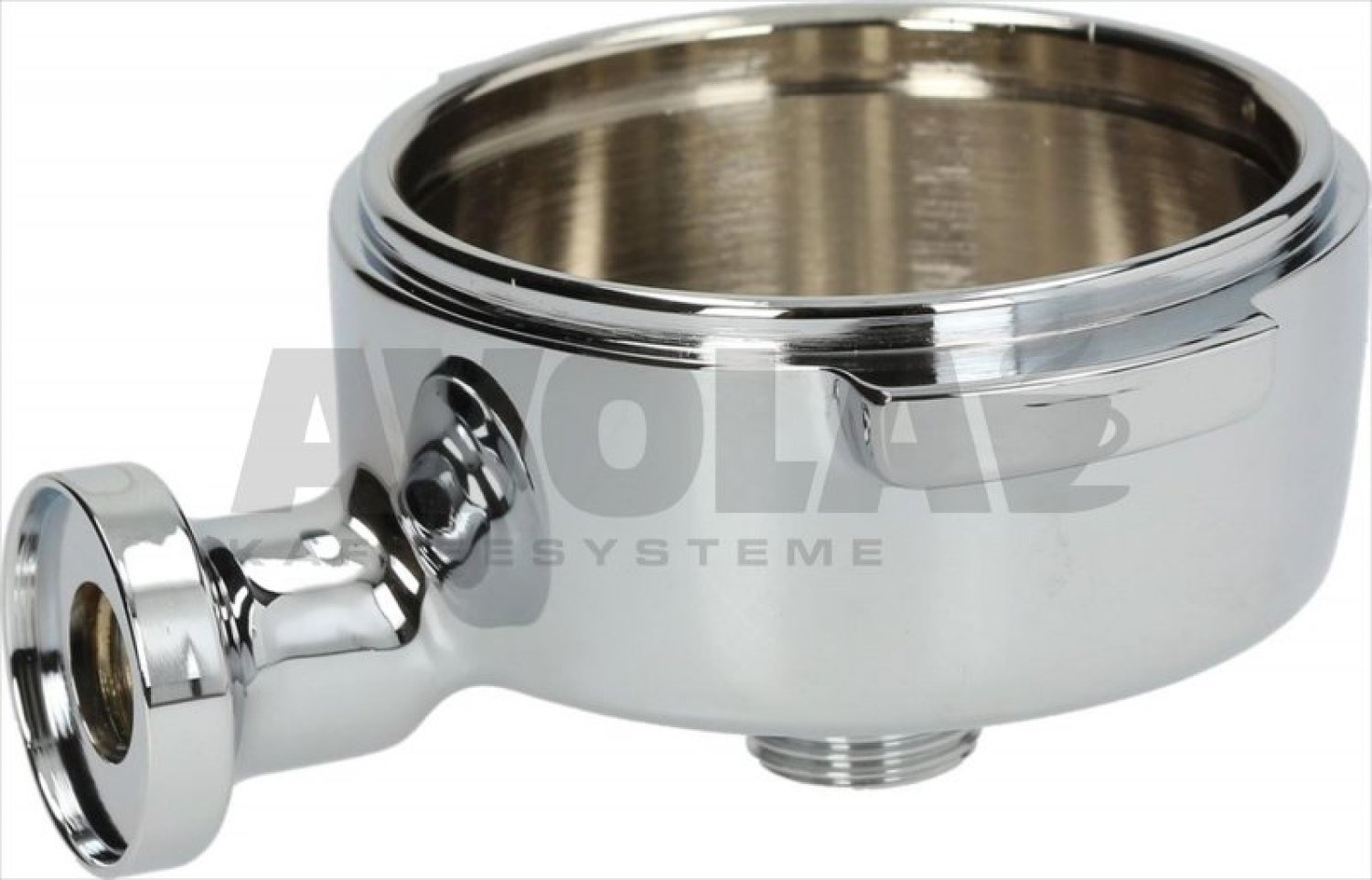

24filter holder conti 8001237
FILTER HOLDER CONTI
22,26 €

excl. Shipping costs

Delivery time
is determined
24conti original siebtraeger mit griff 8036140
Conti Original Siebträger mit Griff
47,60 €

excl. Shipping costs

Delivery time
is determined

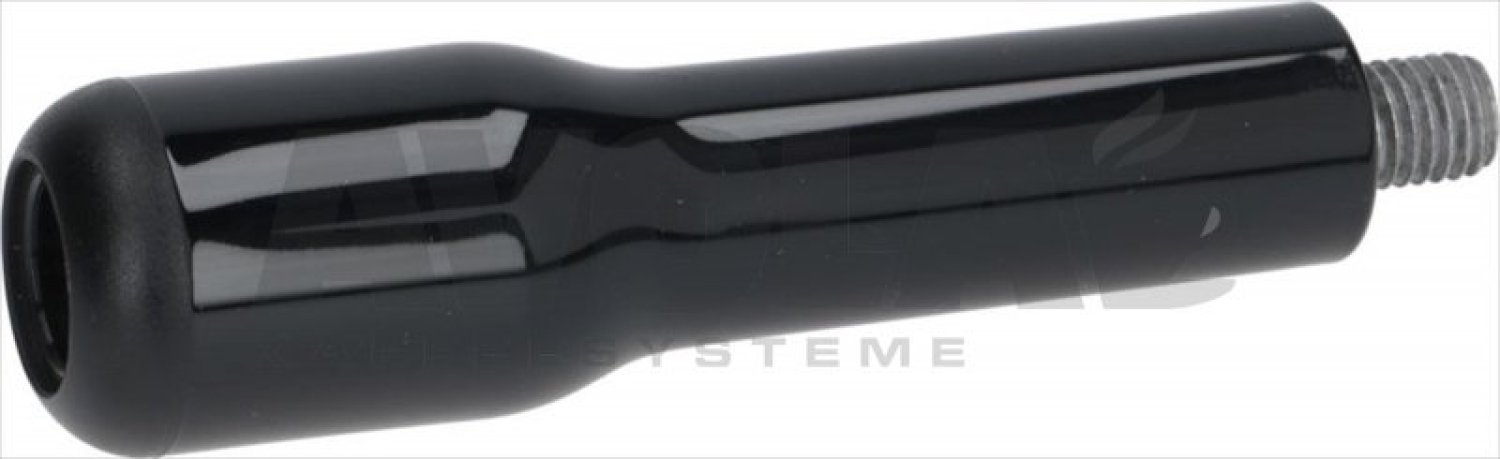

25filter holder handle m12 8003351
FILTER HOLDER HANDLE M12
8,51 €

excl. Shipping costs

immediately available, 5 available

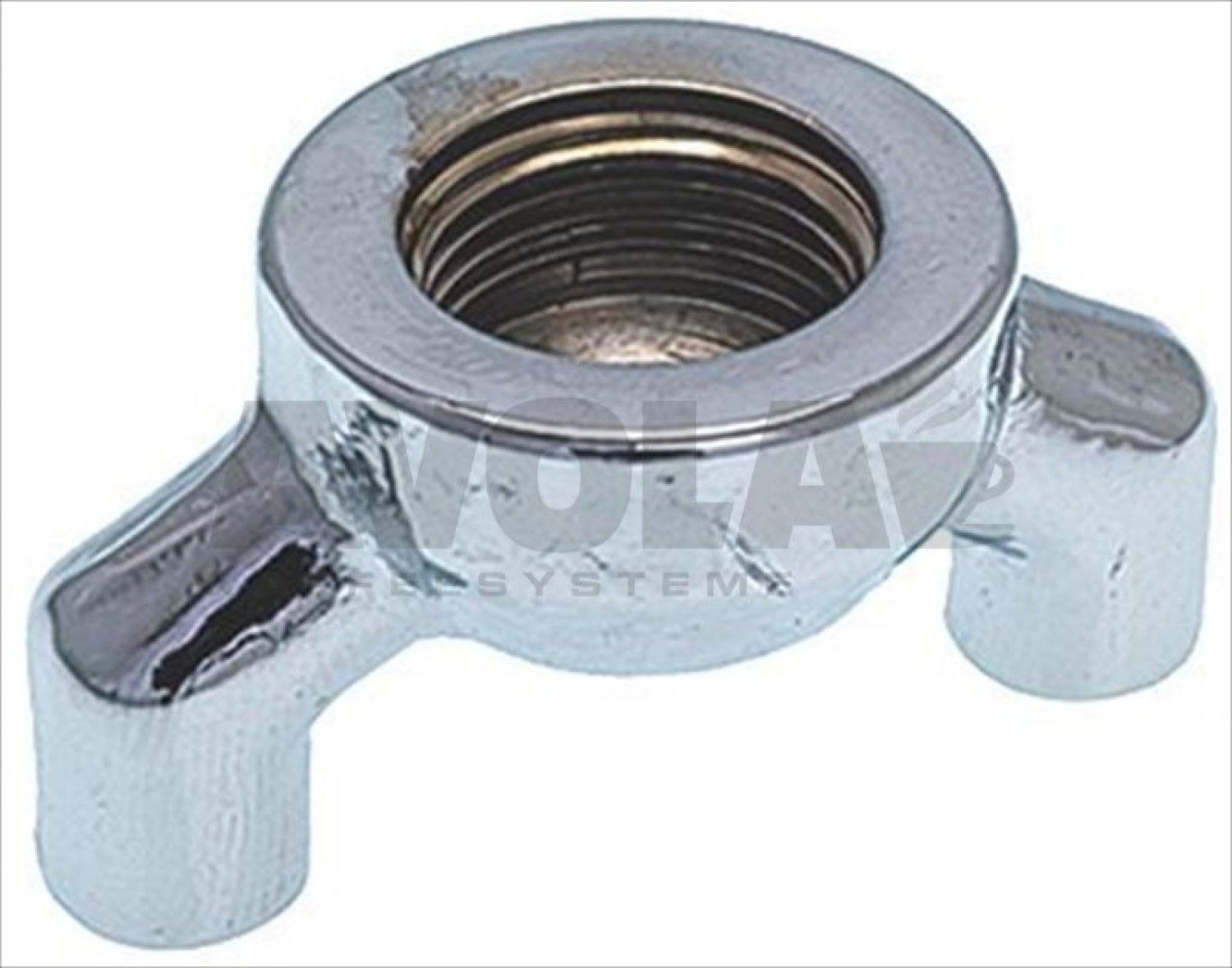

26double spout 8000124
DOUBLE SPOUT
This article is no longer available
27single spout o 3 8 kurz 24 50mm 8000128
SINGLE SPOUT ø 3/8 kurz 24,50mm
5,74 €

excl. Shipping costs

immediately available, 7 available
28straight single spout o 3 8 8000112
STRAIGHT SINGLE SPOUT ø 3/8
4,09 €

excl. Shipping costs

immediately available, 8 available
29triple spout o 3 8 8000129
TRIPLE SPOUT ø 3/8
10,01 €

excl. Shipping costs

immediately available, 1 available
30lelit siebtraegerauslauf 2er o 3 8 quot rund auslauf vorne 8280537
Lelit Siebträgerauslauf 2er ø 3/8" rund Auslauf vorne
This article is no longer available
30double spout o 3 8 8000111
DOUBLE SPOUT ø 3/8
7,27 €

excl. Shipping costs

immediately available, 8 available

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
