DELONGHI EC300M

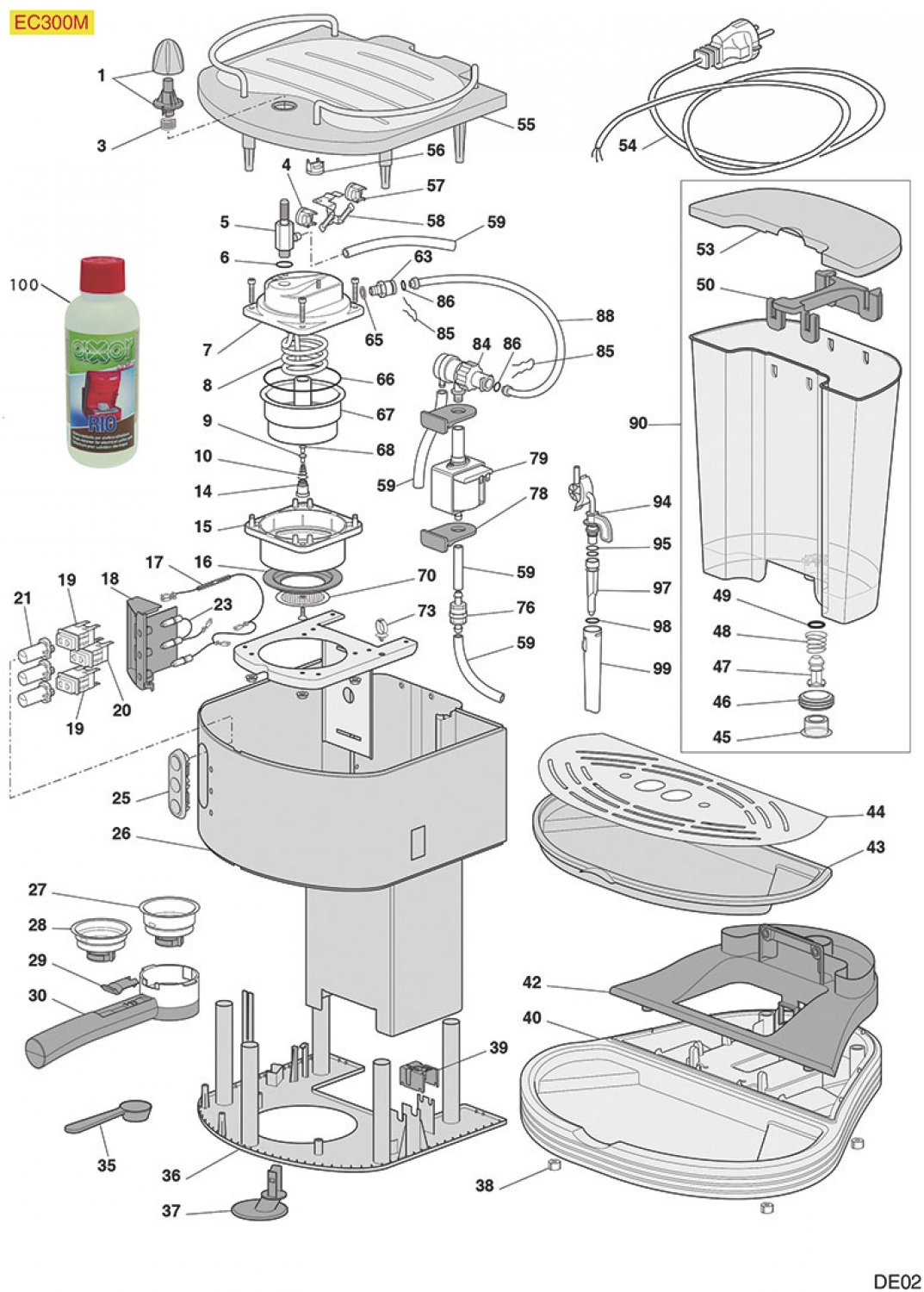

Drawing number 8065488

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.: Image: Description: Qty.:
4contact thermostat 105 8063103
CONTACT THERMOSTAT 105
5,83 €

excl. Shipping costs

Delivery time
is determined
5delonghi steam tap 8063104
DELONGHI STEAM TAP
18,92 €

excl. Shipping costs

Delivery time
is determined
6silicone o ring 0112 8007679
SILICONE O-RING 0112
1,06 €

excl. Shipping costs

immediately available
8heating element 1000w 225v 8064287
Heating element 1000W 225V
19,90 €

excl. Shipping costs

immediately available, 3 available
10conical spring o 8 7 6x12 3 mm 8063677
CONICAL SPRING ø 8,7/6x12,3 mm
3,42 €

excl. Shipping costs

immediately available, 10 available
16delonghi boiler gasket o 74x36x11 mm 8064127
Delonghi boiler gasket ø 74x36x11 mm
5,14 €

excl. Shipping costs

immediately available, 6 available

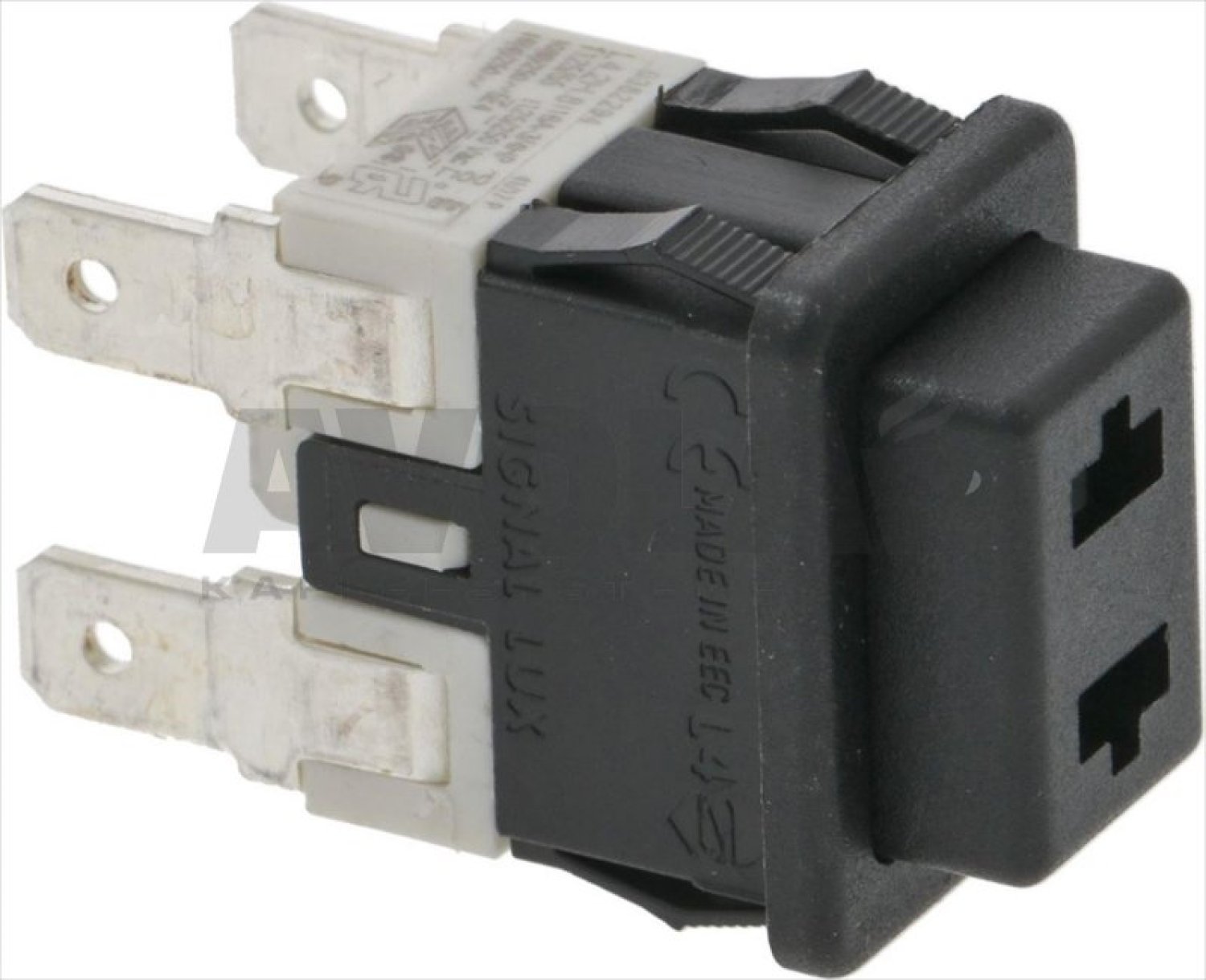

19black bipolar switch 16a 250v 8063766
BLACK BIPOLAR SWITCH 16A 250V
10,12 €

excl. Shipping costs

immediately available, 6 available

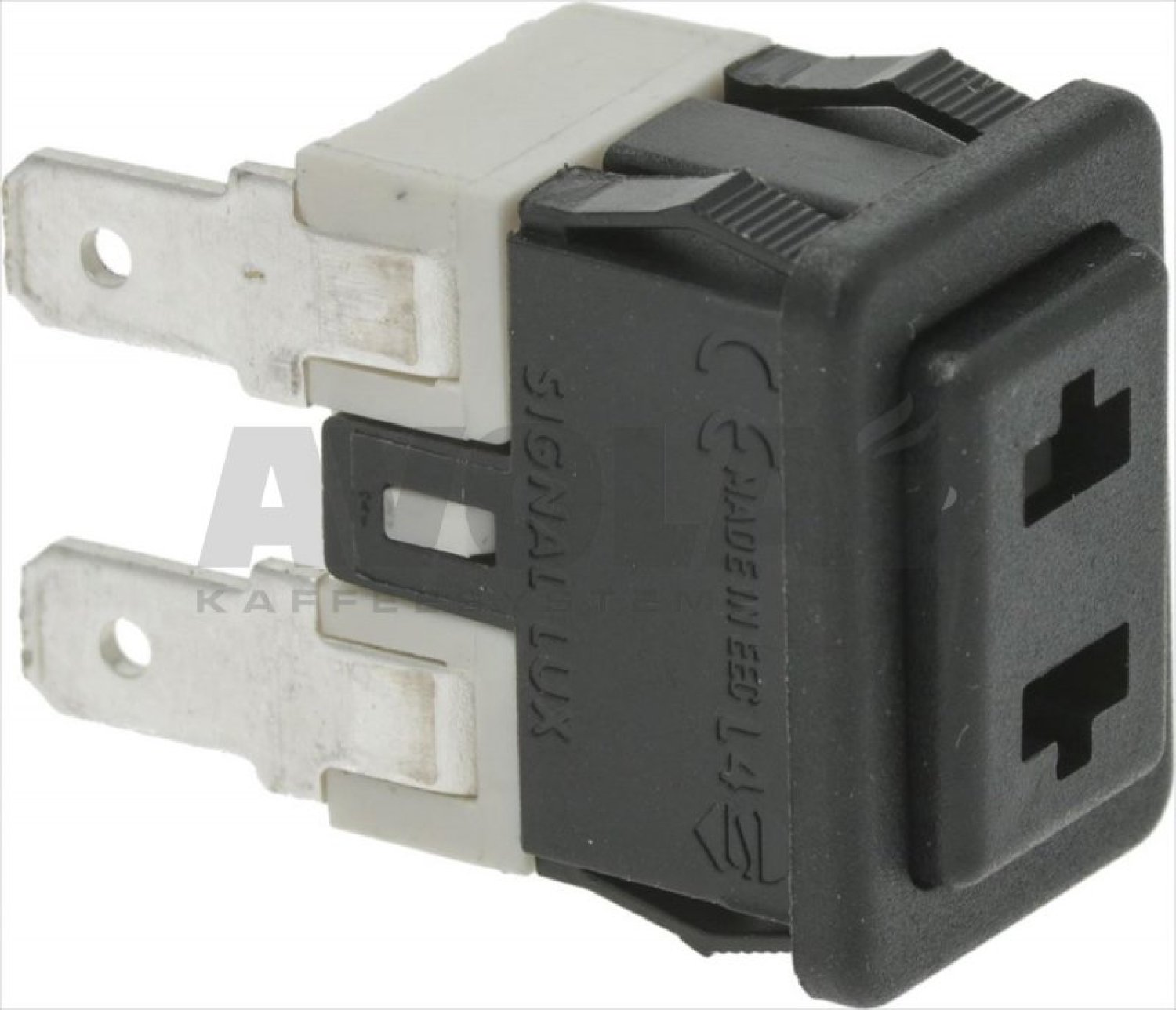

20monopolar switch 16a 250v 8063764
MONOPOLAR SWITCH 16A 250V
8,76 €

excl. Shipping costs

immediately available, 1 available

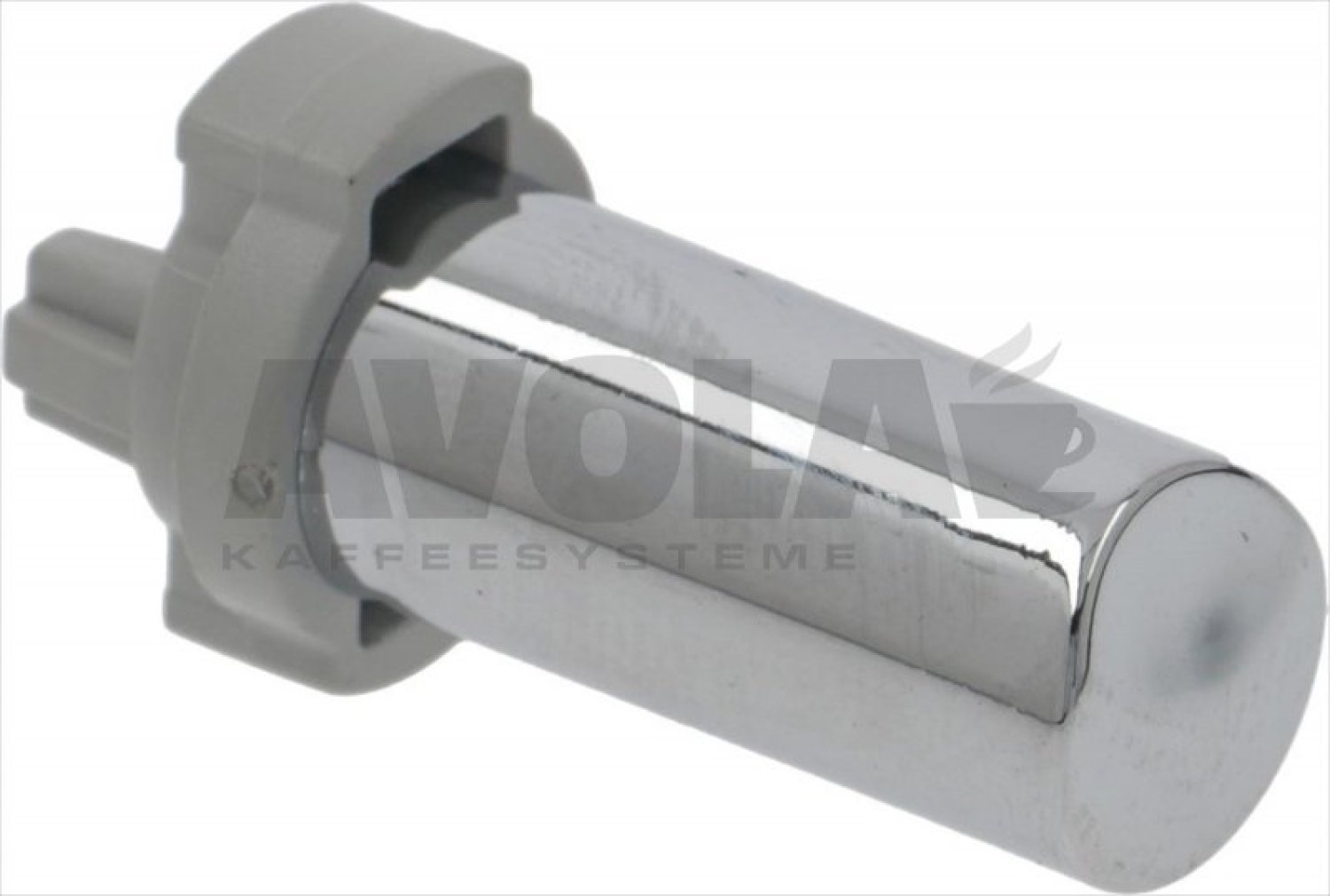

21switch button 8063767
SWITCH BUTTON
7,13 €

excl. Shipping costs

Delivery time 4-6 weeks..
272 cups filter cremadisk 8063464
2 CUPS FILTER CREMADISK
18,04 €

excl. Shipping costs

Delivery time
is determined
281 cup filter cremadisk 8063463
1 CUP FILTER CREMADISK
21,87 €

excl. Shipping costs

Delivery time
is determined
29filter locking lever 8063497
FILTER LOCKING LEVER
2,64 €

excl. Shipping costs

Delivery time
is determined
30complete filter holder 2 cups delonghi 8063498
COMPLETE FILTER HOLDER 2 CUPS DELONGHI
23,54 €

excl. Shipping costs

immediately available, 1 available
35plastic doser spoon 8063332
PLASTIC DOSER SPOON
2,64 €

excl. Shipping costs

Delivery time
is determined

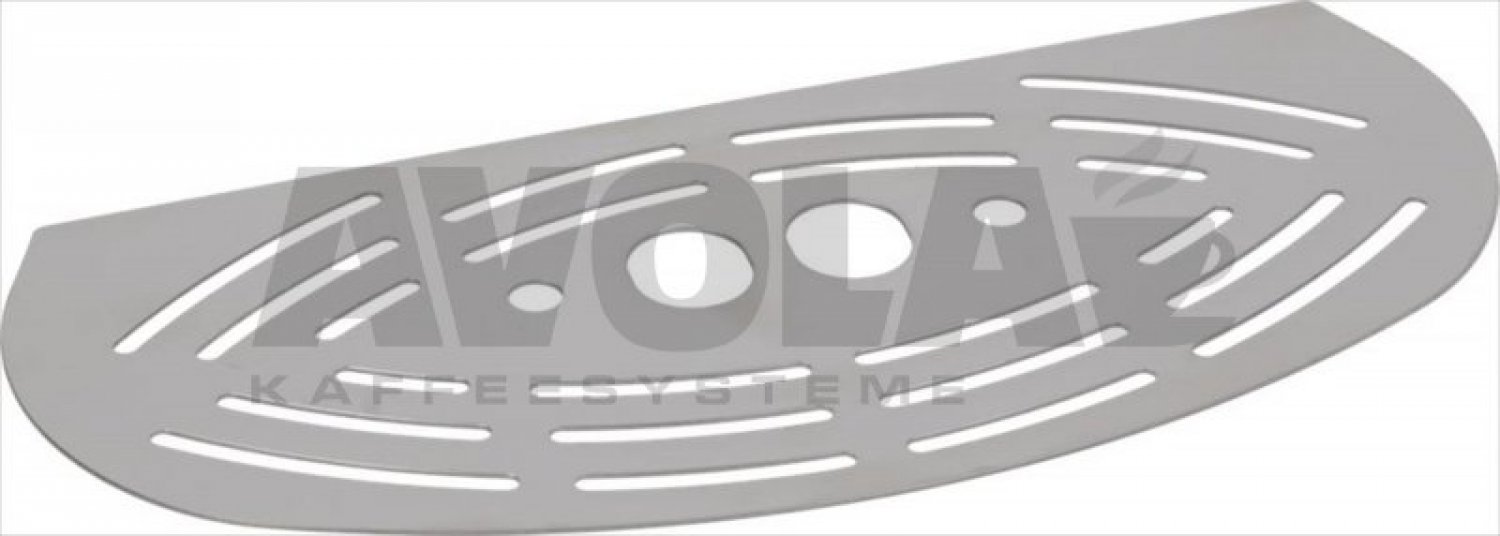

44tassenabstellgitter aus edelstahl 8102365
TASSENABSTELLGITTER AUS EDELSTAHL
14,90 €

excl. Shipping costs

Delivery time 4-6 weeks..
45bushing for tank 8063345
BUSHING FOR TANK
2,64 €

excl. Shipping costs

Delivery time
is determined
46shaped gasket rubber 8064130
SHAPED GASKET RUBBER
2,68 €

excl. Shipping costs

immediately available, 6 available
47delivery valve for water container 8064183
DELIVERY VALVE FOR WATER CONTAINER
3,55 €

excl. Shipping costs

Delivery time
is determined
48conical spring 8063676
CONICAL SPRING
3,55 €

excl. Shipping costs

Delivery time
is determined

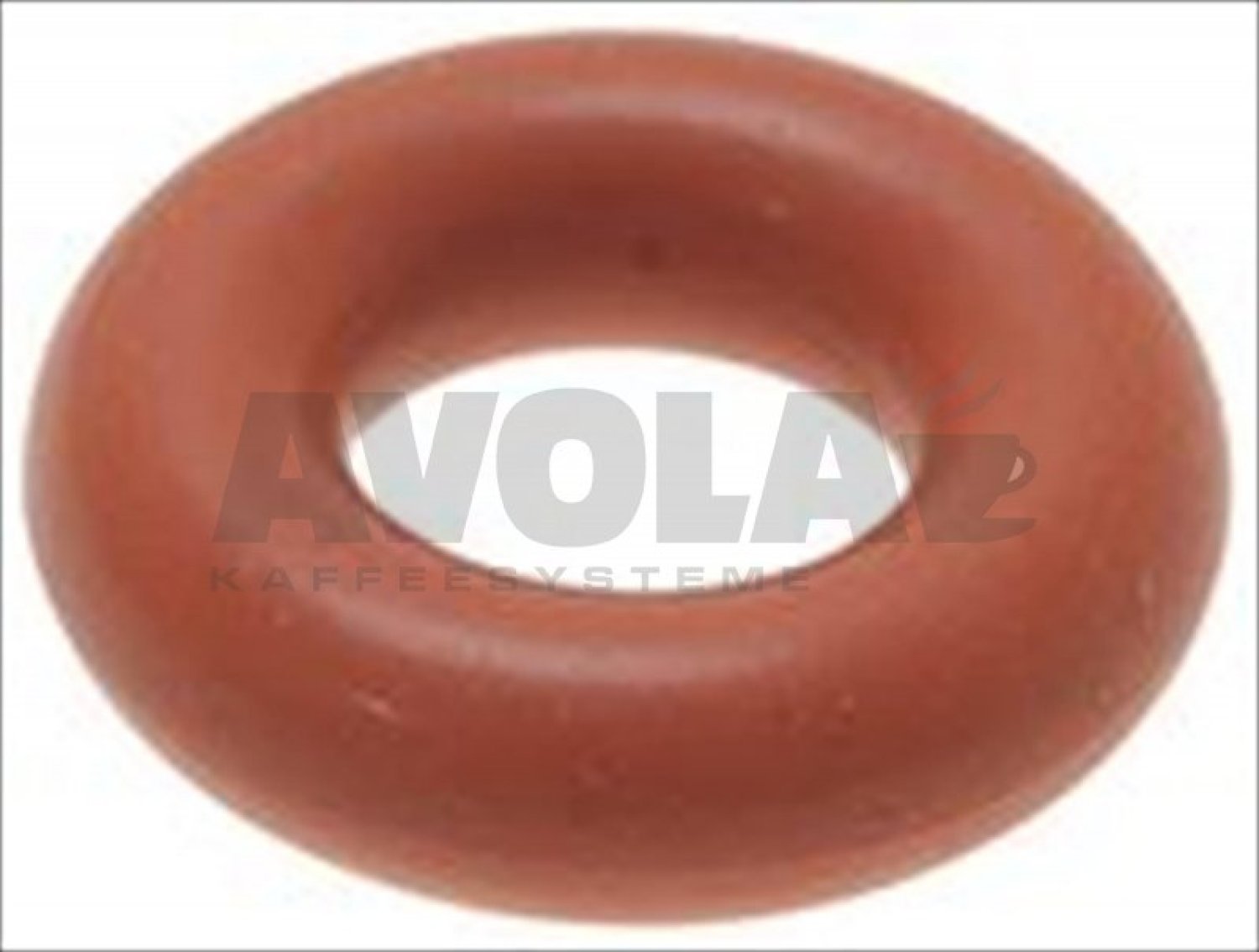

49o ring 0202 red silicone 8064393
O-RING 0202 RED SILICONE
Price on request
56contact thermostat 125 8064025
CONTACT THERMOSTAT 125
8,81 €

excl. Shipping costs

Delivery time
is determined
59silicone pipe o 4x8 shore 70 270 mm 8064043
SILICONE PIPE ø 4x8 SHORE 70 - 270 mm
Price on request
63anschluss gerade m8x1 schlaeuche o 4 mm 8080528
Anschluss gerade M8x1 - Schläuche ø 4 mm
8,09 €

excl. Shipping costs

immediately available, 6 available
66o ring 04312 red silicone 8064395
O-RING 04312 RED SILICONE
5,31 €

excl. Shipping costs

immediately available, 13 available
68gasket mushroom shaped silicone 8064403
GASKET MUSHROOM-SHAPED SILICONE
3,55 €

excl. Shipping costs

immediately available, 14 available
70shower screen o 42 3 mm aisi430 8063363
SHOWER SCREEN ø 42,3 mm Aisi430
5,28 €

excl. Shipping costs

Delivery time
is determined
76inlet pass through filer 8001022
INLET PASS-THROUGH FILER
4,46 €

excl. Shipping costs

immediately available, 12 available
78elbow vibration isolator 8063803
ELBOW VIBRATION ISOLATOR
1,49 €

excl. Shipping costs

Delivery time
is determined
79vibratory pump ep5 48w 230v 50hz 8001014
VIBRATORY PUMP EP5 48W 230V 50Hz
17,85 €

excl. Shipping costs

immediately available, 6 available
84safety valve for vibratory pump 8063806
SAFETY VALVE FOR VIBRATORY PUMP
9,84 €

excl. Shipping costs

immediately available, 9 available
85quick connection spring for pipe 8063673
QUICK CONNECTION SPRING FOR PIPE
3,47 €

excl. Shipping costs

immediately available, 8 available
86orm gasket 0038 20 black silicone 8064391
ORM GASKET 0038-20 BLACK SILICONE
4,02 €

excl. Shipping costs

immediately available, 18 available

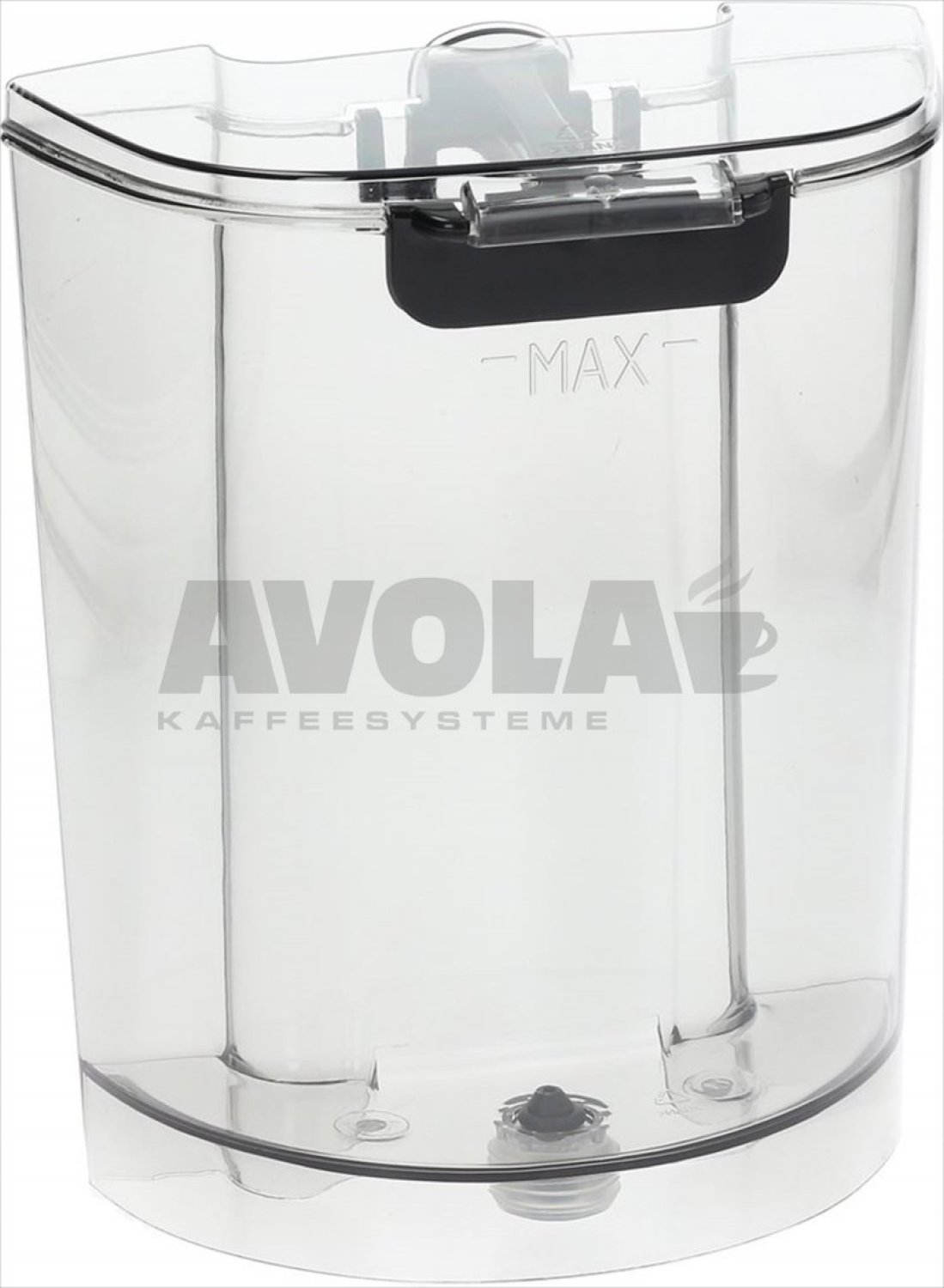

90delonghi wasserbehaelter 8089309
Delonghi Wasserbehälter
18,87 €

excl. Shipping costs

Delivery time
is determined

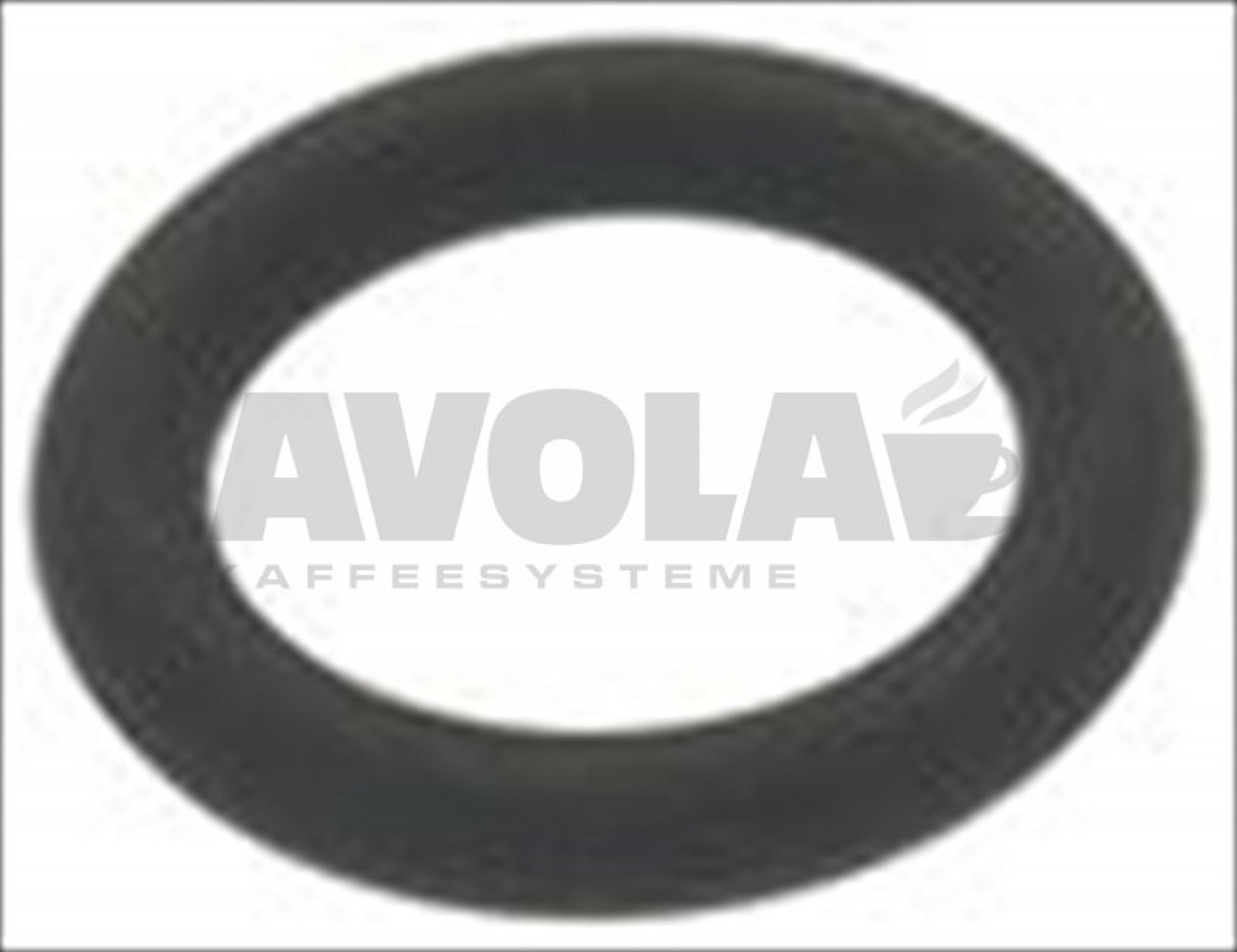

95o ring 02031 viton 8001897
O-RING 02031 VITON
0,90 €

excl. Shipping costs

immediately available, 14 available

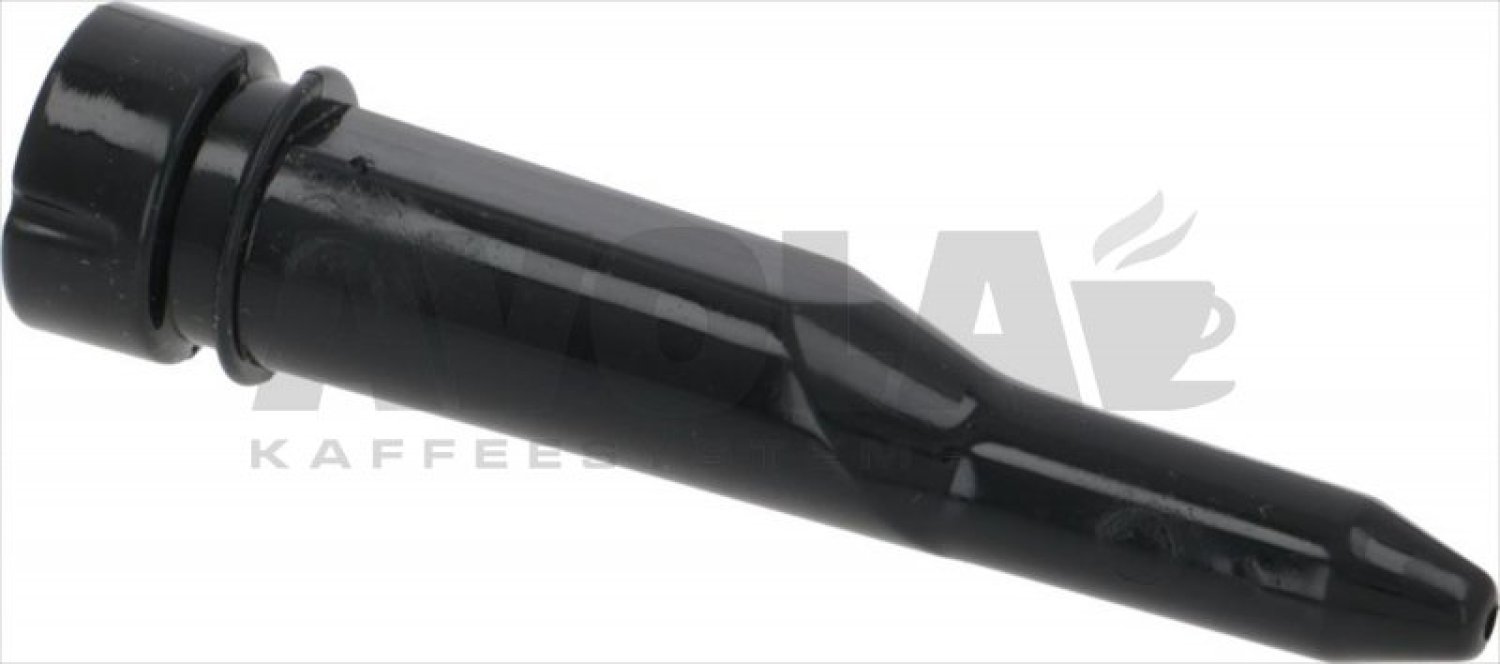

97steam sprinkler 8064235
STEAM SPRINKLER
3,55 €

excl. Shipping costs

Delivery time
is determined

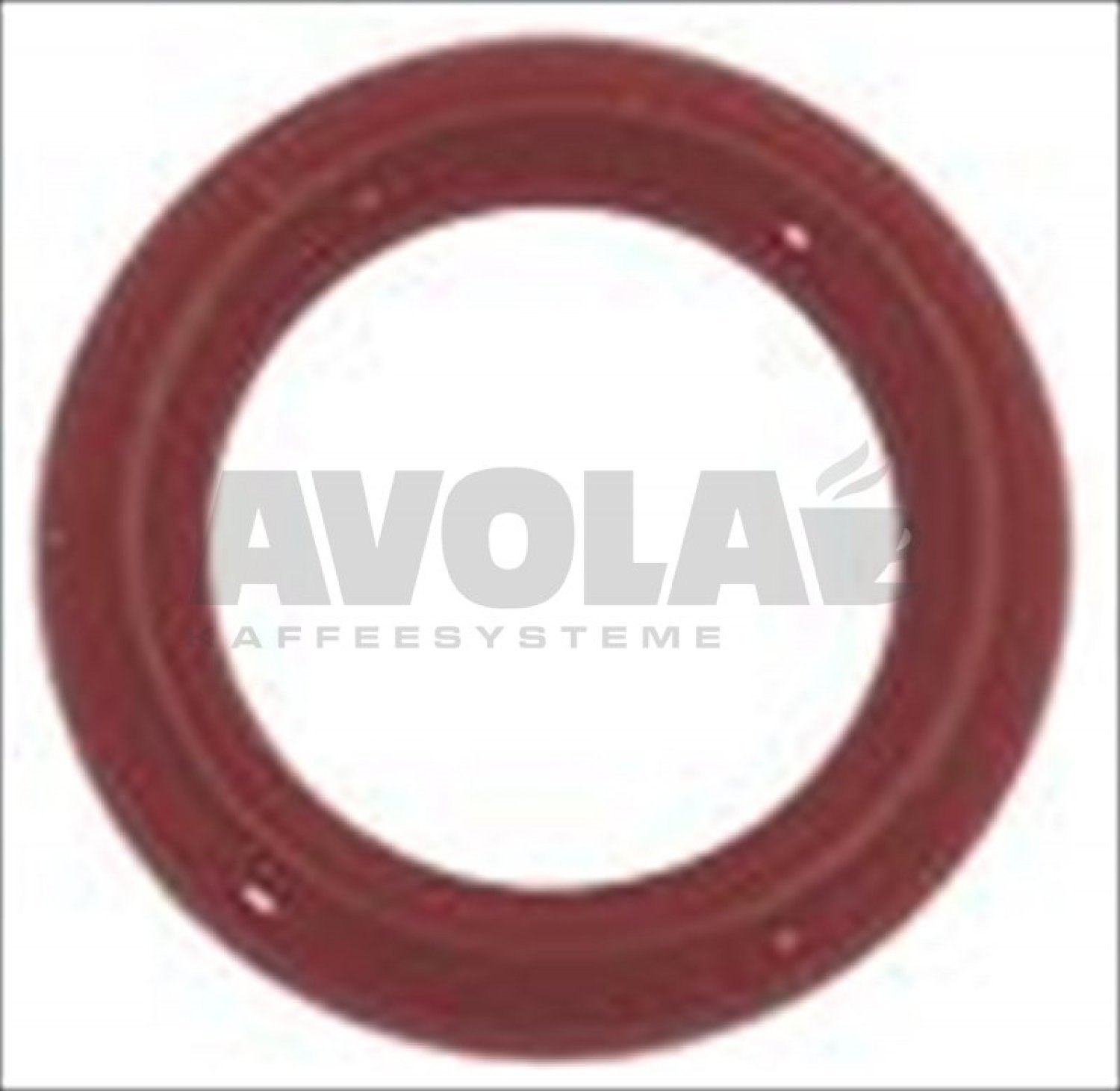

98o ring 0106 red silicone 8002029
O-RING 0106 RED SILICONE
1,04 €

excl. Shipping costs

immediately available

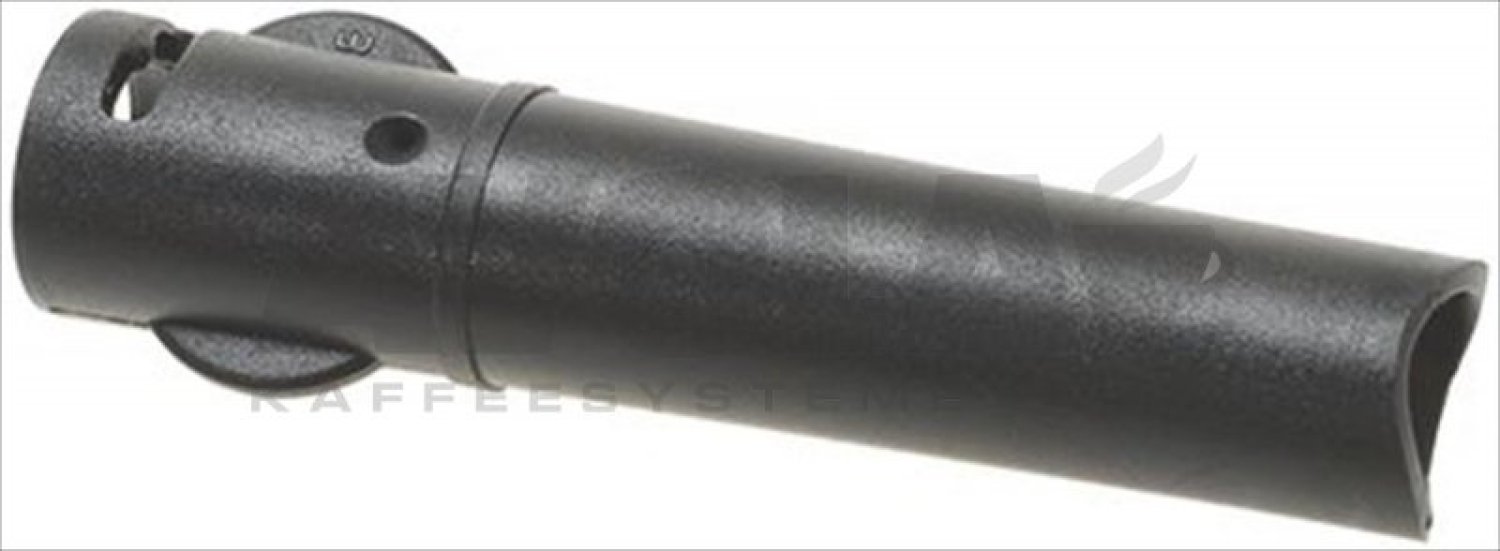

99burn preventing rubberpiece 8064234
BURN PREVENTING RUBBERPIECE
3,55 €

excl. Shipping costs

Delivery time
is determined
100scale remover axor rio 250 ml 8012366
SCALE REMOVER AXOR RIO 250 ml
7,08 €

excl. Shipping costs

immediately available, 6 available

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
