ECM Heidelberg

Compact HX2 Wasserkreislauf

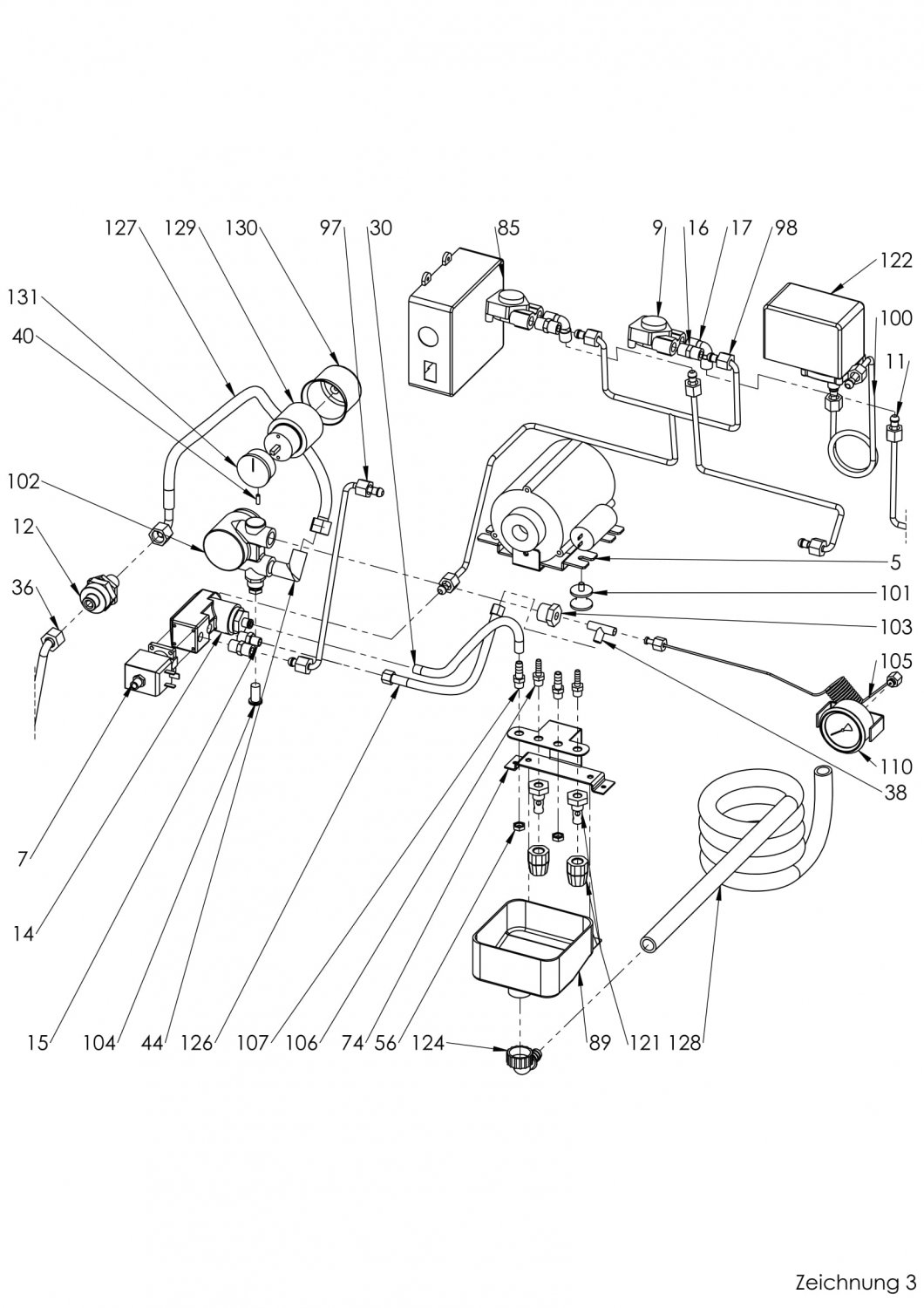

Drawing number 8242209

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.: Image: Description: Qty.:
5 8118470
ECM Motor 150W 230V
136,73 €

excl. Shipping costs

Delivery time
is determined
7 8118475
ECM Magnetventil 230V 2 Wege
60,79 €

excl. Shipping costs

Delivery time
is determined
9gicar volumetric flowmeter 1 4 8006953
GICAR VOLUMETRIC FLOWMETER 1/4
39,51 €

excl. Shipping costs

immediately available, 2 available
11ecm rohr vom flowmeter zum waermetauscher 8118483
ECM Rohr vom Flowmeter zum Wärmetauscher
15,83 €

excl. Shipping costs

immediately available, 2 available
12 8118485
ECM Festwasseranschluss 3/8"MM mit Filter
35,82 €

excl. Shipping costs

Delivery time
is determined
15fitting o 1 8 and o 1 4 8005719
FITTING ø 1/8 and ø 1/4
6,08 €

excl. Shipping costs

immediately available, 12 available
16doppelnippel ecm rocket anschluss o 1 4 aussengewinde 1 stueck 8101400
Doppelnippel ECM Rocket Anschluss ø 1/4 Außengewinde (1 Stück)
5,95 €

excl. Shipping costs

immediately available, 18 available
17nichel platedl fitting 8005879
NICHEL PLATEDL-FITTING
4,76 €

excl. Shipping costs

immediately available, 8 available
30silicone hose o 6x10 shore 60 1 m 8006820
SILICONE HOSE ø 6x10 SHORE 60 - 1 m
5,95 €

excl. Shipping costs

immediately available
36 8118523
ECM Metallschlauch 3/8"FF, l=1500
25,25 €

excl. Shipping costs

Delivery time
is determined
38ecm t stueck 1 8 quot mmm 8118526
ECM T-Stück 1/8"MMM
5,95 €

excl. Shipping costs

Delivery time
is determined
40allen screw m4x12 8101254
allen screw M4x12
1,25 €

excl. Shipping costs

immediately available, 4 available
44 8118536
ECM Winkel Kessel/ Wärmetauscher MM3/8" 3/8"
8,27 €

excl. Shipping costs

Delivery time
is determined

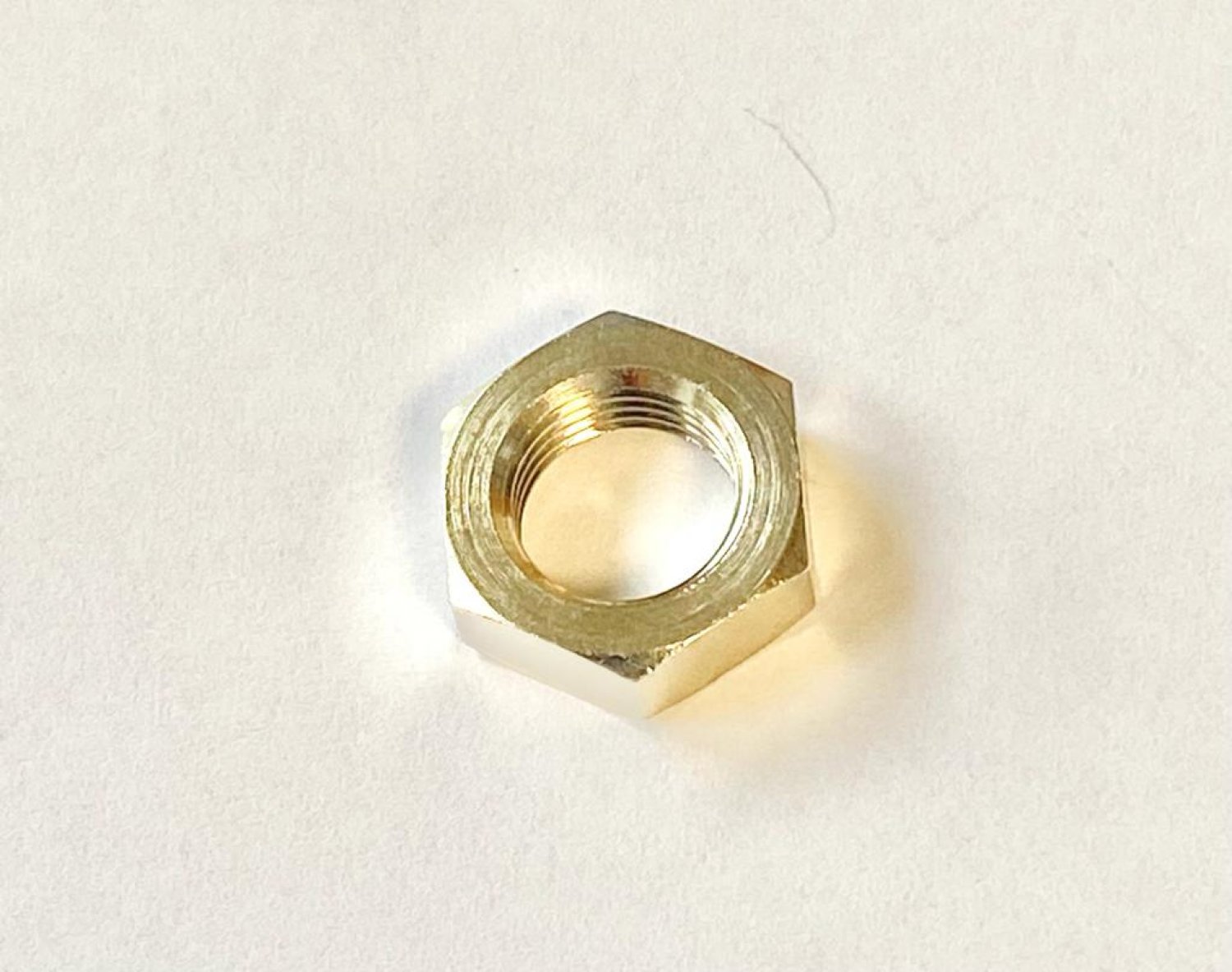

56ecm profitec sechskantmutter 1 8 quot 8118558
ECM - Profitec Sechskantmutter 1/8"
1,49 €

excl. Shipping costs

immediately available, 9 available
74 8118610
ECM Halterung Ablauf
22,55 €

excl. Shipping costs

Delivery time
is determined
85dosierung elektronik box 1 3 gruppen 230v 3d5 3grctz xlc 240v 8073717
DOSIERUNG ELEKTRONIK-BOX 1-3 GRUPPEN 230V - 3d5 3GRCTZ XLC 240V
279,00 €

excl. Shipping costs

immediately available, 1 available
89ecm ablaufwanne ablaufschale barista 8118631
ECM Ablaufwanne Ablaufschale Barista
14,95 €

excl. Shipping costs

Delivery time
is determined
97 8118640
ECM Kesselbefü llungrohr
11,25 €

excl. Shipping costs

Delivery time
is determined
98 8118641
ECM Zulauf Flowmeter
21,96 €

excl. Shipping costs

Delivery time
is determined
100 8118643
ECM Rohr Pressostat
11,28 €

excl. Shipping costs

Delivery time
is determined
101ecm fuss motor rotationspumpe 8118644
ECM Fuß Motor Rotationspumpe
3,57 €

excl. Shipping costs

immediately available, 5 available
102rotationspumpe ecm 100l nuert prs 10az2n mgna 8101393
Rotationspumpe ECM 100l Nuert PRS 10AZ2N_MGNA
144,49 €

excl. Shipping costs

immediately available, 2 available
103ecm reduzierung 3 8 quot f 1 8 quot m 8118645
ECM Reduzierung 3/8"F 1/8"M
4,95 €

excl. Shipping costs

immediately available, 1 available

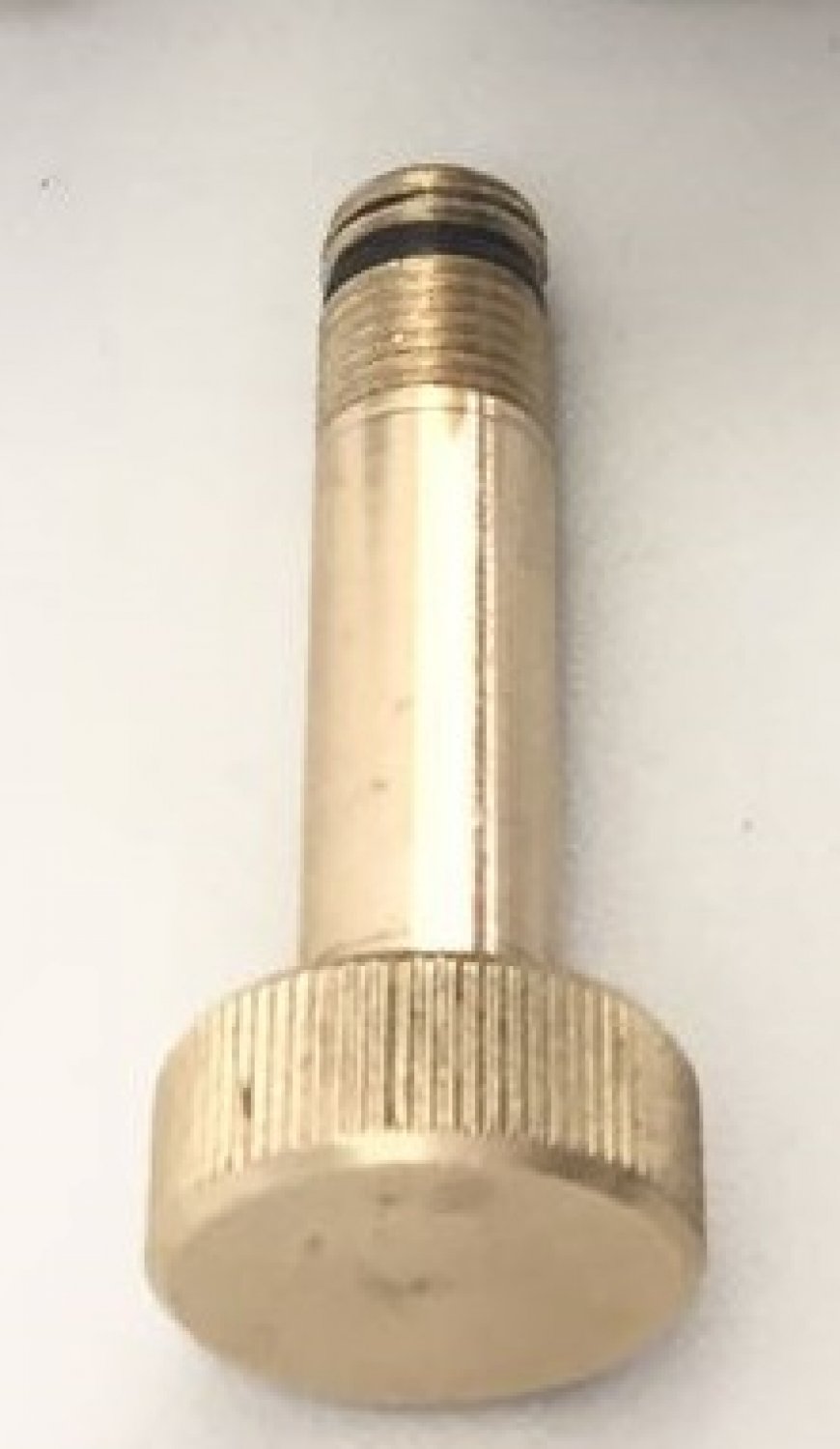

104ecm stellrad pumpendruck 8118647
ECM Stellrad Pumpendruck
17,85 €

excl. Shipping costs

Delivery time
is determined
105ecm kapillarrohr manometer 1 8 1 8 zoll 8073669
ECM Kapillarrohr Manometer 1/8 - 1/8 Zoll
8,90 €

excl. Shipping costs

immediately available, 3 available
106ecm anschlussfitting fuer silikonschlauch 1 8 quot x 6mm schlauchtuelle 8101741
ECM Anschlussfitting für Silikonschlauch 1/8" x 6mm (Schlauchtülle)
5,90 €

excl. Shipping costs

immediately available, 8 available
107 8118657
ECM Anschlussstück 1/8"M Silikonschlauch 8,0
5,83 €

excl. Shipping costs

Delivery time
is determined

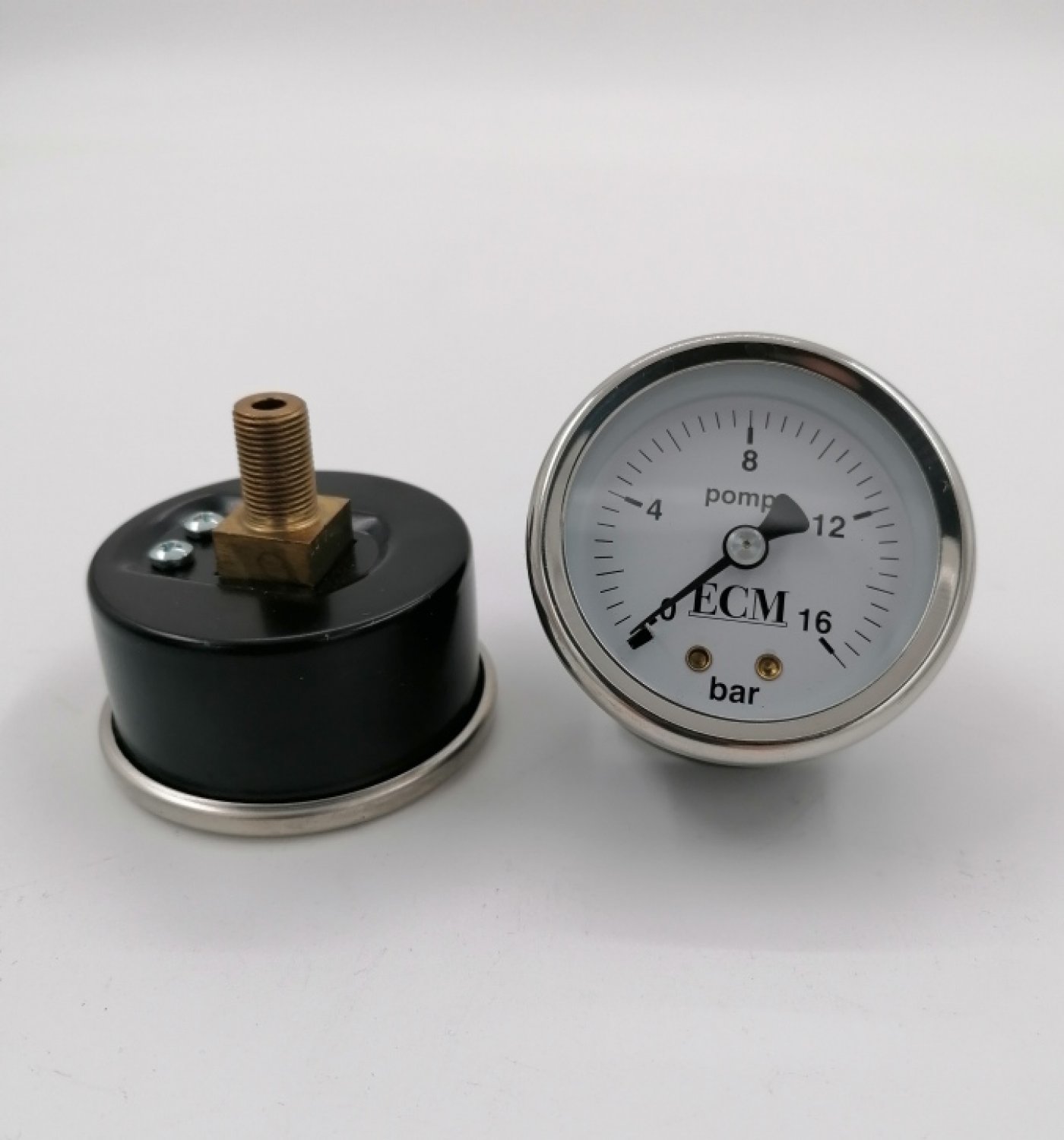

110ecm pumpendruckmanometer 8118656
ECM Pumpendruckmanometer
35,75 €

excl. Shipping costs

immediately available, 15 available

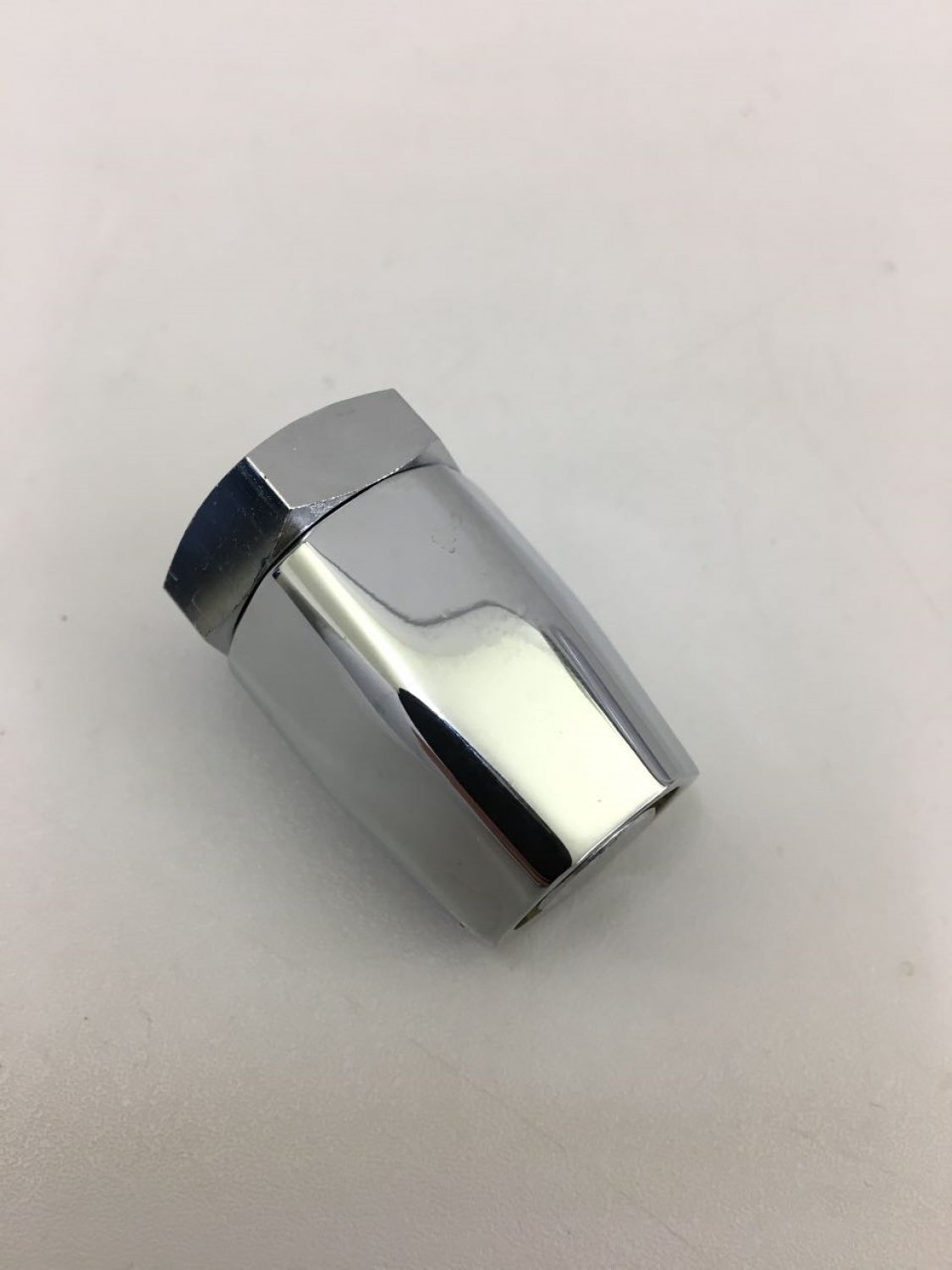

121auslauf ecm e61 bruehgruppe mit magnetventil 8101350
Auslauf ECM E61 Brühgruppe mit Magnetventil
16,66 €

excl. Shipping costs

immediately available, 6 available

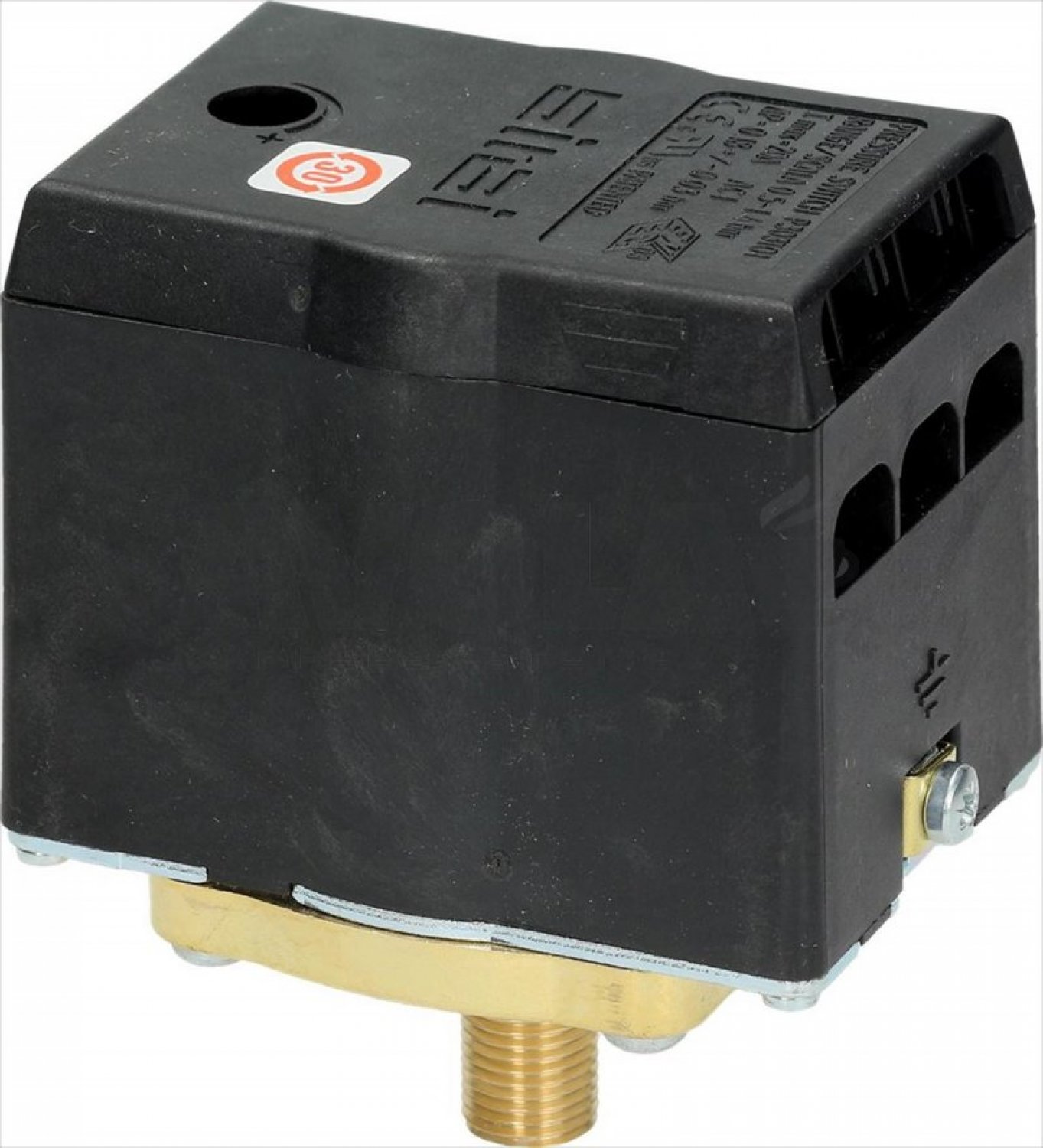

122pressure switch p303t01 3 poles 20a 1 4 8005077
PRESSURE SWITCH P303T01 3-POLES 20A 1/4
89,50 €
89,50 €

excl. Shipping costs

immediately available, 1 available
124 8118672
ECM Winkel für Abflussschlauch
2,50 €

excl. Shipping costs

Delivery time
is determined
126ecm flexschlauch 17 cm 1 8 quot m 1 8 quot f p8012 8069568
ECM Flexschlauch 17 cm 1/8"M-1/8"F - P8012
12,90 €

excl. Shipping costs

immediately available
127 8118677
ECM Metallschlauch flex 3/8"FF, l=500mm
15,35 €

excl. Shipping costs

Delivery time
is determined

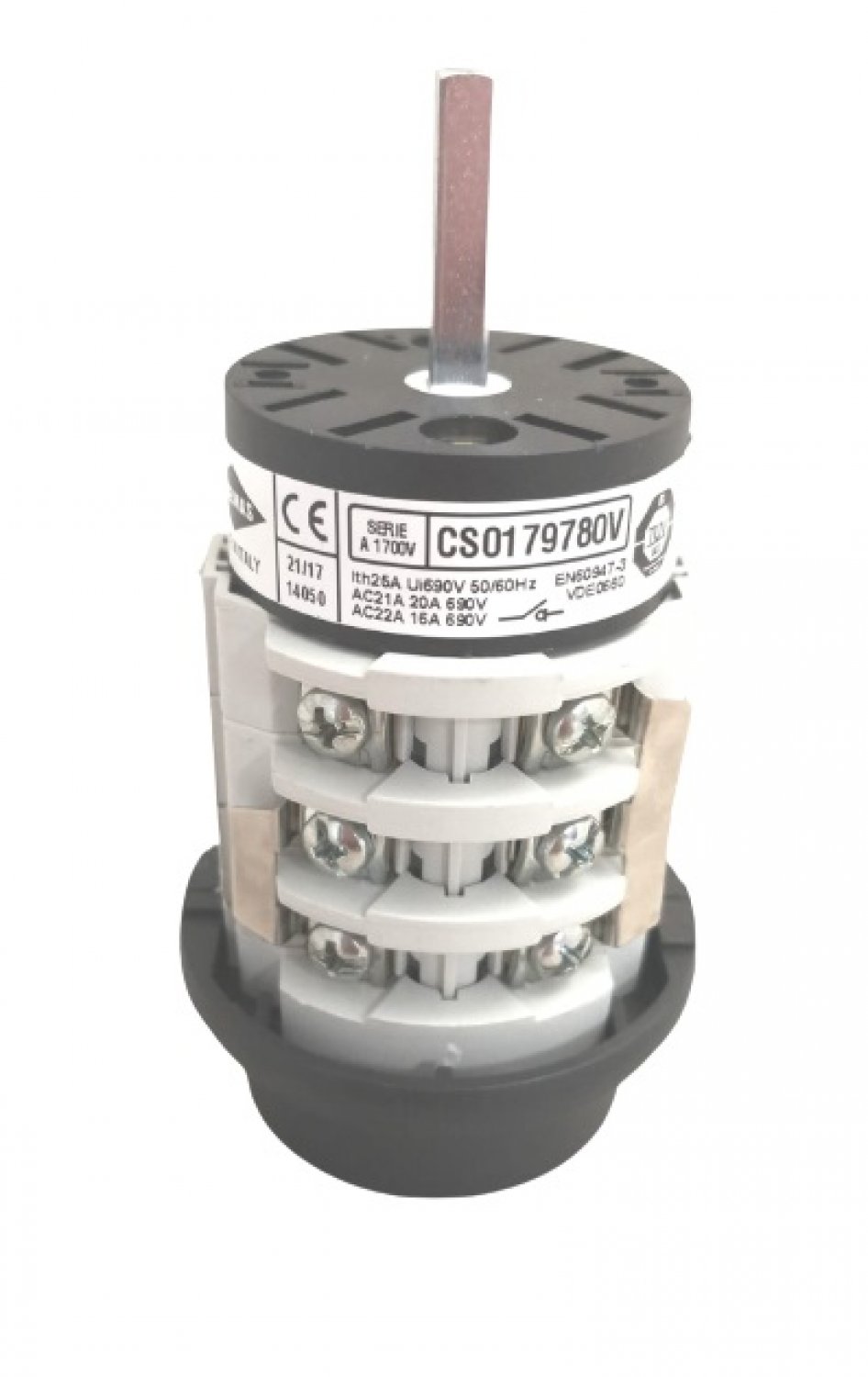

129bremas hauptschalter zweistufig achse 25mm vierkant 5x5 8118679
Bremas Hauptschalter zweistufig Achse 25mm Vierkant 5x5
48,81 €

excl. Shipping costs

immediately available, 2 available
130cover main switch 8081309
cover main switch
7,14 €

excl. Shipping costs

immediately available, 3 available
131 8118680
ECM Griff Ein-/Ausschalter
12,97 €

excl. Shipping costs

Delivery time
is determined

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
