ECM Heidelberg

ECM Barista A2 Kessel

Drawing number 8242214

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.: Image: Description: Qty.:
1boiler valve 8064144
BOILER VALVE
12,90 €

excl. Shipping costs

immediately available, 9 available
2ecm manometer o 60 doppelskala 0 divide 16 bar pumpendruck 0 divide 3 bar kesseldruck 8118480
ECM Manometer ø 60 Doppelskala 0÷16 Bar Pumpendruck 0÷3 Bar Kesseldruck
48,55 €

excl. Shipping costs

immediately available, 7 available
3drain tank 8062662
DRAIN TANK
9,84 €

excl. Shipping costs

immediately available, 2 available
4 8080439
NIVEAUSONDE ECM BARISTA DUE CONTOVENTO DUE 170MM
39,00 €

excl. Shipping costs

Delivery time
is determined
5burn preventing rubberpiece o 10 mm 8001467
Burn preventing rubberpiece ø 10 mm
2,63 €

excl. Shipping costs

immediately available, 13 available
6fitting o 1 8 and o 1 4 8005719
FITTING ø 1/8 and ø 1/4
6,08 €

excl. Shipping costs

immediately available, 15 available
7ecm dampfentnahmerohr rechts 8118482
ECM Dampfentnahmerohr rechts
14,28 €

excl. Shipping costs

immediately available, 1 available
8ecm zulaufrohr bruehgruppe 8118509
ECM Zulaufrohr Brühgruppe
26,18 €

excl. Shipping costs

Delivery time
is determined
9 8118493
ECM Verbindungsstück Wärmetauscher oben
11,90 €

excl. Shipping costs

Delivery time
is determined
10round copper gasket o 28x22x3 mm 8001362
ROUND COPPER GASKET ø 28x22x3 mm
2,57 €

excl. Shipping costs

immediately available

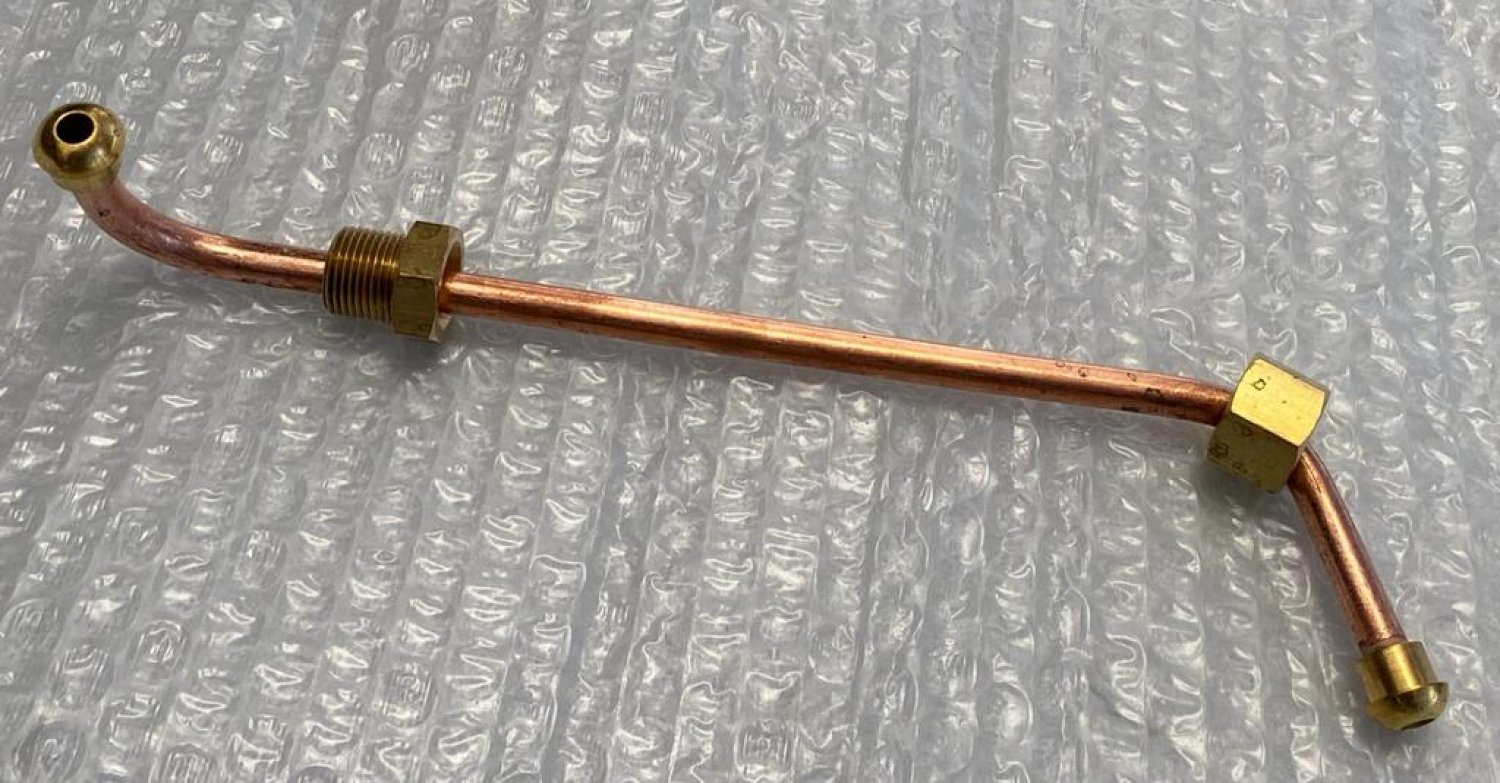

11ecm dampfentnahmerohr links 8118481
ECM Dampfentnahmerohr links
17,14 €

excl. Shipping costs

immediately available, 2 available
12ecm kessel mit 2 waermetauschern 14 liter 8118505
ECM Kessel mit 2 Wärmetauschern, 14 Liter
714,00 €

excl. Shipping costs

Delivery time
is determined
12 8118506
ECM Kessel mit 3 Wärmetauschern, 21 Liter
838,95 €

excl. Shipping costs

Delivery time
is determined
13 8118581
ECM Halterung Kessel Barista A2
21,66 €

excl. Shipping costs

Delivery time
is determined
13 8118597
ECM Halterung Kessel Barista A3
29,75 €

excl. Shipping costs

Delivery time
is determined
14 8118494
ECM Verbindungsstück Wärmetauscher unten
11,90 €

excl. Shipping costs

Delivery time
is determined
15ecm barista ruecklaufrohr bruehgruppe zum waermetauscher 8139566
ECM Barista Rücklaufrohr Brühgruppe zum Wärmetauscher
29,75 €

excl. Shipping costs

immediately available, 2 available
16cylinder head screw m5x10 8001294
CYLINDER HEAD SCREW M5x10
1,01 €

excl. Shipping costs

immediately available
18ecm unterlegscheibe 8 4x16 1 6 8118545
ECM Unterlegscheibe 8,4x16,1,6
0,65 €

excl. Shipping costs

immediately available, 16 available
19gewindestift innensechskant m8x1 25 16mm laenge 1 stueck 8105750
Gewindestift Innensechskant M8x1,25 16mm Länge (1 Stück)
1,96 €

excl. Shipping costs

immediately available, 3 available
20 8118496
ECM Halbmutter 3/8"
1,19 €

excl. Shipping costs

Delivery time
is determined
24steam handle bar gland 8079349
Steam handle bar gland
2,02 €

excl. Shipping costs

immediately available, 5 available
25nut m5 inox 8079350
Nut M5 Inox
1,24 €

excl. Shipping costs

immediately available
26ecm unterlegscheibe 6 4x12 0x1 6 8118552
ECM Unterlegscheibe 6,4x12,0x1,6
0,24 €

excl. Shipping costs

immediately available, 10 available
27ecm controvento barista dampflanze links gebogen 8101342
ECM Controvento Barista Dampflanze links gebogen
70,00 €

excl. Shipping costs

Delivery time
is determined
28teflondichtung 19x16x1 5mm 8073690
Teflondichtung 19x16x1,5mm
1,96 €

excl. Shipping costs

immediately available
29mutter qs ecm dampfventil 8101241
Mutter QS ECM Dampfventil
4,34 €

excl. Shipping costs

immediately available, 4 available
30washer ecm 8101352
Washer ECM
1,07 €

excl. Shipping costs

immediately available
31ecm kegeldichtung inkl o ring 1 stueck 8140525
ECM Kegeldichtung inkl. O-Ring (1 Stück)
3,27 €

excl. Shipping costs

immediately available
32o 1 4 a unterdruckventil vakuumventil mit schlauchtuelle antivakuumventil 8036989
ø 1/4 A - Unterdruckventil Vakuumventil mit Schlauchtülle Antivakuumventil
7,70 €

excl. Shipping costs

immediately available
34steam tap 8005474
STEAM TAP
47,05 €

excl. Shipping costs

immediately available, 3 available
36ecm kapillarrohr manometer 1 8 1 8 zoll 8073669
ECM Kapillarrohr Manometer 1/8 - 1/8 Zoll
8,90 €

excl. Shipping costs

immediately available, 7 available
37ecm dampfrohr rechts 8118717
ECM Dampfrohr rechts
63,20 €

excl. Shipping costs

Delivery time
is determined
38 8118499
ECM Stauscheibe 1,5mm
1,79 €

excl. Shipping costs

Delivery time
is determined
38ecm stauscheibe 2 5mm werksseitig 8118500
ECM Stauscheibe 2,5mm (werksseitig)
2,38 €

excl. Shipping costs

immediately available, 7 available
38 8118501
ECM Stauscheibe 3,5mm
1,79 €

excl. Shipping costs

Delivery time
is determined

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
