ECM Heidelberg

ECM Barista Kessel

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Pos.:	Item No.:	Image:	Description:	Shipment:	Price (inkl. VAT):	Qty.:
1	8079348		8079348 Steam Hot water valve ECM Barista Mechanika Technika	excl. Shipping costs immediately available, 2 available	40,90 €	40,90 € excl. Shipping costs immediately available, 2 available
2	8069460		8069460 PIPE STEAM COMPLETE SATINLESS STEEL	excl. Shipping costs immediately available, 3 available	40,61 €	40,61 € excl. Shipping costs immediately available, 3 available
3	8069461		8069461 PIPE WATER COMPLETE SATINLESS STEEL	excl. Shipping costs immediately available, 4 available	47,60 €	47,60 € excl. Shipping costs immediately available, 4 available
4	8079308		8079308 ECM BOILER PRESSURE GAUGE WITH ECM LOGO 0-3BAR ø 39 mm	excl. Shipping costs immediately available, 14 available	31,90 €	31,90 € excl. Shipping costs immediately available, 14 available
5	8022428		8022428 NICHEL-PLATED FITTING	excl. Shipping costs immediately available, 13 available	9,16 €	9,16 € excl. Shipping costs immediately available, 13 available
6	8073654		8073654 ECM Rohr zum Dampfhahn 1/4"BSP	excl. Shipping costs immediately available, 6 available	9,50 €	9,50 € excl. Shipping costs immediately available, 6 available
7	8073670		8073670 ECM - Profitec Kapillarrohr Manometer 0,5M 1/8F x 1/8F	excl. Shipping costs immediately available, 17 available	14,90 €	14,90 € excl. Shipping costs immediately available, 17 available
8	8005710		8005710 Fitting ø 1/4	excl. Shipping costs immediately available, 17 available	3,68 €	3,68 € excl. Shipping costs immediately available, 17 available
9	8005879		8005879 NICHEL PLATEDL-FITTING ø 1/4 A-1/4 A	excl. Shipping costs immediately available, 8 available	4,88 €	4,88 € excl. Shipping costs immediately available, 8 available

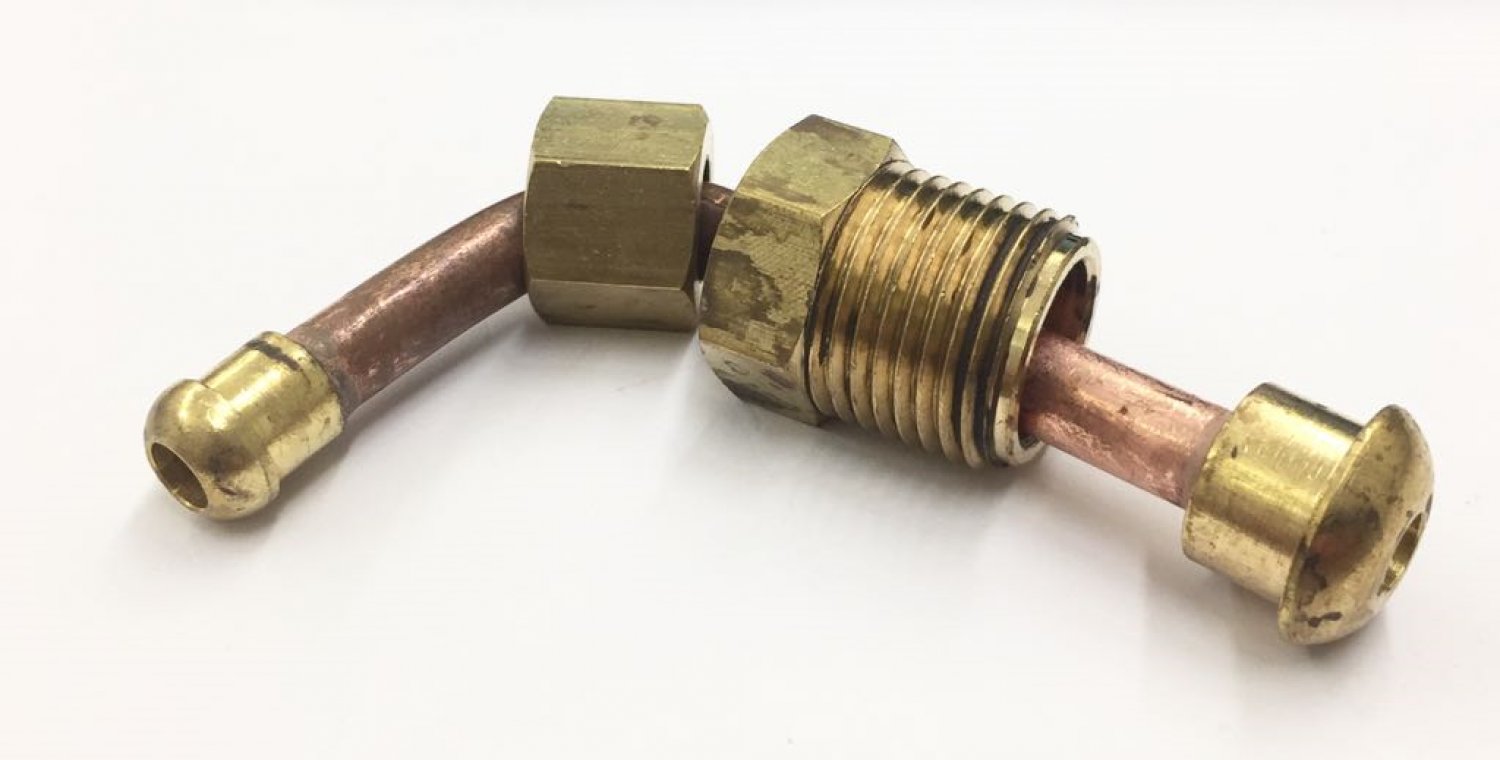

10	8080971		8080971 ECM Rohr Wärmetauscher zu Gruppe (oben)	excl. Shipping costs immediately available, 4 available	12,00 €	12,00 € excl. Shipping costs immediately available, 4 available

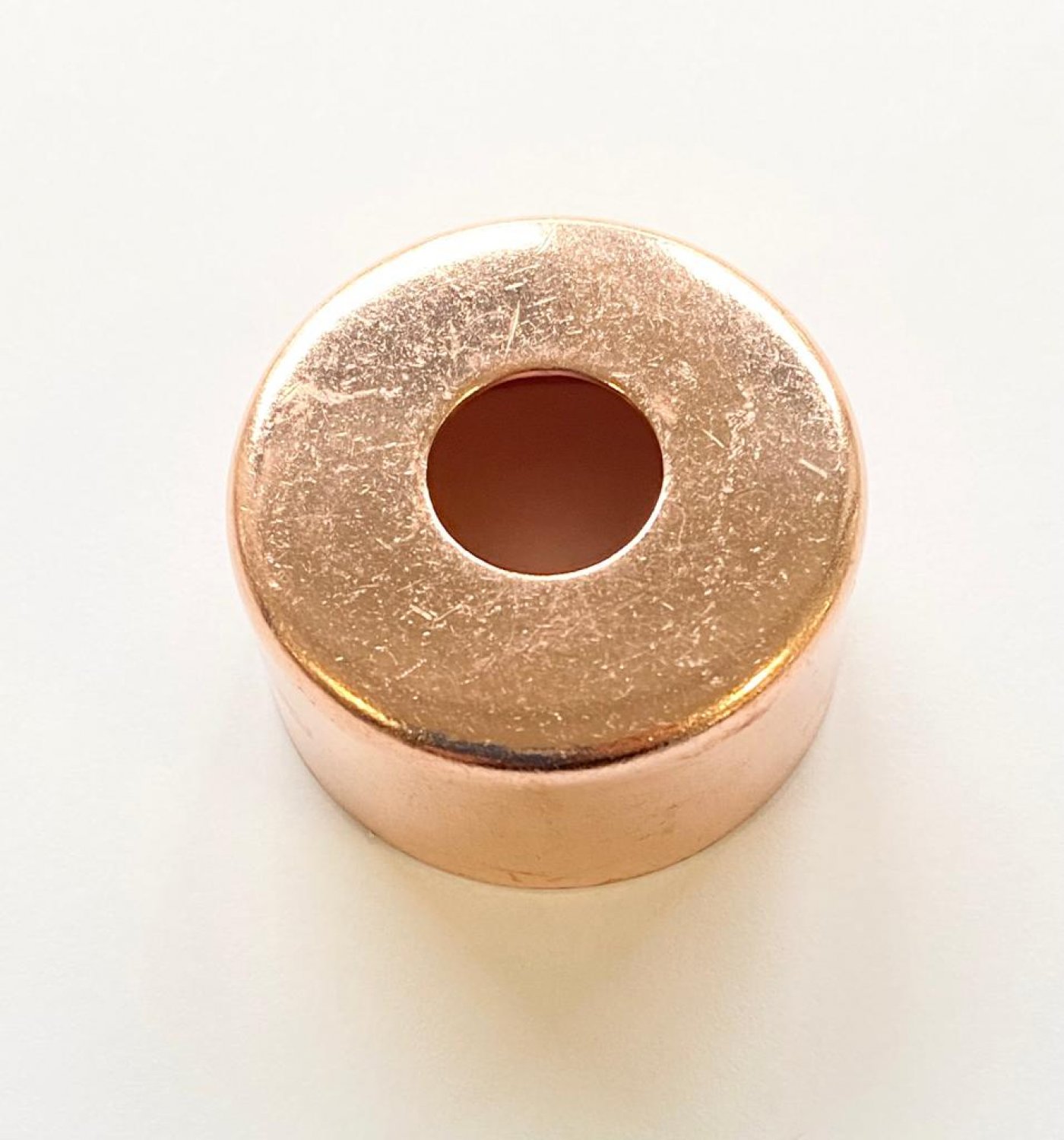

11	8128258		8128258 Schale für Antivakuumventil Unterdruckventil 1/4"	excl. Shipping costs immediately available, 12 available	5,95 €	5,95 € excl. Shipping costs immediately available, 12 available

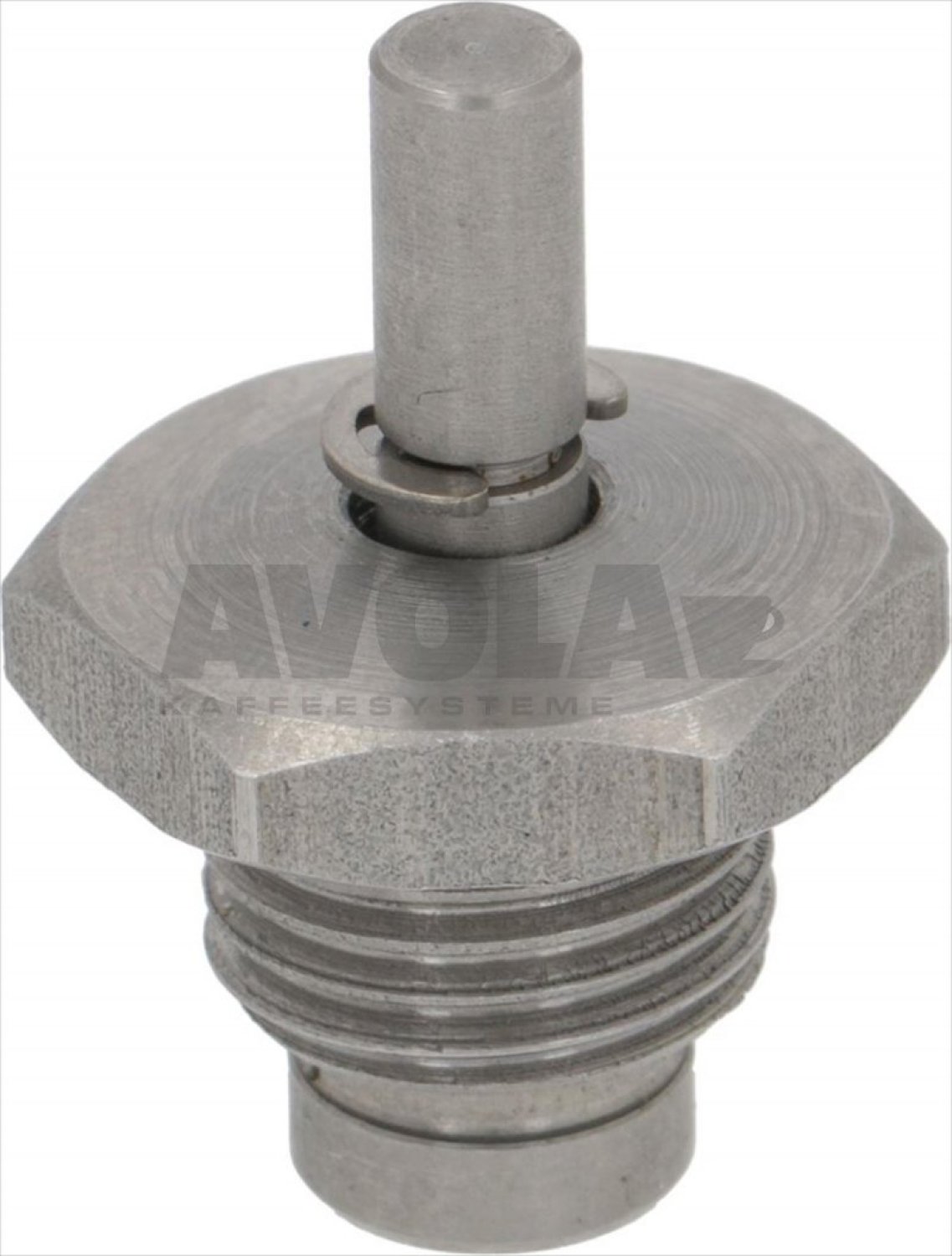

11	8064152		8064152 Rocket Stainless Steel Vacuum Breaker Valve 1/4" Long Version	excl. Shipping costs immediately available, 14 available	7,97 €	7,97 € excl. Shipping costs immediately available, 14 available
11	8007153		8007153 ø 1/4″ - BOILER VALVE	excl. Shipping costs immediately available	7,52 €	7,52 € excl. Shipping costs immediately available
12	8853078		8853078 Original ECM Sicherheitsventil ø 3/8 A Eichdruck 2,0 Bar	excl. Shipping costs immediately available, 6 available	34,94 €	34,94 € excl. Shipping costs immediately available, 6 available
13	8073951		8073951 Niveausonde ø 1/4 M-80 mm	excl. Shipping costs immediately available, 3 available	21,30 € 15,90 €	21,30 € 15,90 € excl. Shipping costs immediately available, 3 available
15	8069003		8069003 CONTACT THERMOSTAT 135°C / 145°C	excl. Shipping costs immediately available	9,90 €	9,90 € excl. Shipping costs immediately available
16	8062916		8062916 Pressure Switch XP110 125 0.5–1.5 Bar 1/4" 21A 250V	excl. Shipping costs immediately available, 13 available	22,06 €	22,06 € excl. Shipping costs immediately available, 13 available
18	8069527		8069527 ECM Original Heating Element 1200W 230V 1" Series I, II and IV	excl. Shipping costs immediately available, 10 available	39,50 €	39,50 € excl. Shipping costs immediately available, 10 available
19	8139595		8139595 PTFE Heating Element Gasket – 40.5x33.3x3 mm	excl. Shipping costs immediately available	2,38 €	2,38 € excl. Shipping costs immediately available
20	8079607		8079607 ECM Technika Injektorrohr	excl. Shipping costs immediately available, 1 available	9,52 €	9,52 € excl. Shipping costs immediately available, 1 available
22	8069498		8069498 Kesselfitting T-Anschluss 3/8A x 3/8A x 1/4I	excl. Shipping costs immediately available, 4 available	22,90 €	22,90 € excl. Shipping costs immediately available, 4 available
23	8011323		8011323 HEXAGONAL NUT M8 MEDIUM	excl. Shipping costs immediately available	1,04 €	1,04 € excl. Shipping costs immediately available
24	8080604		8080604 Federring M8 Edelstahl DIN127	excl. Shipping costs immediately available	0,92 €	0,92 € excl. Shipping costs immediately available
26	8073684		8073684 ECM Kupferkessel	excl. Shipping costs immediately available, 2 available	214,20 €	214,20 € excl. Shipping costs immediately available, 2 available
27	8105713		8105713 Rohr ECM Kessel zum Heisswasserventil	excl. Shipping costs immediately available, 4 available	11,50 €	11,50 € excl. Shipping costs immediately available, 4 available

If your article is not listed, please use the following form and enter the desired numbers.
