ECM Heidelberg

ECM CLASSIKA II PID KALTWASSER

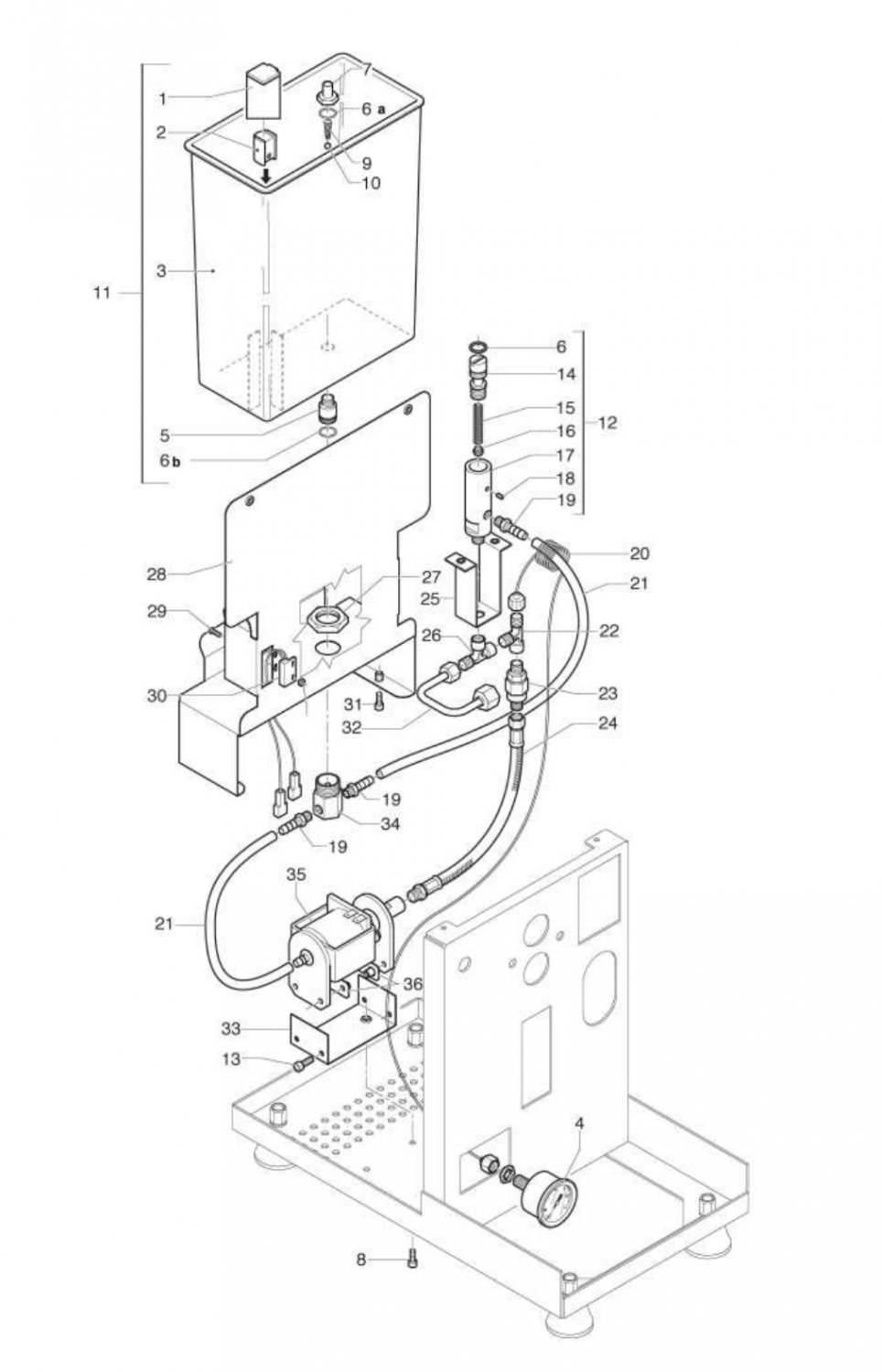

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Pos.:	Item No.:	Image:	Description:	Shipment:	Price (inkl. VAT):	Qty.:
1	8101531		8101531 ECM / Profitec Cover for Float Guide	excl. Shipping costs immediately available, 14 available	3,57 €	3,57 € excl. Shipping costs immediately available, 14 available
2	8069475		8069475 ECM / Profitec Reed Float for Water Tank	excl. Shipping costs immediately available, 15 available	5,95 €	5,95 € excl. Shipping costs immediately available, 15 available
3	8080972		8080972 ECM and Profitec Water Tank Shell with Offset Opening	excl. Shipping costs immediately available, 2 available	29,75 €	29,75 € excl. Shipping costs immediately available, 2 available
4	8079309		8079309 ECM Original Pump Pressure Gauge with Logo 0–16 bar Ø39 mm	excl. Shipping costs immediately available, 7 available	29,90 €	29,90 € excl. Shipping costs immediately available, 7 available
5	8140904		8140904 ECM / Profitec Stainless Steel Tank Adapter for BRITA Water Filter	excl. Shipping costs immediately available	23,90 €	23,90 € excl. Shipping costs immediately available
6	8136877		8136877 O-Ring Wassertankadapter unten ECM Profitec	excl. Shipping costs immediately available	1,32 €	1,32 € excl. Shipping costs immediately available
6	8139642		8139642 ECM Profitec Dichtung Wassertankadapter oben	excl. Shipping costs immediately available, 16 available	1,33 €	1,33 € excl. Shipping costs immediately available, 16 available
6	8136878		8136878 Profitec O-Ring Wassertankadapter Mitte	excl. Shipping costs immediately available, 20 available	1,19 €	1,19 € excl. Shipping costs immediately available, 20 available
8	8061180		8061180 Socket Head Cap Screw M4x10 – DIN 912 – Stainless Steel A2-70	excl. Shipping costs immediately available	0,68 €	0,68 € excl. Shipping costs immediately available
9	8069352		8069352 ECM Feder Wassertank	excl. Shipping costs immediately available	2,68 €	2,68 € excl. Shipping costs immediately available

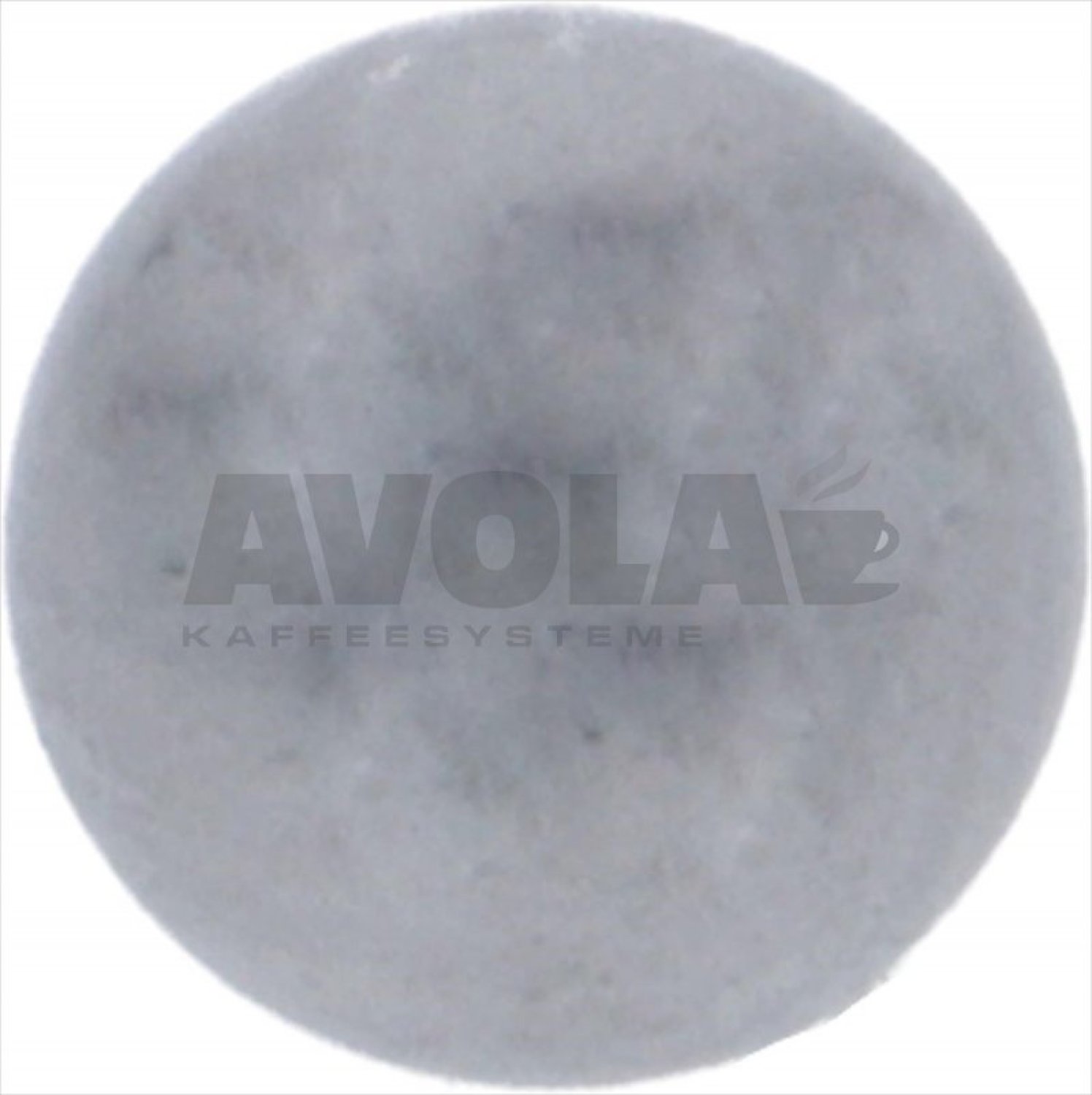

10	8069353		8069353 ECM / Bezzera Stainless Steel Ball for Water Tank – Ø5.5 mm	excl. Shipping costs immediately available, 8 available	2,26 €	2,26 € excl. Shipping costs immediately available, 8 available
11	8080548		8080548 ECM / Profitec Complete Water Tank with Float and Brita Adapter	excl. Shipping costs immediately available, 3 available	47,83 €	47,83 € excl. Shipping costs immediately available, 3 available
12	8069467		8069467 ECM / Profitec Adjustable Expansion Valve – 1/8" Male	excl. Shipping costs immediately available, 11 available	37,90 €	37,90 € excl. Shipping costs immediately available, 11 available
13	8001294		8001294 CYLINDER HEAD SCREW M5x10	excl. Shipping costs immediately available	1,04 €	1,04 € excl. Shipping costs immediately available
15	8080377		8080377 Feder ECM Expansionsventil (neue Version)	excl. Shipping costs immediately available, 7 available	2,55 €	2,55 € excl. Shipping costs immediately available, 7 available
16	8007697		8007697 ECM Rubber Plug / Expansion Valve Seal – Silicone – Ø6/8x9 mm	excl. Shipping costs immediately available	1,50 €	1,50 € excl. Shipping costs immediately available
19	8101741		8101741 ECM Anschlussfitting für Silikonschlauch 1/8" x 6mm (Schlauchtülle)	excl. Shipping costs immediately available, 4 available	5,76 €	5,76 € excl. Shipping costs immediately available, 4 available
20	8073669		8073669 ECM Capillary Tube for Pump Pressure Gauge – 1/8" x 1/8"	excl. Shipping costs immediately available, 7 available	8,91 €	8,91 € excl. Shipping costs immediately available, 7 available
21	8006817		8006817 Silicone Hose 5 × 8 mm – Platinum-Cured, Made in Germany	excl. Shipping costs Delivery time 4-6 weeks	3,95 €	3,95 € excl. Shipping costs Delivery time 4-6 weeks
22	8079608		8079608 Verbindung T Stück 1/8 " MMF	excl. Shipping costs immediately available, 4 available	6,90 €	6,90 € excl. Shipping costs immediately available, 4 available
23	8393687		8393687 ECM Non-Return Valve 1/8 Inch Male Thread – ECM & Profitec	excl. Shipping costs immediately available	11,00 €	11,00 € excl. Shipping costs immediately available
24	8069568		8069568 ECM Flexschlauch 17 cm 1/8"M-1/8"F - P8012	excl. Shipping costs immediately available	12,90 €	12,90 € excl. Shipping costs immediately available
27	8073607		8073607 ECM Mutter für Wassertank Tankaufnahme	excl. Shipping costs immediately available	4,52 €	4,52 € excl. Shipping costs immediately available
28	8080576		8080576 Wassertankführung Classika	excl. Shipping costs Delivery time: 4-6 weeks	58,25 €	58,25 € excl. Shipping costs Delivery time: 4-6 weeks
29	8080657		8080657 SCHRAUBE LINSENKOPF	excl. Shipping costs immediately available, 4 available	1,05 €	1,05 € excl. Shipping costs immediately available, 4 available
30	8059519		8059519 ECM Füllstandsone Tank Reedkontakt Reed Sensor PIC MS-324/1253A	excl. Shipping costs immediately available, 1 available	12,50 €	12,50 € excl. Shipping costs immediately available, 1 available
31	8061180		8061180 Socket Head Cap Screw M4x10 – DIN 912 – Stainless Steel A2-70	excl. Shipping costs immediately available	0,68 €	0,68 € excl. Shipping costs immediately available
32	8118770		8118770 ECM Classika II Rohr Kaltwasserzulauf zum Kessel 1/8I - 1/4I	excl. Shipping costs immediately available, 5 available	21,42 €	21,42 € excl. Shipping costs immediately available, 5 available
34	8073606		8073606 ECM Water Tank Connector – Reinforced Version for ECM and Profitec	excl. Shipping costs immediately available, 17 available	7,50 €	7,50 € excl. Shipping costs immediately available, 17 available
35	8001016		8001016 ULKA EX5 Vibration Pump – 48 W – 230 V – 50 Hz	excl. Shipping costs immediately available	14,90 €	14,90 € excl. Shipping costs immediately available
36	8079692		8079692 PUMPENHALTERUNG MIT GEWINDE		Price on request

If your article is not listed, please use the following form and enter the desired numbers.
