ECM Mechanika V Slim Gehäuse Karosserie

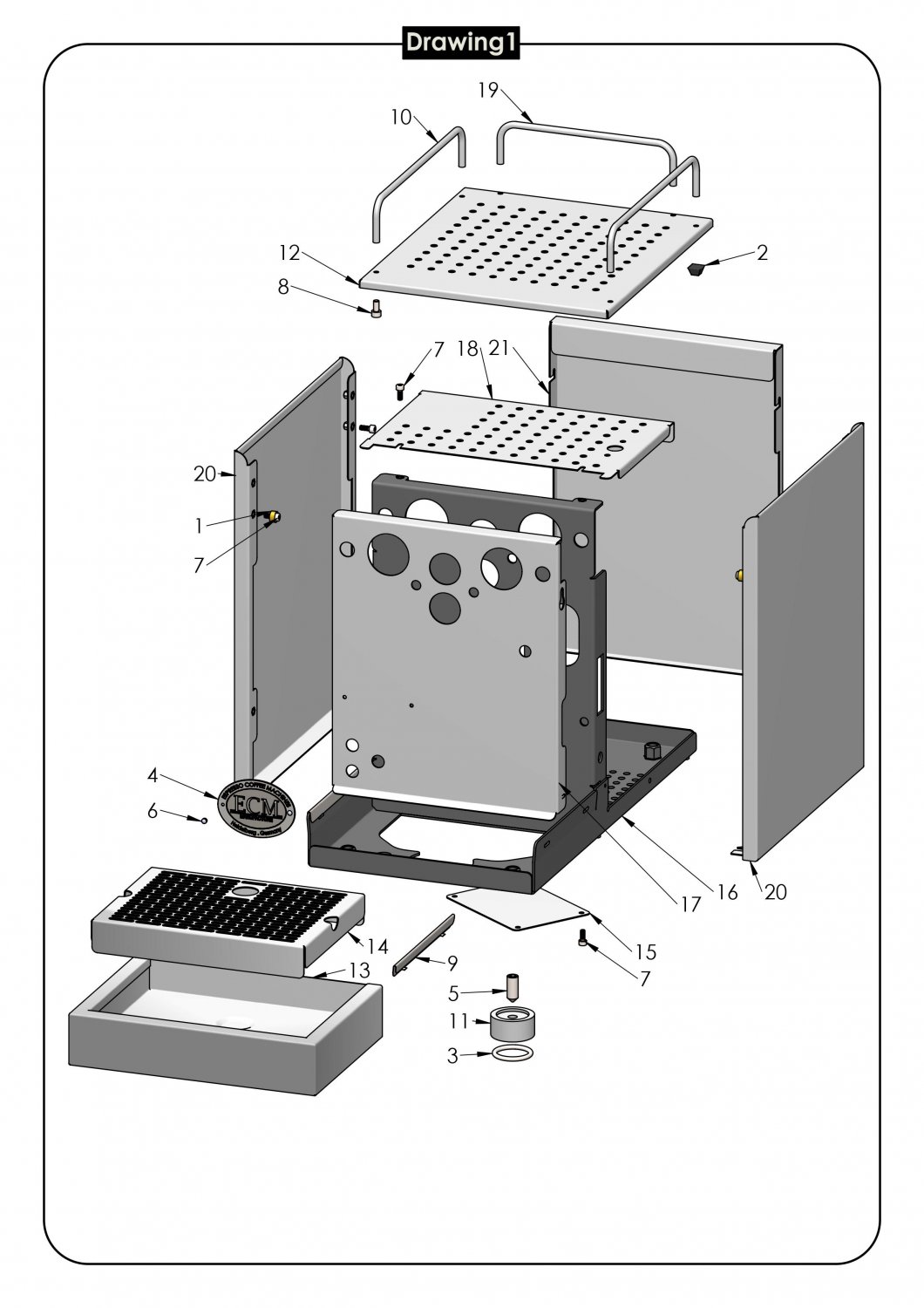

Drawing number 8144500

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.: Image: Description: Qty.:
1 8164373
Messingbuchse
0,55 €

excl. Shipping costs

immediately available, 20 available
2ecm gummi fuss tassenablage 8069351
ECM Gummi Fuss Tassenablage
1,79 €

excl. Shipping costs

immediately available
3ecm mechanika dichtung fuer geraetefuss 0280 40 8101533
ECM Mechanika Dichtung für Gerätefuss 0280-40
1,37 €

excl. Shipping costs

immediately available, 6 available
4 8164429
Emblem
14,95 €

excl. Shipping costs

Delivery time
is determined
5 8164441
Gewindestift M10 x 20
0,84 €

excl. Shipping costs

immediately available, 17 available
6ecm blindniete flachrundkopf 2 4x12 8140784
ECM Blindniete Flachrundkopf 2,4x12
0,83 €

excl. Shipping costs

immediately available, 20 available
7schraube zylinderkopf innensechskant vollgewinde edelstahl m4x10 a2 70 din 912 8061180
Schraube Zylinderkopf Innensechskant Vollgewinde Edelstahl M4x10 A2-70 Din 912
0,67 €

excl. Shipping costs

immediately available
8cylinder head screw m5x10 8001294
CYLINDER HEAD SCREW M5x10
1,01 €

excl. Shipping costs

immediately available
9schiene wasserauffangschale 8164546
Schiene Wasserauffangschale
6,55 €

excl. Shipping costs

immediately available, 3 available
10cylinder head screw m5x10 8001294
CYLINDER HEAD SCREW M5x10
1,01 €

excl. Shipping costs

immediately available
10ecm reling lang 220mm 8079705
ECM Reling lang - 220mm
12,90 €

excl. Shipping costs

Delivery time
is determined
11ecm mechanika slim geraetefuss 20mm m10 aluminium eloxiert 8101532
ECM Mechanika SLIM Gerätefuss 20mm M10, Aluminium eloxiert
15,92 €

excl. Shipping costs

immediately available, 5 available
12ecm tassenablage oben edelstahl poliert 8079703
ECM Tassenablage oben Edelstahl poliert
59,00 €

excl. Shipping costs

Delivery time
is determined
13ecm profitec wasserauffangschale 8080434
ECM / Profitec Wasserauffangschale
164,22 €

excl. Shipping costs

immediately available, 1 available
14ecm gitter fuer wasserauffangschale 8080433
ECM Gitter für Wasserauffangschale
44,90 €

excl. Shipping costs

immediately available, 1 available
15 8164593
ECM / Profitec Abdeckung Grundchassis
9,90 €

excl. Shipping costs

Delivery time
is determined
16 8164595
Rahmen / Chassis ECM Mechanika Slim
120,37 €

excl. Shipping costs

Delivery time
is determined
17 8164596
ECM Frontblech
53,55 €

excl. Shipping costs

Delivery time
is determined
18 8164597
Untere Tassenablage
45,68 €

excl. Shipping costs

Delivery time
is determined
19cylinder head screw m5x10 8001294
CYLINDER HEAD SCREW M5x10
1,01 €

excl. Shipping costs

immediately available
19ecm reling kurz 170mm 8079704
ECM Reling kurz - 170mm
12,50 €

excl. Shipping costs

Delivery time
is determined
20 8164602
Seitenwand links/ rechts (1 Stück)
89,25 €

excl. Shipping costs

Delivery time
is determined
21 8164603
ECM Rückwand
77,23 €

excl. Shipping costs

Delivery time
is determined

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
