ECM Heidelberg

ECM Serie II KESSEL HEIZUNG PUMPE

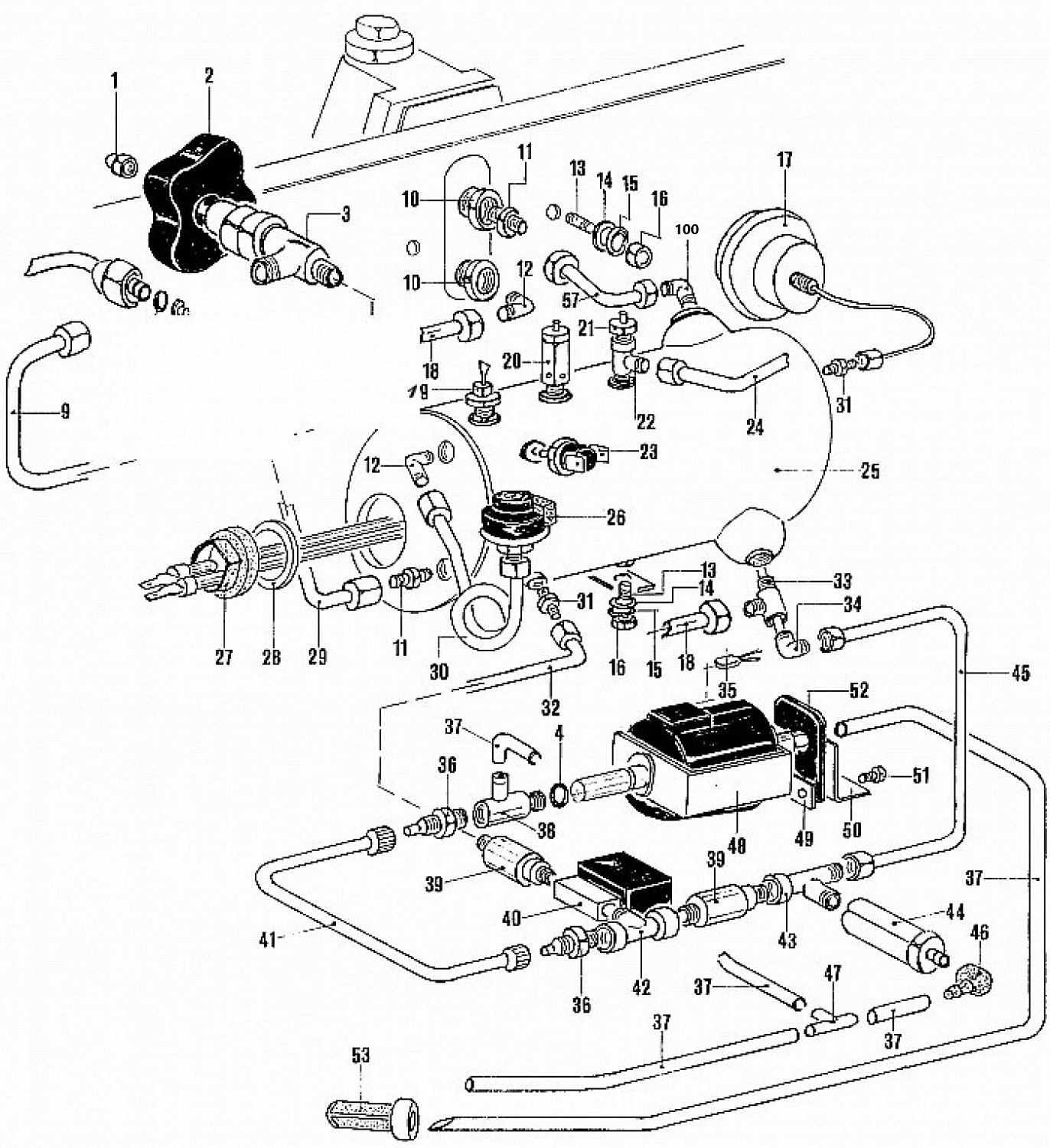

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Pos.:	Item No.:	Image:	Description:	Shipment:	Price (inkl. VAT):	Qty.:

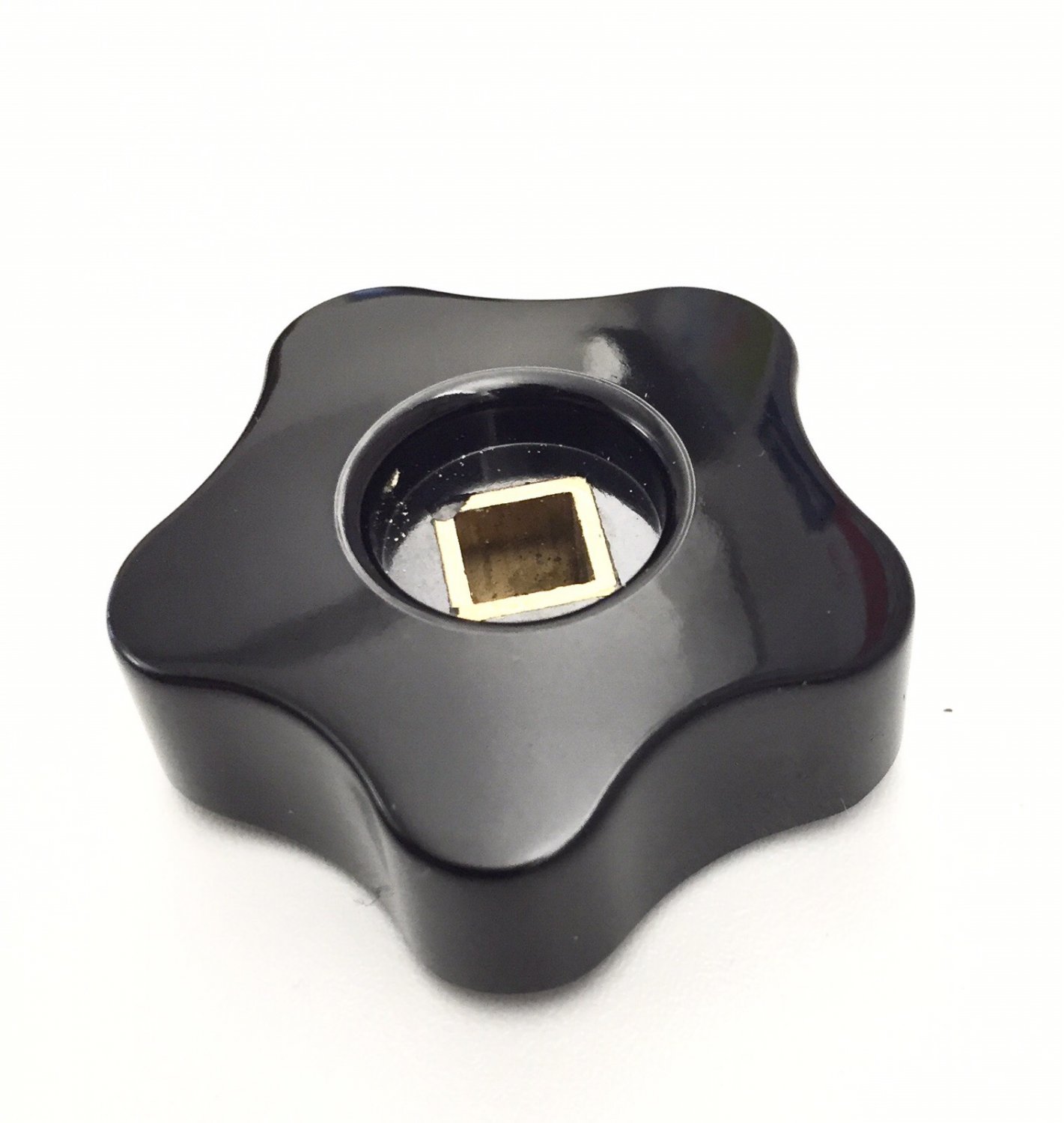

2	8036691		8036691 ECM GIOTTO Handgriff 37mm Höhe	excl. Shipping costs immediately available, 3 available	9,52 €	9,52 € excl. Shipping costs immediately available, 3 available
3	8005472		8005472 Complete Water / Steam Valve – ECM Giotto / Isomac	excl. Shipping costs immediately available, 7 available	21,94 €	21,94 € excl. Shipping costs immediately available, 7 available
3	8060788		8060788 Valve Stem for ECM Giotto / Isomac with Seals – 76 mm – M6	excl. Shipping costs immediately available, 13 available	12,25 €	12,25 € excl. Shipping costs immediately available, 13 available
4	8001810		8001810 FKM O-Ring Seal 02025 – 6.07 x 1.78 mm	excl. Shipping costs immediately available	0,88 €	0,88 € excl. Shipping costs immediately available
9	8073654		8073654 ECM Rohr zum Dampfhahn 1/4"BSP	excl. Shipping costs immediately available, 4 available	9,50 €	9,50 € excl. Shipping costs immediately available, 4 available
10	8022428		8022428 NICHEL-PLATED FITTING	excl. Shipping costs immediately available, 12 available	9,28 €	9,28 € excl. Shipping costs immediately available, 12 available
11	8005710		8005710 Fitting ø 1/4	excl. Shipping costs immediately available, 16 available	3,74 €	3,74 € excl. Shipping costs immediately available, 16 available
12	8005879		8005879 NICHEL PLATEDL-FITTING ø 1/4 A-1/4 A	excl. Shipping costs immediately available, 9 available	4,93 €	4,93 € excl. Shipping costs immediately available, 9 available
13	8118513		8118513 ECM / Profitec Gewindestift M8x31	excl. Shipping costs immediately available, 9 available	2,50 €	2,50 € excl. Shipping costs immediately available, 9 available
14	8007247		8007247 WASHER FLAT M8	excl. Shipping costs immediately available	1,14 €	1,14 € excl. Shipping costs immediately available
15	8080604		8080604 Federring M8 Edelstahl DIN127	excl. Shipping costs immediately available	0,92 €	0,92 € excl. Shipping costs immediately available
16	8011323		8011323 HEXAGONAL NUT M8 MEDIUM	excl. Shipping costs immediately available	1,04 €	1,04 € excl. Shipping costs immediately available
17	8003445		8003445 BOILER PRESSURE GAUGE	excl. Shipping costs immediately available, 2 available	22,23 €	22,23 € excl. Shipping costs immediately available, 2 available

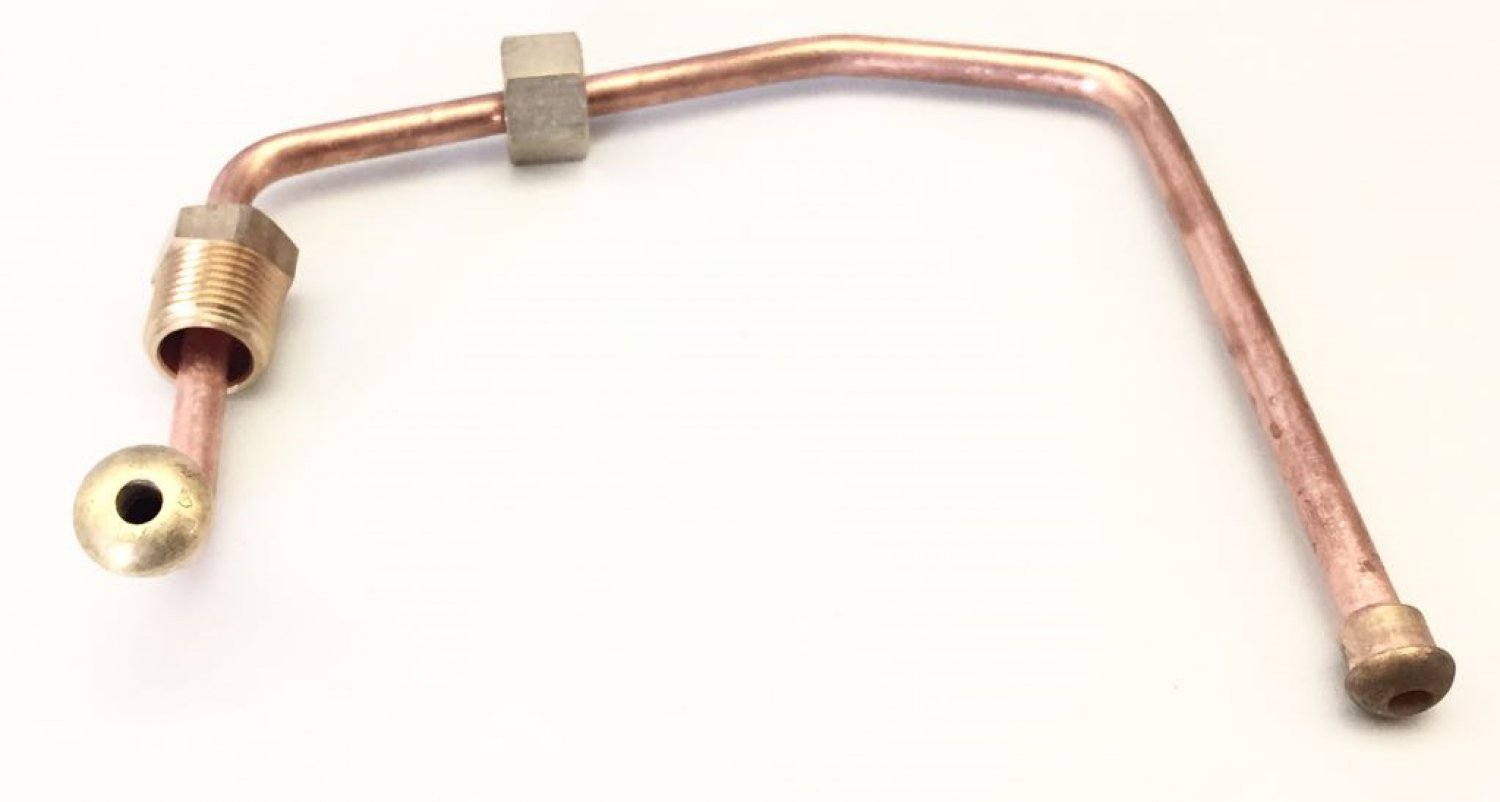

18	8080917		8080917 ECM Rücklaufrohr Wärmetauscher zu Gruppe (unten)	excl. Shipping costs immediately available, 2 available	24,89 €	24,89 € excl. Shipping costs immediately available, 2 available
19	8073951		8073951 Niveausonde ø 1/4 M-80 mm	excl. Shipping costs immediately available, 6 available	21,30 € 15,90 €	21,30 € 15,90 € excl. Shipping costs immediately available, 6 available
20	8007150		8007150 BOILER VALVE ø 3/8	excl. Shipping costs immediately available, 6 available	21,36 €	21,36 € excl. Shipping costs immediately available, 6 available
20	8853078		8853078 Original ECM Sicherheitsventil ø 3/8 A Eichdruck 2,0 Bar	excl. Shipping costs immediately available, 4 available	34,94 €	34,94 € excl. Shipping costs immediately available, 4 available
21	8393315		8393315 Fluid-o-Tech Stainless Steel Vacuum Breaker / Anti-Vacuum Valve – 1/4	excl. Shipping costs immediately available	34,90 €	34,90 € excl. Shipping costs immediately available
21	8007152		8007152 Boiler valve - old model	excl. Shipping costs immediately available	5,71 €	5,71 € excl. Shipping costs immediately available
21	8007153		8007153 ø 1/4″ - BOILER VALVE	excl. Shipping costs immediately available	7,62 €	7,62 € excl. Shipping costs immediately available
22	8101406		8101406 T-Stück 1/4" FMM ECM	excl. Shipping costs immediately available, 9 available	7,74 €	7,74 € excl. Shipping costs immediately available, 9 available

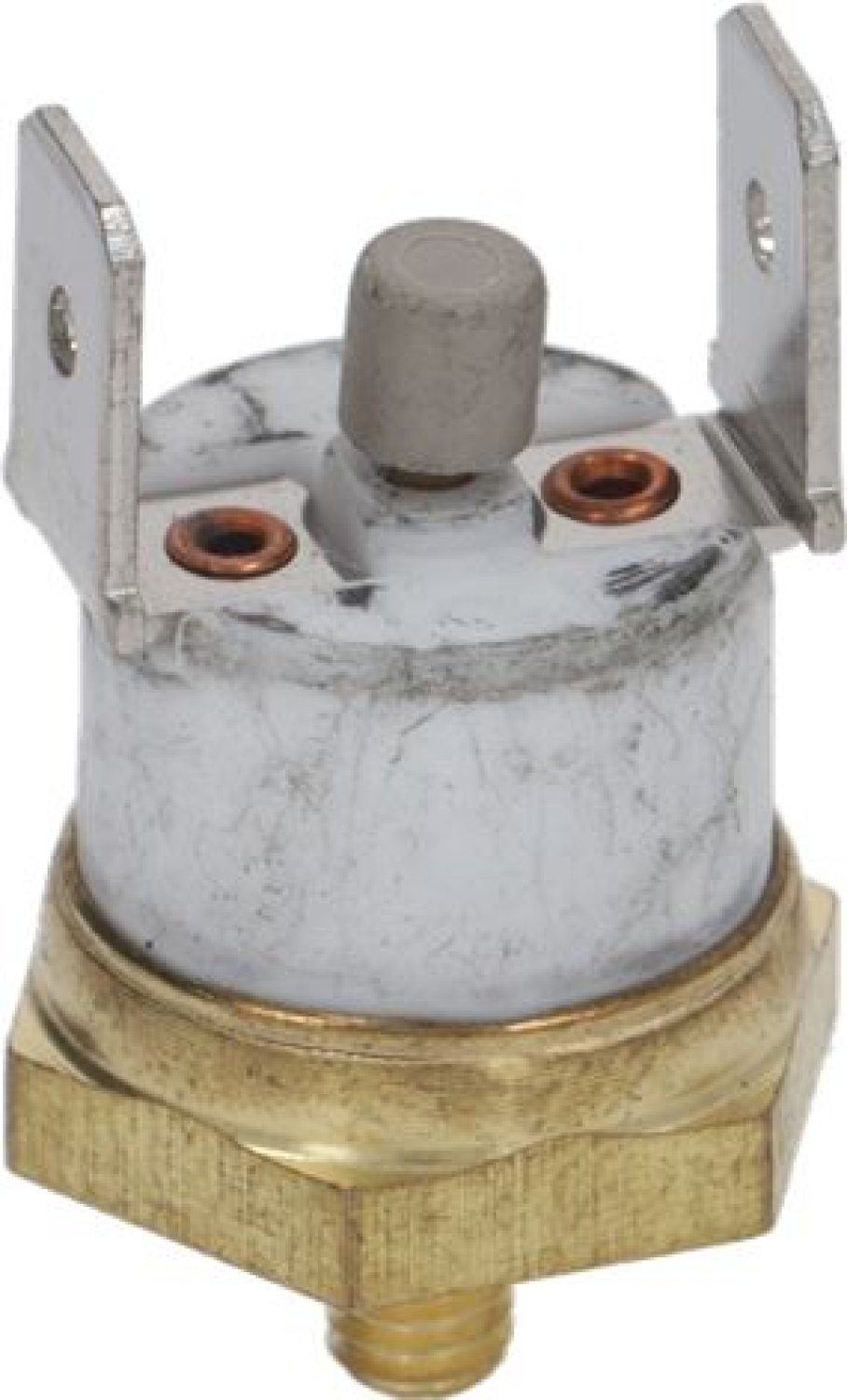

23	8280862		8280862 Original Rocket Safety Thermostat – 135 °C – M4 – 16 A	excl. Shipping costs immediately available, 20 available	11,90 €	11,90 € excl. Shipping costs immediately available, 20 available
24	8073654		8073654 ECM Rohr zum Dampfhahn 1/4"BSP	excl. Shipping costs immediately available, 4 available	9,50 €	9,50 € excl. Shipping costs immediately available, 4 available
25	8069605		8069605 Rocket Giotto Cellini Mozzafiato Evo Boiler Kessel	excl. Shipping costs immediately available, 3 available	267,80 €	267,80 € excl. Shipping costs immediately available, 3 available
26	8062916		8062916 Pressure Switch XP110 125 0.5–1.5 Bar 1/4	excl. Shipping costs immediately available, 18 available	22,31 €	22,31 € excl. Shipping costs immediately available, 18 available
27	8069527		8069527 ECM Original Heating Element 1200W 230V 1" Series I, II and IV	excl. Shipping costs immediately available, 8 available	39,50 €	39,50 € excl. Shipping costs immediately available, 8 available
27	8007588		8007588 Heating Element 1" BSP 1350/1400W 220V	excl. Shipping costs immediately available, 10 available	30,23 €	30,23 € excl. Shipping costs immediately available, 10 available
28	8139595		8139595 PTFE Heating Element Gasket – 40.5x33.3x3 mm	excl. Shipping costs immediately available	2,38 €	2,38 € excl. Shipping costs immediately available

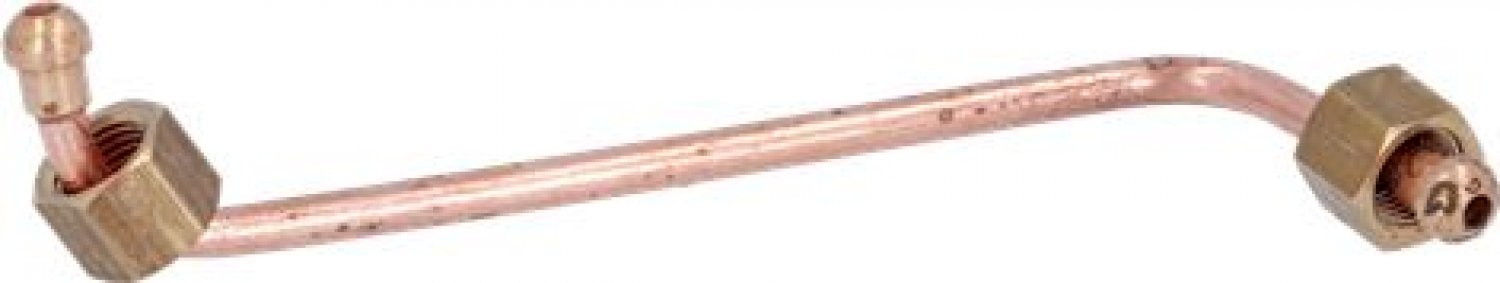

29	8105713		8105713 Rohr ECM Kessel zum Heisswasserventil	excl. Shipping costs immediately available, 4 available	11,50 €	11,50 € excl. Shipping costs immediately available, 4 available
30	8101344		8101344 ECM Kupferrohr für Druckwächter Pressostat	excl. Shipping costs immediately available, 4 available	16,72 €	16,72 € excl. Shipping costs immediately available, 4 available

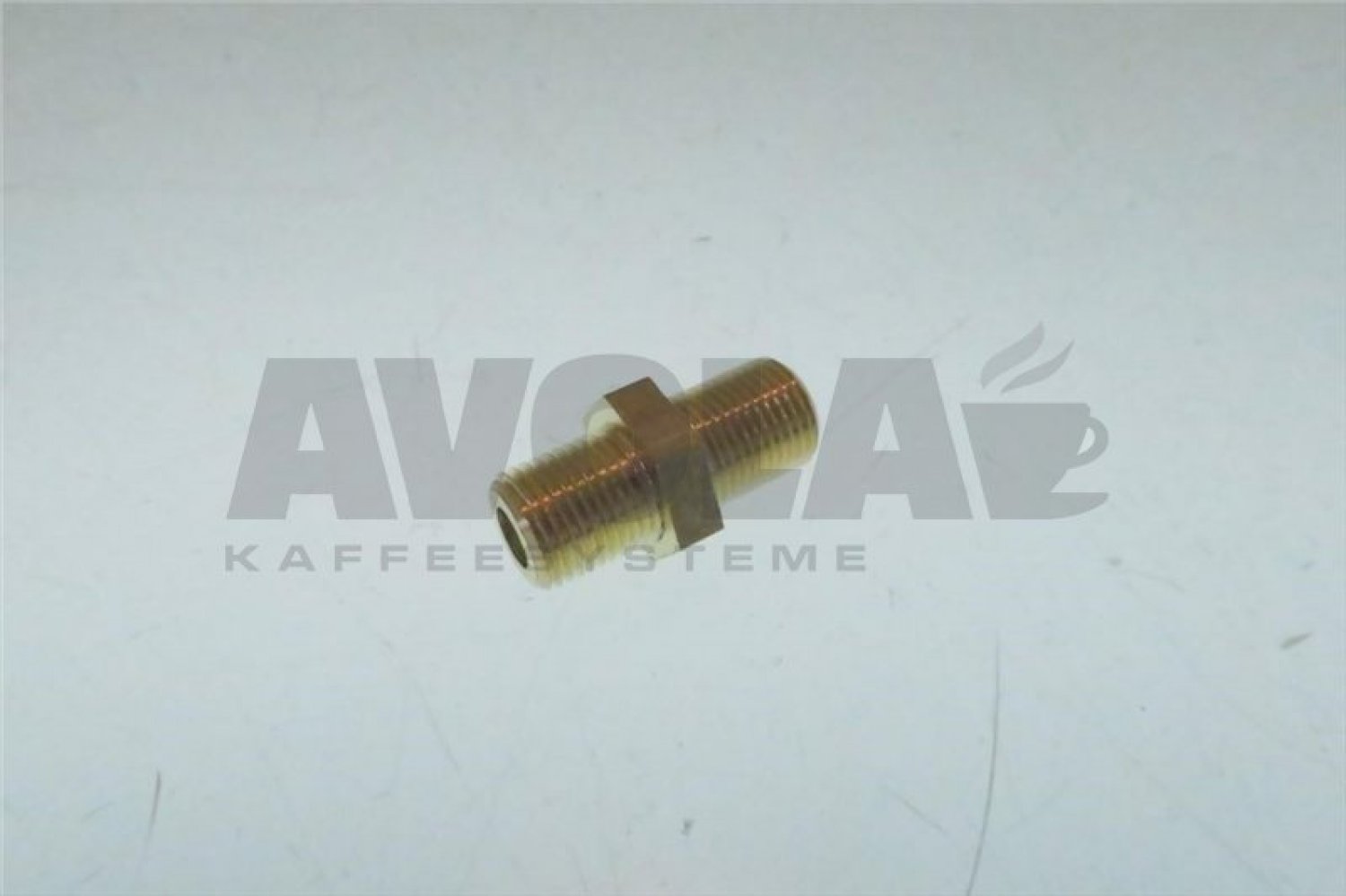

31	8069427		8069427 1/8 Zoll - 1/8 Zoll Fitting	excl. Shipping costs immediately available, 18 available	6,51 €	6,51 € excl. Shipping costs immediately available, 18 available
32	8079624		8079624 ECM - Rocket Kesselfüllrohr	excl. Shipping costs immediately available, 7 available	17,85 €	17,85 € excl. Shipping costs immediately available, 7 available
33	8069498		8069498 Kesselfitting T-Anschluss 3/8A x 3/8A x 1/4I	excl. Shipping costs immediately available, 7 available	22,90 €	22,90 € excl. Shipping costs immediately available, 7 available
34	8079607		8079607 ECM Technika Injektorrohr	excl. Shipping costs immediately available, 5 available	9,52 €	9,52 € excl. Shipping costs immediately available, 5 available
36	8022397		8022397 Straight Hose Fitting 1/8 Inch with Union Nut for 4 x 6 mm PTFE Tube	excl. Shipping costs immediately available, 7 available	5,36 €	5,36 € excl. Shipping costs immediately available, 7 available
37	8006817		8006817 Silicone Hose 5 × 8 mm – Platinum-Cured, Made in Germany	excl. Shipping costs Delivery time 4-6 weeks	3,95 €	3,95 € excl. Shipping costs Delivery time 4-6 weeks
38	8005269		8005269 Pump valve S2	excl. Shipping costs immediately available, 10 available	7,94 € 6,97 €	7,94 € 6,97 € excl. Shipping costs immediately available, 10 available

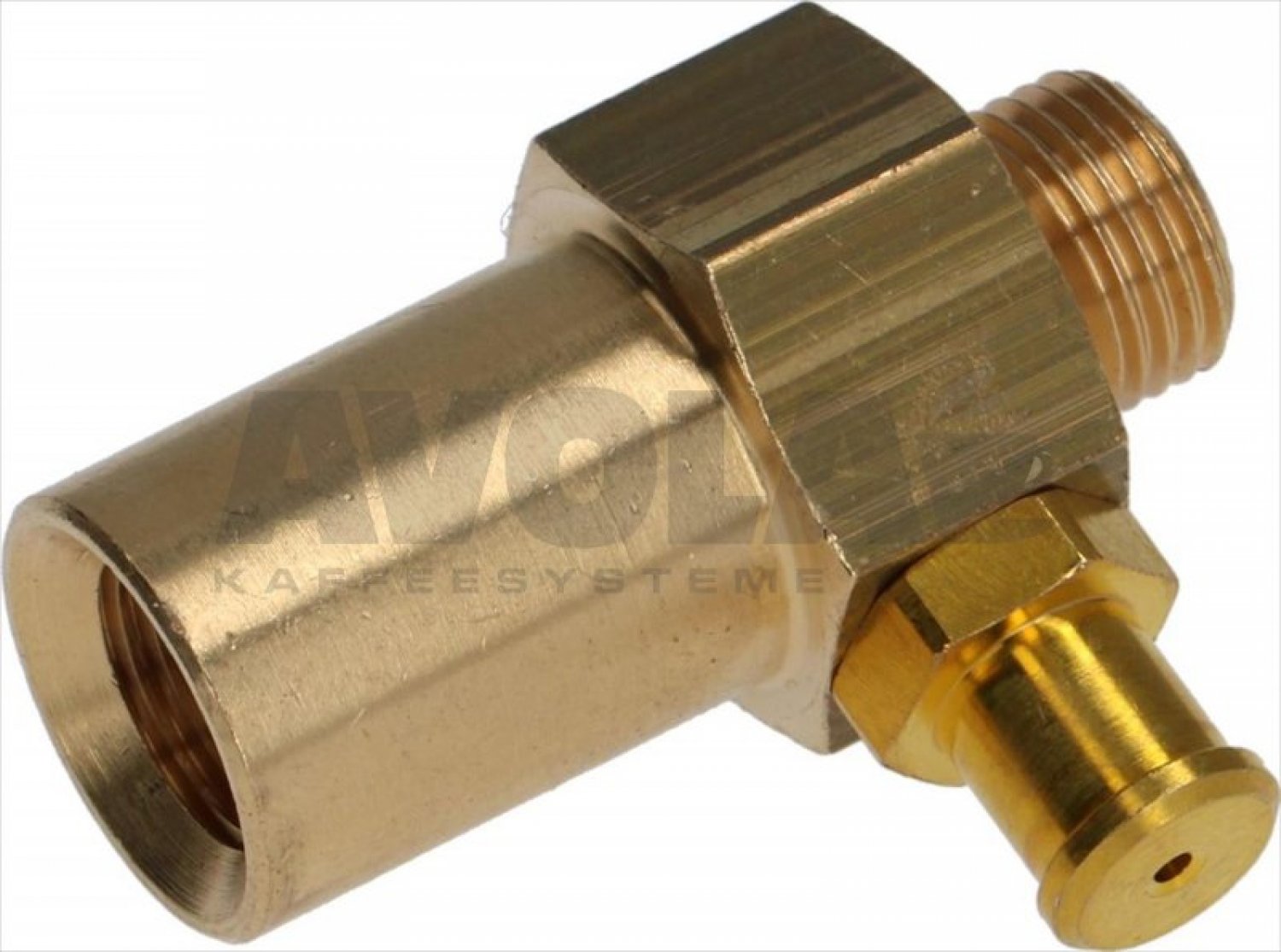

38	8061020		8061020 Self-Priming Pump Kit for ULKA Vibration Pump 1/8	excl. Shipping costs immediately available	13,01 €	13,01 € excl. Shipping costs immediately available
39	8393687		8393687 ECM Non-Return Valve 1/8 Inch Male Thread – ECM & Profitec	excl. Shipping costs immediately available	11,00 €	11,00 € excl. Shipping costs immediately available
40	8000815		8000815 ODE 2-Way Solenoid Valve 1/8" 230V 5W – Orifice Ø2.3 mm	excl. Shipping costs immediately available, 17 available	26,41 €	26,41 € excl. Shipping costs immediately available, 17 available
41	8006801		8006801 TEFLON PIPE ø 4x6 mm - 1 M	excl. Shipping costs immediately available, 1.8 available	5,50 €	5,50 € excl. Shipping costs immediately available, 1.8 available
42	8005873		8005873 T- Anschluss ø 1/8 I-1/8a-1/8 I vernickelt	excl. Shipping costs immediately available, 5 available	7,31 €	7,31 € excl. Shipping costs immediately available, 5 available
43	8079608		8079608 Verbindung T Stück 1/8 " MMF	excl. Shipping costs immediately available, 4 available	6,90 €	6,90 € excl. Shipping costs immediately available, 4 available
44	8068993		8068993 ECM Rocket EXPANSION VALVE ø 1/8	excl. Shipping costs immediately available, 10 available	16,90 €	16,90 € excl. Shipping costs immediately available, 10 available
46	8005868		8005868 PIPETTE FITTING 90	excl. Shipping costs immediately available	1,52 €	1,52 € excl. Shipping costs immediately available
47	8144478		8144478 T-Stück Schlauchanschluss 7mm Edelstahl	excl. Shipping costs immediately available	8,09 €	8,09 € excl. Shipping costs immediately available
48	8001016		8001016 ULKA EX5 Vibration Pump – 48 W – 230 V – 50 Hz	excl. Shipping costs immediately available	14,90 €	14,90 € excl. Shipping costs immediately available
52	8079691		8079691 Rubber Pump Mount	excl. Shipping costs immediately available	3,62 € 3,62 €	3,62 € 3,62 € excl. Shipping costs immediately available
53	8001024		8001024 WATER-DRAWING FILER	excl. Shipping costs immediately available, 9 available	4,00 €	4,00 € excl. Shipping costs immediately available, 9 available
57	8080947		8080947 copper pipe ECM	excl. Shipping costs immediately available, 6 available	11,77 €	11,77 € excl. Shipping costs immediately available, 6 available

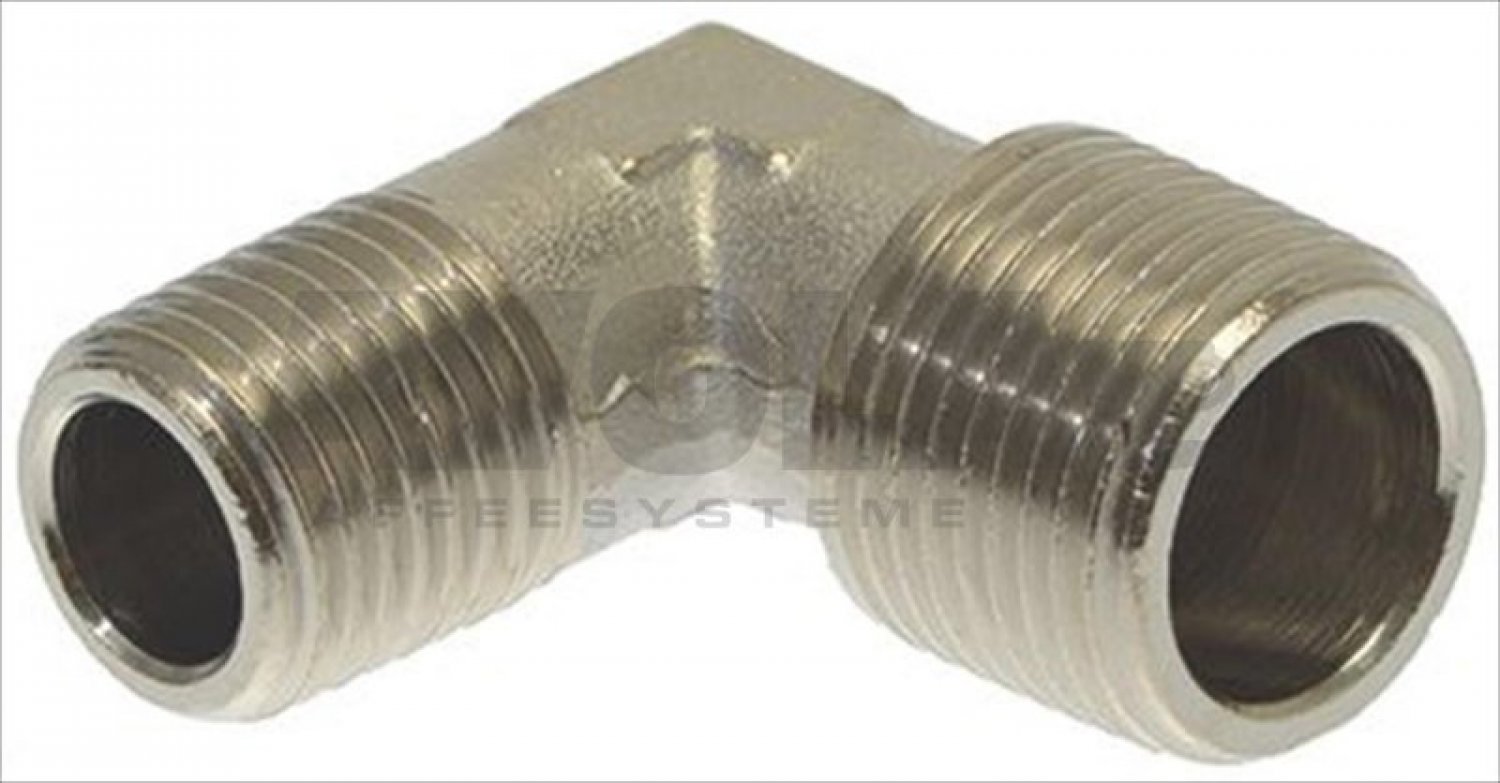

100	8101543		8101543 L- Stück Verbinder 1/4 - 3/8 Zoll	excl. Shipping costs immediately available, 8 available	9,52 €	9,52 € excl. Shipping costs immediately available, 8 available

If your article is not listed, please use the following form and enter the desired numbers.
