ECM Heidelberg

ECM Serie III Brühgruppe Wasser- Dampfventil

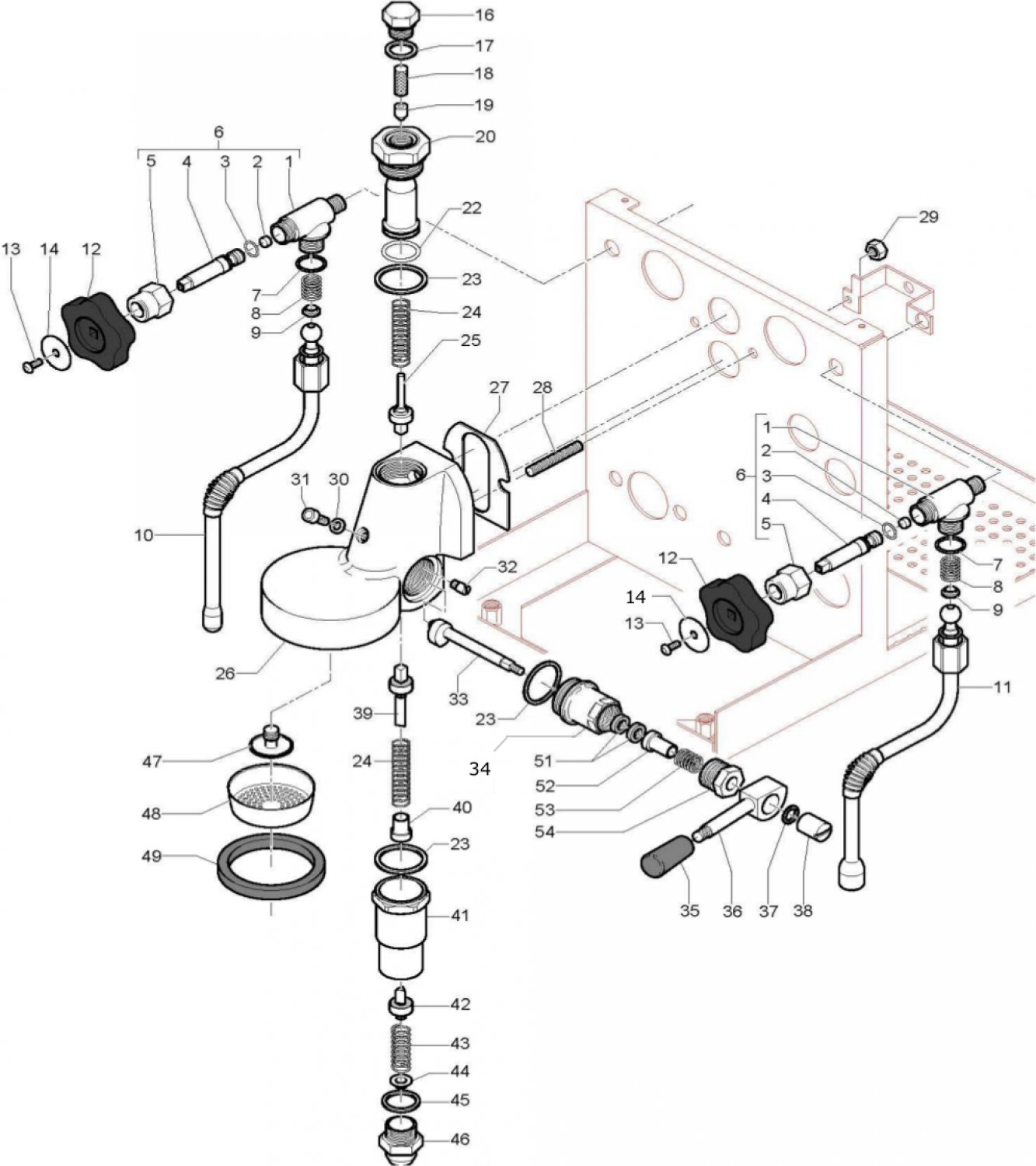

Drawing number 8080952

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.: Image: Description: Qty.:
2blind gasket 8x4 8001449
BLIND GASKET 8x4
3,47 €

excl. Shipping costs

immediately available
3o ring 03030 epdm 8001600
O-RING 03030 EPDM
0,55 €

excl. Shipping costs

immediately available
4ecm technika iii spindel dampfventil bezzera galatea domus 8079643
ECM Technika III Spindel Dampfventil Bezzera Galatea Domus
17,86 €

excl. Shipping costs

immediately available, 5 available
6bezzera drehventil m13 verwendbar auch fuer ecm baureihe iii siehe hinweis 8080945
Bezzera Drehventil M13 - verwendbar auch für ECM Baureihe III (siehe Hinweis)
66,43 €

excl. Shipping costs

immediately available, 3 available
7o ring 0121 epdm 8014882
O-RING 0121 EPDM
1,07 €

excl. Shipping costs

immediately available
8spring o 11 7x16 mm 8069864
SPRING ø 11,7x16 mm
2,11 €

excl. Shipping costs

immediately available, 6 available
9dichtungsscheibe fuer dampfventil heisswasserventilmutter ecm mechanika iii technika iii bezzera 8071400
Dichtungsscheibe für Dampfventil- Heisswasserventilmutter ECM Mechanika III Technika III Bezzera
3,33 €

excl. Shipping costs

immediately available
10pipe steam complete satinless steel 8069460
PIPE STEAM COMPLETE SATINLESS STEEL
40,61 €

excl. Shipping costs

immediately available, 1 available
11pipe water complete satinless steel 8069461
PIPE WATER COMPLETE SATINLESS STEEL
47,60 €

excl. Shipping costs

immediately available, 4 available
17ptfe flat gasket o 22x17x2 mm 8001572
PTFE FLAT GASKET ø 22x17x2 mm
1,69 €

excl. Shipping costs

immediately available
18water filter o 8 5x22 mm 8001115
Water filter ø 8,5x22 mm
1,79 €

excl. Shipping costs

immediately available, 17 available
19nozzle m6x1 hole 8006984
NOZZLE M6x1 HOLE
3,27 €

excl. Shipping costs

immediately available, 4 available
20chromium plated upper sleeve 8063314
CHROMIUM-PLATED UPPER SLEEVE
39,00 €
39,00 €

excl. Shipping costs

immediately available, 2 available
22o ring 0128 viton 8001794
O-RING 0128 VITON
1,68 €

excl. Shipping costs

immediately available
23ptfe flat gasket o 35x30x2 mm 8001583
PTFE FLAT GASKET ø 35x30x2 mm
1,09 €

excl. Shipping costs

immediately available
24spring o 14x45 mm 8003820
SPRING ø 14x45 mm
1,57 €

excl. Shipping costs

immediately available
25complete spout valve 8007091
COMPLETE SPOUT VALVE
7,90 €

excl. Shipping costs

immediately available
27ecm gruppendichtung frontblech e61 8118518
ECM Gruppendichtung Frontblech E61
4,80 €

excl. Shipping costs

immediately available, 16 available
30ptfe flat gasket o10x6x1 mm 8001400
PTFE FLAT GASKET ø10x6x1 mm
1,30 €

excl. Shipping costs

immediately available, 16 available
32cam locking stainless steel screw m6 8001289
CAM LOCKING STAINLESS STEEL SCREW M6
4,03 €

excl. Shipping costs

immediately available, 12 available
33cam rod for e61 coffee group 8005124
Cam rod for E61 coffee group
11,90 €

excl. Shipping costs

immediately available
34ecm rocket anschluss nockenwelle e61 verchromt hochglanzpoliert 8101292
ECM / Rocket Anschluss Nockenwelle E61 verchromt hochglanzpoliert
19,90 €

excl. Shipping costs

immediately available, 10 available
37zahnscheibe 0 8 nockenwelle e61 8073573
Zahnscheibe 0,8 Nockenwelle E61
1,25 €

excl. Shipping costs

immediately available
39complete drain valve 8007124
COMPLETE DRAIN VALVE
9,90 €

excl. Shipping costs

immediately available
40spring guide bushing 8001795
SPRING GUIDE BUSHING
4,64 €

excl. Shipping costs

immediately available, 4 available
41ecm vorbruehzylinder 8118503
ECM Vorbrühzylinder
25,89 €

excl. Shipping costs

immediately available, 4 available
42e61 drain valve with gasket 8007125
E61 drain valve with gasket
5,90 €

excl. Shipping costs

immediately available
43feder o 14 6x34 mm fuer e61 auslassventil verstaerkte variante fuer vibrationspumpenmaschinen 8281551
Feder ø 14,6x34 mm für E61 Auslassventil - verstärkte Variante für Vibrationspumpenmaschinen
2,68 €

excl. Shipping costs

immediately available
44drain jet swirl 8005864
DRAIN JET SWIRL
2,78 €

excl. Shipping costs

immediately available, 11 available
45flat gasket ptfe o 26x21x2 mm 8001415
Flat gasket PTFE ø 26x21x2 mm
2,32 €

excl. Shipping costs

immediately available
46drain chromium plated fitting 8005865
DRAIN CHROMIUM-PLATED FITTING
4,40 €

excl. Shipping costs

immediately available, 3 available
47group spray nozzle o 30 mm m10x1 e61 8006987
Group spray nozzle ø 30 mm M10x1 - E61
6,14 €

excl. Shipping costs

immediately available
48shower screen fuer e61 brew unit 8000608
Shower screen für E61 brew unit
5,20 €

excl. Shipping costs

immediately available
49cafelat e61 portafilter gasket 73x57x8 mm red 8081202
Cafelat E61 portafilter gasket 73x57x8 mm red
5,95 €

excl. Shipping costs

immediately available
49gasket 73x57x8 mm for e61 brew unit 8060996
Gasket 73x57x8 mm - for E61 brew unit
3,90 €

excl. Shipping costs

immediately available
49rubber 73x57x8 5 mm for e61 brew unit 8002056
RUBBER 73x57x8,5 mm - FOR E61 BREW UNIT
3,90 €

excl. Shipping costs

immediately available
51epdm flat gasket 15 5x7 5x4 mm 8001570
EPDM flat gasket 15,5x7,5x4 mm
0,90 €

excl. Shipping costs

immediately available
52cam guide bushing 8001571
CAM GUIDE BUSHING
3,90 €

excl. Shipping costs

immediately available, 11 available
53spring o 14 6x21 mm 8003547
SPRING ø 14,6x21 mm
6,89 €

excl. Shipping costs

immediately available
54rocket e61 mutter fuer nockenwellenaufnahme 8105804
Rocket E61 Mutter für Nockenwellenaufnahme
10,71 €

excl. Shipping costs

immediately available, 4 available

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
