ECM Heidelberg

ECM Technika V PID Gehäuse

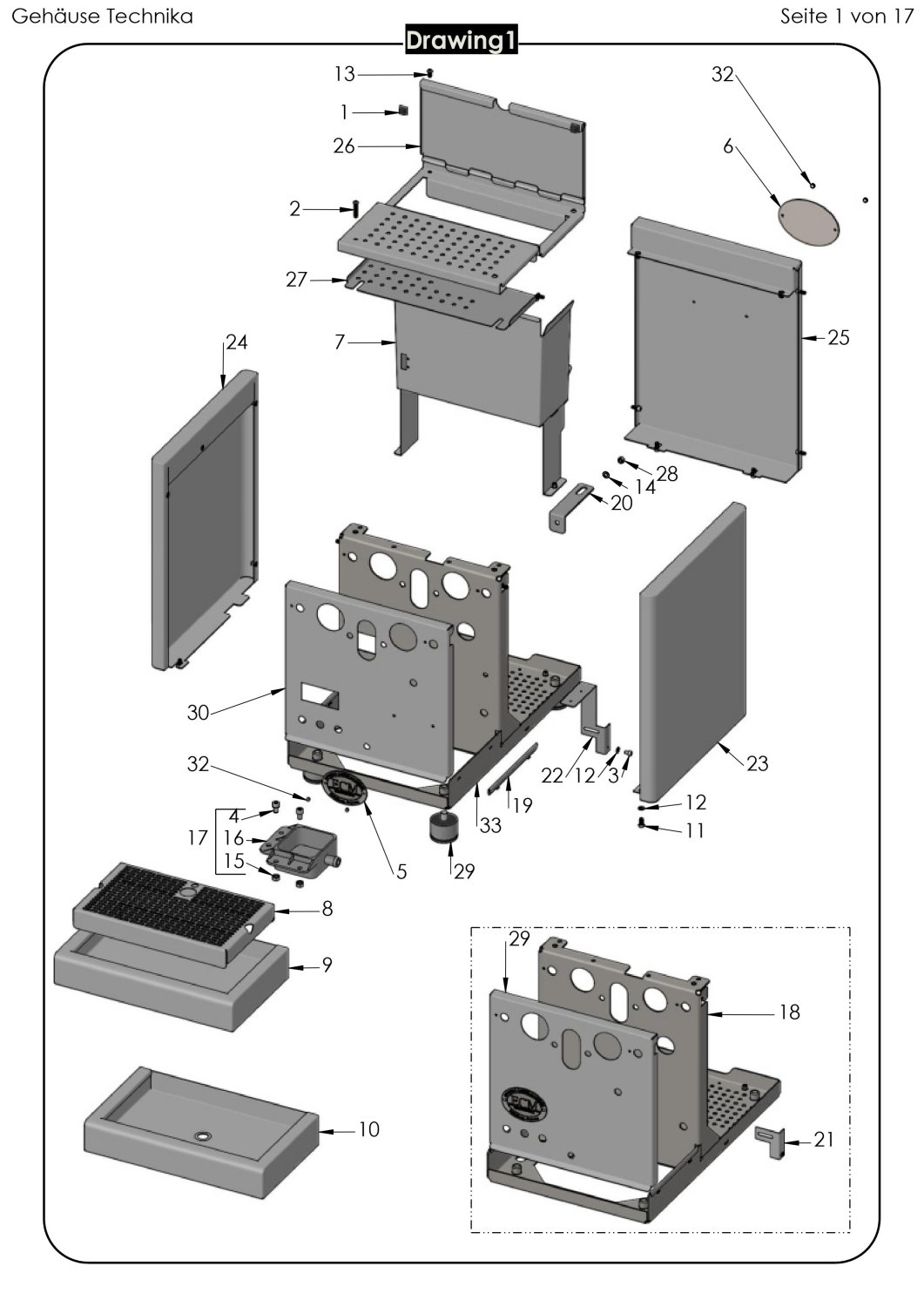

Drawing number 8140503

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.: Image: Description: Qty.:

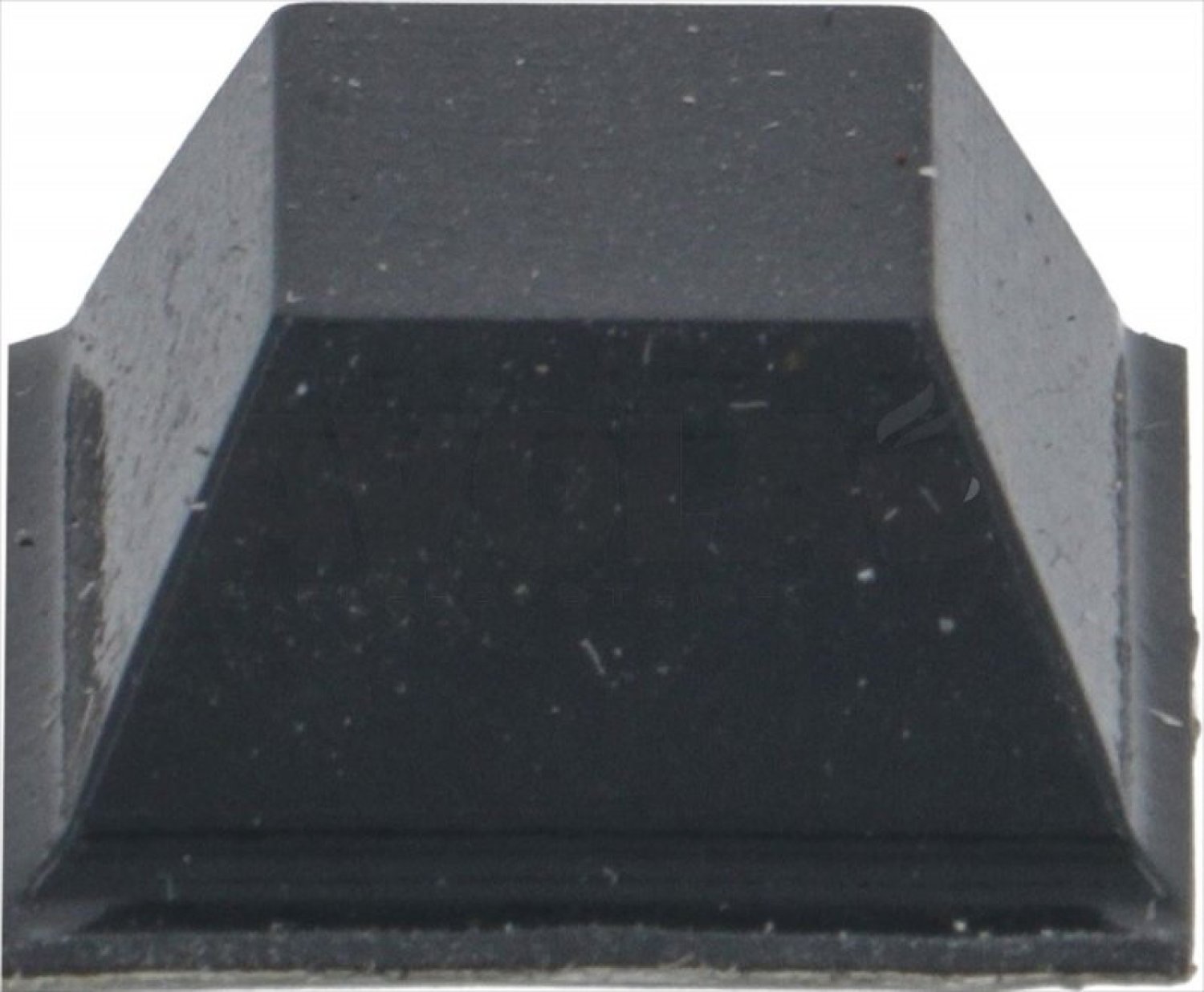

1adhesive feet bezzera ecm 8073689
adhesive feet Bezzera ECM
1,21 €

excl. Shipping costs

immediately available, 20 available
2schraube linsenkopf halbrundkopf innensechskant m4x25 iso 7380 1 edelstahl a2 070 is2 5 blank 8073443
Schraube Linsenkopf Halbrundkopf Innensechskant M4X25 ISO 7380-1 Edelstahl A2-070-IS2,5 blank
1,19 €

excl. Shipping costs

immediately available
3schraube tci m4x6 uni6107 8073462
Schraube Tci M4x6 Uni6107
1,63 €

excl. Shipping costs

immediately available
4low cylinder head screw m6x10 uni 9327 8001293
LOW CYLINDER HEAD SCREW M6x10, UNI 9327
2,49 €

excl. Shipping costs

immediately available

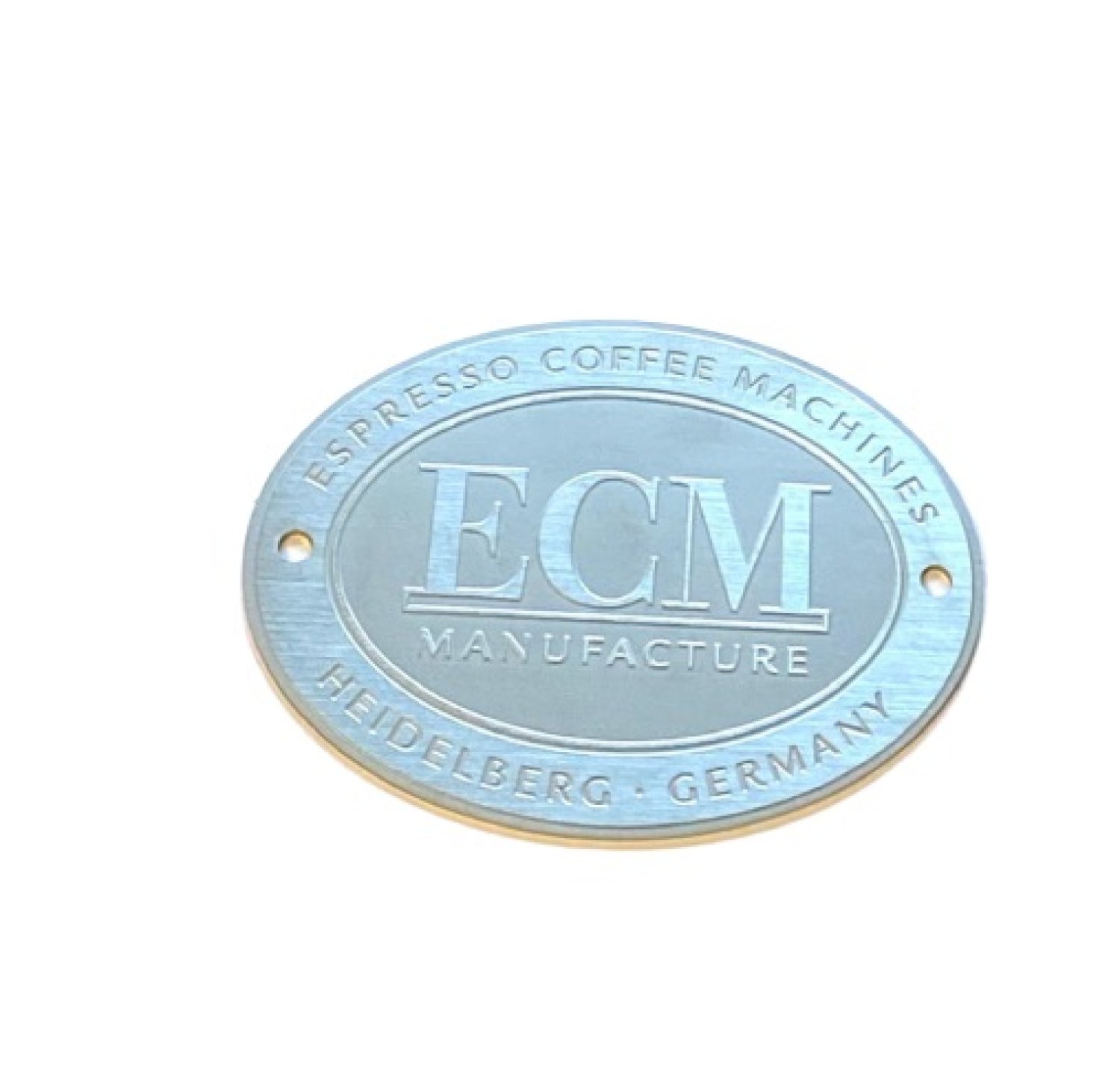

5ecm emblem klein frontblech 75x55 8080619
ECM Emblem klein Frontblech 75x55
14,88 €

excl. Shipping costs

immediately available, 3 available
6ecm emblem gross rueckseite 8080620
ECM Emblem Gross Rückseite
15,47 €

excl. Shipping costs

immediately available, 2 available

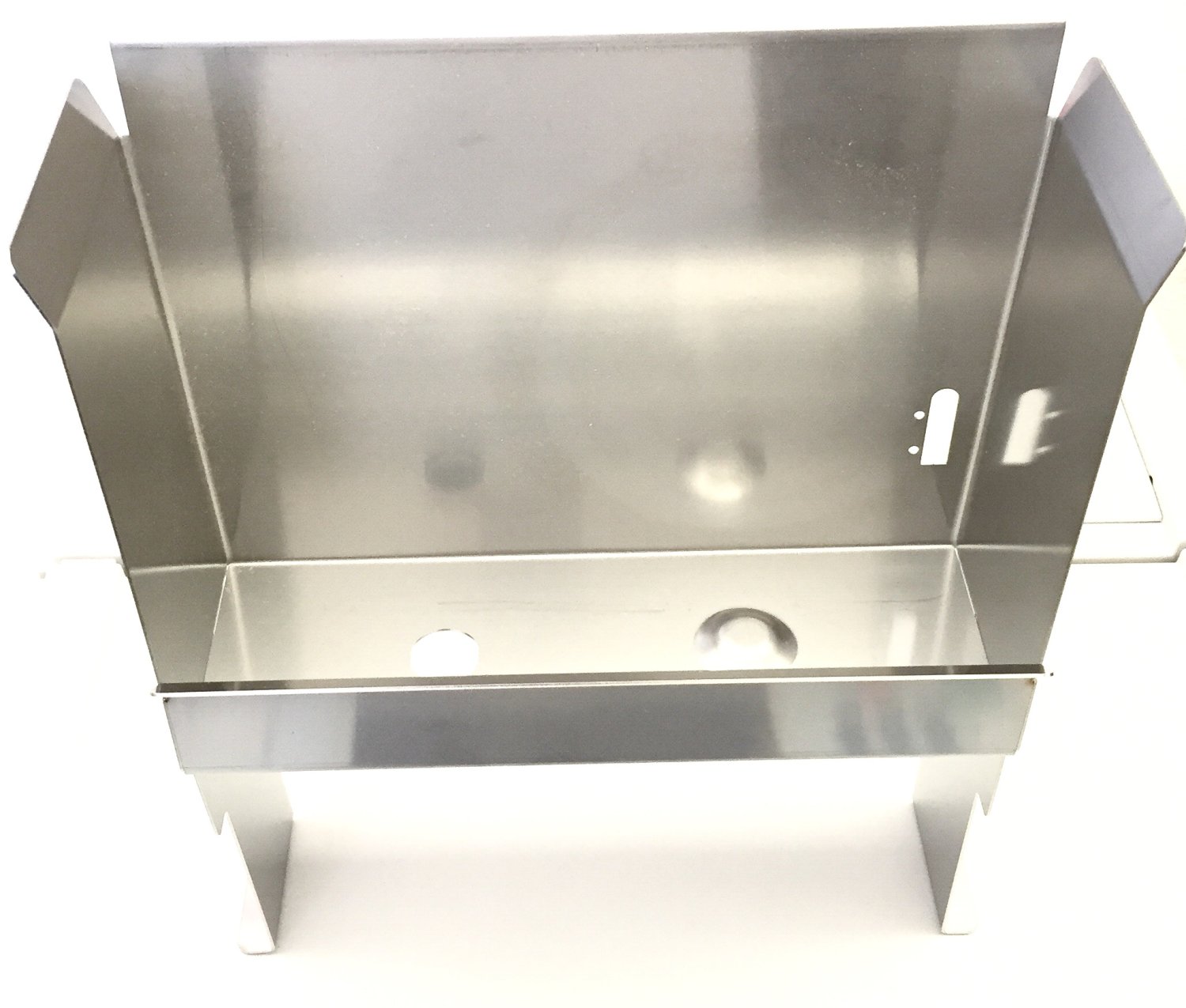

7ecm technika mechanika iv tankaufnahme 8080516
ECM Technika Mechanika IV Tankaufnahme
82,11 €

excl. Shipping costs

Delivery time
is determined

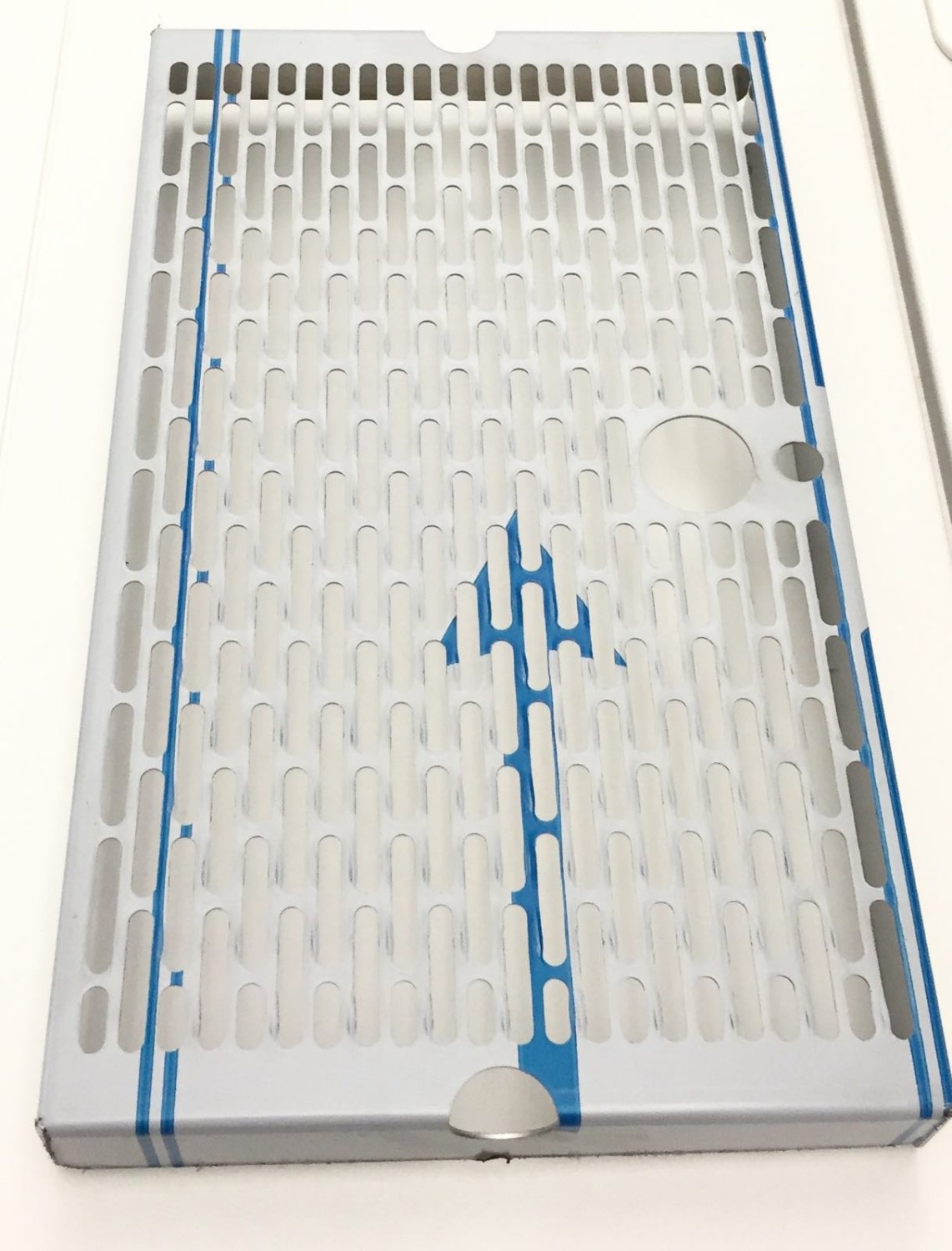

8ecm gitter wasserauffangschale iv und v serie 8079625
ECM Gitter Wasserauffangschale IV und V Serie
34,90 €

excl. Shipping costs

Delivery time
is determined

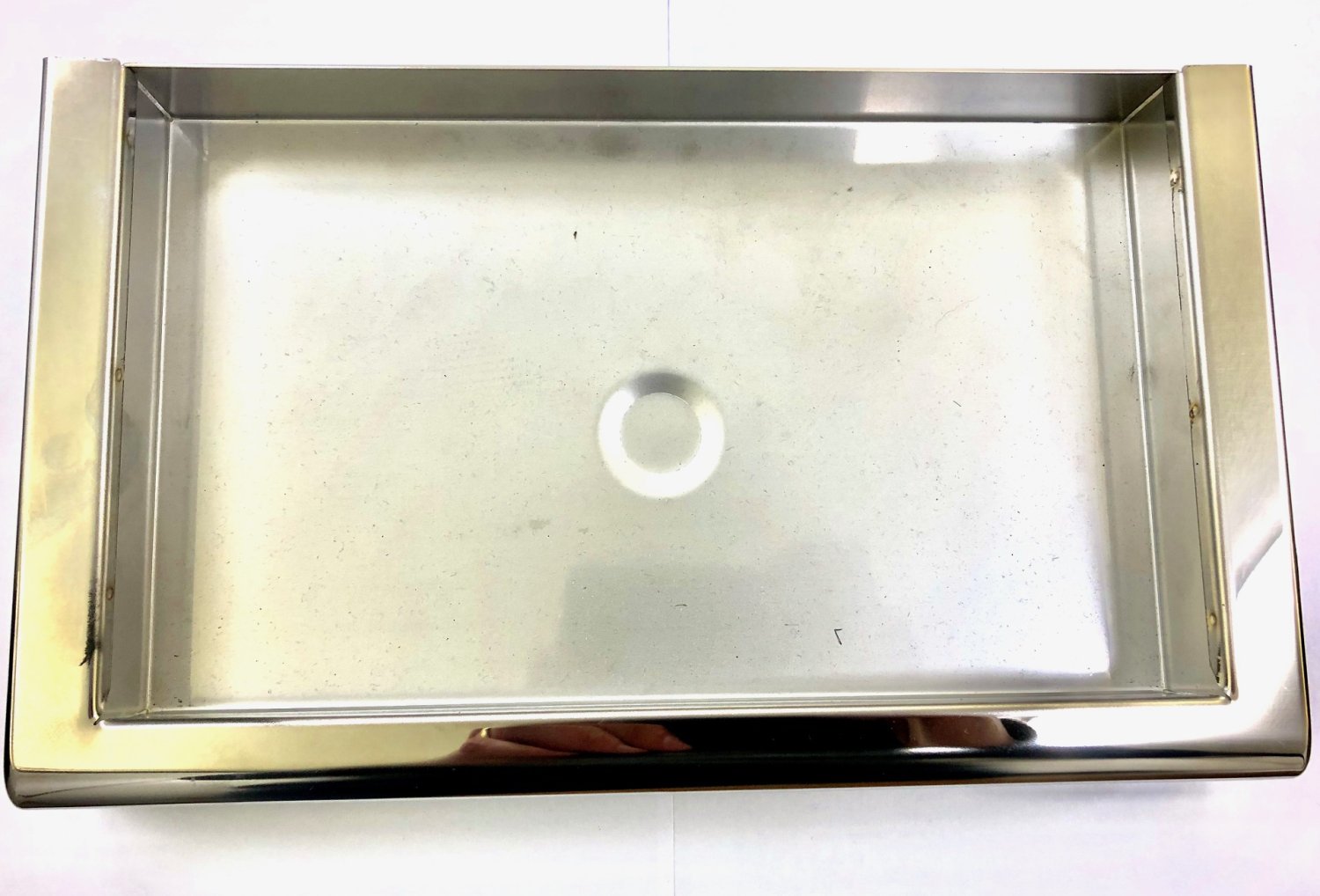

9ecm wasserauffangschale schale technika elektronika ohne loch 8139513
ECM Wasserauffangschale Schale Technika Elektronika - ohne Loch
139,90 €

excl. Shipping costs

immediately available, 2 available
10ecm wasserauffangschale schale technika elektronika mit loch 8141048
ECM Wasserauffangschale Schale Technika Elektronika - mit Loch
153,77 €

excl. Shipping costs

immediately available, 1 available
11schraube zylinderkopf innensechskant vollgewinde edelstahl m4x10 a2 70 din 912 8061180
Schraube Zylinderkopf Innensechskant Vollgewinde Edelstahl M4x10 A2-70 Din 912
0,67 €

excl. Shipping costs

immediately available
12scheibe edelstahl o 4 3 mm a2 din 125 8062377
Scheibe Edelstahl Ø 4,3 mm A2 Din 125
0,64 €

excl. Shipping costs

immediately available, 5 available

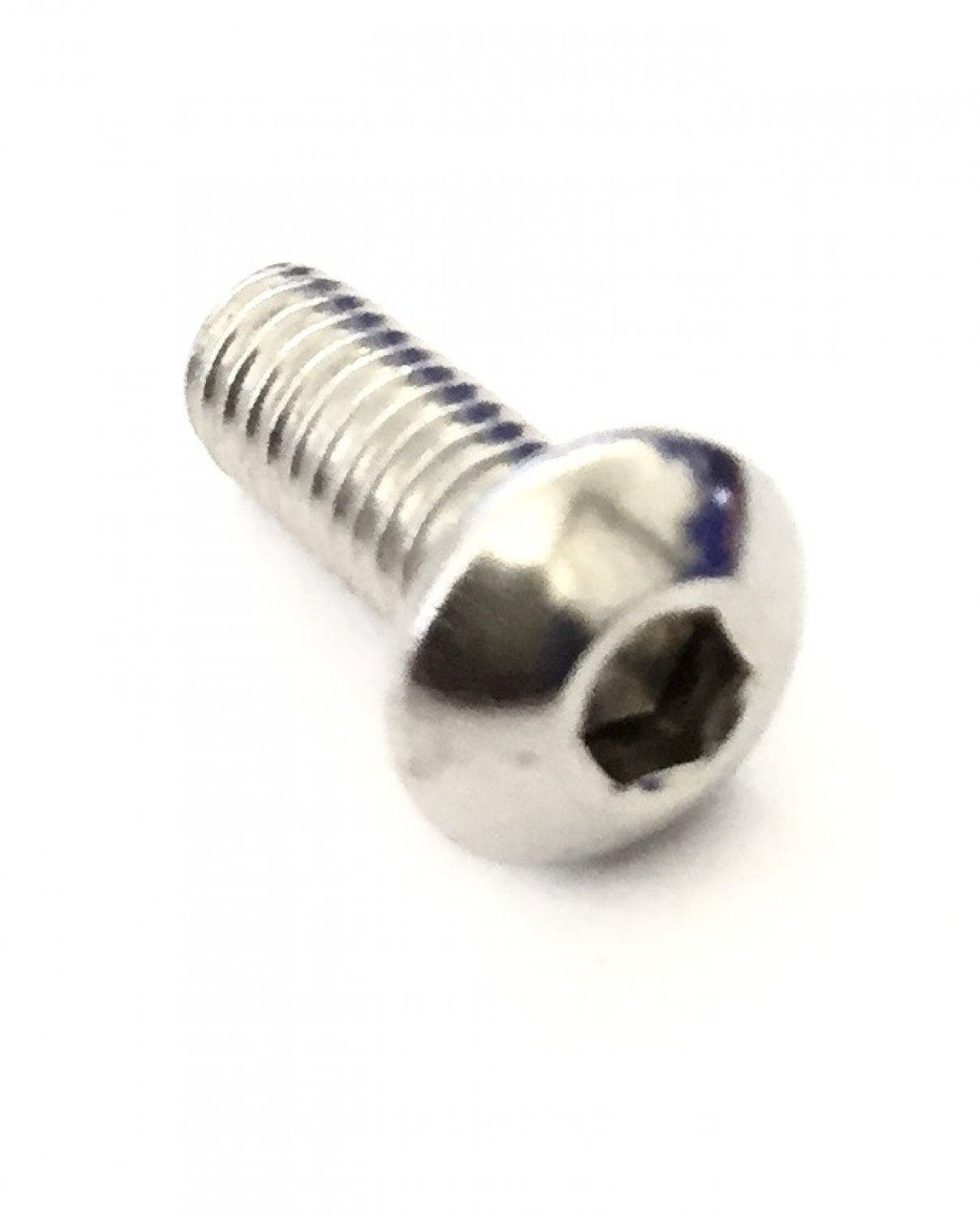

13schraube linsenkopf halbrundkopf innensechskant m4x10 iso 7380 1 edelstahl a2 070 is2 5 blank 8080660
Schraube Linsenkopf Halbrundkopf Innensechskant M4X10 ISO 7380-1 Edelstahl A2-070-IS2,5 blank
0,99 €

excl. Shipping costs

immediately available
14unterlegscheibe o 5 3 mm a2 din 125 8062375
Unterlegscheibe Ø 5,3 MM A2 DIN 125
0,74 €

excl. Shipping costs

immediately available
15sechskantmutter edelstahl m6 a2 din 934 8061377
Sechskantmutter Edelstahl M6 A2 Din 934
0,26 €

excl. Shipping costs

immediately available, 14 available
16ecm profitec ablaufschale hoehe 35mm 8080735
ECM Profitec Ablaufschale Höhe 35mm
23,80 €

excl. Shipping costs

immediately available, 2 available
18 8280098
ECM Mechanika Grundchassis
144,95 €

excl. Shipping costs

Delivery time
is determined
19schiene wasserauffangschale 8164546
Schiene Wasserauffangschale
6,55 €

excl. Shipping costs

immediately available, 3 available
22ecm halterung fuer relais fuer version mit edelstahlkessel 8081217
ECM Halterung für Relais für Version mit Edelstahlkessel
9,52 €

excl. Shipping costs

Delivery time
is determined

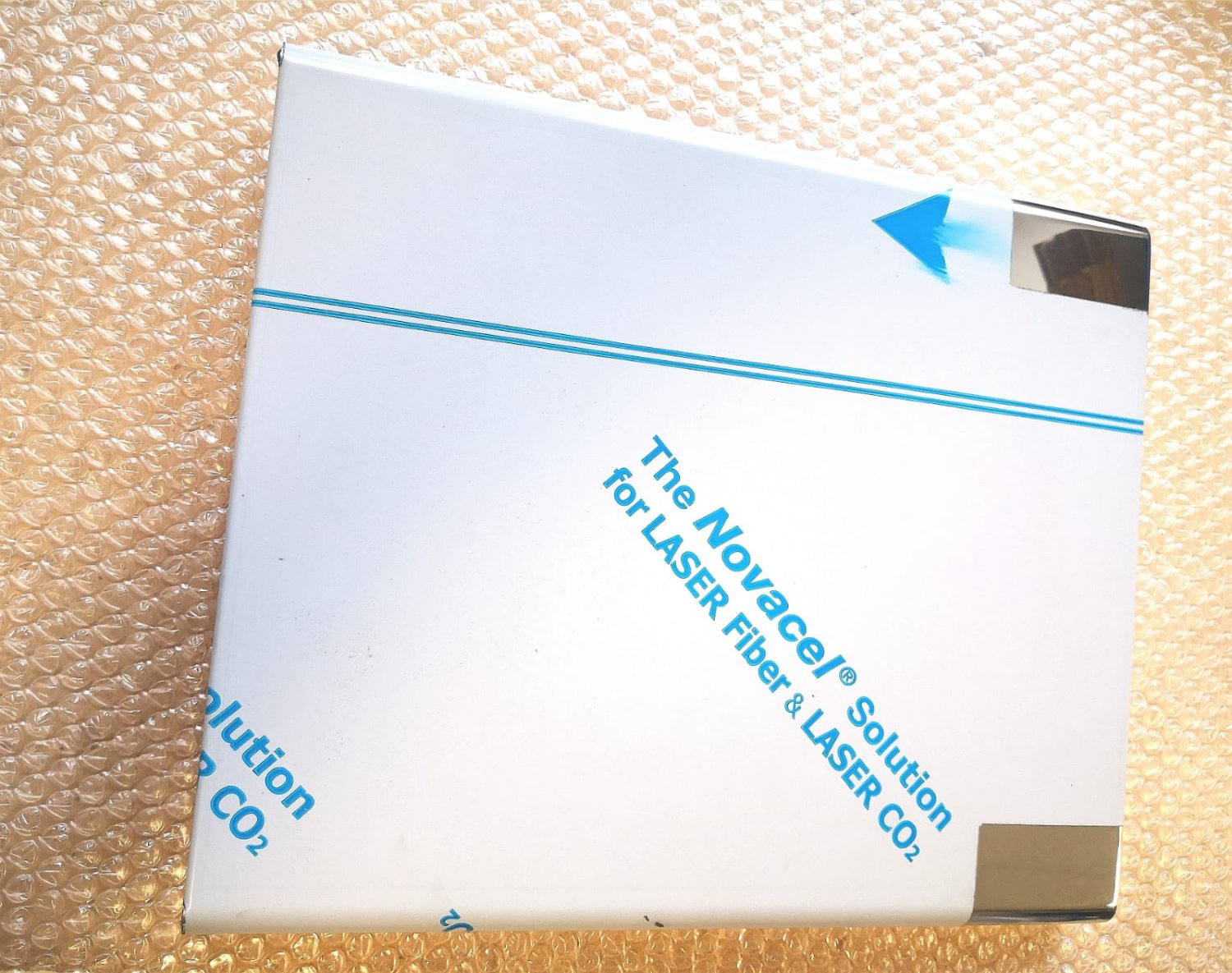

23ecm technika iv v seitenteil rechts 8105645
ECM Technika IV / V Seitenteil rechts
98,50 €

excl. Shipping costs

immediately available, 1 available

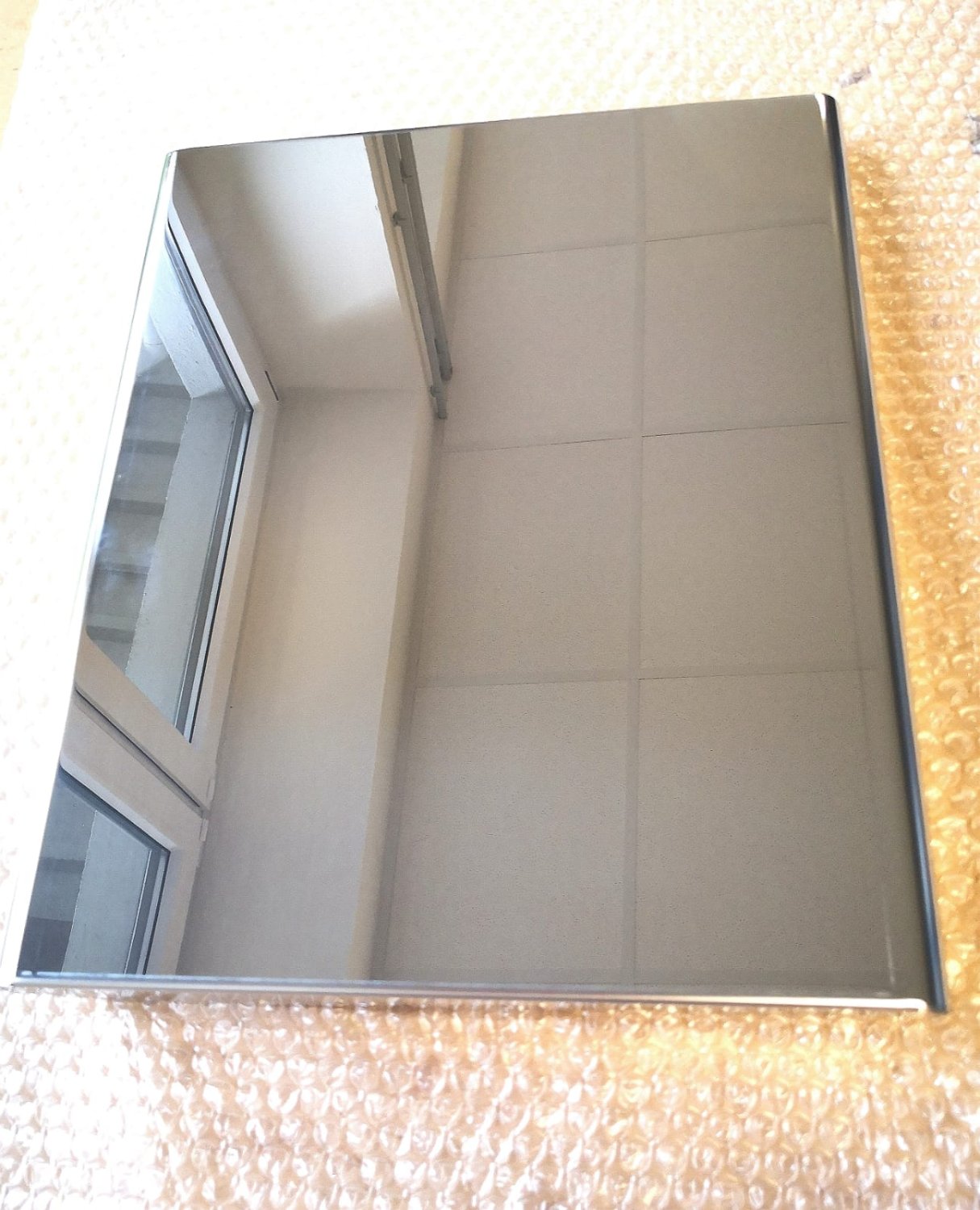

24ecm technika iv v seitenteil links 8105646
ECM Technika IV / V Seitenteil links
98,50 €

excl. Shipping costs

Delivery time
is determined

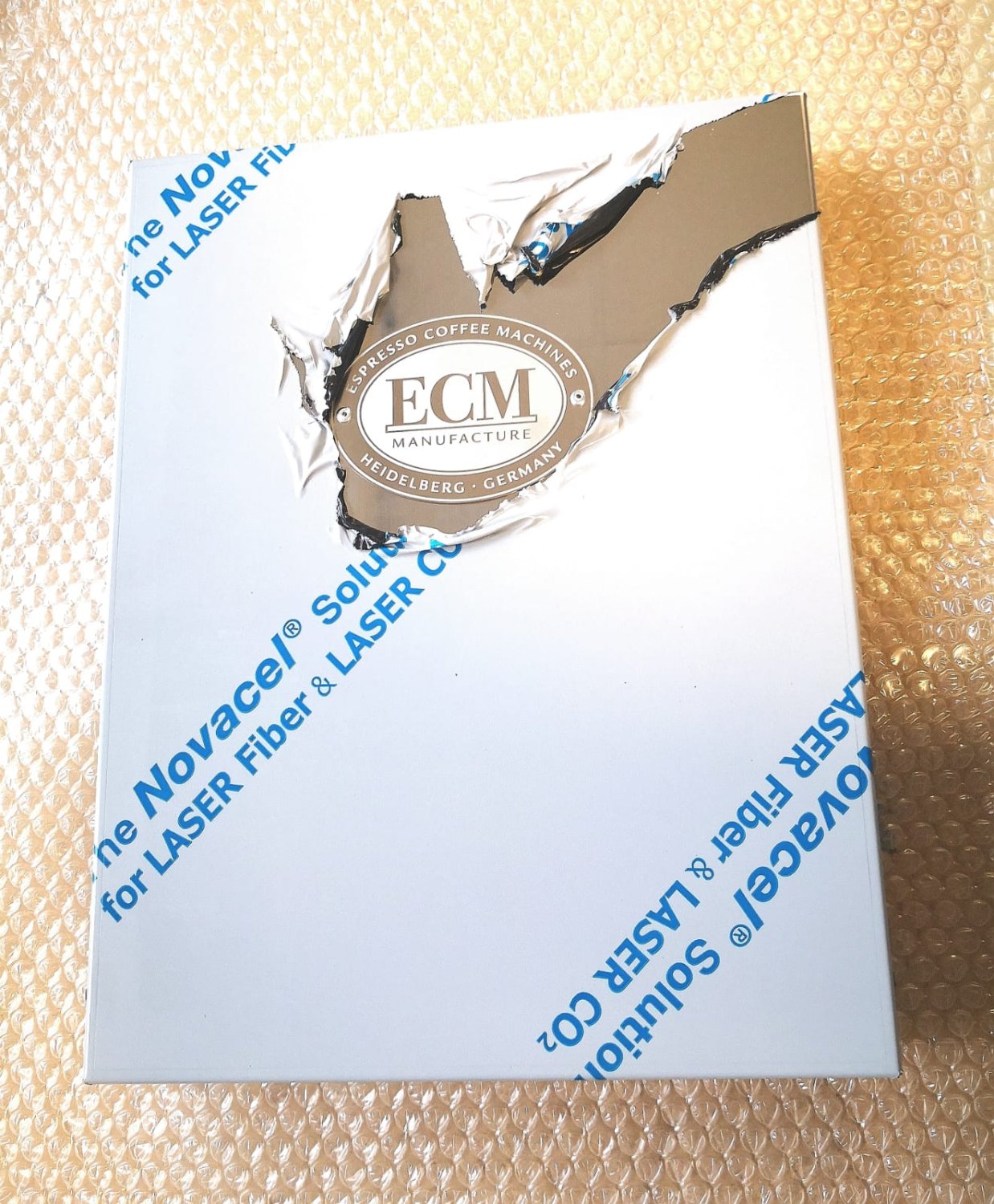

25rueckwand ecm technika iv elektronika ii ohne emblem 8105729
Rückwand ECM Technika IV Elektronika II ohne Emblem
95,00 €

excl. Shipping costs

immediately available, 1 available
26ecm technika iv tassenablage ohne gummi fuss 8083916
ECM Technika IV Tassenablage - ohne Gummi Fuss
133,04 €

excl. Shipping costs

Delivery time
is determined
28sechskantmutter edelstahl m5 a2 din 934 8061379
Sechskantmutter Edelstahl M5 A2 Din 934
0,26 €

excl. Shipping costs

immediately available
29ecm geraetefuss inox h30mm m10 inkl o ring 8073697
ECM Gerätefuss Inox H30mm - M10 inkl. O-Ring
9,81 €

excl. Shipping costs

immediately available, 6 available
30 8164555
Vorderpanel mit Emblem Serie V PID
55,50 €

excl. Shipping costs

immediately available, 1 available
32blindniete flachrundkopf 3x8 8105730
Blindniete Flachrundkopf 3x8
0,60 €

excl. Shipping costs

immediately available, 11 available
33 8164544
Grundchassis Serie V PID
141,76 €

excl. Shipping costs

Delivery time
is determined

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
