ECM Heidelberg

ECM Technika VI Brühgruppe

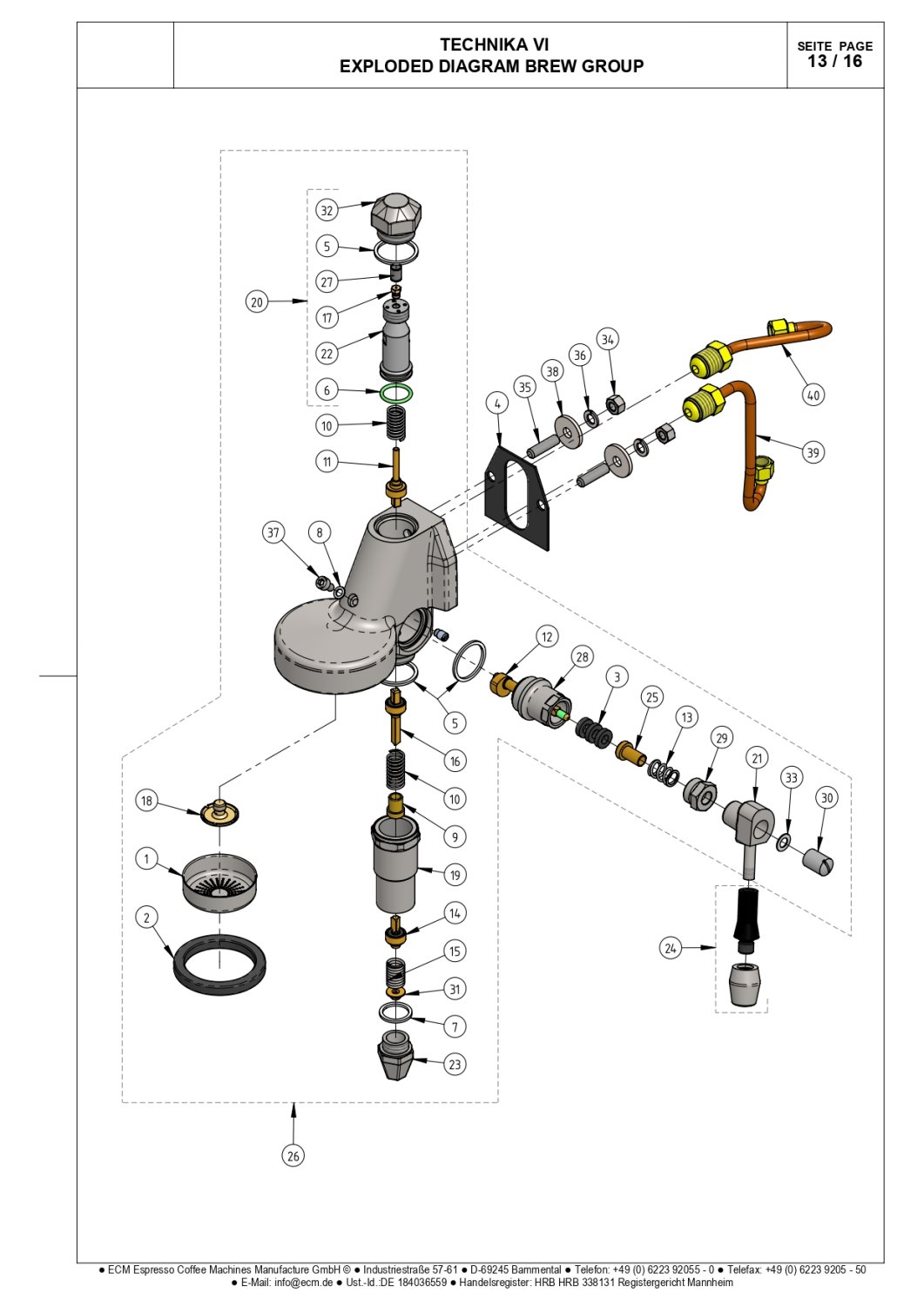

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Pos.:	Item No.:	Image:	Description:	Shipment:	Price (inkl. VAT):	Qty.:
1	8000608		8000608 Shower screen für E61 brew unit	excl. Shipping costs immediately available	3,90 €	3,90 € excl. Shipping costs immediately available
3	8853050		8853050 Dichtung an Nockenwelle ECM Profitec	excl. Shipping costs immediately available, 10 available	2,38 €	2,38 € excl. Shipping costs immediately available, 10 available
4	8118518		8118518 ECM Gruppendichtung Frontblech E61	excl. Shipping costs immediately available	4,80 €	4,80 € excl. Shipping costs immediately available
5	8001583		8001583 PTFE FLAT GASKET ø 35x30x2 mm	excl. Shipping costs immediately available	1,09 €	1,09 € excl. Shipping costs immediately available
6	8001794		8001794 O-RING 0128 VITON	excl. Shipping costs immediately available	1,68 €	1,68 € excl. Shipping costs immediately available
7	8001415		8001415 Flat gasket PTFE ø 26x21x2 mm	excl. Shipping costs immediately available	2,32 €	2,32 € excl. Shipping costs immediately available
8	8001400		8001400 PTFE FLAT GASKET ø10x6x1 mm	excl. Shipping costs immediately available	1,31 €	1,31 € excl. Shipping costs immediately available
10	8003820		8003820 SPRING ø 14x45 mm	excl. Shipping costs immediately available	1,57 €	1,57 € excl. Shipping costs immediately available
11	8007091		8007091 COMPLETE SPOUT VALVE	excl. Shipping costs immediately available	7,90 €	7,90 € excl. Shipping costs immediately available
12	8005124		8005124 Cam rod for E61 coffee group	excl. Shipping costs immediately available	11,90 €	11,90 € excl. Shipping costs immediately available
13	8003547		8003547 SPRING ø 14,6x21 mm	excl. Shipping costs immediately available, 19 available	6,89 €	6,89 € excl. Shipping costs immediately available, 19 available
15	8003812		8003812 SPRING ø 14x33 mm	excl. Shipping costs immediately available	4,58 €	4,58 € excl. Shipping costs immediately available
16	8007124		8007124 COMPLETE DRAIN VALVE	excl. Shipping costs immediately available	9,90 € 9,90 €	9,90 € 9,90 € excl. Shipping costs immediately available
18	8006987		8006987 Group spray nozzle ø 30 mm M10x1 - E61	excl. Shipping costs immediately available	5,90 €	5,90 € excl. Shipping costs immediately available
19	8118503		8118503 ECM Vorbrühzylinder	excl. Shipping costs immediately available, 4 available	25,89 €	25,89 € excl. Shipping costs immediately available, 4 available

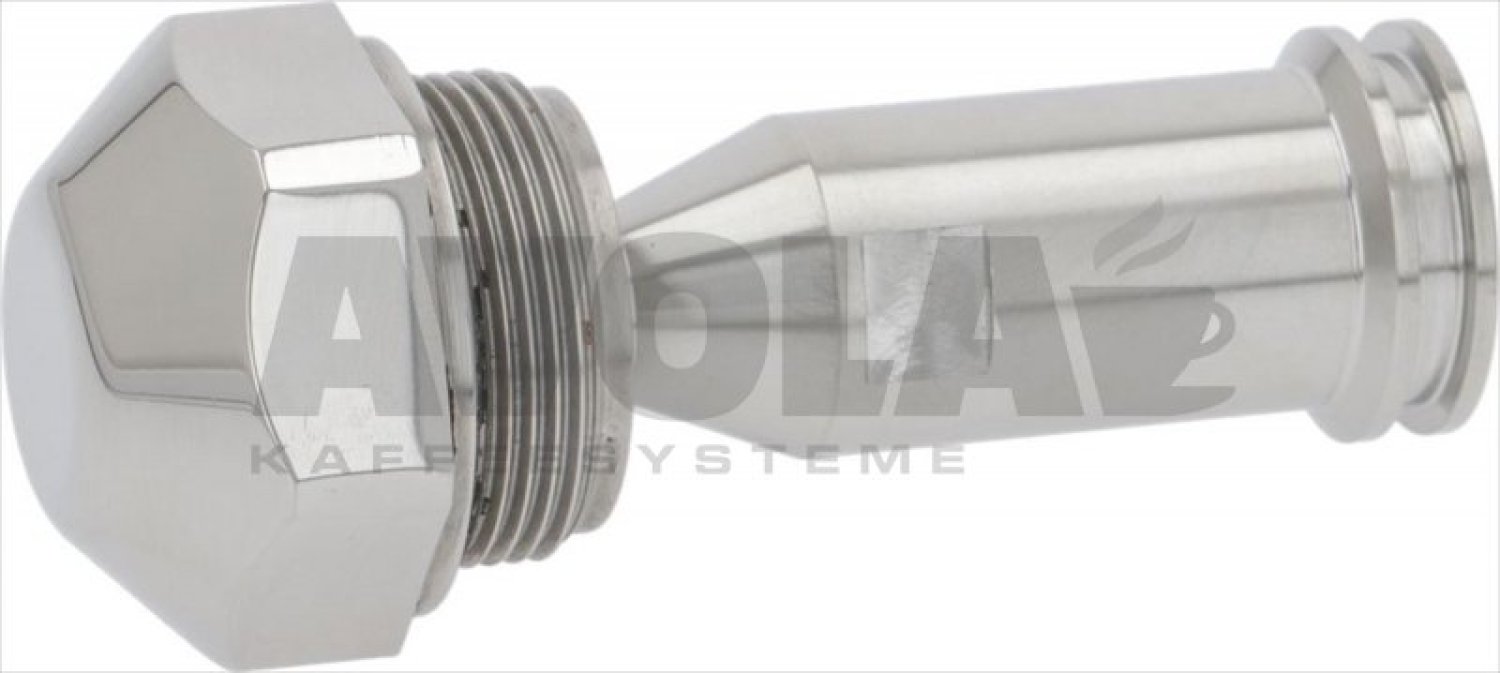

20	8081134		8081134 Original ECM Kollektor Inox für E61 Brühgruppe Edelstahl Glocke Gruppenpilz (ohne O-Ring)	excl. Shipping costs immediately available, 6 available	74,90 €	74,90 € excl. Shipping costs immediately available, 6 available

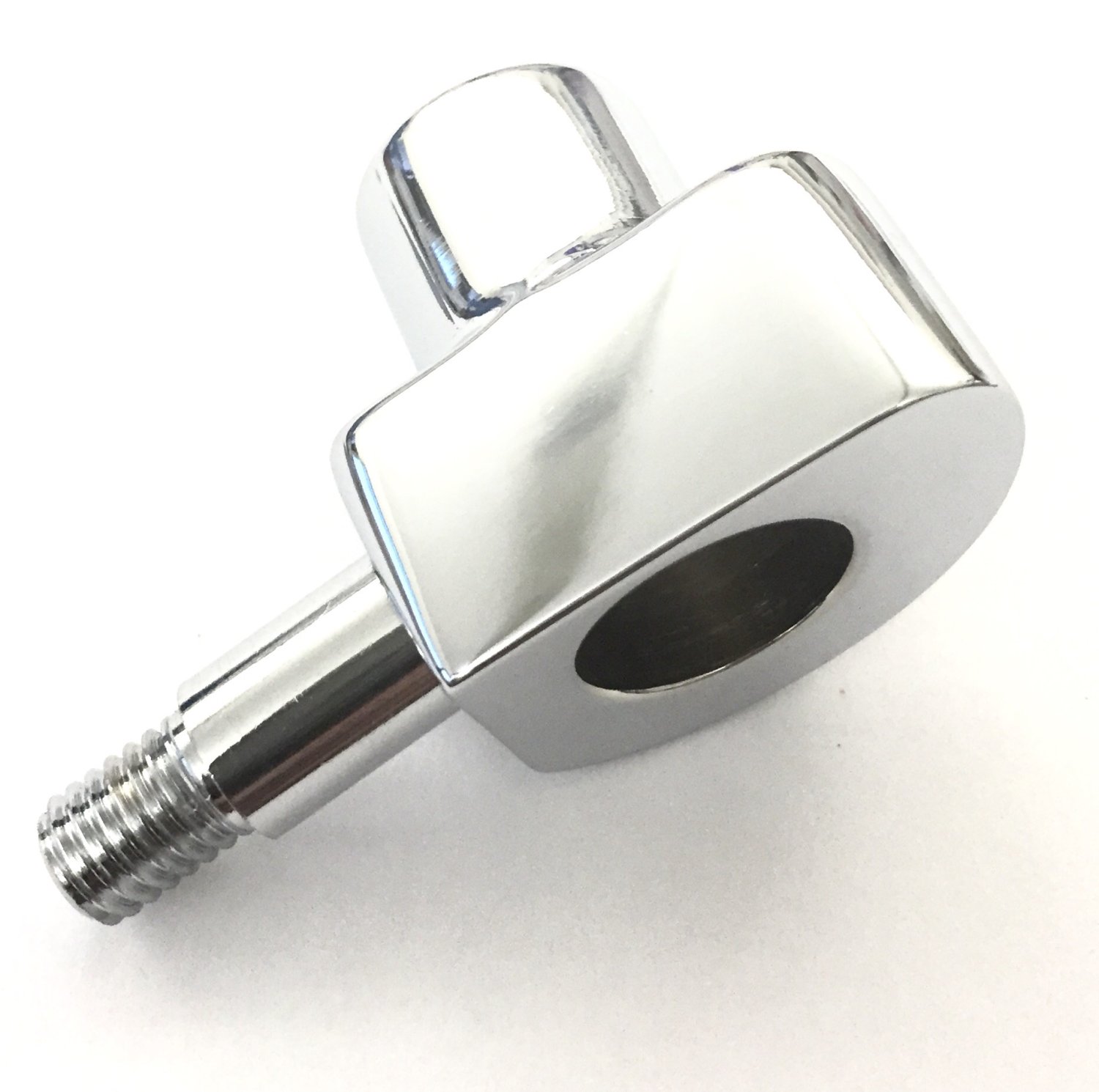

21	8073579		8073579 ECM Hebel Technika IV Profi Mechanika Classika II	excl. Shipping costs immediately available, 3 available	41,65 €	41,65 € excl. Shipping costs immediately available, 3 available
22	8080876		8080876 ECM Brühgruppenzylinder unten			This article is no longer available
23	8073594		8073594 ECM Auslauffitting Brühgruppe E61	excl. Shipping costs immediately available, 3 available	21,69 €	21,69 € excl. Shipping costs immediately available, 3 available

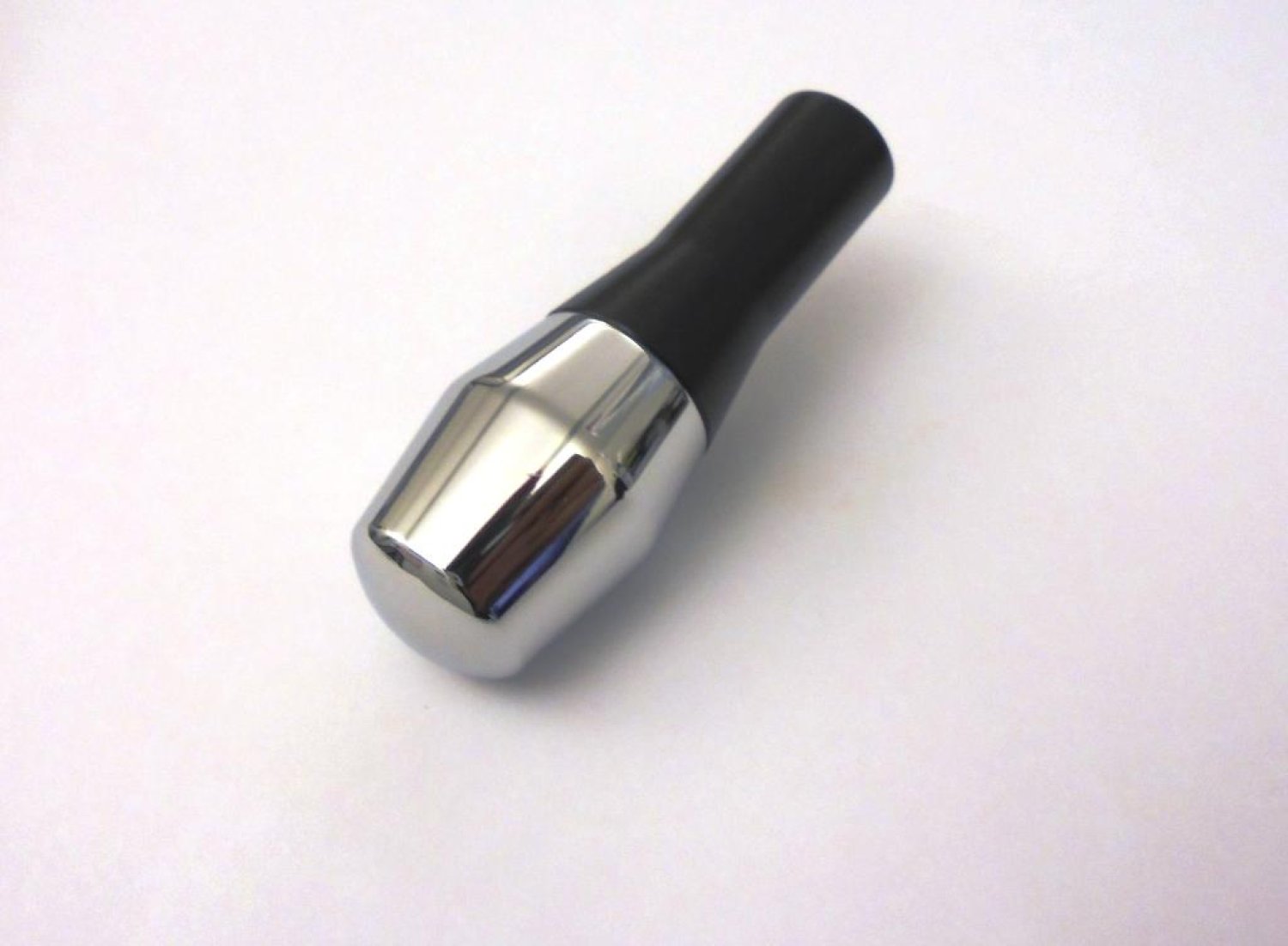

24	8069515		8069515 ECM Handhebel verchromt	excl. Shipping costs immediately available, 8 available	18,90 €	18,90 € excl. Shipping costs immediately available, 8 available

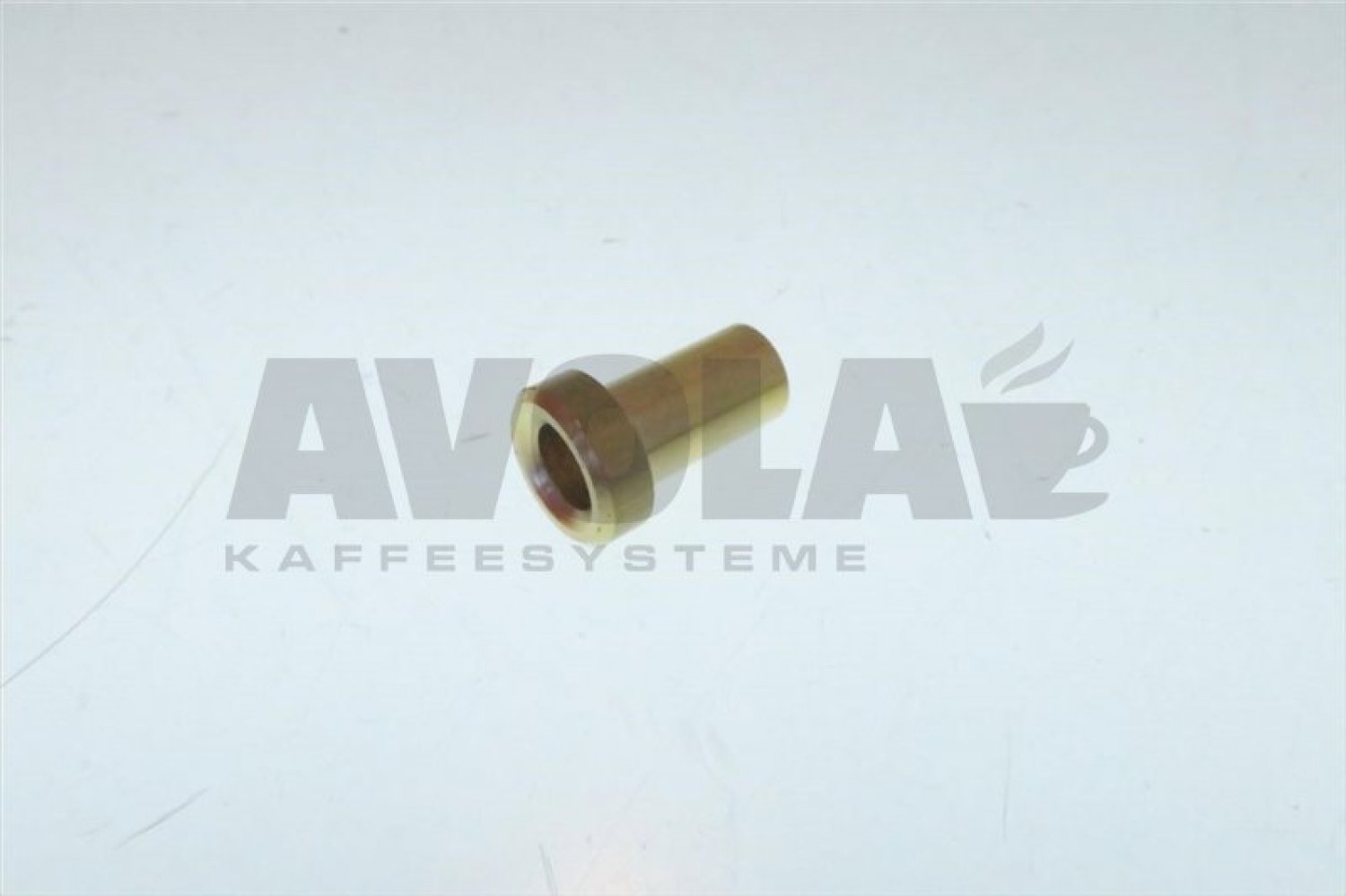

25	8118529		8118529 ECM E61 Buchse (Gruppe mit Edelstahlpilz) 23mm	excl. Shipping costs immediately available, 5 available	4,76 €	4,76 € excl. Shipping costs immediately available, 5 available
26	8079346		8079346 ECM Brühgruppe E61 Patentiert komplett mit Edelstahlpilz	excl. Shipping costs immediately available, 1 available	345,00 €	345,00 € excl. Shipping costs immediately available, 1 available
28	8101292		8101292 ECM / Rocket Anschluss Nockenwelle E61 verchromt hochglanzpoliert	excl. Shipping costs immediately available, 7 available	19,90 €	19,90 € excl. Shipping costs immediately available, 7 available
29	8080935		8080935 E61 Verschraubung Nockenwelle	excl. Shipping costs immediately available, 6 available	4,89 €	4,89 € excl. Shipping costs immediately available, 6 available
30	8002794		8002794 CHROMIUM-PLATED CAP M6	excl. Shipping costs immediately available, 7 available	3,84 €	3,84 € excl. Shipping costs immediately available, 7 available
31	8005864		8005864 DRAIN JET SWIRL	excl. Shipping costs immediately available	2,99 €	2,99 € excl. Shipping costs immediately available
33	8073573		8073573 Zahnscheibe 0,8 Nockenwelle E61	excl. Shipping costs immediately available	1,25 €	1,25 € excl. Shipping costs immediately available
34	8011323		8011323 HEXAGONAL NUT M8 MEDIUM	excl. Shipping costs immediately available	1,04 €	1,04 € excl. Shipping costs immediately available
35	8118513		8118513 ECM / Profitec Gewindestift M8x31	excl. Shipping costs immediately available, 13 available	2,50 €	2,50 € excl. Shipping costs immediately available, 13 available
36	8080604		8080604 Federring M8 Edelstahl DIN127	excl. Shipping costs immediately available	0,92 €	0,92 € excl. Shipping costs immediately available
37	8118553		8118553 ECM Schraube Zylinderkopf M6x10	excl. Shipping costs immediately available, 11 available	1,13 €	1,13 € excl. Shipping costs immediately available, 11 available

If your article is not listed, please use the following form and enter the desired numbers.
