ECM Milano

ECM BRÜHGRUPPE MAGNETVENTIL

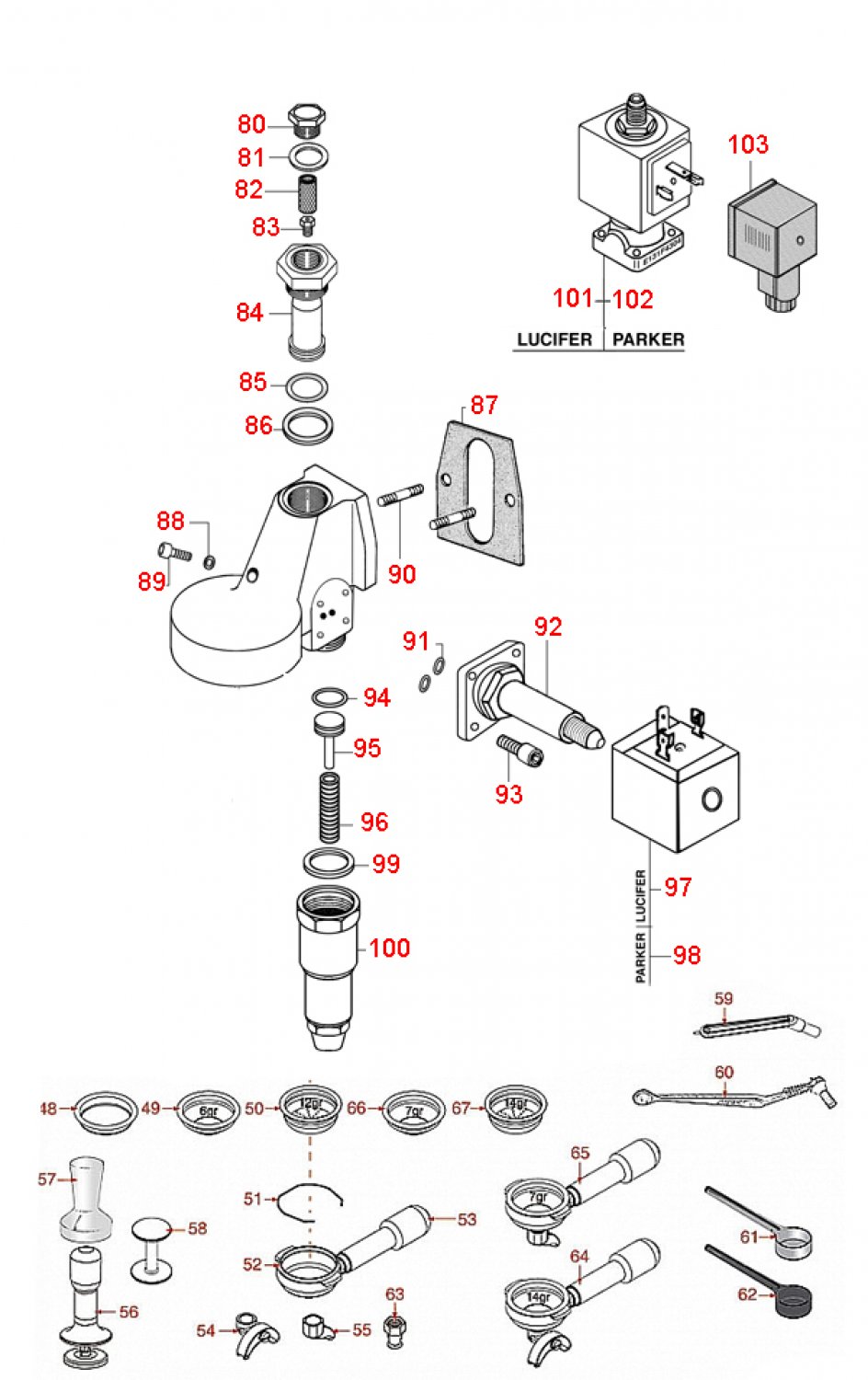

Drawing number 8062753

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.: Image: Description: Qty.:
48blind filter o58mm 8001103
BLIND FILTER Ø58mm
2,56 €

excl. Shipping costs

immediately available
491 cup filter 6 g 8001076
1 CUP FILTER 6 g
5,41 €

excl. Shipping costs

immediately available, 5 available
502 cup filter 12 grams 8001077
2-CUP FILTER 12 GRAMS
5,41 €

excl. Shipping costs

immediately available, 9 available
51s steel filter locking spring 8003542
S/STEEL FILTER LOCKING SPRING
1,45 €

excl. Shipping costs

immediately available

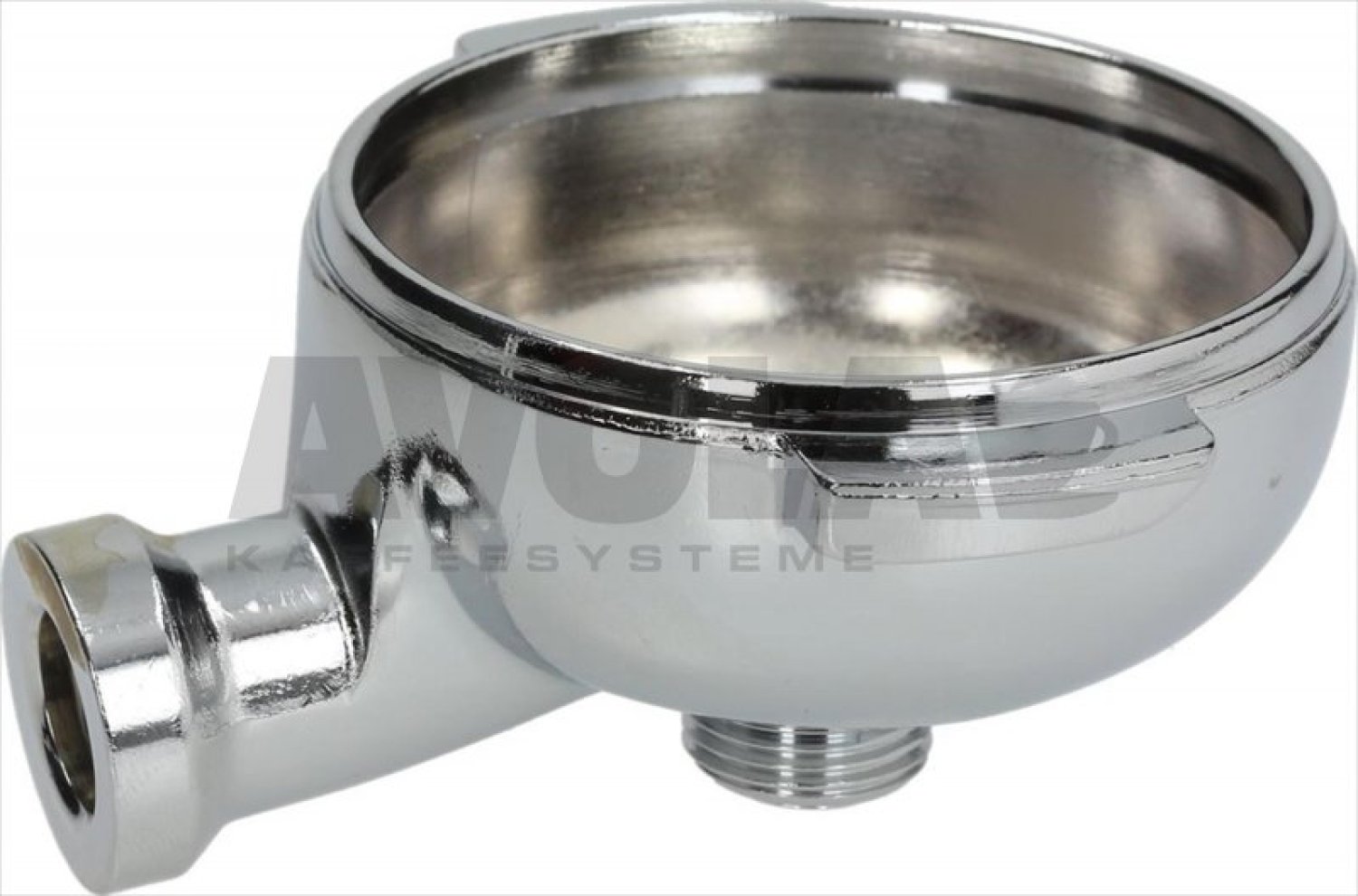

52filter holder bfc royal rk 8001218
FILTER HOLDER BFC/ROYAL/RK
22,13 €

excl. Shipping costs

Delivery time
is determined
53filter holder handle m12 8003349
FILTER HOLDER HANDLE M12
7,79 €

excl. Shipping costs

immediately available, 4 available
54double spout o 3 8 rime 8000115
Double Spout ø 3/8″
5,95 €

excl. Shipping costs

immediately available, 7 available
55single spout o 3 8 8000110
SINGLE SPOUT ø 3/8
6,06 €

excl. Shipping costs

immediately available, 6 available
56dynamometric manual coffee tamper 8006217
DYNAMOMETRIC MANUAL COFFEE TAMPER
194,40 €

excl. Shipping costs

Delivery time
is determined
56manual dynamometrical tamper 8006219
MANUAL DYNAMOMETRICAL TAMPER
86,98 €

excl. Shipping costs

Delivery time 4-6 weeks..
57anodised aluminum tamper o 58 mm 8006191
ANODISED ALUMINUM TAMPER ø 58 mm
36,85 €

excl. Shipping costs

Delivery time
is determined
58nylon coffee tamper 8006165
NYLON COFFEE TAMPER
2,75 €

excl. Shipping costs

immediately available, 7 available
59brush for coffee shower 8006153
BRUSH FOR COFFEE SHOWER
3,92 €

excl. Shipping costs

immediately available
60black shower cleaning brush 8006155
BLACK SHOWER CLEANING BRUSH
14,07 €

excl. Shipping costs

immediately available, 6 available
61stainless steel measuring spoon 20 ml 8000328
STAINLESS STEEL MEASURING SPOON 20 ml
4,97 €

excl. Shipping costs

Delivery time
is determined
62plastic measuring spoon 20 ml 8000327
PLASTIC MEASURING SPOON 20 ml
1,73 €

excl. Shipping costs

immediately available, 8 available
63straight single spout o 3 8 8000112
STRAIGHT SINGLE SPOUT ø 3/8
4,09 €

excl. Shipping costs

immediately available, 9 available
642 cups filter holder assembly bfc royal 8001268
2 CUPS FILTER HOLDER ASSEMBLY BFC/ROYAL
33,53 €

excl. Shipping costs

immediately available, 1 available
651 cup filter holder assembly bfc royal 8001267
1 CUP FILTER HOLDER ASSEMBLY BFC/ROYAL
32,74 €

excl. Shipping costs

immediately available, 3 available
661 cup filter 7 g 8001120
1 CUP FILTER 7 g
6,50 €

excl. Shipping costs

immediately available, 12 available
672 cup filter 14 grams 8001101
2-CUP FILTER 14 GRAMS
7,02 €

excl. Shipping costs

immediately available
80deckel fuer auslaufgruppe o 16 mm 8006373
Deckel für Auslaufgruppe ø 16 mm
8,33 €

excl. Shipping costs

immediately available, 7 available
81ptfe flat gasket o 16x22 5x2 mm 8001581
PTFE FLAT GASKET ø 16x22,5x2 mm
1,65 €

excl. Shipping costs

immediately available
82water filter o 8 5x22 mm 8001115
Water filter ø 8,5x22 mm
1,79 €

excl. Shipping costs

immediately available

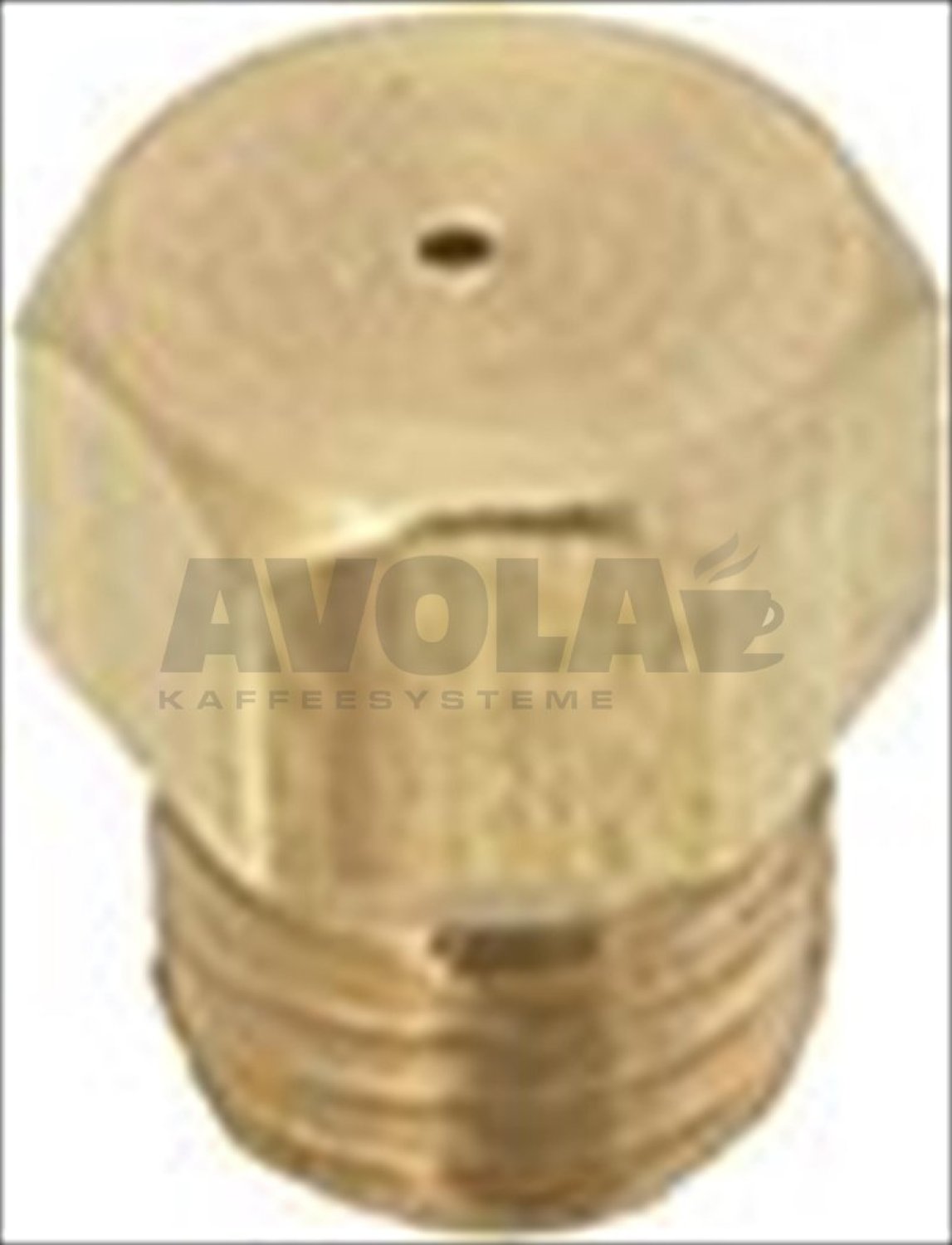

83nozzle m6x0 75 hole 8006989
NOZZLE M6x0,75 HOLE
3,12 €

excl. Shipping costs

immediately available
84upper chromium plated sleeve 8000148
UPPER CHROMIUM-PLATED SLEEVE
56,80 €

excl. Shipping costs

immediately available, 2 available

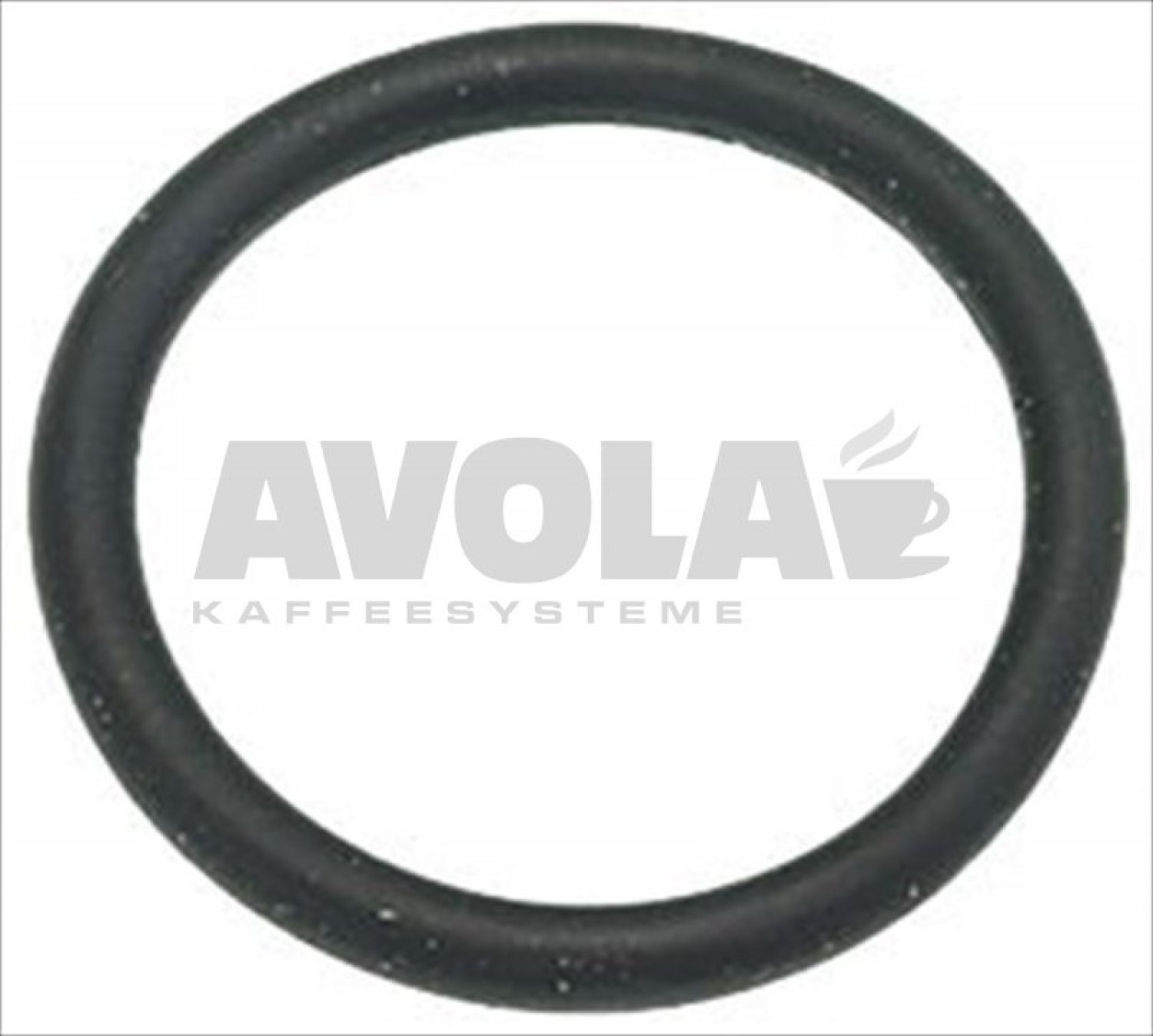

85o ring 03081 epdm 8001582
O-RING 03081 EPDM
1,31 €

excl. Shipping costs

immediately available
86ptfe flat gasket o 35x30x2 mm 8001583
PTFE FLAT GASKET ø 35x30x2 mm
1,09 €

excl. Shipping costs

immediately available
87coffee group gasket 80x70x2 mm 8001624
COFFEE GROUP GASKET 80x70x2 mm
3,51 €

excl. Shipping costs

immediately available, 5 available
88copper flat gasket o 10x6x1 mm 8001983
COPPER FLAT GASKET ø 10x6x1 mm
1,31 €

excl. Shipping costs

immediately available
89low cylinder head screw m6x10 uni 9327 8001293
LOW CYLINDER HEAD SCREW M6x10, UNI 9327
2,49 €

excl. Shipping costs

immediately available
90stainless steel m8x25 mm stud 8001292
STAINLESS STEEL M8x25 mm STUD
1,42 €

excl. Shipping costs

immediately available, 5 available
91o ring 02025 viton 8001810
O-RING 02025 VITON
0,87 €

excl. Shipping costs

immediately available
923 way mechanical component lucifer 8000959
3-WAY MECHANICAL COMPONENT LUCIFER
39,77 €

excl. Shipping costs

immediately available, 4 available
923 way mechanical component parker 8000962
3-WAY MECHANICAL COMPONENT PARKER
42,72 €

excl. Shipping costs

immediately available, 6 available
93schraube zylinderkopf innensechskant vollgewinde edelstahl m4x10 a2 70 din 912 8061180
Schraube Zylinderkopf Innensechskant Vollgewinde Edelstahl M4x10 A2-70 Din 912
0,67 €

excl. Shipping costs

immediately available
94o ring 03075 epdm 8001598
O-RING 03075 EPDM
0,77 €

excl. Shipping costs

immediately available

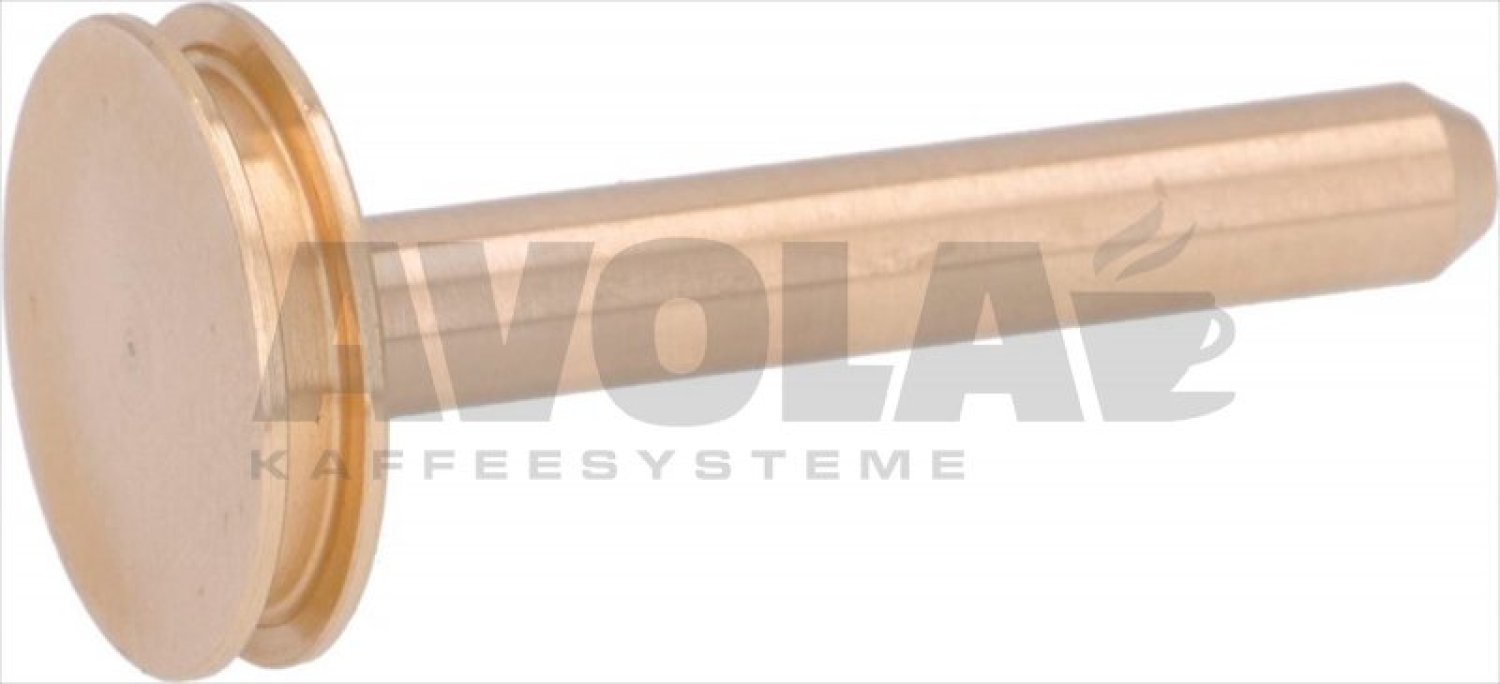

95infuser spindle 8005108
INFUSER SPINDLE
13,44 €

excl. Shipping costs

immediately available, 4 available
96spring o 11x58 mm 8003828
SPRING ø 11x58 mm
2,13 €

excl. Shipping costs

immediately available, 20 available
97coil lucifer parker 220 240v 9w 50hz 8000957
COIL LUCIFER/PARKER 220/240V 9W 50Hz
19,92 €

excl. Shipping costs

immediately available, 6 available
98coil parker zb09 9w 220 240v 50 60hz 8012418
COIL PARKER ZB09 9W 220/240V 50/60Hz
20,74 €

excl. Shipping costs

immediately available, 18 available
99ptfe flat gasket o 35x30x2 mm 8001583
PTFE FLAT GASKET ø 35x30x2 mm
1,09 €

excl. Shipping costs

immediately available
100outlet chromium plated sleeve 8000149
OUTLET CHROMIUM-PLATED SLEEVE
23,75 €

excl. Shipping costs

immediately available, 3 available
1013 way solenoid valve lucifer 240v 50hz 8000955
3-WAY SOLENOID VALVE LUCIFER 240V 50Hz
52,36 €

excl. Shipping costs

immediately available, 10 available
1023 way solenoid valve parker 230v 50 60hz 8000960
3-WAY SOLENOID VALVE PARKER 230V 50/60Hz
53,55 €

excl. Shipping costs

immediately available, 18 available
103female large connector 8012420
FEMALE LARGE CONNECTOR
2,94 €

excl. Shipping costs

immediately available, 8 available

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
