ECM Milano

ECM HEIZUNG MANOMETER NIVEAU

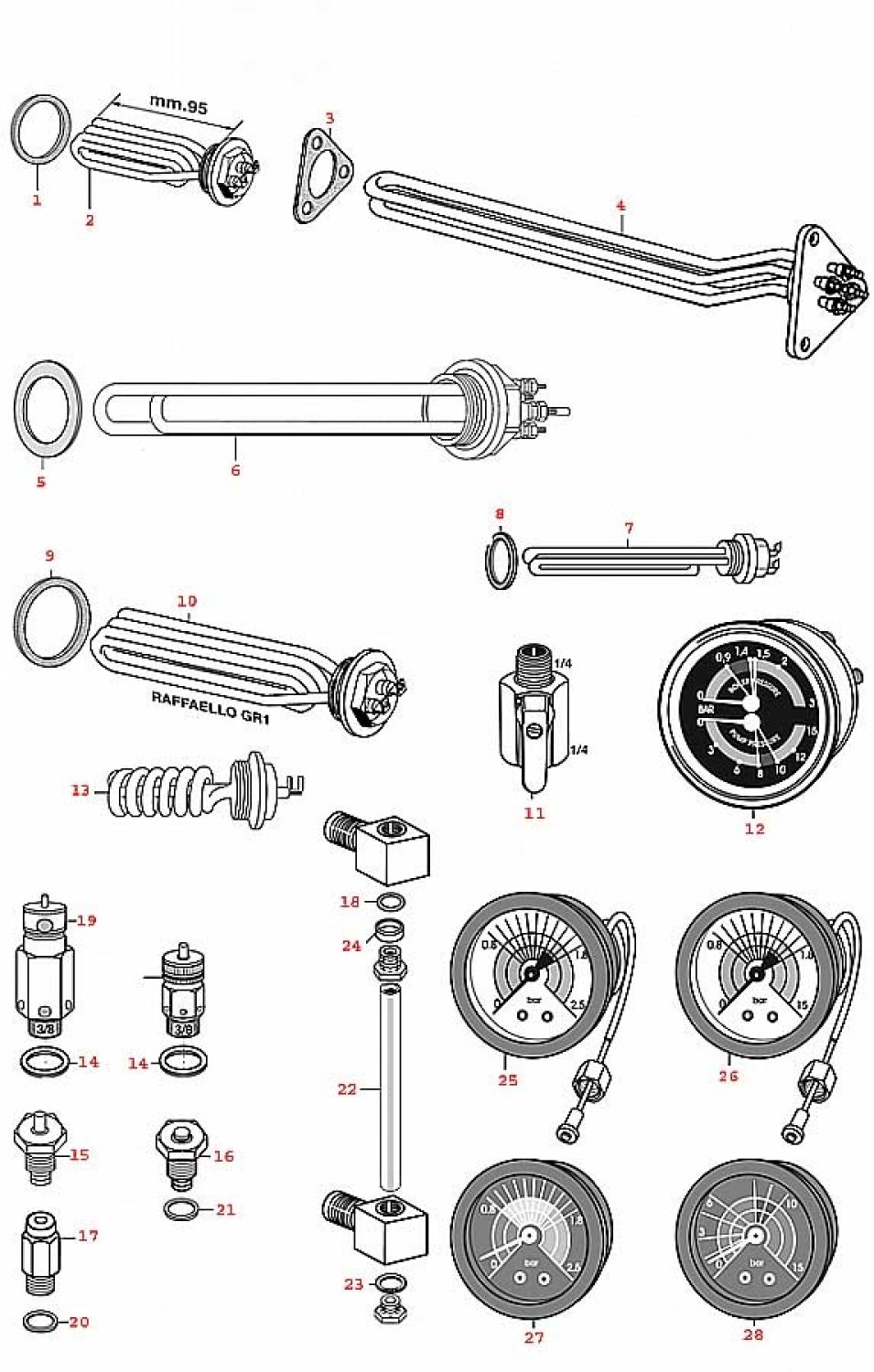

Drawing number 8062756

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.: Image: Description: Qty.:
1ptfe flat gasket o 53x43x3 mm 1 1 4 8001818
PTFE FLAT GASKET ø 53x43x3 mm 1 1/4
4,64 €

excl. Shipping costs

immediately available, 10 available
2heating element 1300w 230v 8069170
HEATING ELEMENT 1300W 230V
39,70 €

excl. Shipping costs

immediately available, 3 available
3triangular gasket for heating element 8001828
TRIANGULAR GASKET FOR HEATING ELEMENT
8,48 €

excl. Shipping costs

immediately available, 5 available
4heating element 1800w 230v 8007577
HEATING ELEMENT 1800W 230V
42,72 €

excl. Shipping costs

immediately available, 2 available
4heating element 3000w 230v 8007578
HEATING ELEMENT 3000W 230V
59,57 €

excl. Shipping costs

immediately available, 2 available
4heating element 4000w 230v 8007579
HEATING ELEMENT 4000W 230V
68,85 €

excl. Shipping costs

immediately available, 1 available
4heating element 5000w 230v 8007382
HEATING ELEMENT 5000W 230V
82,35 €

excl. Shipping costs

Delivery time
is determined
4heating element 4500w 230 380v 8007569
HEATING ELEMENT 4500W 230/380V
64,65 €

excl. Shipping costs

immediately available, 2 available
5ptfe flat gasket o 53x43x3 mm 1 1 4 8001818
PTFE FLAT GASKET ø 53x43x3 mm 1 1/4
4,64 €

excl. Shipping costs

immediately available, 10 available
6 8038395
RESISTENZA 1,25 GR/2 W3000 V220
39,27 €

excl. Shipping costs

Delivery time
is determined
7heating element 1350w 220v 8007588
HEATING ELEMENT 1350W 220V
29,90 €

excl. Shipping costs

immediately available, 6 available
8teflondichtung fuer heizung 40 5x33 3x3 mm 8139595
Teflondichtung für Heizung 40,5x33,3x3 mm
2,38 €

excl. Shipping costs

immediately available
9ptfe flat gasket o 53x43x3 mm 1 1 4 8001818
PTFE FLAT GASKET ø 53x43x3 mm 1 1/4
4,64 €

excl. Shipping costs

immediately available, 10 available
10heating element 2400w 230v 8007493
HEATING ELEMENT 2400W 230V
62,81 €

excl. Shipping costs

immediately available, 1 available
11ball valve o 1 4 rime in and out 8029763
ball valve ø 1/4″ in and out
12,97 €

excl. Shipping costs

immediately available, 8 available

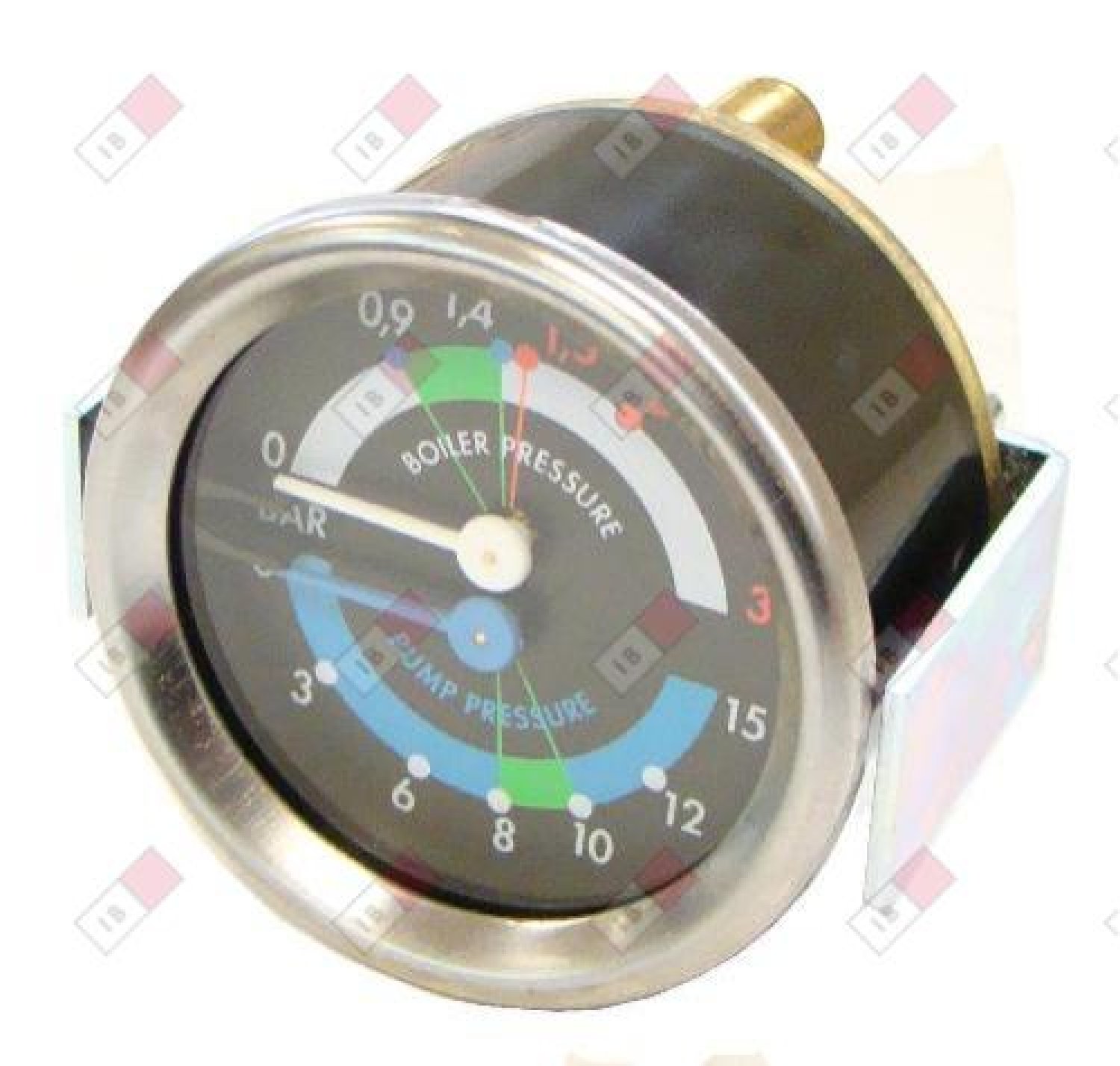

12ecm manometer doppelskala 8080538
ECM Manometer Doppelskala
47,01 €

excl. Shipping costs

immediately available, 3 available
14copper flat gasket 22x17x1 5 mm 8001815
COPPER FLAT GASKET 22x17x1,5 mm
1,01 €

excl. Shipping costs

immediately available
16boiler valve o 1 4 rime 8007149
BOILER VALVE ø 1/4″
7,90 €

excl. Shipping costs

immediately available, 18 available
17fluid o tech 1 4 quot bsp unterdruckventil antivakuumventil edelstahl 8393315
Fluid-o-tech 1/4" BSP Unterdruckventil Antivakuumventil Edelstahl
34,90 €

excl. Shipping costs

immediately available
17o 1 4 rime boiler valve 8007153
ø 1/4″ - BOILER VALVE
7,52 €

excl. Shipping costs

immediately available
18o ring 03043 epdm 8001575
O-RING 03043 EPDM
0,89 €

excl. Shipping costs

immediately available
19boiler valve o 3 8 8007150
BOILER VALVE ø 3/8
20,88 €

excl. Shipping costs

immediately available, 6 available
20copper flat gasket o 18x14x1 5 mm 8001814
COPPER FLAT GASKET ø 18x14x1,5 mm
1,19 €

excl. Shipping costs

immediately available
21copper flat gasket o 18x14x1 5 mm 8001814
COPPER FLAT GASKET ø 18x14x1,5 mm
1,19 €

excl. Shipping costs

immediately available
22level glass o 11x150 mm 8007035
LEVEL GLASS ø 11x150 mm
6,18 €

excl. Shipping costs

immediately available, 2 available
23flachdichtung aus ptfe o 17x13x2 mm 8073785
Flachdichtung aus PTFE ø 17x13x2 mm
1,67 €

excl. Shipping costs

immediately available
24scheibe fuer niveauglas 8001350
Scheibe für Niveauglas
2,58 €

excl. Shipping costs

immediately available, 6 available

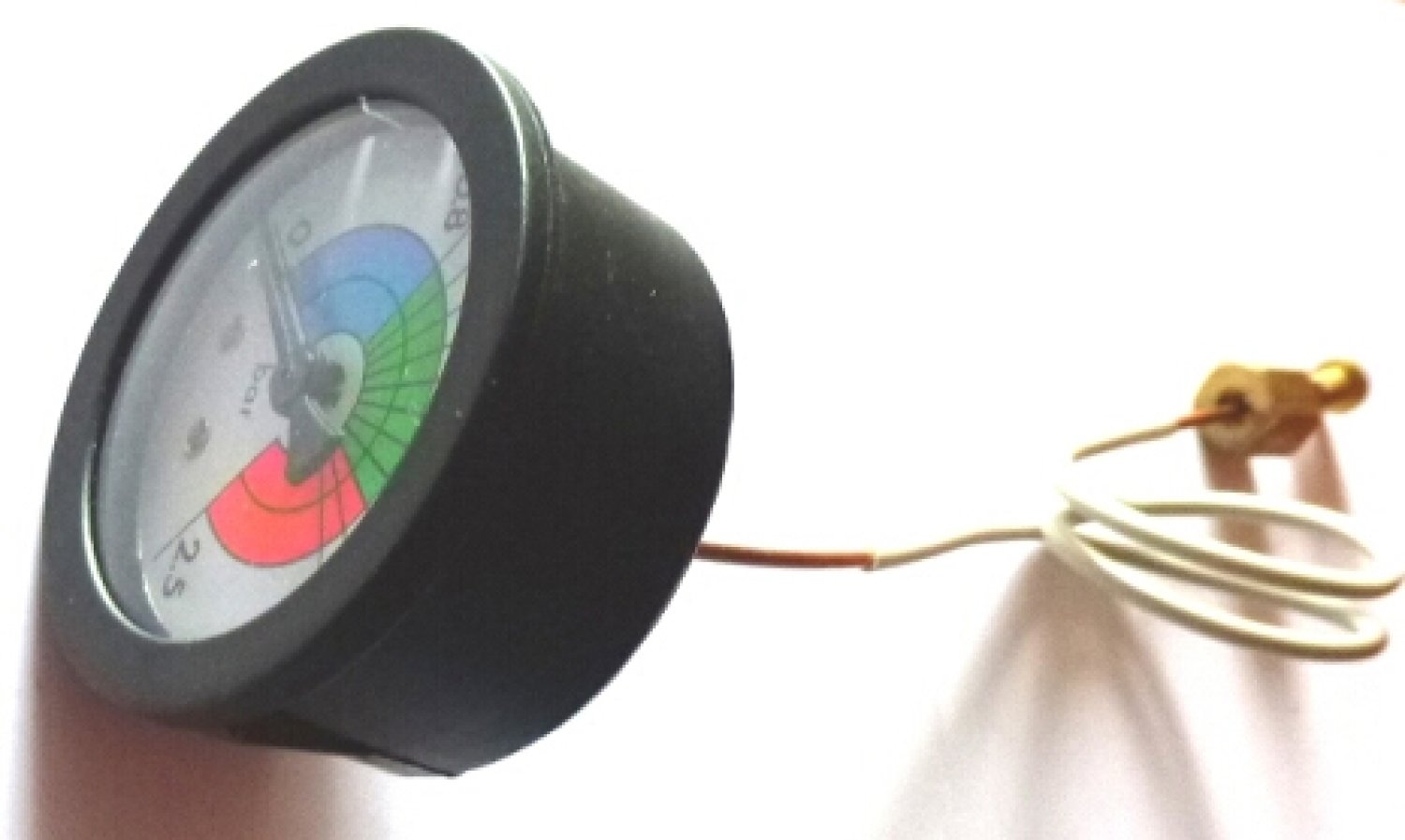

25manometer 1 8 mit kapilllarrohr 0 divide 2 5 bar 8036696
Manometer 1/8 mit Kapilllarrohr 0÷2,5 Bar
28,85 €

excl. Shipping costs

immediately available, 2 available

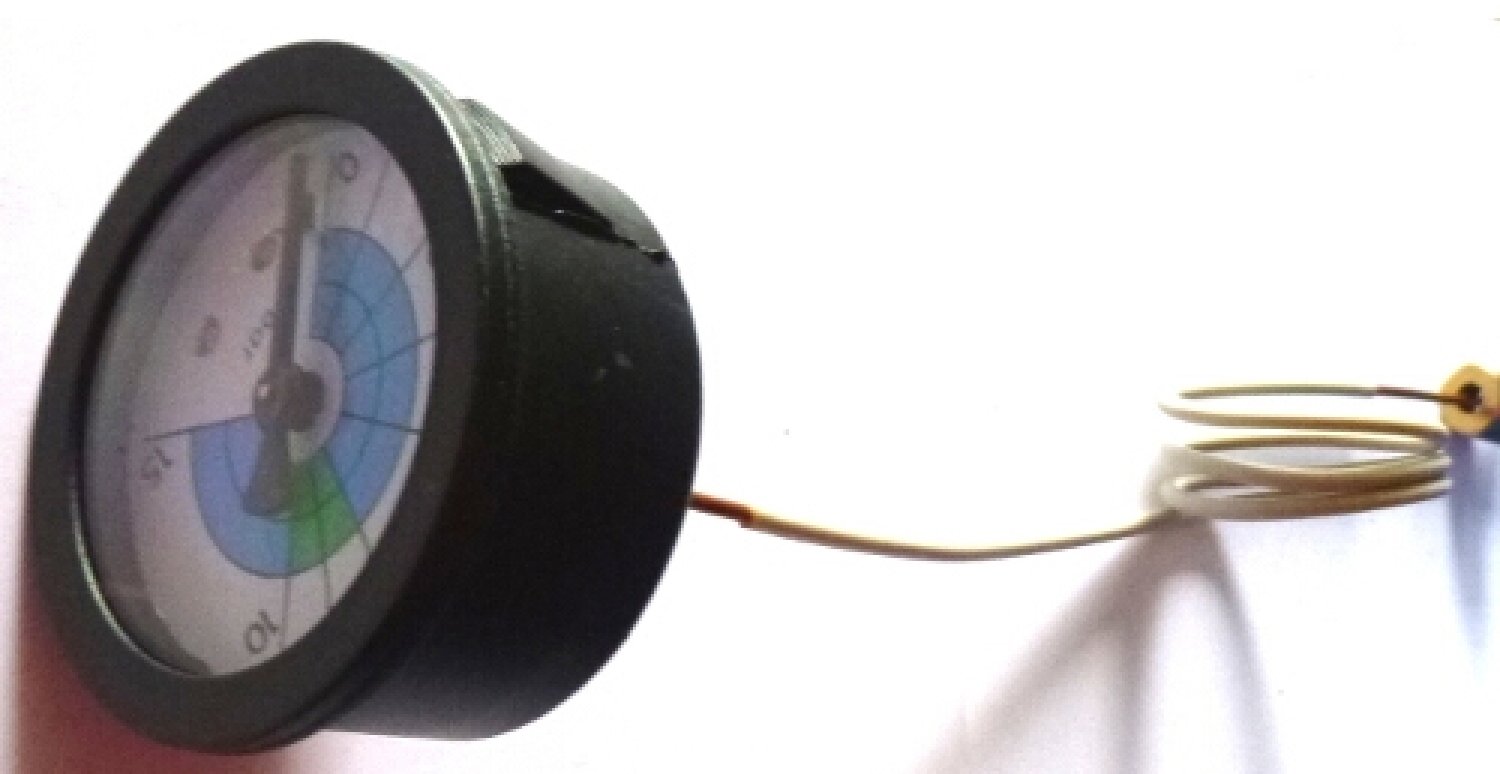

26manometer 1 8 mit kapilllarrohr 0 divide 15 bar 8036697
MANOMETER 1/8 MIT KAPILLlARROHR 0÷15 bar
28,56 €

excl. Shipping costs

immediately available, 3 available

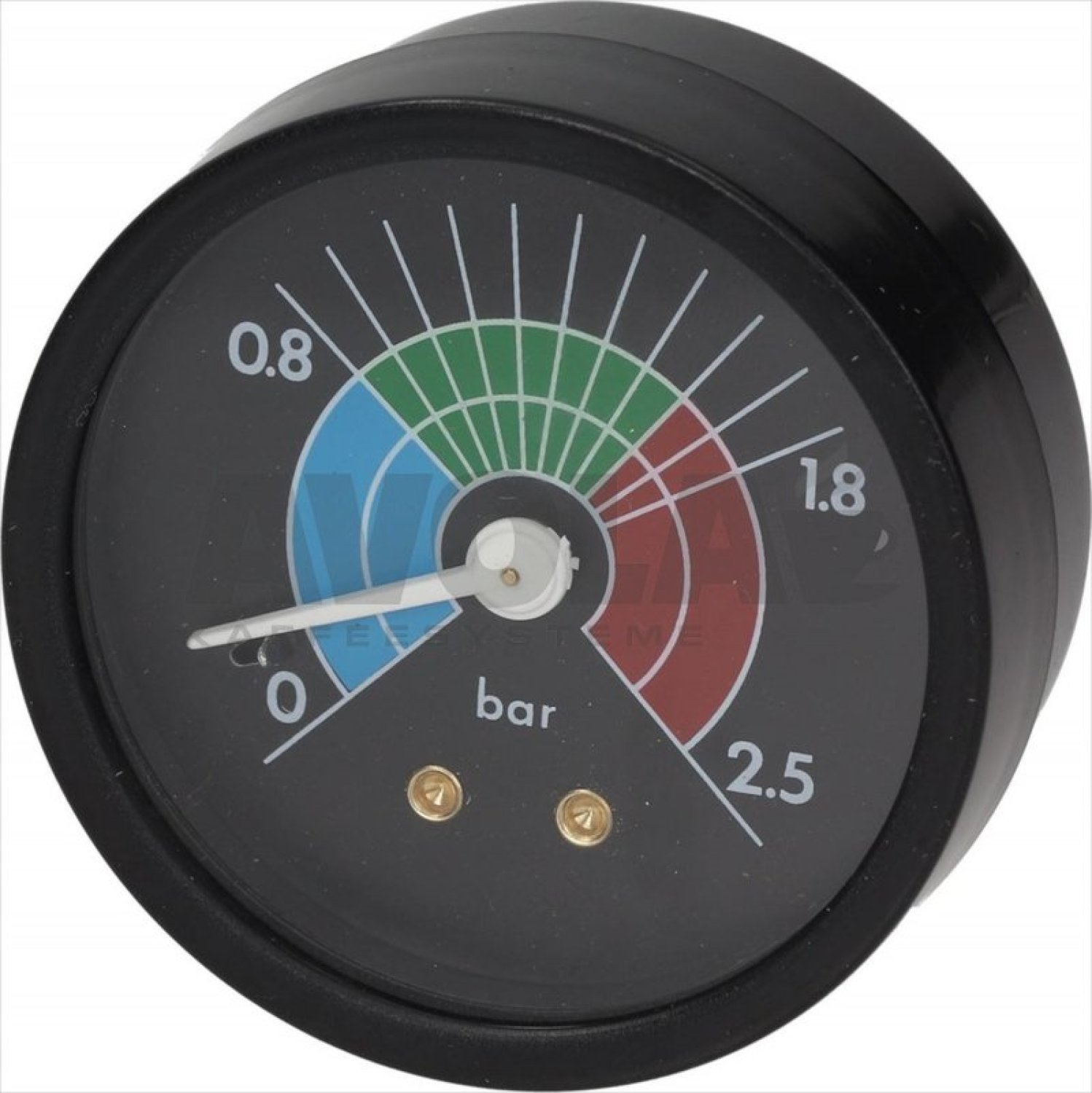

27boiler pressure gauge 8003515
BOILER PRESSURE GAUGE
28,80 €

excl. Shipping costs

immediately available, 1 available

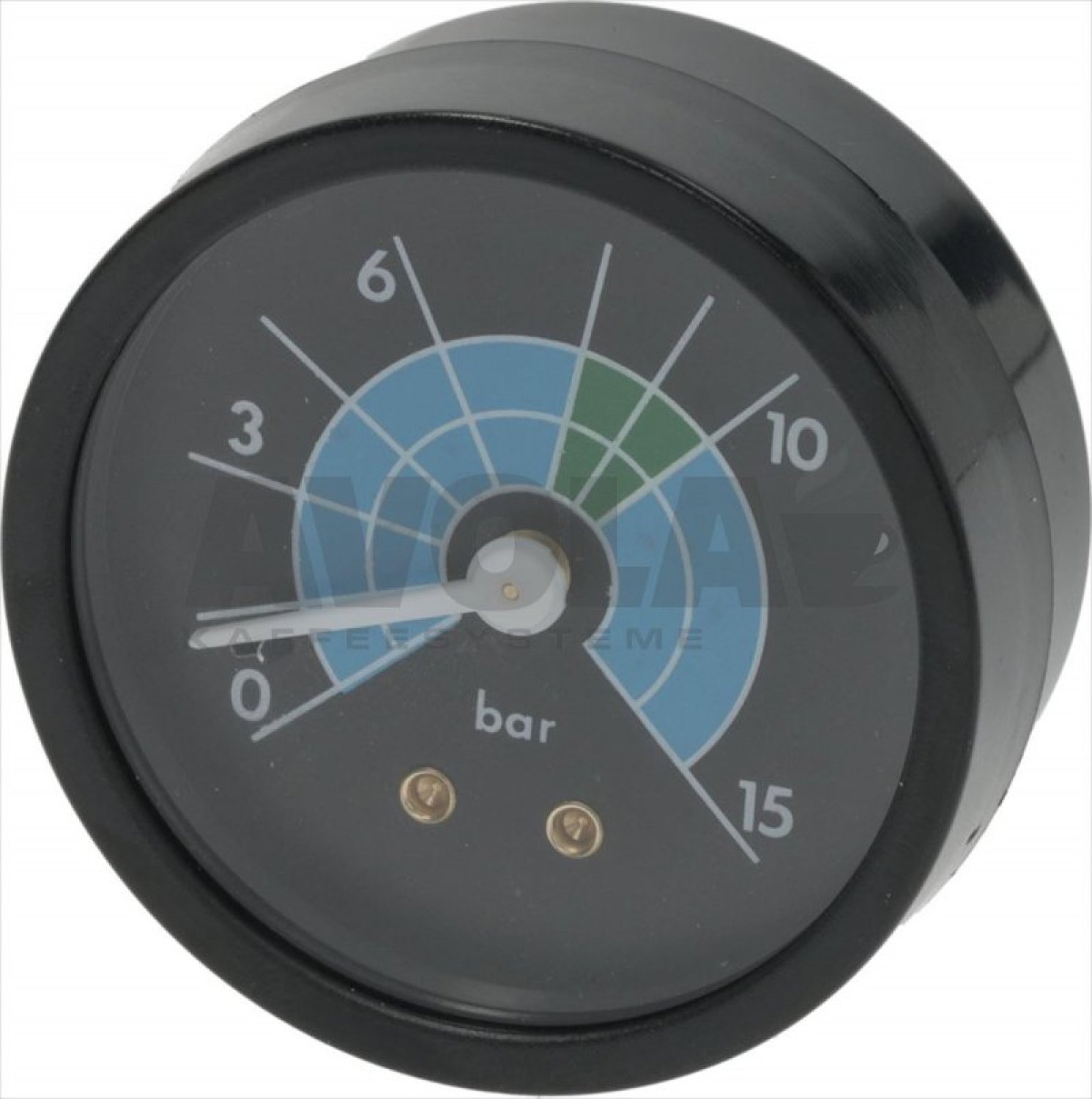

28pump pressure gauge 8003514
PUMP PRESSURE GAUGE
29,85 €

excl. Shipping costs

Delivery time 4-6 weeks..

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
