Elektra

Classic 2GR elektrische Bauteile

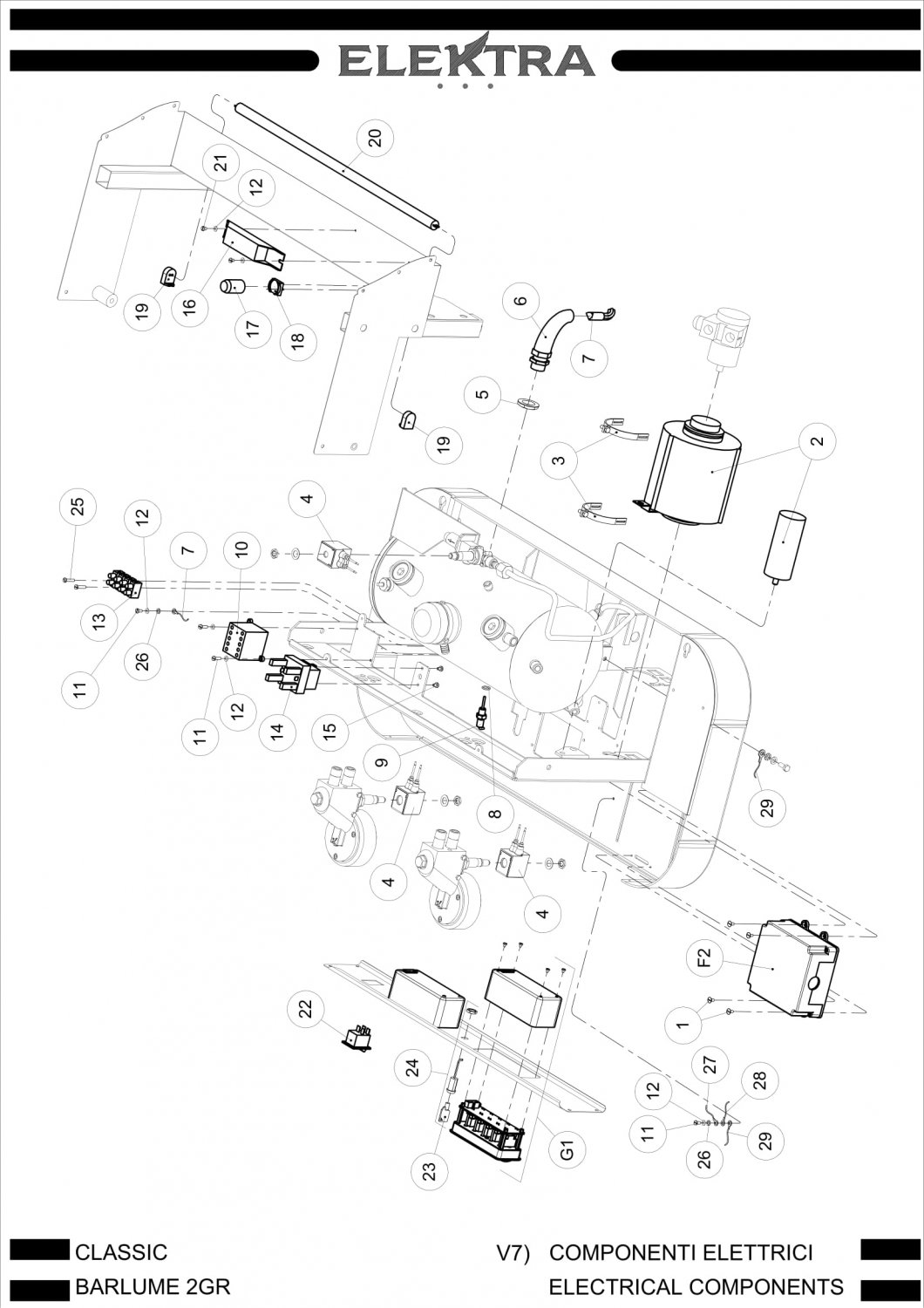

Drawing number 8280048

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.: Image: Description: Qty.:
1 8123517
Elektra Schraube M4x8 INOX
0,23 €

excl. Shipping costs

Delivery time: 4-6 weeks
2elektra motor 230v rpm 11002774 1670rpm 8123780
Elektra MOTOR 230V RPM 11002774 1670RPM
238,00 €

excl. Shipping costs

Delivery time 4-6 weeks..
3 8124603
ENGINE BRACKET
16,14 €

excl. Shipping costs

Delivery time: 4-6 weeks
4parker magnetventilspule inkl kabel und stecker 220 240v 50 60hz 13w elektra 496082q3 7lbg 8125544
Parker Magnetventilspule inkl. Kabel und Stecker 220/240V 50/60Hz 13W Elektra 496082Q3 7LBG
43,02 €

excl. Shipping costs

immediately available, 4 available
5 8123823
LOCK NUT FOR HEYCO CABLE CLIP 11-14
4,00 €

excl. Shipping costs

Delivery time: 4-6 weeks
6 8123820
HEYCO CABLE CLIP 11-14
11,71 €

excl. Shipping costs

Delivery time: 4-6 weeks
7 8125421
THREE-PHASE POWER CABLE BAR 2 GR
49,14 €

excl. Shipping costs

Delivery time: 4-6 weeks
7 8140150
Elektra SINGLE PHASE POWER CABLE
42,09 €

excl. Shipping costs

immediately available, 1 available
8elektra washer for temperature probe 15 4x10 1x2 5mm 8124665
Elektra WASHER FOR TEMPERATURE PROBE 15,4x10,1x2,5mm
5,46 €

excl. Shipping costs

immediately available, 4 available

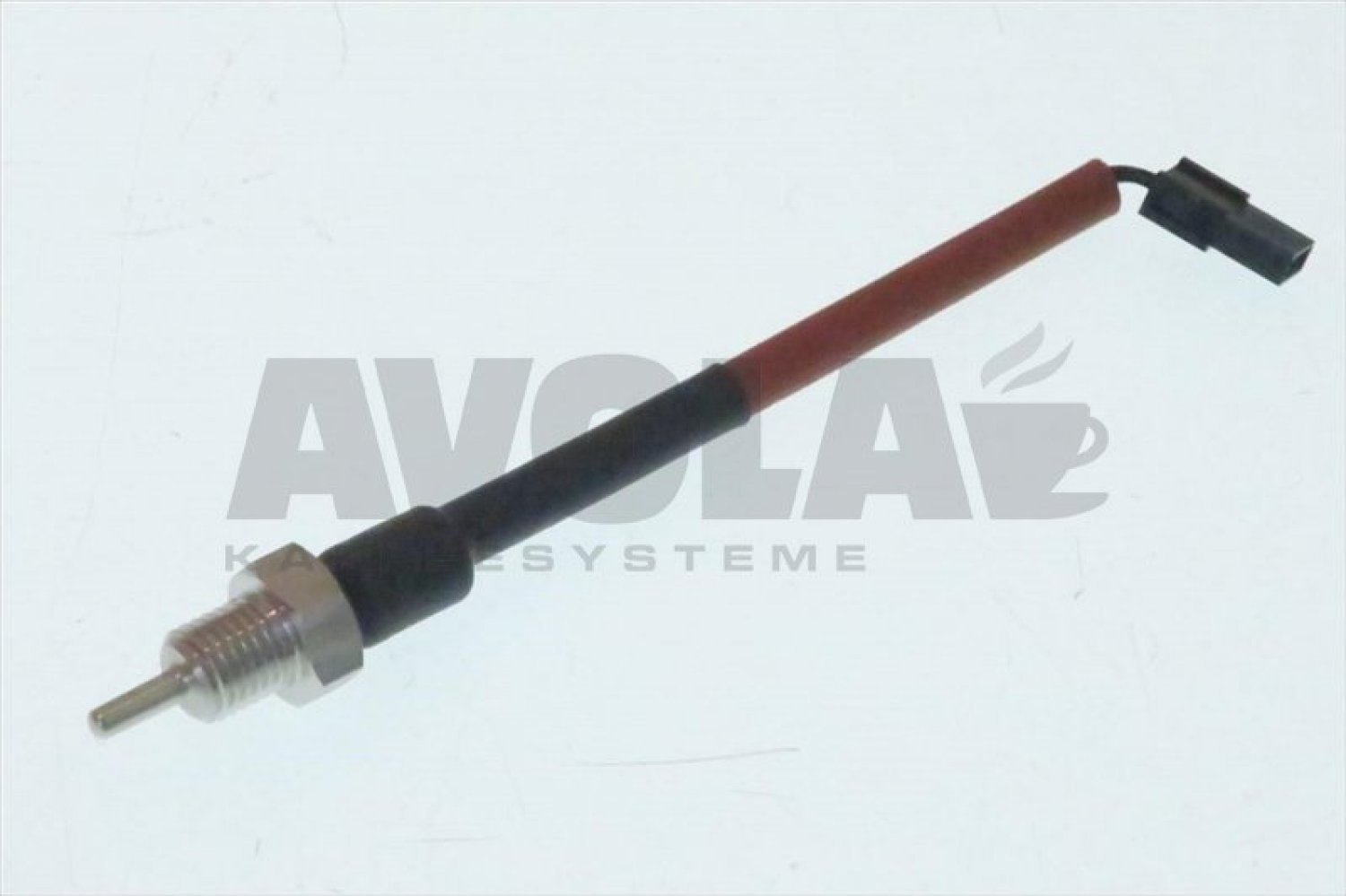

9elektra temperatur sonde sensor probe m10x1 8140124
Elektra Temperatur Sonde Sensor Probe M10x1
86,36 €

excl. Shipping costs

Delivery time 4-6 weeks

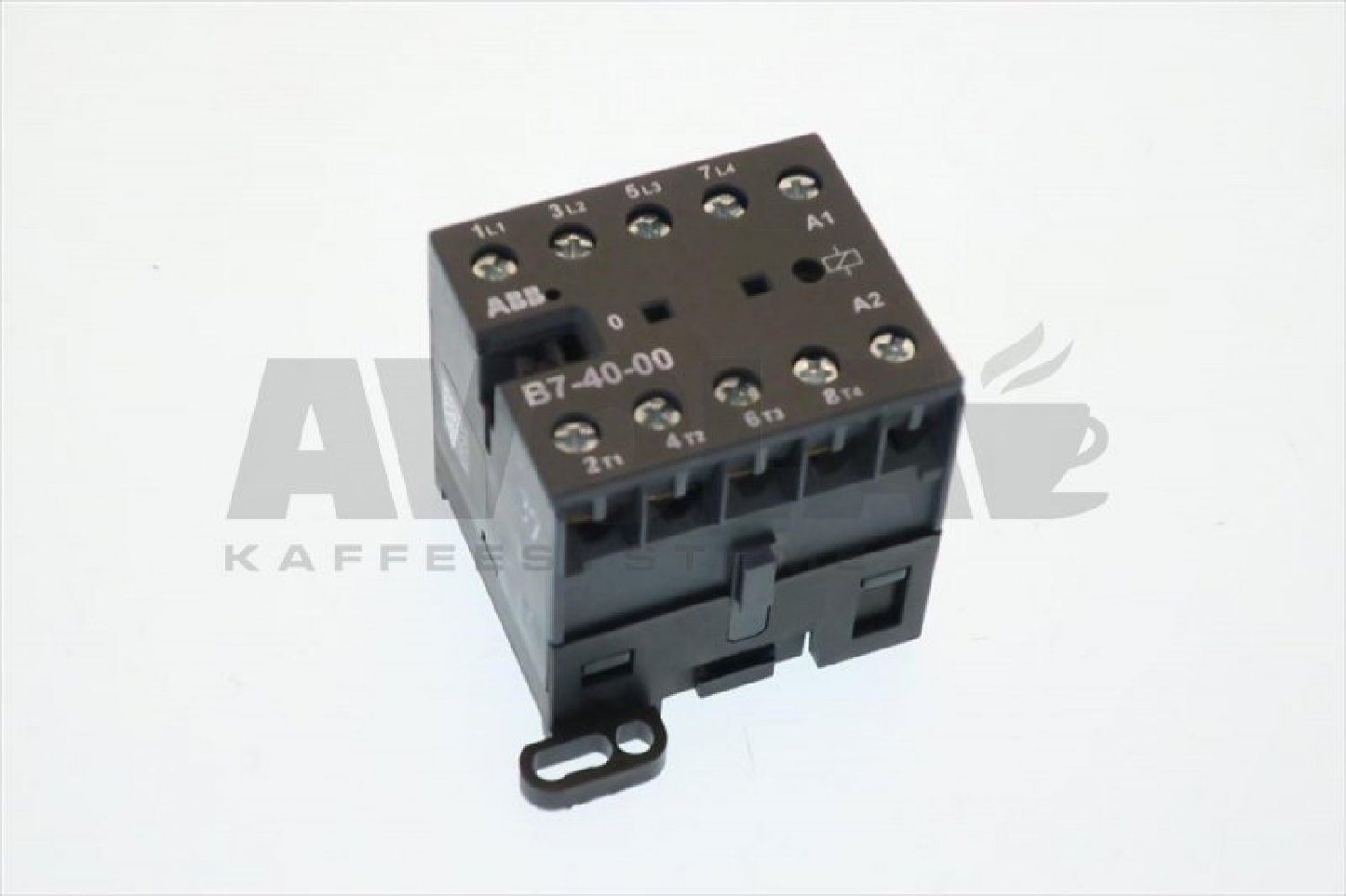

10230v 16a b7 40 00 relay switch 8124711
230V/16A B7-40-00 RELAY SWITCH
163,08 €

excl. Shipping costs

Delivery time 4-6 weeks..
11messingschraube m4x8 elektra 8105689
Messingschraube M4x8 Elektra
2,38 €

excl. Shipping costs

immediately available, 8 available
12elektra washer inox 8124131
Elektra WASHER- INOX
0,77 €

excl. Shipping costs

Delivery time: 4-6 weeks
13 8140122
APPROVED LARGE 4-POLE TERMINAL BLOCK
45,18 €

excl. Shipping costs

Delivery time: 4-6 weeks
14 8124529
Elektra ELEMENT SAFETY SWITCH - 3 PHASES
97,50 €

excl. Shipping costs

Delivery time: 4-6 weeks

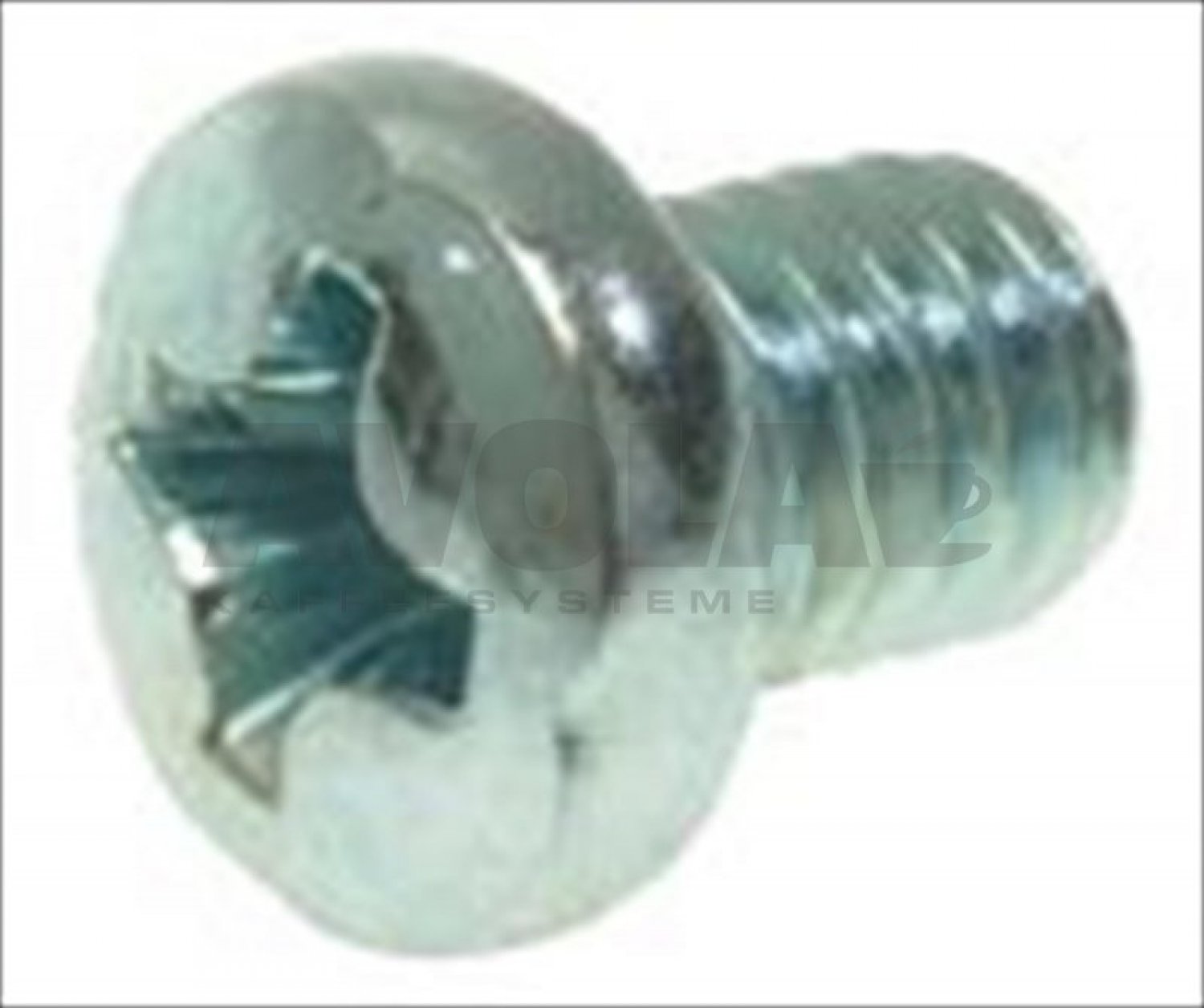

15schraube m4x6 inox 8123791
Schraube M4X6 - INOX
1,23 €

excl. Shipping costs

immediately available
16 8123921
NEON REACTOR 2/3 GR BARLUME 97
28,27 €

excl. Shipping costs

Delivery time: 4-6 weeks
17 8124247
STARTER FOR NEON LAMP 13W 2/3 GR BARL
10,17 €

excl. Shipping costs

Delivery time: 4-6 weeks
18 8123920
STARTER HOLDER 2/3 GR BARLUME 97
4,05 €

excl. Shipping costs

Delivery time: 4-6 weeks
19 8123919
LAMP HOLDER 2/3 GR BARLUME 97
5,83 €

excl. Shipping costs

Delivery time: 4-6 weeks

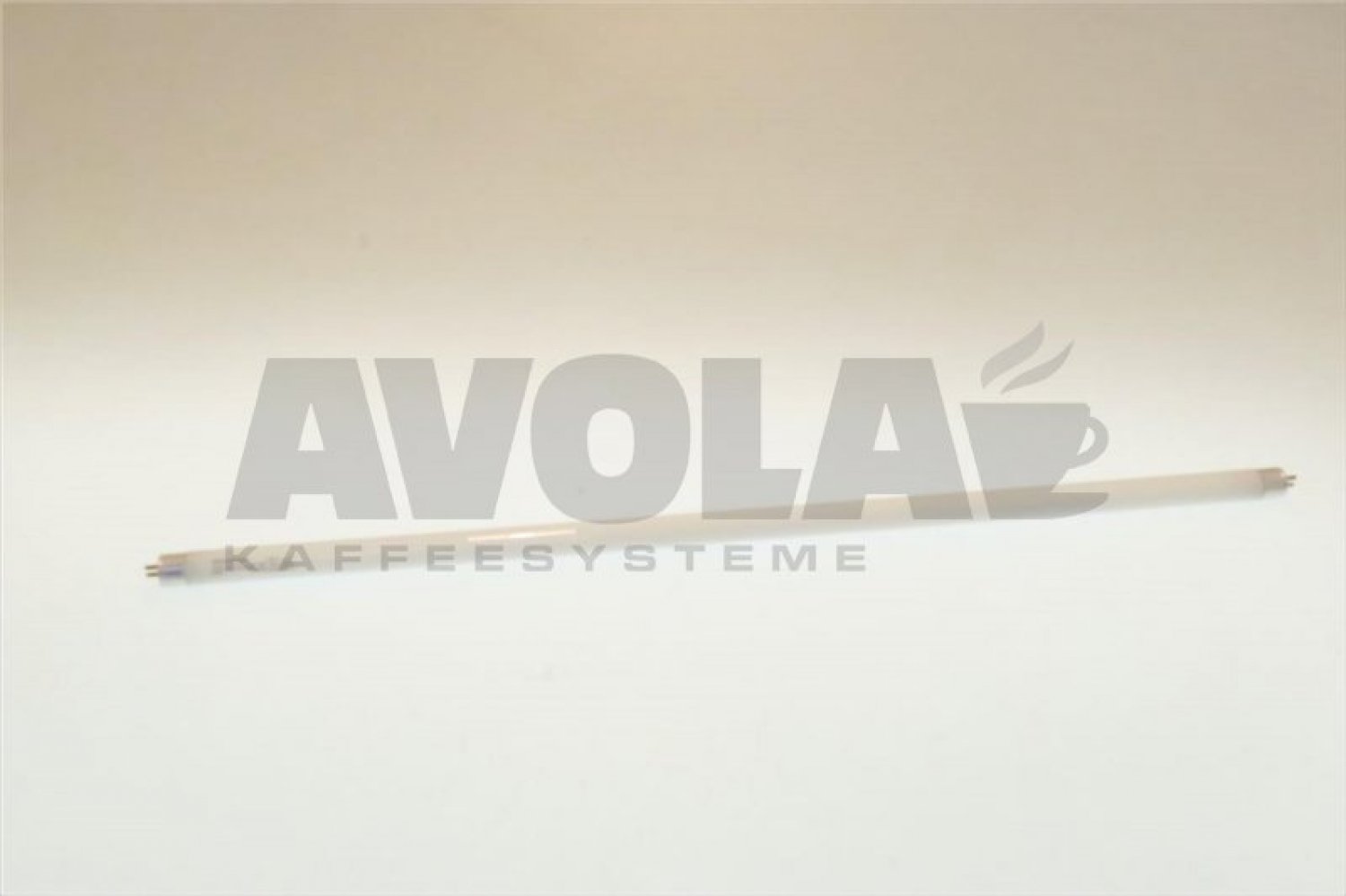

20elektra neon tube 8123918
Elektra NEON TUBE
60,75 €

excl. Shipping costs

Delivery time 4-6 weeks
21 8123824
SCREW TC M4X5 OT.UNI 6107
3,33 €

excl. Shipping costs

Delivery time: 4-6 weeks

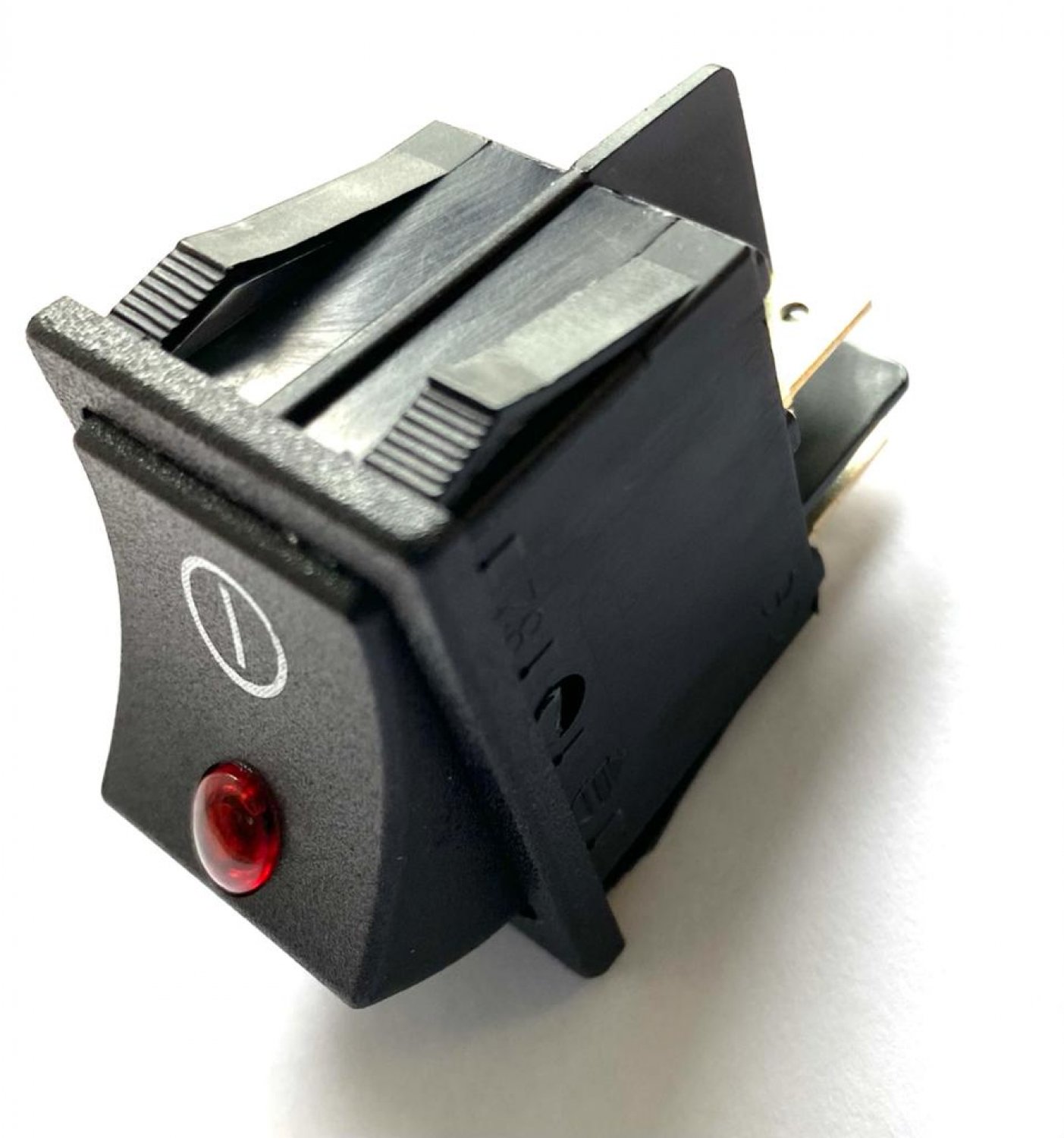

22elektra on off switch 8124774
Elektra ON-OFF SWITCH
14,65 €

excl. Shipping costs

immediately available, 3 available

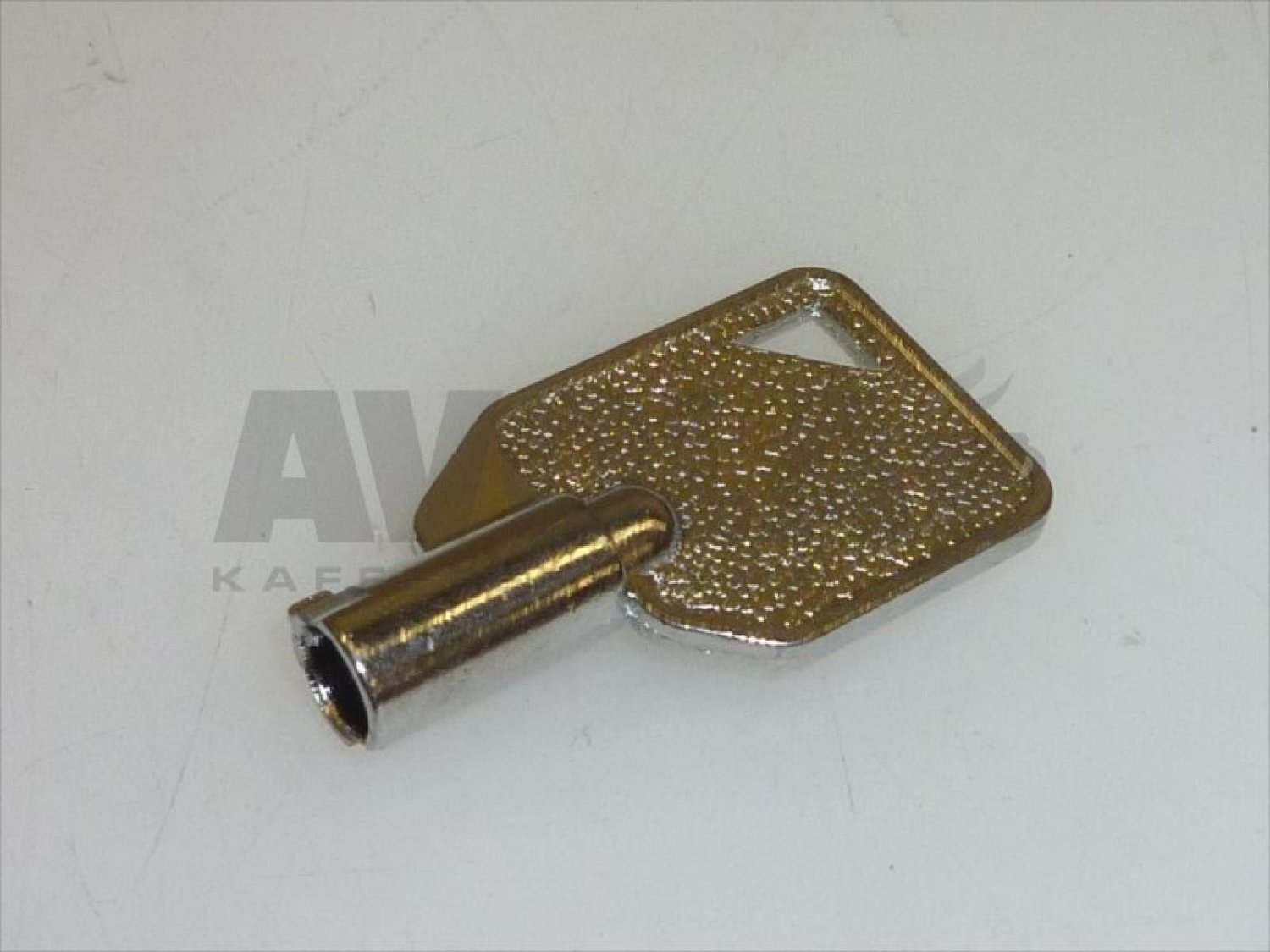

23elektra key 8069396
ELEKTRA KEY
10,95 €

excl. Shipping costs

immediately available, 4 available
24elektra programming wired lock and2keys no 820 8124660
Elektra PROGRAMMING WIRED LOCK &2KEYS NO.820
30,49 €

excl. Shipping costs

Delivery time 4-6 weeks..
28 8139801
GROUND CABLE FROM CONTROL UNIT TO CM FRAME
7,43 €

excl. Shipping costs

Delivery time: 4-6 weeks

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
