Expobar

EXPOBAR KESSELFÜLLVENTIL EX0301

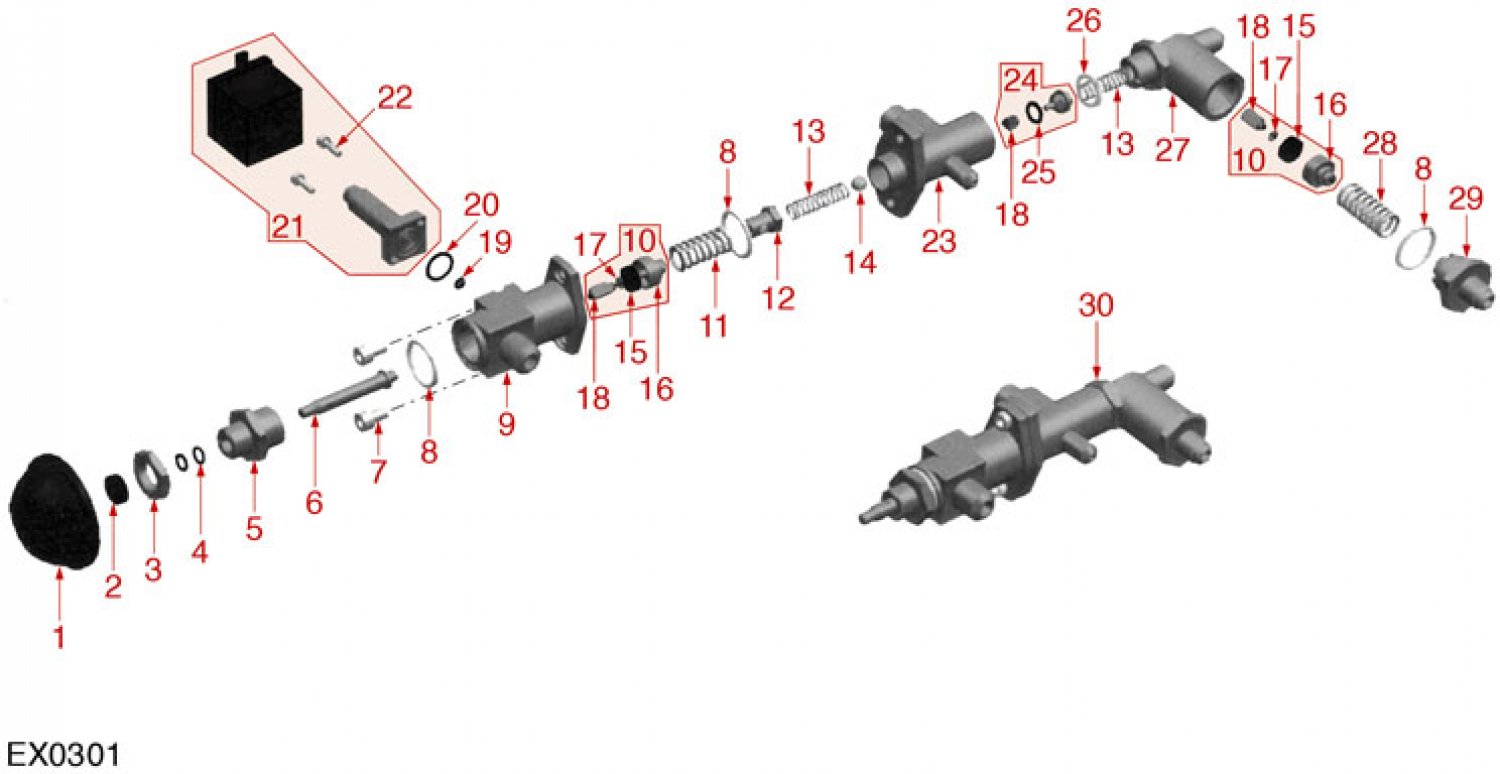

Drawing number 8038733

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.: Image: Description: Qty.:
1water inlet tap knob 8003115
WATER INLET TAP KNOB
4,09 €

excl. Shipping costs

Delivery time 4-6 weeks..

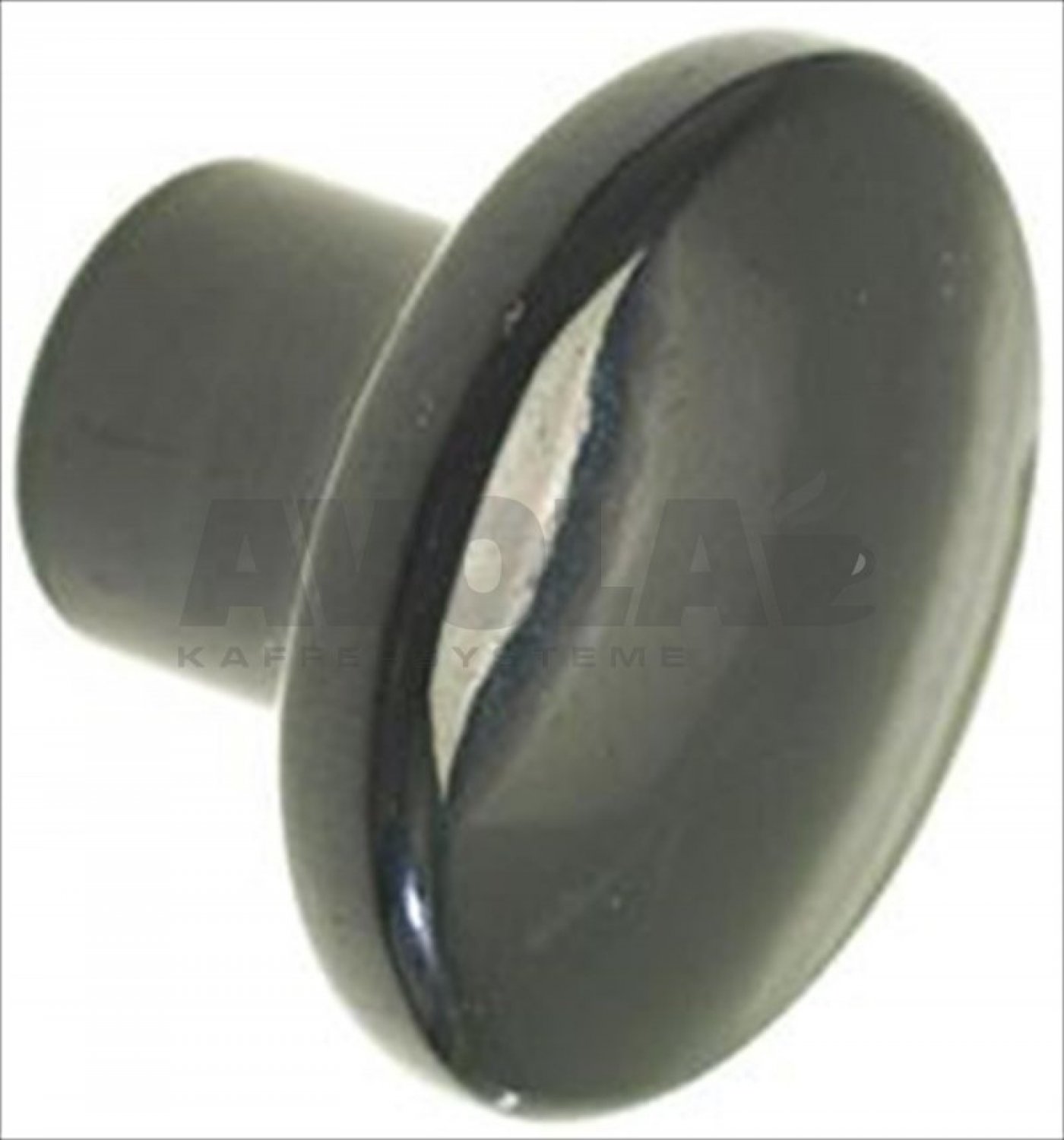

1water inlet tap knob 8003209
WATER INLET TAP KNOB
14,09 €

excl. Shipping costs

Delivery time 4-6 weeks..
2epdm flat gasket 15 5x7 5x4 mm 8001570
EPDM flat gasket 15,5x7,5x4 mm
0,90 €

excl. Shipping costs

immediately available
3nut 8005455
NUT
3,38 €

excl. Shipping costs

immediately available, 11 available
4o ring r6 epdm 8001771
O-RING R6 EPDM
1,13 €

excl. Shipping costs

immediately available
5fitting for valve pin 8005633
FITTING FOR VALVE PIN
6,38 €

excl. Shipping costs

Delivery time
is determined
6inlet tap spindle 8005181
INLET TAP SPINDLE
5,06 €

excl. Shipping costs

Delivery time 4-6 weeks..
7low cylinder head screw m6x10 uni 9327 8001293
LOW CYLINDER HEAD SCREW M6x10, UNI 9327
2,49 €

excl. Shipping costs

immediately available
8flat ptfe gasket o 26x21 5x2 mm 8001754
FLAT PTFE GASKET ø 26x21,5x2 mm
6,44 €

excl. Shipping costs

immediately available
9water inlet tap body 8005432
WATER INLET TAP BODY
38,40 €

excl. Shipping costs

Delivery time 4-6 weeks..
9water inlet tap body 8005434
WATER INLET TAP BODY
45,01 €

excl. Shipping costs

Delivery time 4-6 weeks..
10e61 drain valve with gasket 8007125
E61 drain valve with gasket
5,90 €

excl. Shipping costs

immediately available
11valve spring 8003677
VALVE SPRING
3,43 €

excl. Shipping costs

immediately available, 9 available
12tap springs guide 8003602
TAP SPRINGS GUIDE
1,99 €

excl. Shipping costs

Delivery time 4-6 weeks..
13non return valve spring o 8x32 8003601
NON-RETURN VALVE SPRING ø 8x32
4,20 €

excl. Shipping costs

immediately available, 3 available
14stainless steel ball o 8 mm 8005084
STAINLESS STEEL BALL ø 8 mm
2,46 €

excl. Shipping costs

immediately available, 5 available
15nbr flat gasket o 13x4x4 mm 8001569
NBR FLAT GASKET ø 13x4x4 mm
0,49 €

excl. Shipping costs

immediately available
16gasket holder bushing 8001568
GASKET HOLDER BUSHING
3,26 €

excl. Shipping costs

immediately available, 12 available
17brass washer 6x3x0 5 mm 8001584
BRASS WASHER 6x3x0,5 mm
0,68 €

excl. Shipping costs

immediately available, 17 available
18square pin 12 1 mm 6x6 mm m3 8005113
SQUARE PIN 12.1 mm 6x6 mm M3
1,90 €

excl. Shipping costs

immediately available, 6 available
19o ring 02015 epdm 8001335
O-RING 02015 EPDM
1,01 €

excl. Shipping costs

immediately available
20o ring 02050 epdm 8001595
O-RING 02050 EPDM
1,13 €

excl. Shipping costs

immediately available
212 way solenoid valve parker 230v 50hz 8000807
2-WAY SOLENOID VALVE PARKER 230V 50Hz
59,00 €

excl. Shipping costs

immediately available, 2 available
22schraube zylinderkopf innensechskant vollgewinde edelstahl m4x10 a2 70 din 912 8061180
Schraube Zylinderkopf Innensechskant Vollgewinde Edelstahl M4x10 A2-70 Din 912
0,67 €

excl. Shipping costs

immediately available
23water inlet tap body 8005435
WATER INLET TAP BODY
34,43 €

excl. Shipping costs

Delivery time 4-6 weeks..
24non return valve 8007117
NON-RETURN VALVE
4,66 €

excl. Shipping costs

immediately available, 8 available
25o ring 0108 epdm 8001655
O-RING 0108 EPDM
0,79 €

excl. Shipping costs

immediately available
26ptfe flat gasket 21x16 8x2 mm 8001486
PTFE FLAT GASKET 21x16,8x2 mm
1,37 €

excl. Shipping costs

immediately available
27water inlet tap body 8005436
WATER INLET TAP BODY
39,63 €

excl. Shipping costs

Delivery time
is determined
28spring o 14 5x32 mm 8003603
SPRING ø 14,5x32 mm
3,76 €

excl. Shipping costs

immediately available, 5 available
30water inlet tap 8005475
WATER INLET TAP
This article is no longer available

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
