Faema

FAEMA BRÜHGRUPPE E91-E92-E97-E98-DUE-SMART

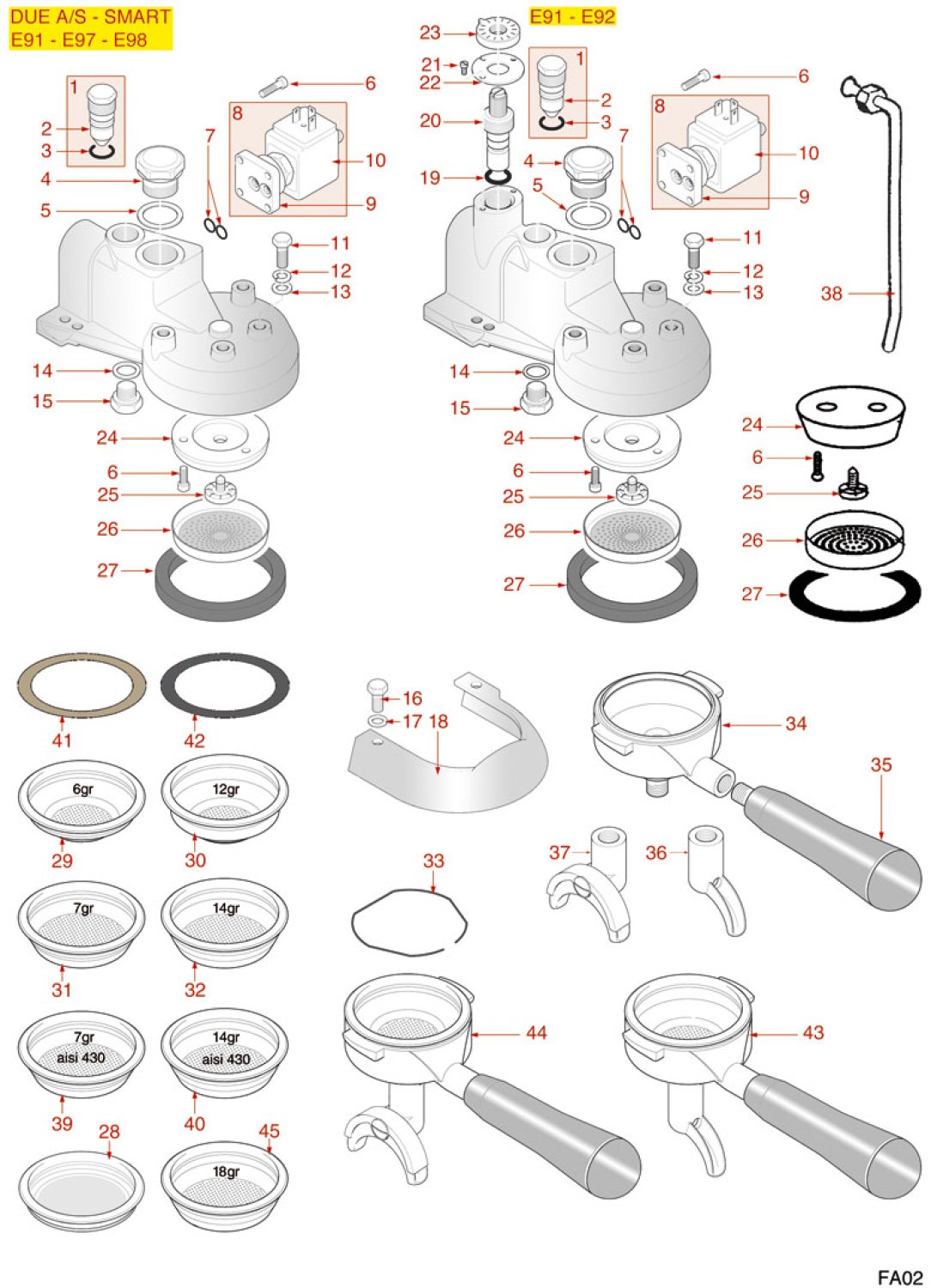

Drawing number 8038737

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.:Image:Description:Qty.:

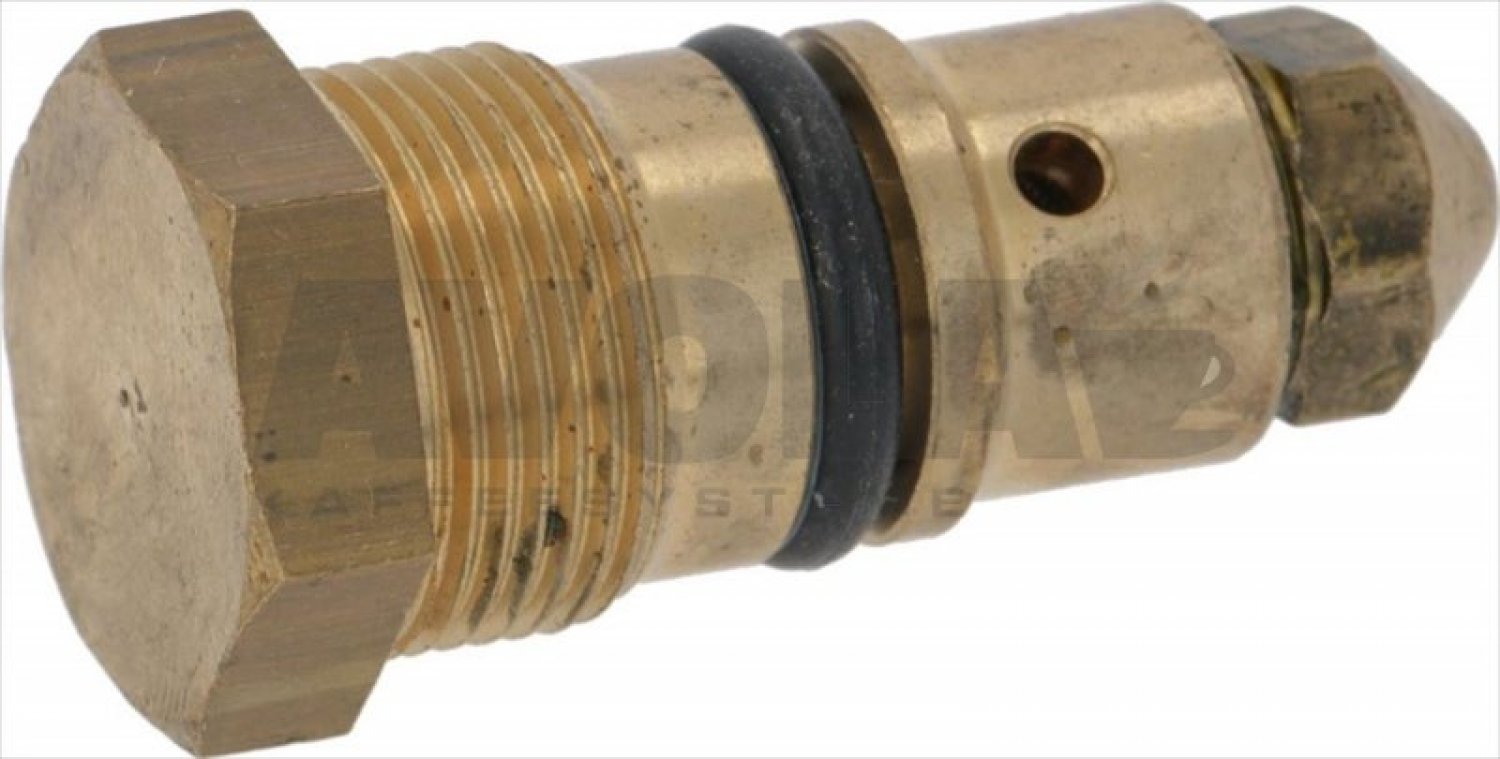

1plug complete with jet8006982
Plug Complete With Jet
15,05 €

excl. Shipping costs
immediately available, 5 available

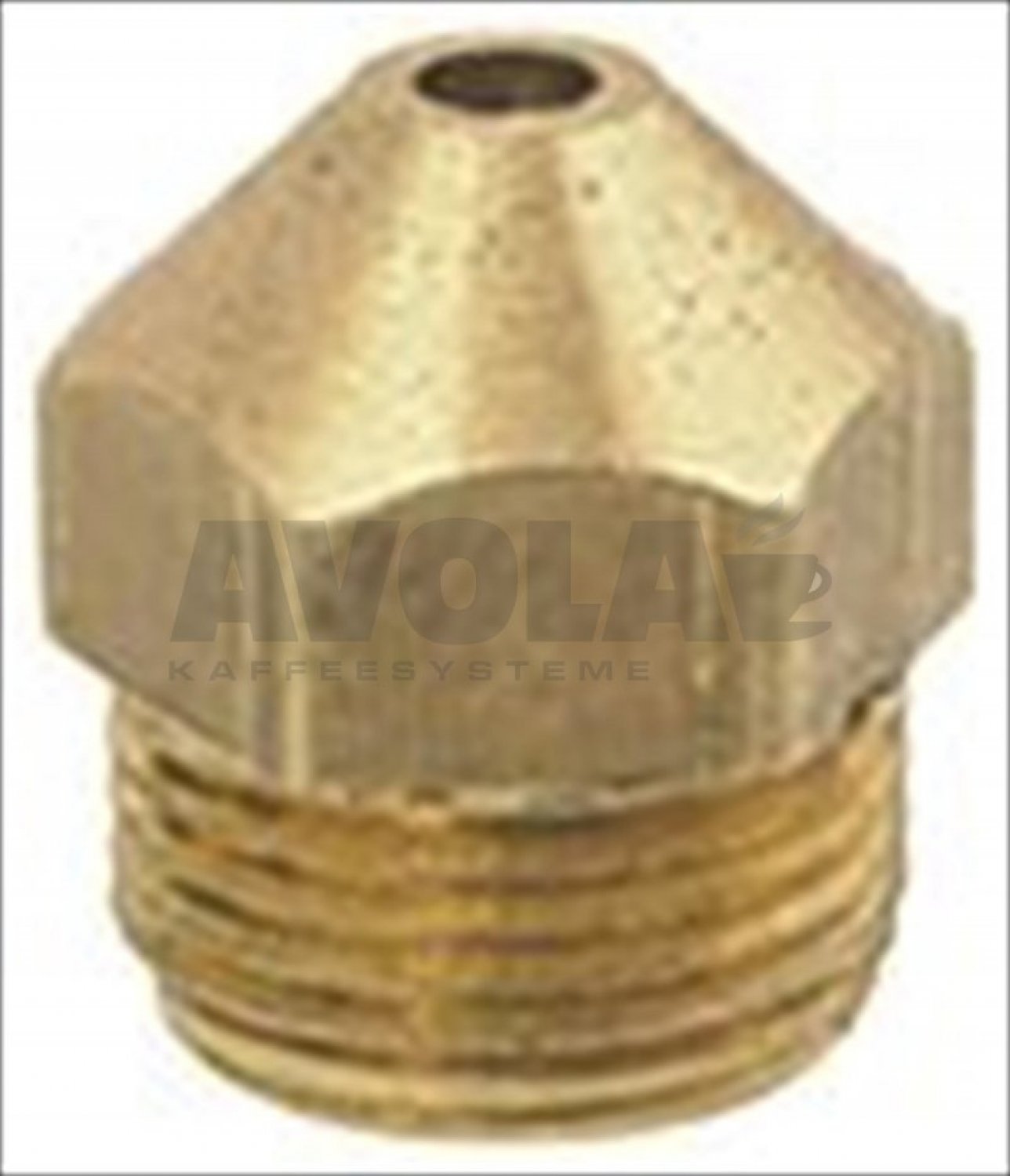

2nozzle m10x1 hole8006983
Nozzle M10x1 Hole
6,88 €

excl. Shipping costs
immediately available, 1 available
3o ring 0109 epdm8001529
O-RING 0109 EPDM
0,80 €

excl. Shipping costs
immediately available

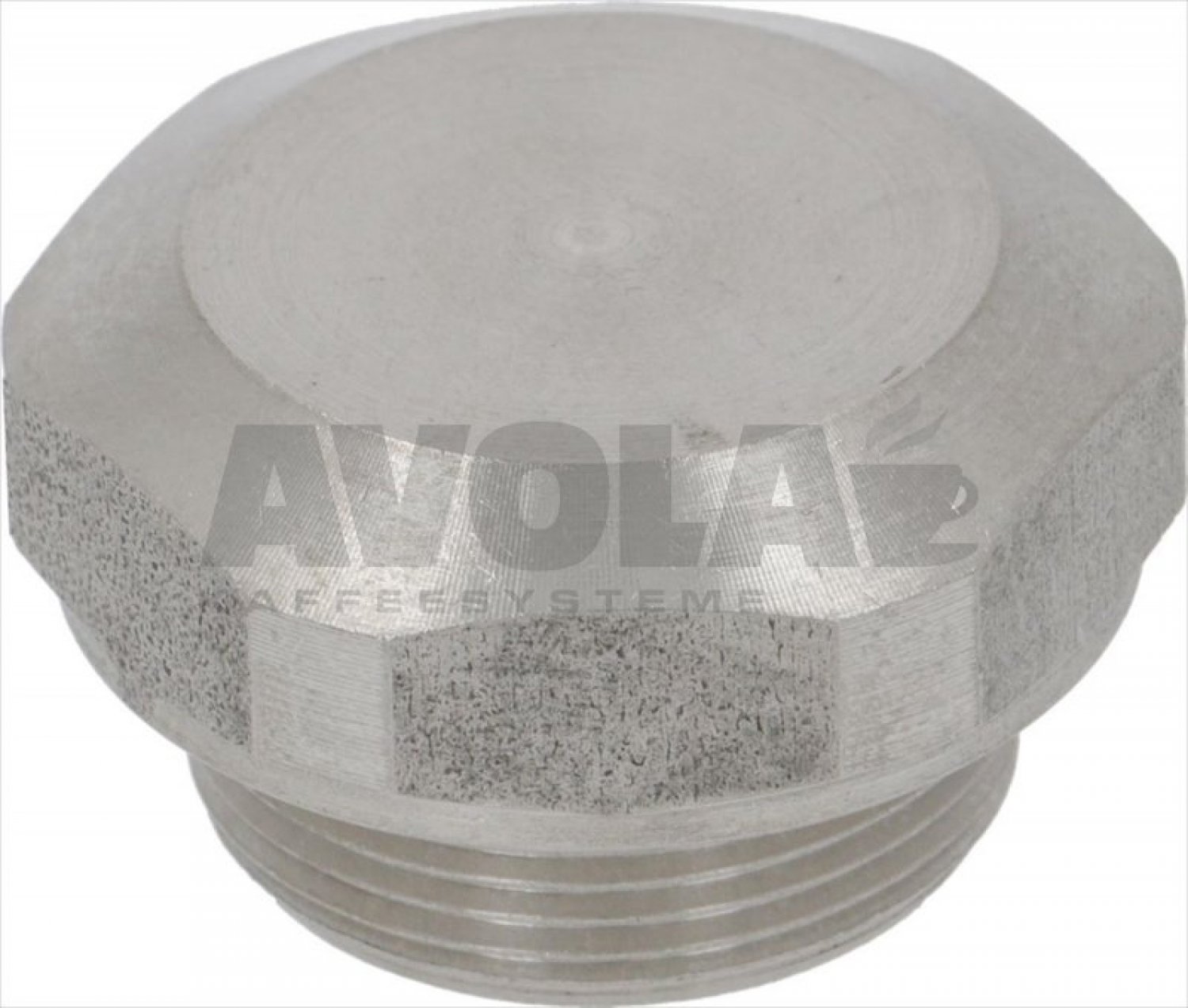

4cap8006393
Cap
12,83 €

excl. Shipping costs
immediately available, 1 available
5ptfe flat gasket o 27x20x1 mm8001524
PTFE Flat Gasket ø 27x20x1 mm
1,13 €

excl. Shipping costs
immediately available, 15 available
6schraube zylinderkopf innensechskant vollgewinde edelstahl m4x10 a2 70 din 9128061180
Schraube Zylinderkopf Innensechskant Vollgewinde Edelstahl M4x10 A2-70 Din 912
0,67 €

excl. Shipping costs
immediately available
7red silicone o ring r5 gasket8001809
Red Silicone O-RING R5 Gasket
1,34 €

excl. Shipping costs
immediately available
7o ring 02025 viton8001810
O-RING 02025 Viton
0,87 €

excl. Shipping costs
immediately available
83 way solenoid valve lucifer 240v 50hz8000955
3-way Solenoid Valve Lucifer 240v 50hz
52,36 €

excl. Shipping costs
immediately available, 16 available
83 way solenoid valve parker 230v 50 60hz8000960
3-way Solenoid Valve Parker 230V 50/60hz
53,55 €
53,55 €

excl. Shipping costs
immediately available, 16 available
93 way mechanical component lucifer8000959
3-way Mechanical Component Lucifer
39,77 €

excl. Shipping costs
immediately available, 9 available
93 way mechanical component parker8000962
3-way Mechanical Component Parker
42,72 €

excl. Shipping costs
immediately available, 15 available
10coil lucifer parker 220 240v 9w 50hz8000957
Coil Lucifer/parker 220/240V 9W 50hz
19,92 €

excl. Shipping costs
immediately available, 7 available
10coil parker zb09 9w 220 240v 50 60hz8012418
Coil Parker ZB09 9W 220/240V 50/60hz
20,74 €

excl. Shipping costs
immediately available, 4 available
11hexagon head screw m6x128007248
Hexagon Head Screw M6x12
1,21 €

excl. Shipping costs
immediately available
13flat washer m68029809
Flat Washer M6
1,43 €

excl. Shipping costs
immediately available, 15 available

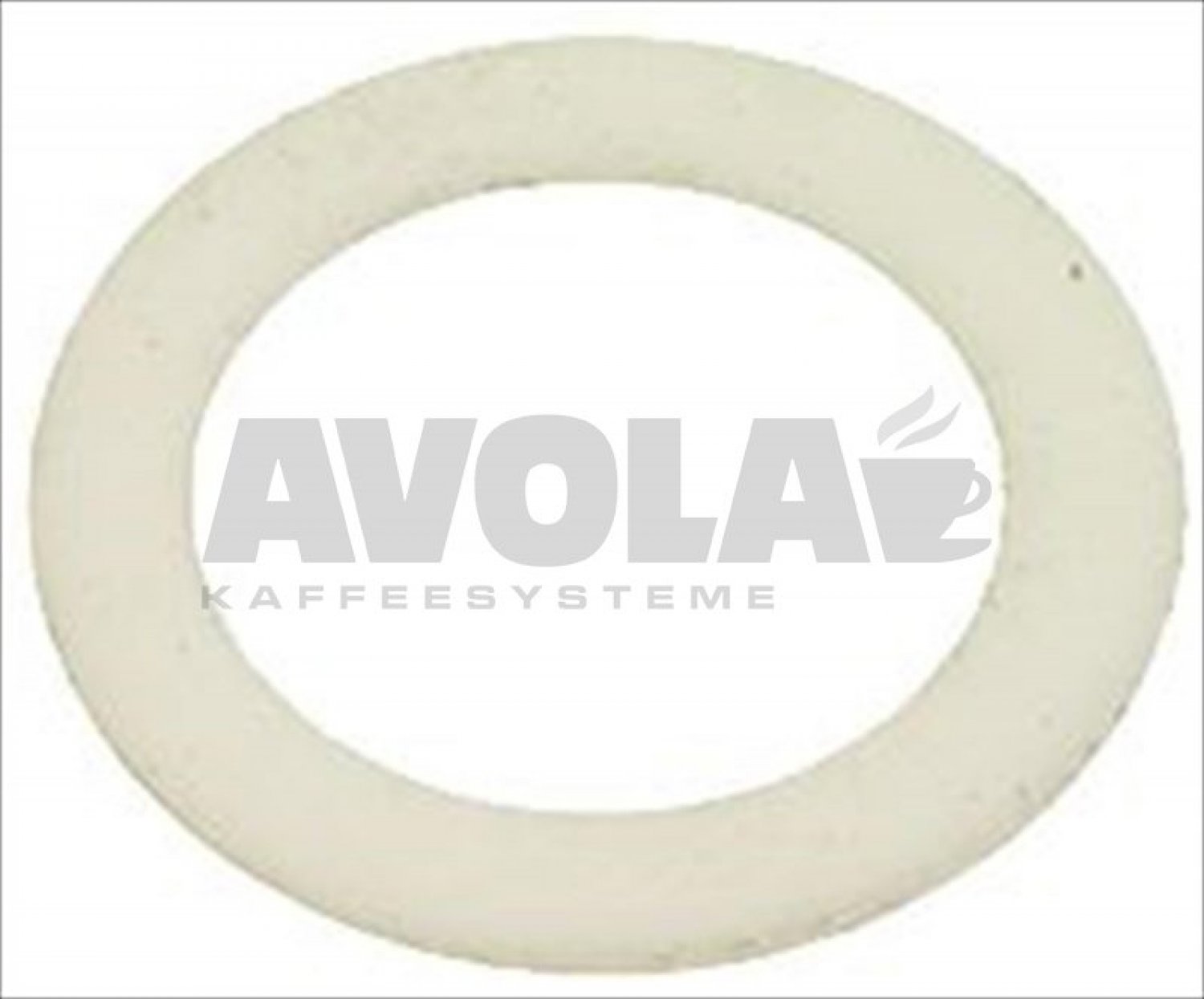

14ptfe flat gasket o 17x12x0 5 mm8001517
PTFE Flat Gasket ø 17x12x0,5 mm
1,19 €

excl. Shipping costs
immediately available, 14 available

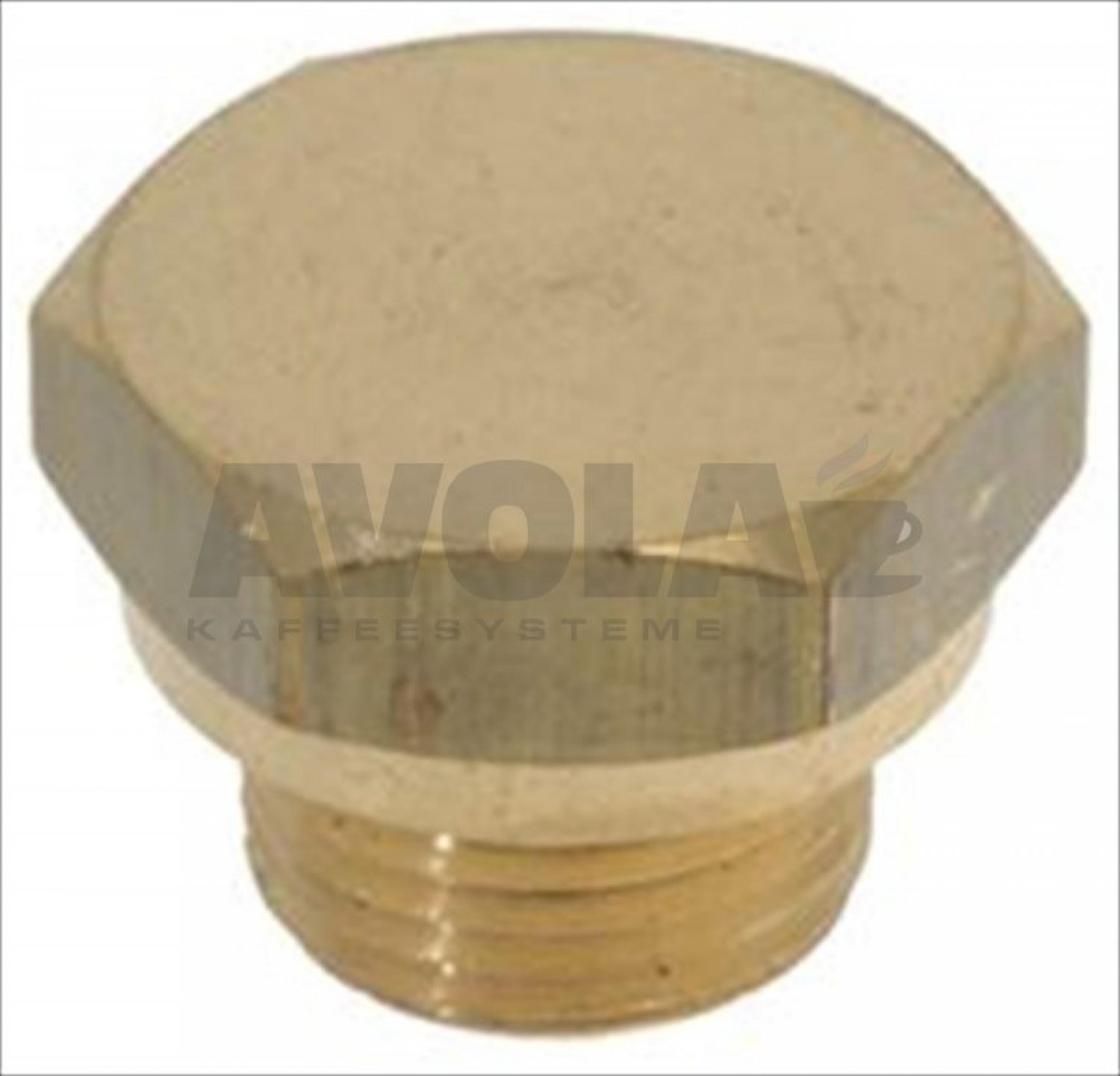

15cap8006392
Cap
7,70 €

excl. Shipping costs
immediately available, 2 available
16hexagon head screw m5x108007330
Hexagon Head Screw M5x10
1,15 €

excl. Shipping costs
immediately available
19o ring 03030 epdm8001600
O-RING 03030 EPDM
0,55 €

excl. Shipping costs
immediately available

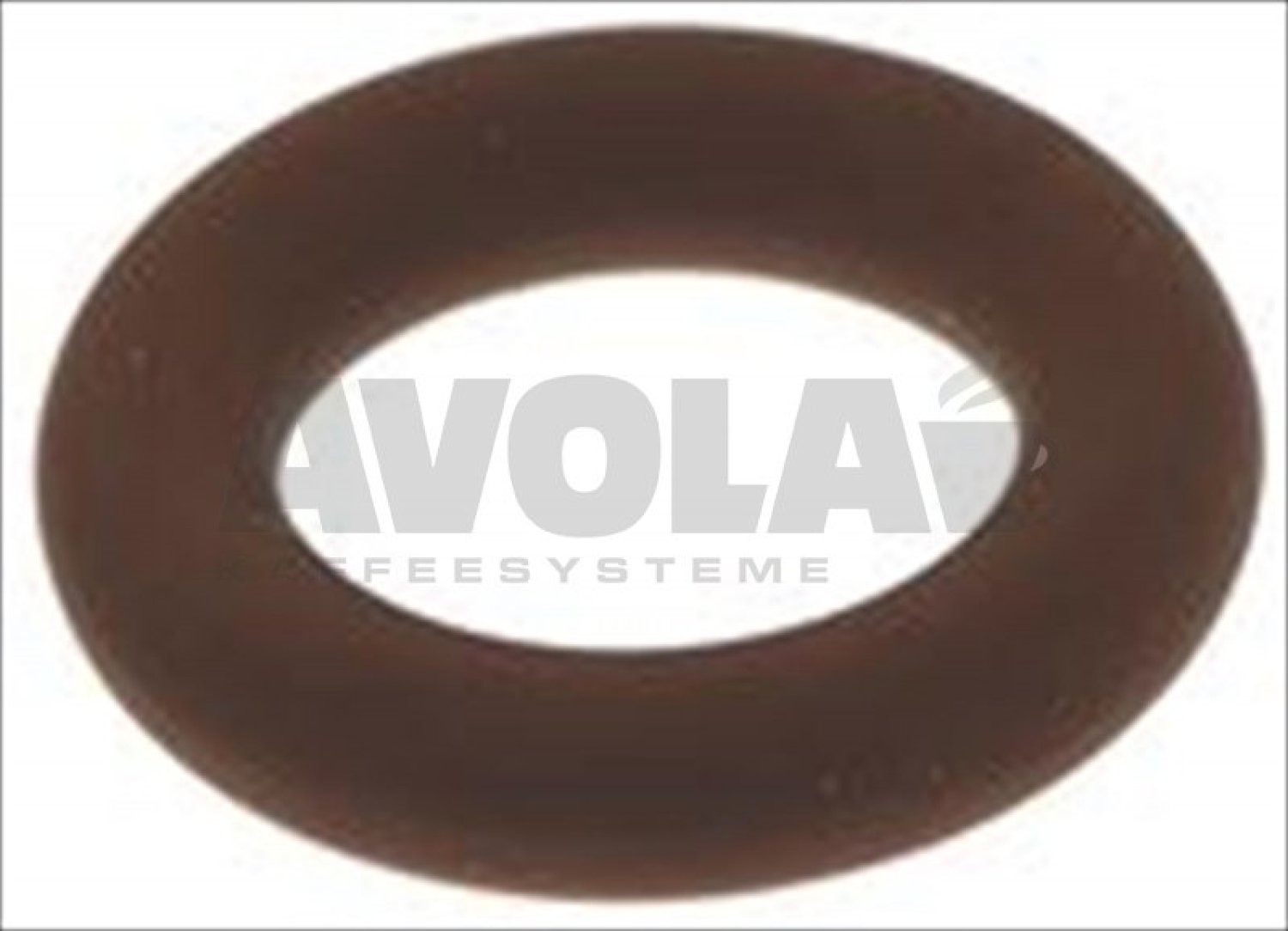

19viton o ring 030308064344
Viton O-RING 03030
2,28 €

excl. Shipping costs
immediately available, 8 available
20einstellschraube faema bypassregulierung8101535
Einstellschraube Faema Bypassregulierung
43,48 €

excl. Shipping costs
Delivery time 4-6 weeks

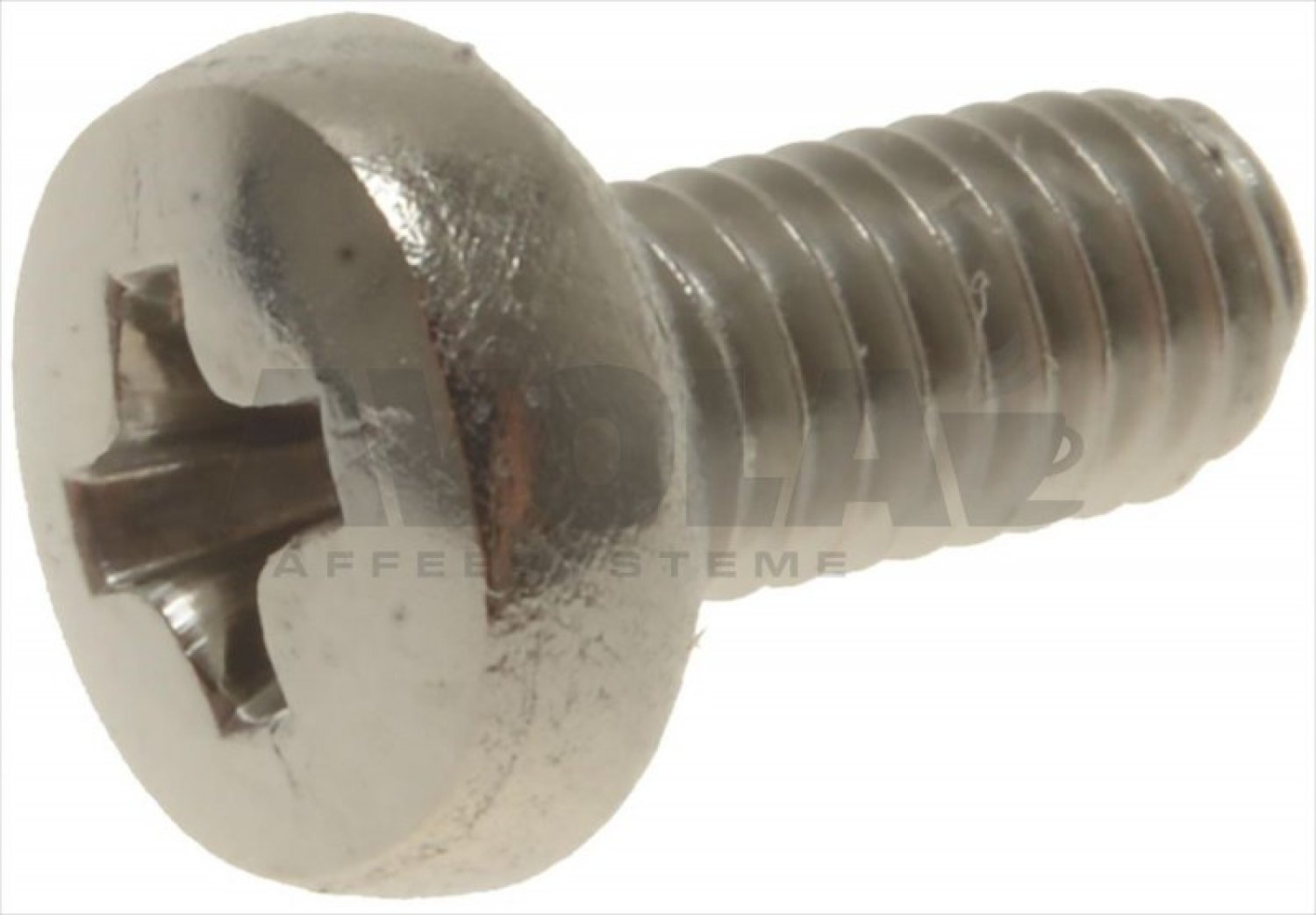

21zylinderkopfschraube m3x68078011
Zylinderkopfschraube M3x6
2,30 €

excl. Shipping costs
immediately available
22stellscheibe faema bypassregulierung gruppe o 30x13x1 mm8101536
Stellscheibe Faema Bypassregulierung Gruppe ø 30x13x1 mm
10,51 €

excl. Shipping costs
immediately available, 6 available

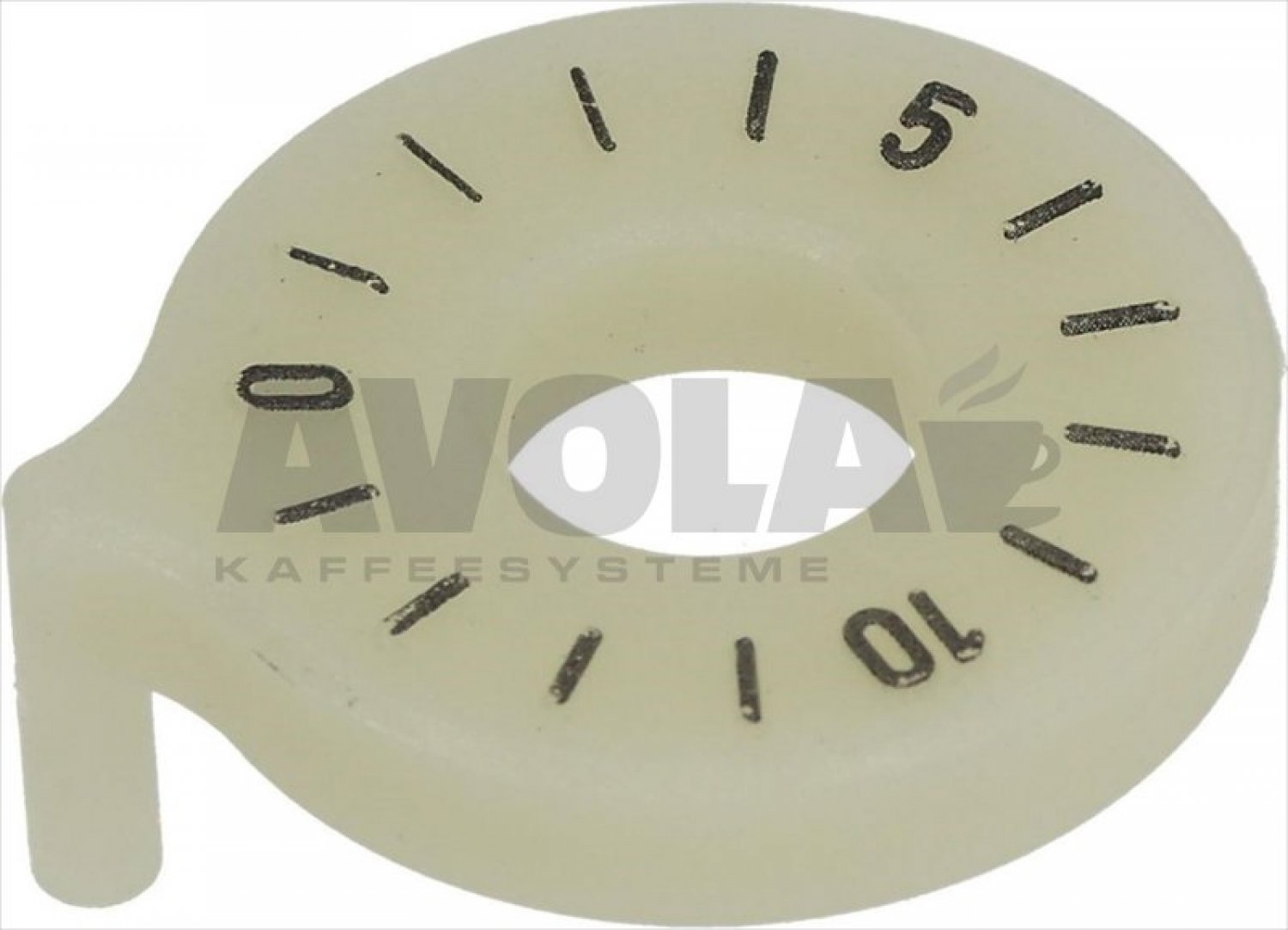

23thermal index knob8003150
Thermal Index Knob
18,72 €

excl. Shipping costs
Delivery time
is determined
24shower holder diffuser8000615
Shower Holder Diffuser
29,75 €

excl. Shipping costs
Delivery time 4-6 weeks
25group spray nozzle o 21 mm m5x18006988
Group Spray Nozzle ø 21 mm M5x1
7,40 €

excl. Shipping costs
immediately available, 8 available
26shower screen fuer e61 brew unit8000608
Shower Screen für E61 Brew Unit
5,44 €

excl. Shipping costs
immediately available
27filter holder gasket o 74x57 5x8 mm8001901
Filter Holder Gasket ø 74x57,5x8 mm
3,82 €

excl. Shipping costs
immediately available, 14 available
27filter holder gasket o 73x57x8 mm8001902
Filter Holder Gasket Ø 73x57x8 mm
3,52 €

excl. Shipping costs
immediately available
27filter holder gasket8001903
Filter Holder Gasket
3,63 €

excl. Shipping costs
immediately available
27faema siebtraegerdichtung original mit logo 74x58x8mm8076858
Faema Siebträgerdichtung Original mit Logo 74x58x8mm
7,52 €

excl. Shipping costs
immediately available
28blind filter o58mm8001103
Blind Filter ø58mm
2,56 €

excl. Shipping costs
immediately available
291 cup filter 6 g8001076
1 Cup Filter 6 g
5,41 €

excl. Shipping costs
immediately available, 15 available
302 cup filter 12 grams8001077
2-cup Filter 12 Grams
5,41 €

excl. Shipping costs
immediately available, 6 available
311 cup filter 7 g8001120
1 Cup Filter 7 g
6,50 €

excl. Shipping costs
immediately available, 20 available
322 cup filter 14 grams8001101
2-cup Filter 14 Grams
7,02 €

excl. Shipping costs
immediately available
33filter blocking spring o 1 00 mm8003622
Filter Blocking Spring ø 1,00 mm
1,05 €

excl. Shipping costs
immediately available

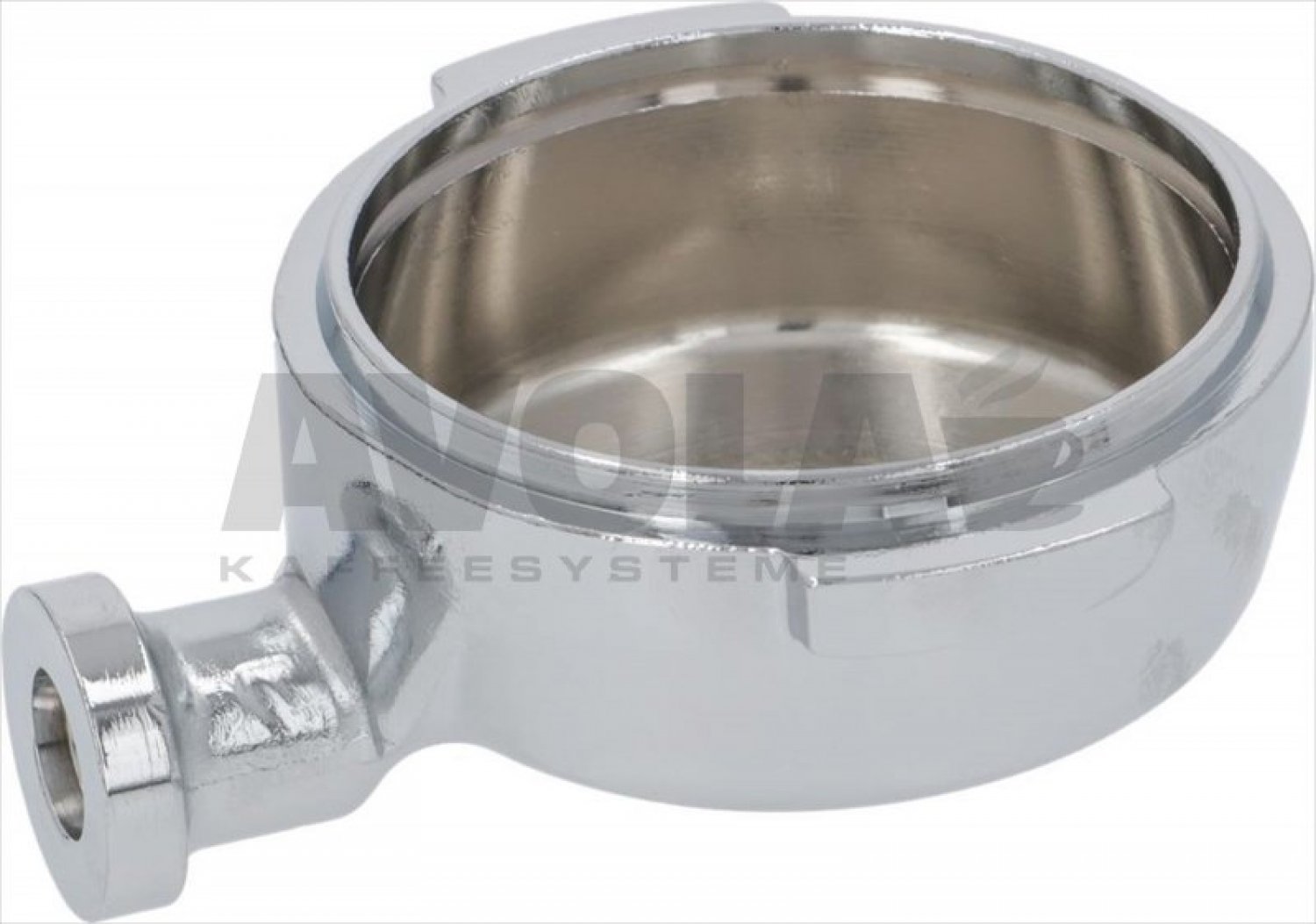

34coffee machine filter holder8001176
Coffee Machine Filter Holder
21,97 €

excl. Shipping costs
Delivery time
is determined
34filter holder coffee machines8001183
Filter Holder Coffee Machines
19,99 €

excl. Shipping costs
immediately available, 2 available

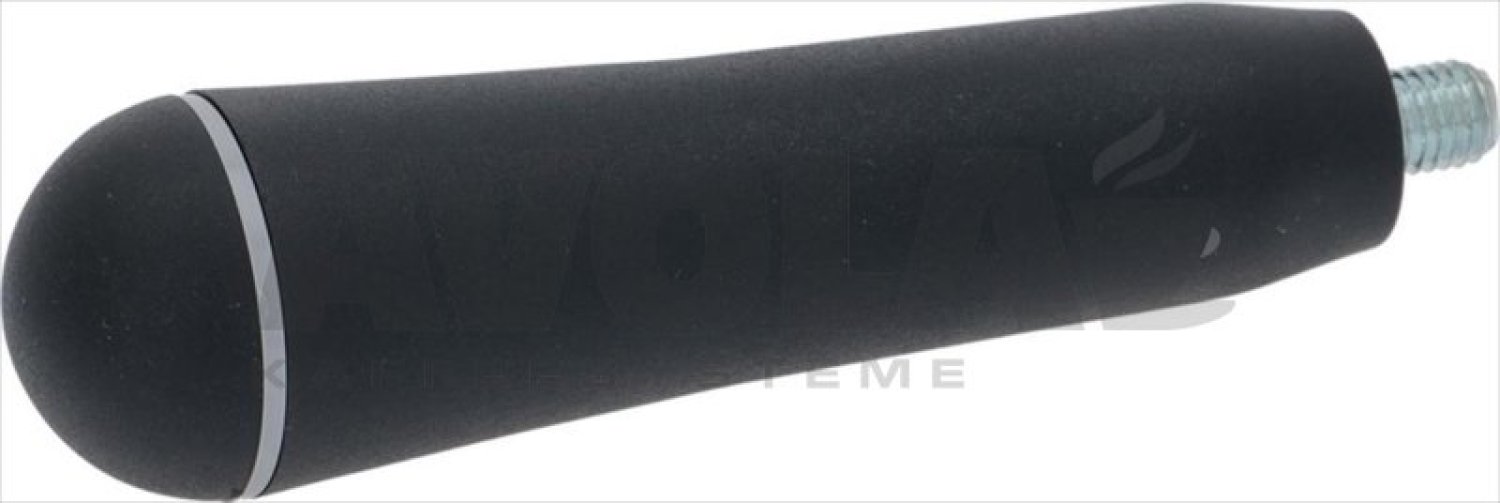

35filter holder handle m108003253
Filter Holder Handle M10
29,33 €

excl. Shipping costs
Delivery time
is determined
35filter holder handle m128003351
Filter Holder Handle M12
8,51 €

excl. Shipping costs
immediately available, 2 available
36single spout m168000049
Single Spout M16
16,90 €

excl. Shipping costs
immediately available, 1 available
36single spout o 3 88000110
Single Spout ø 3/8
6,06 €

excl. Shipping costs
immediately available, 8 available
37lelit siebtraegerauslauf 2er o 3 8 quot rund auslauf vorne8280537
Lelit Siebträgerauslauf 2er ø 3/8" rund Auslauf vorne
This article is not longer available
37double spout o 3 88000111
Double Spout ø 3/8
7,27 €

excl. Shipping costs
immediately available, 9 available
37long double spout o 3 88000120
Long Double Spout ø 3/8
7,12 €

excl. Shipping costs
immediately available, 3 available
38auslaufrohr fuer gruppe nicht mehr lieferbar 8006596
Auslaufrohr für Gruppe (nicht mehr lieferbar)
This article is not longer available
38group drain pipe8006765
Group Drain Pipe
20,00 €

excl. Shipping costs
immediately available, 1 available
391 cup filter 7 gr basic quality8001091
1-cup Filter 7 gr - Basic Quality
5,74 €

excl. Shipping costs
immediately available, 13 available
402 cup filter 14 grams basic quality8001092
2-cup Filter 14 Grams - Basic Quality
6,13 €

excl. Shipping costs
immediately available, 15 available
41paper shim o 73x59x0 8 mm8002167
Paper Shim ø 73x59x0,8 mm
0,49 €

excl. Shipping costs
immediately available
42rubber shim o 73 5x59x1 mm epdm8002168
Rubber Shim ø 73,5x59x1 mm EPDM
1,05 €

excl. Shipping costs
immediately available
43filterholder complete 1 cup faema8064548
Filterholder Complete 1 Cup Faema
45,82 €

excl. Shipping costs
Delivery time
is determined

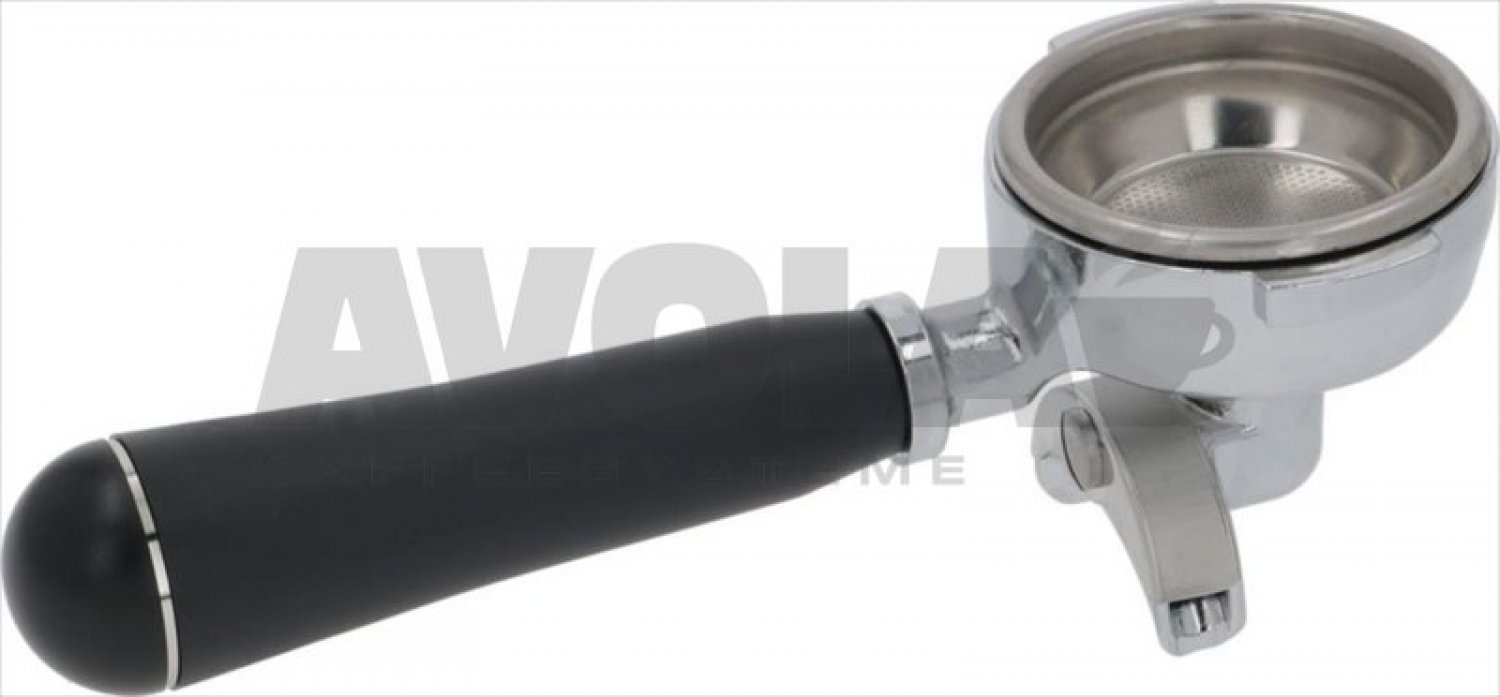

44filterholder complete 2 cups faema8064547
Filterholder Complete 2 Cups Faema
48,35 €

excl. Shipping costs
Delivery time
is determined
452 cups filter 18 21gr o 70x28 mm8001104
2 Cups Filter 18/21gr ø 70x28 mm
4,46 €

excl. Shipping costs
immediately available, 4 available

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
