FAEMA BRÜHGRUPPE P4-P6-E64-E66

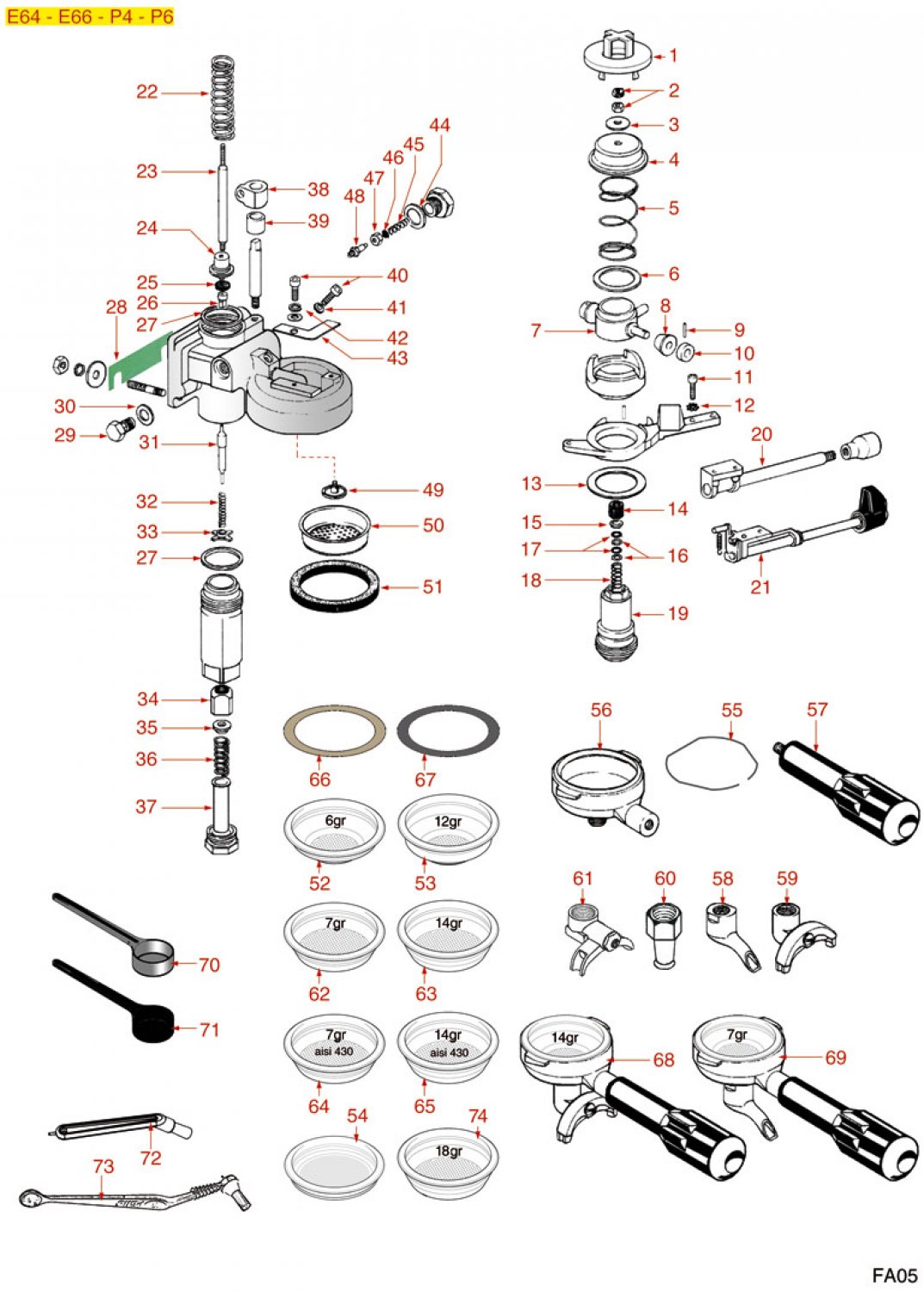

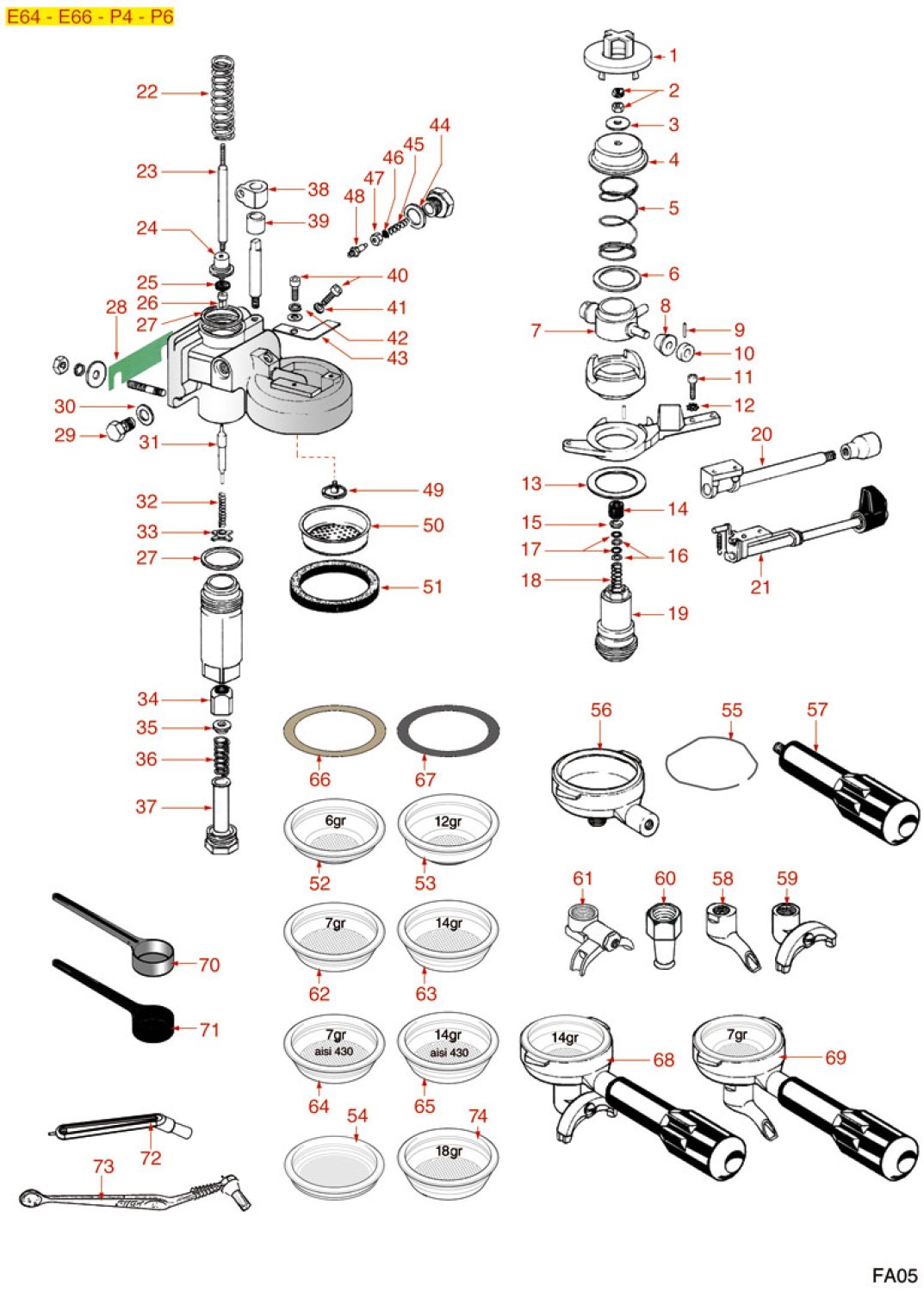

Drawing number 8038740

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.: Image: Description: Qty.:

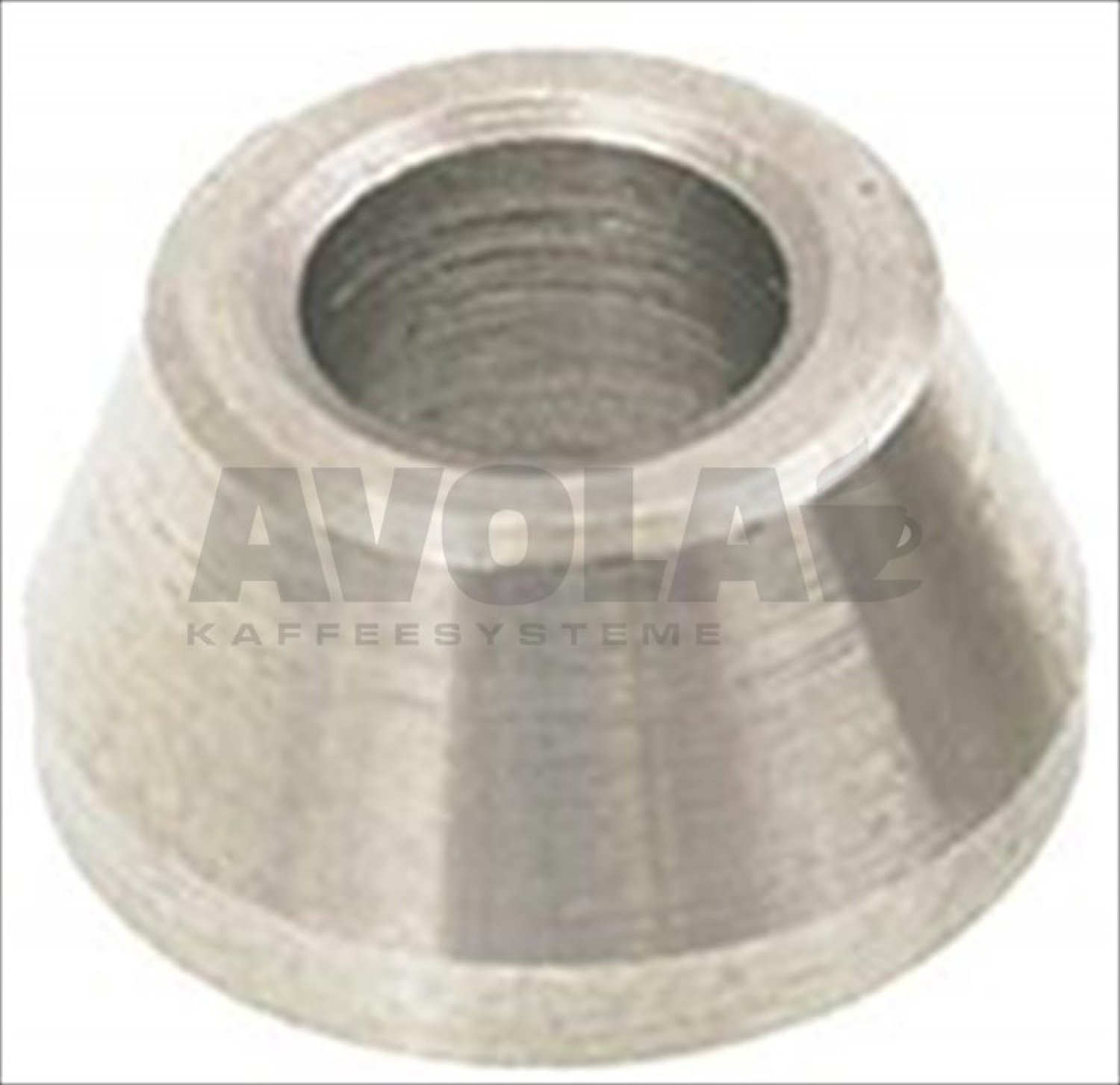

8stainless steel roll e64 66 8005423
STAINLESS STEEL ROLL E64/66
This article is no longer available

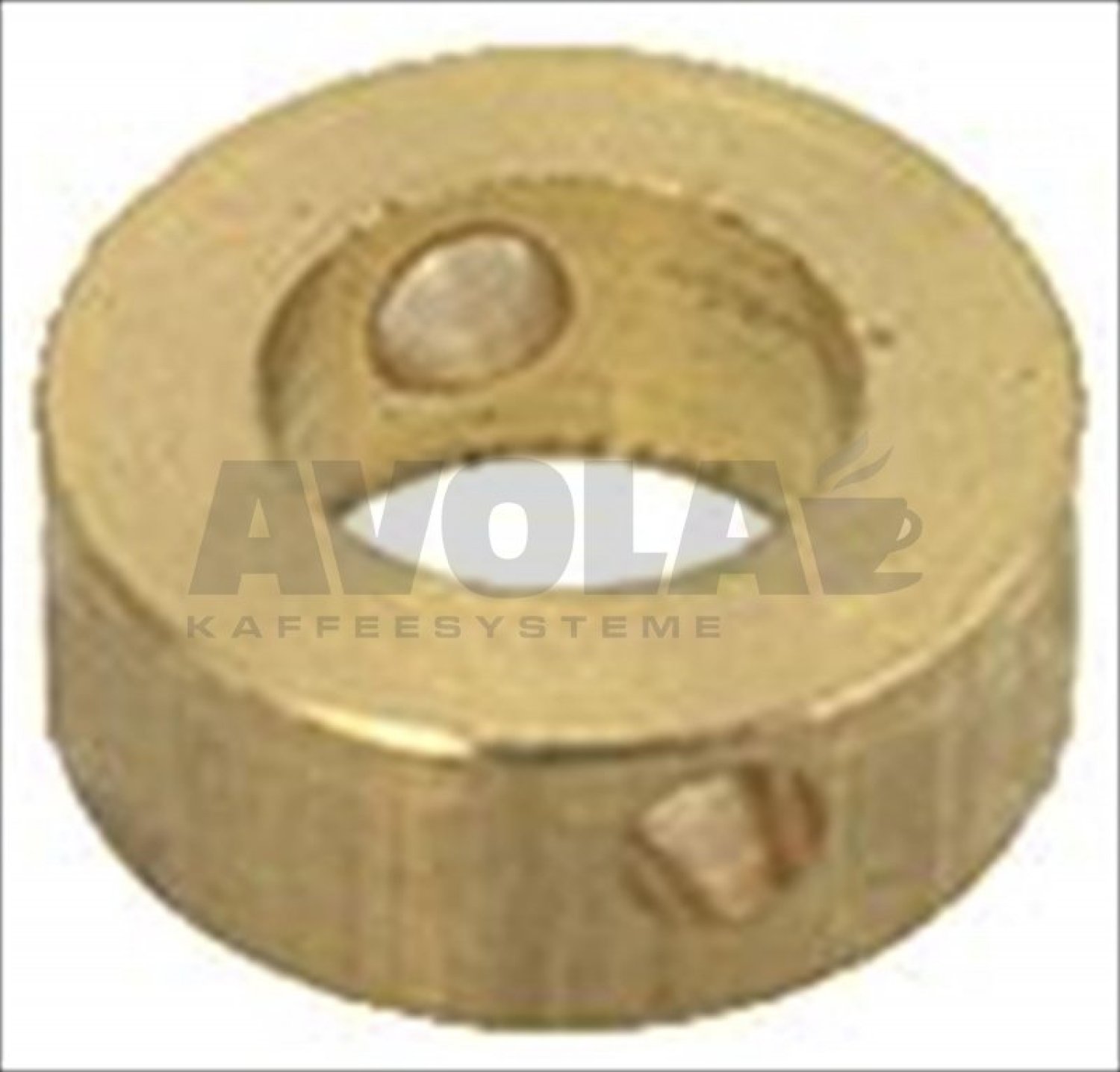

10roll bushing 8001662
ROLL BUSHING
1,29 €

excl. Shipping costs

Delivery time
is determined

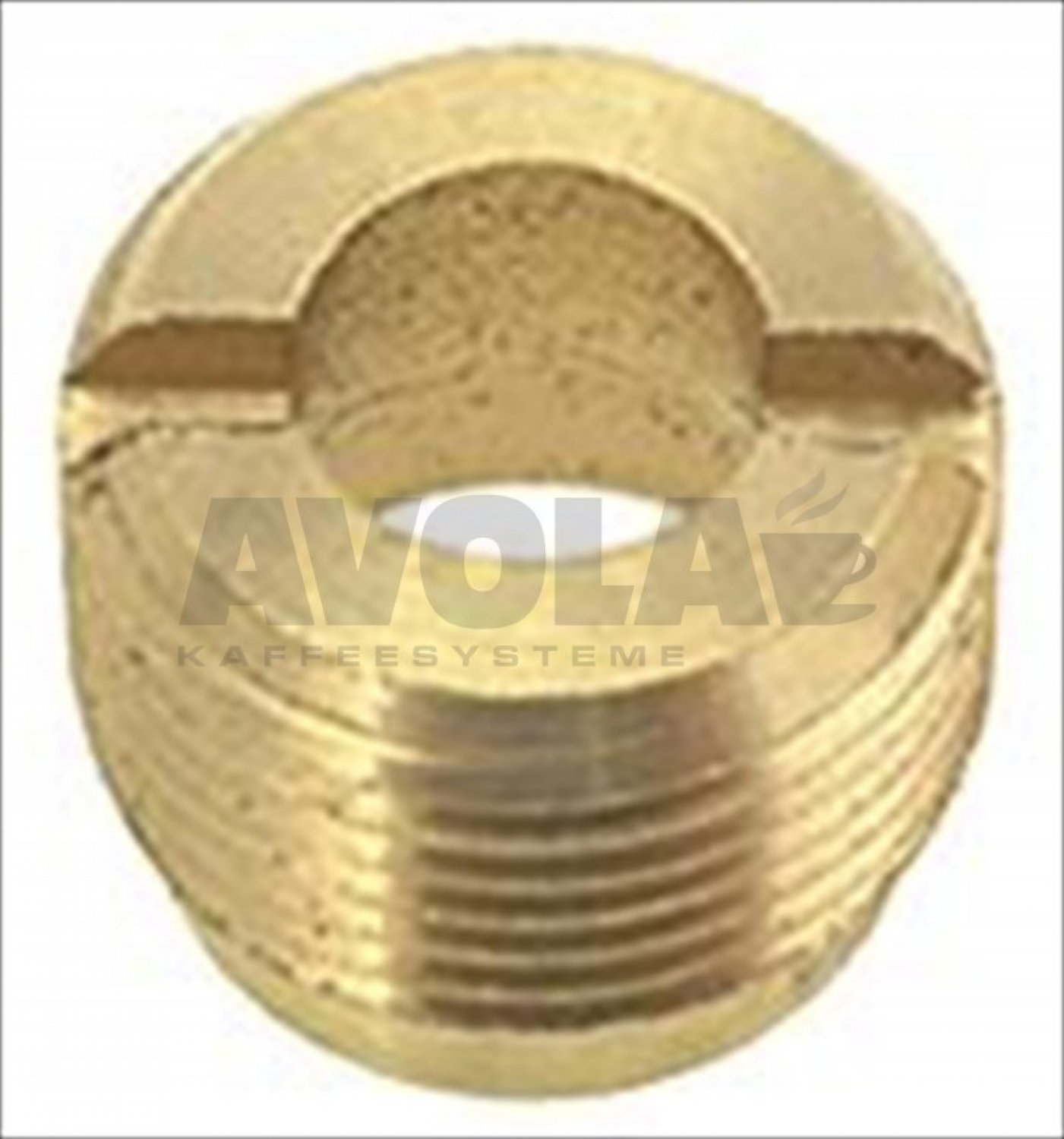

14upper spring holder bushing 8001663
UPPER SPRING HOLDER BUSHING
2,74 €

excl. Shipping costs

Delivery time
is determined

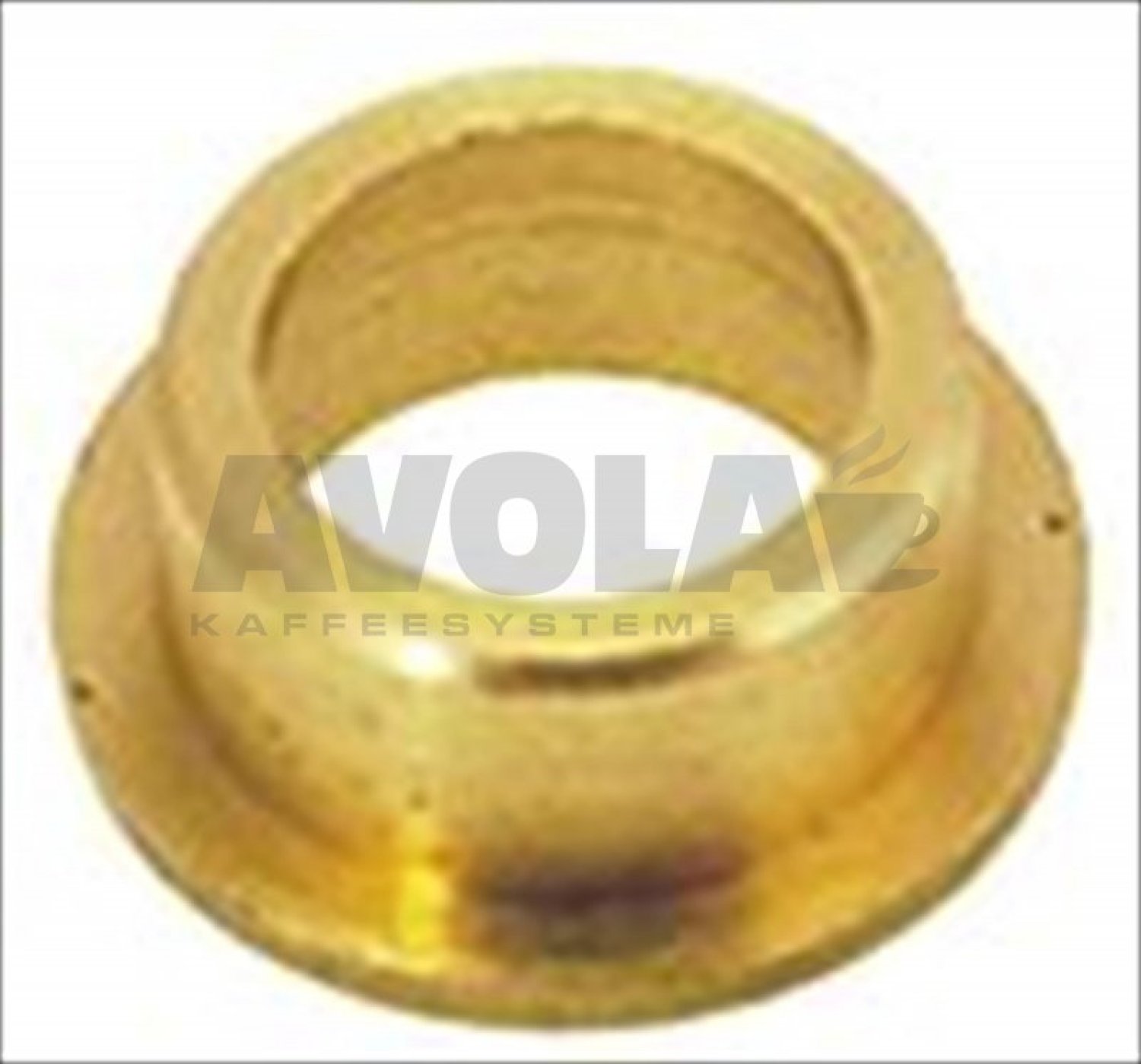

15spring guide bushing 8001664
SPRING GUIDE BUSHING
Price on request

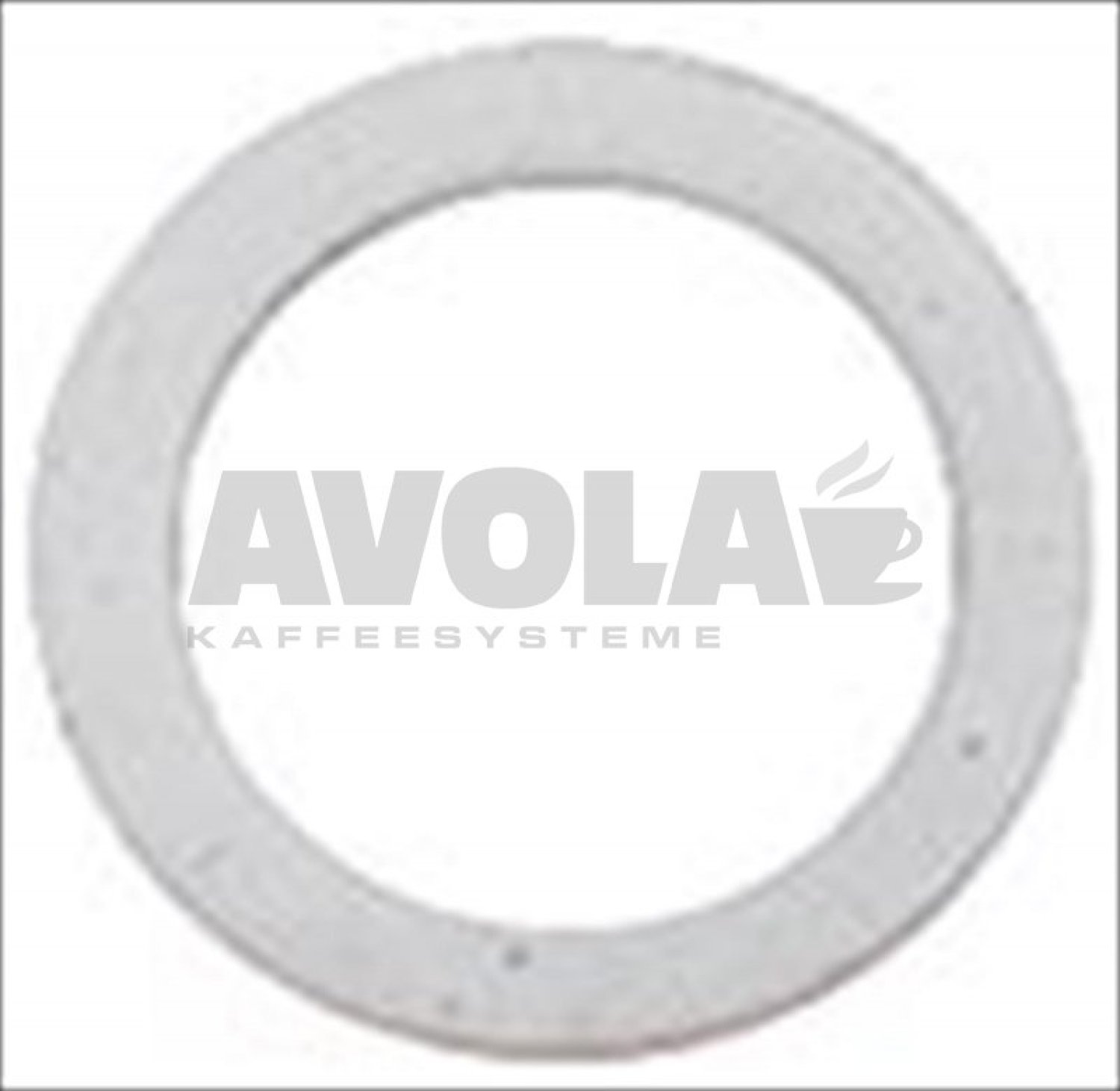

16flat ptfe gasket o 10x7x0 5 mm 8001665
FLAT PTFE GASKET ø 10x7x0,5 mm
2,06 €

excl. Shipping costs

immediately available, 10 available
17o ring gasket 0106 epdm 8018501
O-RING GASKET 0106 EPDM
1,44 €

excl. Shipping costs

immediately available

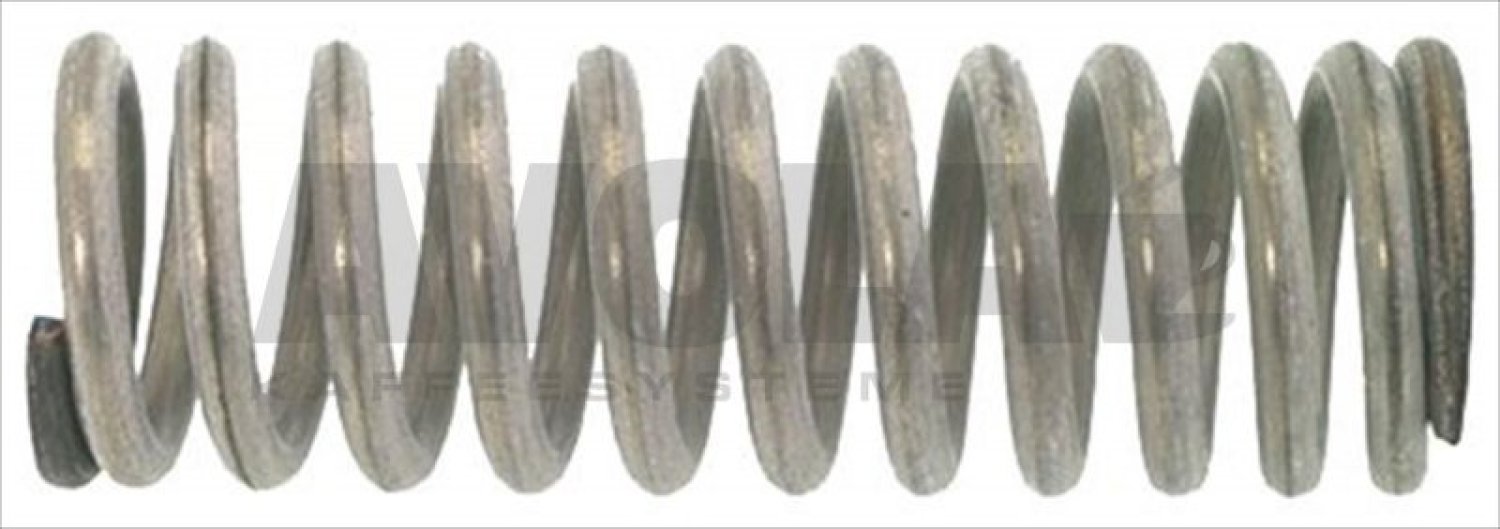

22sleeve spring 8003794
SLEEVE SPRING
2,27 €

excl. Shipping costs

immediately available, 10 available

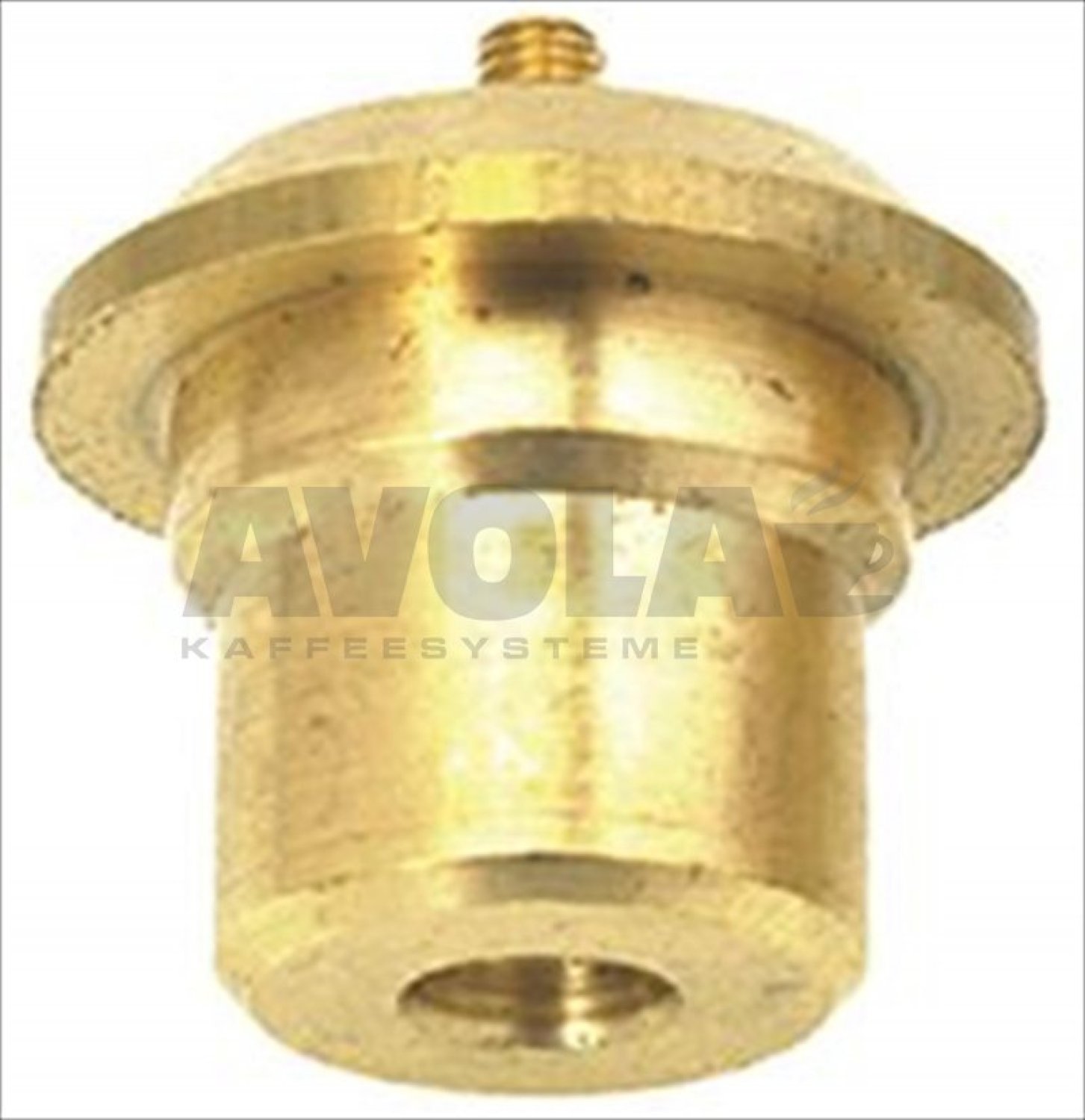

24gasket holder bushing 8001675
GASKET HOLDER BUSHING
2,48 €

excl. Shipping costs

Delivery time 4-6 weeks
25viton flat gasket 13x4x4 mm 8001990
VITON FLAT GASKET 13x4x4 mm
1,62 €

excl. Shipping costs

immediately available

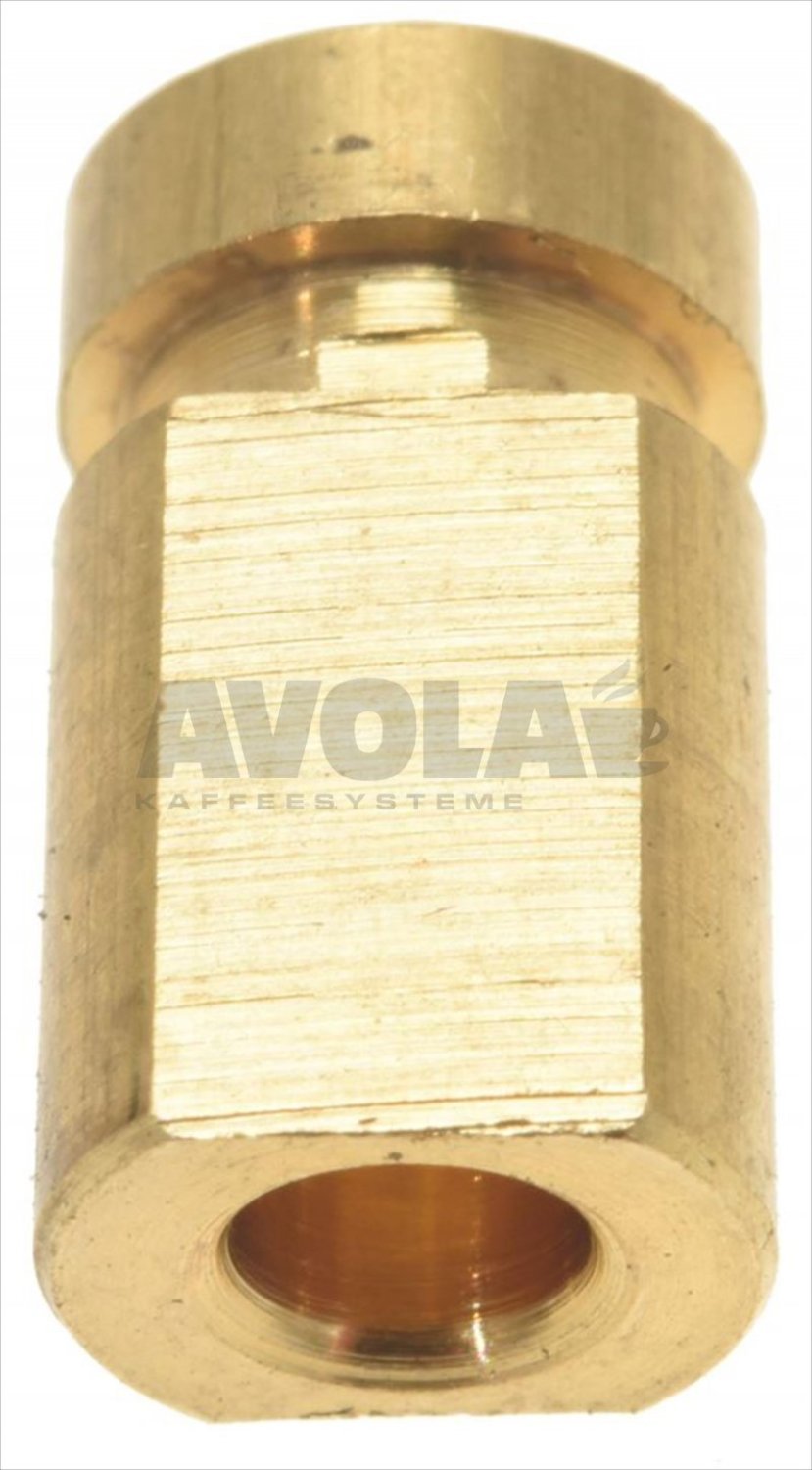

26gasket holder pin 8005134
GASKET HOLDER PIN
1,18 €

excl. Shipping costs

Delivery time 4-6 weeks..

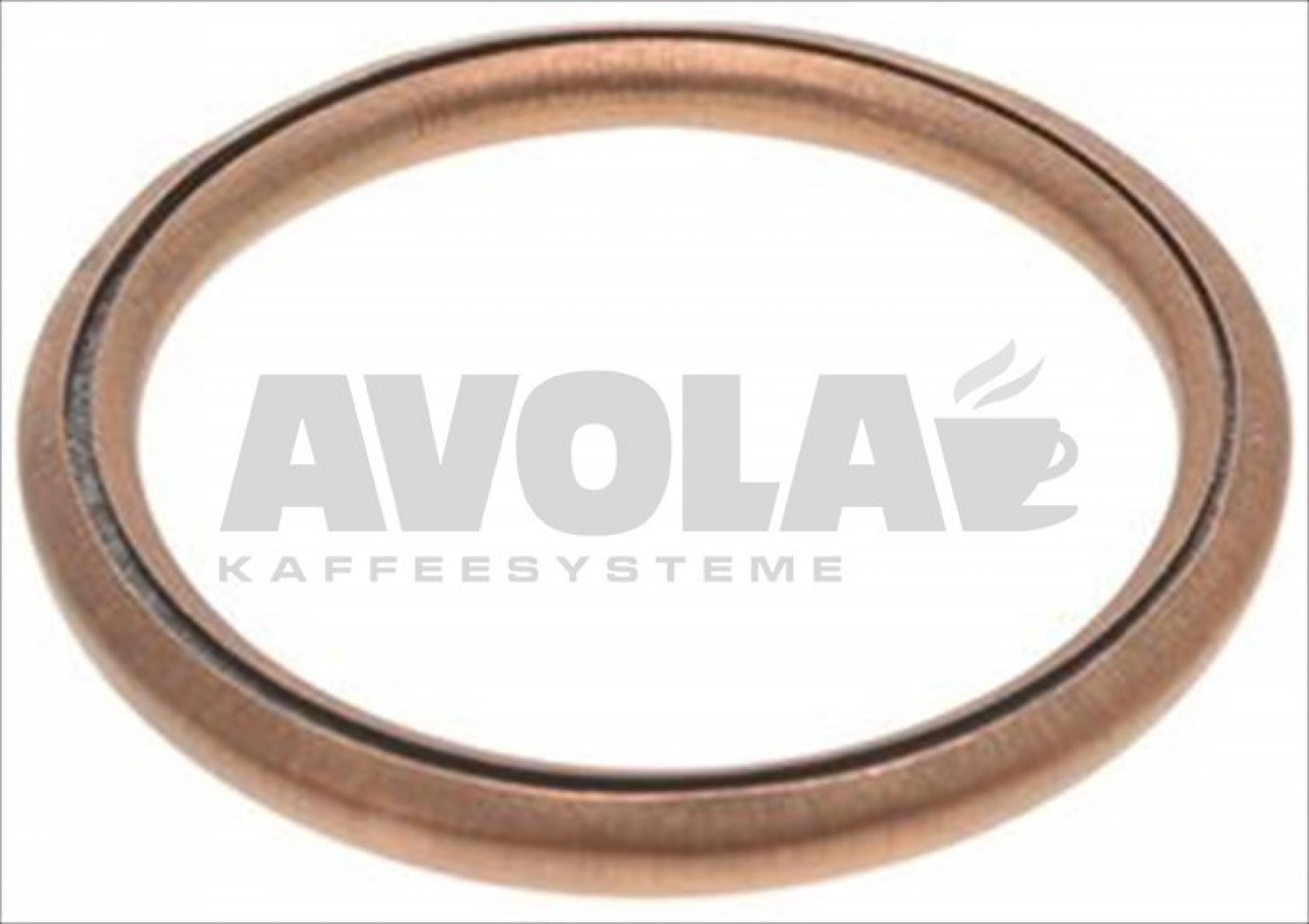

27copper round gasket o 32x26x3 mm 8001667
COPPER ROUND GASKET ø 32x26x3 mm
2,64 €

excl. Shipping costs

immediately available, 14 available
28coffee group gasket 80x21x2 mm 8001745
COFFEE GROUP GASKET 80x21x2 mm
4,57 €

excl. Shipping costs

immediately available, 3 available

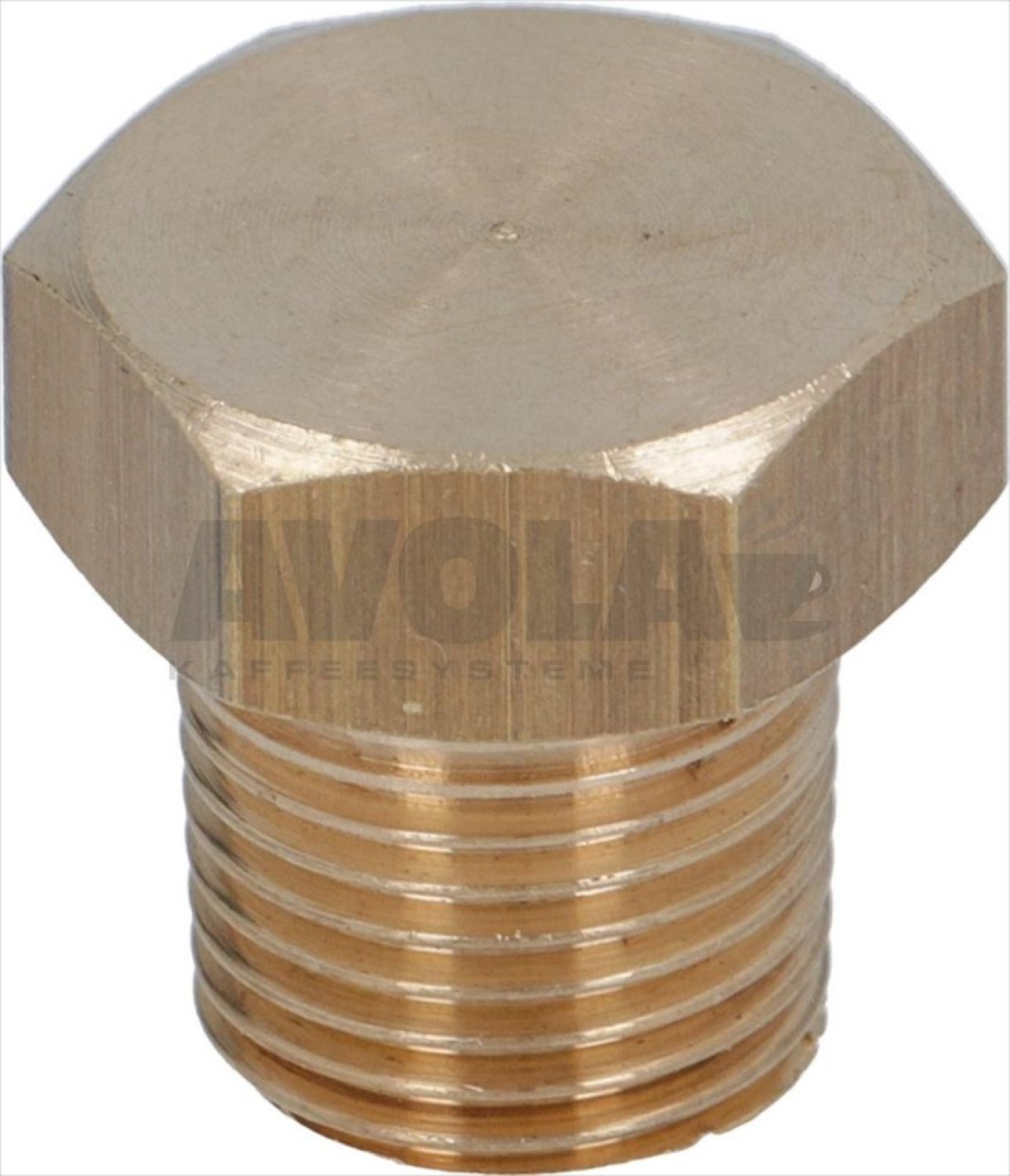

29cap o 12 mm for brew group 8006375
CAP ø 12 mm FOR BREW GROUP
Price on request

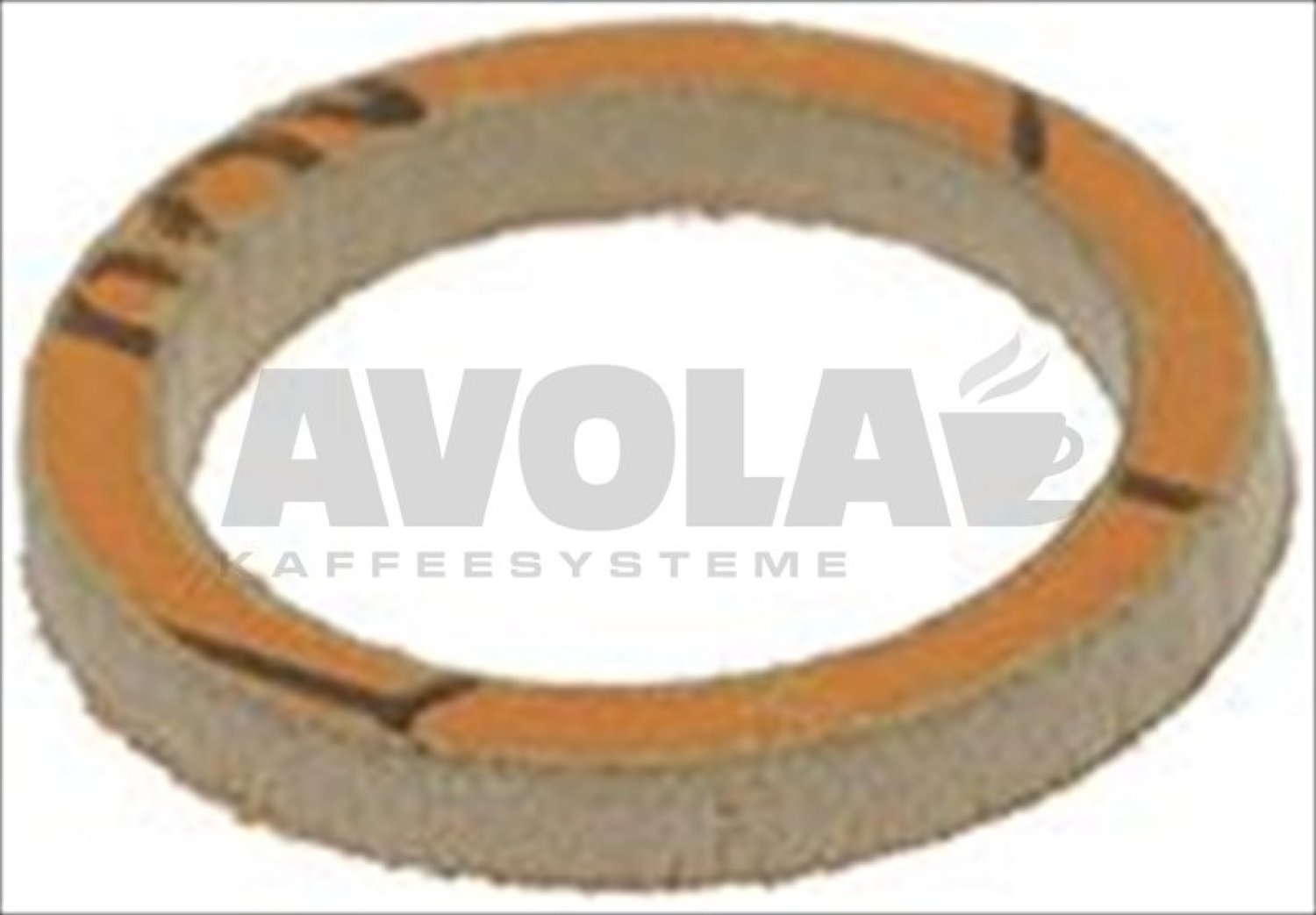

30asbestos free flat gasket 8001668
ASBESTOS FREE FLAT GASKET
1,24 €

excl. Shipping costs

immediately available, 3 available

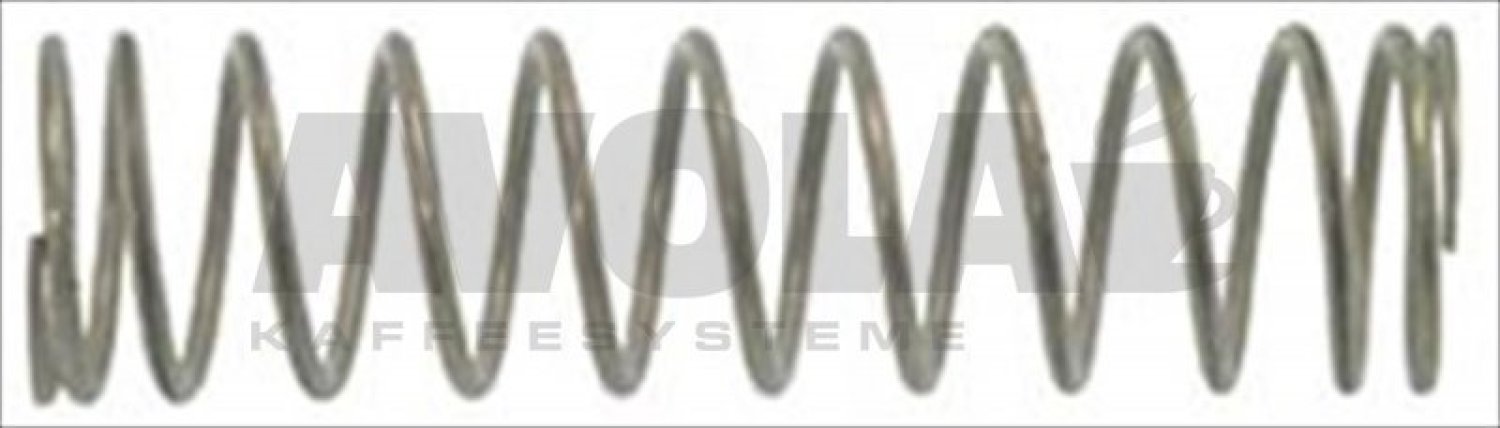

32infusion spring 8003789
INFUSION SPRING
Price on request

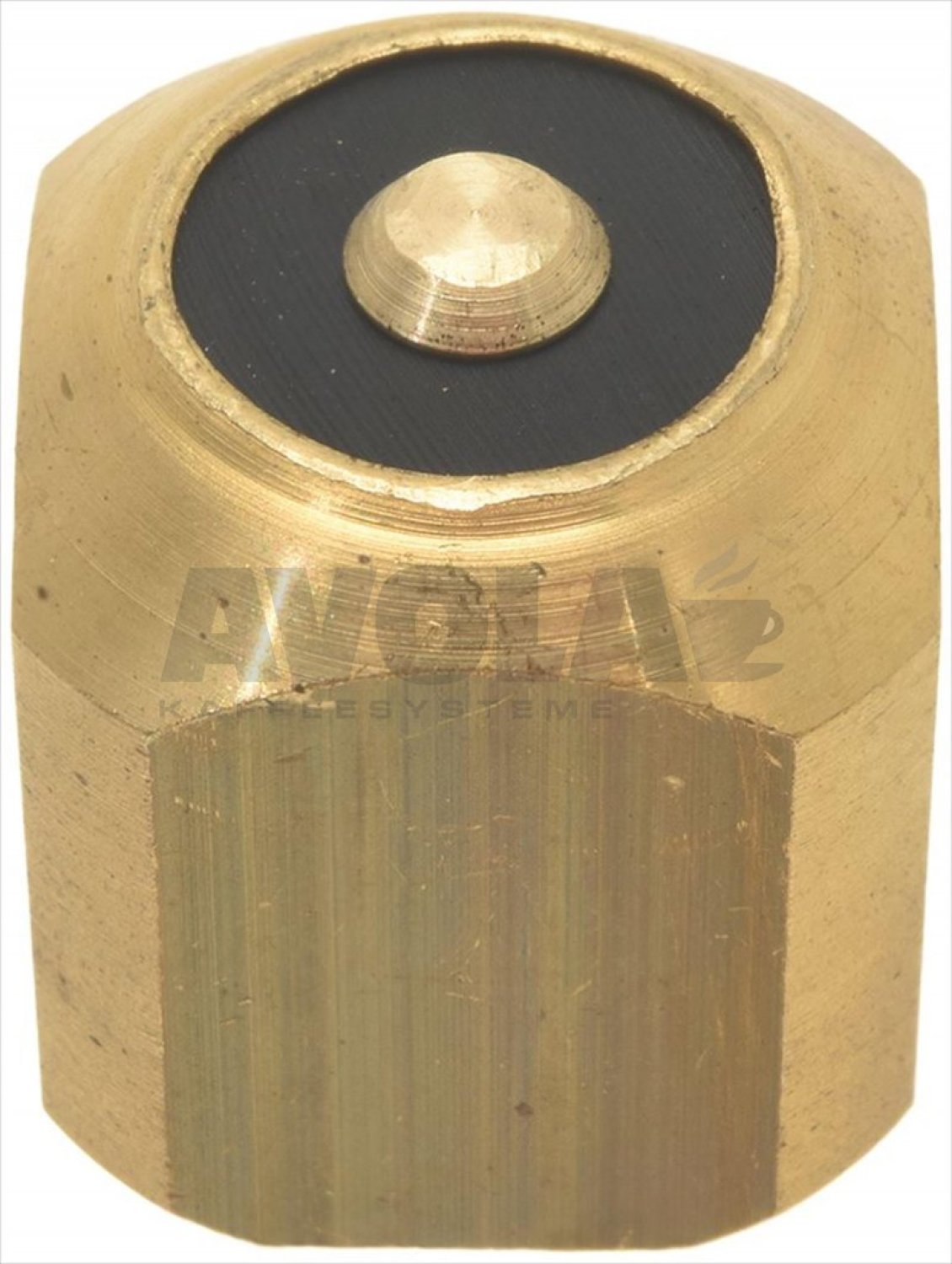

34complete outlet valve e64 p4 8007141
COMPLETE OUTLET VALVE E64/P4
6,39 €

excl. Shipping costs

immediately available, 9 available
35outlet valve spring guide bushing 8003798
OUTLET VALVE SPRING GUIDE BUSHING
Price on request
36spring o 14x45 mm 8003820
SPRING ø 14x45 mm
1,57 €

excl. Shipping costs

immediately available
40cylinder head screw m6x8 8001304
CYLINDER HEAD SCREW M6x8
1,67 €

excl. Shipping costs

immediately available, 10 available
41copper flat gasket o 10x6x1 mm 8001983
COPPER FLAT GASKET ø 10x6x1 mm
1,31 €

excl. Shipping costs

immediately available
42washer elastic spiral m6 8001672
WASHER ELASTIC SPIRAL M6
1,64 €

excl. Shipping costs

immediately available
43gruppendichtung 8001660
GRUPPENDICHTUNG
2,07 €

excl. Shipping costs

immediately available, 18 available
44round copper gasket o 22x16 3x2 75 mm 8001460
ROUND COPPER GASKET ø 22x16,3x2,75 mm
1,15 €

excl. Shipping costs

immediately available

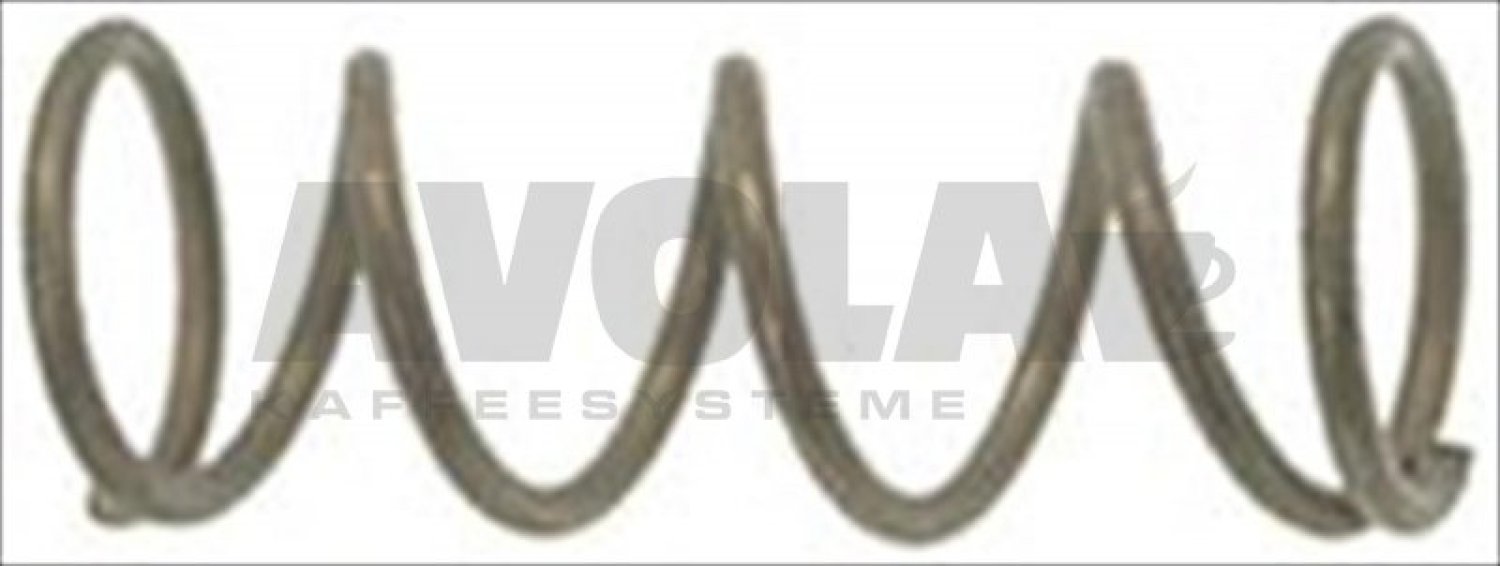

45jet spring o 8x20 mm 8003810
JET SPRING ø 8x20 mm
1,49 €

excl. Shipping costs

immediately available, 9 available
46water filter o 9 mm 8001029
WATER FILTER ø 9 mm
1,43 €

excl. Shipping costs

immediately available

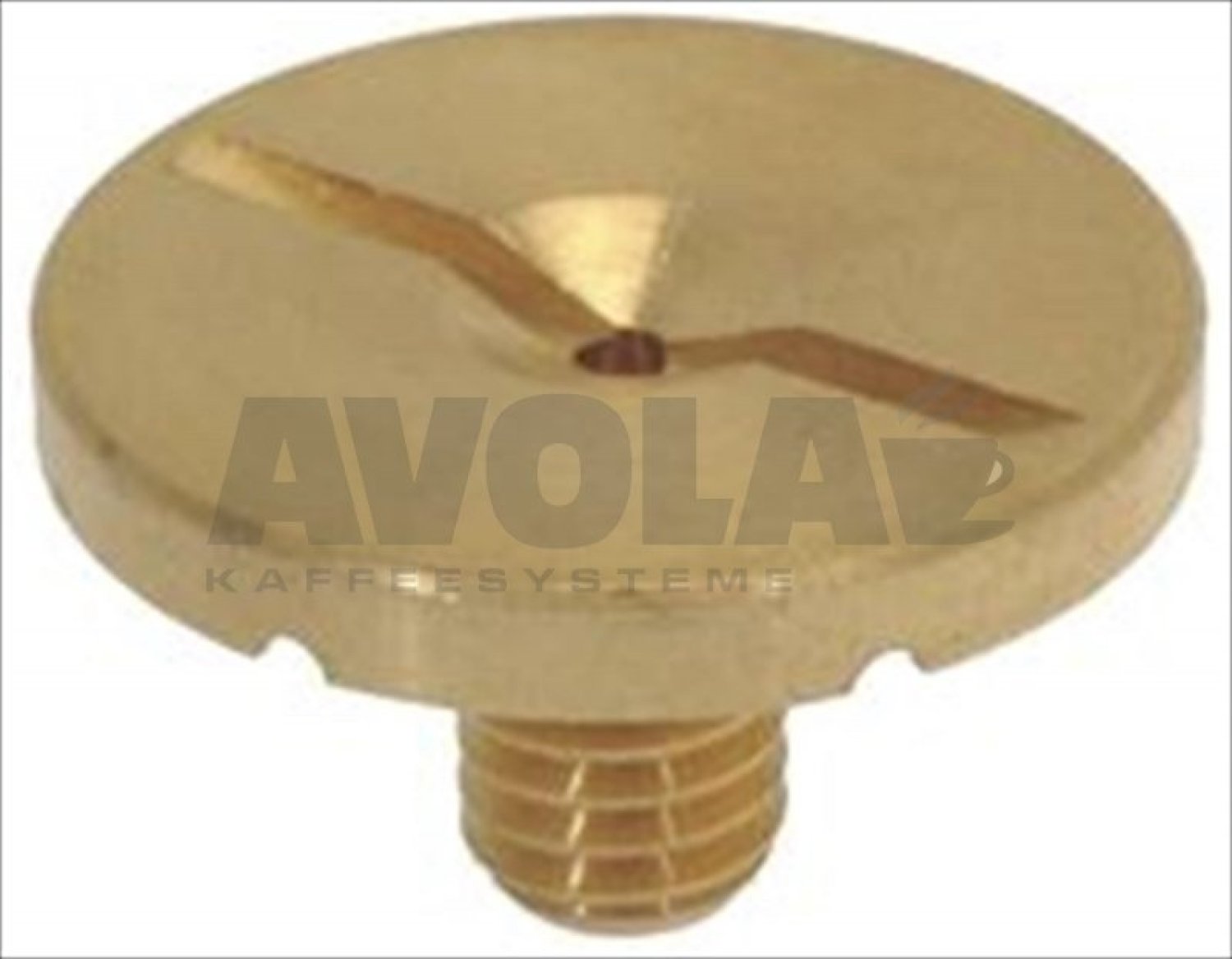

49group spray nozzle o 21 mm m5x1 8006988
GROUP SPRAY NOZZLE ø 21 mm M5x1
7,40 €

excl. Shipping costs

immediately available, 8 available
50shower screen fuer e61 brew unit 8000608
Shower screen für E61 brew unit
5,20 €

excl. Shipping costs

immediately available
51filter holder gasket o 73x57x8 mm 8001902
FILTER HOLDER GASKET Ø 73x57x8 mm
3,47 €

excl. Shipping costs

immediately available, 15 available
51filter holder gasket o 73x57x9 mm 8001904
FILTER HOLDER GASKET ø 73x57x9 mm
3,99 €

excl. Shipping costs

immediately available
51filter holder gasket 8001903
FILTER HOLDER GASKET
3,00 €

excl. Shipping costs

immediately available
521 cup filter 6 g 8001076
1 CUP FILTER 6 g
5,41 €

excl. Shipping costs

immediately available, 4 available
532 cup filter 12 grams 8001077
2-CUP FILTER 12 GRAMS
5,41 €

excl. Shipping costs

Delivery time
is determined
54blind filter o58mm 8001103
BLIND FILTER Ø58mm
2,56 €

excl. Shipping costs

immediately available, 20 available
55filter blocking spring o 1 00 mm 8003622
FILTER BLOCKING SPRING ø 1,00 mm
1,05 €

excl. Shipping costs

immediately available
56filter holder coffee machines 8001183
FILTER HOLDER COFFEE MACHINES
19,99 €

excl. Shipping costs

immediately available, 2 available
57filter holder handle m12 8003351
FILTER HOLDER HANDLE M12
8,51 €

excl. Shipping costs

immediately available, 7 available
58single spout o 3 8 8000110
SINGLE SPOUT ø 3/8
6,06 €

excl. Shipping costs

immediately available, 14 available
59lelit siebtraegerauslauf 2er o 3 8 quot rund auslauf vorne 8280537
Lelit Siebträgerauslauf 2er ø 3/8" rund Auslauf vorne
This article is no longer available
59double spout o 3 8 8000111
DOUBLE SPOUT ø 3/8
7,27 €

excl. Shipping costs

immediately available, 9 available
60straight single spout o 3 8 8000112
STRAIGHT SINGLE SPOUT ø 3/8
4,09 €

excl. Shipping costs

immediately available, 9 available

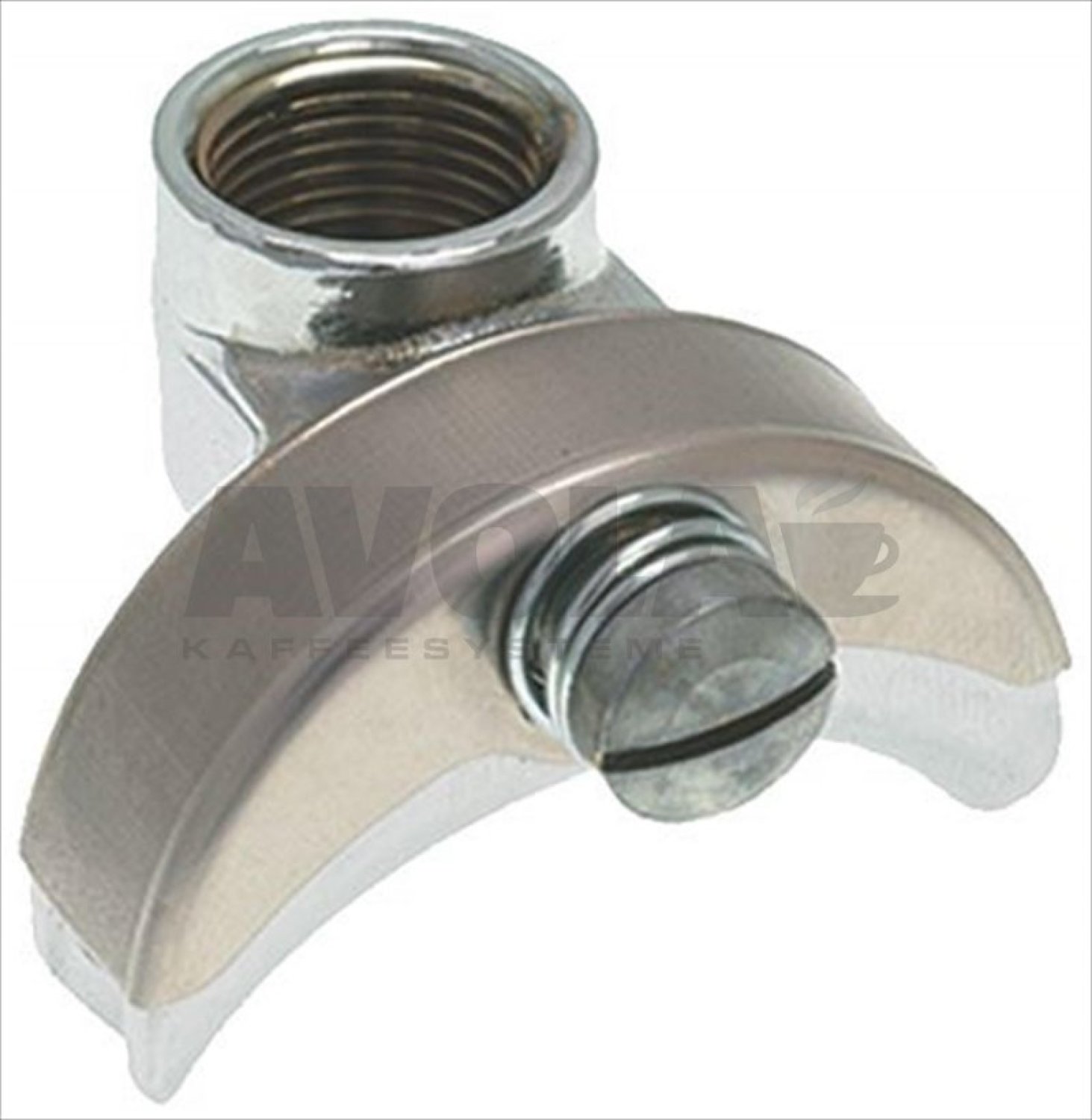

61adjustable short double spout 8000122
ADJUSTABLE SHORT DOUBLE SPOUT
11,00 €

excl. Shipping costs

immediately available, 5 available
621 cup filter 7 g 8001120
1 CUP FILTER 7 g
6,50 €

excl. Shipping costs

immediately available, 13 available
632 cup filter 14 grams 8001101
2-CUP FILTER 14 GRAMS
7,02 €

excl. Shipping costs

immediately available
641 cup filter 7 gr basic quality 8001091
1-CUP FILTER 7 gr - BASIC QUALITY
5,74 €

excl. Shipping costs

immediately available, 4 available
652 cup filter 14 grams basic quality 8001092
2-CUP FILTER 14 GRAMS - BASIC QUALITY
6,13 €

excl. Shipping costs

immediately available, 14 available
66paper shim o 73x59x0 8 mm 8002167
Paper shim ø 73x59x0,8 mm
0,49 €

excl. Shipping costs

immediately available
67rubber shim o 73 5x59x1 mm epdm 8002168
RUBBER SHIM ø 73,5x59x1 mm EPDM
1,05 €

excl. Shipping costs

immediately available
70stainless steel measuring spoon 20 ml 8000328
STAINLESS STEEL MEASURING SPOON 20 ml
4,97 €

excl. Shipping costs

Delivery time
is determined
71plastic measuring spoon 20 ml 8000327
PLASTIC MEASURING SPOON 20 ml
1,73 €

excl. Shipping costs

immediately available, 6 available
72brush for coffee shower 8006153
BRUSH FOR COFFEE SHOWER
3,92 €

excl. Shipping costs

immediately available
73black shower cleaning brush 8006155
BLACK SHOWER CLEANING BRUSH
14,07 €

excl. Shipping costs

immediately available, 6 available
742 cups filter 18 21gr o 70x28 mm 8001104
2 Cups Filter 18/21gr ø 70x28 mm
4,46 €

excl. Shipping costs

immediately available, 9 available

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
