FAEMA NIVEAU-GRUPPEN E61-DUE-E91-E98-SMART

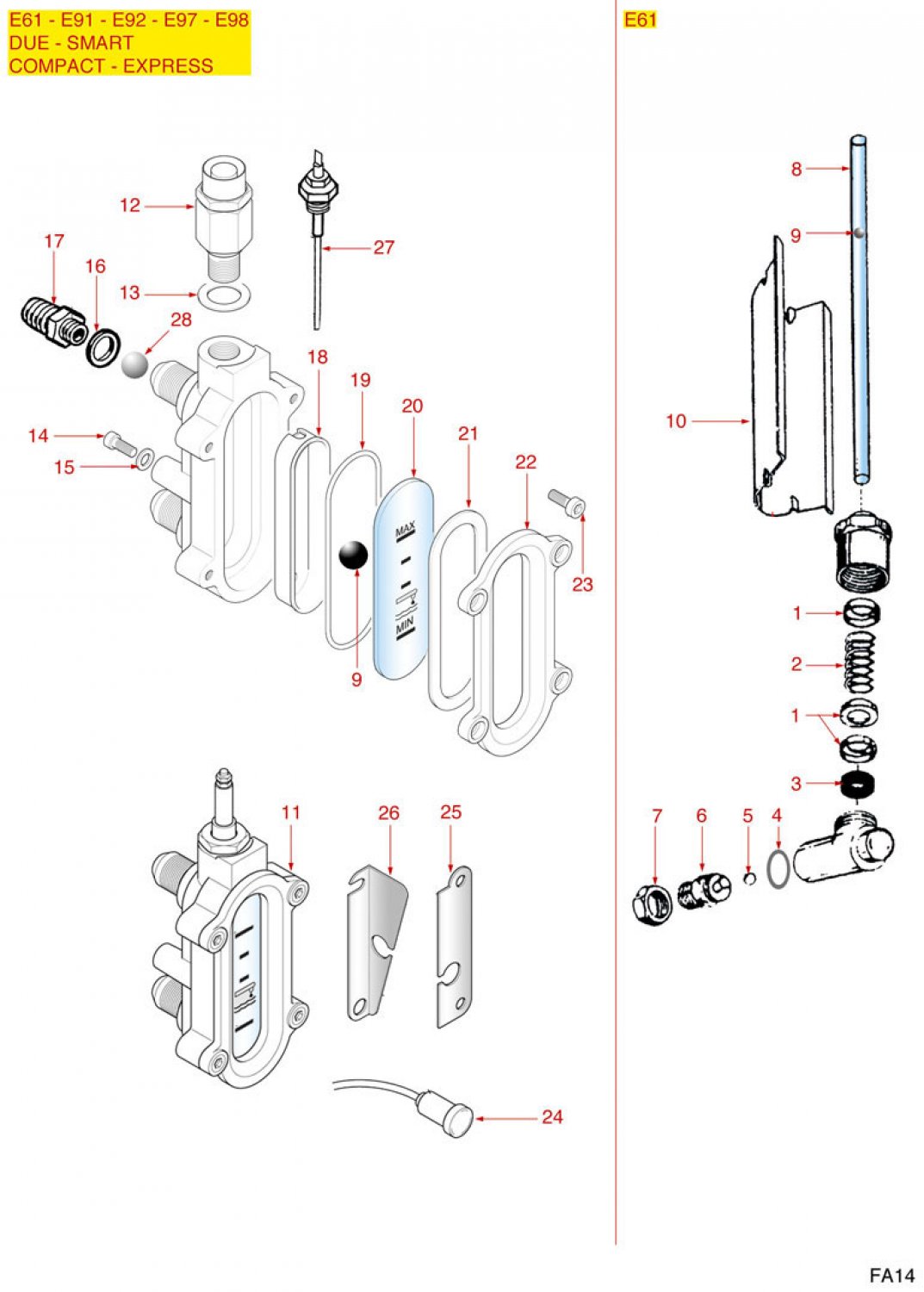

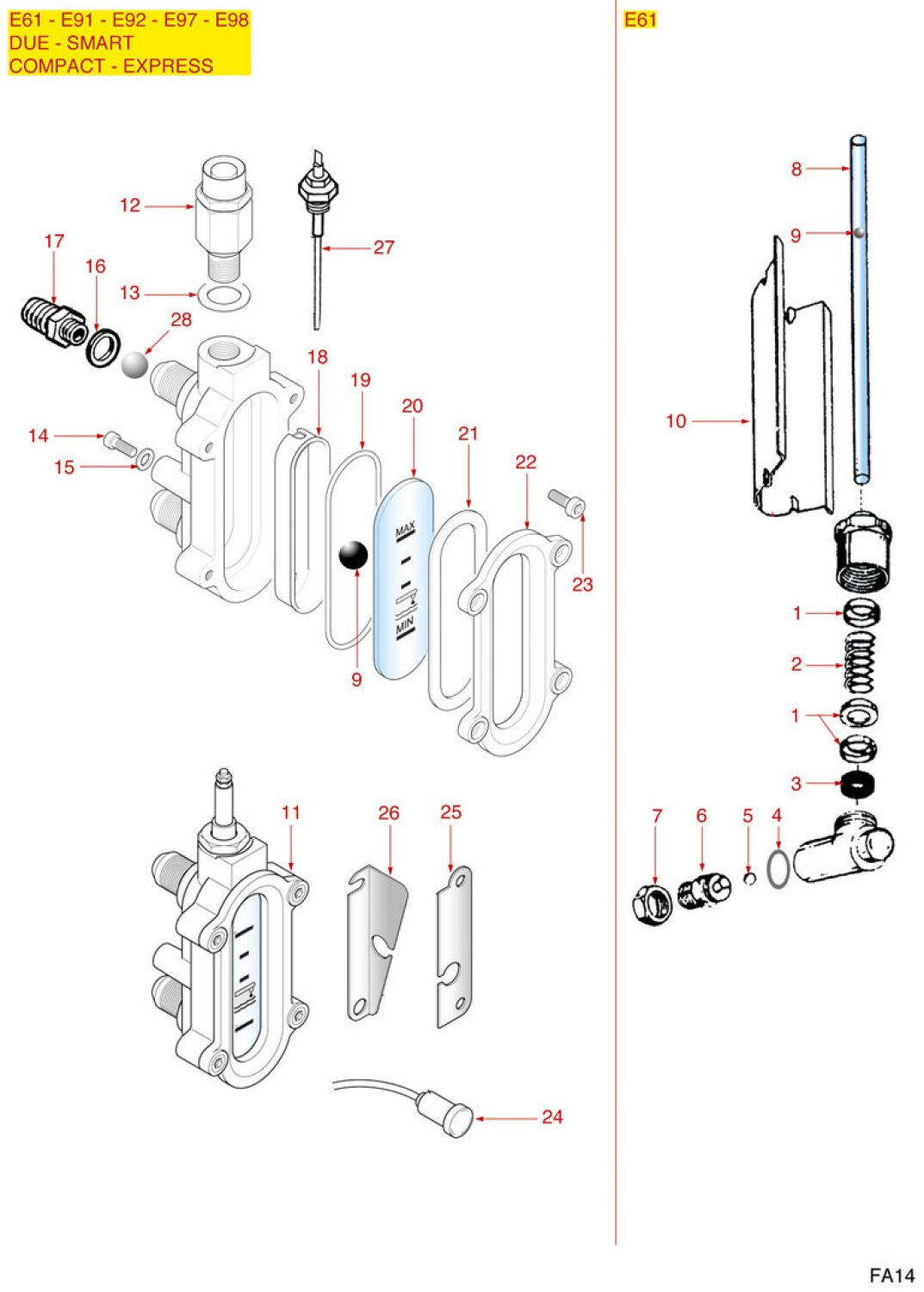

Drawing number 8038749

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.: Image: Description: Qty.:

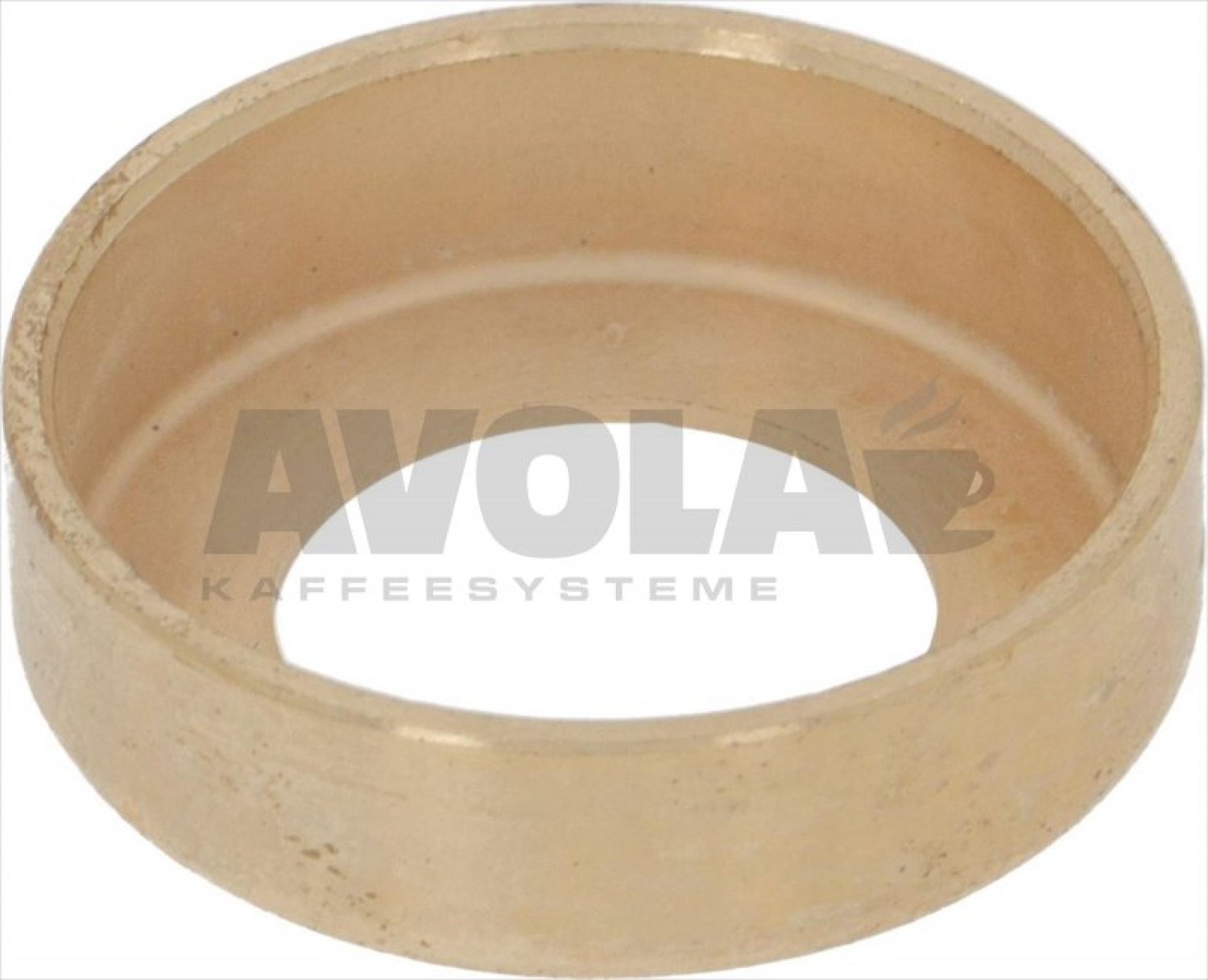

1washer 8007254
WASHER
11,10 €

excl. Shipping costs

immediately available, 4 available

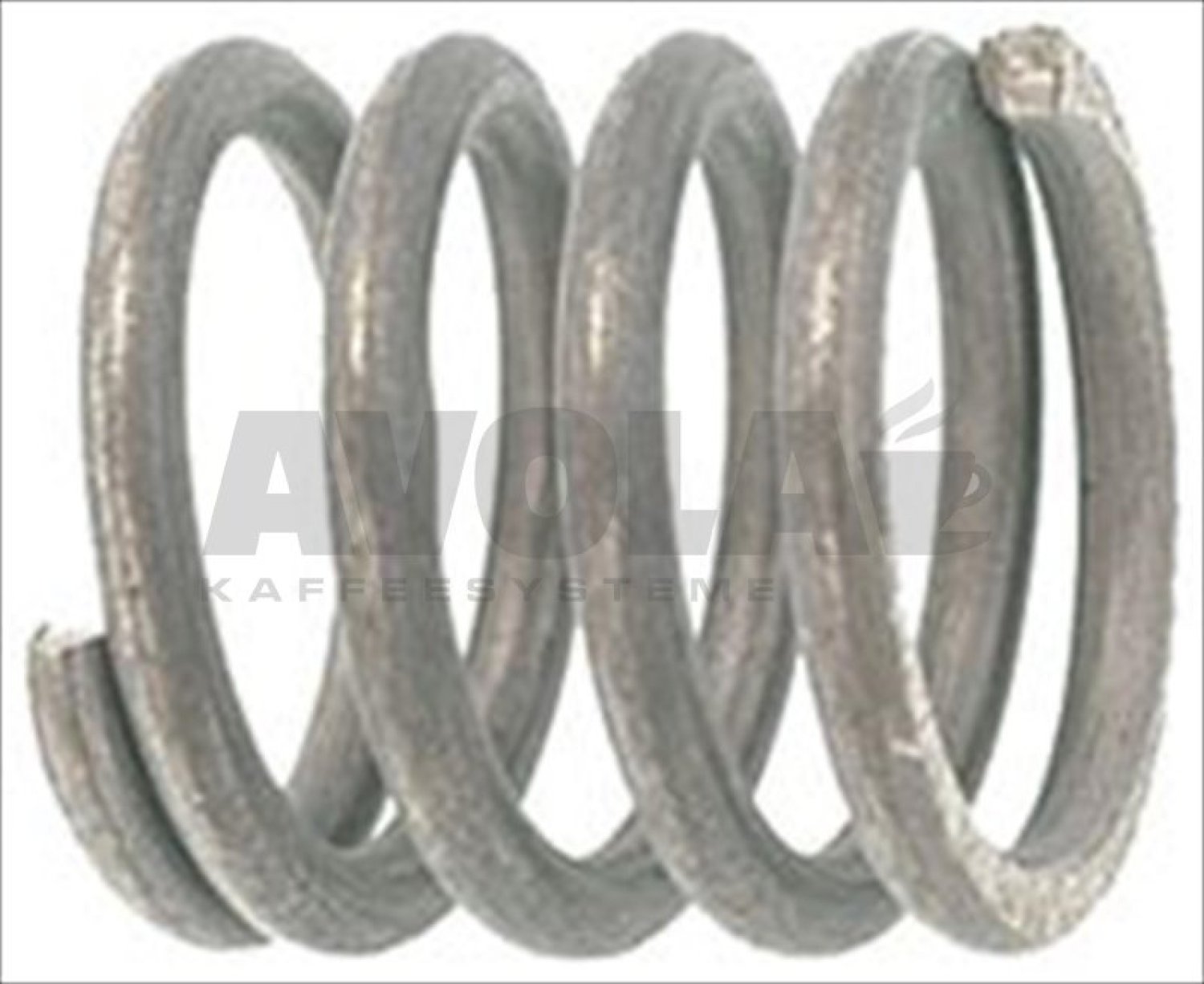

2level spring o 22x20 mm 8003787
LEVEL SPRING ø 22x20 mm
3,64 €

excl. Shipping costs

immediately available, 3 available

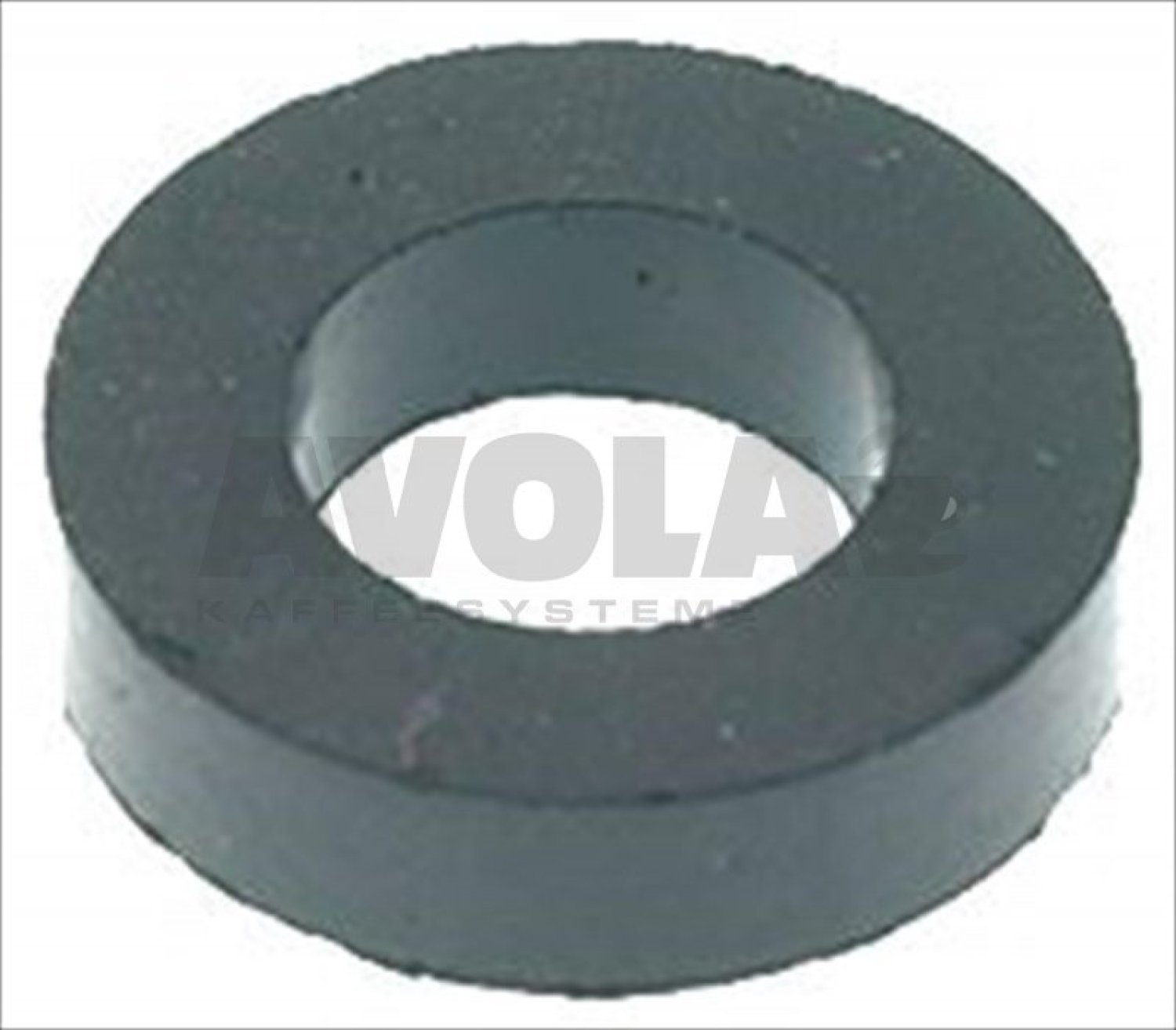

3flat epdm gasket o 21x11 5x5 mm 8001505
FLAT EPDM GASKET ø 21x11,5x5 mm
1,69 €

excl. Shipping costs

immediately available

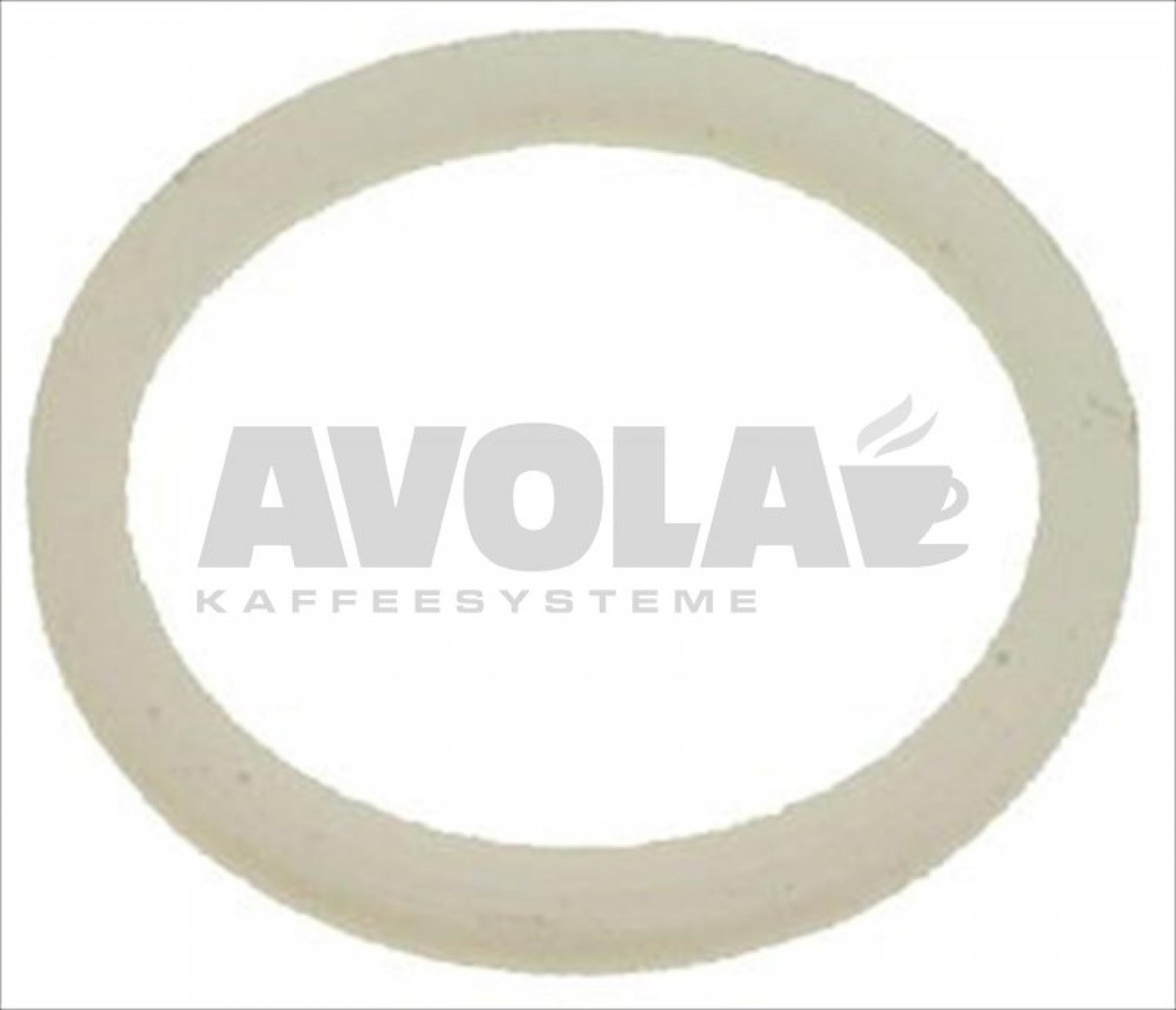

4flat ptfe gasket o 26x21 5x2 mm 8001754
FLAT PTFE GASKET ø 26x21,5x2 mm
6,44 €

excl. Shipping costs

immediately available
5stainless steel ball o 11 mm 8005089
STAINLESS STEEL BALL ø 11 mm
2,82 €

excl. Shipping costs

immediately available, 11 available
8level glass o 12x175 mm 8007015
LEVEL GLASS ø 12x175 mm
6,85 €

excl. Shipping costs

immediately available, 18 available
9red level ball 8005083
RED LEVEL BALL
1,92 €

excl. Shipping costs

immediately available
10level gauge plate 8002687
LEVEL GAUGE PLATE
This article is no longer available

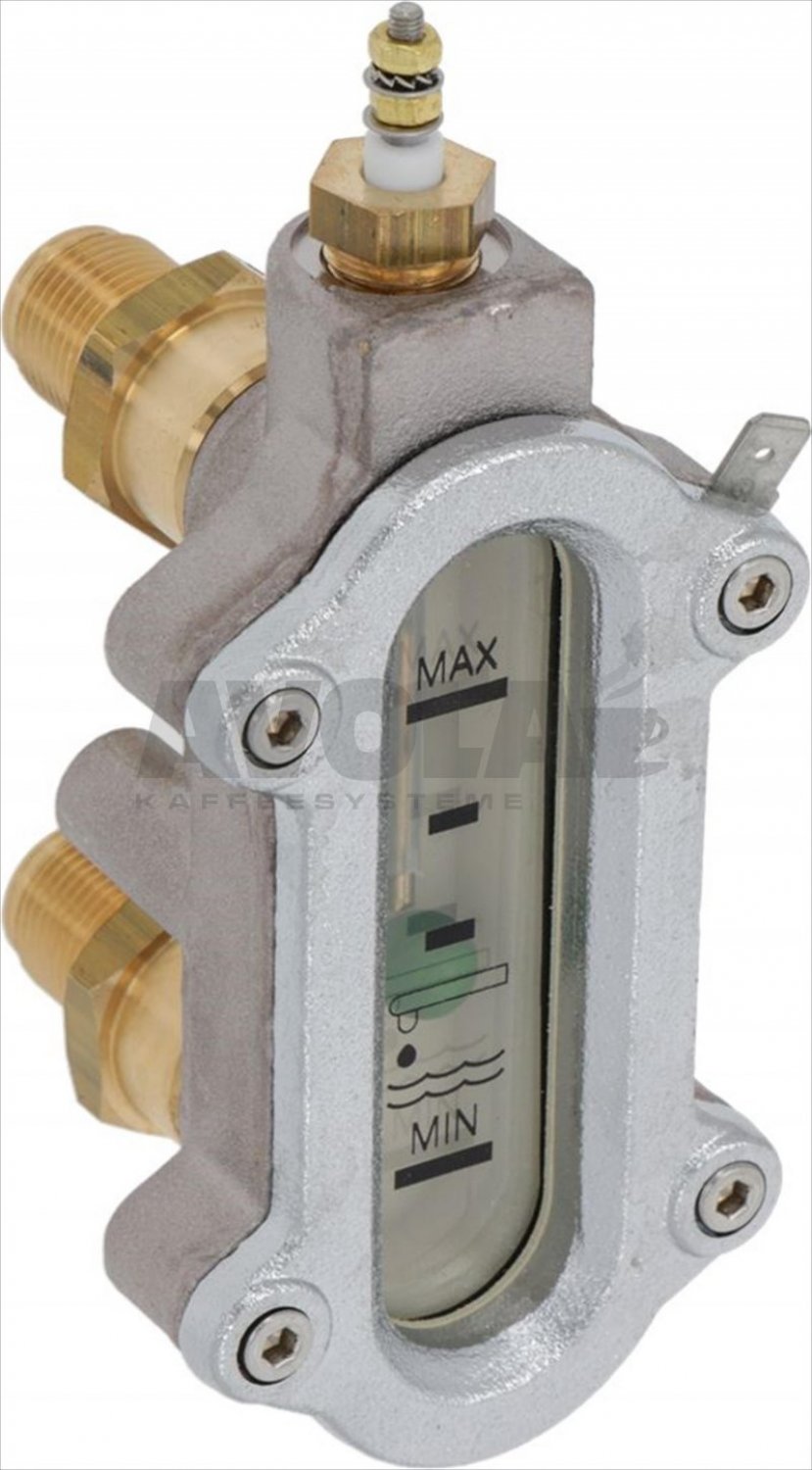

11complete level gauge 8002638
COMPLETE LEVEL GAUGE
This article is no longer available
12o 1 4 rime boiler valve 8007153
ø 1/4″ - BOILER VALVE
7,52 €

excl. Shipping costs

immediately available

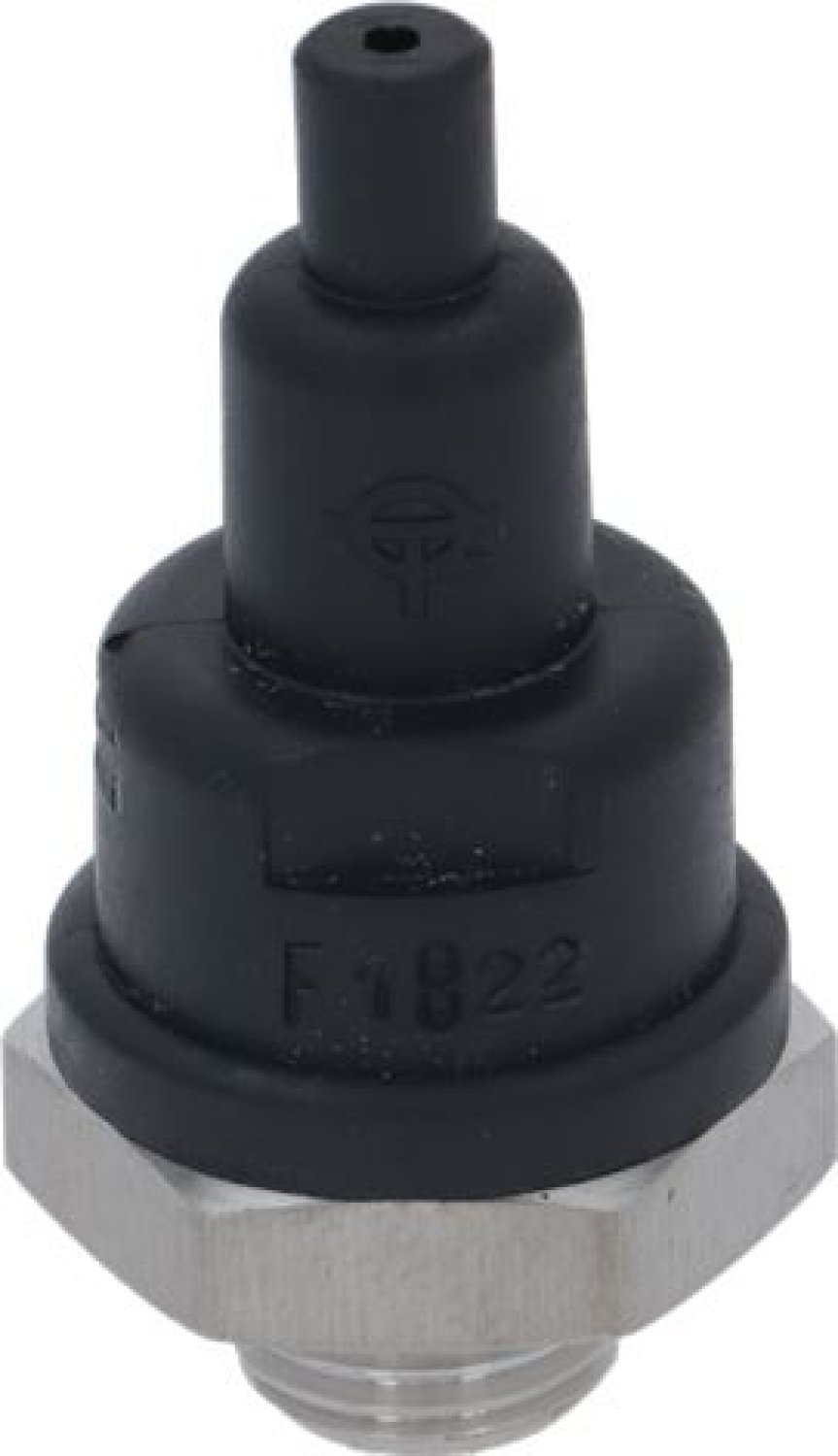

12fluid o tech 1 4 quot bsp unterdruckventil antivakuumventil edelstahl 8393315
Fluid-o-tech 1/4" BSP Unterdruckventil Antivakuumventil Edelstahl
34,90 €

excl. Shipping costs

immediately available
13copper flat gasket o 18x14x1 5 mm 8001814
COPPER FLAT GASKET ø 18x14x1,5 mm
1,19 €

excl. Shipping costs

immediately available
14hexagon head screw m5x10 8007330
HEXAGON HEAD SCREW M5x10
1,15 €

excl. Shipping costs

immediately available
15washer elastic spiral m6 8001672
WASHER ELASTIC SPIRAL M6
1,64 €

excl. Shipping costs

immediately available
16asbestos free flat gasket o 22x17x2 mm 8001632
ASBESTOS FREE FLAT GASKET ø 22x17x2 mm
1,18 €

excl. Shipping costs

immediately available
18water level tub e91 compact 8007239
WATER LEVEL TUB E91 - Compact
7,20 €

excl. Shipping costs

immediately available, 3 available
19o ring gasket 0164 epdm 8001508
O-RING GASKET 0164 EPDM
2,00 €

excl. Shipping costs

immediately available, 13 available

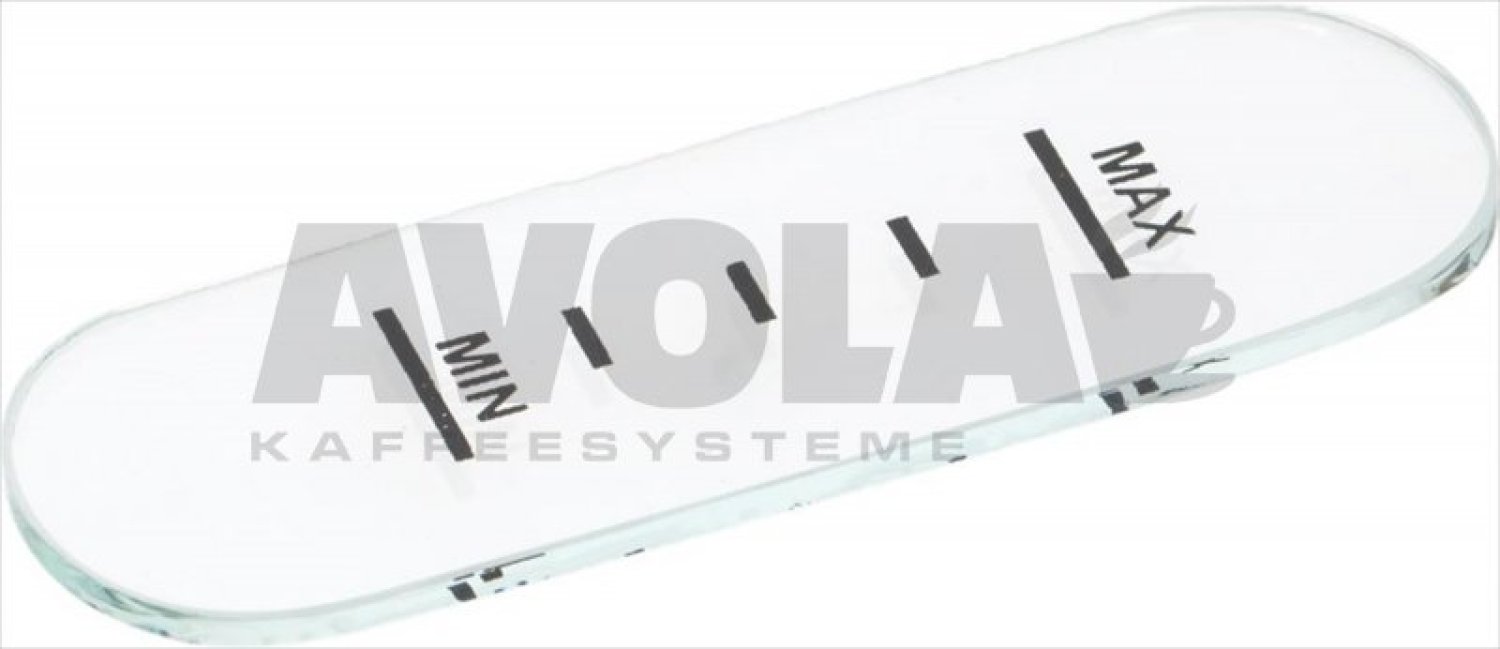

20level glass 89x30 mm silk screen printed 8007024
LEVEL GLASS 89x30 mm SILK-SCREEN PRINTED
20,11 €

excl. Shipping costs

immediately available, 3 available
20silk screen printed level plate 89x30 mm 8007025
SILK-SCREEN PRINTED LEVEL PLATE 89x30 mm
11,28 €

excl. Shipping costs

immediately available, 3 available
20screen printed level gauge plate 89x30mm 8064161
SCREEN-PRINTED LEVEL GAUGE PLATE 89x30mm
19,43 €

excl. Shipping costs

immediately available, 5 available

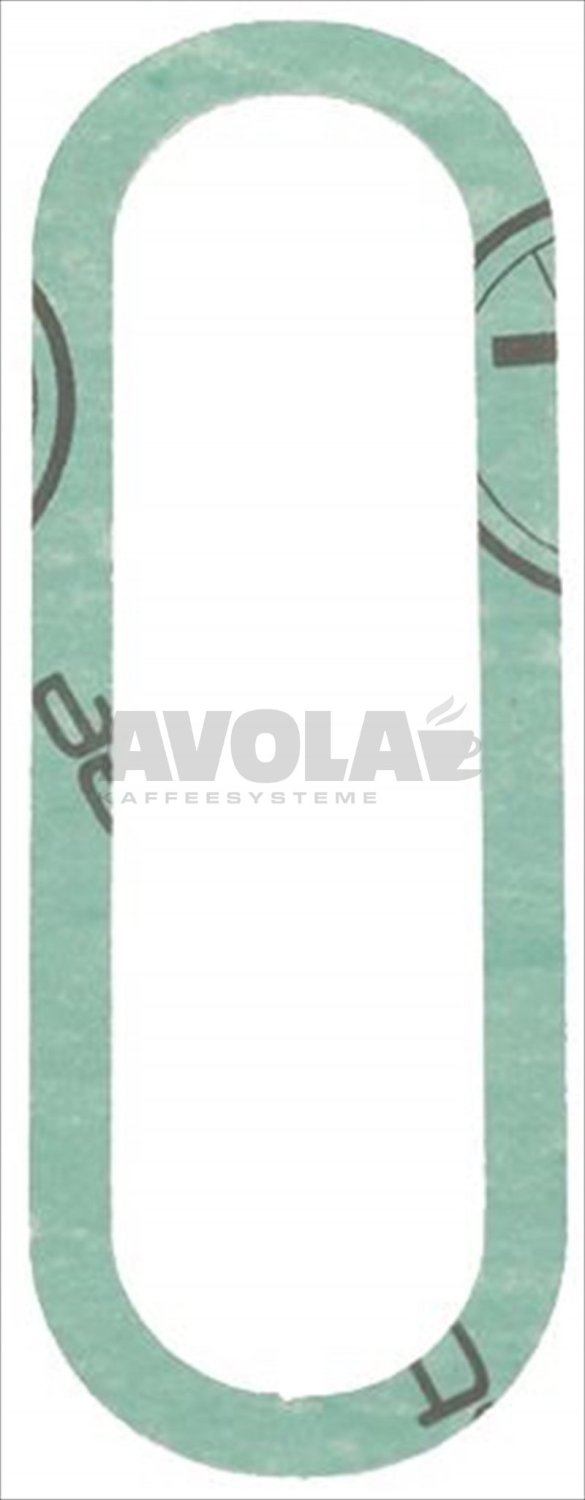

21asbestos free flat gasket 90x31x1 mm 8001506
ASBESTOS FREE FLAT GASKET 90x31x1 mm
1,80 €

excl. Shipping costs

immediately available, 10 available

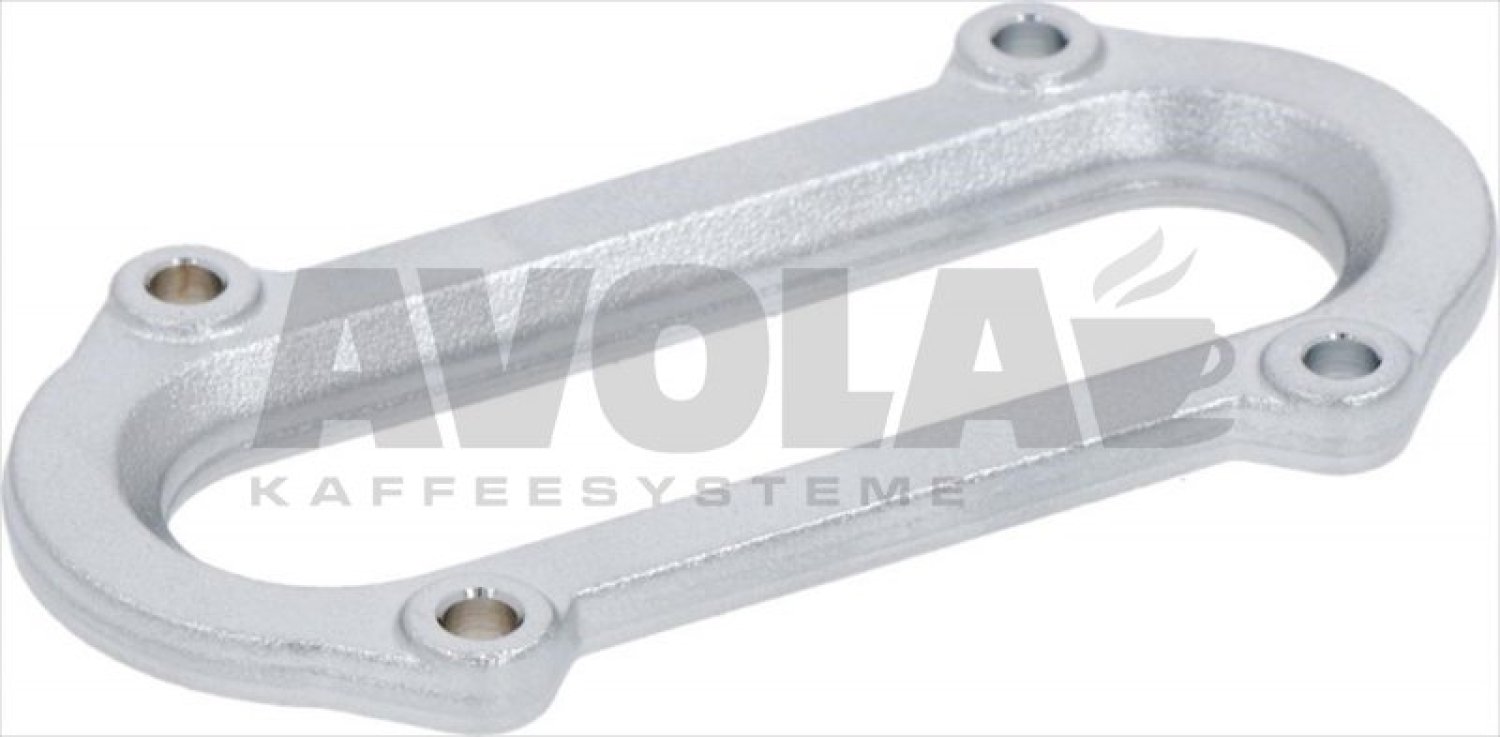

22level cover 8002642
LEVEL COVER
25,35 €

excl. Shipping costs

Delivery time
is determined
23low cylinder head screw m4x12 8001290
LOW CYLINDER HEAD SCREW M4x12
2,24 €

excl. Shipping costs

immediately available
24green indicator lamp 230v 8015668
GREEN INDICATOR LAMP 230V
4,12 €

excl. Shipping costs

immediately available, 9 available
24red indicator light 250v 8015688
RED INDICATOR LIGHT 250V
4,15 €

excl. Shipping costs

Delivery time
is determined
27level probe o 1 4 m 125 mm 8005325
LEVEL PROBE ø 1/4 M-125 mm
16,72 €

excl. Shipping costs

immediately available, 2 available
28stainless steel ball o 11 mm 8005089
STAINLESS STEEL BALL ø 11 mm
2,82 €

excl. Shipping costs

immediately available, 11 available

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
