Fiamma Prestige Brühgruppe

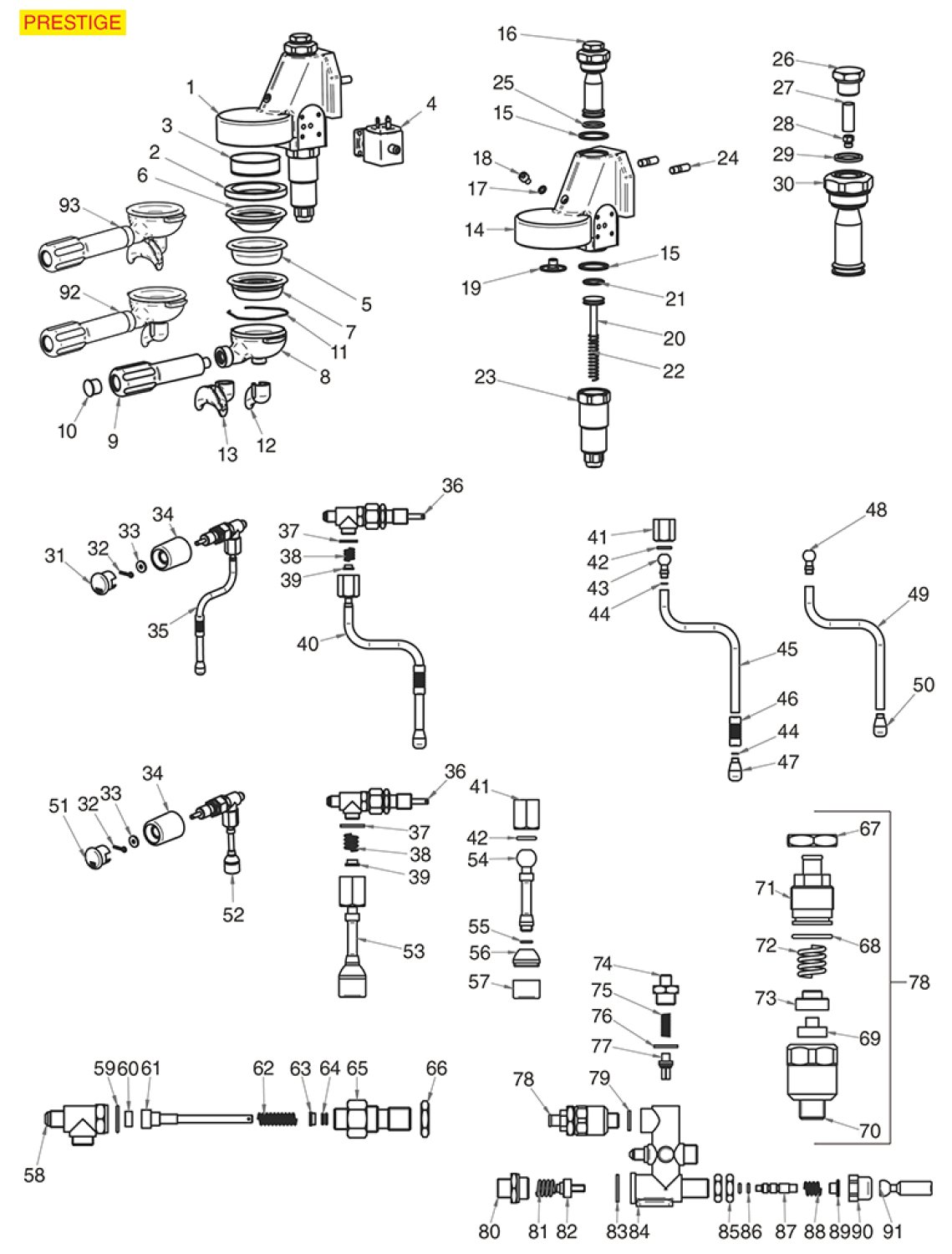

Drawing number 8280345

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.:Image:Description:Qty.:
2siebtraegerdichtung o 73x57x8 5 mm8088892
Siebträgerdichtung ø 73x57x8,5 mm
5,71 €

excl. Shipping costs
immediately available, 18 available
3auslaufdusche o 60 mm8102184
Auslaufdusche ø 60 mm
5,85 €

excl. Shipping costs
immediately available, 6 available
3shower screen fuer e61 brew unit8000608
Shower screen für E61 brew unit
5,20 €

excl. Shipping costs
immediately available
3auslaufdusche o 60 mm8102198
Auslaufdusche ø 60 mm
3,30 €

excl. Shipping costs
immediately available, 8 available
3auslaufdusche o 60 mm8102199
AUSLAUFDUSCHE ø 60 mm
4,82 €

excl. Shipping costs
immediately available
3ims matrix dusche e61 duschsieb8280721
IMS Matrix Dusche E61 Duschsieb
27,95 €

excl. Shipping costs
immediately available, 16 available
43 way solenoid valve lucifer 115v 60hz8063374
3-WAY SOLENOID VALVE LUCIFER 115V 60Hz
50,50 €

excl. Shipping costs
Delivery time
is determined
43 way solenoid valve lucifer 240v 50hz8000955
3-WAY SOLENOID VALVE LUCIFER 240V 50Hz
52,36 €

excl. Shipping costs
immediately available, 9 available
5blind filter o58mm8001103
BLIND FILTER Ø58mm
2,56 €

excl. Shipping costs
immediately available
61 cup filter 6 g8001076
1 CUP FILTER 6 g
5,41 €

excl. Shipping costs
immediately available, 12 available
72 cup filter 12 grams8001077
2-CUP FILTER 12 GRAMS
5,41 €

excl. Shipping costs
immediately available, 6 available
8filter holder bfc royal rk8001218
FILTER HOLDER BFC/ROYAL/RK
22,13 €

excl. Shipping costs
Delivery time
is determined
9filter holder handle m128063627
FILTER HOLDER HANDLE M12
8,16 €

excl. Shipping costs
Delivery time
is determined
10kappe verchromt fuer siebtraegergriff o 18 mm8036981
Kappe verchromt für Siebträgergriff ø 18 mm
2,24 €

excl. Shipping costs
immediately available, 14 available
11filter blocking spring o 1 3 mm8066395
FILTER BLOCKING SPRING ø 1.3 mm
2,76 €

excl. Shipping costs
immediately available
12single spout8061003
SINGLE SPOUT
7,91 €

excl. Shipping costs
immediately available, 9 available
13double spout o 3 8 rime8000115
Double Spout ø 3/8″
5,95 €

excl. Shipping costs
immediately available, 6 available
15ptfe flat gasket o 35x30x2 mm8001583
PTFE FLAT GASKET ø 35x30x2 mm
1,09 €

excl. Shipping costs
immediately available
17ptfe flat gasket o10x6x1 mm8001400
PTFE FLAT GASKET ø10x6x1 mm
1,30 €

excl. Shipping costs
immediately available, 18 available
18cylinder head screw m6x88001304
CYLINDER HEAD SCREW M6x8
1,67 €

excl. Shipping costs
immediately available, 10 available
19group spray nozzle o 30 mm m10x1 e618006987
Group spray nozzle ø 30 mm M10x1 - E61
6,14 €

excl. Shipping costs
immediately available

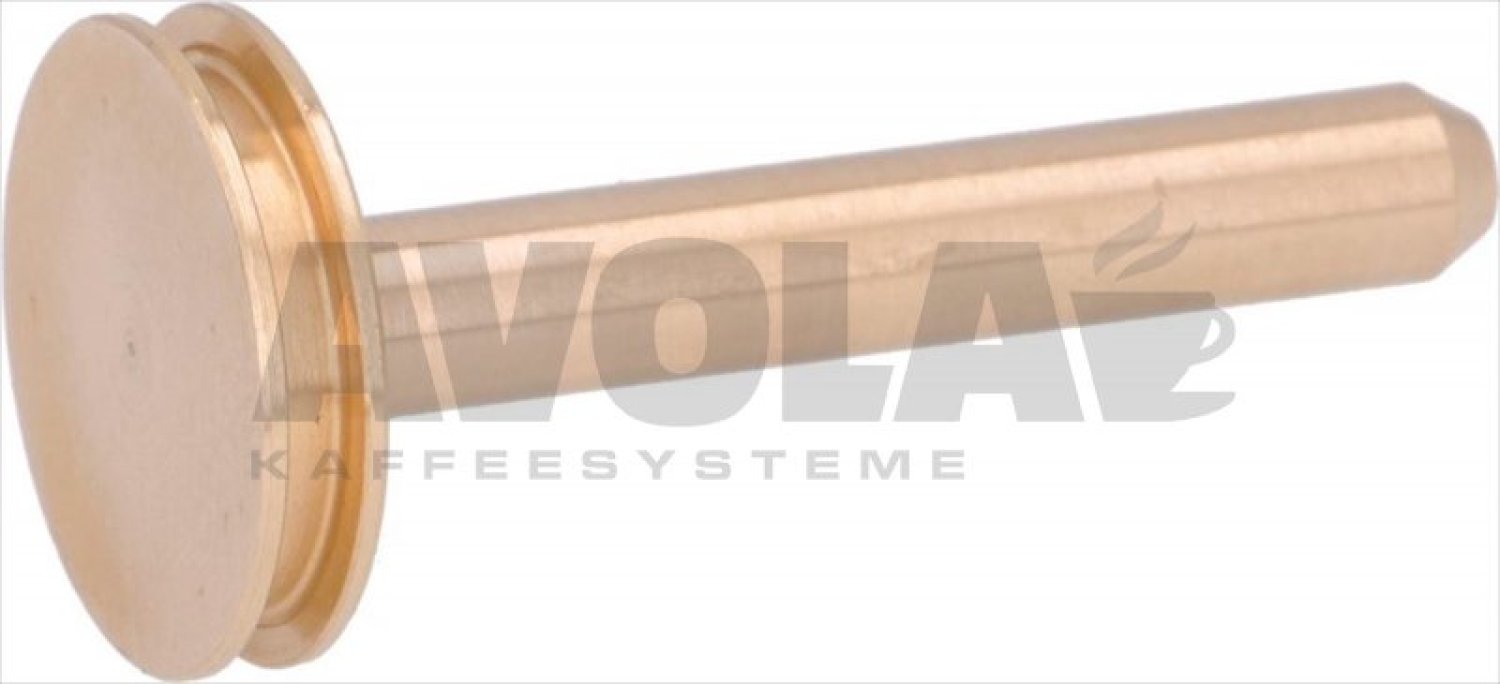

20stift fuer brueher8073917
STIFT FÜR BRÜHER
Price on request

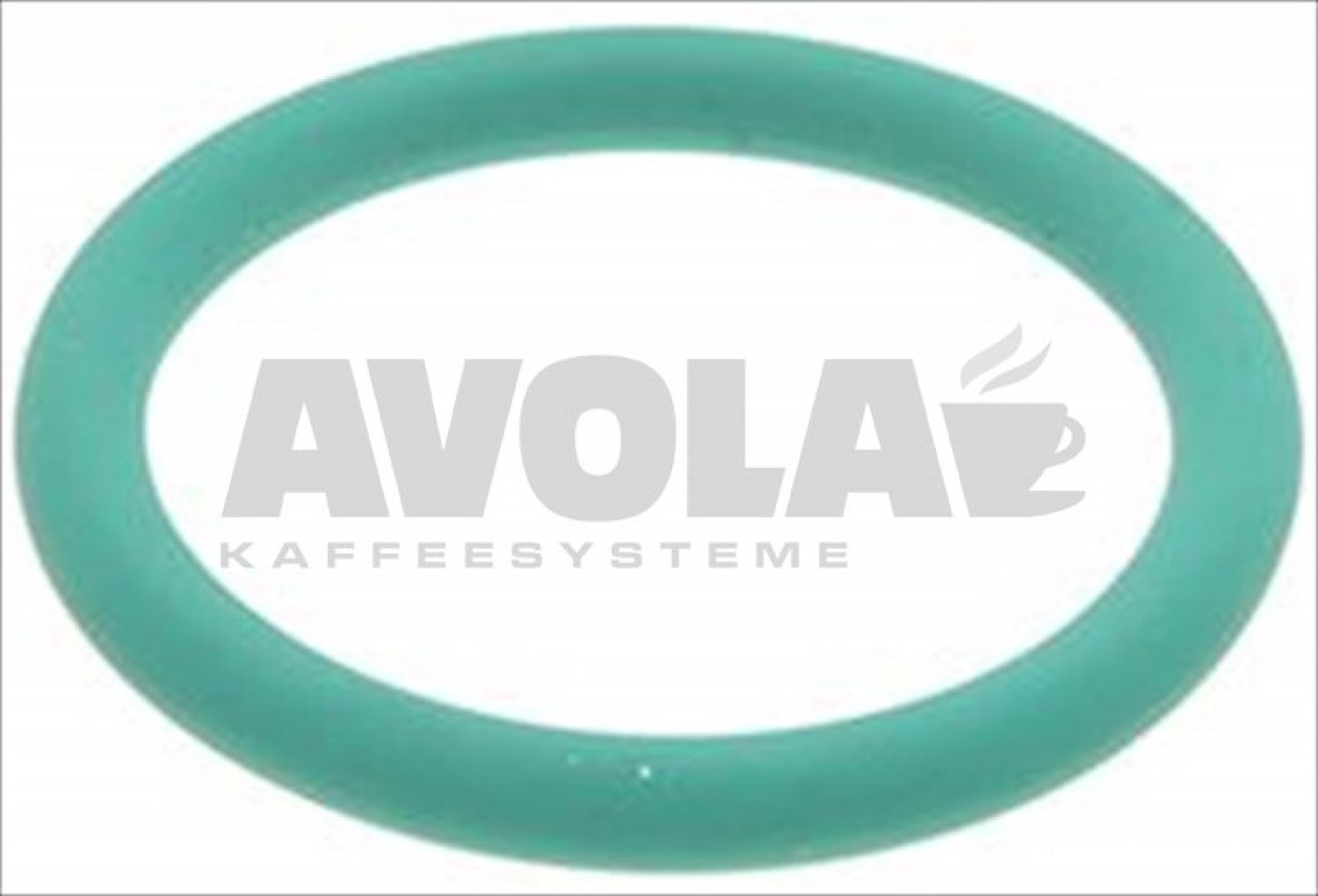

21dichtung or 0128 fkm gruen8074072
DICHTUNG OR 0128 FKM GRÜN
2,67 €

excl. Shipping costs
immediately available, 5 available
22spring o 11x58 mm8003828
SPRING ø 11x58 mm
2,13 €

excl. Shipping costs
immediately available, 12 available
23outlet chromium plated sleeve8000149
OUTLET CHROMIUM-PLATED SLEEVE
23,75 €

excl. Shipping costs
immediately available, 3 available
24stainless steel m8x25 mm stud8001292
STAINLESS STEEL M8x25 mm STUD
1,42 €

excl. Shipping costs
immediately available, 11 available

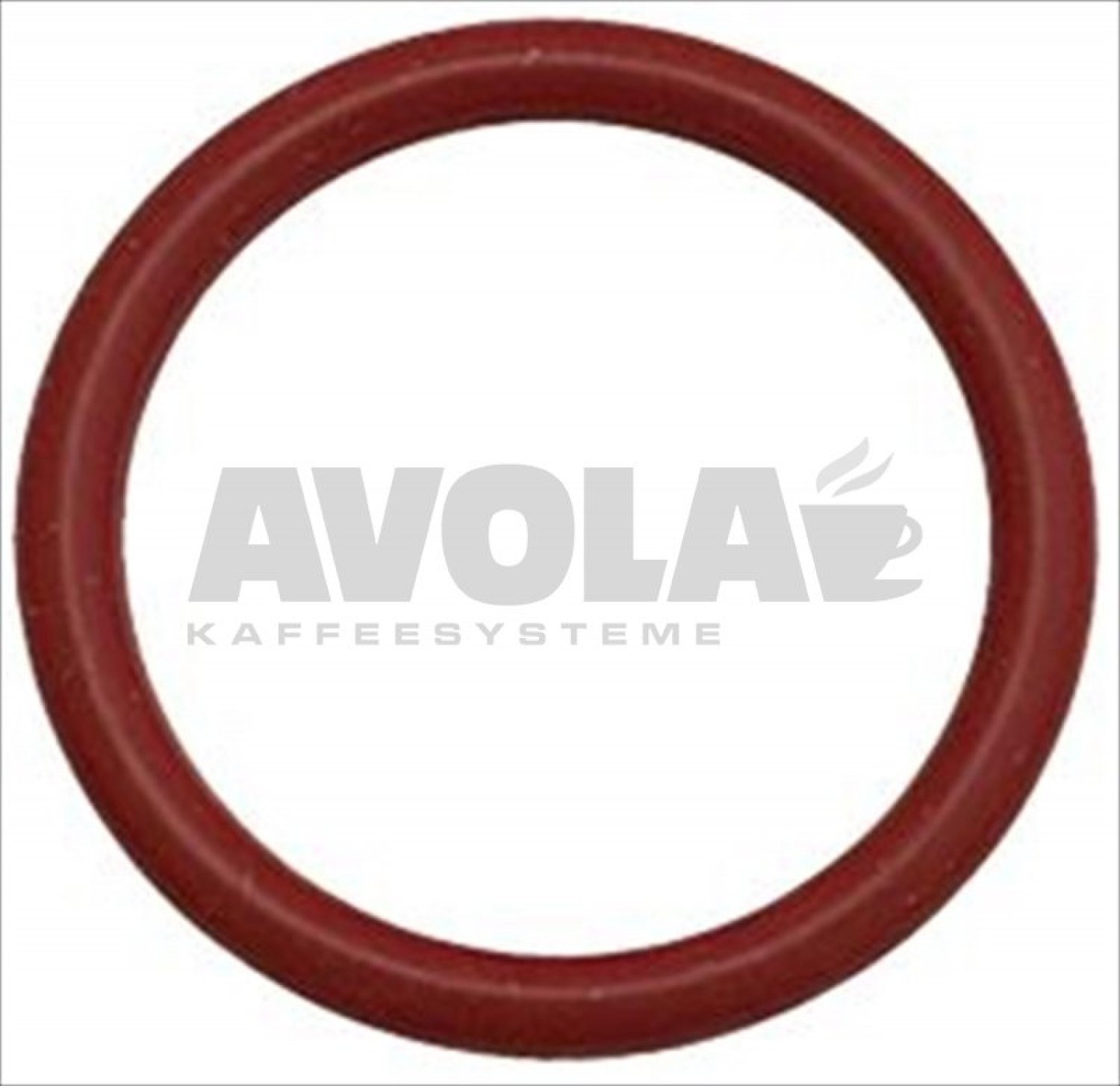

25o ring 03081 red silicone8001346
O-RING 03081 RED SILICONE
1,36 €

excl. Shipping costs
immediately available, 11 available
26rocket stopfen bruehgruppe8069006
Rocket Stopfen Brühgruppe
10,54 €

excl. Shipping costs
immediately available, 4 available
27water filter o 8 5x22 mm8001115
Water filter ø 8,5x22 mm
1,79 €

excl. Shipping costs
immediately available
28nozzle m6x1 hole8006984
NOZZLE M6x1 HOLE
3,27 €

excl. Shipping costs
immediately available, 11 available
29ptfe flat gasket o 22x17x2 mm8001572
PTFE FLAT GASKET ø 22x17x2 mm
1,69 €

excl. Shipping costs
immediately available
30thermostat alte bauart prodigy tr 86 16a 250v8063114
Thermostat (alte Bauart) PRODIGY TR/86 16A 250V
29,74 €

excl. Shipping costs
Delivery time 4-6 weeks
31steam cap for knob8003259
STEAM CAP FOR KNOB
1,45 €

excl. Shipping costs
immediately available, 1 available
32s steel pin o 2x20 mm uni 13368006241
S/STEEL PIN ø 2x20 mm UNI 1336
0,48 €

excl. Shipping costs
immediately available, 13 available
33brass flat washer8007312
BRASS FLAT WASHER
2,77 €

excl. Shipping costs
immediately available, 8 available
34knob for water steam tap8003116
KNOB FOR WATER/STEAM TAP
14,22 €

excl. Shipping costs
immediately available, 2 available

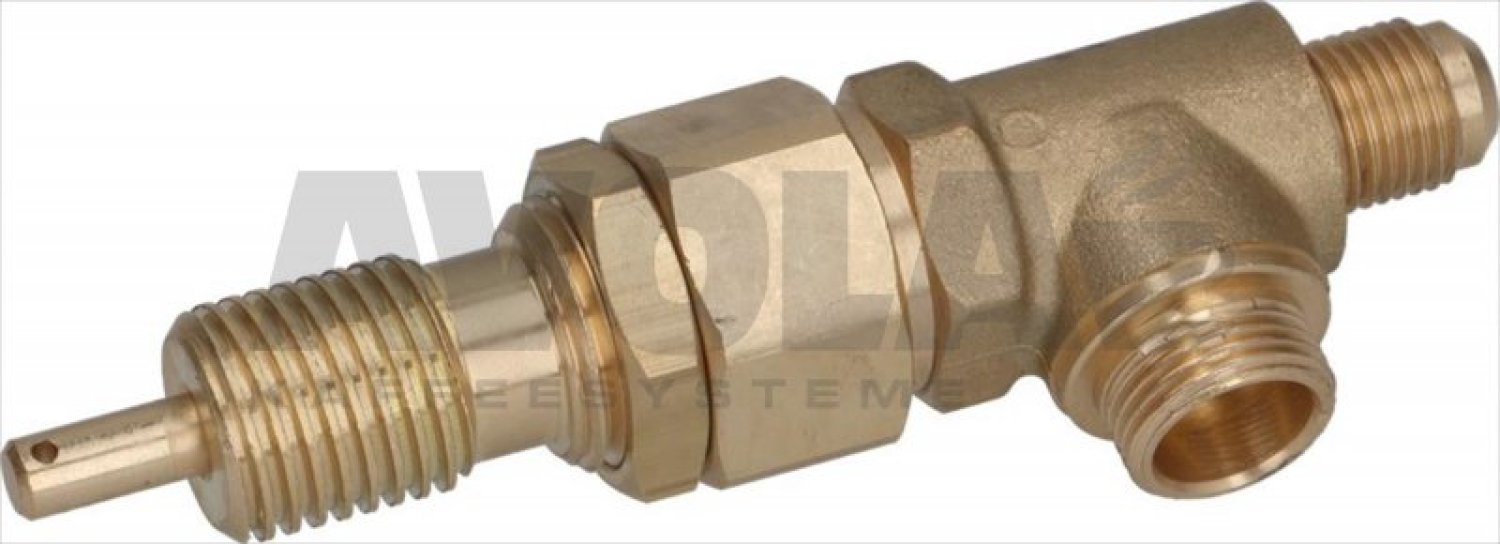

36wasser dampfhahn8074023
Wasser- Dampfhahn
76,36 €

excl. Shipping costs
Delivery time
is determined
37ptfe flat gasket 21x16 8x2 mm8001486
PTFE FLAT GASKET 21x16,8x2 mm
1,37 €

excl. Shipping costs
immediately available
38spring o 12x15 mm8003667
SPRING ø 12x15 mm
2,94 €

excl. Shipping costs
immediately available, 14 available
39steam pipe articulation bushing8001858
STEAM PIPE ARTICULATION BUSHING
1,45 €

excl. Shipping costs
immediately available, 10 available

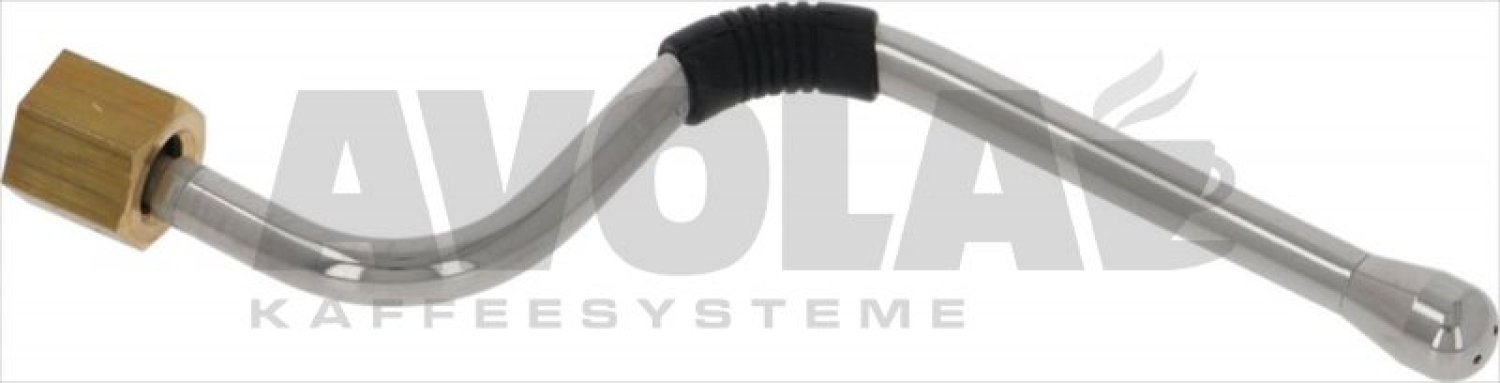

40dampfrohr komplett edelstahl o 10 mm8074042
Dampfrohr komplett Edelstahl ø 10 mm
51,17 €

excl. Shipping costs
Delivery time 4-6 weeks
41mutter o 3 8 i fuer wasser dampfrohr8074024
MUTTER ø 3/8 I FÜR WASSER-/DAMPFROHR
8,37 €

excl. Shipping costs
Delivery time
is determined
42o ring 0115 epdm8001977
O-RING 0115 EPDM
0,93 €

excl. Shipping costs
immediately available
44o ring dichtung orm 0060 12 epdm8140517
O-Ring Dichtung ORM 0060-12 EPDM
1,33 €

excl. Shipping costs
immediately available
46burn preventing pipe handgrip o8 10 mm8002158
BURN PREVENTING PIPE HANDGRIP ø8-10 mm
2,44 €

excl. Shipping costs
immediately available, 12 available
47stain steel steam nozzle 4 holes8006594
STAIN.STEEL STEAM NOZZLE 4 HOLES
9,03 €

excl. Shipping costs
immediately available, 5 available
51water cap for knob8003154
WATER CAP FOR KNOB
3,03 €

excl. Shipping costs
Delivery time
is determined
53complete chrome plated water pipe8006541
COMPLETE CHROME-PLATED WATER PIPE
22,79 €

excl. Shipping costs
Delivery time
is determined
55o ring r6 epdm8001771
O-RING R6 EPDM
1,13 €

excl. Shipping costs
immediately available
58tap body8005430
TAP BODY
15,66 €

excl. Shipping costs
Delivery time
is determined
59flat copper gasket8064409
FLAT COPPER GASKET
3,32 €

excl. Shipping costs
Delivery time
is determined
60blond gasket o 12x5 8 mm silicon8001670
blond gasket ø 12x5,8 mm silicon
1,20 €

excl. Shipping costs
immediately available
61water steam tap pin8005137
WATER/STEAM TAP PIN
17,02 €

excl. Shipping costs
immediately available, 3 available
62tap spring8003795
TAP SPRING
1,80 €

excl. Shipping costs
immediately available, 12 available
63spring bushing8001521
SPRING BUSHING
1,42 €

excl. Shipping costs
immediately available, 6 available
64o ring epdm r58048968
O-RING EPDM R5
1,25 €

excl. Shipping costs
immediately available, 17 available

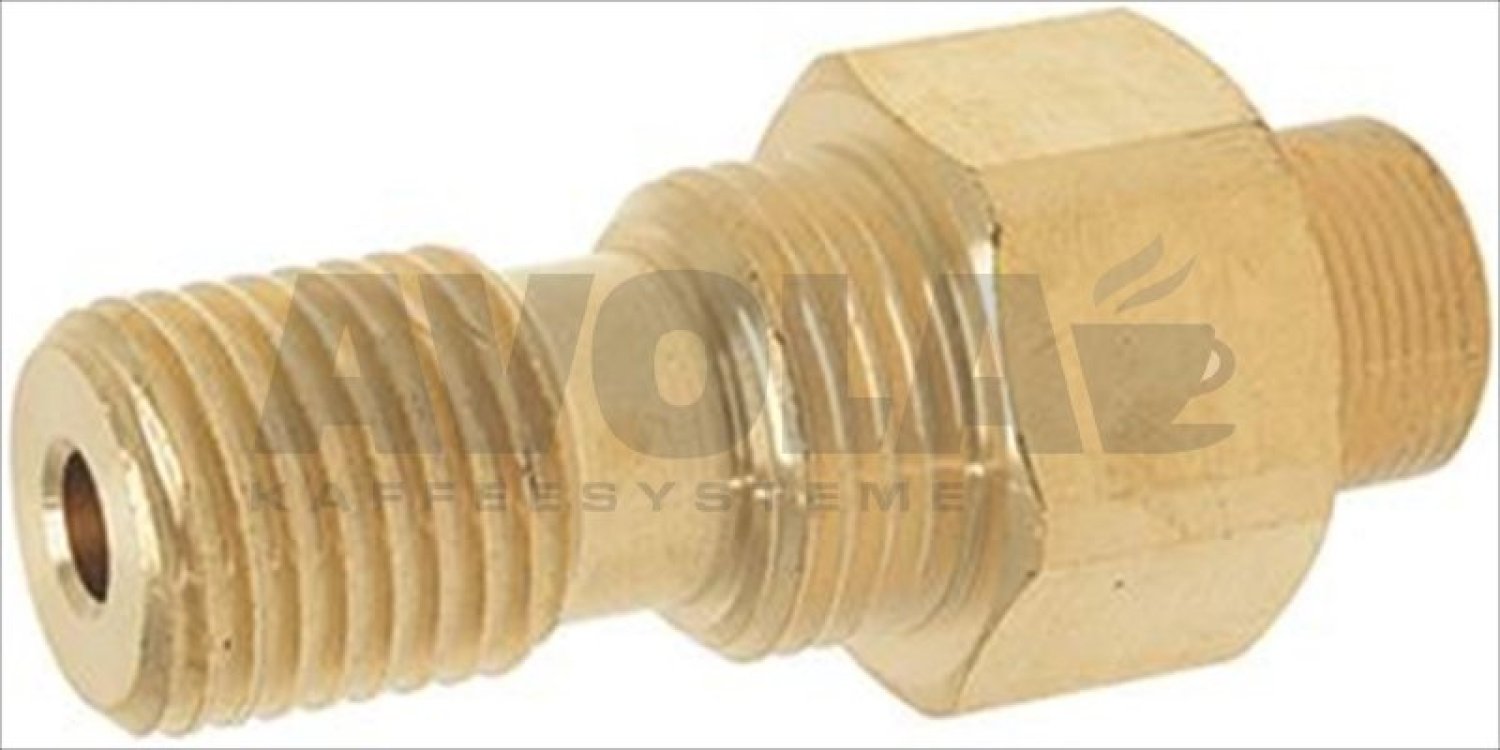

65stift fuer hahn8073918
STIFT FÜR HAHN
24,76 €

excl. Shipping costs
Delivery time 4-6 weeks
66nut o 1 28005857
NUT ø 1/2
2,77 €

excl. Shipping costs
immediately available, 8 available
68gasket orm 0017 20 epdm8064414
GASKET ORM 0017-20 EPDM
2,49 €

excl. Shipping costs
immediately available, 5 available
69flat epdm gasket8001427
FLAT EPDM GASKET
1,06 €

excl. Shipping costs
immediately available
69dichtung expansionsventil fkm o 15 6x10 mm8097640
Dichtung Expansionsventil FKM ø 15/6x10 mm
2,78 €

excl. Shipping costs
immediately available, 7 available
72spring8063679
SPRING
4,97 €

excl. Shipping costs
Delivery time
is determined
75spring 8x30 mm8003708
SPRING 8x30 mm
1,95 €

excl. Shipping costs
immediately available, 15 available
76ptfe flat gasket 21x16 8x2 mm8001486
PTFE FLAT GASKET 21x16,8x2 mm
1,37 €

excl. Shipping costs
immediately available
77rueckschlagventil lang8061008
RÜCKSCHLAGVENTIL LANG
5,81 €

excl. Shipping costs
immediately available, 11 available
78expansion valve8064262
EXPANSION VALVE
33,18 €

excl. Shipping costs
Delivery time
is determined
79flachdichtung ptfe o 18x13 5x2 mm8074073
Flachdichtung PTFE ø 18x13.5x2 mm
3,24 €

excl. Shipping costs
Delivery time
is determined
81spring8063679
SPRING
4,97 €

excl. Shipping costs
Delivery time
is determined
82inlet valve8007108
INLET VALVE
4,95 €

excl. Shipping costs
immediately available, 13 available
83ptfe flat gasket o 24x19x2 mm8001911
PTFE FLAT GASKET ø 24x19x2 mm
2,39 €

excl. Shipping costs
immediately available, 18 available
85nut 3 88006856
NUT 3/8
2,55 €

excl. Shipping costs
immediately available, 8 available

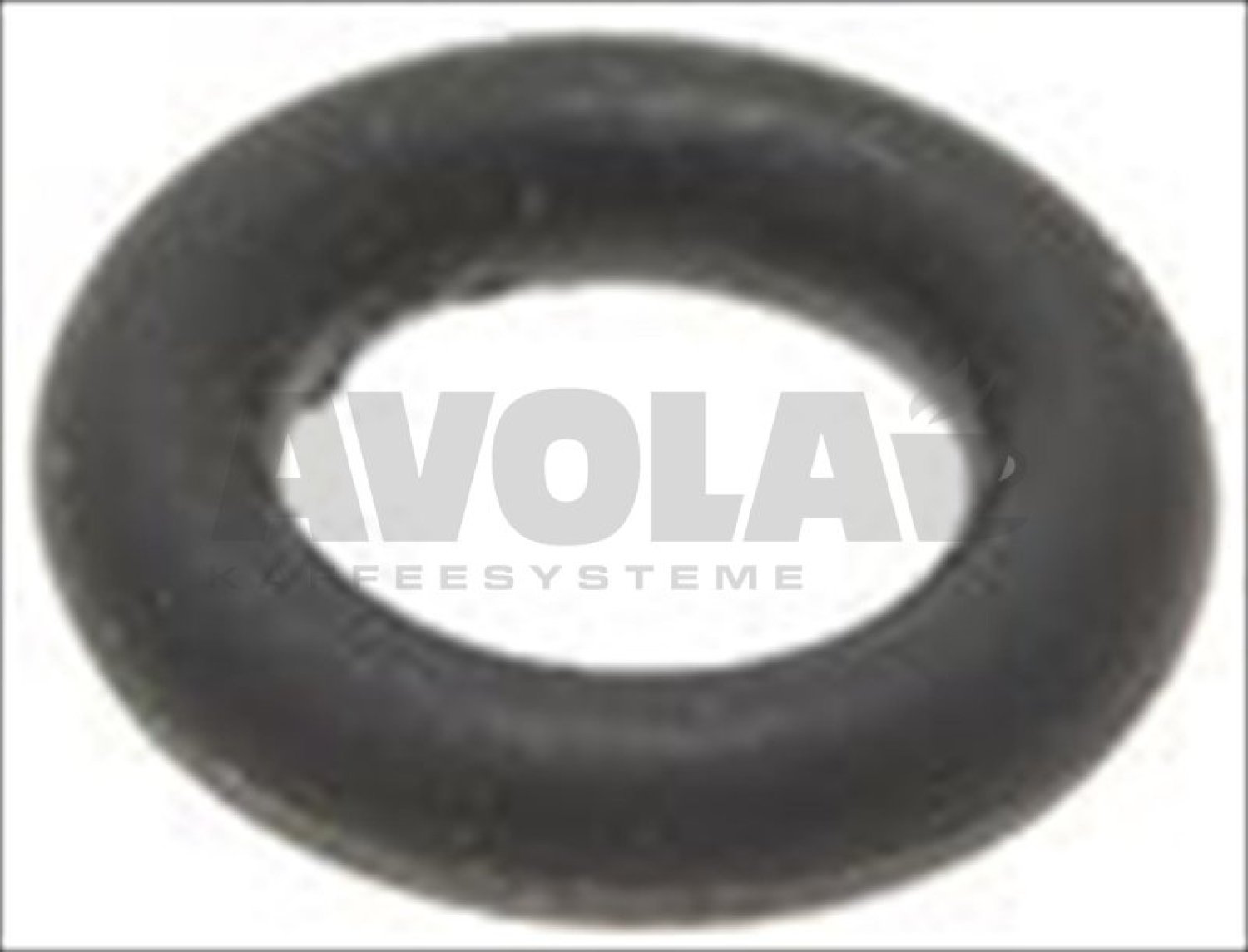

86o ring r4 epdm8064406
O-RING R4 EPDM
1,49 €

excl. Shipping costs
immediately available, 9 available

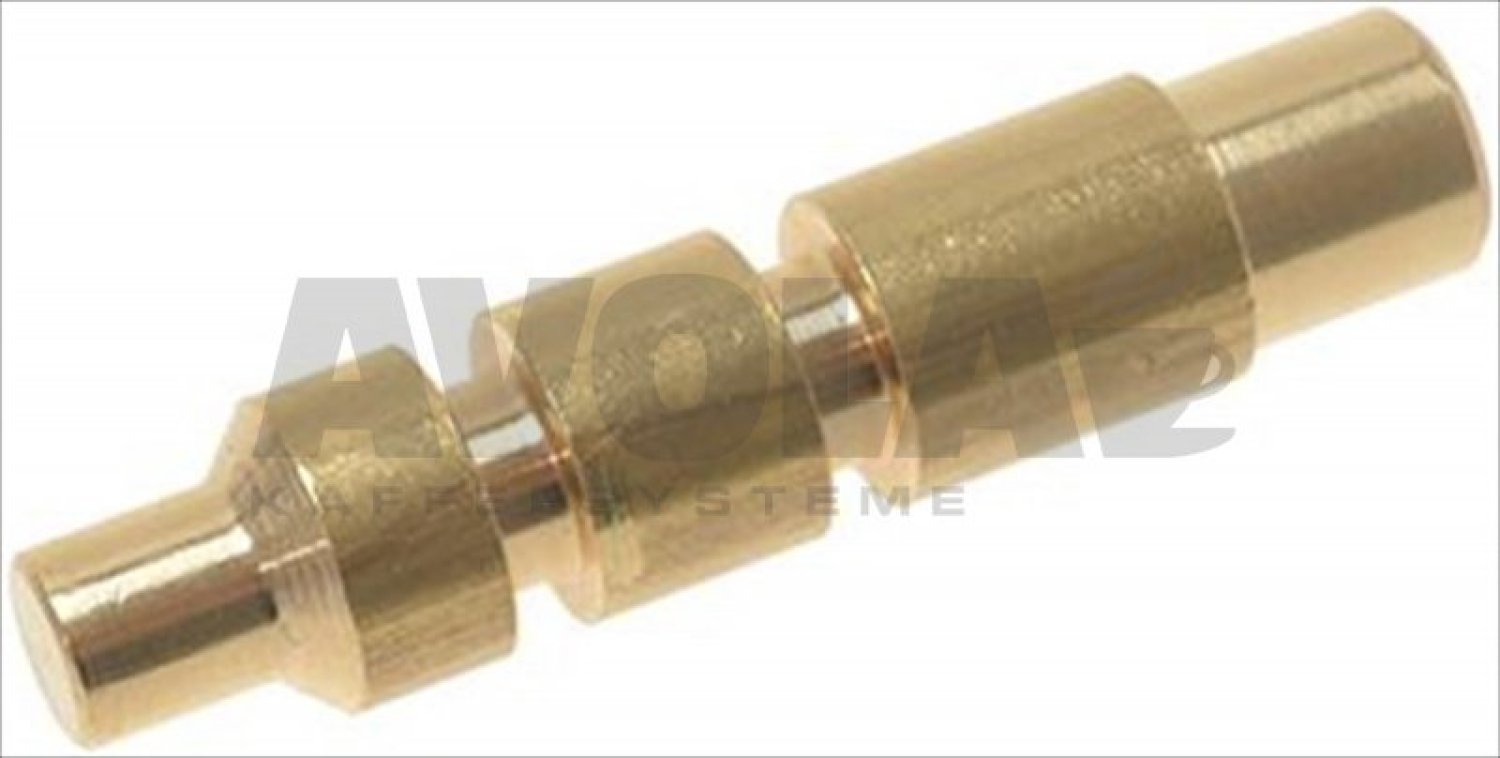

87stift fuer einlaufhahn8073919
STIFT FÜR EINLAUFHAHN
6,95 €

excl. Shipping costs
Delivery time 4-6 weeks
88spring o 12x15 mm8003667
SPRING ø 12x15 mm
2,94 €

excl. Shipping costs
immediately available, 14 available

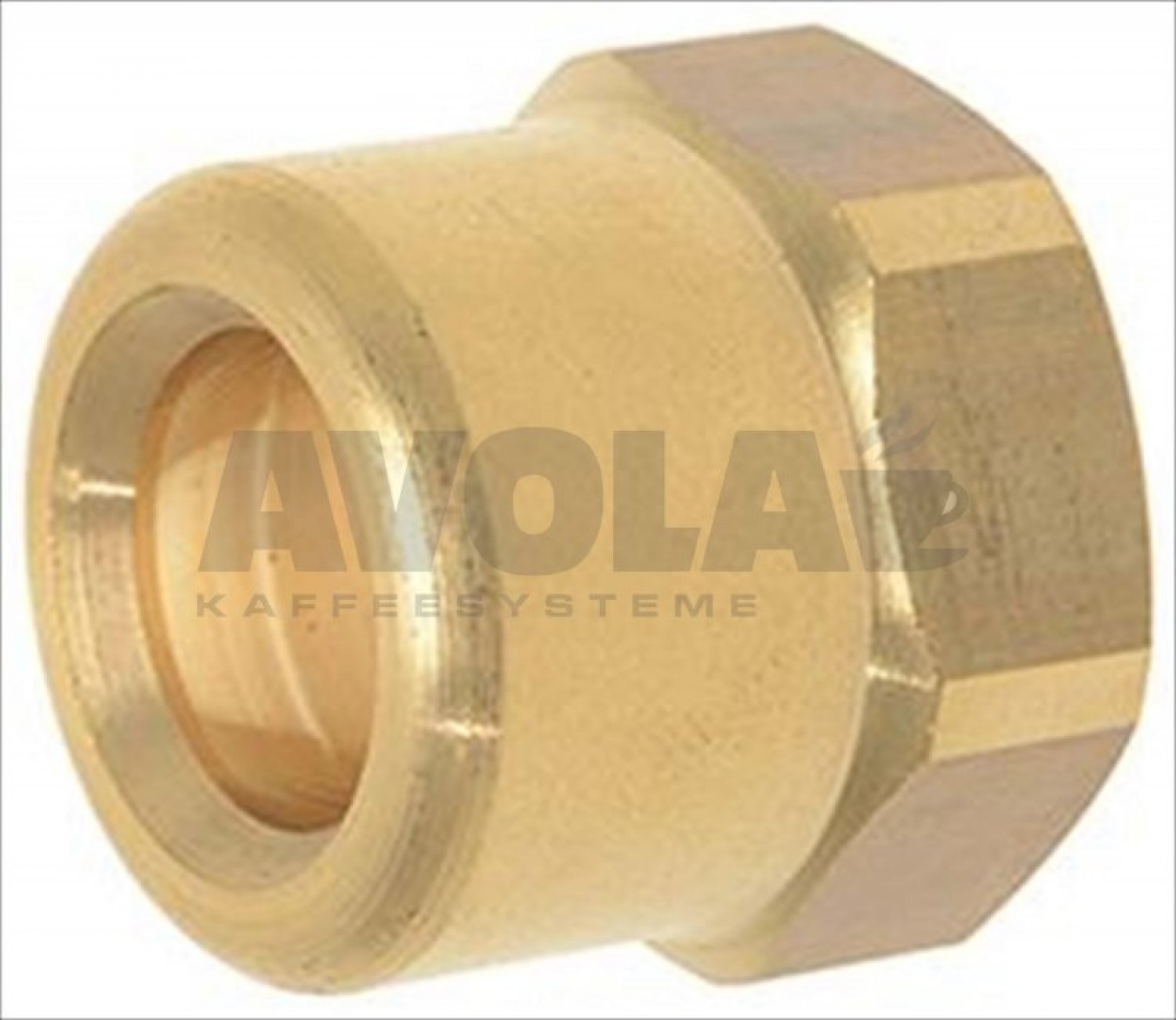

90mutter o 3 8 i fuer einlaufhahn8073937
MUTTER ø 3/8 I FÜR EINLAUFHAHN
14,74 €

excl. Shipping costs
Delivery time 4-6 weeks

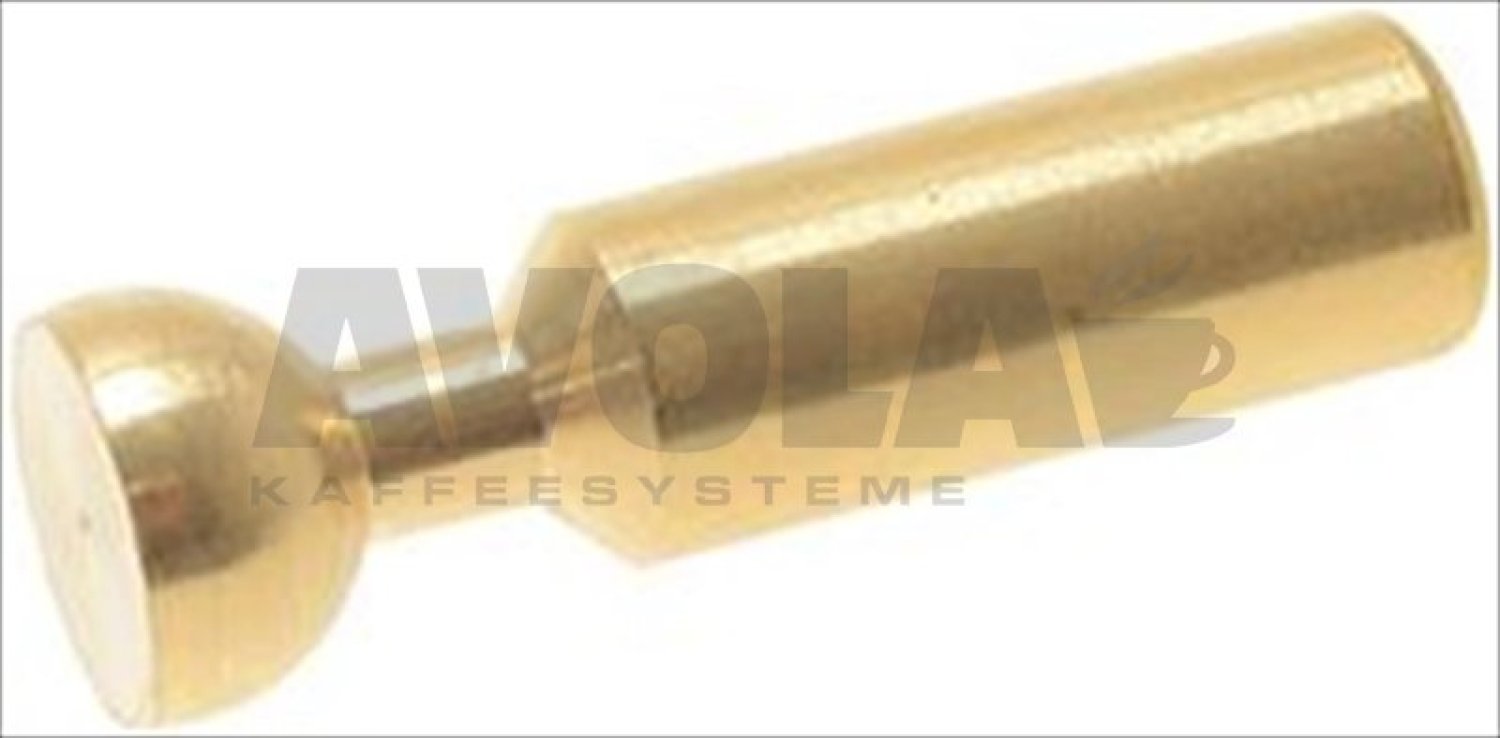

91short pin for inlet tap8063784
SHORT PIN FOR INLET TAP
9,77 €

excl. Shipping costs
Delivery time 4-6 weeks
92complete filter holder 1 cup bianchi8061075
COMPLETE FILTER HOLDER 1 CUP BIANCHI
49,34 €

excl. Shipping costs
Delivery time 4-6 weeks
93complete filter holder 2 cups bianchi8061065
COMPLETE FILTER HOLDER 2 CUPS BIANCHI
54,04 €

excl. Shipping costs
Delivery time
is determined
