Fiorenzato C.s. Grinder

FIORENZATO DOGE CONICO

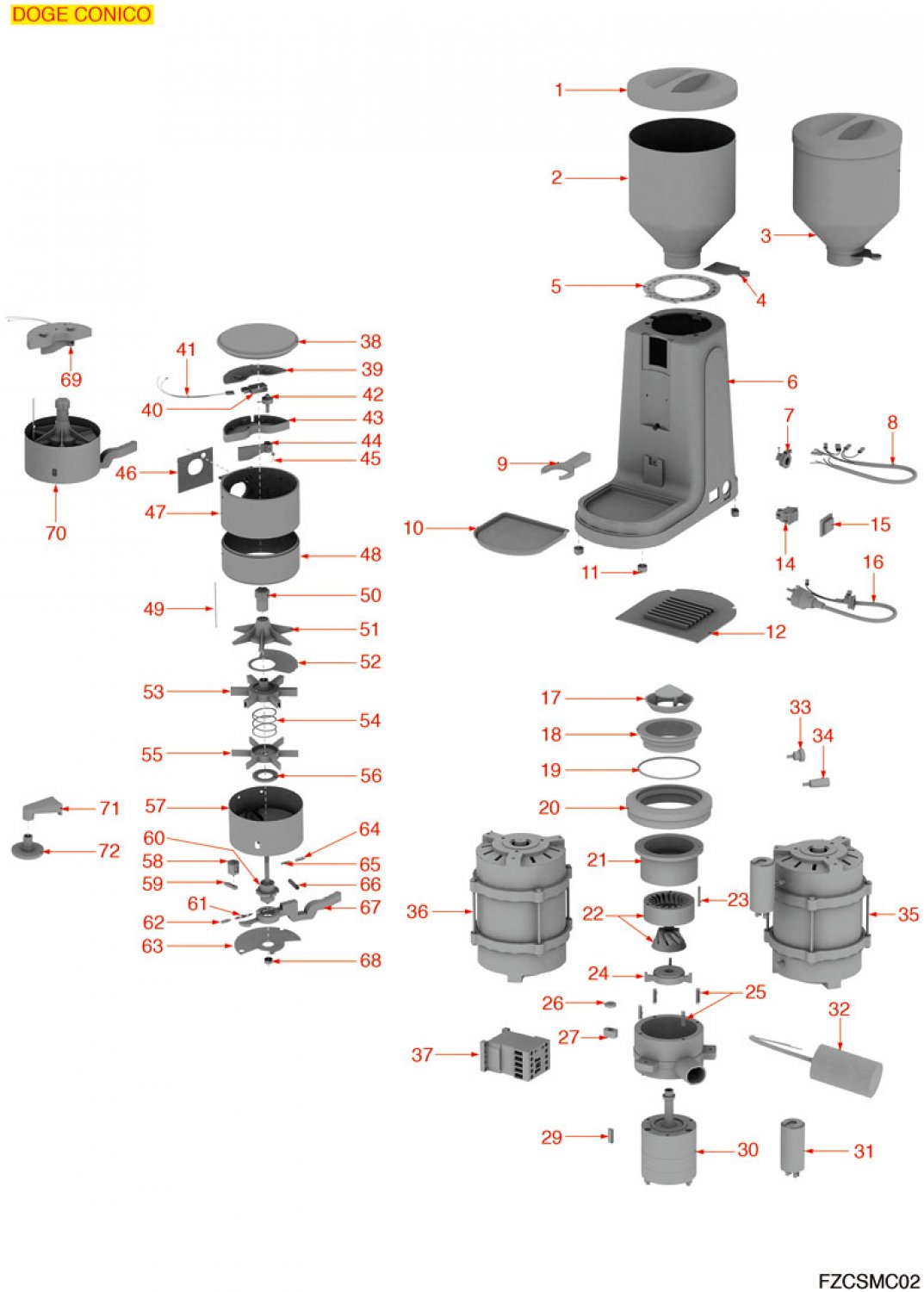

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Pos.:	Item No.:	Image:	Description:	Shipment:	Price (inkl. VAT):	Qty.:
1	8000412		8000412 COFFEE HOPPER LID	excl. Shipping costs immediately available, 1 available	10,89 €	10,89 € excl. Shipping costs immediately available, 1 available
2	8000413		8000413 COFFEE HOPPER			This article is no longer available
3	8000414		8000414 COMPLETE COFFEE HOPPER			This article is no longer available
4	8000415		8000415 COFFEE CONTAINER CLOSING SHEET	excl. Shipping costs Delivery time 4-6 weeks..	6,16 €	6,16 € excl. Shipping costs Delivery time 4-6 weeks..
5	8003950		8003950 GRINDING ADJUSTMENT PLATE	excl. Shipping costs Delivery time 4-6 weeks..	20,31 €	20,31 € excl. Shipping costs Delivery time 4-6 weeks..
9	8001148		8001148 FILTER HOLDER FORK	excl. Shipping costs Delivery time is determined	13,71 €	13,71 € excl. Shipping costs Delivery time is determined
10	8004419		8004419 COFFEE COLLECTION TRAY	excl. Shipping costs Delivery time 4-6 weeks..	35,40 €	35,40 € excl. Shipping costs Delivery time 4-6 weeks..
11	8004589		8004589 FOOT	excl. Shipping costs Delivery time is determined	3,49 €	3,49 € excl. Shipping costs Delivery time is determined
14	8020542		8020542 BLACK BIPOLAR SWITCH 16A 250V	excl. Shipping costs Delivery time is determined	6,09 €	6,09 € excl. Shipping costs Delivery time is determined
15	8020714		8020714 SWITCH PROTECTION CAP	excl. Shipping costs immediately available, 8 available	2,38 €	2,38 € excl. Shipping costs immediately available, 8 available
17	8000411		8000411 COFFEE HOPPER INNER PROTECTION	excl. Shipping costs immediately available, 2 available	3,52 €	3,52 € excl. Shipping costs immediately available, 2 available

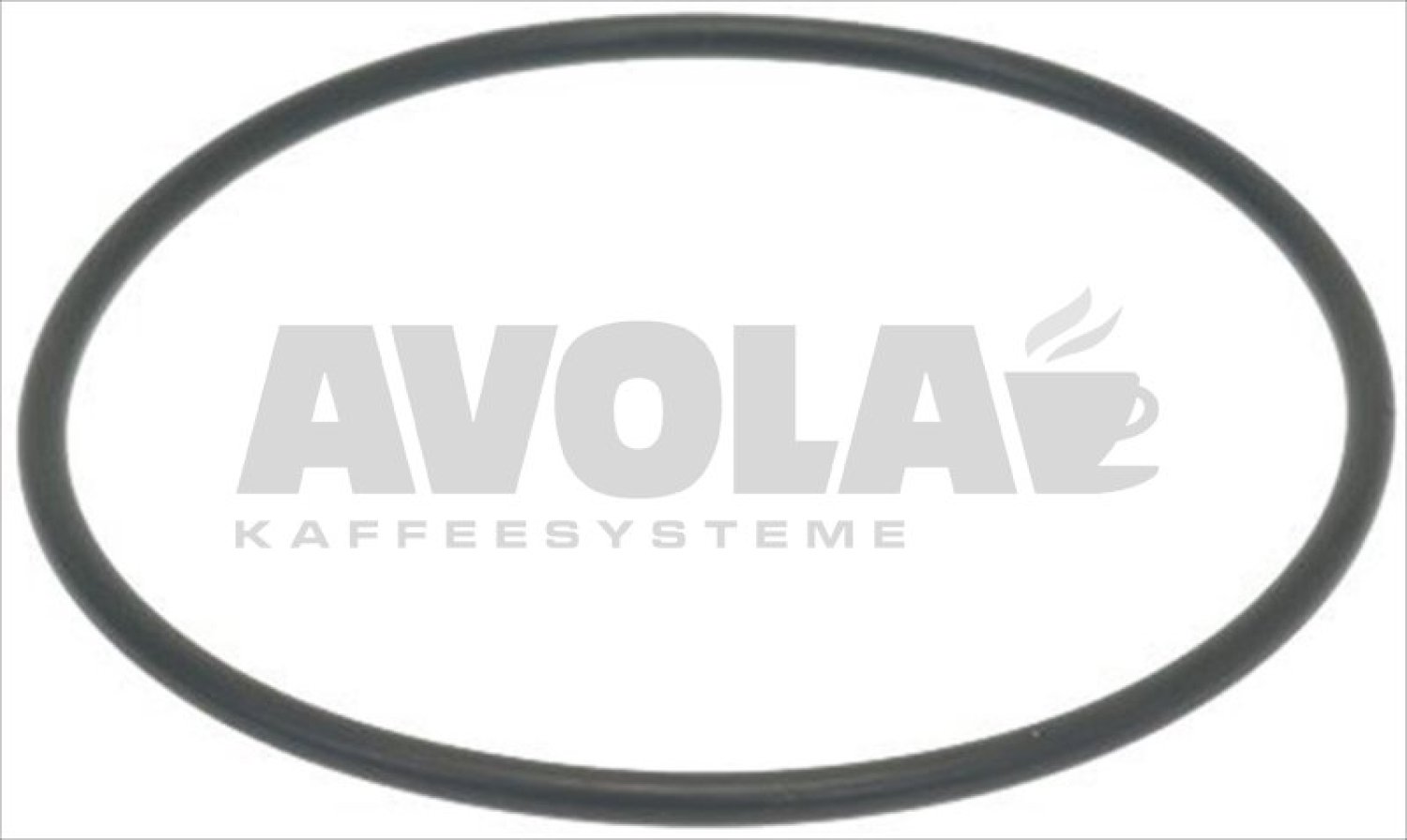

19	8001875		8001875 0-RING 04325 EPDM	excl. Shipping costs immediately available, 4 available	1,32 €	1,32 € excl. Shipping costs immediately available, 4 available

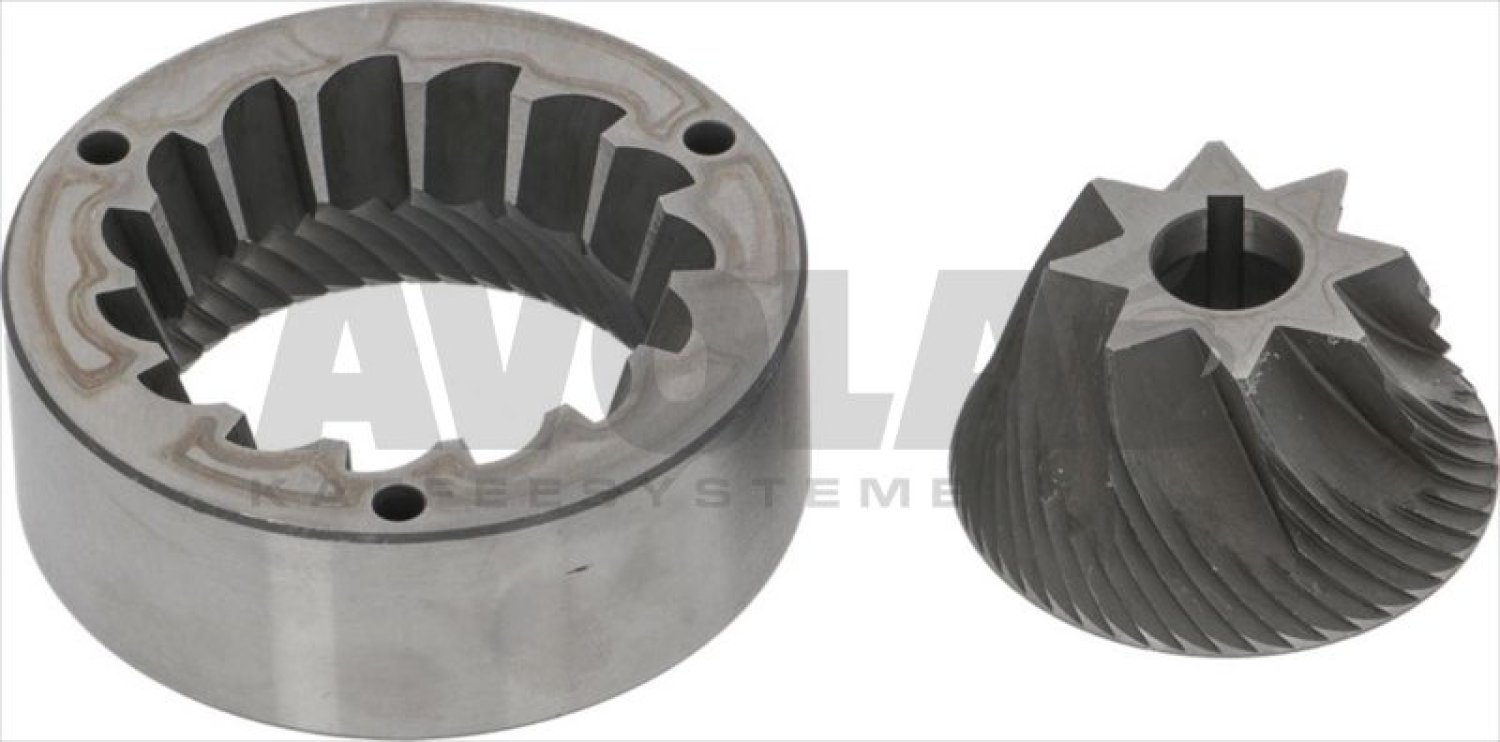

22	8003961		8003961 GR.BURRS FIORENZATO CS (PAIR) CONICAL RH	excl. Shipping costs Delivery time is determined	70,00 €	70,00 € excl. Shipping costs Delivery time is determined
25	8003663		8003663 GRIND.BURRS HOLDER SPRING	excl. Shipping costs Delivery time 4-6 weeks..	6,08 €	6,08 € excl. Shipping costs Delivery time 4-6 weeks..
31	8011681		8011681 CAPACITOR µF 12,5 450v 50/60hz	excl. Shipping costs immediately available, 6 available	10,59 €	10,59 € excl. Shipping costs immediately available, 6 available
38	8000652		8000652 DOSER LID	excl. Shipping costs Delivery time 4-6 weeks..	13,90 €	13,90 € excl. Shipping costs Delivery time 4-6 weeks..
39	8002881		8002881 MICROSWITCH BOX LID	excl. Shipping costs Delivery time 4-6 weeks..	5,32 €	5,32 € excl. Shipping costs Delivery time 4-6 weeks..
40	8002867		8002867 MICROSWITCH 15A 250V		Price on request
44	8002882		8002882 MICROSWITCH CONTROL FLAP	excl. Shipping costs Delivery time 4-6 weeks..	3,43 €	3,43 € excl. Shipping costs Delivery time 4-6 weeks..
45	8003657		8003657 MICROSWITCH FLAP SPRING			This article is no longer available
48	8000654		8000654 DOSER CYLINDER	excl. Shipping costs Delivery time is determined	20,67 €	20,67 € excl. Shipping costs Delivery time is determined
49	8000655		8000655 DOSER SCRAPER		Price on request
51	8005376		8005376 TOP STAR	excl. Shipping costs Delivery time 4-6 weeks..	9,39 €	9,39 € excl. Shipping costs Delivery time 4-6 weeks..
52	8005377		8005377 DIVIDING SHEET	excl. Shipping costs Delivery time 4-6 weeks..	11,80 €	11,80 € excl. Shipping costs Delivery time 4-6 weeks..
53	8005378		8005378 MIDDLE STAR	excl. Shipping costs Delivery time is determined	6,69 €	6,69 € excl. Shipping costs Delivery time is determined
54	8003658		8003658 STAR SPRING	excl. Shipping costs Delivery time is determined	4,83 €	4,83 € excl. Shipping costs Delivery time is determined
55	8005379		8005379 BOTTOM STAR	excl. Shipping costs immediately available, 1 available	6,69 €	6,69 € excl. Shipping costs immediately available, 1 available
56	8004421		8004421 LEVER GUIDE WASHER	excl. Shipping costs Delivery time 4-6 weeks..	6,85 €	6,85 € excl. Shipping costs Delivery time 4-6 weeks..
58	8004422		8004422 COUNTER FOR COFFEE GRINDER	excl. Shipping costs Delivery time 4-6 weeks..	34,56 €	34,56 € excl. Shipping costs Delivery time 4-6 weeks..
59	8004423		8004423 DOSER LEVER PIN	excl. Shipping costs Delivery time is determined	4,36 €	4,36 € excl. Shipping costs Delivery time is determined
60	8004425		8004425 6-TEETH PAWL WITH PIN	excl. Shipping costs Delivery time 4-6 weeks..	42,32 €	42,32 € excl. Shipping costs Delivery time 4-6 weeks..
61	8003661		8003661 FEEDING CATCH SPRING	excl. Shipping costs Delivery time 4-6 weeks..	4,20 €	4,20 € excl. Shipping costs Delivery time 4-6 weeks..
62	8004426		8004426 FEEDING PIN	excl. Shipping costs Delivery time 4-6 weeks..	4,83 €	4,83 € excl. Shipping costs Delivery time 4-6 weeks..
64	8003659		8003659 CATCH SPRING	excl. Shipping costs Delivery time 4-6 weeks..	4,30 €	4,30 € excl. Shipping costs Delivery time 4-6 weeks..
65	8004424		8004424 LOCKING PIN	excl. Shipping costs immediately available, 1 available	3,78 €	3,78 € excl. Shipping costs immediately available, 1 available
66	8003660		8003660 DOSER LEVER RETURN SPRING	excl. Shipping costs immediately available, 4 available	3,08 €	3,08 € excl. Shipping costs immediately available, 4 available
67	8002811		8002811 DOSER LEVER	excl. Shipping costs Delivery time is determined	15,48 €	15,48 € excl. Shipping costs Delivery time is determined
69	8002883		8002883 AUTOMATIC MICROSWITCH BOX	excl. Shipping costs Delivery time 4-6 weeks..	39,51 €	39,51 € excl. Shipping costs Delivery time 4-6 weeks..
72	8006174		8006174 COFFEE TAMPER	excl. Shipping costs Delivery time 4-6 weeks..	11,70 €	11,70 € excl. Shipping costs Delivery time 4-6 weeks..

If your article is not listed, please use the following form and enter the desired numbers.
