Futurmat

FS31 WASSER-, DAMPFHAHN

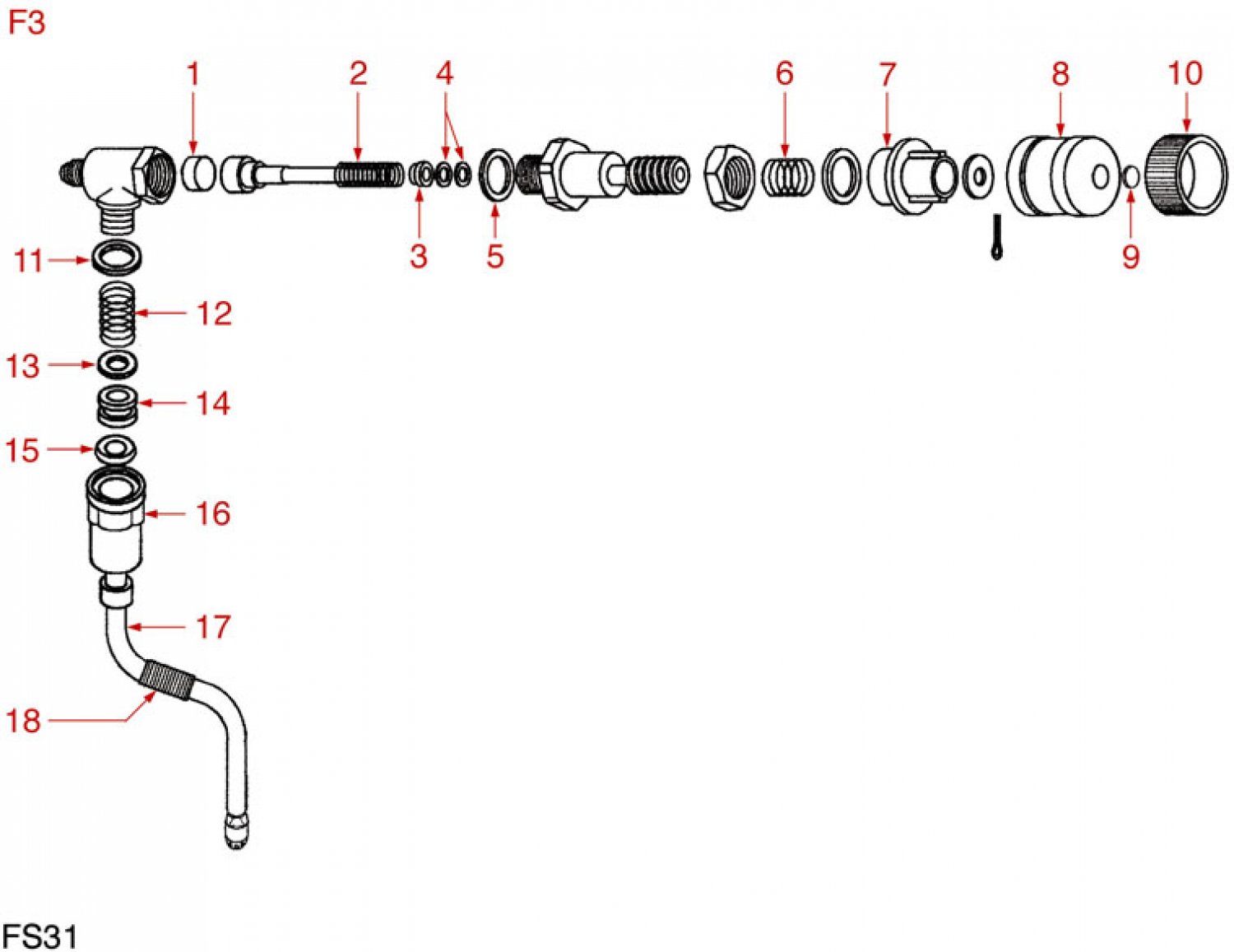

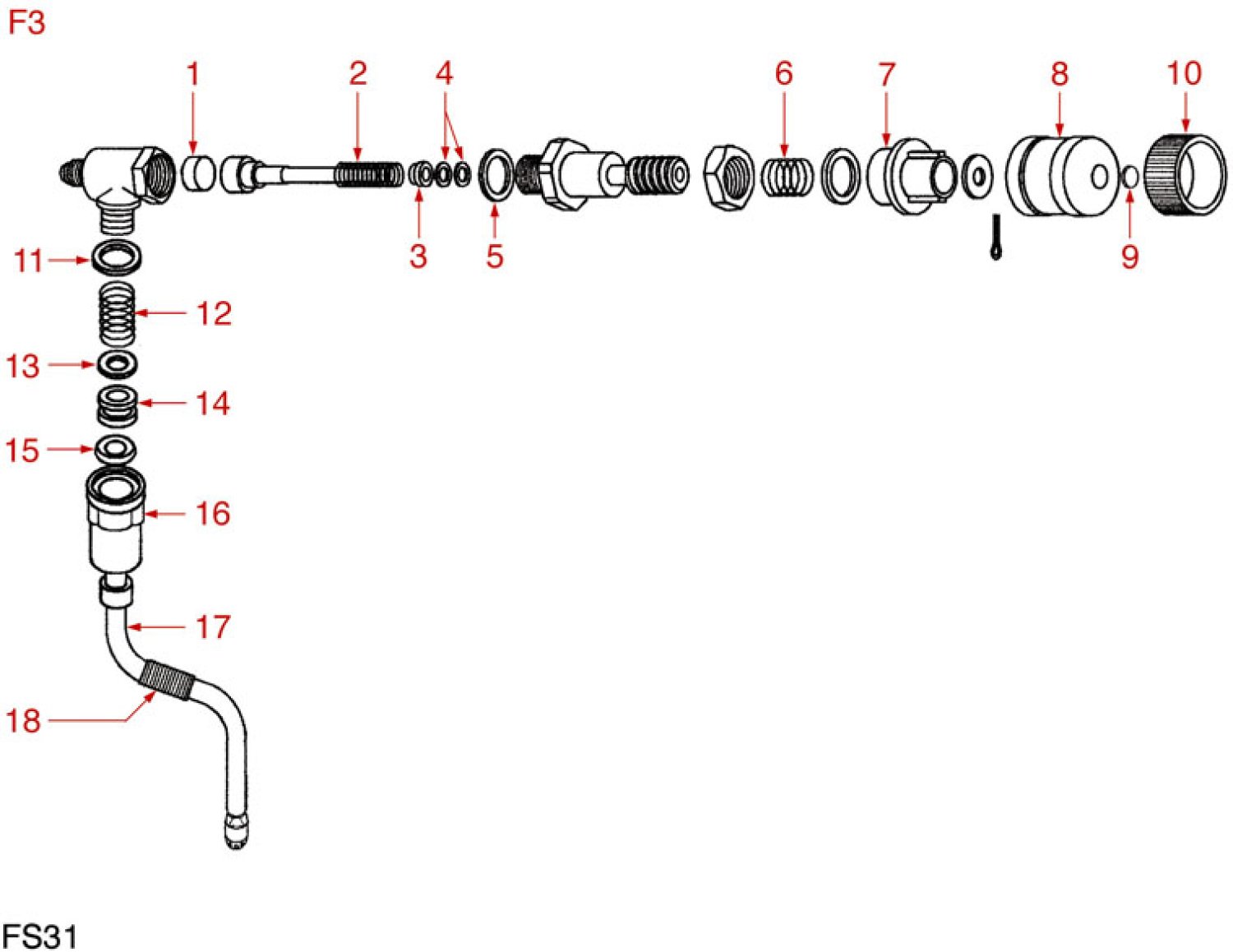

Drawing number 8057322

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.: Image: Description: Qty.:
1blond gasket o 12x5 8 mm silicon 8001670
blond gasket ø 12x5,8 mm silicon
1,20 €

excl. Shipping costs

immediately available
2tap spring 8003795
TAP SPRING
1,80 €

excl. Shipping costs

immediately available, 10 available
3spring bushing 8001521
SPRING BUSHING
1,42 €

excl. Shipping costs

immediately available, 6 available
4o ring 02025 viton 8001810
O-RING 02025 VITON
0,87 €

excl. Shipping costs

immediately available
5ptfe flat gasket o 16x22 5x2 mm 8001581
PTFE FLAT GASKET ø 16x22,5x2 mm
1,65 €

excl. Shipping costs

immediately available
6handle spring 8003809
HANDLE SPRING
Price on request
7ring nut for water steam knob 8003284
RING NUT FOR WATER/STEAM KNOB
3,53 €

excl. Shipping costs

Delivery time
is determined
8knob for steam tap 8003311
KNOB FOR STEAM TAP
7,16 €

excl. Shipping costs

Delivery time
is determined

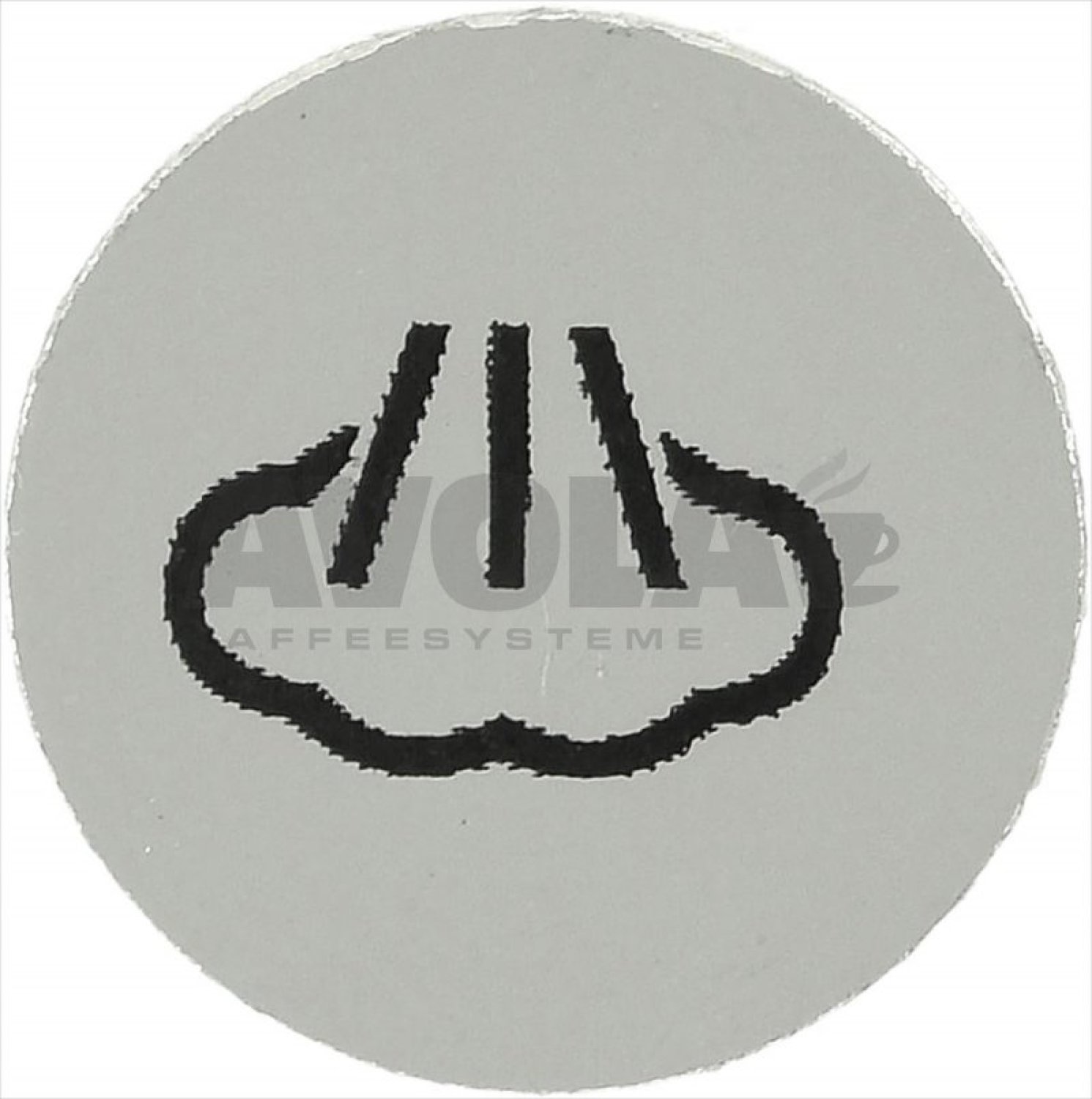

9steam silk screen print f handle 8003312
STEAM SILK SCREEN PRINT. F. HANDLE
2,48 €

excl. Shipping costs

immediately available, 1 available
11ptfe flat gasket o 22x17x2 mm 8001572
PTFE FLAT GASKET ø 22x17x2 mm
1,69 €

excl. Shipping costs

immediately available
12spring o 10 5x27 mm 8003604
Spring ø 10,5x27 mm
3,57 €

excl. Shipping costs

immediately available, 6 available
13brass washer 8001548
BRASS WASHER
1,33 €

excl. Shipping costs

immediately available, 3 available
14conical ptfe seal 8001464
CONICAL PTFE SEAL
1,73 €

excl. Shipping costs

immediately available, 9 available
15o ring 02043 epdm 8001593
O-RING 02043 EPDM
0,79 €

excl. Shipping costs

immediately available
16nut for water steam pipe 8005586
NUT FOR WATER/STEAM PIPE
9,94 €

excl. Shipping costs

Delivery time
is determined
17steam pipe complete 8006882
STEAM PIPE COMPLETE
29,75 €

excl. Shipping costs

Delivery time
is determined
18burn preventing pipe handgrip o 8 mm 8002158
BURN PREVENTING PIPE HANDGRIP ø 8 mm
2,44 €

excl. Shipping costs

immediately available, 15 available

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
