Futurmat

FUTURMAT MAGNETVENTILGRUPPE

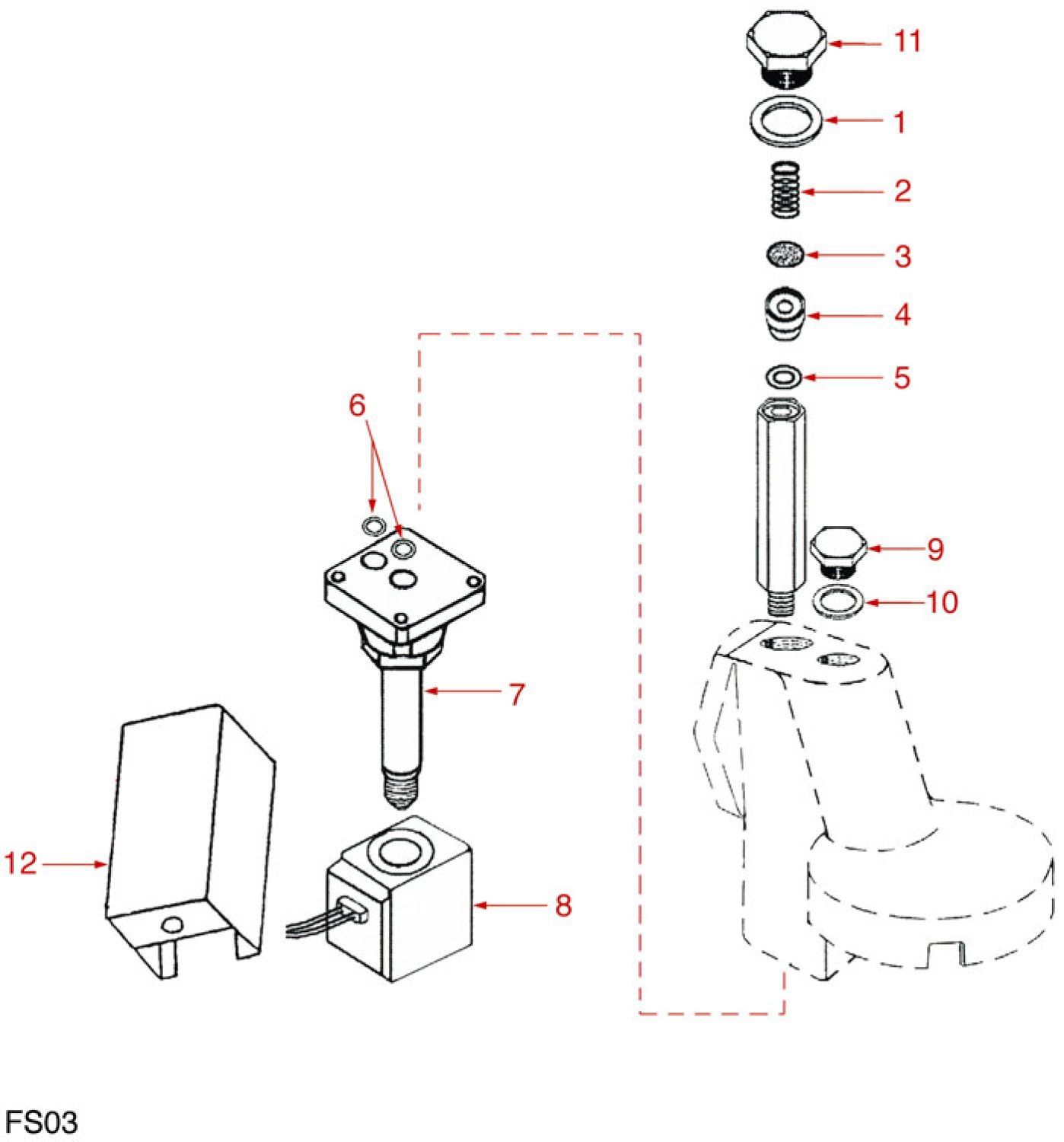

Drawing number 8057306

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.: Image: Description: Qty.:
1copper flat gasket 22x17x1 5 mm 8001815
COPPER FLAT GASKET 22x17x1,5 mm
1,01 €

excl. Shipping costs

immediately available

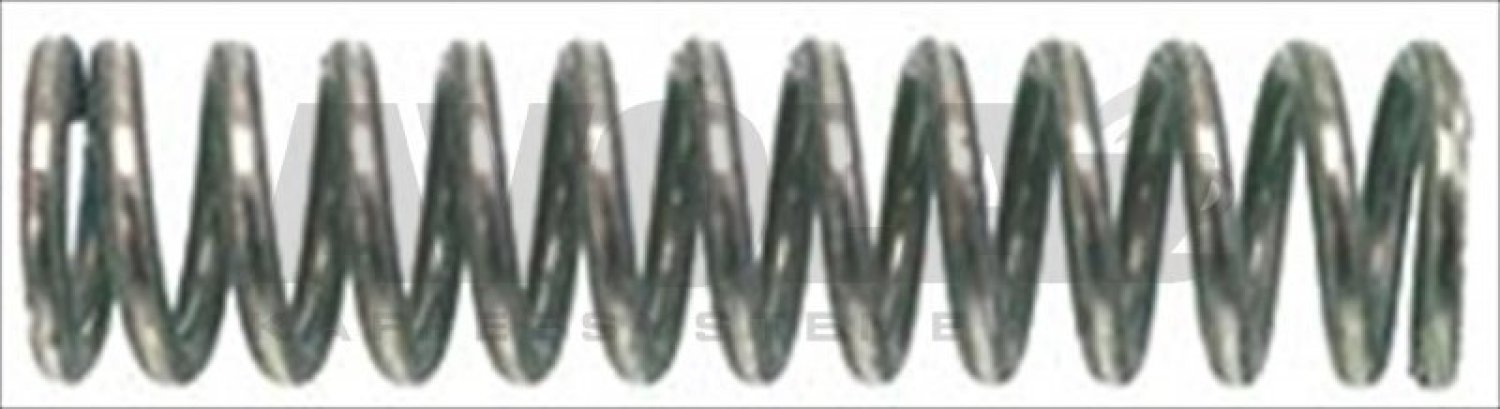

2jet spring o 7x28 mm 8003788
JET SPRING ø 7x28 mm
2,07 €

excl. Shipping costs

immediately available

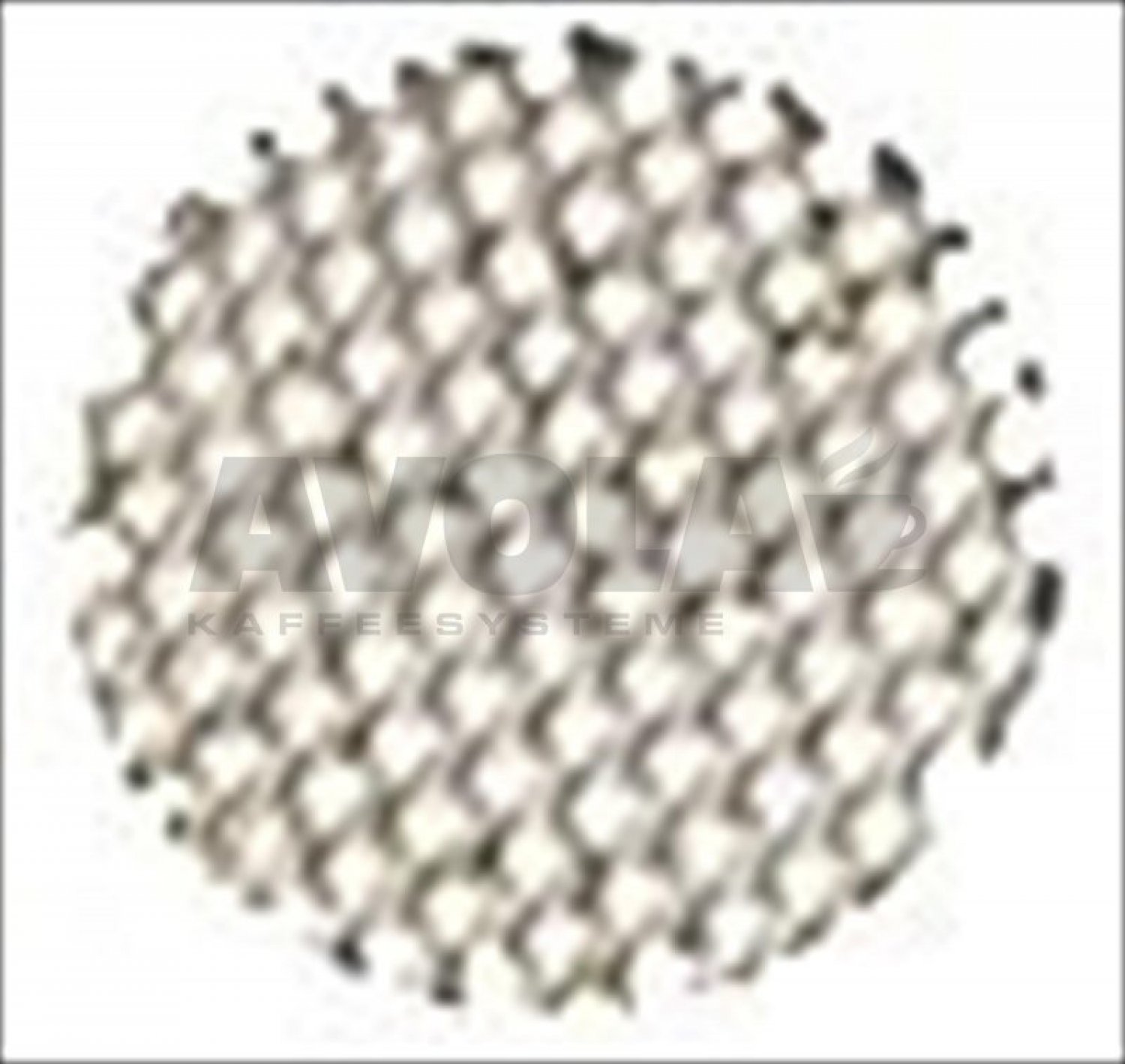

3water filter 8001098
WATER FILTER
1,40 €

excl. Shipping costs

immediately available, 19 available
4nozzle o 8 loch o 0 7 mm 8006981
NOZZLE ø 8 LOCH ø 0,7 mm
5,65 €

excl. Shipping costs

immediately available, 9 available
5o ring 0040 20 epdm 8036617
O-RING 0040-20 EPDM
0,84 €

excl. Shipping costs

immediately available
6o ring 02025 viton 8001810
O-RING 02025 VITON
0,87 €

excl. Shipping costs

immediately available
73 way mechanical component parker 8000962
3-WAY MECHANICAL COMPONENT PARKER
42,72 €

excl. Shipping costs

immediately available, 13 available

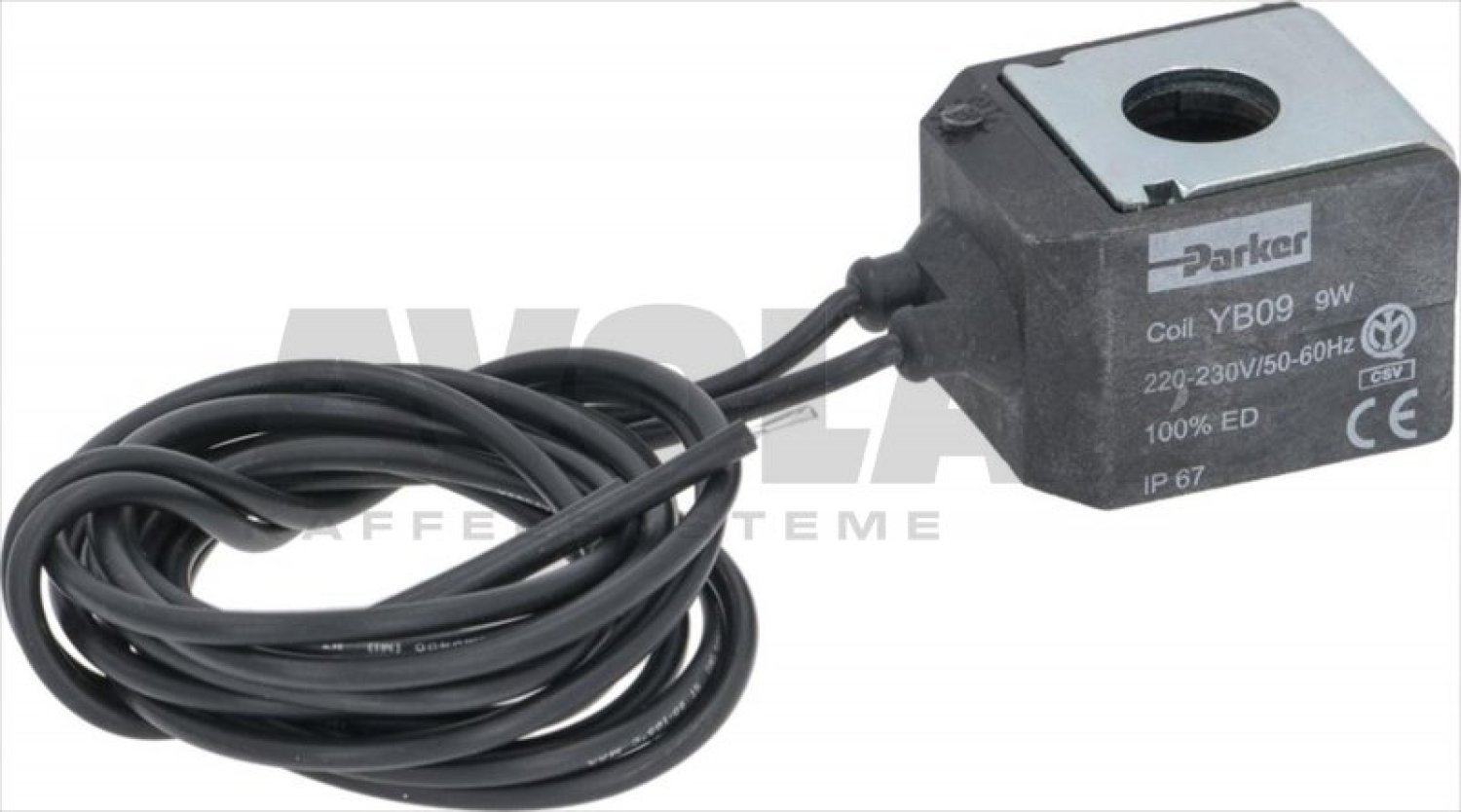

8coil parker yb09 220 230v 9w 50 60hz 8037447
COIL PARKER YB09 220/230V 9W 50/60Hz
32,59 €

excl. Shipping costs

immediately available, 3 available
9cap o 12 mm for brew group 8006375
CAP ø 12 mm FOR BREW GROUP
Price on request

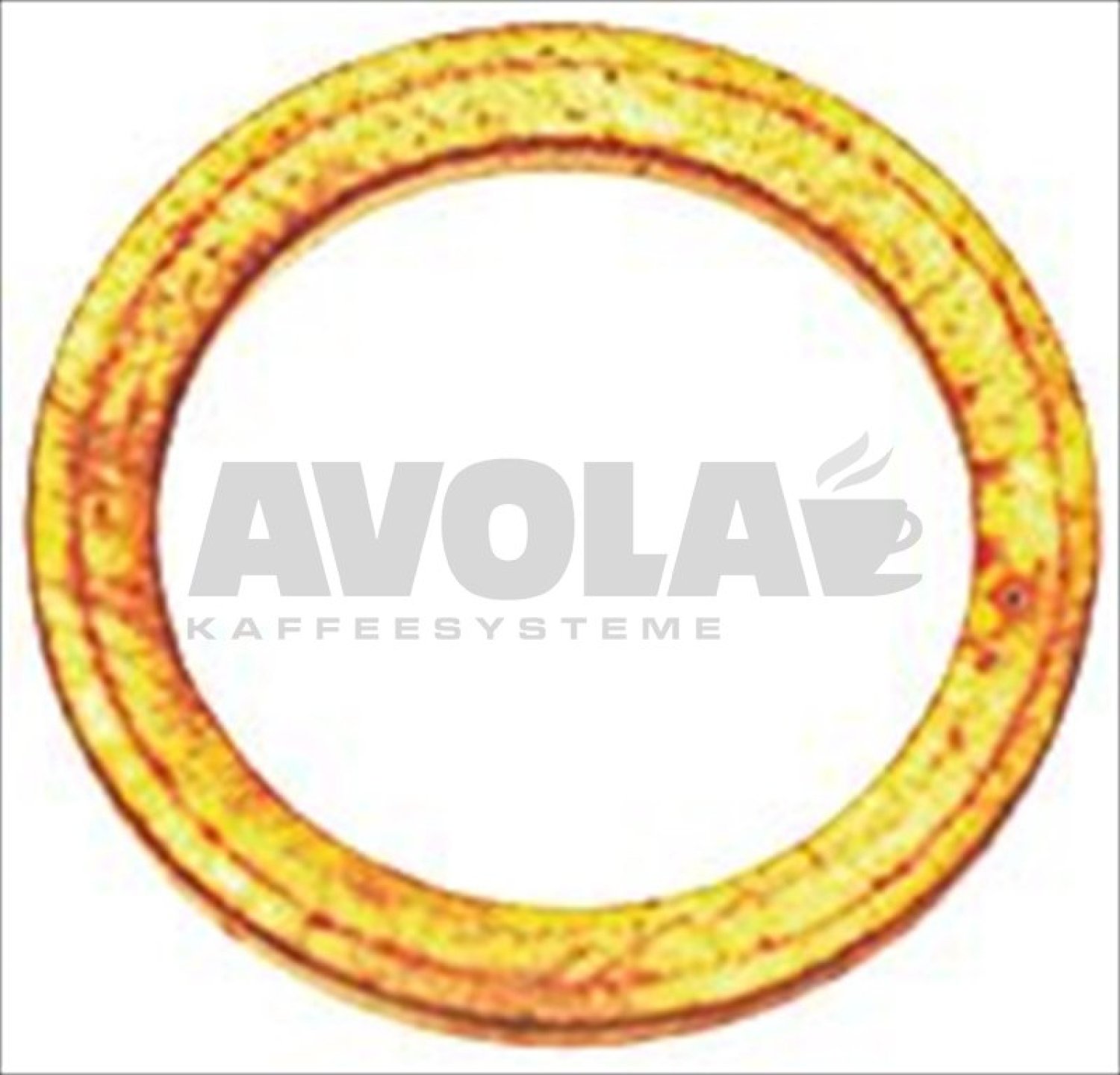

10copper flat gasket 8001535
COPPER FLAT GASKET
Price on request

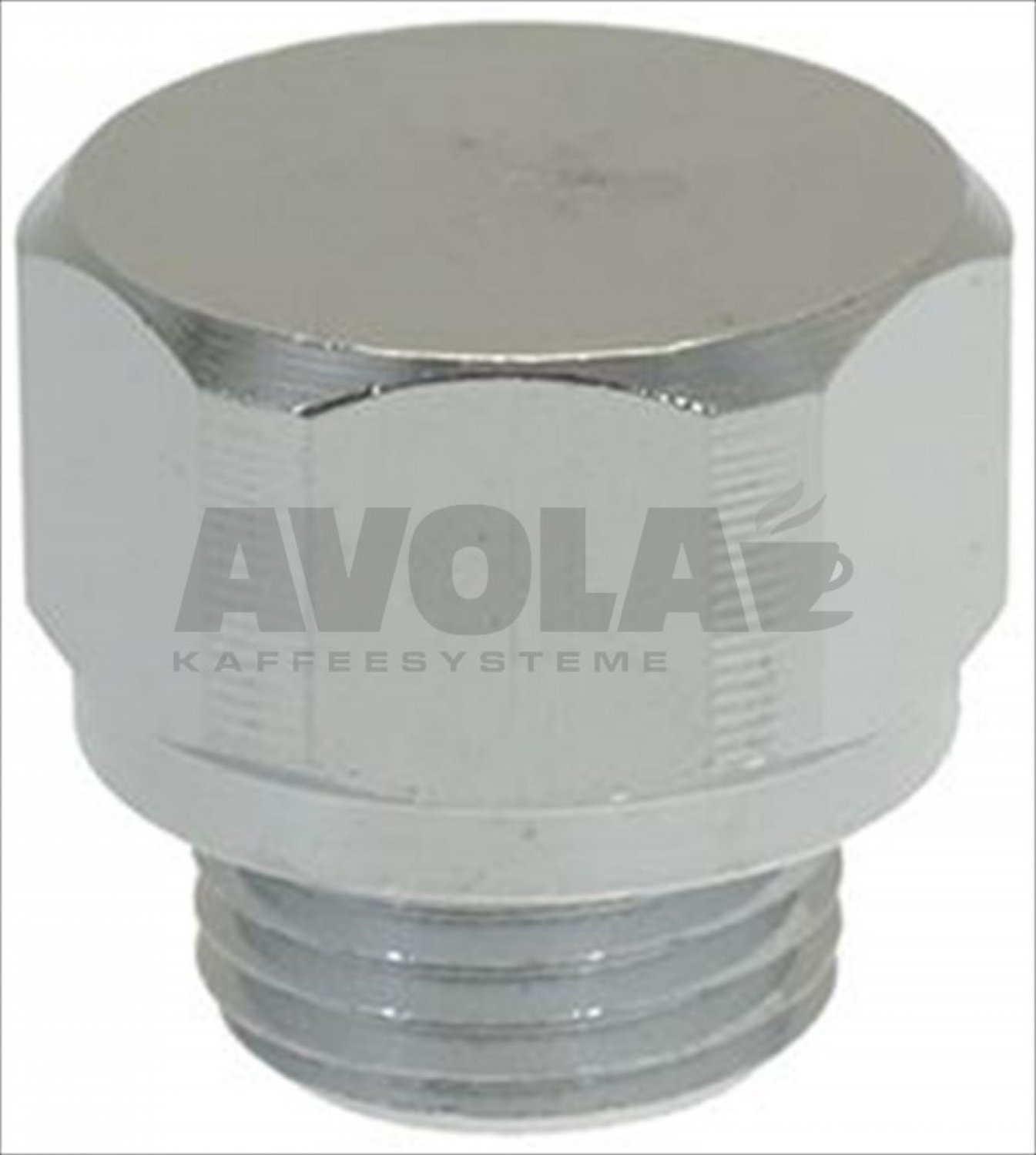

11cap o 16 mm 8006376
CAP ø 16 mm
3,65 €

excl. Shipping costs

Delivery time
is determined

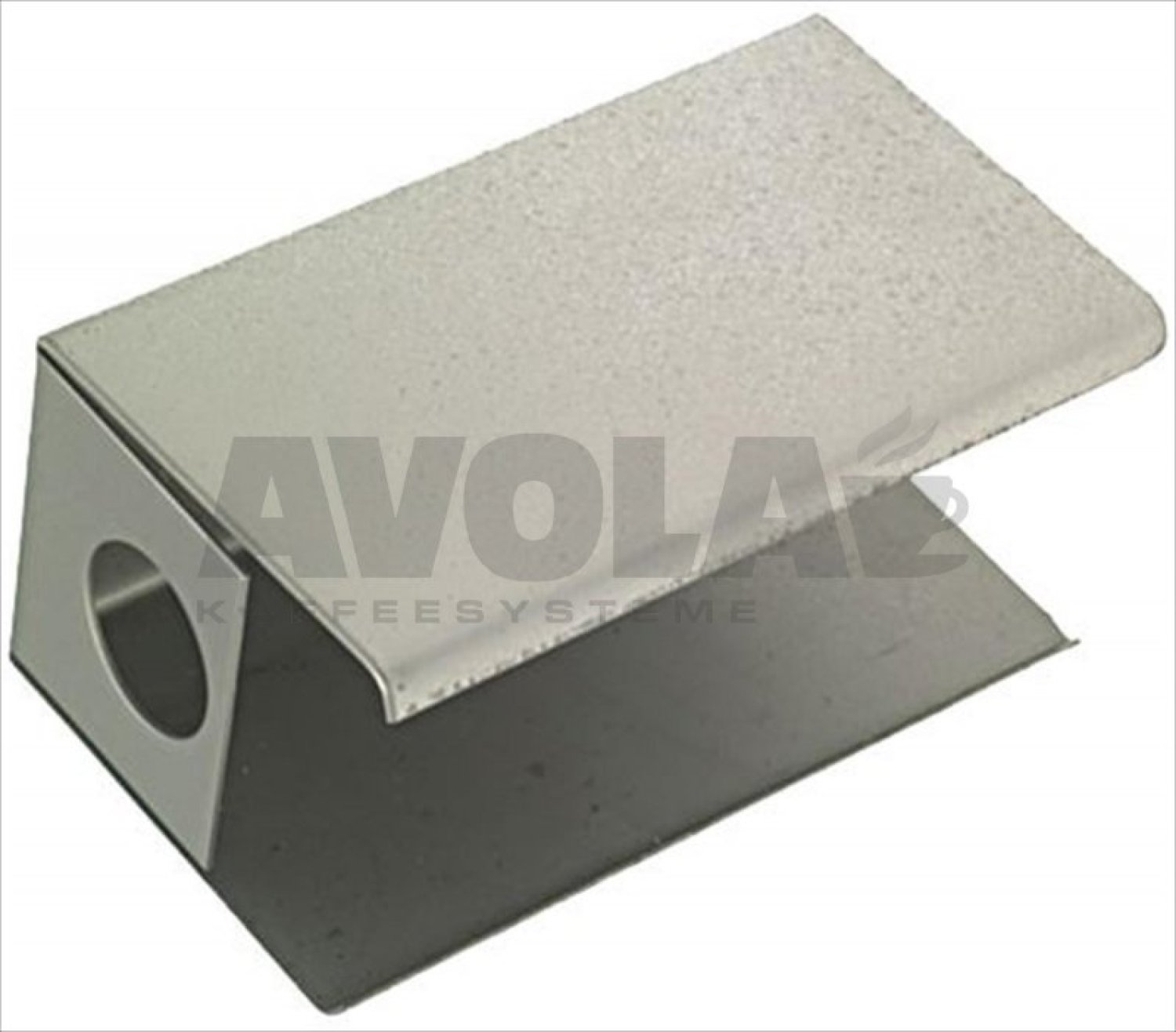

12solenoid cover 8002689
SOLENOID COVER
Price on request

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
