Gaggia

Gaggia Deco Flowmeter Wasserventil

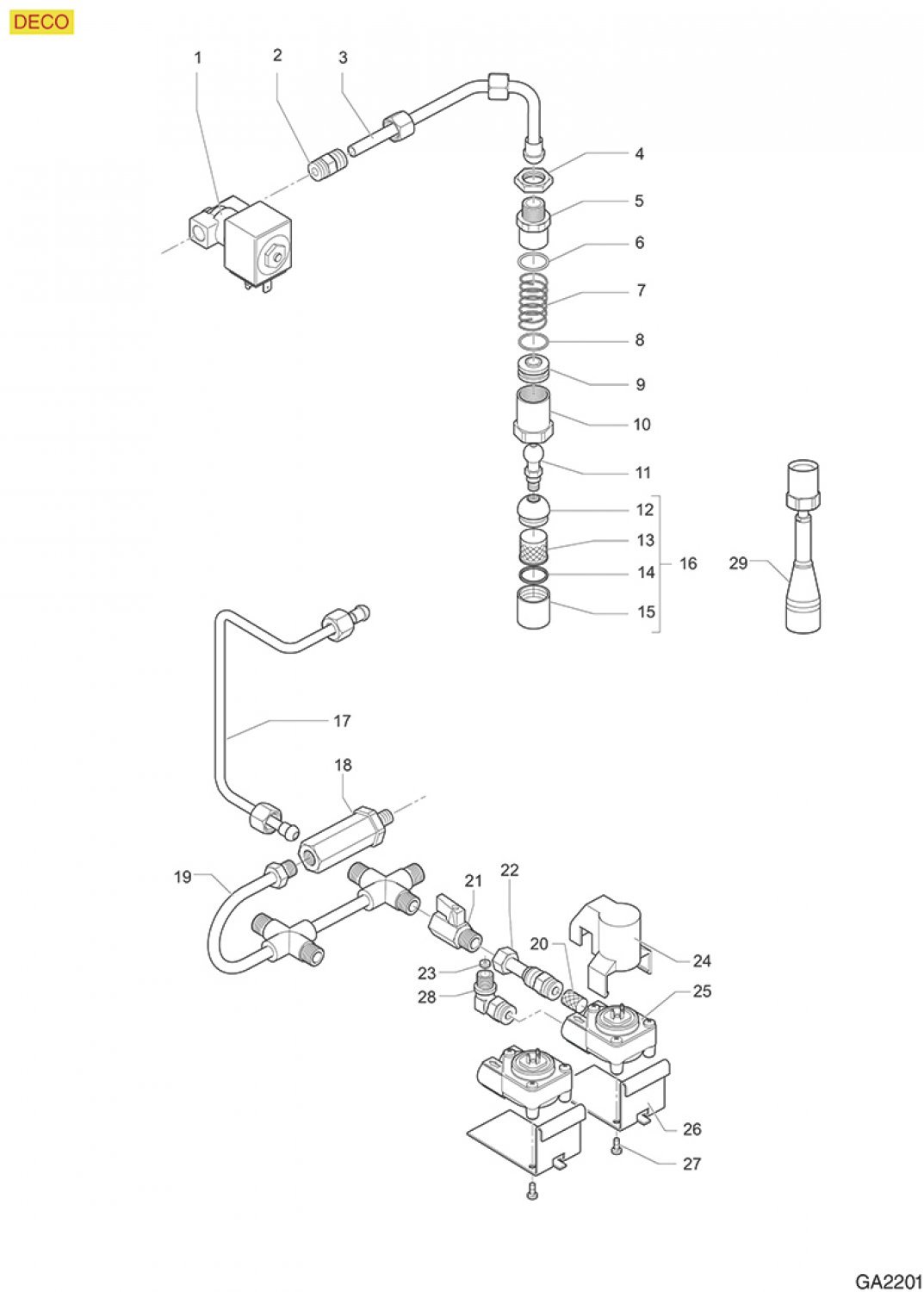

Drawing number 8081242

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.: Image: Description: Qty.:
12 way solenoid valve parker 110v 50 60hz 8063377
2-WAY SOLENOID VALVE PARKER 110V 50/60Hz
51,96 €

excl. Shipping costs

Delivery time
is determined
12 way solenoid valve parker 230v 50 60hz 8000969
2-WAY SOLENOID VALVE PARKER 230V 50/60Hz
70,65 €

excl. Shipping costs

immediately available, 5 available
2fitting o 1 4 8005710
Fitting ø 1/4
3,64 €

excl. Shipping costs

immediately available, 16 available
4lock nut 1 4 8007385
LOCK NUT 1/4
2,40 €

excl. Shipping costs

immediately available, 5 available
6o ring 02062 brown viton 8066931
O-RING 02062 BROWN VITON
1,51 €

excl. Shipping costs

immediately available, 3 available
7spring o 12x22 mm 8003818
SPRING ø 12x22 mm
3,03 €

excl. Shipping costs

immediately available, 2 available
8o ring 0115 viton 8001890
O-RING 0115 VITON
1,49 €

excl. Shipping costs

immediately available
9ptfe conical seal o 14 5x6 5x9 mm 8066930
PTFE CONICAL SEAL ø 14.5x6.5x9 mm
9,96 €

excl. Shipping costs

Delivery time
is determined
16water pipe nozzle 1 8 8006744
WATER PIPE NOZZLE 1/8
8,20 €

excl. Shipping costs

immediately available, 7 available

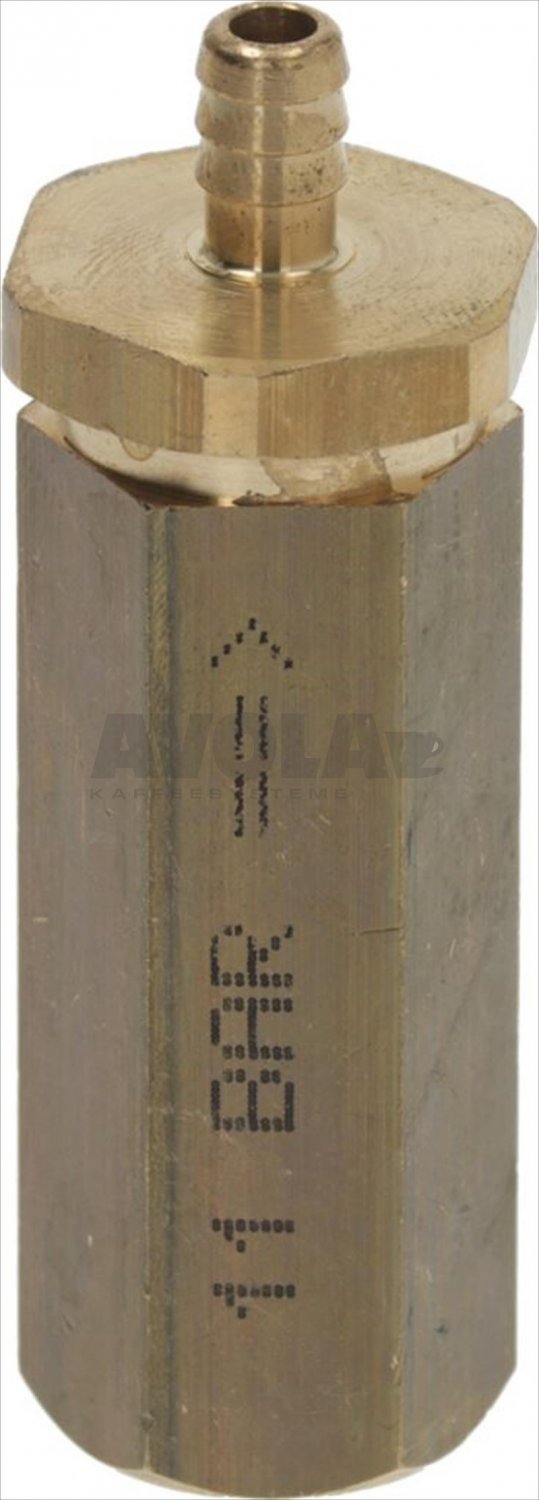

18expansion valve 8064258
EXPANSION VALVE
41,46 €

excl. Shipping costs

Delivery time
is determined
21ball valve o 1 4 rime in and out 8029763
ball valve ø 1/4″ in and out
12,97 €

excl. Shipping costs

immediately available, 8 available
27cylinder head screw m4x12 uni 7687 8007317
CYLINDER HEAD SCREW M4x12 Uni 7687
0,80 €

excl. Shipping costs

immediately available

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
