GAGGIA - E90-D90 GRUPPE BOILER NIVEAU

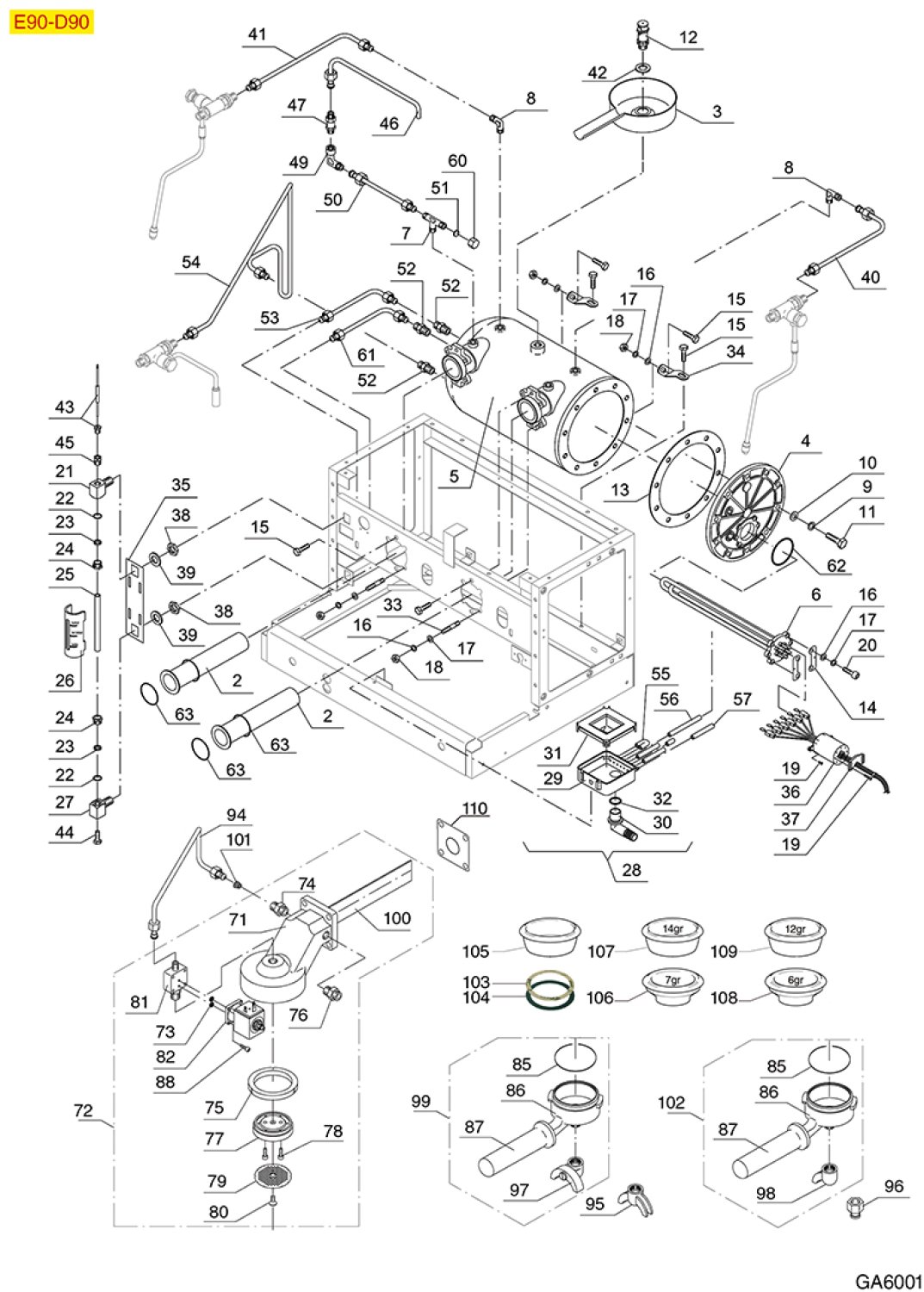

Drawing number 8062615

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.:Image:Description:Qty.:

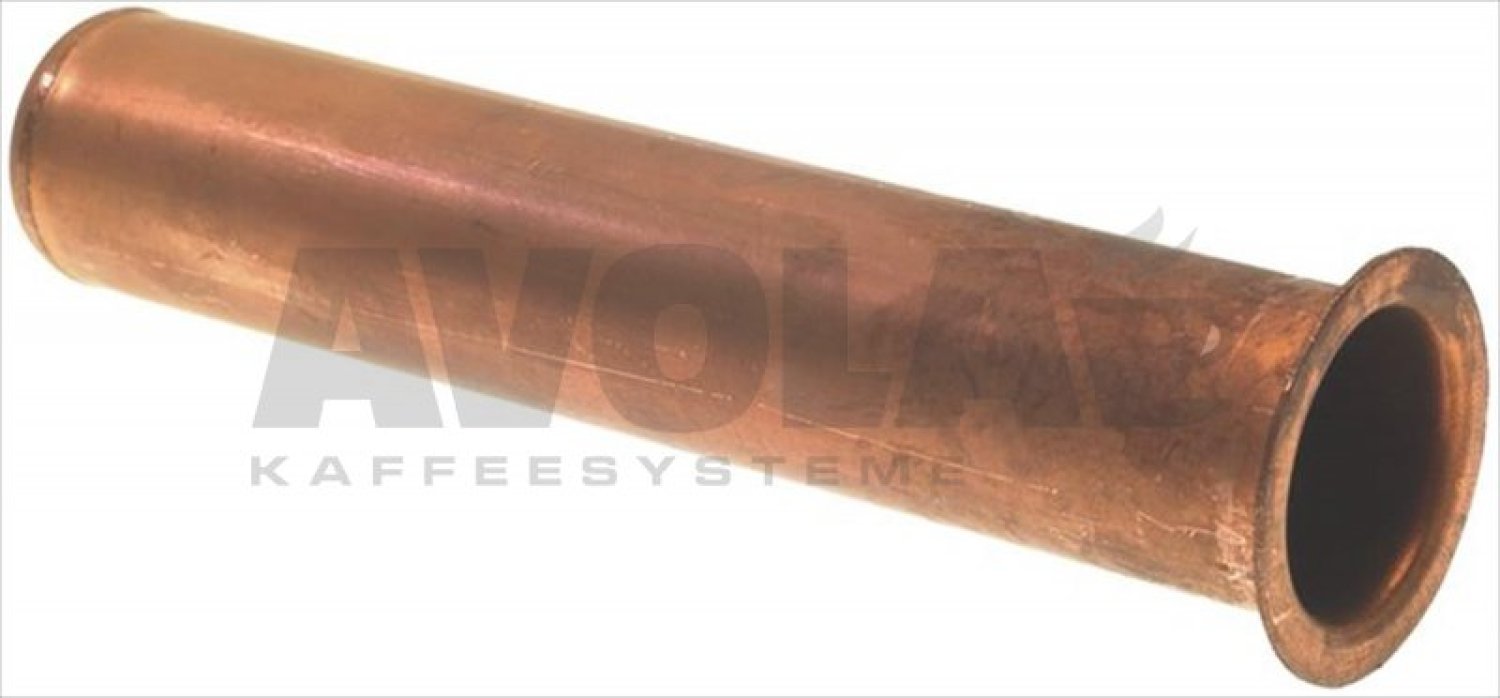

2kartusche gaggia e90 d908060908
KARTUSCHE GAGGIA E90-D90
87,13 €

excl. Shipping costs
Delivery time 4-6 weeks
6heating element 2000w 220 380v8007483
HEATING ELEMENT 2000W 220/380V
62,95 €

excl. Shipping costs
immediately available, 1 available
6heating element 4000w 220v8007484
HEATING ELEMENT 4000W 220V
61,58 €

excl. Shipping costs
Delivery time
is determined
6heating element 5000w 220 400v8007485
HEATING ELEMENT 5000W 220/400V
71,22 €

excl. Shipping costs
Delivery time 4-6 weeks
8nichel platedl fitting8005879
NICHEL PLATEDL-FITTING
4,76 €

excl. Shipping costs
immediately available, 10 available
12boiler valve8007158
BOILER VALVE
25,16 €

excl. Shipping costs
immediately available, 2 available
13gaggia boiler gasket o 220x168x2 5 mm8001558
Gaggia boiler gasket ø 220x168x2,5 mm
19,37 €

excl. Shipping costs
immediately available, 2 available
22o ring 03043 epdm8001575
O-RING 03043 EPDM
0,89 €

excl. Shipping costs
immediately available

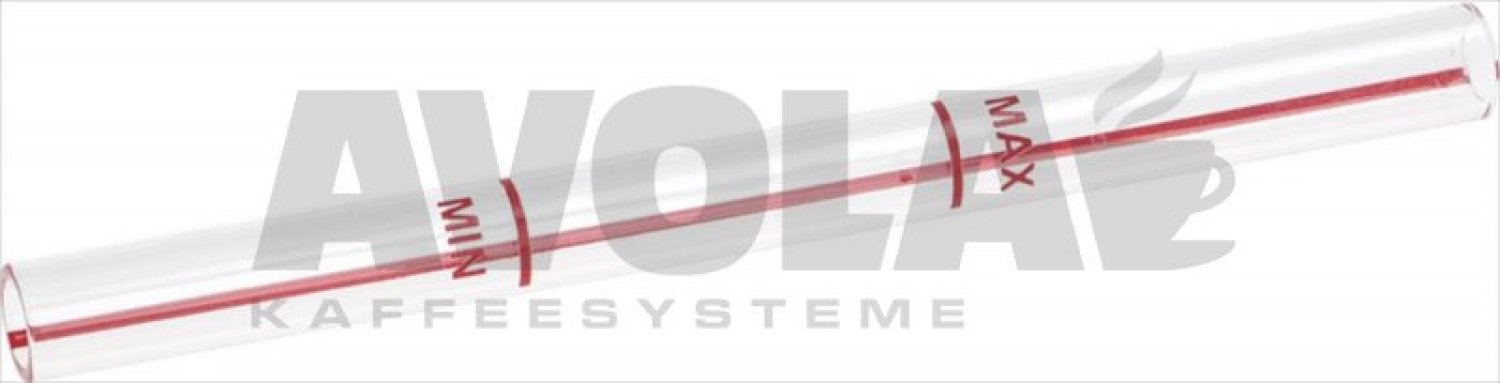

25level gauge glass8007011
LEVEL GAUGE GLASS
11,33 €

excl. Shipping costs
immediately available, 9 available

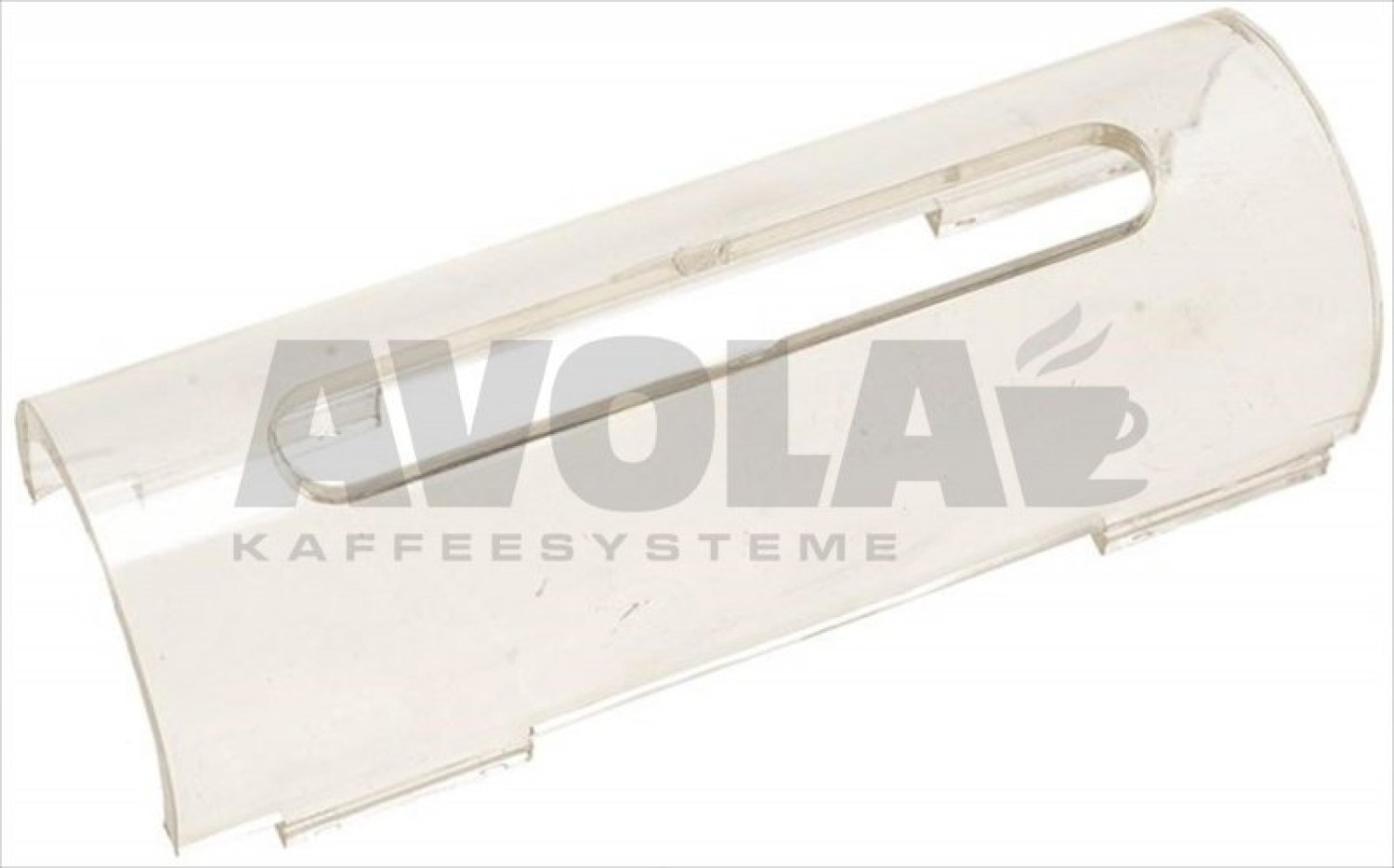

26level gauge cover8002688
LEVEL GAUGE COVER
19,09 €

excl. Shipping costs
immediately available, 2 available

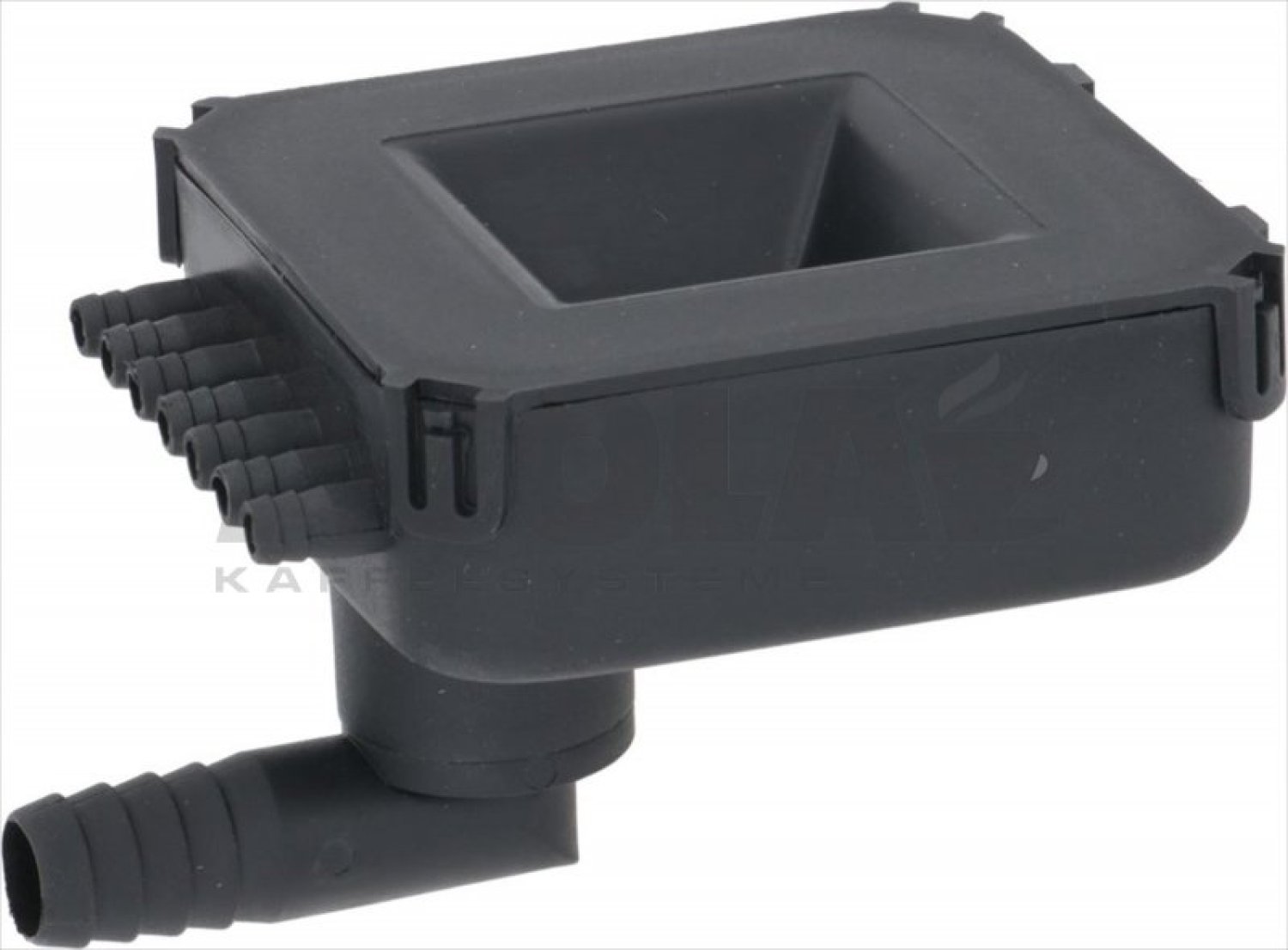

28drain tank8061016
DRAIN TANK
This article is no longer available
38nut8005455
NUT
3,38 €

excl. Shipping costs
immediately available, 7 available
39washer flat m168001637
WASHER FLAT M16
1,76 €

excl. Shipping costs
immediately available, 8 available
42copper flat gasket 22x17x1 5 mm8001815
COPPER FLAT GASKET 22x17x1,5 mm
1,01 €

excl. Shipping costs
immediately available
47expansion valve o 1 4 a8062619
EXPANSION VALVE ø 1/4 A
32,33 €

excl. Shipping costs
immediately available, 7 available
52fitting8005711
FITTING
3,53 €

excl. Shipping costs
immediately available
62ptfe flat gasket8001806
PTFE FLAT GASKET
2,73 €

excl. Shipping costs
immediately available
62o ring 04150 red silicone8002069
O-RING 04150 RED SILICONE
2,09 €

excl. Shipping costs
immediately available, 16 available
63ptfe flat gasket8001806
PTFE FLAT GASKET
2,73 €

excl. Shipping costs
immediately available

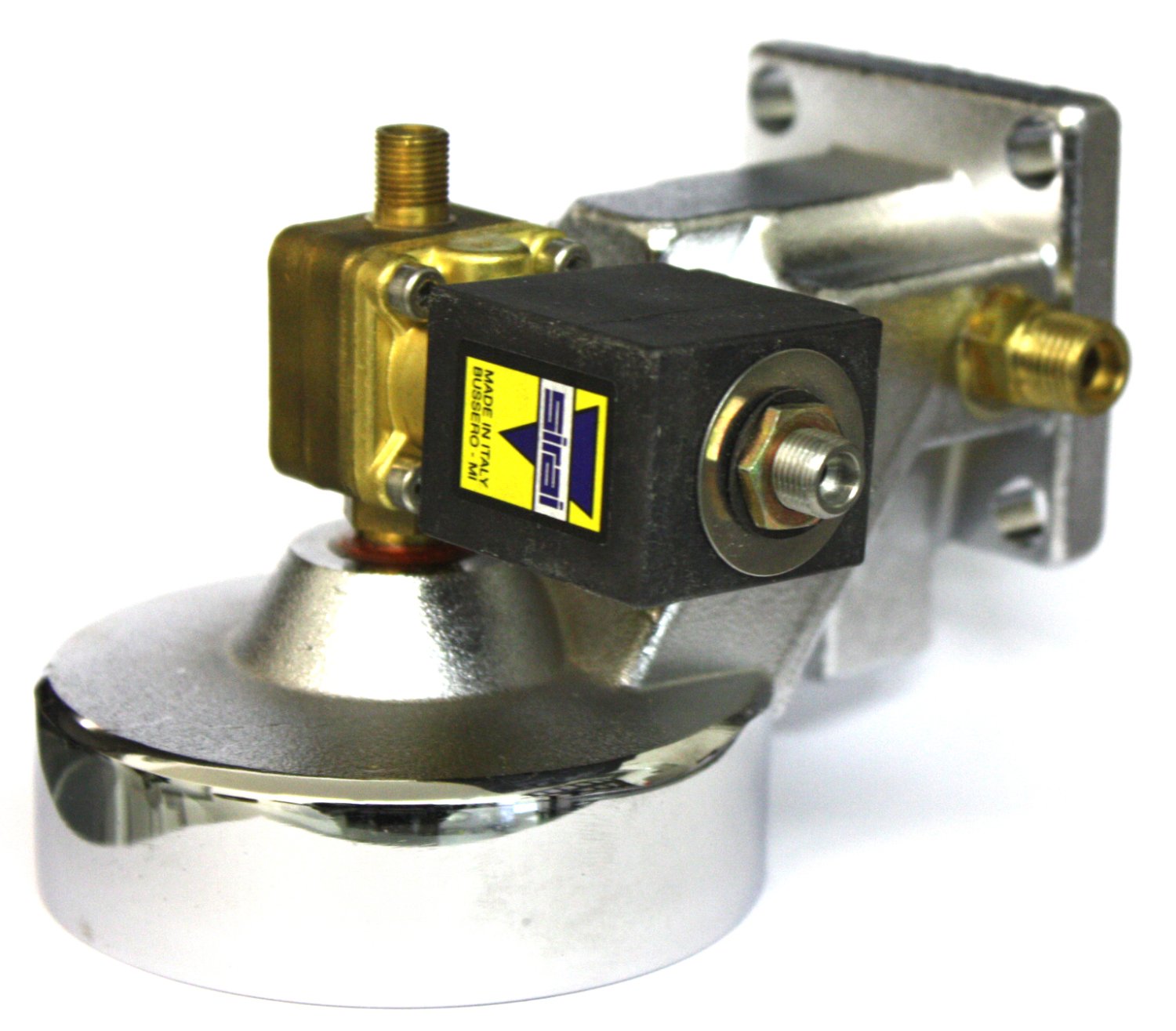

71bruehgruppe gaggia e90 d90 komplett 230v8061012
Brühgruppe Gaggia E90 D90 komplett 230V
249,90 €

excl. Shipping costs
Delivery time
is determined
73red silicone o ring r5 gasket8001809
RED SILICONE O-RING R5 GASKET
1,34 €

excl. Shipping costs
immediately available
74fitting o 1 48005710
Fitting ø 1/4
3,64 €

excl. Shipping costs
immediately available, 14 available
75silikondichtung dichtung fuer siebtraeger o 72x57x8 5 mm8280456
Silikondichtung Dichtung für Siebträger ø 72x57x8,5 mm
5,50 €

excl. Shipping costs
immediately available, 10 available
75filter holder gasket o 73x57x9 mm8001904
FILTER HOLDER GASKET ø 73x57x9 mm
3,99 €

excl. Shipping costs
immediately available
75filter holder gasket o 72x57x8 5 mm8001920
FILTER HOLDER GASKET ø 72x57x8,5 mm
7,31 €

excl. Shipping costs
immediately available
77shower holder diffuser8000643
SHOWER HOLDER DIFFUSER
22,99 €

excl. Shipping costs
immediately available, 6 available
77original gaggia duschentraeger edelstahl8280880
Original Gaggia Duschenträger Edelstahl
41,53 €
41,53 €

excl. Shipping costs
immediately available, 1 available
78low cylinder head screw m6x10 uni 93278001293
LOW CYLINDER HEAD SCREW M6x10, UNI 9327
2,49 €

excl. Shipping costs
immediately available
79shower screen o 55 mm8000563
SHOWER SCREEN ø 55 mm
5,22 €

excl. Shipping costs
immediately available, 11 available
80countersunk head screws with shell m5x128007318
COUNTERSUNK HEAD SCREWS WITH SHELL M5x12
0,62 €

excl. Shipping costs
immediately available

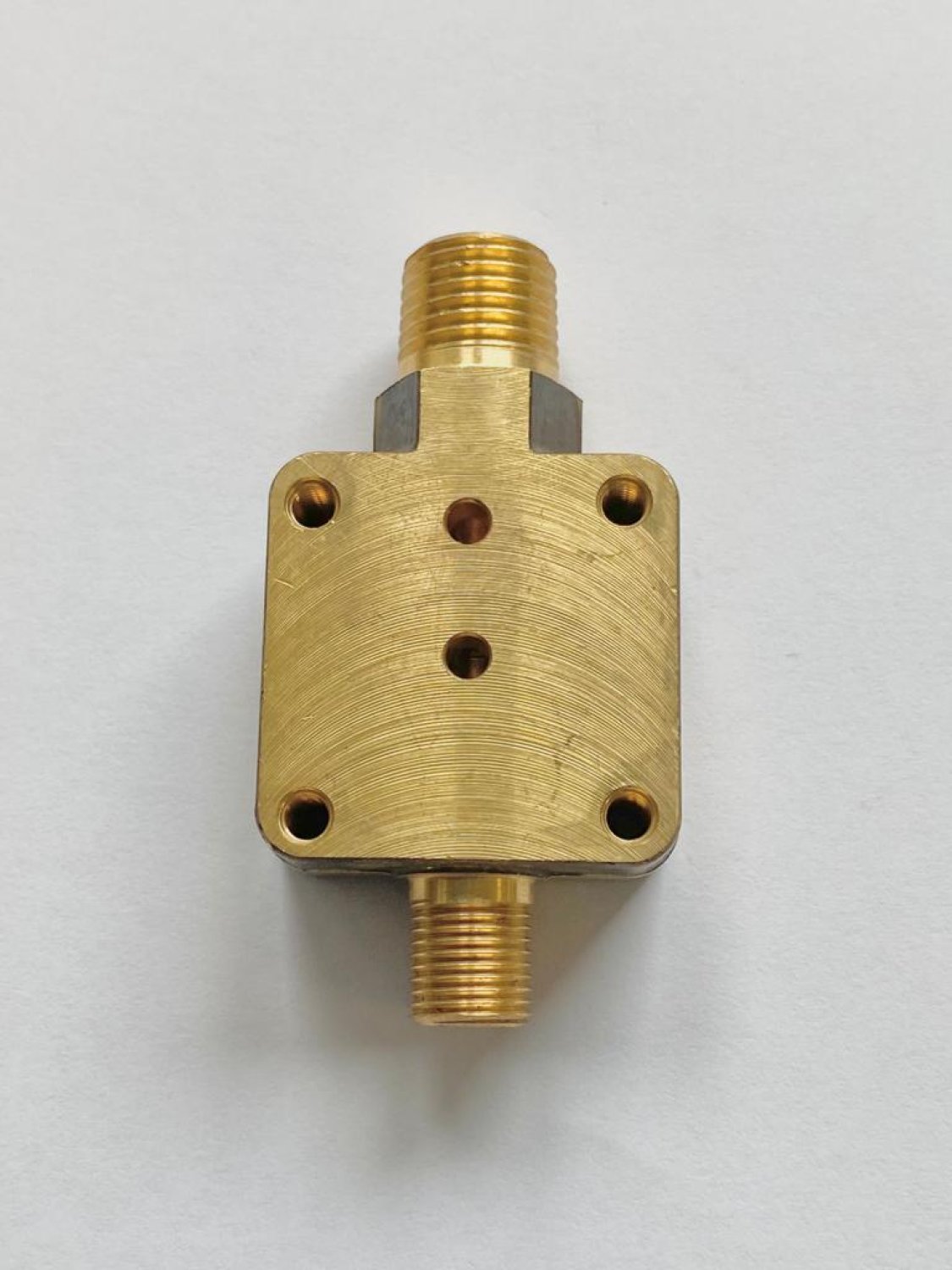

81gaggia sockel fuer magnetventil8101690
Gaggia Sockel für Magnetventil
52,36 €

excl. Shipping costs
immediately available, 2 available
823 way solenoid valve parker 230v 50 60hz8000967
3-WAY SOLENOID VALVE PARKER 230V 50/60Hz
52,35 €

excl. Shipping costs
immediately available, 10 available
82parker 3 wege magnetventil gaggia elektra8035604
Parker 3 WEGE Magnetventil Gaggia Elektra
45,02 €

excl. Shipping costs
immediately available, 4 available
85filter blocking spring o 1 3 mm8066395
FILTER BLOCKING SPRING ø 1.3 mm
2,76 €

excl. Shipping costs
immediately available, 17 available
86filter holder gaggia saeco8001187
FILTER HOLDER GAGGIA/SAECO
27,37 €

excl. Shipping costs
immediately available, 2 available
88low cylinder head screw m4x128001290
LOW CYLINDER HEAD SCREW M4x12
2,24 €

excl. Shipping costs
immediately available
95double spout8000123
DOUBLE SPOUT
6,77 €

excl. Shipping costs
immediately available, 4 available
96straight single spout o 3 88000112
STRAIGHT SINGLE SPOUT ø 3/8
4,09 €

excl. Shipping costs
immediately available, 5 available
97double spout o 3 8 rime 8000115
Double Spout ø 3/8″
5,95 €

excl. Shipping costs
immediately available, 9 available
98single spout o 3 88000110
SINGLE SPOUT ø 3/8
6,06 €

excl. Shipping costs
immediately available, 15 available
100waermetauscher verteiler gaggia d90 e90 nicht mehr lieferbar 8062620
WÄRMETAUSCHER VERTEILER GAGGIA D90-E90 (nicht mehr lieferbar)
This article is no longer available
101filter gaggia duese gruppe8037180
Filter Gaggia Düse Gruppe
5,03 €

excl. Shipping costs
Delivery time
is determined
103paper shim o 73x59x0 8 mm8002167
Paper shim ø 73x59x0,8 mm
0,49 €

excl. Shipping costs
immediately available
104rubber shim o 73 5x59x1 mm epdm8002168
RUBBER SHIM ø 73,5x59x1 mm EPDM
1,05 €

excl. Shipping costs
immediately available
105blind filter o58mm8001103
BLIND FILTER Ø58mm
2,56 €

excl. Shipping costs
immediately available
1061 cup filter 7 gr8001080
1 CUP FILTER 7 gr
5,45 €

excl. Shipping costs
immediately available, 11 available
1072 cup filter 14 grams8001081
2-CUP FILTER 14 GRAMS
5,46 €

excl. Shipping costs
immediately available, 6 available
1081 cup filter 6 g8001076
1 CUP FILTER 6 g
5,41 €

excl. Shipping costs
immediately available, 9 available

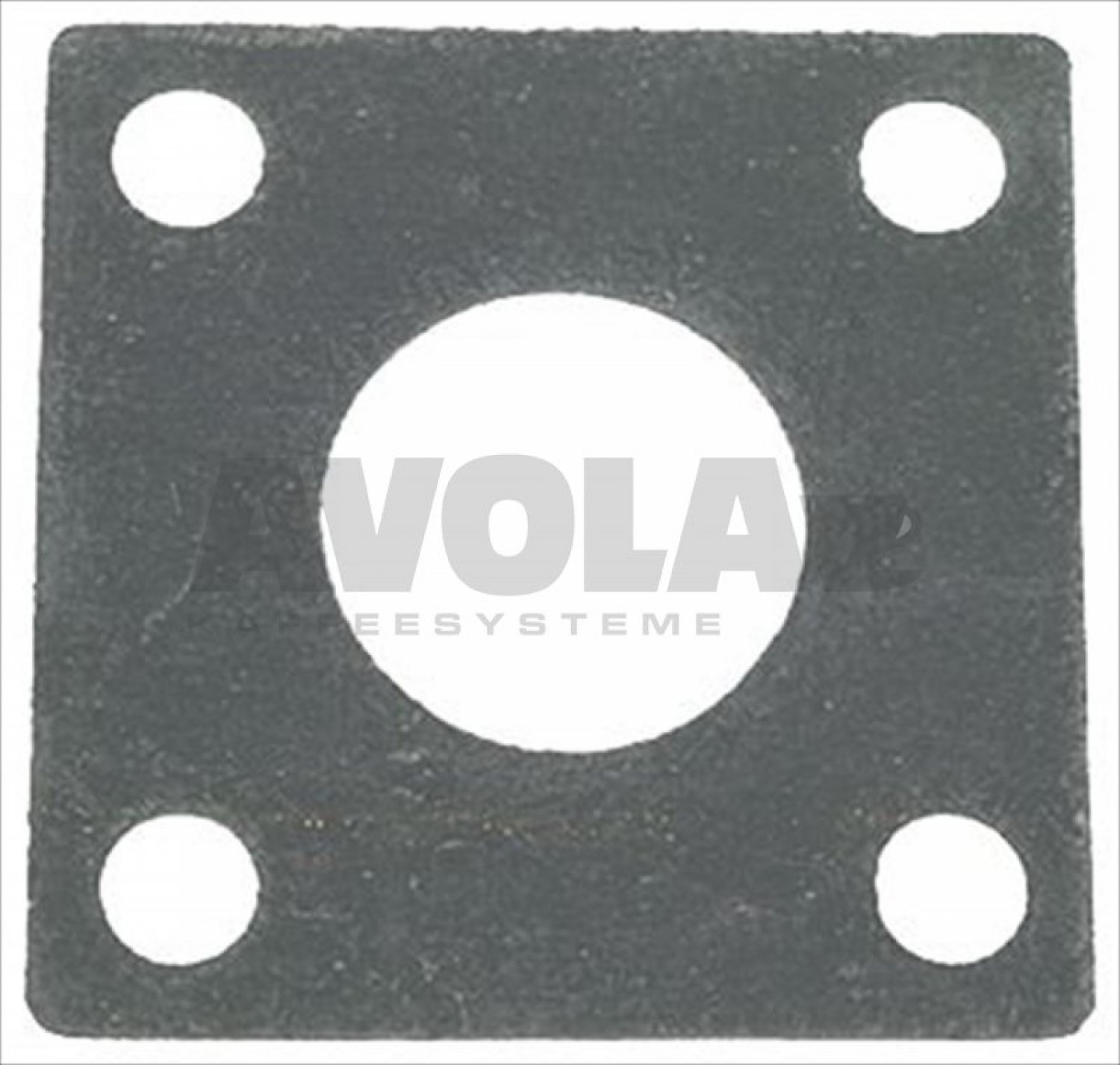

110gaggia coffee group gasket 68x68x2 mm8001744
GAGGIA COFFEE GROUP GASKET 68x68x2 mm
7,24 €

excl. Shipping costs
immediately available, 5 available

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
