GAGGIA - GE-GD EINLAUFHAHN UND MOTOR

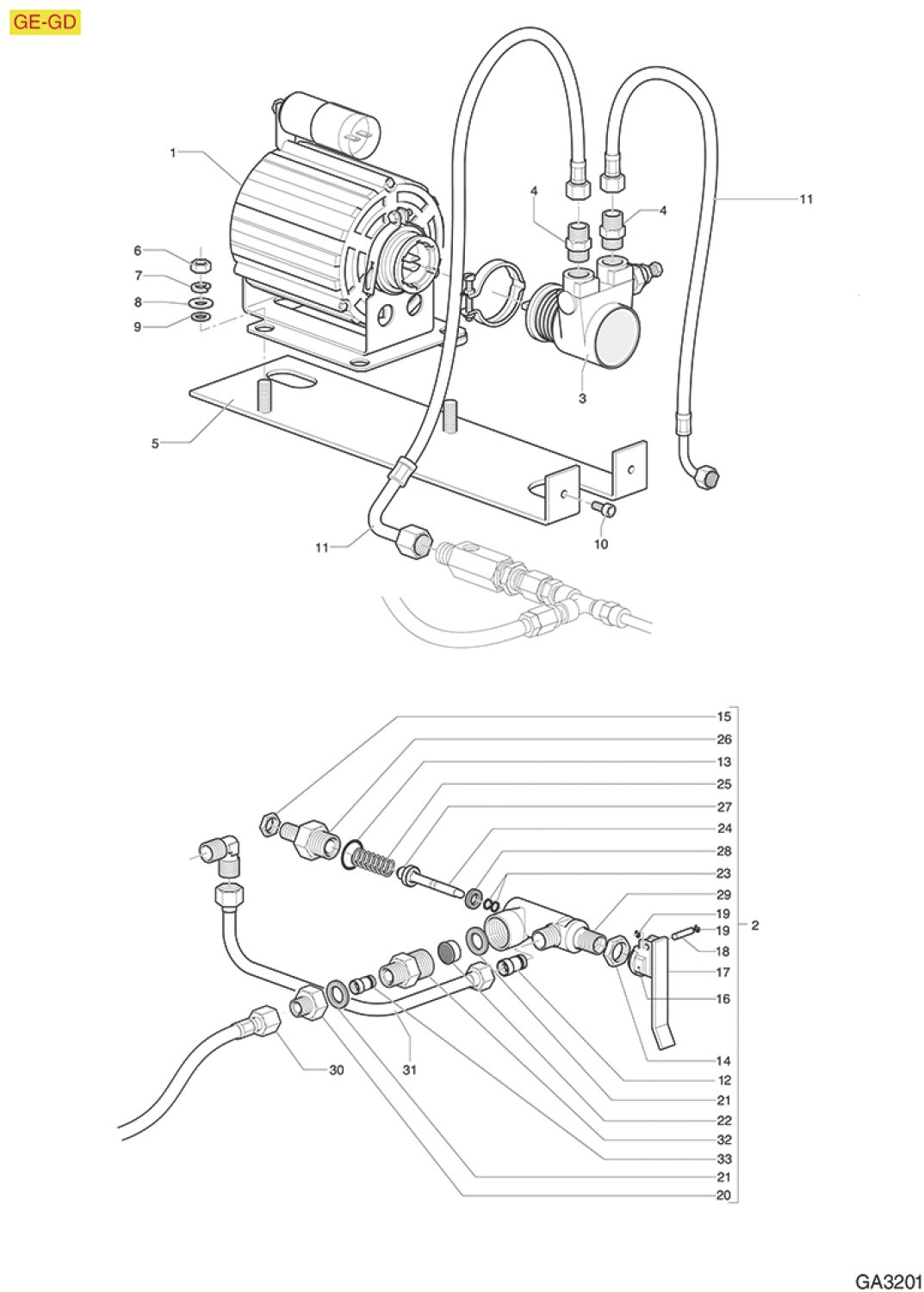

Drawing number 8062896

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.:Image:Description:Qty.:
1rpm clamp motor 165w8062890
RPM CLAMP MOTOR 165W
273,39 €

excl. Shipping costs
Delivery time 4-6 weeks

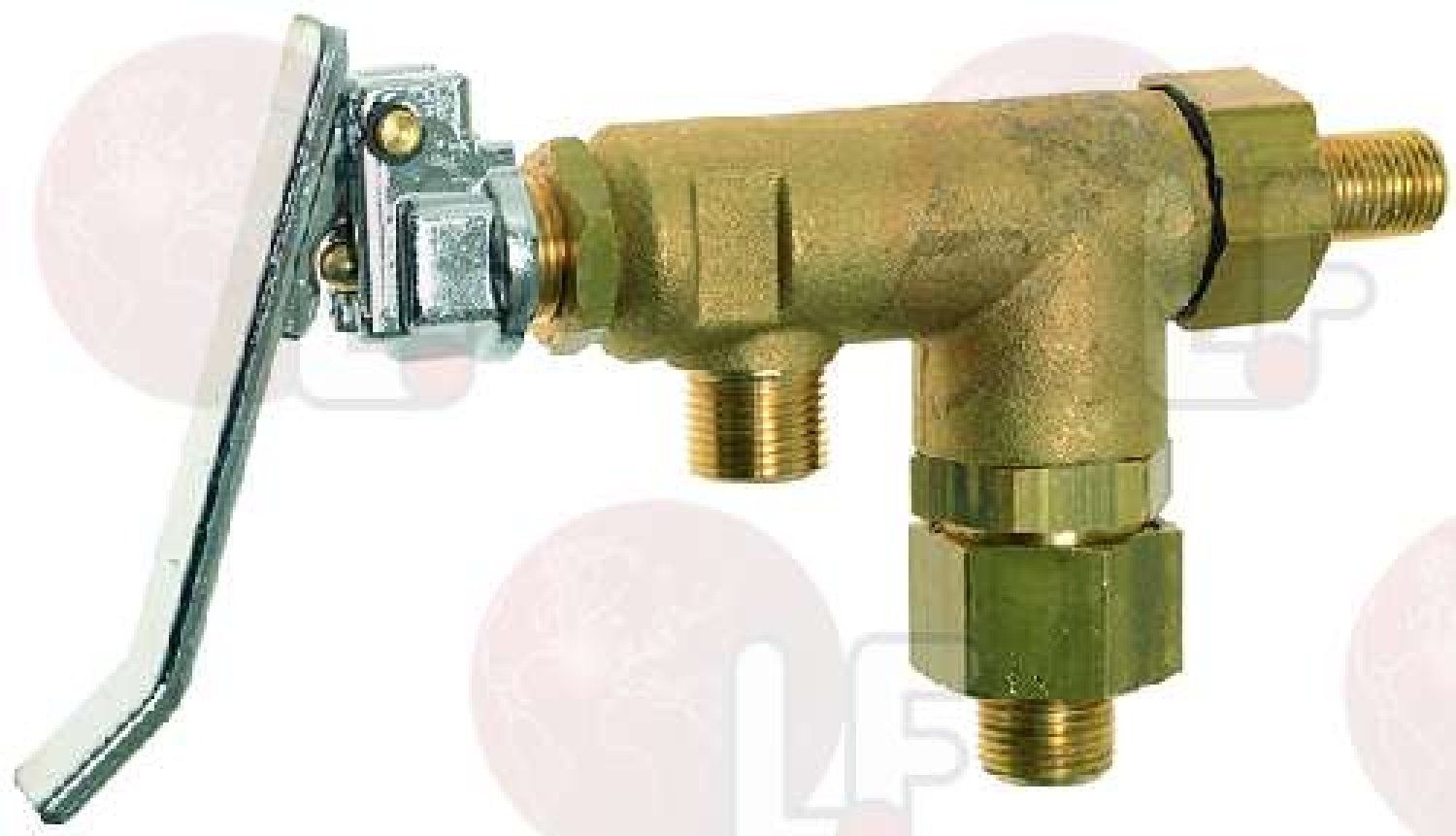

2wassereinlaufhahn komplett8062907
WASSEREINLAUFHAHN KOMPLETT
128,71 €

excl. Shipping costs
Delivery time
is determined
3rotary vane pump rotoflow8005224
ROTARY VANE PUMP ROTOFLOW
88,00 €

excl. Shipping costs
immediately available, 1 available
4fitting8005720
FITTING
3,50 €

excl. Shipping costs
immediately available, 11 available

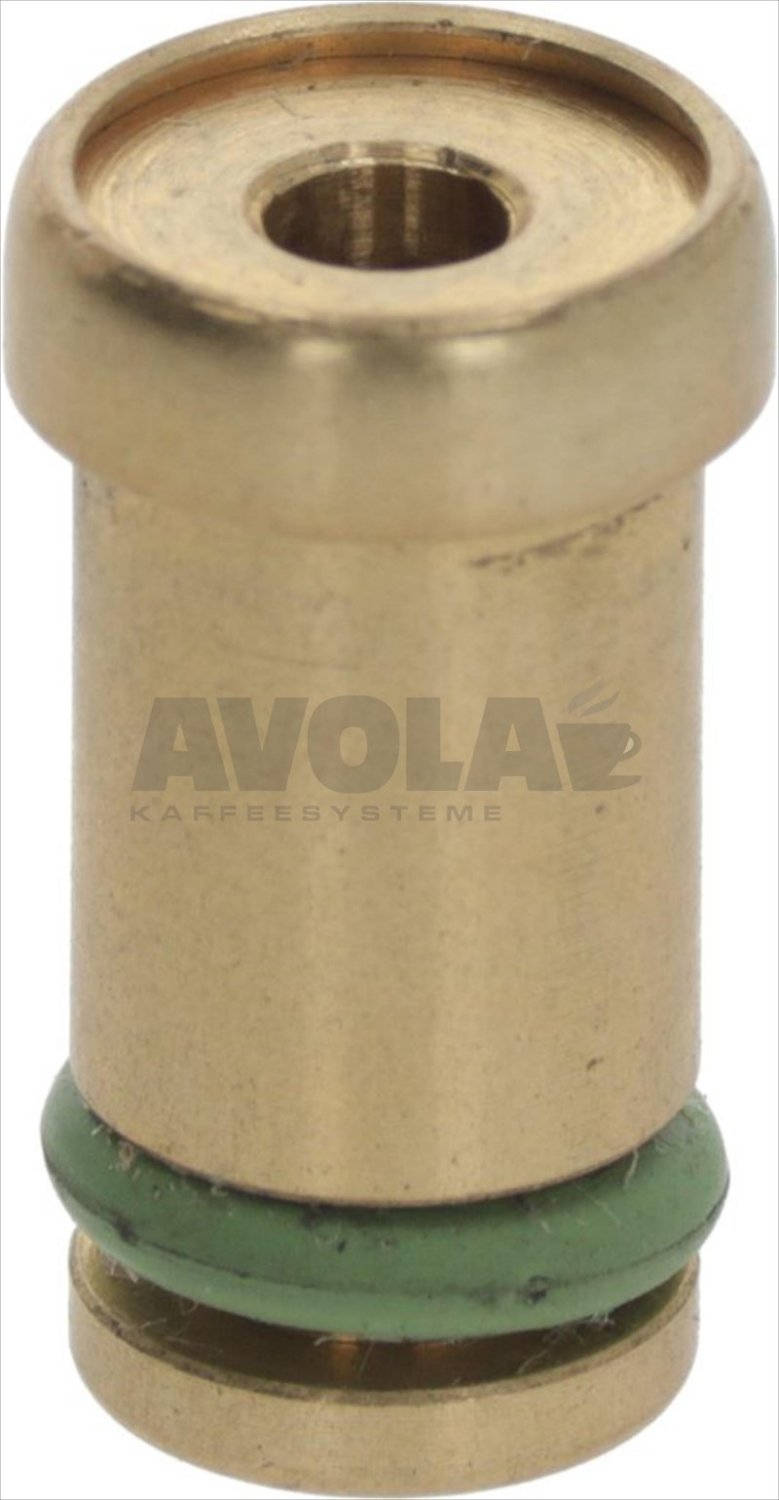

12check valve8062906
CHECK VALVE
24,68 €

excl. Shipping costs
Delivery time
is determined
13o ring 03068 epdm8014713
O-RING 03068 EPDM
1,29 €

excl. Shipping costs
immediately available
14nut8005455
NUT
3,38 €

excl. Shipping costs
immediately available, 7 available
15lock nut 1 48007385
LOCK NUT 1/4
2,40 €

excl. Shipping costs
immediately available, 5 available

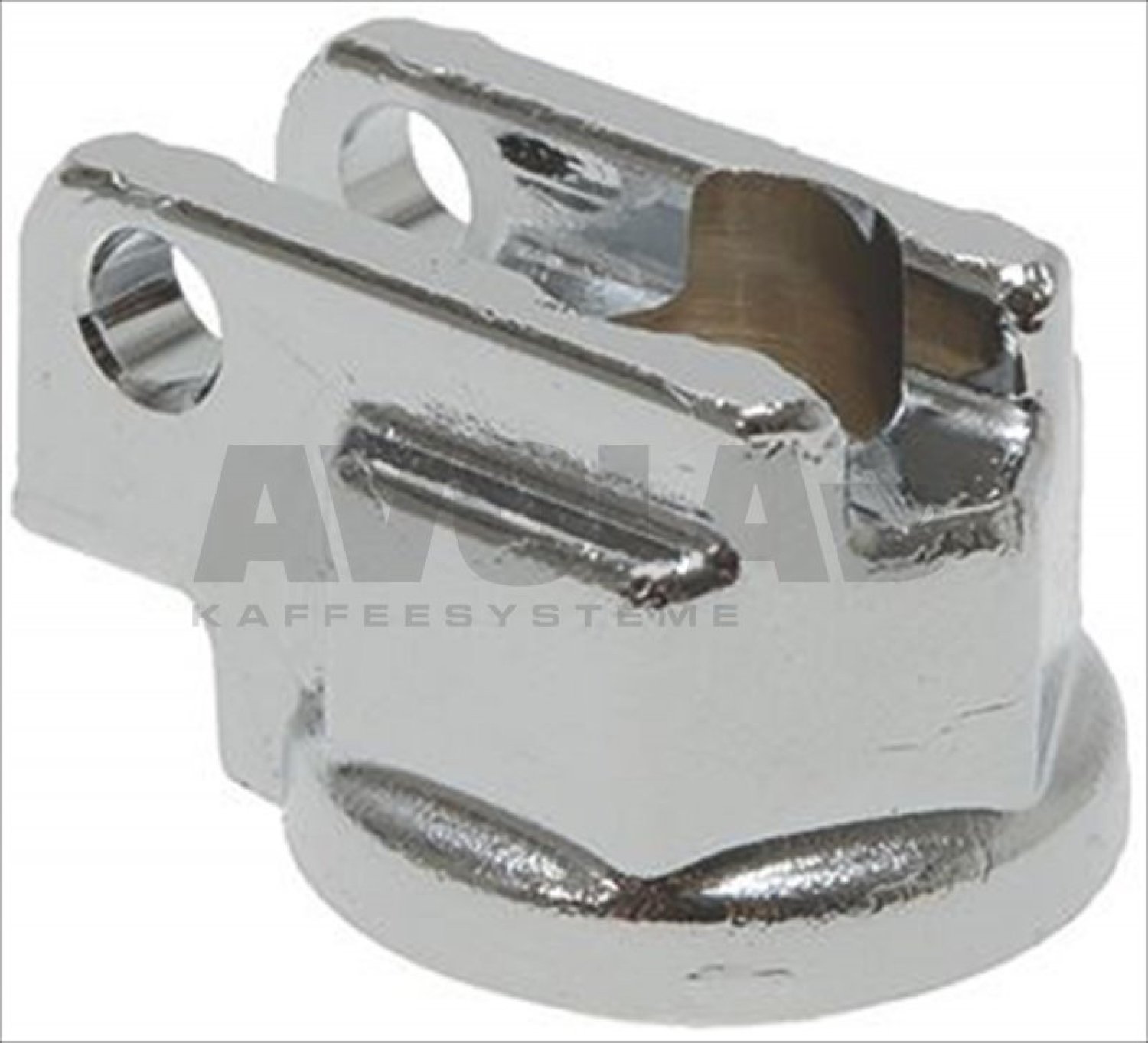

16nut for inlet tap lever8062905
NUT FOR INLET TAP LEVER
21,18 €

excl. Shipping costs
Delivery time 4-6 weeks
17inlet tap lever8003237
INLET TAP LEVER
This article is no longer available

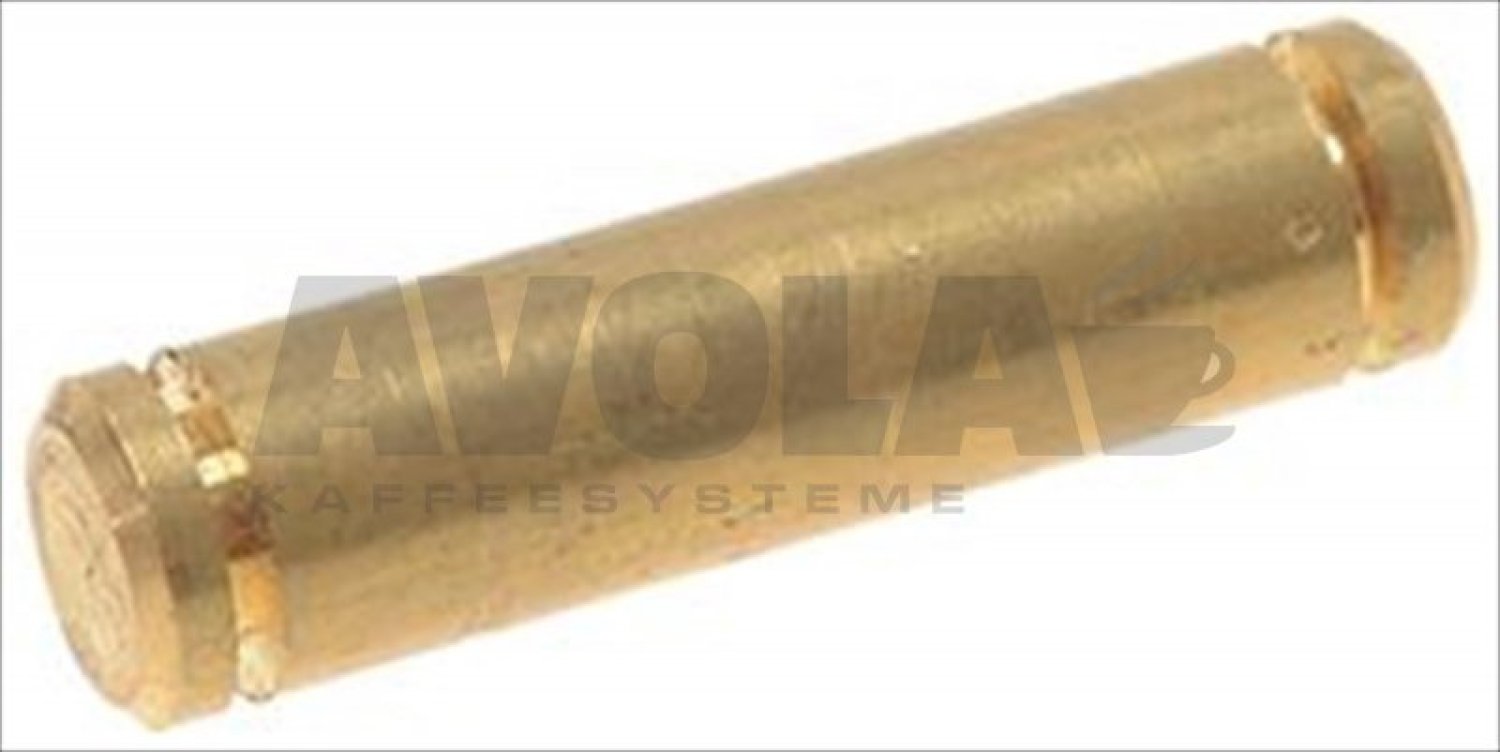

18pin8062903
PIN
7,02 €

excl. Shipping costs
Delivery time 4-6 weeks

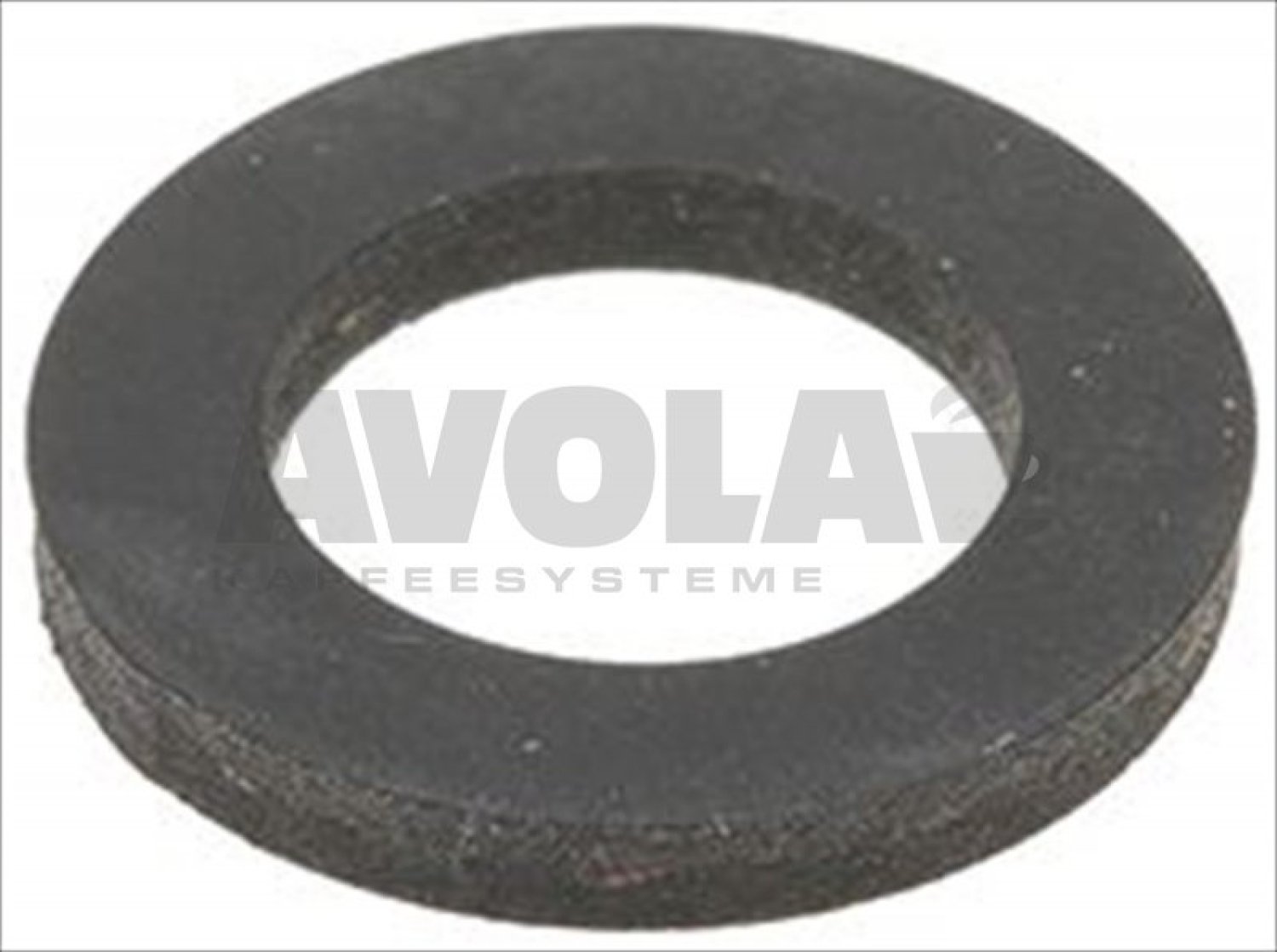

21flat gasket epdm o 24x15x3 mm8062904
FLAT GASKET EPDM ø 24x15x3 mm
2,81 €

excl. Shipping costs
immediately available, 10 available
22water pipe nozzle8006736
WATER PIPE NOZZLE
4,57 €

excl. Shipping costs
immediately available, 8 available
23o ring 02015 viton8002064
O-RING 02015 VITON
1,06 €

excl. Shipping costs
immediately available
28flat gasket viton o 15x7x3 mm8002140
FLAT GASKET VITON ø 15x7x3 mm
5,31 €

excl. Shipping costs
immediately available, 7 available

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
