Gaggia

GAGGIA - TS WASSER-DAMPFHÄHNE

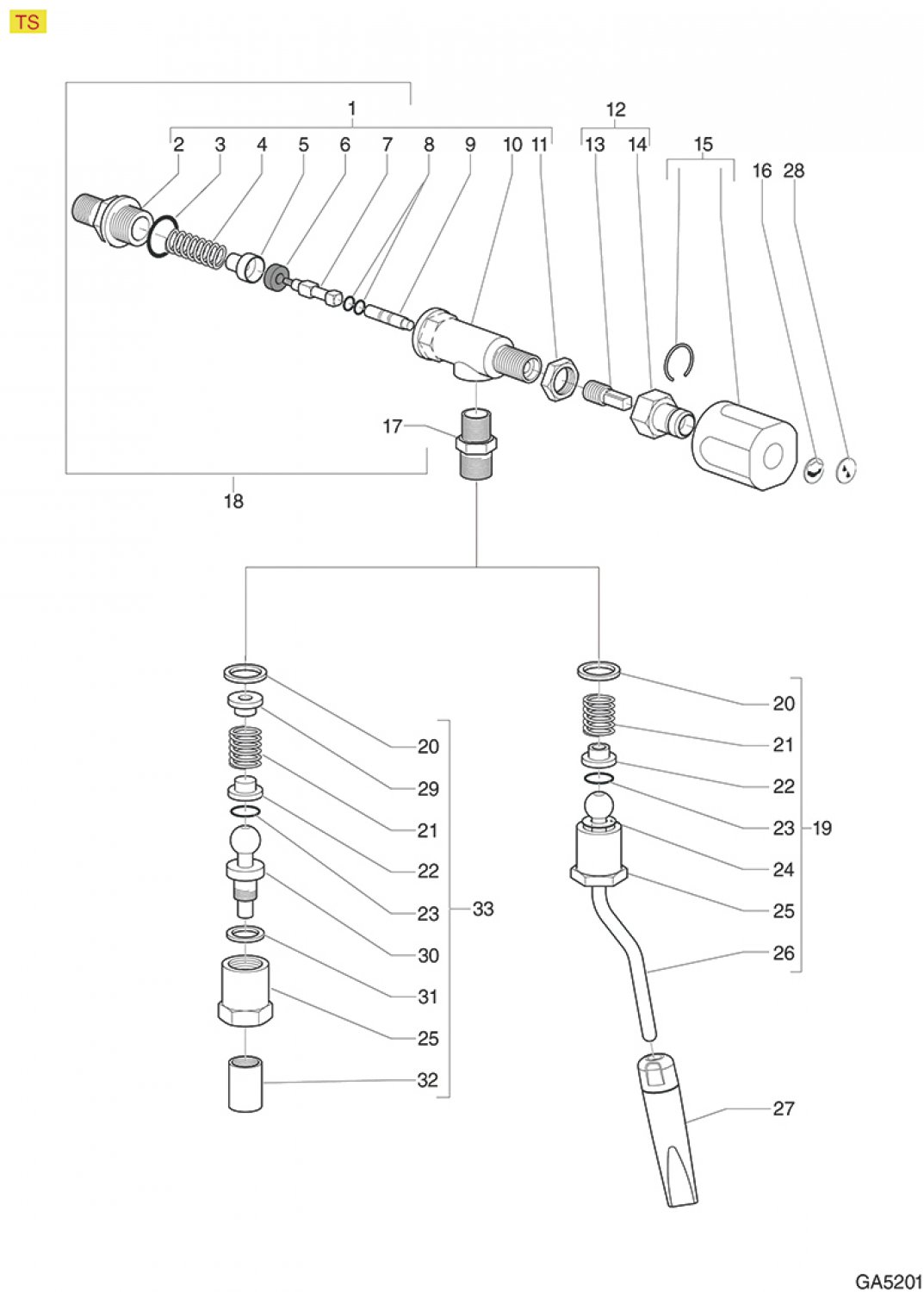

Drawing number 8063093

Under the exploded drawing you can order individual items.
If your article is not listed, please use the following form and enter the desired position numbers.

Request for unlisted item numbers.

Pos.: Image: Description: Qty.:
1gaggia water steam tap 8005589
Gaggia WATER/STEAM TAP
35,70 €

excl. Shipping costs

immediately available, 1 available
3o ring 0128 viton 8001794
O-RING 0128 VITON
1,68 €

excl. Shipping costs

immediately available
4spring o 14x33 mm 8035301
SPRING ø 14x33 mm
2,59 €

excl. Shipping costs

immediately available, 4 available
5dichtungstraeger o 17 8063095
Dichtungsträger ø 17
4,15 €

excl. Shipping costs

immediately available, 3 available
6flat epdm gasket 8002142
FLAT EPDM GASKET
1,37 €

excl. Shipping costs

immediately available, 15 available
7water steam tap pin 8062623
WATER/STEAM TAP PIN
7,33 €

excl. Shipping costs

immediately available, 3 available
8o ring 02015 fkm 8002064
O-RING 02015 FKM
1,06 €

excl. Shipping costs

immediately available
11nut 8005455
NUT
3,38 €

excl. Shipping costs

immediately available, 13 available
12water steam tap knob 8062622
WATER/STEAM TAP KNOB
This article is no longer available
13steam tap spindle 8005157
STEAM TAP SPINDLE
57,43 €

excl. Shipping costs

Delivery time
is determined
14steam tap extension 8006394
STEAM TAP EXTENSION
This article is no longer available
15water steam tap knob 8062622
WATER/STEAM TAP KNOB
This article is no longer available

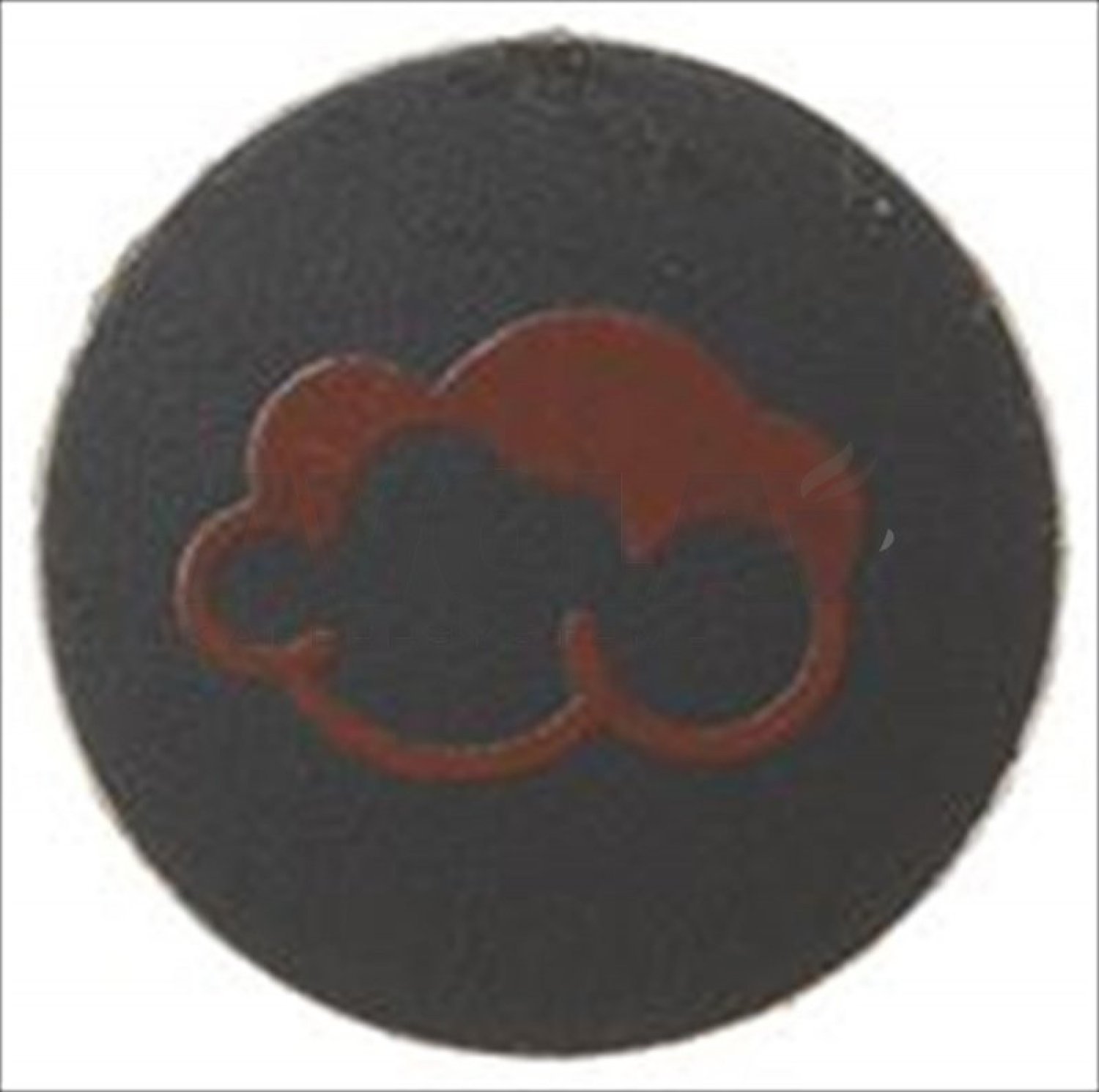

16steam silk screen printing for knob 8063096
STEAM SILK SCREEN PRINTING FOR KNOB
7,62 €

excl. Shipping costs

Delivery time 4-6 weeks..

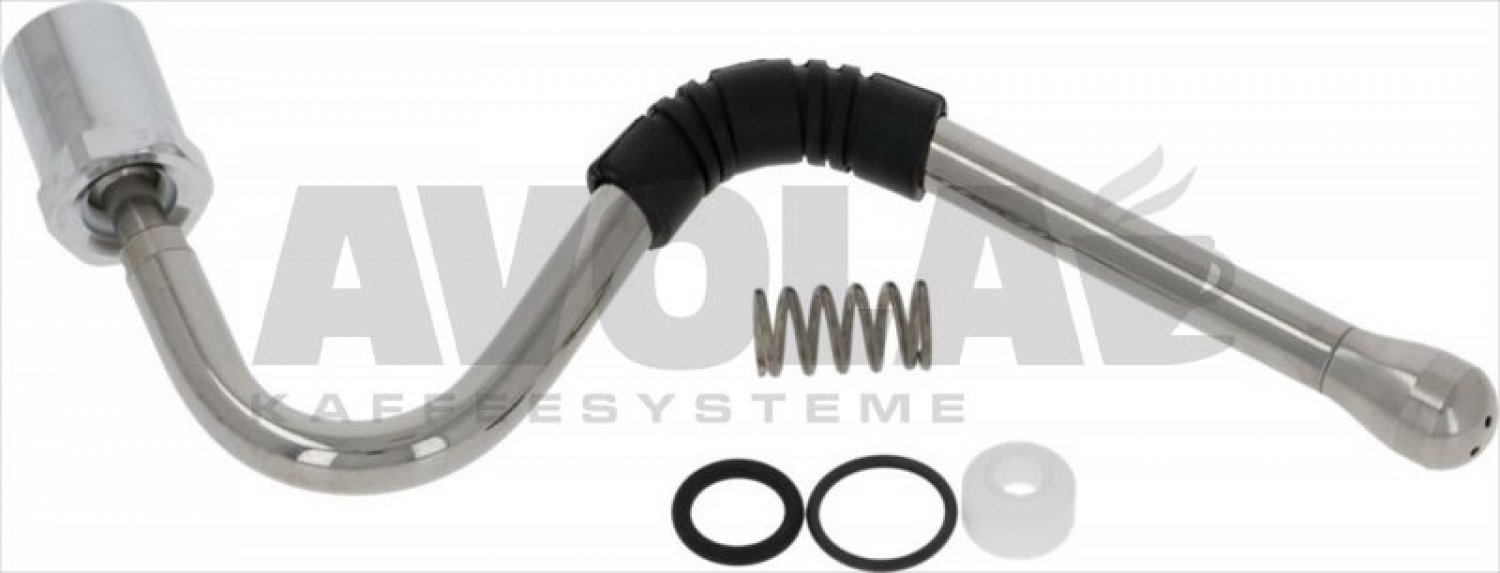

19steam pipe complete o 10 mm 8063097
STEAM PIPE COMPLETE ø 10 mm
This article is no longer available
20o ring 02062 green viton 8064352
O-RING 02062 GREEN VITON
2,43 €

excl. Shipping costs

immediately available, 20 available
21spring o 12x22 mm 8003818
SPRING ø 12x22 mm
3,03 €

excl. Shipping costs

immediately available, 2 available
23o ring 0114 epdm 8001820
O-RING 0114 EPDM
0,60 €

excl. Shipping costs

immediately available
24o ring 0115 viton 8001890
O-RING 0115 VITON
1,49 €

excl. Shipping costs

immediately available
27plastic pannarello 8047378
PLASTIC PANNARELLO
10,00 €

excl. Shipping costs

immediately available, 4 available

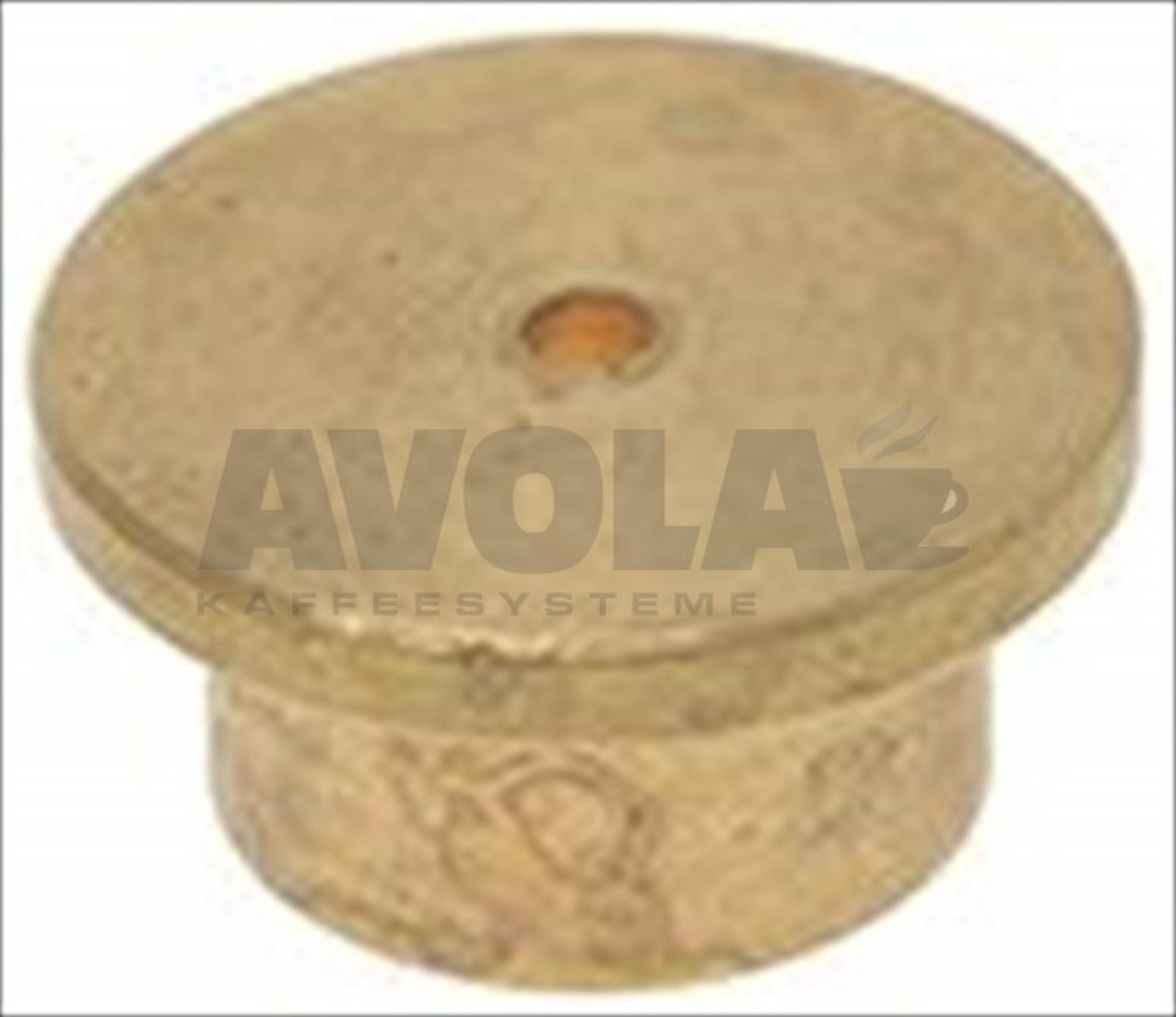

29spring bushing 8063098
SPRING BUSHING
6,27 €

excl. Shipping costs

Delivery time 4-6 weeks..

If your article is not listed, please use the following form and enter the desired numbers.

Request for unlisted item numbers.
